The Development of Advanced Optical Fibers for Long-Wave Infrared Transmission

1
Department of Materials Science and Engineering, University of Arizona, Tucson, AZ 85712, USA
2
Laboratoire des Verres et Ceramiques, UMR-CNRS 6226, Universite de Rennes 1, 35042 Rennes, France
3
ICMCB/CNRS University of Bordeaux, 87 Avenue du Dr. Schweitzer, 33608 Pessac, France
4
LARMAUR ERL CNRS 6274, Université de Rennes 1, Campus de Beaulieu, 35042 Rennes Cedex, France
*
Author to whom correspondence should be addressed.
Fibers 2013, 1(3), 110-118; https://doi.org/10.3390/fib1030110
Submission received: 15 November 2013 / Revised: 10 December 2013 / Accepted: 11 December 2013 / Published: 17 December 2013
(This article belongs to the Special Issue Advances on Optical Fibers)

Abstract

:
Long-wave infrared fibers are used in an increasing number of applications ranging from thermal imaging to bio-sensing. However, the design of optical fiber with low-loss in the far-infrared requires a combination of properties including good rheological characteristics for fiber drawing and low phonon energy for wide optical transparency, which are often mutually exclusive and can only be achieved through fine materials engineering. This paper presents strategies for obtaining low loss fibers in the far-infrared based on telluride glasses. The composition of the glasses is systematically investigated to obtained fibers with minimal losses. The fiber attenuation is shown to depend strongly on extrinsic impurity but also on intrinsic charge carrier populations in these low band-gap amorphous semiconductor materials.

1. Introduction

Glass fibers with optical windows extending into the infrared domain are in demand for an increasing number of applications ranging from bio-medical sensing to defense. In particular, infrared fibers with transmission down to the long-wave infrared up to 16 microns are of special interest for applications such as micro-organism detection [1,2,3], environmental monitoring [4,5,6], medical diagnostic [7,8], thermal imaging through fiber bundles [9], laser surgery delivery at 10.6 microns [10], CO2 gas monitoring for space exploration [11,12,13] as well as optical communication in the second atmospheric window at 8–12 microns.
Chalcogenide glasses are composed of heavy elements such as S, Se and Te that result in low phonon energies and consequently push the optical cut-off far into the infrared up to 25 microns [11,13,14]. In addition, these materials have excellent resistance against crystallization and can be molded or drawn into complex shapes to produce optical elements such as fibers and lenses [15]. Overall, chalcogenide glasses are the only class of amorphous materials that combine far infrared transparency and good rheological properties. Among chalcogenide glasses, sulfur-based compositions have the shorter optical cut-off around 10 microns due to their lighter elemental mass [16]. Selenide-based glasses have a longer transmission up to 16 microns but for far-infrared applications tellurides are the optimal choice with transmissions up to 25 microns [11]. In the fiber form, residual absorptions on the edges of the optical window play an important role, which significantly reduces the effective width of the transparency domain for transmission over long distances. Nevertheless, high purity telluride fibers permit effective low-loss transmission past 10 microns [14,17,18,19,20,21].
The fine balance between far-infrared optical cut-off, good rheological properties and thermal stability can be tuned through appropriate compositional engineering of the glass matrix. While elemental tellurium is not intrinsically a glass-forming material, it can be combined with neighboring elements to improve its resistance to crystallization while retaining its wide optical transparency [17]. Initial attempts at improving telluride glass properties involved the so-called “TeX” fiber where large amounts of heavy, monovalent halide elements were introduced in the glass compositions [22,23,24]. However, the resulting low structural connectivity leads to low glass transition temperatures Tg which limited their practical applications. In this paper, we review some recent materials engineering approaches aimed at optimizing the width of the optical window and the rheological properties of telluride glasses for the fabrication of long wave transmitting fibers. The attenuation of telluride fibers with optimized compositions is presented.

2. Experimental Section

2.1. Material Preparation

Telluride glasses are synthesized from high purity (6N) elements introduced in silica ampoules under high vacuum (~10−5 Torr). All materials are initially stored in controlled atmosphere and tellurium is first etched with hydrobromic acid to remove surface oxide before introduction in the reaction tube. In order to further remove any oxide impurity, the components are mixed with an oxygen getter such as metallic aluminum. After reaction, the resulting glass is distilled and further homogenized by heating up to 750 °C at 5 °C/min in a rocking furnace and held at that temperature for 12 h. For glass containing gallium, the distillation step is not possible due to the extremely low vapor pressure of gallium. In this case, as received pure elements are used. After homogenization the glass melts are cooled to 600 °C and the ampoules are held vertically before quenching in water. The glasses are then annealed near Tg for 2 h to remove internal stress and slowly cooled to room temperature. The resulting glasses are inspected by X-Ray diffraction to ensure of their amorphous nature. The glass transition temperature Tg and crystallization temperature Tx are characterized by differential scanning calorimetry (DSC) to estimate the materials stability against crystallization. DSC measurements are performed using ~10 mg of glass sample introduced in a sealed aluminum pan and heated at a rate of 10 °C/min. The Tg is estimated as the onset of the endothermic heat capacity jump while the Tx is estimated as the onset of the exothermic crystallization peak. The rods produced this way are used as preforms for fiber drawing.

2.2. Fiber Preparation

Single-index fibers are produced from 7 mm diameter preforms using a custom-built fiber drawing tower with a narrow ring heater. The preforms are heated above Tg under a flow of helium and drawn under controlled tension to adjust the diameter to fixed value ranging between 100–300 microns. The fibers are then directly rolled onto polystyrene cylinders.
The optical properties of the resulting fibers are characterized using an FTIR spectrometer Tensor 27 from Bruker equipped with a fiber coupling attachment using gold coated concave mirrors and an external Mercury-Cadmium-Telluride (MCT) detector. The fiber attenuations are measured using the cut-back method over the full infrared range. The typical fiber diameter used for loss measurement was ~250 microns

3. Results and Discussion

In contrast to selenium, tellurium does not vitrify in the elemental form but instead crystallizes into a semimetallic solid with hexagonal structure [25,26]. The metallic character of tellurium results from significant p-orbital overlap [27] which promotes the formation of periodic helicoidal chains and prevents the structural disorder required for glass formation. The addition of higher valence elements such as germanium or gallium is therefore necessary to cross-link the structure into a random covalent network and mitigate the metallic character.

3.1. Tellurium-Germanium-Gallium Fibers

The addition of gallium and germanium into tellurium is indeed shown to markedly improve the glass-formation tendency [13]. The resulting structure is composed of interconnected GaTe4 and GeTe4 tetrahedra which form a flexible three dimensional network conducive to glass-formation [28]. These glasses have relatively high Tg in the range 135–185 °C and show good resistance against crystallization with values of ΔT = TxTg as high as 113 °C for the Ge15Ga10Te75 composition. These values of ΔT are notably larger than that of gallium free GeTex glasses which exhibit values near ΔT~70 °C. This demonstrates that gallium atoms play a major role in the stabilization of the amorphous structure of these materials.
The range of ΔT of Ge-Ga-Te is sufficient for the production of glass fiber without formation of crystallite which can induce significant scattering and be detrimental for optical attenuations. The production of single index optical fibers was therefore attempted using the glass of composition Ge15Ga10Te75 with the largest ΔT in the Ge-Ga-Te system. Figure 1 shows the attenuation curve measured by the cut-back method on a small section of fiber. The attenuation is relatively high with a minimum of 40 dB/m near 12–13 microns. The source of these fairly high losses is most likely due to a combination of intrinsic and extrinsic factors. The intrinsic losses are likely the results of large background absorptions due to the presence of free charge carriers. Indeed it has been demonstrated that low band-gap glasses contain a large population of thermally excited charge carriers which induces optical absorption that increase exponentially with temperature [29]. Very low band-gap energies which lead to high electrical conductivity are therefore detrimental to optical properties. Extrinsic losses on the other hand are likely due to impurity absorption resulting from the fact that gallium containing glasses cannot be purified in-situ by distillation. The presence of oxygen, water or carbon impurities result in significant losses within the optical window, as is well known in chalcogenide fibers [30]. These two sources of optical losses impose severe limitation on the potential of Ge-Ga-Te fibers for low-loss glass fibers hence novel strategies have been investigated to obtain glasses with improved transparency.

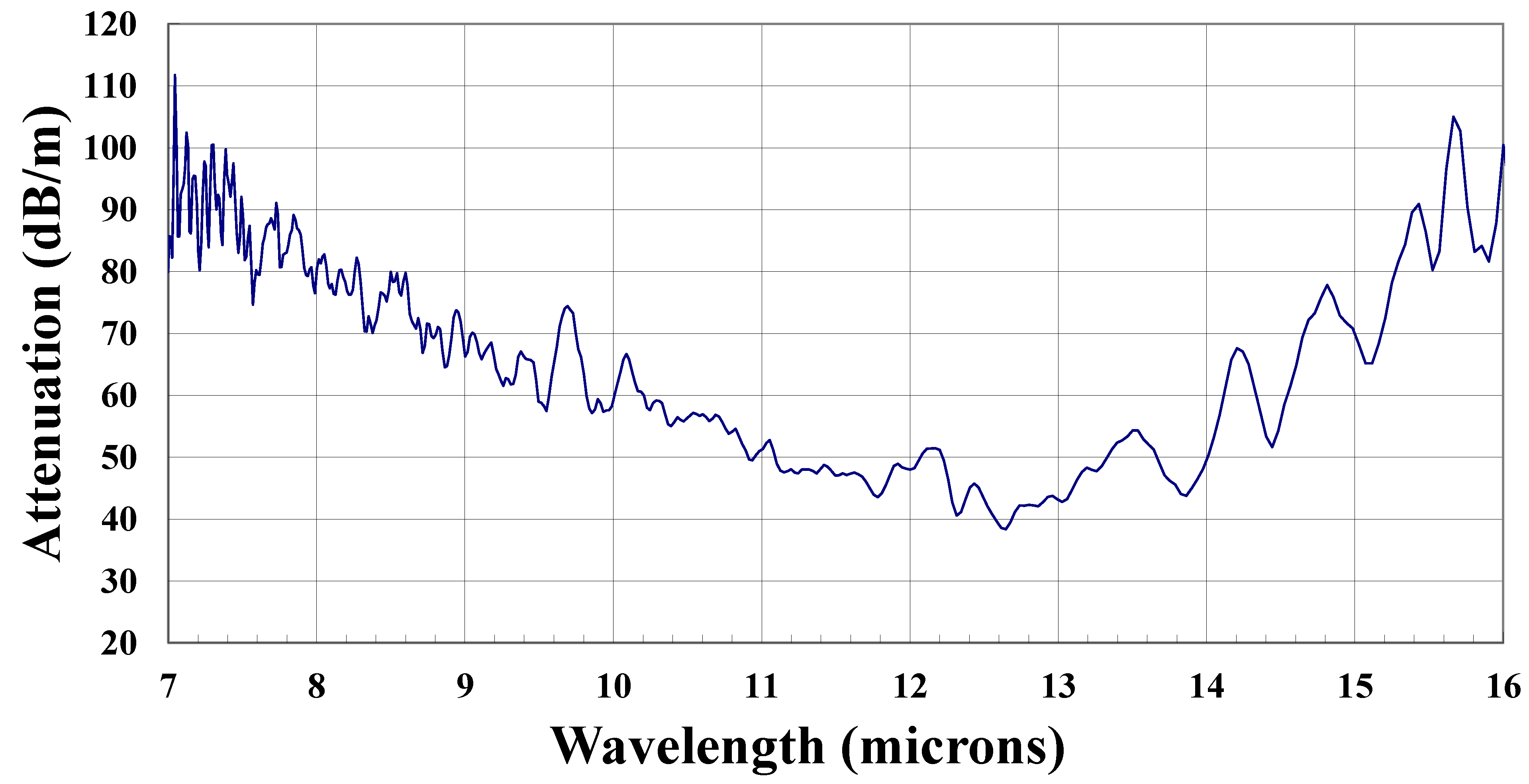

Figure 1. Attenuation curve of a Ge15Ga10Te75 glass fiber showing minimum loss around 12–13 microns.
Figure 1. Attenuation curve of a Ge15Ga10Te75 glass fiber showing minimum loss around 12–13 microns.
Fibers 01 00110 g001

3.2. Tellurium Germanium Iodine Fibers

In order to mitigate the sources of optical losses associated with impurities, gallium-free glasses that can undergo in-situ distillation were developed. As mentioned previously, one of the most beneficial functions of gallium was to stabilize the amorphous network against crystallization relative to pure GeTex glasses. The removal of gallium must therefore be compensated by addition of other elements that can modify and reduce the rigidity of the Ge-Te network and suppress crystallization. The addition of monovalent iodine can serve such a purpose by reducing the structural connectivity. Indeed it was shown that the iodine selectively bonds to the germanium atoms thereby producing larger ring structure in the amorphous network [31]. This added structural flexibility effectively suppresses crystallization and ΔT values up to 124 °C can be obtained with addition of only a few percent of iodine [11]. The electronegative nature of iodine may also help widen the band-gap [32] and in turn lower charge carrier absorptions.
Another major advantage of iodine is that it has the same mass as tellurium and consequently does not alter the phonon energy negatively by reducing the cut-off window. These glasses are therefore good candidates for far infrared applications and single index fibers were produced from a Ge19.8Te79.2I1 glass preform with a ΔT = 110 °C. The optical attenuations for this fiber are presented in Figure 2. The minimum losses reach 20 dB/m which constitutes a significant reduction relative to that of the Ge15Ga10Te75 glass. This is likely the result of lower impurity content.
Figure 2. Attenuation curve of a Ge19.8Te79.2I1 glass fiber showing minimum loss around 12 microns.
Figure 2. Attenuation curve of a Ge19.8Te79.2I1 glass fiber showing minimum loss around 12 microns.
Fibers 01 00110 g002
While the substitution of gallium for iodine is beneficial for optical losses, the presence of a volatile species in the reaction mixture poses a significant practical problem during synthesis. Indeed the high vapor pressure of iodine makes it very challenging to control the stoichiometry during purification and distillation as it tends to be pumped out of the reaction chamber. This leads to large variations in compositions that are problematic due to significant changes in physical properties of the glass with only a few percent off stoichiometry. Iodine-free glasses are therefore desirable.

3.3. Tellurium Germanium Selenide Fibers

In order to remove iodine from the glass composition, alternative additives with low coordination and good glass-forming tendency are wanted. As previously mentioned, elemental tellurium does not form glass but its group-VI neighbor, selenium, is a good glass-former in the elemental form or in combination with germanium. For example GeSe4 glasses do not exhibit any crystallization tendency at all. Tellurium and selenium are both divalent hence partial substitution of tellurium by selenium should be easily achievable and could lead to significant improvement of the glass stability against crystallization. Indeed it is shown that addition of selenium widens the glass-formation domain and increases the ΔT value up to 123 °C [18]. These glass compositions should therefore be good candidates for fiber production. In addition, it is well known that selenide glasses have lower band-gap than telluride glasses hence addition of selenium should significantly reduce the charge carrier absorption by raising the band-gap energy [29].
However, while selenium addition appears to be very beneficial for fiber production it should also be noted that the lower mass of selenium atoms should lead to higher phonon energies and may consequently reduce the infrared optical cut-off.
Figure 3 shows the attenuation curve of a Ge21Te76Se3 glass with a ΔT = 123 °C. The minimum attenuations are as low as 7 dB/m in the 10–11 microns region. Another significant feature is that the optical cut-off has shifted from about 14 to 12 microns as expected from the higher phonon energy of selenium. The low background absorption also indicates that these glasses have a much lower population of free carriers due to the reduction in band-gap energy brought about by selenium addition.
Figure 3. Attenuation curve of a Ge21Te76Se3 glass fiber showing minimum loss around 10–11 microns.
Figure 3. Attenuation curve of a Ge21Te76Se3 glass fiber showing minimum loss around 10–11 microns.
Fibers 01 00110 g003
Overall the Ge-Te-Se glasses constitute the best compromise for the production of optical fibers with low-loss in the second atmospheric window at 8–12 microns. This range of wavelength is acceptable for many long wave applications such as laser surgery, thermal imaging or bio-sensing. Finally, the Ge-Te-Se compositions also lends themselves well to the production of double index fibers by simple substitution of selenium by tellurium to produce the necessary index contrast between the core and clad [19]. Single mode fibers at 10 microns should therefore also be possible.

4. Conclusions

It was shown that the composition of telluride glasses must be finely tuned to combine mutually exclusive properties such as low phonon energy for long infrared transmission and high band-gap energy for low free-carrier background absorption. While gallium provides high Tg and wide optical window the impossibility of distilling gallium-containing glasses leads to unacceptable losses. Substitution of gallium by iodine permits the successful reduction of the background absorption but the high volatility of iodine leads to large compositional variation during vacuum synthesis. Overall, it is found that Ge-Te-Se compositions containing only a few percent of selenium constitute a good compromise between long-wave transmission and low background losses down to 7 dB/m.

Acknowledgments

This work was supported by the National Science Foundation under Grant Number ECCS-1201865, the CNRS International Associated Laboratory for Materials & Optics and the Partner University Fund.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lucas, P.; Riley, M.R.; Boussard-Pledel, C.; Bureau, B. Advances in chalcogenide fiber evanescent wave biochemical sensing. Anal. Biochem. 2006, 351, 1–10. [Google Scholar] [CrossRef]
  2. Riley, M.R.; Lucas, P.; Le, C.D.; Juncker, C.; Boesewetter, D.E.; Collier, J.L.; DeRosa, D.M.; Katterman, M.E.; Boussard-Pledel, C.; Bureau, B. Lung cell fiber evanescent wave spectroscopic biosensing of inhalation health hazards. Biotechnol. Bioeng. 2006, 95, 599–612. [Google Scholar] [CrossRef]
  3. Keirsse, J.; Lahaye, E.; Bouter, A.; Dupont, V.; Boussard-Pledel, C.; Bureau, B.; Adam, J.-L.; Monbet, V.; Sire, O. Mapping bacterial surface population physiology in real-time: Infrared spectroscopy of proteus mirabilis swarm colonies. Appl. Spectrosc. 2006, 60, 584–591. [Google Scholar] [CrossRef]
  4. Michel, K.; Bureau, B.; Boussard-Plédel, C.; Jouan, T.; Adama, J.L.; Staubmann, K.; Baumannc, T. Monitoring of pollutant in waste water by infrared spectroscopy using chalcogenide glass optical fibers. Sens. Actuat. B 2004, 101, 252–259. [Google Scholar] [CrossRef]
  5. Michel, K.; Bureau, B.; Pouvreau, C.; Sangleboeuf, J.C.; Boussard-Pl edel, C.; Jouan, T.; Rouxel, T.; Adam, J.-L.; Staubmann, K.; Steinner, H.; et al. Development of a chalcogenide glass fiber device for in situ pollutant detection. J. Non-Cryst. Sol. 2003, 326, 434. [Google Scholar]
  6. Charpentier, F.; Bureau, B.; Troles, J.; Boussard-Pledel, C.; Michel-Le Pierres, K.; Smektala, F.; Adam, J.-L. Infrared monitoring of underground CO2 storage using chalcogenide glass fibers. Opt. Mat. 2009, 31, 496–500. [Google Scholar]
  7. Anne, M.L.; Le Lan, C.; Monbet, V.; Boussard-Pledel, C.; Ropert, M.; Sire, O.; Pouchard, M.; Jard, C.; Lucas, J.; Adam, J.L.; et al. Fiber evanescent wave spectroscopy using the mid-infrared provides useful fingerprints for metabolic profiling in humans. J. Biomed. Opt. 2009, 14, 054033. [Google Scholar] [CrossRef]
  8. Hocde, S.; Loreal, O.; Sire, O.; Boussard-Pledel, C.; Bureau, B.; Turlin, B.; Keirsse, J.; Leroyer, P.; Lucas, J. Metabolic imaging of tissues by infrared fiber-optic spectroscopy: An efficient tool for medical diagnosis. J. Biomed. Opt. 2004, 9, 404–407. [Google Scholar] [CrossRef]
  9. Lavi, Y.; Millo, A.; Katzir, A. Flexible ordered bundles of infrared transmitting silver-halide fibers: Design, fabrication, and optical measurement. Appl. Opt. 2006, 45, 5808–5814. [Google Scholar] [CrossRef]
  10. Lavi, Y.; Millo, A.; Katzir, A. Thin ordered bundles of infrared-transmitting silver halide fibers. Appl. Phys. Lett. 2005, 87, 241122. [Google Scholar] [CrossRef]
  11. Wilhelm, A.A.; Boussard-Pledel, C.; Coulombier, Q.; Lucas, J.; Bureau, B.; Lucas, P. Development of far-infrared-transmitting te based glasses suitable for carbon dioxide detection and space optics. Adv. Mater. 2007, 19, 3796–3800. [Google Scholar] [CrossRef]
  12. Houizot, P.; Boussard-Plédel, C.; Faber, A.J.; Cheng, L.K.; Bureau, B.; van Nijnatten, P.A.; Gielesen, W.L.M.; Carmo, J.P.d.; Lucas, J. Infrared single mode chalcogenide glass fiber for space. Opt. Express 2007, 15, 12529–12538. [Google Scholar]
  13. Danto, S.; Houizot, P.; Boussard-Pledel, C.; Zhang, X.H.; Smektala, F.; Lucas, J. A famiy of far infrared transmitting glasses in the Ga-Ge-Te system for space optics. Adv. Funct. Mat. 2006, 16, 1847. [Google Scholar] [CrossRef]
  14. Yang, Z.; Lucas, P. Tellurium-based far-infrared transmitting glasses. J. Am. Ceram. Soc. 2009, 92, 2920–2923. [Google Scholar] [CrossRef]
  15. Bureau, B.; Zhang, X.H.; Smektala, F.; Adam, J.-L.; Troles, J.; Ma, H.-L.; Boussard-Pledel, C.; Lucas, J.; Lucas, P.; Le, C.D.; et al. Recent advances in chalcogenide glasses. J. Non-Cryst. Solids 2004, 345&346, 276–283. [Google Scholar]
  16. Lucas, J. Infrared glasses. Curr. Opin. Sol. State Mater. Sci. 1999, 4, 181–187. [Google Scholar] [CrossRef]
  17. Lucas, P.; Yang, Z.; Fah, M.K.; Luo, T.; Jiang, S.; Boussard-Pledel, C.; Anne, M.-L.; Bureau, B. Telluride glasses for far infrared photonic applications. Opt. Mater. Express 2013, 3, 1049. [Google Scholar] [CrossRef]
  18. Maurugeon, S.; Bureau, B.; Boussard-Plédel, C.; Faber, A.J.; Lucas, P.; Zhang, X.H.; Lucas, J. Selenium modified GeTe4 based glasses optical fibers for far-infrared sensing. Opt. Mat. 2011, 33, 660–663. [Google Scholar] [CrossRef]
  19. Maurugeon, S.; Bureau, B.; Boussard-Plédel, C.; Troles, J.; Faber, A.J.; Lucas, P.; Zhang, X.H.; Lucas, J. Telluride glass step index fiber for the far infrared. J. Lightwave Tech. 2010, 28, 3358–3363. [Google Scholar]
  20. Yang, Z.; Luo, T.; Jiang, S.; Geng, J.; Lucas, P. Single-mode low-loss optical fibers for long-wave infrared transmission. Opt. Lett. 2010, 35, 3360–3362. [Google Scholar] [CrossRef]
  21. Conseil, C.; Shiryaev, V.S.; Cui, S.; Boussard-Pledel, C.; Troles, J.; Velmuzhov, A.P.; Potapov, A.M.; Suchkov, A.I.; Churbanov, M.F.; Bureau, B. Preparation of high purity Te-rich Ge-Te-Se fibers for 5–15 μm infrared range. J. Lightwave Technol. 2013, 31, 1703–1707. [Google Scholar] [CrossRef]
  22. Lucas, J.; Zhang, X.H. The tellurium halide glasses. J. Non-Cryst. Solids 1990, 125, 1. [Google Scholar] [CrossRef]
  23. Ma, H.L.; Zhang, X.H.; Lucas, J. “High Tg” tellurium selenium halide glasses. J. Non-Cryst. Solids 1991, 135, 49. [Google Scholar] [CrossRef]
  24. Zhang, X.H.; Ma, H.L.; Blanchetiere, C.; Lucas, J. Low loss optical fibres of the tellurium halide-based glasses, the tex glasses. J. Non-Cryst. Solids 1993, 161, 327. [Google Scholar] [CrossRef]
  25. Bureau, B.; Boussard-Pledel, C.; Lucas, P.; Zhang, X.; Lucas, J. Forming glasses from Se and Te. Molecules 2009, 14, 4337–4350. [Google Scholar] [CrossRef] [Green Version]
  26. Zhang, X.; Bureau, B.; Lucas, P.; Boussard-Pledel, C.; Lucas, J. Glasses for seeing beyond visible. Chemistry 2008, 14, 432–442. [Google Scholar] [CrossRef]
  27. Martin, R.M.; Lucovsky, G.; Helliwell, K. Intermolecular bonding and lattice dynamics of selenium and tellurium. Phys. Rev. B 1976, 13, 1383–1395. [Google Scholar] [CrossRef]
  28. Golovchak, R.; Calvez, L.; Bureau, B.; Jain, H. Structural evolution of Ga-Ge-Te glasses by combined exafs and xps analysis. J. Chem. Phys. 2013, 139, 054508. [Google Scholar] [CrossRef]
  29. Yang, Z.; Gulbiten, O.; Lucas, P.; Luo, T.; Jiang, S. Long-wave infrared-transmitting optical fibers. J. Am. Ceram. Soc. 2011, 94, 1761–1765. [Google Scholar] [CrossRef]
  30. Churbanov, M.F.; Shiryaev, V.S.; Smetanin, S.V.; Pimenov, V.G.; Zaitseva, E.A.; Kryukova, E.B.; Plotnichenko, V.G. Effect of oxygen impurity on the optical transmission of As2Se3.4 glass. Inorg. Mater. 2001, 37, 1188–1194. [Google Scholar] [CrossRef]
  31. Jovari, P.; Kaban, I.; Bureau, B.; Wilhelm, A.; Lucas, P.; Beuneu, B.; Zajac, D.A. Structure of Te-rich Te-Ge-X (X = I, Se, Ga) glasses. J. Phys.: Condens. Matter 2010, 22, 404207. [Google Scholar] [CrossRef]
  32. Calvez, L.; Ma, H.L.; Lucas, J.; Zhang, X.H. Selenium-based glasses and glass ceramics transmitting light from the visible to the far-IR. Adv. Mat. 2007, 19, 129. [Google Scholar] [CrossRef]
