Next Article in Journal
Determination of Nonconductive Coating Thickness Using Electrical Contact Conductance and Surface Profile
Previous Article in Journal
Preparation and Spectrum Characterization of a High Quality Linear Variable Filter
Previous Article in Special Issue
Phase Composition, Thermal Conductivity, and Toughness of TiO2-Doped, Er2O3-Stabilized ZrO2 for Thermal Barrier Coating Applications
Article Menu

Export Article

Open AccessArticle
Coatings 2018, 8(9), 309; https://doi.org/10.3390/coatings8090309

Effect of Particle In-Flight Behavior on the Microstructure and Fracture Toughness of YSZ TBCs Prepared by Plasma Spraying

1
Mechanical and Electrical Engineering Institute, Zhengzhou University of Light Industry, Zhengzhou 450000, China
2
Henan Key Laboratory of Intelligent Manufacturing of Mechanical Equipment, Zhengzhou 450000, China
*
Author to whom correspondence should be addressed.
Received: 29 July 2018 / Revised: 20 August 2018 / Accepted: 30 August 2018 / Published: 4 September 2018
(This article belongs to the Special Issue Advanced Ceramic Coatings and Interfaces)
Full-Text   |   PDF [5621 KB, uploaded 4 September 2018]   |

Abstract

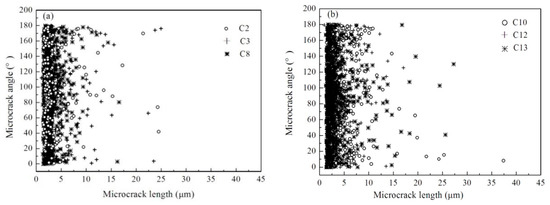

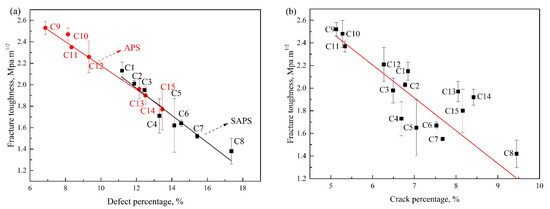

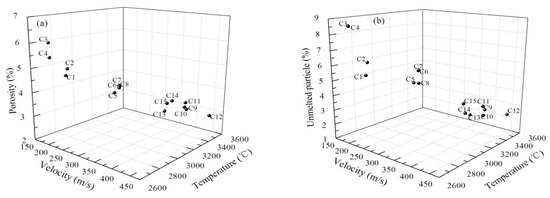

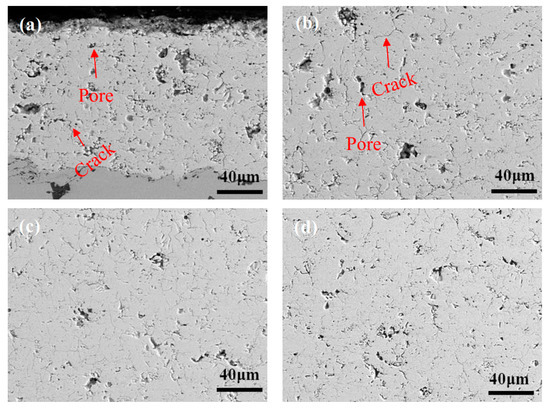

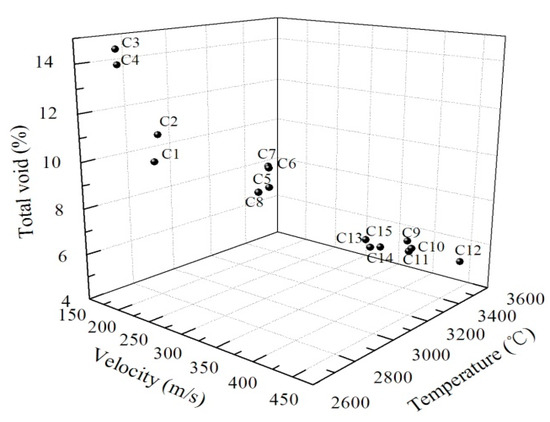

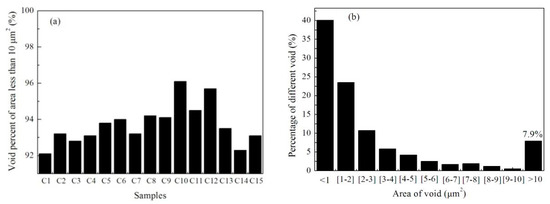

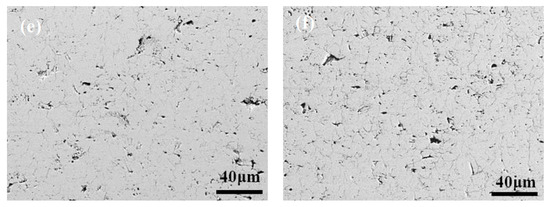

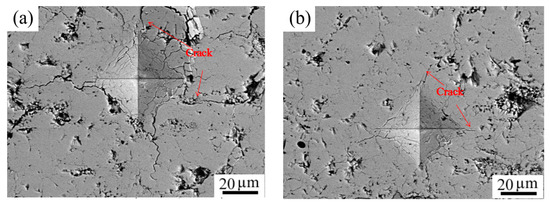

The present study aims to elaborate particle in-flight behavior during plasma spraying and its significance in determining the microstructure and mechanical properties of plasma sprayed yttria partially stabilized zirconia (YSZ) thermal barrier coatings (TBCs). The as-sprayed YSZ coatings were characterized in terms of defects (such as pores, unmelted particles and cracks) and fracture toughness. The results showed that, due to the higher temperature and velocity of in-flight particles in a supersonic atmospheric plasma spraying (SAPS) compared to that of atmospheric plasma spraying (APS), denser coatings were formed leading to a better fracture toughness. The percentage of defects of the microstructure was similar to the temperature and velocity of particles in-flight during plasma spraying. Furthermore, the structural defects had a strong effect on its mechanical behavior. The total defect percentage and fracture toughness in SAPS-TBCs spanned 6.9 ± 0.17%–13.26 ± 0.22% and 2.52 ± 0.06 MPa m1/2–1.78 ± 0.19 MPa m1/2; and 11.11 ± 0.36%–17.15 ± 0.67% and 2.13 ± 0.08 MPa m1/2–1.4 ± 0.12 MPa m1/2 in APS-TBCs. View Full-Text
Keywords: yttria partially stabilized zirconia; supersonic atmospheric plasma spray; defects; fracture toughness yttria partially stabilized zirconia; supersonic atmospheric plasma spray; defects; fracture toughness
Figures

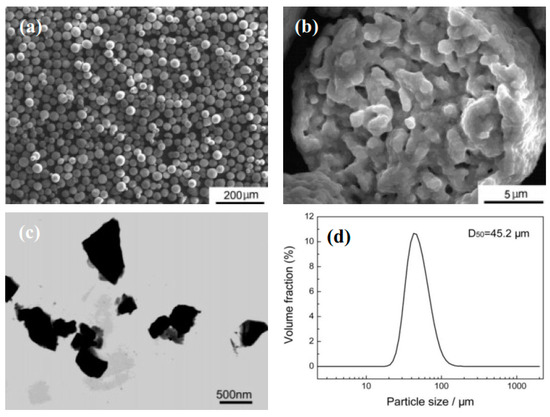

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Xiao, Y.; Ren, E.; Hu, M.; Liu, K. Effect of Particle In-Flight Behavior on the Microstructure and Fracture Toughness of YSZ TBCs Prepared by Plasma Spraying. Coatings 2018, 8, 309.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Coatings EISSN 2079-6412 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
