Oxidation Characteristics and Electrical Properties of Doped Mn-Co Spinel Reaction Layer for Solid Oxide Fuel Cell Metal Interconnects

School of Materials Science and Engineering, Jiangsu University of Science and Technology, Zhenjiang 212003, China
*
Authors to whom correspondence should be addressed.
Coatings 2018, 8(1), 42; https://doi.org/10.3390/coatings8010042
Submission received: 7 December 2017 / Revised: 16 January 2018 / Accepted: 16 January 2018 / Published: 22 January 2018

Abstract

:
To prevent Cr poisoning of the cathode and to retain high conductivity during solid oxide fuel cell (SOFC) operation, Cu or La doped Co-Mn coatings on a metallic interconnect is deposited and followed by oxidation at 750 °C. Microstructure and composition of coatings after preparation and oxidation is analyzed by X-ray diffraction (XRD) and scanning electron microscopy (SEM). High energy micro arc alloying process, a low cost technique, is used to prepare Cu or La doped Co-Mn coatings with the metallurgical bond. When coatings oxidized at 750 °C in air for 20 h and 100 h, Co3O4 is the main oxide on the surface of Co-38Mn-2La and Co-40Mn coatings, and (Co,Mn)3O4 spinel continues to grow with extended oxidation time. The outmost scales of Co-33Mn-17Cu are mainly composed of cubic MnCo2O4 spinel with Mn2O3 after oxidation for 20 h and 100 h. The average thickness of oxide coatings is about 60–70 μm after oxidation for 100 h, except that Co-40Mn oxide coatings are a little thicker. Area-specific resistance of Cu/La doped Co-Mn coatings are lower than that of Co-40Mn coating. (Mn,Co)3O4/MnCo2O4 spinel layer is efficient at blocking the outward diffusion of chromium and iron.

1. Introduction

Co-Mn-based spinel coatings and conversion coatings are the potential candidates for metallic interconnect coating materials of solid oxide fuel cell (SOFC) [1,2,3,4,5]. Some techniques have been applied to prepare these coatings such as electrophoretic deposition, plasma spraying, dip-coating, sol-gel method, screen printing, and physical vapor deposition. The high energy micro arc alloying process (HEMAA) [6,7,8] is a low cost technique to produce metallurgically bonded coatings. It is economically attractive for coating preparation to significantly reduce the cost of SOFC. In previous study [9], the Cr/La alloying layer is successively obtained on 430 stainless steel (SS) surface by HEMAA using metallic Cr electrode and metallic La electrode, respectively. The result shows that a good protective perovskite coating with an acceptable electrical contact resistance forms on the substrate steel after coating is thermally grown.
Reactive elements have been added to improve the high temperature oxidation characteristics of Co-Mn-based coatings. Mn-Co-Y-O spinel coatings [10] were prepared on AISI 430 and Crofer 22 APU steels by the magnetron sputtering. A combined Ce/Co alloy coatings [11] were deposited on metallic interconnects by physical vapor deposition process, and Co/CeO2 composite coatings [12] were electroplated on the ferritic stainless steels Crofer 22 APU and Crofer 22 H. Lanthanum (La) is usually synthesized as perovskite cathode and interconnect material for intermediate temperature solid oxide fuel cell [13,14,15,16]. High temperature oxidation characteristics of active element Lanthanum have been investigated in alloys. The result shows that the formation of La oxides remarkably improves oxidation resistance of alloys [17,18].
The dopant of Cu and/or Ni into Mn-Co spinel generally affects the high temperature properties of spinel oxide because of crystal structure and phase of spinel oxide after sintering changed [19,20]. Cu doped Mn-Co oxide was sintered into pellets after the High Energy Ball Milling process [21]. The results show that cubic Mn-Co spinel stability, spinel sintering behavior and electrical conductivity are improved by Cu addition. Cu-Mn-Co spinel coatings prepared via the slurry dip-coating [20,22,23] and the screen-printing technique [24] exhibit high electrochemical performance and oxidation characteristics. However, the adherence to substrate for spinel coatings is still a problem. HEMAA process [25] produces the metallurgically bonded alloy coatings and forms spinel coatings via in situ oxidation.
In this test, lanthanum/copper added into Co-Mn spinel coating for metallic interconnect is studied in detail. This work aims to investigate high-temperature oxidation characteristics and electrical properties of Co-33Mn-17Cu and Co-38Mn-2La coatings prepared by HEMAA for intermediate temperature SOFC interconnects application.

2. Experimental

For the experiment, 430 SS is used as substrate alloy with composition 16–18 Cr, 1 Mn, 0.12 C, 0.75 Si, 0.03 S, 0.04 P, 0.06 Ni and balance Fe (wt.%). Co-33Mn-17Cu, Co-38Mn-2La and Co-40Mn (at.%) alloy is at first prepared by argon arc melting of high purity metals (99.99 wt.%). Then, alloy ingots are cut into rods and the diameter is about 3.0 mm used as Co-33Mn-17Cu, Co-38Mn-2La and Co-40Mn electrodes (anodes for HEMAA process). All electrodes are ground up and then degreased with acetone. Deposition parameters of coatings [3,8,26] are 110 V, 900 Hz and 1000–1200 W.
Oxidation measurement for deposited coatings is carried out at 750 °C in air for 20 h and 100 h. Area specific resistance (ASR) measurement of Co-33Mn-17Cu, Co-38Mn-2La and Co-40Mn coatings after oxidation is performed by the four-probe direct current (DC) method [3,8]. The applied voltage is 5 V and contact area of Pt electrode is about 10 mm2 bonding with Pt paste. The measured sample is placed in the constant temperature zone of horizontal tube furnace at room temperature, and then is heated up to setting temperature (500–800 °C). The value of ASR is taken when every setting temperature keeps steady.
X-ray diffractometer (XRD, D/MAX-3B, Rigaku Co., Tokyo, Japan) is conducted for phase analyses, and surface roughness analyses are performed by 3D microscope (VHX-900, KEYENCE, Tokyo, Japan) on the top surfaces. Specimens are mounted in a cold-setting epoxy resin to avoid cracking and give support for polishing. Cross-section surfaces and quantitative elemental analyses are examined by scanning electron microscopy (SEM, JSM-5800, JEOL, Tokyo, Japan) with energy dispersive X-ray spectroscopy (EDS).

3. Results and Discussion

3.1. Microstructural Studies of Coated Samples

Figure 1a shows that Co-38Mn-2La alloy (electrode) is a two-phase structure composed of a Co-based solid solution and an La-rich phase (light phase), which is most localized at grain boundaries. EDS analysis on Co-38Mn-2La alloy reveals that the concentrations of Co and Mn in solid solution are 63.96 and 36.04 in at.%. Figure 1b shows that a continuous Co-38Mn-2La coating has been produced on the substrate surface with a metallurgical bonding and the average thickness of coating is about 30 μm. Figure 1c shows that Co-33Mn-17Cu alloy is composed of a Co-rich phase and a Cu-rich phase (light phase). EDS reveals that Cu concentration is about 40.4 at.% in the Cu-rich phase. Figure 1d shows the continuous Co-33Mn-17Cu coating is deposited and the interface keeps good adherence to the substrate.

3.2. Microstructures of Oxide Coatings on the Metallic Interconnects

Figure 2 shows X-ray diffraction and surface morphology of coatings oxidized at 750 °C for 20 h and 100 h. Before oxidation, Co-38Mn-2La alloy coating in Figure 2a is mainly a cubic Co structure and peaks shift toward low angles by referring to pure Co When coating oxidized at 750 °C in air for 20 h, the outmost scales in Figure 2b combined with EDS analysis consist of Co3O4 and small amount of (Co,Mn)3O4, which is an intermediate tetragonal spinel structure between MnCo2O4 (cubic) and Mn3O4 (tetragonal). The previous study [25] discloses that Co3O4 prefer to form under high oxygen partial pressure and only a thin layer is found on the top oxide layer. When Co-38Mn-2La coating oxidized for 100 h, diffraction peak of tetragonal (Co,Mn)3O4 spinel is intensified in Figure 2c, due to Mn outer-diffusion with the extended time.
Before oxidation, Co-33Mn-17Cu alloy coating in Figure 2d is mainly Cu characteristic peak. After oxidation for 20 h in Figure 2e, the outmost scales combined with EDS analysis are mainly composed of cubic MnCo2O4 spinel with Mn2O3 oxide. The same MnCo2O4 and Mn2O3 diffraction peaks are also detected after Co-33Mn-17Cu coating oxidized for 100 h in Figure 2f. Oxidation products of Co-40Mn coating after 20 h and 100 h in Figure 2g,h are the same as Co-38Mn-2La coating.
Figure 2f1 shows surface morphology of Co-33Mn-17Cu coating oxidized for 100 h, which is a typical spinel structure. Element distributions in Table 1 indicate the trace amount of Fe and Cr detected on the oxide surface. Figure 2b1,b2 show surface morphology of Co-38Mn-2La coating oxidized for 20 h. Co3O4 is the main oxides with some fine pores. The size of pores is correlation with Mn content of Co3O4 oxides and will shrink with Mn content increasing [8]. Co3O4 scale formed on the surface is a cubic spinel structure with Mn content 5.6 at.% from XRD and EDS analysis in Table 1, which means the scale is a Co-rich Co-Mn spinel phase. Some granular appearance in Figure 2b2 is also seen on the surface and EDS in Table 1 shows that element compositions are the same as Figure 2b1. It is hypothesized that the granular Co3O4 found in local area is due to active element Lanthanum enrichment, which is found in Co-38Mn-2Dy coating but not for Co-40Mn coating [25]. When coating oxidized for 100 h, fine pores and needle-like morphology in Figure 2c1 are visible and uniformly distributed in Co3O4 scales. (Co,Mn)3O4 scales in Figure 2c2 are the typical spinel structure and Mn content in (Co,Mn)3O4 is higher than in MnCo2O4 spinel in Table 1, which is in accordance with XRD analysis. The granular appearance is not found after Co-38Mn-2La coating oxidized for 100 h. Surface morphology of Co-40Mn coating oxidized for 20 h and 100 h is showed in Figure 2g1,h1. It is the same morphology as Co-38Mn-2La coating except for the granular appearance.
Figure 3 shows that mass gain of Co-33Mn-17Cu coating is smallest when coatings oxidized for 20 h and followed by Co-38Mn-2La coating. However, after oxidation for 100 h mass gain of three coatings is almost overlapped.
Figure 4 shows cross section (back-scattered electron image) and EDS line scanning of Co-38Mn-2La coating oxidized at 750 °C in air for 100 h. Oxide coating is compact and good adherence to 430 SS substrate. The average thickness of coating is about 64 μm. Figure 4a1 shows cross-section morphology of Co3O4 on the top oxide layer and an Mn-rich oxide layer under the Co3O4 layer. Figure 4a2 shows cross-section morphology of (Co,Mn)3O4 scales on the top oxide layer. EDS indicates that light phases precipitating in the oxide coating in Figure 4a2 are La-rich oxides. According to line scanning analysis, Mn is enriched in the vicinity of the top oxide layer and Co content is homogeneous in the oxide coating. Enrichment of Cr is detected in the oxide/substrate interface, and Cr content is very low in the coating. Fe outward diffusion is found in the oxide coating in Table 2.
Cross-section morphology of Co-33Mn-17Cu coating oxidized for 100 h is showed in Figure 5. Some micro-pores are found in scales due to the formation of abundant spinel oxide and diffusion of elements. Similarly, coating keeps good adherence to the substrate and its average thickness is 60–70 μm. The line scan discloses the outer part of oxide layer rich in Mn and Co concentrate increasing slightly in the inner oxide layer. The aggregation of element Cu near the surface is not obviously detected. Element Fe/Cr outward diffusion behavior (Table 3) is analogous to the Co-38Mn-2La oxide layer.
Cross-section morphology of Co-40Mn coating oxidized for 100 h in Figure 6 shows Co3O4-rich layer on the outmost oxides, and Mn-rich oxide layer is still next to the Co3O4 layer, which is the typical morphology for Co-38Mn-2La and Co-40Mn coatings. Fe content is also high in local area (point 4, Table 4). Additionally, the average thickness of Co-40Mn oxide coating with a Co3O4-rich layer is larger than that of Co-38Mn-2La and Co-33Mn-17Cu oxide coating.

3.3. ASR Measurements

Co-38Mn-2La coating after oxidation for 100 h is showed in Figure 7. The surface of oxide coatings is generally highly irregular due to the HEMAA process, and surface microtopography and roughness of oxides for three coatings are close. The values of surface roughness disclose that surface become relative smooth with extended oxidation time. Arithmetical average roughness height (Sa) of Co-38Mn-2La oxide coating is about 7.21 μm for 0 h, 6.34 μm after oxidation for 20 h and 5.53 μm for 100 h. Measurement of area specific resistance is bonded with Pt paste, and the value is little affected by surface roughness.
ASR of three coatings after oxidation at 750 °C for 20 h and 100 h is showed in Figure 8. All ASR values decrease gradually with increasing temperature from 500 to 800 °C. It is typical for electric conductivity of a semiconductor oxide as a function of temperature [24,27], in good agreement with the results of Mn-Co-based spinel in literature. ASR can make a corresponding response to the electrical conductivity and thicknesses of thermally grown oxide layers. Thus, ASR of three coatings after oxidation for 100 h is usually a little higher than that for 20 h, especially at low temperature, such as 500 °C and 600 °C. ASR of Co-40Mn oxide coating is the largest among three oxide coatings for both 100 h and 20 h (Figure 8, line 1 and line 2), ASR of Co-38Mn-2La oxide coating (line 3 and line 4) is smaller than that of Co-40Mn oxide coating, and ASR of Co-33Mn-17Cu oxide coating stays the smallest. Especially when Co-33Mn-17Cu oxide coating oxidized for 20 h, ASR values at low temperature keep in a very small range (line 6). ASR at 800 °C of Co-40Mn oxide coating is 79.2 mΩ cm2 for 20 h and 43.2 mΩ cm2 for 100 h, the value obviously decreasing with oxidation time. The reason may be that the structure and composition of oxide products change along with oxidation time, such as some (Co,Mn)3O4 spinel forming. ASR at 800 °C for Co-38Mn-2La oxide coating is about 19.6 mΩ cm2 for 20 h and 24 mΩ cm2 for 100 h, the value slowly increasing with oxidation time. ASR at 800 °C for Co-33Mn-17Cu oxide coating is about 7.5 mΩ cm2 for 20 h and 41 mΩ cm2 for 100 h, the value obviously increasing with oxidation time. The reason has not been discussed in detail, but, according to existing results, it may be the formation of many isolated micro-pores for 100 h in the oxide layer, besides the thickness increasing.

3.4. Discussion

In previous study [3,8,25], the results disclose that ambient dissociation pressure of oxygen at high temperature will favor the formation of some specific oxides. When coating oxidized in air, partial pressure of oxygen gradually decreases from gas/scale interface to oxide/alloy interface; therefore, a thin Co3O4 layer forms at high oxygen partial pressure and is usually found on the top oxide layer (Figure 4a1 and Figure 6). Rapid cation diffusion can be caused in the mono-oxide such as CoO and MnO, but the continuous (Co,Mn)3O4 spinel oxide layer causes a significant reduction in the oxide rate and cation diffusion. Co-Mn spinel oxides first dispersedly precipitate along grain boundaries of oxide matrix and then evolve into a continuous spinel oxide layer when manganese contents are increasing. Therefore, a continuous (Co,Mn)3O4 spinel layer may be formed in the outer part of the scale because of the relatively high oxygen activity and the extended oxidation time. This result is found in both Co-38Mn-2La and Co-40Mn coatings in Figure 2. When coating oxidized for 100 h, (Co,Mn)3O4 spinel continues to grow.
Partial Mn-Co-O phase diagram in air relative to different Co concentration and temperature is discussed in reference [28], and it shows that MnCo2O4 spinel is the stable phase in the operation temperature of SOFC. In this study, the main spinel phase (Mn,Co)3O4 after Co-38Mn-2La coating and Co-40 Mn coating oxidized at 750 °C for 100 h is different of Mn-Co ratio than 1:2, and Mn content is a little higher than that in MnCo2O4 spinel. This becomes complicated because the original concentration ratio of Co and Mn, the thickness of alloy coating, oxidation temperature and element diffusion in oxides all play an important role in the formation of the (Co,Mn)3O4 spinel oxide. When Cu was added into Co-Mn coating, MnCo2O4 spinel successfully forms on the surface of oxides for both 20 h and 100 h. In general, MnCo2O4 spinel has the higher electrical conductivity than (Co,Mn)3O4 spinel, so Cu dopant is helpful for improving high temperature electrical behavior of Co-Mn coating, especially for 500–700 °C. However, the formation of micro-pores in oxides will also affect high temperature behavior of coating.
According to EDS in Table 2, Table 3 and Table 4 outward diffusion of Cr is suppressed by composited oxide coatings. Fe diffuses into oxide coating but is suppressed by (Mn,Co)3O4/MnCo2O4 spinel and then aggregates under the (Mn,Co)3O4/MnCo2O4 layer (points 1 and 2 in Table 2 and Table 3, points 3 and 4 in Table 4). It is apparent that the presence of the (Mn,Co)3O4/MnCo2O4 spinel layer blocks outward diffusion of Fe. When chromium from substrate forms a continuous oxide at the interface, Fe outward diffuses will be also suppressed (points 3 in Table 2 and Table 3). Metallic Co diffuses both outward into the oxide layer and inward into 430 SS substrate during oxidation (point 4 in Table 2).

4. Conclusions

The metallurgical bond Co-33Mn-17Cu, Co-38Mn-2La and Co-40Mn coatings are successfully deposited on the surface of 430 SS using high-energy micro-arc alloying process. MnCo2O4 and Mn2O3 are mainly oxide products when Co-33Mn-17Cu coating oxidized at 750 °C for 20 h and 100 h. ASR of Co-33Mn-17Cu oxide coating is the smallest among the three coatings when oxidized for 20 h. La-rich oxides are locally precipitated in the oxide layer after Co-38Mn-2La coating oxidized for 100 h, and some granular appearance of Co3O4 oxide on the top surface are found for 20 h, which is not found in Co-33Mn-17Cu and Co-40Mn coatings. A thin Co3O4 spinel layer with a small amount of Mn oxides favors forming on the top oxide layer, and the (Mn,Co)3O4 spinel between MnCo2O4 (cubic) and Mn3O4 (tetragonal) gradually grows on the surface of oxide layer with the extended oxidation time for Co-38Mn-2La and Co-40Mn coatings. The value of area-specific resistance at 800 °C for Co-38Mn-2La coating oxidized for 100 h is about 24 mΩ cm2, which is the smallest among three coatings. Outward diffusion of Fe and Cr from substrate is remarkably suppressed by (Mn,Co)3O4/MnCo2O4 spinel oxide layers. The results demonstrate that Cu/La dopant leads to different structures and properties of Mn-Co spinel coating, which is possibly used as coating material for the intermediate temperature SOFC.

Acknowledgments

This work was financially supported by the National Natural Science Foundation of China (51201073), the China Scholarship Fund (2017), the research fund of Jiangsu University of Science and Technology (1624821607-5), the Postgraduate Research & Practice Innovation Program of Jiangsu Province (KYCX17_1830), and the Priority Academic Program Development of Jiangsu Higher Education Institutions.

Author Contributions

Pingyi Guo and Yong Shao conceived and designed the experiments; Yongbiao Lai, Yu Zhang and Hang Sun performed the experiments; Pingyi Guo, Yuxin Wang and Yong Shao analyzed the data; Yong Shao contributed reagents/materials/analysis tools; Pingyi Guo and Yuxin Wang wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest. The founding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the results.

References

  1. Kruk, A.; Adamczyk, A.; Gil, A.; Kąc, S.; Dąbek, J.; Ziąbka, M.; Brylewski, T. Effect of Co deposition on oxidation behavior and electrical properties of ferritic steel for solid oxide fuel cell interconnects. Thin Solid Films 2015, 590, 184–192. [Google Scholar] [CrossRef]
  2. Ajitdoss, L.C.; Smeacetto, F.; Bindi, M.; Beretta, D.; Salvo, M.; Ferrari, M. Mn1.5Co1.5O4 protective coating on Crofer22APU produced by thermal co-evaporation for SOFCs. Mater. Lett. 2013, 95, 82–85. [Google Scholar] [CrossRef]
  3. Zhang, Y.; Guo, P.Y.; Shao, Y.; Lai, Y.B.; Zhang, J.Q. Preparation and high-temperature performance of Co-10Mn and Co-40Mn alloy coatings for solid oxide fuel cell metal interconnects. J. Alloy. Compd. 2016, 680, 685–693. [Google Scholar] [CrossRef]
  4. Hoyt, K.O.; Gannon, P.E.; White, P.; Tortop, R.; Ellingwood, B.J.; Khoshuei, H. Oxidation behavior of (Co,Mn)3O4 coatings on preoxidized stainless steel for solid oxide fuel cell interconnects. Int. J. Hydrog. Energ. 2012, 37, 518–529. [Google Scholar] [CrossRef]
  5. Uehar, T.; Yasuda, N.; Okamoto, M.; Baba, Y. Effect of Mn-Co spinel coating for Fe-Cr ferritic alloys ZMG232L and 232J3 for solid oxide fuel cell interconnects on oxidation behavior and Cr-evaporation. J. Power Sources 2011, 196, 7251–7256. [Google Scholar] [CrossRef]
  6. Guo, P.Y.; Shao, Y.; Zeng, C.L.; Wu, M.F.; Li, W.L. Oxidation characterization of FeAl coated 316 stainless steel interconnects by high-energy micro-arc alloying technique for SOFC. Mater. Lett. 2011, 65, 3180–3183. [Google Scholar] [CrossRef]
  7. Guo, P.Y.; Zeng, C.L.; Wang, N.; Shao, Y. FeAl-based coatings deposited by high-energy micro-arc alloying process for wet-seal areas of molten carbonate fuel cell. J. Power Sources 2012, 217, 485–490. [Google Scholar] [CrossRef]
  8. Lai, Y.B.; Guo, P.Y.; Shao, Y.; Tang, P.J.; Zhang, Y.; Zhang, J.F. Formation and performances of spinel reaction layers on Co-40Mn coatings under an oxygen pressure of 105 Pa for solid oxide fuel cell interconnect application. Vacuum 2016, 130, 14–24. [Google Scholar] [CrossRef]
  9. Feng, Z.J.; Zeng, C.L. Oxidation behavior and electrical property of ferritic stainless steel interconnects with a Cr–La alloying layer by high-energy micro-arc alloying process. J. Power Sources 2010, 195, 7370–7374. [Google Scholar] [CrossRef]
  10. Gavrilov, N.V.; Ivanov, V.V.; Kamenetskikh, A.S.; Nikonov, A.V. Investigations of Mn–Co–O and Mn–Co–Y–O coatings deposited by the magnetron sputtering on ferritic stainless steels. Surf. Coat. Technol. 2011, 206, 1252–1258. [Google Scholar] [CrossRef]
  11. Magrasó, A.; Windisch, H.F.; Froitzheim, J.; Svensson, J.E.; Haugsrud, R. Reduced long term electrical resistance in Ce/Co coated ferritic stainless steel for solid oxide fuel cell metallic interconnects. Int. J. Hydrog. Energ. 2015, 40, 8579–8585. [Google Scholar] [CrossRef]
  12. Harthøj, A.; Holt, T.; Møller, P. Oxidation behaviour and electrical properties of cobalt/cerium oxide composite coatings for solid oxide fuel cell interconnects. J. Power Sources 2015, 281, 227–237. [Google Scholar] [CrossRef]
  13. Kolisetty, A.; Fu, Z.Z.; Koc, R. Development of La(CrCoFeNi)O3 system perovskites as interconnect and cathode materials for solid oxide fuel cells. Ceram. Int. 2017, 43, 7647–7652. [Google Scholar] [CrossRef]
  14. Solovyev, A.A.; Ionov, I.V.; Shipilova, V.; Kovalchuk, A.N.; Syrtanov, M.S. Magnetron-sputtered La0.6Sr0.4Co0.2Fe0.8O3 nanocomposite interlayer for solid oxide fuel cells. J. Nanopart. Res. 2017, 19, 87–95. [Google Scholar] [CrossRef]
  15. Sun, H.Y.; Sen, W.; Ma, W.H.; Yu, J.; Yang, J.J. Fabrication of LSGM thin films on porous anode supports by slurry spin coating for IT-SOFC. Rare Met. 2015, 34, 797–801. [Google Scholar] [CrossRef]
  16. Guo, P.Y.; Zeng, C.L.; Shao, Y.; Qin, Z.S. Effect of LaCrO3 coating on high temperature oxidation of type 316 stainless steel. J. Rare Earth 2011, 29, 698–701. [Google Scholar] [CrossRef]
  17. Riffard, F.; Fondard, J.; Moulin, P.; Perrier, S.; Buscail, H. Lanthanum effect on the isothermal high temperature oxidation behavior at 1000 °C of a phosphoric acid-treated AISI 304 stainless steel. Oxid. Met. 2014, 81, 191–201. [Google Scholar] [CrossRef]
  18. Buscail, H.; Issartel, C.; Riffard, F.; Rolland, R.; Perrier, S.; Fleurent, A. Influence of lanthanum coatings on a model 330 alloy (Fe-35Ni-18Cr-2Si) oxidation at high temperatures. Oxid. Met. 2014, 81, 127–138. [Google Scholar] [CrossRef]
  19. Mhin, S.; Han, H.; Kim, K.M.; Lim, J.; Kim, D.; Lee, J.; Ryu, J.H. Synthesis of (Ni,Mn,Co)O4 nanopowder with single cubic spinel phase via combustion method. Ceram. Int. 2016, 42, 13654–13658. [Google Scholar] [CrossRef]
  20. Xiao, J.; Zhang, W.; Xiong, C.; Pu, J.; Jian, L. Oxidation behavior of Cu-doped MnCo2O4 spinel coating on ferritic stainless steels for solid oxide fuel cell interconnects. Int. J. Hydrog. Energ. 2016, 41, 9611–9618. [Google Scholar] [CrossRef]
  21. Masi, A.; Bellusci, M.; McPhail, S.J.; Padella, F.; Reale, P.; Hong, J.E.; Wilckens, R.S.; Carlini, M. Cu-Mn-Co oxides as protective materials in SOFC technology: The effect of chemical composition on mechanochemical synthesis, sintering behaviour, thermal expansion and electrical conductivity. J. Eur. Ceram. Soc. 2017, 37, 661–669. [Google Scholar] [CrossRef]
  22. Xu, Y.J.; Wen, Z.Y.; Wang, S.R.; Wen, T.L. Cu doped Mn–Co spinel protective coating on ferritic stainless steels for SOFC interconnect applications. Solid State Ion. 2011, 192, 561–564. [Google Scholar] [CrossRef]
  23. Park, B.K.; Lee, J.W.; Lee, S.B.; Lim, T.H.; Park, S.J.; Park, C.O.; Song, R.H. Cu- and Ni-doped Mn1.5Co1.5O4 spinel coatings on metallic interconnects for solid oxide fuel cells. Int. J. Hydrog. Energ. 2013, 38, 12043–12050. [Google Scholar] [CrossRef]
  24. Brylewski, T.; Kruk, A.; Bobruk, M.; Adamczyk, A.; Partyka, J.; Rutkowski, P. Structure and electrical properties of Cu-doped Mn-Co-O spinel prepared via soft chemistry and its application in intermediate temperature solid oxide fuel cell interconnects. J. Power Sources 2016, 333, 145–155. [Google Scholar] [CrossRef]
  25. Guo, P.Y.; Lai, Y.B.; Shao, Y.; Zhang, Y.; Wang, Y.X. Thermal Growth Cu1.2Mn1.8O4 Spinel Coatings on Metal Interconnects for Solid Oxide Fuel Cell Applications. Metals 2017, 7, 522. [Google Scholar] [CrossRef]
  26. Lai, Y.B.; Guo, P.Y.; Shao, Y.; Zhang, Y.; Liu, N. The Role of Dy Doping on Oxidation Behavior of Co-40Mn/Co Coating for Solid Oxide Fuel Cell Metal Interconnects. J. Alloy. Compd. 2017, 694, 383–393. [Google Scholar] [CrossRef]
  27. Yokoyama, T.; Meguro, T.; Kato, K.; Okazaki, S.; Ito, D.; Tatami, J.; Wakihara, T.; Kome, K. Preparation and electrical properties of sintered oxide composed of MnFeNiO4 with a cubic spinel structure. J. Electroceram. 2013, 31, 353–359. [Google Scholar] [CrossRef]
  28. Bateni, M.R.; Wei, P.; Deng, X.H.; Petric, A. Spinel coatings for UNS 430 stainless steel interconnects. Surf. Coat. Technol. 2007, 201, 4677–4684. [Google Scholar] [CrossRef]

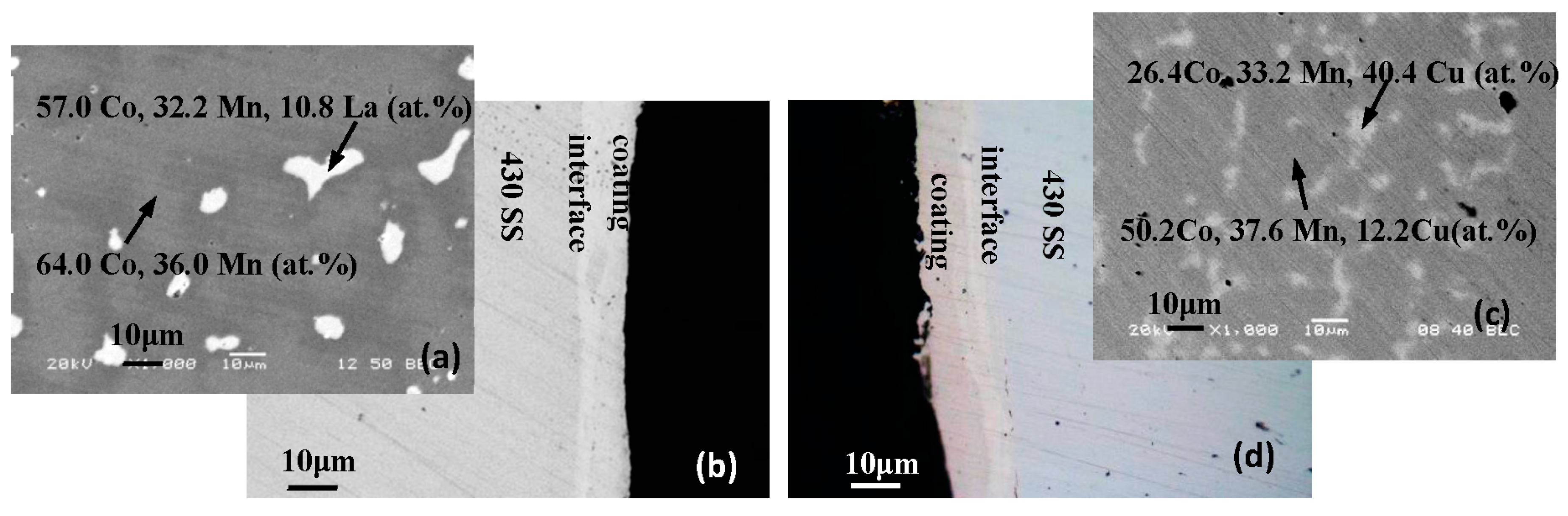

Figure 1. (a) Morphology of Co-38Mn-2La alloy; (b) cross section of Co-38Mn-2La coating deposited by high energy micro arc alloying process (HEMAA); (c) morphology of Co-33Mn-17Cu alloy and (d) cross section of Co-33Mn-17Cu coating deposited by HEMAA.
Figure 1. (a) Morphology of Co-38Mn-2La alloy; (b) cross section of Co-38Mn-2La coating deposited by high energy micro arc alloying process (HEMAA); (c) morphology of Co-33Mn-17Cu alloy and (d) cross section of Co-33Mn-17Cu coating deposited by HEMAA.
Coatings 08 00042 g001

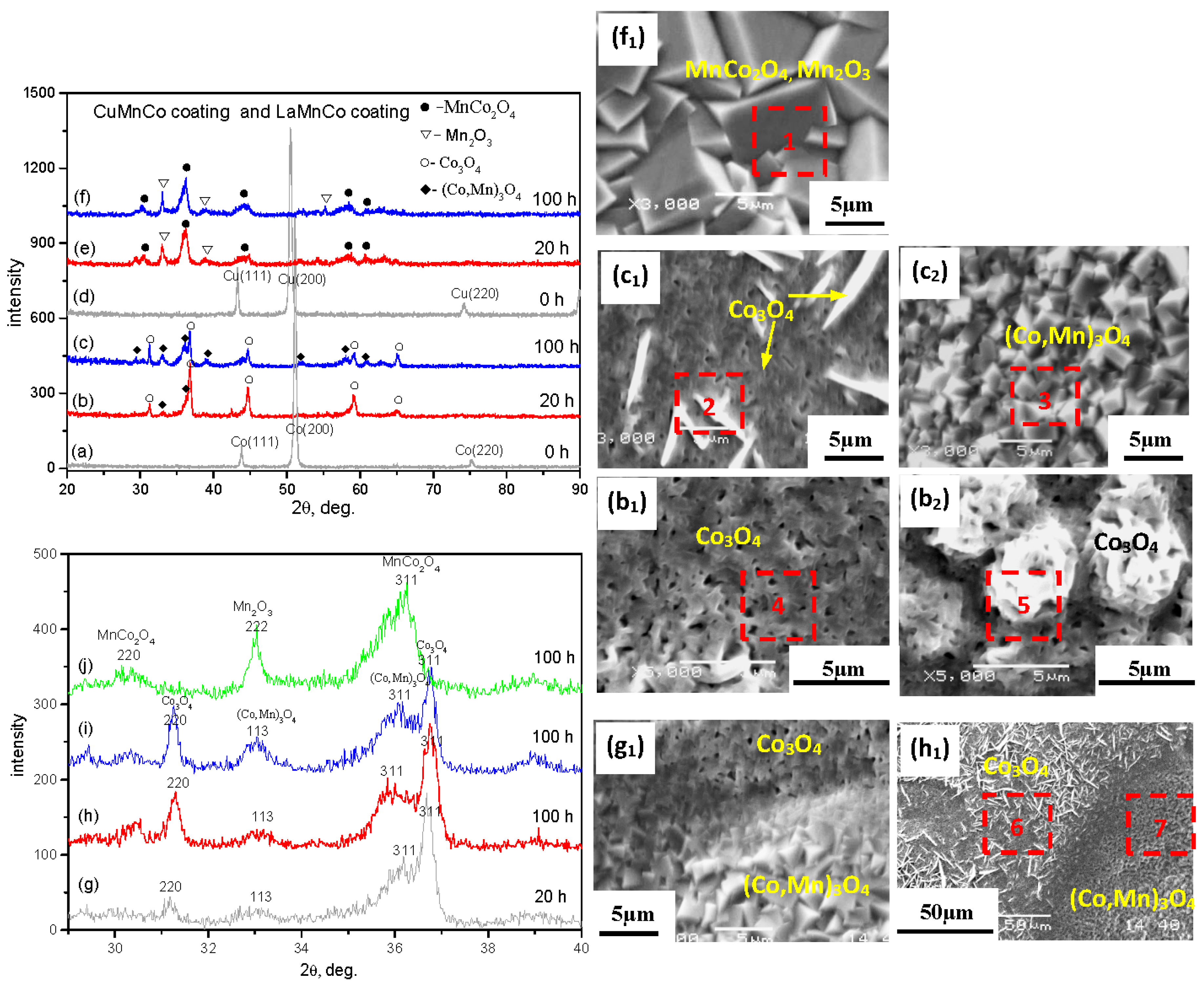

Figure 2. X-ray diffraction and surface morphology of coatings deposited by HEMAA oxidized at 750 °C in air. (ac) Co-38Mn-2La coating oxidized for 0 h, 20 h and 100 h; (df) Co-33Mn-17Cu coating oxidized for 0 h, 20 h and 100 h; (g,h) Co-40Mn coating oxidized for 20 h and 100 h; (i) Co-38Mn-2La coating oxidized for 100 h; (j) Co-33Mn-17Cu coating oxidized for 100 h; (f1) surface morphology of Co-33Mn-17Cu coating oxidized for 100 h; (c1,c2) and (b1,b2) surface morphology of Co-38Mn-2La coating oxidized for 100 h and 20 h; (g1) and (h1) surface morphology of Co-40Mn coating oxidized for 20 h and 100 h.
Figure 2. X-ray diffraction and surface morphology of coatings deposited by HEMAA oxidized at 750 °C in air. (ac) Co-38Mn-2La coating oxidized for 0 h, 20 h and 100 h; (df) Co-33Mn-17Cu coating oxidized for 0 h, 20 h and 100 h; (g,h) Co-40Mn coating oxidized for 20 h and 100 h; (i) Co-38Mn-2La coating oxidized for 100 h; (j) Co-33Mn-17Cu coating oxidized for 100 h; (f1) surface morphology of Co-33Mn-17Cu coating oxidized for 100 h; (c1,c2) and (b1,b2) surface morphology of Co-38Mn-2La coating oxidized for 100 h and 20 h; (g1) and (h1) surface morphology of Co-40Mn coating oxidized for 20 h and 100 h.
Coatings 08 00042 g002

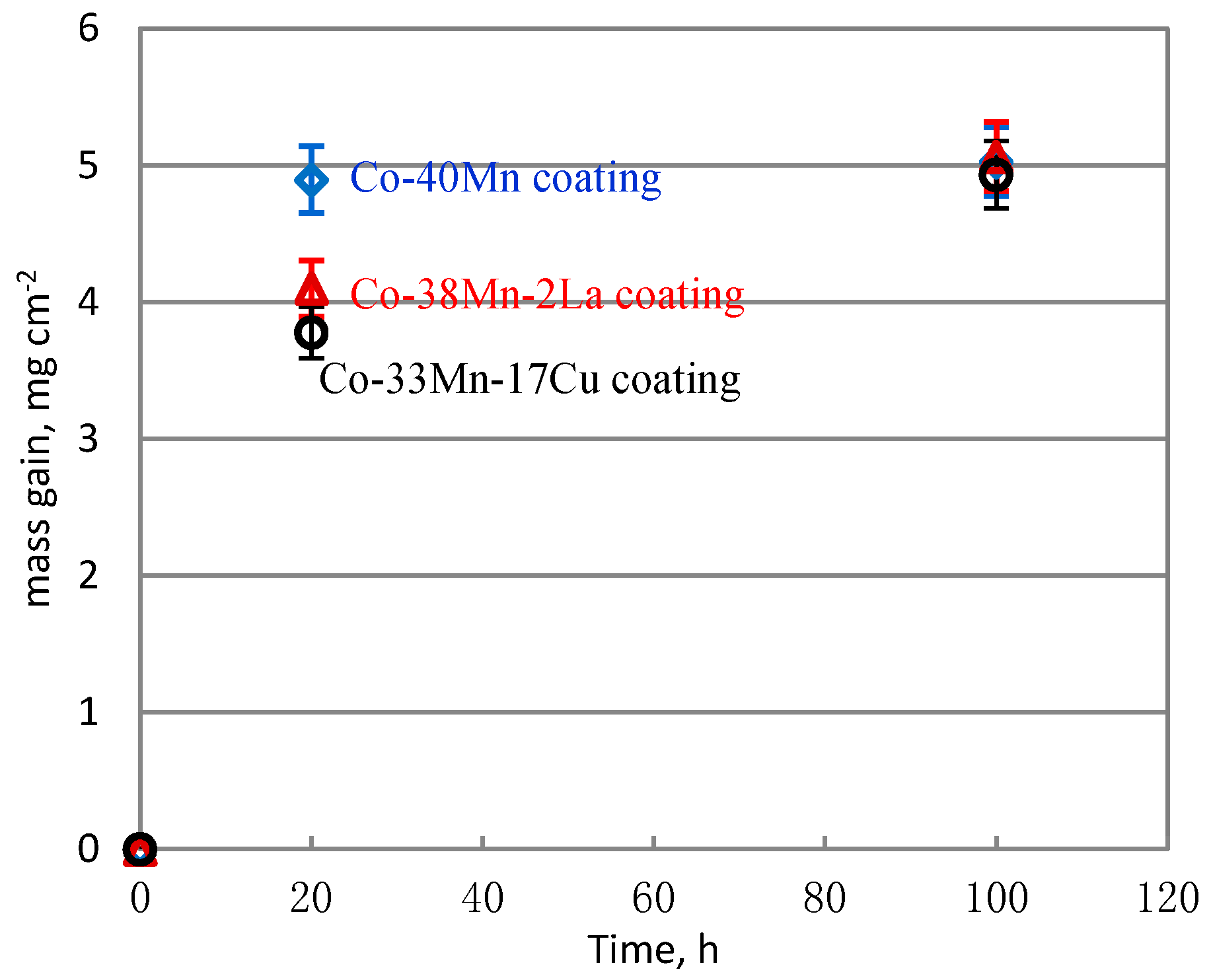

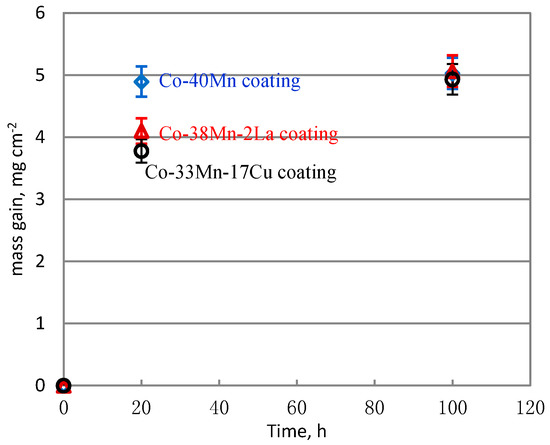

Figure 3. Mass gain of oxidized coatings at 750 °C in air.
Figure 3. Mass gain of oxidized coatings at 750 °C in air.
Coatings 08 00042 g003

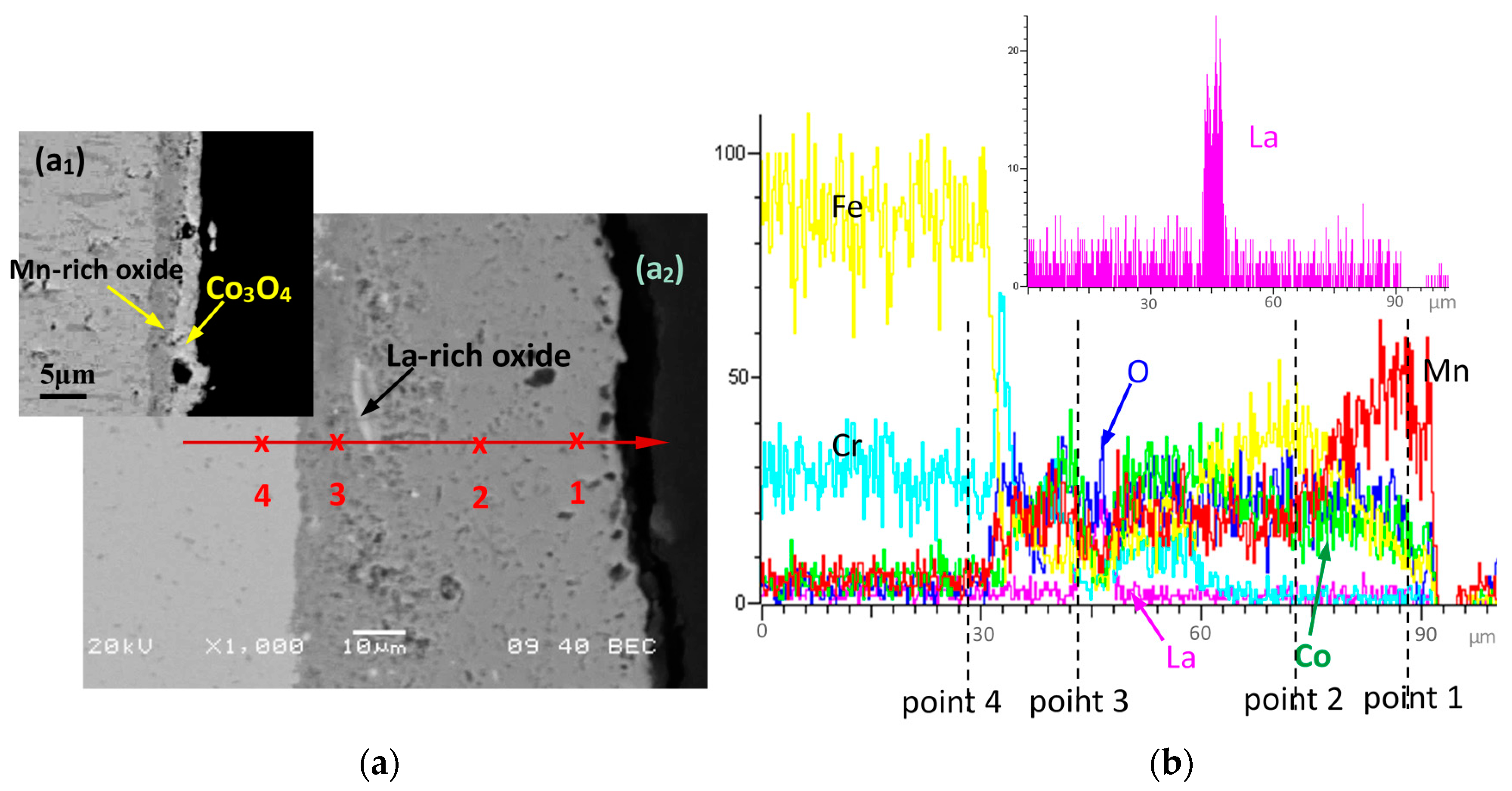

Figure 4. Cross-section morphology and EDS line scanning of Co-38Mn-2La coating oxidized at 750 °C in air for 100 h. The line scan position is shown in the cross-sectional image. (a) Cross section; (b) EDS line scanning.
Figure 4. Cross-section morphology and EDS line scanning of Co-38Mn-2La coating oxidized at 750 °C in air for 100 h. The line scan position is shown in the cross-sectional image. (a) Cross section; (b) EDS line scanning.
Coatings 08 00042 g004

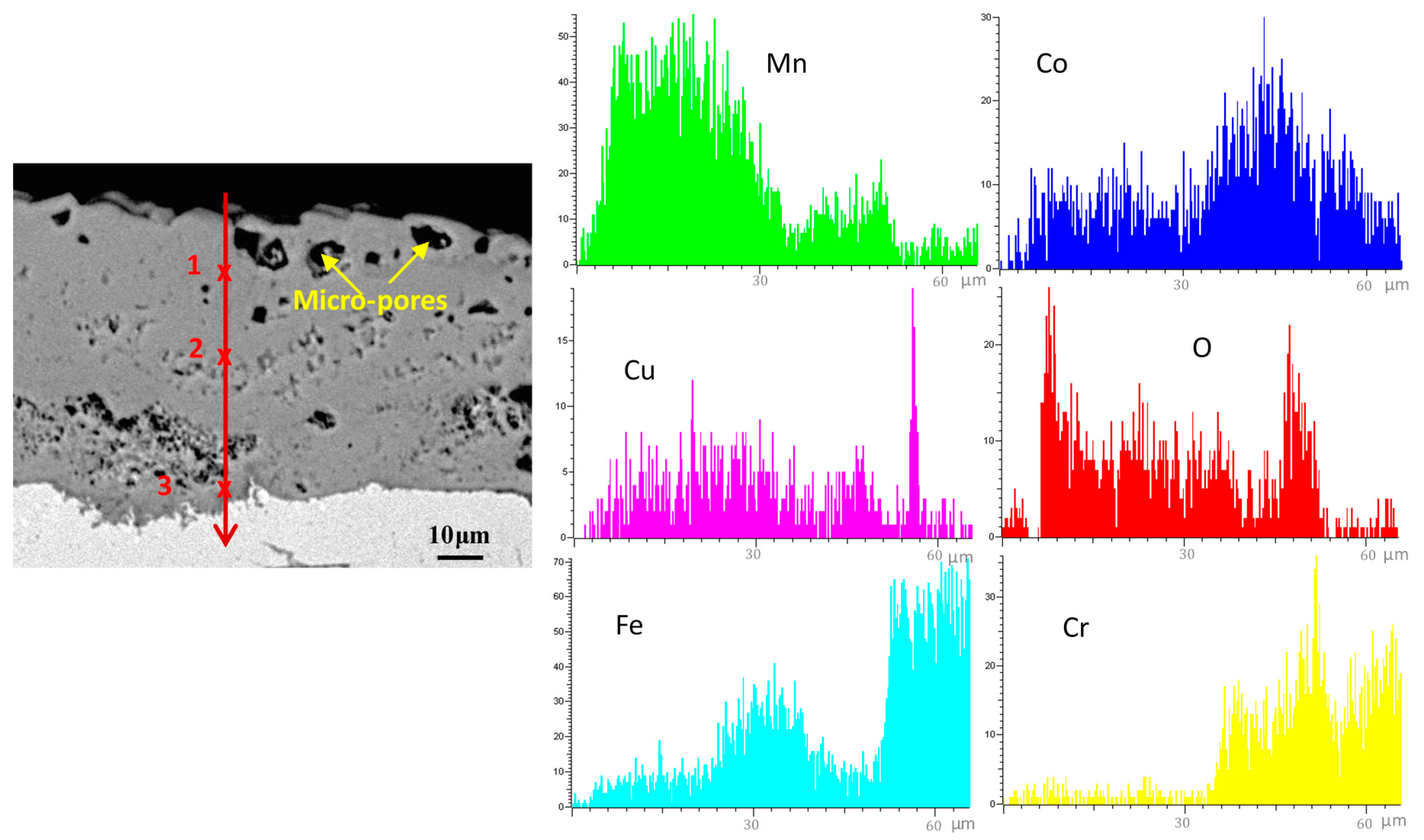

Figure 5. Cross-section morphology and EDS line scanning of Co-33Mn-17Cu coating oxidized at 750 °C in air for 100 h. The line scan position is shown in the cross-sectional image.
Figure 5. Cross-section morphology and EDS line scanning of Co-33Mn-17Cu coating oxidized at 750 °C in air for 100 h. The line scan position is shown in the cross-sectional image.
Coatings 08 00042 g005

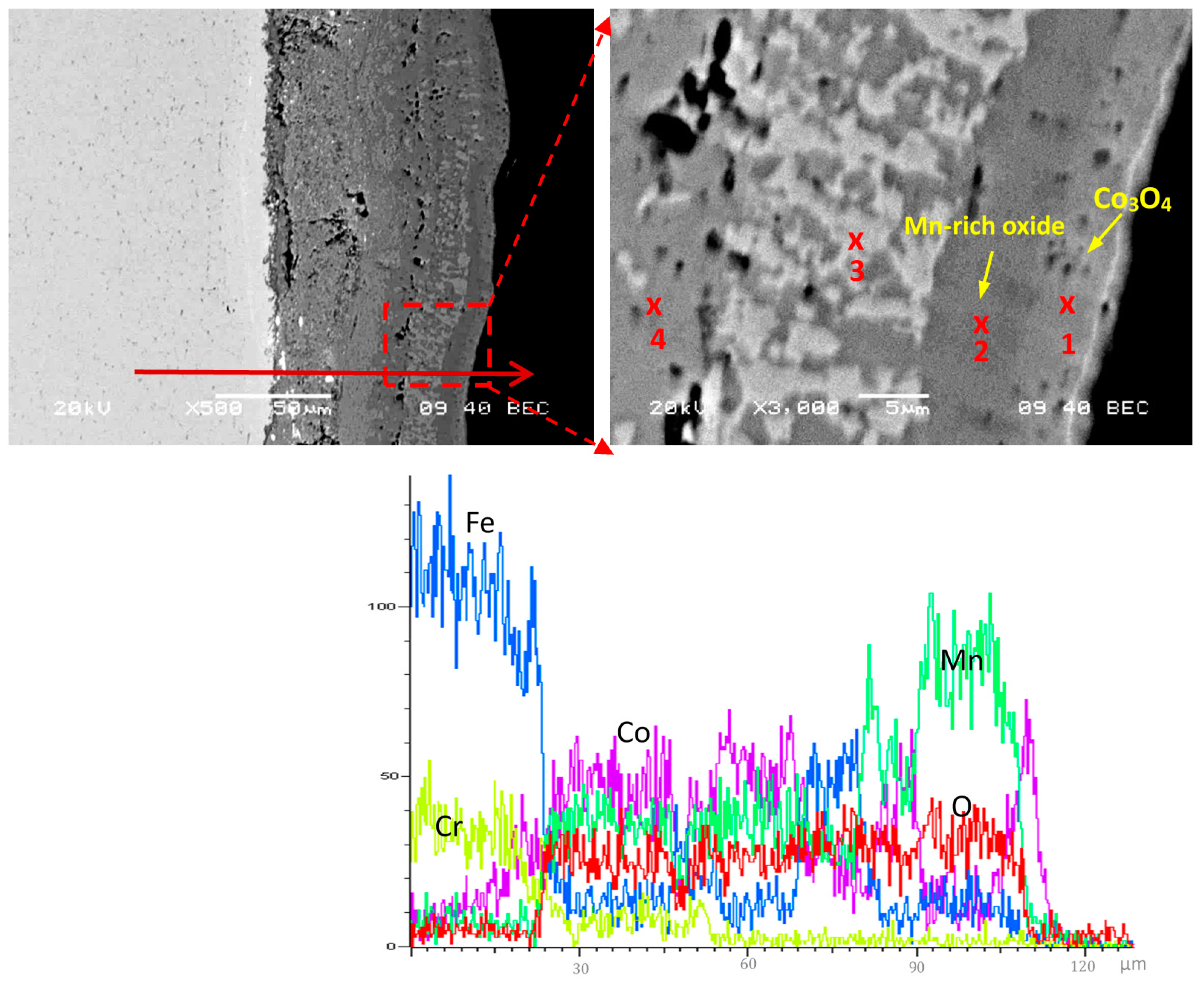

Figure 6. Cross-section morphology and EDS line scanning of Co-40Mn coating oxidized at 750 °C in air for 100 h. The line scan position is shown in the cross-sectional image.
Figure 6. Cross-section morphology and EDS line scanning of Co-40Mn coating oxidized at 750 °C in air for 100 h. The line scan position is shown in the cross-sectional image.
Coatings 08 00042 g006

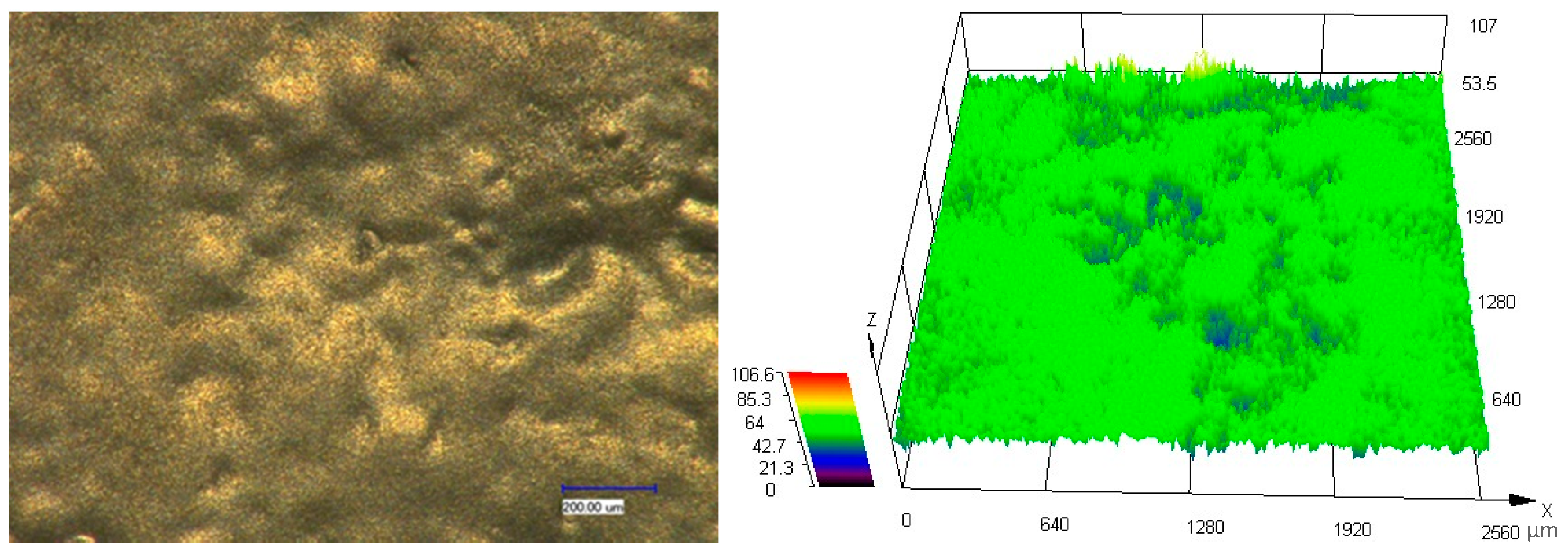

Figure 7. Surface microtopography and roughness of Co-38Mn-2La coating oxidized at 750 °C in air for 100 h.
Figure 7. Surface microtopography and roughness of Co-38Mn-2La coating oxidized at 750 °C in air for 100 h.
Coatings 08 00042 g007

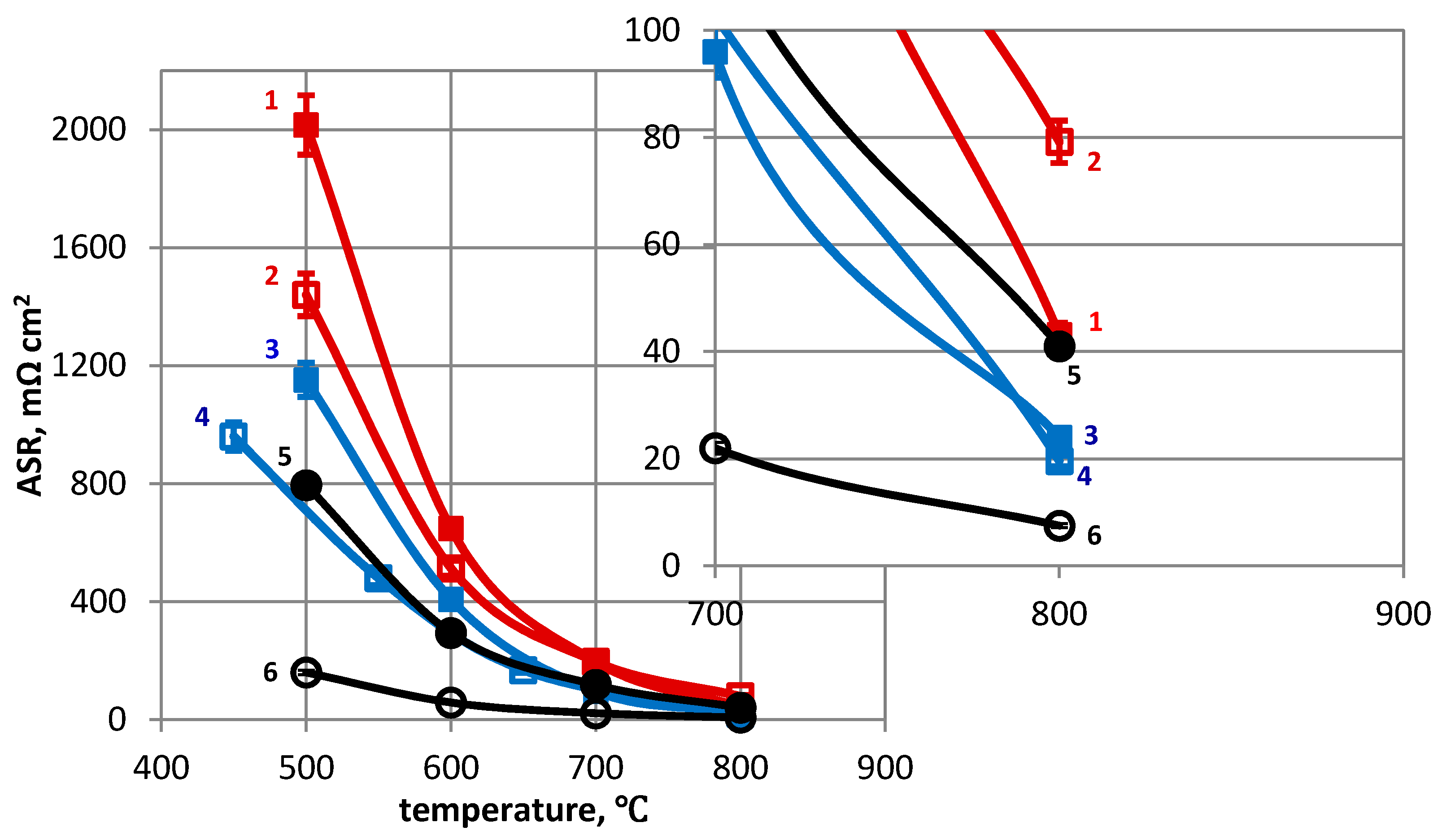

Figure 8. ASR of oxide coatings with the temperature range of 500–800 °C. 1 and 2: Co-40Mn coating oxidized at 750 °C in air for 100 h and 20 h; 3 and 4: Co-38Mn-2La coating oxidized at 750 °C in air for 100 h and 20 h; 5 and 6: Co-33Mn-17Cu coating oxidized at 750 °C in air for 100 h and 20 h.
