Damping Optimization of Hard-Coating Thin Plate by the Modified Modal Strain Energy Method

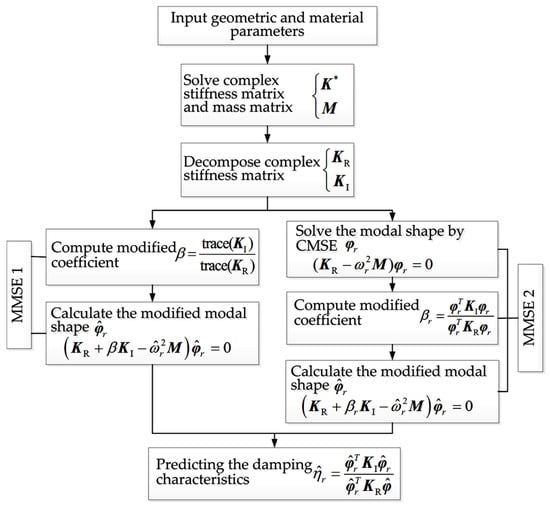

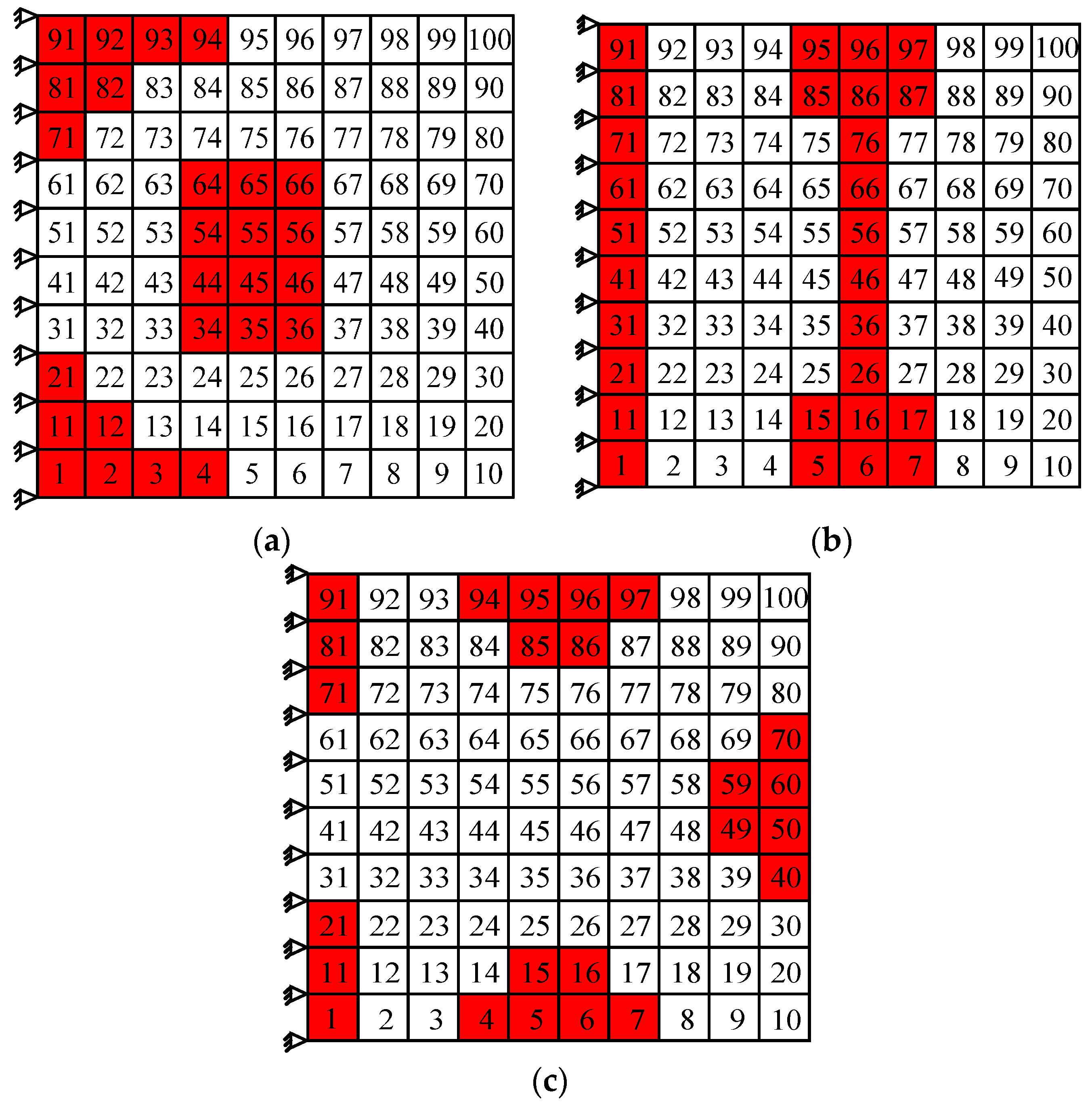

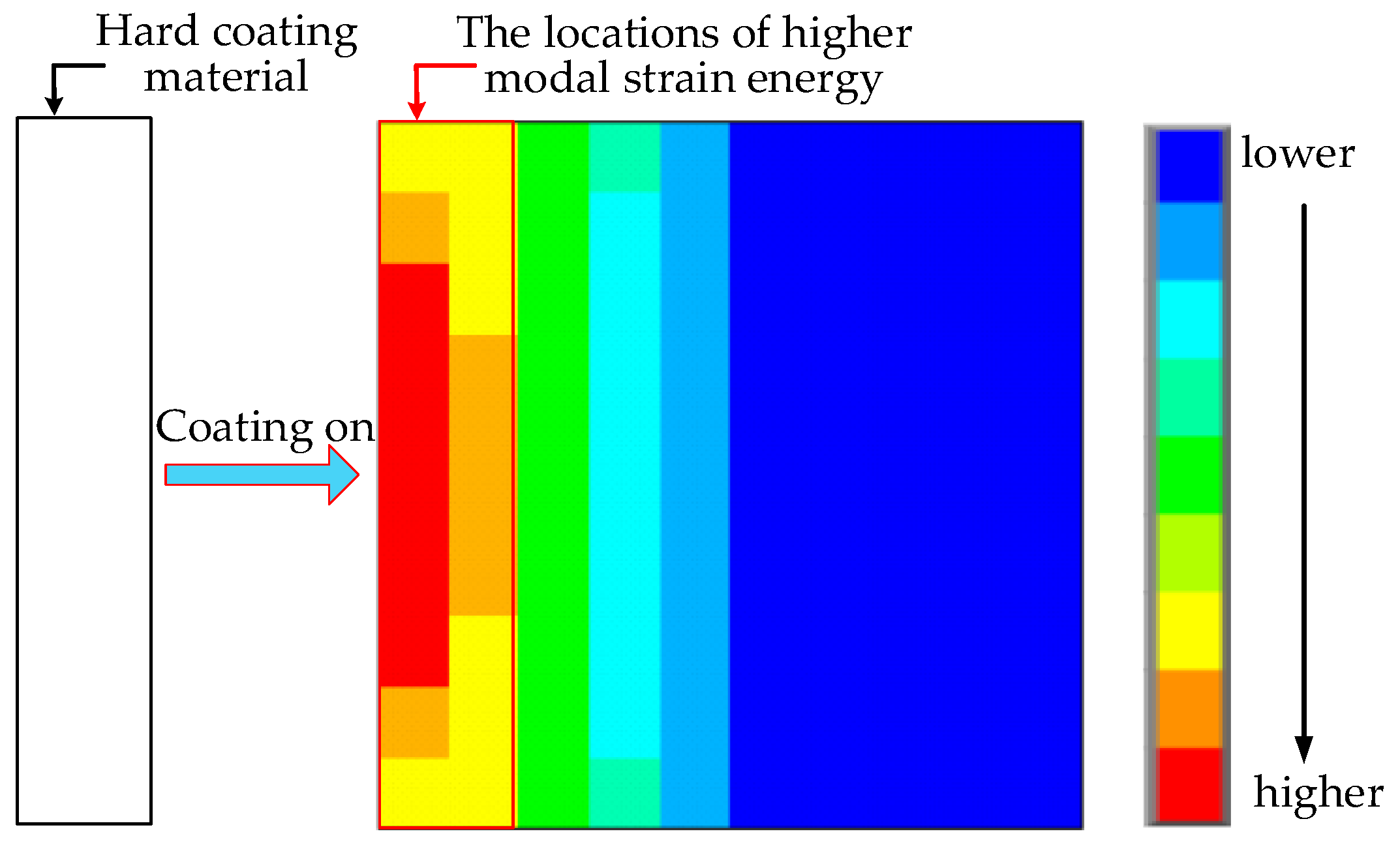

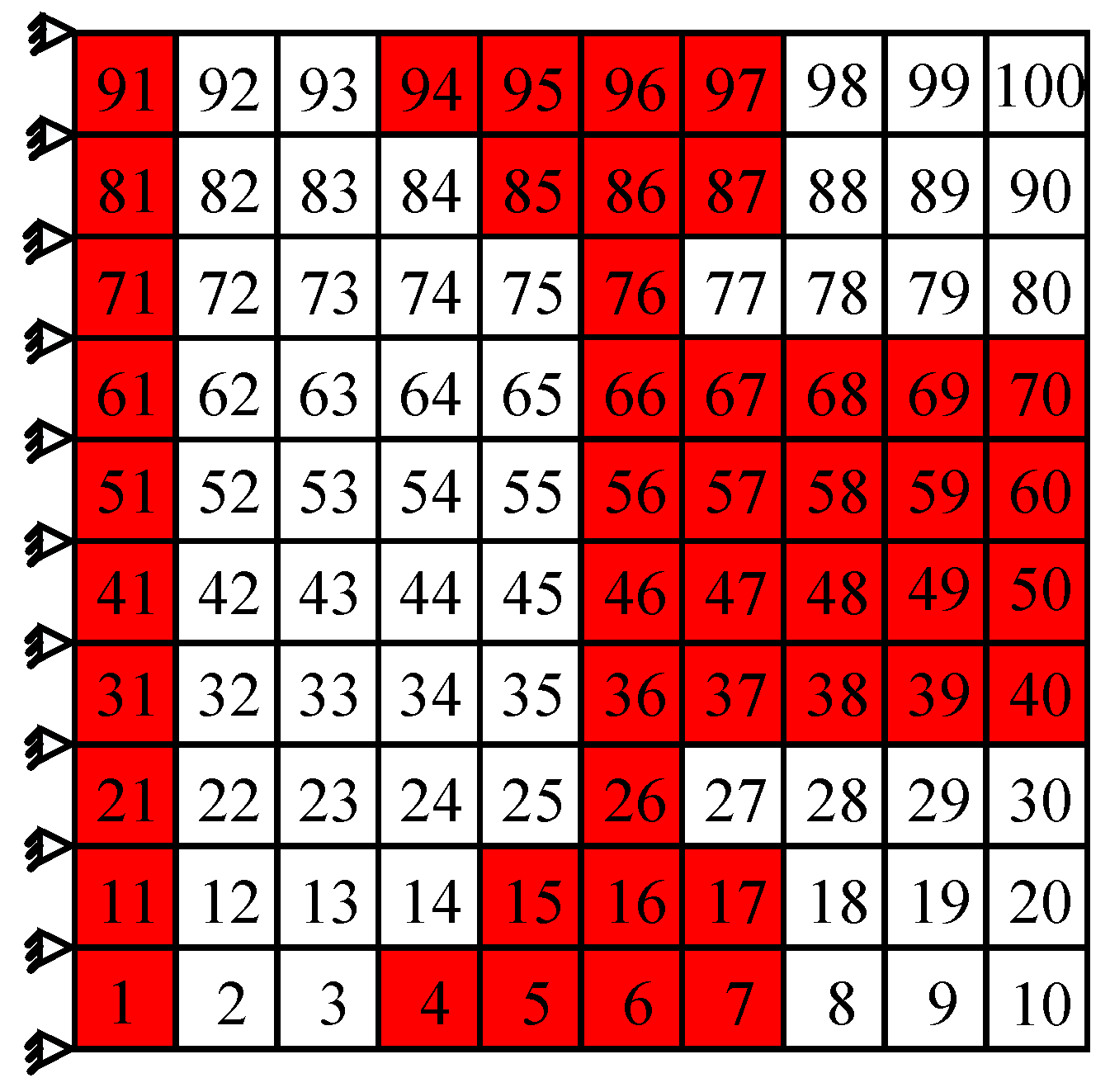

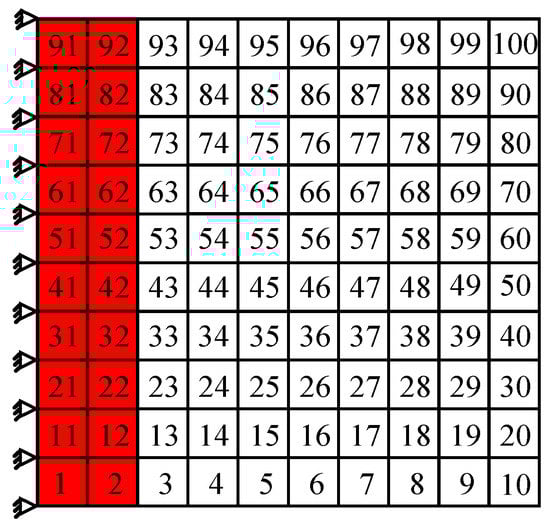

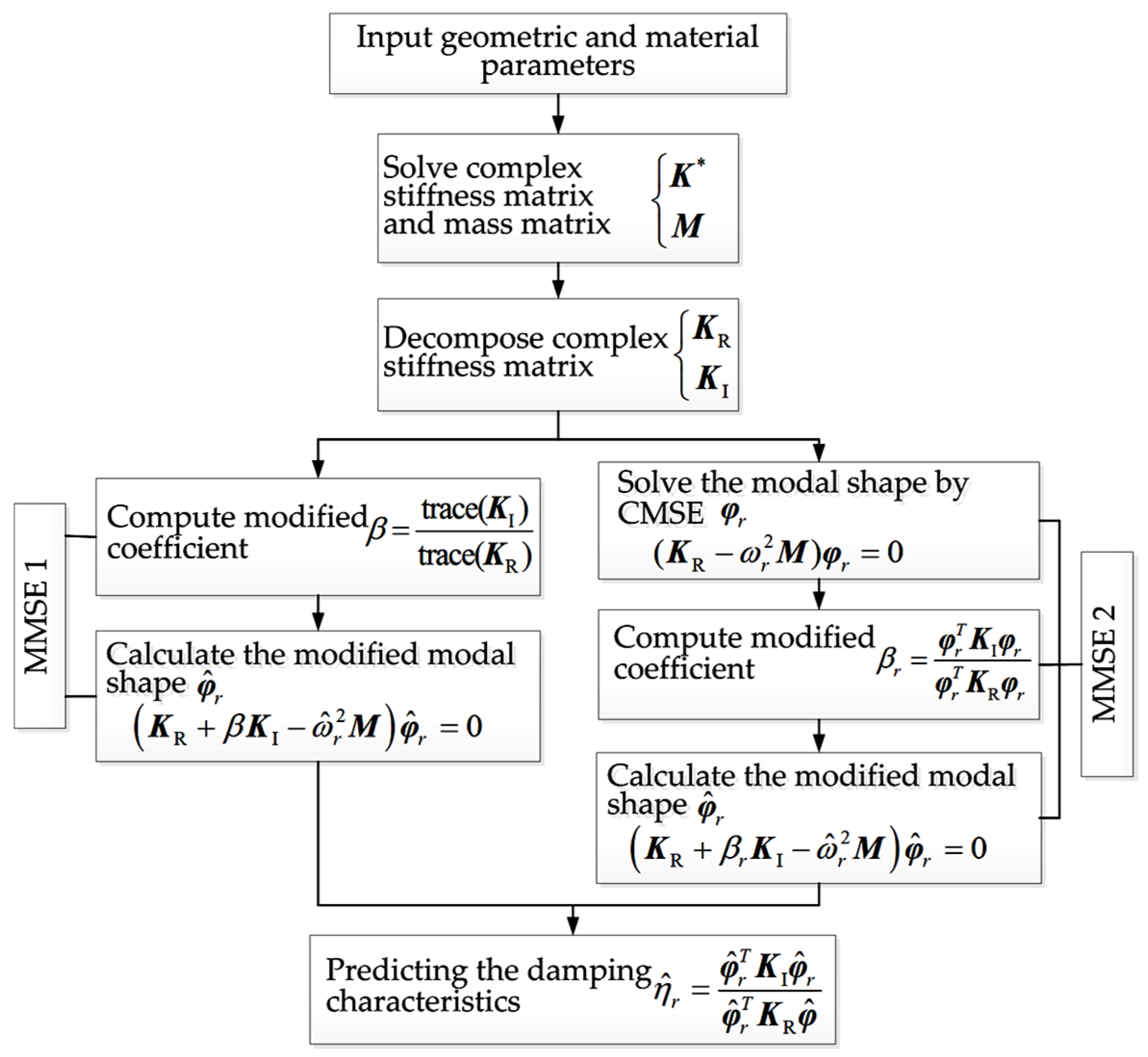

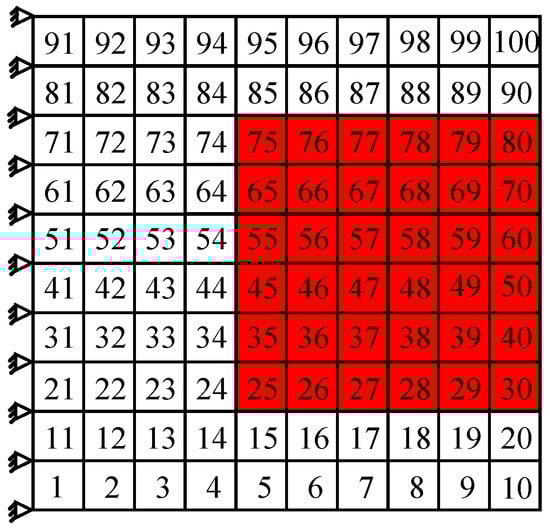

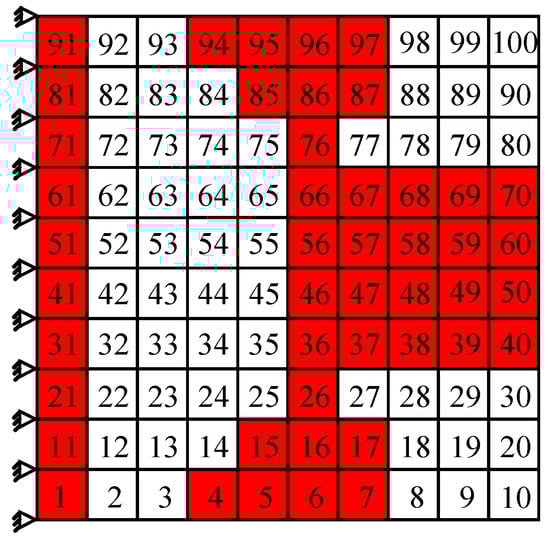

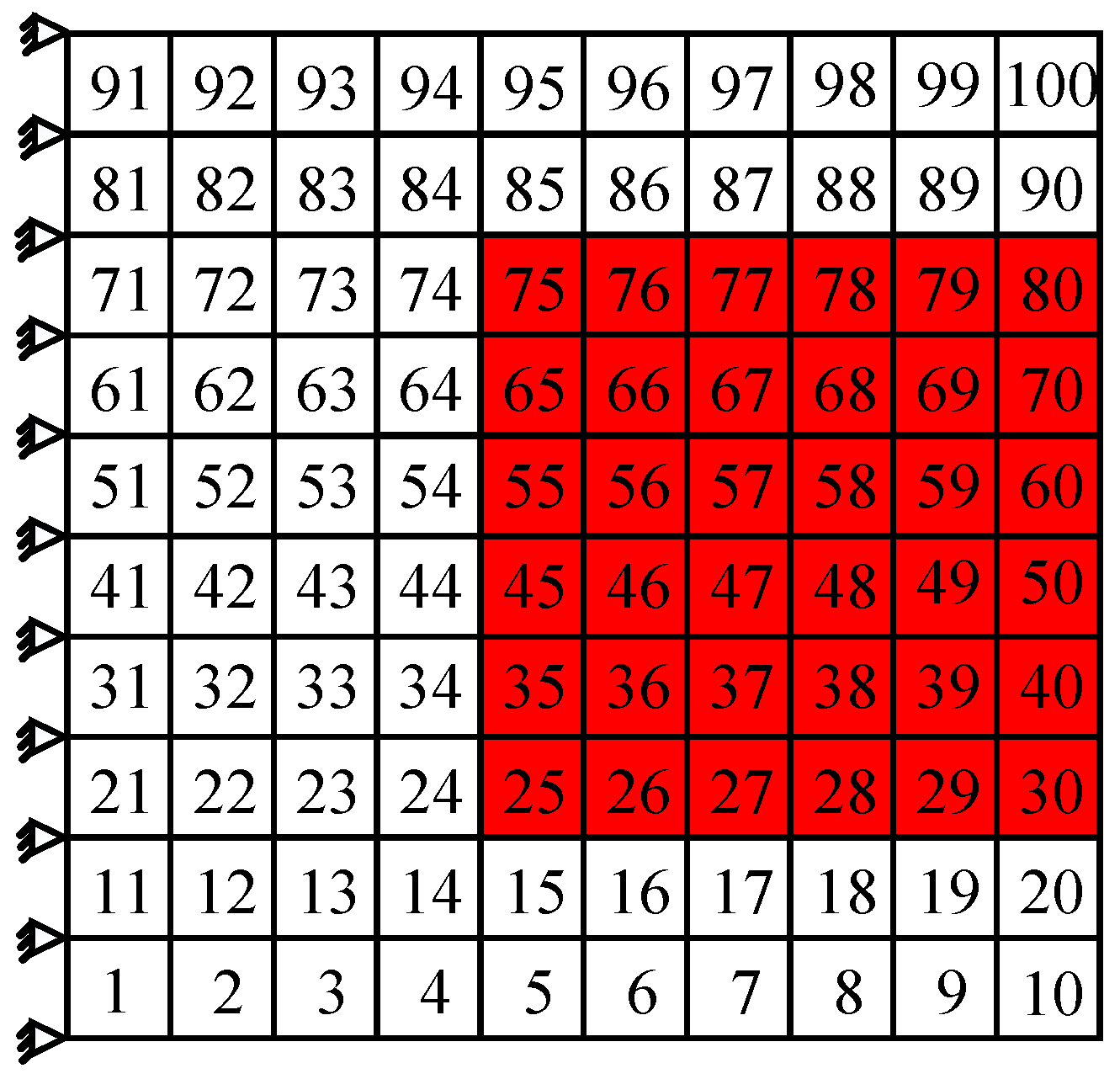

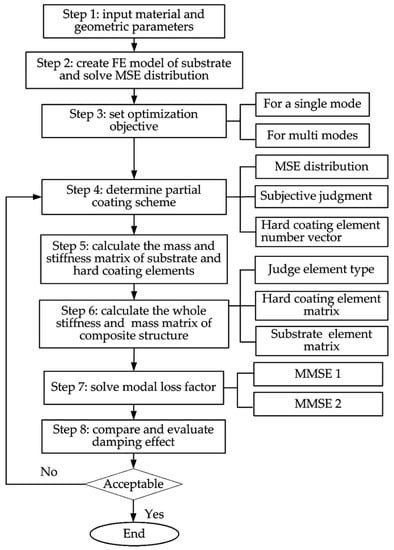

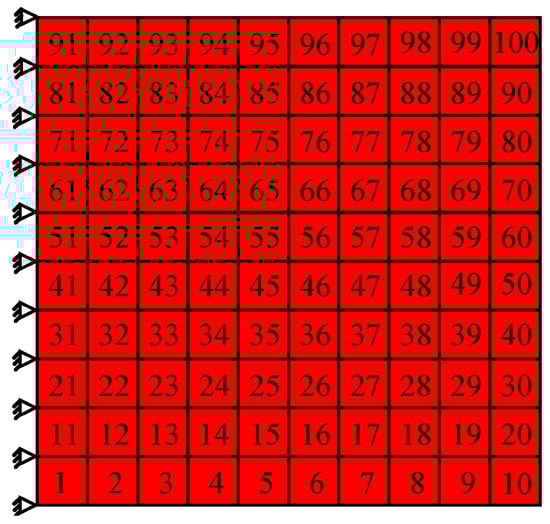

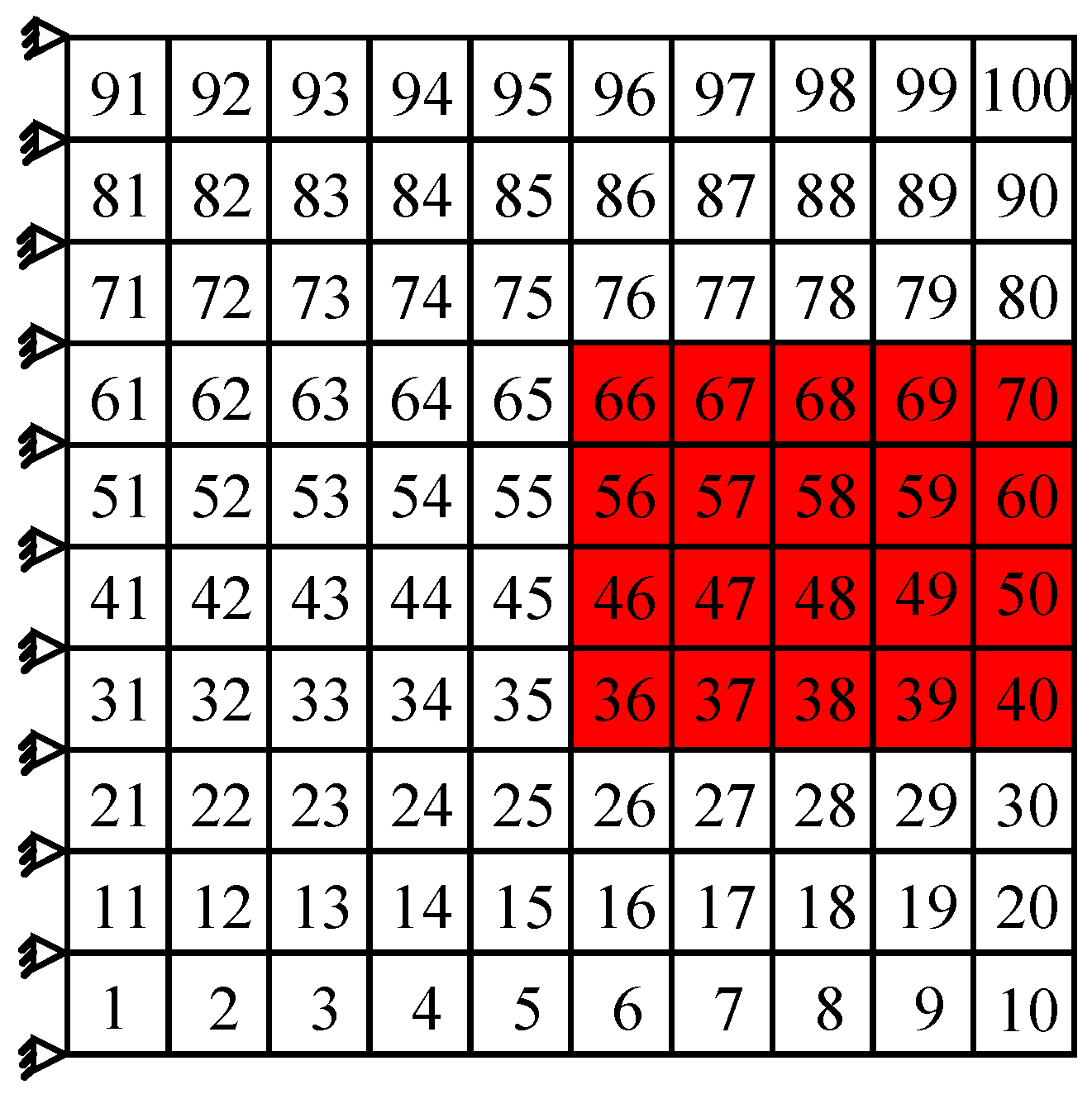

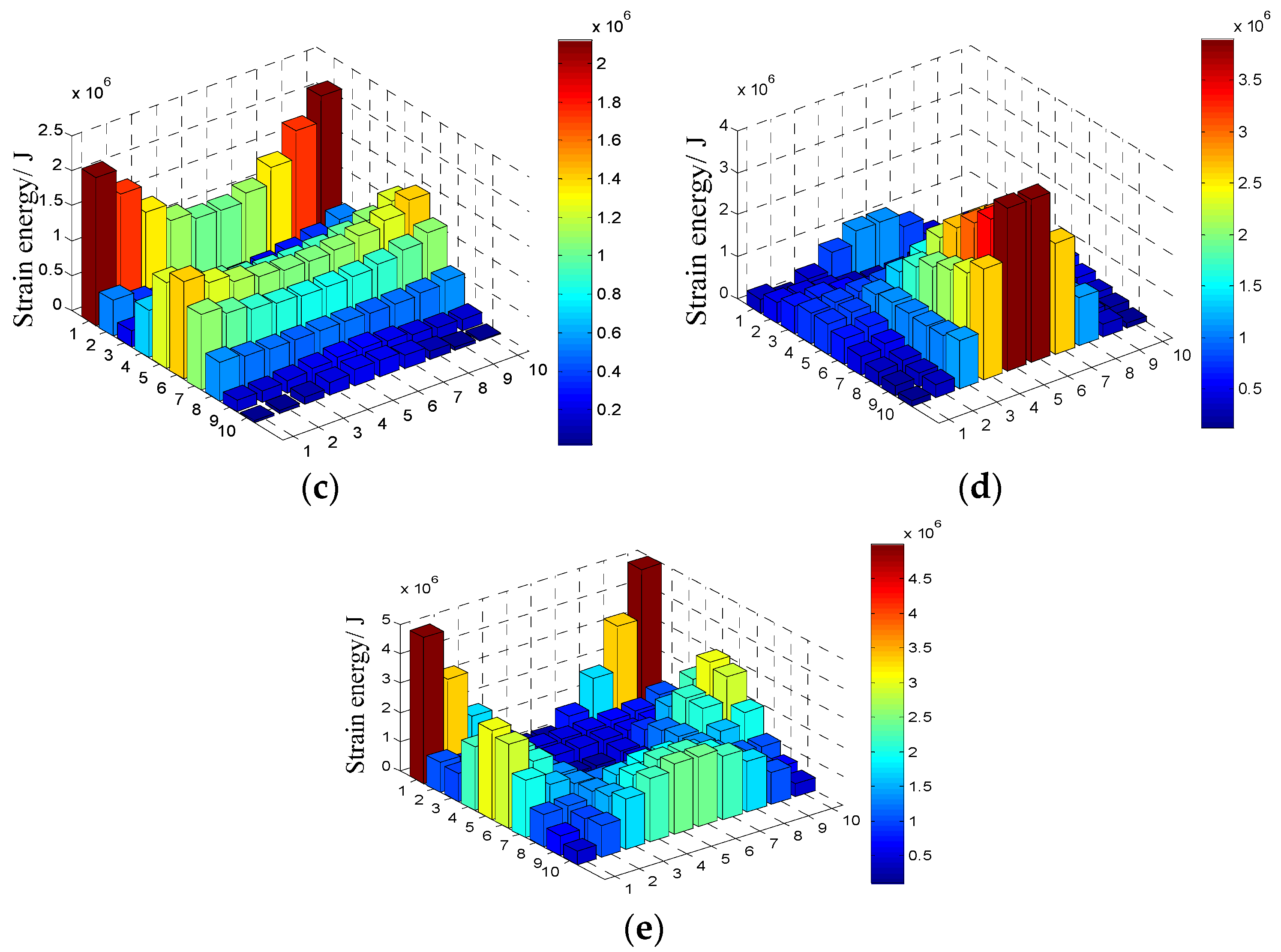

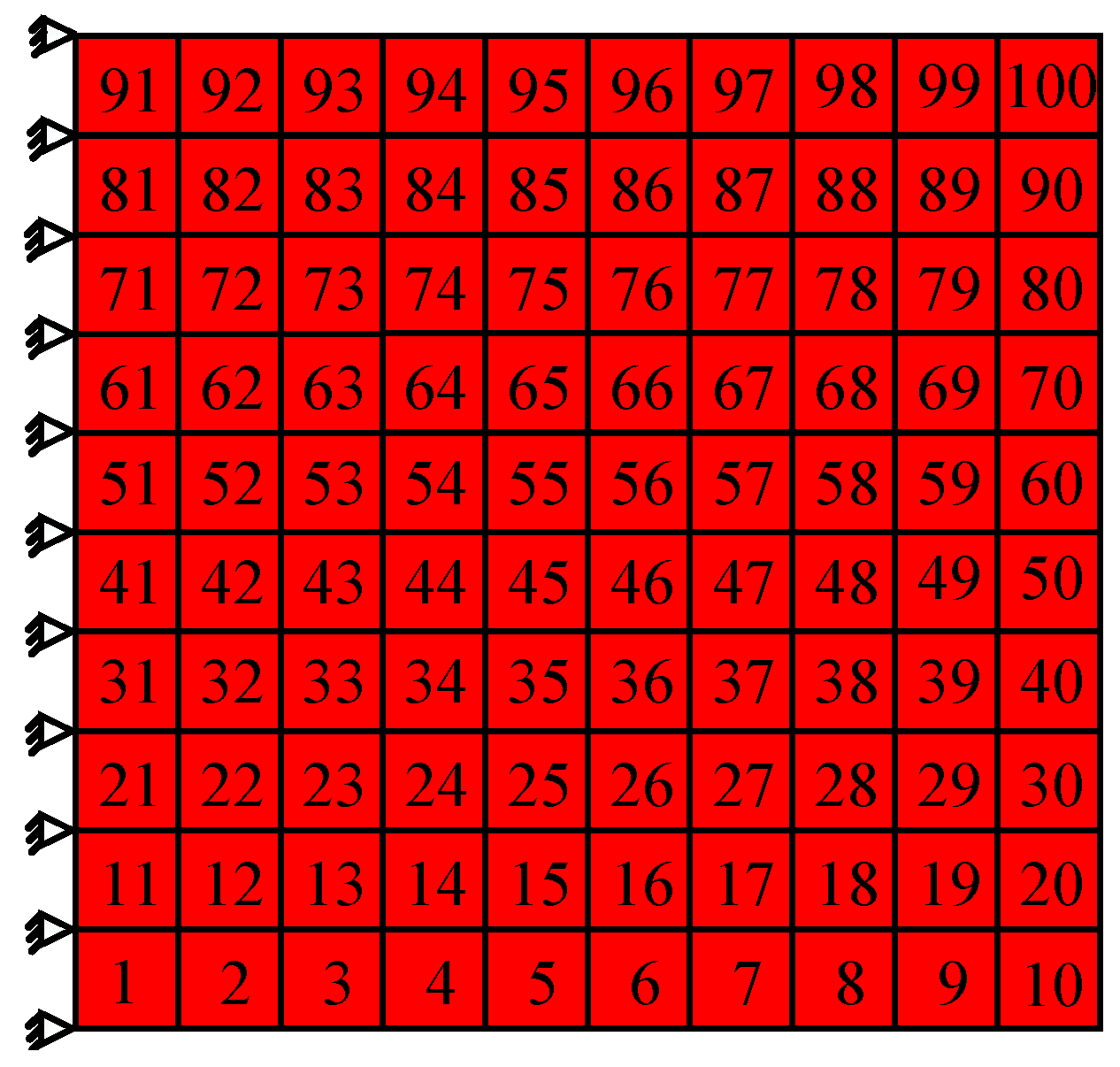

AbstractDue to the medium and small damping characteristics of the hard coating compared with viscoelastic materials, the classical modal strain energy (CMSE) method cannot be applied to the prediction of damping characteristics of hard-coating composite structure directly. In this study, the CMSE method was modified in order to be suitable for this calculation, and then the damping optimization of the hard-coating thin plate was carried out. First, the solution formula of modified modal strain energy (MMSE) method was derived and the relevant calculation procedure was proposed. Then, based on the principle that depositing the hard coating on the locations where modal strain energy is higher, the damping optimization method and procedure were presented. Next, a cantilever thin plate coated with Mg-Al hard coating was taken as an example to demonstrate the solution of the modal damping parameters for the composite plate. Finally, the optimization of coating location was studied according to the proposed method for the cantilever thin plate, and the effect of the coating area on the damping characteristics of hard-coating plate was also discussed. View Full-Text
Scifeed alert for new publicationsNever miss any articles matching your research from any publisher
- Get alerts for new papers matching your research
- Find out the new papers from selected authors
- Updated daily for 49'000+ journals and 6000+ publishers
- Define your Scifeed now
Sun, W.; Liu, R. Damping Optimization of Hard-Coating Thin Plate by the Modified Modal Strain Energy Method. Coatings 2017, 7, 32.
Sun W, Liu R. Damping Optimization of Hard-Coating Thin Plate by the Modified Modal Strain Energy Method. Coatings. 2017; 7(2):32.Chicago/Turabian Style
Sun, Wei; Liu, Rong. 2017. "Damping Optimization of Hard-Coating Thin Plate by the Modified Modal Strain Energy Method." Coatings 7, no. 2: 32.
