Coatings 2016, 6(3), 39; doi:10.3390/coatings6030039

Deposition and Characterization of Si-Doped Diamond Films Using Tetraethoxysilane onto a WC-Co Substrate

College of Mechanical Engineering, Donghua University, Shanghai 201620, China
*
Author to whom correspondence should be addressed.
Academic Editor: Maria Miritello
Received: 29 July 2016 / Revised: 26 August 2016 / Accepted: 2 September 2016 / Published: 5 September 2016
View Full-Text   |   Download PDF [4563 KB, uploaded 5 September 2016]   |

Abstract

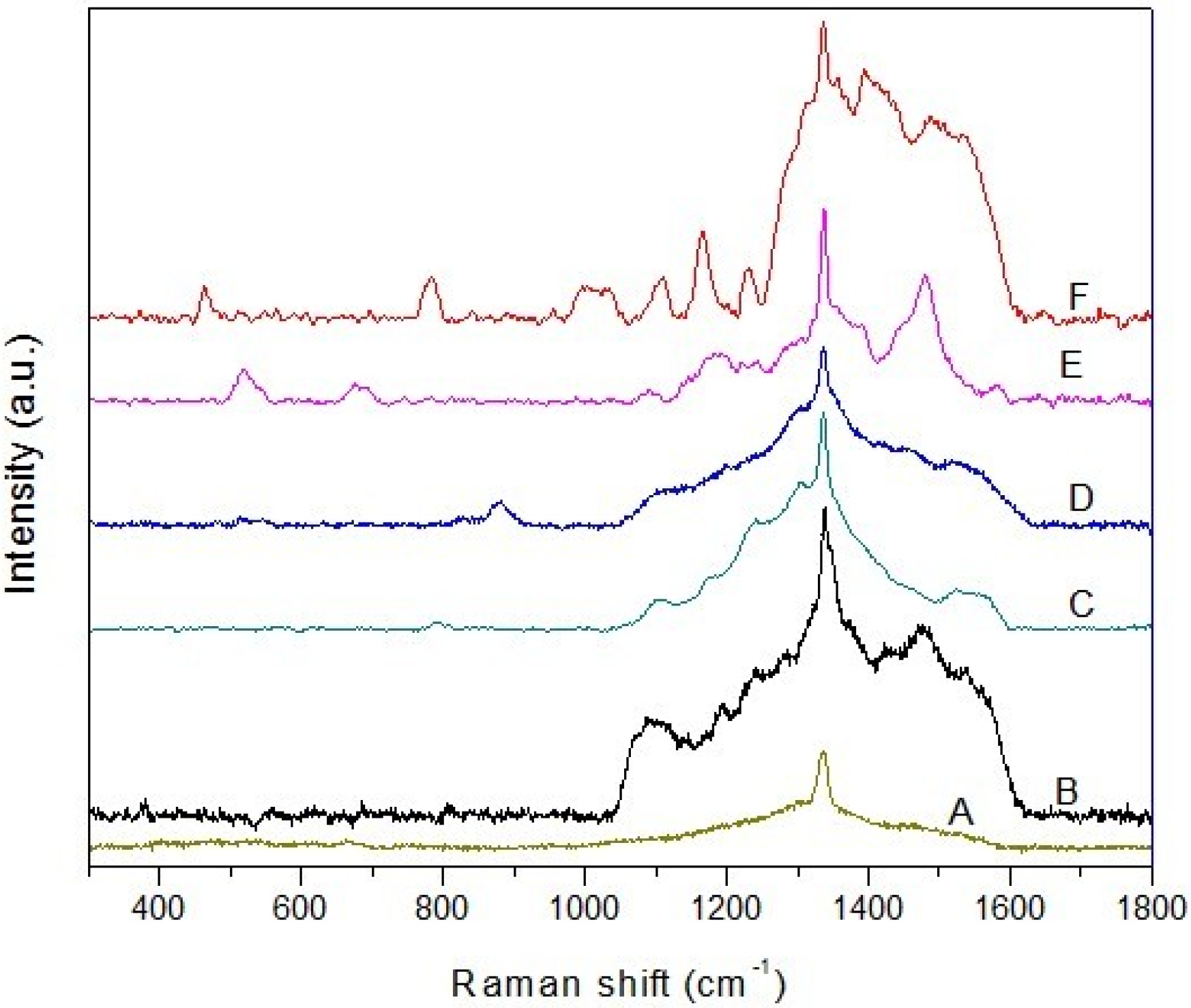

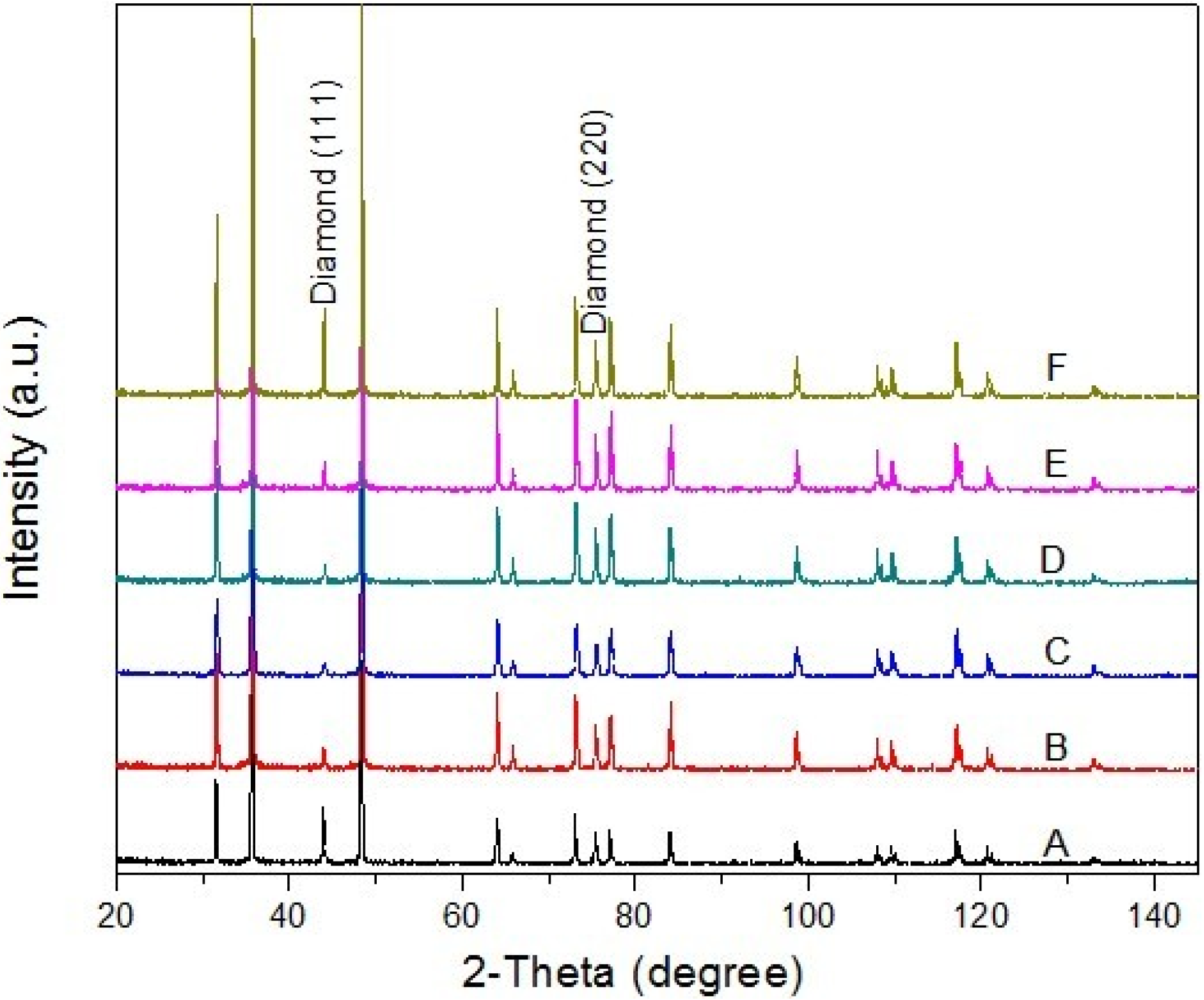

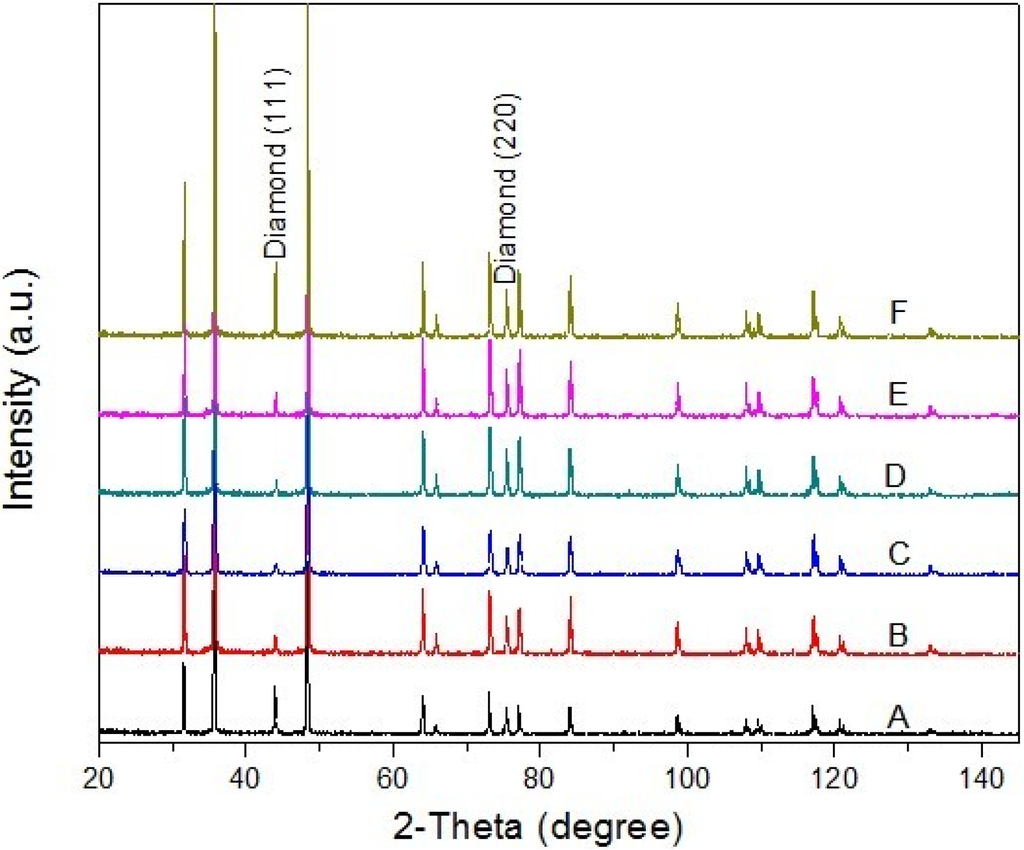

Silicon-doped (Si-doped) diamond films were deposited on a Co-cemented tungsten carbide (WC-Co) substrate using the hot filament chemical vapor deposition (HFCVD) method with a mixture of acetone, tetraethoxysilane (TEOS), and hydrogen as the recant source. The as-deposited doped diamond films were characterized with field emission scanning electron microscopy (FE-SEM), Raman spectrum, and X-ray diffraction (XRD). Furthermore, Rockwell C indentation tests were conducted to evaluate the adhesion of the Si-doped diamond films grown on the WC-Co substrate. The results demonstrated that the silicon concentration in the reactant source played an important role in the surface morphology and adhesion of diamond films. The size of diamond grain varied from 3 μm to 500 nm with silicon concentration increasing from 0 to 1.41 atom %. When the silicon concentration rose to 1.81 atom %, the grain size became bigger than that of the lower concentration. The ratio of diamond peak {220}/{111} varied with different silicon concentrations. Raman study features revealed high purity of as-deposited diamond films. The Raman spectra also demonstrated the presence of silicon in the diamond films with Si–Si, Si–C and Si–O bonds. Si-doped diamond films with strong adhesive strength on the WC-Co substrate was beneficial for diamond films applied on cutting tools and wear resistance components. View Full-Text
Keywords: HFCVD; Si-doped diamond films; WC-Co substrate; adhesive strength HFCVD; Si-doped diamond films; WC-Co substrate; adhesive strength
Figures

Figure 1a

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Zhang, J.; Ji, X.; Bao, J.; Zheng, X. Deposition and Characterization of Si-Doped Diamond Films Using Tetraethoxysilane onto a WC-Co Substrate. Coatings 2016, 6, 39.
