Antibiotics 2014, 3(3), 435-449; doi:10.3390/antibiotics3030435

Article
A Novel Organo-Selenium Bandage that Inhibits Biofilm Development in a Wound by Gram-Positive and Gram-Negative Wound Pathogens
Phat L. Tran 1, Saurabh Patel 2, Abdul N. Hamood 3, Tyler Enos 4, Thomas Mosley 1, Courtney Jarvis 1, Akash Desai 1, Pamela Lin 1 and Ted W. Reid 1,*
1
Departments of Ophthalmology and Visual Sciences, School of Medicine, Texas Tech University Health Sciences Center, Lubbock, TX 79430, USA; E-Mails: phat.tran@ttuhsc.edu (P.L.T.); thomas.mosley@yahoo.com (T.M.); courtney.jarvis@ttuhsc.edu (C.J.); akash.desai@ttuhsc.edu (A.D.); pamela.lin@ttuhsc.edu (P.L.)
2
Department of Neonatology, University of Illinois, Chicago, IL 60607, USA; E-Mail: drsaurabh.14@gmail.com
3
Departments of Medical Microbiology and Immunology, Texas Tech University Health Sciences Center, Lubbock, TX 79430, USA; E-Mail: abdul.hamood@ttuhsc.edu
4
South Western Medical Center, University of Texas, Dallas, TX 75390, USA; E-Mail: tyler.enos@utsouthwestern.edu
*
Author to whom correspondence should be addresses; E-Mail: ted.reid@ttuhsc.edu; Tel.:+1-806-743-2417 (ext. 262); Fax: +1-806-743-2471.
Received: 30 April 2014; in revised form: 7 August 2014 / Accepted: 19 August 2014 /
Published: 25 August 2014

Abstract

: Biofilm formation in wounds is a serious problem which inhibits proper wound healing. One possible contributor to biofilm formation in a wound is the bacteria growing within the overlying bandage. To test this mechanism, we used bandages that contained a coating of organo-selenium that was covalently attached to the bandage. We tested the ability of this coating to kill bacteria on the bandage and in the underlying tissue. The bandage material was tested with both lab strains and clinical isolates of Staphylococcus aureus, Pseudomonas aeruginosa and Staphylococcus epidermidis. It was found that the organo-selenium coated bandage showed inhibition, of biofilm formation on the bandage in vitro (7–8 logs), with all the different bacteria tested, at selenium concentrations in the coating of less than 1.0%. These coatings were found to remain stable for over one month in aqueous solution, 15 min in boiling water, and over 6 years at room temperature. The bandages were also tested on a mouse wound model where the bacteria were injected between the bandage and the wound. Not only did the selenium bandage inhibit biofilm formation in the bandage, but it also inhibited biofilm formation in the wound tissue. Since selenium does not leave the bandage, this would appear to support the idea that a major player in wound biofilm formation is bacteria which grows in the overlying bandage.
Keywords:
biofilm formation; wound healing; organo-selenium; bandage

1. Introduction

Bacterial infections in wounds are difficult to treat and can be found in patients with diabetes [1], surgical wounds [2,3], traumatic wounds [4] and burns [5]. The two most common bacteria that cause wound infections are Pseudomonas aeruginosa and Staphylococcus aureus [1,2,3,4,5]. These are opportunistic pathogens, which do not cause many problems in healthy individuals; however, they can readily cause infections in individuals in which the host defenses are affected. A good example of this is seen in burn patients when the tissue is damaged [5]. These bacteria can enter the wound from the normal flora of the patient or a health care worker, as seen in the cases of S. aureus, and can be acquired from the environment, as seen in the cases of P. aeruginosa. These organisms can thrive in the environment of a wound. In burn wounds, both P. aeruginosa and S. aureus often exist as biofilms [6,7].

A biofilm is a community of bacterial cells which can be formed from different bacteria organized to perform different functions [8]. For instance, P. aeruginosa displays multiple phenotypes during development as a biofilm [9]. Also, P. aeruginosa biofilms form in a set of different phases [9]. The first phase is a reversible attachment which is followed by the second phase of irreversible attachment of bacteria to strata, which can be formed from fragments of tissue, a matrix, cellular and/or artificial. This is followed by different stages of maturation where the bacterial cells form protective layers around themselves (these layers can be composed of compounds such as lipopolysaccharide—LPS). Ultimately, the biofilm enters a dispersive phase where bacteria can be shed into the surrounding tissue [9]. This ability of the biofilm to form a barrier towards antibodies and blood cells presents a serious medical management problem. In addition, since many of the bacterial cells in the biofilm are in a quiescent state, they are very resistant to antibiotics [8]. This is why it is important to have a covering over a wound that provides a barrier to bacteria, and at the same time, it does not provide the bacteria with a platform for bacterial biofilm formation.

Currently, many bandages contain silver which is embedded in the substrate of the material, and these silver bandages have been shown to prevent bacterial infection [10,11,12,13]. However, silver compounds (the most common compound at the present time) must leach from the bandage, and they are toxic to human fibroblasts at even low concentrations [14,15]. In addition, these compounds have limited half-lives because of their leaching requirement. If the silver compounds are in a high enough concentration to be effective, they also tend to blacken the wound from the formation of elemental silver, which makes it difficult for the physician to gauge the healing progression of the wound. In addition, tests of different silver bandages only show around four logs of killing [16]; however, organo-selenium as described below, offers an alternative.

It has been shown that organo-selenium can be covalently attached to many types of surfaces and still generate superoxide radicals (O2¯) as it has been shown in the past with different types of materials [17,18,19,20,21]. The di-selenide compounds, used in the synthesis of the coating, are reduced by thiols (sulfhydryl groups, R-SH) which can be found in physiological fluids, and form selenide anions, R-Se [22]. This can be seen in Equation (1) below. The catalytic selenide anion, R-Se, then reacts with oxygen to form O2¯ and a putative thiyl radical R-Se. R-Sethen reacts with two moles of thiol (supplied in the assay and in vivo as glutathione [GSH]) to regenerate the original selenide anion as shown in the Equations (2) and (3) below [22]. Equations (2) and (3) form a catalytic mechanism since the original selenide anion is regenerated.

R-Se-Se-R + 2 GSH → 2R-Se + GSSG
R-Se+ 2O2→ R-Se+ 2O2¯
R-Se• + 2 GSH → R-Se + GSSG

While this catalytic ability of selenium has been known since 1947 [23], the pro-oxidative characteristics of selenium compounds were not elucidated until 1989 by Seko et al. [24]. Since the mechanism used by selenium is catalytic and the antimicrobial effect is caused by the generated superoxide radical, the organo-selenium compound does not have to leave the surface of the bandage. This means there is no tissue toxicity.

Recently, we showed that organo-selenium compounds could be covalently bound to solid matrixes, and they retained their ability to catalyze the formation of superoxide radicals to inhibit bacterial attachment to a surface [17,18,19,20,21]. The present study looks at the ability of an organo-selenium bandage to not only block the ability of both P. aeruginosa and S. aureus to form a biofilm on the bandage material, but also to inhibit biofilm formation in the underlying wound.

2. Results and Discussion

2.1. Organo-Selenium Bandage, Coated with Different Organo-Selenium Concentrations, was Tested for Its Ability to Block Biofilm Formation in Vitro for Laboratory Strains of Staphylococcus aureus and Pseudomonas aeruginosa

Using the biofilm inhibition assay (CFU assay), the organo-selenium bandage was tested against lab strains of S. aureus and P. aeruginosa, added to bandages with different selenium concentrations. The bandages were coated with organo-selenium in the form of Se-AAEMA. As can be seen in Figure 1A, over eight logs of inhibition were seen for S. aureus 31 biofilm formation at 0.1% selenium concentration. In addition, 0.05% selenium showed only a little over a log of inhibition when it is compared with the bandage coated with the control AAEMA containing no selenium.

For P. aeruginosa PAO1 SW, (Figure 1B), the bandage materials, coated with different concentrations of selenium, showed over eight logs of inhibition (100%) at 0.2% selenium. In addition, 0.1% selenium showed less logs of inhibition when it was compared with control bandage coated with AAEMA containing no selenium.

These results show that Gram-negative bacteria are slightly more resistant to inhibition of biofilm formation by the selenium-catalyzed formation of superoxide. However, both Gram-negative and Gram-positive bacteria were inhibited (>8 logs of inhibition) at low (<0.2%) organo-selenium concentrations.

Antibiotics 03 00435 g001

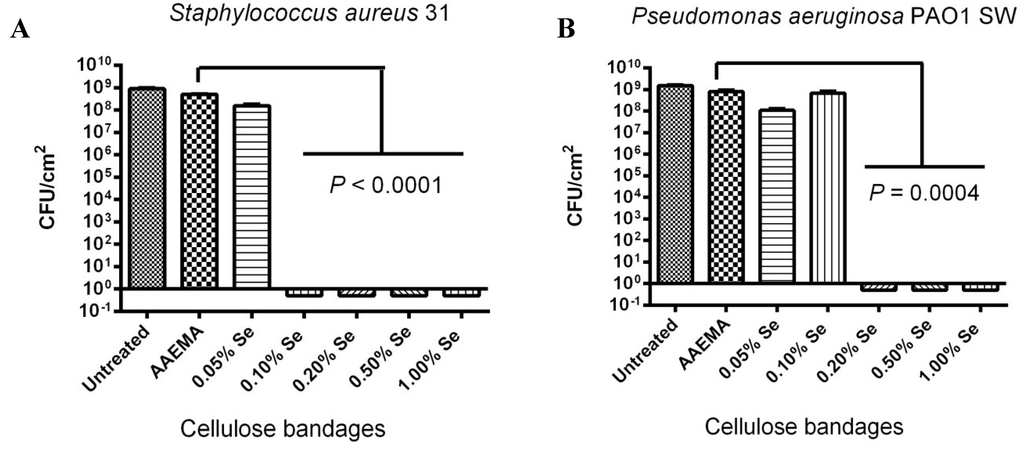

Figure 1. Dose response of an organo-selenium coated bandage on the inhibition of bacterial biofilm formation. The colony forming unit (CFU) determination is for a 1 cm2 bandage in 1 mL of solution. (A) S. aureus 31; (B) P. aeruginosa PAO1 SW.

Click here to enlarge figure

Figure 1. Dose response of an organo-selenium coated bandage on the inhibition of bacterial biofilm formation. The colony forming unit (CFU) determination is for a 1 cm2 bandage in 1 mL of solution. (A) S. aureus 31; (B) P. aeruginosa PAO1 SW.
Antibiotics 03 00435 g001

2.2. Confocal Visualization of the Biofilm Inhibition on a Bandage by Organo-Selenium in Vitro

In order to visualize the biofilm formation, confocal images of the biofilm at different selenium concentrations were carried out using the Confocal Laser Scanning Microscope (CSLM). Bandages from the same study, as was carried out above, were used. As seen in Figure 2, it shows a dramatic difference between the Se-AAEMA coated bandage (which has no biofilm—lack of fluorescence) and the control bandage with no treatment or AAEMA bandage with the AAEMA alone (which have biofilms as seen from the fluorescence). The fluorescence is due to the GFP produced in the bacteria.

Antibiotics 03 00435 g002

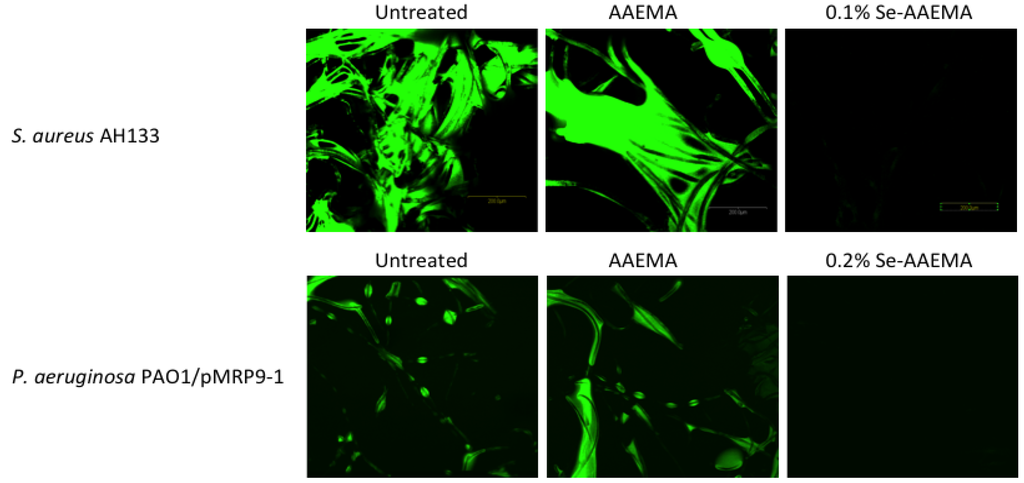

Figure 2. CLSM picture of biofilm development by S. aureus AH133 and P. aeruginosa PAO1/pMRP9-1 on a bandage with different treatments.

Click here to enlarge figure

Figure 2. CLSM picture of biofilm development by S. aureus AH133 and P. aeruginosa PAO1/pMRP9-1 on a bandage with different treatments.
Antibiotics 03 00435 g002

The above CLSM pictures of different biofilms show that the organo-selenium treatments were quite effective in the inhibition of biofilm formation for both S. aureus and P. aeruginosa, and they are consistent with the results of the CFU determinations in Figure 1.

2.3. Selenium Bandage Inhibition of Clinical Isolates of S. aureus, P. aeruginosa and S. epidermidis

Additional studies were carried out to see if the organo-selenium coated bandages were also able to inhibit clinical strains of the different bacteria as well as it did for the laboratory strains. As shown in Figure 3A,B, the inhibition of the S. aureus clinical isolates 1 and 2 was quite effective. Approximately, nine logs of inhibition were observed for 0.1% selenium in both strains; however, the two strains did show some differences at lower selenium concentrations. Strain 1 showed only four logs of inhibition with 0.05% Se-AAEMA while strain 2 showed over seven logs of inhibition with 0.05% Se-AAEMA. Interestingly, both strains showed better inhibition at 0.05% Se-AAEMA than the laboratory strain (Figure 1).

Antibiotics 03 00435 g003
Figure 3. Dose response of an organo-selenium coated bandage on the inhibition of biofilm formation by different clinical isolate strains. The CFU determination is for a 1 cm2 bandage in 1 mL of solution. (A) S. aureus Cl 1; (B) S. aureus Cl 2; (C) P. aeruginosa Cl; (D) S. epidermidis Cl.

Click here to enlarge figure

Figure 3. Dose response of an organo-selenium coated bandage on the inhibition of biofilm formation by different clinical isolate strains. The CFU determination is for a 1 cm2 bandage in 1 mL of solution. (A) S. aureus Cl 1; (B) S. aureus Cl 2; (C) P. aeruginosa Cl; (D) S. epidermidis Cl.
Antibiotics 03 00435 g003

A similar study was carried out with clinical isolates of P. aeruginosa and S. epidermidis. P. aeruginosa clinical isolate showed that the selenium treated bandages were not as effective in biofilm inhibition as compared to the laboratory strain of P. aeruginosa., nine logs of inhibition were not obtained until 0.5% Se-AAEMA (Figure 3C), while approximately nine logs was obtained at 0.2% with the laboratory strain (Figure 1B).

A study was carried out with a clinical isolate of S. epidermidis, and the results are seen in Figure 3D. Similar to those results seen for S. aureus, there were eight logs of inhibition of biofilm formation are seen at 0.1% Se-AAEMA.

The above results of over eight logs of inhibition can be compared with the ability of silver bandages to inhibit biofilm formation. A study of several different types of silver bandages showed that the best bandages only exhibited 4–5 logs of inhibition of biofilm formation with different bacterial strains [16].

2.4. Stability of the Selenium Bandage in Preventing Biofilm Formation

A stability study was carried out to see if the organo-selenium coated bandages retained their biofilm inhibitory activity after one month of storage in PBS solution at 37 °C. As seen in Figure 4, there was some loss of inhibitory activity; however, there was still eight logs inhibition against S. aureus 31 at 0.2% Se-AAEMA (Figure 4A) and 8 logs inhibition against P. aeruginosa, at 0.5% Se-AAEMA (Figure 4B).

Antibiotics 03 00435 g004

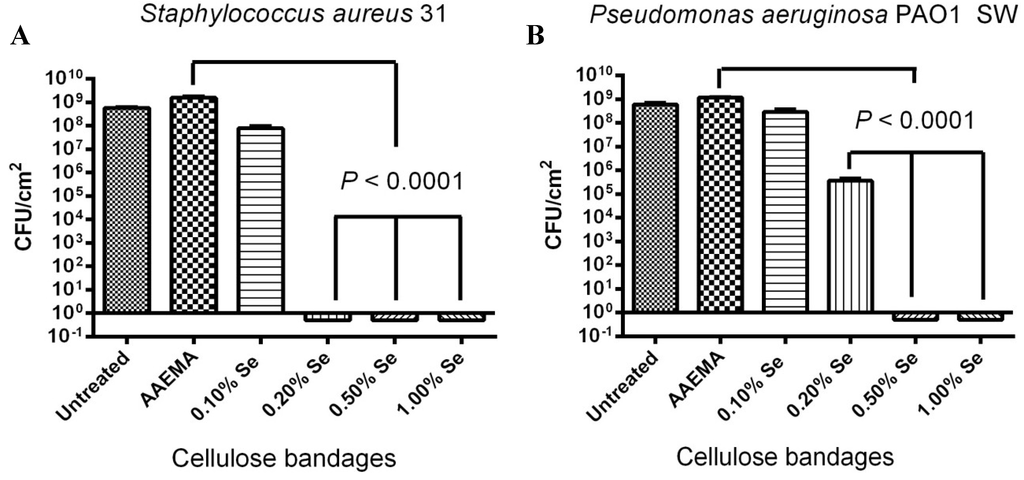

Figure 4. One month stability study of the selenium bandage bacterial biofilm formation. The CFU determination is for a 1 cm2 bandage in 1 mL of solution. (A) S. aureus 31; (B) P. aeruginosa PAO1 SW.

Click here to enlarge figure

Figure 4. One month stability study of the selenium bandage bacterial biofilm formation. The CFU determination is for a 1 cm2 bandage in 1 mL of solution. (A) S. aureus 31; (B) P. aeruginosa PAO1 SW.
Antibiotics 03 00435 g004

The overlying solution from bandages of the one-month stability studies was analyzed for the selenium and no free selenium was detected in the solution. The detection limit was 0.001 ug/mL.This is consistent with the stability data which still showed eight logs of inhibition of biofilm formation after soaking in PBS for one month.

Bandages material coated with Se-AAEMA (1%) was also allowed to set dry at room temperature for 6 years, and they were then tested with the bacterial CFU assay and the confocal laser scanning microscopy. These results can be seen below in Figure 5.

Antibiotics 03 00435 g005

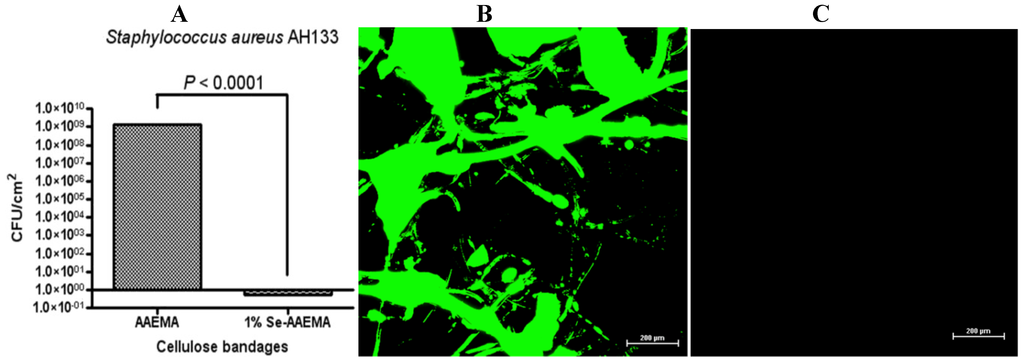

Figure 5. Six-year stability study of the selenium bandage bacterial biofilm formation. The CFU determination is for a 1 cm2 bandage in 1 mL of solution. (A) Ability of an organo-selenium (1%) coated bandage (which set on a shelf at room temperature for over 6 years) to inhibit S. aureus AH1333 biofilm formation. CLSM study of the in vitro inhibition of a S. aureus AH133 bacterial biofilm in a bandage coated with (B) AAEMA and with (C) Se-AAEMA after setting on a shelf at room temperature for over 6 years.

Click here to enlarge figure

Figure 5. Six-year stability study of the selenium bandage bacterial biofilm formation. The CFU determination is for a 1 cm2 bandage in 1 mL of solution. (A) Ability of an organo-selenium (1%) coated bandage (which set on a shelf at room temperature for over 6 years) to inhibit S. aureus AH1333 biofilm formation. CLSM study of the in vitro inhibition of a S. aureus AH133 bacterial biofilm in a bandage coated with (B) AAEMA and with (C) Se-AAEMA after setting on a shelf at room temperature for over 6 years.
Antibiotics 03 00435 g005

From the CFU analysis, over eight logs of biofilm inhibition was obtained. Also, the CLSM analysis confirmed the results. Thus, the shelf-life at room temperature for this material appears to be longer than 6 years.

2.5. Stability of the Organo-Selenium Bandage to Boiling Water

A study was carried out to see if the organo-selenium bandage would still be stable after submersion in boiling water for 15 min. The boiling temperature was performed because it is important to test the stability of the bandages at higher temperatures due to higher environmental temperatures experienced in the developing world. As seen in Figure 6, over seven logs of inhibition were seen against S. aureus 31 at 1% selenium after the boiling water treatment.

Antibiotics 03 00435 g006

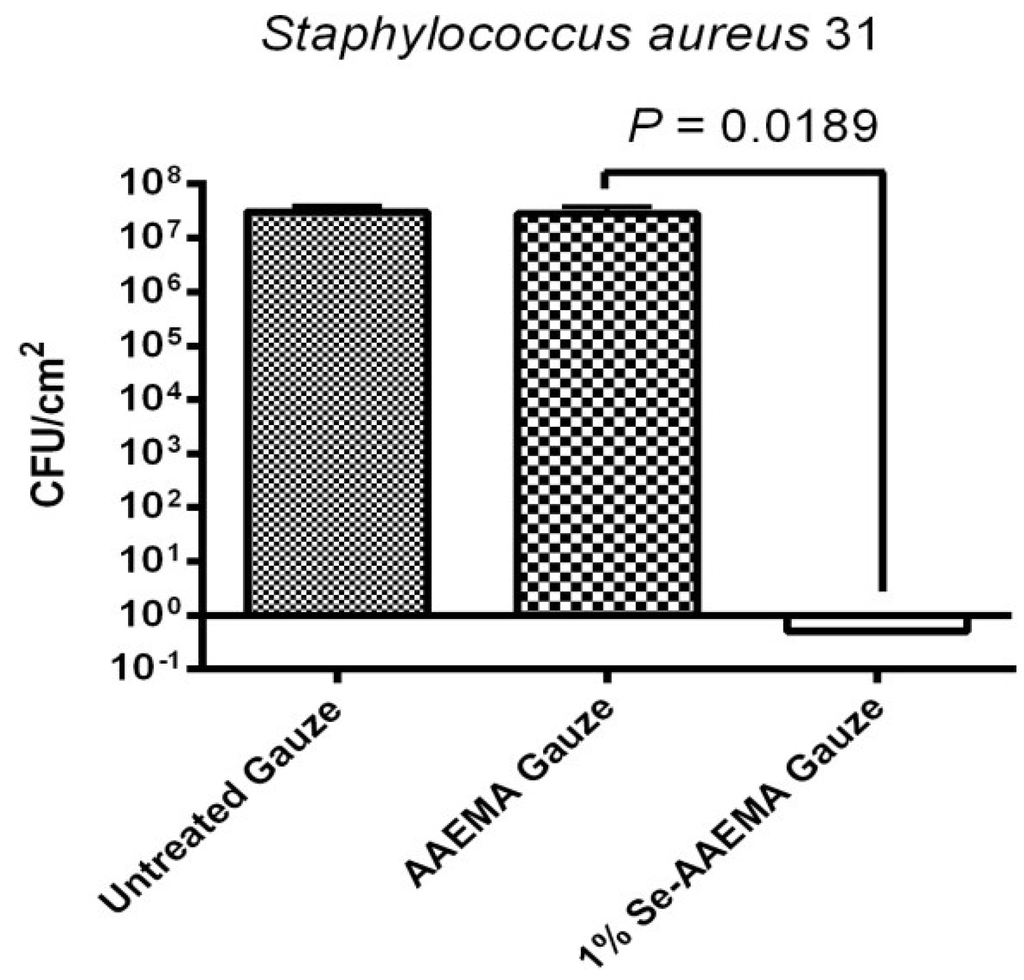

Figure 6. Stability of S. aureus 31 biofilm inhibition by the selenium bandage after boiling in water for 15 min. The CFU assay is for a 1 cm2 bandage in 1 mL of solution.

Click here to enlarge figure

Figure 6. Stability of S. aureus 31 biofilm inhibition by the selenium bandage after boiling in water for 15 min. The CFU assay is for a 1 cm2 bandage in 1 mL of solution.
Antibiotics 03 00435 g006

2.6. In Vivo Study of the Ability of a 1% Selenium Coated Bandage to Inhibit Biofilm in Both the Bandage and the Underlying Wound

In vivo studies were carried out using a mouse wound model. A 1 cm2 wound on the back of a mouse was injected with 103–104 bacteria under the bandage, and the experiments were allowed to set for 3 days. At the end of that time, the bandage was removed, and the tissue under the bandage was dissected. Both the bandage and tissue from the wound were then homogenized, and a bacterial colony forming unit assay was carried out. Figure 7 showed the quantitative results for the 1% Se-AAEMA coated bandage with S. aureus AH133 (A) and P. aeruginosa GFP/pMRP9-1 (B). The control bandage was coated with AAEMA with no selenium. As seen from Figure 7A, over seven logs of inhibition was seen in the organo-selenium bandage, and six logs of inhibition with almost complete inhibition was seen in the underlying tissue when compared with the controls. A similar in vivo study was carried out with P. aeruginosa GFP. As seen in Figure 7B, inhibition (over eight logs) was obtained in both the 1% selenium bandage and the underlying tissue. The 1% Se-AAEMA bandage was used, since preliminary results showed that 0.2% and 0.5% were not as effective in vivo.

Antibiotics 03 00435 g007

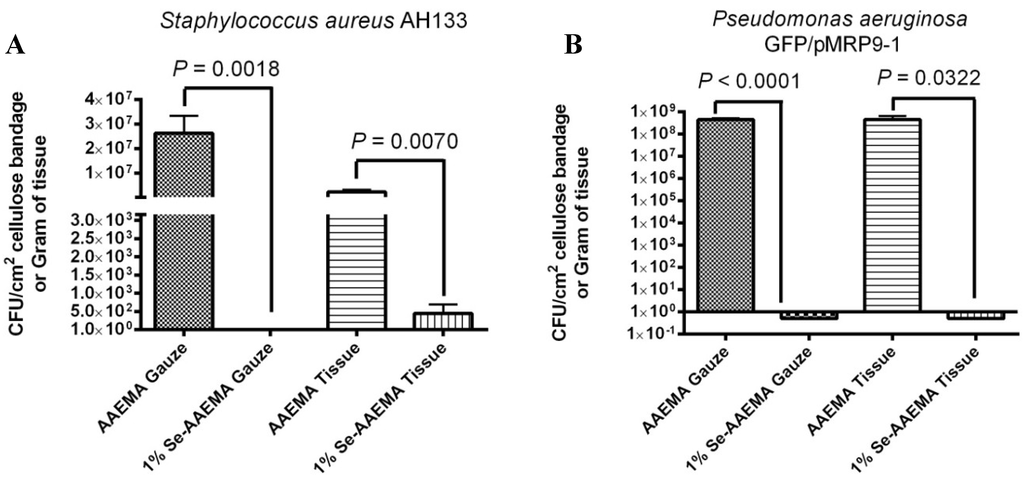

Figure 7. In vivo inhibition of a S. aureus AH1333 bacterial biofilm in both the bandage and underlying tissue. The CFU assay is for a 1 cm2 bandage or per gram of tissue.

Click here to enlarge figure

Figure 7. In vivo inhibition of a S. aureus AH1333 bacterial biofilm in both the bandage and underlying tissue. The CFU assay is for a 1 cm2 bandage or per gram of tissue.
Antibiotics 03 00435 g007

Visualization of the CFU results from Figure 7 with the confocal laser scanning microscope (CLSM) confirming these results, as seen in Figure 8.

The in vivo results for the S. aureus AH1333 and P. aeruginosa GFP/pMRP9-1 studies were also examined by CLSM (Figure 8), and they were found to agree with the results above in Figure 7. In both the tissue and the bandage, there were over eight logs of inhibition by the 1% selenium coated bandage.

This in vivo data showed that the organo-selenium coating on the bandage causes 7–8 logs of inhibition of biofilm formation in the bandage, and it also causes essentially the same amount of inhibition of biofilm formation in the wound. This would tend to indicate that it is necessary for the bandage to serve as a reservoir for the bacteria, so it can more easily infect the wound. A wound on a normal mouse has many defense mechanisms to kill bacteria that enter the wound. However, a biofilm that has developed in a bandage over the wound, offers the potential for the bacteria to overwhelm these normal defenses and establish an infection in the wound. This is consistent with the data since the selenium is covalently attached to the bandage and cannot leave the bandage. The fact that the bandage is in contact with the wound should still allow the bacteria to form a biofilm in the wound. Because the half-life of the superoxide radical is very short (microseconds), the ability of the radicals to travel into the wound is taken away. This is why no tissue damage was seen in the wounds, and it was not observed on the cornea cells underlying a contact lens coated with selenium after two months in a rabbit eye [16]. Thus, no biofilm was seen under the Se-AAEMA bandage, but the biofilm was observed under the control bandage.

Antibiotics 03 00435 g008

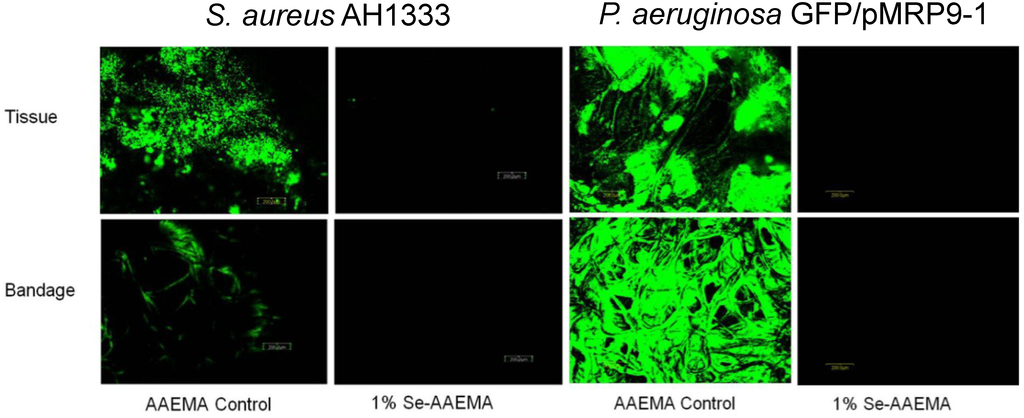

Figure 8. CLSM study of the in vivo inhibition of a S. aureus AH1333 (A) and P. aeruginosa GFP/pMRP9-1 (B) bacterial biofilm in both the bandage and underlying tissue.

Click here to enlarge figure

Figure 8. CLSM study of the in vivo inhibition of a S. aureus AH1333 (A) and P. aeruginosa GFP/pMRP9-1 (B) bacterial biofilm in both the bandage and underlying tissue.
Antibiotics 03 00435 g008

2.7. Mammalian Cell Toxicity Assay

To check for the possibility that selenium was leaching from the bandage, Se-AAEMA coated cellulose was soaked in PBS for a month and the toxicity of the solution to a mammalian monolayer L929 of mouse fibroblast cells, using the Agar diffusion test (performed by Toxikon Corp, Bedford, MA, USA), was examined. Positive control solutions showed severe reactivity (Grade 4) at a 48 h observation while the negative control and the Se-AAEMA disc extract solutions showed no signs of reactivity (Grade 0) by the cell cultures exposed for 48 h. Thus, the solution around the bandage was not toxic to mammalian cells after soaking the Se-AAEMA bandage for one month. This is consistent with the results obtained in Section 2.4 where no selenium (less than 0.01 μg/mL) was detected by trace analysis in the one month leaching solution.

3. Experimental

3.1. Coating Cellulose Gauze with Polymerized Se-AAEMA

The Se-AAEMA monomer was purchased from Eburon Organics International (catalog No. 700.010; Lubbock, TX, USA). Se-AAEMA (22% [wt/wt] selenium) stock solution was dissolved and diluted in 99.99% 2-(methacryloyloxy)ethyl acetoacetate (AAEMA) to yield different concentrations of the Se-AAEMA (wt/wt). Hospital grade rolled gauze bandage (LOT1783A, Johnson and Johnson, New Brunswick, NJ, USA) were cut in 4 inches × 4 inches square pieces and soaked in sterile distilled water overnight. The washed gauze bandages were then dried and coated with AAEMA or Se-AAEMA. Briefly, the bandages were soaked in AAEMA or Se-AAEMA for 30 min. Excess AAEMA or Se-AAEMA was removed from the bandages by passing the soaked bandage through a roller press. The AAEMA or Se-AAEMA bandages were then sprayed with H2O2 using a bottle sprayer to initiate free radical polymerization. This has little or no effect on the bandage material. As a result of the in situ polymerization, the polymer is held in place by a combination of van der Waals forces and physical interlinking with the bandage material. The bandages were then transferred to a 66 °C curing oven. After curing, the bandages were washed twice (1 h each) in sterile phosphate-buffered saline (PBS, pH 7.4) at 37 °C. The bandages were then dried, cut into 1 and 1.5 square centimeter pieces, sterilized by dried autoclaving, dried again, and stored at room temperature until used in the assays. All percentages listed for the different concentrations are percent selenium and do not represent the percentage of the total organo-selenium compound which would be approximately twice as high.

3.2. Bacterial Strains

All strains were grown in Luria Bertani (LB) Broth, Mueller Hinton Broth, or on LB Agar plates at 37 °C. The Staphylococcus aureus strain ATCC 31 was obtained from Remel (Lenexa, KS, USA). The prototrophic Pseudomonas aeruginosa strain PAO1 SW, originally isolated from an infected wound [25], was obtained from S. E. H. West (University of Wisconsin, Madison). S. aureus AH133, a lab strain that constitutively expresses green fluorescent protein from a plasmid (pCM11) in the presence of 1 μg/mL erythromycin [26]. Pseudomonas aeruginosa strain PAO1/pMRP9-1. This strain carries the plasmid pMRP9-1 that contains the gene that codes for the green fluorescent protein [17]. To maintain the plasmid, the strain was grown in the presence of 300 μg/mL carbenicillin. The S. aureus, P. aeruginosa, and S. epidermidis clinical isolates were obtained from leg or abscess wounds from the Clinical lab at Texas Tech University Health Sciences Center under an approved Institutional Review Board protocol, Texas Tech University Medical center/Lubbock, Texas. All bacterial stock was stored at −80 °C.

3.3. Colony-Forming Unit Assays—in Vitro

The biofilm assay was performed as previously described with some modifications [17]. Bacteria were grown overnight, washed once with PBS (pH 7.4), re-suspended in PBS (pH 7.4) to an optical density (OD600) of 0.5 (108 CFU/mL), and serially diluted 10-fold. All PBS assay solutions contained 150 μM reduced glutathione (Sigma Chemical, St. Louis, MO, USA). One hundred micro liter aliquots containing 102–103 colony-forming units were added to either a one square centimeter AAEMA (control) bandage, or Se-AAEMA test bandage. After the bacterial inoculum was absorbed into the bandages, they were placed on LB agar plates, and the plates were incubated at 37 °C for 24 h. Biofilms were quantified by determining the CFU per square centimeter of bandage. Following incubation, each bandage piece was gently washed twice with sterile PBS to remove any planktonic bacteria. Excess PBS was drained from the bandage by touching it to a sterile filter paper and the bandage was then transferred to a sterile 1.5-mL micro centrifuge tube containing 1 mL of PBS for enumeration of bacteria. The tubes were placed in a water bath sonicator for 10 min to loosen the cells within the biofilm and then vigorously vortexed 3 times for 1 min to detach the cells. Suspended cells were serially diluted (10-fold) in PBS, and 10-μL aliquots of each dilution were spotted onto LB Agar plates. In experiments where no bacteria was detected, a 100 μL zero dilution sample was tested. Thus, the equation for back calculating the bacterial concentration was CFU × dilution factor × 100, with the exception of the 100 μL sample which was calculated as CFU × dilution factor × 10. This means that the smallest amount of bacteria that we could detect would be approximately 10 bacteria. All experiments were done in triplicate, and all measurements were repeated at least three times. We used this data to calculate the CFU injected under the bandages for the in vivo experiments.

3.4. Mouse Wound Infection Model

Six adult female Balb C mice (including a control group) weighing 20–24 g were anesthetized using a mixture of isoflurane and oxygen and their backs were shaved. Shaved areas were completely cleansed with 95% ethanol. A flap of skin was lifted and a 1.0 cm2 piece of skin was removed centrally in the shaved area with sterile scissors. Either AAEMA control or Se-AAEMA bandages (1.5 cm2) was placed on the wound. The bandages were secured in place by applying a clear OPSITE dressing over the back of the mouse. Aliquots containing 103–104 CFU of bacteria in 50 μL were injected in the area between the bandage and the wound. The mice were monitored twice a day for signs of infection or distress. After 72 h of observation, the mice were euthanized. The bandages were removed, and the connective tissue around the wound and the tissue under the wound (down to the spinal cord) was then dissected and removed. The extracted bandages and all the dissected tissue were gently rinsed in PBS and homogenized in PBS. Excess PBS was drained from the bandage by touching it to a sterile filter paper and the bandage was then transferred to a sterile homogenized tube containing 2 mL of PBS for enumeration of bacteria by either determination of CFU or by confocal microscopy. To determine CFU counts, the bandages were homogenized to loosen the cells within the biofilm and then vigorously vortexed 3 times for 1 min to detach the bacterial cells. Suspended cells were serially diluted (10-fold) in PBS, and 10-μL aliquots of each dilution were spotted onto LB Agar plates. All experiments were done at least in triplicate.

Tissue: At the end of the experiment (72 h), the mouse was euthanatized and the connective tissue around the wound and the tissue under the wound (down to the spinal cord) was then dissected and removed. This was then homogenized and used for a CFU assay in a manner similar to that used for the bandage above.

Animals were treated in accordance with the protocol approved by the Institutional Animal Care and Use Committee at Texas Tech University Health Sciences Center in Lubbock, TX, USA.

3.5. Biofilm Analysis by Fluorescence Microscopy

The pieces of bandage at the end of the 72 h incubation were assayed as described above for the CFU assays. Six AAEMA control and six Se-AAEMA bandage segments were also examined for the presence of biofilm with Confocal Laser Scanning Microscopy (CLSM) using an Olympus Fluoview FV300 (Olympus America, Center Valley, PA, USA). Animals were treated in accordance with the protocol approved by the Institutional Animal Care and Use Committee at Texas Tech University Health Sciences Center in Lubbock, TX, USA.

3.6. Analysis of the Long-term Stability of the Organo-Selenium-Containing Gauze Bandage

One square-centimeter of the organo-selenium-containing gauze bandages were completely immersed in 1.0 mL PBS in sterile glass tubes and incubated at 37 °C for a month. At the end of the incubation period, the pieces were removed, dried, sterilized by dried autoclaving, and utilized in the in vitro biofilm assay, as described above, for determination of the durability of the anti-biofilm activity of the coating. The overlying solution was analyzed for free selenium by an independent laboratory (Trace Analysis Inc, Lubbock, TX, USA). This was carried out to show that the selenium bonds were stable to hydrolysis and that the selenium did not leave the bandage. In addition, a bandage sample coated with Se-AAEMA that set dry at room temperature for 6 years was also tested by the bacterial CFU assay.

3.7. Accessing the Stability of the Organo-Selenium-Containing Gauze Bandage at Elevated Temperature

One square-centimeter of the organo-selenium-containing gauze bandages was completely immersed in 10.0 mL PBS in sterile glass tubes and boiled for 15 min. At the end of the boiling period, the pieces were removed, dried, sterilized by dried autoclaving, and utilized in the in vitro biofilm assay, as described above, for determination of the stability of the coating at boiling temperature.

3.8. Analysis of Selenium Toxicity to Mammalian Cells

The assay was conducted using a commercially available service (Toxikon Corporation, Bedford, MA, USA). Briefly, the biological reactivity of a mammalian monolayer, L929 mouse fibroblast cell culture, in response to the one month soaking solutions obtained from 0.2% selenium coated discs (Se-AAEMA) was determined. The mammalian monolayer was protected from mechanical damage, while allowing diffusion of leachable chemicals from the one month soaking solutions, with an overlay of agar stained with a vital dye (neutral red). One hundred μL of soaking solutions was placed in a sterile filter disc with a surface area ≥100 mm2. The soaking solution was applied directly to the surface of the agar, in duplicate. Positive (Buma-N-Rubber) and negative (Negative Control Plastic) controls were prepared to verify the proper functioning of the test system. The cultures were incubated at 37 ± 1 °C, in a humidified atmosphere containing 5% ± 1% carbon dioxide, for 48 h. Biological reactivity (cellular degeneration and malfunction) was rated on a scale from Grade 0 (No reactivity) to Grade 4 (Severe reactivity). The soaking solutions met the requirement of the test (not considered toxic) if none of the cultures exposed to the soaking solutions showed greater than a Mild Reactivity, Grade 2.

3.9. Statistical Analysis

Results of the CFU assays were analyzed with Prism® version 4.03 (GraphPad Software, San Diego, CA, USA) with 95% confidence intervals (CIs) of the difference. Comparisons of the in vivo biofilms formed on Se-free and Se-AAEMA bandages were analyzed by a two-tailed unpaired t-test to determine significant differences. All experiments were done at least in triplicate.

4. Conclusions

It was found that the organo-selenium (Se-AAEMA) coated bandage showed inhibition of Staphylococcus aureus and Pseudomonas aeruginosa biofilms in vitro at less than 0.2% selenium with laboratory strains. Staphylococcus aureus and Staphylococcus epidermidis clinical strains showed inhibition of biofilm formation at less than 0.1% selenium while Pseudomonas aeruginosa clinical strain showed inhibition at less than 0.5% selenium.

In stability studies, it was shown that the organo-selenium coated bandage retained its ability to inhibit biofilm formation after soaking for a month at 37 °C, in PBS, for 15 min in boiling water and for over 6 months at room temperature dry on the shelf. Thus, the organo-selenium was stable in the bandage.

In vivo studies were carried out using a mouse wound model where Staphylococcus aureus or Pseudomonas aeruginosa was injected between the organo-selenium bandage and the wound and allowed to grow for three days. It was found that not only did the organo-selenium coating block biofilm formation in the bandage but it also blocked it in the wound. In this study, it was shown that the organo-selenium molecules did not come off the bandage, (they are covalently attached). Also, since the selenium atoms catalyze the formation of superoxide radicals on the surface of the bandage, and superoxide has a very short half-life, both the selenium and the superoxide radicals would not be able to migrate into the wound. The fact that biofilm was found under the control bandage but not under the selenium bandage would imply that the bandage acts as a reservoir for free bacteria to form a wound biofilm, and is an important mechanism for development of a wound infection. Bacterial biofilm formed in the bandage would appear to allow the bacteria to overwhelm the normal defense mechanisms in the wound.

Author Contributions

P.L.T. designed the study, performed data retrieval and analysis, wrote portions of the paper and edited the paper. S.P. performed data retrieval and analysis. A.N.H. designed the study and reviewed the paper. T.E. performed data retrieval and analysis. T.M. designed the study and performed data analysis. C.J. performed data retrieval and analysis. A.D. performed data retrieval and analysis, P.L. performed data retrieval and analysis. T.W.R. designed the study, directed analyses and wrote and edited the paper.

Conflicts of Interest

T.M. was an employee of Selenium Ltd., Austin, TX, USA. T.W.R. owns an interest in Selenium Ltd.
