Next Article in Journal
Photocatalytic Degradation of Tetracycline Hydrochloride via a CdS-TiO2 Heterostructure Composite under Visible Light Irradiation
Previous Article in Journal
A Highly Sensitive Resistive Pressure Sensor Based on a Carbon Nanotube-Liquid Crystal-PDMS Composite
Article Menu

Export Article

Open AccessArticle
Nanomaterials 2018, 8(6), 414; https://doi.org/10.3390/nano8060414

Effect of Graphene Nanowall Size on the Interfacial Strength of Carbon Fiber Reinforced Composites

1,2,†
,
2,†
,
1,2,* , 2
,
2
,
2
,
1
and
1,*
1
Key Laboratory of Optoelectronic Technology & Systems, Ministry of Education of China, College of Optoelectronic Engineering, Chongqing University, Chongqing 400044, China
2
Key Laboratory of Multi-Scale Manufacturing Technology, Chongqing Institute of Green and Intelligent Technology, Chinese Academy of Sciences, Chongqing 400714, China
These authors contributed equally to this work.
*
Authors to whom correspondence should be addressed.
Received: 23 May 2018 / Revised: 1 June 2018 / Accepted: 6 June 2018 / Published: 8 June 2018
View Full-Text   |   Download PDF [5470 KB, uploaded 8 June 2018]   |

Abstract

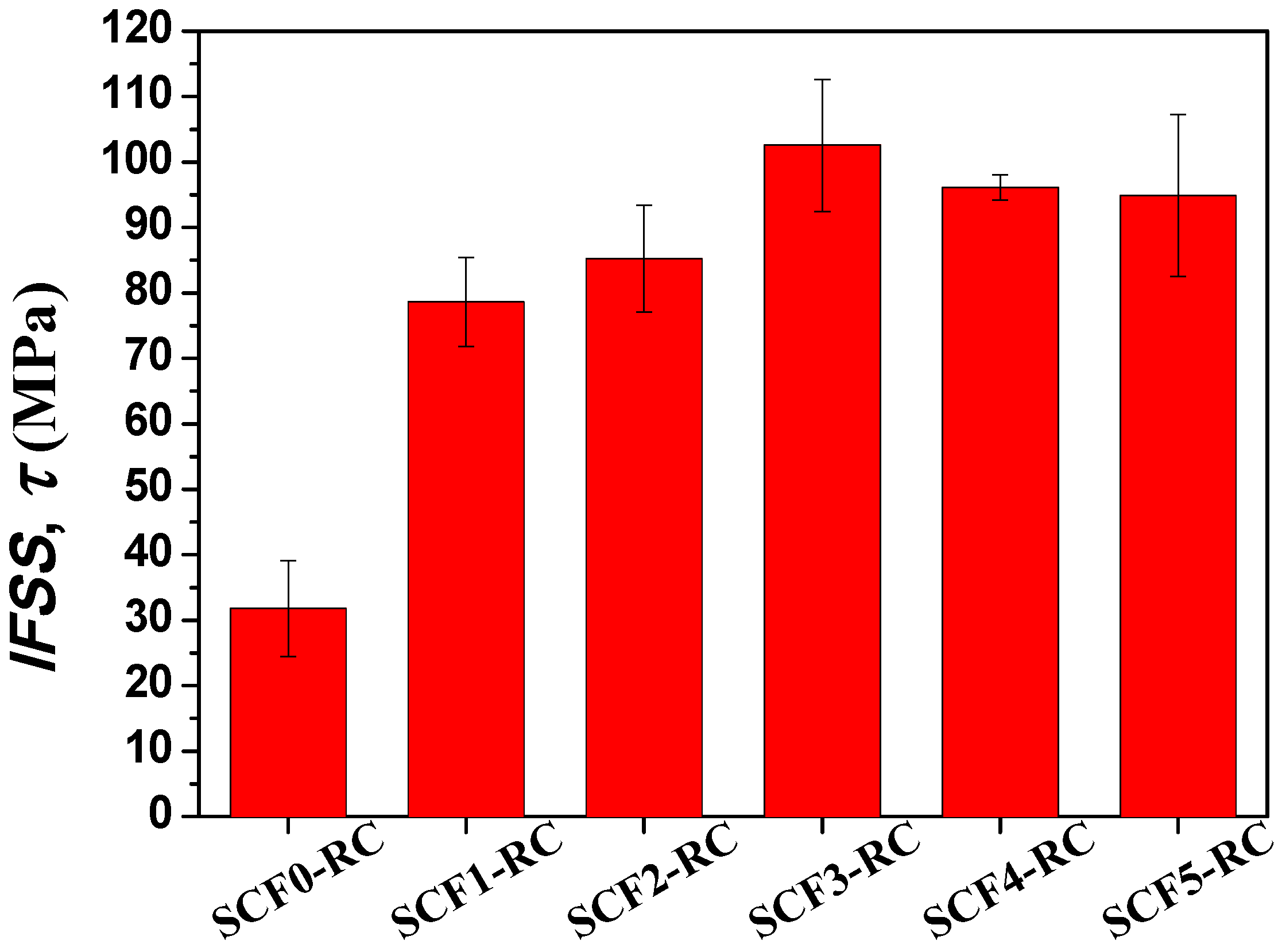

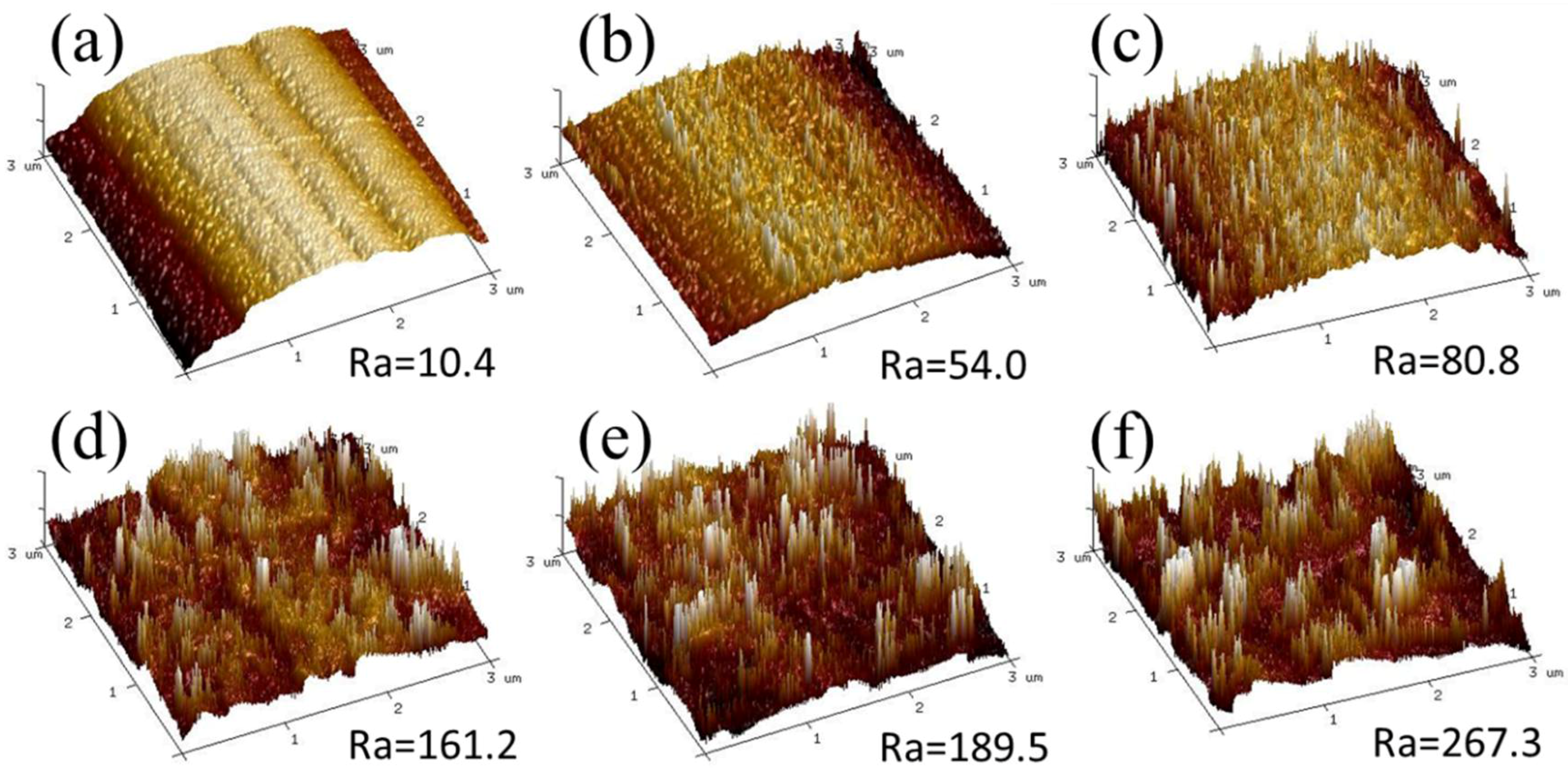

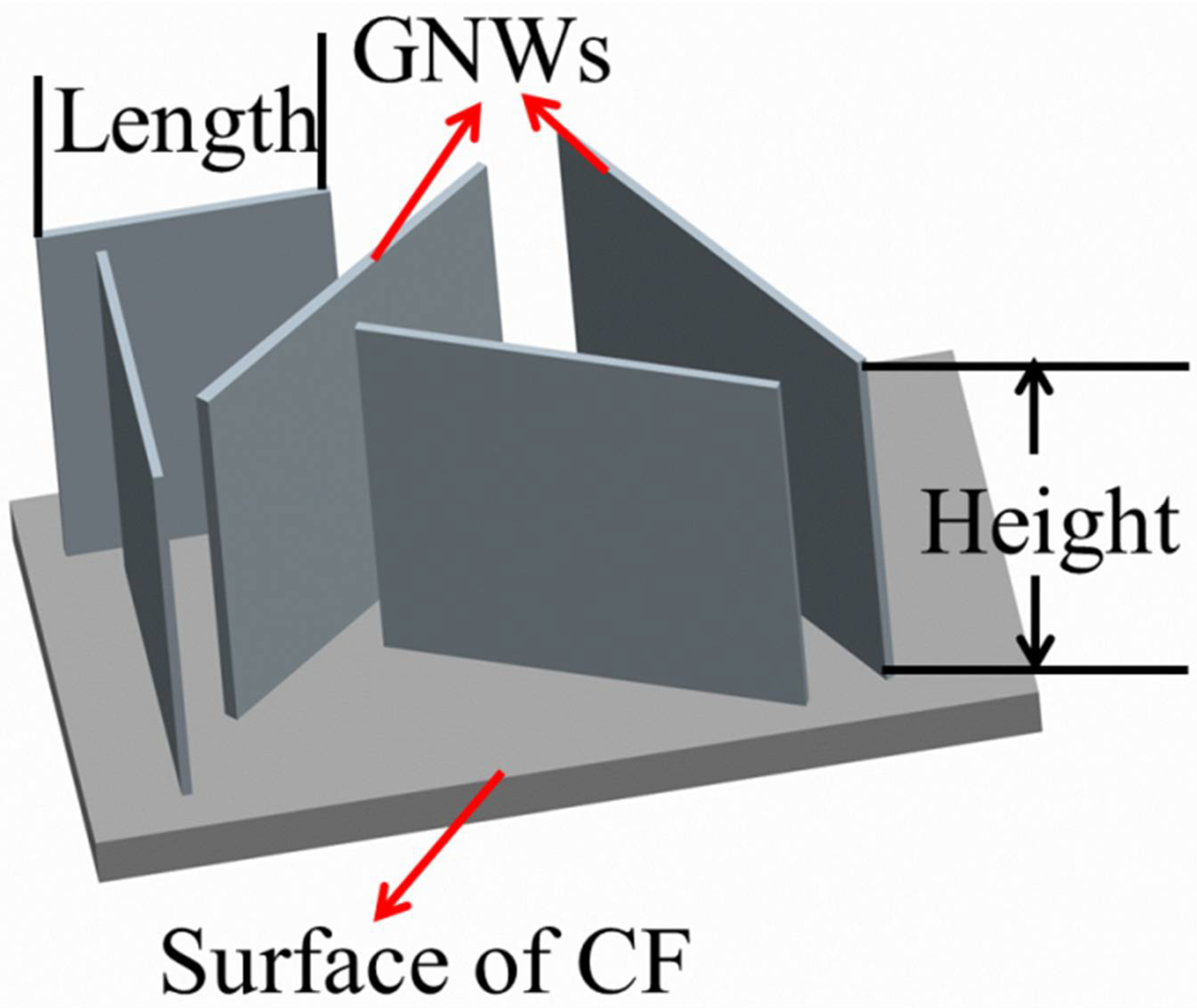

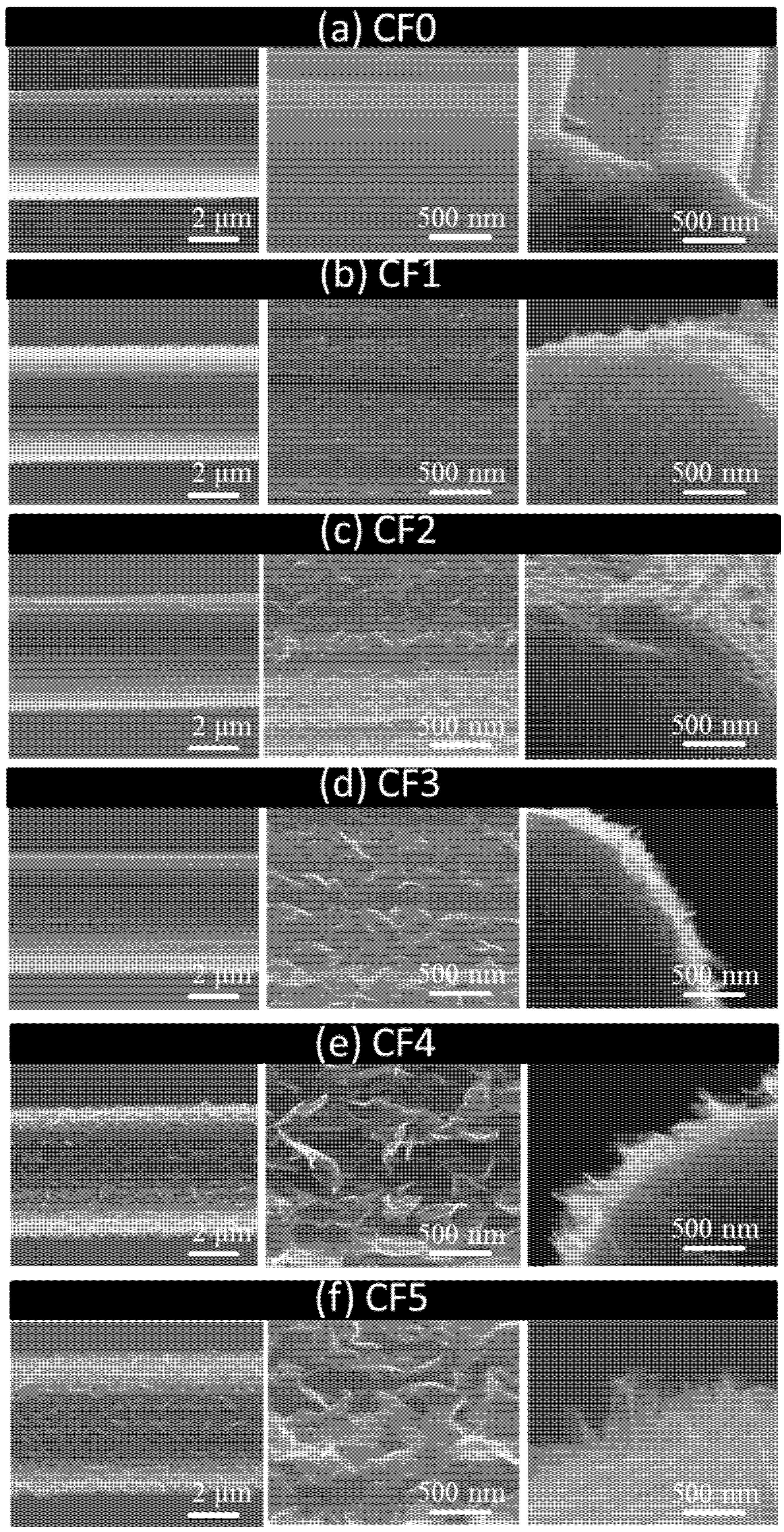

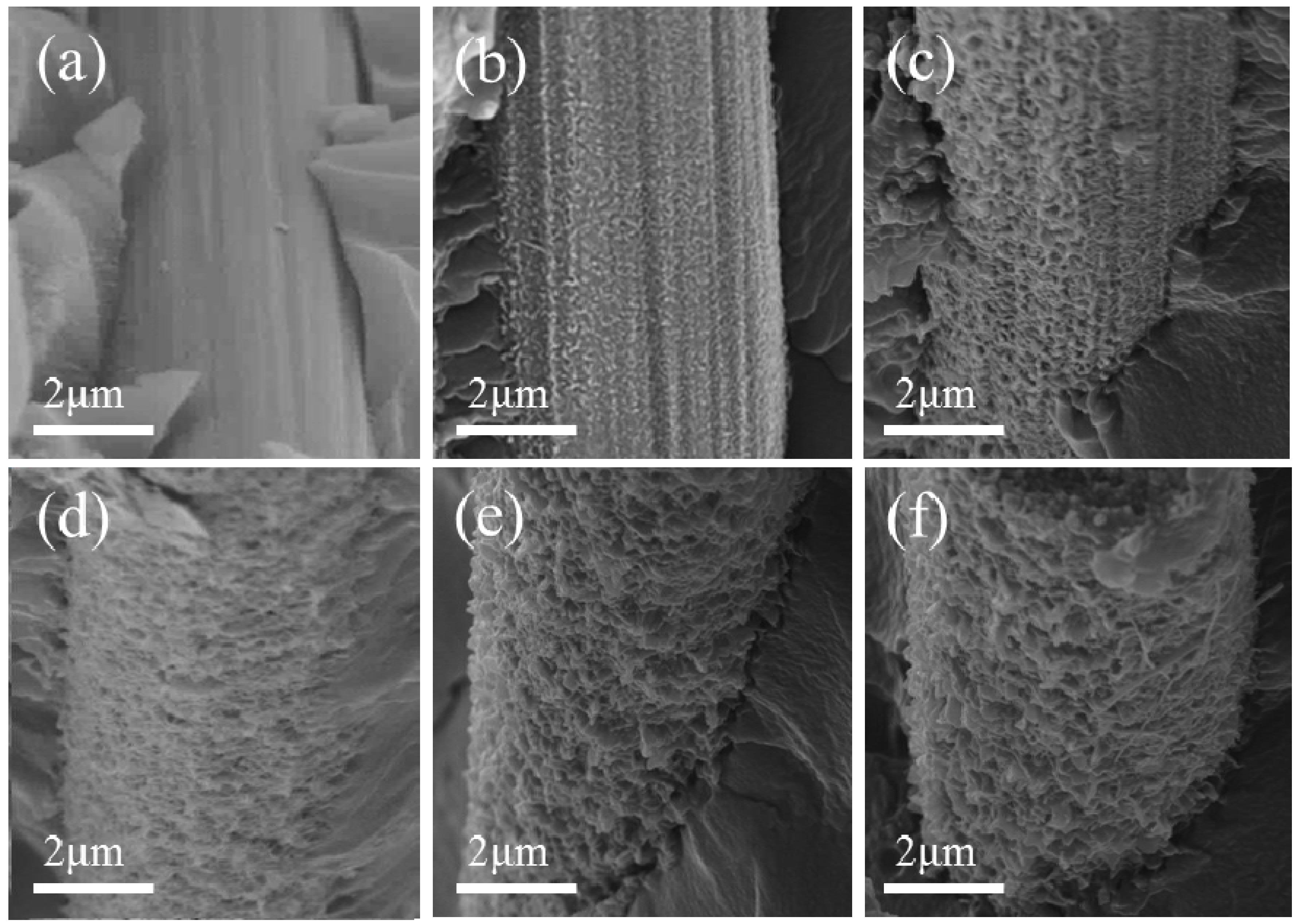

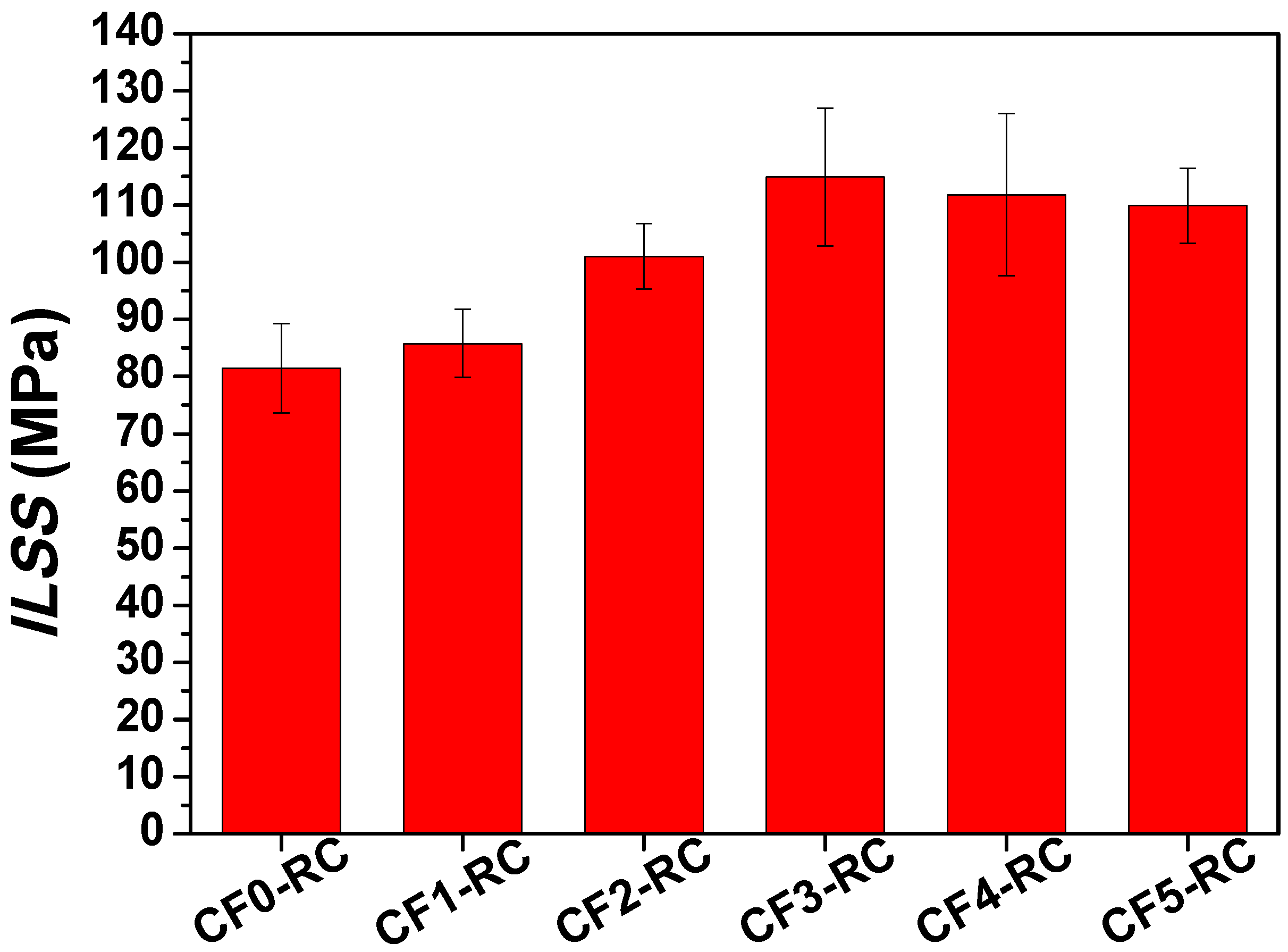

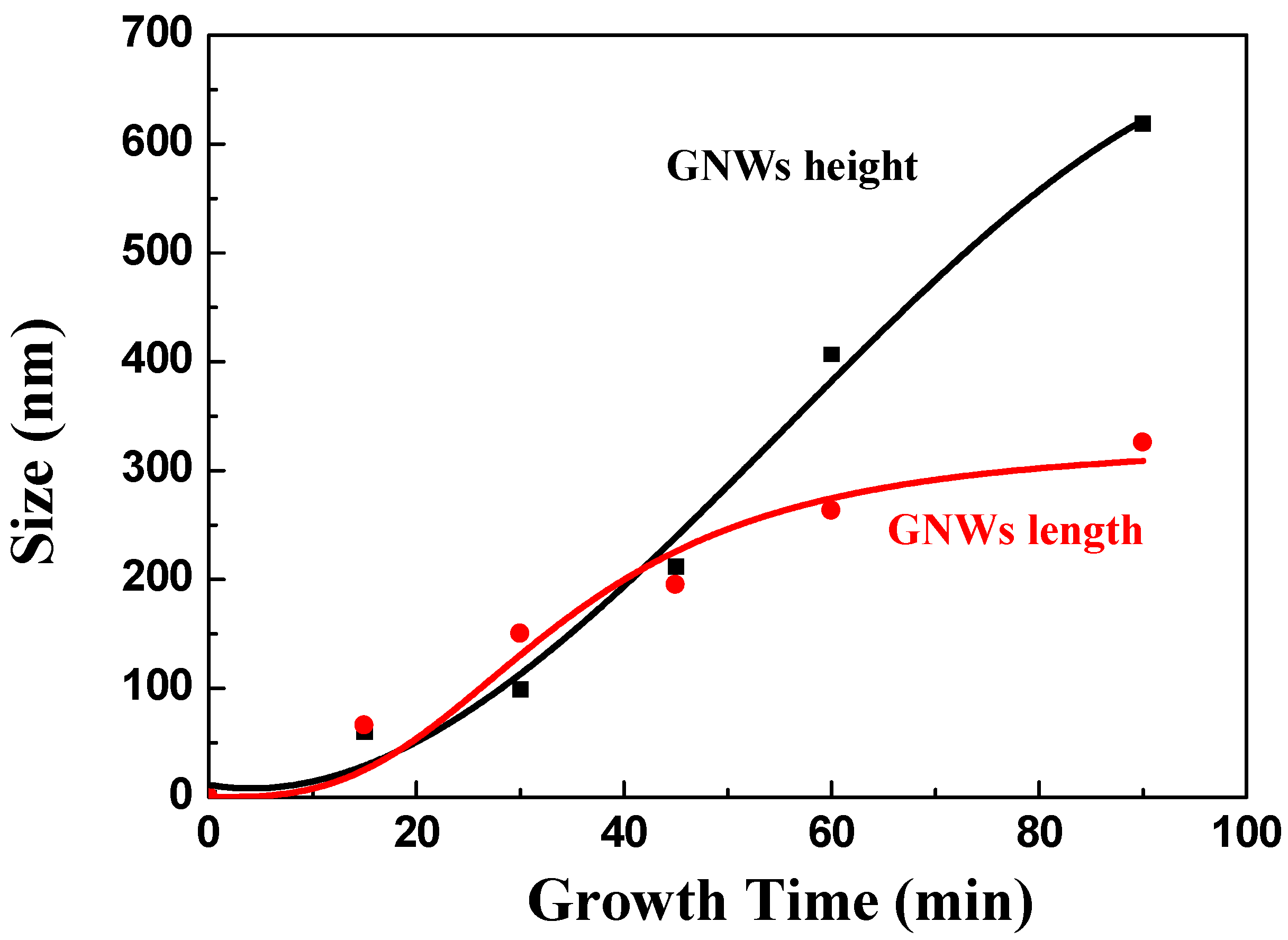

Graphene nanowalls (GNWs) with different sizes (i.e., length and height) were grown directly on the surface of individual carbon fibers (CFs) using a radio frequency plasma-enhanced chemical vapor deposition (RF-PECVD) technique. The size was controlled by varying the deposition time. The GNW-modified CFs were embedded into epoxy resin matrix to prepare a series of carbon-fiber-reinforced composites (CFRCs). The results indicated that GNWs were remarkably effective in improving the interfacial shear strength (IFSS) and interlaminar shear strength (ILSS) of the carbon-fiber-reinforced composites. The enhancement effect on the strength strongly depended on the size of GNWs. It increased with the increase in the GNWs’ size and reached the maximum upon the incorporation of GNWs that were grown for 45 min. Noticeable increases of 222.8% and 41.1% were observed in IFSS and ILSS, respectively. The enhancement mechanism was revealed by means of scanning electron microscope (SEM) fractography analysis. However, further increase of GNW size led to no more improvement in the shear strength. It could result from the increased defect concentration and wrinkle size in the GNWs, which deteriorated the strength. View Full-Text
Keywords: graphene nanowalls; carbon fiber; interface; interfacial shear strength; interlaminar shear strength; chemical vapor deposition graphene nanowalls; carbon fiber; interface; interfacial shear strength; interlaminar shear strength; chemical vapor deposition
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Wang, X.; Li, C.; Chi, Y.; Piao, M.; Chu, J.; Zhang, H.; Li, Z.; Wei, W. Effect of Graphene Nanowall Size on the Interfacial Strength of Carbon Fiber Reinforced Composites. Nanomaterials 2018, 8, 414.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Nanomaterials EISSN 2079-4991 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
