Article

Non-Aqueous Sol-Gel Synthesis of FePt Nanoparticles in the Absence of In Situ Stabilizers

1
Institute for Particle Technology, Technische Universität Braunschweig, Volkmaroder Straße 5, 38104 Braunschweig, Germany
2
Institute of Condensed Matter Physics, Technische Universität Braunschweig, Mendelssohnstraße 3, 38106 Braunschweig, Germany
3
Laboratory for Emerging Nanometrology (LENA), Technische Universität Braunschweig, 38106 Braunschweig, Germany
*
Author to whom correspondence should be addressed.
Nanomaterials 2018, 8(5), 297; https://doi.org/10.3390/nano8050297
Submission received: 31 March 2018 / Revised: 24 April 2018 / Accepted: 30 April 2018 / Published: 3 May 2018
(This article belongs to the Special Issue Sol-Gel Preparation of Nanomaterials)

Abstract

:
The synthesis of FePt nanocrystals is typically performed in an organic solvent at rather high temperatures, demanding the addition of the in situ stabilizers oleic acid and oleylamine to produce monomodal particles with well-defined morphologies. Replacing frequently-used solvents with organic media bearing functional moieties, the use of the stabilizers can be completely circumvented. In addition, various morphologies and sizes of the nanocrystals can be achieved by the choice of organic solvent. The kinetics of particle growth and the change in the magnetic behavior of the superparamagnetic FePt nanocrystals during the synthesis with a set of different solvents, as well as the resulting morphologies and stoichiometries of the nanoparticles were determined by powder X-ray diffraction (PXRD), small-angle X-ray scattering (SAXS), transmission electron microscopy (TEM), inductively coupled plasma optical emission spectroscopy (ICP-OES)/mass spectrometry (ICP-MS), and superconducting quantum interference device (SQUID) measurements. Furthermore, annealing of the as-prepared FePt nanoparticles led to the ordered L10 phase and, thus, to hard magnetic materials with varying saturation magnetizations and magnetic coercivities.

1. Introduction

Iron platinum (FePt) nanoparticles gained high scientific interest due to their large uniaxial magnetocrystalline anisotropy [1,2,3], high saturation magnetization and coercivity [4,5,6,7], as well as good chemical stability [1,8]. Those characteristics are promising with regard to potential applications, such as magnetic hyperthermia [4,9,10], biomedical imaging [11,12], ultrahigh density magnetic recording [13,14,15,16,17], or advanced permanent magnets [18,19,20,21]. Wet-chemical synthesis of nanosized FePt enables the preparation of monomodal nanoparticles with well-defined morphologies and particle sizes [1,16]. Thereby, the as-prepared FexPt1−x nanoparticles show disordered face-centered cubic (fcc) structures (Figure 1a) and, thus, superparamagnetic behavior. Thermal treatment of the particles at temperatures above 500 °C [1,22] leads to a rearrangement of the atoms in the unit cells (Figure 1b). An ordered face-centered tetragonal (fct) phase, the so-called L10 phase and, thereby, a hard magnetic material emerges, if a ratio of approximately 1:1 of Fe and Pt atoms are present in the synthesized nanoparticles. However, higher variations in the Fe:Pt ratio result in the ordered L12 phases of FePt3, Fe3Pt or mixtures of all three crystal structures [23].
Typically, iron platinum nanoparticles are prepared using chemical methods, following the polyol process, where diols or polyalcohols are used to reduce metal salts and prevent oxidation phenomena of the metal atoms [24]. Sun et al. [1] first reported the chemical reduction of platinum(II) acetylacetonate Pt(acac)2 by 1,2-hexadecanediol and thermal decomposition of iron(0) pentacarbonyl Fe(CO)5 for the synthesis of FePt nanoparticles with the in situ stabilizers oleic acid and oleylamine in the solvent octyl ether. Various amounts of the molecular precursors were used to generate monomodal iron platinum nanoparticles of defined stoichiometry and tunable particles sizes. Due to the toxicity of Fe(CO)5, alternative iron sources were later evaluated, such as iron(II) chloride [16,25] and iron(III) acetylacetonate Fe(acac)3 [26,27,28], also yielding narrow size-distributed FePt. Furthermore, nanoscale iron platinum was prepared using ethylene glycol, which serves as the organic medium and reducing agent simultaneously [29]. Additionally, several attempts for the direct synthesis of fct-FePt at temperatures of 300–400 °C or annealing of dissolved and dried precursors were reported [30,31,32].
In this work, we present the non-aqueous sol-gel synthesis of highly-crystalline FePt without the addition of in situ stabilizers. Therefore, we systematically tested the reaction of Fe(acac)3 and Pt(acac)2 in the solvents benzyl alcohol (BnOH), benzylamine (BnNH2), and triethylene glycol (TEG) for their ability to generate the desired binary alloy. In previous reports, we have already shown the successful synthesis of nanosized materials using the aforementioned solvents [33,34,35,36,37,38,39]. While the BnOH and TEG routes, in principle, follow the polyol process, the synthesis in benzylamine is performed in the presence of only amine moieties and, thus, is a novel preparation method of nanosized FePt. The syntheses were performed at elevated temperatures up to 200 °C under a nitrogen atmosphere. During the sol-gel process, we examined the particle growth as well as the magnetic behavior of the particles, and compared the kinetics and resulting properties to the formation of nanocrystalline FePt by a reference synthesis in the solvent benzyl ether (BnOBn) using the in situ stabilizers oleic acid and oleylamine. Thereby, the alternative synthetic routes led to superparamagnetic fcc-FePt with significantly increased saturation magnetization at comparable particle sizes. In addition, the as-prepared fcc-FePt nanoparticles were thermally treated at 800 °C and the resulting powders were analyzed by X-ray diffraction to evaluate the crystal structure and mean crystallite size, as well as by superconductive quantum interference device (SQUID) measurements to determine the magnetic behavior of the annealed particles. For each synthetic route, we obtained hard magnetic FePt nanoparticles of the ordered L10 phase. Higher saturation magnetization or higher coercivity as compared to the fct-FePt of the reference synthesis could be achieved using the alternative synthetic routes. Thereby, the benzylamine route showed the highest saturation magnetization, while both the BnOH and TEG syntheses led to nanoparticles with a larger coercivity. Furthermore, we prepared nanocrystals of the ordered L12 phases FePt3 and Fe3Pt through the precise adjustment of the Fe:Pt ratio in the synthesized nanoparticles.

2. Results and Discussion

Three alternative non-aqueous sol-gel synthesis routes for the generation of superparamagnetic fcc-FePt nanocrystals with varying particle sizes and high saturation magnetization were tested without the addition of any in situ stabilizers using the solvents triethylene glycol, benzyl alcohol, and benzylamine, as well as the non-toxic molecular precursors iron(III) and platinum(II) acetylacetonate (Figure 2). To obtain the desired iron platinum alloy, the precursors were reduced by the addition of appropriate agents. First, we dissolved the chemical compounds at 70 °C and then heated the reaction mixture to the final temperature of 200 °C—or 185 °C in case of BnNH2—which is significantly lower than usually reported in the literature. As a control, we also generated iron platinum nanoparticles using the common polyol process including benzyl ether, oleic acid, and oleylamine.
During the syntheses, we observed a color transition from a reddish solution into the characteristic dark brownish medium, which is associated with particle growth. Henceforth, we started taking samples at 0, 1, 5, 15, and 45 min of reaction. The actual formation of the nanoparticles already occurred prior to the color shift, but is difficult to be precisely specified due to very low initial quantities of retrievable nanoparticles. The color transition of the reference BnOBn route, as also published earlier [40], was reached at a temperature of 175 °C approximately 45 min after complete dissolution of the precursors (Table A1). All three alternative synthetic routes showed the color shift around 150 °C and, thus, are about 15 min faster as compared to the reference synthesis.
All nanoparticles, except for the sample withdrawn at 0 min in BnOH, showed the specific signals of FexPt1−x with the characteristic (111) reflection around 40.0° 2θ. For fcc-FePt nanoparticles derived from the BnOH route, we observed a significant increase in their degree of crystallinity with progressing reaction times (Figure 3a). Similar diffraction patterns were obtained via the TEG synthesis (Figure A1a). We determined a less crystalline nature of the 0 and 1 min TEG samples probably evoked by low energy input with synthesis temperatures of 145 and 152 °C, respectively. After 5 min, a temperature of 178 °C was reached and the respective FexPt1−x signals evolved. The signal broadening is related to very small crystallite sizes. In contrast, the highest degree of crystallinity was achieved using the BnNH2 route, where the sample withdrawn at 0 min already revealed all characteristic reflections of fcc-FePt. Additional reflections at 35.5°, 57.0°, and 62.6°, however, evolved shortly after the color transition, which can be ascribed to the characteristic (113), (115), and (044) reflections of magnetite (ICSD 98-015-8741), respectively. We assume that the small amount of iron oxide emerges due to the oxygen-bearing acetylacetonate of the used precursors and small amounts of water dissolved in BnNH2 combined with an incomplete reduction of Fe3+ to Fe0. However, the impurities vanished in the further course of the synthesis and cannot be found in the final FePt nanoparticles. With increasing reaction time, minor changes in the degree of crystallization indicate only slightly increased crystallite sizes of the prepared iron platinum in benzylamine. This is observed in a similar fashion for the reference synthesis (Figure A1b).
The final fcc-FePt nanocrystals obtained by the BnOH synthesis feature a mean particle size of 3.9 nm with mostly spherical morphology (Figure 4a). In contrast, FePt created via the BnNH2 route led to larger particles in the beginning, but finally resulted in agglomerates about 20 nm in size consisting of 3.3 nm-sized crystallites (Figure 4b). Nanocrystals prepared in TEG continuously showed the highest particle sizes of all four performed syntheses. We achieved a mean size of 5.6 nm, with the nanocrystals exhibiting a more edgy shape (Figure 4c). Furthermore, the particles showed a higher hydrophilic character due to a larger extent of surface-bound solvent molecules. The control system led to significantly smaller particles of 2.3 nm with spherical shape (Figure 4d). The stoichiometry of the fcc-FePt nanoparticles was determined to between Fe0.6Pt0.4 and Fe0.7Pt0.3 for all systems (see Appendix C). Moreover, we monitored the increase in the particle size with progressing reaction times by the determination of the average sizes from TEM image analysis as well as SAXS measurements (Figure 5, see Appendix D for details). FePt nanoparticles prepared in BnOH showed a strong particle growth from 5 to 15 min. After 15 min, the desired synthesis temperature of 200 °C was reached and kept for 30 min. Thereby, a deceleration of the particle growth was observed. For the BnNH2 and TEG syntheses, the particle size constantly increased with reaction time. The highest standard deviation was observed for nanocrystals prepared in TEG.
All as-prepared fcc-FePt nanoparticles showed superparamagnetic behavior (Figure 6), which can be ascribed to their ferromagnetic iron atoms and small particle sizes below the critical diameter, where only one single magnetic domain exists in one particle [41,42]. In the literature, the maximum magnetization value is often used to describe the saturation magnetization Ms of the FePt nanoparticles. With our measurements, no saturation was reached with higher magnetic field strength within the measurement range. Instead, we observed a slightly increasing magnetization with the rising magnetic field, which we assume is evoked by an additional paramagnetic effect caused by the platinum atoms. Thus, we subtracted the paramagnetic influence using a linear fit on the magnetization values at 4 and 5 T and defined the intersection of this linear fit curve with the ordinate as the saturation magnetization. However, to show the highest measured magnetizations of the prepared particles and to allow comparison with previously published data, we also display the magnetization values at 5 T, M5T.
Each system showed rising magnetization values with increasing reaction time. The 0 min BnOH and 1 min TEG samples were not taken into account, due to very low sample quantities retrieved from the reaction mixture. However, we expect the magnetization values in a similar range as the adjacent samples. The lowest determined saturation magnetization values were observed for the nanosized FePt of the reference synthesis. After 45 min, the Fe0.66Pt0.34 nanoparticles resulted in Ms of 0.09 Am2kg−1 and M5T of 1.14 Am2kg−1. In comparison, the final FePt nanoparticles synthesized in BnOH and TEG showed Ms of 2.08 and 3.16 Am2kg−1, as well as an M5T of 4.96 and 6.07 Am2kg−1, respectively. The highest increase in the magnetic behavior was observed between 5 and 15 min. Thus, the magnetization strongly increases with enlarged particle sizes. The BnNH2 route led to unexpectedly high magnetization values. Although the actual particle size of the FePt crystals is smaller compared to the BnOH-FePt, a saturation magnetization of 14.65 as well as magnetization at 5 T of 16.92 Am2kg−1 were obtained. This can be attributed to the reduced interparticle distances in the formed agglomerates, which result in strongly increased magnetic dipole interactions and, thus, enhance the overall magnetic moment, coupled with the highest crystallinity observed for this system.
Finally, the as-prepared face-centered cubic FePt nanoparticles were annealed at 800 °C under an argon atmosphere to induce the required rearrangement of the atoms in the unit cells in order to generate hard magnetic materials. The calcination process was performed for 2 h for particles prepared by the reference synthesis. For the alternative synthetic routes, calcination procedures of 2 h duration led to a mixture of various FePt phases. Phase-pure fct-FePt nanocrystals were obtained by extending the annealing time to 5 h (see Appendix E for BnOBn-FePt 5 h). Thereby, all characteristic reflections of the ordered L10 phase (ICSD 98-016-8777) in the newly-generated materials could be identified (Figure 7a). For BnNH2-FePt, additional signals emerged that could be attributed to magnetite. The amount of iron oxide impurities in relation to the hard-magnetic iron platinum phase varied when using different washing agents for conditioning the fcc-FePt nanoparticles prior to the annealing process. As an example, the use of ethanol led to a 1:1 mixture of fct-FePt:Fe3O4 while chloroform resulted in 15% magnetite impurities, both determined by Rietveld refinement. In contrast, using oxygen-containing solvents for the synthesis, the formation of iron oxide could be entirely prevented. The crystallite sizes of the annealed fct-FePt nanoparticles were estimated using the Scherrer equation and amount to 37.5 nm for the BnOBn reference system (see Appendix F for a TEM image), 39.4 nm for BnOH, 63.8 nm for TEG, and 69.5 nm for BnNH2, analyzing the (111) reflection.
When exposed to an applied magnetic field, the annealed fct-FePt nanocrystals showed the characteristic magnetic hysteresis loops of hard magnetic materials (Figure 7b). FePt derived from BnOBn revealed high saturation magnetization and remanence Mr combined with a large coercivity Hc (Table 1). In contrast, the alternative synthesis with TEG led to hard magnetic FePt with lower Ms and Mr, but increased coercivity. The same increase in Hc was observed for particles obtained by the BnOH route. However, the BnOH-FePt showed a marked decrease in saturation magnetization and remanence. For particles generated via the BnNH2 synthesis, we obtained the highest saturation magnetization. On the one hand, this is probably related to the enhanced sintering of particles in the formed agglomerates. The high annealing temperature of 800 °C evokes the formation of strong interparticle bonds between single crystals, which leads to the enlarged crystallite size. On the other hand, the additional soft magnetic iron oxide impurities magnetically interact with the hard magnetic FePt resulting in exchange coupling and, thus, in a high saturation magnetization combined with high coercivity.
Apart from the hard magnetic iron platinum, we obtained the L12 phases FePt3 and Fe3Pt through precise adjustments of the Fe:Pt precursor ratio during the non-aqueous sol-gel syntheses (Figure 8). While Fe3Pt possesses soft magnetic behavior combined with a small amount of paramagnetism from the unordered L12 phase at room temperature, FePt3 predominantly exhibits a paramagnetic character associated by ferromagnetism of the minor unordered L12 phase (Figure 9). Additionally, FePt3 shows two coexisting antiferromagnetic phases with Néel temperatures of TN1 = 160 K and TN2 = 100 K. Both L12 phases gained increasing interest recently due to their exchange bias or exchange coupling effects in combination with fct-FePt [18,43,44].

3. Materials and Methods

3.1. Preparation of fcc- and fct-FePt Nanoparticles

Platinum(II) acetylacetonate (Pt(acac)2, 98%) was purchased from Acros Organics (Geel, Belgium). Iron(III) acetylacetonate (Fe(acac)3, 99.9% trace metal basis), benzyl ether (BnOBn, 98%), benzylamine (BnNH2, 99%), hexamethylenediamine (HMDA, 98%), 1,2-hexadecanediol (HDD, 90% technical grade), oleic acid (OAc, 90% technical grade), oleylamine (OAm, 70% technical grade), and triethylene glycol (TEG, 99%) were acquired from Sigma Aldrich (Darmstadt, Germany). Benzyl alcohol (BnOH, 99%) was obtained from Honeywell (Seelze, Germany).
The non-aqueous sol-gel synthesis of FePt nanoparticles was performed using an amount of 2 mmol each of the molecular precursors Fe(acac)3 and Pt(acac)2, for all reaction systems.
For the reference synthesis according to Akbari et al. [45], the metal organic precursors were mixed with 40 mL of the solvent benzyl ether and 10 mmol of 1,2-hexadecanediol, which was used to reduce the iron and platinum ions. Additionally, 20 mmol of the in situ stabilizers oleic acid and oleylamine were added.
For the alternative synthetic routes, Fe(acac)3 and Pt(acac)2 were mixed with 40 mL of BnOH, TEG or BnNH2. When using BnOH as solvent, reduction of the metal organic compounds was also induced adding 10 mmol of HDD. Triethylene glycol already serves as the solvent and reducing agent simultaneously and, therefore, no additional chemical compound was required.
For the synthesis in benzylamine, we replaced HDD with hexamethylenediamine (HMDA). Due to its lower reducing effect compared to the oxygen-containing agent, a higher amount of HMDA (20 mmol) was required.
The synthesis was performed under a nitrogen atmosphere in all cases. Thereby, the respective reaction mixture for each synthetic route was heated to a temperature of 70 °C within 20 min and held for another 10 min to dissolve the precursor compounds. Subsequently, the formed reddish solution was heated further until its color turned dark brown, which indicates increased particle growth. Henceforth, we started to measure the time and took samples at 0, 1, 5, 15, and 45 min. Due to the generally low yield of the samples at 0 and 1 min, and the fact that the particle growth would be drastically changed when removing higher quantities of the reaction mixture at the beginning of the color transition, each synthetic route was repeated only taking the 0 and 1 min samples. The desired reaction temperature of 200 °C was usually reached after 15 min and held for an additional 30 min. However, BnNH2 already boils at 185 °C, which was attained after 10 min. For comparability, we extended the synthesis for an additional 5 min.
The as-prepared FePt nanoparticles were conditioned by centrifuging using appropriate washing agents, and subsequently dried under vacuum. Finally, the obtained FePt nanoparticles were annealed at 800 °C for 2 or 5 h under an argon atmosphere.
For the preparation of Fe3Pt and FePt3 nanoparticles, the Fe:Pt ratio of the initial precursors was adjusted to 70:30 and 40:60, respectively, and the synthesis performed using the aforementioned BnOH route.

3.2. Characterization

Powder X-ray diffraction (PXRD) was carried out on vacuum-dried and annealed FePt samples to determine the crystal structure as well as crystallite size of the ordered L10 and L12 phases using Cu Kα radiation (Empyrean Cu LEF HR goniometer, Almelo, Netherlands) on a Si sample holder in a range between 20 and 90° 2θ with a step size of 0.05° (Empyrean series 2, PANalytical PIXcel-3D detector, Almelo, The Netherlands).
Transmission electron microscopy (TEM) images were obtained using a Tenai G2 F20 TMP device of FEI at 200 kV and 300 mesh holey carbon-coated copper grids (Plano GmbH, Wetzlar, Germany).
Whilst the particle size of the BnNH2 and TEG samples was determined by image analysis from overview TEM images, the particle sizes for the unannealed BnOH samples were determined by small-angle X-ray scattering (SAXS) using a SAXSess mc2 system of Anton Paar (Graz, Austria) utilizing Cu Kα radiation with a CCD detector. The experiments were carried out at room temperature within a 1 mm flow-through cuvette at a sample-to-detector distance of 309 mm and the obtained 1D patterns were normalized and corrected regarding the exposure time, transmission, instrumental background, and smearing effects. To gather structural information in real space, indirect Fourier transformations were performed using GIFT from the PCG software package [46] (see Appendix D).
ICP-OES was performed on an ICP-OES 715 ES from Varian (associated to Agilent, Santa Clara, CA, USA) for iron and ICP-MS on an ICP-MS 7700 from Agilent (Santa Clara, CA, USA) for platinum to examine the stoichiometry of the as-prepared fcc-FePt nanoparticles (Table A2).
To determine the magnetic behavior of the prepared FePt nanoparticles, superconductive quantum interference device (SQUID) measurements were performed on a vibrating sample magnetometer (Physical Properties Measurement System Dynacool, San Diego, CA, USA) from Quantum Design. No saturation magnetization could be directly determined from the measurements, due to additional paramagnetic effects from the included platinum atoms (Figure A6). Therefore, a linear fit on the magnetization values of 4 and 5 T was applied and the intersection with the ordinate defined as the saturation magnetization of the prepared FePt nanoparticles. To analyze the magnetic behavior of the samples obtained after 45 min of reaction and to obtain hysteresis curves of the calcined crystals, the FePt nanoparticles were embedded in epoxy resin and the diamagnetic moment of the matrix material was subtracted.

4. Conclusions

The synthesis of face-centered cubic iron platinum nanoparticles was established and investigated using the non-toxic and benign solvents benzyl alcohol, benzylamine, and triethylene glycol in the absence of in situ stabilizers. As control system, we used the widely-applied reference synthesis in benzyl ether, requiring the addition of hexadecanediol, oleic acid and oleylamine as stabilizers at comparable reaction conditions. Each route resulted in highly-uniform nanocrystals that could be stabilized individually, with the exception of the BnNH2 system, which resulted in small agglomerates. Kinetic investigations by withdrawal of samples during the syntheses showed an increase in the FePt particle size with progressing reaction time. The final as-prepared fcc-FePt nanoparticles are highly crystalline and phase-pure. The magnetic behavior was determined by SQUID measurements, where no magnetic saturation was observed during the measurement due to an additional paramagnetic influence caused by the included platinum atoms. By subtracting this effect applying a linear fit on the magnetization values of 4 and 5 T and determining the intersection of this line with the ordinate, a corrected saturation magnetization was calculated. In BnOH, a mean particle size of 3.9 nm, as well as a spherical morphology, was achieved. With a saturation magnetization of 2.08 Am2kg−1, a stronger magnetic response to an applied magnetic field was obtained compared to the FePt nanocrystals obtained from the reference system. The use of TEG led to a higher final particle size of 5.6 nm, as well as a more edgy shape of the nanocrystals. Due to the larger crystallite size, we observed an increased Ms of 3.16 Am2kg−1. The BnNH2 route, being a completely novel synthesis without any diol and polyalcohol species as present in the usual polyol synthesis, led to particles with a strongly increased Ms of 14.65 Am2kg−1. The observed spherical nanoparticles 3.3 nm in size showed a high tendency to form fractal agglomerates of about 20 nm in size, where the interparticle distances are reduced and, thus, significant magnetic dipole interactions arose. Additionally, the obtained fcc-FePt nanoparticles were annealed at 800 °C for 5 h and resulted in the ordered L10 phase for all systems. The generated hard magnetic materials of the BnOH and TEG route showed an increased coercivity compared to fct-FePt derived from BnOBn. Furthermore, annealing of FePt nanocrystals of the BnNH2 synthesis exhibited the highest observed saturation magnetization of almost 35 Am2kg−1, probably resulting from exchange coupling due to the additional formation of small quantities of soft magnetic magnetite impurities. By variation of the precursor ratio, Fe3Pt and FePt3 were also obtained. The presented syntheses provide a versatile toolbox for the preparation of nanosized iron platinum particles with tailored hard magnetic properties.

Author Contributions

T.P. designed the experiments, wrote the paper, and performed the experiments together with S.K.; D.M. determined and evaluated the magnetic behavior of the unannealed and calcined FePt nanoparticles; J.C.P. analyzed the particle sizes of BnOH-FePt using SAXS; B.T. took the TEM images and performed the PXRD measurements; G.G. was responsible for designing the research project, coordinating the experiments, and correcting the manuscript.

Funding

This research was partially funded by Niedersächsisches Ministerium für Wissenschaft und Kultur through the “Quantum- and Nano-Metrology (QUANOMET)” initiative (ZN3245) within the project NP-1.

Acknowledgments

The authors thank Petra Schmidt, Adelina Calean and Harald Biester from Institute of Geoecology, Technische Universität Braunschweig, for the ICP-OES and ICP-MS measurements, and the Laboratory of Nano and Quantum Engineering (LNQE), Leibniz Universität Hannover, for the TEM instrument.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

During the course of the syntheses, the temperature of the reaction medium was recorded. We observed the color transition of the reference synthesis at much higher temperatures compared to the alternative synthetic routes. The temperature rose for 15 min, except of the BnNH2 route, and then was held constant for 30 min.
Table A1. Listing of the temperature records during sampling.
Table A1. Listing of the temperature records during sampling.
0 min1 min5 min15 min45 min
BnOBn175 °C177 °C190 °C200 °C200 °C
BnOH153 °C158 °C170 °C200 °C200 °C
TEG145 °C152 °C178 °C200 °C200 °C
BnNH2156 °C159 °C170 °C185 °C185 °C

Appendix B

The diffraction patterns of the FePt nanocrystals derived by the TEG route and reference synthesis are shown in Figure A1.

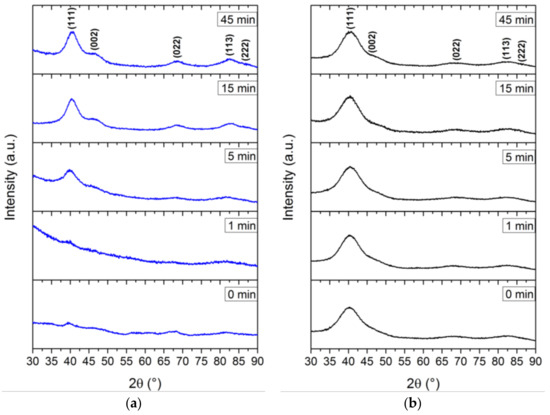

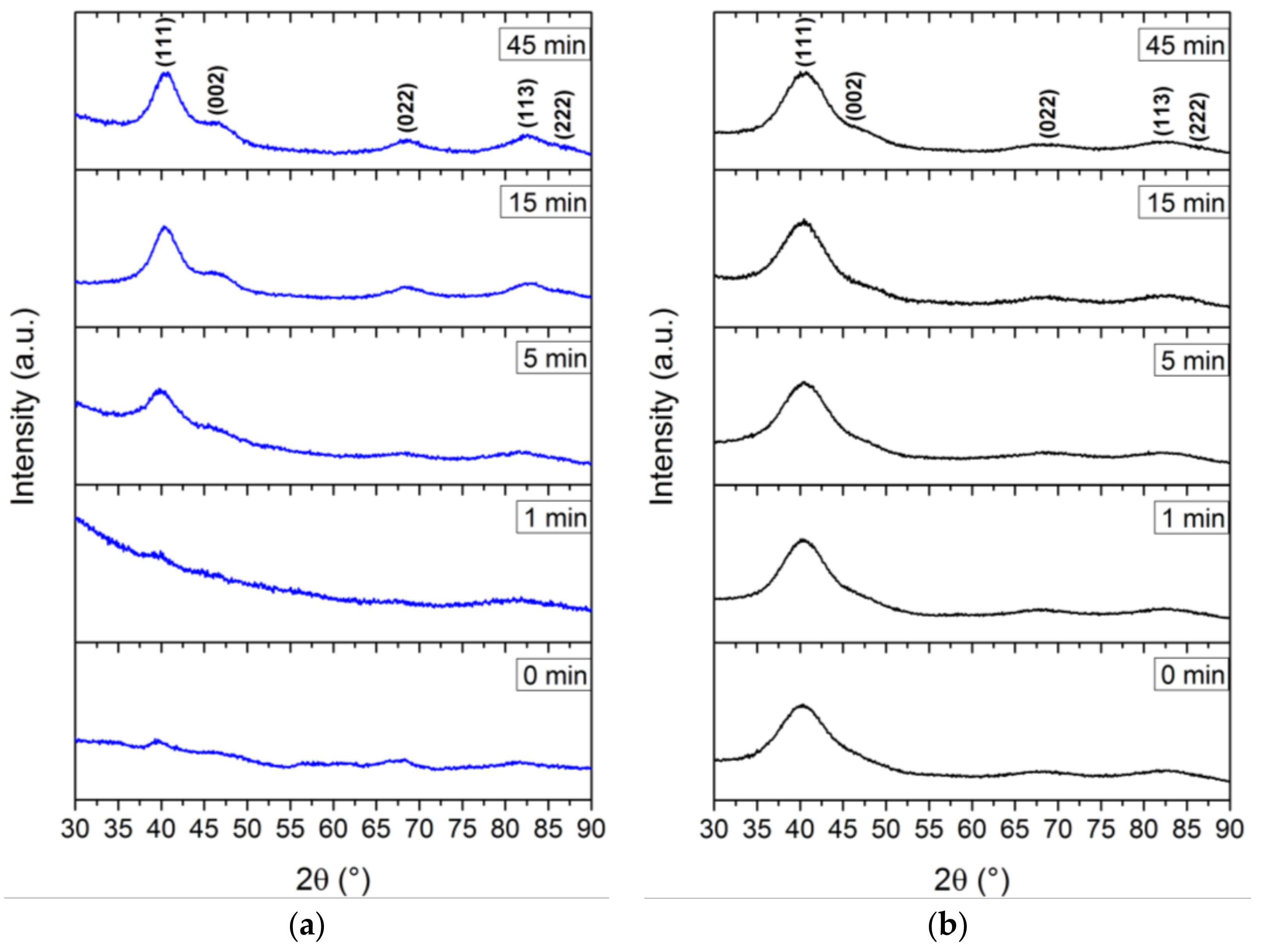

Figure A1. Diffraction patterns of the FePt nanoparticles synthesized in triethylene glycol (a) and benzyl ether (b).
Figure A1. Diffraction patterns of the FePt nanoparticles synthesized in triethylene glycol (a) and benzyl ether (b).
Nanomaterials 08 00297 g0a1

Appendix C

The amounts of iron and platinum present in the as-prepared fcc-FePt nanoparticles were analyzed by ICP-OES and ICP-MS, respectively (Table A2). Those measurements were used to determine the stoichiometry of the nanocrystals to between Fe0.6Pt0.4 and Fe0.7Pt0.3. It is known from the literature that as-prepared nanoparticles with slightly increased iron content preferentially result in the ordered L10 phase after annealing [23,28].
Table A2. Stoichiometry of the fcc-FePt nanocrystals as determined by ICP-OES (Fe content) and ICP-MS (Pt content).
Table A2. Stoichiometry of the fcc-FePt nanocrystals as determined by ICP-OES (Fe content) and ICP-MS (Pt content).
Composition
BnOBnFe0.66Pt0.34
BnOHFe0.66Pt0.34
TEGFe0.67Pt0.33
BnNH2Fe0.69Pt0.31

Appendix D

For the determination of the particle growth during the syntheses, we used both transmission electron microscopy, as well as small-angle X-ray scattering on the 5, 15, and 45 min samples of the alternative synthetic routes. SAXS analysis of the FePt particles prepared in BnOH resulted in evaluable scattering curves and pair-distance distribution functions P(r), showing increasing mean particle sizes of 2.5, 3.6, and 3.9 nm, respectively (Figure A2). However, the sizes of the BnNH2 and TEG samples could not be examined due to fast particle precipitation. Therefore, we additionally used TEM images to characterize the size of the nanocrystals (Figure A3). For the 45 min sample of BnOH, both characterization techniques were performed, leading to mostly the same mean particle size with 3.8 nm being determined by TEM and 3.9 nm by SAXS.

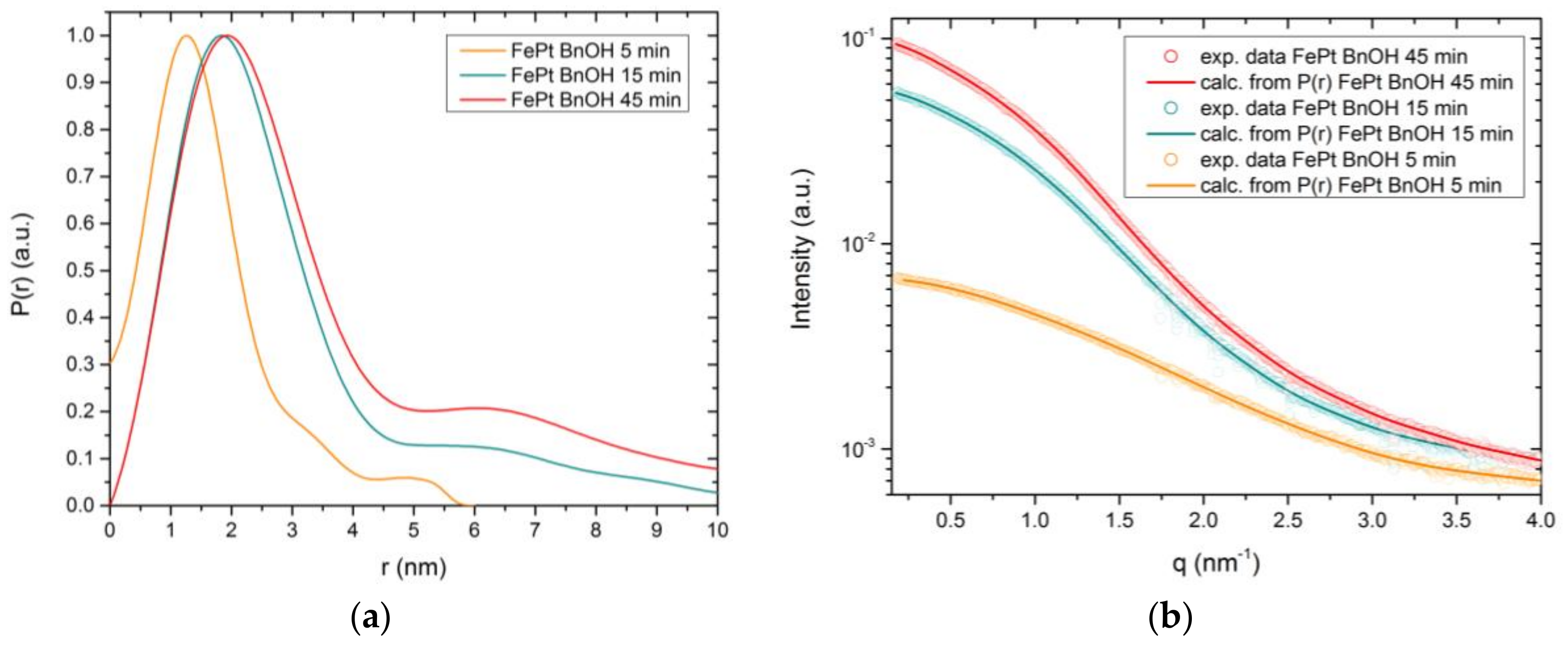

Figure A2. Pair-distance distribution functions (a) as well as scattering curves of the experimental data and calculations from P(r) (b) of the 5, 15, and 45 min samples of FePt-BnOH determined by small-angle X-ray scattering (SAXS). The scattering intensity is described as a function of the scattering vector q, with q = 4πsin(θ)/λ, λ as the corresponding wavelength of the X-ray source and scattering of the sample at an angle of 2θ. The P(r) function describes the relative frequency of all paired sets of interatomic distances within the system of length r and is used to gather dimensional and morphological information.
Figure A2. Pair-distance distribution functions (a) as well as scattering curves of the experimental data and calculations from P(r) (b) of the 5, 15, and 45 min samples of FePt-BnOH determined by small-angle X-ray scattering (SAXS). The scattering intensity is described as a function of the scattering vector q, with q = 4πsin(θ)/λ, λ as the corresponding wavelength of the X-ray source and scattering of the sample at an angle of 2θ. The P(r) function describes the relative frequency of all paired sets of interatomic distances within the system of length r and is used to gather dimensional and morphological information.
Nanomaterials 08 00297 g0a2
Figure A3. Transmission electron microscopy images of the 5 and 15 min samples of the benzylamine (a,b) and triethylene glycol (c,d) routes were used to analyze the particle growth during synthesis. Thereby, FePt particles derived by the BnNH2 route additionally reveal an increased formation of agglomerates. For TEG, an increase in the particle size, as well as a more edgy shape, could be observed.
Figure A3. Transmission electron microscopy images of the 5 and 15 min samples of the benzylamine (a,b) and triethylene glycol (c,d) routes were used to analyze the particle growth during synthesis. Thereby, FePt particles derived by the BnNH2 route additionally reveal an increased formation of agglomerates. For TEG, an increase in the particle size, as well as a more edgy shape, could be observed.
Nanomaterials 08 00297 g0a3

Appendix E

The as-prepared FePt nanoparticles of the reference synthesis were also annealed at 800 °C for 5 h, but resulted mainly in the L12 phase FePt3 (Figure A4). Magnetic characterization reveals a combination of para- and ferromagnetism and, therefore, a partially-ordered phase.

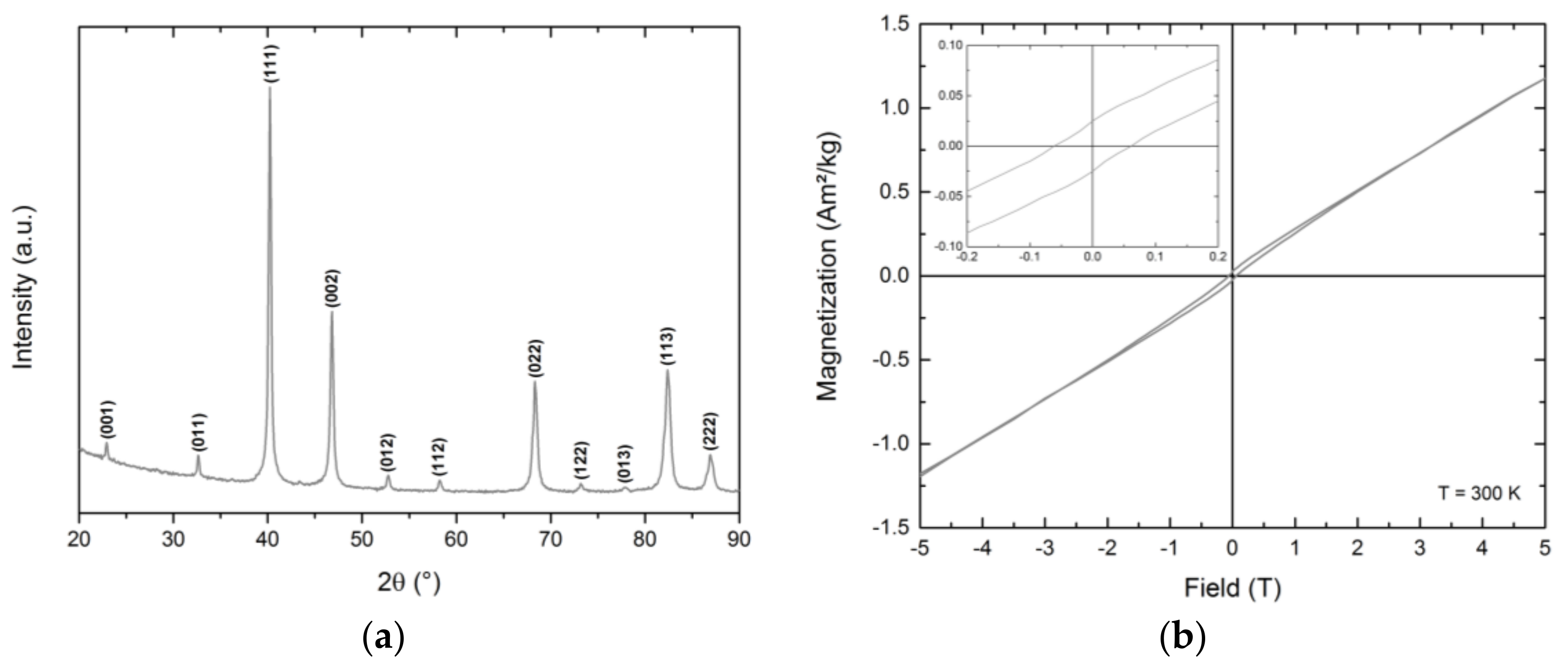

Figure A4. The diffraction pattern of BnOBn-FePt nanoparticles annealed at 800 °C for 5 h reveal the predominantly L12 phase of FePt3 (a) and the magnetic characterization para- combined with ferromagnetism (b).
Figure A4. The diffraction pattern of BnOBn-FePt nanoparticles annealed at 800 °C for 5 h reveal the predominantly L12 phase of FePt3 (a) and the magnetic characterization para- combined with ferromagnetism (b).
Nanomaterials 08 00297 g0a4

Appendix F

The fct-FePt crystals of the reference synthesis annealed at 800 °C for 2 h were analyzed by transmission electron microscopy (Figure A5).
Figure A5. TEM image of fct-FePt of the reference synthesis annealed at 800 °C for 2 h.
Figure A5. TEM image of fct-FePt of the reference synthesis annealed at 800 °C for 2 h.
Nanomaterials 08 00297 g0a5

Appendix G

The originally-measured magnetization values of the fcc-FePt nanoparticles of all systems were determined by SQUID with an applied magnetic field between 3 and 5 T (Figure A6).

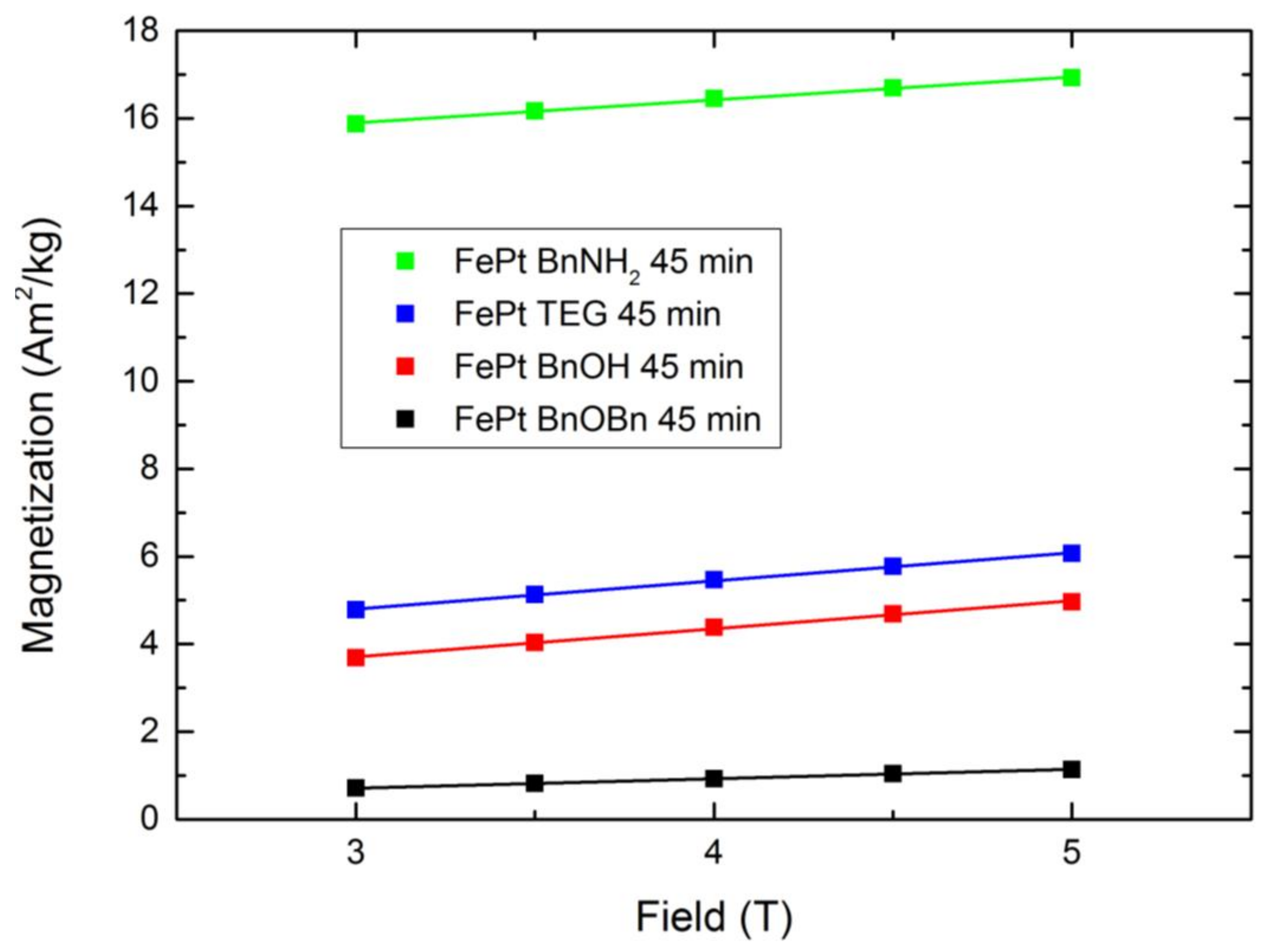

Figure A6. SQUID measurements of the final fcc-FePt nanoparticles of all systems.
Figure A6. SQUID measurements of the final fcc-FePt nanoparticles of all systems.
Nanomaterials 08 00297 g0a6

References

  1. Sun, S.; Murray, C.B.; Weller, D.; Folks, L.; Moser, A. Monodisperse FePt Nanoparticles and Ferromagnetic FePt Nanocrystal Superlattices. Science 2000, 287, 1989. [Google Scholar] [CrossRef] [PubMed]
  2. Inomata, K.; Sawa, T.; Hashimoto, S. Effect of large boron additions to magnetically hard Fe-Pt alloys. J. Appl. Phys. 1988, 64, 2537–2540. [Google Scholar] [CrossRef]
  3. Okamoto, S.; Kikuchi, N.; Kitakami, O.; Miyazaki, T.; Shimada, Y.; Fukamichi, K. Chemical-order-dependent magnetic anisotropy and exchange stiffness constant of FePt (001) epitaxial films. Phys. Rev. B Condens. Matter 2002, 66, 024413. [Google Scholar] [CrossRef]
  4. Maenosono, S.; Saita, S. Theoretical assessment of FePt nanoparticles as heating elements for magnetic hyperthermia. IEEE Trans. Magn. 2006, 42, 1638–1642. [Google Scholar] [CrossRef]
  5. Ristau, R.A.; Barmak, K.; Lewis, L.H.; Coffey, K.R.; Howard, J.K. On the relationship of high coercivity and L10 ordered phase in CoPt and FePt thin films. J. Appl. Phys. 1999, 86, 4527–4533. [Google Scholar] [CrossRef]
  6. Shima, T.; Takanashi, K.; Takahashi, Y.K.; Hono, K. Coercivity exceeding 100kOe in epitaxially grown FePt sputtered films. Appl. Phys. Lett. 2004, 85, 2571–2573. [Google Scholar] [CrossRef]
  7. Kevin, E.; Daren, L.; Narayan, P.; Vikas, N.; Zhiqiang, J.; Kanghua, C.; Liu, J.P. Monodisperse face-centred tetragonal FePt nanoparticles with giant coercivity. J. Phys. D Appl. Phys. 2005, 38, 2306. [Google Scholar]
  8. Chen, M.; Liu, J.P.; Sun, S. One-Step Synthesis of FePt Nanoparticles with Tunable Size. J. Am. Chem. Soc. 2004, 126, 8394–8395. [Google Scholar] [CrossRef] [PubMed]
  9. Seehra, M.S.; Singh, V.; Dutta, P.; Neeleshwar, S.; Chen, Y.Y.; Chen, C.L.; Chou, S.W.; Chen, C.C. Size-dependent magnetic parameters of fcc FePt nanoparticles: Applications to magnetic hyperthermia. J. Phys. D Appl. Phys. 2010, 43, 145002. [Google Scholar] [CrossRef]
  10. Seemann, K.M.; Luysberg, M.; Révay, Z.; Kudejova, P.; Sanz, B.; Cassinelli, N.; Loidl, A.; Ilicic, K.; Multhoff, G.; Schmid, T.E. Magnetic heating properties and neutron activation of tungsten-oxide coated biocompatible FePt core–shell nanoparticles. J. Control. Release 2015, 197, 131–137. [Google Scholar] [PubMed]
  11. Chou, S.-W.; Shau, Y.-H.; Wu, P.-C.; Yang, Y.-S.; Shieh, D.-B.; Chen, C.-C. In Vitro and in Vivo Studies of FePt Nanoparticles for Dual Modal CT/MRI Molecular Imaging. J. Am. Chem. Soc. 2010, 132, 13270–13278. [Google Scholar] [CrossRef] [PubMed]
  12. Gao, J.; Liang, G.; Cheung, J.S.; Pan, Y.; Kuang, Y.; Zhao, F.; Zhang, B.; Zhang, X.; Wu, E.X.; Xu, B. Multifunctional Yolk−Shell Nanoparticles: A Potential MRI Contrast and Anticancer Agent. J. Am. Chem. Soc. 2008, 130, 11828–11833. [Google Scholar] [CrossRef] [PubMed]
  13. Chen, J.S.; Lim, B.C.; Ding, Y.F.; Chow, G.M. Low-temperature deposition of L10 FePt films for ultra-high density magnetic recording. J. Magn. Magn. Mater. 2006, 303, 309–317. [Google Scholar] [CrossRef]
  14. Luo, C.P.; Liou, S.H.; Sellmyer, D.J. FePt:SiO2 granular thin film for high density magnetic recording. J. Appl. Phys. 2000, 87, 6941–6943. [Google Scholar] [CrossRef]
  15. Kim, J.; Rong, C.; Liu, J.P.; Sun, S. Dispersible Ferromagnetic FePt Nanoparticles. Adv. Mater. 2009, 21, 906–909. [Google Scholar] [CrossRef]
  16. Sun, S.; Anders, S.; Thomson, T.; Baglin, J.E.E.; Toney, M.F.; Hamann, H.F.; Murray, C.B.; Terris, B.D. Controlled Synthesis and Assembly of FePt Nanoparticles. J. Phys. Chem. B 2003, 107, 5419–5425. [Google Scholar] [CrossRef]
  17. Christodoulides, J.A.; Huang, Y.; Zhang, Y.; Hadjipanayis, G.C.; Panagiotopoulos, I.; Niarchos, D. CoPt and FePt thin films for high density recording media. J. Appl. Phys. 2000, 87, 6938–6940. [Google Scholar] [CrossRef]
  18. Zeng, H.; Li, J.; Liu, J.P.; Wang, Z.L.; Sun, S. Exchange-coupled nanocomposite magnets by nanoparticle self-assembly. Nature 2002, 420, 395. [Google Scholar] [CrossRef] [PubMed]
  19. Simizu, S.; Obermyer, R.T.; Zande, B.; Chandhok, V.K.; Margolin, A.; Sankar, S.G. Exchange coupling in FePt permanent magnets. J. Appl. Phys. 2003, 93, 8134–8136. [Google Scholar] [CrossRef]
  20. Gutfleisch, O.; Lyubina, J.; Müller, K.H.; Schultz, L. FePt Hard Magnets. Adv. Eng. Mater. 2005, 7, 208–212. [Google Scholar] [CrossRef]
  21. Rui, X.; Shield, J.E.; Sun, Z.; Yue, L.; Xu, Y.; Sellmyer, D.J.; Liu, Z.; Miller, D.J. High-energy product exchange-spring FePt/Fe cluster nanocomposite permanent magnets. J. Magn. Magn. Mater. 2006, 305, 76–82. [Google Scholar] [CrossRef]
  22. Zeng, H.; Sun, S.; Vedantam, T.S.; Liu, J.P.; Dai, Z.-R.; Wang, Z.-L. Exchange-coupled FePt nanoparticle assembly. Appl. Phys. Lett. 2002, 80, 2583–2585. [Google Scholar] [CrossRef]
  23. Liu, Y.; Jiang, Y.; Zhang, X.; Wang, Y.; Zhang, Y.; Liu, H.; Zhai, H.; Liu, Y.; Yang, J.; Yan, Y. Structural and magnetic properties of the ordered FePt3, FePt and Fe3Pt nanoparticles. J. Solid State Chem. 2014, 209, 69–73. [Google Scholar] [CrossRef]
  24. Fievet, F.; Lagier, J.P.; Figlarz, M. Preparing Monodisperse Metal Powders in Micrometer and Submicrometer Sizes by the Polyol Process. MRS Bull. 1989, 14, 29–34. [Google Scholar] [CrossRef]
  25. Farahmandjou, M.; Sebt, S.A.; Parhizgar, S.S.; Aberomand, P.; Akhavan, M. Stability Investigation of Colloidal FePt Nanoparticle Systems by Spectrophotometer Analysis. Chin. Phys. Lett. 2009, 26, 027501. [Google Scholar] [CrossRef]
  26. Elkins, K.E.; Vedantam, T.S.; Liu, J.P.; Zeng, H.; Sun, S.; Ding, Y.; Wang, Z.L. Ultrafine FePt Nanoparticles Prepared by the Chemical Reduction Method. Nano Lett. 2003, 3, 1647–1649. [Google Scholar] [CrossRef]
  27. Jeyadevan, B.; Hobo, A.; Urakawa, K.; Chinnasamy, C.N.; Shinoda, K.; Tohji, K. Towards direct synthesis of fct-FePt nanoparticles by chemical route. J. Appl. Phys. 2003, 93, 7574–7576. [Google Scholar] [CrossRef]
  28. Masafumi, N.; Yuko, T.; Kenchi, I.; Yasunori, O.; Tsuneji, S.; Toshiharu, T. Novel Synthesis of FePt Nanoparticles and Magnetic Properties of Their Self-assembled Superlattices. Chem. Lett. 2004, 33, 130–131. [Google Scholar]
  29. Iwaki, T.; Kakihara, Y.; Toda, T.; Abdullah, M.; Okuyama, K. Preparation of high coercivity magnetic FePt nanoparticles by liquid process. J. Appl. Phys. 2003, 94, 6807–6811. [Google Scholar] [CrossRef]
  30. Wellons, M.S.; Morris, W.H.; Gai, Z.; Shen, J.; Bentley, J.; Wittig, J.E.; Lukehart, C.M. Direct Synthesis and Size Selection of Ferromagnetic FePt Nanoparticles. Chem. Mater. 2007, 19, 2483–2488. [Google Scholar] [CrossRef]
  31. Balachandran, J.; Kiyoshi, U.; Akira, H.; Nallasamy, C.; Kozo, S.; Kazuyuki, T.; David, D.J.D.; Masakiyo, T.; Migaku, T. Direct Synthesis of fct-FePt Nanoparticles by Chemical Route. Jpn. J. Appl. Phys. 2003, 42, L350. [Google Scholar]
  32. Nguyen, H.L.; Howard, L.E.M.; Stinton, G.W.; Giblin, S.R.; Tanner, B.K.; Terry, I.; Hughes, A.K.; Ross, I.M.; Serres, A.; Evans, J.S.O. Synthesis of Size-Controlled fcc and fct FePt Nanoparticles. Chem. Mater. 2006, 18, 6414–6424. [Google Scholar] [CrossRef]
  33. Cheema, T.A.; Garnweitner, G. Phase-controlled synthesis of ZrO2 nanoparticles for highly transparent dielectric thin films. CrystEngComm 2014, 16, 3366–3375. [Google Scholar] [CrossRef]
  34. Zimmermann, M.; Ibrom, K.; Jones Peter, G.; Garnweitner, G. Formation of a Dimeric Precursor Intermediate during the Nonaqueous Synthesis of Titanium Dioxide Nanocrystals. ChemNanoMat 2016, 2, 1073–1076. [Google Scholar] [CrossRef]
  35. Garnweitner, G.; Tsedev, N.; Dierke, H.; Niederberger, M. Benzylamines as Versatile Agents for the One-Pot Synthesis and Highly Ordered Stacking of Anatase Nanoplatelets. Eur. J. Inorg. Chem. 2008, 2008, 890–895. [Google Scholar] [CrossRef]
  36. Masthoff, I.C.; Gutsche, A.; Nirschl, H.; Garnweitner, G. Oriented attachment of ultra-small Mn(1−x)ZnxFe2O4 nanoparticles during the non-aqueous sol-gel synthesis. CrystEngComm 2015, 17, 2464–2470. [Google Scholar] [CrossRef]
  37. Niederberger, M.; Garnweitner, G. Organic Reaction Pathways in the Nonaqueous Synthesis of Metal Oxide Nanoparticles. Chem. Eur. J. 2006, 12, 7282–7302. [Google Scholar] [CrossRef] [PubMed]
  38. Grabs, I.-M.; Bradtmöller, C.; Menzel, D.; Garnweitner, G. Formation Mechanisms of Iron Oxide Nanoparticles in Different Nonaqueous Media. Cryst. Growth Des. 2012, 12, 1469–1475. [Google Scholar] [CrossRef]
  39. Masthoff, I.C.; Kraken, M.; Menzel, D.; Litterst, F.J.; Garnweitner, G. Study of the growth of hydrophilic iron oxide nanoparticles obtained via the non-aqueous sol–gel method. J. Sol-Gel Sci. Technol. 2016, 77, 553–564. [Google Scholar] [CrossRef]
  40. Nandwana, V.; Elkins, K.E.; Liu, J.P. Magnetic hardening in ultrafine FePt nanoparticle assembled films. Nanotechnology 2005, 16, 2823. [Google Scholar] [CrossRef]
  41. Frenkel, J.; Doefman, J. Spontaneous and Induced Magnetisation in Ferromagnetic Bodies. Nature 1930, 126, 274. [Google Scholar] [CrossRef]
  42. Akbarzadeh, A.; Samiei, M.; Davaran, S. Magnetic nanoparticles: Preparation, physical properties, and applications in biomedicine. Nanoscale Res. Lett. 2012, 7, 144. [Google Scholar] [CrossRef] [PubMed]
  43. Compton, R.L.; Pechan, M.J.; Maat, S.; Fullerton, E.E. Probing the magnetic transitions in exchange-biased FePt3/Fe bilayers. Phys. Rev. B Condens. Matter 2002, 66, 054411. [Google Scholar] [CrossRef]
  44. Li, J.; Wang, Z.L.; Zeng, H.; Sun, S.; Ping Liu, J. Interface structures in FePt/Fe3Pt hard-soft exchange-coupled magnetic nanocomposites. Appl. Phys. Lett. 2003, 82, 3743–3745. [Google Scholar] [CrossRef]
  45. Akbari, H.; Zeynali, H.; Sebt, S.A.; Anjami, A. Magnetic and structural properties of L10 FePt/MnFe2O4 nanocomposites. Superlattices Microstruct. 2014, 69, 99–107. [Google Scholar] [CrossRef]
  46. Bergmann, A.; Fritz, G.; Glatter, O. Solving the generalized indirect Fourier transformation (GIFT) by Boltzmann simplex simulated annealing (BSSA). J. Appl. Crystallogr. 2000, 33, 1212–1216. [Google Scholar] [CrossRef]

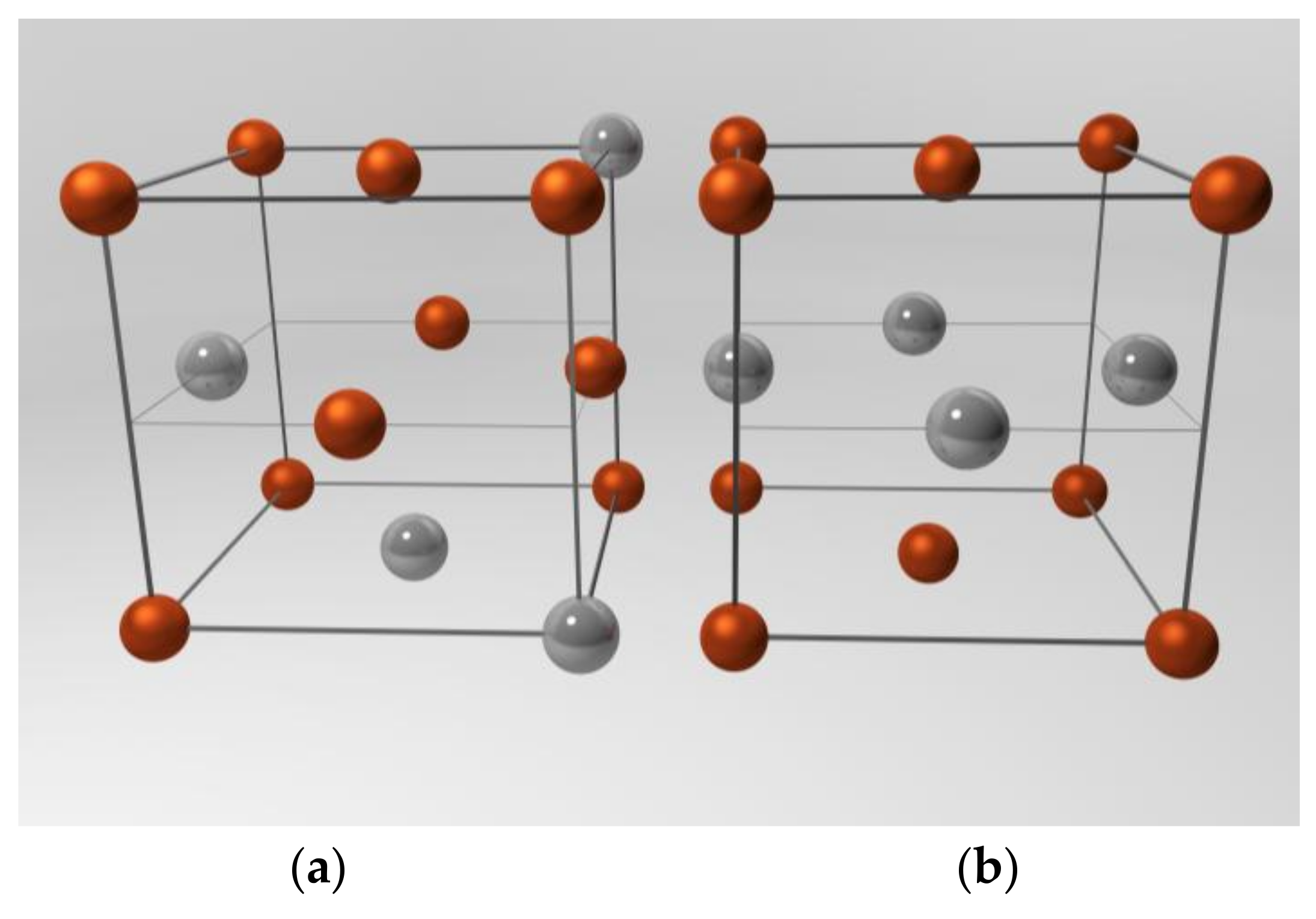

Figure 1. Illustration of (a) the unordered face-centered cubic (fcc) structure with randomly assembled iron (brown) and platinum (grey) atoms (arbitrarily chosen assembly) and (b) the ordered face-centered tetragonal (fct) phase with alternating layers of iron and platinum atoms (ordered L10 phase).
Figure 1. Illustration of (a) the unordered face-centered cubic (fcc) structure with randomly assembled iron (brown) and platinum (grey) atoms (arbitrarily chosen assembly) and (b) the ordered face-centered tetragonal (fct) phase with alternating layers of iron and platinum atoms (ordered L10 phase).
Nanomaterials 08 00297 g001

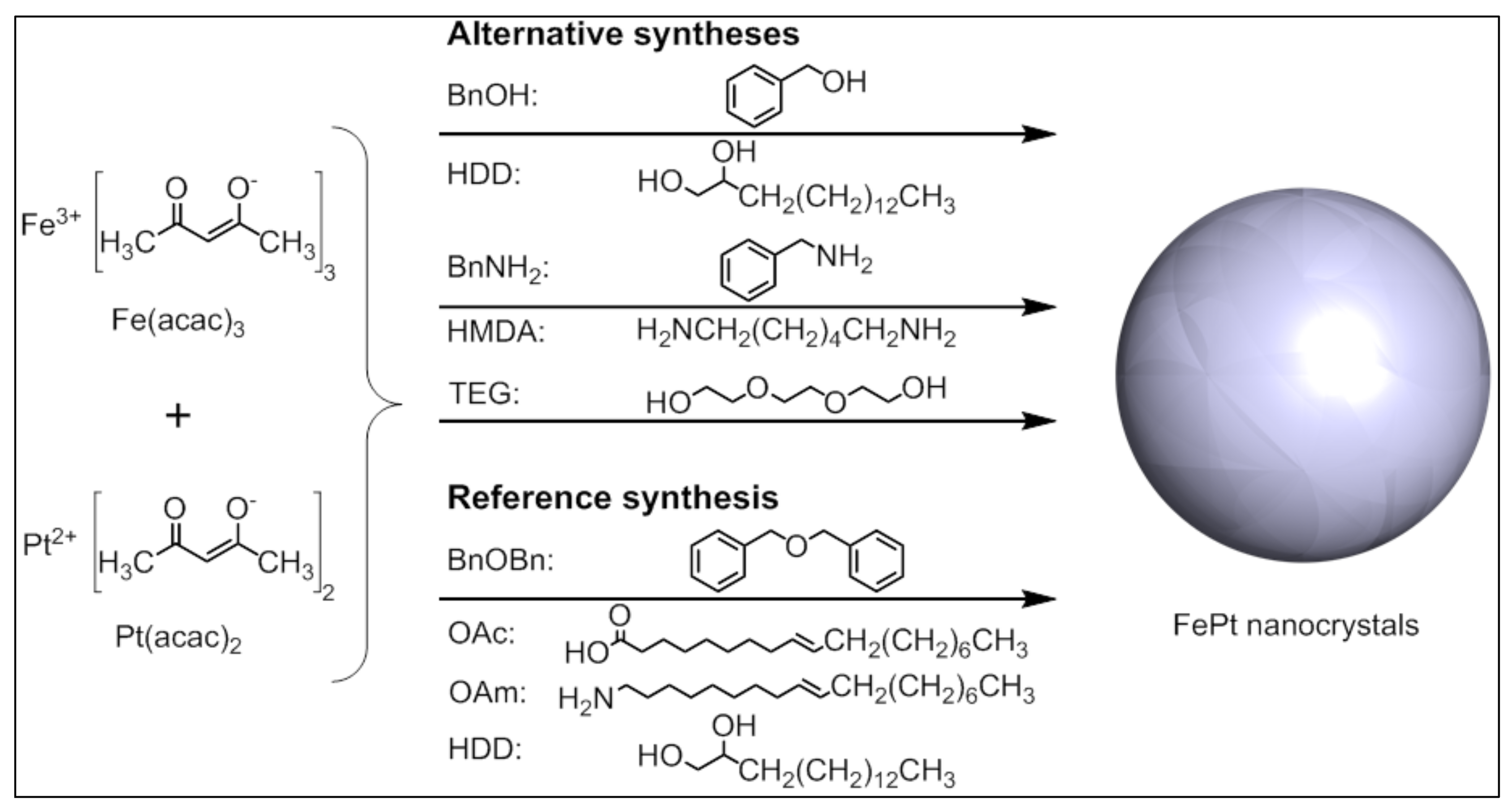

Figure 2. Schematic illustration of the investigated synthetic routes for fcc-FePt nanocrystals.
Figure 2. Schematic illustration of the investigated synthetic routes for fcc-FePt nanocrystals.
Nanomaterials 08 00297 g002

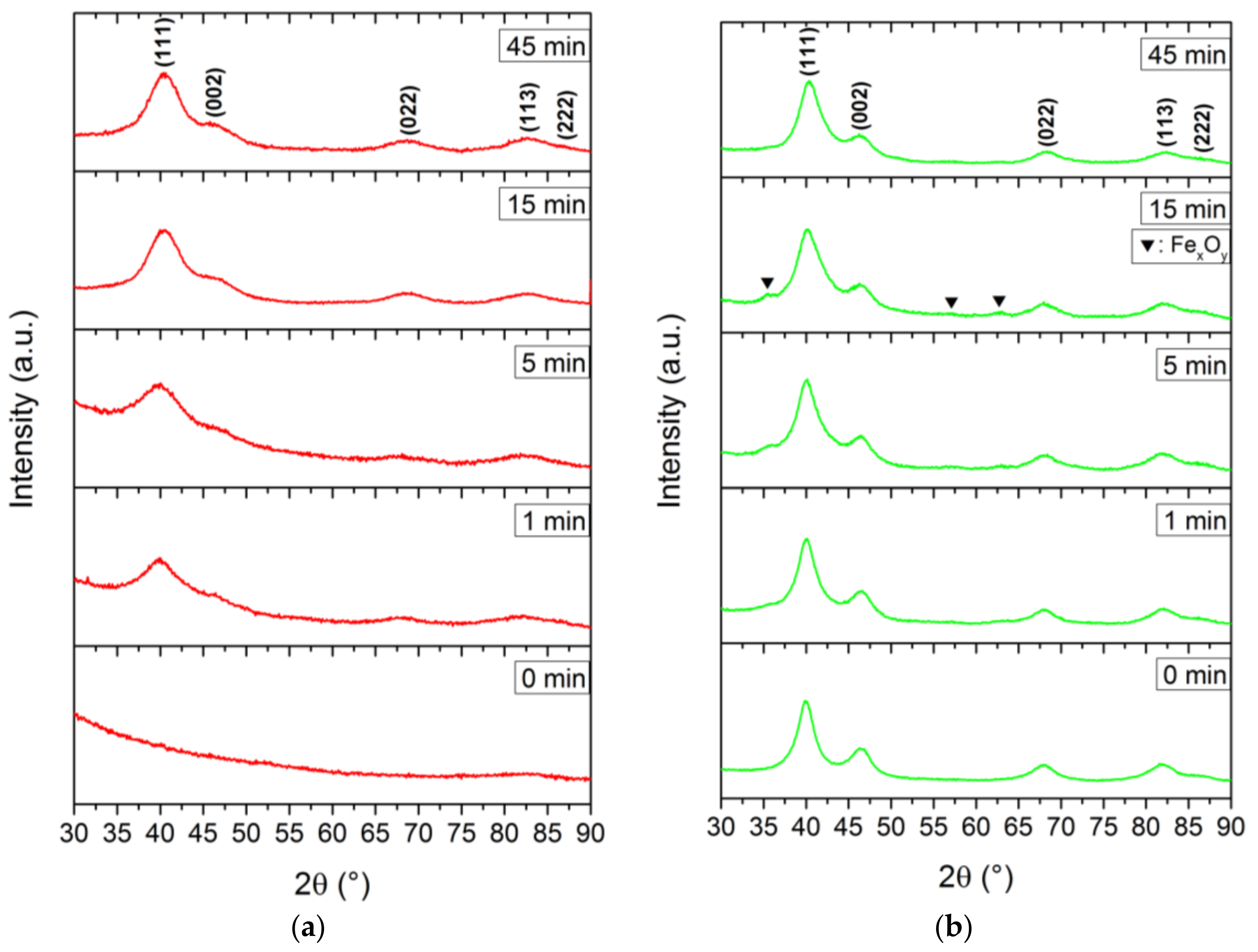

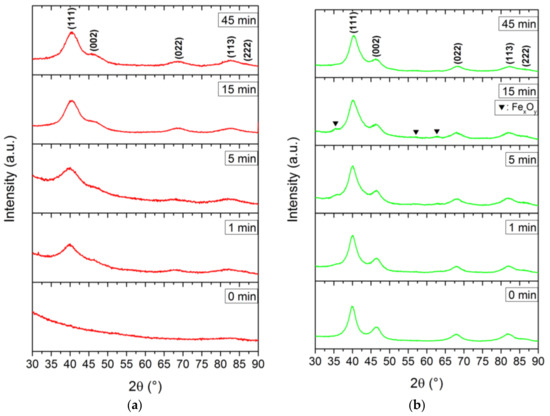

Figure 3. Diffraction patterns of the nanoparticles retrieved at 0, 1, 5, 15, and 45 min after the color transition of the reaction medium benzyl alcohol (a) and benzylamine (b).
Figure 3. Diffraction patterns of the nanoparticles retrieved at 0, 1, 5, 15, and 45 min after the color transition of the reaction medium benzyl alcohol (a) and benzylamine (b).
Nanomaterials 08 00297 g003

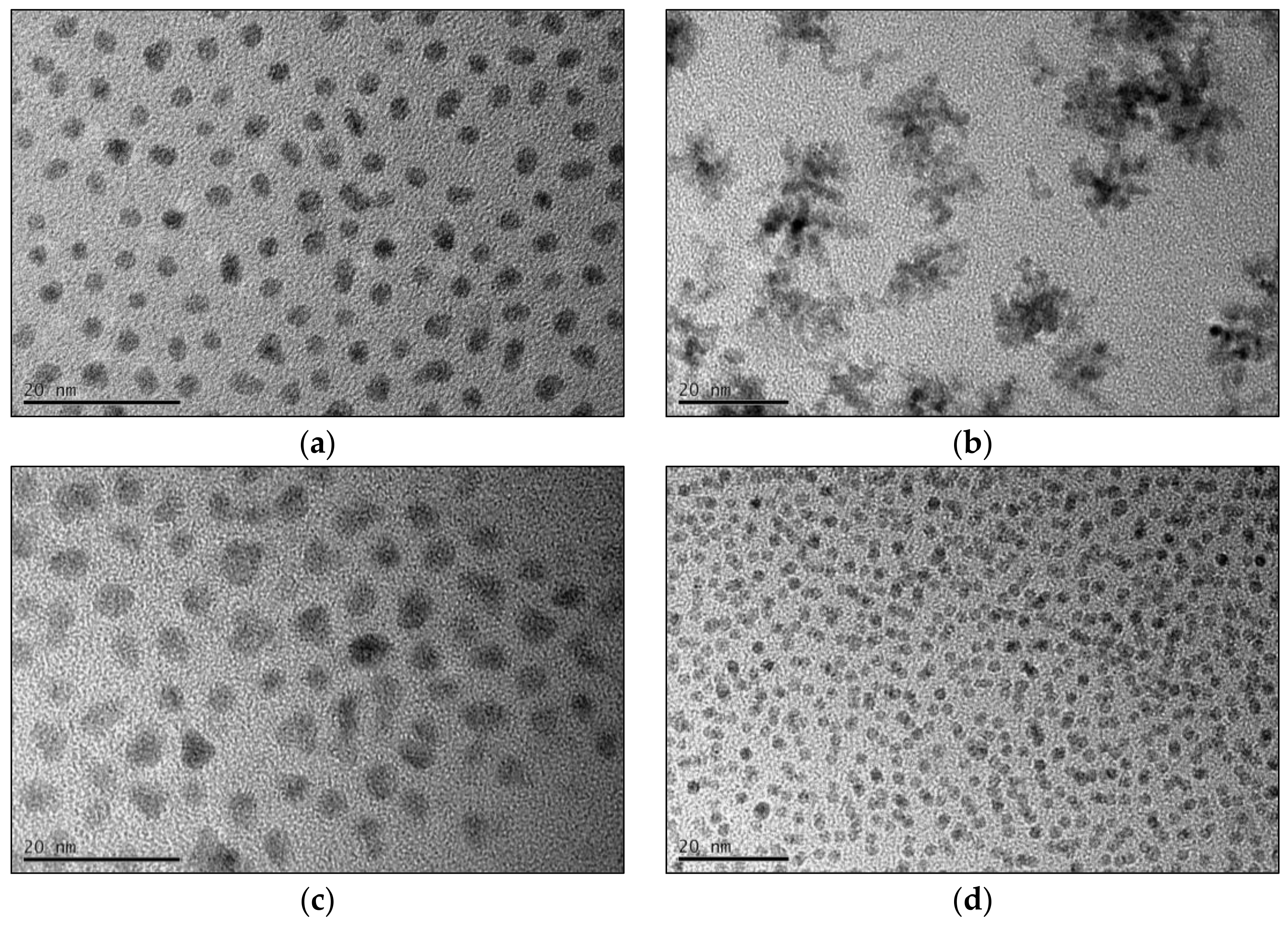

Figure 4. TEM images of the final prepared fcc-FePt nanoparticles using BnOH (a), BnNH2 (b), TEG (c), and BnOBn (d).
Figure 4. TEM images of the final prepared fcc-FePt nanoparticles using BnOH (a), BnNH2 (b), TEG (c), and BnOBn (d).
Nanomaterials 08 00297 g004

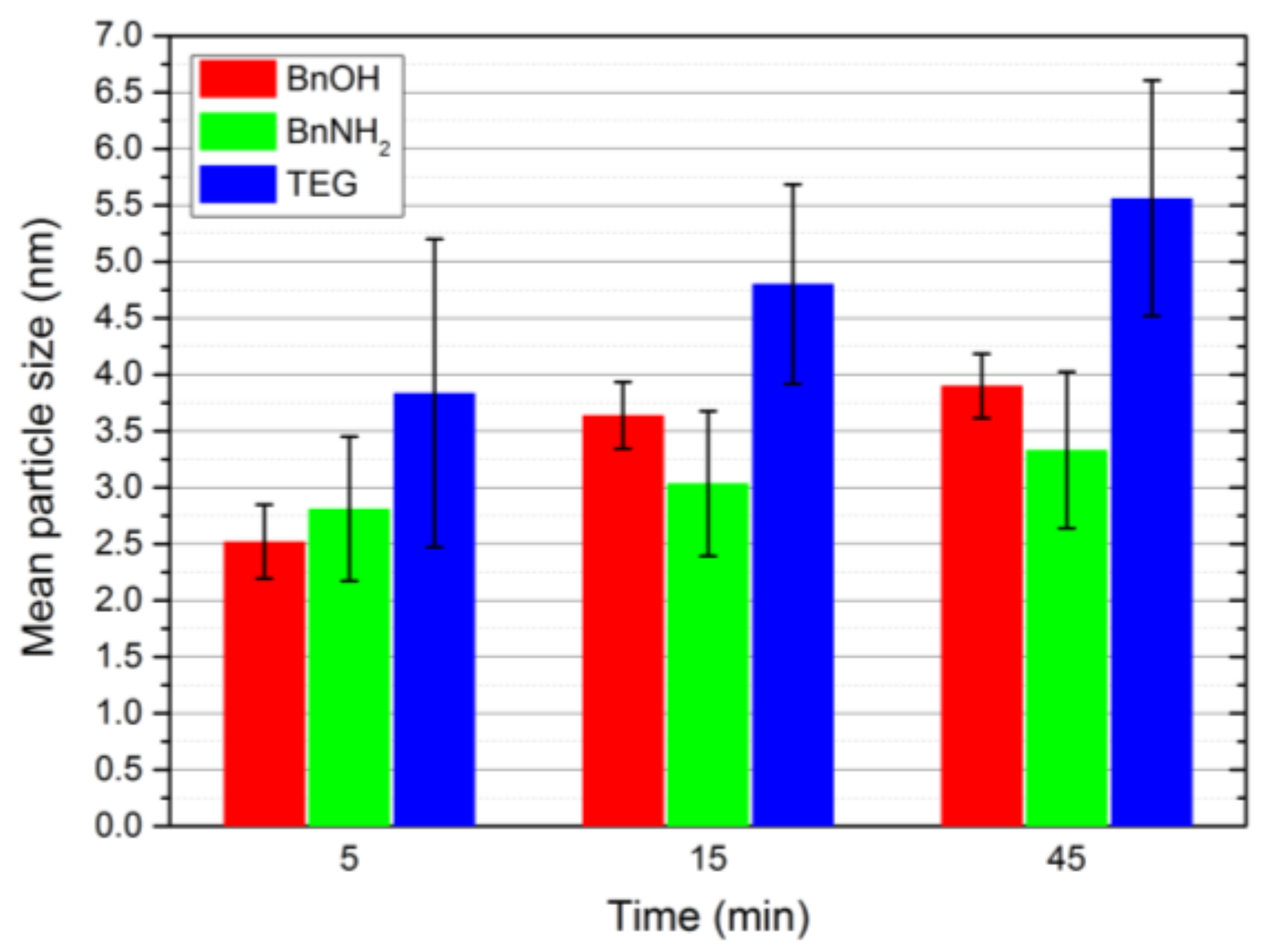

Figure 5. Diagram showing the mean particle size of the generated fcc-FePt nanoparticles for different reactions times.
Figure 5. Diagram showing the mean particle size of the generated fcc-FePt nanoparticles for different reactions times.
Nanomaterials 08 00297 g005

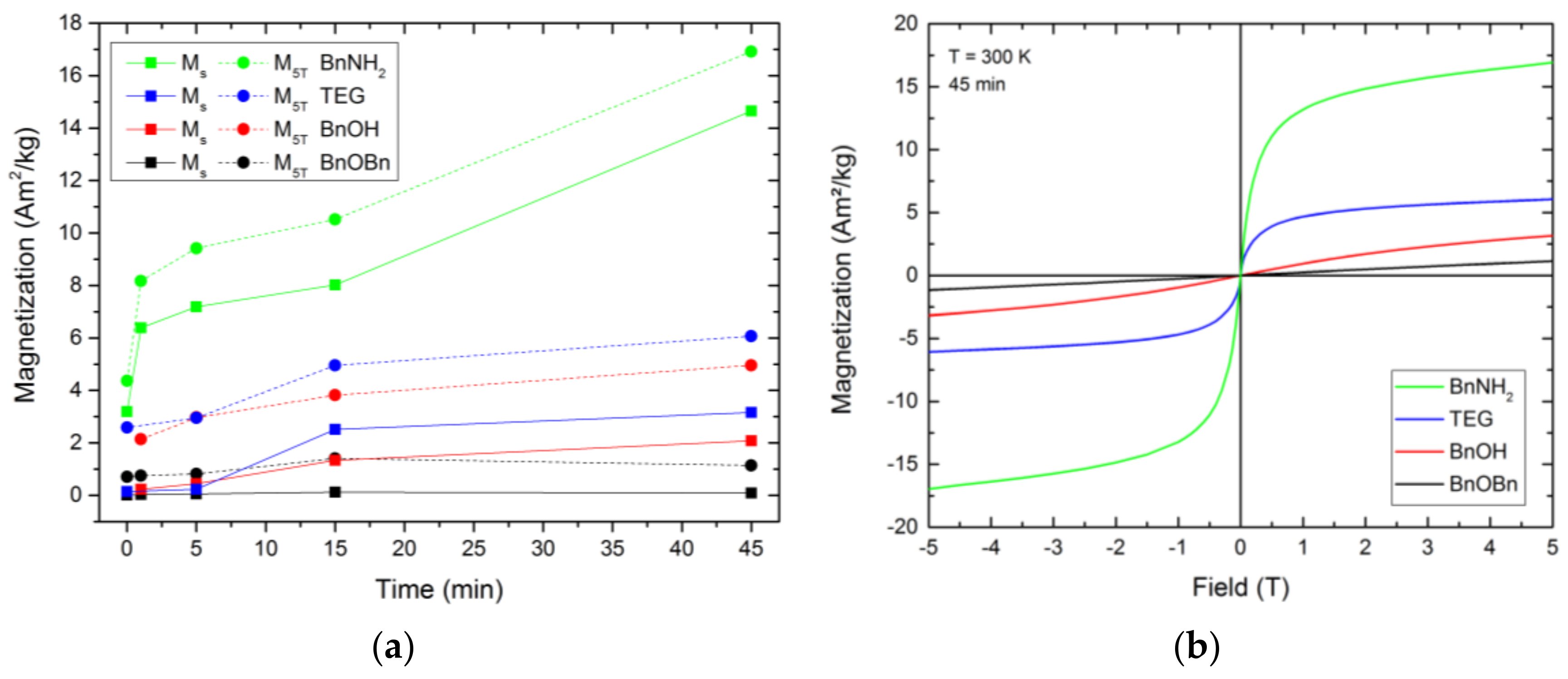

Figure 6. Saturation magnetization and magnetization at 5 T (a) as well as the superparamagnetic curves after 45 min reaction time (b) of the fcc-FePt nanoparticles derived from the reference synthesis (black) as well as alternative synthetic routes (red, blue, green).
Figure 6. Saturation magnetization and magnetization at 5 T (a) as well as the superparamagnetic curves after 45 min reaction time (b) of the fcc-FePt nanoparticles derived from the reference synthesis (black) as well as alternative synthetic routes (red, blue, green).
Nanomaterials 08 00297 g006

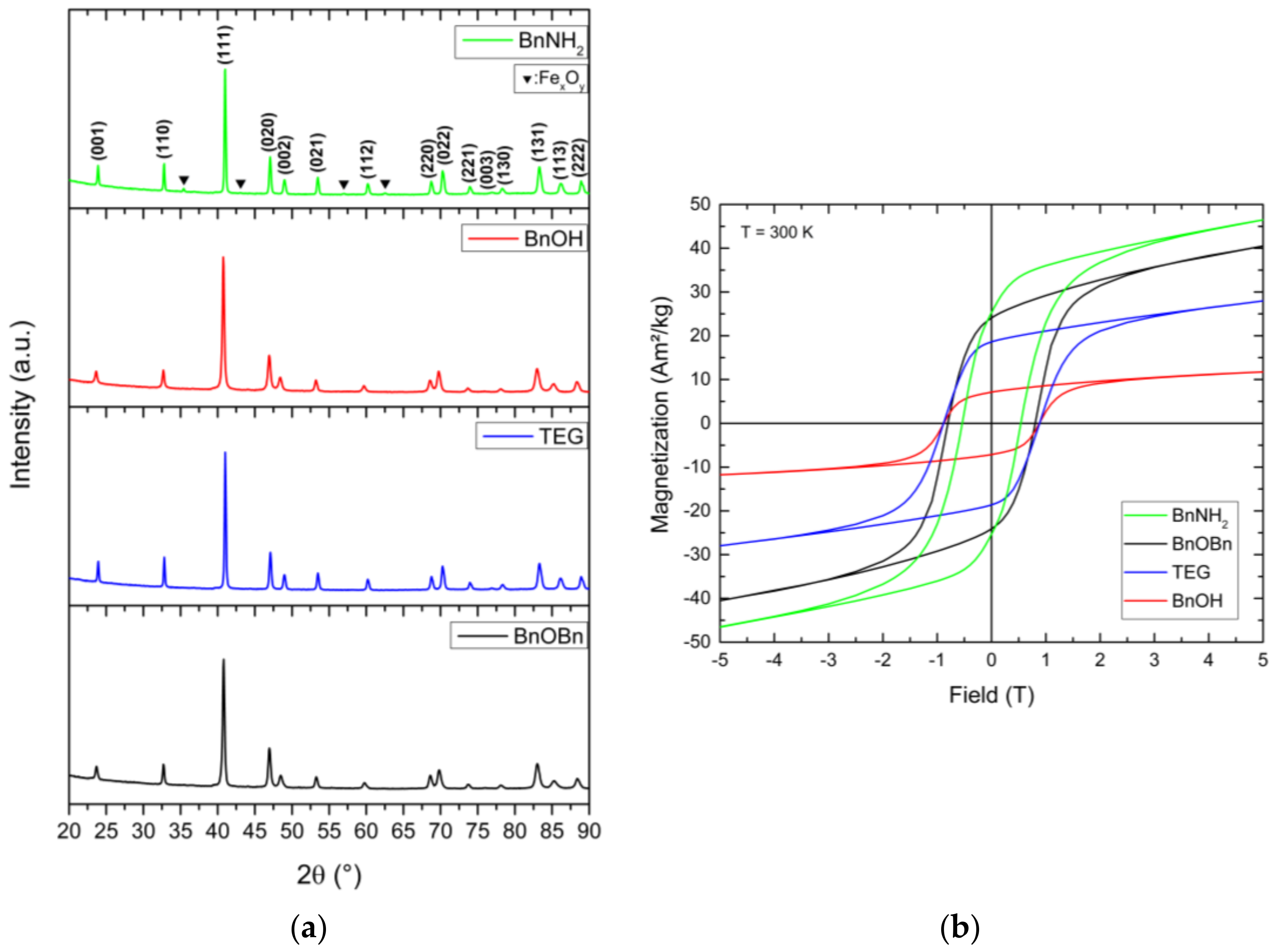

Figure 7. Diffraction patterns of the fct-FePt nanoparticles obtained after annealing at 800 °C (a) and superconductive quantum interference device (SQUID) measurements of the hard-magnetic properties of the generated ordered L10 phase (b) for the different reaction systems (non-corrected curves).
Figure 7. Diffraction patterns of the fct-FePt nanoparticles obtained after annealing at 800 °C (a) and superconductive quantum interference device (SQUID) measurements of the hard-magnetic properties of the generated ordered L10 phase (b) for the different reaction systems (non-corrected curves).
Nanomaterials 08 00297 g007

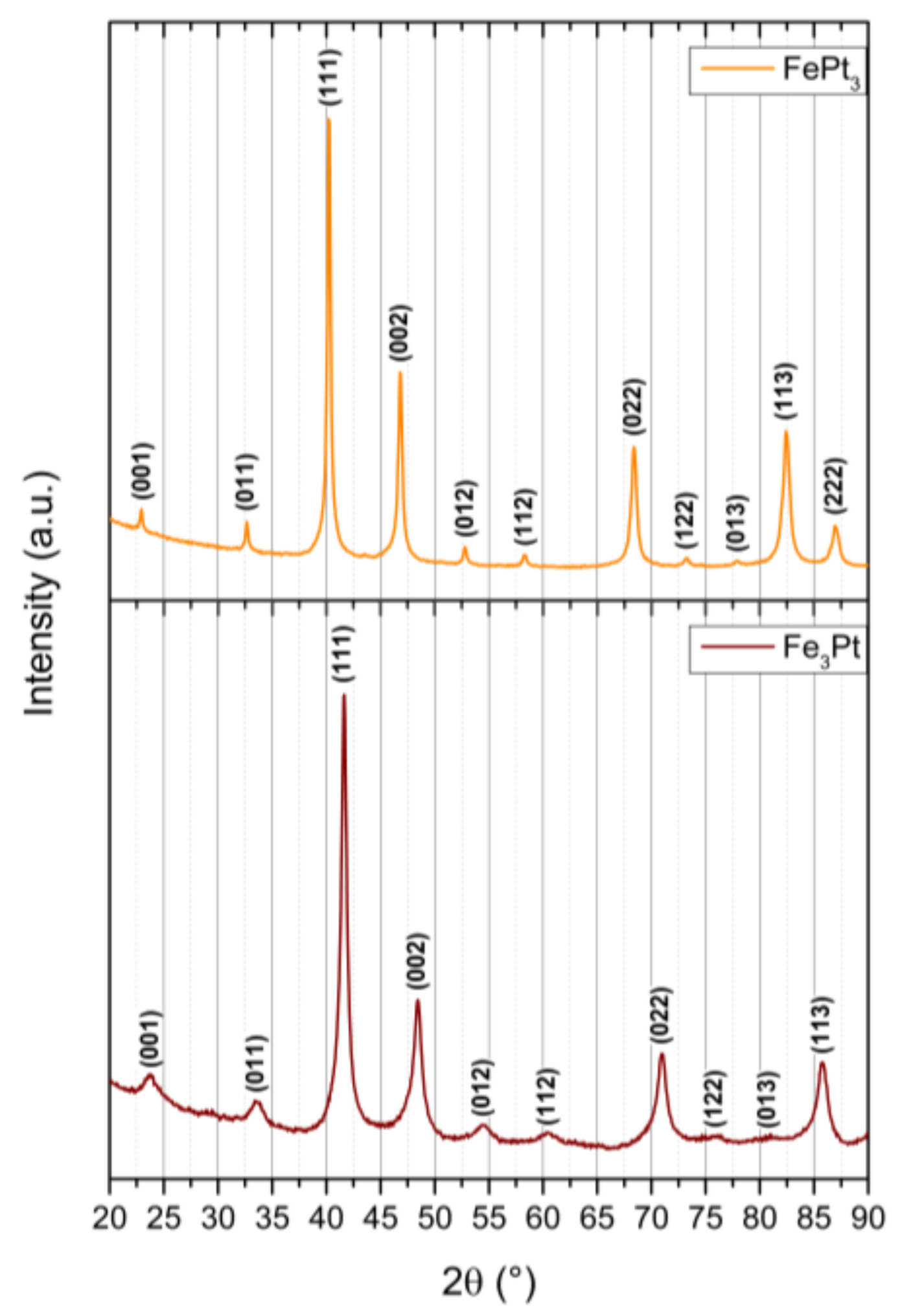

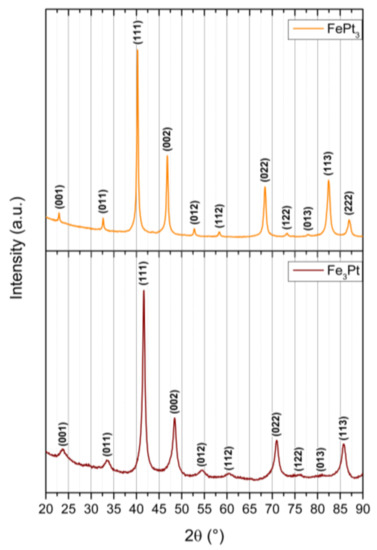

Figure 8. Diffraction patterns of the prepared FePt3 and Fe3Pt particles obtained by the BnOH route and annealed at 800 °C for 2 h.
Figure 8. Diffraction patterns of the prepared FePt3 and Fe3Pt particles obtained by the BnOH route and annealed at 800 °C for 2 h.
Nanomaterials 08 00297 g008

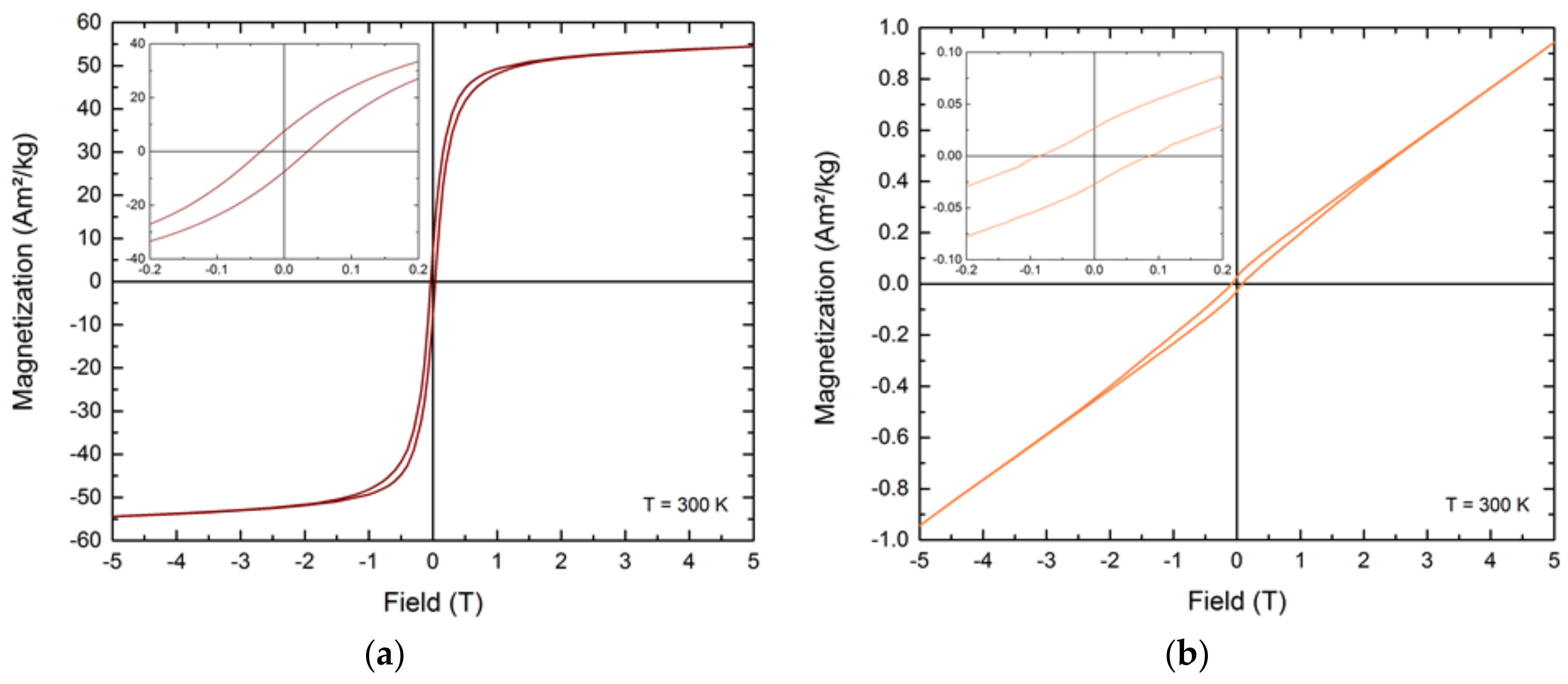

Figure 9. Magnetization curves of the predominantly ferromagnetic Fe3Pt (a) and paramagnetic FePt3 nanocrystals (b).
Figure 9. Magnetization curves of the predominantly ferromagnetic Fe3Pt (a) and paramagnetic FePt3 nanocrystals (b).
Nanomaterials 08 00297 g009
Table 1. Overview of the saturation magnetization Ms, magnetization at 5 T M5T, remanence Mr and coercivity Hc of the prepared hard magnetic fct-FePt nanoparticles for the different reaction systems.
Table 1. Overview of the saturation magnetization Ms, magnetization at 5 T M5T, remanence Mr and coercivity Hc of the prepared hard magnetic fct-FePt nanoparticles for the different reaction systems.
Ms (Am2/kg)M5T (Am2/kg)Mr (Am2/kg)Hc (T)
BnOBn30.0240.5024.090.80
BnOH9.5011.777.140.88
TEG19.8927.9718.640.88
BnNH234.9646.4925.390.54
