Next Article in Journal
The Improvement of Skin Whitening of Phenylethyl Resorcinol by Nanostructured Lipid Carriers
Next Article in Special Issue
Nanosilver–Silica Composite: Prolonged Antibacterial Effects and Bacterial Interaction Mechanisms for Wound Dressings
Previous Article in Journal
Synthesis of Au-Pd Bimetallic Nanoflowers for Catalytic Reduction of 4-Nitrophenol
Previous Article in Special Issue
Eco-Friendly Acaricidal Effects of Nylon 66 Nanofibers via Grafted Clove Bud Oil-Loaded Capsules on House Dust Mites
Article Menu
Issue 9 (September) cover image

Export Article

Nanomaterials 2017, 7(9), 240; doi:10.3390/nano7090240

Article
Antimicrobial Properties of Silver Cations Substituted to Faujasite Mineral
Roman J. Jędrzejczyk 1,*Orcid, Katarzyna Turnau 2, Przemysław J. Jodłowski 3Orcid, Damian K. Chlebda 4Orcid, Tomasz Łojewski 5 and Joanna Łojewska 4
1
Malopolska Centre of Biotechnology, Jagiellonian University, Gronostajowa 7A, 30-387 Kraków, Poland
2
Institute of the Environmental Sciences, Jagiellonian University, Gronostajowa 7, 30-387 Kraków, Poland
3
Faculty of Chemical Engineering and Technology, Cracow University of Technology, Warszawska 24, 31-155 Kraków, Poland
4
Faculty of Chemistry, Jagiellonian University, Ingardena 3, 30-060 Kraków, Poland
5
Faculty of Materials Science and Ceramics, AGH University of Science and Technology, al. Mickiewicza 30, 30-059 Kraków, Poland
*
Correspondence: Tel.: +48-12-664-6117
Received: 10 July 2017 / Accepted: 25 August 2017 / Published: 27 August 2017

Abstract

:
A goal of our study was to find an alternative to nano-silver-based antimicrobial materials which would contain active silver immobilized in a solid matrix that prevents its migration into the surrounding environment. In this study, we investigated whether silver cations dispersed in an atomic form and trapped in an ion-exchanged zeolite show comparable antimicrobial activity to silver nanoparticles (NPs). The biocidal active material was prepared from the sodium form of faujasite type zeolite in two steps: (1) exchange with silver cations, (2) removal of the external silver oxide NPs by elution with Na2EDTA solution. The modified biocidal zeolite was then added to paper pulp to obtain sheets. The zeolite paper samples and reference samples containing silver NPs were tested in terms of biocidal activity against an array of fungi and bacteria strains, including Escherichia coli, Serratia marcescens, Bacillus subtilis, Bacillus megaterium, Trichoderma viride, Chaetomium globosum, Aspergillus niger, Cladosporium cladosporioides, and Mortierella alpina. The paper with the modified faujasite additive showed higher or similar antibacterial and antifungal activities towards the majority of tested microbes in comparison with the silver NP-filled paper. A reverse effect was observed for the Mortierella alpina strain.
Keywords:
zeolites; silver nanoparticles; paper; antimicrobial

1. Introduction

Since ancient times, the antimicrobial activity of silver has been widely recognized. Silver can act against a variety of organisms including bacteria, viruses, and fungi with rare cases of resistance [1,2,3]. Due to silver’s outstanding properties and also because of the development of nanotechnology, the application of silver nanoparticles in different areas of industry (e.g., pharmaceutical and clothing) has shown a growing trend. However, an awareness of the risks of silver NP contamination in the environment and in human beings has recently been awakened [4,5]. For example, it has been reported in References [6,7] that silver NPs damage mitochondria in cells of not only bacteria, but also other organisms, including mammals. In all, the effects of their release into the ecosphere are hard to predict.
It seems that studying a simpler system, such as that of pure Ag NPs, may provide some hints to elucidate the zeolite biocidal properties of silver. Even though silver NPs have been studied in terms of their antimicrobial activity for over 20 years, there are still a great many controversies concerning their influence on bacteria and fungi. What is known is that the biocidal mechanism of silver NPs assumes silver-induced oxidation of disulfide or sulfhydryl groups of proteins that cause metabolic disorders and, in consequence, microorganism death [8,9]. Accumulation of silver nanoparticles in microbial membranes has been shown to cause increased permeability [10], and finally membrane damage by free radicals that are formed as an effect of the presence of the NPs [11]. Silver cations are also able to enter bacterial cells and to chelate DNA [9,12]. Much less is known concerning their antifungal mechanisms.
The main problem encountered in studying silver and other NPs is that their properties depend on their size and distribution, which in turn determines their bioactivity [13,14]. Moreover, it seems difficult to distinguish nanoparticle-specific effects from ionic effects which often occur simultaneously. In general, NPs are efficient in forming metal ions of known antimicrobial properties [15], although NPs can also be a source of Ag ions, as recently reviewed by Sheehy et al. [16]. The results published to date concerning NP toxicity have not paid attention to the presence and concentration of Ag+, which can increase NPs’ size with time and with the accessibility of oxygen. Thus, it can be inferred that the antibacterial properties of NPs are not due to their specific properties, but to the cations that can be formed under specific conditions [17]. The study of the effects of NPs becomes even more complex if we take into account that NPs have a tendency to agglomerate, e.g., in nutrient broth, and thus they are unsuitable for other assays apart from disk diffusion.
The main question which is stated in this paper is whether commonly used silver NPs can be replaced by other silver-containing materials where silver is immobilized, but shows antimicrobial activity comparable to the NPs. The idea is not only to introduce silver to a solid matrix, but also create strong bonds to protect against the silver’s release from the material. A simple solution may be the application of zeolites, to which silver cations can be introduced by ionic exchange. No matter the mechanism of silver NPs’ biocidal action, we assume that both the cations and NPs can easily migrate to surroundings if they are not immobilized by certain means. To minimize the risk of interactions with cells of other organisms [18], the stable binding of Ag forms into structural matrices in the form of, e.g., zeolites are considered [19,20,21]. Zeolites are aluminosilicates, unique in that their crystal lattice possesses both channels and voids of a size of less than 1 nm. Due to unsaturation of the coordination number, the acidic OH groups in Al cations present in zeolite voids can be moderately easily exchanged by other cations. It has to be pointed out, however, that the procedure of ion exchange from solutions does not secure the immobilization of silver cations, because external, loosely attached silver oxide NPs or crystallites also form on the surface of zeolites [22]. For this reason, the zeolite exchanged with silver requires more treatment to remove any loosely bound or unbound silver forms.
Another question that arises concerning the application of silver exchanged zeolite materials, is what would be the mechanism of their antimicrobial action if silver is trapped within the zeolite lattice? According to the pioneering studies of antibacterial activity of silver ion-exchanged zeolites, the mechanisms involve the formation of a water film over the zeolite and the exchange of Na to Ag or other cations (as well as other types of silver bonding, e.g., AgCl).
The main objective of this study is to evaluate the antimicrobial and biostatic properties of recently patented faujasite containing immobilized silver cations [23], used as a paper additive, and to compare it with its silver NPs counterpart. Another objective is to prove the stability of silver in the materials by showing that it is not released to the surrounding environment.

2. Materials and Methods

2.1. Zeolite Preparation

Y-type zeolite (faujasite, FAU) in the form of powder (surface area: 900 m2/g) was purchased from Zeolyst International (CBV-100, Zeolyst C.V., Oosterhorn, Holland). The zeolite in its sodium form (13 wt %) was used further for the ion exchange after its conditioning at 23.5 °C and 50% RH (relative humidity) for 12 h. Silver nitrate was obtained from Avantor Performance Material Company (Gliwice, Poland) and disodium ethylenediaminetetraacetate dihydrate (Na2EDTA) was from Sigma-Aldrich (Saint Louis, MO, USA).
In order to remove the unexchanged (non-bonded) silver from the external surfaces of zeolite, the prepared samples were washed by: (1) portions of 10 cm3 of 0.01 M Na2EDTA solution, and (2) 10 cm3 of deionized water (the procedure was repeated five times). The washing procedure was optimized in terms of EDTA concentration, the volume of the solution, and the number of repetitions. To achieve this, the 0.01 M EDTA solution was subsequently added in portions until the silver cations concentration in the eluent reached minimum constant value, which was monitored by XRF (X-Ray Fluorescence) spectroscopy. As a reference, the samples were also washed by the equivalent portions of water. After each step, the zeolite suspension was centrifuged (4000 rpm) and then dried according to the same conditions given below.
Zeolite exchanged with silver was used as an additive to paper pulp (44 wt %). The zeolite samples were prepared by suspending 1.00 g of zeolites in 100 cm3 of 0.1 M AgNO3 solution in deionized water. Due to the light sensitivity of silver, suspensions were stirred in darkness (300 rpm, 1 h). After ion exchange, the samples were filtered and washed with deionized water. After preparation, the obtained samples were dried in an oven at 60 °C for 8 h.

2.2. Paper Preparation

Paper sheets were prepared from cellulose (Whatman filter paper—Maidstone, UK) and silver-modified faujasite. Prior to sample formation, the paper sheets were conditioned according to the ASTM D685 norm [24].
Whatman filter papers were cut into 4 cm × 4 cm pieces and then suspended in 400 cm3 of deionized water in an autoclave and homogenized (IKA T18 Ultra-Turrax with stainless steel dispersing elements, Staufen im Breisgau, Germany). This allowed us to obtain the suspensions of the paper in deionized water. Just after the formation of the suspension, an appropriate amount of active material was added (as described in 2.1).
To obtain paper sheets, the pulp was deposited on a custom-build vacuum table. Wet paper sheets (about 15 cm × 20 cm) were dried on the glass surface at ambient temperature. Small circle samples were cut out by hole punching and then sent for microbial tests.
To assess the silver content in the thus-prepared samples, elemental analysis using an XRF spectrometer (Thermo Scientific ED-XRF, Waltham, Massachusetts, MA, USA, thick Cu filter, Kα = 22.36 eV) was carried out, which was preceded with sample digestion in boiling 65% nitric acid (Sigma Aldrich, Saint Louis, MO, USA) for 15 min. The silver determination was performed according to an external standard method.

2.3. Reference Materials Preparation

The reference paper samples containing silver NPs were also prepared. Silver nanoparticles were obtained by sonication (10 min) of AgNO3 (Sigma Aldrich, Saint Louis, MO, USA) solution (0.1 M) containing a low amount of ethanol (1.5 vol %)—the beaker was placed in an ice bath to maintain a temperature of reaction below 60 °C. Prior to the sonication, the thus-prepared suspensions were purged with an inert gas (Ar, Linde Gaz Polska, Kraków, Poland) for 60 min, after which an ultrasound frequency of 20 kHz was applied (the average power of the ultrasound was equal to 90 W). The pulsating sonication program was set up. The sonication to downtime ratio was set to 3:1 (min).

2.4. Antimicrobial Tests

Escherichia coli, Serratia marcescens, Bacillus subtilis, Bacillus megaterium, Trichoderma viride, Chaetomium globosum, Aspergillus niger, Cladosporium cladosporioides, and Mortierella alpina from the culture collection of the Laboratory of Plant-Microbial Interaction Group of the Jagiellonian University (Krakow, Poland) were selected for the laboratory tests on the basis of pilot studies and the ability of these organisms to grow on paper or on/in materials such as plants, food, etc. in which they could be packed. In the case of bacteria, uniform samples of bacteria in saline solution were applied to the surface of agar (NA, Difco Laboratories, Detroit, MI, USA) and spread with a disposable spreader. The bacteria were pre-grown at 32 °C for two days. In each Petri dish, a single disc of paper (5 mm in diameter) was placed. The culture was grown for another three days at 32 °C, and subsequently the temperature was decreased to 25 °C for three days. For every strain and each paper sample, five repetitions were applied. The growth of microorganisms was monitored on a daily basis. Finally, each of the Petri dishes was opened in a laminar chamber. The paper sample was lifted using sterile forceps and turned upside-down, exposing a part that was previously adhered to the agar with bacteria. To quantify the bacterial population, the LuciPac Pen test (ATP + AMP, Hygiene Monitoring test kit from Kikkoman Corp., code 60331, Noda, Japan) was used. Swabs were set perpendicular to the disc in the central part, and the tip was turned 360 degrees. The relative content of ATP and AMP (RLU—relative luminescence units) was evaluated with a lumitester.
In the case of fungi, the paper discs (three per petri dish) were first placed on standard potato dextrose agar (PDA medium) and fungi in the form of mycelium or spores were introduced at a distance of 2 cm from the discs. For each fungal strain and each type of treatment, the procedure was repeated three times. The cultures were kept in a dark chamber at 27 °C for up to three weeks, depending on fungal growth. Following this period, the inhibition zone around the paper disc was measured and the ATP/AMP test was conducted as described above for the bacteria, with an exception concerning the difference in sampling of the material from the top of the paper discs.

3. Results

The description of the samples used in the microbiological studies together with the silver content is given in Table 1. The silver content in the faujasite samples was optimized and is the minimum value necessary to achieve biocidal effects in paper samples.

3.1. Bacterial Strains

The paper sample P (Table 1) with no additives served as a gauge to which the other samples were related. For the P sample among the four bacterial strains studied (Figure 1), the highest adenosine phosphate (ATP, ADP, AMP) concentrations were observed in Bacillus megaterium. For other bacterial strains, the ATP/AMP concentration was lower. Silver addition in any of the studied forms apparently suppressed the growth of all bacteria in direct contact with the paper samples as compared to the P and PZ0 reference samples. No inhibition zone was visible around the discs, but below the discs (as well as on the top) significantly lower RLU counts were reported. The most profound drop in RLU values was observed for E. coli and B. subtilis, and a lesser drop was observed for B. megaterium. In the case of Serratia marcescens, the biocidal effect of silver was moderate and significant only for PZAg+. An important observation is that the activity of the silver NPs-containing sample was at least twice as low as the activity of the zeolite silver-exchanged samples judging by the ATP content. Taking into account all of the treatments and all bacterial strains, the strongest antibacterial effect was seen for PZAg+. The detailed results of the relative content of ATP and AMP for analyzed bacteria are presented in the Supplementary Material (Figures S1–S4).

3.2. Fungal Strains

The effects of Ag on fungi (Figure 2) were not as obvious as in the case of bacteria. Fungi differed not only in the rate of growth but also in the appearance of colonies, the abundance, or/and the mode of spore development. A visual comparison of the microbial activity of the samples with silver NPs (PAg0) and the modified zeolite sample (PZAg+_EDTA) with reference to the control paper sample P is presented in Figure 2. No significant differences in the growth rate of T. viride, Ch. Globosum, or M. alpina on P and PZ0 reference samples were noted, except for the decreased growth of C. cladosporioides (compared to P) demonstrated only by PZ0. Also in the case of fungi, silver significantly affected their growth (Ch. globosum, C. cladosporioides, and A. niger). All Ag treatments resulted in a similar inhibition of fungal growth. However, the opposite was shown for M. alpina, where most of the Ag treatments resulted in an increase of mean RLU counts by up to 18-fold. More detailed information can be found in the Supplementary Material.
In addition to the general tendency in RLU values, the Ag treatments delayed maturation of spores, fruiting bodies formation in Ch. Globosum, and the inhibition of conidiophore production in A. niger. What is more, T. viride spores exhibited weaker pigmentation. Conidia that landed on the modified paper did not germinate (Figure 3).
As regards the fungi distribution within the samples, the mycelium of A. niger, T. viride, and C. cladosporioides did not penetrate the PZAg+_EDTA sample. For Ch. Globosum, a poor inhibition zone was visible for PZAg+, while in the case of other samples the inhibition zone was quite visible. The mycelium of Mortierella alpina easily colonized paper samples enriched with Ag. The detailed results of the relative content of ATP and AMP for analyzed fungi are presented in the Supplementary Material (Figures S5–S9).

4. Discussion

The idea of our study was to verify the antimicrobial properties of material that contains silver dispersed on an atomic scale, yet trapped in the material structure so as to prevent the leakage of silver into the surrounding environment. Such material, if it shows sufficient antimicrobial activity, can be regarded as an alternative to silver NPs additives to different materials. In this study, paper was chosen as a carrier for both NPs and the silver-modified faujasite samples. Faujasite exchanged with silver was chosen in this study because it showed the highest biocidal action against E. coli amongst the studied samples exchanged with silver (MCM-56, ZSM-5), and because it is commercially easily available.
It is known that, after ion exchange, the zeolites also contain non-bonded metal oxide particles which can be seen in the SEM image taken in view of back-scattered electrons (Figure 4). In contrast to secondary electrons, the scattered electrons are sensitive to the mass of elements on which they are reflected, giving a contrast in the photographs. On the untreated silver-exchanged zeolite there are lighter spots which come from the silver oxide. To remove them from the material, a chelating agent was used. The EDTA sodium salt is a molecule which, due to its big size, is not able to fully penetrate faujasite channels or voids. The fact that, after several repetitions of washing with EDTA, the amount of silver reached low and constant value shows that the non-bonded silver was removed from the zeolite, leaving only the silver cations that are bound to Brønsted acidic sites on Al atoms in the faujasite structure. Indeed, when we consider the structural parameters of faujasite crystal, the pore diameter is 7.4 Å while the voids diameter 12 Å. The EDTA anion in its most condensed octahedral conformation, with the diameter of the basis building the pyramid, reaches 7.5 Å. The lack of non-bonded silver in the studied material was also proven by the lack of a “halo zone” (free of bacterial growth) around the paper discs in the case of bacteria. Bacteria react to silver only when in direct contact with the discs, but the mechanism needs further research.
The luminescence method is commonly employed to monitor microbiological contamination. In this study, it was found useful for evaluating bacterial and fungal growth. The method allowed for an objective, number-wise comparison of microbial growth in the presence or absence of Ag. The adenosine phosphate content can be rapidly depleted in stressed or dying cells [25,26,27,28], but in healthy cells it is reasonably constant and proportional to cellular biomass and changes with microorganism cell size. This might be the cause of the higher adenosine phosphate concentration in B. megaterium, which is among the largest known bacteria, while other bacterial species had lower sizes [29] in addition to lower ATP/ADP/AMP concentrations. The differences between bacterial taxa might be the reason for some mistakes in microbe evaluation in the case of environmental samples where the identities of bacteria are unknown. The less drastic effect of Ag presence in case of B. megaterium can be due either to its higher tolerance to Ag ions, better adaptation to growth on paper, or simply to different access of the metal to cells within the colony. According to the results, no differences between G-positive and G-negative bacteria were found, although literature data indicates that G-negative bacteria are more tolerant/resistant to heavy metals [30]. Silver has no known beneficial effects on bacterial cells and thus it is toxic even at low concentrations [31]. As reviewed by Bruins et al. [32], the bacterial metal tolerance/resistance results from biochemical and structural properties, physiological and genetic adaptation including morphological changes of cells, as well as environmental modifications of metal speciation [33]. Diverse mechanisms, both chromosomal and plasmid-dependent, are used by bacteria to overcome the presence of Ag in the environment [33,34,35]. These mechanisms protect the organisms from oxygen radicals produced in the Fenton reaction [36], but also determine the ability to precipitate metal phosphates, carbonates, and sulphides. In addition, metals can be detoxified by negatively charged residues of membrane components and exopolymers, energy-dependent metal efflux systems, and intracellular sequestration with low molecular weight cysteine-rich proteins [37]. Similar mechanisms have been shown in fungi subjected to silver cations [38,39,40].
The antibacterial effect of Ag NPs has been the subject of significantly more studies [41,42,43,44,45] than their antifungal effect. As found previously [46], Ag NPs stimulated the growth of Mortierella alpine, which was similarly tolerant to Ag forms used in the present study. Here its growth rate was up to four times higher compared to the control paper P and PZ0 samples. It is important to remember that some microbes can be tolerant to diverse forms of silver while preparing new products.
In the present study, various forms of Ag were introduced into paper (Table 1). The reference samples were chosen in terms of their known antimicrobial activity (PAg+, PAg0). According to the available literature, the paper containing silver NPs was expected to have antimicrobial properties, which were studied using simplistic disc assay [47,48]. This method is fast, cheap, and widely used in testing antibiotics and other soluble molecules. It also allowed us to test the mobility of the tested substances. A question to answer was whether the new modified zeolite sample (PZAg+_EDTA) with the incorporated silver cations would show biocidal properties comparable to silver NPs. The results presented in Figure 1 and Figure 2 confirm our hypothesis. It should be pointed out that in the literature there are also examples of the results describing antimicrobial properties of silver-exchanged zeolites, but they are limited to the analyses of Eschericha coli [49,50,51]. We would like to point out that the zeolite samples used in the cited references were prepared only by ionic exchange and thus contain both silver oxide nanoparticles located on the zeolite external surface as well as silver cations embedded into the zeolite matrix.
In this study, no inhibition zone surrounding both the Ag NPs-embedded paper PAg0 and the faujasite-containing paper samples PZAg+ and PZAg+_EDTA was formed. In bacterial assays, colony growth was inhibited at the edge of the paper, whereas in fungal assays, an “quasi-inhibition zone” penetrated by individual hyphae forming a loose mycelium of significantly lower density was observed. It needs to be mentioned here that fungal mycelia grow by hyphae elongation, whereas bacterial colonies expand by multidimensional cell division, thus the quasi-inhibition zone was probably formed due to the inhibition of hyphae branching/ramifying elicited by contact with Ag NPs on the surface of the paper. Consequently, the lack of an inhibition zone indicates the lack of mobility of the silver NPs or silver cations from the paper samples.

5. Conclusions

The aim of this study was to obtain and assess the antimicrobial properties of silver-exchanged faujasite with firmly bonded silver, regarded as an alternative to silver NPs. The faujasite mineral was chosen due to its highest biocidal activity compared to other silver-exchanged zeolites (MCM-56, ZSM-5). The methods of preparation were based on the classical ion exchange from silver nitrate solution followed by washing the exchanged zeolite with a solution of sodium salt of EDTA. The elution allowed for the disposal of external unattached silver (oxide or hydroxides), thus leaving only silver cations attached to the acidic OH groups in Al3+.
The results showed similar antiseptic properties of the silver-exchanged faujasite in comparison to the reference samples of silver NPs and pure faujasite added to paper. The high activity was shown for the majority of tested bacterial and fungal strains: Escherichia coli, Serratia marcescens, Bacillus subtilis, Bacillus megaterium, Trichoderma viride, Chaetomium globosum, Aspergillus niger, Cladosporium cladosporioides. M. alpina was the only strain which was resistant to the biocidal activity of the manufactured material and to the Ag NPs-containing sample. The material inhibited the growth of the tested microorganisms by 90–95%.

Supplementary Materials

The following are available online at www.mdpi.com/2079-4991/7/9/240/s1, Figure S1: Serratia marcescens; Figure S2: Escherichia coli; Figure S3: Bacillus subtilis; Figure S4: Bacillus megaterium; Figure S5: Aspergillus niger; Figure S6: Trichoderma virdi; Figure S7: Cladosporium cladosporioides; Figure S8: Chaetomium globosum; Figure S9: Mortierella alpine.

Acknowledgments

The research was performed within project No. SPB 811/N-COST/2010/0 from National Science Centre, Poland. The National Science Centre, Poland—project No. 2016/23/B/ST8/02024 is also acknowledged for additional analyses.

Author Contributions

Roman J. Jędrzejczyk designed the study and participated in material synthesis and characterization. Katarzyna Turnau designed and performed the antimicrobial tests. Przemysław J. Jodłowski and Damian K. Chlebda performed the experiments. Tomasz Łojewski and Joanna Łojewska were involved in designing experiments. Joanna Łojewska is also the leader of the projects mentioned above. All authors read and approved the manuscript prior to the submission.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Russell, A.D.; Hugo, W. Antimicrobial activity and action of silver. Prog. Med. Chem. 1994, 31, 351–370. [Google Scholar] [PubMed]
  2. Damn, C.; Neumann, M.; Munstedt, H. Properties of nanosilver coatings on polymethyl methacrylate. Soft Mater. 2006, 3, 71–88. [Google Scholar]
  3. Yoon, K.Y.; Hoon Byeon, J.; Park, J.H.; Hwang, J. Susceptibility constants of Escherichia coli and Bacillus subtilis to silver and copper nanoparticles. Sci. Total Environ. 2007, 373, 572–575. [Google Scholar] [CrossRef] [PubMed]
  4. Venous, A. Antimicrobial-impregnated central venous. N. Engl. J. Med. 1999, 340, 1761–1762. [Google Scholar]
  5. Böswald, M.; Mende, K.; Bernschneider, W.; Bonakdar, S.; Ruder, H.; Kissler, H.; Sieber, E.; Guggenbichler, J.P. Biocompatibility testing of a new silver-impregnated catheterin vivo. Infection 1999, 27, S38–S42. [Google Scholar] [CrossRef] [PubMed]
  6. Ma, W.; Jing, L.; Valladares, A.; Mehta, S.L.; Wang, Z.; Andy Li, P.; Bang, J.J. Silver nanoparticle exposure induced mitochondrial stress, caspase-3 activation and cell death: Amelioration by sodium selenite. Int. J. Biol. Sci. 2015, 11, 860–867. [Google Scholar] [CrossRef] [PubMed]
  7. Bressan, E.; Ferroni, L.; Gardin, C.; Rigo, C.; Stocchero, M.; Vindigni, V.; Cairns, W.; Zavan, B. Silver nanoparticles and mitochondrial interaction. Int. J. Dent. 2013, 2013. [Google Scholar] [CrossRef]
  8. Toole, G.O.; Kaplan, H.B.; Kolter, R. Biofilm formation as microbial development. Annu. Rev. Microbiol. 2000, 54, 49–79. [Google Scholar] [CrossRef] [PubMed]
  9. Clement, J.L.; Jarrett, P.S. Antibacterial silver. Met. Based Drugs 1994, 1, 467–482. [Google Scholar] [CrossRef] [PubMed]
  10. Socrates, G. Organic silicone compounds. In Infrared and Raman Characteristic Group Frequencies Tables and Charts; Socrates, G., Ed.; John Wiley and Sons Ltd.: Chichester, UK, 2001; pp. 239–246. ISBN 3527306730. [Google Scholar]
  11. Walder, B.; Pittet, D.; Tramer, M. Prevention of bloodstream infections with central venous catheters treated with anti-infective agents depends on catheter type and insertion time: Evidence from a meta-analysis. Infect. Control Hosp. Epidemiol. 2002, 23, 748–756. [Google Scholar] [CrossRef]
  12. Schierholz, J.M.; Lucas, L.J.; Rump, A.; Pulverer, G. Efficacy of silver-coated medical devices. J. Hosp. Infect. 1998, 40, 257–262. [Google Scholar] [CrossRef]
  13. Murdock, R.C.; Braydich-Stolle, L.; Schrand, A.M.; Schlager, J.J.; Hussain, S.M. Characterization of nanomaterial dispersion in solution prior to in vitro exposure using dynamic light scattering technique. Toxicol. Sci. 2008, 101, 239–253. [Google Scholar] [CrossRef] [PubMed]
  14. Warheit, D.B. How meaningful are the results of nanotoxicity studies in the absence of adequate material characterization? Toxicol. Sci. 2008, 101, 183–185. [Google Scholar] [CrossRef] [PubMed]
  15. Hajipour, M.J.; Fromm, K.M.; Akbar Ashkarran, A.; Jimenez de Aberasturi, D.; de Larramendi, I.R.; Rojo, T.; Serpooshan, V.; Parak, W.J.; Mahmoudi, M. Antibacterial properties of nanoparticles. Trends Biotechnol. 2012, 30, 499–511. [Google Scholar] [CrossRef] [PubMed]
  16. Sheehy, K.; Casey, A.; Murphy, A.; Chambers, G. Antimicrobial properties of nano-silver: A cautionary approach to ionic interference. J. Colloid Interface Sci. 2015, 443, 56–64. [Google Scholar] [CrossRef]
  17. Xiu, Z.; Zhang, Q.; Puppala, H.L.; Colvin, V.L.; Alvarez, P.J.J. Negligible particle-specific antibacterial activity of silver nanoparticles. Am. Chem. Soc. Nano Lett. 2012, 12, 4271–4275. [Google Scholar] [CrossRef] [PubMed]
  18. Kumari, M.; Mukherjee, A.; Chandrasekaran, N. Genotoxicity of silver nanoparticles in Allium cepa. Sci. Total Environ. 2009, 407, 5243–5246. [Google Scholar] [CrossRef] [PubMed]
  19. Matsuura, T.; Abe, Y.; Sato, Y.; Okamoto, K.; Ueshige, M.; Akagawa, Y. Prolonged antimicrobial effect of tissue conditioners containing silver-zeolite. J. Dent. 1997, 25, 373–377. [Google Scholar] [CrossRef]
  20. Kaali, P.; Strömberg, E.; Aune, R.E.; Czél, G.; Momcilovic, D.; Karlsson, S. Antimicrobial properties of Ag+ loaded zeolite polyester polyurethane and silicone rubber and long-term properties after exposure to in vitro ageing. Polym. Degrad. Stab. 2010, 95, 1456–1465. [Google Scholar] [CrossRef]
  21. Kawahara, K.; Tsuruda, K.; Morishita, M.; Uchida, M. Antibacterial effect of silver-zeolite on oral bacteria under anaerobic conditions. Dent. Mater. 2000, 16, 452–455. [Google Scholar] [CrossRef]
  22. Sun, T.; Seff, K. Silver clusters and chemistry in Zeolites. Chem. Rev. 1994, 94, 857–870. [Google Scholar] [CrossRef]
  23. Łojewska, J.; Jedrzejczyk, R.J.; Łojewski, T.; Thomas, J.L.; Pawcenis, D.; Milczarek, J.; Gil, B.; Kołodziej, A.; Turnau, K. Modified Nanocomposite Material, Method for Its Production and Its Application. U.S. Patent Application 15/309,474 PCT number: PCT/IB2015/053408, 9 May 2015. [Google Scholar]
  24. TAPPI standard practice for conditioning paper and paper products for testing. 2002, 93, 5–7.
  25. Welschmeyer, N.A.; Kuo, J. Analysis of Adenosine Triphosphate (ATP) as a Rapid, Quantitative Compliance Test for Ships’ Ballast Water; Moss Landing Marine Laboratories: Moss Landing, CA, USA, 2016. [Google Scholar]
  26. Ataullakhanov, F.I.; Vitvitsky, V.M. What determines the intracellular ATP concentration. Biosci. Rep. 2002, 22, 501–511. [Google Scholar] [CrossRef] [PubMed]
  27. Siebel, E.; Wang, Y.; Egli, T.; Hammes, F. Correlations between total cell concentration, total adenosine tri-phosphate concentration and heterotrophic plate counts during microbial monitoring of drinking water. Drink. Water Eng. Sci. Discuss. 2008, 1, 71–86. [Google Scholar] [CrossRef]
  28. Yaginuma, H.; Kawai, S.; Tabata, K.V.; Tomiyama, K.; Kakizuka, A.; Komatsuzaki, T.; Noji, H.; Imamura, H. Diversity in ATP concentrations in a single bacterial cell population revealed by quantitative single-cell imaging. Sci. Rep. 2014, 4, 6522. [Google Scholar] [CrossRef] [PubMed]
  29. Bergey, D.H. Bergey’s Manual of Systematic Bacteriology—The Proteobacteria Part A—Introductory Essays; Springer: New York, NY, USA, 2005; Volume 2, pp. 1–304. [Google Scholar]
  30. Morozzi, G.; Cenci, G.; Scardazza, F.; Pitzurra, M. Cadmium uptake by growing cells of gram-positive and gram-negative bacteria. Microbios 1986, 48, 27–35. [Google Scholar] [PubMed]
  31. Nies, D.H. Microbial heavy-metal resistance. Appl. Microbiol. Biotechnol. 1999, 51, 730–750. [Google Scholar] [CrossRef]
  32. Bruins, M.R.; Kapil, S.; Oehme, F.W. Microbial resistance to metals in the environment. Ecotoxicol. Environ. Saf. 2000, 45, 198–207. [Google Scholar] [CrossRef] [PubMed]
  33. Wuertz, S.; Mergeay, M.; van Elsas, J.D.; Trevors, J.T.; Wellington, E.M.H. The Impact of Heavy Metals on Soil Microbial Communities and Their Activities; van Elsas, J.D., Trevors, J.T., Wellington, E.M.H., Eds.; Marcel Dekker Inc.: New York, NY, USA, 1997; pp. 607–642. [Google Scholar]
  34. Cervantes, C.; Gutierrez-Corona, F. Copper resistance mechanisms in bacteria and fungi. FEMS Microbiol. Rev. 1994, 14, 121–137. [Google Scholar] [CrossRef] [PubMed]
  35. Nies, D.H. Efflux-mediated heavy metal resistance in prokaryotes. FEMS Microbiol. Rev. 2003, 27, 313–339. [Google Scholar] [CrossRef]
  36. Lopez-Maury, L.; Garcia-Dominguez, M.; Florencio, F.J.; Reyes, J.C. A two-component signal transduction system involved in nickel sensing in the cyanobacterium Synechocystis sp. PCC 6803. Mol. Microbiol. 2002, 43, 247–256. [Google Scholar] [CrossRef] [PubMed]
  37. Silver, S. Genes for all metals—A bacterial view of the periodic table, the 1996 Thom award lecture. J. Ind. Microbiol. Biotechnol. 1998, 20, 1–12. [Google Scholar] [CrossRef] [PubMed]
  38. Gadd, G.M. Metals, minerals and microbes: Geomicrobiology and bioremediation. Microbiology 2010, 156, 609–643. [Google Scholar] [CrossRef] [PubMed]
  39. Haas, J.R.; Bailey, E.H.; William Purvis, O. Bioaccumulation of metals by lichens: Uptake of aqueous uranium by Peltigera membranacea as a function of time and pH. Am. Mineral. 1998, 83, 1494–1502. [Google Scholar] [CrossRef]
  40. Tobin, J.M.; White, C.; Gadd, G.M. Metal accumulation by fungi: Applications in environmental biotechnology. J. Ind. Microbiol. 1994, 13, 126–130. [Google Scholar] [CrossRef]
  41. Choi, O.; Deng, K.K.; Kim, N.J.; Ross, L.; Surampalli, R.Y.; Hu, Z. The inhibitory effects of silver nanoparticles, silver ions, and silver chloride colloids on microbial growth. Water Res. 2008, 42, 3066–3074. [Google Scholar] [CrossRef] [PubMed]
  42. Martínez-Castañón, G.A.; Niño-Martínez, N.; Martínez-Gutierrez, F.; Martínez-Mendoza, J.R.; Ruiz, F. Synthesis and antibacterial activity of silver nanoparticles with different sizes. J. Nanopart. Res. 2008, 10, 1343–1348. [Google Scholar] [CrossRef]
  43. Rai, M.; Yadav, A.; Gade, A. Silver nanoparticles as a new generation of antimicrobials. Biotechnol. Adv. 2009, 27, 76–83. [Google Scholar] [CrossRef]
  44. Veerasamy, R.; Xin, T.Z.; Gunasagaran, S.; Xiang, T.F.W.; Yang, E.F.C.; Jeyakumar, N.; Dhanaraj, S.A. Biosynthesis of silver nanoparticles using mangosteen leaf extract and evaluation of their antimicrobial activities. J. Saudi Chem. Soc. 2011, 15, 113–120. [Google Scholar] [CrossRef]
  45. Xiu, Z.M.; Ma, J.; Alvarez, P.J.J. Differential effect of common ligands and molecular oxygen on antimicrobial activity of silver nanoparticles versus silver ions. Environ. Sci. Technol. 2011, 45, 9003–9008. [Google Scholar] [CrossRef] [PubMed]
  46. Ogar, A.; Tylko, G.; Turnau, K. Antifungal properties of silver nanoparticles against indoor mould growth. Sci. Total Environ. 2015, 521–522, 305–314. [Google Scholar] [CrossRef]
  47. Shahverdi, A.R.; Fakhimi, A.; Shahverdi, H.R.; Minaian, S. Synthesis and effect of silver nanoparticles on the antibacterial activity of different antibiotics against Staphylococcus aureus and Escherichia coli. Nanomed. Nanotechnol. Biol. Med. 2007, 3, 168–171. [Google Scholar] [CrossRef]
  48. Nabikhan, A.; Kandasamy, K.; Raj, A.; Alikunhi, N.M. Synthesis of antimicrobial silver nanoparticles by callus and leaf extracts from saltmarsh plant, Sesuvium portulacastrum L. Colloids Surfaces B Biointerfaces 2010, 79, 488–493. [Google Scholar] [CrossRef] [PubMed]
  49. Zhang, Y.; Zhong, S.; Zhang, M.; Lin, Y. Antibacterial activity of silver-loaded zeolite A prepared by a fast microwave-loading method. J. Mater. Sci. 2009, 44, 457–462. [Google Scholar] [CrossRef]
  50. Kwakye-Awuah, B.; Williams, C.; Kenward, M.A.; Radecka, I. Antimicrobial action and efficiency of silver-loaded zeolite X. J. Appl. Microbiol. 2008, 104, 1516–1524. [Google Scholar] [CrossRef] [PubMed]
  51. Demirci, S.; Ustaoğlu, Z.; Yılmazer, G.A.; Sahin, F.; Baç, N. Antimicrobial properties of zeolite-X and zeolite-A Ion-Exchanged with silver, copper, and zinc against a broad range of microorganisms. Appl. Biochem. Biotechnol. 2014, 172, 1652–1662. [Google Scholar] [CrossRef] [PubMed]

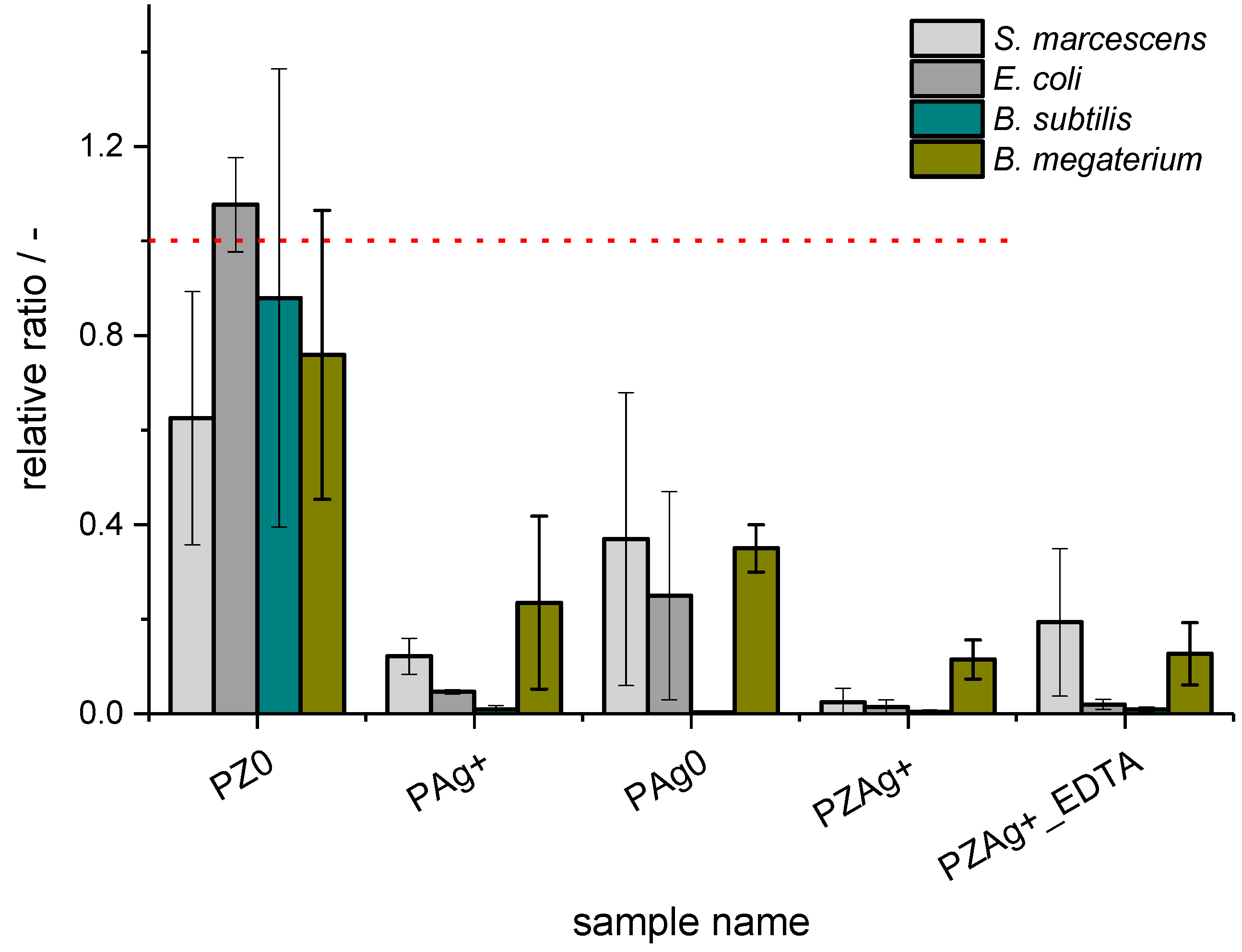

Figure 1. The relative ratio of adenosine phosphates as compared to control values (bacteria).
Figure 1. The relative ratio of adenosine phosphates as compared to control values (bacteria).
Nanomaterials 07 00240 g001
Figure 2. The relative ratio of adenosine phosphates as compared to control values (fungi).
Figure 2. The relative ratio of adenosine phosphates as compared to control values (fungi).
Nanomaterials 07 00240 g002

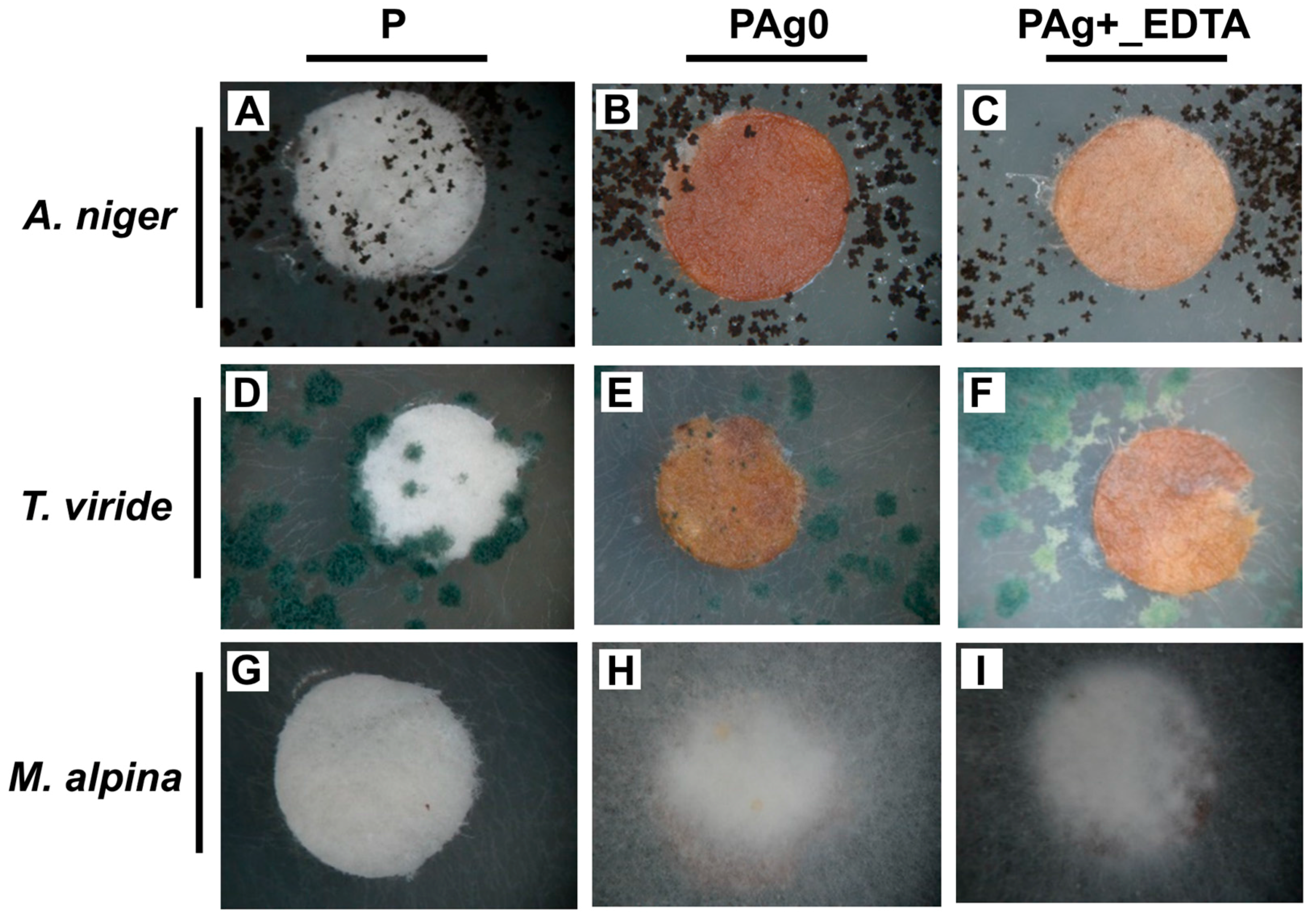

Figure 3. Examples of antifungal activity of silver-exchanged zeolite PZAg+_EDTA (C,F,I); reference samples of pure paper P (A,D,G); and paper with silver nanoparticles PAg0 (B,E,H).
Figure 3. Examples of antifungal activity of silver-exchanged zeolite PZAg+_EDTA (C,F,I); reference samples of pure paper P (A,D,G); and paper with silver nanoparticles PAg0 (B,E,H).
Nanomaterials 07 00240 g003

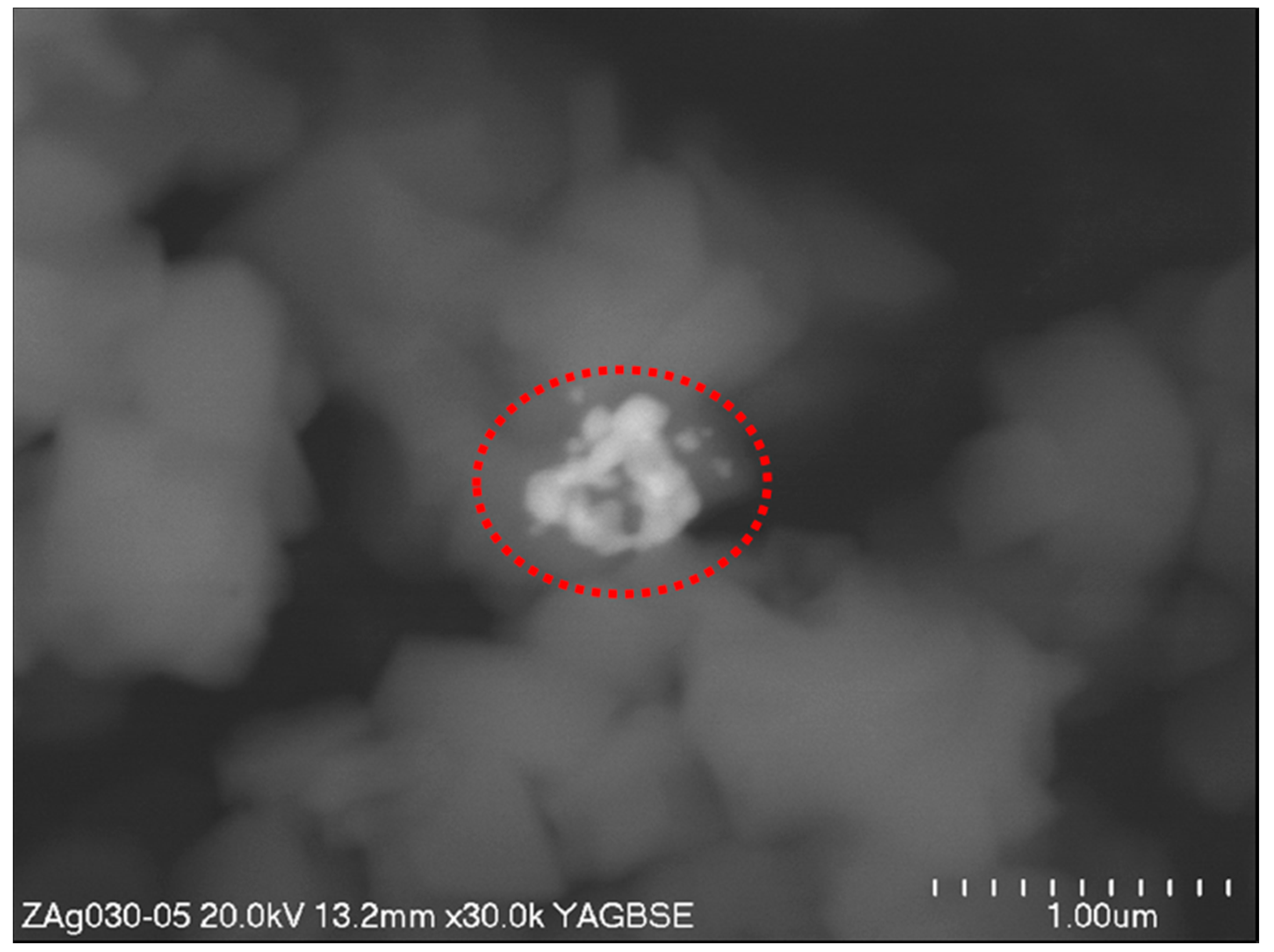

Figure 4. SEM image of faujasite exchanged with silver cations (as ZAg+)—area of interest is marked by red circle.
Figure 4. SEM image of faujasite exchanged with silver cations (as ZAg+)—area of interest is marked by red circle.
Nanomaterials 07 00240 g004
Table 1. Description of samples used.
Table 1. Description of samples used.
Sample NameStudied ComponentDescriptionSilver Content, wt %
Ppure celluloseWhatman filter paper No. 10
PZ0sodium form of faujasite, FAUpure faujasite suspended in paper0
PAg+silver cations, Ag+silver nitrate dissolved in paper0.5 ± 0.1
PAg0silver nanoparticles, Ag0silver nitrate sonicated and suspended in paper0.3 ± 0.1
PZAg+silver cation-exchanged faujasite and silver oxide nanoparticles, AgFAU, Ag2Othe exchanged faujasite suspended in paper1.5 ± 0.1
PZAg+_EDTAsilver cation-exchanged faujasite, AgFAUthe exchanged faujasite washed with Na2EDTA and then suspended in paper1.1 ± 0.1
Nanomaterials EISSN 2079-4991 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
