Improving Visible Light-Absorptivity and Photoelectric Conversion Efficiency of a TiO2 Nanotube Anode Film by Sensitization with Bi2O3 Nanoparticles

by
Menglei Chang
1,2,†,
Huawen Hu
1,†,
Yuyuan Zhang
1,*,
Dongchu Chen
1,
Liangpeng Wu
2 and
Xinjun Li
2,*
1
College of Materials Science and Energy Engineering, Foshan University, Foshan 528000, Guangdong, China
2
Key Laboratory of Renewable Energy, Chinese Academy of Sciences, Guangzhou 510640, Guangdong, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Nanomaterials 2017, 7(5), 104; https://doi.org/10.3390/nano7050104
Submission received: 1 March 2017 / Revised: 27 April 2017 / Accepted: 2 May 2017 / Published: 9 May 2017
(This article belongs to the Special Issue Semiconductor Nanoparticles for Electric Device Applications)
Browse Figures
Versions Notes

Abstract

:
This study presents a novel visible light-active TiO2 nanotube anode film by sensitization with Bi2O3 nanoparticles. The uniform incorporation of Bi2O3 contributes to largely enhancing the solar light absorption and photoelectric conversion efficiency of TiO2 nanotubes. Due to the energy level difference between Bi2O3 and TiO2, the built-in electric field is suggested to be formed in the Bi2O3 sensitized TiO2 hybrid, which effectively separates the photo-generated electron-hole pairs and hence improves the photocatalytic activity. It is also found that the photoelectric conversion efficiency of Bi2O3 sensitized TiO2 nanotubes is not in direct proportion with the content of the sensitizer, Bi2O3, which should be carefully controlled to realize excellent photoelectrical properties. With a narrower energy band gap relative to TiO2, the sensitizer Bi2O3 can efficiently harvest the solar energy to generate electrons and holes, while TiO2 collects and transports the charge carriers. The new-type visible light-sensitive photocatalyst presented in this paper will shed light on sensitizing many other wide-band-gap semiconductors for improving solar photocatalysis, and on understanding the visible light-driven photocatalysis through narrow-band-gap semiconductor coupling.

Graphical Abstract

1. Introduction

Study of effective photocatalysts lies in following conditions: (i) the prepared photocatalysts are capable of harvesting the solar energy of full wavelength as much as possible; (ii) high photocatalysis efficiency [1,2]. Due to the odorless, non-toxic, and chemically stable properties of TiO2, it is widely employed and deeply analyzed for various kinds of applications [3,4,5,6,7,8,9,10]. However, TiO2-based photocatalysts are only able to capture the ultraviolet (UV) part of the solar light; the UV light energy is comprised of only 4% of the total solar energy reaching earth, along with a rather low photocatalysis efficiency being lower than 1%, in contrast to 43% when visible light region is concerned [11,12]. As a consequence, the current focus is placed on exploration of new visible light-active photocatalysts or modification of existing photocatalysts to extend the solar light absorption to the visible light region [13].
As one of most widespread applications of TiO2 materials, dye-sensitized solar cells (DSSC), involves the use of a nano-porous TiO2 film as semiconducting electrodes, with high specific surface area [14]. The DSSC is a photoelectrochemical solar cell, which employs organic compounds containing metallic Ru, Os, etc. as dye sensitizers and selects proper redox electrolytes. The photoelectrical efficiency of a DSSC was recently reported to achieve as higher than 11%, which can also arrive at 6% as far as large-scale applications are concerned [15,16,17,18]. Such efficiencies are much higher than that for un-sensitized photocatalysts. However, most organic dyes used in DSSC are unstable, causing instability of the DSSC [16]. To address this, stable narrow-band-gap semiconductors can be resorted and used as a sensitizer for visible light-activation of TiO2, replacing the organic dye in DSSC. Similar to the function obtained in DSSC, the semiconductor with a narrow band gap can efficiently harvest the solar energy, while wide-band-gap TiO2 is able to separate the photo-generated charge carriers.
The significance of using visible light-active photocatalysts to sensitize TiO2 is to improve solar light absorption of TiO2 [19]. Different energy band gaps between the sensitizer and TiO2 lead to the generation of a built-in electric field [20], causing the photo-excited charge carriers to inject from one semiconductor to the other [21]. This inhibits the recombination of the generated charge carriers, in the meantime, the photo-generated electrons and holes can be well separated, improving the photocatalytic activity [22]. As a result, such combined semiconductors always exhibit a higher photocatalytic activity than that of the single-component semiconductor [23]. In order to combine semiconductors with different energy band gaps, we need to consider (i) band gaps of these semiconductors; (ii) positions of the valence band (VB) and conduction band (CB); and (iii) the match of crystalline forms of these semiconductors. The methods and procedures used to prepare the combined semiconductors also have an influence on the final photocatalytic activity [24].
For the first time, this paper reports the sensitization of TiO2 nanotubes by coupling a visible light-active semiconductor Bi2O3, affording a good a visible light-absorptivity; this thus also indicates the enhancement of the solar light absorption. Selecting Bi2O3 for sensitization of TiO2 is due to (i) its narrow direct band gap of 2.8 eV; and (ii) suitable VB and CB positions for transporting and separating the photo-generated charge carriers. Because the photo-generated electrons and holes can be trapped and transported by these different semiconductors, both the photo-generated electrons and holes can be concentrated simultaneously, enhancing the oxidation/reduction capability of the electrodes in prepared solar cells. The photocatalytic and photoelectric conversion efficiencies are improved correspondingly. This paper presents the detailed synthesis of the visible light-active composite of Bi2O3-sensitized TiO2 nanotube film. The structure and photoelectrical properties of the composite are also well unraveled.

2. Experimental

2.1. Materials

Bismuth nitrate hydrate (Bi(NO3)2·5H2O) of AR grade was supplied by Guangzhou Chemical Company (Guangzhou, China). Tetra-n-butyl titanate (Ti(OC4H9)4) of AR grade was obtained from Xinhua Active Materials Institute (Changzhou, Jiangsu, China). Diethanol amine (NH(C2H5OH)2 ) of AR grade was purchased from Luoyang Chemical Reagent Factory (Luoyang, China). Polyethylene glycol (MW 20,000) was provided by UNI-CHEM (Hong Kong, China), with AR purity. All other chemicals were of AR grade and used as received.

2.2. Synthesis of TiO2 Nanotubes

The synthesis of TiO2 nanotubes was based on a hydrothermal route. Specifically, 2.0 g of purchased TiO2 with anatase form was mixed into a NaOH solution (10 mol/L) by continuously stirring at 110 °C for 12 h, followed by cooling to room temperature. The white precipitate was then collected and thoroughly washed with deionized (DI) water until the electrical conductivity of the supernatant was lower than 70 μS/cm. The washing procedures were continued by dipping the precipitate into a HCl solution (0.1 mol/L) and letting it stand for 5 h, and then by further washing with DI water until the electrical conductivity of the supernatant was lower than 5 μS/cm. Afterwards, the washed TiO2 was vacuum-dried at 60 °C for 72 h.

2.3. Preparation of TiO2 Sol-Based Film

Using Ti(OC4H9)4 as a raw material and NH(C2H5OH)2 as an inhibitor to impede fast hydrolyzation of the titanate. The addition ratio of the Ti(OC4H9)4, EtOH, DI water and NH(C2H5OH)2 was kept at 1:26.6:1:1. A precise amount of Ti(OC4H9)4 was dissolved into ethyl alcohol (EtOH), along with addition of NH(C2H5OH)2. The mixture was agitated for 1 h, leading to liquid A. The DI water was homogenized with the remaining EtOH, forming liquid B which was then stepwise added into the liquid A through a separating funnel, followed by continuous stirring for 0.5 h and then letting it stand for 24 h. The resulting stable TiO2 sol was finally obtained. A fluorine-doped tin oxide (FTO) glass was then used as a carrier after being thoroughly washed by sonication treatment and subsequently dried. Two layers of TiO2 sol-based film was then deposited onto the FTO glass with a self-made film stretching machine at a stretching speed of 2 mm/s. Afterwards, the TiO2 sol-based film was thermally treated in a muffle furnace being heated to 500 °C at a heating rate of 2 °C/min, and kept at 500 °C for 1 h, followed by cooling to room temperature.

2.4. Preparation of TiO2 Nanotube-Based Film Electrodes by a Powder-Coating Method

TiO2 nanotubes (3.0 g) were placed in a mortar, followed by addition of 1 mL EtOH solution containing 10% diacetone and then ball-milling for 30 min. Afterwards, a mixture of DI water (4.5 mL), Triton X-100 (0.1 mL) and 30% (in weight, 0.9 g) of polyethylene glycol (MW 20,000) was added, and then ball-milled for 30 min. The as-prepared mixed dispersion with a proper concentration was applied onto the above-prepared conducting FTO glass with two layers of TiO2 film by a powder-coating method. A scotch tape (with around 40 μm thickness) was attached vertically onto the two sides of the conducting FTO glass coated with the stretched film, and then the prepared TiO2 slurry was applied onto the conducting glass by rolling a glass bar. Rolling once in the same direction could result in the best film forming effect. The formed film with a size of 1 cm × 1 cm was vacuum-dried at 60 °C for 12 h, and then put into a muffle furnace, heated to 400 °C (at a heating rate of 2 °C/min), kept at that temperature for 1 h, and finally cooled to 80 °C for storage.

2.5. Sensitization of TiO2 Nanotubes with Bi2O3

A precursor solution of Bi2O3 was first prepared as follows. Bi(NO3)2 solutions were prepared with molar concentrations of 0.01, 0.05, 0.15, 0.25, and 0.5 mol/L. The as-obtained TiO2 nanotube film was dipped into the Bi(NO3)2 solution and allowed to stand for 24 h, followed by washing with DI water and then drying under vacuum at 50 °C for 12 h. Afterwards, the treated film was placed into a muffle furnace which was heated to 400 °C at a heating rate of 2 °C/min, kept at that temperature for 5 h, and finally cooled naturally to 80 °C for storage. A series of samples were prepared, including pure TiO2 nanotube-based film (TNT), 0.01BiTNT, 0.05BiTNT, 0.15BiTNT, 0.25BiTNT, and 0.5BiTNT, where, for example, 0.01BiTNT represents that the product was prepared with the initial Bi(NO3)2 (a Bi2O3 precursor) solution of 0.01 mol/L. For clear demonstration of the sensitization effect of Bi2O3 on the TiO2 nanotubes, this study also investigated a simple mixture of TiO2 nanotubes and Bi2O3 particles being prepared by calcination of Bi(NO3)2 according to the above thermal treatment procedures. The weight percentage of Bi2O3 particles as used to mix with the TiO2 nanotubes was determined by quantification results of the energy-dispersive X-ray (EDX) spectrum for the optimized sample (Figure 1).

2.6. Characterizations

Transmission electron microscopy (TEM) observation was conducted on a JEOL JEM-1010 system (Tokyo, Japan). A JEM-2010HR system was used for the high-resolution TEM (HRTEM) analysis. Backscattered-electron (BSE) and EDX mapping images were captured on a tabletop microscope (TM3030Plus, Hitachi, Japan) being equipped with an EDX spectrometer (Quantax 70, Bruker, Germany). X-ray diffraction (XRD) analysis proceeded on a powder diffractometer (X’Pert-PRO, PANalytical, Philips, Amsterdam, The Netherlands); the test conditions were set as: Cu-Kα radiation, working voltage of 40 KV, working current of 40 mA, and scanning speed of 1.5°/min. The UV/Vis diffuse reflectance spectra (UV/Vis DRS) were captured from a UV-Vis-NIR spectrophotometer (LAMBDA 750, PerkinElmer, Norwalk, CT, USA), equipped with an integrating sphere. X-ray photoelectron spectroscopy (XPS) spectra were obtained from XSAM800-XPS equipment (Kratos, UK) with a Ma-Kα X ray source.

2.7. Photoelectric Conversion Properties of Bi2O3 Sensitized TiO2 Nanotube film

The dye-sensitized TiO2 nanotube-based anode film was replaced by Bi2O3-sensitized TiO2 nanotube film. Pt was then thermally deposited onto the conducting FTO glass as the other electrode. The two electrodes are assembled into a solar cell with a sandwiched structure, as displayed in Figure 2. Under xenon lamp irradiation conditions (300 W, AM 1.5, 100 mW/cm2, with the wavelengths below 400 nm filtered), IV curves are measured for the solar cell using electrochemical workstation. The incident-photon-to-current efficiency (IPCE) measurements were conducted using electrochemical workstation Zahner (PP211, CIMPS-pcs, Kronach, Germany) at the visible wavelengths of 400, 430, 450, 475, 500, 550, and 600 nm under xenon lamp irradiation conditions (300 W, AM 1.5, 100 mW/cm2).
A thermal deposition method was employed to fabricate the Pt counter electrode. A chloroplatinic acid EtOH solution with a proper concentration was first prepared at room temperature; specifically, 0.9 g of chloroplatinic acid was dissolved into 250 mL of EtOH. A dip-pulling method was then used to make a two-layer film onto a cleaned conductive glass with a self-made film-stretching machine. The thermal deposition was conducted at 390 °C (at a heating rate of 2 °C/min) and kept at the temperature for 0.5 h, followed by natural cooling.
The prepared electrolyte was an acetonitrile solution containing 0.1mol/L LiI, 0.05mol/L I2, and 0.5 mol/L Tert butyl pyridine.

3. Results and Discussion

This study first compares the microstructures of the typical sample, 0.05BiTNT, and a simple mixture of Bi2O3 and TiO2 nanotubes, with the same weight percentage of Bi2O3 as estimated by the quantification result of the EDX spectrum for 0.05BiTNT (Figure 1). From the EDX mapping images (Figure 3), considerably better distribution of element Bi can be found for 0.05BiTNT (bottom row) as compared to the simple mixture (top row) with the Bi2O3 particles showing apparently unsatisfactory adhesion interactions with the TiO2 matrix, which implies the importance and significance of the present sensitization method.
To further unravel the microstructure of the Bi2O3-sensitized TiO2 nanotubes, TEM and HRTEM are presented in Figure 4a–f. The TEM specimen was prepared by sampling from the coated FTO glass. Under low-magnification TEM (Figure 4a,b), neat TiO2 nanotubes show a large length-diameter ratio, with smooth tube walls. As shown in Figure 4c,d, the Bi2O3-sensitized TiO2 nanotube walls become coarsened, with the well-observed Bi2O3 nanoparticles coated on the walls. Under HRTEM (Figure 4e,f), it can be noted that the formed Bi2O3 nanoparticles are not fully deposited uniformly on the TiO2 nanotube walls, with a little amount of aggregates of Bi2O3 nanoparticles (highlighted by broken cycles). The average diameter of Bi2O3 nanoparticles can be calculated as around 10 nm.
The XRD patterns of the as-prepared coated FTO glass are shown in Figure 5. The characteristic peak assignable to FTO glass substrate can be noted. The anatase TiO2 crystal can also be well identified through the standard PDF cards of anatase (No. 89-4921) and its refection planes (highlighted by red dotted lines). As the concentration of the Bi2O3 precursor increases, the Bi2O3-related XRD bands gradually appear—as marked by blue dotted lines for showing the characteristic reflection planes of Bi2O3 (PDF#74-2351). Note that a low content of Bi2O3 for the sensitized samples such as 0.05BiTNT and the simple mixture of Bi2O3 and TiO2 causes the XRD peaks characteristic of Bi2O3 to be undetectable. From the UV/Vis spectra shown in Figure 6, the red shift of the absorption wavelength occurs for all the Bi2O3 sensitized TiO2 nanotube films. The higher the concentration of Bi2O3 precursor, the larger the red-shift extent, indicating the corresponding higher content of final formed Bi2O3 nanoparticles in the Bi2O3 sensitized TiO2 sample. This also indicates the successful sensitization of TiO2 by Bi2O3 [25].
To determine the elemental composition and obtain the corresponding chemical state information of the Bi2O3-sensitized TiO2 nanotube surface, XPS analysis is used to measure the typical sample TNT (as a control) and 0.05BiTNT. Figure 7a shows the full XPS spectra, verifying the elements Ti, O, Bi, and C (the element C most likely stems from the contaminant [26]) included in 0.05BiTNT. Due to the incorporation of Bi2O3, an additional signal from Bi 4f can be well observed in the full XPS spectrum for 0.05BiTNT, in contrast to that for TNT. The high-resolution XPS spectrum of Bi 4f is given in Figure 7b, and the two characteristic peaks at approximately 164.2 and 158.8 eV can be indexed to the Bi 4f6/2 and Bi 4f7/2 respectively [27]. The binding energy of Bi as for 0.05BiTNT is the same as that for pure Bi2O3, indicating that the element Bi of 0.05BiTNT presents in the chemical state of Bi2O3. The binding energy of Bi for 0.05BiTNT is in great agreement with those for reported pure Bi2O3 [28] and a Bi2O3–TiO2 composite [29], thus revealing that the element Bi of our 0.05BiTNT presents the chemical state of Bi2O3. This is also in good agreement with XRD analysis.
In the high-resolution XPS spectrum of Ti 2p (Figure 7c), the Ti 2p energy level is split into two energy levels, namely Ti 2p1/2 and Ti 2p3/2 as a result of spin-orbital coupling of electrons. The binding energy positions of Ti 2p1/2 and Ti 2p3/2 can be found at approximately 464.0 and 458.3 eV respectively, being basically the same as that reported elsewhere [30]. This also indicates that, both before and after the sensitization of TiO2 with Bi2O3, the oxidation state of the element Ti keeps the same, i.e., Ti4+, in the absence of Ti3+, and thus reveals the high purity of TiO2 [31]. The broadening of the XPS peaks after the Bi2O3 incorporation (0.05BiTNT vs. TNT) can be attributed to the electron transfer interactions between the matrix TiO2 and the sensitizer Bi2O3 [32]. The high-resolution XPS spectra of O 1s are shown in Figure 7d. Two peaks at 529.7 and 531.4 eV can be noticed by Gaussian fitting. The former can be indexed to the O of TiO2; the latter most likely results from Bi2O3, which may also be correlated to OH species from chemical absorption or absorbed water [25]. The lower binding energy of Bi–O is owing to the less negative changes of the covalent O of Bi2O3 as compared to that of the O of Ti–O [33]. To conclude, it is believed that the TiO2 nanotubes are effectively sensitized by Bi2O3 [25].
Figure 8 shows the IV curves (obtained for the assembled solar cell with the Bi2O3 sensitized TiO2 nanotube anode film). The corresponding PV curves of the Bi2O3 sensitized solar cell are presented in Figure 9. The photoelectric conversion efficiency of the DSSC is not directly proportional to the amount of sensitizer Bi2O3, and there exists an optimized content of Bi2O3. Our optimal content of the sensitizer Bi2O3 corresponds to the initial Bi2O3 precursor concentration of 0.05 mol/L. The lower content of Bi2O3 is most likely to cause insufficient utilization of visible light, while an excess amount of Bi2O3 exerts an adverse effect on the light absorption property of the light anode material, revealing that an optimized content of Bi2O3 exists. In DSSC, the optimal absorbed dye concentration lies in the monolayer adsorption of dye molecules onto the porous TiO2-based film electrode, which may be also applied to our case. To further prove the sensitization effect of Bi2O3 on TiO2 nanotubes, a simple mixture of Bi2O3 particles and TiO2 nanotubes is also investigated and compared with our optimized sample, 0.05BiTNT. The weight percentage of the Bi2O3 particles used for the mixing is estimated from the quantified result of the EDX spectrum for 0.05BiTNT (Figure 1). The simple mixture-based solar cell presents much lower photoelectric conversion efficiency as compared to the sensitized counterpart (0.05BiTNT), thereby indicating the significance of the sensitization effect as a result of uniform distribution of Bi2O3 and interfacial adhesion between the Bi2O3 and TiO2 nanotubes, as evidenced by EDX mapping images (Figure 3), and TEM and HRTEM images (Figure 4).
From Table 1, it can be noted that, as the Bi2O3 content increases, the photoelectric conversion efficiency raises first and then exhibits a decreasing trend. The sample 0.05BiTNT presents the highest photoelectric conversion efficiency, followed by 0.15BiTNT > 0.5BiTNT > 0.25BiTNT > 0.01BiTNT > TNT. The un-sensitized TiO2 nanotubes (namely TNT)-assembled DSSC possesses a rather unsatisfactory photovoltaic property; this is because the present visible light source cannot excites the TiO2 nanotube film, with a wide energy band gap, to generate photocurrent and photovoltage, indicating the high significance of the present sensitization of TiO2 nanotubes with Bi2O3. Furthermore, a IPCE spectrum of the typical sample, 0.05BiTNT, shows a gradual lowering of IPCE with increasing incident wavelengths (starting from 400 to 600 nm), as presented in Figure 10.

4. Conclusions

In this study, a series of visible light-responsive Bi2O3 sensitized TiO2 nanotube anode films were prepared by combined hydrothermal reactions, dip-coating, and calcination. In terms of the photoelectric conversion efficiency of the assembled solar cells, the Bi2O3 precursor (Bi(NO3)2) concentration of 0.05 mol/L is estimated to be the optimal condition. The photoelectric conversion efficiency is not in direct proportion with the Bi2O3 content, and optimization needs to be performed. Similar to dye sensitization in DSSC, the monolayer adsorption of the sensitizer is most likely to be optimal for achieving high photoelectric conversion efficiency.
As a new-type visible light-active photocatalyst, Bi2O3 is popular in the field of semiconductor materials. Bi2O3 has an energy band gap of 2.8 eV (ECB = 0.33 eV, EVB = 3.13 eV) at room temperature [34]. A single component photocatalyst, TiO2 nanotubes, shows a rather unsatisfactory visible light-driven photocatalytic property, but after sensitization with Bi2O3, its photoelectric conversion efficiency is largely improved, as schematically shown in Figure 11. Bi2O3 serves to absorb visible light energy to generate photoexcited electrons and holes, while TiO2 works to collect and transport the generated charge carriers [35]. Considering the different CB and VB positions of Bi2O3 and TiO2, a built-in electric field can be generated as a result of the energy level difference between Bi2O3 and TiO2, effectively separating the photo-generated electron-hole pairs and consequently improving the photocatalytic activity.

Acknowledgments

The authors greatly acknowledge the construction project from Guangdong Engineering Technique Research Center (506302679076), construction project from Research Platform of Universities in Foshan (2014AG10009), and the Open Research Fund of Jiangsu Provincial Key Laboratory of Biomass Energy and Materials (No. JSBEM201608). The financial support (y207k61001) given by Key Laboratory of Renewable Energy (Chinese Academy of Sciences) and the characteristic innovation projects from Guangdong Education Agency (2015KTSCX155) are greatly appreciated as well.

Author Contributions

This study was conducted by Menglei Chang and Huawen Hu, with project support from Yuyuan Zhang and Xinjun Li. Menglei Chang and Huawen Hu prepared the draft of the paper, and all the other authors helped to revise it, including Yuyuan Zhang, Dongchu Chen, Liangpeng Wu and Xinjun Li.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Zhang, Y.; Chen, J.; Li, X. Preparation and Photocatalytic Performance of Anatase/Rutile Mixed-Phase TiO2 Nanotubes. Catal. Lett. 2010, 139, 129–133. [Google Scholar] [CrossRef]
  2. Zhang, Y.; Li, X.; Feng, M.; Zhou, F.; Chen, J. Photoelectrochemical performance of TiO2-nanotube-array film modified by decoration of TiO2 via liquid phase deposition. Surf. Coat. Technol. 2010, 205, 2572–2577. [Google Scholar] [CrossRef]
  3. Ouyang, W.; Kuna, E.; Yepez, A.; Balu, A.; Romero, A.; Colmenares, J.; Luque, R. Mechanochemical Synthesis of TiO2 Nanocomposites as Photocatalysts for Benzyl Alcohol Photo-Oxidation. Nanomaterials 2016, 6, 93. [Google Scholar] [CrossRef] [PubMed]
  4. Jiang, Q.; Li, L.; Bi, J.; Liang, S.; Liu, M. Design and Synthesis of TiO2 Hollow Spheres with Spatially Separated Dual Cocatalysts for Efficient Photocatalytic Hydrogen Production. Nanomaterials 2017, 7, 24. [Google Scholar] [CrossRef] [PubMed]
  5. Sun, D.S.; Tseng, Y.H.; Wu, W.S.; Wong, M.S.; Chang, H.H. Visible Light-Responsive Platinum-Containing Titania Nanoparticle-Mediated Photocatalysis Induces Nucleotide Insertion, Deletion and Substitution Mutations. Nanomaterials 2016, 7, 2. [Google Scholar] [CrossRef] [PubMed]
  6. Nica, I.; Stan, M.; Dinischiotu, A.; Popa, M.; Chifiriuc, M.; Lazar, V.; Pircalabioru, G.; Bezirtzoglou, E.; Iordache, O.; Varzaru, E.; et al. Innovative Self-Cleaning and Biocompatible Polyester Textiles Nano-Decorated with Fe–N-Doped Titanium Dioxide. Nanomaterials 2016, 6, 214. [Google Scholar] [CrossRef] [PubMed]
  7. Ge, M.; Cao, C.; Huang, J.; Li, S.; Chen, Z.; Zhang, K.-Q.; Al-Deyab, S.S.; Lai, Y. A review of one-dimensional TiO2 nanostructured materials for environmental and energy applications. J. Mater. Chem. A 2016, 4, 6772–6801. [Google Scholar] [CrossRef]
  8. Zhang, W.; Jia, B.; Wang, Q.; Dionysiou, D. Visible-light sensitization of TiO2 photocatalysts via wet chemical N-doping for the degradation of dissolved organic compounds in wastewater treatment: A review. J. Nanopart. Res. 2015, 17, 221. [Google Scholar] [CrossRef]
  9. Ansari, S.A.; Cho, M.H. Highly Visible Light Responsive, Narrow Band gap TiO2 Nanoparticles Modified by Elemental Red Phosphorus for Photocatalysis and Photoelectrochemical Applications. Sci. Rep. 2016, 6, 25405. [Google Scholar] [CrossRef] [PubMed]
  10. Hu, H.; Xin, J.H.; Hu, H.; Wang, X.; Miao, D.; Liu, Y. Synthesis and stabilization of metal nanocatalysts for reduction reactions—A review. J. Mater. Chem. A 2015, 3, 11157–11182. [Google Scholar] [CrossRef]
  11. Sajan, C.; Wageh, S.; Al Ghamdi, A.; Yu, J.; Cao, S. TiO2 nanosheets with exposed {001} facets for photocatalytic applications. Nano Res. 2016, 9, 3–27. [Google Scholar] [CrossRef]
  12. Wang, X.; Hu, H.; Yang, Z.; Kong, Y.; Fei, B.; Xin, J.H. Visible light-active sub-5 nm anatase TiO2 for photocatalytic organic pollutant degradation in water and air, and for bacterial disinfection. Catal. Commun. 2015, 72, 81–85. [Google Scholar] [CrossRef]
  13. Wang, T.; Meng, X.; Liu, G.; Chang, K.; Li, P.; Kang, Q.; Liu, L.; Li, M.; Ouyang, S.; Ye, J. In situ synthesis of ordered mesoporous Co-doped TiO2 and its enhanced photocatalytic activity and selectivity for the reduction of CO2. J. Mater. Chem. A 2015, 3, 9491–9501. [Google Scholar] [CrossRef]
  14. Chiou, B.; Yang, R.-Y.; Chuang, H.-J.; Chu, C.-J. Characterization of Nano-porous TiO2 Film Prepared by Sol-gel Process and Its Application to Dye-sensitized Solar Cell. J. Chin. Chem. Soc. 2013, 60, 81–84. [Google Scholar] [CrossRef]
  15. Sugathan, V.; John, E.; Sudhakar, K. Recent improvements in dye sensitized solar cells: A review. Renew. Sustain. Energy Rev. 2015, 52, 54–64. [Google Scholar] [CrossRef]
  16. Shalini, S.; Balasundaraprabhu, R.; Kumar, T.S.; Prabavathy, N.; Senthilarasu, S.; Prasanna, S. Status and outlook of sensitizers/dyes used in Dye Sensitized Solar Cells (DSSC): A review. Int. J. Energy Res. 2016, 40, 1303–1320. [Google Scholar] [CrossRef]
  17. Sengupta, D.; Das, P.; Mondal, B.; Mukherjee, K. Effects of doping, morphology and film-thickness of photo-anode materials for dye sensitized solar cell application—A review. Renew. Sustain. Energy Rev. 2016, 60, 356–376. [Google Scholar] [CrossRef]
  18. Richhariya, G.; Kumar, A.; Tekasakul, P.; Gupta, B. Natural dyes for dye sensitized solar cell: A review. Renew. Sustain. Energy Rev. 2017, 69, 705–718. [Google Scholar] [CrossRef]
  19. Liu, X.; Xing, Z.; Zhang, H.; Wang, W.; Zhang, Y.; Li, Z.; Wu, X.; Yu, X.; Zhou, W. Fabrication of 3D Mesoporous Black TiO2/MoS2/TiO2 Nanosheets for Visible-Light-Driven Photocatalysis. ChemSusChem 2016, 9, 1118–1124. [Google Scholar] [CrossRef] [PubMed]
  20. Jiang, B.; Tang, Y.; Qu, Y.; Wang, J.Q.; Xie, Y.; Tian, C.; Zhou, W.; Fu, H. Thin carbon layer coated Ti3+–TiO2 nanocrystallites for visible-light driven photocatalysis. Nanoscale 2015, 7, 5035–5045. [Google Scholar] [CrossRef] [PubMed]
  21. Zhou, W.; Li, T.; Wang, J.; Qu, Y.; Pan, K.; Xie, Y.; Tian, G.; Wang, L.; Ren, Z.; Jiang, B.; Fu, H. Composites of small Ag clusters confined in the channels of well-ordered mesoporous anatase TiO2 and their excellent solar-light-driven photocatalytic performance. Nano Res. 2014, 7, 731–742. [Google Scholar] [CrossRef]
  22. Luan, P.; Xie, M.; Fu, X.; Qu, Y.; Sun, X.; Jing, L. Improved photoactivity of TiO2–Fe2O3 nanocomposites for visible-light water splitting after phosphate bridging and its mechanism. Phys. Chem. Chem. Phys. 2015, 17, 5043–5050. [Google Scholar] [CrossRef] [PubMed]
  23. Humayun, M.; Zada, A.; Li, Z.; Xie, M.; Zhang, X.; Qu, Y.; Raziq, F.; Jing, L. Enhanced visible-light activities of porous BiFeO3 by coupling with nanocrystalline TiO2 and mechanism. Appl. Catal. B 2016, 180, 219–226. [Google Scholar] [CrossRef]
  24. Du, K.; Liu, G.; Chen, X.; Wang, K. PbS Quantum Dots Sensitized TiO2 Nanotubes for Photocurrent Enhancement. J. Electrochem. Soc. 2015, 162, E251–E257. [Google Scholar] [CrossRef]
  25. Wei, N.; Cui, H.; Wang, C.; Zhang, G.; Song, Q.; Sun, W.; Song, X.; Sun, M.; Tian, J. Bi2O3 nanoparticles incorporated porous TiO2 films as an effective p-n junction with enhanced photocatalytic activity. J. Am. Ceram. Soc. 2017, 100, 1339–1349. [Google Scholar] [CrossRef]
  26. Wu, Y.; Zhou, Y.; Liu, Y.; Wang, Y.; Yang, L.; Li, C. Photocatalytic performances and characterizations of sea urchin-like N,Ce codoped TiO2 photocatalyst. Mater. Res. Innov. 2017, 21, 33–39. [Google Scholar] [CrossRef]
  27. Zhao, Q.; Liu, X.; Xing, Y.; Liu, Z.; Du, C. Synthesizing Bi2O3/BiOCl heterojunctions by partial conversion of BiOCl. J. Mater. Sci. 2016, 52, 2117–2130. [Google Scholar] [CrossRef]
  28. Wang, C.; Shao, C.; Wang, L.; Zhang, L.; Li, X.; Liu, Y. Electrospinning preparation, characterization and photocatalytic properties of Bi2O3 nanofibers. J. Colloid Interface Sci. 2009, 333, 242–248. [Google Scholar] [CrossRef] [PubMed]
  29. Xu, J.; Ao, Y.; Fu, D.; Yuan, C. Synthesis of Bi2O3–TiO2 composite film with high-photocatalytic activity under sunlight irradiation. Appl. Surf. Sci. 2008, 255, 2365–2369. [Google Scholar] [CrossRef]
  30. Yu, L.; Li, D. Photocatalytic methane conversion coupled with hydrogen evolution from water over Pd/TiO2. Catal. Sci. Technol. 2017, 7, 635–640. [Google Scholar] [CrossRef]
  31. Than, L.D.; Luong, N.S.; Ngo, V.D.; Tien, N.M.; Dung, T.N.; Nghia, N.M.; Loc, N.T.; Thu, V.T.; Lam, T.D. Highly Visible Light Activity of Nitrogen Doped TiO2 Prepared by Sol–Gel Approach. J. Electron. Mater. 2016, 46, 158–166. [Google Scholar] [CrossRef]
  32. Damyanova, S.; Dimitrov, L.; Petrov, L.; Grange, P. Effect of niobium on the surface properties of Nb2O5–SiO2-supported Mo catalysts. Appl. Surf. Sci. 2003, 214, 68–74. [Google Scholar] [CrossRef]
  33. Xu, D.; Hai, Y.; Zhang, X.; Zhang, S.; He, R. Bi2O3 cocatalyst improving photocatalytic hydrogen evolution performance of TiO2. Appl. Surf. Sci. 2017, 400, 530–536. [Google Scholar] [CrossRef]
  34. Shamaila, S.; Sajjad, A.K.L.; Chen, F.; Zhang, J. Study on highly visible light active Bi2O3 loaded ordered mesoporous titania. Appl. Catal. B 2010, 94, 272–280. [Google Scholar] [CrossRef]
  35. Hu, H.; Chang, M.; Wang, X.; Chen, D. Cotton fabric-based facile solar photocatalytic purification of simulated real dye wastes. J. Mater. Sci. 2017, 1–9. [Google Scholar] [CrossRef]
Nanomaterials 07 00104 g001 550

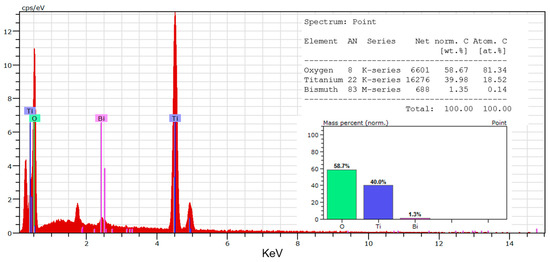

Figure 1. EDX spectrum of the typical sample, 0.05BiTNT, together with the quantification results presented as insets.
Figure 1. EDX spectrum of the typical sample, 0.05BiTNT, together with the quantification results presented as insets.
Nanomaterials 07 00104 g001
Nanomaterials 07 00104 g002 550

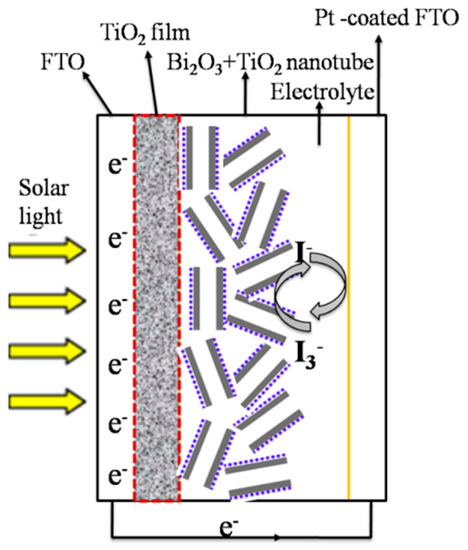

Figure 2. Schematic diagram of the Bi2O3 sensitized TiO2 nanotubes solar cell.
Figure 2. Schematic diagram of the Bi2O3 sensitized TiO2 nanotubes solar cell.
Nanomaterials 07 00104 g002
Nanomaterials 07 00104 g003 550

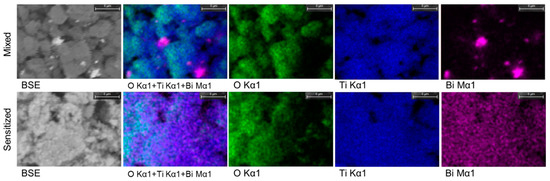

Figure 3. BSE and EDX mapping images of 0.05BiTNT (bottom row) and a simple mixture of TiO2 and Bi2O3 (top row).
Figure 3. BSE and EDX mapping images of 0.05BiTNT (bottom row) and a simple mixture of TiO2 and Bi2O3 (top row).
Nanomaterials 07 00104 g003
Nanomaterials 07 00104 g004 550

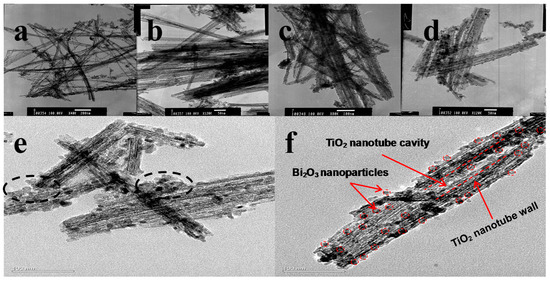

Figure 4. TEM and HRTEM images of the prepared samples. (a,b) Neat TiO2 nanotubes; (c–f) Bi2O3-sensitized TiO2 nanotubes. The detailed structural features are highlighted with red circles and lines in (f).
Figure 4. TEM and HRTEM images of the prepared samples. (a,b) Neat TiO2 nanotubes; (c–f) Bi2O3-sensitized TiO2 nanotubes. The detailed structural features are highlighted with red circles and lines in (f).
Nanomaterials 07 00104 g004
Nanomaterials 07 00104 g005 550

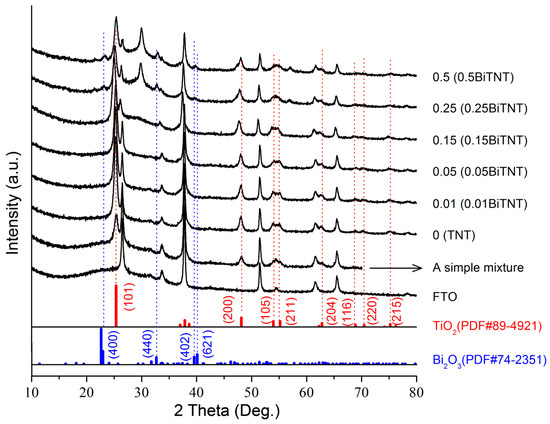

Figure 5. XRD patterns of a FTO glass and all the film samples deposited on the FTO glass, including a series of Bi2O3 sensitized TiO2 nanotubes and the simple mixture of TiO2 nanotubes and Bi2O3. The standard PDF cards of anatase TiO2 (No. 89-4921) and Bi2O3 (No. 74-2351) are also shown.
Figure 5. XRD patterns of a FTO glass and all the film samples deposited on the FTO glass, including a series of Bi2O3 sensitized TiO2 nanotubes and the simple mixture of TiO2 nanotubes and Bi2O3. The standard PDF cards of anatase TiO2 (No. 89-4921) and Bi2O3 (No. 74-2351) are also shown.
Nanomaterials 07 00104 g005
Nanomaterials 07 00104 g006 550

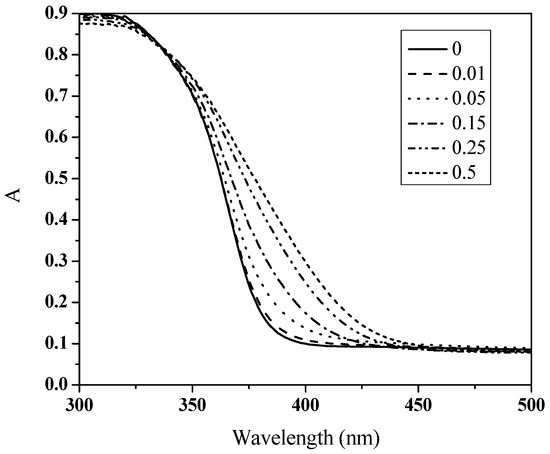

Figure 6. UV-Vis DRS of all the prepared samples.
Figure 6. UV-Vis DRS of all the prepared samples.
Nanomaterials 07 00104 g006
Nanomaterials 07 00104 g007 550

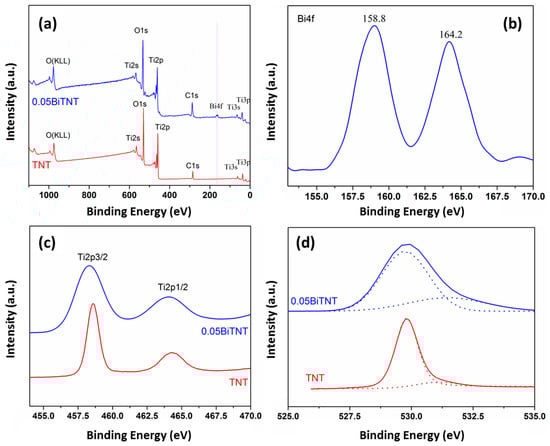

Figure 7. XPS studies of TNT and 0.05BiTNT; full XPS spectra (a); and high-resolution XPS spectra of Bi 4f (b); Ti 2p (c); and O 1s (d) regions.
Figure 7. XPS studies of TNT and 0.05BiTNT; full XPS spectra (a); and high-resolution XPS spectra of Bi 4f (b); Ti 2p (c); and O 1s (d) regions.
Nanomaterials 07 00104 g007
Nanomaterials 07 00104 g008 550

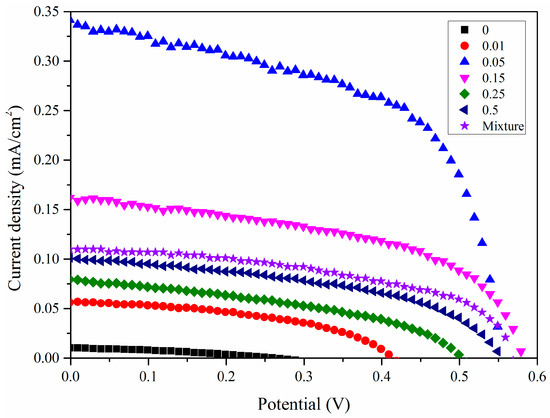

Figure 8. IV curves of a series of Bi2O3 sensitized TiO2-based solar cells, as well as a simple mixture of Bi2O3 and TiO2-based solar cell.
Figure 8. IV curves of a series of Bi2O3 sensitized TiO2-based solar cells, as well as a simple mixture of Bi2O3 and TiO2-based solar cell.
Nanomaterials 07 00104 g008
Nanomaterials 07 00104 g009 550

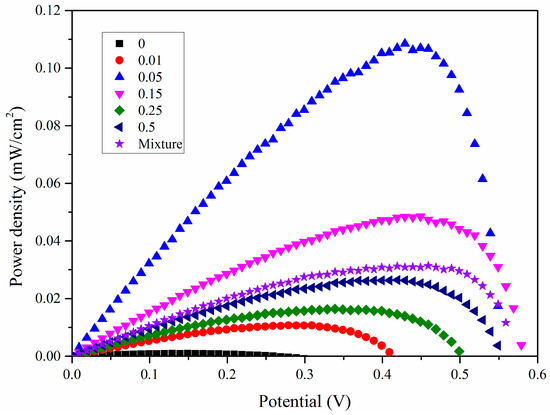

Figure 9. PV curves of a series of Bi2O3 sensitized TiO2-based solar cells, as well as a simple mixture of Bi2O3 and TiO2-based solar cell.
Figure 9. PV curves of a series of Bi2O3 sensitized TiO2-based solar cells, as well as a simple mixture of Bi2O3 and TiO2-based solar cell.
Nanomaterials 07 00104 g009
Nanomaterials 07 00104 g010 550

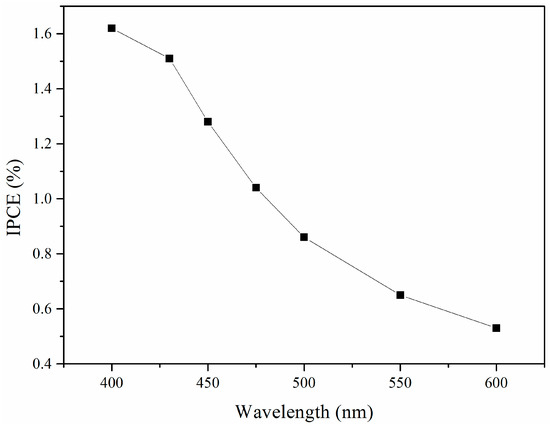

Figure 10. IPCE spectrum of the 0.05BiTNT-based solar cell, as captured at the incident wavelengths ranging from 400 to 600 nm.
Figure 10. IPCE spectrum of the 0.05BiTNT-based solar cell, as captured at the incident wavelengths ranging from 400 to 600 nm.
Nanomaterials 07 00104 g010
Nanomaterials 07 00104 g011 550

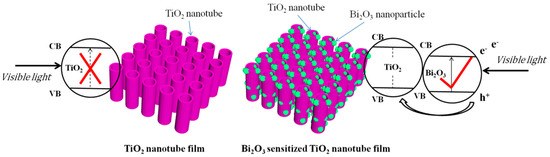

Figure 11. Photocatalysis mechanism of sensitizing TiO2 by Bi2O3.
Figure 11. Photocatalysis mechanism of sensitizing TiO2 by Bi2O3.
Nanomaterials 07 00104 g011
Table
Table 1. Photovoltaic characteristics of the Bi2O3 sensitized TiO2-based solar cells.
Table 1. Photovoltaic characteristics of the Bi2O3 sensitized TiO2-based solar cells.
