Nanomaterials 2017, 7(10), 303; doi:10.3390/nano7100303

Article
Magnetically Separable MoS2/Fe3O4/nZVI Nanocomposites for the Treatment of Wastewater Containing Cr(VI) and 4-Chlorophenol
Haijiao Lu 1,2Orcid, Jingkang Wang 1,2, Hongxun Hao 1,2,*Orcid and Ting Wang 1,2
1
National Engineering Research Center of Industry Crystallization Technology, School of Chemical Engineering and Technology, Tianjin University, Tianjin 300072, China
2
Collaborative Innovation Center of Chemical Science and Engineering, Tianjin 300072, China
*
Correspondence: Tel.: +86-022-2740-5754
Received: 12 August 2017 / Accepted: 25 September 2017 / Published: 30 September 2017

Abstract

:
With a large specific surface area, high reactivity, and excellent adsorption properties, nano zerovalent iron (nZVI) can degrade a wide variety of contaminants in wastewater. However, aggregation, oxidation, and separation issues greatly impede its wide application. In this study, MoS2/Fe3O4/nZVI nanocomposites were successfully synthesized by a facile step-by-step approach to overcome these problems. MoS2 nanosheets (MNs) acted as an efficient support for nZVI and enriched the organic pollutants nearby, leading to an enhanced removal efficiency. Fe3O4 nanoparticles (NPs) could not only suppress the agglomeration and restacking of MNs, but also facilitate easy separation and recovery of the nanocomposites. The synergistic effect between MNs and Fe3O4 NPs effectively enhanced the reactivity and efficiency of nZVI. In the system, Cr(VI) was reduced to Cr(III) by nZVI in the nanocomposites, and Fe2+ produced in the process was combined with H2O2 to further remove 4-Chlorophenol (4-CP) through a Fenton reaction. Furthermore, the nanocomposites could be easily separated from wastewater by a magnet and be reused for at least five consecutive runs, revealing good reusability. The results demonstrate that the novel nanocomposites are highly efficient and promising for the simultaneous removal of Cr(VI) and 4-CP in wastewater.
Keywords:
nZVI; modification; nanocomposites; Cr(VI); 4-CP; Fenton reaction; pollution treatment; recyclability; wastewater

1. Introduction

As a typical contaminant in wastewater, Cr is one of the most toxic heavy metals to humans and the environment, which widely exists in leather tanning, metallurgy, paint pigments, etc. [1,2]. Cr mainly occurs in two common oxidation states (Cr(III) and Cr(VI)) in the environment. The toxicity of Cr(III) species is one hundred times lower than that of Cr(VI) [3]. Therefore, converting Cr(VI) to Cr(III) is frequently applied as an efficient approach for Cr(VI) removal. As another group of common water pollutants, chlorophenols (CPs) can be found in wastewater from various industrial processes, such as tanning, manufacturing preservatives, pesticides, and so on [4,5]. They are listed as “priority toxic pollutants” by the US Environmental Protection Agency (EPA) due to their strong toxicity and poor biodegradability [6,7]. Therefore, substantial studies have been conducted to remove CPs from wastewater. Among various methods reported, the dechlorination of CPs is considered to be the most effective method because the CP pollutants (phenol) can be subsequently oxidized to CO2 and H2O and thus be completely removed [8]. In fact, heavy metals and organic pollutants often co-exist in industrial wastewater, and wastewater containing both Cr(VI) and 4-CP is common [9]. Therefore, it is of great significance to remove Cr(VI) and 4-CP simultaneously from wastewater.
In the past decades, nano zerovalent iron (nZVI) has attracted great attention due to its excellent performance in the removal of a wide range of contaminants, including halogenated organic compounds [10], nitroaromatic compounds [11], organic dyes [12], phenols [13], heavy metals [14], metalloids [15], and so on. In particular, many studies have demonstrated that nZVI can effectively remove Cr(VI) and CPs in wastewater [3,16,17]. With a small particle size, large surface area, and superior reactivity, nZVI exhibits enhanced capability in the catalytic removal of contaminants compared with normal-sized iron particles [18]. However, due to a large specific surface area and intrinsic magnetic interaction, nZVI is easy to aggregate and can be oxidized by surrounding media, resulting in a loss of mobility and reactivity [19]. What is more, nZVI also has the trouble of separation from the degraded system, which makes it difficult to recover and reuse nZVI [20]. These problems limit the application of nZVI to a certain degree. To overcome these problems, great efforts have been made to modify nZVI [21,22].
As a frequently used strategy, nZVI can be immobilized on a support, such as clays [23], polysaccharides [24], resins [25], membranes [26], grapheme [27], and so on. With a layered structure similar to that of graphene, MoS2 has attracted tremendous research interest in many fields, such as catalysis, solar cells, electronic devices, and energy storage [28,29]. MoS2 nanosheets (MNs) are composed of single or several layers of S-Mo-S sandwich layers stacked together by van der Waals interactions [30]. MNs possess many superior properties, including a large surface area and excellent chemical and thermal stability, which make them favorable for various applications [31]. In recent years, a wide variety of methods have been proposed to prepare MNs, for example, mechanical exfoliation [32], liquid exfoliation [33], chemical vapor deposition [34], the hydrothermal method [35], and so on. It has been used as an alternative of graphene to act as a support for nZVI for aqueous pollutants removal [36]. Apart from avoiding the aggregation of nZVI, MNs also have the capability to enrich the organic pollutants nearby, leading to a greater removal efficiency [37]. In addition, MoS2 can be decorated with Fe3O4 nanoparticles (NPs), which are low-cost, easy to fabricate, and environmentally friendly [38]. Fe3O4 NPs can not only suppress the agglomeration and restacking of MNs, but also facilitate easy separation and recovery of the nanocomposites [37]. It helps to improve the sustainability of wastewater treatment process, which is a significant research trend in recent years [39,40].
Although many researchers have done substantial studies on the preparation and application of nZVI, MNs, and Fe3O4 nanoparticles [18,21,32,33,34,35], to the best of our knowledge, magnetically separable MoS2/Fe3O4/nZVI nanocomposites (MFNNs) have not been reported for the simultaneous removal of Cr(VI) and 4-CP in wastewater. In this study, to enhance the mobility and reactivity of nZVI and facilitate its separation and recovery from the degraded system, MoS2/Fe3O4/nZVI nanocomposites were successfully synthesized by a facile step-by-step method. They exhibited high activity, convenient separation, and good recyclability. These properties demonstrate that MoS2/Fe3O4/nZVI nanocomposites could be highly effective and efficient for pollution treatment in wastewater.

2. Materials and Methods

2.1. Materials

MoO3 (AR, ≥99.5%) was purchased from Kermel Chemical Technology Co. Ltd. (Tianjin, China). Thiourea (NH2CSNH2) (AR, ≥99.0%), FeCl3·6H2O (ACS), FeSO4·7H2O (AR, ≥99.0%), NaBH4 (≥98.0%), and ammonia solution (AR, 25–28%) were purchased from Aladdin Industrial Corporation (Shanghai, China). 4-chlorophenol (≥99.0%) was purchased from J&K Chemical Ltd. (Beijing, China). K2Cr2O7 (≥99.95%) and H2O2 solution (≥30.00%) were purchased from Guangfu Fine Chemical Research Institute (Tianjin, China). Isopropyl alcohol (≥99.7%), ethanol absolute (≥99.8%), and anhydrous methanol (HPLC) were purchased from Real&Lead Chemical Technology Co. Ltd. (Tianjin, China). 1,5-diphenylcarbazide (DPC) (AR) was purchased from Chemart Chemical Technology Co. Ltd. (Tianjin, China). Phosphoric acid (≥85.0%) and sulfuric acid (95.0–98.0%) were purchased from Yuxiang Chemical Technology Co. Ltd. (Tianjin, China). All the compounds were used without further purification. Deionized water was provided by Barnstead Nanopure Water Purifier (Thermo Fisher Scientific, Waltham, MA, USA) throughout this work.

2.2. Synthesis of MoS2 Nanosheets (MNs)

In a typical procedure, 0.4 g MoO3 and 6.35 g thiourea were mixed together, thoroughly ground, and loaded into a quartz boat. The boat was quickly pushed into the hot zone of the tube furnace after the furnace temperature had been stabilized at 850 °C under the atmosphere of nitrogen. Before the reaction, the furnace was flushed with N2 for 30 min to remove any traces of oxygen. After calcination at 850 °C for 3 h, the tube furnace was cooled down to room temperature, and the resulting black powder was then collected.

2.3. Synthesis of MoS2/Fe3O4 Nanocomposite (MFN)

MFN was synthesized by a hydrothermal method. A total of 90 mg MNs was dispersed into 60 mL deionized water and isopropyl alcohol (1:1, volume ratio). Then, the mixture was treated by mechanical agitation and sonication at the same time for 3 h. After that, 0.0506 g FeCl3·6H2O and 0.0261 g FeSO4·7H2O were added to the suspension and the obtained mixture was then vigorously agitated at 80 °C for 30 min. After adding 0.75 mL ammonia solution quickly, the suspension was transferred into a 100 mL Teflon-lined stainless steel autoclave, sealed tightly, and heated at 120 °C for 2 h. After cooling naturally, the black product was collected by centrifugation, washed with deionized water and ethanol several times, and dried in a vacuum oven at 60 °C for 6 h.

2.4. Synthesis of MoS2/Fe3O4/nZVI Nanocomposites (MFNNs)

A total of 50 mg MFN was dispersed into 20 mL deionized water and isopropyl alcohol (1:1, volume ratio). After adding 0.0810 g FeCl3·6H2O, the obtained mixture was vigorously agitated under nitrogen atmosphere for 30 min. Then, 5 mL 0.18 M NaBH4 solution was added drop by drop at the speed of one to two drops per second into this mixture and vigorously stirred under nitrogen atmosphere. Subsequently, the suspension was agitated continuously for another 20 min. Finally, the black solid product was collected by centrifugation, washed with deionized water and ethanol several times, and dried in a vacuum oven at 60 °C for 6 h. The synthesis schematic of MFNNs is illustrated in Scheme 1.

2.5. Characterization

X-ray diffraction (XRD) patterns of the obtained solid products were obtained using a Rigaku D/max-2500 X-ray diffraction analyzer (Rigaku, Tokyo, Japan) with Cu Kα (λ = 0.154 nm) radiation at 40 kV/100 mA at a scanning speed of 6°/min. Nitrogen adsorption isotherms were measured with an ASAP 2020 adsorption analyzer (Micromeritics, Norcross, GA, USA) at 77 K. The Brunauer-Emmett-Teller (BET) method was utilized to calculate the specific surface areas. Scanning electron microscopy (SEM) images were taken by a Hitachi S4800 (Hitachi, Tokyo, Japan). High resolution transmission electron microscopy (HRTEM) and energy dispersive X-ray spectroscopy (EDS) measurements were performed on a Tecnai G2 F20 TEM (FEI, Eindhoven, The Netherlands) at an operating voltage of 200 kV. X-ray photoelectron spectroscopy (XPS) was performed on a Thermo ESCALAB 250XI (Thermo Fisher Scientific, Waltham, MA, USA) for compositional and chemical states analysis on the surface. The concentration of Cr(VI) was obtained by 1,5-diphenylcarbazide (DPC) method with a UV-Vis spectrophotometer (Hitachi, U-3010, Tokyo, Japan) at 540 nm (method detection limit (MDL) 0.31 mg/L, relative standard deviation (RSD) 3.9%). The concentration of 4-CP in samples was determined using high performance liquid chromatography (HPLC) (Agilent 1200LC, Santa Clara, CA, USA) equipped with a ZORBAX Eclipse Plus C18 column (Agilent, 4.6 × 250 mm, 5 μm, Santa Clara, CA, USA) and a UV-Vis detector at 280 nm (Agilent, MDL 0.83 mg/L, RSD 3.0%, Santa Clara, CA, USA).

2.6. Simultaneous Removal of Cr(VI) and 4-CP

All experiments were carried out in 250 mL flasks containing 100 mL simulated wastewater (deionized water with 10–40 mg/L Cr(VI) and 20–120 mg/L 4-CP). The flasks were agitated at the speed of 400 rpm at 25 °C. A certain amount of MFNNs was added into the solution and the reaction was then timed immediately. After 15 min, H2O2 solution was added into the system. In the process, 1 mL of sample was withdrawn with a glass syringe at an interval of 5 min, and was then filtered through a 0.22 μm membrane filter. The concentrations of remaining Cr(VI) and 4-CP were detected by a UV-Vis spectrophotometer and HPLC, respectively. After the given reaction time of 60 min, the nanocomposites were separated by an external magnet and washed by the mixture of water and ethanol (1:1, volume ratio) three times. Furthermore, after drying up, the nanocomposites were reused in the next cycle of the removal experiment. Their reusability was evaluated by the removal efficiency of Cr(VI) and 4-CP over five cycles. All experiments were undertaken in triplicate. The average value of three experiments was used to evaluate the results. The relative standard deviation of the experimental results is about 5.1%.

3. Results and Discussion

3.1. Characterization

3.1.1. XRD

The XRD patterns of MNs, Fe3O4, MoS2/Fe3O4 nanocomposite (MFN), and the as-prepared MoS2/Fe3O4/nZVI nanocomposites (MFNNs) are shown in Figure 1. For the XRD pattern of MNs, the characteristic peaks of hexagonal MoS2 (JCPDS card No. 37-1492) at 2θ = 14.2°, 32.8°, 39.6°, 49.4°, and 58.5° could be found, which were assigned to the reflection of (001), (100), (103), (105), and (110) crystallographic planes, respectively [41]. In the XRD pattern of MFN, five diffraction peaks located at 2θ = 30.2°, 35.8°, 43.3°, 57.2°, and 62.6° were attributed to the planes of (220), (311), (400), (511), and (440) of Fe3O4 (JCPDS card No. 74-0748), respectively [42]. As shown in Figure 1, the relative intensity of diffraction peaks of MoS2 decreased to some extent due to the introduction of Fe3O4 NPs. Although the diffraction peaks at 2θ = 39.6° and 49.4° disappeared, the characteristic diffraction peaks of MoS2 at 2θ = 14.2°, 32.8° and 58.5° still remained or shifted slightly, indicating that the structure of MoS2 was maintained well in the preparation of the MFN. As depicted in the XRD pattern of MFNNs, the peak at 2θ = 44.7°demonstrated the (110) plane of Fe (JCPDS card No. 06-0696). Seen from the XRD patterns of the MFN nanocomposite and the as-prepared MFNNs, the synthesis of nZVI did not significantly affect the structure of MFN. Moreover, all the components (MoS2, Fe3O4, and nZVI) in the nanocomposites were well crystallized. Good crystallization of each component indicates that their respective uniformity is good. It can help to make the properties (such as activity and stability) of the whole nanocomposite more uniform, which will help to ensure the reproducibility and stability of the degradation process.

3.1.2. BET

To study the surface areas of MFNNs, nitrogen adsorption and desorption measurements were performed. The nitrogen adsorption-desorption curves of the MNs, Fe3O4 NPs, bare nZVI, and as-prepared MFNNs are shown in Figure 2, respectively. The BET surface areas of MNs, Fe3O4 NPs, bare nZVI, and as-prepared MFNNs were calculated to be 122.1, 42.2, 39.8, and 76.9 m2/g, respectively. It is evident that the specific surface area of MFNNs was much larger than that of bare nZVI. As expected, MNs significantly increased the specific surface area of nZVI. As Table 1 shows, the specific surface area of MFNNs was larger than most nZVI nanocomposites reported before. Moreover, homogeneous MoS2 nanosheets can be easily prepared in this study and the reproducibility of the process is good. Besides, the introduction of Fe3O4 as a spacer can isolate MoS2 from aggregation, thereby further increasing the specific surface area of the nanocomposites. This can facilitate the adsorption and enrichment of the contaminants nearby and thus greatly enhance the reaction activity to deal with contaminants [37].

3.1.3. SEM

The morphologies of the products above were investigated by SEM. As can be seen from Figure 3a, the obtained MoS2 was mainly comprised of nanosheets with a uniform lateral size of about 100 nm, which was consistent with the study of Zhang et al. [48]. Figure 3b showed that magnetic Fe3O4 NPs were uniform in shape and size (about 60 nm) and well anchored on the surface of MNs. It is worth mentioning that by the synthesis method described in this study, MNs could not only provide a support for the growth of magnetic Fe3O4 NPs, but also inhibit their aggregation [49]. On the other hand, Fe3O4 NPs can also act as spacers between the MNs, preventing them from restacking in most solvents and thus improving their dispersity [38]. In addition, Fe3O4 NPs may also optimize the hydrophilicity and thus the dispersity of MNs. Contact angles of these materials have been tested to figure out their hydrophilicity. The results showed that the contact angles of Fe3O4 NPs, MNs, and MFNNs in our study were 75.5°, 94.0°, and 87.0°, respectively. A lower water contact angle means a higher surface energy, better wettability, and thus stronger hydrophilicity. Therefore, a contact angle measurement can provide evidence that Fe3O4 NPs could optimize the hydrophilicity and thus the dispersity of MNs. MFN obtained in this study could be well dispersed in water after sonication. Owing to this favorable property, MFNNs were then easily prepared in water by the borohydride reduction method. Seen from Figure 3c, NPs (about 50–60 nm) were well dispersed on the surface of MNs. MNs could protect nZVI NPs from surface oxidation and act as a support matrix for better dispersity. However, it is difficult to distinguish nZVI from Fe3O4 NPs due to their similar shape and size. According to Figure 3d, the size was 60–80 nm for bare nZVI NPs synthesized by the same method. The size of nZVI in MFNNs was smaller than that of bare nZVI, which might be attributed to the space restriction of the MFN. However, their coexistence can be illustrated by the XRD patterns mentioned above and further confirmed by TEM-EDS and XPS analysis in the following sections.

3.1.4. TEM-EDS

To further examine the morphologies and crystalline structures of the products above, TEM characterization was also conducted. As shown in Figure 4a, MNs had a well-layered structure, with an interlayer spacing of 0.64 nm corresponding to the (002) plane of hexagonal MoS2. The TEM image of bare nZVI is shown in Figure 4b. It can be seen that bare nZVI NPs suffered from the problem of aggregation and formed chains which would result in the loss of dispersity, mobility, and specific surface area. Therefore, MFNNs were designed to inhibit the aggregation of NPs by acting as a support and spacer. As shown in Figure 4c,d, NPs were dispersed evenly onto the MNs. Figure 4e,f show Fe3O4 NPs and nZVI at a higher magnification, respectively. In fact, many studies have reported the preparation of Fe3O4/MoS2 nanocomposites in different routes and their results also showed that Fe3O4 NPs tend to disperse evenly onto the MNs [50,51,52]. However, the reason for the uniform distribution of Fe3O4 NPs on MoS2 is seldom discussed. Our hypothesis can be stated as follows. Iron ions are of an 18 electron configuration and easy to polarize. Thus, they have the tendency to form a covalent bond with S2−, which belongs to the soft base and is also easy to polarize. Since S2− is evenly distributed in the MoS2 nanosheets, the interactions between S2− and the bonding iron ions will facilitate to improve the uniformity of Fe3O4 NPs on MoS2 nanosheets. The study of Harris and Szilagyi [53] can support our explanation to a certain degree.
Besides, elemental components analysis was also performed by an energy-dispersive X-ray spectrometer (EDS) equipped in TEM. As depicted in Figure 5, elemental peaks of Mo, S, Fe, and O were clear with C and Cu peaks coming from the grid. Furthermore, quantitative analysis revealed that the weight ratio of Mo, S, Fe, and O was about 8.81:7.79:5.53:1, which was close to the theoretical value of 8.97:7.90:5.41:1 (MoS2:Fe3O4:Fe = 5.36:1.30:1, weight ratio). Thus, the formation of both nZVI and Fe3O4 NPs could be verified.

3.1.5. XPS

As a versatile surface analysis technique, XPS is frequently used for compositional and chemical states analysis. Figure 6 showed the overall XPS spectrum of the MFNNs and individual Mo 3d, S 2p, Fe 2p, and O 1s XPS spectrums of the MFNNs, as well as the Fe 2p XPS spectrum of bare nZVI. As shown in Figure 6a, although the Cl element from the preparation processes also existed in MFNNs, its content was very low and was therefore negligible. The Mo 3d spectrum (Figure 6b) had two major peaks at 232.4 and 228.7 eV, corresponding to Mo 3d3/2 and 3d5/2 orbitals, respectively. The peaks for the S 2p1/2 and 2p3/2 orbitals of S2− (Figure 6c) can be observed at 162.8 and 161.8 eV. The two distinct peaks at 724.6 and 710.9 eV corresponding to the Fe 2p1/2 and 2p3/2 orbitals (Figure 6d), as well as the peak at 530.1 eV corresponding to the O 1s orbital (Figure 6e), agreed well with the XPS of Fe3O4. The O1s spectrum of the nanocomposite could be decomposed into two peaks corresponding to Fe–O (530.0 eV) and hydroxyl groups (532.0 eV), respectively. Besides, no satellite peak at 719 eV could be seen, revealing that there was no Fe2O3, which could be formed by the surface oxidation of nZVI. Moreover, the peak at 706.9 eV of Fe0 (nZVI) was also very distinguished, demonstrating the high content of nZVI in MFNNs. By contrast, in the XPS of bare nZVI (Figure 6f), there was a satellite peak at 719 eV, implying that a layer of iron oxides (containing Fe2O3) definitely existed on the nZVI surface. As a consequence, the peak (at 706.3 eV) for Fe0 of bare nZVI was weak due to the limitation of XPS (less than 10 nm probing depth). In summary, the significant peaks corresponding to Fe3O4 and nZVI could verify the uniform loading of both of them on MNs. Furthermore, the comparison between nZVI on MNs and bare nZVI proved that MNs could effectively protect nZVI from surface oxidation and thus enhance its reactivity.

3.2. The Composition of MFNNs

As the ratio of MoS2, Fe3O4, and nZVI will have a significant influence on the performance of MFNNs, it is of extreme importance to determine the optimum composition of MFNNs. The dosage of Fe3O4 introduced to MNs should be big enough to inhibit the aggregation of MNs and facilitate the separation of MFNNs. On the other hand, to ensure enough space for more nZVI particles to be loaded on MNs, the amount of immobilized Fe3O4 should be controlled. Figure 7a shows the TEM of MNs with overloaded Fe3O4 particles (MoS2:Fe3O4 weight ratio of 5:2), which was unfavorable for the following synthesis of MFNNs. After parallel experiments with different weight feed ratios of MoS2 and Fe3O4, the weight ratio of 4:1 was found to be the optimum value for this consideration. Therefore, the MoS2/Fe3O4 nanocomposite (weight ratio of 4:1) was chosen to further prepare MFNNs. Since nZVI is the reactive component in MFNNs for the treatment of contaminants, it is crucial to improve the ratio of nZVI to get a higher reactivity. However, the ratio should also be controlled below saturation. No free nZVI unbound to MFN should be observed. Otherwise, excess nZVI (relatively to MFN, see Figure 7b) will form aggregates. After trials, the weight ratio of 4:1:0.77 (MoS2:Fe3O4:nZVI) was eventually determined to be the optimum value for MFNNs. The typical synthesis process has been described in Section 2.2 and Section 2.3.

3.3. Simultaneous Removal of Cr(VI) and 4-CP by Various Materials

In Figure 8, the performance of MNs, Fe3O4 NPs, bare nZVI, MFN, and MFNNs during the removal of Cr(VI) and 4-CP was demonstrated. The order of removal capacity for both Cr(VI) and 4-CP turned out to be MFNNs > MFN > MNs > nZVI > Fe3O4 NPs. It indicates that Cr(VI) could be completely removed by MFNNs in about 15 min. As mentioned above, H2O2 solution was added into the system at 15 min. Therefore, the added H2O2 was not consumed by Cr(VI) and could be used to oxidize 4-CP and its intermediates in the process. As Figure 8b shows, the addition of H2O2 led to a significant decrease of 4-CP by all the five materials. Particularly, since Fe2+ could be produced in the reduction of Cr(VI) by MFNNs and bare nZVI, the addition of H2O2 would form a Fenton system and thus greatly contribute to the further removal of 4-CP. The removal mechanism is illustrated in Scheme 2.
In addition, according to Figure 8b, 4-CP could be completely removed by MFNNs and H2O2 in about 30 min. In comparison, 4-CP could not be fully removed by other systems in 60 min, including bare nZVI. Without support, the removal efficiency of bare nZVI was very low due to the rapid formation of passive film by oxidation. MFN showed a higher efficiency than MNs, illustrating that the introduction of Fe3O4 NPs to MNs not only brought in magnetism, but also enhanced the adsorption capacity of MNs. This was mainly due to the above-mentioned synergistic effect between MNs and Fe3O4. More importantly, the removal efficiency of MFNNs was much higher than that of MNs, Fe3O4 NPs, and bare nZVI, proving the existence of a synergistic effect in this system. It has been previously reported that when coupling with Fe3O4 or support, nZVI can form numerous small batteries, accelerate the electron transform from Fe0 to Fe3O4, and then provide more reactive sites [54]. More active sites on the surface can promote the removal of Cr(VI) and 4-CP. The synergistic effects of MNs, Fe3O4, and nZVI all contributed to the high removal efficiency of Cr(VI) and 4-CP by MFNNs.

3.4. Effect of MFNNs Dosage

The MFNN dosage was changed from 0.05 g/L to 0.80 g/L to study its effect on the removal of Cr(VI) and 4-CP. As shown in Figure 9a, the removal efficiency of Cr(VI) increased with the increment of MFNN dosage when it was below 0.40 g/L. No significant improvement could be seen when the dosage was further increased to 0.80 g/L. Meanwhile, according to Figure 9b, the removal of 4-CP before adding H2O2 was accelerated when the dosage of MFNN was increased from 0.05 g/L to 0.80 g/L. After the addition of H2O2 at 15 min, the removal rates of 4-CP first increased with the increase of MFNN dosage at the range of 0.05–0.20 g/L, and then showed no significant increment when the dosage was above 0.20 g/L. A higher MFNN dosage suggested more nZVI in the system, facilitating the removal of Cr(VI) and 4-CP by reduction and thus produced more Fe2+ to form a Fenton system with H2O2. However, as shown in Equation (1), too much Fe2+ can consume ·OH, impeding a further increase of 4-CP removal by a Fenton reaction [12]. Therefore, to achieve a high removal efficiency and reduce the cost, the MFNN dosage should be controlled.
F e 2 + + · O H F e 3 + + O H

3.5. Effect of Contaminant Concentrations

To evaluate the effect of the initial concentrations of Cr(VI) and 4-CP on the removal of each other, further studies were carried out by changing their initial concentrations. According to Figure 10a, when the initial concentration of 4-CP was increased from 0 mg/L to 40 mg/L, 100% removal of Cr(VI) took about 20 min. When it was further increased (60–100 mg/L), the time for 100% removal of Cr(VI) was shortened to 15 min. When it reached 120 mg/L, about 20 min was needed. It means that the reaction rates of Cr(VI) increased when the concentration of 4-CP was increased from 0 mg/L to 60 mg/L, and kept nearly constant when the concentration of 4-CP was increased from 80 mg/L to 100 mg/L, and decreased when the concentration of 4-CP was increased from 100 mg/L to 120 mg/L. The reason for this might be that Cl produced in the reduction of 4-CP could facilitate the conversion of Cr(VI) to Cr(III), but too much 4-CP would compete with Cr(VI) to react with nZVI and thus lower the reaction rate of Cr(VI) and nZVI. Figure 10b shows that when the concentration of Cr(VI) was increased from 0 mg/L to 20 mg/L, the time for 100% removal of 4-CP could be shortened from 30 min to 25 min. Further increasing the concentration of Cr(VI) to 30 mg/L or 40 mg/L had no influence on the removal rate of 4-CP. More Cr(VI) would react with more nZVI and thus produce more Fe2+ which could combine with H2O2 to form a Fenton system to degrade 4-CP and its intermediates in a shorter time [55]. However, due to the limited amount of H2O2, the removal rate of 4-CP nearly remained unchanged when the concentration of Cr(VI) was further increased to 30 mg/L or 40 mg/L. Therefore, Figure 10 demonstrates that when the initial concentrations of Cr(VI) and 4-CP were appropriate, their removal could be promoted mutually.

3.6. Effect of pH

The effect of pH was also experimentally investigated at pH = 2.0, 4.0, 6.0, 8.0, and 10.0. It can be seen from Figure 11 that pH had a significant effect on the removal of both Cr(VI) and 4-CP. With the increase of pH, the reaction rate decreased. The results are consistent with the mechanisms shown in Scheme 2. Since pH can affect the surface charge of nanocomposites, a lower pH will lead to a more positive surface charge, making it easier to attract the negative Cr(VI). When the pH increases, the enhanced electrostatic repulsion between the negative surface of MFNNs and Cr(VI) ions will result in a lower removal efficiency [2]. Moreover, at a higher pH, Cr(III) tends to form Cr(OH)3, which will adsorb on the surface of MFNNs, affecting the performance of nZVI [12]. On the other hand, the dechlorination reaction process in Scheme 2 can be briefly described by Equation (2). A higher pH suggested a lower concentration of H+, which was unfavorable for the reaction. Besides, the optimal pH of Fenton reaction is 2–4 [56] since the oxidation potential of ·OH produced by H2O2 decreases with the increment of pH [57]. What is more, it had been previously reported that the surface oxidation of bare nZVI would become more prominent at a higher pH, leading to the decrease of its reactivity and reaction rate [54,58]. Therefore, acidic conditions are preferable for the removal of Cr(VI) and 4-CP in wastewater. The conclusion agrees well with other studies on wastewater containing Cr(VI) and 4-CP [9,59,60].
F e + H + + R C l F e 2 + + R H + C l

3.7. Adsorption Isotherm and Kinetics

As illustrated in our paper, the degradation process of 4-CP consisted of two steps: (1) add MFNNs to dechlorinate 4-CP; (2) add H2O2 to completely oxidize the intermedium after dichlorination. It is less meaningful to study the adsorption isotherms and kinetics of 4-CP since the process consists of two steps with different mechanisms. In comparison, the removal of Cr(VI) is achieved by MFNNs alone. Thus, the adsorption isotherm and kinetics of Cr(VI) is studied. The equilibrium adsorption capacity qe (mg/g) of Cr(VI) is calculated by Equation (3).
q e = ( c 0 c e ) V m
where c0 and ce are the initial and equilibrium concentrations (mg/L) of Cr(VI), respectively. V is the volume of wastewater (L) and m is the mass of the adsorbent used (g).
To assess the adsorption capacity of adsorbents and facilitate the understanding of the adsorption mechanism, an adsorption isotherm was investigated with two frequently used models—the Langmuir model (Equation (4)) which assumes ideal monolayer adsorption onto a surface with identical adsorption sites and the Freundlich model (Equation (5)) which is an empirical model for a heterogeneous surface possessing different adsorption sites [61,62].
c e q e = 1 b q m + c e q m
ln q e = ln K + 1 n ln c e
where qm (mg/g) is the maximum adsorption capacity for monolayer coverage and b (L/mg) is a constant. Their values can be calculated from the slopes and intercepts of the linear plots of ce/qe versus ce for Equation (4), respectively. K (mg1−(1/n) L1/n/g) is a constant related to the sorption capacity, and n is an empirical parameter related to surface heterogeneity. Their values can be calculated from Equation (5).
The calculated results are listed in Table 2. As a higher value of R2 indicates a better-fit model, the adsorption of Cr(VI) onto MFNNs turns out to follow the Langmuir model, suggesting monolayer adsorption.
Adsorption kinetics can provide information on the adsorption mechanism and develop appropriate mathematical models to describe the interactions. In this study, pseudo first-order (Equation (6)) and pseudo second-order (Equation (7)) were used to fit the experimental data [61,62].
ln ( q e q t ) = ln q e k 1 t
t q t = 1 k 2 q e 2 + t q e
where qe is the concentration of Cr(VI) adsorbed after equilibrium, qt is the concentration of Cr(VI) adsorbed in time t, k1 (min−1) is the pseudo first-order rate constant. qe and k1 can be calculated from the intercepts and slopes of the straight lines obtained from plotting ln(qeqt) vs. t, respectively. k2 (g/(mg·min)) is the pseudo second-order rate constant. qe and k2 can be calculated from the intercepts and slopes of the straight lines obtained from plotting t/qt vs. t, respectively.
The results are shown in Table 3. According to the values of R2, the adsorption of Cr(VI) by MFNNs can be considered to obey the pseudo first-order model.

3.8. Effect of H2O2 Concentration

Since H2O2 was added into the system at 15 min when Cr(VI) had been completely removed under the given experiment conditions, there was no need to study the effect of H2O2 concentration on Cr(VI) removal. As shown in Figure 12, the effect of H2O2 concentration on the removal of 4-CP was studied. With the increasing of H2O2 concentration, the removal efficiency of 4-CP increased first and then decreased. More H2O2 could produce more ·OH, promoting the Fenton reaction in the system. However, as shown in Equation (8), ·OH could also be consumed by excess H2O2, leading to the loss of removal efficiency [12]. Besides, MoS2 may be oxidized to MoO3 by excess H2O2, and thus the synergistic effect between MNs and Fe3O4 NPs would be hindered and the specific surface area of MFNNs would be reduced, leading to the decrease of MFNNs performance. Therefore, the concentration of H2O2 should be controlled at an appropriate range.
H 2 O 2 + · O H H 2 O + H O 2 ·

3.9. Recyclability

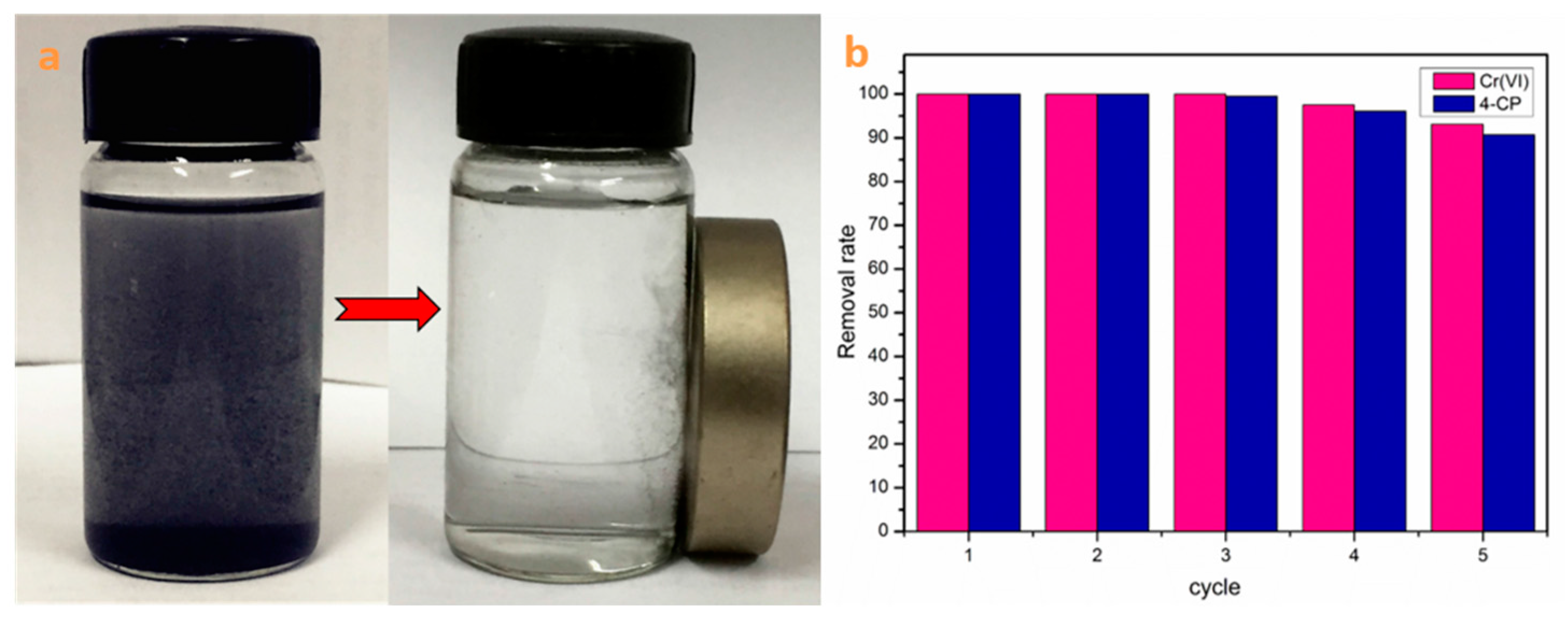

Since MFNNs in this study were designed for convenient recovery by magnetic separation, their recovery and reusability were also investigated. In successive experiments, MFNNs were separated from wastewater by a magnet, washed with water and ethanol, and dried under vacuum. The results in Figure 13 show that MFNNs could be successfully recycled and reused for at least five consecutive runs with a removal rate of no less than 93% for Cr(VI) within 15 min and no less than 90% for 4-CP within 60 min, revealing excellent recycling and structural stability. Although nanomaterials based on nZVI have been put forward for the simultaneous removal of Cr(VI) and phenols, their separation and reuse have seldom been reported before [12,63,64].

4. Conclusions

In this study, novel MoS2/Fe3O4/nZVI nanocomposites were successfully synthesized by a facile step-by-step method and overcame the drawbacks of nZVI-oxidation, aggregation, and separation. Due to the synergistic effect between MoS2 nanosheets and Fe3O4 nanoparticles, the efficiency of MFNNs increased more than fivefold for the simultaneous removal of Cr(VI) and 4-CP in wastewater. Moreover, MFNNs could be successfully recycled and reused for at least five consecutive runs with a removal rate of no less than 93% for Cr(VI) within 15 min and no less than 90% for 4-CP within 60 min. Therefore, the novel MoS2/Fe3O4/nZVI nanocomposites hold great potential for the simultaneous removal of heavy metals and organic pollutants in wastewater treatment.

Acknowledgments

This research was financially supported by National Key Research and Development Program of China (no. 2016YFB0600504).

Author Contributions

Haijiao Lu and Hongxun Hao conceived and designed the experiments; Haijiao Lu performed the experiments and analyzed the data; Ting Wang contributed materials; Haijiao Lu, Hongxun Hao, and Jingkang Wang wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wang, Y.; Fang, Z.; Kang, Y.; Tsang, E. Immobilization and phytotoxicity of chromium in contaminated soil remediated by CMC-stabilized nZVI. J. Hazard. Mater. 2014, 275, 230–237. [Google Scholar] [CrossRef] [PubMed]
  2. Lv, X.S.; Xu, J.; Jiang, G.M.; Tang, J.; Xu, X.H. Highly active nanoscale zero-valent iron (nZVI)-Fe3O4 nanocomposites for the removal of chromium(VI) from aqueous solutions. J. Colloid Interface Sci. 2012, 369, 460–469. [Google Scholar] [CrossRef] [PubMed]
  3. Shi, L.N.; Zhang, X.; Chen, Z.L. Removal of chromium(VI) from wastewater using bentonite-supported nanoscale zero-valent iron. Water Res. 2011, 45, 886–892. [Google Scholar] [CrossRef] [PubMed]
  4. Sabhi, S.; Kiwi, J. Degradation of 2,4-dichlorophenol by immobilized iron catalysts. Water Res. 2001, 35, 1994–2002. [Google Scholar] [CrossRef]
  5. Xu, J.; Lv, X.S.; Li, J.D.; Li, Y.Y.; Shen, L.; Zhou, H.Y.; Xu, X.H. Simultaneous adsorption and dechlorination of 2,4-dichlorophenol by Pd/Fe nanoparticles with multi-walled carbon nanotube support. J. Hazard. Mater. 2012, 225–226, 36–45. [Google Scholar] [CrossRef] [PubMed]
  6. Baeza, J.A.; Calvo, L.; Gilarranz, M.A.; Rodriguez, J.J. Effect of size and oxidation state of size-controlled rhodium nanoparticles on the aqueous-phase hydrodechlorination of 4-chlorophenol. Chem. Eng. J. 2014, 240, 271–280. [Google Scholar] [CrossRef]
  7. Toth, A.; Torocsik, A.; Tombacz, E.; Laszlo, K. Competitive adsorption of phenol and 3-chlorophenol on purified MWCNTs. J. Colloid Interface Sci. 2012, 387, 244–249. [Google Scholar] [CrossRef] [PubMed]
  8. Dong, Z.P.; Le, X.D.; Liu, Y.S.; Dong, C.X.; Ma, J.T. Metal organic framework derived magnetic porous carbon composite supported gold and palladium nanoparticles as highly efficient and recyclable catalysts for reduction of 4-nitrophenol and hydrodechlorination of 4-chlorophenol. J. Mater. Chem. A 2014, 2, 18775–18785. [Google Scholar] [CrossRef]
  9. Yin, X.C.; Liu, W.; Ni, J.R. Removal of coexisting Cr(VI) and 4-chlorophenol through reduction and Fenton reaction in a single system. Chem. Eng. J. 2014, 248, 89–97. [Google Scholar] [CrossRef]
  10. Liang, D.W.; Yang, Y.H.; Xu, W.W.; Peng, S.K.; Lu, S.F.; Xiang, Y. Nonionic surfactant greatly enhances the reductive debromination of polybrominated diphenyl ethers by nanoscale zero-valent iron: Mechanism and kinetics. J. Hazard. Mater. 2014, 278, 592–596. [Google Scholar] [CrossRef] [PubMed]
  11. Xiong, Z.K.; Lai, B.; Yang, P.; Zhou, Y.X.; Wang, J.L.; Fang, S.P. Comparative study on the reactivity of Fe/Cu bimetallic particles and zero valent iron (ZVI) under different conditions of N2, air or without aeration. J. Hazard. Mater. 2015, 297, 261–268. [Google Scholar] [CrossRef] [PubMed]
  12. Hoag, G.E.; Collins, J.B.; Holcomb, J.L.; Hoag, J.R.; Nadagouda, M.N. Degradation of bromothymol blue by ‘greener’ nano-scale zero-valent iron synthesized using tea polyphenols. J. Mater. Chem. 2009, 19, 8671–8677. [Google Scholar] [CrossRef]
  13. Wang, X.Y.; Zhu, M.P.; Liu, H.L.; Ma, J.; Fang, L. Modification of Pd-Fe nanoparticles for catalytic dechlorination of 2,4-dichlorophenol. Sci. Total Environ. 2013, 449, 157–167. [Google Scholar] [CrossRef] [PubMed]
  14. Arancibia, M.N.; Baltazar, S.E.; García, A.; Daniela, M.L.; Pamela, S.; Maria, A.R.; Dora, A. Nanoscale zero valent supported by Zeolite and Montmorillonite: Template effect of the removal of lead ion from an aqueous solution. J. Hazard. Mater. 2015, 301, 371–380. [Google Scholar] [CrossRef] [PubMed]
  15. Lan, L.; Pan, B.C.; Zhang, W.X. Removal of selenium from water with nanoscale zero-valent iron: Mechanisms of intraparticle reduction of Se(IV). Water Res. 2015, 71, 274–281. [Google Scholar]
  16. Li, Y.M.; Zhang, Y.; Li, J.F.; Sheng, G.D.; Zheng, X.M. Enhanced reduction of chlorophenols by nanoscale zerovalent iron supported on organobentonite. Chemosphere 2013, 92, 368–374. [Google Scholar] [CrossRef] [PubMed]
  17. Xu, F.Y.; Deng, S.B.; Xu, J.; Zhang, W.; Wu, M.; Wang, B.; Huang, J.; Yu, G. Highly Active and Stable Ni-Fe Bimetal Prepared by Ball Milling for Catalytic Hydrodechlorination of 4-Chlorophenol. Environ. Sci. Technol. 2012, 46, 4576–4582. [Google Scholar] [CrossRef] [PubMed]
  18. Lu, H.J.; Wang, J.K.; Ferguson, S.; Wang, T.; Bao, Y.; Hao, H.X. Mechanism, Synthesis and Modification of Nano Zerovalent Iron in Water Treatment. Nanoscale 2016, 8, 9962–9975. [Google Scholar] [CrossRef] [PubMed]
  19. Luo, S.; Liu, T.; Peng, L.; Shao, J.; Zeng, Q.; Gu, J. Synthesis of nanoscale zero-valent iron immobilized in alginate microcapsules for removal of Pb(II) from aqueous solution J. Mater. Chem. A 2014, 2, 15463–15472. [Google Scholar] [CrossRef]
  20. Magdalena, S.; Oleszczuk, P.; Yong, S.O. Review on nano zerovalent iron (nZVI): From synthesis to environmental applications. Chem. Eng. J. 2015, 287, 618–632. [Google Scholar]
  21. Fu, F.L.; Dionysiou, D.D.; Liu, H. The use of zero-valent iron for groundwater remediation and wastewater treatment: A review. J. Hazard. Mater. 2014, 267, 194–205. [Google Scholar] [CrossRef] [PubMed]
  22. Dror, I.; Jacov, O.M.; Cortis, A.; Berkowitz, B. Catalytic Transformation of Persistent Contaminants Using a New Composite Material Based on Nanosized Zero-Valent Iron. ACS Appl. Mater. Interfaces 2012, 4, 3416–3423. [Google Scholar] [CrossRef] [PubMed]
  23. Chen, Z.X.; Jin, X.Y.; Chen, Z.L.; Megharaj, M.; Naidu, R. Removal of methyl orange from aqueous solution using bentonite-supported nanoscale zero-valent iron. J. Colloid Interface Sci. 2011, 363, 601–607. [Google Scholar] [CrossRef] [PubMed]
  24. Wang, X.Y.; Wang, P.; Ma, J.; Liu, H.L.; Ning, P. Synthesis, characterization, and reactivity of cellulose modified nano zero-valent iron for dye discoloration. Appl. Surf. Sci. 2015, 345, 57–66. [Google Scholar] [CrossRef]
  25. Li, A.; Tai, C.; Zhao, Z.S.; Wang, Y.W.; Zhang, Q.H.; Jiang, G.B.; Hu, J.T. Debromination of Decabrominated Diphenyl Ether by Resin-Bound Iron Nanoparticles. Environ. Sci. Technol. 2007, 41, 6841–6846. [Google Scholar] [CrossRef] [PubMed]
  26. Bhaumik, M.; Noubactep, C.; Gupta, V.K.; McCrindle, R.I.; Maity, A. Polyaniline/Fe0 composite nanofibers: An excellent adsorbent for the removal of arsenic from aqueous solutions. Chem. Eng. J. 2015, 271, 135–146. [Google Scholar] [CrossRef]
  27. Li, X.Y.; Ai, L.H.; Jiang, J. Nanoscale zerovalent iron decorated on graphene nanosheets for Cr(VI) removal from aqueous solution: Surface corrosion retard induced the enhanced performance. Chem. Eng. J. 2016, 288, 789–797. [Google Scholar] [CrossRef]
  28. Zhu, C.F.; Zeng, Z.Y.; Li, H.; Li, F.; Fan, C.H.; Zhang, H. Single-Layer MoS2-Based Nanoprobes for Homogeneous Detection of Biomolecules. J. Am. Chem. Soc. 2013, 135, 5998–6001. [Google Scholar] [CrossRef] [PubMed]
  29. Late, D.J.; Liu, B.; Matte, H.S.S.; Matte, R.; Dravid, V.P.; Rao, C.N.R. Hysteresis in Single-Layer MoS2 Field Effect Transistors. ACS Nano 2012, 6, 5635–5641. [Google Scholar] [CrossRef] [PubMed]
  30. Yao, Y.G.; Tolentino, L.; Yang, Z.Z.; Song, X.J.; Zhang, W.; Chen, Y.S.; Wong, C.P. High-Concentration Aqueous Dispersions of MoS2. Adv. Funct. Mater. 2013, 23, 3577–3583. [Google Scholar] [CrossRef]
  31. Wang, J.; Zhang, W.T.; Yue, X.Y.; Yang, Q.F.; Liu, F.B.; Wang, Y.; Zhang, D.H.; Li, Z.H.; Wang, J.L. One-pot synthesis of multifunctional magnetic ferrite-MoS2-carbon dot nanohybrid adsorbent for efficient Pb(II) removal. J. Mater. Chem. A 2016, 4, 3893–3900. [Google Scholar] [CrossRef]
  32. Li, H.; Wu, J.; Yin, Z.Y.; Zhang, H. Preparation and Applications of Mechanically Exfoliated Single-Layer and Multilayer MoS2 and WSe2 Nanosheets. Acc. Chem. Res. 2014, 47, 1067–1075. [Google Scholar] [CrossRef] [PubMed]
  33. Pham, V.H.; Kim, K.H.; Jung, D.W.; Singh, K.; Oh, E.S.; Chung, J.S. Liquid phase co-exfoliated MoS2-graphene composites as anode materials for lithium ion batteries. J. Power Sources 2013, 244, 280–286. [Google Scholar] [CrossRef]
  34. Zhang, W.J.; Huang, J.K.; Chen, C.H.; Chang, Y.H.; Cheng, Y.J.; Li, L.J. High-Gain Phototransistors Based on a CVD MoS2 Monolayer. Adv. Funct. Mater. 2013, 25, 3456–3461. [Google Scholar] [CrossRef] [PubMed]
  35. Ding, S.J.; Zhang, D.Y.; Chen, J.S.; Lou, X.W. Facile synthesis of hierarchical MoS2 microspheres composed of few-layered nanosheets and their lithium storage properties. Nanoscale 2012, 4, 95–98. [Google Scholar] [CrossRef] [PubMed]
  36. Cheng, Z.H.; He, B.Z.; Zhou, L. A general one-step approach for in situ decoration of MoS2 nanosheets with inorganic nanoparticles. J. Mater. Chem. A 2015, 3, 1042–1048. [Google Scholar] [CrossRef]
  37. Wang, L.C.; Ni, S.Q.; Guo, C.L.; Qian, Y.T. One pot synthesis of ultrathin boron nitride nanosheet-supported nanoscale zerovalent iron for rapid debromination of polybrominated diphenyl ethers. J. Mater. Chem. A 2013, 1, 6379–6387. [Google Scholar] [CrossRef]
  38. McDonnell, S.; Brennan, B.; Azcatl, A.; Lu, N.; Dong, H.; Buie, C.; Kim, J.; Hinkle, C.L.; Kim, M.J.; Wallace, R.M. HfO2 on MoS2 by Atomic Layer Deposition: Adsorption Mechanisms and Thickness Scalability. ACS Nano 2013, 7, 10354–10361. [Google Scholar] [CrossRef] [PubMed]
  39. Razali, M.; Kim, J.F.; Attfield, M.; Budd, P.M.; Drioli, E.; Lee, Y.M.; Szekely, G. Sustainable wastewater treatment and recycling in membrane manufacturing. Green Chem. 2015, 17, 5196–5205. [Google Scholar] [CrossRef]
  40. Li, W.W.; Yu, H.Q.; He, Z. Towards sustainable wastewater treatment by using microbial fuel cells-centered technologies. Energy Environ. Sci. 2014, 7, 911–924. [Google Scholar] [CrossRef]
  41. Chang, K.; Chen, W.X. In situ synthesis of MoS2/graphene nanosheet composites with extraordinarily high electrochemical performance for lithium ion batteries. Chem. Commun. 2011, 47, 4252–4254. [Google Scholar] [CrossRef] [PubMed]
  42. Mu, B.; Wang, A.Q. One-pot fabrication of multifunctional superparamagnetic attapulgite/Fe3O4/polyaniline nanocomposites served as an adsorbent and catalyst support. J. Mater. Chem. A 2015, 3, 281–289. [Google Scholar] [CrossRef]
  43. Wang, X.; Hong, M.Z.; Zhang, F.W.; Zhuang, Z.Y.; Yu, Y. Recyclable Nanoscale Zero Valent Iron Doped g-C3N4/MoS2 for Efficient Photocatalysis of RhB and Cr(VI) Driven by Visible Light. ACS Sustain. Chem. Eng. 2016, 4, 4055–4063. [Google Scholar] [CrossRef]
  44. Li, X.Y.; Gai, F.Y.; Guan, B.; Zhang, Y.; Liu, Y.L.; Huo, Q.S. Fe@C core-shell and Fe@C yolk-shell particles for effective removal of 4-chlorophenol. J. Mater. Chem. A 2015, 3, 3988–3994. [Google Scholar] [CrossRef]
  45. Wang, Y.X.; Sun, H.Q.; Duan, X.G.; Ang, H.M.; Tadé, M.O.; Wang, S.B. A new magnetic nano zero-valent iron encapsulated in carbon spheres for oxidative degradation of phenol. Appl. Catal. B Environ. 2015, 172–173, 73–81. [Google Scholar] [CrossRef]
  46. Zhu, H.J.; Jia, Y.F.; Wu, X.; Wang, H. Removal of arsenic from water by supported nano zero-valent iron on activated carbon. J. Hazard. Mater. 2009, 172, 1591–1596. [Google Scholar] [CrossRef] [PubMed]
  47. Liu, M.H.; Wang, Y.H.; Chen, L.T.; Zhang, Y.; Lin, Z. Mg(OH)2 Supported Nanoscale Zero Valent Iron Enhancing the Removal of Pb(II) from Aqueous Solution. ACS Appl. Mater. Interfaces 2015, 7, 7961–7969. [Google Scholar] [CrossRef] [PubMed]
  48. Zhang, X.H.; Tang, H.; Xue, M.Q.; Li, C.S. Facile synthesis and characterization of ultrathin MoS2 nanosheets. Mater. Lett. 2014, 130, 83–86. [Google Scholar] [CrossRef]
  49. Ren, Y.M.; Yan, N.; Feng, J.; Ma, J.; Wen, Q.; Li, N.; Dong, Q. Adsorption mechanism of copper and lead ions onto graphene nanosheet/δ-MnO2. Mater. Chem. Phys. 2012, 136, 538–544. [Google Scholar] [CrossRef]
  50. Chen, Y.; Song, B.H.; Tang, X.S.; Lu, L.; Xue, J.M. Ultrasmall Fe3O4 Nanoparticle/MoS2 Nanosheet Composites with Superior Performances for Lithium Ion Batteries. Small 2014, 10, 1536–1543. [Google Scholar] [CrossRef] [PubMed]
  51. Liu, T.; Shi, S.X.; Liang, C.; Shen, S.D.; Cheng, L.; Wang, C.; Song, X.J.; Goel, S.; Barnhart, T.E.; Cai, W.B.; et al. Iron Oxide Decorated MoS2 Nanosheets with Double PEGylation for Chelator-Free Radiolabeling and Multimodal Imaging Guided Photothermal Therapy. ACS Nano 2015, 9, 950–960. [Google Scholar] [CrossRef] [PubMed]
  52. Song, H.J.; You, S.S.; Jia, X.H.; Yang, J. MoS2 nanosheets decorated with magnetic Fe3O4 nanoparticles and their ultrafast adsorption for wastewater treatment. Ceram. Int. 2015, 41, 13896–13902. [Google Scholar] [CrossRef]
  53. Harris, T.V.; Szilagyi, R.K. Iron-sulfur bond covalency from electronic structure calculations for classical iron-sulfur clusters. J. Comput. Chem. 2014, 35, 540–552. [Google Scholar] [CrossRef] [PubMed]
  54. Kim, G.; Jeong, W.; Choe, S. Dechlorination of atrazine using zero-valent iron (Fe0) under neutral pH conditions. J. Hazard. Mater. 2008, 155, 502–506. [Google Scholar] [CrossRef] [PubMed]
  55. Segura, Y.; Martínez, F.; Melero, J.; Fierro, J. Zero valent iron (ZVI) mediated Fenton degradation of industrial wastewater: Treatment performance and characterization of final composites. Chem. Eng. J. 2015, 269, 298–305. [Google Scholar] [CrossRef]
  56. Titus, M.; Molina, V.; Banos, M.; Gimenez, J.; Esplugas, S. Degradation of chlorophenols by means of advanced oxidation processes: A general review. Appl. Catal. B Environ. 2004, 47, 219–256. [Google Scholar] [CrossRef]
  57. Kwon, B.G.; Lee, D.S.; Kang, N.; Yoon, J. Characteristics of p-chlorophenol oxidation by Fenton’s reagent. Water Res. 1999, 33, 2110–2118. [Google Scholar] [CrossRef]
  58. Dombek, T.; Dolan, E.; Schultz, J.; Klarup, D. Rapid reductive dechlorination of atrazine by zero-valent iron under acidic conditions. Environ. Pollut. 2001, 111, 21–27. [Google Scholar] [CrossRef]
  59. Fu, H.X.; Lu, G.X.; Li, S.B. Adsorption and photo-induced reduction of Cr(VI) ion in Cr(VI)-4CP (4-chlorophenol) aqueous system in the presence of TiO2, as photocatalyst. J. Photochem. Photobiol. A Chem. 1998, 114, 81–88. [Google Scholar] [CrossRef]
  60. Kumar, A.; Guo, C.S.; Sharma, G.; Pathania, D.; Naushad, M.; Kalia, S.; Dhiman, P. Magnetically recoverable ZrO2/Fe3O4/chitosan nanomaterials for enhanced sunlight driven photoreduction of carcinogenic Cr(VI) and dechlorination & mineralization of 4-chlorophenol from simulated waste water. RSC Adv. 2016, 6, 13251–13263. [Google Scholar]
  61. Homaeigohar, S.; Zillohu, A.U.; Abdelaziz, R.; Hedayati, M.K.; Elbahri, M. A Novel Nanohybrid Nanofibrous Adsorbent for Water Purification from Dye Pollutants. Materials 2016, 9, 848. [Google Scholar] [CrossRef] [PubMed]
  62. Sun, X.T.; Yang, L.G.; Li, Q.; Zhao, J.M.; Li, X.P.; Wang, X.Q.; Liu, H.Z. Amino-functionalized magnetic cellulose nanocomposite as adsorbent for removal of Cr(VI): Synthesis and adsorption studies. Chem. Eng. J. 2014, 241, 175–183. [Google Scholar] [CrossRef]
  63. Diao, Z.H.; Xu, X.R.; Jiang, D.; Kong, L.J.; Sun, Y.X.; Hu, Y.X.; Hao, Q.W.; Chen, H. Bentonite-supported nanoscale zero-valent iron/persulfate system for the simultaneous removal of Cr(VI) and phenol from aqueous solutions. Chem. Eng. J. 2016, 302, 213–222. [Google Scholar] [CrossRef]
  64. Deng, Y.C.; Tang, L.; Zeng, G.M.; Zhu, Z.J.; Yan, M.; Zhou, Y.Y.; Wang, J.J.; Liu, Y.N.; Wang, J.J. Insight into highly efficient simultaneous photocatalytic removal of Cr(VI) and 2,4-diclorophenol under visible light irradiation by phosphorus doped porous ultrathin g-C3N4 nanosheets from aqueous media: Performance and reaction mechanism. Appl. Catal. B Environ. 2017, 203, 343–354. [Google Scholar] [CrossRef]

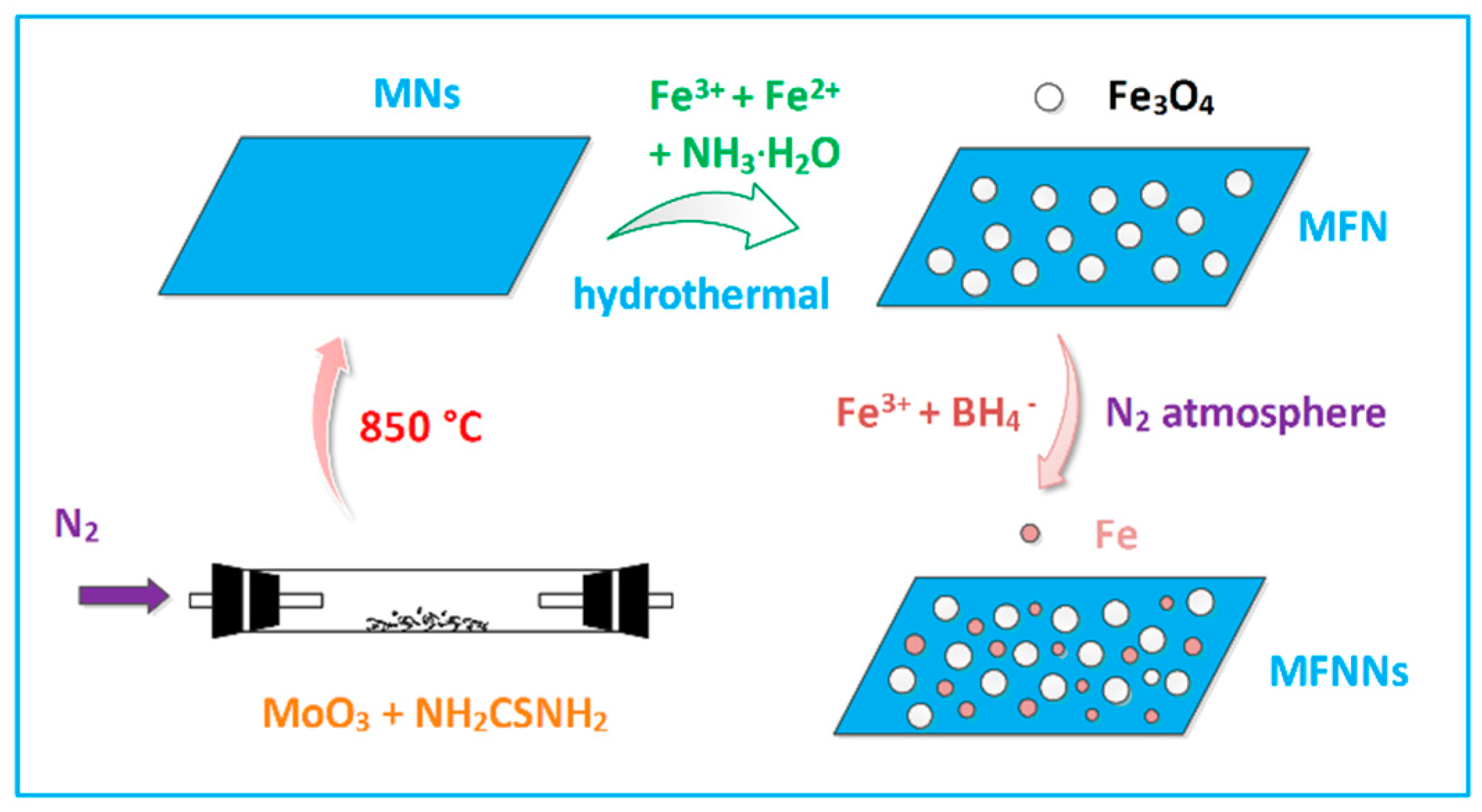

Scheme 1. The synthesis schematic of MFNNs.
Scheme 1. The synthesis schematic of MFNNs.
Nanomaterials 07 00303 sch001
Figure 1. XRD patterns of (a) MoS2 nanosheets (MNs), (b) MoS2/Fe3O4 nanocomposite (MFN), (c) MoS2/Fe3O4/nZVI nanocomposites (MFNNs).
Figure 1. XRD patterns of (a) MoS2 nanosheets (MNs), (b) MoS2/Fe3O4 nanocomposite (MFN), (c) MoS2/Fe3O4/nZVI nanocomposites (MFNNs).
Nanomaterials 07 00303 g001
Figure 2. Nitrogen adsorption-desorption curves of (a) MNs, (b) Fe3O4 NPs, (c) bare nZVI, and (d) MFNNs.
Figure 2. Nitrogen adsorption-desorption curves of (a) MNs, (b) Fe3O4 NPs, (c) bare nZVI, and (d) MFNNs.
Nanomaterials 07 00303 g002
Figure 3. SEM images of (a) MNs, (b) MFN, (c) MFNNs, and (d) bare nZVI.
Figure 3. SEM images of (a) MNs, (b) MFN, (c) MFNNs, and (d) bare nZVI.
Nanomaterials 07 00303 g003
Figure 4. TEM images of (a) MNs, (b) bare nZVI, (c) MFNNs, (d) the red rectangular region in Figure 4c at a higher magnification, (e) the blue rectangular region in Figure 4d at a higher magnification, (f) the purple rectangular region in Figure 4d at a higher magnification.
Figure 4. TEM images of (a) MNs, (b) bare nZVI, (c) MFNNs, (d) the red rectangular region in Figure 4c at a higher magnification, (e) the blue rectangular region in Figure 4d at a higher magnification, (f) the purple rectangular region in Figure 4d at a higher magnification.
Nanomaterials 07 00303 g004

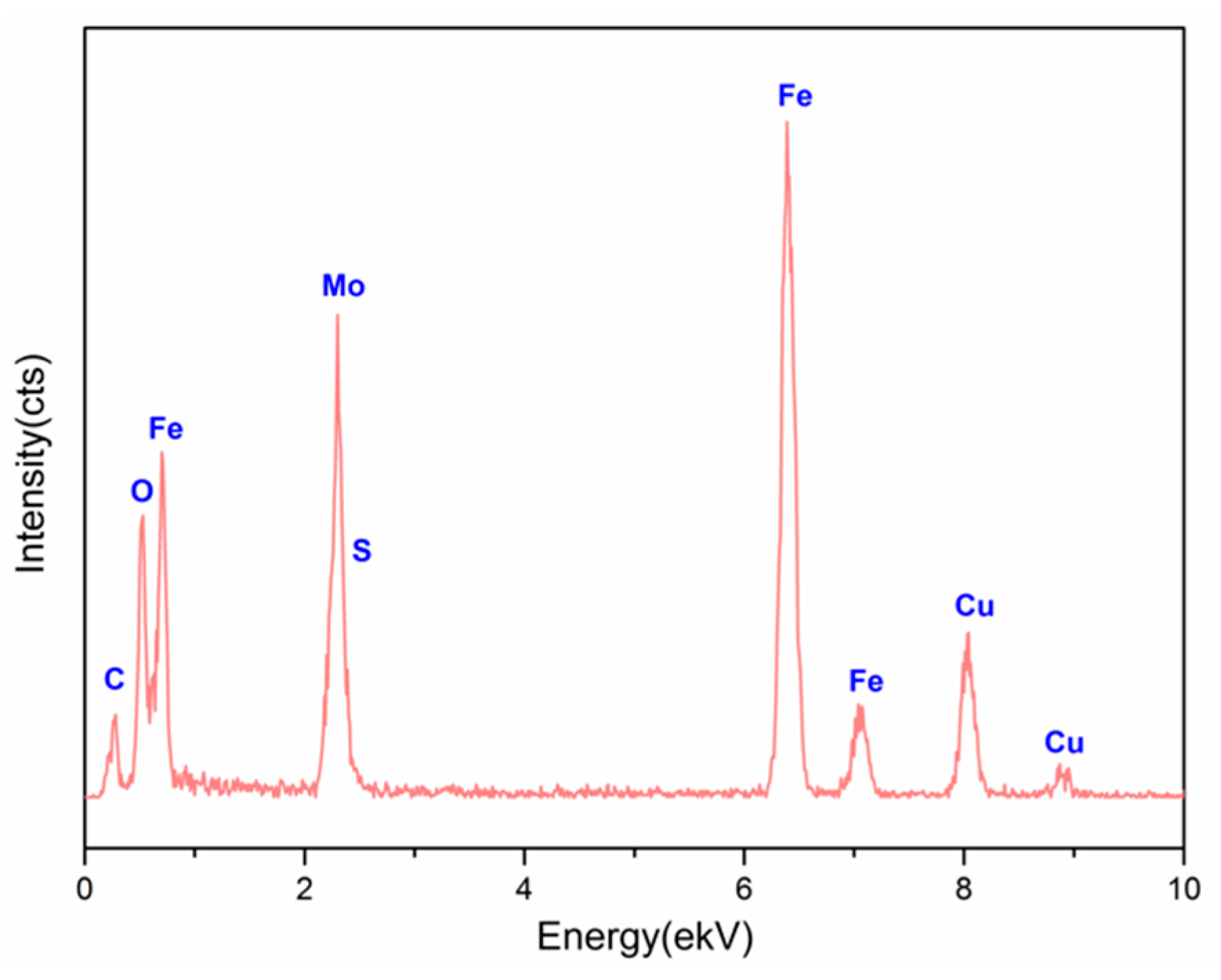

Figure 5. EDS of MFNNs in the region of Figure 4c.
Figure 5. EDS of MFNNs in the region of Figure 4c.
Nanomaterials 07 00303 g005

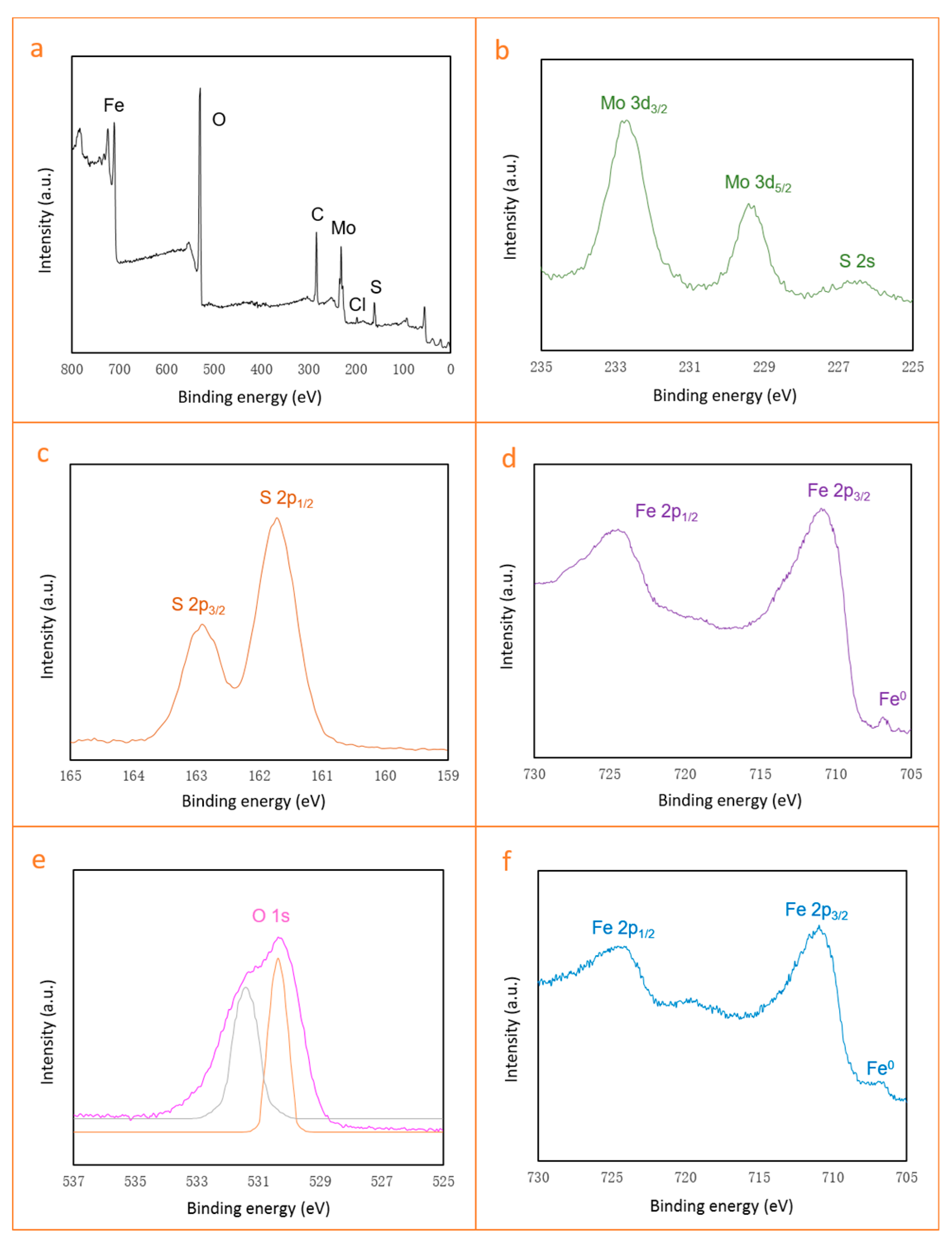

Figure 6. (a) The overall XPS spectrum of the MFNNs and individual (b) Mo 3d, (c) S 2p, (d) Fe 2p, and (e) O 1s XPS spectrums of the MFNNs, as well as (f) the Fe 2p XPS spectrum of bare nZVI.
Figure 6. (a) The overall XPS spectrum of the MFNNs and individual (b) Mo 3d, (c) S 2p, (d) Fe 2p, and (e) O 1s XPS spectrums of the MFNNs, as well as (f) the Fe 2p XPS spectrum of bare nZVI.
Nanomaterials 07 00303 g006
Figure 7. TEM images of (a) MFN loaded with excess Fe3O4 particles (MoS2:Fe3O4, weight ratio of 5:2), (b) MFNNs with excess free nZVI particles (MoS2:Fe3O4:nZVI, weight ratio of 4:1:1.15).
Figure 7. TEM images of (a) MFN loaded with excess Fe3O4 particles (MoS2:Fe3O4, weight ratio of 5:2), (b) MFNNs with excess free nZVI particles (MoS2:Fe3O4:nZVI, weight ratio of 4:1:1.15).
Nanomaterials 07 00303 g007

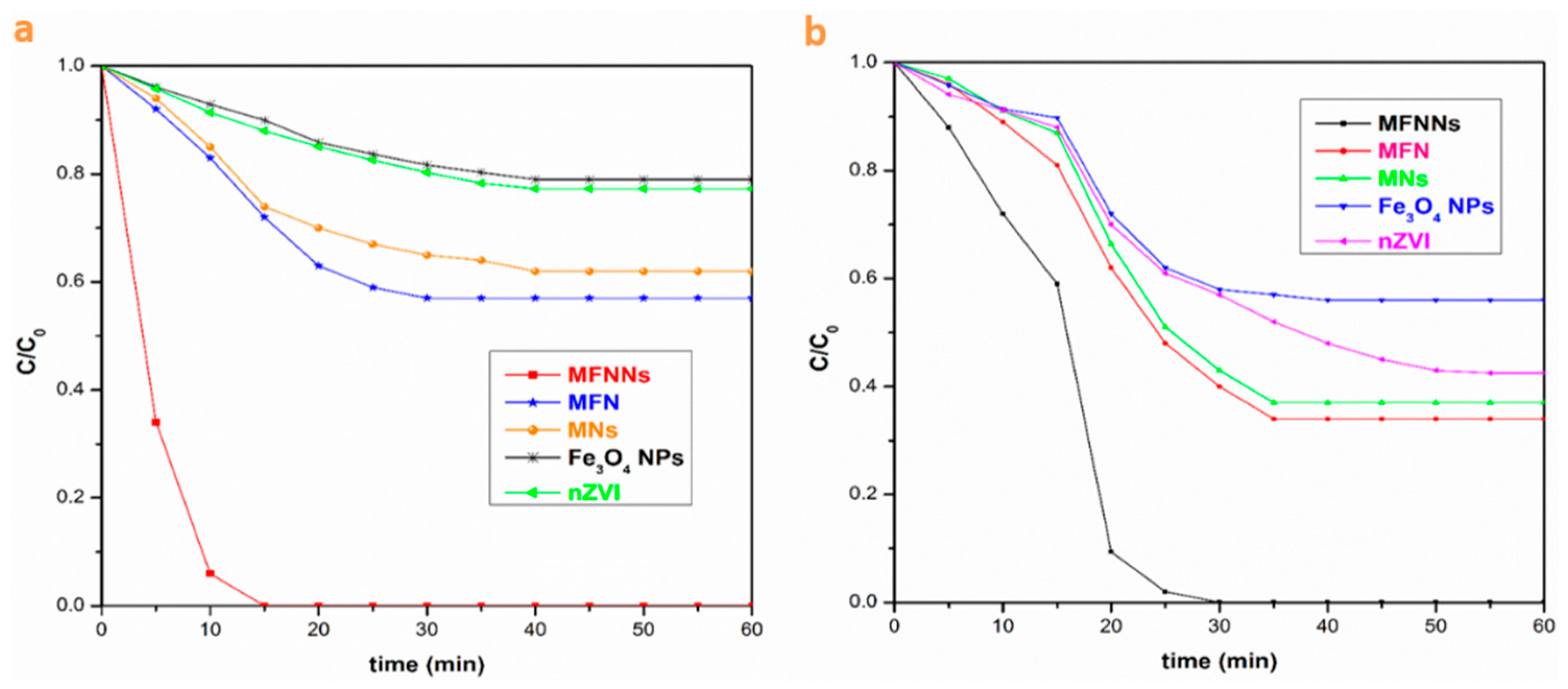

Figure 8. Effect of catalyst species on the simultaneous removal of (a) Cr(VI) and (b) 4-CP. (Experiment conditions: [Cr(VI)]0 = 10.0 mg/L, [4-CP]0= 100.0 mg/L,[catalyst]= 0.20 g/L, [H2O2]0 = 4.90 mM, pH = 3.0).
Figure 8. Effect of catalyst species on the simultaneous removal of (a) Cr(VI) and (b) 4-CP. (Experiment conditions: [Cr(VI)]0 = 10.0 mg/L, [4-CP]0= 100.0 mg/L,[catalyst]= 0.20 g/L, [H2O2]0 = 4.90 mM, pH = 3.0).
Nanomaterials 07 00303 g008

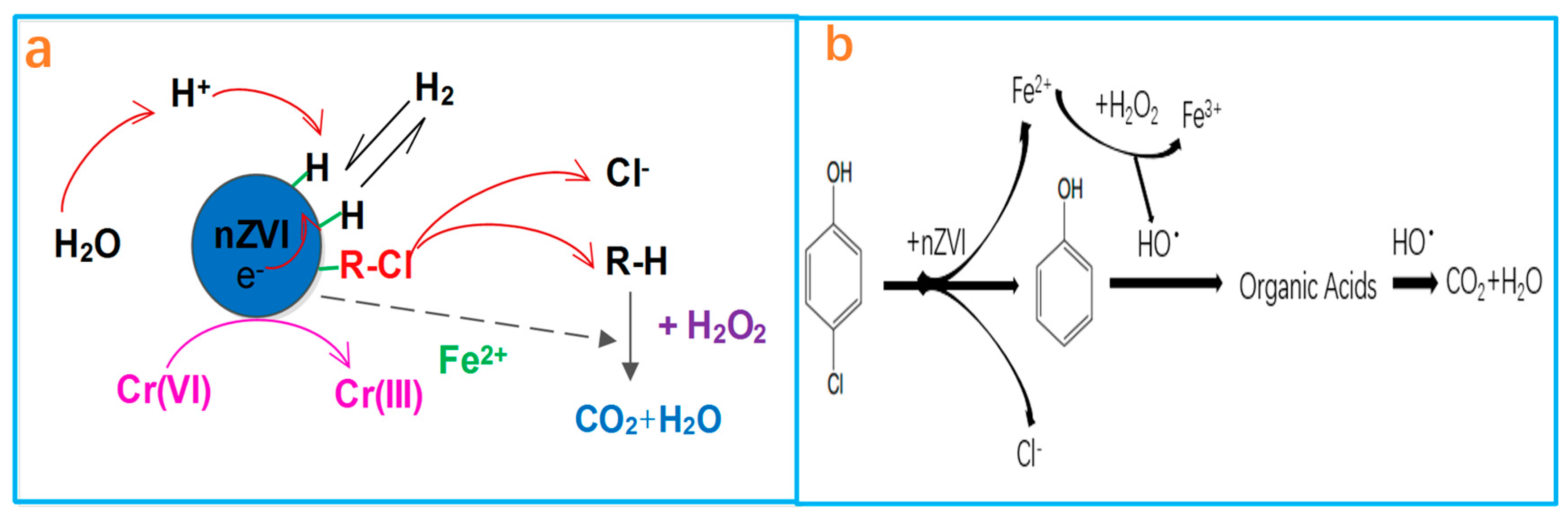

Scheme 2. (a) Schematic of mechanisms for the simultaneous removal of Cr(VI) and 4-CP (R-Cl) by nZVI from aqueous solution. (b) Schematic of mechanisms for the degradation of 4-CP in this study.
Scheme 2. (a) Schematic of mechanisms for the simultaneous removal of Cr(VI) and 4-CP (R-Cl) by nZVI from aqueous solution. (b) Schematic of mechanisms for the degradation of 4-CP in this study.
Nanomaterials 07 00303 sch002

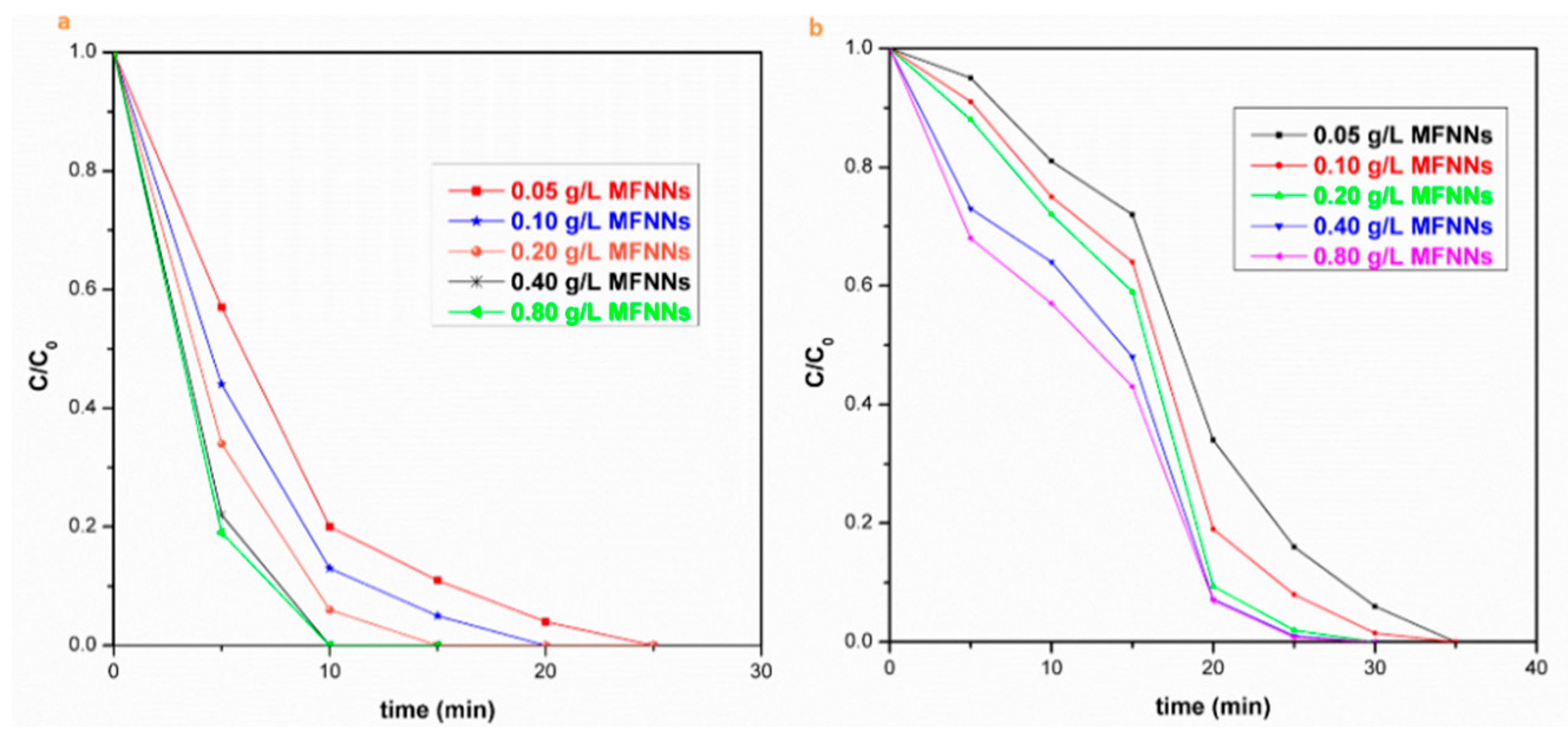

Figure 9. Effect of MFNN dosage on the simultaneous removal of (a) Cr(VI) and (b) 4-CP. (Experiment conditions: [Cr(VI)]0 = 10.0 mg/L, [4-CP]0 = 100.0 mg/L, [H2O2]0 = 4.90 mM, pH = 3.0).
Figure 9. Effect of MFNN dosage on the simultaneous removal of (a) Cr(VI) and (b) 4-CP. (Experiment conditions: [Cr(VI)]0 = 10.0 mg/L, [4-CP]0 = 100.0 mg/L, [H2O2]0 = 4.90 mM, pH = 3.0).
Nanomaterials 07 00303 g009

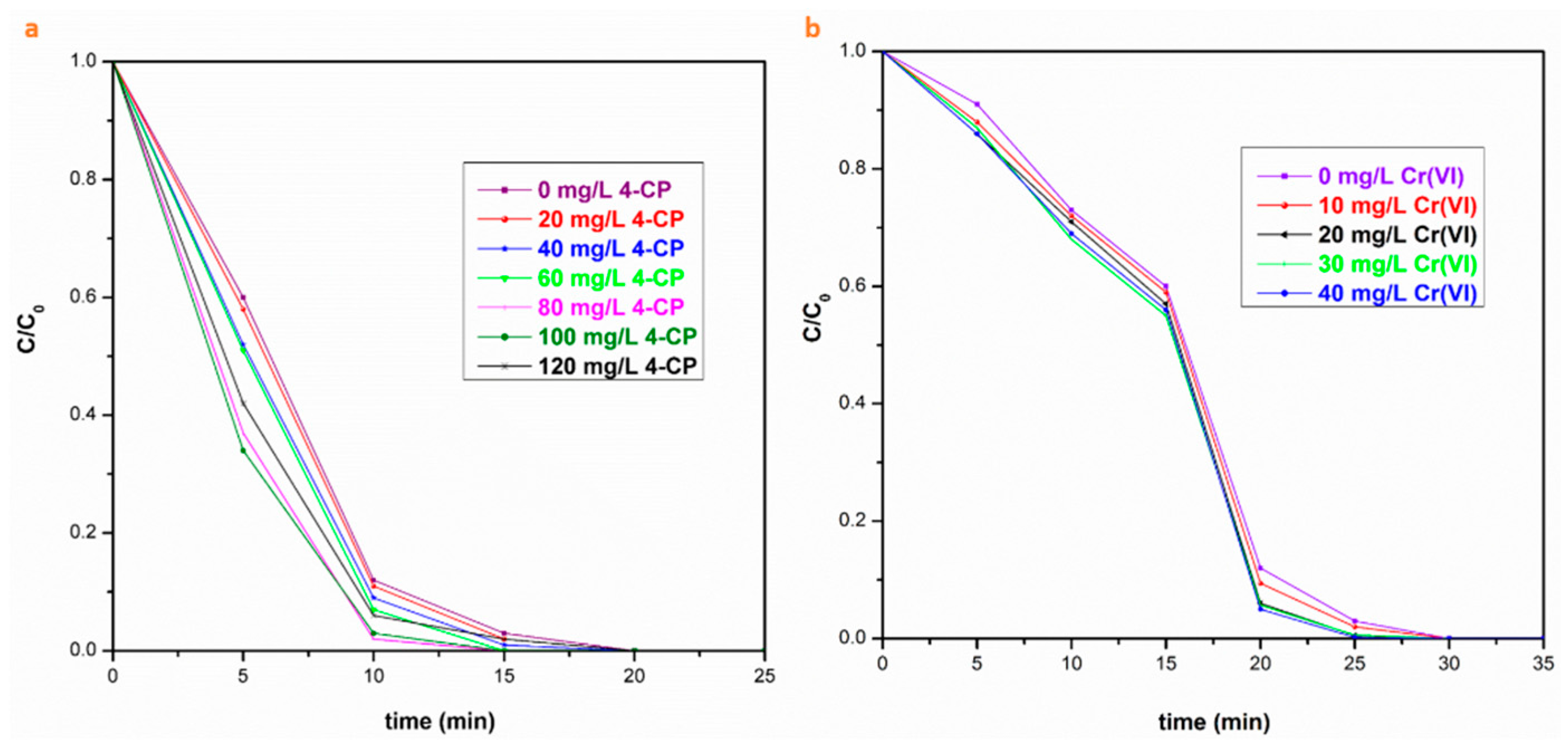

Figure 10. (a) Effect of initial 4-CP concentration on Cr(VI) removal by MFNNs. (Experiment conditions: [Cr(VI)]0 = 10.0 mg/L, [MFNNs] = 0.20 g/L, [H2O2]0 = 4.90 mM, pH = 3.0). (b) Effect of initial Cr(VI) concentration on 4-CP removal by MFNNs. (Experiment conditions: [4-CP]0 = 100.0 mg/L, [MFNNs] = 0.20 g/L, [H2O2]0 = 4.90 mM, pH = 3.0).
Figure 10. (a) Effect of initial 4-CP concentration on Cr(VI) removal by MFNNs. (Experiment conditions: [Cr(VI)]0 = 10.0 mg/L, [MFNNs] = 0.20 g/L, [H2O2]0 = 4.90 mM, pH = 3.0). (b) Effect of initial Cr(VI) concentration on 4-CP removal by MFNNs. (Experiment conditions: [4-CP]0 = 100.0 mg/L, [MFNNs] = 0.20 g/L, [H2O2]0 = 4.90 mM, pH = 3.0).
Nanomaterials 07 00303 g010

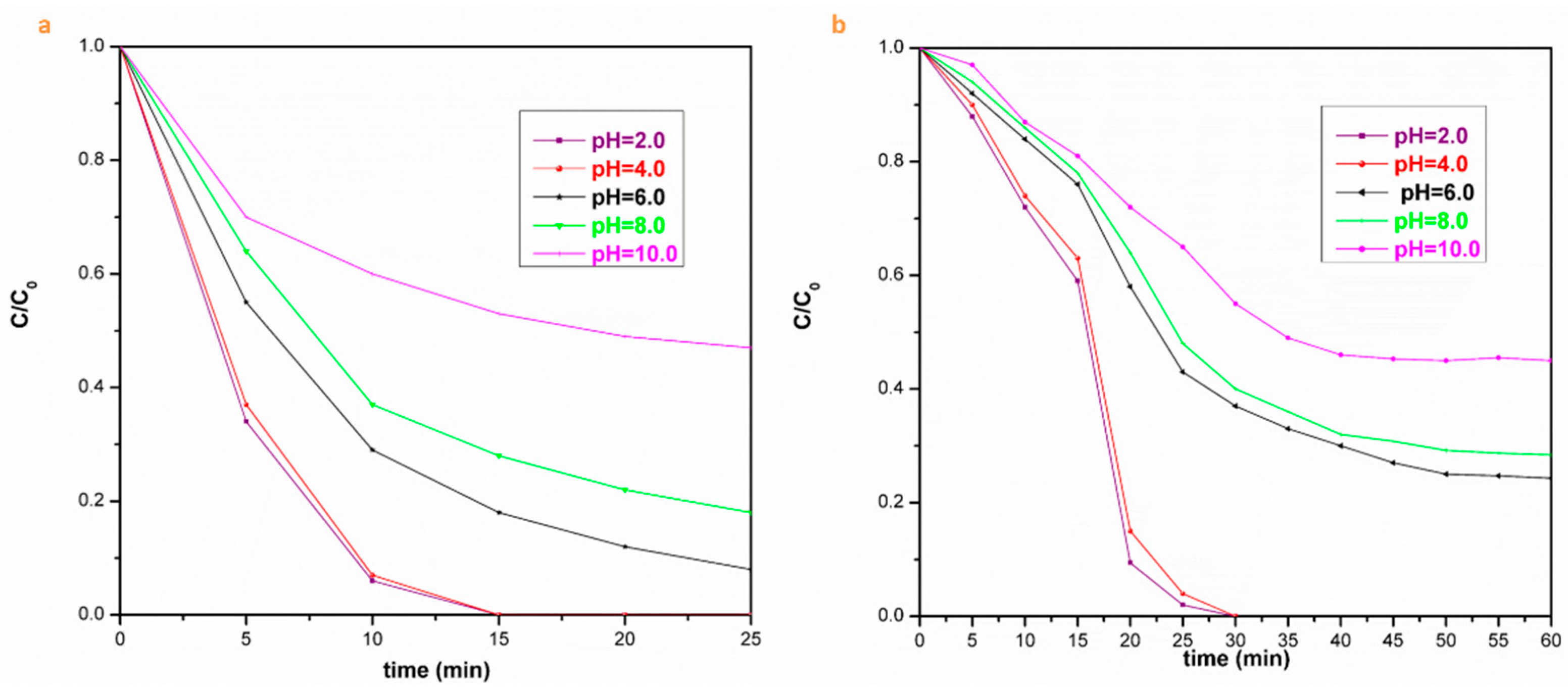

Figure 11. Effect of pH on the simultaneous removal of (a) Cr(VI) and (b) 4-CP by MFNNs. (Experiment conditions: [Cr(VI)]0 = 10.0 mg/L, [4-CP]0 = 100.0 mg/L, [MFNNs] = 0.20 g/L, [H2O2]0 = 4.90 mM).
Figure 11. Effect of pH on the simultaneous removal of (a) Cr(VI) and (b) 4-CP by MFNNs. (Experiment conditions: [Cr(VI)]0 = 10.0 mg/L, [4-CP]0 = 100.0 mg/L, [MFNNs] = 0.20 g/L, [H2O2]0 = 4.90 mM).
Nanomaterials 07 00303 g011

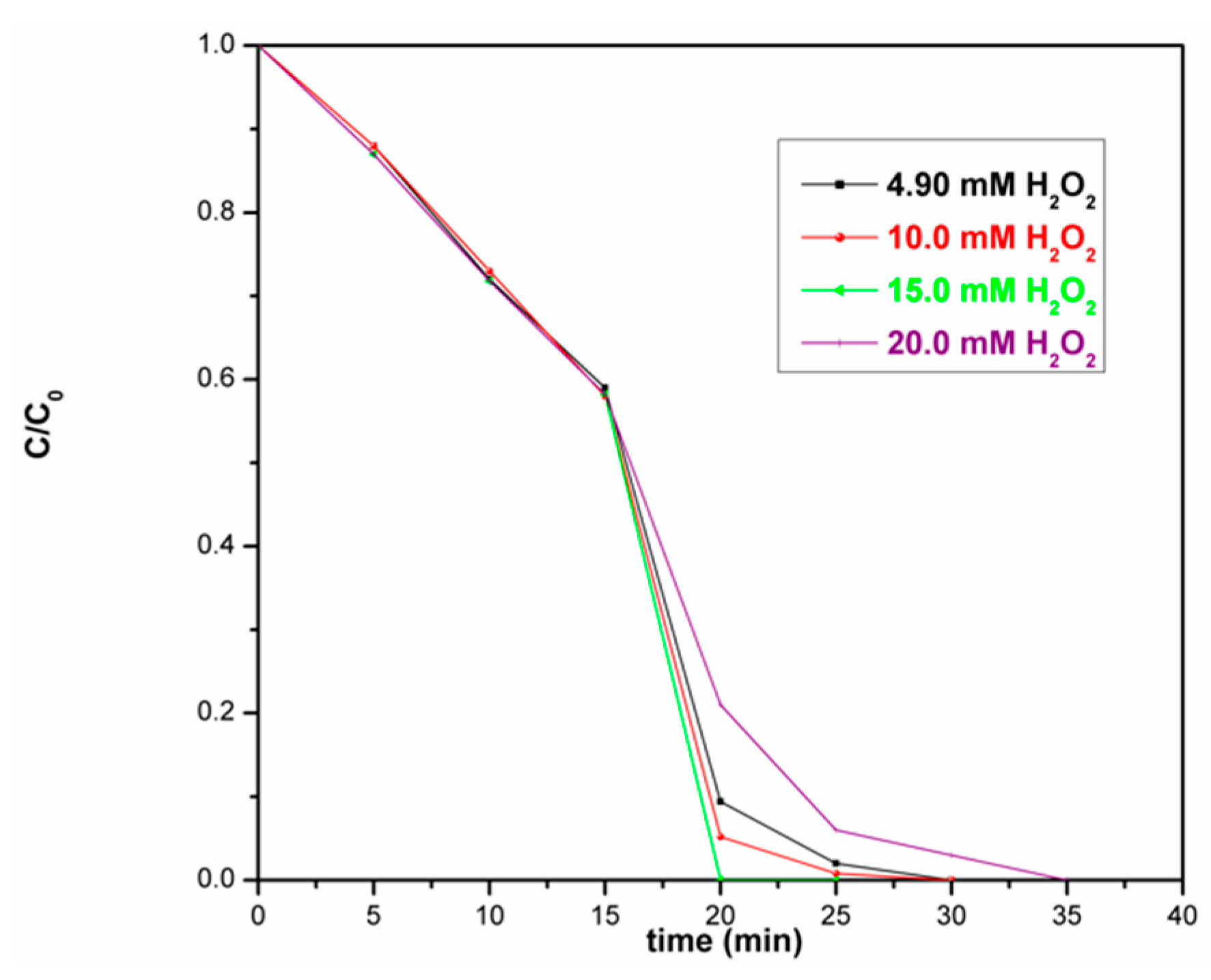

Figure 12. Effect of H2O2 concentration on 4-CP removal by MFNNs. (Experiment conditions: [Cr(VI)]0 = 10.0 mg/L, [4-CP]0 = 100.0 mg/L, [MFNNs] = 0.20 g/L, pH = 3.0).
Figure 12. Effect of H2O2 concentration on 4-CP removal by MFNNs. (Experiment conditions: [Cr(VI)]0 = 10.0 mg/L, [4-CP]0 = 100.0 mg/L, [MFNNs] = 0.20 g/L, pH = 3.0).
Nanomaterials 07 00303 g012
Figure 13. (a) Photographs of the nanocomposites in aqueous solution before (left) and after (right) the placement of a magnet. (b) The reusability of MFNNs for the removal of Cr(VI) in 15 min and 4-CP in 60 min. (Experiment conditions: [Cr(VI)]0 = 10.0 mg/L, [4-CP]0 = 100.0 mg/L, [MFNNs] = 0.20 g/L, [H2O2]0 = 4.90 mM, pH = 3.0).
Figure 13. (a) Photographs of the nanocomposites in aqueous solution before (left) and after (right) the placement of a magnet. (b) The reusability of MFNNs for the removal of Cr(VI) in 15 min and 4-CP in 60 min. (Experiment conditions: [Cr(VI)]0 = 10.0 mg/L, [4-CP]0 = 100.0 mg/L, [MFNNs] = 0.20 g/L, [H2O2]0 = 4.90 mM, pH = 3.0).
Nanomaterials 07 00303 g013
Table 1. Specific surface areas of different nZVI nanocomposites.
Table 1. Specific surface areas of different nZVI nanocomposites.
nZVI NanocompositesSpecific Surface Area (m2/g)Reference
MoS2/Fe3O4/nZVI76.9-
g-C3N4/MoS2/nZVI37.5[43]
nZVI/C yolk–shell particles65.0[44]
Fe3C/C/nZVI42.3[45]
activated carbon/nZVI69.4[46]
Mg(OH)2/nZVI40.2[47]
Table 2. Parameters of the Langmuir and Freundlich models for the adsorption of Cr(VI) on MFNNs.
Table 2. Parameters of the Langmuir and Freundlich models for the adsorption of Cr(VI) on MFNNs.
Langmuir Freundlich
qm (mg/g)346.34K (mg1−(1/n) L1/n/g)0.103
b (L/mg)0.013n1.64
R20.986R20.919
Table 3. Parameters of the pseudo first and second-order kinetic models for the adsorption of Cr(VI) on MFNNs.
Table 3. Parameters of the pseudo first and second-order kinetic models for the adsorption of Cr(VI) on MFNNs.
Pseudo First-Order Pseudo Second-Order
qe, cal (mg/g)327.17qe, cal (mg/g)319.88
k1 (min−1)0.123k2 ((g/(mg·min))0.0131
R20.990R20.902
Nanomaterials EISSN 2079-4991 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
