N-doped TiO2 Nanotubes as an Effective Additive to Improve the Catalytic Capability of Methanol Oxidation for Pt/Graphene Nanocomposites

by
Xiaohua Wang
,
Yueming Li
*,
Shimin Liu
and
Long Zhang
State Key Laboratory of Metastable Materials Science and Technology, College of Materials Science and Engineering, Yanshan University, Qinhuangdao 066004, China
*
Author to whom correspondence should be addressed.
Nanomaterials 2016, 6(3), 40; https://doi.org/10.3390/nano6030040
Submission received: 11 December 2015 / Revised: 27 January 2016 / Accepted: 16 February 2016 / Published: 26 February 2016
(This article belongs to the Special Issue Nanoparticles for Catalysis)
Browse Figures
Versions Notes

Abstract

:
N-doped TiO2 nanotubes have been prepared as additives to improve the catalytic capability of Pt/graphene composites in methanol oxidation reactions. Electrochemical experiments show that the catalytic performance of Pt/graphene composites has been greatly improved by the introduction of N-doped TiO2 nanotubes.

1. Introduction

Carbon materials are widely used as electrode materials in supercapacitors, batteries and catalyst carrier in fuel cells [1,2,3]. Novel carbon materials especially such as carbon nanotubes (CNTs), mesoporous carbon, carbon nanoparticles and graphene nanosheets have drawn much more attention in the field of energy storage and conversion due to their high conductivity, large surface area and good chemical stability [4,5].
The direct methanol fuel cell (DMFC) is considered a promising power source for portable electronic devices [6,7]. One key challenge is to develop catalysts with high catalytic capability. The form of carbon is found to play an important role for the catalytic performance of anode catalysts in DMFC [8]. Materials with high surface area will show obvious advantages due to the facilitated mass and charge transport and a higher electrode/electrolyte contact area [9]. Graphene nanosheets have shown improved catalytic performance as support carrier compared with traditional carbon black due to the high specific surface area and high conductivity, according to previous work by us and another group [10,11,12]. However, the catalytic performance for Pt/graphene based catalyst need to be further improved to reduce the usage of noble metal. A lot of methods have been used to improve the electrochemical performance of Pt based catalyst by modifying the support carrier. For example, nitrogen doping has proved to be an effective strategy to improve the electrochemical performance of graphene materials. A series of N-doped graphene/Pt nanocomposites have been prepared and showed improved electrochemical activity toward methanol oxidation [13,14,15].
Transition metal oxides such as CeO2, SnO2, MnO2, and TiO2 can be employed as support carriers to improve the electrocatalysts activity and stability [16,17]. Among these metal oxides, TiO2 is of particular interest due to the good corrosion resistance, low price and environmentally-friendly nature. TiO2 as a semiconductor has a low electric conductivity, which limited its total substitution of carbon support carriers. Considering the high conductivity of carbon materials, TiO2/carbon materials composites are frequently used as support to overcome the disadvantage of TiO2 [18,19]. Furthermore, the electrochemical performance of TiO2 is also dependent on its crystal phase and chemical doping [20].
Considering the special properties of N-doped TiO2, in this report, high performance Pt/graphene catalyst were prepared in which N-doped TiO2 nanotubes was added as additives, and the catalytic performance toward methanol oxidation reaction indicated that as formed composites had much improved catalytic activity compared with Pt/graphene composites without additives.

2. Results and Discussion

Figure 1A shows the X-ray diffraction (XRD) pattern of TiO2 nanotubes and N-doped TiO2 nanotubes. For TiO2 nanotubes, most of the strong peaks can be easily indexed to anatase-phase TiO2 (JCPDS No. 21-1272). In contrast, the broadened peaks at ~26° for N-doped sample might be related to distortion in the O–Ti–O lattice due to the doping of nitrogen into TiO2, similar to our previous report [21]. Figure 1B shows the N2 adsorption/desorption isotherm at 77 K. These isotherms exhibit characteristics of characteristics of type IV, indicating the presence of meso and micro pores. The total specific surface areas (SSA) of N-doped and undoped TiO2 evaluated using the Brunauer–Emmett–Teller (BET) equation were 257.7 and 267.6 m2·g−1, respectively. The N-doped TiO2 sample showed a light yellow color, which is obviously different to the white color of undoped sample (inset of Figure 1B). As shown in Figure 1C, the N-doped TiO2 nanotubes showed the typical hollow tubular morphology with a diameter ~7–10 nm, up to hundreds of nanometer in length, and the wall thickness of the nanotube is approximately 2–3 nm. Notably, TiO2 nanorods may form under certain heat treatment of titanium hydrogen oxide nanotubes such as under hydrogen atmosphere [22]. The XRD patterns of the graphite oxide (GO), Pt/graphene (Pt/G), Pt/graphene with N-doped TiO2 nanotubes (Pt/G-NT) and Pt/Graphene with undoped TiO2 nanotubes (Pt/G-T) are shown in Figure 1D. As shown in the XRD pattern of GO, the characteristic peak at 10.8° indicated the successful oxidation of graphite. The strong diffraction peaks at ~39.9° and 46.2° in the XRD patterns correspond to the (111), and (200) facets of the face-centered cubic structures of platinum crystal, which are in good agreement with the cubic Pt (JCPDS No. 4-802). The broad peak located at ~24° indicates the reduction of graphite oxide into poorly ordered graphene nanosheets. Although N-doped TiO2 nanotubes were added during the preparation process, no peaks corresponding to TiO2 were detected due to the small amounts added.
The typical TEM image of Pt/G-NT nanocomposites (Figure 1D) showed that the Pt nanoparticles were deposited on the surface of graphene nanosheets. No TiO2 nanotubes additive in the Pt/graphene composites can be seen from the TEM image due to the low ratio of GO: N-TiO2 nanotubes and the reaction of N-TiO2 in the solution. As shown in Figure 1E, it is clearly visible that Pt nanoparticles with diameter in the range of 3–10 nm were decorated on the surface of graphene nanosheets. High resolution transmission electron microscopy (HRTEM) investigation (Figure 1F) showed that the lattice fringes with a spacing of ~0.23 nm can be seen in these domains, consistent with the spacing of the (111) planes of Pt calculated from XRD.
The X-ray photoelectron spectroscopy (XPS) survey spectrum of as prepared N-doped TiO2 (Figure 2A) confirms the presence of Ti, O, and N, while that of Pt/G-NT proves that the presence of Pt, C, O, Ti and N. The Ti 2p XPS spectrum (Figure 2B) can be deconvoluted into three peaks centered at about 284.8, 285.5 and 287.2 eV, corresponding to C–C, C–O and C=O bonding, respectively. Figure 2B illustrates the high-resolution XPS spectra of Ti 2p. Two prominent peaks located at about 458.7 and 464.2 eV for N-doped TiO2 can be assigned to Ti 2p3/2 and Ti 2p1/2, respectively. The binging energy of Ti 2p peak shifts to lower energies compared to that of Ti4+, indicating the presence of trivalent Ti bonding due to the partial substitution of O atom in the TiO2 with a N atom [23]. In contrast, the doublet peaks for Pt/G-NT shifted to higher binding energies, suggesting the valence state of Ti3+ has changed to Ti4+. The entire process is still not very clear. The possible process might be as follows. The “TiN” on the surface of N-doped TiO2 nanotubes can react with water or NaOH in the solution [24]. During this process, trivalent Ti changed into tetravalent Ti4+, while N was released in the form of NH3. The as-formed NH3 in aqueous solution will react with GO, resulting to the formation of N-doped graphene. Quantitative XPS analysis shows that the doping level of Ti in Pt/G-NT is ~0.17 atomic (at.) %. The O 1s spectrum of N-doped TiO2 is shown in Figure 2C with their peak curve-fitting lines with respect to the chemical states. The O 1s peaks can be fitted into two peaks at about 530.1 and 532.2 eV, which are assigned to Ti–O and chemisorbed oxygen, respectively. In comparison to the C 1s spectrum of the GO, that of Pt/G-NT sample showed sharply decreased intensity for peak(s) corresponding to the epoxy/ether group (286.9 eV, Figure 2D), indicating that most these oxygen containing groups have been removed during reaction. Notably, sp2 C–N peak is overlapping with C–O peak, and sp3 C–N peak is also overlapping with C=O peak [25,26,27]. The high-resolution N 1s XPS spectrum shown in Figure 2E reveals the presence of Ti-N bond as well as O−Ti−N bond (in as prepared N-doped TiO2 nanotube. The nitrogen content is ~6.47 at % in the N-doped TiO2 according to quantitative analysis. For Pt/G-NT sample, N 1s spectrum can also be observed. The results indicate that the small amount of N atoms is incorporated into the carbon framework of graphene sheets. Quantitative XPS analysis shows that the doping level of N in Pt/G-NT is ~0.86 at %. As seen from the high resolution N 1s spectrum (Figure 2D), the N 1s peak can be fitted by three component peaks at 398.3, 400.2 and 401.9 eV which can be attributed to pyridinic (N-6), pyrrolic/pyridine (N-5) and quaternary nitrogen (N-Q), respectively. In Figure 2F, the main doublet at 75.1 and 71.7 eV is characteristic of metallic Pt, indicating the reduction of tetravalent Pt.
To evaluate the electrochemical activity of as-prepared samples, cyclic voltammogram (CV) experiments were carried out within a potential range from −0.2 to 1.0 V at a scanning rate of 50 mV·s−1 in the solution of nitrogen saturated 0.5 M H2SO4. As seen in Figure 3, the Pt/G-NT electrode shows electrochemically active nature, an obvious hydrogen adsorption characteristic.
The electrochemically active surface areas (ECSAs) were evaluated by integrating the cyclic voltammogram corresponding to hydrogen desorption from the electrode surface [28]. The ECSAs for the Pt/G-NT, Pt/G and Pt/G-T were estimated to be 63, 50 and 58 m2·g−1 Pt, respectively. It is believed that the high ECSA helps to improve the electrochemical activity of the catalyst.
The electrochemical catalytic activity of the as prepared catalysts toward the methanol oxidation was evaluated by cyclic voltammetric experiments were tested in the solution of 0.5 M CH3OH in 0.5 M H2SO4.
Figure 3 compares the electrochemical catalytic activities of Pt/G-NT, Pt/G-T and Pt/G. For the forward scan, the current (If) increased sharply attributed to the dehydrogenation of methanol and the following oxidation of the absorbed methanol on the electrode sites. The backward peak current (Ib) is related to the subsequent oxidation of the incompletely oxidized products during the forward scan. The ratio of the forward to backward peak current can be used to describe the tolerance of catalyst to the carbonaceous species accumulation [29,30]. As seen in the figure, the ratio of If/Ib for Pt/G-NT is slightly higher than those of Pt/G-T and Pt/G, suggesting that Pt/G-NT exhibits slightly better poisoning tolerance than Pt/G and Pt/G-T.
As seen from Figure 3A, the peak current of Pt/G-NT electrode was 446.8 mA/mg·Pt during the forward potential scanning process, which is much larger than those that for Pt/G-T and Pt/G (~360 and 240 mA/mg·Pt, respectively). Furthermore, the onset potential (where the forward peak current density begins to increase sharply in the CV curve) for Pt/G-NT electrode is also clearly lower than those of Pt/G-T and Pt/G, consistent with a previous report on the introduction of TiO2 to Pt based catalyst [31]. Therefore, the performance of Pt/G-NT for the methanol electrochemical oxidation can be considered superior to that of Pt/G or Pt/G-T. As predicted by XPS, the presence of tetravalent titanium oxide is able to enhance dispersion of the wetting process due to the rich active –OH species, enlarging the electrode–electrolyte interfacial area and increasing the concentration of methanol confined around Pt catalyst [16,32,33,34,35]. Furthermore, the improved electrochemical performance is attributed to the N-doping effect on graphene nanosheets, because the nitrogen doping can intrinsically regulate the properties of carbon materials in modifying the electronic and chemical properties due to its comparable atomic size and five valence electrons available [36,37,38]. In addition, graphene sheets prepared via GO in the catalysts as an ideal support carrier can provide high surface area, anchor sites to Pt attributed to oxygen-containing groups as well as the high electronic conductivity. Furthermore, the homogeneous dispersion of Pt particles with nano sizes on the 2D graphene nanosheets can maximize the utilization of Pt.
The catalytic stability of the Pt/G, Pt/G-T and Pt/G-NT were examined using chronoamperometry. Figure 3C showed the chronoamperometric curves of 0.5 M CH3OH in 0.5 M H2SO4 solution for these catalyst electrodes at a fixed potential of 0.50 V for 2000 s. It can be clearly observed that the potentiostatic current decreased rapidly at the initial stage for these three electrodes, which might be due to the formation of intermediate species, such as COads, CHOads, etc., during the methanol oxidation reaction [39]. It is obvious that Pt/G-NT retains the highest current density among these samples during the whole testing time, indicating that the electrocatalytic stability of the Pt/G-NT catalyst for the methanol oxidation was also higher than that of Pt/G-T or Pt/G. The doping of nitrogen into graphene will enhance the electrochemical performance of graphene. The improved electrochemical performance for Pt/G-NT can be attributed to the remaining TiO2 and the nitrogen doping of graphene nanosheets.

3. Experimental Section

3.1. Method

Reagent grade chemicals were analytical purity unless otherwise stated. Graphene oxide (GO) was synthesized from graphite powder based on the modified Hummers method as described elsewhere [40]. Titanium hydrogen oxide nanotubes were prepared by hydrothermal method according to previous report [41,42]. To prepare N-doped TiO2 nanotubes, as-prepared titanium hydrogen oxide nanotubes were heated in the presence of urea (TiO2: Urea, 1:3 mass ratio) at 500 °C for 2 h under Ar atmosphere, yielding yellow powder. The as-prepared product was washed with deionized (DI) water and dried at 100 °C overnight. For comparison, undoped TiO2 nanotubes were prepared with the similar condition except that no urea was added during heat treatment, yielding white powder.
To prepare N-doped graphene/Pt nanocomposites, GO (80 mg) and N-doped TiO2 (2 mg) were dispersed in ethylene glycol (EG) (150 mL) and ultrasonic treated for 2 h to form the uniform dispersion solution. Chloroplatinic acid solution (H2PtCl6·6H2O, 5 wt % aqueous solution, 15 mL) was added to the dispersion. The pH of the mixture was adjusted to ~13 by NaOH aqueous solution. NaBH4 (100 mg) was slowly added to the dispersion solution. The dispersion was heated at 140 °C for 4 h under magnetic stirring with Ar bubbling. The mixture was then filtered, washed with DI water and ethanol and then freeze-dried overnight, yielding black product, denoted as Pt/G-NT. Pt/graphene nanocomposites with the same Pt loading were prepared with the same procedure except undoped TiO2 nanotubes were added, and the final product was denoted as Pt/G-T. For comparison, Pt/graphene with no TiO2 added was also prepared via the same procedure, denoted as Pt/G. The loading of Pt for all catalysts is ~40 wt %.

3.2. Characterization

The powder X-ray diffraction (XRD) measurements of the samples were recorded on a Bruker D8-Advance X-ray powder diffractometer (Karlsruhe, Germany) using Cu Kα radiation (λ = 1.5406 Å) with scattering angles (2θ) of 10°–80°. A JEOL JEM 2010 transition electronic microscopy (Tokyo, Japan) was used for transmission electron microscopy (TEM) analysis and high-resolution transmission electron microscopy (HRTEM) analysis. The Brunauer–Emmett–Teller (BET) specific surface area was calculated from N2 adsorption/desorption isotherms which were obtained by a gas adsorption analyzer (ASAP 2020, Micromeritics Instrument Co. Norcross, GA, USA) at 77 K. X-ray photoelectron spectroscopy (XPS) was carried out on ESCALAB 250XI (Waltham, MA, USA) and the binding energy is calibrated with C 1s = 284.8 eV.

3.3. Electrochemical Measurements

Electrochemical measurements were performed on a Princeton P4000 electrochemical working station (Oak Ridge, TN, USA) with a standard three-electrode electrochemical cell. The catalyst electrodes were prepared as follows: 1.0 mg catalyst in 1.0 mL ethanol with Nafion solution was ultrasonicated for 30 min. Then, 5 μL of this suspension was transferred onto a glassy carbon electrode (GC, 3 mm diameter), dried overnight, and used as the working electrode. An Ag/AgCl (saturated (sat.) KCl) electrode was used as the reference and a platinum foil was used as the counter electrode.

4. Conclusions

In conclusion, a Pt/graphene nanocomposites catalyst with improved electrochemical performance has been prepared via a facile solution synthesis procedure. The electrochemical experiment proved that the addition of N-doped TiO2 nanotubes is able to significantly improve the catalytic performance of Pt/graphene composites. The peak current of Pt/G-NT was nearly twice that of unmodified Pt/G catalysts. The stability of N-doped TiO2 modified catalyst was also much improved compared to unmodified Pt/graphene catalyst, indicating the N-doped TiO2 nanotube is a very effective additive to modify the electrochemical performance of a Pt-based catalyst.

Acknowledgments

This work was supported by the National Natural Science Foundation of China (No. 50122212) and Natural Science Foundation of Hebei Province (Project No. E2014203033).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Girishkumar, G.; Vinodgopal, K.; Kamat, P.V. Carbon nanostructures in portable fuel cells: Single-walled carbon nanotube electrodes for methanol oxidation and oxygen reduction. J. Phys. Chem. B 2004, 108, 19960–19966. [Google Scholar] [CrossRef]
  2. Pandolfo, A.; Hollenkamp, A. Carbon properties and their role in supercapacitors. J. Power Sources 2006, 157, 11–27. [Google Scholar] [CrossRef]
  3. Zhang, L.L.; Zhao, X. Carbon–based materials as supercapacitor electrodes. Chem. Soc. Rev. 2009, 38, 2520–2531. [Google Scholar] [CrossRef] [PubMed]
  4. Wang, Y.; Shi, Z.; Huang, Y.; Ma, Y.; Wang, C.; Chen, M.; Chen, Y. Supercapacitor devices based on graphene materials. J. Phys. Chem. C 2009, 113, 13103–13107. [Google Scholar] [CrossRef]
  5. Simon, P.; Gogotsi, Y. Capacitive energy storage in nanostructured carbon-electrolyte systems. Acc. Chem. Res. 2012, 46, 1094–1103. [Google Scholar] [CrossRef] [PubMed]
  6. Liu, H.; Song, C.; Zhang, L.; Zhang, J.; Wang, H.; Wilkinson, D.P. A review of anode catalysis in the direct methanol fuel cell. J. Power Sources 2006, 155, 95–110. [Google Scholar] [CrossRef]
  7. Zhu, C.; Du, D.; Eychmüller, A.; Lin, Y. Engineering ordered and nonordered porous noble metal nanostructures: Synthesis, assembly, and their applications in electrochemistry. Chem. Rev. 2015, 115, 8896–8943. [Google Scholar] [CrossRef] [PubMed]
  8. Li, W.; Liang, C.; Zhou, W.; Qiu, J.; Zhou, Z.; Sun, G.; Xin, Q. Preparation and characterization of multiwalled carbon nanotube–supported platinum for cathode catalysts of direct methanol fuel cells. J. Phys. Chem. B 2003, 107, 6292–6299. [Google Scholar] [CrossRef]
  9. Arico, A.S.; Bruce, P.; Scrosati, B.; Tarascon, J.M.; van Schalkwijk, W. Nanostructured materials for advanced energy conversion and storage devices. Nat. Mater. 2005, 4, 366–377. [Google Scholar] [CrossRef] [PubMed]
  10. Li, Y.; Tang, L.; Li, J. Preparation and electrochemical performance for methanol oxidation of Pt/graphene nanocomposites. Electrochem. Commun. 2009, 11, 846–849. [Google Scholar] [CrossRef]
  11. Jang, H.D.; Kim, S.K.; Chang, H.; Choi, J.-H.; Cho, B.-G.; Jo, E.H.; Choi, J.-W.; Huang, J. Three-dimensional crumpled graphene-based platinum-gold alloy nanoparticle composites as superior electrocatalysts for direct methanol fuel cells. Carbon 2015, 93, 869–877. [Google Scholar] [CrossRef]
  12. Chen, D.; Tang, L.H.; Li, J.H. Graphene-based materials in electrochemistry. Chem. Soc. Rev. 2010, 39, 3157–3180. [Google Scholar] [CrossRef]
  13. Xiong, B.; Zhou, Y.; Zhao, Y.; Wang, J.; Chen, X.; O’Hayre, R.; Shao, Z. The use of nitrogen-doped graphene supporting Pt nanoparticles as a catalyst for methanol electrocatalytic oxidation. Carbon 2013, 52, 181–192. [Google Scholar] [CrossRef]
  14. Xu, X.; Zhou, Y.K.; Lu, J.M.; Tian, X.H.; Zhu, H.X.; Liu, J.B. Single-step synthesis of PtRu/N-doped graphene for methanol electrocatalytic oxidation. Electrochim. Acta 2014, 120, 439–451. [Google Scholar] [CrossRef]
  15. Zhao, S.L.; Yin, H.J.; Du, L.; Yin, G.P.; Tang, Z.Y.; Liu, S.Q. Three dimensional N-doped graphene/PtRu nanoparticle hybrids as high performance anode for direct methanol fuel cells. J. Mater. Chem. A 2014, 2, 3719–3724. [Google Scholar] [CrossRef]
  16. Kakati, N.; Maiti, J.; Lee, S.H.; Jee, S.H.; Viswanathan, B.; Yoon, Y.S. Anode catalysts for direct methanol fuel cells in acidic media: Do we have any alternative for Pt or Pt–Ru? Chem. Rev. 2014, 114, 12397–12429. [Google Scholar] [CrossRef] [PubMed]
  17. Yu, X.; Kuai, L.; Geng, B. CeO2/rGO/Pt sandwich nanostructure: rGO–enhanced electron transmission between metal oxide and metal nanoparticles for anodic methanol oxidation of direct methanol fuel cells. Nanoscale 2012, 4, 5738–5743. [Google Scholar] [CrossRef] [PubMed]
  18. Jiang, Z.-Z.; Gu, D.-M.; Wang, Z.-B.; Qu, W.-L.; Yin, G.-P.; Qian, K.-J. Effects of anatase TiO2 with different particle sizes and contents on the stability of supported Pt catalysts. J. Power Sources 2011, 196, 8207–8215. [Google Scholar] [CrossRef]
  19. Xia, B.Y.; Wu, H.B.; Chen, J.S.; Wang, Z.; Wang, X.; Lou, X.W. Formation of Pt-TiO2-rGO 3-phase junctions with significantly enhanced electro-activity for methanol oxidation. Phys. Chem. Chem. Phys. 2012, 14, 473–476. [Google Scholar] [CrossRef] [PubMed]
  20. Ramadoss, A.; Kim, S.J. Facile preparation and electrochemical characterization of graphene/ZnO nanocomposite for supercapacitor applications. Mater. Chem. Phys. 2013, 140, 405–411. [Google Scholar] [CrossRef]
  21. Di Valentin, C.; Pacchioni, G.; Selloni, A.; Livraghi, S.; Giamello, E. Characterization of paramagnetic species in N-doped TiO2 powders by EPR spectroscopy and DFT calculations. J. Phys. Chem. B 2005, 109, 11414–11419. [Google Scholar] [CrossRef] [PubMed]
  22. Zheng, Z.; Huang, B.; Lu, J.; Wang, Z.; Qin, X.; Zhang, X.; Dai, Y.; Whangbo, M.-H. Hydrogenated titania: Synergy of surface modification and morphology improvement for enhanced photocatalytic activity. Chem. Commun. 2012, 48, 5733–5735. [Google Scholar] [CrossRef] [PubMed]
  23. Chen, X.; Burda, C. Photoelectron spectroscopic investigation of nitrogen-doped titania nanoparticles. J. Phys. Chem. B 2004, 108, 15446–15449. [Google Scholar] [CrossRef]
  24. Sakka, Y.; Ohno, S.; Uda, M. Oxidation and degradation of titanium nitride ultrafine powders exposed to air. J. Am. Chem. Soc. 1992, 75, 244–248. [Google Scholar] [CrossRef]
  25. Kim, J.-G.; Shi, D.; Kong, K.-J.; Heo, Y.-U.; Kim, J.H.; Jo, M.R.; Lee, Y.C.; Kang, Y.-M.; Dou, S.X. Structurally and electronically designed TiO2Nx nanofibers for lithium rechargeable batteries. ACS Appl. Mater. Interfaces 2013, 5, 691–696. [Google Scholar] [CrossRef] [PubMed]
  26. Wu, Z.-S.; Winter, A.; Chen, L.; Sun, Y.; Turchanin, A.; Feng, X.; Müllen, K. Three-dimensional nitrogen and boron co-doped graphene for high-performance all-solid-state supercapacitors. Adv. Mater. 2012, 24, 5130–5135. [Google Scholar] [CrossRef] [PubMed]
  27. Lin, Z.; Waller, G.; Liu, Y.; Liu, M.; Wong, C.P. Facile synthesis of nitrogen-doped graphene via pyrolysis of graphene oxide and urea, and its electrocatalytic activity toward the oxygen-reduction reaction. Adv. Energy Mater. 2012, 2, 884–888. [Google Scholar] [CrossRef]
  28. Søgaard, M.; Odgaard, M.; Skou, E.M. An improved method for the determination of the electrochemical active area of porous composite platinum electrodes. Solid State Ion. 2001, 145, 31–35. [Google Scholar] [CrossRef]
  29. Kang, Y.; Pyo, J.B.; Ye, X.; Gordon, T.R.; Murray, C.B. Synthesis, shape control, and methanol electro-oxidation properties of Pt–Zn alloy and Pt3Zn intermetallic nanocrystals. ACS Nano 2012, 6, 5642–5647. [Google Scholar] [CrossRef] [PubMed]
  30. Sanetuntikul, J.; Ketpang, K.; Shanmugam, S. Hierarchical nanostructured Pt8Ti-TiO2/C as an efficient and durable anode catalyst for direct methanol fuel cells. ACS Catal. 2015, 5, 7321–7327. [Google Scholar] [CrossRef]
  31. Shanmugam, S.; Gedanken, A. Carbon-coated anatase TiO2 nanocomposite as a high-performance electrocatalyst support. Small 2007, 3, 1189–1193. [Google Scholar] [CrossRef] [PubMed]
  32. Tamizhmani, G.; Capuano, G.A. Improved electrocatalytic oxygen reduction performance of platinum ternary alloy-oxide in solid-polymer-electrolyte fuel cells. J. Electrochem. Soc. 1994, 141, 968–975. [Google Scholar] [CrossRef]
  33. Zhu, J.; Zhao, X.; Xiao, M.; Liang, L.; Liu, C.; Liao, J.; Xing, W. The construction of nitrogen-doped graphitized carbon-TiO2 composite to improve the electrocatalyst for methanol oxidation. Carbon 2014, 72, 114–124. [Google Scholar] [CrossRef]
  34. Shanmugam, S.; Gedanken, A. Synthesis and electrochemical oxygen reduction of platinum nanoparticles supported on mesoporous TiO2. J. Phys. Chem. C 2009, 113, 18707–18712. [Google Scholar] [CrossRef]
  35. Tian, M.; Wu, G.; Chen, A. Unique electrochemical catalytic behavior of Pt nanoparticles deposited on TiO2 nanotubes. ACS Catal. 2012, 2, 425–432. [Google Scholar] [CrossRef]
  36. Gong, K.; Du, F.; Xia, Z.; Durstock, M.; Dai, L. Nitrogen-doped carbon nanotube arrays with high electrocatalytic activity for oxygen reduction. Science 2009, 323, 760–764. [Google Scholar] [CrossRef] [PubMed]
  37. Geng, D.; Yang, S.; Zhang, Y.; Yang, J.; Liu, J.; Li, R.; Sham, T.-K.; Sun, X.; Ye, S.; Knights, S. Nitrogen doping effects on the structure of graphene. Appl. Surf. Sci. 2011, 257, 9193–9198. [Google Scholar] [CrossRef]
  38. Zhu, J.; Xiao, M.; Zhao, X.; Li, K.; Liu, C.; Xing, W. Nitrogen-doped carbon-graphene composites enhance the electrocatalytic performance of the supported Pt catalysts for methanol oxidation. Chem. Commun. 2014, 50, 12201–12203. [Google Scholar] [CrossRef] [PubMed]
  39. Kabbabi, A.; Faure, R.; Durand, R.; Beden, B.; Hahn, F.; Leger, J.M.; Lamy, C. In situ FTIRS study of the electrocatalytic oxidation of carbon monoxide and methanol at platinum-ruthenium bulk alloy electrodes. J. Electroanal. Chem. 1998, 444, 41–53. [Google Scholar] [CrossRef]
  40. Hummers, W.S.; Offeman, R.E. Preparation of graphitic oxide. J. Am. Chem. Soc. 1958, 80, 1339. [Google Scholar] [CrossRef]
  41. Li, Y.; Wang, Z.; Lv, X.-J. N-doped TiO2 nanotubes/N-doped graphene nanosheets composites as high performance anode materials in lithium-ion battery. J. Mater. Chem. A 2014, 2, 15473–15479. [Google Scholar] [CrossRef]
  42. Perera, S.D.; Mariano, R.G.; Vu, K.; Nour, N.; Seitz, O.; Chabal, Y.; Balkus, K.J., Jr. Hydrothermal synthesis of graphene-TiO2 nanotube composites with enhanced photocatalytic activity. ACS Catal. 2012, 2, 949–956. [Google Scholar] [CrossRef]
Nanomaterials 06 00040 g001 1024

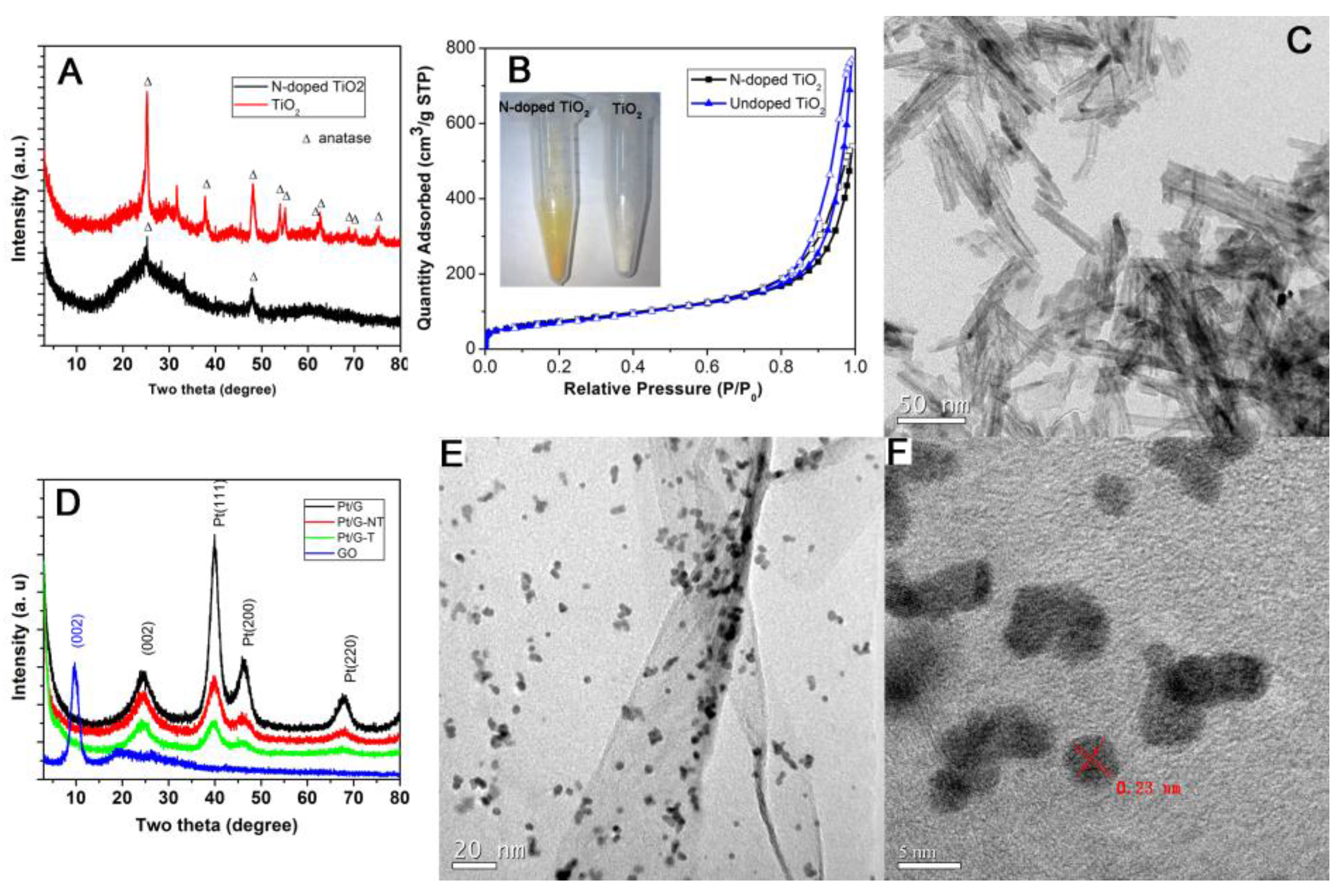

Figure 1. (A) X-ray diffraction (XRD) patterns of TiO2 nanotubes and N-doped TiO2 nanotubes; (B) N2 adsorption/desorption isotherm for N-doped TiO2 nanotubes and undoped TiO2 at 77 K (inset: digital image of N-doped TiO2 nanotube and undoped TiO2 nanotubes); (C) Transmission electron microscopy (TEM) images of N-doped TiO2 nanotubes; (D) XRD patterns of graphene oxide (GO, Pt/graphene (Pt/G), Pt/graphene with TiO2 (Pt/G-T), and Pt/graphene with N-doped TiO2 (Pt/G-NT); (E) TEM image of Pt/G-NT and (F) High-resolution transmission electron microscopy (HRTEM) of Pt/G-NT composites.
Figure 1. (A) X-ray diffraction (XRD) patterns of TiO2 nanotubes and N-doped TiO2 nanotubes; (B) N2 adsorption/desorption isotherm for N-doped TiO2 nanotubes and undoped TiO2 at 77 K (inset: digital image of N-doped TiO2 nanotube and undoped TiO2 nanotubes); (C) Transmission electron microscopy (TEM) images of N-doped TiO2 nanotubes; (D) XRD patterns of graphene oxide (GO, Pt/graphene (Pt/G), Pt/graphene with TiO2 (Pt/G-T), and Pt/graphene with N-doped TiO2 (Pt/G-NT); (E) TEM image of Pt/G-NT and (F) High-resolution transmission electron microscopy (HRTEM) of Pt/G-NT composites.
Nanomaterials 06 00040 g001
Nanomaterials 06 00040 g002 1024

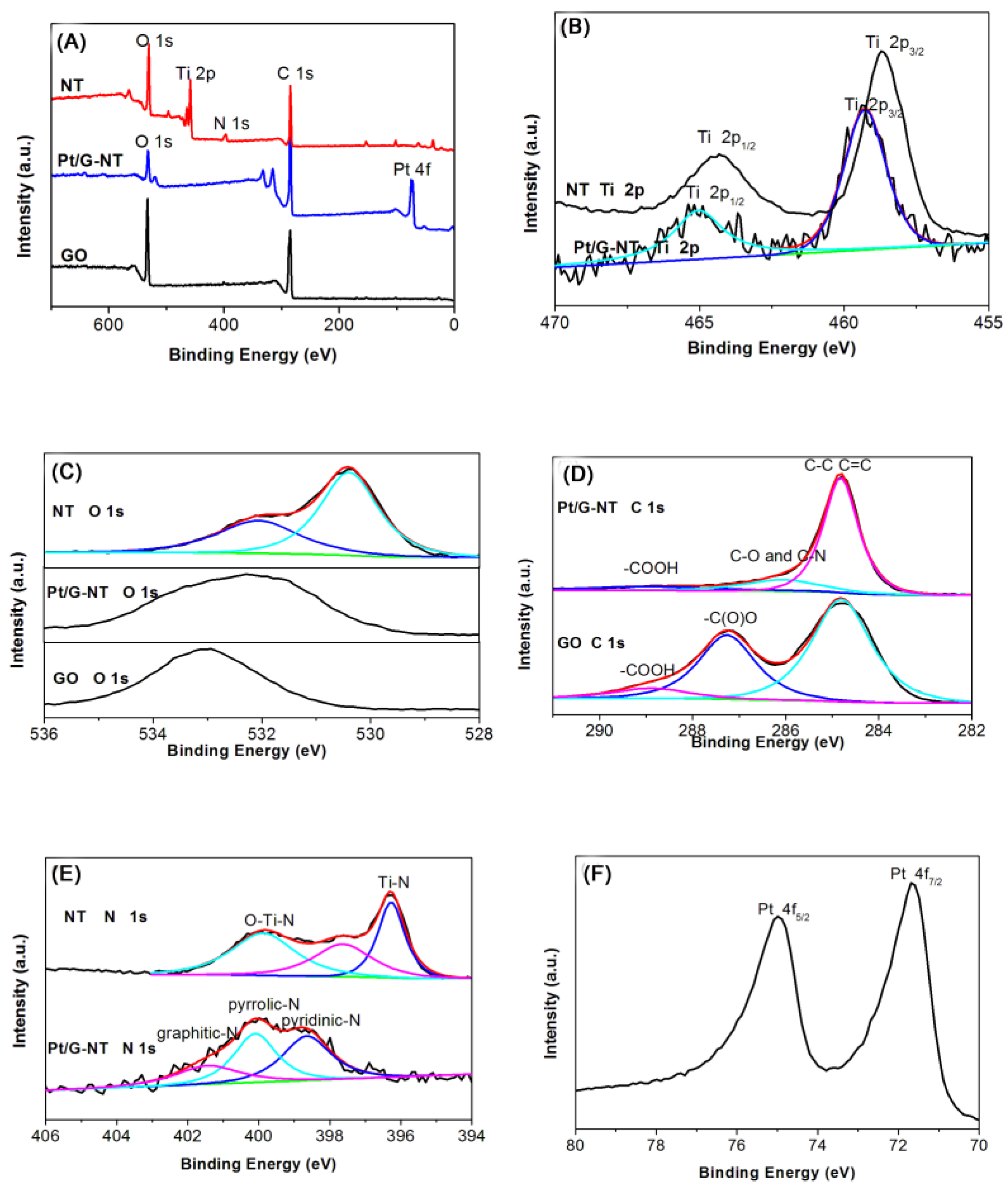

Figure 2. X-ray photoelectron survey spectra of GO, N-doped TiO2 and Pt/G-NT (A), high resolution spectra of Ti 2p (B), O 1s (C), C 1s (D), N 1s (E) and Pt 4f (F).
Figure 2. X-ray photoelectron survey spectra of GO, N-doped TiO2 and Pt/G-NT (A), high resolution spectra of Ti 2p (B), O 1s (C), C 1s (D), N 1s (E) and Pt 4f (F).
Nanomaterials 06 00040 g002
Nanomaterials 06 00040 g003 1024

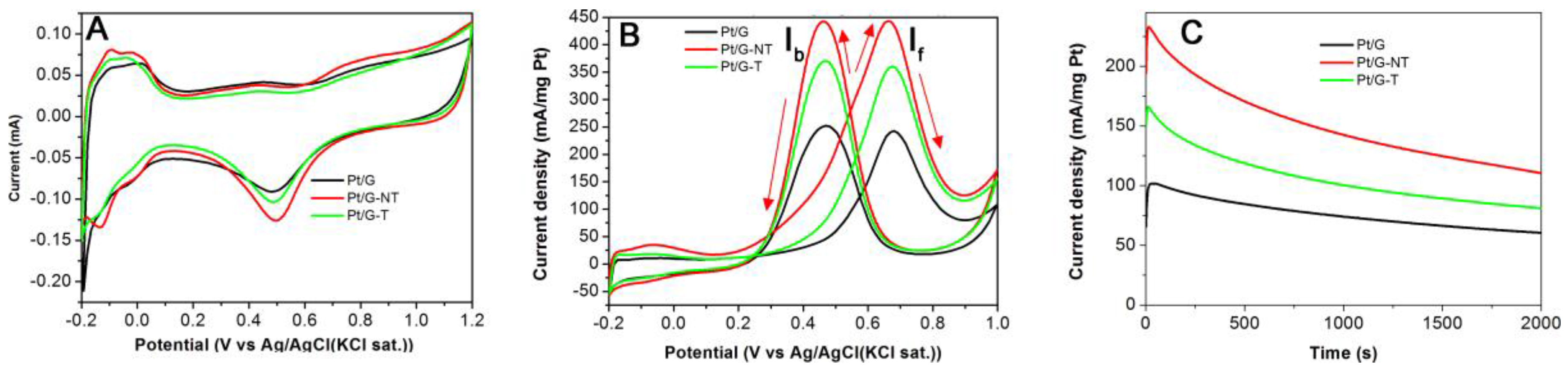

Figure 3. (A) Cyclic voltammograms of Pt/G, Pt/G-NT and Pt/G-T an in nitrogen saturated aqueous solution of 0.5 M H2SO4 at a scan rate of 50 mV·s−1. (B) Cyclic voltammograms of Pt/G, Pt/G-NT and Pt/G-T an in nitrogen saturated aqueous solution of 0.5 M H2SO4 containing 0.5 M CH3OH at a scan rate of 50 mV·s−1. (C) Chronoamperometric curves for Pt/G, Pt/G-NT and Pt/G-T catalysts in nitrogen saturated aqueous solution of 0.5 M H2SO4 containing 0.5 M CH3OH at a fixed potential of 0.5 V vs. Ag/AgCl (KCl saturated (sat.))
Figure 3. (A) Cyclic voltammograms of Pt/G, Pt/G-NT and Pt/G-T an in nitrogen saturated aqueous solution of 0.5 M H2SO4 at a scan rate of 50 mV·s−1. (B) Cyclic voltammograms of Pt/G, Pt/G-NT and Pt/G-T an in nitrogen saturated aqueous solution of 0.5 M H2SO4 containing 0.5 M CH3OH at a scan rate of 50 mV·s−1. (C) Chronoamperometric curves for Pt/G, Pt/G-NT and Pt/G-T catalysts in nitrogen saturated aqueous solution of 0.5 M H2SO4 containing 0.5 M CH3OH at a fixed potential of 0.5 V vs. Ag/AgCl (KCl saturated (sat.))
Nanomaterials 06 00040 g003
