Nanomaterials 2013, 3(4), 615-637; doi:10.3390/nano3040615

Review
Molecularly Imprinted Nanomaterials for Sensor Applications
Muhammad Irshad 1, Naseer Iqbal 2, Adnan Mujahid 1,*, Adeel Afzal 2,3, Tajamal Hussain 1, Ahsan Sharif 1, Ejaz Ahmad 1 and Muhammad Makshoof Athar 1
1
Institute of Chemistry, University of the Punjab, Quaid-e-Azam Campus, Lahore 54590, Pakistan; E-Mails: leo_star126@yahoo.com (M.I.); tjml786@yahoo.com (T.H.); ahsansharif@pu.edu.pk (A.S.); ejazahmad@pu.edu.pk (E.A.); makshoofathar@pu.edu.pk (M.M.A.)
2
Interdisciplinary Research Centre in Biomedical Materials, COMSATS Institute of Information Technology, Defence Road, Lahore 54000, Pakistan; E-Mails: naseeriqbal@ciitlahore.edu.pk (N.I.); aa@aafzal.com (A.A.)
3
Affiliated Colleges in Hafr Al-Batin, King Fahd University of Petroleum and Minerals, P.O. Box 1803, Hafr Al-Batin 31991, Saudi Arabia; E-Mail: adeelafzal@kfupm.edu.sa
*
Author to whom correspondence should be addressed; E-Mail: adnanmujahid.chem@pu.edu.pk; Tel.: +92-42-9923-0463 (ext. 844); Fax: +92-42-9923-0998.
Received: 19 September 2013; in revised form: 14 November 2013 / Accepted: 14 November 2013 /
Published: 26 November 2013

Abstract

: Molecular imprinting is a well-established technology to mimic antibody-antigen interaction in a synthetic platform. Molecularly imprinted polymers and nanomaterials usually possess outstanding recognition capabilities. Imprinted nanostructured materials are characterized by their small sizes, large reactive surface area and, most importantly, with rapid and specific analysis of analytes due to the formation of template driven recognition cavities within the matrix. The excellent recognition and selectivity offered by this class of materials towards a target analyte have found applications in many areas, such as separation science, analysis of organic pollutants in water, environmental analysis of trace gases, chemical or biological sensors, biochemical assays, fabricating artificial receptors, nanotechnology, etc. We present here a concise overview and recent developments in nanostructured imprinted materials with respect to various sensor systems, e.g., electrochemical, optical and mass sensitive, etc. Finally, in light of recent studies, we conclude the article with future perspectives and foreseen applications of imprinted nanomaterials in chemical sensors.
Keywords:
molecularly imprinted polymers; nanotechnology; sensors; nanomaterials

1. Introduction

The molecular imprinting technique produces complex polymers with template-specific interaction sites or cavities within the polymer structure. These specific recognition cavities can be fabricated for neutral to charge-bearing analytes/templates. The imprinting process involves the organization of polymerizable monomer molecules around a template or imprint molecule, followed by the polymerization in the presence of a cross-linker. The monomer should contain complimentary functionalities with respect to the template molecule. The extraction of the template after polymerization results in the formation of imprinted cavities inside the 3D-matrix of the polymer. The resulting polymer is known as imprinted polymer, which selectively binds the template molecule, when subjected to a solution of the template molecule or a mixture of the template and analogous molecules [1]. A schematic representation of molecular imprinting is shown in Figure 1. Imprinting is a very useful method to serve the purpose of molecular recognition. When combined with nanotechnology, molecularly imprinted nanomaterials exhibit enhanced sensitivity and selectivity, due to the added advantages of both techniques, which may eventually lead to the development of more suitable matrices for desired applications [2].

Nanomaterials 03 00615 g001 1024

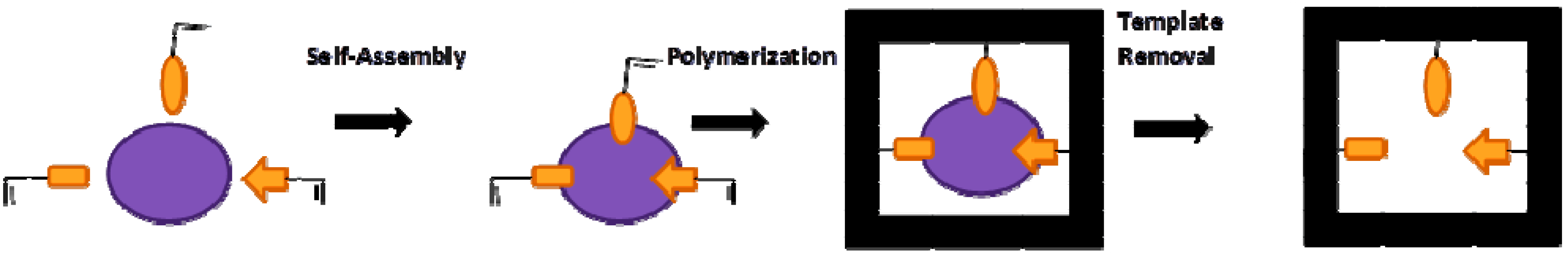

Figure 1. Schematic diagram of molecular imprinting.

Click here to enlarge figure

Figure 1. Schematic diagram of molecular imprinting.
Nanomaterials 03 00615 g001 1024

A large number of imprinted nanomaterials have already been developed, such as imprinted nanoparticles (Imp-NPs) [3], imprinted nanocomposites (Imp-NCs) [4] and imprinted hybrid materials [5], for a variety of applications, such as separation science [6], molecular recognition [7] and chemical sensing of different analytes [8]. Imprinted nanomaterials have gained much importance, due to their foremost advantages, such as high surface area, large number of predetermined recognition sites, high chemical and thermal stability, comparative simplicity, low preparation cost and potential application to a variety of analytes [9,10]. The ease of preparing imprinted nanomaterials and straightforward compliance also play a decisive role in achieving greater success as compared to other receptors [11]. Molecular imprinting has a wide range of potential applications, for instance, in clinical diagnostics [12,13], selective adsorption and separation [14], drug delivery [15], solid-phase extraction [16], synthesis and catalysis [17], environmental analysis [18], enantioselective recognition [19] and, most importantly, chemical sensing [20]. Thereby, imprinted materials with nanoscale dimensions have significantly contributed to these fields and can potentially have a greater impact on nanoscience and technology in the future.

A wide range of imprinted nanomaterial morphologies, including nanospheres, nanocapsules, nanoshells, nanoclusters, nanocrystals, nanorods, nanofibers and nanoparticles, etc., have been developed for different paradigms [21,22,23]. The shape and size of the ultimately imprinted nanomaterial principally depends on the synthetic conditions and methodology. However, the nature of bonding interactions [24] and the compatibility between the template and monomers in a typical polymer matrix play an important role. A number of different methods are reported in the literature for the generation of imprinted nanomaterials, including bulk, suspension, multi-step swelling, mini-emulsion, core-shell and precipitation polymerizations [25].

The immobilization of a sensitive material on the transducer interface is also important in the development of a typical sensor device, which has been realized through spin or spray coating, sputtering, Langmuir–Blodgett and other methods [5,16,18,19,20,25]. The selection of a transducer device, on the other hand, mainly depends on the nature of interactions between the analyte of interest and the sensing material, because the characteristic changes in physical or chemical properties of sensing material are determined upon its exposure to the analyte itself or a mixture of analyte and analogous molecules. Rapid response, high sensitivity, signal stability, miniaturized size and robustness to external parameters are salient features of a model transducer device, while its adaptability for on-field measurements is also valuable for real-time applications. Different types of transducers have been combined with imprinted nanomaterials for developing chemical sensors. Nonetheless, the primary goal of a transducer is to monitor binding events for providing reliable signal output. In this article, the type and nature of different imprinted materials, a comparison of their morphology and ultimate applications in different fields are exclusively discussed along with their potential growth, application and future prospects.

2. Molecular Imprinted Nanomaterials

2.1. Imprinted Nanoparticles (Imp-NPs)

Imp-NPs are suitable candidates for fabricating sensing layers. They possess a high surface area and a small size. The collaboration of nanotechnology with molecular imprinting provides a better alternative for the monitoring and detection of different analytes, due to their high sensitivity and selectivity at a trace level. Molecularly Imp-NPs have been synthesized by various researchers using different techniques. However, synthesis of Imp-NPs is not as straightforward as anticipated, since many factors control their physicochemical properties, such as the choice of monomer, the degree of cross-linking, the extent of interaction with the template, the removal of the analyte, etc. Familiar techniques for the synthesis of Imp-NPs are precipitation, mini- and micro-emulsion, core-shell and free radical polymerization [26]. Herein, we discuss different strategies from the literature.

Precipitation polymerization is a commonly adopted method for the synthesis of Imp-NPs. Yoshimatsu et al. [27] explained the precise control over the size of NPs. They prepared NPs of different sizes in the range of 100 nm–2.5 μm by varying concentration of two cross-linking monomers. This was the foremost advantage of their strategy, which ultimately helped in chiral recognition of racemic propranolol templates, i.e., Imp-NPs showed 20-folds higher affinity for (S)-propranolol compared to (R)-propranolol. Precipitation polymerization was also employed to develop NPs of smaller dimensions in a report published by Xiao et al. [28]. The authors used constituents, i.e., methacrylic acid as the functional monomer, 2-ethyl-2-(hydroxymethyl) propane-l,3-diol trimethacrylate as the cross-linker and selected fluoroquinolones (levofloxacin, ofloxacin and ciprofloxacin) as the templates, respectively. They fabricated Imp-NPs with dimensions of 50–100 nm. Analytical measurements revealed selective recital of Imp-NPs for levofloxacin and its analogues in comparison with non-imprinted ones. The binding capacity of Imp-NPs was higher for the target analyte, i.e., levofloxacin, as compared to its structural analogues [28], either observed in acetonitrile or water.

In another approach, Liu et al. [29] used precipitation polymerization to yield even smaller Imp-NPs, i.e., 50–80 nm, for enantiomeric identification of d-zopiclone. Imp-NPs were produced by dilution of pre-polymerization mixtures, while optimizing a number of parameters, such as the template to monomer ratio, the type and amount of the cross-linking monomer, the functional monomer to cross-linker ratios, the pH and the concentration of salts for buffers [29]. Other interesting strategies for diverse applications are also reported. For instance, ion imprinted nanomaterials, i.e., Imp-NPs of sizes 60–100 nm for the detection of Cu(II) ions [30] and Imp-NPs of dimensions 50–90 nm for the analysis of Cs(I) ions [31] were synthesized using a similar methodology. Experimental studies revealed that Imp-NPs exhibited pronounced selectivity and rapid response towards respective target species. Therefore, these results are comprehensive with respect to the aforementioned traits of imprinted nanomaterials and their application in chemical analysis.

Emulsion/suspension polymerization has also been used for the preparation of Imp-NPs. One such example is reported by Gu et al. [32], who fabricated chlorogenic acid (CGA) surface-imprinted magnetic polymer nanoparticles through water-in-oil-in-water multiple emulsion suspension polymerization. The core-shell configuration of 50 nm Imp-NPs and their reusability and regeneration with good rebinding capability, i.e., up to 78.85% upon the fifth exploitation, were the salient features of these Imp-NPs. It was revealed that magnetic susceptibility was achieved by successful encapsulation of Fe3O4 NPs with a high encapsulation efficiency, i.e., 19.3 wt%. Furthermore, Imp-NPs demonstrated appreciable sensitivity and selectivity towards CGA in contrast to the interfering analyte, caffeic acid (CFA). Imp-NPs showed three-folds better response as compared to non-imprinted NPs, whilst the CGA to CFA recognition ability of Imp-NPs was 6.06-times higher as compared to non-imprinted nanostructures [32].

In another study, Dai et al. [33] presented the fabrication of magnetic Imp-NPs through the atom transfer radical emulsion polymerization (ATREP) technique. The magnetic Imp-NPs were produced for tetracycline (TC) detection in aqueous medium. Magnetic Imp-NPs demonstrated suitable thermal stability and super paramagnetic behavior for fast recognition of the template. Figure 2 illustrates the schematic for the synthesis of magnetic Imp-NPs: firstly, Fe2O3 NPs are obtained from FeCl3 by thermal decomposition, and subsequently, KH570 (silane coupling agent) vinyl monomers are immobilized on the nanoparticles’ surface and are polymerized to restrict the leakage of Fe2O3. Finally, ATREP in the presence of water and surfactant yields nanosized imprinted particles [33]. The analytical measurements showed selective recognition of TC over the competitive antibiotics through template-specific affinity interactions. In addition, rebinding experiments revealed that the Imp-NPs possessed specific adsorption equilibrium, kinetics and selective template recognition capabilities. From the Langmuir isotherm, the estimated adsorption capacity of Imp-NPs towards TC was found to be 12.10 mg g−1 at 298 K, which was claimed to be 6.33-times higher than magnetic non-imprinted nanoparticles.

The mini-emulsion polymerization technique also produces selective binding sites for Imp-NPs for carbamazepine with higher binding selectivity for the analyte [34]. In a recent study [35], a comparison of micro-emulsion and suspension polymerization was performed, and it was found that Imp-NPs obtained through the latter approach had higher affinity towards the template, when fabricated on potentiometric electrodes, as exhibited by a wide-range linear response and greater selectivity.

Nanomaterials 03 00615 g002 1024

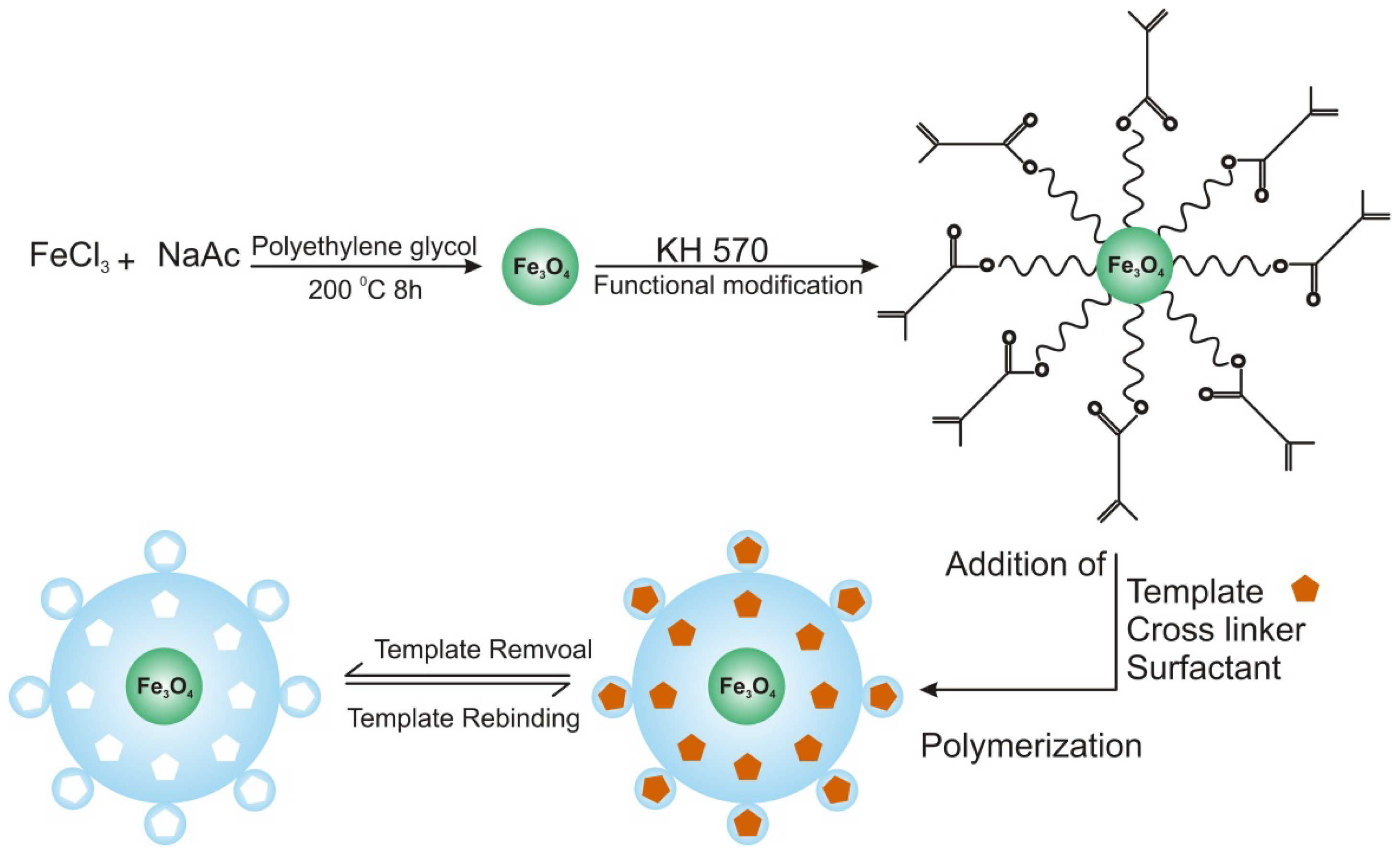

Figure 2. Schematic representation of synthetic route for magnetic imprinted nanoparticles (Imp-NPs). Adopted from [33].

Click here to enlarge figure

Figure 2. Schematic representation of synthetic route for magnetic imprinted nanoparticles (Imp-NPs). Adopted from [33].
Nanomaterials 03 00615 g002 1024

Another strategy for the synthesis of soluble Imp-NPs is iniferter polymerization, which offers selectivity similar to that of natural antibodies. Imp-NPs emerged as a suitable substitute to natural receptors by demonstrating a longer shelf life and higher affinity for the template [36,37]. The core-shell approach has been explored by many groups for the synthesis of Imp-NPs. In one such study, imprinted cavities were formed in an ethylene glycol dimethacrylate (EDGMA) shell for the recognition of cholesterol. The core-shell particles had an average size of 76 nm. Template imprinting in super-paramagnetic polymer and magnetite ferrocolloid cores was also investigated, which exhibited similar efficiency [38]. Novel Imp-NPs on a Fe3O4 magnetic core were also synthesized, which offered excellent binding capacity for chrysoidine. These core-shell Imp-NPs were subsequently used for developing chemiluminescence sensors for the analysis of food samples [39].

Highly selective core-shell Imp-NPs for β-estradiol on silica were synthesized by Ma et al. [40], which exhibited fast kinetics and high selectivity towards the template. The authors proposed that these core-shell Imp-NPs could be used for developing an imprinted membrane sensor. Bovine hemoglobin protein Imp-NPs with a magnetic polystyrene core were fabricated using multistep core-shell polymerization mechanism with 3-aminophenylboronic acid as the monomer. Imp-NPs were more robust and reusable, because the selected monomer was grafted tightly on polystyrene via aromatic ring electron-pairing interactions [41]. Other techniques used for the fabrication of Imp-NPs include the sol-gel process [42], bulk polymerization [43], covalent grafting [44] and electropolymerization [45] for achieving high selectivity and sensor response.

2.2. Imprinted Nanospheres

Precipitation polymerization is the most widely used method for the synthesis of imprinted nanospheres for the recognition of desired species [46]. Precise control over the synthesis of Imp-nanospheres is achieved via precipitation polymerization with varying ratios of two different cross-linkers. The final size of the Imp-spheres varies from 100 nm to 2.5 μm, and the resultant imprinted sites exhibited a high chiral selectivity [27]. Imp-nanospheres having a size of roughly 450 nm were synthesized for the selective recognition of di(2-ethylhexyl)phthalate by precipitation polymerization. The resultant nanospheres showed substantial binding capacity with the analyte and, therefore, were used as the recognition layer in sensor applications [47]. A one-step procedure for the synthesis of Imp-nanospheres via precipitation polymerization was developed for 17β-estradiol, which yielded Imp-nanospheres with regular spherical morphology. HPLC analyses revealed that the produced nanospheres had better selectivity than the nanospheres produced through the conventional polymerization technique [48]. Titania hybrid Imp-nanospheres were fabricated by precipitation reaction using 3-(trimethoxysilyl)propyl methacrylate as the coupling agent. The results indicated their faster adsorption kinetics and that they were an attractive choice for sensor application [49]. Mini-emulsion polymerization is another promising alternative for the synthesis of Imp-nanospheres, which leads to the development of affinity-based [50] optical sensors [51].

2.3. Imprinted Nanoshells

Molecularly imprinted nanomaterials as a recognition element for sensors have been progressively applied, e.g., for selective recognition of guanosine and its analogous compounds. The polymer matrix was synthesized using methacryloylamido-cysteine attached to a CdS quantum dots reconstructed surface shell through the synthetic host polymerization method [52]. In another study, novel Au-Ag nanoshells were prepared for binding dipicolinic acid and its analogue, i.e., Bacillus cereus. Imp-nanoshells were fabricated by reconstruction of a methacryloylamido-cysteine monolayer attached with Au-Ag nanoclusters. The resultant nanoshells showed high affinity towards the target analyte, which was recorded by a sensor response in terms of decreasing fluorescence intensity [53]. In a similar approach, Imp-nanoshells for binding dipicolinic acid and its analogue, Bacillus cereus, were fabricated with polymerizable methacryloylamido-cysteine attached to gold nanoparticles (Au-NPs), which demonstrated a good sensor response as a function of decreasing fluorescence intensity [54].

2.4. MIP Nanofibers

Nanofibers are nanostructures with diameters in the nanometer range. They have been resourcefully used in sensing applications. Piperno et al. [55] immobilized polymer nanofibers in Imp-NPs for an amino acid derivative and used them in a fluorescence-based sensor for dansyl-L-phenylalanine detection. Poly(vinyl alcohol) was used as the supporting material with Imp-NPs, because it was water-soluble and could be spun into very thin fibers. The resulting nanofibers showed first-rate bind efficacy with the target molecule and good selectivity as demonstrated through competitive binding experiments with the non-fluorescent analogues, boc-L-phenylalanine and boc-D-phenylalanine [55]. In a different approach [56], polyimide nanofibers were fabricated with estrone Imp-NPs via the electrospinning technique. This strategy showed excellent specific recognition and adsorption kinetics for estrone. The success behind this approach was in retaining the high aspect ratio and surface area provided by the binding sites . Nanofibers have also been used specifically for chiral recognition, i.e., identification and discrimination among enantiomers, for instance; nanofibers have been used in membrane synthesis [57,58]. An Imp-nanofiber membrane was synthesized using N-α-benzyloxycarbonyl-D-glutamic acid (Z-D-Glu) or N-α-benzyloxycarbonyl-L-glutamic acid (Z-L-Glu) as imprint molecules. Enantiomers selectively adsorbed on the respective nanofiber membrane without depression of permselectivity, which provided an effective means of separating enantiomers with high throughput [57]. Cellulose acetate was also used to synthesize Imp-nanofiber membranes by the electrospray method for the same analytes discussed above. The performance of the imprinted membrane and the nanofiber imprinted membrane was evaluated in view of the affinity constant, the adsorption selectivity and the permselectivity. It was found that Imp-nanofibers had augmented permselectivity and flux [58].

A brief description and comparative analysis of imprinted nanomaterials is also presented in Table 1 for a quick overview.

Table Table 1. Selected examples of different types of molecularly imprinted nanomaterials synthesized by various approaches, their particle size and for intended targets are summarized here.

Click here to display table

Table 1. Selected examples of different types of molecularly imprinted nanomaterials synthesized by various approaches, their particle size and for intended targets are summarized here.
NanomaterialsSynthesisSizeAnalytesRef.
NanoparticlesPrecipitation100 nm–2.5 μm(S)-propranolol[27]
50–100 nmLevofloxacin and fluoroquinolone[28]
50–80 nmd-zopiclone[29]
60–100 nmCu(II)[30]
50–90 nmCs(I)[31]
Emulsion-suspension50 nmChlorogenic acid[32]
Emulsion50–200 nmTetracycline[33]
Miniemulsion180–251 nmCarbamazepine[34]
Microemulsion40–100 nmPromethazine[35]
Iniferter polymerization25–106 μmAcetoguanamine[36]
Core-shell emulsion76 nmCholesterol[38]
Core-shellChrysoidine[39]
Core-shell17β-estradiol[40]
Core-shell480 nmHemoglobin[41]
Precipitation450 nmdi(2-ethylhexyl) phthalate[47]
Precipitation3μm–400 nm17β-estradiol[48]
Precipitation100–200 nmBensulfuron-methyl[49]
Miniemulsion240–255 nmL-Boc-phenylalanine anilide and L-Boc-phenylalanine[50]
NanoshellsThiol ligand capping method45 nmGuanosine[52]
Thiol ligand capping method16 nmDipicolinic acid[53]
Thiol ligand capping method13 nmDipicolinic acid[54]
NanofibersPrecipitation400 nmdansyl-L-phenylalanine[55]
Electrospinning150 nmEstrone[56]
Electrospray deposition165–564 nm N-α-benzyloxycarbonyl-D-glutamic acid and N-α-benzyloxycarbonyl-L-glutamic acid[57]
Electrospray deposition200–500 nmN-α-benzyloxycarbonyl-D-glutamic acid and N-α-benzyloxycarbonyl-L-glutamic acid[58]

3. Selected Sensor Applications of Imprinted Nanomaterials

Herein, we present numerous applications of the aforementioned molecularly imprinted nanomaterials in different sensors. Table 2 also provides detailed information about these devices with respect to the type of sensor and the analytes tested and the limits of detection achieved.

Table Table 2. Selected examples of various sensors using molecularly imprinted nanomaterials: explaining the underlying principle, the nature of the sensing material, the target analytes and the detection ranges. QCM, quartz crystal microbalance; MWCNT, multi-walled carbon nanotube.

Click here to display table

Table 2. Selected examples of various sensors using molecularly imprinted nanomaterials: explaining the underlying principle, the nature of the sensing material, the target analytes and the detection ranges. QCM, quartz crystal microbalance; MWCNT, multi-walled carbon nanotube.
SensorsTransducer TypeNanomaterialTarget AnalytesDetection RangeRef.
ElectrochemicalSquare wave voltammetryNanoparticlesPromethazine1.0 × 10−8–1.0 × 10−2 M[35]
Cyclic volammetryAu- nanoparticlesTheophylline4 × 10−7–3.4 × 10−3 mol L−1[59]
Cyclic volammetryAu- nanoparticlesBisphenol A8.0 × 10−6–6.0 × 10−2 mol L−1[60]
Cyclic volammetryAu- nanoparticles/MWCNTsBisphenol A1.13 × 10−7–8.21 × 10−3 mol L−1[61]
Cyclic volammetryAu- nanoparticles Trinitrotoluene46 ppt[62]
Cyclic volammetryAu-nanoparticlesDopamine10−6–10−9 M[63]
ElectrochemicalMolecularly imprinted polymer/MWCNTsDopamine5.0 × 10−7–2.0 × 10−4 mol L−1[64]
Cyclic voltammetry/amperometryAu- nanoparticles/MWCNTsChlortetracycline9.0 × 10−8–5.0 × 10−5 mol L−1[65]
Cyclic voltammetry/differential pulse voltammetryPbS/Au coated Fe3O4 nanoparticles/MWCNTsStreptomycin1.0 × 10−6–1.0 × 10−3 mol L−1[66]
Cyclic voltammetryAg-nanoparticlesDimethoate1.0-1000 ng mL−1 and 1.0-50 μg mL−1[67]
Cyclic voltammetryCore-shell nanoparticlesTert-Butylhydroquinone0.1–50.0 mg kg−1[68]
Cyclic voltammetryChitosan-Pt /graphene-gold nanoparticlesErythromycin7.0 × 10−8–9.0 × 10−5 mol L−1[69]
ElectrochemiluminescenceNanoparticlesThifensulfuron-methyl5.0 × 10−10–1.0 × 10−7 M[70]
OpticalChemiluminescenceNanoparticlesChrysoidine1.0 × 10−4–2.0 × 10−6 mol L−1[39]
Reflectometric interference spectroscopy (RIfS)NanospheresL-Boc-phenylalanine anilide0.4–1.65 mM[51]
FluorescenceNanocrystalsGuanosine50–800 µg L−1[52]
FluorescenceAu/Ag- nanoclustersDipicolinic acid[53]
FluorescenceAu-nanoparticlesDipicolinic acid10−7–10−4 mol L−1[54]
FluorescenceNanofibersDansyl-L-phenylalanine10 μM–1 mM[55]
FluorescenceAu/Ag nanoclustersDipicolinic acid[71]
FluorescenceQuantum dot/imprinted polymer compositeSalivary proteins0.4–2.68 mg mL−1[72]
ChemiluminescenceFe3O4 nanoparticlesLysozyme5–2000 ng mL−1[73]
FluorescenceCore shell nanoparticlesNaphthalene[74]
Mass-sensitiveQCMNanoparticles17β-estradiol3.67 nM–3.67 pM[75]
QCMNanoparticlesFolic acid1–30 ppm[76]
QCMNanoparticlesLysozyme0.2–1500 μg mL−1 and 460–1500 ng mL−1[77]
QCMNanoparticlesPeptide90–900 nM[78]

3.1. Electrochemical Sensors

3.1.1. Bioanalysis

For the first time, Mosbach and coworkers [79] introduced the concept of electrochemical sensors based on imprinted materials. They designed a phenylalanine anilide sensor that worked as a field effect capacitor, i.e., a reduction in capacitance was observed upon exposure to the target analyte. Later, an electrochemical sensor using gold nanoparticles (Au-NPs) was extensively fabricated by many researchers for chemical analysis [59,60,61,62]. Au-NPs were deposited on a pre-formed layer of an electro-polymerized o-phenylenediamine coated glassy carbon electrode. The experimental studies revealed that the sensor exhibited high sensitivity and selectivity with a suitable detection limit of 1.0 × 10−7 mol L−1 for theophylline. The selectivity studies are revealed in Figure 3, where the response of interfering species along with the target analyte is shown [59].

Nanomaterials 03 00615 g003 1024

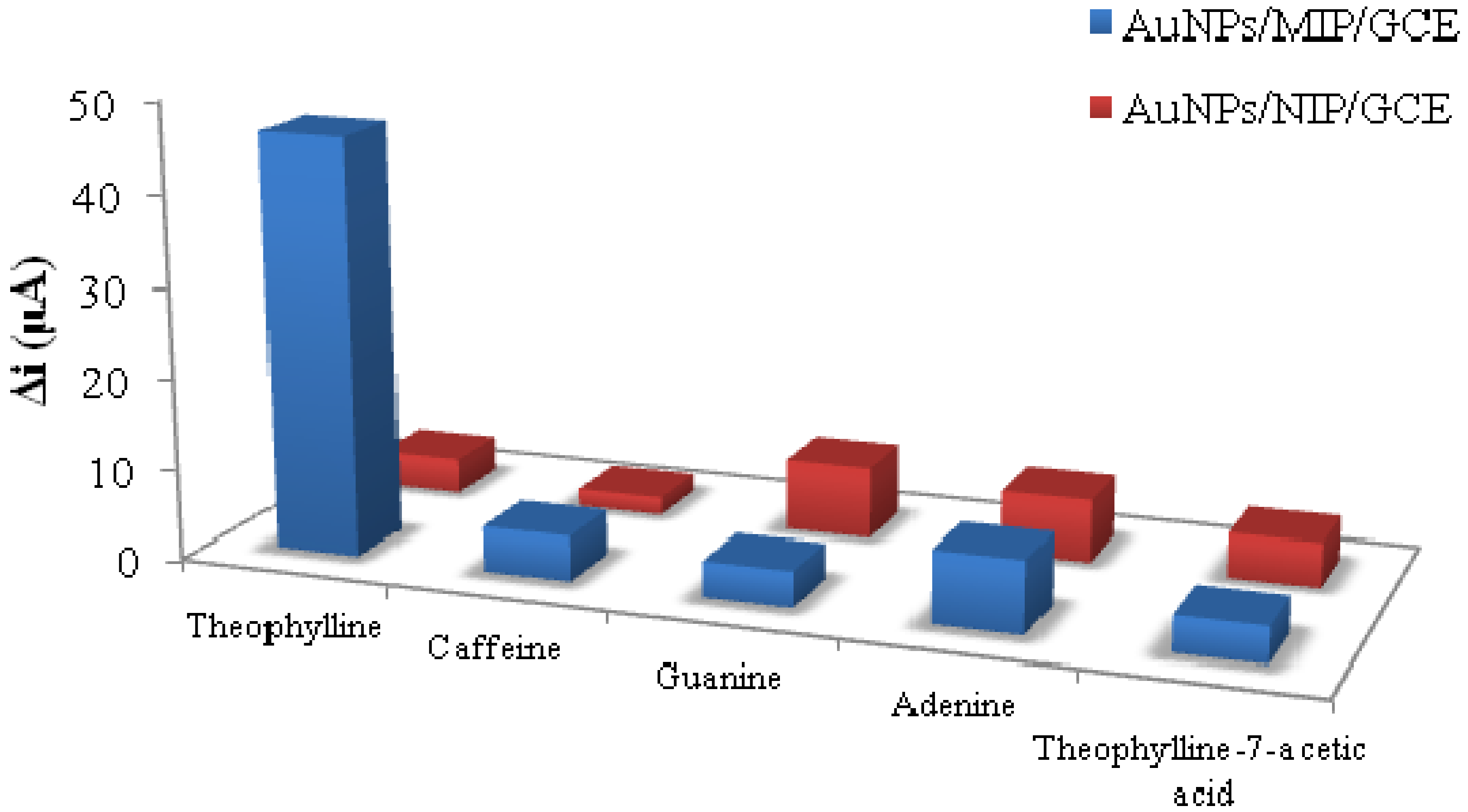

Figure 3. Selectivity comparison of Au-NPs/MIP/GCE (glassy carbon electrode), adopted from [59]. Use parenthesis for µA.

Click here to enlarge figure

Figure 3. Selectivity comparison of Au-NPs/MIP/GCE (glassy carbon electrode), adopted from [59]. Use parenthesis for µA.
Nanomaterials 03 00615 g003 1024

Gam-Derouich et al. [63] fabricated a highly sensitive electrochemical sensor for dopamine by immobilizing Au-NPs on a gold electrode using mercaptobenzene diazonium salt as a coupling agent. MIP film developed by photo-polymerization resulted in a highly specific and selective recognition of dopamine with a detection limit down to 0.35 nmol L−1. This enhanced sensitivity was attributed to the large surface area along with the catalytic effects of Imp-NPs [63]. Dopamine detection was also reported by Kan et al. [64]: a sensor for dopamine was made by using a composite of MWCNTs with dopamine imprinted polymer on a glassy carbon electrode. The sensor achieved equilibrium in 30 min and showed remarkable sensitivity and selectivity, with a linear response range of 5.0 × 10−7 to 2.0 × 10−4 M [64]. An electrochemical sensor based on a composite of β-cyclodextrin-MWCNTs and Au-NPs polyamide amine dendrimer nanocomposites was developed for selective determination of chlortetracycline (CTC). The sensor was fabricated by modifying a gold electrode with the above-mentioned composites with high selectivity and stability towards the target analyte. The sensor exhibited a detection range from 9.0 × 10−8 to 5.0 × 10−5 mol L−1 and a detection limit of 4.954 × 10−8 mol L−1. The selectivity trend for CTC in the presence of interfering species of the same concentration is shown in the Figure 4 [65].

Nanomaterials 03 00615 g004 1024

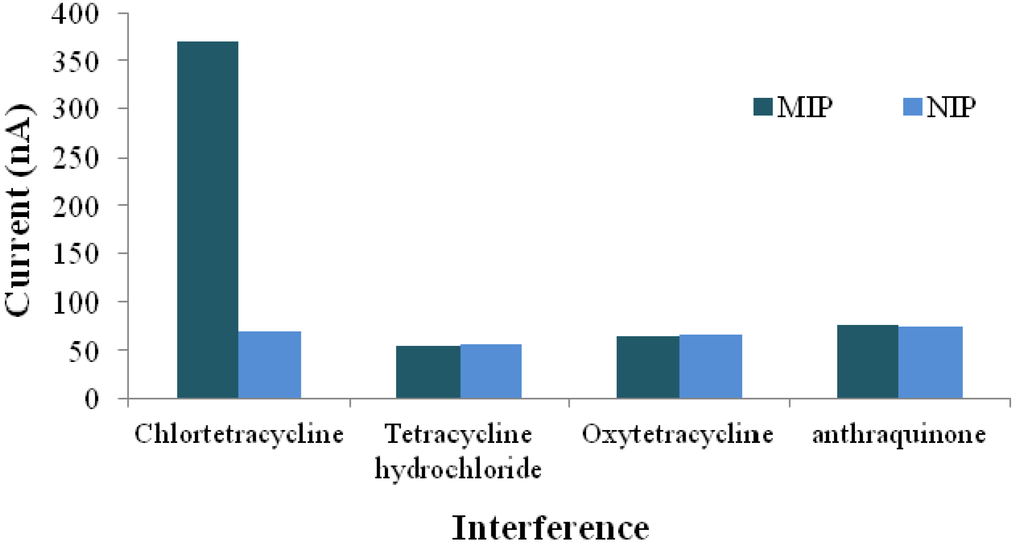

Figure 4. Current responses of the chlortetracycline-imprinted and non-imprinted polymer (NIP) for different analytes, adopted from [65].

Click here to enlarge figure

Figure 4. Current responses of the chlortetracycline-imprinted and non-imprinted polymer (NIP) for different analytes, adopted from [65].
Nanomaterials 03 00615 g004 1024

A highly selective potentiometric sensor for promethazine was fabricated by two different polymerization techniques, i.e., microemulsion and suspension polymerization. A sensor with a suspension polymerized layer showed more affinity for the template with a Nernstian response (31.25 ± 0.8 mV decade−1) in the range of 1.0 × 10−8–1.0 × 10−2 M with a limit of detection of 7.0 × 10−9 M. Whereas a microemulsion polymerized sensor had a Nernstian response (31.97 ± 0.6 mV decade−1) in a concentration range of 1.0 × 10−7–1.0 × 10−2 M and a detection limit of 8.0 × 10−8 M. Both electrodes showed high performance and long-term stability with a response time of 5 s [35].

For clinical analysis, Streptomycin recognition with an electrochemical sensor was achieved by composite of mercaptoacetic acid-modified PbS nanoparticles with Au-coated Fe3O4 nanoparticles dispersed in MWCNT-doped chitosan film. Imprinting of the template on a gold electrode was achieved by sol-gel polymerization and stepwise modification of nanocomposites. The sensor exhibited high selectivity and good electrocatalytic activity with a wide-range linear response in the range of 1.0 × 10−6–1.0 × 10−3 mol L−1 and a detection limit of 1.5 × 10−9 mol L−1 [66].

3.1.2. Environmental Analysis

Huang et al. [60] reported a sensor for bisphenol A using MIP and Au-NPs. The strategy was successfully implemented by electropolymerization of 2-aminothiophenol on a Au-NP-modified glassy carbon electrode in the presence of a template. The designed sensor worked efficiently for a broad linear range, i.e., 8.0 × 10−6–6.0 × 10−2 mol L−1, and demonstrated a low detection limit of 1.38 × 10−7 mol L−1 [60]. In an alternative approach by Huang et al. [61], a bisphenol A sensor was developed by fabricating thin films of molecularly imprinted sol-gel polymers. Composites of Au-NPs and multi-walled carbon nanotubes (MWCNTs) were used for efficient sensing of the analyte. A linear response was observed in the range of 1.13 × 10−9 mol L−1–8.21 × 10−3 mol L−1 with a detection limit of 3.6 × 10−9 mol L−1 [61]. Electrochemical recognition of trinitrotoluene (TNT) was achieved by Au-NPs composite film with conducting polymers that exhibited a detection limit as low as 46 ppt; thus, providing ultrasensitive detection of TNT [62]. Sensitive and selective cavities for dimethoate were developed on gold electrode by electropolymerization of o-phenylenediamine. Subsequently, Ag nanoparticles were deposited on the preformed film, which resulted in a layer height of 25 nm. The sensor showed an amperometric response towards the target analyte with a detection limit of 0.5 ng mL−1 [67].

3.1.3. Food Quality/Process Analytics

Imprinted nanomaterials have also been successfully applied in food quality and process control industries. Zhao et al. [68] used imprinted core-shell nanoparticles with a silica core for the determination of tert-Butylhydroquinone in food stuffs. The silica core was modified with 3-chloropropyltrimethoxysilane and polyethylenimine and, subsequently, polymerized with EGDMA (ethylene glycol dimethacrylate). The resultant matrix demonstrated a high surface area, specificity and a linear response in the range of 0.1–50.0 mg/kg with a detection limit down to 0.27 mg/kg [68]. A sensor for erythrosine detection was fabricated on a gold electrode with chitosan-platinum nanoparticles and graphene-Au-NP nanocomposites. MIP film was formed by electropolymerization of HAuCl4, erythrosine and 2-mercaptonicotinic acid. The sensor showed a linear response in the concentration range of 7.0 × 10−8–9.0 × 10−5 mol L−1 and a low limit of detection, i.e., 2.3 × 10−8 mol L−1. The sensor also exhibited good stability and sensitivity for detecting target species in real samples [69].

3.2. Optical Sensors

Optical sensors based on the fluorescent “turn-on” or “turn-off” behavior have been applied extensively for a variety of analytes. Recently, due to a more feasible measurement and signal output, many efforts have been made to develop optical sensors with high selectivity by using the molecular imprinting technique, which demonstrated encouraging results. Mostly, fluorescent ligands and fluorotag-ligands conjugates have been employed in the fabrication of these sensors, which display fluorescence enhancement or reduction upon analyte binding [6].

3.2.1. Bioanalysis

Cubic MIP nanoparticles having a fluorescent-core yield highly selective receptor material, as they offer precise control over the number of fluorescent labels on each nanoparticle. Imp-NPs produced with these specifications are suitable for replacing natural antibodies in biosensors [80]. Imprinted nanoparticles containing the amino acid derivative, dansyl-L-phenylalanine, were entrapped in polymer nanofibers for their fluorescence-based biosensor application. Characterization of nanofibers for analyte binding was made by atomic force microscopy (AFM), optical microscopy and fluorescence microscopy, which showed high selectivity and good recovery [55]. A novel thiol ligand exchanged technique was used to recognize dipicolinic acid, which is a major constituent of Bacillus cereus. The sensor used methacryloyl amindoantipyrine-terbium as the metal chelating agent for manufacturing an imprinted nanostructure. The interaction between the metal ion and the free coordination sphere affected the binding ability of nanoclusters and nanosensors, respectively. Sensor responses were recorded as a function of decreasing fluorescence intensity [53].

In another study for dipicolinic acid recognition, methacryloyl iminodiacetic acid-chrome was used as the metal-chelating monomer in a novel thiol ligand-capping method having polymerizable methacryloylamidocysteine linked to Au-NPs. The interaction of the target analyte and the MIP nanosensor was observed by fluorescence measurements. The addition of the target analyte with MIP significantly decreased its fluorescence intensity, due to the induction of photoluminescence emission from Au-NPs. The change in fluorescence intensity was attributed to strong complexation with the analyte [54]. In another approach, polymerizable methacryloylamidocysteine linked to Au-Ag nanoclusters with a reconstructed surface shell by molecular imprinting were used. Methacryloyl iminodiacetic acid-chrome was used as the metal-chelating monomer and dipicolinic acid as the target analyte. The sensor exhibited decreased fluorescence intensity, due to a high complexation of the analyte on the surface of Au-Ag nanoshells, and good affinity with the target specie [71].

Imprinted nanospheres have been applied for label-free direct optical sensing of small molecules. Imprinted L-boc-phenylalanine anilide nanospheres were generated via miniemulsion polymerization and immobilized on an aminosilane layer. The sensor showed a rapid response, good selectivity, high reversibility, with a detection limit down to 60 μM, and a limit of quantitation of 94 μM. The MIP-based sensor exhibited significant long-term stability, since no loss in signal intensity was observed after storing them for one year [51].

Different researchers developed optical sensors using Imp-NPs for the recognition of biomolecules [72,73]. In one approach, fluorescence changes were observed in embedded quantum dots to analyze salivary secretion molecules, i.e., amylase, lipase and lysozyme. A quantum dot composite with an imprinted polymer was synthesized by phase inversion of poly(ethylene-co-vinyl alcohol) solutions with different ethylene molar ratios. Quantum dots exhibited fluorescence quenching upon exposure to analytes, and this response was used for the quantitative recognition of amylase, lipase and lysozyme in saliva [72]. Similarly imprinted multifunctional lysozyme Imp-NPs were synthesized [73] by encapsulation of Fe3O4 nanoparticles. These magnetic nanoparticles possessed high adsorption capacity towards the target analyte, as shown in Figure 5.

The controlled selectivity and the ease of separation from the crude sample made it a sensitive chemiluminescence scheme for the recognition of lysozyme in human serum. Imp-NPs can be synthesized by a novel thiol ligand-capping technique with polymerizable methacryloylamido-cysteine. DNA recognition was achieved successfully by using nanoparticles linked to a CdS quantum dots reconstructed surface shell by synthetic host polymerization. Methacryloylamidohistidine-platinium was applied as a metal-chelating monomer. These nano-shell sensors responded efficiently to guanosine compared to its analogous molecules, as observed through fluorescence intensity enhancement [52].

Nanomaterials 03 00615 g005 1024

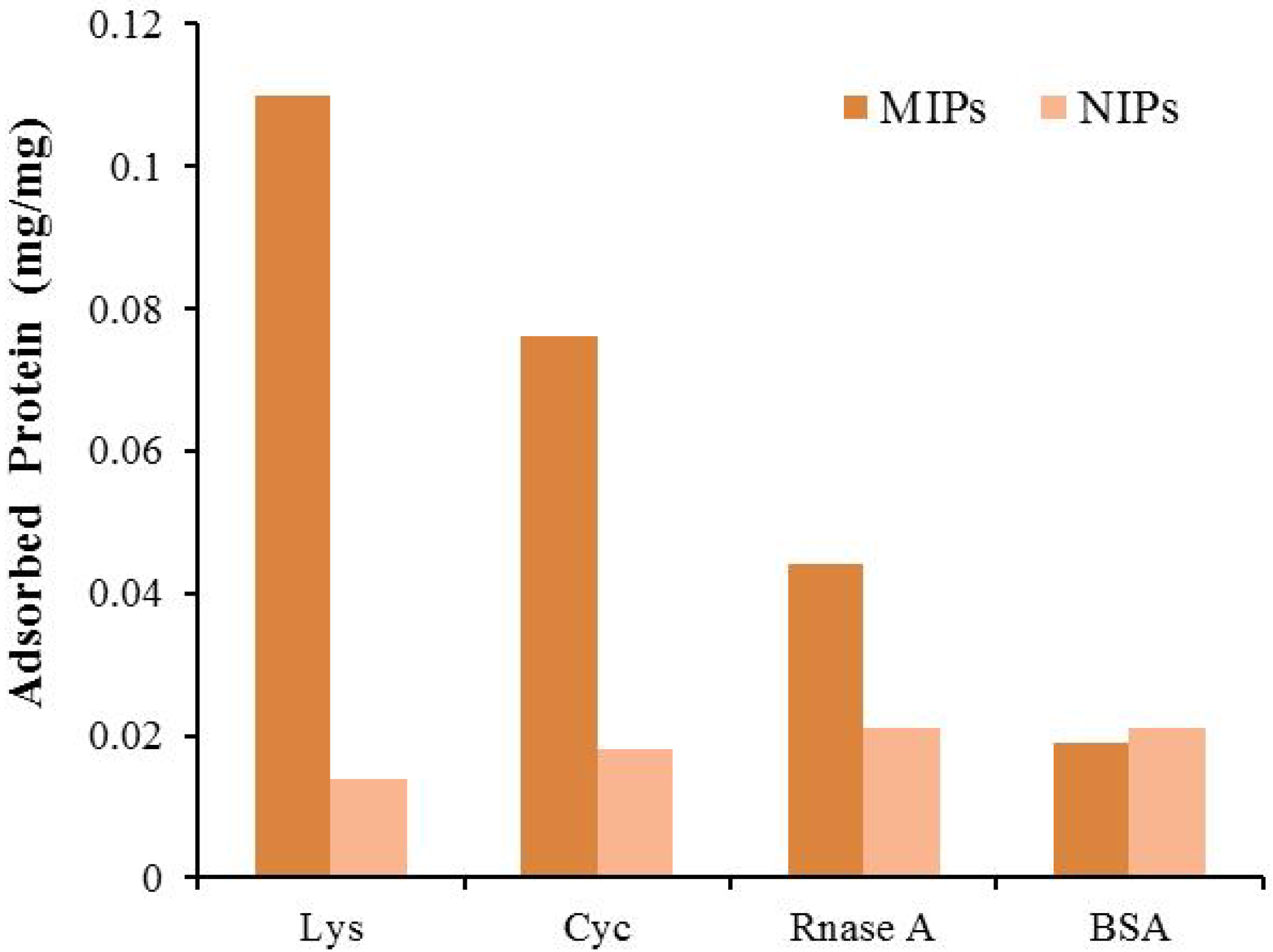

Figure 5. Comparison of different imprinted and non-imprinted polymers (NIP) to evaluate the adsorption selectivity for lysozyme (Lys), cytochrome C (Cyc), ribonuclease A (RNase A) and bovine serum albumin (BSA), respectively, at a concentration of 0.5 mg mL−1 for all. Adopted from [73].

Click here to enlarge figure

Figure 5. Comparison of different imprinted and non-imprinted polymers (NIP) to evaluate the adsorption selectivity for lysozyme (Lys), cytochrome C (Cyc), ribonuclease A (RNase A) and bovine serum albumin (BSA), respectively, at a concentration of 0.5 mg mL−1 for all. Adopted from [73].
Nanomaterials 03 00615 g005 1024

3.2.2. Environmental Analysis

Selective recognition of naphthalene in vapor form has been observed by a layer of core-shell polymer nanoparticles obtained via imprinting technology. A pseudo-second order kinetic approach for fluorescent analysis was employed, which showed selective recognition of the target analyte with a high rate constant [74].

The electrochemiluminescence method for selective recognition of thifensulfuron-methyl (TFM) using core-shell Imp-NPs was successfully employed. Chitosan composite film with surface imprinted silica nanoparticles was deposited on the surface of a glassy carbon electrode. After eradicating silica cores from the composite film, the sensor response was investigated in the presence and absence of the analyte. Electrochemiluminescence intensity enhanced remarkably by 2.7-folds in the presence of the target species. The sensor exhibited a linear response in the range of 5.0 × 10−10–1.0 × 10−7 M with a low detection limit of 0.32 nM. The proposed method provided a promising scheme for sulfonylurea herbicide recognition [70].

3.2.3. Food Quality/Process Analytics

A sensing system based on Imp-NPs for direct analysis of fluoroquinolone in food and environmental samples was developed using enrofloxacin (ENRO) as a model template. Imp-NPs were successfully applied for the first time to analyze fluoroquinolone in real samples. The sensor exhibited a lower detection limit down to 0.1 nM for enrofloxacin with 5 μg mL−1 of MIP. In milk, enrofloxacin and danofloxacin, whose maximum residue limits have been set to 0.28 μM and 0.08 μM, respectively, could be detected with high selectivity. This method provides rapid and robust on-site analysis based on fluorescence polarization measurements [81].

A flow injection chemiluminescence sensor was designed for the recognition of chrysoidine using magnetic MIPs as the recognition element, i.e., developing a Fe3O4 layer on SiO2 particles. Synthesized nanoparticles showed specific recognition with enhanced adsorption capacity and easy magnetic separation. The linear response was observed for the target analyte in the range of 1.0 × 10−4–2.0 × 10−6 mol L−1 with a detection limit of 6.19 × 10−7 mol L−1. The sensor was highly sensitive and reusable for chrysoidine determination in food samples [39].

3.3. Mass Sensitive Devices

Acoustic or mass-sensitive devices are used to measures the mass of a target analyte, which is a universal property of every substance. Quartz crystal microbalance (QCM) is a highly sensitive mass measuring piezoelectric device that works by decreasing the oscillation frequency of a piezoelectric crystal upon mass loading. According to the Sauerbrey equation, the change in frequency (sensor response) is directly proportional to the square of the fundamental resonance frequency. Piezoelectric devices are universally applicable with low cost, a good detection limit and the ease of assembling [6]. We provide here some exemplary applications of imprinted nanomaterial for mass sensitive devices.

3.3.1. Bioanalysis

A QCM sensor for 17β-estradiol was fabricated by depositing Imp-NPs obtained via miniemulsion polymerization on a gold electrode of a QCM sensor. The specificity of designed sensor was examined through comparative adsorption of 17β-estradiol, stigmasterol and cholesterol, which exhibited higher selectivity towards the target analyte. The sensor exhibited a linear response in a broad range of 3.67 nM–3.67 pM. The quantification and limit of detection were 2.04 pM and 613 fM, respectively. The proposed imprinted QCM sensor [75] had a good long-lasting storage stability, resistance to microbial growth, robustness and reusability and, therefore, was cost effective. In a related study, mass-sensitive detection of folic acid was performed with the help of molecularly imprinted films and nanoparticles. Methacrylate and acrylate-vinyl pyrrolidone copolymers were used for binding the analyte. Imp-NPs showed a rapid response and high affinity as compared to the MIP film obtained from methacrylate polymers, as the sensitivity was enhanced by a factor of three [76].

Lysozyme Imp-NPs were synthesized by miniemulsion polymerization for the fabrication of a QCM nanosensor. Nanoparticles were fixed on a gold surface by coating and then dried at 37 °C for about six hours. The Imp-NP monolayer film showed an appreciably low detection limit of 1.2 ng mL−1. Albumin was used to study specificity. The QCM nanosensor demonstrated outstanding sensitivity and selectivity for the target analyte in both natural sources, i.e., egg white (460–1500 ng/mL) and aqueous solutions (0.2–1500 μg/mL) [77]. Another interesting application of these nanomaterials is developing affinity-based Imp-NPs. Zeng et al. [78] used this strategy for peptide sensing by incorporating a target protein in a polymer matrix. The peptide analyte was coupled with fatty acids of varying chain length. The resulting nanoparticles showed binding affinity in the range of 90–900 nM, when evaluated by QCM [78].

3.3.2. Environmental Analysis

A mass sensitive sensor based on imprinted TiO2 nanoparticles deposited on QCM for engine oil degradation sensing was fabricated by Lieberzeit et al. [42]. The size of imprinted titania particles was in the range of 200–300 nm. Imp-TiO2-NPs showed enhanced uptake of capric acid, i.e., the template, in comparison with the corresponding sol-gel films, thus making this approach highly compatible for industrial processes [42]. The same group later explored further strategies based on imprinted titania materials, i.e., TiO2 nanoparticles or sol-gel layers, for comparative analysis and monitoring of oxidized compounds in lubricants [82,83,84]. Imp-TiO2-NPs responded twice as high as titanate thin films, because of the higher surface area and easier diffusion within the imprinted sites of nanoparticles as compared to thin films. Figure 6 clearly shows the response of nanoparticles, which is almost double compared to that of the titanate sol-gel layer at different concentrations of capric acid.

Nanomaterials 03 00615 g006 1024

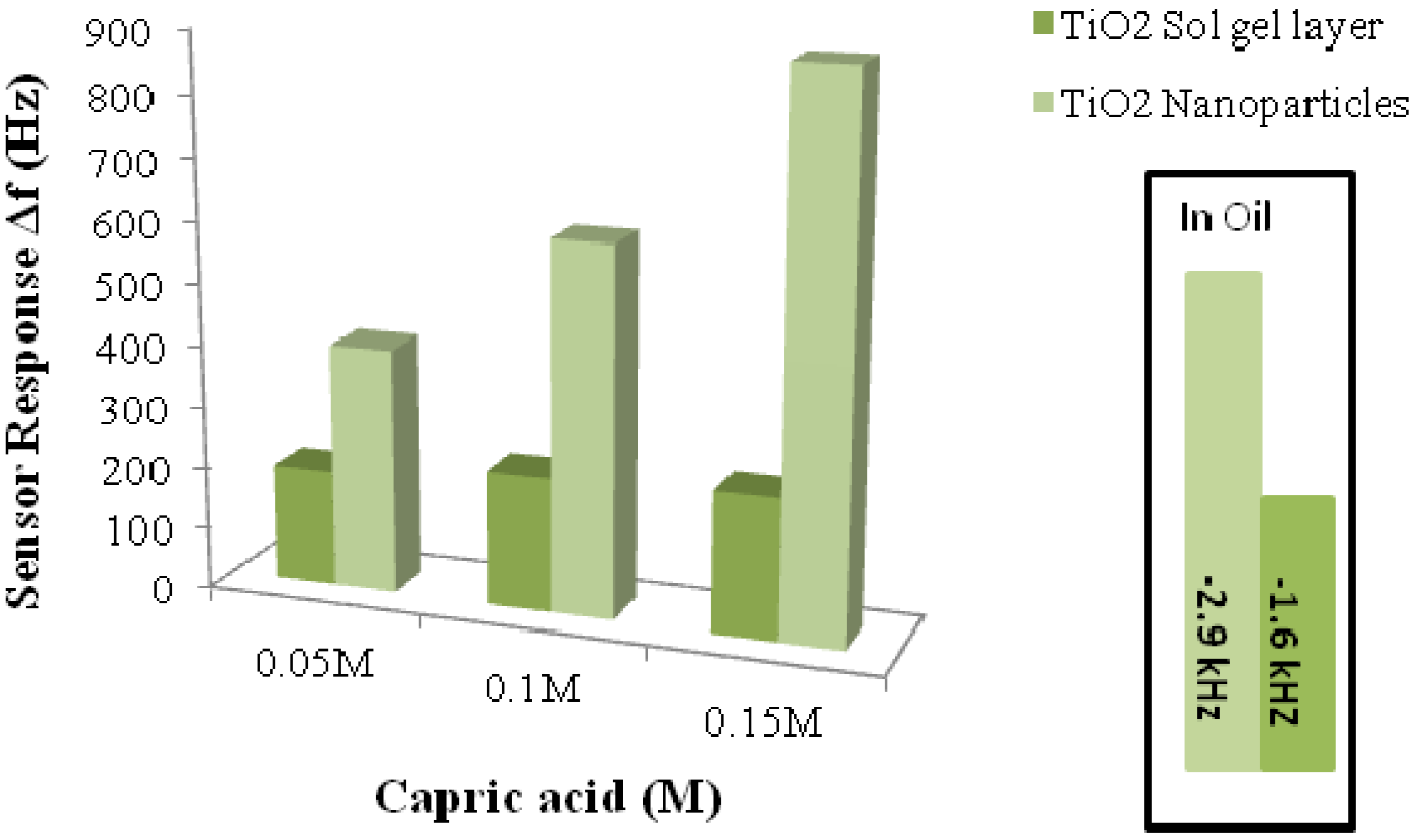

Figure 6. Comparison of the QCM sensor responses for the imprinted titania layer and nanoparticles to different capric acid concentrations. The inside graph shows the frequency responses when shifted from fresh oil to waste oil; nanoparticle electrode offers a better response. Adopted from [82].

Click here to enlarge figure

Figure 6. Comparison of the QCM sensor responses for the imprinted titania layer and nanoparticles to different capric acid concentrations. The inside graph shows the frequency responses when shifted from fresh oil to waste oil; nanoparticle electrode offers a better response. Adopted from [82].
Nanomaterials 03 00615 g006 1024

Lieberzeit and co-workers [82,85], in their recent studies, revealed that soft nanomaterials, like MoS2, bear great affinity towards thiols. They presented the expedited sensor signals, i.e., more than 10-times higher than bare gold electrodes [82], achieved, and a detection limit beyond 0.5 ppm [85] was achieved.

Imprinted nanocomposite materials are new entrants in this field, especially when combined with mass-sensitive devices; these materials can have a number of applications. Iqbal et al. [86], in their recent experimentation, used imprinted polyurethane (PU) Au-NPs composite material for the selective detection of some common volatile organic compounds (used as lab reagents) down to a few ppm. The interesting feature of their strategy was the synergistic effect of molecular imprinting and nanoscale gold on sensor response and selectivity, which was achieved by in situ mixing of Au-NPs in the imprinted PU material.

3.3.3. Food Quality/Process Analytics

A number of sensing devices have been reported for monitoring food quality and for process control [87,88]. Mass-sensitive devices stand alone among them, due to their application to almost any kind of analyte. MIPs in joint venture with mass sensitive devices have been reported [89,90] for chemical analysis of food and processes. In a recent study, Kong et al. [91] fabricated a QCM sensor imprinted with polymers and Au-NPs for the detection of Ractopamine (RAC). RAC is a common β-adrenergic agonist that is widely used in animal feed as a growth promoting agent, because it can increase the percentage of lean meat and improve feed conversion ratios. Yet, its presence in animal tissues and meat products is potentially hazardous for living beings. Hence, its monitoring is vital. Kong et al. electrodeposited molecularly imprinted a poly(o-aminothiophenol) (PoAT) membrane on an Au electrode surface modified by self-assembled Au-NPs. The analytical measurements revealed that integration of Au-NPs into MIP via an electro-polymerization process could improve the performance, i.e., the sensitivity and selectivity, of the imprinted electrodeposited membrane [91].

4. Outlook and Future Perspectives

Molecularly imprinted nanomaterials have shown tremendous potential for the recognition of a wide variety of analytes, ranging from small molecules to large proteins and macromolecules. Combining imprinting with nanotechnology appreciably boosted up both sensitivity and selectivity. The large surface area offered by imprinted nanostructures exposed more binding sites to attract the target analyte. Molecularly imprinted nanomaterials of varying sizes and dimensions can be synthesized through various methodologies, i.e., precipitation, emulsion, bulk, the core-shell approach, electrospinning, etc. This review focused on applications of imprinted nanomaterials with an emphasis on electrochemical, optical and mass-sensitive detection of the desired analytes. These nanomaterials were further categorized into subgroups, like bioanalytes, environmental and food/industry application, with details and examples, so that the reader may develop an understanding of the topic. The nanosized dimensions of the sensing interface provide a large surface area that can comprehend plenty of interactions sites between the sensitive layer and the analyte, and thus, amplifies the sensor signal. Secondly, it triggers better selectivity, due to the adopted cavities, with ease of access to binding sites for targets, which offer the rapid response and recognition of target species. Nanosized MIPs have well-defined dimensions, and their exposed imprinted sites provide rapid analyte transfer. Furthermore, the selectivity of molecular imprinted nanoparticles exhibited in electrochemical and optical sensors can be enhanced by improving the binding of the layer with the transducer surface and developing a straightforward understanding of the primary signal transduction mechanism.. Molecular imprinted nanomaterials are more potable in sensing devices, which could help in addressing on-field chemical analysis and remote sensing, as well. For better performance, there are certain problems that need to be resolved, e.g., the non-uniformity of binding sites, the lack of a general synthesizing protocol and improper adherence with the transducer surface. In order to make such chemical sensors commercially viable, the MIP layer and transducer properties need to be tuned. Exploring composite and hybrid organic inorganic polymers for developing imprinted materials in chemical sensing, e.g., for the food and processing industry, would be of great value.

Acknowledgments

We would like to thank Higher Education Commission (HEC) Pakistan and University of the Punjab for their financial support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yan, H.; Row, K. Characteristic and synthetic approach of molecularly imprinted polymer. Int. J. Mol. Sci. 2006, 7, 155–178. [Google Scholar] [CrossRef]
  2. Malitesta, C.; Mazzotta, E.; Picca, R.A.; Poma, A.; Chianella, I.; Piletsky, S.A. MIP sensors—The electrochemical approach. Anal. Bioanal. Chem. 2012, 402, 1827–1846. [Google Scholar] [CrossRef]
  3. Poma, A.; Guerreiro, A.; Whitcombe, M.J.; Piletska, E.V.; Turner, A.P.F.; Piletsky, S.A. Solid-phase synthesis of molecularly imprinted polymer nanoparticles with a reusable template–“Plastic Antibodies”. Adv. Funct. Mater. 2013, 23, 2821–2827. [Google Scholar] [CrossRef]
  4. Matsui, J.; Takayose, M.; Akamatsu, K.; Nawafune, H.; Tamaki, K.; Sugimoto, N. Molecularly imprinted nanocomposites for highly sensitive SPR detection of a non-aqueous atrazine sample. Analyst 2009, 134, 80–86. [Google Scholar] [CrossRef]
  5. Lakshmi, D.; Bossi, A.; Whitcombe, M.J.; Chianella, I.; Fowler, S.A.; Subrahmanyam, S.; Piletska, E.V.; Piletsky, S.A. Electrochemical sensor for catechol and dopamine based on a catalytic molecularly imprinted polymer-conducting polymer hybrid recognition element. Anal. Chem. 2009, 81, 3576–3584. [Google Scholar] [CrossRef]
  6. Cheong, W.J.; Yang, S.H.; Ali, F. Molecular imprinted polymers for separation science: A review of reviews. J. Sep. Sci. 2013, 36, 609–628. [Google Scholar] [CrossRef]
  7. Guan, G.; Liu, B.; Wang, Z.; Zhang, Z. Imprinting of molecular recognition sites on nanostructures and its applications in chemosensors. Sensors 2008, 8, 8291–8320. [Google Scholar] [CrossRef]
  8. Li, J.; Wei, G.; Zhang, Y. Molecularly Imprinted Polymers as Recognition Elements in Sensors. In Molecularly Imprinted Sensors; Elsevier: Amsterdam, The Netherlands, 2012; pp. 35–55. [Google Scholar]
  9. He, C.; Long, Y.; Pan, J.; Li, K.; Liu, F. Application of molecularly imprinted polymers to solid-phase extraction of analytes from real samples. J. Biochem. Biophys. Methods 2007, 70, 133–150. [Google Scholar] [CrossRef]
  10. Menaker, A.; Syritski, V.; Reut, J.; Öpik, A.; Horváth, V.; Gyurcsányi, R.E. Electrosynthesized surface-imprinted conducting polymer microrods for selective protein recognition. Adv. Mater. 2009, 21, 2271–2275. [Google Scholar] [CrossRef]
  11. Tokonami, S.; Shiigi, H.; Nagaoka, T. Review: Micro- and nanosized molecularly imprinted polymers for high-throughput analytical applications. Anal. Chim. Acta 2009, 641, 7–13. [Google Scholar] [CrossRef]
  12. Piletsky, S.A.; Turner, N.W.; Laitenberger, P. Molecularly imprinted polymers in clinical diagnostics—Future potential and existing problems. Med. Eng. Phys. 2006, 28, 971–977. [Google Scholar] [CrossRef]
  13. Cai, D.; Ren, L.; Zhao, H.; Xu, C.; Zhang, L.; Yu, Y.; Wang, H.; Lan, Y.; Roberts, M.F.; Chuang, J.H.; et al. A molecular-imprint nanosensor for ultrasensitive detection of proteins. Nat. Nanotechnol. 2010, 5, 597–601. [Google Scholar] [CrossRef]
  14. Li, H.; Xu, W.; Wang, N.; Ma, X.; Niu, D.; Jiang, B.; Liu, L.; Huang, W.; Yang, W.; Zhou, Z. Synthesis of magnetic molecularly imprinted polymer particles for selective adsorption and separation of dibenzothiophene. Microchim. Acta 2012, 179, 123–130. [Google Scholar] [CrossRef]
  15. Cunliffe, D.; Kirby, A.; Alexander, C. Molecularly imprinted drug delivery systems. Adv. Drug Deliv. Rev. 2005, 57, 1836–1853. [Google Scholar]
  16. Fuchs, Y.; Soppera, O.; Haupt, K. Photopolymerization and photostructuring of molecularly imprinted polymers for sensor applications—A review. Anal. Chim. Acta 2012, 717, 7–20. [Google Scholar] [CrossRef]
  17. Alexander, C.; Davidson, L.; Hayes, W. Imprinted polymers: Artificial molecular recognition materials with applications in synthesis and catalysis. Tetrahedron 2003, 59, 2025–2057. [Google Scholar] [CrossRef]
  18. Pichon, V.; Chapuis-Hugon, F. Role of molecularly imprinted polymers for selective determination of environmental pollutants—A review. Anal. Chim. Acta 2008, 622, 48–61. [Google Scholar] [CrossRef]
  19. Cheong, W.J.; Ali, F.; Choi, J.H.; Lee, J.O.; Sung, K.Y. Recent applications of molecular imprinted polymers for enantio-selective recognition. Talanta 2013, 106, 45–59. [Google Scholar] [CrossRef]
  20. Mujahid, A.; Lieberzeit, P.A.; Dickert, F.L. Chemical sensors based on molecularly imprinted sol-gel materials. Materials 2010, 3, 2196–2217. [Google Scholar] [CrossRef]
  21. Abhilash, M. Potential applications of nanoparticles. Int. J. Pharma Bio Sci. 2010, V1(1). Available online: http://www.ijpbs.net/53.pdf (accessed on 21 November 2013). [Google Scholar]
  22. Gültekin, A.; Ersöz, A.; Denizli, A.; Say, R. Gold-silver-nanoclusters having cholic acid imprinted nanoshell. Talanta 2012, 93, 364–370. [Google Scholar] [CrossRef]
  23. Wang, H.T.; Wu, X.; Zhao, H.; Quan, X. Enhanced photocatalytic degradation of tetracycline hydrochloride by molecular imprinted film modified TiO2 nanotubes. Chin. Sci. Bull. 2012, 57, 601–605. [Google Scholar] [CrossRef]
  24. Esfandyari-Manesh, M.; Javanbakht, M.; Atyabi, F.; Mohammadi, A.; Mohammadi, S.; Akbari-Adergani, B.; Dinarvand, R. Dipyridamole recognition and controlled release by uniformly sized molecularly imprinted nanospheres. Mater. Sci. Eng. C 2011, 31, 1692–1699. [Google Scholar] [CrossRef]
  25. Kryscio, D.R.; Peppas, N.A. Critical review and perspective of macromolecularly imprinted polymers. Acta Biomater. 2012, 8, 461–473. [Google Scholar] [CrossRef]
  26. Poma, A.; Turner, A.P.F.; Piletsky, S.A. Advances in the manufacture of MIP nanoparticles. Trends Biotechnol. 2010, 28, 629–637. [Google Scholar] [CrossRef]
  27. Yoshimatsu, K.; Reimhult, K.; Krozer, A.; Mosbach, K.; Sode, K.; Ye, L. Uniform molecularly imprinted microspheres and nanoparticles prepared by precipitation polymerization: The control of particle size suitable for different analytical applications. Anal. Chim. Acta 2007, 584, 112–121. [Google Scholar] [CrossRef]
  28. Xiao, P.; Dudal, Y.; Corvini, P.F.X.; Spahr, P.; Shahgaldian, P. Synthesis and characterization of fluoroquinolone-imprinted polymeric nanoparticles. React. Funct. Polym. 2012, 72, 287–293. [Google Scholar] [CrossRef]
  29. Liu, X.; Wei, Z.H.; Huang, Y.P.; Yang, J.R.; Liu, Z.S. Molecularly imprinted nanoparticles with nontailing peaks in capillary electrochromatography. J. Chromatogr. A 2012, 1264, 137–142. [Google Scholar] [CrossRef]
  30. Shamsipur, M.; Besharati-Seidani, A.; Fasihi, J.; Sharghi, H. Synthesis and characterization of novel ion-imprinted polymeric nanoparticles for very fast and highly selective recognition of copper(II) ions. Talanta 2010, 83, 674–681. [Google Scholar] [CrossRef]
  31. Shamsipur, M.; Rajabi, H. Flame photometric determination of cesium ion after its preconcentration with nanoparticles imprinted with the cesium-dibenzo-24-crown-8 complex. Microchim. Acta 2013, 180, 243–252. [Google Scholar] [CrossRef]
  32. Gu, X.H.; Xu, R.; Yuan, G.L.; Lu, H.; Gu, B.R.; Xie, H.P. Preparation of chlorogenic acid surface-imprinted magnetic nanoparticles and their usage in separation of traditional Chinese medicine. Anal. Chim. Acta 2010, 675, 64–70. [Google Scholar] [CrossRef]
  33. Dai, J.; Pan, J.; Xu, L.; Li, X.; Zhou, Z.; Zhang, R.; Yan, Y. Preparation of molecularly imprinted nanoparticles with superparamagnetic susceptibility through atom transfer radical emulsion polymerization for the selective recognition of tetracycline from aqueous medium. J. Hazard. Mater. 2012, 205–206, 179–188. [Google Scholar] [CrossRef]
  34. Esfandyari-Manesh, M.; Javanbakht, M.; Dinarvand, R.; Atyabi, F. Molecularly imprinted nanoparticles prepared by miniemulsion polymerization as selective receptors and new carriers for the sustained release of carbamazepine. J. Mater. Sci. Mater. Med. 2012, 23, 963–972. [Google Scholar] [CrossRef]
  35. Alizadeh, T.; Ganjali, M.R.; Akhoundian, M. Synthesis and application of different nano-sized imprinted polymers for the preparation of promethazine membrane electrodes and comparison of their efficiencies. Int. J. Electrochem. Sci. 2012, 7, 7655–7674. [Google Scholar]
  36. Guerreiro, A.R.; Chianella, I.; Piletska, E.; Whitcombe, M.J.; Piletsky, S.A. Selection of molecularly imprinted nanoparticles by affinity chromatography. Biosens. Bioelectron. 2009, 24, 2740–2743. [Google Scholar] [CrossRef]
  37. Subrahmanyam, S.; Guerreiro, A.; Poma, A.; Moczko, E.; Piletska, E.; Piletsky, S. Optimisation of experimental conditions for synthesis of high affinity MIP nanoparticles. Eur. Polym. J. 2013, 49, 100–105. [Google Scholar] [CrossRef]
  38. Pérez, N.; Whitcombe, M.J.; Vulfson, E.N. Molecularly imprinted nanoparticles prepared by core-shell emulsion polymerization. J. Appl. Polym. Sci. 2000, 77, 1851–1859. [Google Scholar] [CrossRef]
  39. Lu, F.; Sun, M.; Fan, L.; Qiu, H.; Li, X.; Luo, C. Flow injection chemiluminescence sensor based on core–shell magnetic molecularly imprinted nanoparticles for determination of chrysoidine in food samples. Sens. Actuators B 2012, 173, 591–598. [Google Scholar] [CrossRef]
  40. Ma, J.; Yuan, L.; Ding, M.; Wang, S.; Ren, F.; Zhang, J.; Du, S.; Li, F.; Zhou, X. The study of core-shell molecularly imprinted polymers of 17β-estradiol on the surface of silica nanoparticles. Biosens. Bioelectron. 2011, 26, 2791–2795. [Google Scholar] [CrossRef]
  41. Li, L.; He, X.W.; Chen, L.X.; Zhang, Y. Preparation of novel bovine hemoglobin surface-imprinted polystyrene nanoparticles with magnetic susceptibility. Sci. China Ser. B 2009, 52, 1402–1411. [Google Scholar] [CrossRef]
  42. Lieberzeit, P.A.; Afzal, A.; Glanzing, G.; Dickert, F.L. Molecularly imprinted sol-gel nanoparticles for mass-sensitive engine oil degradation sensing. Anal. Bioanal. Chem. 2007, 389, 441–446. [Google Scholar] [CrossRef]
  43. Shamsipur, M.; Rajabi, H.R.; Beyzavi, M.H.; Sharghi, H. Bulk polymer nanoparticles containing a tetrakis (3-hydroxyphenyl)porphyrin for fast and highly selective separation of mercury ions. Microchim. Acta 2013, 180, 791–799. [Google Scholar] [CrossRef]
  44. Tan, F.; Sun, D.; Gao, J.; Zhao, Q.; Wang, X.; Teng, F.; Quan, X.; Chen, J. Preparation of molecularly imprinted polymer nanoparticles for selective removal of fluoroquinolone antibiotics in aqueous solution. J. Hazard. Mater. 2013, 244–245, 750–757. [Google Scholar] [CrossRef]
  45. Lian, W.; Liu, S.; Yu, J.; Li, J.; Cui, M.; Xu, W.; Huang, J. Electrochemical sensor using neomycin-imprinted film as recognition element based on chitosan-silver nanoparticles/graphene-multiwalled carbon nanotubes composites modified electrode. Biosens. Bioelectron. 2013, 44, 70–76. [Google Scholar] [CrossRef]
  46. Vlatakis, G.; Andersson, L.I.; Müller, R.; Mosbach, K. Drug assay using antibody mimics made by molecular imprinting. Nature 1993, 361, 645–647. [Google Scholar] [CrossRef]
  47. Lai, J.P.; Yang, M.L.; Niessner, R.; Knopp, D. Molecularly imprinted microspheres and nanospheres for di (2-ethylhexyl)phthalate prepared by precipitation polymerization. Anal. Bioanal. Chem. 2007, 389, 405–412. [Google Scholar] [CrossRef]
  48. Wei, S.; Molinelli, A.; Mizaikoff, B. Molecularly imprinted micro and nanospheres for the selective recognition of 17β-estradiol. Biosens. Bioelectron. 2006, 21, 1943–1951. [Google Scholar] [CrossRef]
  49. Yao, Q.; Zhou, Y. Synthesis of TiO2 hybrid molecular imprinted nanospheres linked by silane coupling agent. J. Inorg. Organomet Polym. Mater. 2009, 19, 466–472. [Google Scholar] [CrossRef]
  50. Lehmann, M.; Dettling, M.; Brunner, H.; Tovar, G.E.M. Affinity parameters of amino acid derivative binding to molecularly imprinted nanospheres consisting of poly [(ethylene glycol dimethacrylate)-co-(methacrylic acid)]. J. Chromatogr. B 2004, 808, 43–50. [Google Scholar] [CrossRef]
  51. Kolarov, F.; Niedergall, K.; Bach, M.; Tovar, G.M.; Gauglitz, G. Optical sensors with molecularly imprinted nanospheres: A promising approach for robust and label-free detection of small molecules. Anal. Bioanal. Chem. 2012, 402, 3245–3252. [Google Scholar] [CrossRef]
  52. Diltemiz, S.E.; Say, R.; Büyüktiryaki, S.; Hür, D.; Denizli, A.; Ersöz, A. Quantum dot nanocrystals having guanosine imprinted nanoshell for DNA recognition. Talanta 2008, 75, 890–896. [Google Scholar] [CrossRef]
  53. Gültekin, A.; Ersöz, A.; Sarıözlü, N.Y.; Denizli, A.; Say, R. Nanosensors having dipicolinic acid imprinted nanoshell for Bacillus cereus spores detection. J. Nanopart. Res. 2010, 12, 2069–2079. [Google Scholar] [CrossRef]
  54. Gültekin, A.; Ersöz, A.; Hür, D.; Sarıözlü, N.Y.; Denizli, A.; Say, R. Gold nanoparticles having dipicolinic acid imprinted nanoshell for Bacillus cereus spores recognition. Appl. Surf. Sci. 2009, 256, 142–148. [Google Scholar] [CrossRef]
  55. Piperno, S.; Tse Sum Bui, B.; Haupt, K.; Gheber, L.A. Immobilization of molecularly imprinted polymer nanoparticles in electrospun poly(vinyl alcohol) nanofibers. Langmuir 2011, 27, 1547–1550. [Google Scholar] [CrossRef]
  56. Kim, W.J.; Chang, J.Y. Molecularly imprinted polyimide nanofibers prepared by electrospinning. Mater. Lett. 2011, 65, 1388–1391. [Google Scholar] [CrossRef]
  57. Sueyoshi, Y.; Utsunomiya, A.; Yoshikawa, M.; Robertson, G.P.; Guiver, M.D. Chiral separation with molecularly imprinted polysulfone-aldehyde derivatized nanofiber membranes. J. Membr. Sci. 2012, 401–402, 89–96. [Google Scholar] [CrossRef]
  58. Sueyoshi, Y.; Fukushima, C.; Yoshikawa, M. Molecularly imprinted nanofiber membranes from cellulose acetate aimed for chiral separation. J. Membr. Sci. 2010, 357, 90–97. [Google Scholar] [CrossRef]
  59. Kan, X.; Liu, T.; Zhou, H.; Li, C.; Fang, B. Molecular imprinting polymer electrosensor based on gold nanoparticles for theophylline recognition and determination. Microchim. Acta 2010, 171, 423–429. [Google Scholar] [CrossRef]
  60. Huang, J.D.; Zhang, X.M.; Liu, S.; Lin, Q.; He, X.R.; Xing, X.R.; Lian, W.J. Electrochemical sensor for bisphenol A detection based on molecularly imprinted polymers and gold nanoparticles. J. Appl. Electrochem. 2011, 41, 1323–1328. [Google Scholar] [CrossRef]
  61. Huang, J.; Zhang, X.; Lin, Q.; He, X.; Xing, X.; Huai, H.; Lian, W.; Zhu, H. Electrochemical sensor based on imprinted sol-gel and nanomaterials for sensitive determination of bisphenol A. Food Control 2011, 22, 786–791. [Google Scholar] [CrossRef]
  62. Riskin, M.; Tel-Vered, R.; Bourenko, T.; Granot, E.; Willner, I. Imprinting of molecular recognition sites through electropolymerization of functionalized Au nanoparticles: Development of an electrochemical TNT sensor based on π-Donor-acceptor interactions. J. Am. Chem. Soc. 2008, 130, 9726–9733. [Google Scholar] [CrossRef]
  63. Gam-Derouich, S.; Mahouche-Chergui, S.; Truong, S.; Ben Hassen-Chehimi, D.; Chehimi, M.M. Design of molecularly imprinted polymer grafts with embedded gold nanoparticles through the interfacial chemistry of aryl diazonium salts. Polymer 2011, 52, 4463–4470. [Google Scholar] [CrossRef]
  64. Kan, X.; Zhao, Y.; Geng, Z.; Wang, Z.; Zhu, J.J. Composites of multiwalled carbon nanotubes and molecularly imprinted polymers for dopamine recognition. J. Phys. Chem. C 2008, 112, 4849–4854. [Google Scholar] [CrossRef]
  65. Lian, W.J.; Huang, J.D.; Yu, J.H.; Zhang, X.M.; Lin, Q.; He, X.R.; Xing, X.R.; Liu, S. A molecularly imprinted sensor based on β-cyclodextrin incorporated multiwalled carbon nanotube and gold nanoparticles-polyamide amine dendrimer nanocomposites combining with water-soluble chitosan derivative for the detection of chlortetracycline. Food Control 2012, 26, 620–627. [Google Scholar] [CrossRef]
  66. Hu, Y.; Zhang, Z.; Zhang, H.; Luo, L.; Yao, S. Selective and sensitive molecularly imprinted sol-gel film-based electrochemical sensor combining mercaptoacetic acid-modified PbS nanoparticles with Fe3O4@Au-multi-walled carbon nanotubes–chitosan. J. Solid State Electrochem. 2012, 16, 857–867. [Google Scholar] [CrossRef]
  67. Du, D.; Chen, S.; Cai, J.; Tao, Y.; Tu, H.; Zhang, A. Recognition of dimethoate carried by bi-layer electrodeposition of silver nanoparticles and imprinted poly-o-phenylenediamine. Electrochim. Acta 2008, 53, 6589–6595. [Google Scholar] [CrossRef]
  68. Zhao, P.; Hao, J. Tert-butylhydroquinone recognition of molecular imprinting electrochemical sensor based on core–shell nanoparticles. Food Chem. 2013, 139, 1001–1007. [Google Scholar] [CrossRef]
  69. Lian, W.J.; Liu, S.; Yu, J.H.; Xing, X.R.; Li, J.; Cui, M.; Huang, J.D. Electrochemical sensor based on gold nanoparticles fabricated molecularly imprinted polymer film at chitosan–platinum nanoparticles/graphene–gold nanoparticles double nanocomposites modified electrode for detection of erythromycin. Biosens. Bioelectron. 2012, 38, 163–169. [Google Scholar] [CrossRef]
  70. Li, H.; Xie, C.; Fu, X. Electrochemiluminescence sensor for sulfonylurea herbicide with molecular imprinting core–shell nanoparticles/chitosan composite film modified glassy carbon electrode. Sens. Actuators B 2013, 181, 858–866. [Google Scholar] [CrossRef]
  71. Gültekin, A.; Diltemiz, S.E.; Ersöz, A.; Sarıözlü, N.Y.; Denizli, A.; Say, R. Gold-silver nanoclusters having dipicolinic acid imprinted nanoshell for Bacillus cereus spores recognition. Talanta 2009, 78, 1332–1338. [Google Scholar] [CrossRef]
  72. Lee, M.H.; Chen, Y.C.; Ho, M.H.; Lin, H.Y. Optical recognition of salivary proteins by use of molecularly imprinted poly(ethylene-co-vinyl alcohol)/quantum dot composite nanoparticles. Anal. Bioanal. Chem. 2010, 397, 1457–1466. [Google Scholar] [CrossRef]
  73. Jing, T.; Du, H.; Dai, Q.; Xia, H.; Niu, J.; Hao, Q.; Mei, S.; Zhou, Y. Magnetic molecularly imprinted nanoparticles for recognition of lysozyme. Biosens. Bioelectron. 2010, 26, 301–306. [Google Scholar] [CrossRef]
  74. Koshkin, A.V.; Sazhnikov, V.A.; Men’shikova, A.Y.; Pankova, G.A.; Evseeva, T.G.; Alfimov, M.V. Naphthalene vapor sorption by polymer nanoparticles with molecularly imprinted shells. Nanotechnol. Russia 2012, 7, 15–21. [Google Scholar] [CrossRef]
  75. Özgür, E.; Yılmaz, E.; Şener, G.; Uzun, L.; Say, R.; Denizli, A. A new molecular imprinting-based mass-sensitive sensor for real-time detection of 17β-estradiol from aqueous solution. Environ. Prog. Sustain. Energy 2012, 32, 1164–1169. [Google Scholar]
  76. Hussain, M.; Iqbal, N.; Lieberzeit, P.A. Acidic and basic polymers for molecularly imprinted folic acid sensors—QCM studies with thin films and nanoparticles. Sens. Actuators B: Chem. 2013, 176, 1090–1095. [Google Scholar] [CrossRef]
  77. Sener, G.; Ozgur, E.; Yılmaz, E.; Uzun, L.; Say, R.; Denizli, A. Quartz crystal microbalance based nanosensor for lysozyme detection with lysozyme molecularly imprinted nanoparticles. Biosens. Bioelectron. 2010, 26, 815–821. [Google Scholar] [CrossRef]
  78. Zeng, Z.; Hoshino, Y.; Rodriguez, A.; Yoo, H.; Shea, K.J. Synthetic polymer nanoparticles with antibody-like affinity for a hydrophilic peptide. ACS Nano 2010, 4, 199–204. [Google Scholar] [CrossRef]
  79. Hedborg, E.; Winquist, F.; Lundström, I.; Andersson, L.I.; Mosbach, K. Some studies of molecularly-imprinted polymer membranes in combination with field-effect devices. Sens. Actuators A 1993, 37–38, 796–799. [Google Scholar] [CrossRef]
  80. Ivanova-Mitseva, P.K.; Guerreiro, A.; Piletska, E.V.; Whitcombe, M.J.; Zhou, Z.; Mitsev, P.A.; Davis, F.; Piletsky, S.A. Cubic molecularly imprinted polymer nanoparticles with a fluorescent core. Angew. Chem. Int. Ed. 2012, 51, 5196–5199. [Google Scholar] [CrossRef]
  81. Ton, X.A.; Acha, V.; Haupt, K.; Tse Sum Bui, B. Direct fluorimetric sensing of UV-excited analytes in biological and environmental samples using molecularly imprinted polymer nanoparticles and fluorescence polarization. Biosens. Bioelectron. 2012, 36, 22–28. [Google Scholar] [CrossRef]
  82. Lieberzeit, P.A.; Afzal, A.; Rehman, A.; Dickert, F.L. Nanoparticles for detecting pollutants and degradation processes with mass-sensitive sensors. Sens. Actuators B 2007, 127, 132–136. [Google Scholar] [CrossRef]
  83. Mujahid, A.; Dickert, F.L. Monitoring automotive oil degradation: Analytical tools and onboard sensing technologies. Anal. Bioanal. Chem. 2012, 404, 1197–1209. [Google Scholar] [CrossRef]
  84. Mujahid, A.; Afzal, A.; Glanzing, G.; Leidl, A.; Lieberzeit, P.A.; Dickert, F.L. Imprinted sol-gel materials for monitoring degradation products in automotive oils by shear transverse wave. Anal. Chim. Acta 2010, 675, 53–57. [Google Scholar] [CrossRef]
  85. Mustafa, G.; Hussain, M.; Iqbal, N.; Dickert, F.L.; Lieberzeit, P.A. Quartz crystal microbalance sensors based on affinity interactions between organic thiols and molybdenum disulfide nanoparticles. Sens. Actuators B 2012, 162, 63–67. [Google Scholar] [CrossRef]
  86. Iqbal, N.; Afzal, A. Imprinted polyurethane-gold nanoparticle composite films for rapid mass-sensitive detection of organic vapors. Sci. Adv. Mater. 2013, 5, 939–946. [Google Scholar] [CrossRef]
  87. Subramanian, V. Nanomaterials in Soil and Food Analysis. In Encyclopedia of Agrophysics; Gliński, J., Horabik, J., Lipiec., J., Eds.; Springer: Berlin, Germany, 2011. [Google Scholar]
  88. Subramanian, V.; Jerzy, R. Nanomaterials in electrochemical biosensors for food analysis: A review. Pol. J. Food Nutr. Sci. 2008, 58, 157–164. [Google Scholar]
  89. Iqbal, N.; Mustafa, G.; Rehman, A.; Biedermann, A.; Najafi, B.; Lieberzeit, P.A.; Dickert, F.L. QCM-arrays for sensing terpenes in fresh and dried herbs via bio-mimetic MIP layers. Sensors 2010, 10, 6361–6376. [Google Scholar] [CrossRef]
  90. Dias, L.A.; Peres, A.M.; Vilas-Boas, M.; Rocha, M.A.; Estevinho, L.; Machado, A.A.S.C. An electronic tongue for honey classification. Microchim. Acta 2008, 163, 97–102. [Google Scholar] [CrossRef]
  91. Kong, L.J.; Pan, M.F.; Fang, G.Z.; He, X.L.; Yang, Y.K.; Dai, J.; Wang, S. Molecularly imprinted quartz crystal microbalance sensor based on poly (o-aminothiophenol) membrane and Au nanoparticles for ractopamine determination. Biosens. Bioelectron. 2014, 51, 286–292. [Google Scholar] [CrossRef]
Nanomaterials EISSN 2079-4991 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
