Nanomaterials 2012, 2(4), 379-412; doi:10.3390/nano2040379

Review
Recent Advances in Nanostructured Thermoelectric Half-Heusler Compounds
Wenjie Xie 1,*, Anke Weidenkaff 1, Xinfeng Tang 2, Qingjie Zhang 2, Joseph Poon 3 and Terry M. Tritt 4,*
1
Empa, Swiss Federal Laboratories for Materials Science and Technology, Solid State Chemistry and Catalysis, CH-8600 Dubendorf, Switzerland; Email: anke.weidenkaff@empa.ch
2
State Key Laboratory of Advanced Technology for Materials Synthesis and Processing, Wuhan University of Technology, Wuhan 430070, China; Email: tangxf@whut.edu.cn (X.T.), zhangqj@whut.edu.cn (Q.Z.)
3
Department of Physics, University of Virginia, Charlottesville, VA 22904-4714, USA; Email: sjp9x@virginia.edu
4
Department of Physics and Astronomy, Department of Materials Science & Engineering, Clemson University, Clemson, SC 29634-0978, USA
*
Author to whom correspondence should be addressed; Email: wenjie.xie@empa.ch (W.X.); ttritt@clemson.edu (T.M.T.); Tel.:+41-58-765-4861 (W.X.); +1-864-656-5319 (T.M.T); Fax: +41-58-765-4019 (W.X.); +1-864-656-0805 (T.M.T.).
Received: 18 September 2012; in revised form: 26 October 2012 / Accepted: 26 October 2012 /
Published: 14 November 2012

Abstract

: Half-Heusler (HH) alloys have attracted considerable interest as promising thermoelectric (TE) materials in the temperature range around 700 K and above, which is close to the temperature range of most industrial waste heat sources. The past few years have seen nanostructuing play an important role in significantly enhancing the TE performance of several HH alloys. In this article, we briefly review the recent progress and advances in these HH nanocomposites. We begin by presenting the structure of HH alloys and the different strategies that have been utilized for improving the TE properties of HH alloys. Next, we review the details of HH nanocomposites as obtained by different techniques. Finally, the review closes by highlighting several promising strategies for further research directions in these very promising TE materials.
Keywords:
thermoelectric; half-Heusler; nanocomposite

1. Introduction

The imperative demand for alternative and sustainable energies and energy conversion technologies to reduce our global reliance on fossil fuels leads to important regimes of research, including that of thermoelectricity. Thermoelectricity is the simplest technology applicable to achieve the direct conversion between heat and electricity. The dimensionless figure of merit (ZT) is determined by ZT = α2σT/κ = α2T/ρ(κL + κe), where α is the Seebeck coefficient (i.e., thermopower), σ the electrical conductivity, ρ, the electrical resistivity, κ, the thermal conductivity (including the lattice thermal conductivity, κL, and the carrier thermal conductivity, κe), and T the absolute temperature. A high efficiency thermoelectric (TE) device consists of legs (pellets) each made of high dimensionless figure of merit n-type or p-type material. These n-type or p-type legs are connected electrically in series and thermally in parallel to form a TE module or device. According to the definition of ZT, then a high ZT material is essentially a “phonon-glass electron-crystal” (PGEC) system with a large Seebeck coefficient [1,2]. Apparently, it is difficult to satisfy these criteria in a material with a simple crystal structure since the three physical properties (α, σ, and κ) that govern the ZT are interdependent: a modification to any of these properties often adversely affects the other properties. Thus, the ZT values of most state-of-the-art TE materials, such as Bi2Te3 [3,4,5], SiGe [6,7,8], and PbTe [9,10,11,12], are below or around to the value of unity, i.e., ZTmax ≈ 1. The conversion efficiency of TE device is determined by both the Carnot efficiency and the ZT values of the TE materials. For example, the maximum conversion efficiency of TE power generation, η, is given by:

Nanomaterials 02 00379 i001
where TH is the hot side temperature, TC the cold side temperature, and Tm the mean temperature. Of course, the first term in parenthesis is the Carnot efficiency. For a given working temperature, e.g., TC = 300 K and TH = 800 K, the maximum conversion efficiency dependence of ZT values can be obtained by Equation 1 and illustrated in Figure 1. As shown in Figure 1, for TC = 300 K and TH = 800 K, if the ZT = 1, the maximum η is around 10%, which is much lower than the Carnot efficiency (62.5%). Although the low efficiency of current TE materials is the main drawback of TE technology, nevertheless TE technology still plays an important role in the recovery of industrial or automotive waste heat [13,14,15,16,17,18,19,20,21], utilization of solar thermal energy (infrared) [22,23,24,25,26,27,28,29], and the application of solid-state refrigeration [30,31,32,33]. It is important to note and remember that waste heat is a 0% efficiency process and thus any cost effective technology that can recover some part of this waste heat is very important. Furthermore, unused thermal energy is very abundant, such as industrial or automotive waste heat.

The key goals of TE research are to discover brand new classes of materials with high TE performance and/or improve the performance of the existing well-known materials, such as Bi2Te3, SiGe, and PbTe alloys. These materials ideally, should also be stable at high temperature, possess low contact resistance and exhibit low parasitic losses. Among the wide variety of TE materials, half-Heusler (HH) compounds are intermetallic compounds formulated as MNiSn [34,35,36,37,38,39,40,41,42,43,44,45,46,47,48] and MCoSb [49,50,51,52,53,54,55,56,57,58,59,60,61,62] (M = Ti, Zr, or Hf) and it was pointed out as one kind of new promising TE materials in the temperature range around 700 K and above. Band structure calculations [63,64,65,66] show that many HH systems with 18-valence electrons are narrow band gap semiconductors, which will result in a high effective mass and a large Seebeck coefficient. For instance, the Seebeck coefficient of HH compounds TiNiSn, ZrNiSn and HfNiSn are in the range of −200 to −400 µV/K (n-type) at room temperature [36,62], which is higher than that of the state-of-the-art Bi2Te3 compounds. For this reason, HH compounds have attracted considerable attention as a promising candidate material for moderate and high temperature TE power generation applications. However, the biggest disadvantage for the HH compounds is their relatively high thermal conductivity. Two of the authors (Poon and Tritt) have been collaboratively working on these materials for over more than a decade. For the most widely investigated MNiSn and MCoSb (M = Ti, Zr, or Hf) systems, the thermal conductivity is on the order of 10 Wm−1K−1 at room temperature [34,36,67,68], which is almost 5 times higher than that of commercial Bi2Te3 compounds [3,4,5]. Therefore, over last two decades, the main research efforts have focused extensively on methods and techniques in order to significantly decrease the thermal conductivity of these HH compounds, while simultaneously maintaining their high power factors, PF (PF = α2σ = α2/ρ). The power factor reflects primarily the electronic transport component of the figure of merit, ZT.

Nanomaterials 02 00379 g001

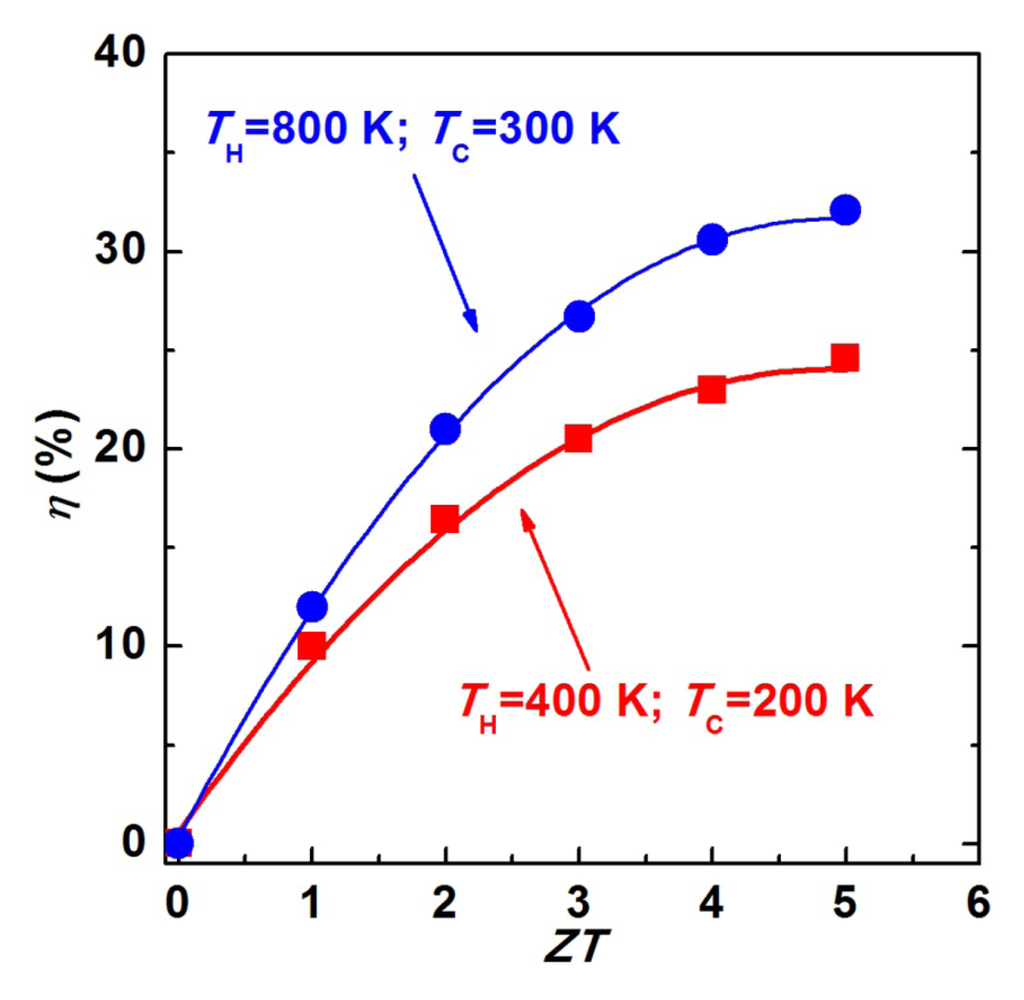

Figure 1. The maximum conversion efficiency dependence of figure of merit (ZT) values under certain working temperature.

Click here to enlarge figure

Figure 1. The maximum conversion efficiency dependence of figure of merit (ZT) values under certain working temperature.
Nanomaterials 02 00379 g001

Over the past several years, one successful strategy that has been used to decrease the thermal conductivity in several TE materials is that of nanostructuring or introducing nano-scale secondary phases into the host matrix to form nanocomposites. Indeed, the nanostructuring approach significantly enhances the ZT values of HH nanocomposites by significantly reducing the lattice thermal conductivity [69,70,71,72,73,74,75,76,77,78]. However, more recently, it is reported that, in addition to the reduction in the lattice thermal conductivity, nanostructuring can also increase the power factor, PF, in some HH nanocomposites [79,80]. In other words, it is possible that in some material systems the three interrelated physical properties (α, σ, and κ) can be decoupled by introducing nanostructures.

Herein, we review the recent progress in improving the TE performance of several HH compounds by utilizing the strategy of forming HH nanocomposites. Before the detailed review of HH nanocomposites, we would like to provide some important background by introducing the structure of HH compounds, and highlight some of the more typical strategies that have been previously used in order to enhance the TE properties of HH compounds. After that, we will review the recent progress in HH nanocomposites, which can be classified according to the various types of microstructures. Finally, we finish with a discussion of challenges and promising strategies for further research directions in these materials.

2. Structure of HH Compounds and Typical Strategies of Enhancing ZT for HH

The half-Huesler phase is one kind of the best known intermetallic compounds, and it is represented by the general formula ABC, where A and B are transition metals, and C is an sp metalloid or metal [62,81]. The crystal structure of a typical HH compound ABC is MgAgAs type with space group of Nanomaterials 02 00379 i002, and is shown in Figure 2. In the structure shown in Figure 2, it consists of three filled interpenetrating face-centered cubic (fcc) sublattices and one vacant fcc sublattice. One should note that the full Huesler material would contain all four interpenetrating sublattices and would be of the form, AB2C. In the HH compounds, the elements A and C form a rock salt structure and B is located at one of the two body diagonal positions (1/4, 1/4, 1/4) in the cell with leaving the other one (3/4, 3/4, 3/4) unoccupied. The more detail introduction of HH structure can be found in review by Graf et al. [82].

Nanomaterials 02 00379 g002
Figure 2. The crystal structure of a typical Half-Heusler (HH) compound ABC.

Click here to enlarge figure

Figure 2. The crystal structure of a typical Half-Heusler (HH) compound ABC.
Nanomaterials 02 00379 g002

One of the first strategies for enhancing ZT values (not only for HH materials, but for all TE materials) is by tuning the carrier concentration via doping. Because the electrical conductivity σincreases with an increase in carrier concentration, and while the Seebeck coefficient α decreases, the power factors (PF = α2σ) typically exhibit their highest values at carrier concentrations between 1019 and 1021 carriers per cm3 [83]. This indicates that heavily doped semiconductors, either narrow band gap or degenerate semiconductors, usually result in the best TE materials. For HH compounds, due to their specific structural features, it is possible to dope each of the three occupied fcc sublattices individually for tuning and optimizing the carrier concentration. Moreover, significant doping (or atomic substitutions) in the HH compounds can also introduce point defects, mass fluctuation scattering and strain field effects that can be utilized in order to effectively scatter short- and mid-wavelength heat-carrying phonons, which will significantly reduce the lattice thermal conductivity. In the most widely investigated MNiSn and MCoSb (M = Ti, Zr, or Hf) systems, it is typical to alter the number of charge carriers by doping on Sn and Sb site, and simultaneously introduce disorder by isoelectronic alloying on M site with Ti, Zr and Hf. For example, in the TiNiSn system, using x = 1%–5% Sb for Sn, in TiNiSn1xSbx) yield the best changes in the band structure in order to effectively reduce the resistivity. Furthermore, using isoelectronic doping on the A and B sites, e.g., Ti1yMyNizRzSn1xSbx (M = Zr, or Hf) for the A site and (R = Pd or Pt) for the B site work best for manipulating or significantly lowering the lattice thermal conductivity. One can see that the compositions can get extremely complex. Thus, the ZT values of MNiSn and MCoSb (M = Ti, Zr, or Hf) systems can be significantly improved. Figure 3 presents an overview on the most promising doped n and p-type HH compounds with relatively high ZT values. For the doped n-type TiNiSn and TiCoSb systems, the reproducible highest ZT values are achieved to values of ZT ≈ 1 [84,85] and ZT ≈ 0.7 [49], respectively, which are much higher than that of the undoped compounds. One must also make note that one of the very important attributes of these materials is that they exhibit excellent thermal stability to temperatures as high as 900 °C in the Ti1yMyNizRzSn1xSbx system. Also by doping the p-type HH compounds they obtain their highest ZT values of ZT ≈ 0.5 at 1000 K [86].

Nanomaterials 02 00379 g003

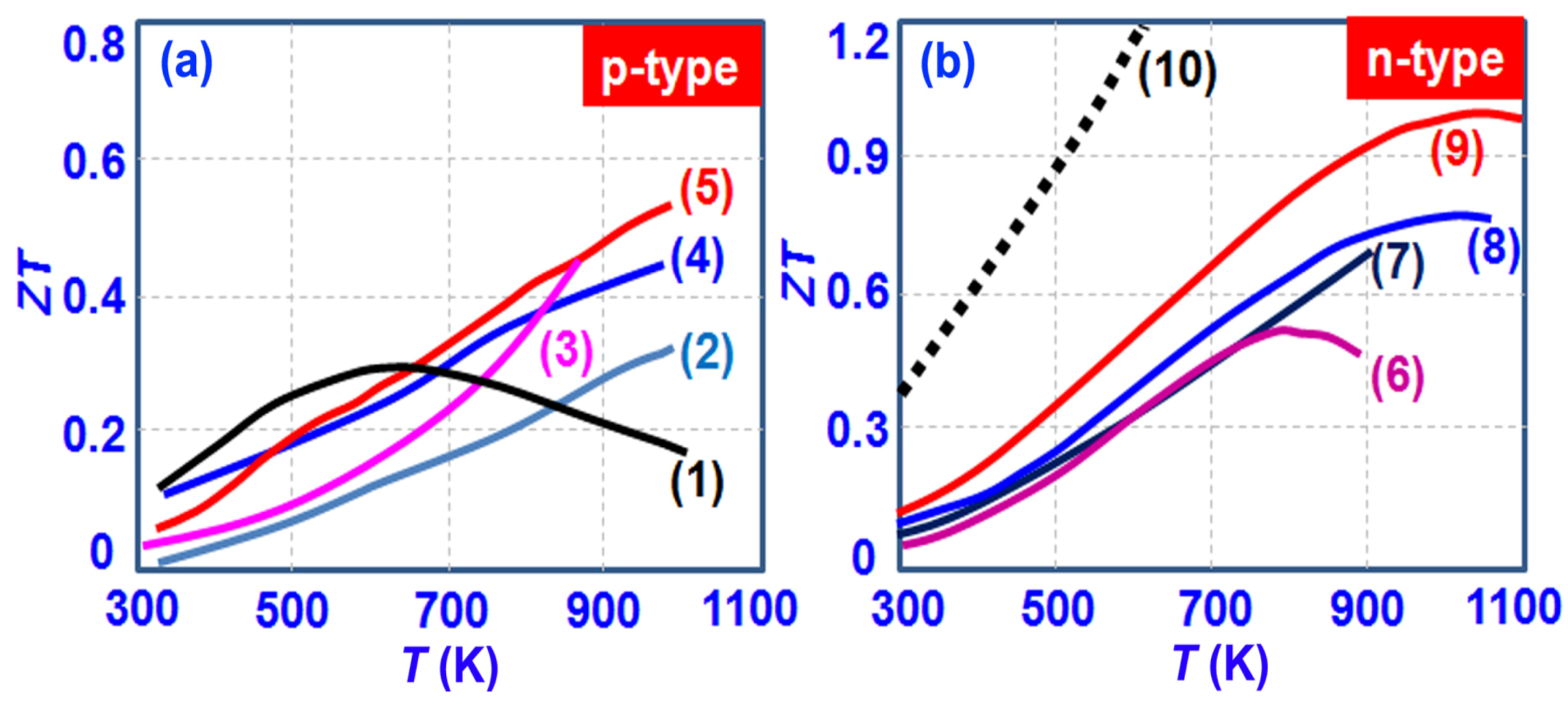

Figure 3. Overview of the most promising doped n and p-type doped HH compounds: (a) n-type, (b) p-type. (1) ErNi1xPdxSb [87]; (2) ZrNi0.8Ir0.2Sn [88]; (3) TiCo0.85Fe0.15Sb [51]; (4) ZrCoSn0.1Sb0.9 [89]; (5) Zr0.5Hf0.5CoSb0.8Sn0.2 [86]; (6) Ti0.5Zr0.25Hf0.25Co0.95Ni0.05Sb [50]; (7) Ti0.6Hf0.4Co0.87Ni0.13Sb [49]; (8) Zr0.75Hf0.25NiSn0.975Sb0.025 [90]; (9) Zr0.4Hf0.6NiSn0.98Sb0.02 [84]; (10) Zr0.25Hf0.25Ti0.5NiSn0.998Sb0.002 [91].

Click here to enlarge figure

Figure 3. Overview of the most promising doped n and p-type doped HH compounds: (a) n-type, (b) p-type. (1) ErNi1xPdxSb [87]; (2) ZrNi0.8Ir0.2Sn [88]; (3) TiCo0.85Fe0.15Sb [51]; (4) ZrCoSn0.1Sb0.9 [89]; (5) Zr0.5Hf0.5CoSb0.8Sn0.2 [86]; (6) Ti0.5Zr0.25Hf0.25Co0.95Ni0.05Sb [50]; (7) Ti0.6Hf0.4Co0.87Ni0.13Sb [49]; (8) Zr0.75Hf0.25NiSn0.975Sb0.025 [90]; (9) Zr0.4Hf0.6NiSn0.98Sb0.02 [84]; (10) Zr0.25Hf0.25Ti0.5NiSn0.998Sb0.002 [91].
Nanomaterials 02 00379 g003

Further significant improvements in the TE properties of HH compounds are thus dependent upon new materials design approaches other than just simple doping or substitutions. The most probable of these is the recent successful strategy of utilizing a nanostructuring approach in these materials. Nanostructuring has become a new paradigm approach of TE materials research that has been widely used to improve the ZT of several bulk TE materials over the past several years [92,93,94,95,96,97,98,99,100]. In the nanostructured bulk materials, or nanocomposites, the presence of multiple length-scales down to a few nanometers ( Nanomaterials 02 00379 i003), provides new avenues for phonon scattering in addition to the mass fluctuation alloying ( Nanomaterials 02 00379 i004), grain boundary or surface scattering ( Nanomaterials 02 00379 i005), phonon-phonon interactions ( Nanomaterials 02 00379 i006), and strain fields ( Nanomaterials 02 00379 i007), which all can occur in parallel and thus each adds to the process according to the Matthiessen’s rule, given below in Equation 2, with the shortest scattering process dominating.

Nanomaterials 02 00379 i008

Therefore, all these various scattering processes cover a wide range of phonon wavelengths in order to more effectively reduce the lattice thermal conductivity. Meanwhile, it is also expected that, in a system with a semiconductor host matrix with metallic nanoinclusions, the Seebeck coefficient can be increased without significantly sacrificing electrical conductivity by interface charge carrier energy filtering effect [101,102,103,104,105]. Many different HH nanocomposites were investigated in the past with regards to improving their TE properties, and the details will be reviewed in section 3. Implementation of the nanostructuring process in HH compounds has indeed led to enhancement of ZT, which is due to the significant reduction of the lattice thermal conductivity in most cases [69,70,71,72,73,74,75,76,77,78], and also a substantial improvement of the power factor [79,80].

3. Nanostructuring Enhances ZT of HH Nanocomposites

In this section, we categorize the HH nanocomposites in terms of the type of microstructure: (1) micro-scale HH matrix with nano-scale inclusions (shown in Figure 4a), and (2) nano-scale HH phase with nanoinclusions (shown in Figure 4b). For the two kinds of nanocomposites, there are also several different preparation methods for each of them. For example, nanoinclusions in a micro-scale HH matrix can be prepared by in-situ formation [79,80,106] as well as ex-situ mixing [71,77,78,107,108,109,110], and the nano-scale HH phase can be obtained by either ball milling [53,67,72,73,111] or melt spinning [74,112,113]. It is not our intent (which would be quite daunting) to cover all the possible preparation methods for HH nanocomposites in this article. Instead, the purpose of this review lies in depicting the most representative HH nanocomposites with particular emphasis on the relation between their nanostructure and the resulting TE properties from results obtained over the last several years.

Nanomaterials 02 00379 g004

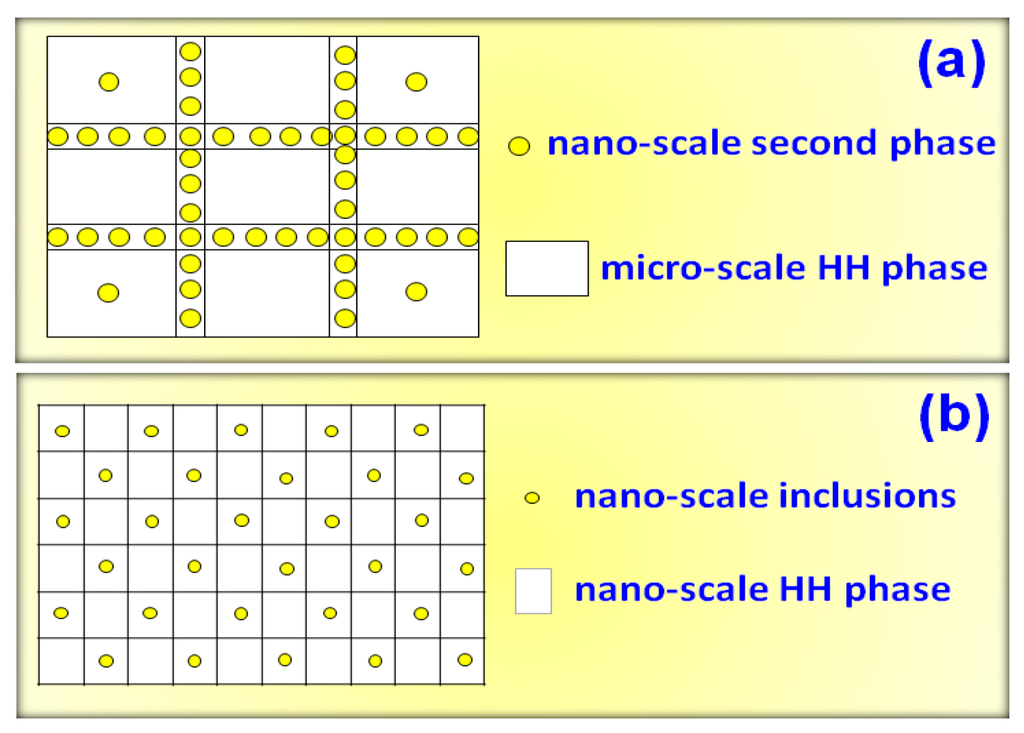

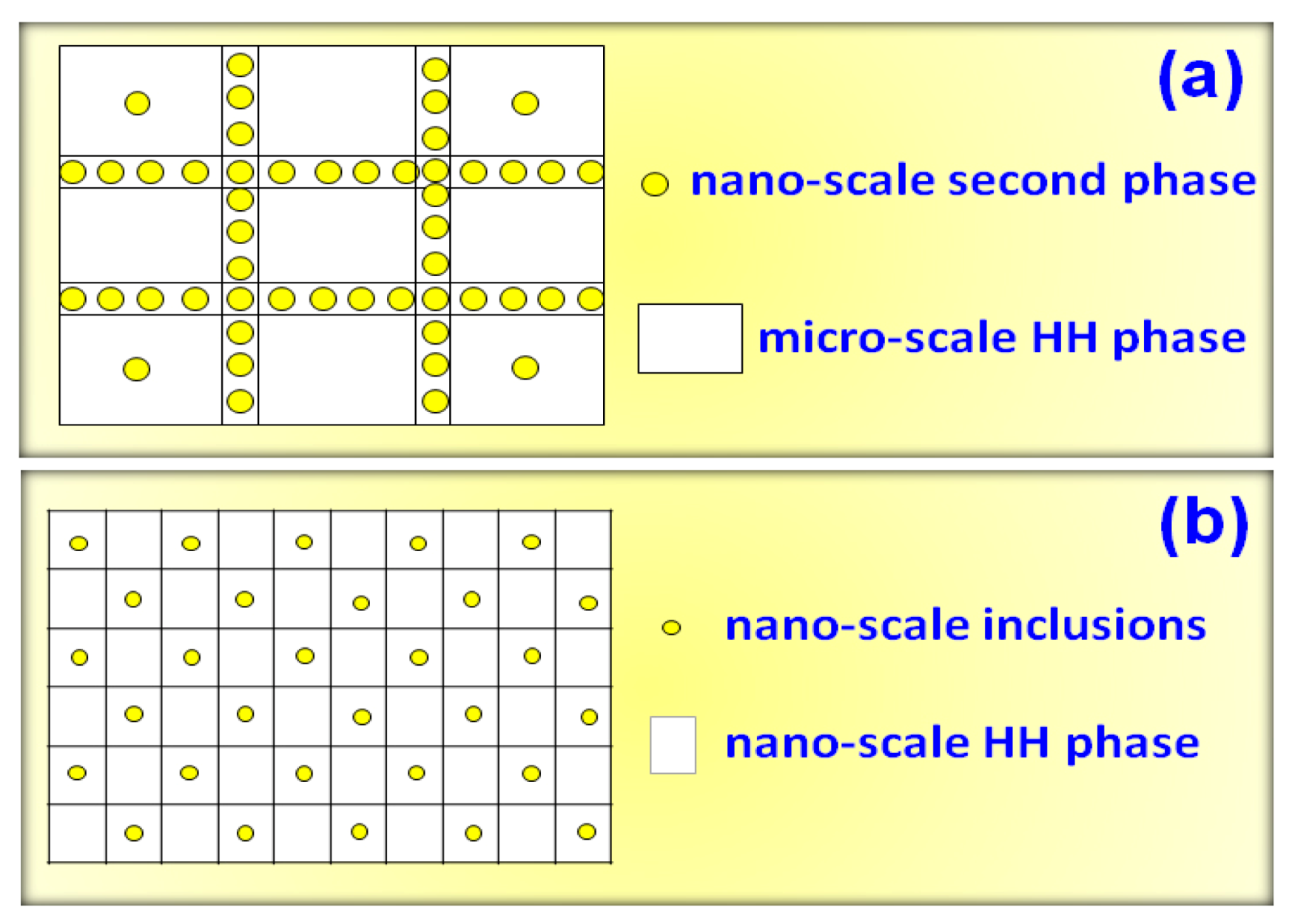

Figure 4. Two types of HH nanocomposites: (a) micro-scale HH matrix with nano-scale inclusions; (b) nano-scale HH phase with nanoinclusions.

Click here to enlarge figure

Figure 4. Two types of HH nanocomposites: (a) micro-scale HH matrix with nano-scale inclusions; (b) nano-scale HH phase with nanoinclusions.
Nanomaterials 02 00379 g004

3.1. Micro-Scale HH Matrix with Nanoinclusions

Nanoinclusions can be introduced by either mechanical mixing (ex-situ) or nanoprecipitation (in-situ) processes.

3.1.1. Ex-Situ Approach-Mechanical Mixing

It is relatively straightforward and uncomplicated to obtain nanocomposites with nanoinclusions by mechanical mixing. Usually some commercial nanoparticles (or other nanomaterials) with very uniform size distributions are available, and one can then purchase the uniform nanoparticles and subsequently mix the nanoparticles with HH matrix compound by ball milling in order to form nanocomposites. γ-Al2O3 [78], ZrO2 [77,108,110], C60 [109], WO3 [107], and NiO [71] nanoscale secondary phases are chosen as nanoinclusions in the HH matrix, and the effects of the nanoinclusions on the electrical and thermal transport properties of HH compounds have been systemically investigated.

Huang et al. prepared ZrNiSn-ZrO2 nanocomposites with ~20 nm ZrO2 by mechanical mixing followed by spark plasma sintering, and investigated the effects of ZrO2 nanoinclusions on the TE transport properties of ZrNiSn-ZrO2 nanocomposites [77]. The microstructures of un-sintered ZrO2 nanoparticles and spark plasma sintered (SPS) ZrNiSn/ZrO2 nanocomposites are presented in Figure 5. As shown in Figure 5a, the size of ZrO2 nanoparticles is very small (~20 nm) and uniform. After mixed and sintered, scanning electron microscopy (SEM) investigation, shown in Figure 5b, indicates that 20 nm ZrO2 nanoparticles do not grow very much at all during the sintering process. In addition, the electron probe micro-analysis (EPMA) observation shows that the ZrO2 nanoparticles are mainly distributed at the grain boundaries. Such small size ZrO2 nanoparticles as nanoinclusions were chosen with the clear purpose to scatter heat-carrying phonons, and subsequently reduce the resulting lattice thermal conductivity. By introducing ZrO2 nanoinclusions, the thermal conductivity of ZrNiSn- 6 vol% ZrO2 indeed reduces by 35% as compared with that of ZrNiSn without nanoinclusions (Figure 6c). It is reasonable that the ZrO2 nanoinclusions, mainly dispersed along the grain boundaries of the materials, could act as phonon scattering centers in order to significantly scatter the heat-carrying phonons. Thus, the phonon mean-free-path should be considerably reduced, and the lattice thermal conductivity was significantly reduced. However, it is not unexpected that resistivity of ZrNiSn- 6 vol% ZrO2 also increases by ~30% compared with that of ZrNiSn without nanoinclusions. Although Huang et al. did not give a convincing explanation for the increase in resistivity at that time, we believe that such small ZrO2 nanoinclusions with the size of 20 nm embedded in ZrNiSn matrix not only significantly scatter the phonons, but they also consequently result in scattering the electrons. The highest ZT of ZrNiSn- 6 vol% ZrO2 nanocomposite achieves a value of ZT ≈ 0.25 at 900 K, which is about a 15% improvement as compared with that of pure ZrNiSn compounds.

Nanomaterials 02 00379 g005
Figure 5. (a) TEM image of un-sintered ZrO2 nanoparticles; (b) SEM image of spark plasma sintered ZrNiSn/2 vol% ZrO2 nanocomposite. Reproduced with permission from Reference [77]. Copyright 2004, Elsevier.

Click here to enlarge figure

Figure 5. (a) TEM image of un-sintered ZrO2 nanoparticles; (b) SEM image of spark plasma sintered ZrNiSn/2 vol% ZrO2 nanocomposite. Reproduced with permission from Reference [77]. Copyright 2004, Elsevier.
Nanomaterials 02 00379 g005
Nanomaterials 02 00379 g006

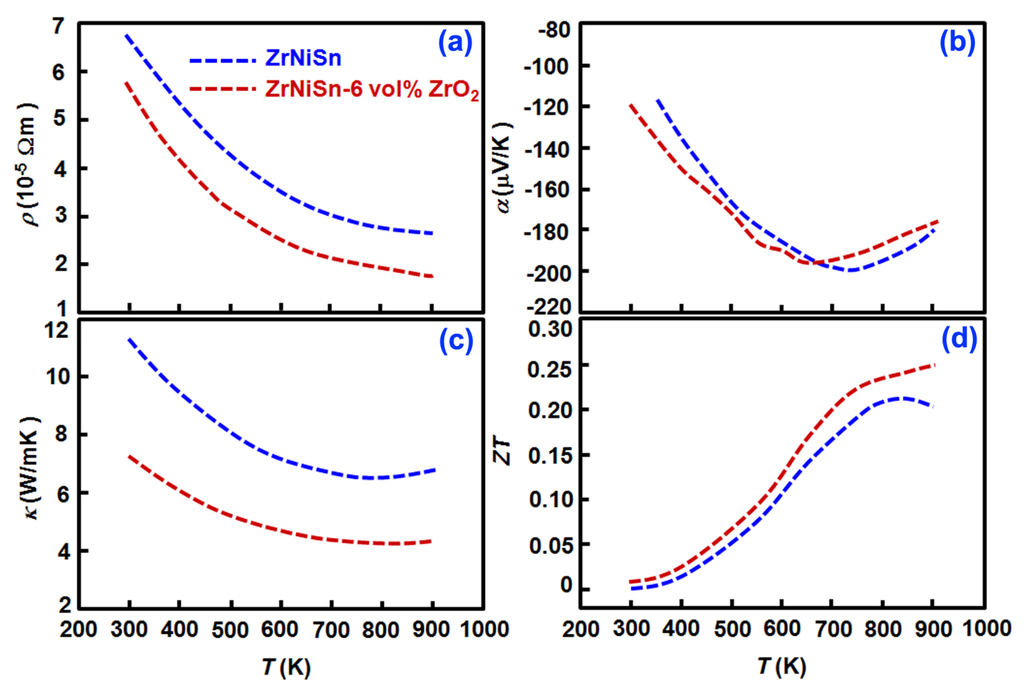

Figure 6. Thermoelectric (TE) transport properties of ZrNiSn-ZrO2 nanocomposites: (a) resistivity; (b) the Seebeck coefficient; (c) thermal conductivity; and (d) ZT values. The data is adopted from Reference [77].

Click here to enlarge figure

Figure 6. Thermoelectric (TE) transport properties of ZrNiSn-ZrO2 nanocomposites: (a) resistivity; (b) the Seebeck coefficient; (c) thermal conductivity; and (d) ZT values. The data is adopted from Reference [77].
Nanomaterials 02 00379 g006

Subsequently, the same procedure has been adopted to prepare the n-type Zr0.5Hf0.5Ni0.8Pd0.2Sn0.99Sb0.01-ZrO2 nanocomposites [108]. The microstructure and distribution of ZrO2 nanoinclusions in Zr0.5Hf0.5Ni0.8Pd0.2Sn0.99Sb0.01 matrix are almost the same as that of in previous ZrNiSn-ZrO2 shown in Figure 5. The electrical and thermal transport properties of Zr0.5Hf0.5Ni0.8Pd0.2Sn0.99Sb0.01-ZrO2 nanocomposites are presented in Figure 7. As shown in Figure 7c, compared with the lattice thermal conductivity of Zr0.5Hf0.5Ni0.8Pd0.2Sn0.99Sb0.01 without nanoinclusions, the reduction in these three nanocomposites with 3, 6, and 9 vol% ZrO2 nanoinclusions at room temperature are approximately 5%, 14%, and 34%, respectively. It is due to the realization that the ZrO2 nanoinclusions do not just act as phonon scattering centers to scatter heat carrying phonons, but they also induce defect phonon scattering in order to further decrease the lattice thermal conductivity. In addition, it is worth noting that, although the carrier concentration of Zr0.5Hf0.5Ni0.8Pd0.2Sn0.99Sb0.01-ZrO2 nanocomposites increases with increasing the ZrO2 volume ratio, the Seebeck coefficients of Zr0.5Hf0.5Ni0.8Pd0.2Sn0.99Sb0.01-ZrO2 nanocomposites with 6 and 9 vol% ZrO2 nanoinclusions show ~10% enhancement at 800 K compared with that of the Zr0.5Hf0.5Ni0.8Pd0.2Sn0.99Sb0.01 matrix. The possible explanation of the improvement in the Seebeck coefficient is that the ZrO2 nanoinclusions induce a potential barrier to scatter electrons, resulting in an enhancement in the scattering parameter. Due to primarily the significant reduction in lattice thermal conductivity as well as enhancement in Seebeck coefficient, then Zr0.5Hf0.5Ni0.8Pd0.2Sn0.99Sb0.01 with 9 vol% ZrO2 nanocomposites achieves the highest ZT of 0.75 at 800 K, a ~30% improvement over the Zr0.5Hf0.5Ni0.8Pd0.2Sn0.99Sb0.01 matrix.

Nanomaterials 02 00379 g007

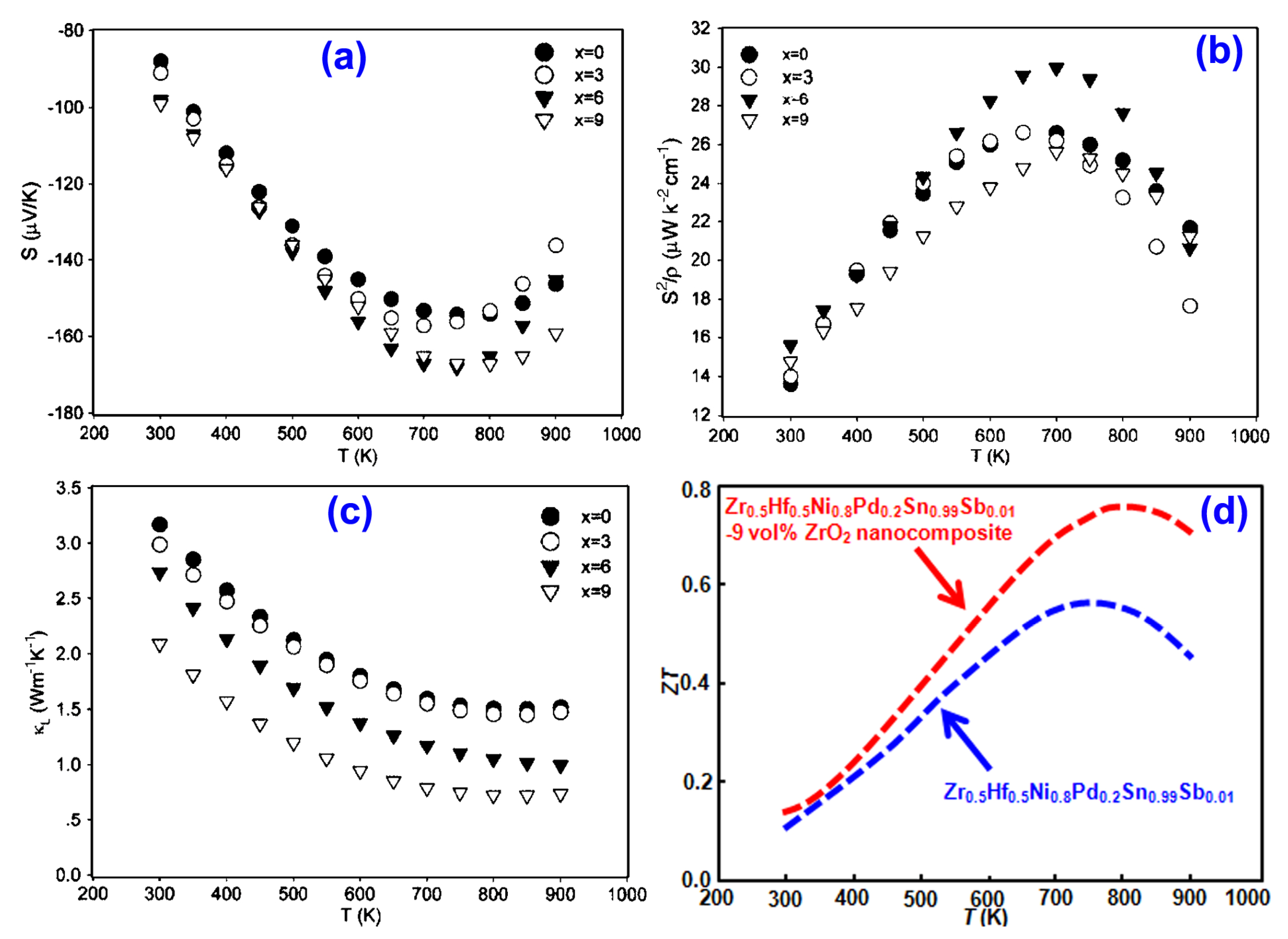

Figure 7. TE transport properties of Zr0.5Hf0.5Ni0.8Pd0.2Sn0.99Sb0.01-x vol% ZrO2 nanocomposites: (a) the Seebeck coefficient; (b) power factor; (c) lattice thermal conductivity; and (d) calculated ZT values for Zr0.5Hf0.5Ni0.8Pd0.2Sn0.99Sb0.01 without nanoinclusions and with 9 vol% ZrO2. For the (a), (b) and (c), reproduced with permission from Reference [108]. Copyright 2006, American Institute of Physics.

Click here to enlarge figure

Figure 7. TE transport properties of Zr0.5Hf0.5Ni0.8Pd0.2Sn0.99Sb0.01-x vol% ZrO2 nanocomposites: (a) the Seebeck coefficient; (b) power factor; (c) lattice thermal conductivity; and (d) calculated ZT values for Zr0.5Hf0.5Ni0.8Pd0.2Sn0.99Sb0.01 without nanoinclusions and with 9 vol% ZrO2. For the (a), (b) and (c), reproduced with permission from Reference [108]. Copyright 2006, American Institute of Physics.
Nanomaterials 02 00379 g007

Nanoscale ZrO2 particles as nanoinclusions can enhance the TE performance of n-type ZrNiSn based nanocomposites, so consequently, it is very reasonable to imagine as to whether one can apply the same approach to enhance the TE performance of p-type HH nanocomposites. Recently, Poon et al. investigated the relation between microstructure and TE properties of p-type Hf0.3Zr0.7CoSn0.3Sb0.7 with 20–300 nm ZrO2 nanocomposites [110]. The TEM and SEM images (Figure 8) show that ZrO2 assemble in the HH grain boundaries. Due to a combination of enhanced power factor and reduced electronic or lattice thermal conductivity, the highest ZT of Hf0.3Zr0.7CoSn0.3Sb0.7 nanocomposites, with 1 vol% of ZrO2 nanoinclusions, achieves ZT ≈ 0.8 at 970 K (Figure 9), which increases by ~23% as compared with that of matrix ingot.

Nanomaterials 02 00379 g008
Figure 8. TEM (a) and SEM (b) image of Hf0.3Zr0.7CoSn0.3Sb0.7 dispersed with 2% ZrO2 nanoparticles showing nanoinclusions on the grain boundary of main matrix. (c) and (d) Diffraction and energy dispersive spectroscopy (EDS) patterns from nanoparticles (location B) and main matrix (location E) in figure a, respectively. Reproduced with permission from Reference [110]. Copyright 2011, Cambridge University Press.

Click here to enlarge figure

Figure 8. TEM (a) and SEM (b) image of Hf0.3Zr0.7CoSn0.3Sb0.7 dispersed with 2% ZrO2 nanoparticles showing nanoinclusions on the grain boundary of main matrix. (c) and (d) Diffraction and energy dispersive spectroscopy (EDS) patterns from nanoparticles (location B) and main matrix (location E) in figure a, respectively. Reproduced with permission from Reference [110]. Copyright 2011, Cambridge University Press.
Nanomaterials 02 00379 g008

It is apparent that the main contribution to the enhancement in ZT of HH nanocomposites prepared by the ex-situ approach (mechanical mixing) originates from a significant reduction in the lattice thermal conductivity as a result of the additional phonon scattering induced by the secondary phase nanoinclusions. Although Chen et al. and Poon et al. observed the potential energy barrier scattering (or energy filtering effect) in HH-ZrO2 nanocomposites, it is still not strong enough to significantly change the Seebeck coefficient as well as a pure or significant energy filtering process. Moreover, one of the main disadvantages of mechanical mixing is that usually it will also induce extra defects that in turn results in the additional scattering of the charge carriers, resulting in a noticeable increase in resistivity. Such an increase in resistivity can also give rise to an unexpected decrease of ZT for ZiNiSn-γ-Al2O3 [78] and Zr0.5Hf0.5Ni0.8Pd0.2Sn0.99Sb0.01-WO3 [107] nanocomposites. In the most ideal case, the nanostructures will scatter phonons more effectively than they scatter electrons, or even increase the electrical conductivity by other physical mechanisms, such as the modulation doping effect [114,115]. To the best of our knowledge, so far, there are no reports that the three interrelated physical properties (α, σ or ρ, and κ) can be simultaneously optimized in nanocomposites when they are prepared by the ex-situ approach (mechanical mixing). However, such cases are observed in the situation of in-situ forming nanocomposites.

Nanomaterials 02 00379 g009

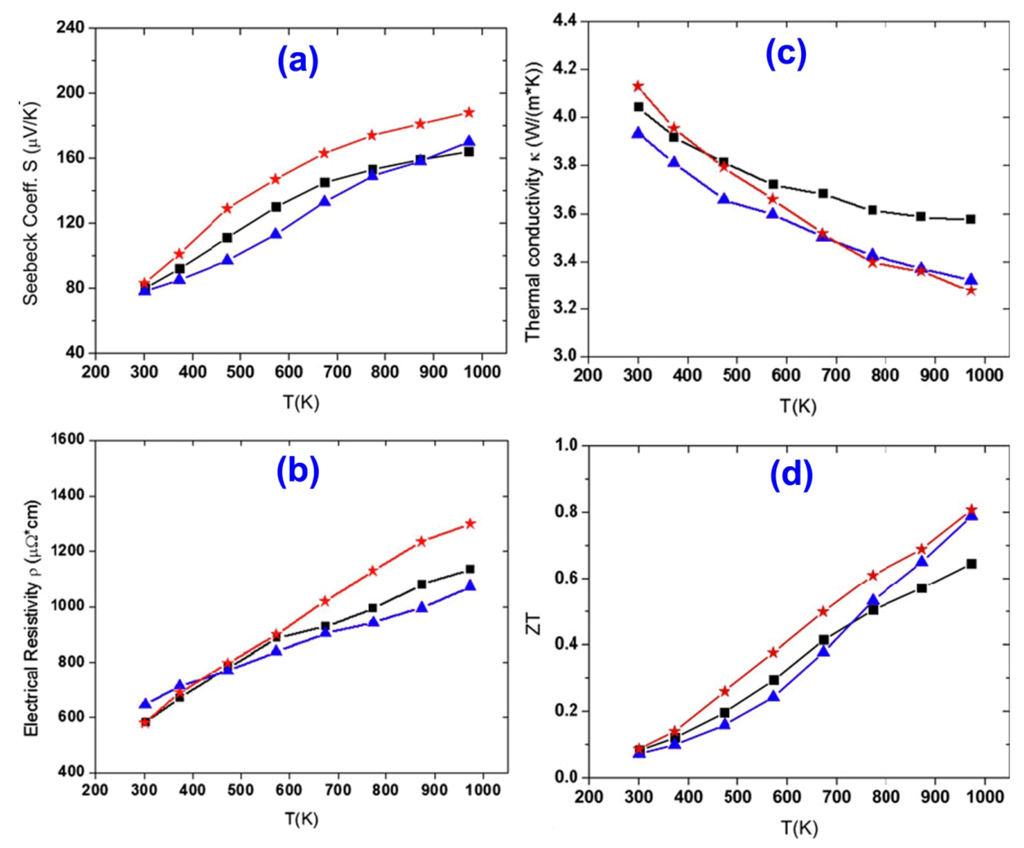

Figure 9. TE transport properties of 0% (square), 1% (triangle), and 2% (star) ZrO2 nanoparticles dispersed p-type Hf0.3Zr0.7CoSn0.3Sb0.7: (a) the Seebeck coefficient; (b) electrical resistivity; (c) thermal conductivity; and (d) ZT values. Reproduced with permission from Ref. [110]. Copyright 2011, Cambridge University Press.

Click here to enlarge figure

Figure 9. TE transport properties of 0% (square), 1% (triangle), and 2% (star) ZrO2 nanoparticles dispersed p-type Hf0.3Zr0.7CoSn0.3Sb0.7: (a) the Seebeck coefficient; (b) electrical resistivity; (c) thermal conductivity; and (d) ZT values. Reproduced with permission from Ref. [110]. Copyright 2011, Cambridge University Press.
Nanomaterials 02 00379 g009

3.1.2. In-Situ Approach-Nanoscale Precipitation

The in-situ approach is a manner or method in which nanoscale inclusions form within the homogeneous matrix via nucleation and growth, such as metastable phase decomposition [116,117,118,119] and nanoscale precipitation [120,121,122,123,124,125].

In the MCoSb (M = Ti, Zr, or Hf) system, when indium (In) was added into the mixed starting materials during the induction melting, indium (In) can react with antimony (Sb) and thus results in the formation of nanoscale InSb inclusions [79]. By the in-situ formation of InSb nanoinclusions in the (Ti,Zr,Hf)(Co,Ni)Sb matrix, Xie et al. have experimentally shown that the Seebeck coefficient, electrical conductivity, and thermal conductivity can be tuned somewhat individually, albeit in a small portion of the overall parameter space. The (Ti,Zr,Hf)(Co,Ni)Sb-InSb nanocomposites have been prepared by high-frequency induction melting method combined with a subsequent SPS process. InSb can be formed in-situ during the induction melting, and mainly distribute around the grain boundaries of the HH matrix, as shown in Figure 10. As presented in Figure 10b, the size of InSb nanoinclusions are very uniform and around 10–30 nm in the HH nanocomposites with 1 at.% InSb. However, the typical size of the InSb nanoinclusions can rapidly grow from 10–30 nm for HH nanocomposites with 1 at.% InSb to 200–300 nm for HH nanocomposites with 7 at.% InSb, as the InSb concentration increases. Such nano-scale InSb inclusions “inject” electrons that can increase the carrier concentration and thus the electrical conductivity of (Ti,Zr,Hf)(Co,Ni)Sb-InSb nanocomposites (Figure 11a), and also InSb-(Ti,Zr,Hf)(Co,Ni)Sb interfaces act as potential energy barriers in order to scatter low energy electron resulting in an enhancement of the Seebeck coefficient (Figure 11b). Meanwhile, the phonon scattering is enhanced at the matrix-nanoinclusion interfaces, resulting in a reduction in lattice thermal conductivity (Figure 11c). Due to the combination of “electron-filtering”, “electron-injection” and “boundary phonon scattering” mechanisms, the otherwise inter-related Seebeck coefficient, electrical conductivity, and thermal conductivity are significantly decoupled. As a result, the ZT of the HH nanocomposites with 1 at.% InSb has attained an improvement of ~160% as compared with the HH matrix sample (Figure 11d). Such an in-situ nanostructure formation approach has successfully been applied to the p-type Ti(CoFe)Sb system, and the effect of the InSb nanoinclusions on the TE transport properties of Ti(CoFe)Sb-InSb nanocomposites is almost the same as its effect in the n-type (Ti,Zr,Hf)(Co,Ni)Sb-InSb nanocomposites [unpublished]. Although the highest ZT of both n and p-type HH-InSb nanocomposites increases by 160%–450% as compared with that of HH matrix, the as attained ZT value is still lower than that of the benchmark ZT ~1 for practical TE materials. This is due to the low ZT in the starting HH matrix. In-situ formation of the InSb nanoinclusions in a HH matrix with a higher ZT will most likely achieve an even higher ZT for HH-InSb nanocomposites.

Nanomaterials 02 00379 g010
Figure 10. Microstructures of nanoinclusions for (Ti,Zr,Hf)(Co,Ni)Sb nanocomposites with 1 at.% (a and b) and 7 at.% (ce) InSb nanoinclusions. Reproduced with permission from Reference [79]. Copyright 2010, Elsevier.

Click here to enlarge figure

Figure 10. Microstructures of nanoinclusions for (Ti,Zr,Hf)(Co,Ni)Sb nanocomposites with 1 at.% (a and b) and 7 at.% (ce) InSb nanoinclusions. Reproduced with permission from Reference [79]. Copyright 2010, Elsevier.
Nanomaterials 02 00379 g010
Nanomaterials 02 00379 g011

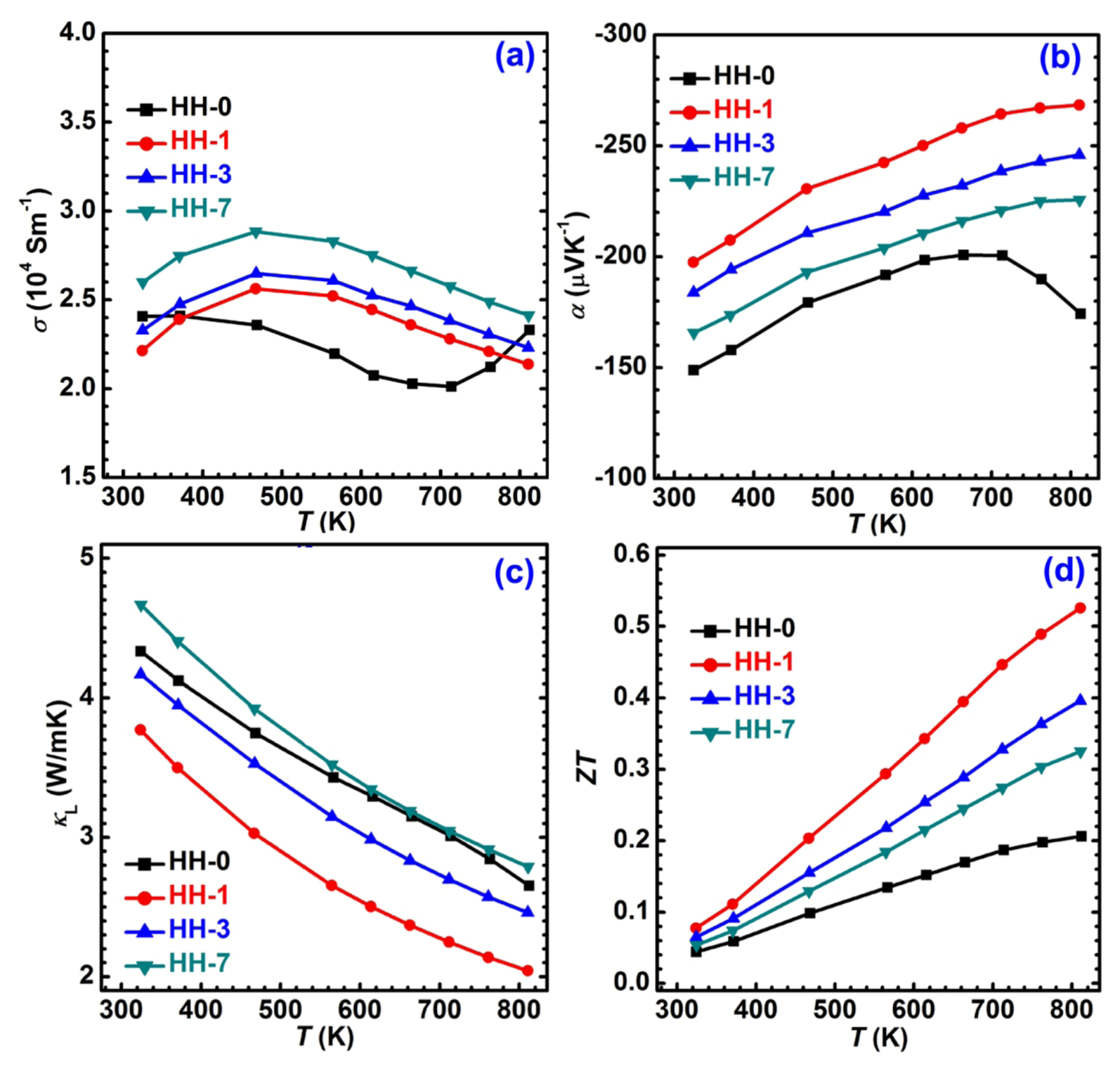

Figure 11. TE transport properties of the (Ti,Zr,Hf)(Co,Ni)Sb-x at.% InSb nanocomposites (“HH” represents the formula (Ti,Zr,Hf)(Co,Ni)Sb, and x = 0, 1, 3, and 7.): (a) the Seebeck coefficient; (b) electrical resistivity; (c) thermal conductivity; and (d) dimensionless figure of merit ZT values. Reproduced with permission from Reference [79]. Copyright 2010, Elsevier.

Click here to enlarge figure

Figure 11. TE transport properties of the (Ti,Zr,Hf)(Co,Ni)Sb-x at.% InSb nanocomposites (“HH” represents the formula (Ti,Zr,Hf)(Co,Ni)Sb, and x = 0, 1, 3, and 7.): (a) the Seebeck coefficient; (b) electrical resistivity; (c) thermal conductivity; and (d) dimensionless figure of merit ZT values. Reproduced with permission from Reference [79]. Copyright 2010, Elsevier.
Nanomaterials 02 00379 g011

More recently, Poudeu proposed an “Atomic-Scale Structural Engineering of Thermoelectric” (ASSET) approach to in-situ form “half Huesler-full Heusler” (HH-FH) nanocomposites [80,106]. In their ASSET approach, an extra 2 atom% elemental Ni was added into as prepared Zr0.25Hf0.75NiSn, and the mixed Ni and Zr0.25Hf0.75NiSn was sealed into a silica tube under residual pressure of ~10−4 Torr for heat treatment. The full Heusler phase can be in-situ formed via following reaction:

Zr0.25Hf0.75NiSn + 0.02Ni → 0.98Zr0.25Hf0.75NiSn (HH) + 0.02Zr0.25Hf0.75Ni2Sn (FH)

Due to the immiscibility of the HH phase Zr0.25Hf0.75NiSn and FH phase Zr0.25Hf0.75Ni2Sn, and the similarity of their crystal structures along with a small lattice mismatch, then Zr0.25Hf0.75Ni2Sn as a nanoscale inclusion in the HH matrix can be formed in-situ. Figure 12 shows the TEM images of Zr0.25Hf0.75NiSn(1−x)-Zr0.25Hf0.75Ni2Sn(x) [HH(1−x)-FH(x)] containing 2 and 5 mol% FH inclusions. TEM images shown in Figure 12 indicated that spherically shaped nanoscale precipitates are well dispersed in the HH matrix. It worth pointing out that the HH and FH form a coherent phase interface between each other. Chai et al. also observed the same situation in the TiNiSn system, and they explained the formation mechanism of the FH as that of vacancies of the Ni atoms move in the TiNiSn lattice and then form a TiNiSn-TiNi2Sn coherent boundary, as shown in Figure 13 [120]. Such small size nanoprecipitates with coherent boundaries indeed significantly influence the TE transport properties of the HH-FH nanocomposites in a way of decoupling the interrelated electrical conductivity, the Seebeck coefficient and thermal conductivity. The temperature dependence of the thermal and electrical properties of HH(1−x)-FH(x) bulk nanocomposites (x = 0.02, 0.05) are shown in Figure 14. In order to distinguish the effect of nanoprecipitates on the TE transport properties, the TE properties of a Zr0.25Hf0.75NiSn matrix and Sb-doped and a nanostructure-free Zr0.25Hf0.75NiSn0.975Sb0.025 bulk half-Heusler alloy are also included for comparison. As shown in Figure 14a, the large increase in the Seebeck coefficient results from the filtering of low energy electrons at the nanometer scale HH/FH phase boundaries leading to a decrease in the carrier concentration around room temperature presented in Figure 14c. The mechanism of the energy filtering effect induced by coherent boundaries of the HH/FH composite is illustrated in Figure 15. This reduction in carrier concentration is compensated by a large increase in the carrier mobility, which in turn minimizes the loss in the electrical conductivity, as shown in Figure 14b. At high temperatures, the electrical conductivity significantly increases due to a quite notable increase in the carrier concentration and slow decrease in carrier mobility. This simultaneous increase in the Seebeck coefficient and electrical conductivity at high temperatures leads to an impressive enhancement of the power factors of the HH-FH nanocomposites (Figure 14e). Furthermore, the lattice thermal conductivity of HH-FH nanocomposites is much lower than that of HH matrix without any nanostructure. This has been attributed to the ability of multiple coherent nanometer scale HH/FH phase boundaries within the nanocomposites to effectively scatter mid-frequency phonons in addition to the typical scattering of mid-to-long wavelength phonons at grain boundaries as well as the scattering of short wavelength phonons by point defects. Although, to date, we have not found any experimental results related to the application of the ASSET strategy on p-type HH nanocomposites, we believe that it is highly recommended to try such an approach.

Nanomaterials 02 00379 g012
Figure 12. TEM images of spark plasma sintered pellets of HH(1−x)-FH(x) bulk nanocomposites containing 2 mol% (A) and 5 mol% (B) FH inclusions. The spherical shape of the precipitates suggests their nucleation and isotropic growth as well as their endotaxial insertion within the HH matrix. In addition to spherical precipitates, 2–8 nm thick and up to 30 nm long lamellar structures are also observed in panel B. High magnification image of one of the lamellar fine features revealed details of the HH-FH phase boundary structure (C). The FH and HH phases form a tilted coherent interface with tilt angle of approximately θ = 30°. Fast Fourier Transform (FFT) diffractograms of both HH and FH regions showed that the FH inclusions with unit cell parameter a = 6.29(3) Å is oriented along the [1 -1 -2] zone axis (D), whereas the HH matrix with unit cell parameter a = 6.06(3) Å is oriented along [-1 2 1] (Figure 1E). Reproduced with permission from Reference [80]. Copyright 2011, American Chemical Society.

Click here to enlarge figure

Figure 12. TEM images of spark plasma sintered pellets of HH(1−x)-FH(x) bulk nanocomposites containing 2 mol% (A) and 5 mol% (B) FH inclusions. The spherical shape of the precipitates suggests their nucleation and isotropic growth as well as their endotaxial insertion within the HH matrix. In addition to spherical precipitates, 2–8 nm thick and up to 30 nm long lamellar structures are also observed in panel B. High magnification image of one of the lamellar fine features revealed details of the HH-FH phase boundary structure (C). The FH and HH phases form a tilted coherent interface with tilt angle of approximately θ = 30°. Fast Fourier Transform (FFT) diffractograms of both HH and FH regions showed that the FH inclusions with unit cell parameter a = 6.29(3) Å is oriented along the [1 -1 -2] zone axis (D), whereas the HH matrix with unit cell parameter a = 6.06(3) Å is oriented along [-1 2 1] (Figure 1E). Reproduced with permission from Reference [80]. Copyright 2011, American Chemical Society.
Nanomaterials 02 00379 g012
Nanomaterials 02 00379 g013

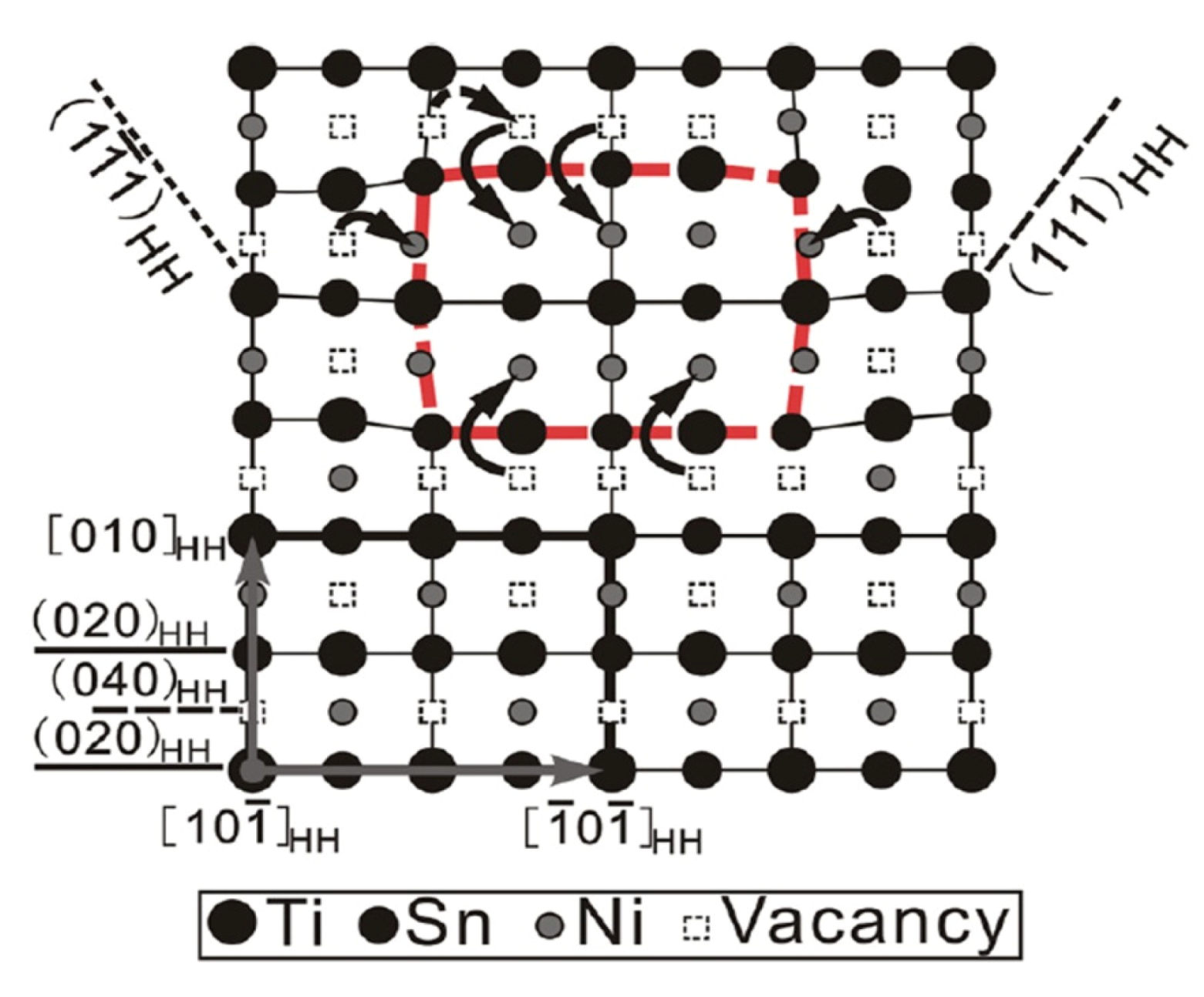

Figure 13. Schematic diagram illustrating the formation of a Ni rich cluster through diffusion of Ni atoms into vacant sites (see arrows). The thick solid line at the bottom left hand side indicates a unit cell with HH structure, and dashed lines indicate [111]HH lattice planes. The diagram is viewed along Nanomaterials 02 00379 i009. Reproduced with permission from Reference [120]. Copyright 2012, American Institute of Physics.

Click here to enlarge figure

Figure 13. Schematic diagram illustrating the formation of a Ni rich cluster through diffusion of Ni atoms into vacant sites (see arrows). The thick solid line at the bottom left hand side indicates a unit cell with HH structure, and dashed lines indicate [111]HH lattice planes. The diagram is viewed along Nanomaterials 02 00379 i009. Reproduced with permission from Reference [120]. Copyright 2012, American Institute of Physics.
Nanomaterials 02 00379 g013
Nanomaterials 02 00379 g014

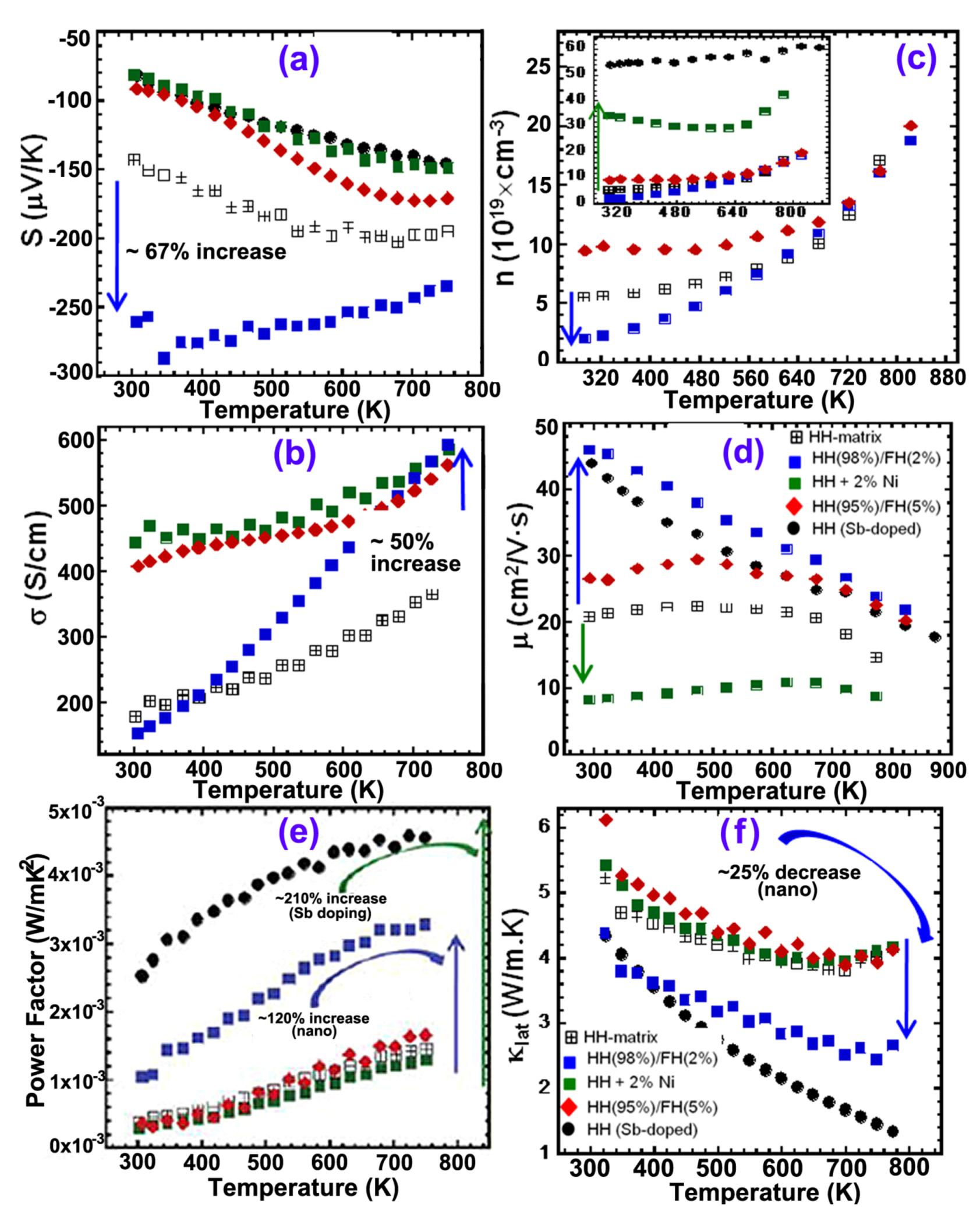

Figure 14. Temperature dependence of the thermal and electrical properties of HH(1−x)-FH(x) bulk nanocomposites (x = 0.02, 0.05) compared to that of Zr0.25Hf0.75NiSn matrix and Sb-doped and nanostructure-free Zr0.25Hf0.75NiSn0.975Sb0.025 bulk half-Heusler alloy: (a) Seebeck coefficient; (b) electrical conductivity; (c) carrier concentration; (d) carrier mobility; (e) power factor; (f) lattice thermal conductivity. Reproduced with permission from Reference [80]. Copyright 2011, American Chemical Society.

Click here to enlarge figure

Figure 14. Temperature dependence of the thermal and electrical properties of HH(1−x)-FH(x) bulk nanocomposites (x = 0.02, 0.05) compared to that of Zr0.25Hf0.75NiSn matrix and Sb-doped and nanostructure-free Zr0.25Hf0.75NiSn0.975Sb0.025 bulk half-Heusler alloy: (a) Seebeck coefficient; (b) electrical conductivity; (c) carrier concentration; (d) carrier mobility; (e) power factor; (f) lattice thermal conductivity. Reproduced with permission from Reference [80]. Copyright 2011, American Chemical Society.
Nanomaterials 02 00379 g014
Nanomaterials 02 00379 g015

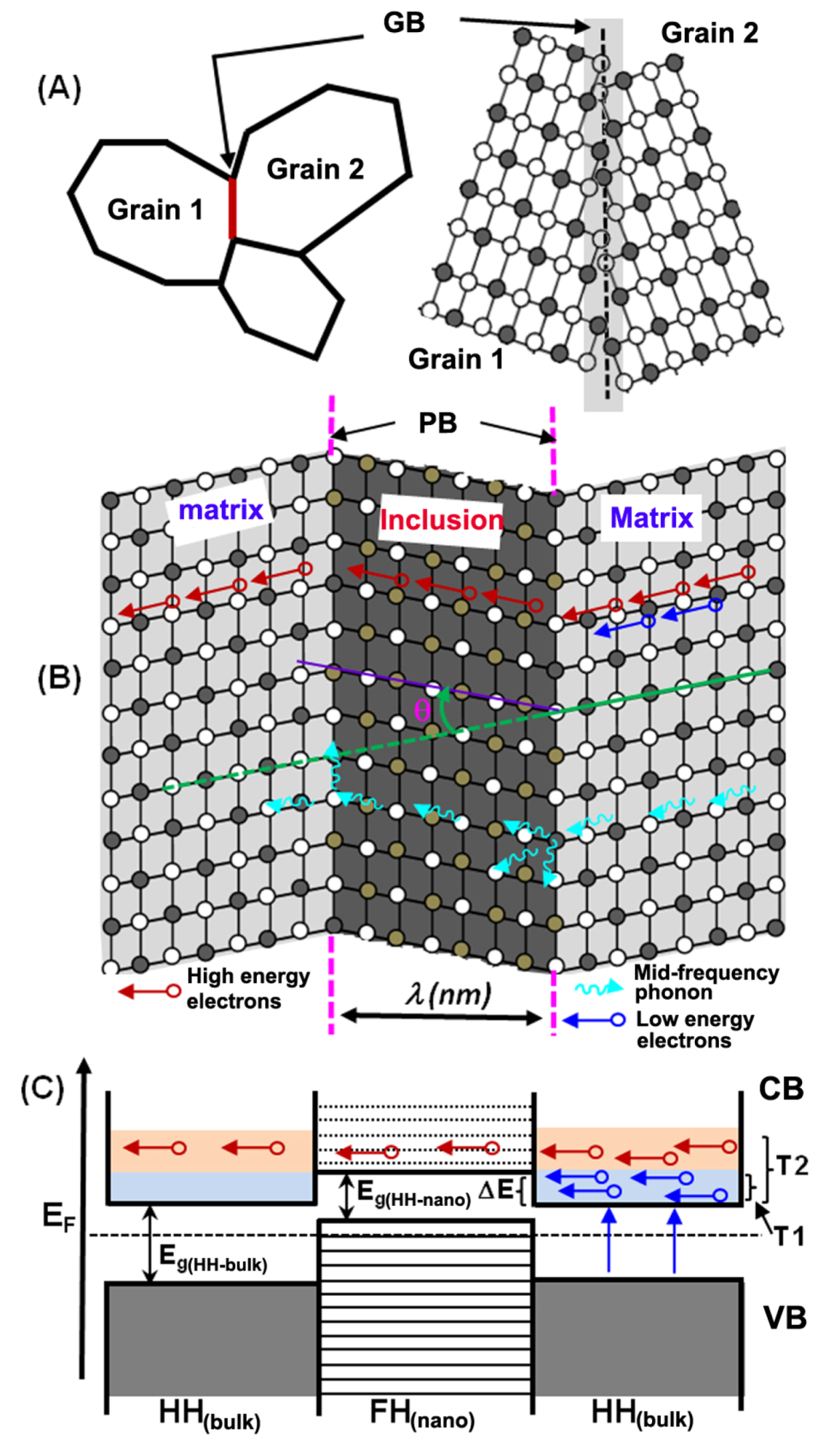

Figure 15. Schematic illustration of examples of atomic scale structural engineering leading to large enhancements of the thermoelectric performance of bulk half-Heusler matrices. (A) Incoherent interface at grain boundaries (BG); (B) coherent phase boundaries (PB) between matrix and inclusion phases with similar structure, which allow close crystallographic registry between both regions; (C) nanometer scale heterojunction between bulk HH matrix and nanometer scale FH inclusion highlighting the proposed low energy electron filtering mechanism. The conduction band offset, ΔE, is a critical parameter for a simultaneous large increase in both the Seebeck coefficient and the electrical conductivity through filtering of low energy electrons. Cyan and orange colors represent distributions of low and high energy electrons at temperatures T1 and T2 (T2 > T1). Reproduced with permission from Reference [80]. Copyright 2011, American Chemical Society.

Click here to enlarge figure

Figure 15. Schematic illustration of examples of atomic scale structural engineering leading to large enhancements of the thermoelectric performance of bulk half-Heusler matrices. (A) Incoherent interface at grain boundaries (BG); (B) coherent phase boundaries (PB) between matrix and inclusion phases with similar structure, which allow close crystallographic registry between both regions; (C) nanometer scale heterojunction between bulk HH matrix and nanometer scale FH inclusion highlighting the proposed low energy electron filtering mechanism. The conduction band offset, ΔE, is a critical parameter for a simultaneous large increase in both the Seebeck coefficient and the electrical conductivity through filtering of low energy electrons. Cyan and orange colors represent distributions of low and high energy electrons at temperatures T1 and T2 (T2 > T1). Reproduced with permission from Reference [80]. Copyright 2011, American Chemical Society.
Nanomaterials 02 00379 g015

3.2. Nanoscale HH Matrix with Nanoinclusions

Usually a nanoscale HH host matrix with nanoinclusions are prepared by a two-step procedure: the HH ingot could be first prepared by arc melting, induction melting, or levitation melting, and then the grain size of ingots are reduced by some further processing in order to form a nanoscale HH matrix. Recently, melt spinning (MS) [126,127,128,129,130,131] and ball milling (BM) [132,133,134,135] techniques were widely used to prepare high performance TE nanocomposites. Both MS and BM are very traditional techniques to prepare nanostructured materials. MS combined with spark plasma sintering (MS-SPS) was adopted by Zhu et al. [69,74,76,113] to prepare (Zr,Hf)NiSn based HH nanocomposites. The typical microstructures of the melt spun (Zr,Hf)NiSn based HH nanocomposites are presented in Figure 16. By the MS process, the grain size of HH matrix was reduced to nanoscale dimensions, and also some fine Ni rich FH nanoinclusions were formed after the MS process. Such nano-engineering processes generate numerous grain boundaries that can scatter phonons, resulting in a reduction in lattice thermal conductivity (Figure 17a). Furthermore, the presence of Ni rich FH nanoinclusions causes an enhancement in the electrical conductivity. Despite the simultaneous increase in the electrical conductivity and the reduction in the lattice thermal conductivity, no significant enhancement in the ZT was obtained for these MS alloys with the submicron matrix and embedded nanoinclusions due to the concomitantly decreased Seebeck coefficient and increased electronic thermal conductivity.

Nanomaterials 02 00379 g016
Figure 16. SEM images of the melt spun thin ribbons (a) and the fracture surfaces of the MS-SPSed (b) Hf0.6Zr0.4NiSn0.98Sb0.02. TEM images of the MS Hf0.6Zr0.4NiSn0.98Sb0.02 bulk sample, showing the submicron grains (c) and embedded in-situ nanophases (d). The inset in (d) is the high resolution TEM image of a nanophase samples. (a) and (b) reproduced with permission from Reference [74]. Copyright 2010, Springer. (c) and (d) reproduced with permission from Reference [69]. Copyright 2012, American Institute of Physics.

Click here to enlarge figure

Figure 16. SEM images of the melt spun thin ribbons (a) and the fracture surfaces of the MS-SPSed (b) Hf0.6Zr0.4NiSn0.98Sb0.02. TEM images of the MS Hf0.6Zr0.4NiSn0.98Sb0.02 bulk sample, showing the submicron grains (c) and embedded in-situ nanophases (d). The inset in (d) is the high resolution TEM image of a nanophase samples. (a) and (b) reproduced with permission from Reference [74]. Copyright 2010, Springer. (c) and (d) reproduced with permission from Reference [69]. Copyright 2012, American Institute of Physics.
Nanomaterials 02 00379 g016
Nanomaterials 02 00379 g017

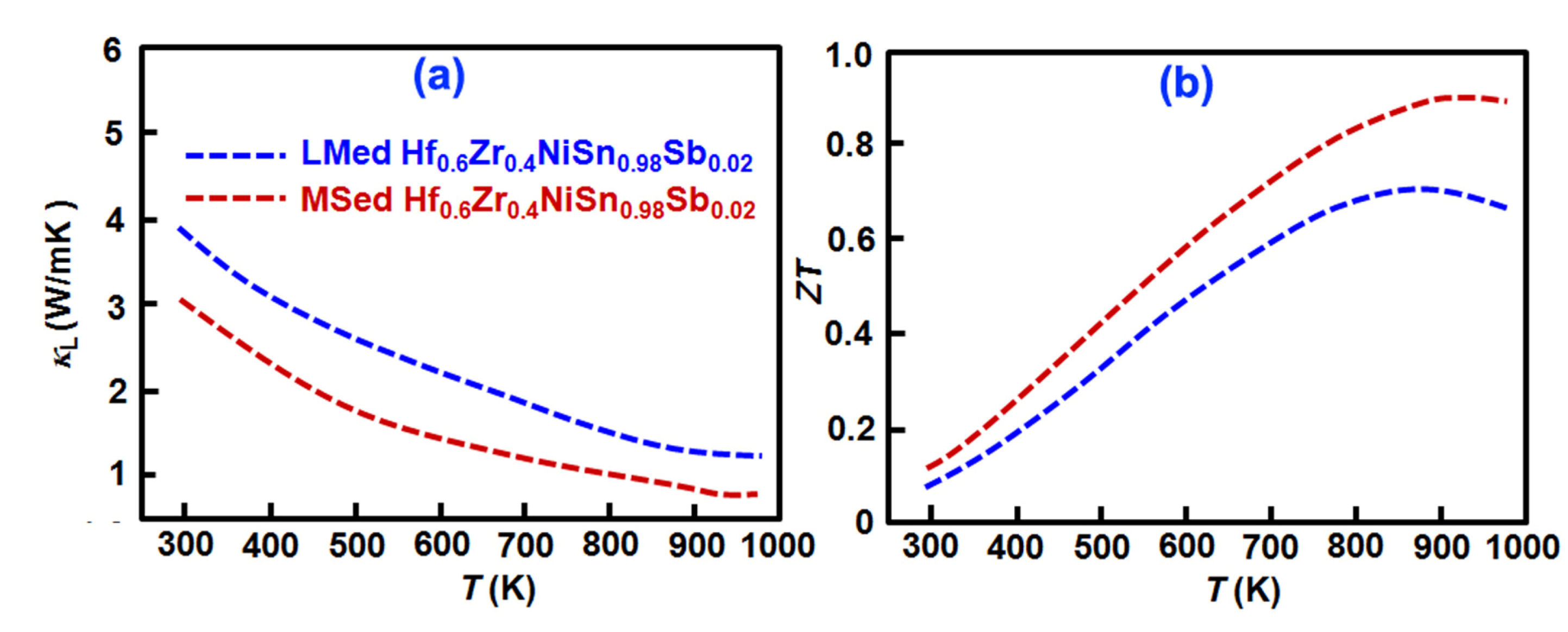

Figure 17. Temperature dependence of the thermal conductivity and ZT values of levitation melting (LM) and melt spinning (MS) prepared (Hf,Zr)NiSn based HH compounds. The data is adopted and calculated from Reference [74].

Click here to enlarge figure

Figure 17. Temperature dependence of the thermal conductivity and ZT values of levitation melting (LM) and melt spinning (MS) prepared (Hf,Zr)NiSn based HH compounds. The data is adopted and calculated from Reference [74].
Nanomaterials 02 00379 g017

Compared with MS-SPS process, the BM process combined with direct current hot pressing (BM-HP) achieves more success in enhancing ZT of HH nanocomposites [72,73]. Using arc-melted HH ingots as starting materials, Ren et al. adopted a BM-HP process in order to prepare high TE performance n and p-type HH nanocomposites. The TEM images (Figure 18a) show that the grain size of the as-prepared n-type HH nanocomposite is in the range of around 200–300 nm, some precipitates or aggregates in the matrix (Figure 18c), and the discontinuous heavily distorted crystal lattice, marked by arrows (Figure 18d) exist in the BM-HPed HH nanocomposites. The small grains, precipitates, and lattice distortions are very desirable for lower thermal conductivity due to a possible increase in phonon scattering. The thermal conductivity of BM-HPed HH nanocomposite is much lower than that of the ingot material. However, it worth noting that the electrical conductivity of the n-type BM-HPed HH nanocomposite (Figure 19a) significantly decreases by 50% as compared to that of the ingot material at room temperature. The full set of the thermoelectric properties are shown for the n-type BM-HPed HH nanocomposite material in (Figure 19a–f). It is not surprising that such small grains, precipitates, and lattice distortions also scatter the charge carriers and thus significantly lower the electrical conductivity. Sharp et al. [136] estimates the phonon mean free path as well as electron mean free path for a ZrNiSn compound, and the results show that if the grain size of ZrNiSn is around 200 nm, then nanostructures with such a specific size can more effective at scattering phonons rather than scattering electrons, as shown in Figure 20. However, if the size decreases to tens of nanometer, the gained effect of the reduction in the phonon mean free path will be much less than that of the reduction in electron mean free path. The same situation is also that which may have occurred in the BM-HPed p-type HH nanocomposite. So far, the BM-HPed HH nanocomposite have achieved the highest ZT ≈ 1.0 in n-type Hf0.75Zr0.25NiSn0.99Sb0.01 nanocomposites [72], and ZT =1.0 in p-type HfZrCoSbSn [73] from the ZT = 0.8 and ZT = 0.6 of their ingot host materials, respectively.

Nanomaterials 02 00379 g018
Figure 18. (a) Low- and (bd) high-magnification TEM images of a BM-HPed Hf0.75Zr0.25NiSn0.99Sb0.01 nanocomposite. The inset in (b) shows the crystalline nature of grain 1 with a rotation. The inset in (d) shows the grains as good crystalline structures. Reproduced with permission from Reference [72]. Copyright 2011, John Wiley and Sons.

Click here to enlarge figure

Figure 18. (a) Low- and (bd) high-magnification TEM images of a BM-HPed Hf0.75Zr0.25NiSn0.99Sb0.01 nanocomposite. The inset in (b) shows the crystalline nature of grain 1 with a rotation. The inset in (d) shows the grains as good crystalline structures. Reproduced with permission from Reference [72]. Copyright 2011, John Wiley and Sons.
Nanomaterials 02 00379 g018
Nanomaterials 02 00379 g019

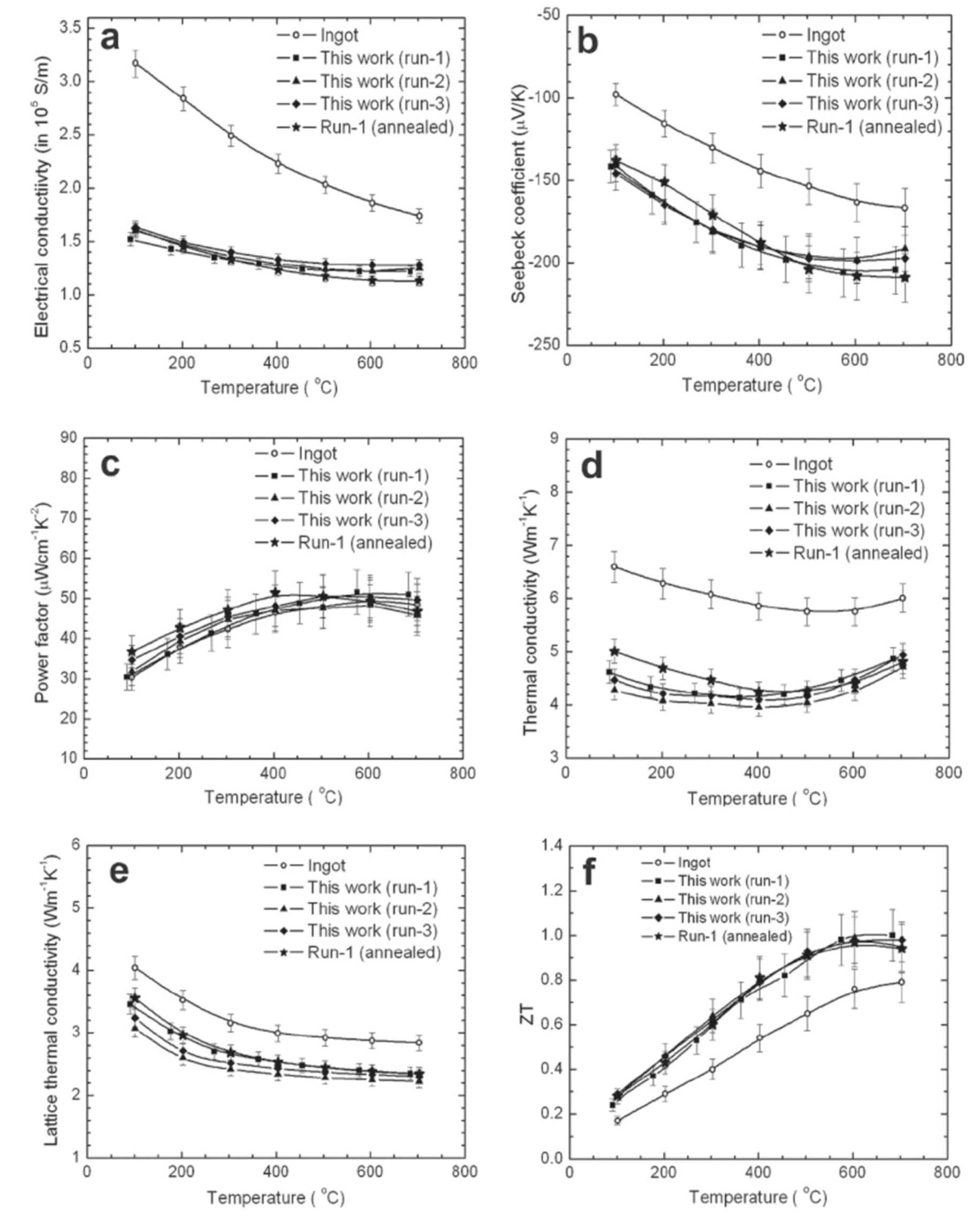

Figure 19. (a) Temperature-dependent electrical conductivity, (b) Seebeck coefficient, (c) power factor, (d) total thermal conductivity, (e) lattice thermal conductivity, and (f) ZT values of three nanostructured Hf0.75Zr0.25NiSn0.99Sb0.01 samples, and the sample annealed at 800 °C for 12 h in air; the line is for viewing guidance only, for comparison with the ingot sample (open circles) which matches the previously reported best n-type half-Heusler composition. Reproduced with permission from Reference [72].Copyright 2011, John Wiley and Sons.

Click here to enlarge figure

Figure 19. (a) Temperature-dependent electrical conductivity, (b) Seebeck coefficient, (c) power factor, (d) total thermal conductivity, (e) lattice thermal conductivity, and (f) ZT values of three nanostructured Hf0.75Zr0.25NiSn0.99Sb0.01 samples, and the sample annealed at 800 °C for 12 h in air; the line is for viewing guidance only, for comparison with the ingot sample (open circles) which matches the previously reported best n-type half-Heusler composition. Reproduced with permission from Reference [72].Copyright 2011, John Wiley and Sons.
Nanomaterials 02 00379 g019
Nanomaterials 02 00379 g020

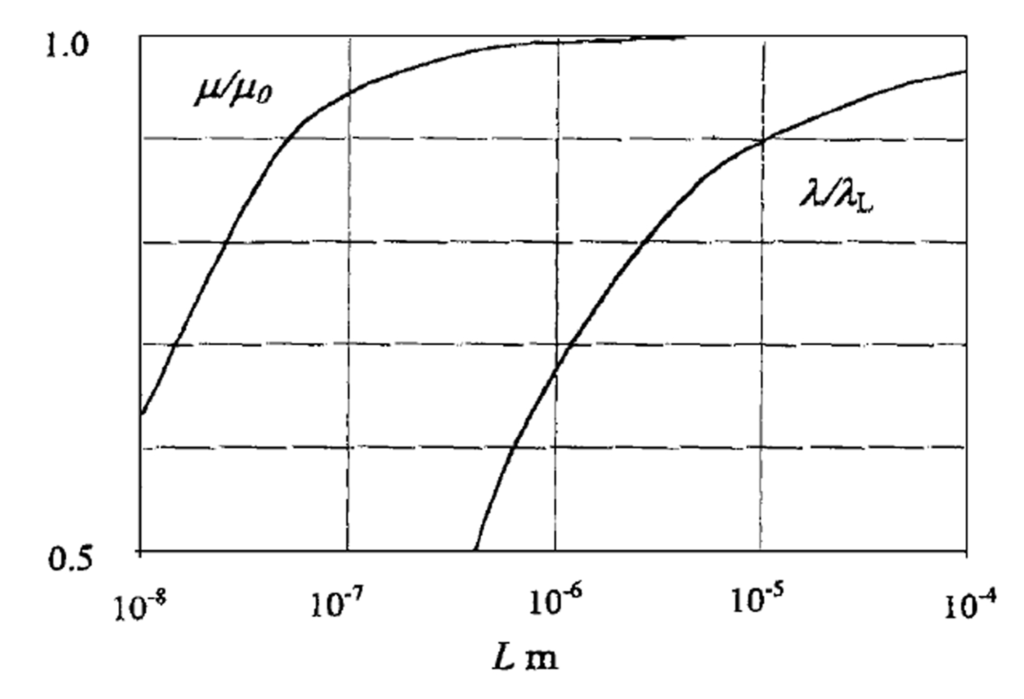

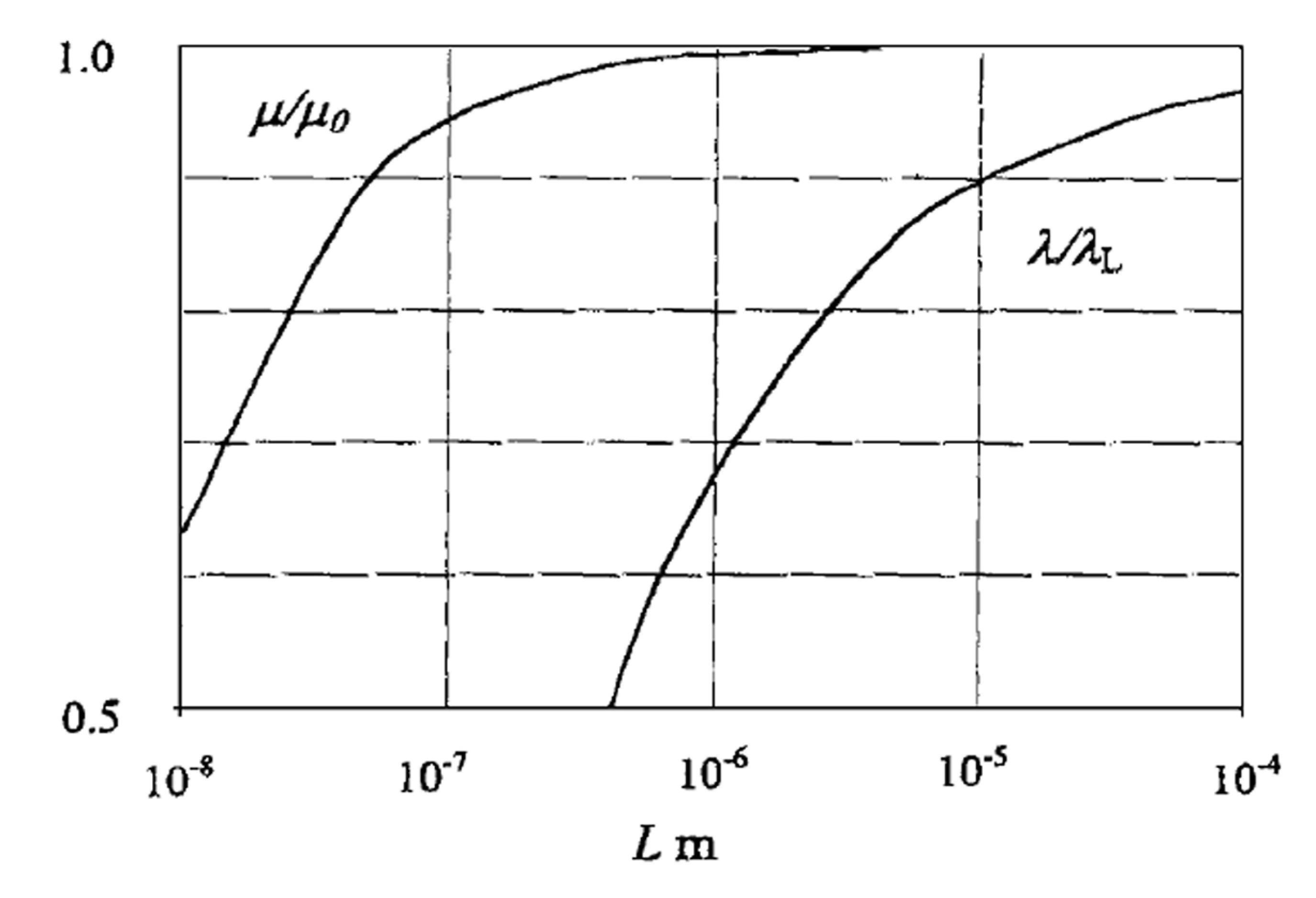

Figure 20. Boundary scattering in Zr0.5Hf0.5NiSn.Reproduced with permission from Reference [136]. Copyright 2001, John Wiley and Sons.

Click here to enlarge figure

Figure 20. Boundary scattering in Zr0.5Hf0.5NiSn.Reproduced with permission from Reference [136]. Copyright 2001, John Wiley and Sons.
Nanomaterials 02 00379 g020

4. The Future and Challenge of Nanostructuring in HH Compounds

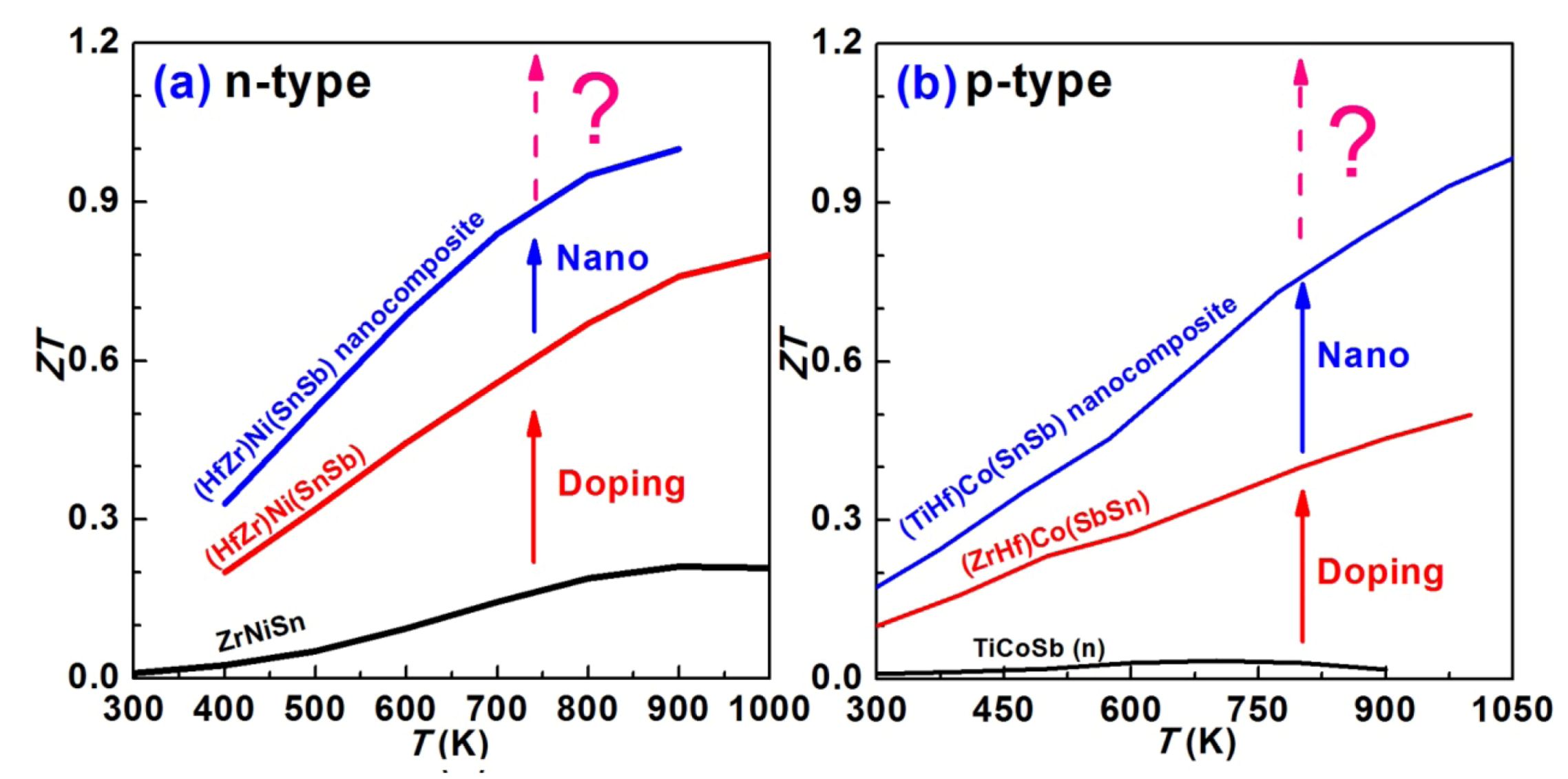

Figure 21 shows the overall trend in the development of the ZT (TE performance) of HH compounds over last two decades. First, doping/substitution can optimize the carrier concentration to achieve the highest power factor as well as ZT values. Furthermore, the ZT values of doped HH compounds can be further enhanced by the nanostructuring approach due to boundary scattering effect and energy filtering effect. Now one should ask the question: what is the next step to enhance ZT?

Nanomaterials 02 00379 g021
Figure 21. The ZT values of HH compounds are significantly enhanced by doping and nanostructuring in last two decades: (a) n-type HH; (b) p-type HH.

Click here to enlarge figure

Figure 21. The ZT values of HH compounds are significantly enhanced by doping and nanostructuring in last two decades: (a) n-type HH; (b) p-type HH.
Nanomaterials 02 00379 g021

One such question; is there still some ability to further reduce the lattice thermal conductivity by nanostructuring? In order to investigate just how much more further reduction of the lattice thermal conductivity are possible, then we need to estimate the minimum lattice thermal conductivity, κmin, for the specific materials. For example, κmin is estimated for the ZrNiSn compound by applying a model developed by Cahill et al. [137]:

Nanomaterials 02 00379 i010
where the summation is over the three polarization modes and kB the Boltzmann constant. The cut-off frequency (in unit of Kelvin) is Nanomaterials 02 00379 i011, where na is the number density of atoms, Nanomaterials 02 00379 i012 the reduced Planck constant, vi the sound velocity for each polarization modes. The κmin of ZrNiSn, calculated by Zhu et al. [138], is shown in Figure 22, and thermal conductivity of ZrNiSn based nanocomposites are included for comparison. From this plot (Figure 22) it is apparent that there is still some opportunity of further significant reduction of κL between the κmin of ZrNiSn and the lowest κL of ZrNiSn based nanocomposites in the higher temperature range. Immediately, one might propose that nanostructures with even smaller sizes could further reduce the lattice thermal conductivity for a ZrNiSn based nanocomposite. However, the estimated phonon mean free path of HH-x nanocomposite is on the order of ~1 nm at high temperature [unpublished], which is comparable to the lattice parameter of the HH compound, so this approach is not likely to be effective. And, we should keep in mind that if the size of the HH matrix decreases to ~1 nm the effect of the small grains will also significantly decrease the carrier mobility through enhanced electron scattering [136]. Therefore, just blindly pursuing even smaller nanostructure is not likely to lead to the desired effect of enhancing the ZT but would most likely lead to a decrease in the ZT.

Nanomaterials 02 00379 g022

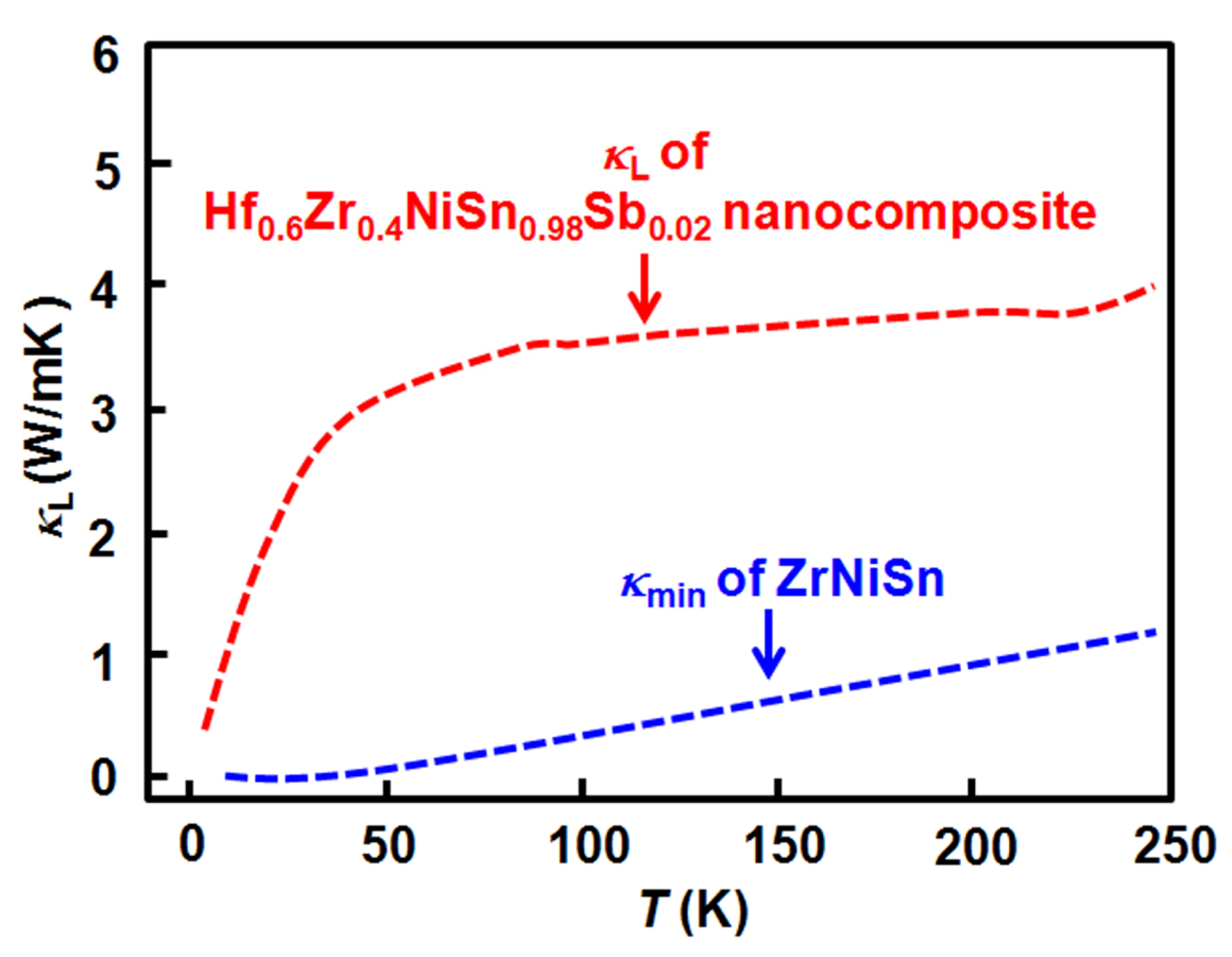

Figure 22. The lattice thermal conductivity of MSed Zr0.4Hf0.6NiSn0.98Sb0.02 nanocomposite and kmin of ZrNiSn estimated by applying a model developed by Cahill et al. [137]. The data is adopted from Reference [138].

Click here to enlarge figure

Figure 22. The lattice thermal conductivity of MSed Zr0.4Hf0.6NiSn0.98Sb0.02 nanocomposite and kmin of ZrNiSn estimated by applying a model developed by Cahill et al. [137]. The data is adopted from Reference [138].
Nanomaterials 02 00379 g022

In addition, besides reducing the lattice thermal conductivity, one should also be more attentive of ways to further improve the power factor by nanostructuring, especially enhancing the Seebeck coefficient. The above discussion mentioned that the special potential energy barrier generated by nanoinclusions can selectively scatter low energy carriers and thus result in a significant improvement in the Seebeck coefficient. At the same time, if the nanoinclusions can donate high mobility carriers into the matrix to compensate for the carrier loss in the energy filtering process, the enhancement in Seebeck coefficient should not significantly reduce the electrical conductivity. Such specific nanoinclusions can induce the energy filtering effect, the carrier injection effect and the boundary scattering effect to simultaneously improve the Seebeck coefficient, increase electrical conductivity, and decrease lattice thermal conductivity. Such cases are observed in micro-scale HH matrix with nanoinclusions [79,80], but not in nanoscale HH matrix with nanoinclusions. However, the first significant challenge is how to choose the correct secondary phase as the best nanoinclusions. According to previous experimental results, it seems that a metallic phase (e.g., full Heusler phase Hf0.75Zr0.25Ni2Sn) or a semiconductor with highly carrier mobility (e.g., InSb) might be able to fulfill such requirements. Nevertheless, the theoretical calculations and the theoretical ability to predict the behavior of such materials is still quite lagging the experimental work in this field. Therefore, more theoretical calculations and modeling in order to produce predictive directions are highly desirable in order to better direct the most promising routes or directions to obtain the most favorable TE nanoinclusions.

Moreover, the above reviewed nanocomposites have two common characteristics: (1) nanoinclusions are randomly distributed, and (2) their sizes are to a large extent uncontrollable. If the nanoinclusions could uniformly distribute in the matrix, and also the size can be more precisely controlled, it would be much more straightforward to investigate how the size and the distribution of nanoinclusions affect the TE transport properties. Then the most favorable distribution of size, position and distribution for nanoinclusions for the best TE performance can be found. Although Chen points out that the surface per volume (S/V) ratio is more important than the periodicity distribution of the nanostructure for the reduction in the lattice thermal conductivity, it would be even more desirable if the uniform distribution of the nanostructures can even enhance the electrical conductivity. It is not expected that nanostructures result in strong carrier scattering, and also defects induced by nanostructures can dramatically change the carrier concentration. Recently Liu et al. [139] points out that ordered nanocomposites with various well-organized (distributed) nanostructures may reconstruct a carrier transport channel, as to depress lattice thermal conductivity without significantly affecting the electrical conductivity. The second open challenge for theorists and experimentalists is how the size and distribution of nanoinclusions can be more precisely controlled within a certain TE matrix and this has been explicitly been shown here for the case on half Huesler alloys.

5. Conclusions and Outlook

One of the newest directions in TE materials research over the past two decades is the concept of nanostructure-engineering. Certainly nanostructuring or nanocomposites is the new paradigm of TE materials research. In the HH nanocomposite materials, the TE performance can be significantly enhanced by decreasing the lattice thermal conductivity as well as enhancing the power factor. Nanoinclusions that can induce both a boundary scattering effect and energy filtering effect can effectively decouple the interrelated thermal and electrical transport properties. After numerous efforts in 20 years (or so), the highest ZT values of HH compound is pushing to 1–1.2 in HH nanocomposites from 0.1–0.2 in undoped HH ingot. At this date, it is unknown how far nanostructuring can further achieve progress in these materials. Continuing to follow the concept of nanostructuring is a positive direction, but exploring several other scientific and engineering directions for further enhancing ZT of HH materials should be pursued as well as achieving device applications of these HH nanocomposites.

(1) Two new physical ideas related to band structure engineering were introduced in TE research field, such as distortion of the electronic density of states (resonant energy level) in Tl doped PbTe [140], and convergence of electronic bands in Na-doped PbTe1xSex [141]. The idea of introducing a resonant level in HH compound was achieved in V doped Hf0.75Zr0.25NiSn HH compound [142]. Even though, the maximum PF of V doped Hf0.75Zr0.25NiSn does not result in the best working temperature range (above 700 K), the band structure engineering strategy, such as distortion of the electronic density of states, is highly recommended in the future work.

(2) One very positive aspect of the HH alloys in their bulk form in their very favorable thermal stability. But, several points should be taken into account with regards to potential HH applications. First, the mechanical properties of HH nanocomposites should be more fully understood before designing HH modules; second the thermal stability of nanostructures in HH nanocomposites should be more thoroughly investigated (even though the matrix has been shown to be very stable); and third, the possibility of scale-up production for high TE performance HH nanocomposites should be further investigated and evaluated.

Although to date, the current TE materials cannot be in used in very broad applications due to their low conversion efficiency. However, if the combination of combined mechanisms to enhance ZT in HH alloys, such as nanostructuring and band structure engineering, are able to achieve values of the ZT to 2 or even higher, improve the mechanical properties and maintain their good thermal stability with the nanostructuring processes, then the broad range of potential applications for waste heat recovery using TE devices based on this next generation of HH alloys will be very promising.

Acknowledgements

W.J.X. and A.W. thank the support from EMPA and Swisselectric. W.J.X. would also like to thank the Marie Curie COFUND fellowship supported by EU FY7 and EMPA. T.M.T. acknowledges support from a DOE/EPSCoR Implementation Grant (#DE-FG02-04ER-46139), and the SC EPSCoR cost-sharing program.). X.F.T. and Q.J.Z. acknowledge the support received from the International Science & Technology Cooperation Program of China (Grant No. 2011DFB60150), National Basic Research Program of China (Grant No. 2007CB607501), as well as 111 Project (Grant No. B07040).

References

  1. Slack, G.A. New Materials and Performance Limits for Thermoelectric Cooling; D. M. Rowe: Boca Raton, FL, USA, 1995; p. 701.
  2. Tritt, T.M. Overview of Various Strategies and Promising New Bulk Materials for Potential Thermoelectric Applications. In Thermoelectric Materials 2001-Research and Applications; Nolas, G.S., Johnson, D.C., Mandrus, D.G., Eds.; Cambridge University Press: New York, NY, USA, 2001; Volume 691, pp. 3–14.
  3. Gordiakova, G.N.; Sinani, S.S. The thermoelectric properties of bismuth telluride with alloying additives. Sov. Phys. Tech. Phys. 1958, 3, 908–911.
  4. Wright, D.A. Thermoelectric properties of bismuth telluride and its alloys. Nature 1958, 181, 834–834, doi:10.1038/181834a0.
  5. Goldsmid, H.J. The electrical conductivity and thermoelectric power of bismuth telluride. Proc. Phys. Soc. 1958, 71, 633–646, doi:10.1088/0370-1328/71/4/312.
  6. Steele, M.C.; Rosi, F.D. Thermal conductivity and thermoelectric power of germanium-silicon alloys. J. Appl. Phys. 1958, 29, 1517–1520, doi:10.1063/1.1722984.
  7. Abrikoso, N.K.; Zemskov, V.S.; Iordanis, E.K.; Petrov, A.V.; Rozhdest, V.V. Thermoelectric properties of silicon-germanium-boron alloys. Sov. Phys. Semicond. 1969, 2, 1468.
  8. Rowe, D.M.; Bunce, R.W. Thermoelectric properties of heavily doped hot-pressed germanium-silicon alloys. J. Phys. D 1969, 2, 1497, doi:10.1088/0022-3727/2/11/302.
  9. Wyrick, R.; Levinstein, H. Thermoelectric voltage in lead telluride. Phys. Rev. 1950, 78, 304–305.
  10. Putley, E.H. Thermoelectric and galvanomagnetic effects in lead selenide and telluride. Proc. Phys. Soc. 1955, 68, 35–42.
  11. Kolomoets, N.V.; Stavitskaia, T.S.; Stilbans, L.S. An investigation of the thermoelectric properties of lead selenide and lead telluride. Sov. Phys. Tech. Phys. 1957, 2, 59–66.
  12. Gershtein, E.Z.; Stavitskaia, T.S.; Stilbans, L.S. A study of the thermoelectric properties of lead telluride. Sov. Phys. Tech. Phys. 1957, 2, 2302–2313.
  13. Wu, C. Analysis of waste-heat thermoelectric power generators. Appl. Therm. Eng. 1996, 16, 63–69, doi:10.1016/1359-4311(95)00014-5.
  14. Rowe, D.M.; Min, G. Evaluation of thermoelectric modules for power generation. J. Power Sources 1998, 73, 193–198, doi:10.1016/S0378-7753(97)02801-2.
  15. Rowe, D.M. Thermoelectrics, an environmentally-friendly source of electrical power. Renew. Energ. 1999, 16, 1251–1256, doi:10.1016/S0960-1481(98)00512-6.
  16. Crane, D.T.; Jackson, G.S. Optimization of cross flow heat exchangers for thermoelectric waste heat recovery. Energ. Convers. Manag. 2004, 45, 1565–1582, doi:10.1016/j.enconman.2003.09.003.
  17. Yang, J.H.; Caillat, T. Thermoelectric materials for space and automotive power generation. MRS Bull. 2006, 31, 224–229, doi:10.1557/mrs2006.49.
  18. Bell, L.E. Cooling, heating, generating power, and recovering waste heat with thermoelectric systems. Science 2008, 321, 1457–1461, doi:10.1126/science.1158899.
  19. Kyratsi, T. Thermoelectric Materials and Applications on the Recovery of Waste Heat Energy. In Proceedings of 7th International Conference of the Balkan Physical Union Vols 1 and 2, New York, NY, USA, 2009; Angelopoulos, A., Fildisis, T., Eds.; pp. 700–705.
  20. Niu, X.; Yu, J.; Wang, S. Experimental study on low-temperature waste heat thermoelectric generator. J. Power Sources 2009, 188, 621–626, doi:10.1016/j.jpowsour.2008.12.067.
  21. Kyratsi, T. Thermoelectric materials and applications on the recovery of waste heat energy. AIP Conf. Proc. 2010, 1203, 700–705, doi:10.1063/1.3322538.
  22. Telkes, M. Solar thermoelectric generators. J. Appl. Phys. 1954, 25, 765–777, doi:10.1063/1.1721728.
  23. Goldsmid, H.J.; Giutronich, J.E.; Kaila, M.M. Solar thermoelectric generation using bismuth telluride alloys. Sol. Energy 1980, 24, 435–440, doi:10.1016/0038-092X(80)90311-4.
  24. Omer, S.A.; Infield, D.G. Design optimization of thermoelectric devices for solar power generation. Sol. Energ. Mat. Sol. C. 1998, 53, 67–82, doi:10.1016/S0927-0248(98)00008-7.
  25. Scherrer, H.; Vikhor, L.; Lenoir, B.; Dauscher, A.; Poinas, P. Solar thermolectric generator based on skutterudites. J. Power Sources 2003, 115, 141–148, doi:10.1016/S0378-7753(02)00597-9.
  26. Zhang, Q.J.; Tang, X.F.; Zhai, P.C.; Niino, M.; Endo, C. Recent development in nano and graded thermoelectric materials. Mater. Sci. Forum 2005, 492–493, 135–140, doi:10.4028/www.scientific.net/MSF.492-493.135.
  27. Khattab, N.M.; El Shenawy, E.T. Optimal operation of thermoelectric cooler driven by solar thermoelectric generator. Energ. Convers. Manag. 2006, 47, 407–426, doi:10.1016/j.enconman.2005.04.011.
  28. Tritt, T.M.; Boettner, H.; Chen, L. Thermoelectrics: Direct solar thermal energy conversion. MRS Bull. 2008, 33, 366–368, doi:10.1557/mrs2008.73.
  29. Baxter, J.; Bian, Z.; Chen, G.; Danielson, D.; Dresselhaus, M.S.; Fedorov, A.G.; Fisher, T.S.; Jones, C.W.; Maginn, E.; Kortshagen, U. Nanoscale design to enable the revolution in renewable energy. Energ. Environ. Sci. 2009, 2, 559–588, doi:10.1039/b821698c.
  30. Jovanovic, V.; Ghamaty, S.; Krommenhoek, D.; Bass, J.C. High Coefficient of Performance Quantum Well Thermoelectric Nano Cooler. In Proceedings of the ASME InterPACK Conference, New York, NY, USA, 2007; pp. 595–601.
  31. Tritt, T.M. Thermoelectric phenomena, materials, and applications. Annu. Rev. Mater. Res. 2011, 41, 433–448, doi:10.1146/annurev-matsci-062910-100453.
  32. Grosse, K.L.; Bae, M.-H.; Lian, F.; Pop, E.; King, W.P. Nanoscale joule heating, peltier cooling and current crowding at graphene-metal contacts. Nat. Nanotechnol. 2011, 6, 287–290, doi:10.1038/nnano.2011.39.
  33. Chowdhury, I.; Prasher, R.; Lofgreen, K.; Chrysler, G.; Narasimhan, S.; Mahajan, R.; Koester, D.; Alley, R.; Venkatasubramanian, R. On-chip cooling by superlattice-based thin-film thermoelectrics. Nat. Nanotechnol. 2009, 4, 235–238, doi:10.1038/nnano.2008.417.
  34. Bhattacharya, S.; Ponnambalam, V.; Pope, A.L.; Alboni, P.N.; Xia, Y.; Tritt, T.M.; Poon, S.J. Thermoelectric Properties of Sb-Doping in the TiNiSn1−xSbx Half-Heusler System. In Proceedings of Eighteenth International Conference on Thermoelectrics, Maryland, MD, USA, 1999; pp. 336–339.
  35. Cook, B.A.; Meisner, G.P.; Yang, J.; Uher, C. High Temperature Thermoelectric Properties of MNiSn (M = Zr,Hf). In Proceedings of Eighteenth International Conference on Thermoelectrics, Maryland, MD, USA, 1999; pp. 64–67.
  36. Uher, C.; Yang, J.; Hu, S.; Morelli, D.T.; Meisner, G.P. Transport properties of pure and doped MNiSn (M = Zr, Hf). Phys. Rev. B 1999, 59, 8615–8621, doi:10.1103/PhysRevB.59.8615.
  37. Cook, B.A.; Harringa, J.L.; Tan, Z.S.; Jesser, W.A. TiNiSn: A Gateway to the (1,1,1) Intermetallic Compounds. In Proceedings of Fifteenth International Conference on Thermoelectrics, Pasadena, CA, USA, 1996; pp. 122–127.
  38. Qiu, P.; Yang, J.; Huang, X.; Chen, X.; Chen, L. Effect of antisite defects on band structure and thermoelectric performance of ZrNiSn half-Heusler alloys. Appl. Phys. Lett. 2010, 96, 152105, doi:10.1063/1.3396981.
  39. Jiang, G.; Xu, J.; Zhao, B.; Yu, C.; Zhu, T.; Zhao, X. Suspension melting preparation of Zr1−xTixNiSn0.975Sb0.025 half-Heusler alloy and its thermoelectric properties. Rare Metal Mat. Eng. 2009, 38, 1831–1834.
  40. Kimura, Y.; Ueno, H.; Kenjo, T.; Asami, C.; Mishima, Y. Phase Stability and Thermoelectric Properties of Half-Heusler (Ma, Mb)NiSn (Ma, Mb = Hf, Zr, Ti). In Advanced Intermetallic-Based Alloys for Extreme Environment and Energy Applications; Palm, M., Bewlay, B.P., He, Y.H., Takeyama, M., Wiezorek, J.M.K., Eds.; Cambridge University Press: New York, NY, USA, 2009; Volume 1128, pp. 15–20.
  41. Romaka, V.A.; Fruchart, D.; Romaka, V.V.; Hlil, E.K.; Stadnyk, Y.V.; Gorelenko, Y.K.; Akselrud, L.G. Features of the structural, electrokinetic, and magnetic properties of the heavily doped ZrNiSn semiconductor: Dy acceptor impurity. Semiconductors 2009, 43, 7–13, doi:10.1134/S1063782609010035.
  42. Katsuyama, S.; Matsuo, R.; Ito, M. Thermoelectric properties of half-Heusler alloys Zr1−xYxNiSn1−ySby. J. Alloy. Compd. 2007, 428, 262–267, doi:10.1016/j.jallcom.2006.02.075.
  43. Muta, H.; Kanemitsu, T.; Kurosaki, K.; Yamanaka, S. Substitution effect on thermoelectric properties of ZrNiSn based half-Heusler compounds. Mater. Trans. 2006, 47, 1453–1457, doi:10.2320/matertrans.47.1453.
  44. Muta, H.; Yamaguchi, T.; Kurosaki, K.; Yamanaka, S. Thermoelectric properties of ZrNiSn based half Heusler compounds. IEEE 2005, 339–342.
  45. Katsuyama, S.; Matsushima, H.; Ito, M. Effect of substitution for Ni by Co and/or Cu on the thermoelectric properties of half-Heusler ZrNiSn. J. Alloy. Compd. 2004, 385, 232–237, doi:10.1016/j.jallcom.2004.02.061.
  46. Shen, Q.; Zhang, L.M.; Chen, L.D.; Goto, T.; Hirai, T. Synthesis and Sintering of ZrNiSn Thermoelectric Compounds. In Proceedings of 21st International Conference on Thermoelectrics, California, CA, USA, 2002; pp. 166–169.
  47. Shen, Q.; Chen, L.; Goto, T.; Hirai, T.; Yang, J.; Meisner, G.P.; Uher, C. Effects of partial substitution of Ni by Pd on the thermoelectric properties of ZrNiSn-based half-Heusler compounds. Appl. Phys. Lett. 2001, 79, 4165–4167, doi:10.1063/1.1425459.
  48. Zhu, T.J.; Xiao, K.; Yu, C.; Shen, J.J.; Yang, S.H.; Zhou, A.J.; Zhao, X.B.; He, J. Effects of yttrium doping on the thermoelectric properties of Hf0.6Zr0.4NiSn0.98Sb0.02 half-Heusler alloys. J. Appl. Phys. 2010, 108, 044903, doi:10.1063/1.3475719.
  49. Qiu, P.; Huang, X.; Chen, X.; Chen, L. Enhanced thermoelectric performance by the combination of alloying and doping in TiCoSb-based half-Heusler compounds. J. Appl. Phys. 2009, 106, 103703, doi:10.1063/1.3238363.
  50. Xie, W.; Jin, Q.; Tang, X. The preparation and thermoelectric properties of Ti0.5Zr0.25Hf0.25Co1−xNixSb half-Heusler compounds. J. Appl. Phys. 2008, 103, 043711, doi:10.1063/1.2885113.
  51. Wu, T.; Jiang, W.; Li, X.; Zhou, Y.; Chen, L. Thermoelectric properties of p-type Fe-doped TiCoSb half-Heusler compounds. J. Appl. Phys. 2007, 102, 103705, doi:10.1063/1.2809377.
  52. Zhou, M.; Chen, L.; Feng, C.; Wang, D.; Li, J.-F. Moderate-temperature thermoelectric properties of TiCoSb-based half-Heusler compounds Ti1−xTaxCoSb. J. Appl. Phys. 2007, 101, 113714, doi:10.1063/1.2738460.
  53. Xie, W.-J.; Tang, X.-F.; Zhang, Q.-J. Fast preparation and thermal transport property of TiCoSb-based half-Heusler compounds. Chin. Phys. 2007, 16, 3549–3552, doi:10.1088/1009-1963/16/11/065.
  54. Stopa, T.; Tobola, J.; Kaprzyk, S. Residual conductivity and seebeck coefficient calculations in TiCo1−xCuxSb alloys. In Proceedings of 25th International Conference on Thermoelectrics, Vienna, Austria, 2006; p. 4.
  55. Zhou, M.; Chen, L.D.; Zhang, W.Q.; Feng, C.D. Disorder scattering effect on the high-temperature lattice thermal conductivity of TiCoSb-based half-Heusler compounds. J. Appl. Phys. 2005, 98, 013708, doi:10.1063/1.1944213.
  56. Zhou, M.; Feng, C.D.; Chen, L.D.; Huang, X.Y. Effects of partial substitution of Co by Ni on the high-temperature thermoelectric properties of TiCoSb-based half-Heusler compounds. J. Alloy. Compd. 2005, 391, 194–197, doi:10.1016/j.jallcom.2004.07.074.
  57. Sekimoto, T.; Kurosaki, K.; Muta, H.; Yamanaka, S. Thermoelectric properties of (Ti,Zr,Hf)CoSb type half-Heusler compounds. Mater. Trans. 2005, 46, 1481–1484, doi:10.2320/matertrans.46.1481.
  58. Sekimoto, T.; Kurosaki, K.; Muta, H.; Yamasaka, S. Thermoelectric and thermophysical properties of TiCoSb,ZrCoSb,HfCoSb prepared by SPS. In Proceedings of 24th International Conference on Thermoelectrics, Clemson, SC, USA, 2005; pp. 347–350.
  59. Zhou, M.; Feng, C.D.; Chen, L.D.; Huang, X.Y. Effects of partial substitution of Co by Ni on the electrical transport properties of TiCoSb-based half-Heusler compounds. Rare Metal Mat. Eng. 2003, 32, 488–490.
  60. Xia, Y.; Ponnambalam, V.; Bhattacharya, S.; Pope, A.L.; Poon, S.J.; Tritt, T.M. Electrical transport properties of TiCoSb half-Heusler phases that exhibit high resistivity. J. Phys. Condens. Mat. 2001, 13, 77–89, doi:10.1088/0953-8984/13/1/308.
  61. Xia, Y.; Bhattacharya, S.; Ponnambalam, V.; Pope, A.L.; Poon, S.J.; Tritt, T.M. Thermoelectric properties of semimetallic (Zr, Hf)CoSb half-Heusler phases. J. Appl. Phys. 2000, 88, 1952–1955, doi:10.1063/1.1305829.
  62. Poon, S.J.; Tritt, T.M.; Xi, Y.; Bhattacharya, S.; Ponnambalam, V.; Pope, A.L.; Littleton, R.T.; Browning, V.M. Bandgap Features and Thermoelectric Properties of Ti-Based Half-Heusler Alloys. In Proceedings of Eighteenth International Conference on Thermoelectrics, Maryland, MD, USA, 1999; pp. 45–51.
  63. Tobola, J.; Pierre, J.; Kaprzyk, S.; Skolozdra, R.V.; Kouacou, M.A. Crossover from semiconductor to magnetic metal in semi-Heusler phases as a function of valence electron concentration. J. Phys. Condens. Mat. 1998, 10, 1013–1032, doi:10.1088/0953-8984/10/5/011.
  64. Kuentzler, R.; Clad, R.; Schmerber, G.; Dossmann, Y. Gap at the fermi level and magnetism in RMSn ternary compounds (R = Ti, Zr, Hf and M=Fe, Co, Ni). J. Magn. Magn. Mater. 1992, 104, 1976–1978, doi:10.1016/0304-8853(92)91629-8.
  65. Aliev, F.G. Gap at fermi level in some new d-electron and f-electron intermetallic compounds. Physica B 1991, 171, 199–205, doi:10.1016/0921-4526(91)90516-H.
  66. Aliev, F.G.; Kozyrkov, V.V.; Moshchalkov, V.V.; Scolozdra, R.V.; Durczewski, K. Narrow-band in the intermetallic compounds TiNiSn, ZrNiSn, HfNiSn. Z. Phys. B 1990, 80, 353–357, doi:10.1007/BF01323516.
  67. Bhattacharya, S.; Xia, Y.; Ponnambalam, V.; Poon, S.J.; Thadani, N.; Tritt, T.M. Reductions in the Lattice Thermal Conductivity of Ball-Milled and Shock Compacted TiNiSn1−xSbx Half-Heusler Alloys. In Thermoelectric Materials 2001-Research and Applications; Nolas, G.S., Johnson, D.C., Mandrus, D.G., Eds.; Cambridge University Press: New York, NY, USA, 2001; Volume 691, pp. 155–160.
  68. Tritt, T.M.; Bhattacharya, S.; Xia, Y.; Ponnambalam, V.; Poon, S.J.; Thadhani, N. Effects of Various Grain Structure and Sizes on the Thermal Conductivity of Ti-Based Half-Heusler Alloys. In Thermoelectric Materials 2001-Research and Applications; Nolas, G.S., Johnson, D.C., Mandrus, D.G., Eds.; Cambridge University Press: New York, NY, USA, 2001; Volume 691, pp. 7–12.
  69. Xie, H.H.; Yu, C.; Zhu, T.J.; Fu, C.G.; Snyder, G.J.; Zhao, X.B. Increased electrical conductivity in fine-grained (Zr,Hf)NiSn based thermoelectric materials with nanoscale precipitates. Appl. Phys. Lett. 2012, 100, 254104, doi:10.1063/1.4730436.
  70. Takas, N.J.; Sahoo, P.; Misra, D.; Zhao, H.; Henderson, N.L.; Stokes, K.; Poudeu, P.F.P. Effects of Ir substitution and processing conditions on thermoelectric performance of p-type Zr0.5Hf0.5Co1−xIrxSb0.99sn0.01 half-Heusler alloys. J. Electron. Mater. 2011, 40, 662–669, doi:10.1007/s11664-010-1501-0.
  71. Yaqub, R.; Sahoo, P.; Makongo, J.P.A.; Takas, N.; Poudeu, P.F.P.; Stokes, K.L. Investigation of the effect of NiO nanoparticles on the transport properties of Zr0.5Hf0.5Ni1−xPdxSn0.99Sb0.01 (x = 0 and 0.2). Sci. Adv. Mater. 2011, 3, 633–638, doi:10.1166/sam.2011.1193.
  72. Joshi, G.; Yan, X.; Wang, H.; Liu, W.; Chen, G.; Ren, Z. Enhancement in thermoelectric figure-of-merit of an n-type half-Heusler compound by the nanocomposite approach. Adv. Energy Mater. 2011, 1, 643–647, doi:10.1002/aenm.201100126.
  73. Yan, X.; Joshi, G.; Liu, W.; Lan, Y.; Wang, H.; Lee, S.; Simonson, J.W.; Poon, S.J.; Tritt, T.M.; Chen, G.; et al. Enhanced thermoelectric figure of merit of p-type half-Heuslers. Nano Lett. 2011, 11, 556–560, doi:10.1021/nl104138t.
  74. Yu, C.; Zhu, T.J.; Xiao, K.; Shen, J.J.; Yang, S.H.; Zhao, X.B. Reduced grain size and improved thermoelectric properties of melt spun (Hf,Zr)NiSn half-Heusler alloys. J. Electron. Mater. 2010, 39, 2008–2012, doi:10.1007/s11664-009-1032-8.
  75. Zhou, M.; Li, J.F.; Guo, P.J.; Takuji, K. Synthesis and thermoelectric properties of fine-grained FeVSb system half-Heusler compound polycrystals with high phase purity. J. Phys. D 2010, 43, 415403, doi:10.1088/0022-3727/43/41/415403.
  76. Yu, C.; Zhu, T.-J.; Xiao, K.; Jin, J.; Shen, J.-J.; Yang, S.-H.; Zhao, X.-B. Microstructure of ZrNiSn-base half-Heusler thermoelectric materials prepared by melt-spinning. J. Inorg. Mater. 2010, 25, 569–572, doi:10.3724/SP.J.1077.2010.00569.
  77. Huang, X.Y.; Xu, Z.; Chen, L.D. The thermoelectric performance of ZrNiSn-ZrO2 composites. Solid State Commun. 2004, 130, 181–185, doi:10.1016/j.ssc.2004.02.001.
  78. Huang, X.Y.; Xu, Z.; Chen, L.D.; Tang, X.F. Effect of γ-Al2O3 content on the thermoelectric performance of ZrNiSn/γ-Al2O3 composites. Key Eng. Mater. 2003, 249, 79–82, doi:10.4028/www.scientific.net/KEM.249.79.
  79. Xie, W.J.; He, J.; Zhu, S.; Su, X.L.; Wang, S.Y.; Holgate, T.; Graff, J.W.; Ponnambalam, V.; Poon, S.J.; Tang, X.F.; Zhang, Q.J.; Tritt, T,M. Simultaneously optimizing the independent thermoelectric properties in (Ti,Zr,Hf)(Co,Ni)Sb alloy by in situ forming InSb nanoinclusions. Acta Mater. 2010, 58, 4705–4713, doi:10.1016/j.actamat.2010.05.005.
  80. Makongo, J.P.A.; Misra, D.K.; Zhou, X.; Pant, A.; Shabetai, M.R.; Su, X.; Uher, C.; Stokes, K.L.; Poudeu, P.F.P. Simultaneous large enhancements in thermopower and electrical conductivity of bulk nanostructured half-Heusler alloys. J. Am. Chem. Soc. 2011, 133, 18843–18852, doi:10.1021/ja206491j.
  81. Jeitschk, W. Transition metal stannides with MgAgAs and MnCu2Al-type structure. Metall. Trans. 1970, 1, 3159.
  82. Graf, T.; Felser, C.; Parkin, S.S.P. Simple rules for the understanding of Heusler compounds. Prog. Solid State Ch. 2011, 39, 1–50, doi:10.1016/j.progsolidstchem.2011.02.001.
  83. Snyder, G.J.; Toberer, E.S. Complex thermoelectric materials. Nat. Mater. 2008, 7, 105–114, doi:10.1038/nmat2090.
  84. Yu, C.; Zhu, T.-J.; Shi, R.-Z.; Zhang, Y.; Zhao, X.-B.; He, J. High-performance half-heusler thermoelectric materials Hf1−xZrxNiSn1−ySby prepared by levitation melting and spark plasma sintering. Acta Mater. 2009, 57, 2757–2764, doi:10.1016/j.actamat.2009.02.026.
  85. Populoh, S.; Aguirre, M.H.; Brunko, O.C.; Galazka, K.; Lu, Y.; Weidenkaff, A. High figure of merit in (Ti,Zr,Hf)NiSn half-Heusler alloys. Scripta Mater. 2012, 66, 1073–1076, doi:10.1016/j.scriptamat.2012.03.002.
  86. Culp, S.R.; Simonson, J.W.; Poon, S.J.; Ponnambalam, V.; Edwards, J.; Tritt, T.M. (Zr,Hf)Co(Sb,Sn) half-Heusler phases as high-temperature (>700 °C) p-type thermoelectric materials. Appl. Phys. Lett. 2008, 93, 022105, doi:10.1063/1.2959103.
  87. Kawano, K.; Kurosaki, K.; Muta, H.; Yamanaka, S. Substitution effect on the thermoelectric properties of p-type half-Heusler compounds: ErNi1−xPdxSb. J. Appl. Phys. 2008, 104, 013714, doi:10.1063/1.2956699.
  88. Kimura, Y.; Tanoguchi, T.; Kita, T. Vacancy site occupation by Co and Ir in half-Heusler ZrNiSn and conversion of the thermoelectric properties from n-type to p-type. Acta Mater. 2010, 58, 4354–4361, doi:10.1016/j.actamat.2010.04.028.
  89. Sekimoto, T.; Kurosaki, K.; Muta, H.; Yamanaka, S. High-thermoelectric figure of merit realized in p-type half-Heusler compounds: ZrCoSnxSb1−x. J. Appl. Phys. 2007, 46, 673–675.
  90. Culp, S.; Poon, S.J.; Hickman, N.; Tritt, T.M.; Blumm, J. Effect of substitutions on the thermoelectric figure of merit of half-Heusler phases at 800 °C. Appl. Phys. Lett. 2006, 88, 042106, doi:10.1063/1.2168019.
  91. Sakurada, S.; Shutoh, N. Effect of Ti substitution on the thermoelectric properties of (Zr,Hf)NiSn half-Heusler compounds. Appl. Phys. Lett. 2005, 86, 2105.
  92. Dresselhaus, M.S.; Chen, G.; Ren, Z.F.; Dresselhaus, G.; Henry, A.; Fleurial, J.P. New composite thermoelectric materials for energy harvesting applications. JOM 2009, 61, 86–90, doi:10.1007/s11837-009-0058-y.
  93. Dresselhaus, M.S.; Chen, G.; Ren, Z.F.; McEnaney, K.; Dresselhaus, G.; Fleurial, J.P. The Promise of Nanocomposite Thermoelectric Materials. In Materials and Devices for Thermal-to-Electric Energy Conversion; Yang, J., Nolas, G.S., Koumoto, K., Grin, Y., Eds.; Cambridge University Press: New York, USA, 2009; Volume 1166, pp. 29–41.
  94. Dresselhaus, M.S.; Chen, G.; Ren, Z.; Fleurial, J.-P.; Gogna, P.; Tang, M.Y.; Vashaee, D.; Lee, H.; Wang, X.; Joshi, G. Nanocomposites to Enhance ZT in Thermoelectrics. In Thermoelectric Power Generation; Hogan, T.P., Yang, J., Funahashi, R., Tritt, T.M., Eds.; Cambridge University Press: New York, NY, USA, 2008; Volume 1044, pp. 29–41.
  95. Dresselhaus, M.S.; Chen, G.; Tang, M.Y.; Yang, R.; Lee, H.; Wang, D.; Ren, Z.; Fleurial, J.-P.; Gogna, P. New directions for low-dimensional thermoelectric materials. Adv. Mater. 2007, 19, 1043–1053, doi:10.1002/adma.200600527.
  96. Yang, R.G.; Chen, G.; Dresselhaus, M.S. Thermal conductivity of simple and tubular nanowire composites in the longitudinal direction. Phys. Rev. B 2005, 72, 125411, doi:10.1103/PhysRevB.72.125411.
  97. Yang, R.G.; Chen, G. Thermal conductivity modeling of periodic two-dimensional nanocomposites. Phys. Rev. B 2004, 69, 195316, doi:10.1103/PhysRevB.69.195316.
  98. Harris, T.; Lee, H.; Wang, D.Z.; Huang, J.Y.; Ren, Z.F.; Klotz, B.; Dowding, R.; Dresselhaus, M.S.; Chen, G. Thermal Conductivity Reduction of SiGe Nanocomposites. In Thermoelectric Materials 2003-Research and Applications; Nolas, G.S., Yang, J., Hogan, T.P., Johnson, D.C., Eds.; Cambridge University Press: New York, NY, USA, 2004; Volume 793, pp. 169–174.
  99. Kanatzidis, M.G. Nanostructured thermoelectrics: The new paradigm? Chem. Mater. 2010, 22, 648–659, doi:10.1021/cm902195j.
  100. Hochbaum, A.I.; Chen, R.; Delgado, R.D.; Liang, W.; Garnett, E.C.; Najarian, M.; Majumdar, A.; Yang, P. Enhanced thermoelectric performance of rough silicon nanowires. Nature 2008, 451, 163–167, doi:10.1038/nature06381.
  101. Pichanusakorn, P.; Bandaru, P. Nanostructured thermoelectrics. Mat. Sci. Eng. R 2010, 67, 19–63, doi:10.1016/j.mser.2009.10.001.
  102. Heremans, J.P.; Thrush, C.M.; Morelli, D.T. Thermopower enhancement in lead telluride nanostructures. Phys. Rev. B 2004, 70, 115334, doi:10.1103/PhysRevB.70.115334.
  103. Kishimoto, K.; Tsukamoto, M.; Koyanagi, T. Temperature dependence of the seebeck coefficient and the potential barrier scattering of n-type PbTe films prepared on heated glass substrates by RF sputtering. J. Appl. Phys. 2002, 92, 5331–5339, doi:10.1063/1.1512964.
  104. Nishio, Y.; Hirano, T. Improvement of the efficiency of thermoelectric energy conversion by utilizing potential barriers. J. Appl. Phys. 1997, 36, 170–174.
  105. Faleev, S.V.; Leonard, F. Theory of enhancement of thermoelectric properties of materials with nanoinclusions. Phys. Rev. B 2008, 77, 214304, doi:10.1103/PhysRevB.77.214304.
  106. Makongo, J.P.A.; Misra, D.K.; Salvador, J.R.; Takas, N.J.; Wang, G.; Shabetai, M.R.; Pant, A.; Paudel, P.; Uher, C.; Stokes, K.L.; et al. Thermal and electronic charge transport in bulk nanostructured Zr0.25Hf0.75NiSn composites with full-Heusler inclusions. J. Solid State Chem. 2011, 184, 2948–2960, doi:10.1016/j.jssc.2011.08.036.
  107. Misra, D.K.; Makongo, J.P.A.; Sahoo, P.; Shabetai, M.R.; Paudel, P.; Stokes, K.L.; Poudeu, P.F.P. Microstructure and thermoelectric properties of mechanically alloyed Zr0.5Hf0.5Ni0.8Pd0.2Sn0.99Sb0.01/WO3 half-heusler composites. Sci. Adv. Mater. 2011, 3, 607–614, doi:10.1166/sam.2011.1190.
  108. Chen, L.D.; Huang, X.Y.; Zhou, M.; Shi, X.; Zhang, W.B. The high temperature thermoelectric performances of Zr0.5Hf0.5Ni0.8Pd0.2Sn0.99Sb0.01 alloy with nanophase inclusions. J. Appl. Phys. 2006, 99, 064305, doi:10.1063/1.2180432.
  109. Huang, X.Y.; Chen, L.D.; Shi, X.; Zhou, M.; Xu, Z. Thermoelectric performances of ZrNiSn/C-60 composite. Key Eng. Mater. 2005, 280–283, 385–388, doi:10.4028/www.scientific.net/KEM.280-283.385.
  110. Poon, S.J.; Wu, D.; Zhu, S.; Xie, W.; Tritt, T.M.; Thomas, P.; Venkatasubramanian, R. Half-Heusler phases and nanocomposites as emerging high-ZT thermoelectric materials. J. Mater. Res. 2011, 26, 2795–2802, doi:10.1557/jmr.2011.329.
  111. Bhattacharya, S.; Tritt, T.M.; Xia, Y.; Ponnambalam, V.; Poon, S.J.; Thadhani, N. Grain structure effects on the lattice thermal conductivity of Ti-based half-heusler alloys. Appl. Phys. Lett. 2002, 81, 43–45, doi:10.1063/1.1488698.
  112. Xie, H.H.; Mi, J.L.; Hu, L.P.; Lock, N.; Chirstensen, M.; Fu, C.G.; Iversen, B.B.; Zhao, X.B.; Zhu, T.J. Interrelation between atomic switching disorder and thermoelectric properties of zrnisn half-Heusler compounds. Crystengcomm 2012, 14, 4467–4471, doi:10.1039/c2ce25119a.
  113. Yu, C.; Zhu, T.; Xiao, K.; Shen, J.; Zhao, X. Microstructure and thermoelectric properties of (Zr,Hf)NiSn-based half-Heusler alloys by melt spinning and spark plasma sintering. Funct. Mater. Lett. 2010, 3, 227–231, doi:10.1142/S1793604710001305.
  114. Yu, B.; Zebarjadi, M.; Wang, H.; Lukas, K.; Wang, H.; Wang, D.; Opeil, C.; Dresselhaus, M.; Chen, G.; Ren, Z. Enhancement of thermoelectric properties by modulation-doping in silicon germanium alloy nanocomposites. Nano Lett. 2012, 12, 2077–2082, doi:10.1021/nl3003045.
  115. Zebarjadi, M.; Joshi, G.; Zhu, G.; Yu, B.; Minnich, A.; Lan, Y.; Wang, X.; Dresselhaus, M.; Ren, Z.; Chen, G. Power factor enhancement by modulation doping in bulk nanocomposites. Nano Lett. 2011, 11, 2225–2230, doi:10.1021/nl201206d.
  116. Xiong, Z.; Xi, L.; Ding, J.; Chen, X.; Huang, X.; Gu, H.; Chen, L.; Zhang, W. Thermoelectric nanocomposite from the metastable void filling in caged skutterudite. J. Mater. Res. 2011, 26, 1848–1856, doi:10.1557/jmr.2011.90.
  117. Xiong, Z.; Chen, X.; Huang, X.; Bai, S.; Chen, L. High thermoelectric performance of Yb0.26Co4Sb12/yGaSb nanocomposites originating from scattering electrons of low energy. Acta Mater. 2010, 58, 3995–4002, doi:10.1016/j.actamat.2010.03.025.
  118. Eilertsen, J.; Rouvimov, S.; Subramanian, M.A. Rattler-seeded insb nanoinclusions from metastable indium-filled In0.1Co4Sb12 skutterudites for high-performance thermoelectrics. Acta Mater.  2012, 60, 2178–2185, doi:10.1016/j.actamat.2011.12.028.
  119. Eilertsen, J.; Berthelot, R.; Sleight, A.W.; Subramanian, M.A. Structure and transport behavior of in-filled cobalt rhodium antimonide skutterudites. J. Solid State Chem. 2012, 190, 238–245, doi:10.1016/j.jssc.2012.02.045.
  120. Chai, Y.W.; Kimura, Y. Nanosized precipitates in half-Heusler TiNiSn alloy. Appl. Phys. Lett. 2012, 100, 033114, doi:10.1063/1.3679377.
  121. Liu, W.; Tang, X.; Li, H.; Yin, K.; Sharp, J.; Zhou, X.; Uher, C. Enhanced thermoelectric properties of n-type Mg2.16(Si0.4Sn0.6)1−ySby due to nano-sized Sn-rich precipitates and an optimized electron concentration. J. Mater. Chem. 2012, 22, 13653–13661, doi:10.1039/c2jm31919e.
  122. Chen, Z.; Sakamoto, J.; Morelli, D.; Xiaoyuan, Z.; Guoyu, W.; Uher, C. Thermoelectric properties of Co0.9Fe0.1Sb3-based skutterudite nanocomposites with FeSb2 nanoinclusions. J. Appl. Phys. 2011, 109, 06372.
  123. Zhang, S.N.; Zhu, T.J.; Yang, S.H.; Yu, C.; Zhao, X.B. Improved thermoelectric properties of AgSbTe2 based compounds with nanoscale Ag2Te in situ precipitates. J Alloy. Compd. 2010, 499, 215–220, doi:10.1016/j.jallcom.2010.03.170.
  124. He, J.Q.; Girard, S.N.; Kanatzidis, M.G.; Dravid, V.P. Microstructure-lattice thermal conductivity correlation in nanostructured PbTe0.7S0.3 thermoelectric materials. Adv. Funct. Mater. 2010, 20, 764–772, doi:10.1002/adfm.200901905.
  125. Ke, X.; Chen, C.; Yang, J.; Wu, L.; Zhou, J.; Li, Q.; Zhu, Y.; Kent, P.R.C. Microstructure and a nucleation mechanism for nanoprecipitates in PbTe-AgSbTe2. Phys. Rev. Lett. 2009, 103, 145502, doi:10.1103/PhysRevLett.103.145502.
  126. Xie, W.; He, J.; Kang, H.J.; Tang, X.; Zhu, S.; Laver, M.; Wang, S.; Copley, J.R.D.; Brown, C.M.; Zhang, Q.; et al. Identifying the specific nanostructures responsible for the high thermoelectric performance of (Bi,Sb)2Te3 nanocomposites. Nano Lett. 2010, 10, 3283–3289, doi:10.1021/nl100804a.
  127. Xie, W.; Tang, X.; Yan, Y.; Zhang, Q.; Tritt, T.M. Unique nanostructures and enhanced thermoelectric performance of melt-spun BiSbTe alloys. Appl. Phys. Lett. 2009, 94, 102111, doi:10.1063/1.3097026.
  128. Xie, W.; Tang, X.; Yan, Y.; Zhang, Q.; Tritt, T.M. High thermoelectric performance BiSbTe alloy with unique low-dimensional structure. J. Appl. Phys. 2009, 105, 113713, doi:10.1063/1.3143104.
  129. Li, H.; Tang, X.; Su, X.; Zhang, Q.; Uher, C. Nanostructured bulk YbxCo4Sb12 with high thermoelectric performance prepared by the rapid solidification method. J. Phys. D 2009, 42, 145409, doi:10.1088/0022-3727/42/14/145409.
  130. Li, H.; Tang, X.; Su, X.; Zhang, Q. Preparation and thermoelectric properties of high-performance Sb additional Yb0.2Co4Sb12+y bulk materials with nanostructure. Appl. Phys. Lett. 2008, 92, 202114, doi:10.1063/1.2936277.
  131. Tang, X.; Xie, W.; Li, H.; Zhao, W.; Zhang, Q.; Niino, M. Preparation and thermoelectric transport properties of high-performance p-type Bi2Te3 with layered nanostructure. Appl. Phys. Lett. 2007, 90, 012102, doi:10.1063/1.2425007.
  132. Lan, Y.; Minnich, A.J.; Chen, G.; Ren, Z. Enhancement of thermoelectric figure-of-merit by a bulk nanostructuring approach. Adv. Funct. Mater. 2010, 20, 357–376, doi:10.1002/adfm.200901512.
  133. Joshi, G.; Lee, H.; Lan, Y.; Wang, X.; Zhu, G.; Wang, D.; Gould, R.W.; Cuff, D.C.; Tang, M.Y.; Dresselhaus, M.S.; et al. Enhanced thermoelectric figure-of-merit in nanostructured p-type silicon germanium bulk alloys. Nano Lett. 2008, 8, 4670–4674, doi:10.1021/nl8026795.
  134. Ma, Y.; Hao, Q.; Poudel, B.; Lan, Y.; Yu, B.; Wang, D.; Chen, G.; Ren, Z. Enhanced thermoelectric figure-of-merit in p-type nanostructured bismuth antimony tellurium alloys made from elemental chunks. Nano Lett. 2008, 8, 2580–2584, doi:10.1021/nl8009928.
  135. Poudel, B.; Hao, Q.; Ma, Y.; Lan, Y.; Minnich, A.; Yu, B.; Yan, X.; Wang, D.; Muto, A.; Vashaee, D.; et al. High-thermoelectric performance of nanostructured bismuth antimony telluride bulk alloys. Science 2008, 320, 634–638, doi:10.1126/science.1156446.
  136. Sharp, J.W.; Poon, S.J.; Goldsmid, H.J. Boundary scattering and the thermoelectric figure of merit. Phys. Status Solidi A 2001, 187, 507–516, doi:10.1002/1521-396X(200110)187:2<507::AID-PSSA507>3.0.CO;2-M.
  137. Cahill, D.G.; Watson, S.K.; Pohl, R.O. Lower limit to the thermal-conductivity of disordered crystals. Phys. Rev. B 1992, 46, 6131–6140, doi:10.1103/PhysRevB.46.6131.
  138. Yu, C.; Xie, H.H.; Fu, C.G.; Zhu, T.J.; Zhao, X.B. High performance half-Heusler thermoelectric materials with refined grains and nanoscale precipitates. J. Mater. Res. 2012, 27, 2457–2465, doi:10.1557/jmr.2012.171.
  139. Liu, W.S.; Yan, X.; Chen, G.; Ren, Z. F. Recent advances in thermoelectric nanocomposites. Nano Energy 2012, 1, 42–56, doi:10.1016/j.nanoen.2011.10.001.
  140. Heremans, J.P.; Jovovic, V.; Toberer, E.S.; Saramat, A.; Kurosaki, K.; Charoenphakdee, A.; Yamanaka, S.; Snyder, G.J. Enhancement of thermoelectric efficiency in PbTe by distortion of the electronic density of states. Science 2008, 321, 554–557, doi:10.1126/science.1159725.
  141. Pei, Y.; Shi, X.; LaLonde, A.; Wang, H.; Chen, L.; Snyder, G.J. Convergence of electronic bands for high performance bulk thermoelectrics. Nature 2011, 473, 66–69, doi:10.1038/nature09996.
  142. Simonson, J.W.; Wu, D.; Xie, W.J.; Tritt, T.M.; Poon, S.J. Introduction of resonant states and enhancement of thermoelectric properties in half-Heusler alloys. Phys. Rev. B 2011, 83, 235211, doi:10.1103/PhysRevB.83.235211.
Nanomaterials EISSN 2079-4991 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
