Toward Enhanced Humidity Stability of Triboelectric Mechanical Sensors via Atomic Layer Deposition

by
Wook Kim
1,†,
Sumaira Yasmeen
2,†,
Chi Thang Nguyen
2,
Han-Bo-Ram Lee
2,* and
Dukhyun Choi
1,*
1
Department of Mechanical Engineering (Integrated Engineering Program), Kyung Hee University, Yongin 17104, Korea
2
Department of Materials Science and Engineering, Incheon National University, Incheon 22012, Korea
*
Authors to whom correspondence should be addressed.
†
These authors equally contributed to this work.
Nanomaterials 2021, 11(7), 1795; https://doi.org/10.3390/nano11071795
Submission received: 31 May 2021 / Revised: 15 June 2021 / Accepted: 8 July 2021 / Published: 9 July 2021
(This article belongs to the Special Issue Nanogenerator for Self-Powering Indoor Electronics)
Browse Figures
Versions Notes

Abstract

:
Humid conditions can disrupt the triboelectric signal generation and reduce the accuracy of triboelectric mechanical sensors. This study demonstrates a novel design approach using atomic layer deposition (ALD) to enhance the humidity resistance of triboelectric mechanical sensors. Titanium oxide (TiOx) was deposited on polytetrafluoroethylene (PTFE) film as a moisture passivation layer. To determine the effective ALD process cycle, the TiOx layer was deposited with 100 to 2000 process cycles. The triboelectric behavior and surface chemical bonding states were analyzed before and after moisture exposure. The ALD-TiOx-deposited PTFE showed three times greater humidity stability than pristine PTFE film. Based on the characterization of TiOx on PTFE film, the passivation mechanism was proposed, and it was related to the role of the oxygen-deficient sites in the TiOx layer. This study could provide a novel way to design stable triboelectric mechanical sensors in highly humid environments.

1. Introduction

The expansion of personal and mobile electronic devices, and rapid developments in information and communication technology (ICT), are noticeably changing our modern civilization. These phenomenal developments have introduced a new age, called the fourth industrial revolution. In the fourth industrial revolution, there are several key technologies such as Internet of Things (IoTs), artificial intelligence (AI), big data analysis, three-dimensional (3D) printing, and augmented reality. In addition to the development of these key technologies, their integration has been processed toward smart platforms, such as a smart factory, smart healthcare, and smart city. To establish the smart platforms, it is important to obtain correct data from environments by using sensors. Therefore, the importance and necessity of efficient and precise sensors has increased.
To satisfy societal demands, various sensors based on the piezoresistive effect [1,2,3], capacitive sensing [4,5,6], and piezoelectric behavior [7,8,9] have been investigated. Triboelectric effect-based sensors have been investigated to develop reliable mechanical and chemical sensors. The triboelectric sensors can detect changes in pressure [10,11,12,13,14], mechanical motion [15,16,17,18,19], position [20], vibration [21,22,23], velocity [24,25,26], liquid volume [27,28], and various chemicals in different phases [29,30,31,32]. Generally, the operation of triboelectric sensors is based on contact electrification and electrostatic induction [33,34,35]; specifically, the triboelectric behavior is based on surface phenomena. Therefore, triboelectric behavior and the corresponding signals are affected by an external environment. When the sensors are exposed to an environment, triboelectric sensors can be contaminated by organic/inorganic contaminants and H2O from air. Especially, the H2O in air can be a serious issue for the functionality of triboelectric mechanical sensors. H2O in air can form a conductive layer on tribo-materials, and the accumulated surface charges can dissipate through the H2O layer [36], which means that triboelectric sensors in a high relative humidity can provide incorrect data. Therefore, various researchers have focused on the development of humidity-resistant triboelectric devices based on physical sealing [37,38], material engineering [39,40,41], and surface engineering [42].
Atomic layer deposition (ALD) is a thin film deposition technique developed for the nanofabrication of integrated circuit systems, and it has been intensively studied and applied to various applications [43,44,45]. ALD enables the precise control of film thickness to the Angstrom scale with excellent conformality based on its unique self-saturation surface reactions. ALD is utilized for the design of electronic devices such as metal–insulator–metal (MIM) capacitors [46,47] and metal–oxide–semiconductor field effect transistors (MOSFETs) [48,49]. Additionally, ALD can be utilized to form an anti-corrosion layer for stable solar-based water splitting [50,51]. The functionality of photoanodes is maintained and the ALD-processed layer can act as a passivation layer because of the extremely low thickness and high uniformity.
In this work, we demonstrated a novel moisture passivation technique to maintain the functionality of triboelectric mechanical sensors. Especially, we aimed to propose the humidity passivation technique for triboelectric mechanical sensors that utilize the human skin as a counter tribo-material. Therefore, we selected a negative tribo-material, which is capable of the ALD process. ALD-TiOx was deposited on a negative tribo-material, polytetrafluoroethylene (PTFE). To determine the effective process cycles for enhanced moisture passivation capability, triboelectric behaviors of TiOx-deposited PTFE films were evaluated and their physical characteristics were analyzed. The moisture passivation was related to the characteristics of the TiOx layer on PTFE films. In addition, the moisture resistance could be improved by approximately three times compared with the pristine PTFE film. We expect that our technique can provide a novel method for developing stable and reliable triboelectric mechanical sensors in highly humid conditions.

2. Materials and Methods

2.1. Deposition of TiOx on PTFE Film

TiOx was deposited on a tribo-material using ALD. Before depositing TiOx, the PTFE film was attached to an Al sheet with an area of 1.5 cm × 1.5 cm. The ALD process was then conducted after loading the prepared PTFE/Al sheet. TiOx was deposited in a traveling wave-type reactor at a temperature of 150 °C. Nitrogen (N2) was utilized as the carrier and purging gas. The base pressure was 1.12 × 10−1 Torr and the purge gas flow was 100 sccm. The titanium (IV) isopropoxide (TTIP) precursor was pulsed for 5 s and the water (H2O) reactant was pulsed for 1 s. An amount of 100, 300, 500, and 2000 deposition cycles were conducted to define the optimal ALD cycle to improve moisture resistance.

2.2. Assembly of the TENG Device and Triboelectric Performance Measurement

The prepared TiOx-deposited PTFE film was utilized as a negative tribo-material. An Al sheet was selected as a positive tribo-material. A pushing tester (JIOCS-120, Junil Tech Co., Deagu, Korea) was utilized to induce a compressive load on the TENG device. The measurement conditions for all samples were: a gap distance of 4 mm, a compressive load of 5 N, a contact frequency of 3 Hz, and a contact area of 1.5 cm × 1.5 cm. Electrical outputs were measured using an oscilloscope (MDO3052, Tektronix, Beaverton, OR, USA), a low-noise current preamplifier (SR570, Stanford Research Systems, Sunnyvale, CA, USA), and an electrometer (6514 system electrometer, Keithley, Solon, OH, USA). For evaluation of the humidity resistance, samples were stored in a humid chamber with a relative humidity (RH) of 99% for 24 h and the triboelectric performance was evaluated. To compare the signal loss rate, the initial triboelectric performance was measured at RH 10% and 25 °C.

2.3. Characterization

A field emission scanning electron microscope (FE-SEM, SU-70, Hitachi, Tokyo, Japan) was utilized to confirm the formation of TiOx on PTFE with different process cycles. The water contact angle (WCA) of pristine PTFE and TiOx-deposited PTFE (TiOx/PTFE) films was measured using a droplet analyzer (SmartDrop, FemtoBioMed, Seongnam, Korea). Changes in the electronic structures were investigated using X-ray absorption spectroscopy (XAS). XAS experiments were performed at the 2 A beamline in the Pohang Accelerator Laboratory (PAL), Pohang, Korea. Surface chemical bonds were investigated, utilizing an X-ray photoelectron spectrometer (XPS, K-Alpha, Thermo Fisher Scientific Co., Waltham, MA, USA) with a pass energy of 20 eV and using a monochromatic Al Kα source. Survey scans were conducted to investigate the overall change of surface chemical bonds. After the survey scan, a narrow scan was performed. The C 1s and Ti 2p peaks were observed in PTFE and TiOx/PTFE samples. The narrow scan results were normalized and deconvoluted to compare the chemical bonds after depositing TiOx and exposing it to humid air for 24 h. Finally, deconvolution of the narrow scan result was conducted to define the present chemical bonds and their portion.

3. Results and Discussion

3.1. Characteristics of ALD-TiOx on PTFE Film

Figure 1 shows the concept of moisture passivation using TiOx formed by ALD and the moisture passivation capability of the ALD TiOx/PTFE film. As shown in Figure 1a, the TiOx layer was deposited on a PTFE surface. ALD-TiOx/PTFE film acts as a negative tribo-material and the aluminum (Al) sheet acts as both an electrode and positive tribo-material. The moisture passivation mechanism is based on the H2O absorption by oxygen-deficient sites. The FE-SEM images confirm that the TiOx layer was formed on the PTFE surface in 300-ALD process cycles, as shown in Figure 1b. After depositing a TiOx layer on PTFE, the moisture passivation capability with a pristine PTFE film was evaluated, as shown in Figure 1c. At the environmental humidity of RH 99%, pristine PTFE lost 32.7% of its triboelectric voltage signal. However, ALD-TiOx/PTFE film showed better moisture stability, which was approximately three times greater than pristine PTFE film. The corresponding voltage signal was reduced approximately 12.6% compared with the dry condition. To understand the better humidity stability of the ALD-TiOx/PTFE film, the formation and physical characteristics of the ALD-TiOx layer were first analyzed.
The surface of the ALD-TiOx/PTFE film was examined by the water contact angle (WCA) measurement. The average WCA value and standard deviation are presented in Figure 2a. The WCA of the pristine PTFE surface was ca. 131.6° and there was no significant change in WCA after depositing TiOx with 100 ALD cycles (100-TiOx) (ca. 130.9°). As the number of ALD cycles increased to 300 cycles (300-TiOx), the contact angle decreased to 128.1° because of the formation of the TiOx layer. The WCA rapidly decreased to 119.3° and 108.2° after 500 ALD cycles (500-TiOx) and 2000 ALD cycles (2000-TiOx), respectively. The change in WCA is related to the distribution of the TiOx layer. Figure S1 indicates the top-view FE-SEM images with EDS mapping of the Ti distribution. As shown in Figure S1a, there were no Ti atoms on the pristine PTFE film. It was difficult to identify Ti atoms from the 100-TiOx/PTFE film, similar to the pristine PTFE film (Figure S1b). However, from 300- to 500-TiOx/PTFE films, irregular island-shaped TiOx particles were observed (Figure S1c,d). This island-growth is related to the TiOx nucleation on the PTFE surface. When the ALD process is conducted on polymeric materials, the C=O bonds act as nucleation sites for ALD growth [52]. However, an ideal PTFE film has only C2F4 bonds, resulting in difficult TiOx nucleation on a PTFE surface without surface treatments such as plasma etching. In this work, we utilized an industrial PTFE film with a purity of 99.9%. Therefore, the TiOx nucleation might progress at impurities in the PTFE film. In a 2000-TiOx/PTFE film, a TiOx film was formed on the PTFE (Figure S1e). As a result, the TiOx layer was grown from island to film as the ALD cycle increased. Thus, we assumed that the triboelectric performance would proportionally decrease with an increase in ALD cycles because of the transition of tribo-materials from PTFE to TiOx. Figure 2b indicates the normalized oxygen k-edge XAS spectra of pristine PTFE (light gray line), TiOx (gray line), and 300-TiOx/PTFE composite surface (red line). TiOx has a peak at a photon energy of 531 eV and PTFE has a peak at 533 eV. In the hybridized spectrum, noticeable peaks from TiOx and PTFE were observed, which means that the TiOx and PTFE co-exist at the surface when the ALD process is conducted with a relatively low ALD cycle. In addition, the XAS spectra show that the dominant surface material of the 300-TiOx/PTFE film is PTFE. Therefore, we expected that the triboelectric performance of hybridized surface might be similar to that of pristine PTFE. The chemical bonding state of the TiOx layer with Ti 2p spectrum was evaluated, as shown in Figure 2c. The Ti 2p spectrum of 300-TiOx was deconvoluted, and different Ti states of Ti4+ (60.16%) and Ti3+ (39.84%) existed in the TiOx layer. The O 1s spectrum of 300-TiOx was deconvoluted as well, as indicated in Figure S2a. The deconvoluted O 1s spectrum also designates the presence of Ti3+. In the 500-TiOx film, there were two different states, as shown in Figure S3(ai), 56.7% Ti4+ and 46.3% Ti3+. Therefore, the humidity passivation might be related to the oxygen-deficient sites in the ALD-TiOx layer.

3.2. Triboelectric Behavior of the ALD-TiOx/PTFE Film

After confirming the existence and formation of TiOx/PTFE composite surfaces, their triboelectric behaviors were evaluated, as shown in Figure 3. Figure 3a–c show the measured open circuit voltage (VOC), short circuit current (ISC), and charge density (σ) at RH 10% and 25 °C. The overall triboelectric performances decreased with the deposition of TiOx layers. Pristine PTFE produced a VOC of 30.1 V and an ISC of 0.98 μA, respectively, and its surface charge density was 4.61 nC/cm2. However, the triboelectric performances significantly decreased with the 100-TiOx/PTFE film. The measured VOC, ISC, and σ values were 5.4 V, 0.24 μA, and 0.81 nC/cm2, respectively. The the 300-TiOx/PTFE film produced larger triboelectric signals than the 100-TiOx/PTFE film. The generated VOC, ISC, and σ were 11.4 V, 0.33 μA, and 1.7 nC/cm2, respectively. The 500-TiOx/PTFE film showed the highest performance among the ALD-TiOx-deposited PTFE films in this work. The detected average triboelectric signals were 16.6 V, 0.55 μA, and 2.8 nC/cm2, respectively. Finally, the triboelectric performance of a 2000-TiOx/PTFE film was evaluated. The generated VOC and ISC were 5.8 V and 0.17 μA, respectively, and the accumulated charge was 1.0 nC/cm2, which is slightly greater than that of the 100-TiOx/PTFE sample. Furthermore, the mechanical durability of ALD-TiOx/PTFE film (300-TiOx/PTFE) was assessed to ensure the stability of the ALD-TiOx layer, as shown in Figure S4. The ALD-TiOx/PTFE film showed a constant output signal after 60,000 contact/separation trials over 5 h. This result shows that the ALD-TiOx layer will be maintained under the mechanical stimulation.
After confirming the triboelectric signals of ALD-TiOx/PTFE films, we tried to understand the cause of electrical output attenuation. The output reduction in the 2000-TiOx/PTFE film can be explained based on the FE-SEM and EDS results in Figure S1e. After conducting the ALD process with 2000 cycles, the PTFE surface was completely covered by TiOx thin film, which means that the triboelectric material changed to a TiOx thin film. TiOx is a relatively positive tribo-material compared with PTFE. Therefore, the reduction in the triboelectric performance is inevitable when the TiOx film is formed on the PTFE surface. Figure 3d,e show the deconvoluted C 1s spectra of a pristine PTFE and 300-TiOx/PTFE film. As shown in Figure 3d, pristine PTFE film has various chemical bonds, such as C–C, CF, CF2, CF3, and FC=O. As expected, there was a FC=O bond, which can act as a nucleation site during the ALD process. After 300 ALD cycles, there were changes in the chemical bonding states, as indicated in Figure 3e. Originally, the chemical bonding states, which were bonded with fluorine atoms, were 76.58% in the pristine PTFE. However, after forming the TiOx layer, the portion of detected fluorine decreased to 61.24%, which is an approximately 15% decrease. In addition, the portion of FC=O bonds decreased from 15.8% to 8.29%, which indirectly illustrates that the TiOx nucleation progressed in this chemical bond. The reduction in chemical bonding states containing fluorine also indicates the transition of the triboelectric surface from PTFE to TiOx. Therefore, the reduction in the triboelectric performance is related to changes in the triboelectric property of the PTFE surface. However, when the coverage of the TiOx layer at each ALD process is considered, the triboelectric performance of the 100-TiOx sample should be greater than the other ALD processed samples. The largest signal loss in the 100-TiOx sample is based on the possible physical phenomenon during the ALD process. During the ALD process, the PTFE surface is exposed to two different atmospheres consisting of two different precursors, TTIP and H2O, at a relatively high temperature (150 °C). When handling the polymers at a certain temperature, the glass transition temperature should be considered. At the glass transition temperature, the rigidity and viscosity of the polymer decrease, the fluidity of the solid increases and the molecular motion intensifies [53]. The glass transition temperature of PTFE is approximately 120 °C [54], which means that during the ALD process, the PTFE polymer chain is relatively released. A relaxed PTFE chain makes more space for atoms or molecules, and it enables the precursor molecules to infiltrate the PTFE film. Therefore, while the PTFE layer thermally deforms, the precursor molecules can infuse into the PTFE layer [55]. Diffused precursor molecules can deflect the electrostatic induction caused by surface charges on the composite surface and can reduce the corresponding triboelectric performance. As the ALD cycle is increased, the amount of diffused precursors may increase. However, TiOx nanoparticles are able to capture electrons in oxygen-deficient sites [56]. The oxygen-deficient sites are electrically positive; therefore, they can act as electron trapping sites. Figure 3f shows the proposed mechanism for enhancing the triboelectric performance of ALD-TiOx/PTFE TENGs. As both PTFE and TiOx particles co-exist with relatively low ALD cycles (from 100 to 500 cycles), contact electrification with the Al sheet occurs in both PTFE and ALD-TiOx particles. When the Al sheet is in contact with the TiOx particles, surface charges are formed on TiOx particles. Additionally, the free electrons in the Al sheet can be trapped in oxygen-deficient sites in TiOx. The trapped electrons can compensate for the initial surface charge loss induced by changes in the contact material from PTFE to TiOx. By increasing the subsequent ALD process cycles, which lead to the uniform distribution of TiOx particles, the possibility of electron trapping could be improved. Therefore, the signal loss from changes in tribo-material and electrostatic induction could be compensated.

3.3. Moisture Passivation of TiOx and Triboelectric Behaviors

After confirming the base triboelectric behaviors of the ALD-TiOx/PTFE films, the humidity stabilities were evaluated. For this evaluation, all samples were contained in an environment-controlled chamber (RH 99% and room temperature) for 24 h. The triboelectric performances were measured immediately upon removal from the chamber. Furthermore, the triboelectric performances of the ALD-TiOx/PTFE films were evaluated to confirm their reusability after the natural drying process at room temperature, as shown in Figure 4 and Figure S5. Figure 4(ai–aiii) show the measured open circuit voltage (VOC), short circuit current (ISC), and charge density (σ), respectively. The light green bars indicate the triboelectric behaviors of the as-deposited ALD-TiOx/PTFE films. The light blue bars represent the average triboelectric performances after the humidity exposure. Yellow bars show the average triboelectric performance after the natural drying process. After humidity exposure, the pristine PTFE film produced a voltage of 20.3 V and a current of 0.69 μA, and the accumulated charges were 3.26 nC/cm2. The output loss rate was calculated and is displayed in Figure 4(bi–biii). The black dots indicate the output loss rate after humidity exposure and red dots show the signal loss rate after the natural drying process. Compared with the triboelectric performances at the dry condition (As-dep), the overall output decreased approximately 30%. Interestingly, the 100-TiOx/PTFE film showed better passivation capability than the pristine PTFE film. The 100-TiOx/PTFE film generated a voltage of 5.4 V and current of 0.19 μA, with accumulated charges of 0.73 nC/cm2. Reduction rates of the voltage, current, and charge density were 11%, 17.4%, and 9.7%, respectively. The reduction rates were lower than in the pristine PTFE film. The 300-TiOx/PTFE film produced a voltage of 10 V and a current of 0.26 μA, respectively. The accumulated charges were 1.5 nC/cm2. The voltage was reduced approximately 12.7%, the current was reduced approximately 21%, and the charge density decreased approximately 13% compared with the triboelectric outputs of 300-TiOx/PTFE film in the dry condition. However, the 500-TiOx/PTFE film shows a relatively poor moisture passivation ability compared with the 100 and 300-TiOx/PTFE films. A σ of 1.7 nC/cm2 was formed on the 500-TiOx/PTFE film, and the corresponding VOC and ISC were 11.1 V and 0.32 μA, respectively. The signal loss rates of VOC, ISC, and σ were 32.9%, 41%, and 38%, respectively. The signal loss rates of the 500-TiOx/PTFE films were less than the pristine PTFE film, indicating that the ALD process longer than 500 cycles did not improve the moisture passivation. The 2000-TiOx/PTFE film shows the lowest moisture passivation capability among the ALD-TiOx/PTFE samples. After the humidity exposure, the 2000-TiOx/PTFE film produced a VOC of 2.5 V, an ISC of 0.08 μA, and measured σ of 0.4 nC/cm2. The VOC signal dropped by approximately 57%, the ISC signal was reduced approximately 53%, and σ decreased by approximately 60%. The moisture passivation mechanism can be explained based on the role of the oxygen-deficient site and hydrophobicity of ALD-TiOx/PTFE films. The oxygen-deficient site can absorb oxygen ions [56]. Figure 5a shows the Ti 2p spectrum of the 300-TiOx/PTFE film after humidity exposure. Compared with the Ti 2p spectrum in Figure 2c, the portion of oxygen-deficient sites (Ti3+) decreased from 39.14% to 4.78%. As shown in Figure S2b, the O 1s spectrum of the 300-TiOx/PTFE film also designates the decrease in oxygen-deficient sites. The TiOx layer can absorb the H2O from air and can protect the PTFE surface from moisture in the environment, as shown in Figure 5b. As shown in Figure S3a, in the 500-TiOx/PTFE film, there was 43.3% Ti3+ and a decrease to 11% after humidity exposure. Therefore, this passivation mechanism is also valid for explaining the triboelectric behavior of 500-TiOx/PTFE film. In addition to the absorption of H2O, the oxygen-deficient site can trap the electrons. However, after the oxygen-deficient site absorbs H2O from the air, the possibility of electron trapping can decrease. Therefore, it is difficult to obtain charge compensation by electron trapping. Therefore, 500-TiOx/PTFE, which has a large amount of Ti3+, can have a relatively larger signal loss than the 100 and 300-TiOx/PTFE films. The TiO2 film is grown after 2000 ALD cycles, as shown in Figures S1e and S3b. Therefore, H2O trapping-based passivation is more difficult than particle TiOx/PTFE films. Furthermore, TiO2 is a common hydrophilic material. Thus, H2O molecules can easily bind the TiOx layer and form a thin conductive layer, which can dissipate the surface charges and reduce the triboelectric performance.
After confirming the moisture passivation mechanism, we measured triboelectric performances after a natural drying process at room temperature for 24 h. The triboelectric performance of PTFE was noticeably recovered after natural drying. The measured VOC, ISC, and σ were 28.6 V, 0.94 μA, and 4.46 nC/cm2, respectively. The recovered triboelectric signals and charge density were the same as approximately 96% of outputs at the dry condition. However, the ALD-TiOx/PTFE films show a relatively low recovery rate compared with the pristine PTFE film. Triboelectric performances of 100-TiOx/PTFE recovered by approximately 5 to 8% (91–96% of outputs at the dry condition) and the corresponding VOC and ISC were 5.2 V and 0.22 μA. The surface charge density was 0.78 nC/cm2. The 300-TiOx/PTFE showed a similar recovery rate, 6 to 9% (87–94% of performance at the dry condition), as much as that of the 100-TiOx/PTFE. The accumulated charge was 1.6 nC/cm2 and the detected open circuit voltage and short circuit current were 10.2 V and 0.28 μA, respectively. The 500-TiOx/PTFE film produced a VOC of 12.7 V and ISC of 0.44 μA, which were 9 and 22% recovered signals (68–80% of the performance in the dry condition), respectively. The charge density was 1.9 nC/cm2, which was recovered to approximately 7%. The output signals of the 2000-TiOx/PTFE film was barely recovered to approximately 0.1 to 6% (42–49% of the performance at the dry condition). The detected surface charge was 0.47 nC/cm2 and the corresponding VOC and ISC were 2.46 V and 0.08 μA, respectively. The output recovery rates indicate the hysteresis of the triboelectric performance. The hysteresis of triboelectric outputs is related to the TiOx transformation to TiO2 as well as the presence of a thin H2O layer. To completely recover the triboelectric performance after the natural drying process, the absorbed oxygen has to break and an ALD-deposited layer needs to transform to the TiOx layer. However, TiO2 is a stable chemical state, and it is difficult to break with energy at room temperature. Thus, original oxygen-deficient sites can still be occupied with H2O absorbed during humidity exposure process. A decrease in oxygen-deficient sites leads to the low recovery rate of ALD-TiOx/PTFE films. In addition, because of the increased hydrophilicity of the TiOx layer, it is possible that the H2O layer could remain on the TiOx layer. Thus, the remaining H2O layer can dissipate the surface charges. Therefore, the corresponding triboelectric outputs of the 2000-TiOx/PTFE film could be limited after the natural drying process. Our moisture passivation technique can decrease the peak triboelectric signal because of the transition of the tribo-material and diffusion of precursors during the ALD process. However, the technique can improve the moisture stability of PTFE by approximately three times. Thus, we expect that our moisture passivation technique can be utilized to preserve the accuracy of triboelectric sensors in a highly humid environment.

4. Conclusions

In this work, we proposed a novel moisture passivation technique using a TiOx layer deposited by the ALD for triboelectric mechanical sensors. The TiOx layer on a PTFE film was investigated by 100, 300, 500, and 2000 ALD process cycles. At a few ALD process cycles from 100 to 500, TiOx layers were grown as islands because of the ALD nucleation mechanism on the polymer surfaces. At the most ALD cycles (2000 ALD process cycles), the ALD-TiOx layer was grown as a uniform film on a PTFE film. Due to the transformation of tribo-materials from PTFE to TiOx/PTFE, the base triboelectric signals were reduced over 50%. However, oxygen-deficient sites in the TiOx layer compensate the tribo-material transition caused surface charge loss by trapping electrons in the Al electrode. ALD-TiOx grown with few ALD cycles shows better moisture stability and triboelectric signal at humid conditions, which are the same as 90% of outputs at the dry condition, while pristine PTFE generated 70% of outputs at the dry condition. The improved moisture stability is based on the H2O absorption by an oxygen-deficient site in the TiOx layer. Due to the improved moisture stability, the triboelectric mechanical sensors can preserve the fine sensing resolution at the highly humid environment. We expected that our approach can be used to maintain the triboelectric signal of triboelectric mechanical sensors in harsh environments.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/nano11071795/s1, Figure S1: FE-SEM and EDS elemental mapping of Ti on ALD-TiOx/PTFE films, Figure S2: deconvoluted XPS O 1s spectra of 300 ALD-TiOx/PTFE film, Figure S3: deconvoluted XPS Ti 2p spectra of 500 and 2000 ALD-TiOx/PTFE films, Figure S4: mechanical durability test, Figure S5: measured triboelectric signals at the dry condition, at highly humid condition, and after the natural drying process.

Author Contributions

Conceptualization, D.C., H.-B.-R.L. and W.K.; data curation, W.K., S.Y.; formal analysis, W.K.; funding acquisition, D.C., W.K.; investigation and methodology, W.K., S.Y. and C.T.N.; project administration and supervision, D.C. and H.-B.-R.L.; writing—original draft, W.K., S.Y.; writing—review and editing, H.-B.-R.L. and D.C.; W.K. and S.Y. equally contributed to this work. All authors have read and agreed to the published version of the manuscript.

Funding

This research was financially supported by the Mid-Career Research Program (NRF-2019R1A2C2083934), Post-Doctoral Domestic Training Program (NRF-2020R1A6A3A01096572) through the National Research Foundation of Korea (NRF) grant funded by the Ministry of Science and ICT and the Ministry of Education.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Verpoorten, E.; Massaglia, G.; Ciardelli, G.; Pirri, C.F.; Quaglio, M. Design and optimization of piezoresistive PEO/PEDOT:PSS electrospun nanofibers for wearable flex sensors. Nanomaterials 2020, 10, 2166. [Google Scholar] [CrossRef]
  2. Herren, B.; Charara, M.; Saha, M.C.; Altan, M.C.; Liu, Y. Rapid microwave polymerization of porous nanocomposites with piezoresistive sensing function. Nanomaterials 2020, 10, 233. [Google Scholar] [CrossRef] [Green Version]
  3. Luo, N.; Dai, W.; Li, C.; Zhou, Z.; Lu, L.; Poon, C.C.Y.; Chen, S.-C.; Zhang, Y.; Zhao, N. Flexible piezoresistive sensor patch enabling ultralow power cuffless blood pressure measurement. Adv. Funct. Mater. 2016, 26, 1178–1187. [Google Scholar] [CrossRef]
  4. Boudaden, J.; Klumpp, A.; Endres, H.-E.; Eisele, I. Towards low cost and low temperature capacitive CO2 sensors based on amine functionalized silica nanoparticles. Nanomaterials 2019, 9, 1097. [Google Scholar] [CrossRef] [Green Version]
  5. Shen, X.-Q.; Li, M.-D.; Ma, J.-P.; Shen, Q.-D. Skin-inspired pressure sensor with MXene/P(VDF-TrFE-CFE) as active layer for wearable electronics. Nanomaterials 2021, 11, 716. [Google Scholar] [CrossRef]
  6. Yang, H.J.; Lee, J.Y.; Yu, W.-R. Carbon nanotube fiber assemblies with braided insulation layers for washable capacitive textile touch sensors. Funct. Compos. Struct. 2020, 2, 015007. [Google Scholar] [CrossRef] [Green Version]
  7. Wang, A.; Hu, M.; Zhou, L.; Qiang, X. Self-powered wearable pressure sensors with enhanced piezoelectric properties of aligned P(VDF-TrFE)/MWCNT composites for monitoring human physiological and muscle motion signs. Nanomaterials 2018, 8, 1021. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Tian, G.; Deng, W.; Gao, Y.; Xiong, D.; Yan, C.; He, X.; Yang, T.; Jin, L.; Chu, X.; Zhang, H.; et al. Rich lamellar crystal baklava-structured PZT/PVDF piezoelectric sensor toward individual table tennis training. Nano Energy 2019, 59, 574–581. [Google Scholar] [CrossRef]
  9. Han, D.-H.; Kang, L.-H. Piezoelectric properties of paint sensor according to piezoelectric materials. Funct. Compos. Struct. 2020, 2, 025002. [Google Scholar] [CrossRef]
  10. Wang, J.; Qian, S.; Yu, J.; Zhang, Q.; Yuan, Z.; Sang, S.; Zhou, X.; Sun, L. Flexible and wearable PDMS-based triboelectric nanogenerator for self-powered tactile sensing. Nanomaterials 2019, 9, 1304. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  11. Chen, T.; Shi, Q.; Yang, Z.; Liu, J.; Liu, H.; Sun, L.; Lee, C. A self-powered six-axis tactile sensor by using triboelectric mechanism. Nanomaterials 2018, 8, 503. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Zou, J.; Zhang, M.; Huang, J.; Bian, J.; Jie, Y.; Willander, M.; Cao, X.; Wang, N.; Wang, Z.L. Coupled supercapacitor and triboelectric nanogenerator boost biomimetic pressure sensor. Adv. Energy Mater. 2018, 8, 1702671. [Google Scholar] [CrossRef]
  13. Fan, F.-R.; Lin, L.; Zhu, G.; Wu, W.; Zhang, R.; Wang, Z.L. Transparent triboelectric nanogenerators and self-powered pressure sensors based on micropatterned plastic films. Nano Lett. 2012, 12, 3109–3114. [Google Scholar] [CrossRef] [Green Version]
  14. Dhakar, L.; Gudla, S.; Shan, X.; Wang, Z.; Tay, F.E.H.; Heng, C.-H.; Lee, C. Large scale triboelectric nanogenerator and self-powered pressure sensor array using low cost roll-to-roll UV embossing. Sci. Rep. 2016, 6, 22253. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Wang, S.; He, M.; Weng, B.; Gan, L.; Zhao, Y.; Li, N.; Xie, Y. Stretchable and wearable triboelectric nanogenerator based on kinesio tape for self-powered human motion sensing. Nanomaterials 2018, 8, 657. [Google Scholar] [CrossRef] [Green Version]
  16. Dhakar, L.; Pitchappa, P.; Tay, F.E.H.; Lee, C. An intelligent skin based self-powered finger motion sensor integrated with triboelectric nanogenerator. Nano Energy 2016, 19, 532–540. [Google Scholar] [CrossRef]
  17. Wu, Z.; Ding, W.; Dai, Y.; Dong, K.; Wu, C.; Zhang, L.; Lin, Z.; Cheng, J.; Wang, Z.L. Self-powered multifunctional motion sensor enabled by magnetic-regulated triboelectric nanogenerator. ACS Nano 2018, 12, 5726–5733. [Google Scholar] [CrossRef]
  18. Ra, Y.; Choi, J.H.; La, M.; Park, S.J.; Choi, D. Development of a highly transparent and flexible touch sensor based on triboelectric effect. Funct. Compos. Struct. 2019, 1, 045001. [Google Scholar] [CrossRef] [Green Version]
  19. Anaya, V.D.; He, T.; Lee, C.; Yuce, M.R. Self-powered eye motion sensor based on triboelectric interaction and near-field electrostatic induction for wearable assistive technologies. Nano Energy 2020, 72, 104675. [Google Scholar] [CrossRef]
  20. Chen, T.; Shi, Q.; Li, K.; Yang, Z.; Liu, H.; Sun, L.; Dziuban, J.A.; Lee, C. Investigation of position sensing and energy harvesting of a flexible triboelectric touch pad. Nanomaterials 2018, 8, 613. [Google Scholar] [CrossRef] [Green Version]
  21. Chen, J.; Zhu, G.; Yang, W.; Jing, Q.; Bai, P.; Yang, Y.; Hou, T.-C.; Wang, Z.L. Harmonic-resonator-based triboelectric nanogenerator as a sustainable power source and a self-powered active vibration sensor. Adv. Mater. 2013, 25, 6094–6099. [Google Scholar] [CrossRef] [PubMed]
  22. He, Q.; Wu, Y.; Feng, Z.; Sun, C.; Fan, W.; Zhou, Z.; Meng, K.; Fan, E.; Yang, J. Triboelectric vibration sensor for a human-machine interface built on ubiquitous surfaces. Nano Energy 2019, 59, 689–696. [Google Scholar] [CrossRef]
  23. Kim, W.; Bhatia, D.; Hwang, H.J.; Choi, K.; Choi, D. Double impact triboelectric nanogenerators for harvesting broadband vibrations from vehicles. Funct. Compos. Struct. 2019, 1, 035003. [Google Scholar] [CrossRef]
  24. Jing, Q.; Zhu, G.; Wu, W.; Bai, P.; Xie, Y.; Han, R.P.S.; Wang, Z.L. Self-powered triboelectric velocity sensor for dual-mode sensing of rectified linear and rotary motions. Nano Energy 2014, 10, 305–312. [Google Scholar] [CrossRef]
  25. Yi, F.; Lin, L.; Niu, S.; Yang, J.; Wu, W.; Wang, S.; Liao, Q.; Zhang, Y.; Wang, Z.L. Self-powered trajectory, velocity, and acceleration tracking of a moving object/body using a triboelectric sensor. Adv. Funct. Mater. 2014, 24, 7488–7494. [Google Scholar] [CrossRef]
  26. Heo, D.; Chung, J.; Kim, B.; Yong, H.; Shin, G.; Cho, J.-W.; Kim, D.; Lee, S. Triboelectric speed bump as a self-powered automobile warning and velocity sensor. Nano Energy 2020, 72, 104719. [Google Scholar] [CrossRef]
  27. Wang, H.; Xiang, Z.; Giorgia, P.; Mu, X.; Yang, Y.; Wang, Z.L.; Lee, C. Triboelectric liquid volume sensor for self-powered lab-on-chip applications. Nano Energy 2016, 23, 80–88. [Google Scholar] [CrossRef]
  28. Chen, J.; Guo, H.; Zheng, J.; Huang, Y.; Liu, G.; Hu, C.; Wang, Z.L. Self-powered triboelectric micro liquid/gas flow sensor for microfluidics. ACS Nano 2016, 10, 8104–8112. [Google Scholar] [CrossRef]
  29. Lin, Z.-H.; Zhu, G.; Zhou, Y.S.; Yang, Y.; Bai, P.; Chen, J.; Wang, Z.L. A self-powered triboelectric nanosensor for mercury ion detection. Angew. Chem. Int. Ed. 2013, 52, 5065–5069. [Google Scholar] [CrossRef]
  30. Shin, S.-H.; Kwon, Y.H.; Kim, Y.-H.; Jung, J.-Y.; Nah, J. Triboelectric hydrogen gas sensor with Pd functionalized surface. Nanomaterials 2016, 6, 186. [Google Scholar] [CrossRef] [Green Version]
  31. Wen, Z.; Chen, J.; Yeh, M.-H.; Guo, H.; Li, Z.; Fan, X.; Zhang, T.; Zhu, L.; Wang, Z.L. Blow-driven triboelectric nanogenerator as an active alcohol breath analyzer. Nano Energy 2015, 16, 38–46. [Google Scholar] [CrossRef]
  32. Chen, C.; Wen, Z.; Wei, A.; Xie, X.; Zhai, N.; Wei, X.; Peng, M.; Liu, Y.; Sun, X.; Yeow, J.T.W. Self-powered on-line ion concentration monitor in water transportation driven by triboelectric nanogenerator. Nano Energy 2019, 62, 442–448. [Google Scholar] [CrossRef]
  33. Wu, C.; Wang, A.C.; Ding, W.; Guo, H.; Wang, Z.L. Triboelectric nanogenerator: A foundation of the energy for the new era. Adv. Energy Mater. 2019, 9, 1802906. [Google Scholar] [CrossRef]
  34. Zhu, G.; Peng, B.; Chen, J.; Jing, Q.; Lin Wang, Z. Triboelectric nanogenerators as a new energy technology: From fundamentals, devices, to applications. Nano Energy 2015, 14, 126–138. [Google Scholar] [CrossRef] [Green Version]
  35. Zhou, L.; Liu, D.; Wang, J.; Wang, Z.L. Triboelectric nanogenerators: Fundamental physics and potential applications. Friction 2020, 8, 481–506. [Google Scholar] [CrossRef]
  36. Nguyen, V.; Yang, R. Effect of humidity and pressure on the triboelectric nanogenerator. Nano Energy 2013, 2, 604–608. [Google Scholar] [CrossRef]
  37. Kim, K.N.; Chun, J.; Kim, J.W.; Lee, K.Y.; Park, J.-U.; Kim, S.-W.; Wang, Z.L.; Baik, J.M. Highly stretchable 2D fabrics for wearable triboelectric nanogenerator under harsh environments. ACS Nano 2015, 9, 6394–6400. [Google Scholar] [CrossRef]
  38. Chandrasekhar, A.; Vivekananthan, V.; Khandelwal, G.; Kim, S.J. A fully packed water-proof, humidity resistant triboelectric nanogenerator for transmitting Morse code. Nano Energy 2019, 60, 850–856. [Google Scholar] [CrossRef]
  39. Jao, Y.-T.; Yang, P.-K.; Chiu, C.-M.; Lin, Y.-J.; Chen, S.-W.; Choi, D.; Lin, Z.-H. A textile-based triboelectric nanogenerator with humidity-resistant output characteristic and its applications in self-powered healthcare sensors. Nano Energy 2018, 50, 513–520. [Google Scholar] [CrossRef]
  40. Shen, J.; Li, Z.; Yu, J.; Ding, B. Humidity-resisting triboelectric nanogenerator for high performance biomechanical energy harvesting. Nano Energy 2017, 40, 282–288. [Google Scholar] [CrossRef]
  41. Graham, S.A.; Dudem, B.; Patnam, H.; Mule, A.R.; Yu, J.S. Integrated design of highly porous cellulose-loaded polymer-based triboelectric films toward flexible, humidity-resistant, and sustainable mechanical energy harvesters. ACS Energy Lett. 2020, 5, 2140–2148. [Google Scholar] [CrossRef]
  42. Zhou, Q.; Lee, K.; Kim, K.N.; Park, J.G.; Pan, J.; Bae, J.; Baik, J.M.; Kim, T. High humidity- and contamination-resistant triboelectric nanogenerator with superhydrophobic interface. Nano Energy 2019, 57, 903–910. [Google Scholar] [CrossRef]
  43. Lee, H.-B.-R.; Bent, S.F. A selective toolbox for nanofabrication. Chem. Mater. 2020, 32, 3323–3324. [Google Scholar] [CrossRef] [Green Version]
  44. Lee, H.-B.-R. The era of atomic crafting. Chem. Mater. 2019, 31, 1471–1472. [Google Scholar] [CrossRef] [Green Version]
  45. Chen, R.; Li, Y.-C.; Cai, J.-M.; Cao, K.; Lee, H.-B.-R. Atomic level deposition to extend Moore’s law and beyond. Int. J. Extrem. Manuf. 2020, 2, 022002. [Google Scholar] [CrossRef]
  46. Ding, S.-J.; Zhu, C.; Li, M.-F.; Zhang, D.W. Atomic-layer-deposited Al2O3–HfO2–Al2O3 dielectrics for metal-insulator-metal capacitor applications. Appl. Phys. Lett. 2005, 87, 053501. [Google Scholar] [CrossRef]
  47. Zhu, C.; Cho, B.J.; Li, M.F. Atomic Layer Deposited High-κ Films and Their Role in Metal-Insulator-Metal Capacitors for Si RF/Analog Integrated Circuit Applications. Chem. Vap. Depos. 2006, 12, 165–171. [Google Scholar] [CrossRef]
  48. Ye, P.D.; Wilk, G.D.; Yang, B.; Kwo, J.; Chu, S.N.G.; Nakahara, S.; Gossmann, H.J.L.; Mannaerts, J.P.; Hong, M.; Ng, K.K.; et al. GaAs metal–oxide–semiconductor field-effect transistor with nanometer-thin dielectric grown by atomic layer deposition. Appl. Phys. Lett. 2003, 83, 180–182. [Google Scholar] [CrossRef] [Green Version]
  49. Liu, H.; Ye, P.D. MoS2 dual-gate MOSFET with atomic-layer-deposited Al2O3 as top-gate dielectric. IEEE Electron. Device Lett. 2012, 33, 546–548. [Google Scholar] [CrossRef] [Green Version]
  50. Cheng, Q.; Benipal, M.K.; Liu, Q.; Wang, X.; Crozier, P.A.; Chan, C.K.; Nemanich, R.J. Al2O3 and SiO2 atomic layer deposition layers on ZnO photoanodes and degradation mechanisms. ACS Appl. Mater. Interfaces 2017, 9, 16138–16147. [Google Scholar] [CrossRef]
  51. Yang, X.; Liu, R.; Du, C.; Dai, P.; Zheng, Z.; Wang, D. Improving hematite-based photoelectrochemical water splitting with ultrathin TiO2 by atomic layer deposition. ACS Appl. Mater. Interfaces 2014, 6, 12005–12011. [Google Scholar] [CrossRef]
  52. Kemell, M.; Färm, E.; Ritala, M.; Leskelä, M. Surface modification of thermoplastics by atomic layer deposition of Al2O3 and TiO2 thin films. Eur. Polym. J. 2008, 44, 3564–3570. [Google Scholar] [CrossRef]
  53. Watari, K.; Iwao, T.; Yumoto, M. Structure change of PTFE by low-energy ion irradiation. Restraint of structure collapse by crosslinking structures. Electr. Eng. Jpn. 2012, 178, 1–7. [Google Scholar] [CrossRef]
  54. Araki, Y. Thermal expansion coefficient of polytetrafluoroethylene in the vicinity of its glass transition at about 400 °K. J. Appl. Polym. Sci. 1965, 9, 421–427. [Google Scholar] [CrossRef]
  55. Parsons, G.N.; Atanasov, S.E.; Dandley, E.C.; Devine, C.K.; Gong, B.; Jur, J.S.; Lee, K.; Oldham, C.J.; Peng, Q.; Spagnola, J.C.; et al. Mechanisms and reactions during atomic layer deposition on polymers. Coord. Chem. Rev. 2013, 257, 3323–3331. [Google Scholar] [CrossRef]
  56. Park, H.-W.; Huynh, N.D.; Kim, W.; Lee, C.; Nam, Y.; Lee, S.; Chung, K.-B.; Choi, D. Electron blocking layer-based interfacial design for highly-enhanced triboelectric nanogenerators. Nano Energy 2018, 50, 9–15. [Google Scholar] [CrossRef]
Nanomaterials 11 01795 g001 550

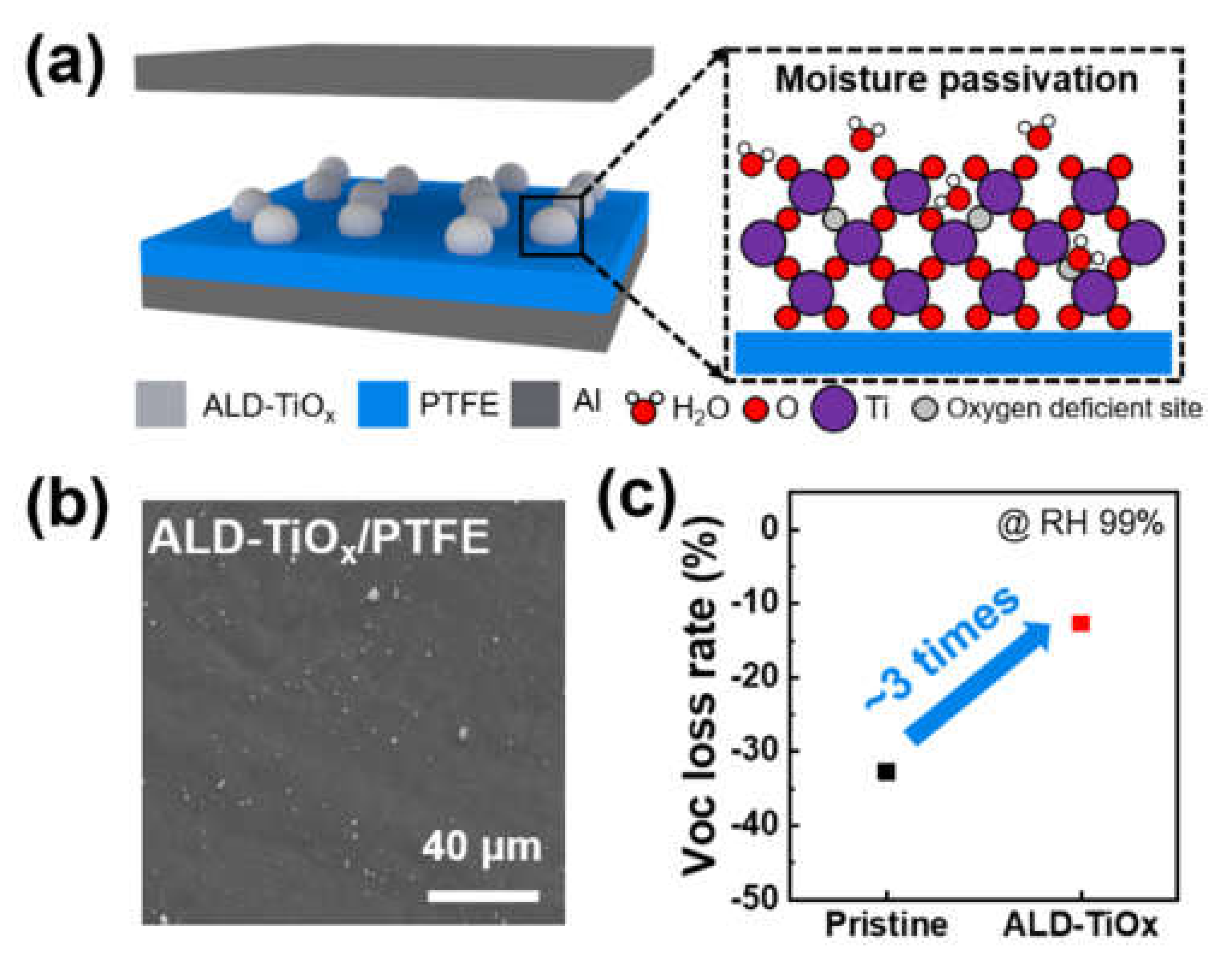

Figure 1. Concept and effectiveness of humidity passivation using ALD-TiOx. (a) Schematic illustration of humidity passivation using ALD-TiOx. (b) FE-SEM image of the ALD-processed TiOx/PTFE film. (c) Open circuit voltage (VOC) loss rate of pristine PTFE and ALD-TiOx-deposited PTFE film at relative humidity (RH) of 99%.
Figure 1. Concept and effectiveness of humidity passivation using ALD-TiOx. (a) Schematic illustration of humidity passivation using ALD-TiOx. (b) FE-SEM image of the ALD-processed TiOx/PTFE film. (c) Open circuit voltage (VOC) loss rate of pristine PTFE and ALD-TiOx-deposited PTFE film at relative humidity (RH) of 99%.
Nanomaterials 11 01795 g001
Nanomaterials 11 01795 g002 550

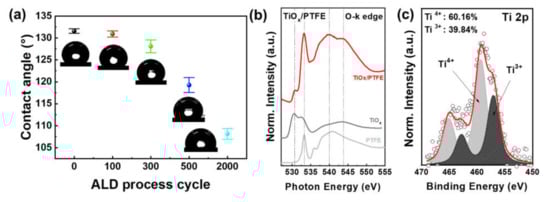

Figure 2. Effects of the ALD-TiOx layer on the surface property. (a) Changes in the contact angle with an increase in number of ALD cycles. (b) Oxygen-κ edge XAS spectra of pristine PTFE (light gray), TiOx (gray), and ALD-TiOx/PTFE films (red). (c) Deconvoluted Ti 2p XPS spectrum of the ALD-TiOx layer with 300 ALD cycles.
Figure 2. Effects of the ALD-TiOx layer on the surface property. (a) Changes in the contact angle with an increase in number of ALD cycles. (b) Oxygen-κ edge XAS spectra of pristine PTFE (light gray), TiOx (gray), and ALD-TiOx/PTFE films (red). (c) Deconvoluted Ti 2p XPS spectrum of the ALD-TiOx layer with 300 ALD cycles.
Nanomaterials 11 01795 g002
Nanomaterials 11 01795 g003 550

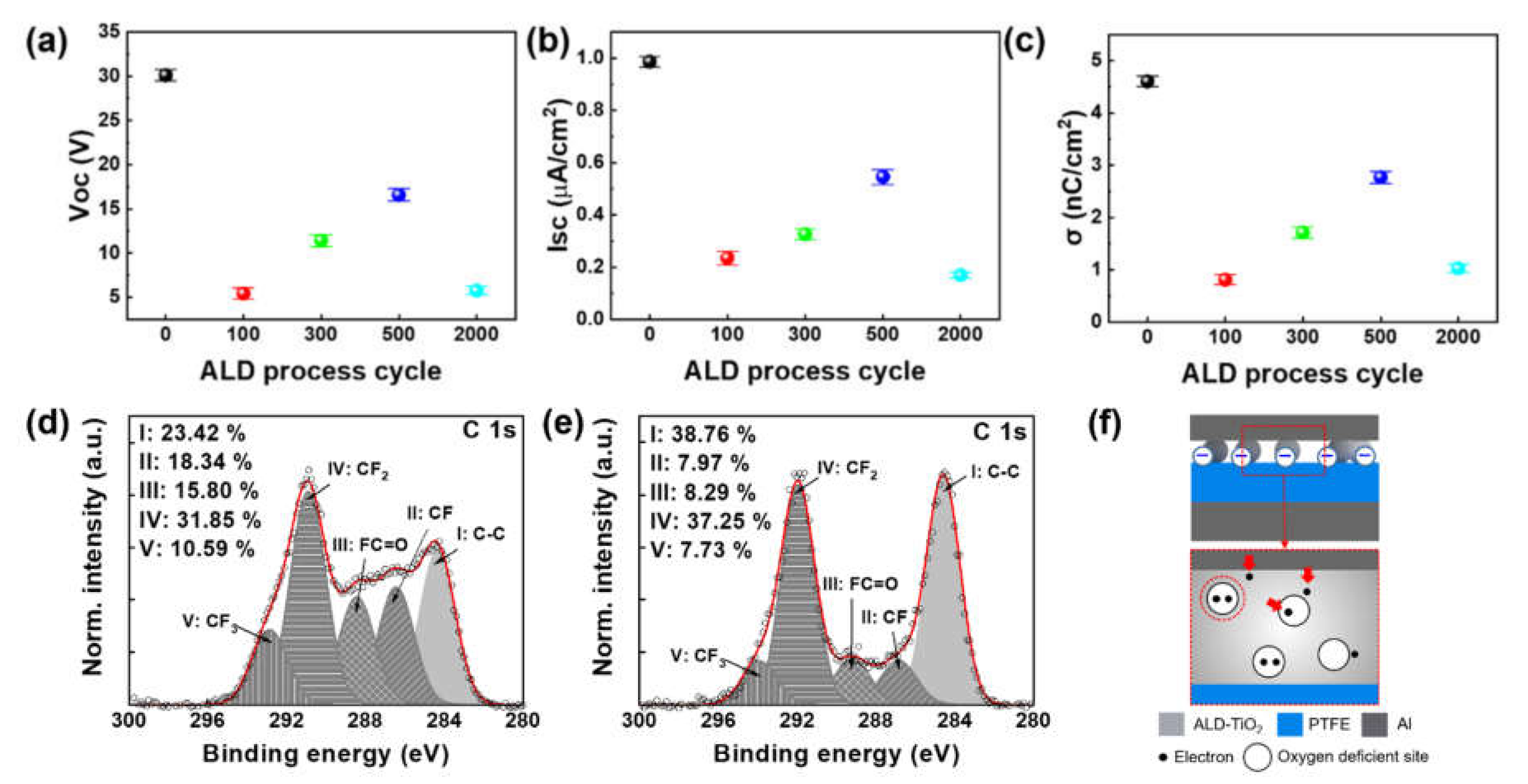

Figure 3. Effects of the ALD-TiOx layer on triboelectric outputs. Changes in (a) the open circuit voltage (VOC), (b) short circuit current (ISC), and (c) charge density (σ) as a function of ALD cycles. Deconvoluted C 1s XPS spectra of (d) pristine PTFE film and (e) 300-TiOx/PTFE film. (f) Schematic illustration of the electron trap mechanism according to the oxygen deficient sites.
Figure 3. Effects of the ALD-TiOx layer on triboelectric outputs. Changes in (a) the open circuit voltage (VOC), (b) short circuit current (ISC), and (c) charge density (σ) as a function of ALD cycles. Deconvoluted C 1s XPS spectra of (d) pristine PTFE film and (e) 300-TiOx/PTFE film. (f) Schematic illustration of the electron trap mechanism according to the oxygen deficient sites.
Nanomaterials 11 01795 g003
Nanomaterials 11 01795 g004 550

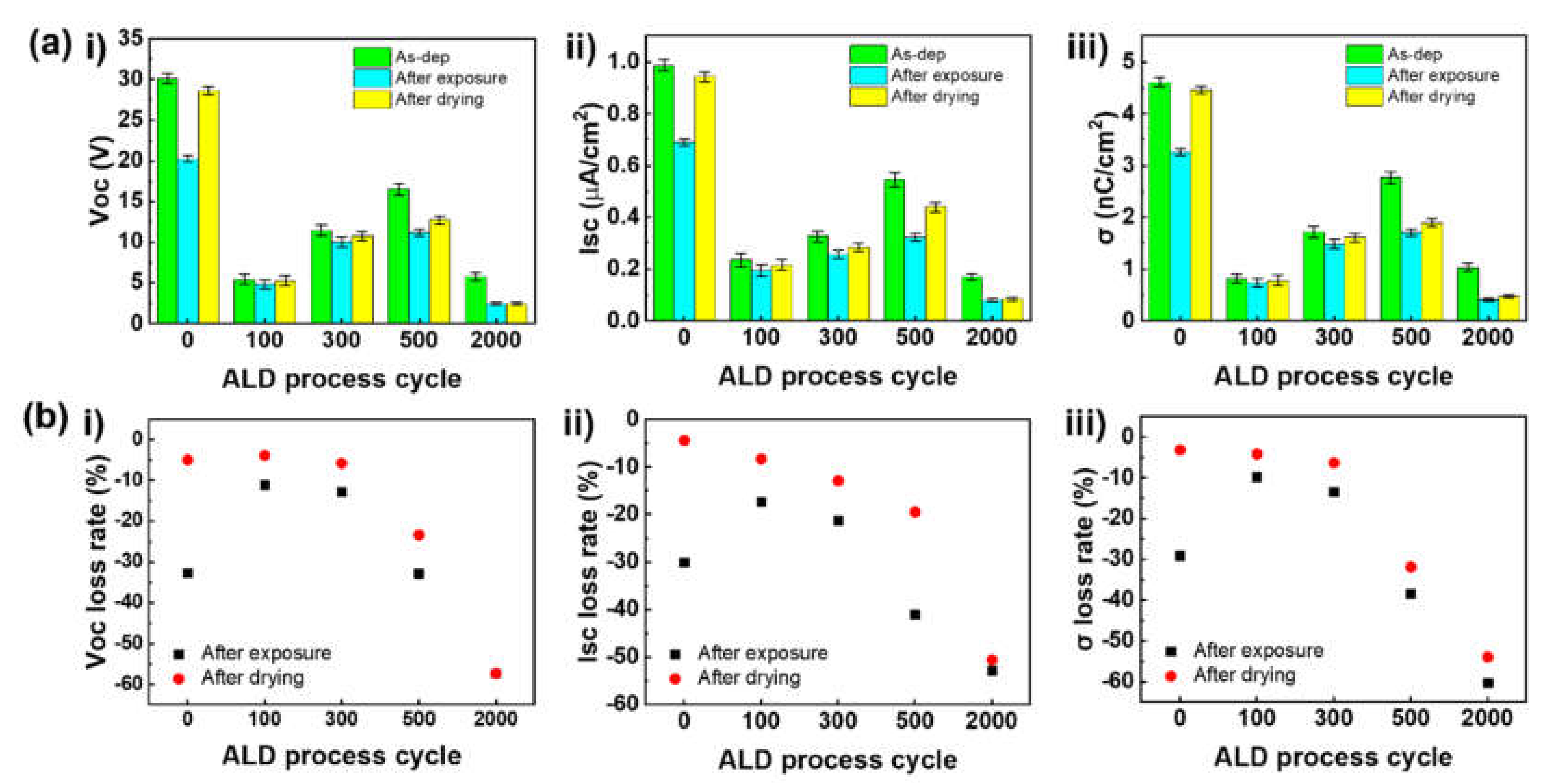

Figure 4. Effect of moisture on the triboelectric outputs of ALD-TiOx/PTFE films. (a) Comparison of triboelectric signals after moisture exposure and natural drying process. (b) Triboelectric signal loss rate of ALD-TiOx/PTFE films after moisture exposure and drying process as a function of ALD cycles; (i) open circuit voltage (VOC), (ii) short circuit current (ISC), and (iii) charge density (σ).
Figure 4. Effect of moisture on the triboelectric outputs of ALD-TiOx/PTFE films. (a) Comparison of triboelectric signals after moisture exposure and natural drying process. (b) Triboelectric signal loss rate of ALD-TiOx/PTFE films after moisture exposure and drying process as a function of ALD cycles; (i) open circuit voltage (VOC), (ii) short circuit current (ISC), and (iii) charge density (σ).
Nanomaterials 11 01795 g004
Nanomaterials 11 01795 g005 550

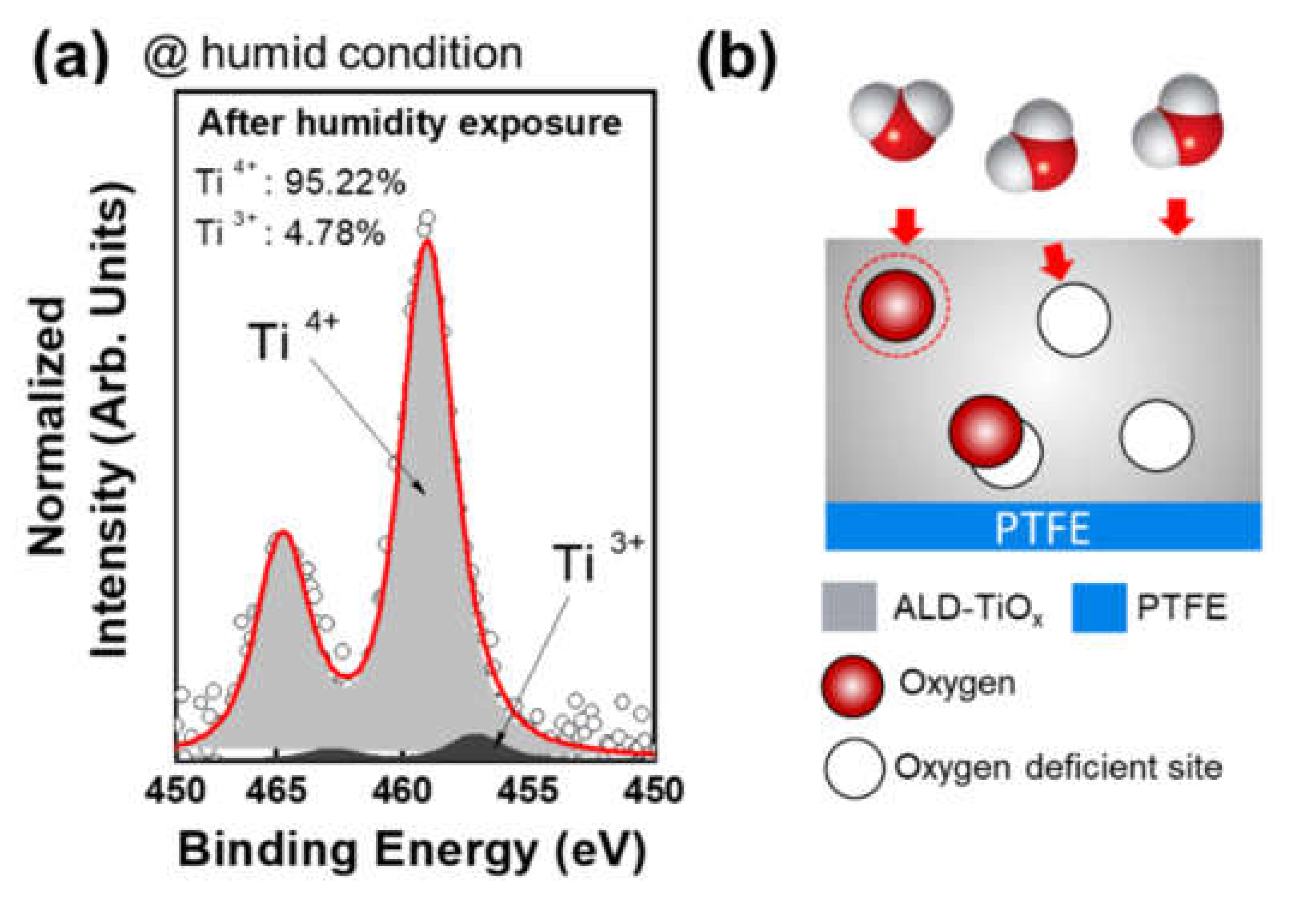

Figure 5. Change in the chemical bonding state after humidity exposure and relevant mechanism. (a) Deconvoluted Ti 2p spectrum after moisture exposure with RH 99% at room temperature. (b) Schematic illustration of humidity passivation mechanism according to the oxygen deficient sites.
Figure 5. Change in the chemical bonding state after humidity exposure and relevant mechanism. (a) Deconvoluted Ti 2p spectrum after moisture exposure with RH 99% at room temperature. (b) Schematic illustration of humidity passivation mechanism according to the oxygen deficient sites.
Nanomaterials 11 01795 g005
