Next Article in Journal / Special Issue
Increase of Compact Bone Thickness in Rat Tibia after Implanting MgO into the Bone Marrow Cavity
Previous Article in Journal
Keratoconus: Tissue Engineering and Biomaterials
Previous Article in Special Issue
Biomimetic Strategies for Bone Repair and Regeneration
Article Menu

Export Article

Open AccessArticle
J. Funct. Biomater. 2014, 5(3), 135-157; doi:10.3390/jfb5030135

A Novel Multi-Phosphonate Surface Treatment of Titanium Dental Implants: A Study in Sheep

1
Musculoskeletal Research Unit, Equine Hospital, Vetsuisse Faculty, University of Zurich, Winterthurerstrasse 260, Zürich 8057, Switzerland
2
Center of Applied Biotechnology and Molecular Medicine (CABMM), Vetsuisse Faculty, University of Zurich, Winterthurerstrasse 190, Zürich 8057, Switzerland
3
Veterinary Anaesthesia Services Int (VAS), Zürcherstrasse 39, Winterthur 8400, Switzerland
4
Institute for Biomechanics, ETH Zürich, Vladimir-Prelog-Weg 1-5/10, Zürich 8093, Switzerland
5
Nano Bridging Molecules SA, Rte Cité Ouest 2, Gland 1196, Switzerland
*
Author to whom correspondence should be addressed.
Received: 10 July 2014 / Revised: 20 August 2014 / Accepted: 2 September 2014 / Published: 11 September 2014
View Full-Text   |   Download PDF [15536 KB, uploaded 11 September 2014]   |

Abstract

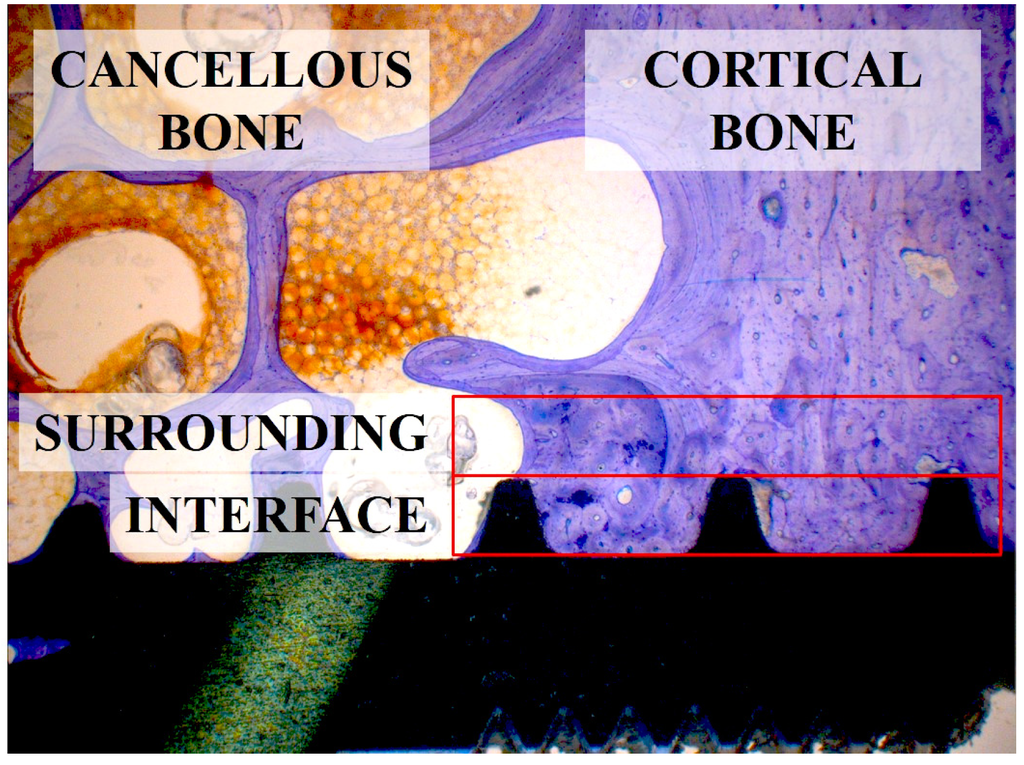

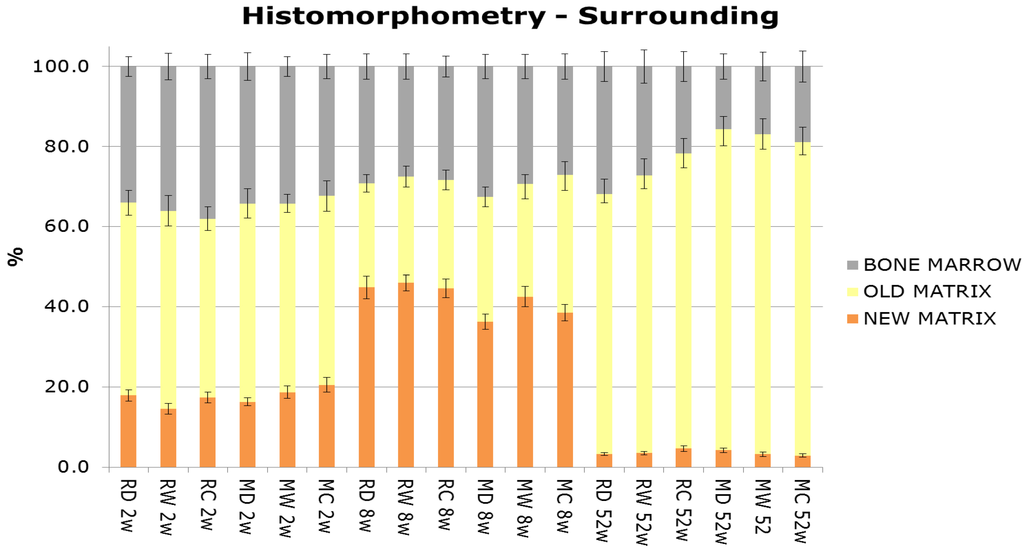

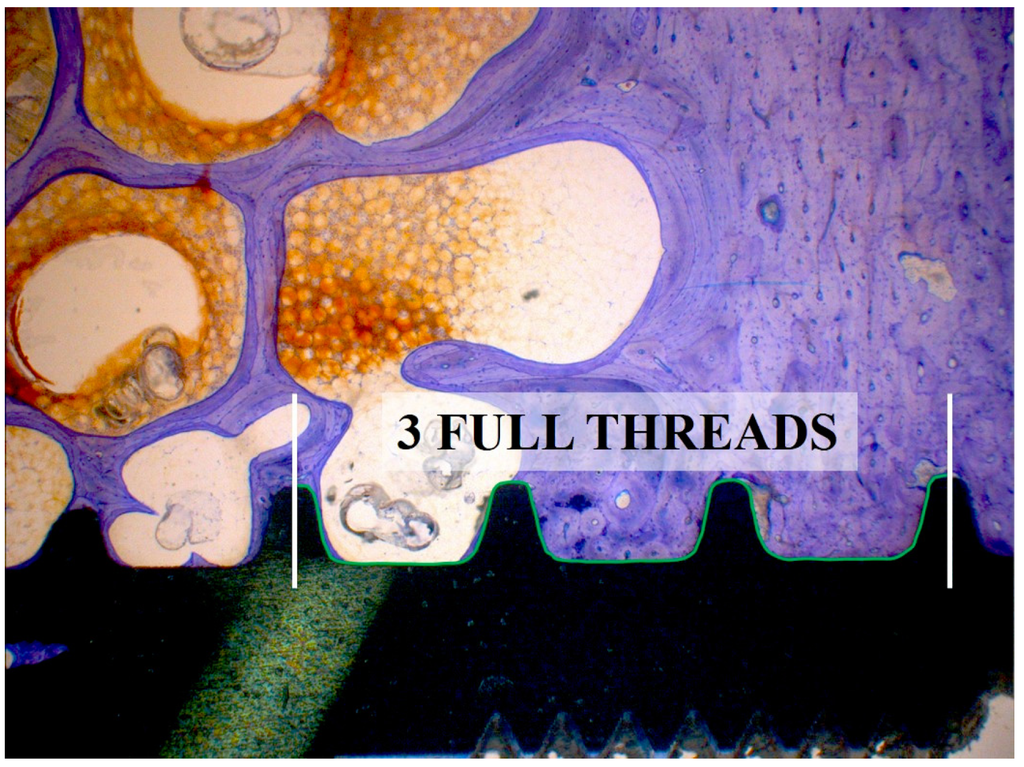

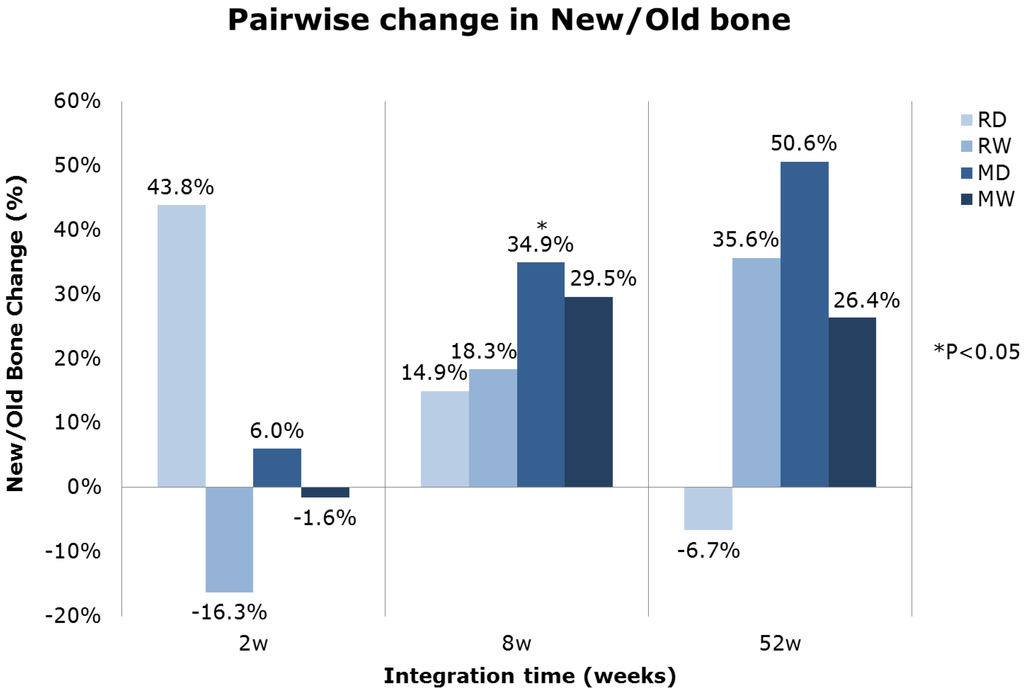

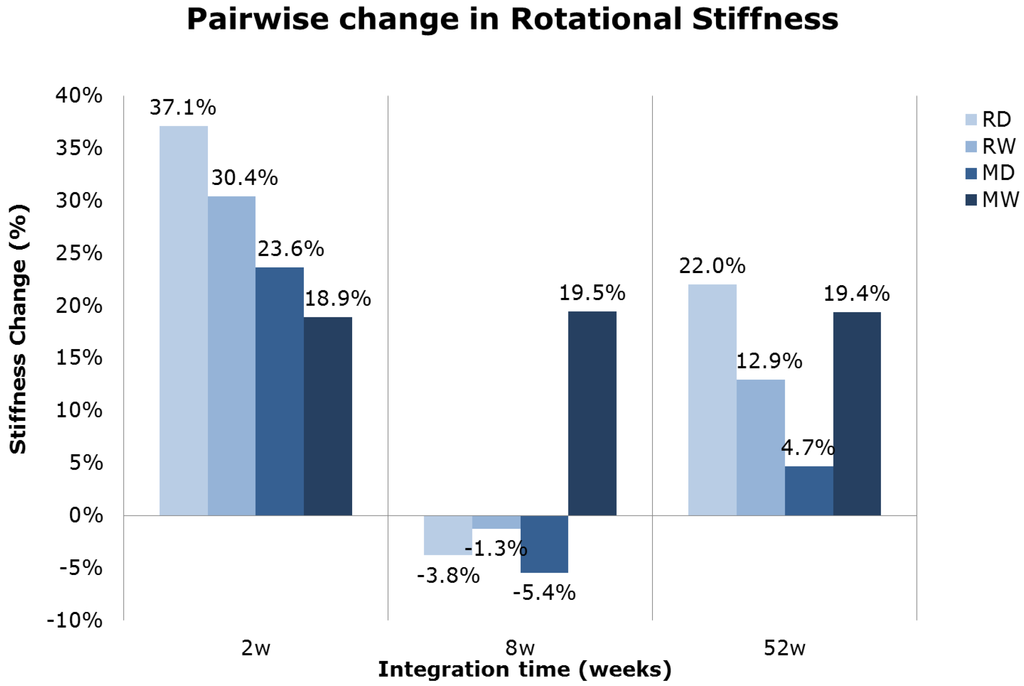

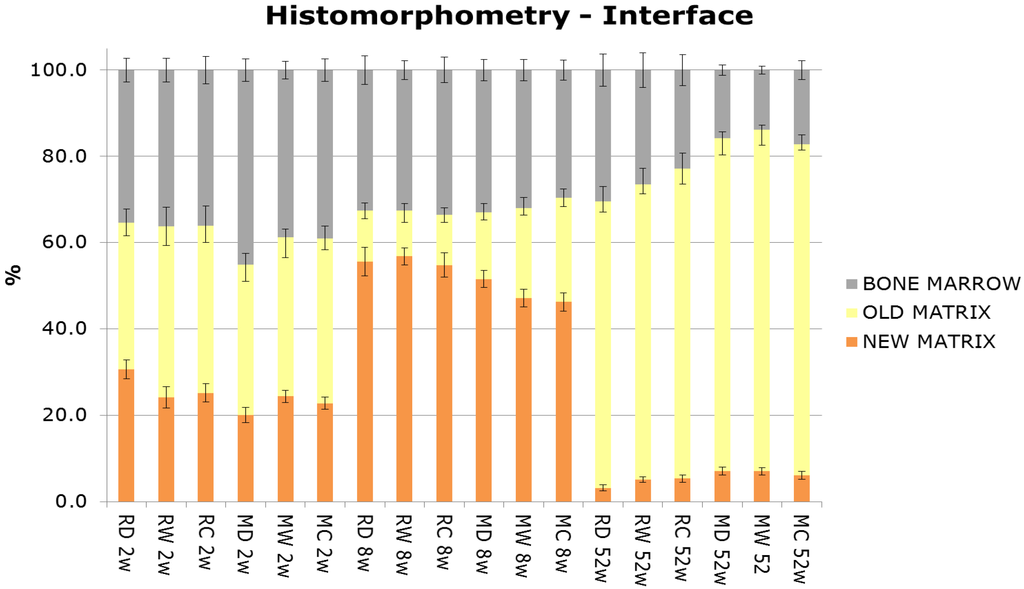

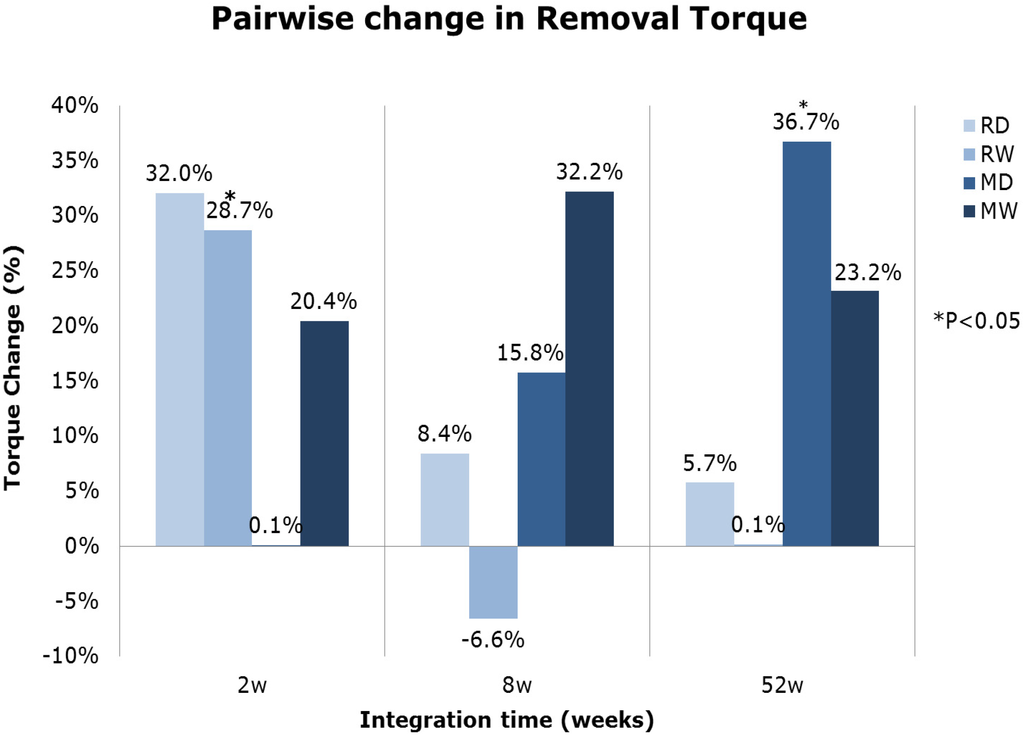

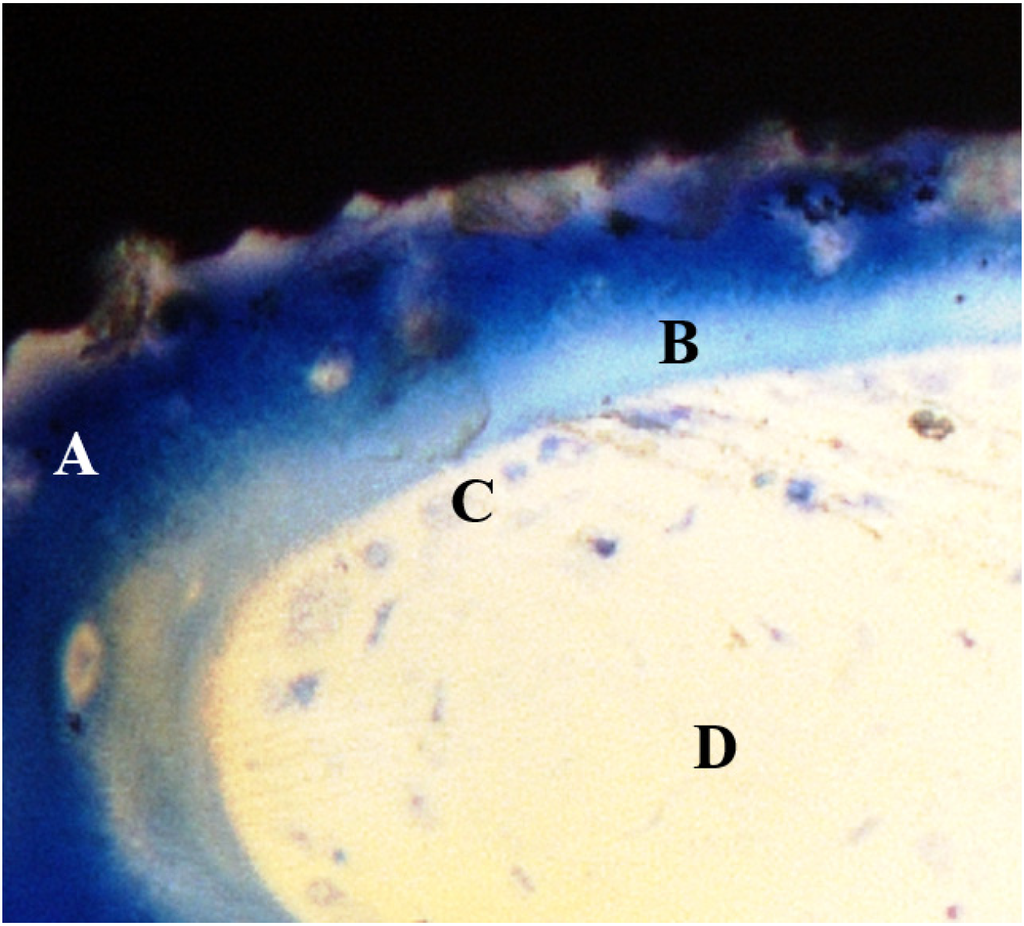

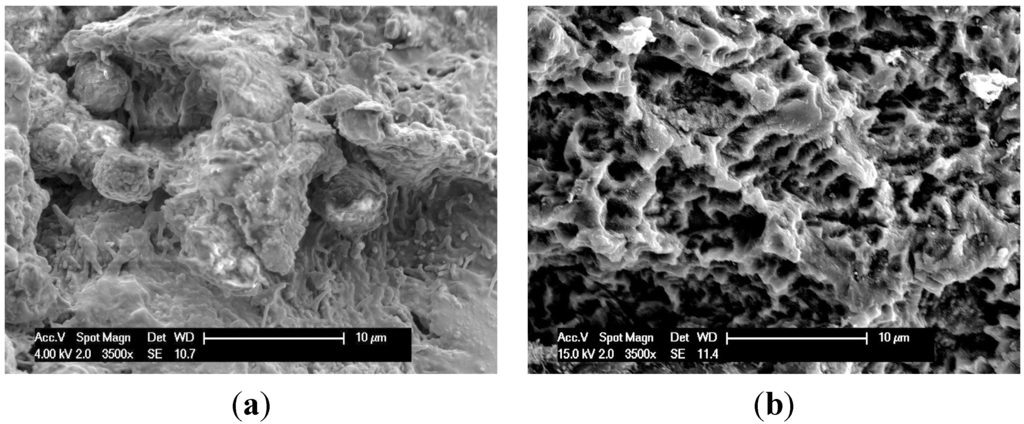

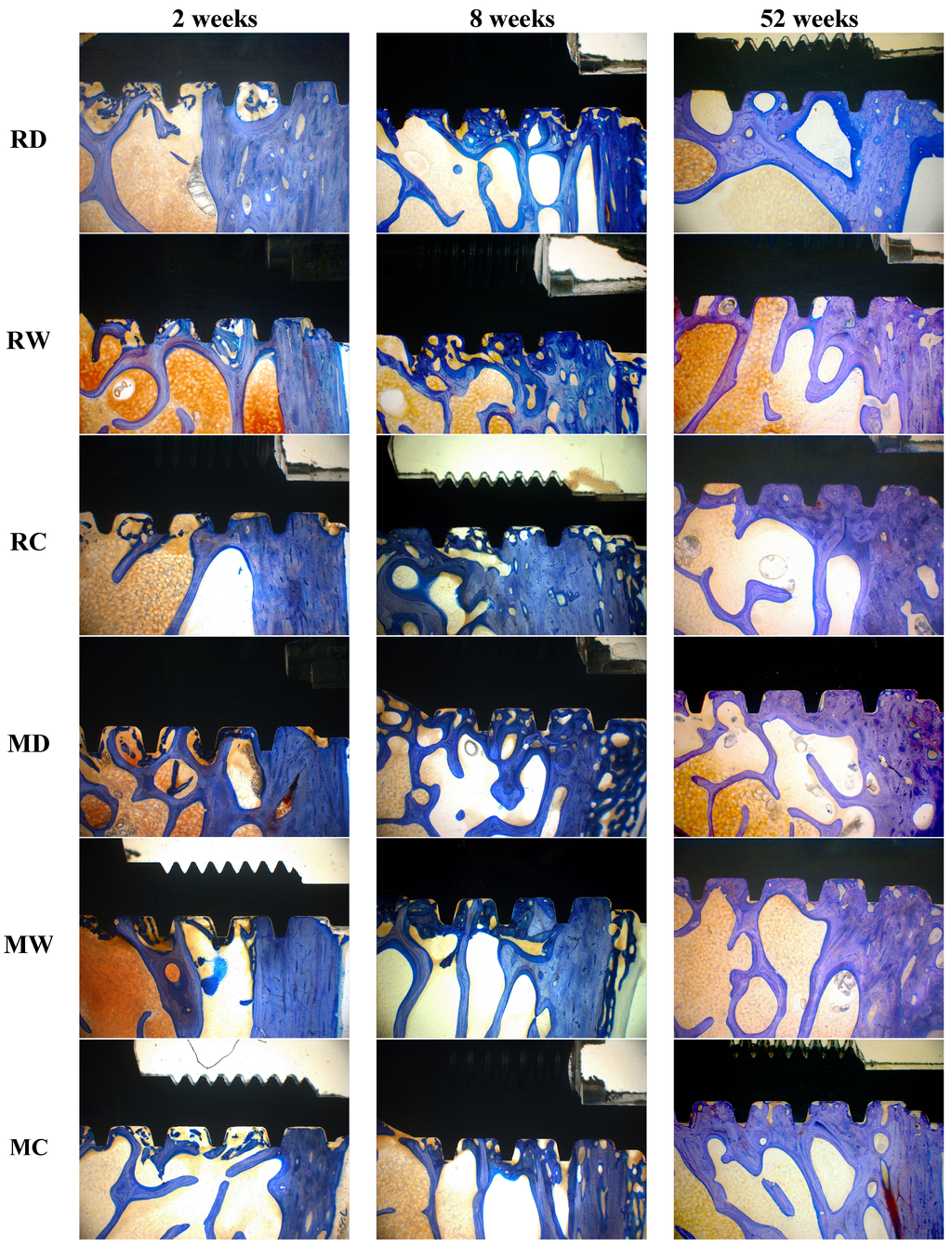

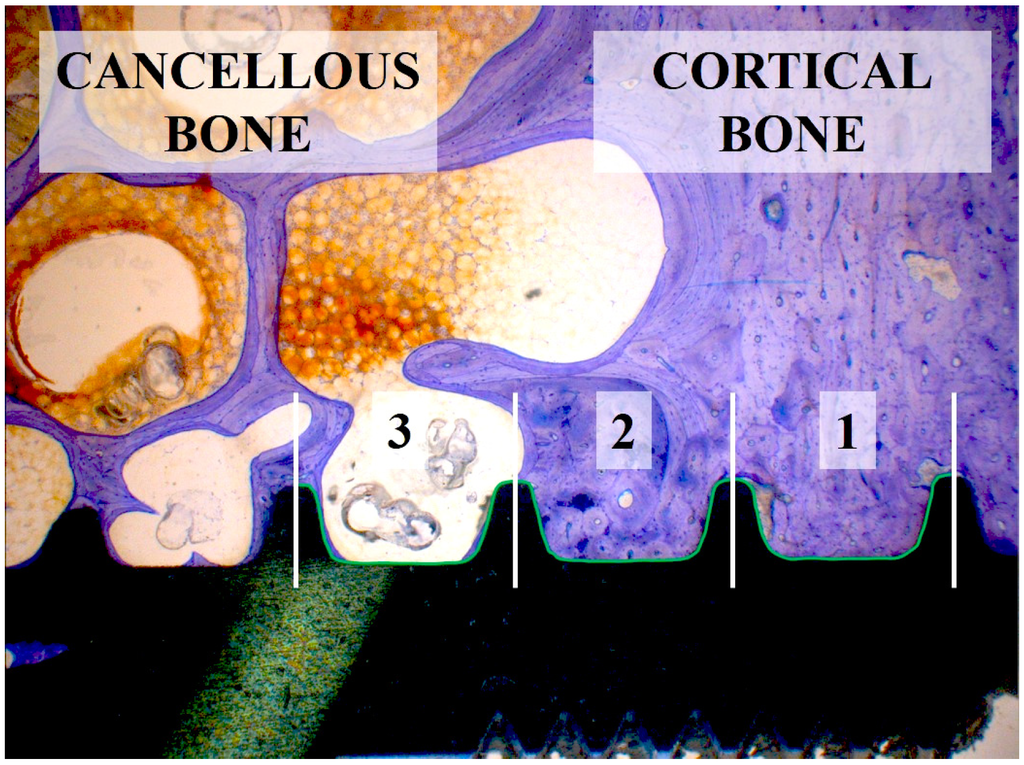

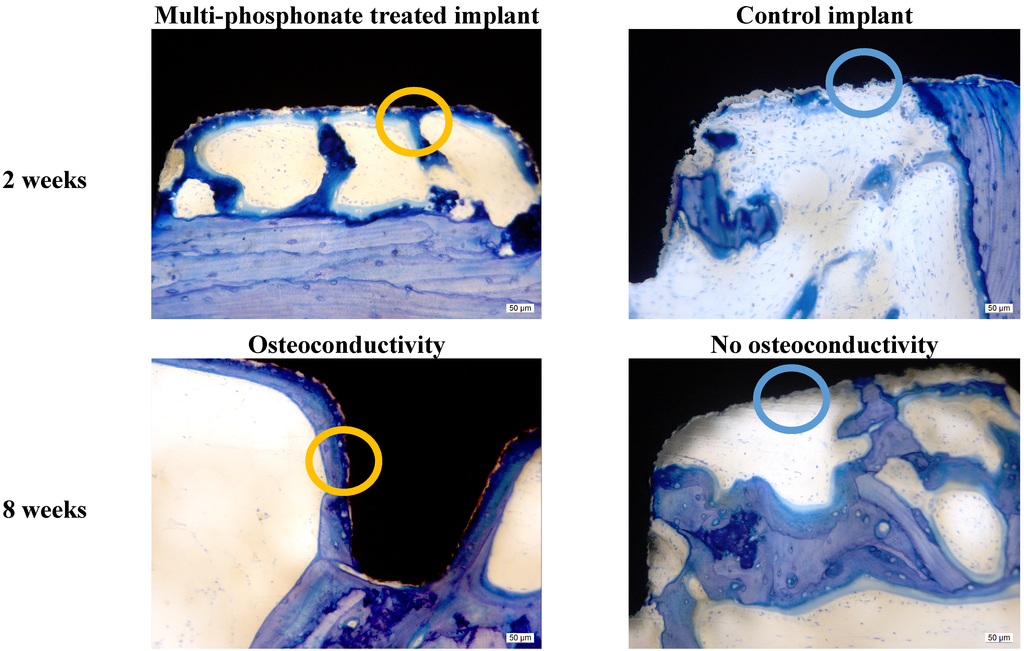

The aim of the present study was to evaluate a new multi-phosphonate surface treatment (SurfLink®) in an unloaded sheep model. Treated implants were compared to control implants in terms of bone to implant contact (BIC), bone formation, and biomechanical stability. The study used two types of implants (rough or machined surface finish) each with either the multi-phosphonate Wet or Dry treatment or no treatment (control) for a total of six groups. Animals were sacrificed after 2, 8, and 52 weeks. No adverse events were observed at any time point. At two weeks, removal torque showed significantly higher values for the multi-phosphonate treated rough surface (+32% and +29%, Dry and Wet, respectively) compared to rough control. At 52 weeks, a significantly higher removal torque was observed for the multi-phosphonate treated machined surfaces (+37% and 23%, Dry and Wet, respectively). The multi-phosphonate treated groups showed a positive tendency for higher BIC with time and increased new-old bone ratio at eight weeks. SEM images revealed greater amounts of organic materials on the multi-phosphonate treated compared to control implants, with the bone fracture (from the torque test) appearing within the bone rather than at the bone to implant interface as it occurred for control implants. View Full-Text
Keywords: surface treatment; multi-phosphonate; bone formation; removal torque test; bone-to-implant-contact; scanning electron microscopy; osseointegration surface treatment; multi-phosphonate; bone formation; removal torque test; bone-to-implant-contact; scanning electron microscopy; osseointegration
Figures

This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

von Salis-Soglio, M.; Stübinger, S.; Sidler, M.; Klein, K.; Ferguson, S.J.; Kämpf, K.; Zlinszky, K.; Buchini, S.; Curno, R.; Péchy, P.; Aronsson, B.-O.; von Rechenberg, B. A Novel Multi-Phosphonate Surface Treatment of Titanium Dental Implants: A Study in Sheep. J. Funct. Biomater. 2014, 5, 135-157.

Show more citation formats Show less citations formats

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
J. Funct. Biomater. EISSN 2079-4983 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
