On 6 July 2016, Niantic, a subsidiary of Google, in conjunction with Nintendo and The Pokémon Company released Pokémon GO [1
], a massively multiplayer online role playing and augmented reality game for mobile devices that is based on the late 1990s Pokémon cartoon series and the Nintendo Gameboy game series. The game, which was built on the same framework as Niantic’s earlier game, Ingress, utilizes the GPS capabilities provided by most smartphones to allow the user to locate, capture and train virtual creatures within the real world. These creatures appear based on the physical location of the user, and the type of pokémon encountered.
Soon after its release, Pokémon GO quickly became one of the most popular mobile applications on the market. Within just five days of its release, Pokémon GO was installed on 10.8% of U.S. Android phones [2
]. Furthermore, based on application usage data from 8 July, users were spending an average of 43 min a day within the application [3
]. According to the 2017 U.S. Cross-Platform Future in Focus report published by comScore, within just seven days of its release, the popularity of Pokémon GO peaked at over 28.5 million daily unique visitors and has since leveled out at around five million daily unique visitors in December 2016, with approximately 60% of its user base comprised of 18–34 year-old millennials who grew up with the cartoon and game series [4
]. This steep decline can largely be attributed to a lack of long-term goals in the game and certain features that were expected by the users, such as the pokémon tracker, player-versus-player battling and pokémon trading. However, despite these declining usage numbers, Pokémon GO has generated over one billion dollars in revenue since its launch [5
], and as of April 2017 maintains a user base of 65 million monthly active users. These numbers are predicted to increase as Niantic has announced plans to release several long-awaited features, including player-versus-player battling and pokémon trading in a coming update [6
]. Pokémon GO has also won several awards including The Game Award for Best Mobile/Handheld Game and Best Family Game in 2016.
Pokémon GO was an immensely popular game that succeeded in increasing the physical activity of many people as it required them to go outside and walk around in order to find pokémon. A study that monitored users for 30 days shortly after the game’s release estimated that on average, users increased their activity by 1473 steps while playing the game [7
]. This surge of physical activity could be seen in news reports as hundreds of people flocked to sightings of rare pokémon within New York City’s Central Park [8
] and Santa Monica Pier in California [9
]. This huge surge of people taking to the outdoors to seek pokémon led to some very interesting discoveries as was reported by the media in the case of a 19-year-old Wyoming girl who stumbled upon a dead body while searching for a water-type pokémon by a river near her home [10
]. Pokémon GO has also been attributed to helping two marines, who were visiting a pokéstop in Fullerton Park in California, catch a murder suspect after they noticed a suspicious man approaching a mom and her three kids [11
However, not all of the news stories about Pokémon GO are positive in nature. In O’Fallon Missouri, four armed robbers placed a lure module on a secluded pokéstop to lure in unsuspecting pokémon trainers [12
]. There have also been numerous reports of distracted pedestrians being injured and/or trespassing on private property or restricted areas to capture pokémon prompting the Joint Base Lewis-McChord military base near Tacoma, Washington, to issue a warning to pokémon trainers [13
]. Furthermore, it did not take pokémon trainers long to realize they could cover more ground by driving instead of walking. John Ayers of San Diego State University searched through social media posts on Twitter and examined news stories for evidence of people having accidents while driving and playing Pokémon GO during the course of 10 days shortly after the game’s release. The researchers discovered that there were 14 unique crashes, while approximately 18% of tweets indicated that a person was playing and driving, while 11% of tweets indicated that a passenger was playing [14
]. In fact, there have been numerous news reports of Pokémon GO players who have crashed their automobiles into a tree, parked police car, school and at least one reported instance of a woman who was killed when a distracted driver playing Pokémon GO struck two pedestrians [15
Because of Pokémon GO’s widespread popularity, the propensity to be a distraction to pedestrians and drivers and its use as a tool to attract victims of armed robbery, it is likely that a forensic investigator will encounter a mobile investigation where the data contained in the application will need to be analyzed. Unfortunately, since Pokémon GO is a new application, little research has been conducted that focuses on understanding the forensically-relevant artifacts found within the application and the circumstances that surround their creation. This paper seeks to expand upon the current research in order to discover any forensically-relevant information that may be contained in the Pokémon GO application and develop an understanding of how this information was created by the application. This information may include corroborative evidence that may place a user at the location of a crime or may support the idea that a user was distracted by the application while walking or driving. Furthermore, this research expands upon prior research by including the Pokémon GO Plus device and examining the metadata contained within images generated by the application.
This research furthers the understanding of Pokémon GO application forensics by making the following contributions to the current state-of-the-art:
Identifies the most recent time frame in which the application was run in the foreground of a mobile device by examining the session information contained within the upsight.xml file.
Identifies the relative geolocation of the user at the end of the most recent time frame in which the application was run in the foreground of a mobile device by examining the information stored in the upsight.db file.
Identifies additional methods that can indicate user activity prior to and during the most recent time in which the application was run in the foreground of a mobile device by examining the timestamps of files contained in the bundles directory, the timestamp contained in the lastPushTokenRegistrationTime value and the entries contained in the pokémon trainer’s “journal”.
Determines the use of a Pokémon GO Plus accessory with the application by the presence of the pgp.xml file. This artifact contains the MAC address of the device connected to the mobile device and can be used to link a specific Plus accessory to the mobile device.
Determines the effects of the Pokémon GO Plus accessory on the artifacts that are generated by the application.
Determines that no geolocation information can be found within the metadata of the images created with the in-game camera feature.
Provides additional discussion pertaining to the geolocation information that can be found in the cell ID values within the Crittercism logs of applications used prior to 31 July 2016.
Develops an application-specific analysis tool capable of extracting these artifacts from a backup of the Android application and presenting them to an investigator in an easily readable format. This analysis tool exceeds the capabilities of the Cellebrite’s UFED (Universal Forensic Extraction Device) Physical Analyzer in processing Pokémon GO application data.
The contributions made by this paper can be used by forensic investigators to establish a timeline of user activity within the Pokémon GO application, establish the relative location of the user and to determine if the user was utilizing a Pokémon GO Plus accessory. This information can be useful during investigations involving pedestrians or drivers that may have been involved in an accident that resulted in death or serious injury to themselves or others as a result of their failure to pay attention to their surroundings while playing the game. Using the information contained within the application, the investigator is capable of determining if the application was running in the foreground of the mobile device at the time of the incident and/or if additional indicators of game activity exist close to the time at which the incident occurred. Furthermore, the geolocation information contained within the application can be used in conjunction with the timestamp information to provide supporting evidence that an individual witnessed or participated in a crime or incident. While this location information cannot specifically place an individual at a location, it can be used to support the idea that he or she was in the vicinity of the crime at the time it occurred or it may be used to exclude him or her from the crime by indicating that he or she was located elsewhere at the time of the incident.
The remainder of this paper is structured as follows. A description of the basic game play, the discussion of forensically-relevant artifacts that are expected to be found within the game and the gaps in the prior research are presented in Section 2
. Section 3
describes the methodology and the results of our analysis on the artifacts found in the application. The results of this analysis are used to develop an analysis tool that can extract this information from the application. The discussion on the tool we developed is presented in Section 4
. Finally, concluding remarks and future work are discussed in Section 5
3. Forensic Analysis of Pokémon GO
The methodology used to conduct this analysis of the Pokémon GO application was two-fold. First, the prior research conducted by Murphy [24
] was validated to identify the artifacts that can be recovered from the latest version of the Pokémon GO application v0.57.2. Then, based on these artifacts, a more detailed testing methodology was developed to assess the effect that different user actions have on these artifacts. Note that the scope of this research project is limited to the Android 6.0.1 Marshmallow OS-based application run on Samsung Galaxy S6 and Samsung Galaxy S7 devices (the most recent devices at the time of research).
3.1. Data Acquisition Method
Data acquisition with Pokémon GO, on the Samsung Galaxy S6 device, proved to be difficult as the application utilizes Google’s SafetyNet API, which examines the software and hardware information of the device to assess its integrity. This API performs a check to determine if the device has been tampered with or has been rooted and, if so, will prevent the user from logging into Pokémon GO’s application servers. Further complicating the data acquisition process, rooting the Samsung Galaxy S6 device involved utilizing Samsung’s firmware flashing software called ODIN to flash a rooted firmware patch into the operating system. The only way that this could be undone was to re-flash the device with a clean firmware image. Because multiple data acquisitions after various amounts of application usage were required for later tests, an acquisition strategy had to be devised that did not involve rooting the Android device.
Reverse engineering the Pokémon GO application with jadx revealed that the application manifest file does not specify a value for the allowBackup attribute. According to the Android documentation, the default for this attribute is “true”, indicating that the application and all of its data are capable of being backed up using Android debug bridge (ADB). Therefore, ADB was used to create a backup of the com.nianticlabs.pokemongo application data. Once a backup of the application has been created, the information must be extracted from the backup file using Android Backup Extractor. This will produce a compressed tar archive that contains all of the Pokémon GO application data within the apps/com.nianticlabs.pokemongo directory.
This acquisition methodology imposes two limitations on this research. First, this method is only able to obtain the equivalent of a logical acquisition of the device. Therefore, any files that are deleted will not be recoverable during the analysis. Additionally, this acquisition method will only retrieve artifacts that reside within the Pokémon GO application directory and data storage areas. Artifacts that are created by the Android operating system and may reside in other areas of the device would not be acquired.
3.2. Preliminary Data Analysis
After the Pokémon GO application was installed on the Samsung Galaxy S6 device, it was opened for the first time at 1:34 p.m. on 17 January 2017. During this time, a new character was created with the username “ForensicGuy1394”, and Charmander was captured as the starter pokémon. Three additional pokémon Exeggcute, Venonat and Weedle were captured before the application was terminated at 1:56 p.m. on 17 January 2017. A full backup of the phone was taken using ADB. This backup was then extracted and analyzed to validate the prior research and identify any forensically-relevant information.
The findings of this preliminary data collection correlate with those presented by Murphy, with the exception of the com.crittecism logs within the f directory. These logs, which contained a wealth of geolocation information, were not discovered within the backup of the application. Reverse engineering the Pokémon GO application revealed numerous references to the Crittercism platform indicating that it is still included within the application, but has been disabled or is logging information to a remote server instead of writing the logs to the local device.
Based on the results of this analysis, there are several artifacts that could be useful to an investigator and could indicate when and where the application was being used. The first of these include the session information contained within the upsight.xml file. Using this information, it may be possible to determine when the application was being used based on the session start timestamp and last known session timestamp, which corresponded to when the application was launched and terminated. This file also contained statistical information about the player such as experience points earned, player level and the number of items and pokémon in the user’s possession. Other forensically-relevant data include the presence of geolocation information within the upsight.db file. The UNIX timestamp in the lastPushTokenRegistrationTime variable within the com.upsight.Android.googleadvertisingid.internal.registration.xml file correlates with when the application was launched. The email address of the user is stored in the com.nianticlabs.pokemongo.PREFS.xml file, and the timestamps associated with the files are located in the bundles directory. These files are believed to contain Unity 3D models for pokémon, items and other assets in the game. These models are downloaded dynamically as they are needed by the application and could therefore indicate user activity.
3.3. Targeted Data Analysis
During the data collection phase, a series of twelve data dumps were taken of the Pokémon GO application. Before each data dump, the application was used for a short period of time without being backgrounded and/or terminated. These tests had four goals: (1) determine the effects of running the application in the foreground and background of the mobile device; (2) determine the effects of the starting and ending location of the user on the data within the artifacts created by the Upsight platform; (3) gaining additional insight into each of the values contained within the upsight.xml file; and (4) determine the effects of using the Pokémon GO Plus accessory on these artifacts. Appendix A
describes the purpose and actions taken prior to each dump of the application. It is important to note that encounters with previously caught pokémon are not recorded in this table.
Each of these dumps were extracted, and the information contained within the upsight.xml and upsight.db files, as well as the lastPushTokenRegistrationTime value were analyzed. During this analysis, forensically-important values, which can be found in Appendix B
, were compared with their previous values from the prior dump and were cross-referenced with the actions taken by the user prior to generating the dump, as shown in Appendix A
A summary of the results of this analysis for the information generated by the Upsight platform are found within Table 1
3.4. Upsight Session Information
Based on this analysis, several trends begin to emerge. First, it becomes evident that the session number is a sequentially-incrementing value representing the current session for the device. This holds true until Dump 4, where the session number increments from 5 to 8. This can be explained by examining the session start time and last known session time values within Appendix B
. These values for Dumps 1, 2 and 3 correspond to when the application was started and terminated, as indicated in Appendix A
. However, in Dump 4, the session start time corresponds to the time the application was resumed at 3:38 p.m. on 24 February. During the data collection for Dump 4, the application was backgrounded twice. The first occurred at 3:14 p.m. with the application being resumed at 3:30 p.m., and the second occurred at 3:33 p.m., with the application being resumed at 3:38 p.m. Therefore, the session start time corresponds to the time at which the user begins running the application within the foreground of the mobile device either by starting the application or resuming an application that was previously running in the background.
Likewise, the last known session time values recorded within Appendix B
for Dumps 6, 7, 11 and 12 correlate to when the application was backgrounded (see Appendix A
). This indicates that the last known session time value corresponds to when the application was terminated or backgrounded by switching to another application, receiving a phone call or by locking the device. In other words, the current session ends when the application is either terminated or backgrounded. If the application were backgrounded and then brought back to the foreground, a new session would start, and the session number would be incremented. Because the application was backgrounded twice during Dump 4, the session number was incremented twice. Hence, instead of Dump 4 having a session number of 6, the data in Appendix B
indicates a value of 8.
Therefore, it is possible to define a session that is recorded in the upsight.xml file as the time in which the application was running in the foreground of the user’s mobile device. In other words, this corresponds to the most recent time when the application was actively played. This information can be used by a forensic investigator to provide definitive evidence of the last time the application was actively played by the user.
Furthermore, by examining the current session duration value given in Appendix B
and comparing this value to the session start and last known session time values, it becomes evident that this value represents the length of the current session in seconds. Likewise, by examining the past session time and current session time values, it becomes evident that the past session time value is a counter of the total time spent actively playing the game in seconds excluding the time spent in the current session.
3.4.1. Geolocation Information
Mapping the geolocation information found in the upsight.model.location record within the upsight.db file indicates that these coordinates approximate the last known location of the user at the end of the current session. This can be seen within Dump 4, which initially started at the Catholic Student Center and then ended by the Don Sanders Baseball Stadium. The coordinates in the Upsight database (30.71, −95.54) placed the user about 1000 feet south of the true final location at the Don Sanders Stadium. Furthermore, if the application was backgrounded in one location before being terminated in another location, the coordinates in the Upsight database will reflect the location where the application was backgrounded. This can be observed within Dump 7, which started at the Catholic Student Center and then proceeded to the Walmart where the application was backgrounded. The application was then terminated 20 min later at another location. The coordinates within the Upsight database (30.71, −95.47) placed the user about 1400 feet south of the true location within the Walmart parking lot.
A significant amount of precision is lost when these values are stored by the Upsight platform because they are rounded to two decimal places. Therefore, these values can be two to three blocks off from the user’s true last known location. These coordinates can be used by an investigator to place the user somewhere in the vicinity of an incident or location, but cannot be used as definitive evidence that a user participated in or witnessed the incident.
3.4.2. Game Play Prior to Current Session
The timestamps of the files collected from the bundles directory may also be used by an investigator to develop a timeline that may indicate game activity prior to the most recent active session as indicated by information in the upsight.xml file. The timestamps of these files correspond to the times when new pokémon are encountered or an update within the game has altered the 3D models, animations or sounds for an existing pokémon. These files are downloaded dynamically during game play.
Similarly, the lastPushTokenRegistrationTime value found within the com.upsight.Android. googleadvertsingid.internal.registration.xml file can indicate game play. However, this value is sporadically updated as indicated by the data within Appendix B
. This value corresponded with the session start time of Dump 1, but the value was never updated during the other six dumps, which occurred in the same day. This value was still not updated during Dump 8, which occurred on the following day. Furthermore, for Dumps 9, 10 and 11, which took place on 19 March, this value contained a timestamp indicating that it was last updated on 16 March, three days before the current game play session. Therefore, contrary to the research presented by Lawson, this value cannot be used as an indicator of when the most recent game activity began. However, it could indicate prior activity.
It is also possible to determine a player’s activity by examining the pokémon trainer’s “journal” in the application. The “journal” records the 50 most recent pokémon encounters and pokéstop visits. Unsuccessful visits to pokémon gyms do not appear to be recorded within the “journal” logs. Visits in which a pokémon trainer wins against the gym’s opponents may be recorded as well. However, due to the high combat strength of the pokémon that reside in gyms, the logging of successful gym battles within the pokémon trainer’s “journal” was unable to be tested. The information within the “journal” should be checked after an image of the device has been acquired, as this will cause the upsight information to be updated.
3.4.3. Pokémon GO Plus
Dumps 9, 10, 11 and 12 focused on determining the effects of the Pokémon Go Plus accessory on the artifacts generated by the application. The most notable artifact relating to the use of the Pokémon GO Plus accessory is the creation of the pgp.xml artifact in the sp directory. This artifact contains the Bluetooth MAC address of the device that was connected to the mobile application and the Bluetooth encryption key. This file is only modified when the encryption key needs to be updated. The content of the pgp.xml file is shown below:
<?xml version=‘1.0’ encoding=‘utf-8’ standalone=‘yes’ ?>
Furthermore, by comparing the session start and last known session time values in Appendix B
with their corresponding entries in Appendix A
, it becomes evident that the device has no effect on these artifacts. As noted within Appendix A
, during the data collection process for Dump 10, the application had to be brought to the foreground at 4:50 p.m. to reconnect the Pokémon GO Plus accessory, and prior to terminating the application at 5:13 p.m., the application was briefly brought to the foreground when the screen was unlocked. This caused the Upsight session information to update as indicated by the session numbers, session start and end time values given in Appendix B
This research indicates that the use of the Pokémon GO Plus accessory will prevent the download of additional “bundles” files, even for pokémon that are encountered for the first time. Instead, these files will be downloaded during the next session. However, it is still possible to determine a player’s activity by examining the pokémon trainer’s “journal” in the application.
3.5. Legacy Artifacts: Crittercism Logs
During the preliminary data collection phase, a backup of a Samsung Galaxy S7 was created to provide an additional data benchmark using a device that has had Pokémon GO installed since 7 July 2016 shortly after the game was released. In addition to the forensically-relevant data that was present on the test device, the Apteligent (Crittercism) logs, which were mentioned as part of Murphy’s research, were also discovered. However, these logs were not actively maintained by the application. The timestamps associated with these files indicated that the last time they were updated was 31 July 2016. It appears that when the Crittercism platform was disabled or modified to submit the logs to a remote server, the directories containing the log files were not removed. Therefore, it may be possible for an investigator to encounter a mobile device that still has these logs intact provided that the application was installed prior to 31 July 2016. These logs may be relevant to an investigation, despite not being actively maintained by the application, depending on the investigation timeline.
These logs were analyzed for forensically-relevant data; however, because these logs are no longer generated by the application, it is impossible to determine the exact circumstance behind their creation. Since these logs were created prior to engaging in this research, the results of this analysis may not be completely accurate.
As indicated by Murphy’s research, these logs were discovered within the f/com.crittercism directory inside of the current_bcs and previous_bcs directories. Each of these directories contains 50 files that may contain geolocation information encoded inside of the cell ID numbers within the logs. Each log has a naming convention with the following format: 1.1469994833869.000000X, where X represents a sequentially-incrementing number. According to the data collected from the Galaxy S7 phone, this cell ID information can be discovered in two different logs: “Removing Cell ID” logs and “Updating Encounter” logs. As indicated by Murphy, the cell ID number is a 19-digit integer that should be converted into a hexadecimal number. This hex value, which is a representation of an area of the global map on a Hilbert curve, can then be converted to GPS coordinates with the use of Google’s S2 geometry library.
Converting and mapping the cell ID number found in the Galaxy S7 dump reveal that these logs date back to a trip to Tombstone, Arizona, during the summer. During this trip, a significant amount of time was spent visiting the shops along Allen St. and Fremont St., including the Old Tombstone Wild West Theme Park. The coordinates contained within the “Removing Cell ID” logs appear to occur on the edges of where the application was likely to be used. On the other hand, the coordinates in the “Updating Encounter” logs appear to correspond to areas where user activity is likely to have occurred. Analyzing the timestamps of these log files indicates that the log entries were created within 2 to 3 min of each other. This indicates that the information contained within these logs is a snapshot of the user’s activity. This snapshot may correspond to the latest activity of the user.
3.6. Image Metadata
As shown in Appendix A
, during Dump 4, two pictures were taken with the application’s in-game camera during an encounter with a pokémon. The first image, IMG_2017-02-24-15473410.png, was a Wooper taken at the intramural fields. This was captured at 3:47 p.m. on 24 February 2017. The second image, IMG_2017-02-24-15513605.png, was a Weedle taken at Bowers Stadium. This image was captured at 3:52 p.m. on 24 February 2017.

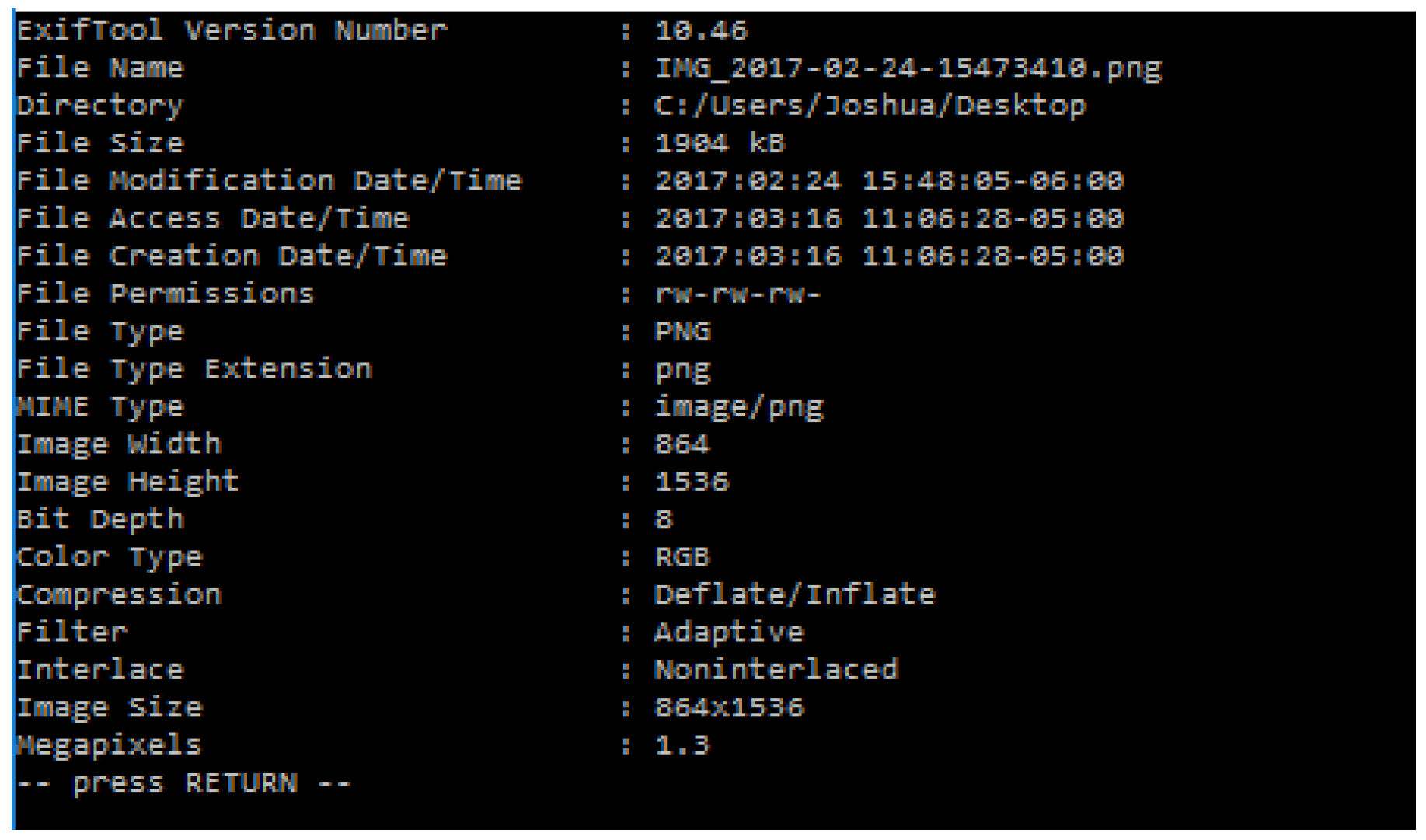

Both of these images were analyzed with ExifTool as shown in Figure 3
and Figure 4
. The file modification date/time information correlate with when the images were created. Furthermore, the file naming convention indicates the date on which the image was created. Additional metadata within the image indicates the size, compression algorithm used, bit depth, color type, filter and the megapixels within the image. No metadata exist in those images that may provide additional geolocation information. The results of this analysis were confirmed by using other metadata extraction tools.
4. Pokémon GO: Forensic Analysis Tool
The findings from this research were used to create a tool that is capable of aiding an investigator in the analysis of a mobile device that contains the Pokémon GO application. This analysis tool is capable of creating an Android backup of the device and then analyzing the backup to present an overview of the forensically-relevant data within the application. Our tool is open source and available for the public at https://github.com/jprin72/PokemonGo-ForensicTool
The Pokémon GO: Forensic Analysis Tool was written in Python 2.7.8 and is compatible with both Windows and Linux operating systems. The analysis tool also requires the Android Debugging Bridge in order to generate backups from target devices and Google’s S2 geometry library in order to convert the cell ID’s found within the Crittercism logs into physical GPS coordinates. The S2 geometry library is available on GitHub, but must be compiled to run on the analysis system. The S2 library requires the following dependencies: development version of OpenSSL; CMake; and SWIG. Our analysis tool also requires an internet connection in order to generate the maps containing geolocation information.
When the analysis application is launched, the investigator is presented with a welcome screen that provides them with a quick overview of the forensically-relevant artifacts that can be found in the application and a getting started section that covers the basic usage of the application. From the File Menu, the investigator has several options to begin the analysis of a phone. This menu allows the investigator to perform the following actions:
Capture Pokémon GO backup: This obtains an ADB backup of only the Pokémon GO application from a target mobile device.
Capture full backup: This obtains an ADB backup of the entire target mobile device.
Create new analysis from backup: This creates a new case folder in the current working directory named after the selected Android backup file. The Android backup is then extracted to this directory, and the relevant forensic information is parsed from the application.
Open case folder: This opens a case folder containing an extracted Android backup file and parses the relevant forensic information from the application.
In order to begin an analysis, the investigator must select the “Create New Analysis from Backup” option. This will prompt the investigator to select the Android backup file they wish to use and will create a case directory named after this file. The case directory contains an apps directory, which is the uncompressed backup of the mobile device, a maps directory, which contains all of the static maps generated by the analysis application, and the compressed tar archive that was extracted from the backup file.
Once the application has finished processing the newly-created case, an “Overview” tab is created within the application as shown within Figure A1
in Appendix C
. This tab contains a consolidated view of all of the forensically-relevant artifacts from the upsight.xml, upsight.db, com.nianticlabs.pokemongo.PREFS.xml and com.upsight.googleadvertisingid.internal.registration.xml files. Using the information within this overview tab, the investigator is able to determine when the last time the game was actively played by examining the session start and session end time values. This “Overview” tab also contains a button to map the relative GPS coordinates obtained from the Upsight database. If the application detects the presence of the Crittercism log files, then the option to map the geolocation information within these logs will also be presented to the investigator. When the investigator elects to map this information, then a new tab is created as shown in Figure A2
within Appendix C
. This tab provides the investigator with the ability to alter the zoom level of the static map with the use of the “Zoom In” and “Zoom Out” buttons. Each map image is also stored in the maps directory of the case folder.
As shown in Figure A2
of Appendix C
, when the user maps the Crittercism logs, a tab will be created for both the current_bcs and previous_bcs folders. In these maps, markers that originated from data in “Removing Cell” logs are represented with a red marker, while markers that originated from data in “Updating Encounter” logs are represented with a blue marker. As indicated in Section 3.4
, the “Updating Encounter” log data provide a better approximation of the areas the user is likely to have played, while the “Removing Cell” logs appears to be clustered along the edges of the user’s location. Furthermore, each marker has a unique label that corresponds to an entry within the text box in the upper right corner of the tab. These entries correspond to the text in the log that generated that marker.
As shown in Figure A1
and Figure A2
within Appendix C
, the analysis application also provides the investigators with a file browser on the left-hand side of the application that lists all files found in the application. This provides the investigator with a quick overview of all of the files in the application and allows the investigator to examine the timestamps of certain files such as those contained within the bundles directory that may indicate when the game was actively played prior to the current session. This file browser also provides the investigator with the ability to open a hex dump of any file by double clicking on the file in the file browser. This will open a new tab that displays the raw contents of the file. This allows the application to be more versatile in the event that artifacts within the Pokémon GO application are altered or additional artifacts are discovered that contain forensically-relevant information.
The Pokémon GO: Forensic Analysis Tool has a built-in event viewer in the lower right of the application. This event viewer records all actions taken by the investigator as he or she conducts his or her analysis and reports any problems that may arise. In addition to each log entry being recorded within the log viewer window, the logs are written to a text file called activityLog.txt, which resides in the same directory as the analysis application.
Through this in-depth analysis of the Pokémon GO application, several forensically-useful artifacts were discovered. We believe these findings could help an investigator develop a timeline of application use that could indicate that a user was distracted at the time of an incident or could place the user around a particular location at a specific time. Most of these artifacts are created by the Upsight marketing and analytics platform and can be found in the upsight.xml, and upsight.db files. By examining the data contained in the upsight.xml file, it is possible to determine the start time, end time and duration of the most recent session. This provides evidence of when the game was last actively run in the foreground of the user’s device. Furthermore, utilizing the location data contained within the upsight.db file, it is possible to determine the last known relative location of the user during the most recent session. Because these artifacts are generated by the Upsight platform, it may be possible to apply the knowledge learned about the behavior of these artifacts to other applications that use this platform.
Game activity outside of the most recent session could potentially be determined by analyzing the timestamps of the files contained within the bundles directory. These files consist of Unity 3D models that are downloaded dynamically during game play from the server. Therefore, the timestamps from these files correspond to when new pokémon or items are encountered for the first time or if an update has occurred and the pokémon or item animations/graphics have been altered. Furthermore, the lastPushTokeRegistrationTime value could also be used as an indicator of game activity. Finally, the pokémon trainer’s “journal” can be used to indicate recent game activity including pokémon encounters and visits to pokéstops.
The use of a Pokémon GO Plus accessory can be determined by the presence of the pgp.xml file within the sp directory in the application. This artifact contains the Bluetooth MAC address of the Pokémon GO Plus accessory and the Bluetooth encryption key. Using the Bluetooth MAC address, it is possible to determine which Pokémon GO Plus accessory was connected to the phone, as this should be unique for each device. This research has determined that the use of the Pokémon GO Plus accessory does not have any effects on the session information generated by the Upsight platform or on the timestamps of the files within the bundles directory. In other words, provided the application was not brought back into the foreground of the mobile device, the Pokémon GO Plus accessory will not cause the session or geolocation information recorded by the Upsight platform to be updated. Furthermore, any new “bundles” required will be downloaded when the application is brought back into the foreground of the mobile device. Other forensically-relevant information includes the email address of the account holder, which can be found within the accountName value.
The results of this research were utilized to create an analysis application that can assist an investigator by parsing the relevant information from the Pokémon GO application files and present it to the investigator in an easy-to-read format. The analysis application provides the investigator with all of the session information contained within the upsight.xml file, the email address associated with the user’s account and an easy means to map any geolocation information discovered within the application. The data that this application was able to retrieve were compared to the data presented to the investigator by Cellebrite’s UFED Physical Analyzer. In comparison, the only information that was automatically presented to the investigator with Physical Analyzer was the email address associated with the user account. The session information contained within the upsight.xml file was not included within the time created by Physical Analyzer. Furthermore, the geolocation information in the upsight database was not presented to the investigator either.
The artifacts contained in the Pokémon GO application should periodically be reanalyzed as the application is still under development, and new features and bug fixes are being introduced with each update. These updates could change the artifacts contained within the application or present new artifacts that provide additional information. Future development within the analysis application should focus on the creation of a logging and reporting system that is specific to each case. This would provide the investigator with an easy means to get information out of the analysis application. Additional work should focus on the creation of fully dynamic maps, the creation of additional file viewing options and adding file content searching capabilities.
