Article

Electrochemical Sensor for Explosives Precursors’ Detection in Water

1
Equipe Génie Enzymatique, Membranes Biomimétiques et Assemblages Supramoléculaires, Univ Lyon, Université Lyon1, 43 Bd du 11 Novembre 1918, 69622 Villeurbanne, France
2
Institut de Police Scientifique (IPS), Université de Lausanne, Dorigny, 1004 Lausanne, Switzerland
3
Legal Medicine Section-SAIMLAL Department, SAPIENZA University of Rome, Viale Regina Elena, 336, 00161 Roma, Italy
*
Author to whom correspondence should be addressed.
Challenges 2017, 8(1), 10; https://doi.org/10.3390/challe8010010
Submission received: 9 February 2017 / Revised: 16 March 2017 / Accepted: 17 March 2017 / Published: 22 March 2017
(This article belongs to the Special Issue Challenges in New Technologies for Security)

Abstract

:
Although all countries are intensifying their efforts against terrorism and increasing their mutual cooperation, terrorist bombing is still one of the greatest threats to society. The discovery of hidden bomb factories is of primary importance in the prevention of terrorism activities. Criminals preparing improvised explosives (IE) use chemical substances called precursors. These compounds are released in the air and in the waste water during IE production. Tracking sources of precursors by analyzing air or wastewater can then be an important clue for bomb factories’ localization. We are reporting here a new multiplex electrochemical sensor dedicated to the on-site simultaneous detection of three explosive precursors, potentially used for improvised explosive device preparation (hereafter referenced as B01, B08, and B15, for security disclosure reasons and to avoid being detrimental to the security of the counter-explosive EU action). The electrochemical sensors were designed to be disposable and to combine ease of use and portability in a screen-printed eight-electrochemical cell array format. The working electrodes were modified with different electrodeposited metals: gold, palladium, and platinum. These different coatings giving selectivity to the multi-sensor through a “fingerprint”-like signal subsequently analyzed using partial least squares-discriminant analysis (PLS-DA). Results are given regarding the detection of the three compounds in a real environment and in the presence of potentially interfering species.

1. Introduction

Although all countries are intensifying their efforts against terrorism and increasing their mutual cooperation, terrorist bombing is still one of the greatest threats to society. The discovery of hidden bomb factories is of primary importance in the prevention of terrorism activities. Different explosives have been widely used in improvised explosive devices (IEDs) by terrorists, due to their relatively simple preparation protocol. For instance, triacetone triperoxide (TATP), cyclotrimethylenetrinitramine (RDX), hexamethylene triperoxide diamine (HMTD), and trinitrotoluene (TNT) can be synthesized using commercially available chemicals following recipes that can be found on the Internet. Commercially available chemicals used to prepare improvised explosives (IE) are called “precursors” and are regulated in Europe by the European Parliament and Council Regulation (EU) No. 98/2013 on the marketing and use of explosives precursors, adopted on 15 January 2014 [1]. Consequently, growing security concerns have generated urgent needs for innovative tools for on-field screening of precursors for IE manufacturing. In numerous security applications and scenarios, the reliable multi-parametric detection of these precursors using a small portable and disposable sensor may be a real asset.
During the last few years, an important increase of research within this area has been observed, through development of new detection approaches and improvements of existing techniques. Spectroscopic approaches have been the most widely explored [2,3,4,5,6,7], but quartz crystal microbalance (QCM), ion chromatography [8], capillary electrophoresis [9], surface-enhanced Raman scattering (SERS) [10], nanotechnology based-methods (using molecularly imprinted polymers [11], nanotubes, or nanoparticles), and sensor techniques [12,13,14,15,16] have also been largely described. Amongst the different types of sensors developed to address this need, the electrochemical sensors [17,18,19] present the advantages of being fast, inexpensive, and adapted to miniaturization. Nevertheless, the existing electrochemical devices rarely enabled a label-free multi-parametric detection. We are reporting here a new multiplex electrochemical sensor dedicated to the on-site simultaneous detection of three explosive precursors (hereafter referenced as B01, B08, and B15 for security disclosure reasons and to avoid being detrimental to the security of the counter-explosive EU action), potentially used for improvised explosive devices’ preparation. The electrochemical chips were designed to be disposable and to combine ease of use and portability thanks to a simple and inexpensive screen-printing fabrication technique. An eight-electrode array was then produced, composed of four different electrode compositions (gold, platinum, palladium, and carbon). This electrode composition was of high significance since this is the basis of the electrochemical signature of the different compounds. This electrochemical signature was subsequently analyzed using partial least squares-discriminant analysis (PLS-DA) in order to classify and discriminate the different explosive precursors.

2. Materials and Methods

2.1. Materials

Ammonium chloride (NH4Cl), calcium chloride (CaCl2), chloroplatinic acid hexahydrate (H2PtCl6), gold (III) chloride (HAuCl4), palladium acetate (Pd(OAc)2), hexamethylenetetramine (hexamine), and whey from bovine milk were purchased from Sigma (Lyon, France). Magnesium chloride (MgCl2), sodium acetate, sodium chloride (NaCl), sodium dihydrogenophosphate (Na2HPO4), and hydrochloric acid (HCl) were obtained from Prolabo (Fontenay-sous-Bois, France). Bacteriological peptone was purchased from Fluka (Saint-Quentin, Fallavier, France).
All solutions were prepared with ultrapure water (18.2 MΩ).

2.2. Methods

2.2.1. Working Electrode Modification

The electrode array (DRP-8x110-U20) and the connector (CAST8X) were purchased from Dropsens (Llanera, Spain). Each of the eight electrodes is composed of a carbon paste working electrode, a carbon paste counter electrode, and a silver/silver chloride reference electrode.
Six of the eight working electrodes were modified in order to generate different surfaces for electrochemical measurement (Figure 1). Three metals were independently electrodeposited on two working electrodes through galvanostatic chronopotentiometry as previously described [20]. A constant current was applied for 10 min, leading to a fixed charge, optimized for each metal solution. In practice, a drop of 40 μL of the solution was deposited on the active area prior to chronopotentiometry. The gold deposition was carried out using a fixed current of −300 μA, in the presence of a solution of 10 mM HAuCl4 in 0.1 M HCl. A fixed current of −150 μA was applied for the palladium and platinum deposition in the presence of a solution composed of 10 mM or Pd(OAc)2 or H2PtCl6 in 0.1 M HCl. Finally, a fixed current of −150 μA was applied to a bare carbon working electrode in a solution of 0.1 M HCl. Following each deposition, the electrode chips were rinsed with ultrapure water.

2.2.2. Electrochemical Measurements

Sensing of the three precursors has been achieved through their electrochemical oxido-reduction using four different electrodes. The obtained cyclic voltammograms were then merged to build specific signatures.
Cyclic voltammetry measurements were achieved simultaneously on the eight electrodes using a multichannel potentiostat (µ8000 from Dropsens, Llanera, Spain) at a 300 mV·s−1 scan rate. The potential range used was +1.0 to −1.0 V for the gold-modified working electrodes and −1.0 to +0.5 V for the palladium-, platinum-, and non-modified carbon working electrodes. In order to evaluate the matrix effect, measurements were performed in different aqueous solution: (i) NaCl 0.1 M electrolyte solution in milliQ water; (ii) tap drinking water; (iii) tap non-drinkable water; (iv) soap water (GEH dish washing soap 0.1% v/v in tap drinking water); and (iv) artificial sewage water composed of tap drinking water added of whey 500 mg/L, peptone 100 mg/L, Na2HPO4 54 mg/L, NH4Cl 178.3 mg/L, sodium acetate 41.7 mg/L, NaCl 58.4 mg/L, CaCl2·2 H2O 14.7 mg/L, MgCl2·6H2O 20.3 mg/L, and KCl 7.4 mg/L.

2.2.3. Electrochemical Data Analysis

Partial least squares-discriminant analysis (PLS-DA) [21] was used as the pattern recognition technique for the computation of the classification models applied to determine the predicted probability of the presence of the three targets. The performance of each classification model was evaluated on the basis of the following parameters:
  • Sensitivity (SENS): the percentage of objects of each modelled class correctly accepted by the class model.
  • Specificity (SPEC): the percentage of objects of the other classes correctly rejected by the class model.
  • Efficiency (EFF): the geometric mean of sensitivity and specificity.
Once the optimal model for each target substance selected, the probability of the presence of the different target substances for any new measurement was computed. All data analysis were performed using the PLS Toolbox ver. 7.5 and ver. 7.8.2 (Eigenvector Research Inc., Wenatchee, WA, USA) and all routines were written in MATLAB© platform 7.11 R2010b (The Mathworks Inc., Novi, MI, USA).

2.2.4. Operational Setup

Real condition measurements were carried out with the following operational setup composed of:
  • A multichannel potentiostat (Figure 2A) connected through GSM (Global System for Mobile Communication) to the central control system (using TEKEVER communication tool box [22]).
  • A wetting system fitting the sewage system and in which the eight-electrode array is inserted (Figure 2B). This setup enabled the electrode array to be immersed in flushing water.

3. Results and Discussion

Electrochemical sensors combined with cyclic voltammetry methods generate a specific signal from oxidation and reduction of particular molecules. This signal may also vary with the electrode composition but the differentiation between two chemicals is hardly possible using only one voltammogram. To solve this issue, a signature of several voltammograms obtained on different surfaces, used like a compound “fingerprint”, may drastically increase the result’s specificity. In the present study, an electrochemical chip has been developed with the objective of being able to discriminate between different chemicals.

3.1. Electrodeposition

Modifying the electrode network in an addressed manner was a key step in the present study to generate different measurement surfaces useful for signature determination. Three metals, gold, platinum, and palladium, were chosen for this purpose according to their well-known electrochemical properties and stability as working electrodes [23]. The electrodeposition of each metal was then controlled and optimized in order to obtain a homogenous coverage of the working electrodes (Figure 3A–D.). Each deposition process was validated through the analysis of the I = f(t) curves, but also thanks to scanning electronic microscopy observations.
A more complete characterization of the modified surfaces was also realized using scanning electron microscopy observation coupled with energy dispersive X-ray spectroscopy analysis (Figure 3I–L). The surface roughness was found to be really high, leading to potentially high active areas, a good point when looking at electrochemical signal optimization. Indeed, the higher the specific area, the higher the current per surface unit recorded for one compound. The surfaces’ observations also demonstrated the presence of metallic particles’ multilayers on the working electrode area. The elemental analysis enabled the validation of the full coverage of the surface by the particles, with an extremely low carbon signal coming from the underlying electrode, proof of the total coverage of the surface during the electrodeposition process. That point was also a good characteristic since each electrode will then have a specific signal, only coming from the particular deposited metal, without any mixed multi-material electrochemical signal.

3.2. Signature Definition and Data Analysis

Using the individual signals of the different electrodes for each compound, an approach based on the creation of a unique signature for each target was applied so as to take full advantage of the information provided by the different electrodes on the same sample. To this aim, the signals acquired with the four electrode surfaces were merged together as a unique new signal after a block of data was scaled to unit variance. This approach led to a signature with equal importance of the information provided by the different electrodes. A schematic representation of this approach is shown in Figure 4.
These signatures were acquired to generate an experimental database of target compounds in multiple aqueous environments, such as distilled water, drinking water, non-drinking water, soapy water, and artificial waste water. This approach was used to build a stronger database than just a database produced in pure water and to insert in the model the expected variations related to potential matrix effects.
In addition to the three main target substances (B01, B08, and B15), data were also acquired on additional target substances B04, B05, and B11, and on the interfering species Int09, representative of common cleaning products (once again kept as confidential).
The composition of the dataset used for the calculation of the PLS-DA classification models of target B01, B08, and B15 is reported in Table 1.
For explanatory purpose, the signatures obtained during the training step for each of the three target compounds are presented in Figure 5. Here, for the sake of clarity, are presented only the experiments performed in water, soapy water, and artificial waste water. The peak positions and intensity of each target using each electrode are given in Supplementary Materials Table S1.

3.3. Explosive Precursors’ Detection Using Pattern Recognition

The above mentioned database was then used to compute PLS-DA classification models for the three target compounds. In this context, we performed a more comprehensive evaluation of the effect of several spectra pre-treatment methods in removing the uninformative variation while retaining the most informative one, so as to optimize model performance. To this aim, several PLS-DA models have been calculated for each target, considering the different spectra pre-processing methods listed in Table 2.
The results obtained from this pre-treatment optimization step (data not shown for brevity) have indicated that the highest efficiency values in cross-validation and in prediction were achieved by applying pre-treatment 6: standard normal variate (SNV) followed by auto-scale. The statistical results of the final models are reported in Table 3.
The final classification model performance in discriminating one particular target with respect to signals of the other targets and interfering species is shown in Figure 6. In particular, the predicted values obtained by applying the classification models for targets B01, B08, and B15 are reported in Figure 6A–C, respectively. As can be seen, each of the targets was clearly classified above its predicting threshold and with minimum false negative or positive errors. Indeed, only one false negative and one false positive were observed for B01, while none were observed for the two other targets. Moreover, different target preparations were also tested for B08 and B15, which led to correct classification of the compounds. The classification model and data pre-treatment was then proved to be efficient and robust enough to be tested in realistic conditions using the wetting setup described in Figure 2.

3.4. Realistic Conditions Testing

The final assessment of the capability of the electrochemical sensor to detect improvised explosive precursors directly in sewage drain water from a simulated bomb factory has been performed using the experimental setup described in Figure 2. For this setup, the electrochemical measurement is triggered by the wetting of the electrode array following a flushing of waste water from a sink in which a vessel used for IE preparation has been washed using local tap water. Here, concentrations up to 100 mM of each of the compounds are usually found in water discharge. These experiments were performed during improvised explosive preparation campaigns within the Italian Air Force base in Pratica di Mare (Italy) and the Swedish Defense Research Agency (FOI) facility in Grindsjön (Sweden).
The results obtained are presented in Table 4. The results are given in terms of predicted probability of the presence of each compound, but also in terms of a properly raised alarm (color code). As can be seen, the majority of the tested scenarios was giving correct prediction of the waste water content and enabled the raising of a proper alarm. Only three tests gave false positive results for B08 in the presence of B01, leading to a rising of the alarm for a wrong set on compounds, i.e., B01 + B08 instead of only B01.

4. Conclusions

The developed electrochemical sensor showed a number of key features, including portability, battery stand-alone operability, wireless operability, and possibility to be easily hidden in the sewage system.
At the analytical level, it was successfully trained in the laboratory (data pre-treatment optimization, model prediction training) and tested under relevant environmental conditions, i.e., in the presence of interfering species and other potential targets. Its capability to detect the three target compounds in waste water obtained during improvised explosive preparation has also been demonstrated. It is finally worth mentioning that the electrochemical sensor was also successfully tested, integrated in a network of sensors with an “expert system” providing not only detection at the sensor level, but also data fusion of chemical information provided by the different sensors deployed.

Supplementary Materials

The following are available online at www.mdpi.com/2078-1547/8/1/10/s1, Table S1: Position (potential) and amplitude (current) of the observed peaks for each target on each electrode.

Acknowledgments

This work has been supported by the European Commission Program STREP-FP7-SEC-2010-1-Bomb Factory Detection by Networks of Advanced Sensors grant agreement No. 261685. The authors would like to thank Luigi Cassioli and Silvana Grossi of the Italian Air Force for their support during the tests at the Pratica di Mare (Italy) base and Pedro Santo Antonio from TEKEVER, Obidos (Portugal), for developing the software connecting the sensors of the BONAS network. The authors would also like to thank FOI (Swedish Defence Research Agency) head of research and leading Swedish explosive expert Henrik Östmark.

Author Contributions

Cloé Desmet, Agnes Degiuli, Carlotta Ferrari, and Christophe Marquette conceived and designed the experiments; Cloé Desmet, Agnes Degiuli, and Carlotta Ferrari performed the experiments; Carlotta Ferrari, Loic Blum, and Christophe Marquette analyzed the data; Carlotta Ferrari, Francesco Saverio Romolo, Cloé Desmet and Christophe Marquette wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Regulation (EU) No 98/2013 of the European Parliament and of the Council of 15 January 2013 on the Marketing and Use of Explosives Precursors Text with EEA Relevance. Available online: http://eur-lex.europa.eu/legal-content/EN/TXT/?uri=uriserv:OJ.L_.2013.039.01.0001.01.ENG (accessed on 11 Octorber 2013).
  2. King, J.D.; de los Santos, A. Development and evaluation of magnetic resonance technologies, particularly NMR, for detection of explosives. Appl. Magn. Reson. 2004, 25, 535–565. [Google Scholar] [CrossRef]
  3. Barras, J.; Gaskell, M.J.; Hunt, N.; Jenkinson, R.I.; Mann, K.R.; Pedder, D.A.G.; Shilstone, G.N.; Smith, J.A.S. Detection of ammonium nitrate inside vehicles by nuclear quadrupole resonance. Appl. Magn. Reson. 2004, 25, 411–437. [Google Scholar] [CrossRef]
  4. Moros, J.; Lorenzo, J.A.; Lucena, P.; Tobaria, L.M.; Laserna, J.J. Simultaneous raman spectroscopy-laser-induced breakdown spectroscopy for instant standoff analysis of explosives using a mobile integrated sensor platform. Anal. Chem. 2010, 82, 1389–1400. [Google Scholar] [CrossRef] [PubMed]
  5. Ramírez, M.L.; Félix-Rivera, H.; Sánchez-Cuprill, R.A.; Hernández-Rivera, S.P. Thermal-spectroscopic characterization of acetone peroxide and acetone peroxide mixtures with nitrocompounds. J. Therm. Anal. Calorim. 2010, 102, 549–555. [Google Scholar] [CrossRef]
  6. Cheng, S.; Dou, J.; Wang, W.; Chen, C.; Hua, L.; Zhou, Q.; Hou, K.; Li, J.; Li, H. Dopant-assisted negative photoionization ion mobility spectrometry for sensitive detection of explosives. Anal. Chem. 2012, 85, 319–326. [Google Scholar] [CrossRef] [PubMed]
  7. Östmark, H.; Nordberg, M.; Carlsson, T.E. Stand-off detection of explosives particles by multispectral imaging Raman spectroscopy. Appl. Opt. 2011, 50, 5592–5599. [Google Scholar] [CrossRef] [PubMed]
  8. Johns, C.; Shellie, R.A.; Potter, O.G.; O’Reilly, J.W.; Hutchinson, J.P.; Guijt, R.M.; Breadmore, M.C.; Hilder, E.F.; Dicinoski, G.W.; Haddad, P.R. Identification of homemade inorganic explosives by ion chromatographic analysis of post-blast residues. J. Chromatogr. 2008, 1182, 205–214. [Google Scholar]
  9. Hopper, K.G.; LeClair, H.; McCord, B.R. A novel method for analysis of explosives residue by simultaneous detection of anions and cations via capillary zone electrophoresis. Talanta 2005, 67, 304–312. [Google Scholar] [CrossRef] [PubMed]
  10. Hakonen, A.; Andersson, P.O.; Schmidt, M.S.; Rindzevicius, T.; Käll, M. Explosive and chemical threat detection by surface-enhanced Raman scattering: A review. Anal. Chim. Acta 2015, 893, 1–13. [Google Scholar] [CrossRef] [PubMed]
  11. Apodaca, C.D.; Pernites, R.B.; del Mundo, F.R.; Advincula, R.C. Detection of 2,4-dinitrotoluene (DNT) as a model system for nitroaromatic compounds via molecularly imprinted short-alkyl-chain SAMs. Langmuir 2011, 27, 6768–6779. [Google Scholar] [CrossRef] [PubMed]
  12. Wang, J. Microchip devices for detecting terrorist weapons. Anal. Chim. Acta 2004, 507, 3–10. [Google Scholar] [CrossRef]
  13. Singh, S. Sensors—An effective approach for the detection of explosives. J. Hazard. Mater. 2007, 144, 15–28. [Google Scholar] [CrossRef] [PubMed]
  14. Liu, J.; Li, Y.; Huang, X.; Zhu, Z. Tin oxide nanorod array-based electrochemical hydrogen peroxide biosensor. Nanoscale Res. Lett. 2010, 5, 1177–1181. [Google Scholar] [CrossRef] [PubMed]
  15. Bromberg, A.; Mathies, R.A. Homogeneous immunoassay for detection of TNT and its analogues on a microfabricated capillary electrophoresis chip. Anal. Chem. 2003, 75, 1188–1195. [Google Scholar] [CrossRef] [PubMed]
  16. Charles, P.T.; Adams, A.A.; Howell, P.B.; Trammell, S.A.; Deschamps, J.R.; Kusterbeck, A.W. Fluorescence-based sensing of 2,4,6-trinitrotoluene (TNT) using a multi-channeled poly(methyl methacrylate) (PMMA) microimmunosensor. Sensors 2010, 10, 876–889. [Google Scholar] [CrossRef] [PubMed]
  17. Wang, J. Electrochemical sensing of explosives. Electroanalysis 2007, 19, 415–423. [Google Scholar] [CrossRef]
  18. Chen, W.; Cai, S.; Ren, Q.; Wen, W.; Zhao, Y. Recent advances in electrochemical sensing for hydrogen peroxide: A review. Analyst 2012, 137, 49–58. [Google Scholar] [CrossRef] [PubMed]
  19. Yang, Q.; Liang, Y.; Zhou, T.; Shi, G.; Jin, L. TNT determination based on its degradation by immobilized HRP with electrochemical sensor. Electrochem. Commun. 2008, 10, 1176–1179. [Google Scholar] [CrossRef]
  20. Corgier, B.P.; Li, F.; Blum, L.J.; A, C. On-chip chemiluminescent signal enhancement using nanostructured gold-modified carbon microarrays. Langmuir 2007, 23, 8619–8623. [Google Scholar] [CrossRef] [PubMed]
  21. Barker, M.; Rayens, W.S. Partial least squares for discrimination. J. Chemom. 2003, 17, 166–173. [Google Scholar] [CrossRef]
  22. Ferrari, C.; Ulrici, A.; Romolo, F. Expert system for bomb factory detection by networks of advance sensors. Challenges 2017, 8, 1. [Google Scholar] [CrossRef]
  23. Chandler, G.K.; Genders, J.D.; Pletcher, D. Electrodes based on noble metals. Platin. Met. Rev. 1997, 41, 54–63. [Google Scholar]

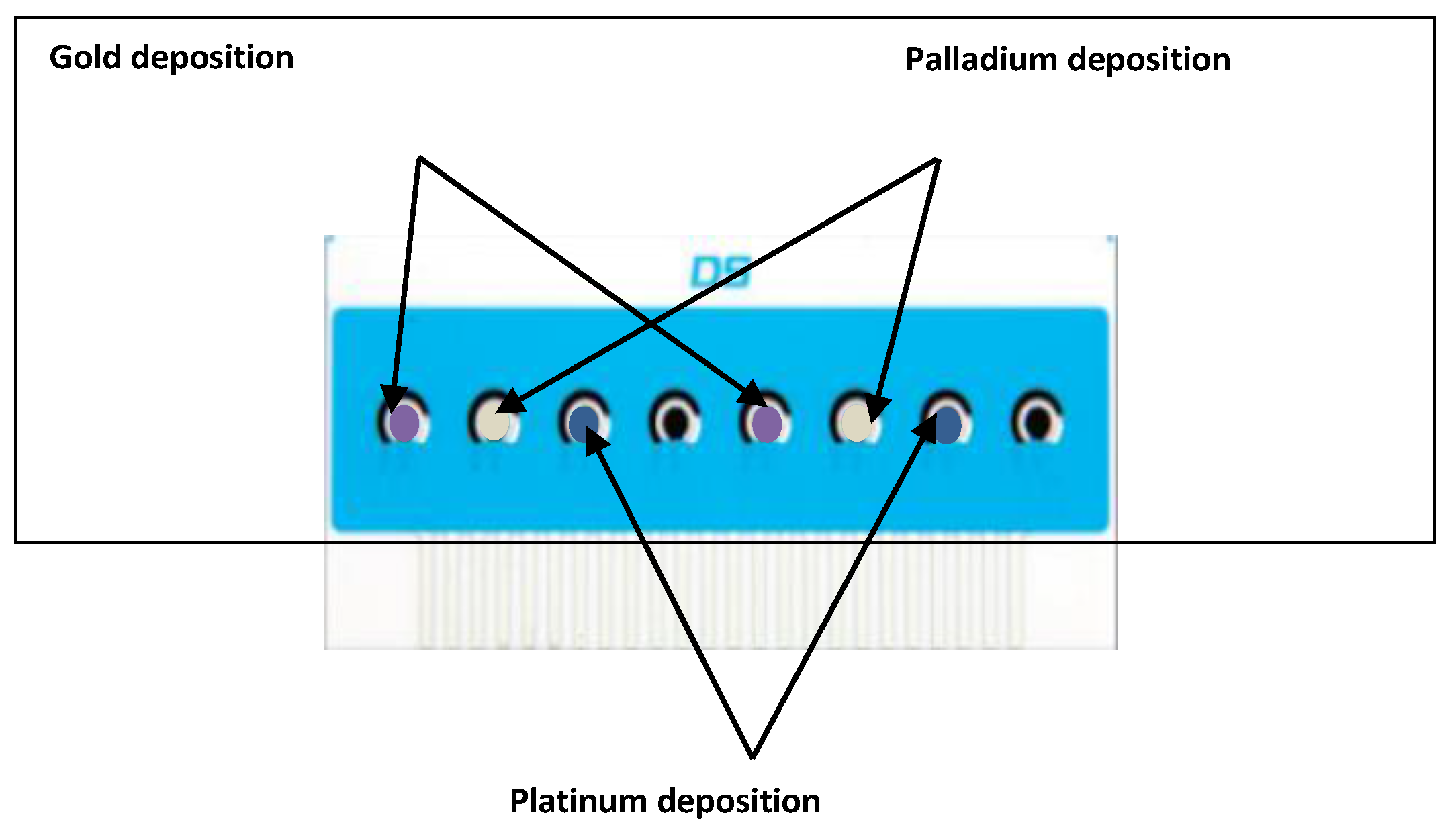

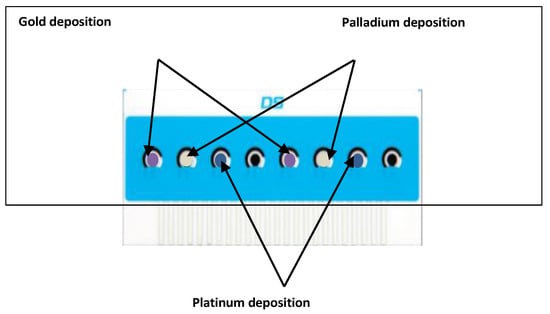

Figure 1. The eight-electrode chip with its metal deposition, which will lead to the acquisition of an electrochemical signature.
Figure 1. The eight-electrode chip with its metal deposition, which will lead to the acquisition of an electrochemical signature.
Challenges 08 00010 g001

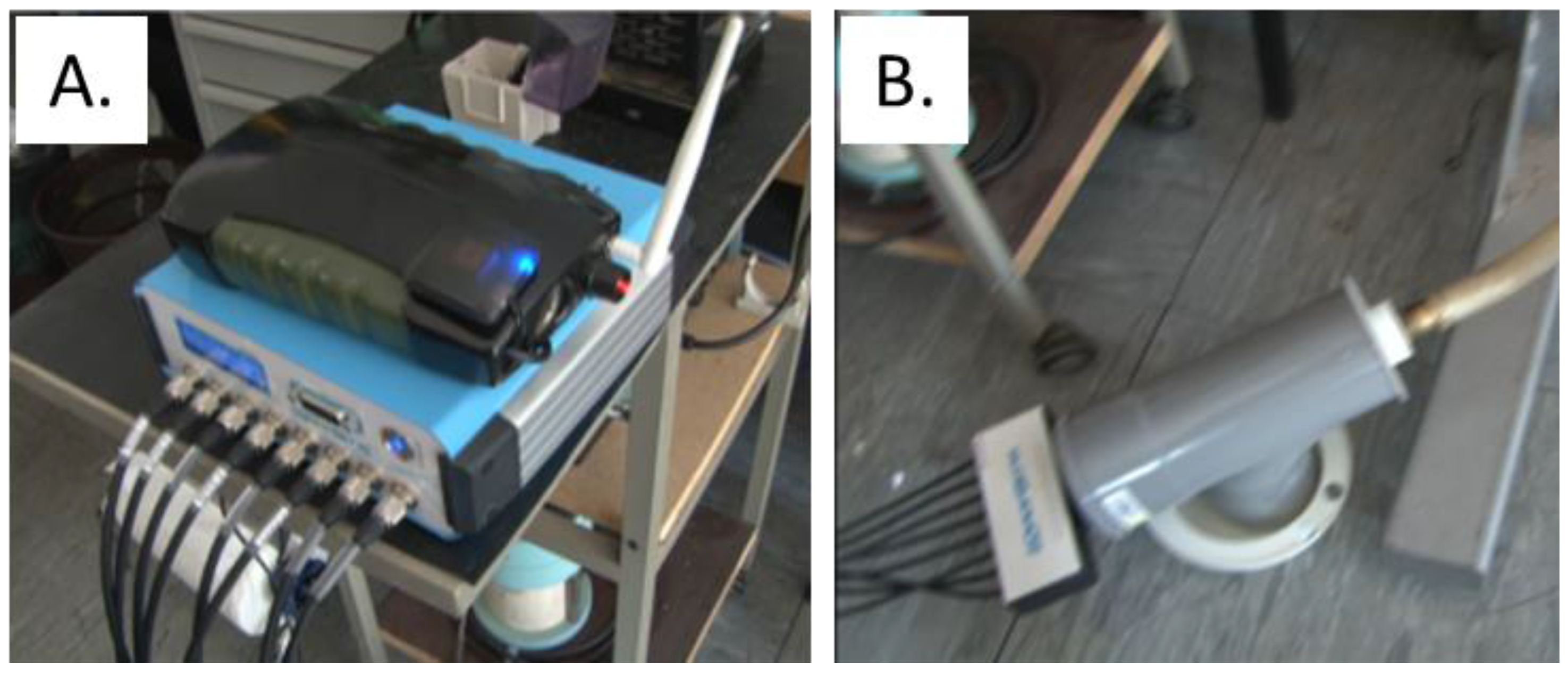

Figure 2. Views of the operational electrochemical setup composed by the multichannel potentiostat (A) and a wetting system (B).
Figure 2. Views of the operational electrochemical setup composed by the multichannel potentiostat (A) and a wetting system (B).
Challenges 08 00010 g002
Figure 3. Optical microscopy images of (A) palladium; (B) platinum; (C) gold; and (D) bare carbon electrodes. SEM observation of the surface of (E) palladium; (F) platinum; (G) gold; and (H) bare carbon electrodes. Bottom: EDX analysis of the surfaces (IL).
Figure 3. Optical microscopy images of (A) palladium; (B) platinum; (C) gold; and (D) bare carbon electrodes. SEM observation of the surface of (E) palladium; (F) platinum; (G) gold; and (H) bare carbon electrodes. Bottom: EDX analysis of the surfaces (IL).
Challenges 08 00010 g003

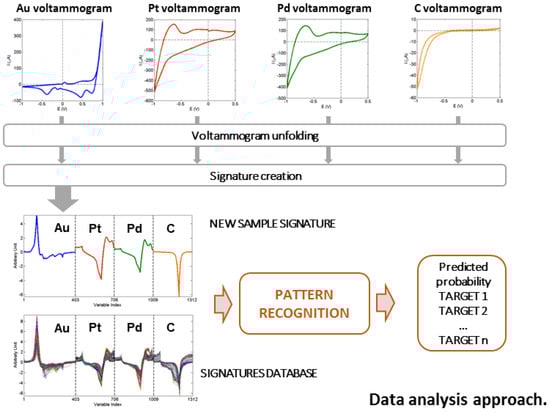

Figure 4. Electrochemical data analysis approach. From each set of four voltammograms obtained from the four different electrodes, voltammograms were unfolded, auto-scaled, and merged to generate a unique signature.
Figure 4. Electrochemical data analysis approach. From each set of four voltammograms obtained from the four different electrodes, voltammograms were unfolded, auto-scaled, and merged to generate a unique signature.
Challenges 08 00010 g004

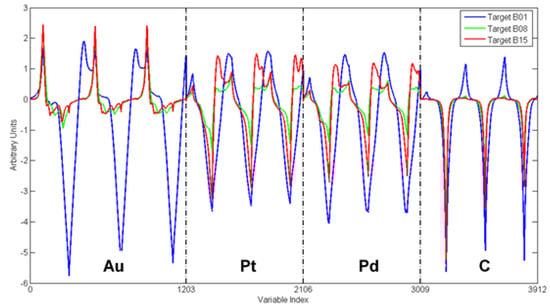

Figure 5. Signatures obtained during the training step for the three target compounds. Measurements presented here were performed in water, soapy water, and artificial waste water.
Figure 5. Signatures obtained during the training step for the three target compounds. Measurements presented here were performed in water, soapy water, and artificial waste water.
Challenges 08 00010 g005

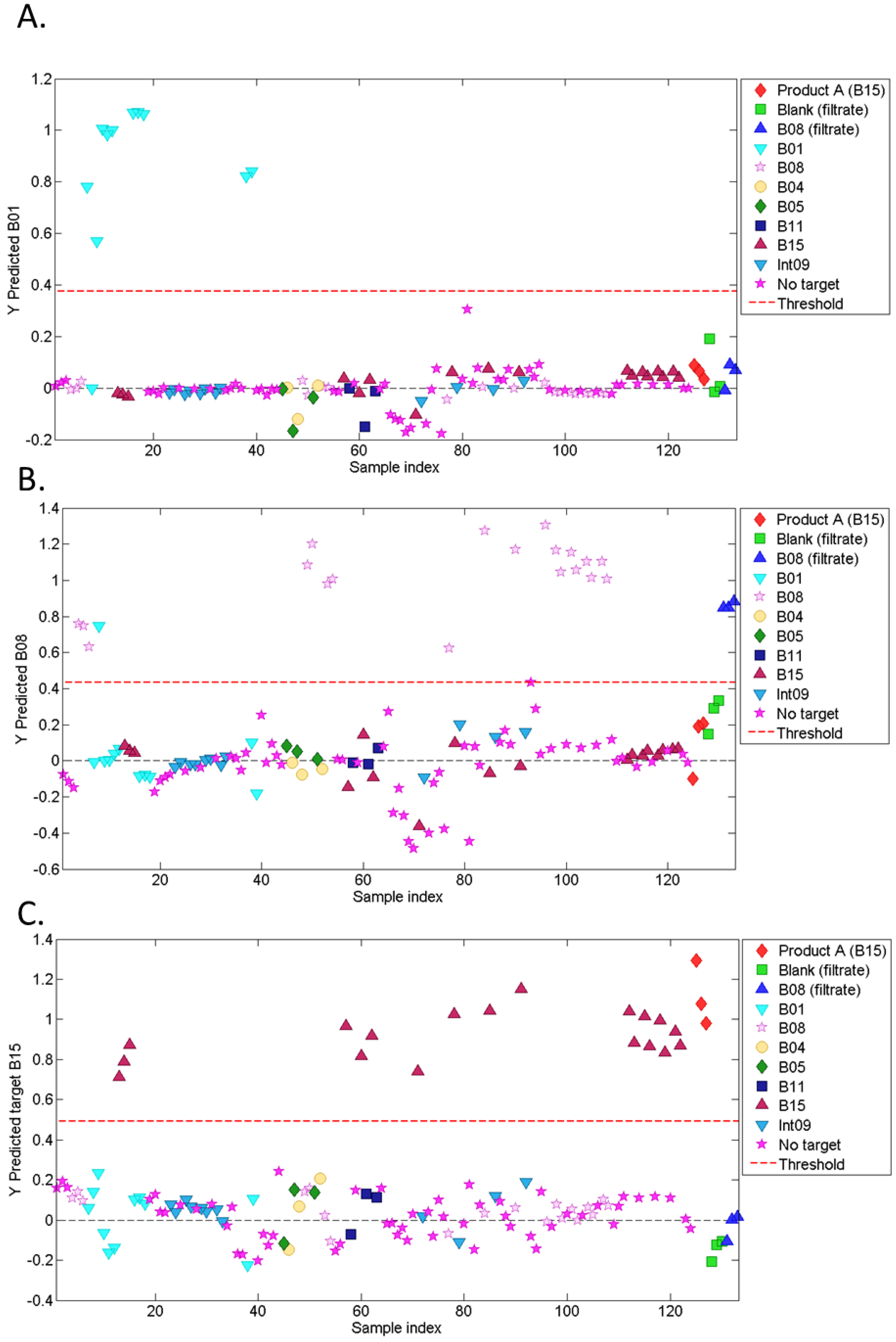

Figure 6. Predicted values obtained by applying on the test set the classification model for target B01 (A); target B08 (B); and target B15 (C).
Figure 6. Predicted values obtained by applying on the test set the classification model for target B01 (A); target B08 (B); and target B15 (C).
Challenges 08 00010 g006
Table 1. Composition of the training and test sets used to compute and validate the classification models of the EC sensor.
Table 1. Composition of the training and test sets used to compute and validate the classification models of the EC sensor.
TargetClassNumber of Spectra for TrainingNumber of Spectra for TestTotal Number of Spectra
B01Target251136
No Target187122309
B08Target332255
No Target179111290
B15Target332154
No Target179112291
Table 2. The evaluated data pre-treatment.
Table 2. The evaluated data pre-treatment.
PLS-DA CycleSpectra Pre-Treatment Method
1None
2Mean centre (MC)
3Auto-scale (Auto)
4Standard normal variate (SNV)
5Standard normal variate (SNV) + MC
6Standard normal variate (SNV) + Auto
Table 3. Results of the classification models calculated on the final electrochemical database (i.e., pre-treatment 6).
Table 3. Results of the classification models calculated on the final electrochemical database (i.e., pre-treatment 6).
TargetEfficiency (%)
Cal. (Calibration)CV (Cross-Validation)Pred. (Prediction)
B01100.00100.0095.34
B08100.0092.1599.55
B15100.0097.65100.00
Table 4. Results obtained using realistic testing conditions. The green box indicates a correct classification for alarm triggering of the system. A red box indicates a false positive alarm. An orange box indicates an unclear classification resulting in a low confidence alarm.
Table 4. Results obtained using realistic testing conditions. The green box indicates a correct classification for alarm triggering of the system. A red box indicates a false positive alarm. An orange box indicates an unclear classification resulting in a low confidence alarm.
Test NumberTargetPredicted Probability (%)
B01B08B15
1B150.000.00100.00
B01100.000.000.00
2B080.0093.840.00
3B01100.00100.000.00
4B150.000.00100.00
5B01100.0092.440.00
6B150.000.00100.00
7Blank0.000.310.00
8Blank0.000.310.00
9B150.000.00100.00
10B0828.3599.880.00
11Blank0.000.160.00
12B150.000.00100.00
13B01100.00100.000.00
14Blank0.000.660.82
15B080.0099.660.00
16Blank0.000.670.00
17B080.0093.100.00
18B080.0093.840.00
19Blank0.000.310.00
