Open AccessArticle
Agriculture 2017, 7(11), 92; doi:10.3390/agriculture7110092

A Study of the Lateral Stability of Self-Propelled Fruit Harvesters

1
CREA Research Centre for Engineering and Agro-Food Processingvia Milano 43, 24047 Treviglio, Italy
2
Politecnico di Milano Department of Mechanical Engineering, via La Masa 1, 20156 Milan, Italy
3
National Research Council (CNR) of Italy, Institute for Agricultural and Earthmoving Machines (IMAMOTER), Strada delle Cacce, 73, 10135 Torino, Italy
4
INAIL, Dipartimento Innovazioni Tecnologiche e Sicurezza degli Impianti, Prodotti e Insediamenti Antropici (DITSIPIA), P.le Pastore 6, 00144 Rome, Italy
*
Author to whom correspondence should be addressed.
Received: 31 August 2017 / Revised: 25 October 2017 / Accepted: 30 October 2017 / Published: 1 November 2017
View Full-Text   |   Download PDF [1911 KB, uploaded 1 November 2017]   |

Abstract

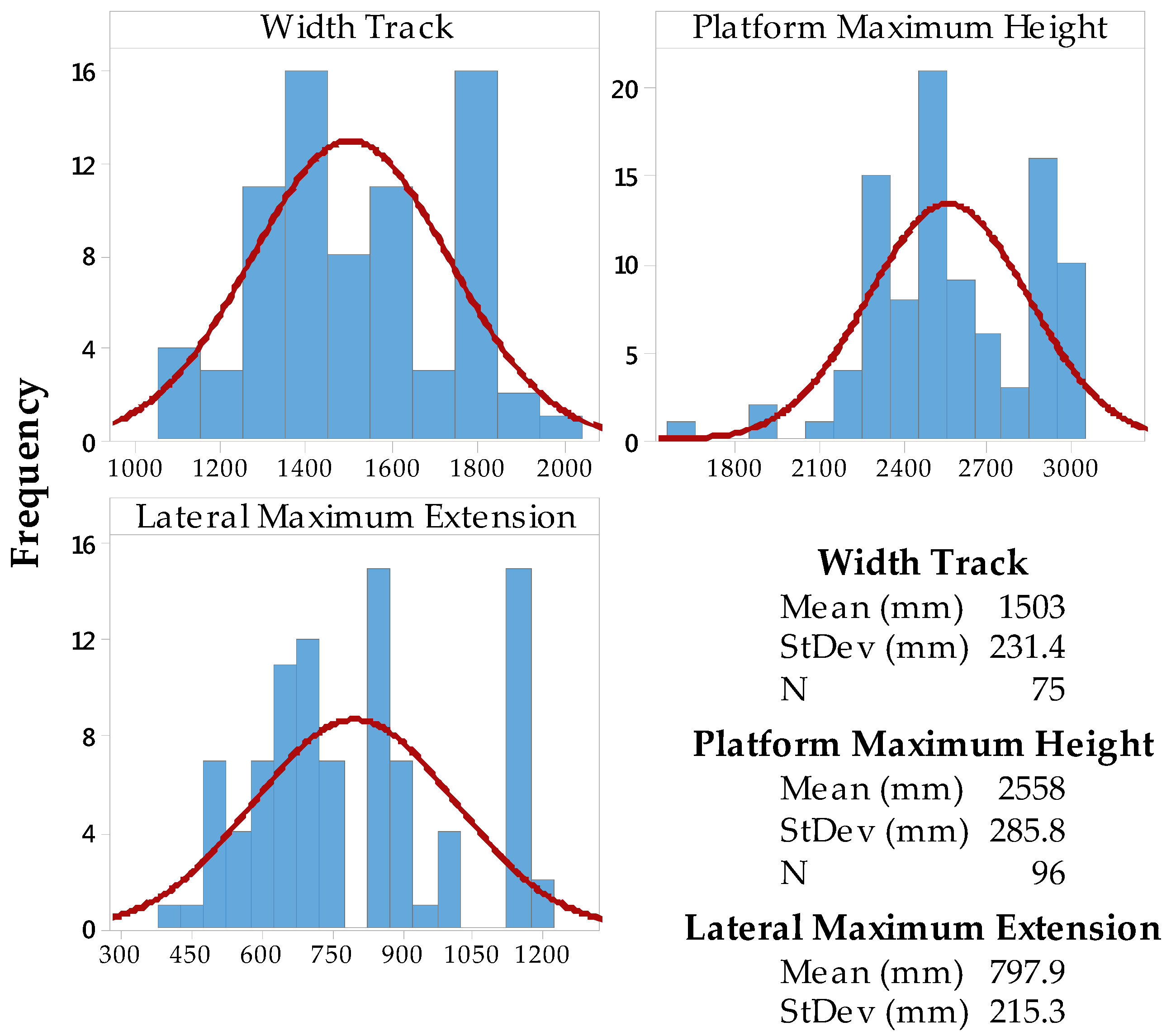

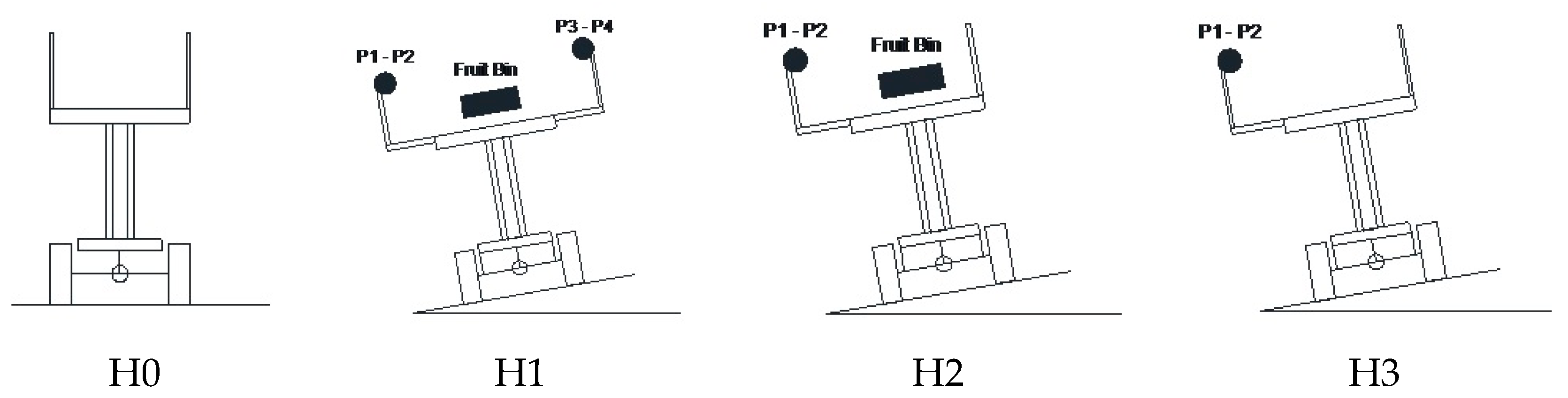

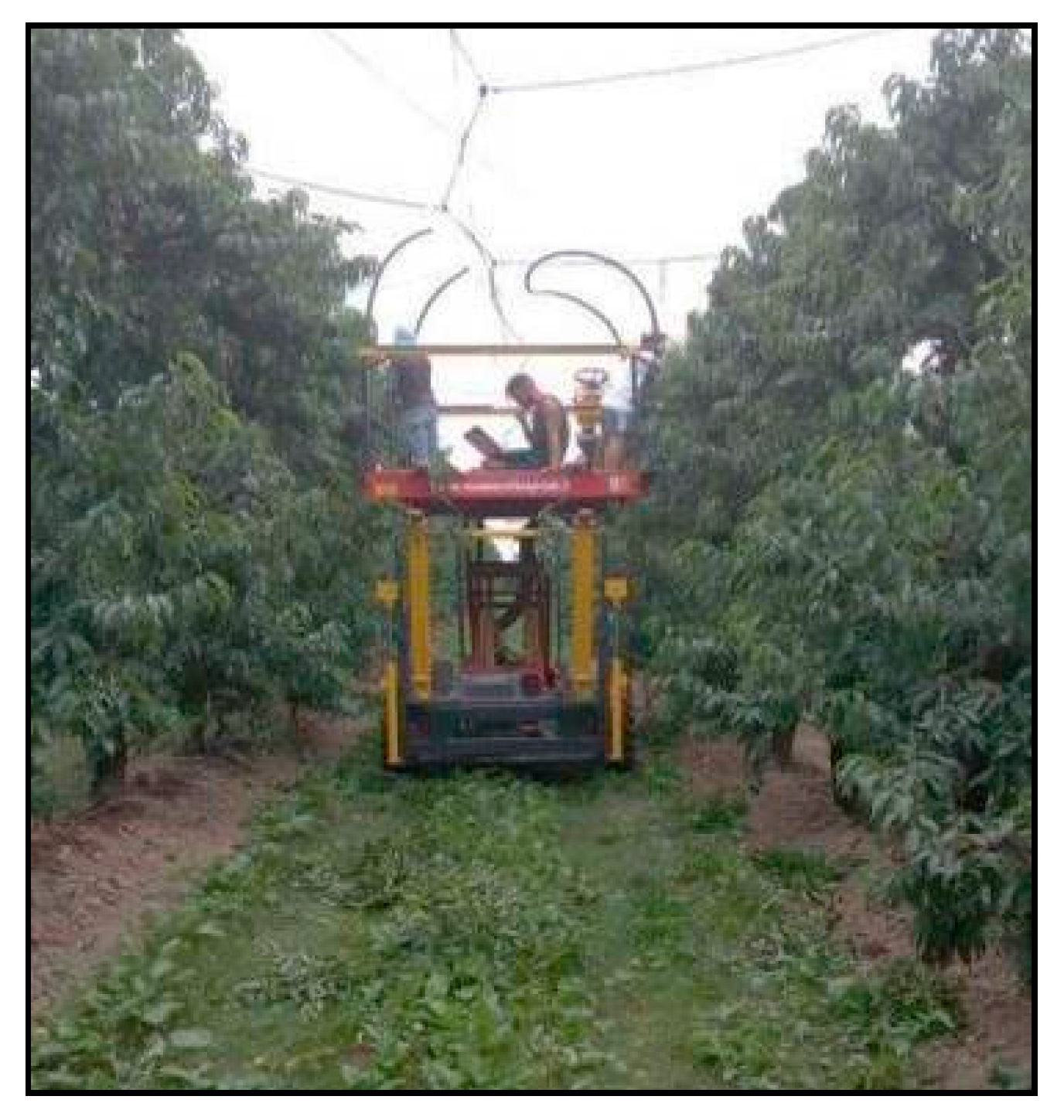

Self-propelled fruit harvesters (SPFHs) are agricultural machines designed to facilitate fruit picking and other tasks requiring operators to stay close to the foliage or to the upper part of the canopy. They generally consist of a chassis with a variable height working platform that can be equipped with lateral extending platforms. The positioning of additional masses (operators, fruit bins) and the maximum height of the platform (up to three meters above the ground) strongly affect machine stability. Since there are no specific studies on the lateral stability of SPFHs, this study aimed to develop a specific test procedure to fill this gap. A survey of the Italian market found 20 firms manufacturing 110 different models of vehicles. Observation and monitoring of SPFHs under real operational conditions revealed the variables mostly likely to affect lateral stability: the position and mass of the operators and the fruit bin on the platform. Two SPFHs were tested in the laboratory to determine their centre of gravity and lateral stability in four different settings reproducing operational conditions. The test setting was found to affect the stability angle. Lastly, the study identified two specific settings reproducing real operational conditions most likely to affect the lateral stability of SPFHs: these should be used as standard, reproducible settings to enable a comparison of results. View Full-Text
Keywords: safety; tiltable platform; rollover angle; agriculture safety; tiltable platform; rollover angle; agriculture
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
