Membranes 2018, 8(3), 67; https://doi.org/10.3390/membranes8030067

Chemical Crosslinking of 6FDA-ODA and 6FDA-ODA:DABA for Improved CO2/CH4 Separation

1
Department of Inorganic Technology, University of Chemistry and Technology Prague, Technická 5, 166 28 Prague 6, Czech Republic
2
École Nationale Supérieure des Industries Chimique, 1 Rue Grandville—BP 20451, 54001 Nancy, France
*
Authors to whom correspondence should be addressed.
Received: 2 August 2018 / Revised: 16 August 2018 / Accepted: 18 August 2018 / Published: 20 August 2018
Full-Text   |   PDF [4505 KB, uploaded 20 August 2018]   |

Abstract

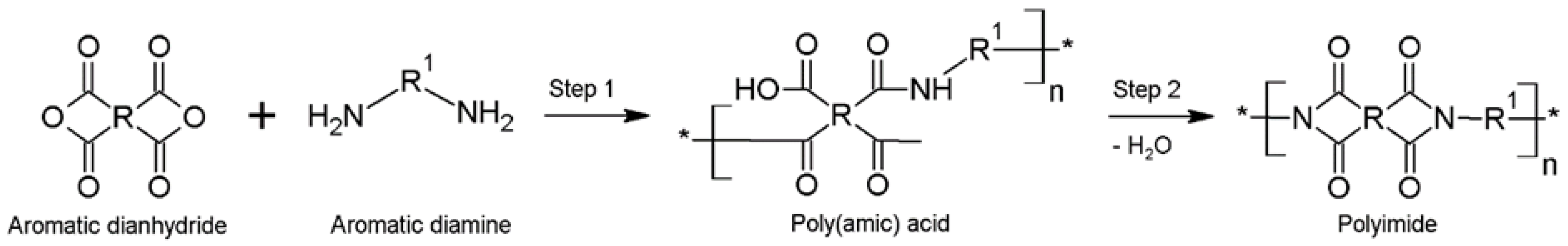

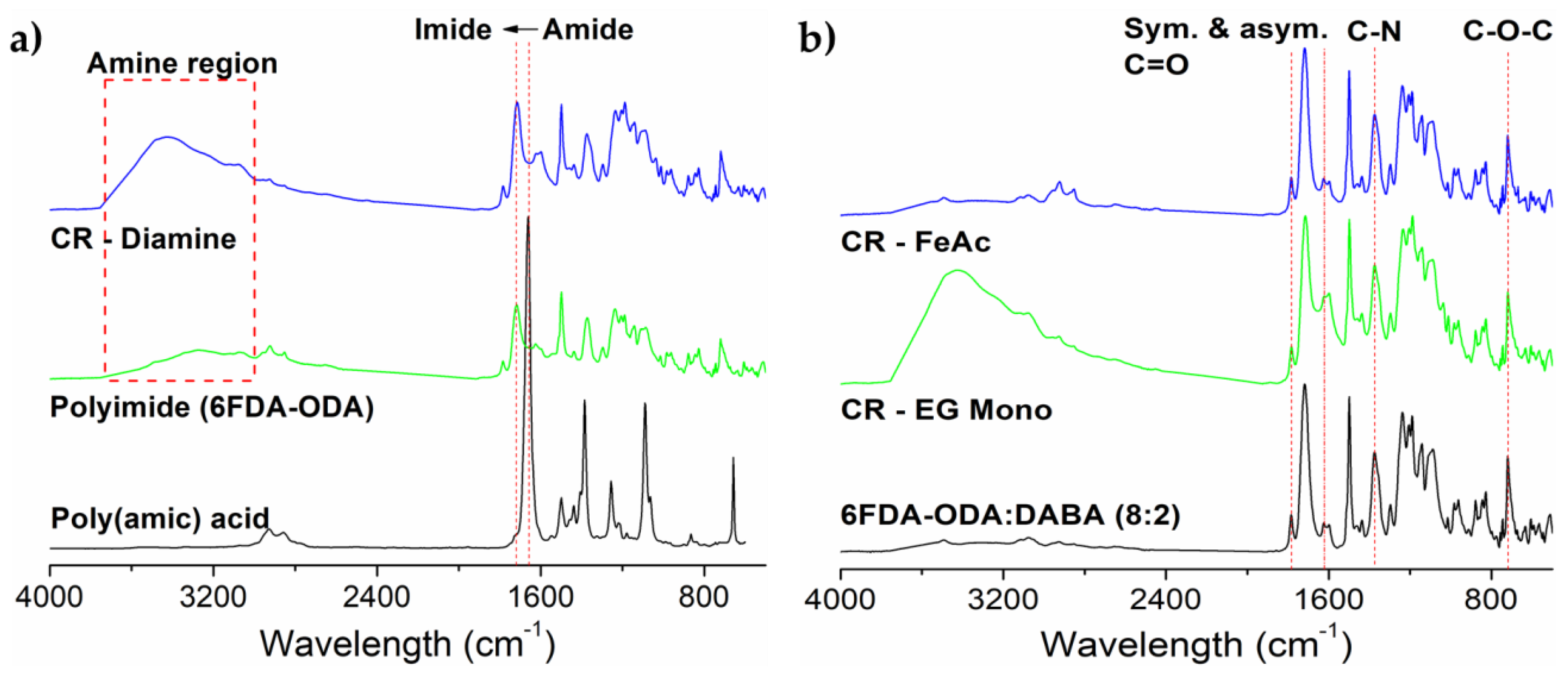

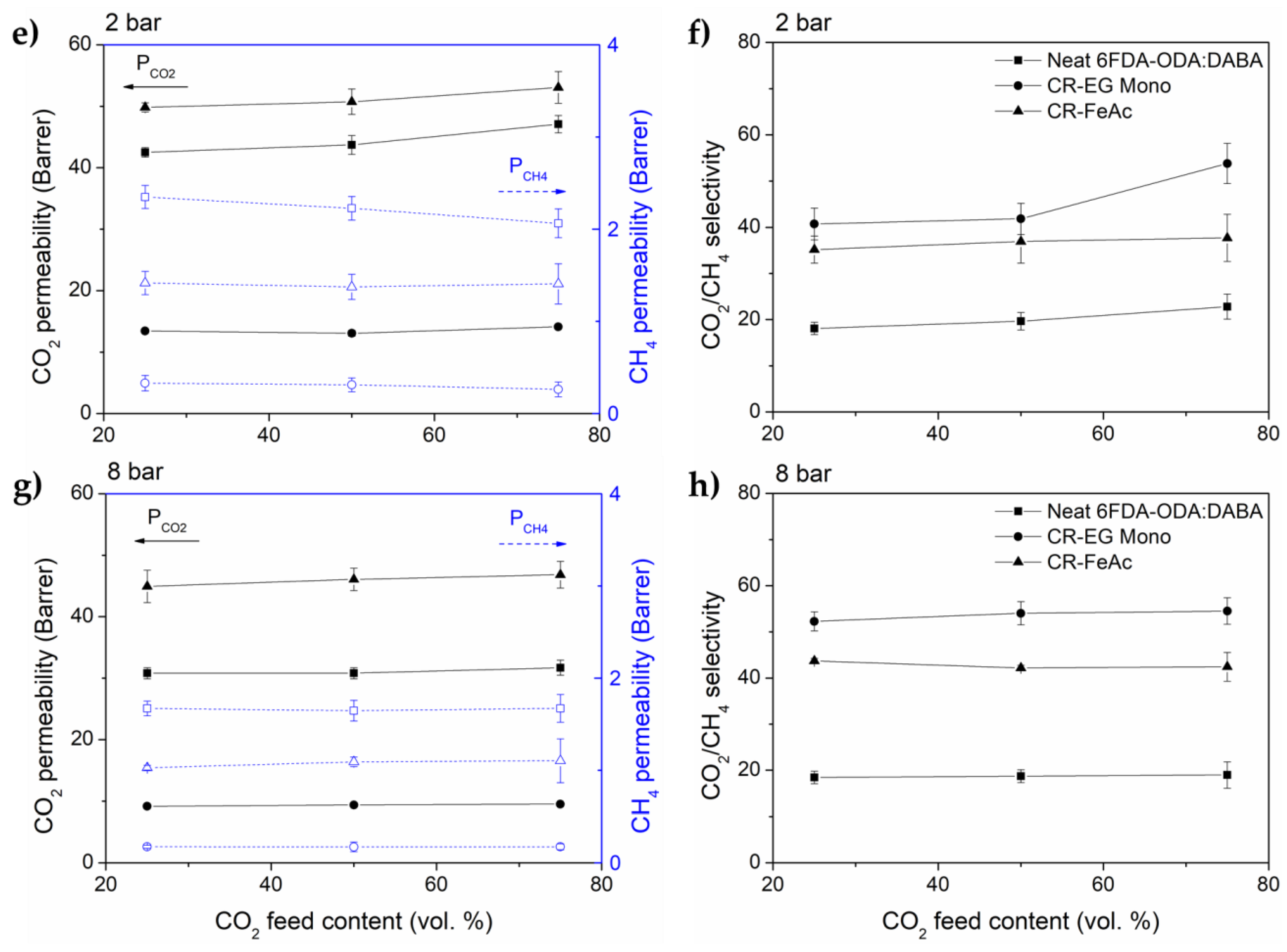

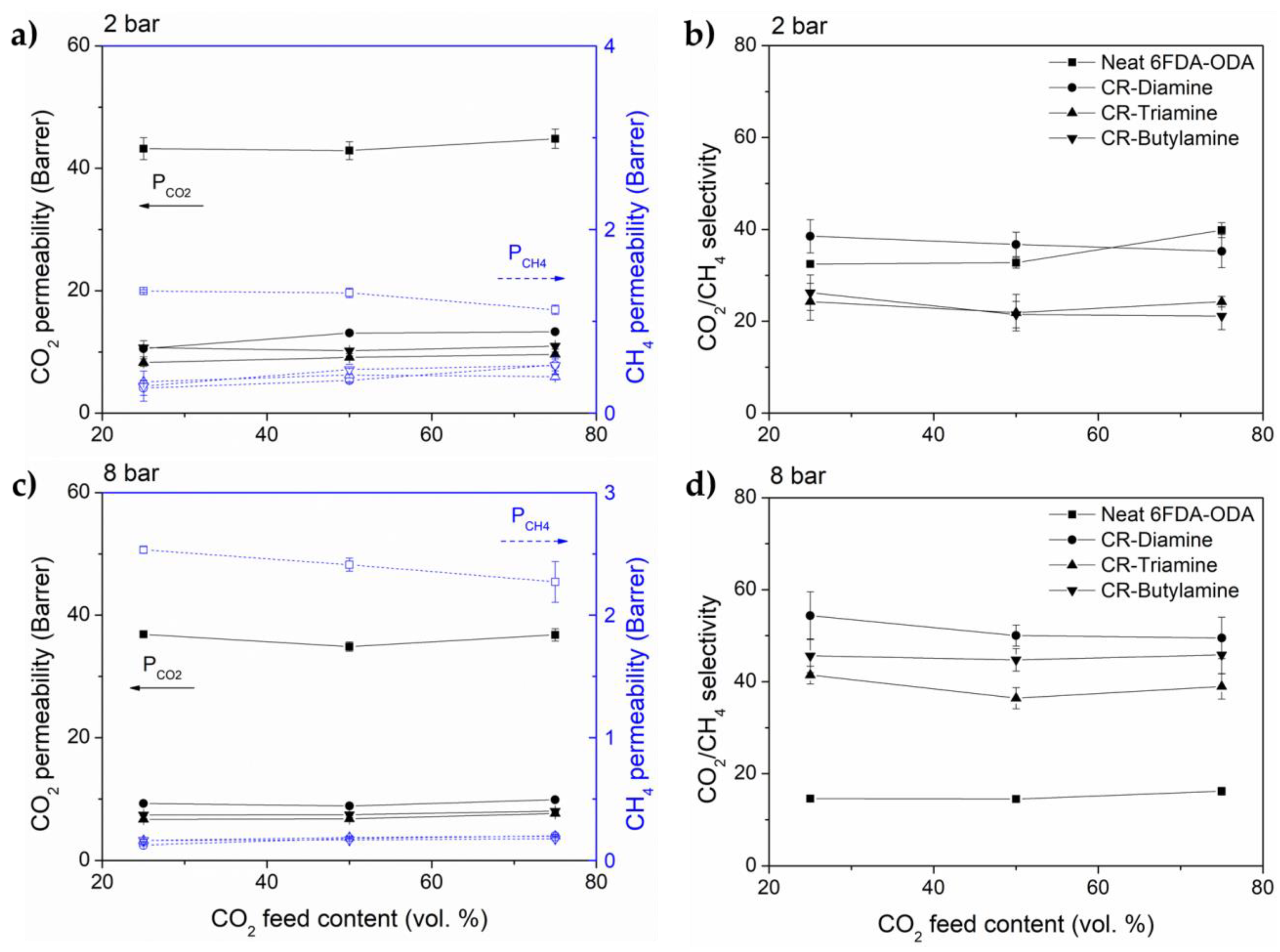

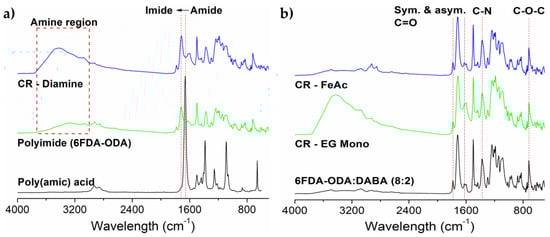

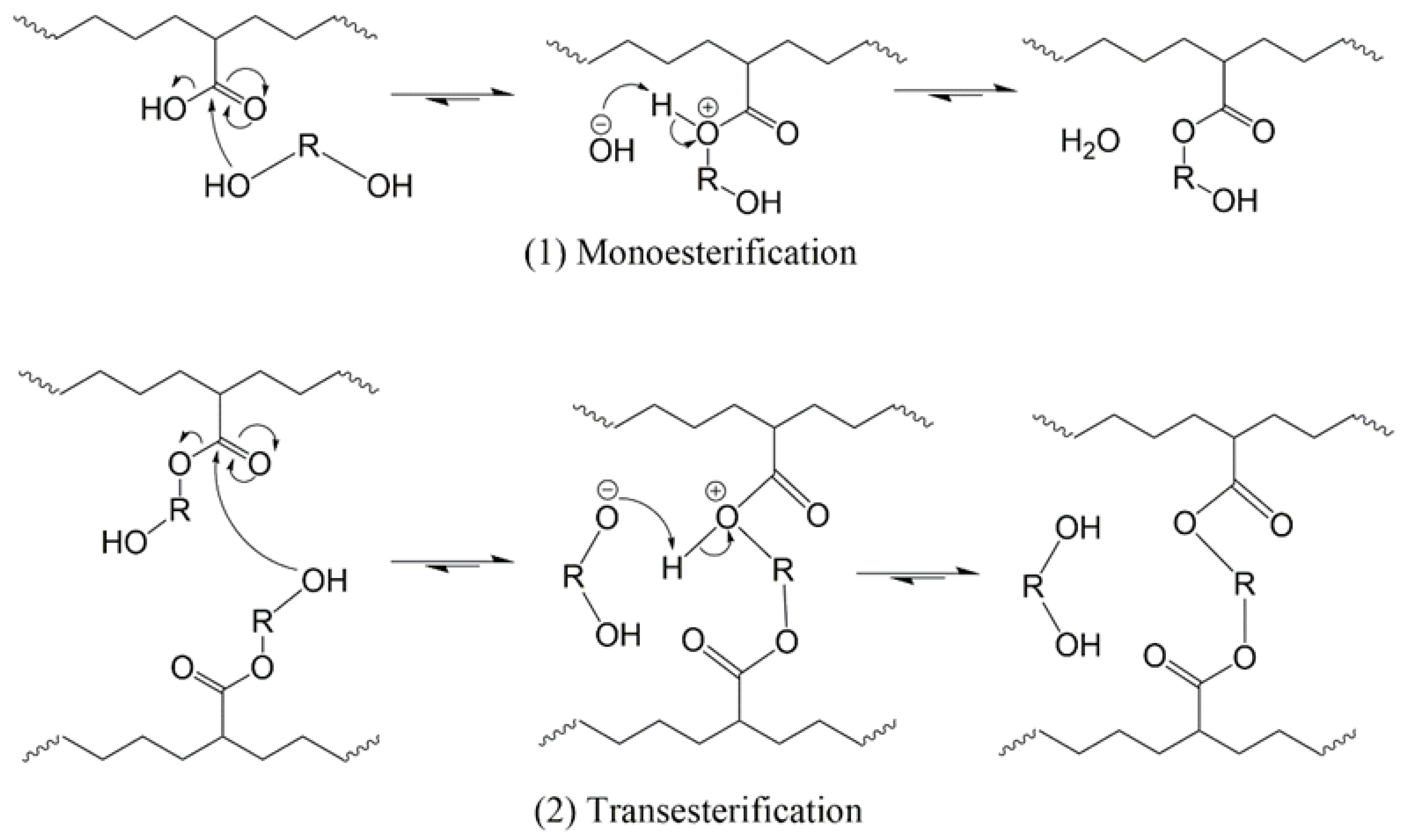

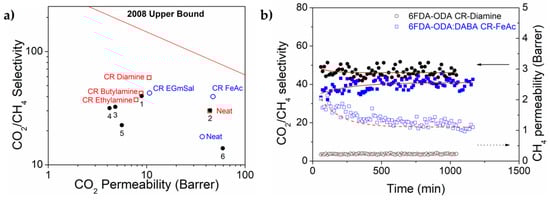

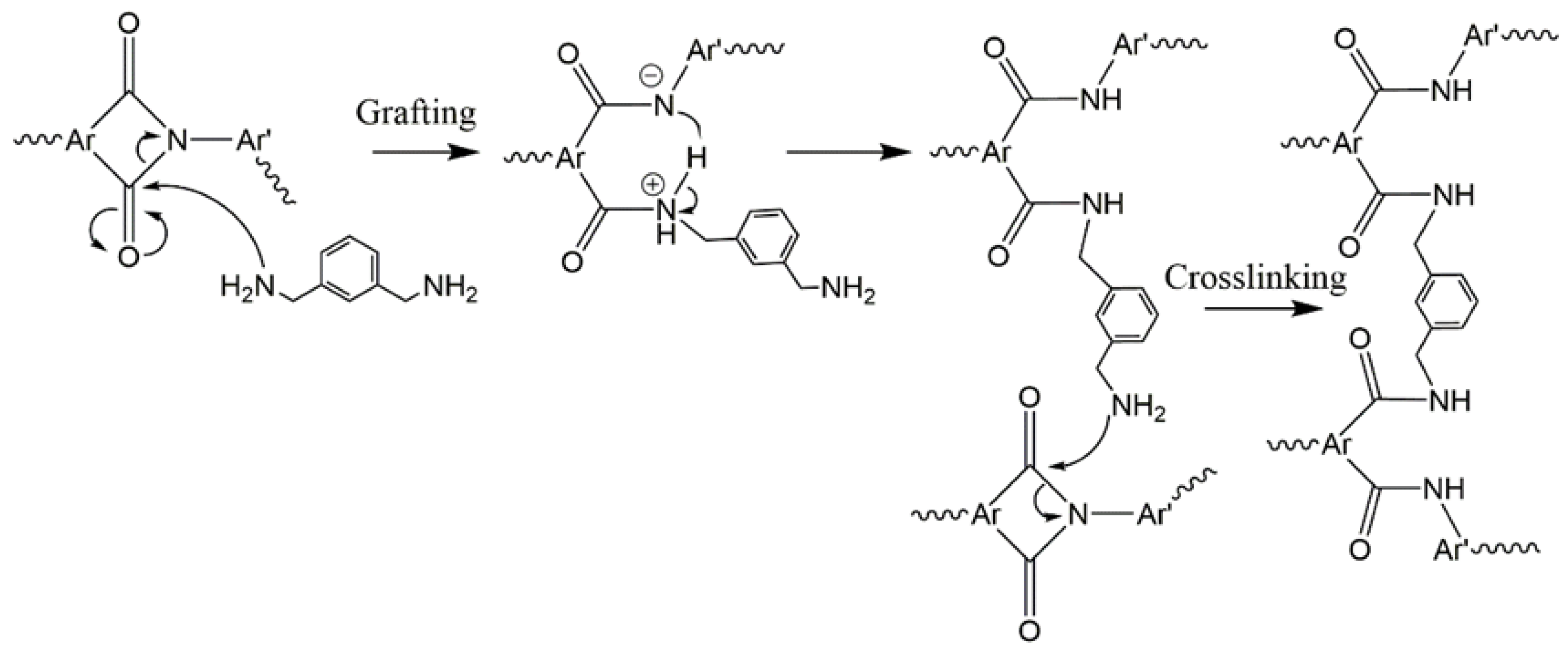

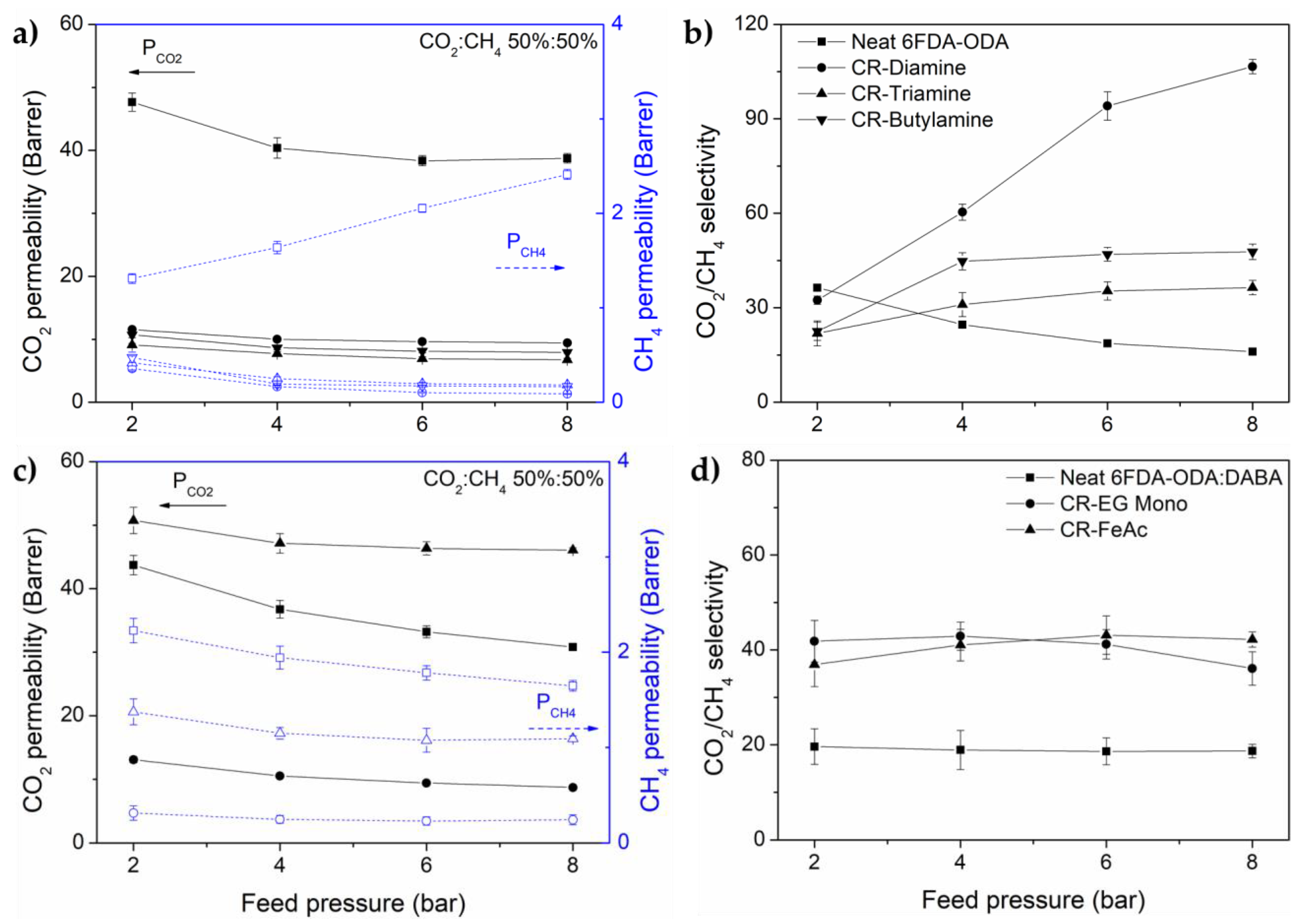

Chemical grafting or crosslinking of polyimide chains are known to be feasible approaches to increase polymer gas-pair selectivity and specific gas permeance. Different co-polyimides; 6FDA-ODA and 6FDA-ODA:DABA were synthesized using a two-step condensation method. Six different cross-linkers were used: (i) m-xylylene diamine; (ii) n-ethylamine; and (iii) n-butylamine, by reacting with 6FDA-ODA’s imide groups in a solid state crosslinking; while (iv) ethylene glycol monosalicylate (EGmSal); (v) ethylene glycol anhydrous (EGAn); and (vi) thermally labile iron (III) acetylacetonate (FeAc), by reacting with DABA carboxyl groups in 6FDA-ODA:DABA. The gas separation performances were evaluated by feeding an equimolar CO2 and CH4 binary mixture, at a constant feed pressure of 5 bar, at 25 °C. Fractional free volume (FFV) was calculated using Bondi’s contribution method by considering the membrane solid density property, measured by pycnometer. Other characterization techniques: thermal gravimetric analysis (TGA), differential scanning calorimetry (DSC), scanning electron microscopy (SEM), Fourier transform infrared spectroscopy (FTIR) were performed accordingly. Depending on the type of amine, the CO2/CH4 selectivity of 6FDA-ODA increased between 25 to 100% at the expense of CO2 permeance. We observed the similar trend for 6FDA-ODA:DABA EGmSal-crosslinked with 143% selectivity enhancement. FeAc-crosslinked membranes showed an increment in both selectivity and CO2 permeability by 126% and 29% respectively. Interestingly, FeAc acted as both cross-linker which reduces chain mobility; consequently improving the selectivity and as micro-pore former; thus increases the gas permeability. The separation stability was further evaluated using 25–75% CO2 in the feed with CH4 as the remaining, between 2 and 8 bar at 25 °C. We also observed no CO2-induced plasticization to the measured pressure with high CO2 content (max. 75%). View Full-Text
Keywords: gas separation; polyimide; grafting; chemical crosslinking; plasticization resistance gas separation; polyimide; grafting; chemical crosslinking; plasticization resistance
Figures

Figure 1
