Open AccessReview
Appl. Sci. 2018, 8(9), 1544; https://doi.org/10.3390/app8091544

Practical Guide to Ultrasound Beam Forming: Beam Pattern and Image Reconstruction Analysis

Department of Information Engineering and Computer Science, University of Trento, 38123 Trento, Italy
Received: 9 August 2018 / Revised: 31 August 2018 / Accepted: 1 September 2018 / Published: 3 September 2018
(This article belongs to the Special Issue Ultrasound B-mode Imaging: Beamforming and Image Formation Techniques)
Full-Text   |   PDF [1434 KB, uploaded 4 September 2018]   |

Abstract

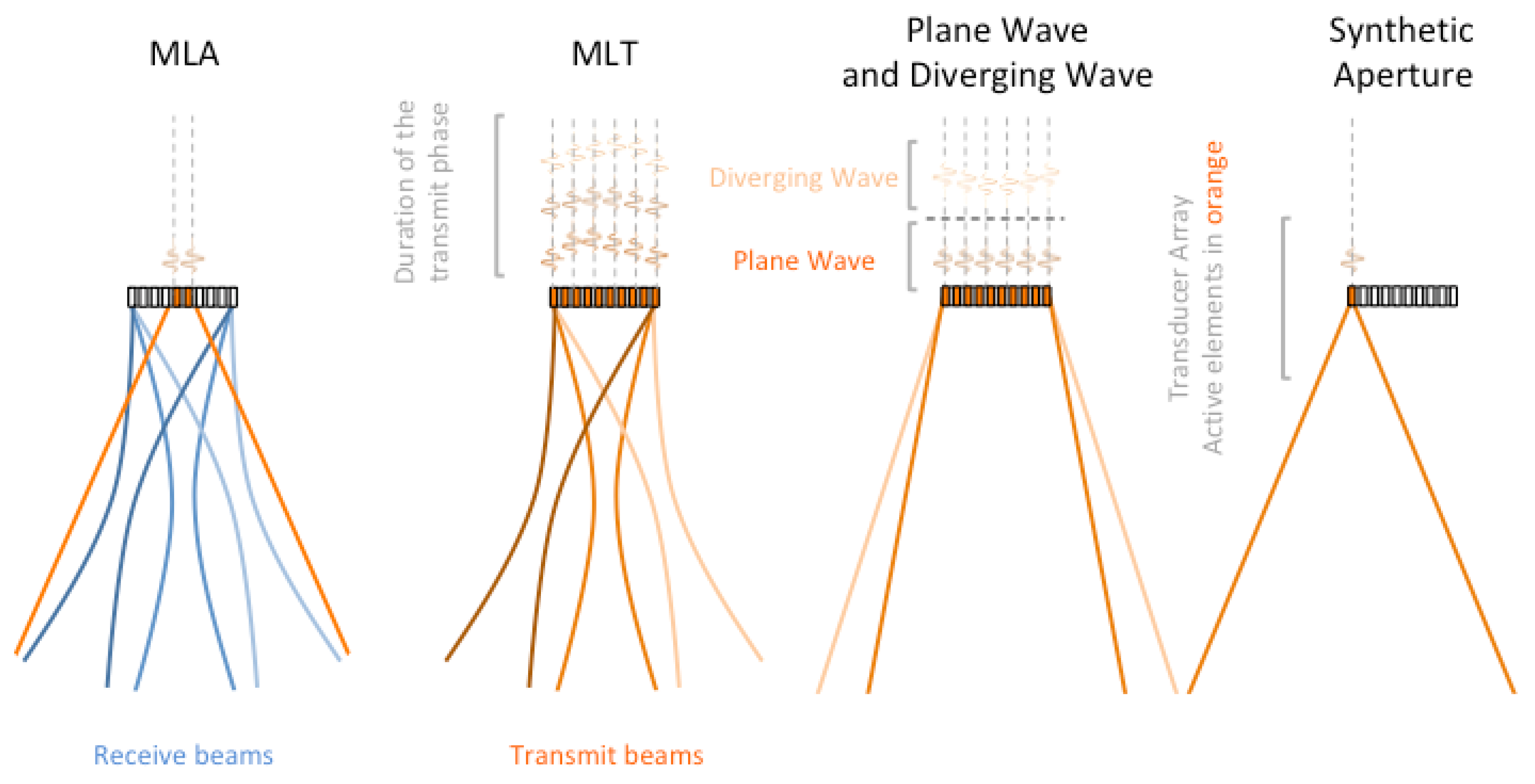

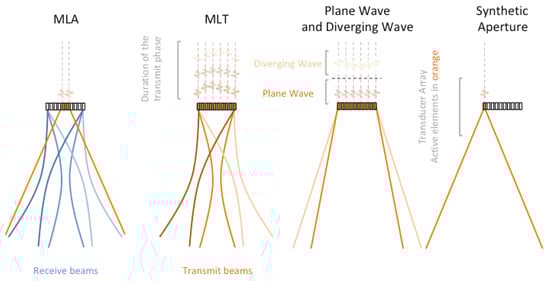

Starting from key ultrasound imaging features such as spatial and temporal resolution, contrast, penetration depth, array aperture, and field-of-view (FOV) size, the reader will be guided through the pros and cons of the main ultrasound beam-forming techniques. The technicalities and the rationality behind the different driving schemes and reconstruction modalities will be reviewed, highlighting the requirements for their implementation and their suitability for specific applications. Techniques such as multi-line acquisition (MLA), multi-line transmission (MLT), plane and diverging wave imaging, and synthetic aperture will be discussed, as well as more recent beam-forming modalities. View Full-Text
Keywords: medical ultrasound; beam forming; ultrasound imaging; multi-line acquisition; multi-line transmission; plane wave; diverging wave; synthetic aperture; parallel beam forming; beam pattern; image reconstruction medical ultrasound; beam forming; ultrasound imaging; multi-line acquisition; multi-line transmission; plane wave; diverging wave; synthetic aperture; parallel beam forming; beam pattern; image reconstruction
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
