Open AccessArticle
Appl. Sci. 2018, 8(7), 1096; https://doi.org/10.3390/app8071096

Estimation of the Longitudinal Elasticity Modulus of Braided Synthetic Fiber Rope Utilizing Classical Laminate Theory with the Unit N/tex

1
Department of Mechanical Sciences and Engineering, Graduate School of Tokyo Institute of Technology, 2-12-1, I1-70, I1-457, Ookayama, Meguro-ku, Tokyo 152-8552, Japan
2
Department of Engineering, Tokyo Institute of Technology, 2-12-1, Ookayama, Meguro-ku, Tokyo 152-8552, Japan
*
Author to whom correspondence should be addressed.
Received: 1 June 2018 / Revised: 3 July 2018 / Accepted: 3 July 2018 / Published: 5 July 2018
(This article belongs to the Section Mechanical Engineering)
Full-Text   |   PDF [3787 KB, uploaded 5 July 2018]   |

Abstract

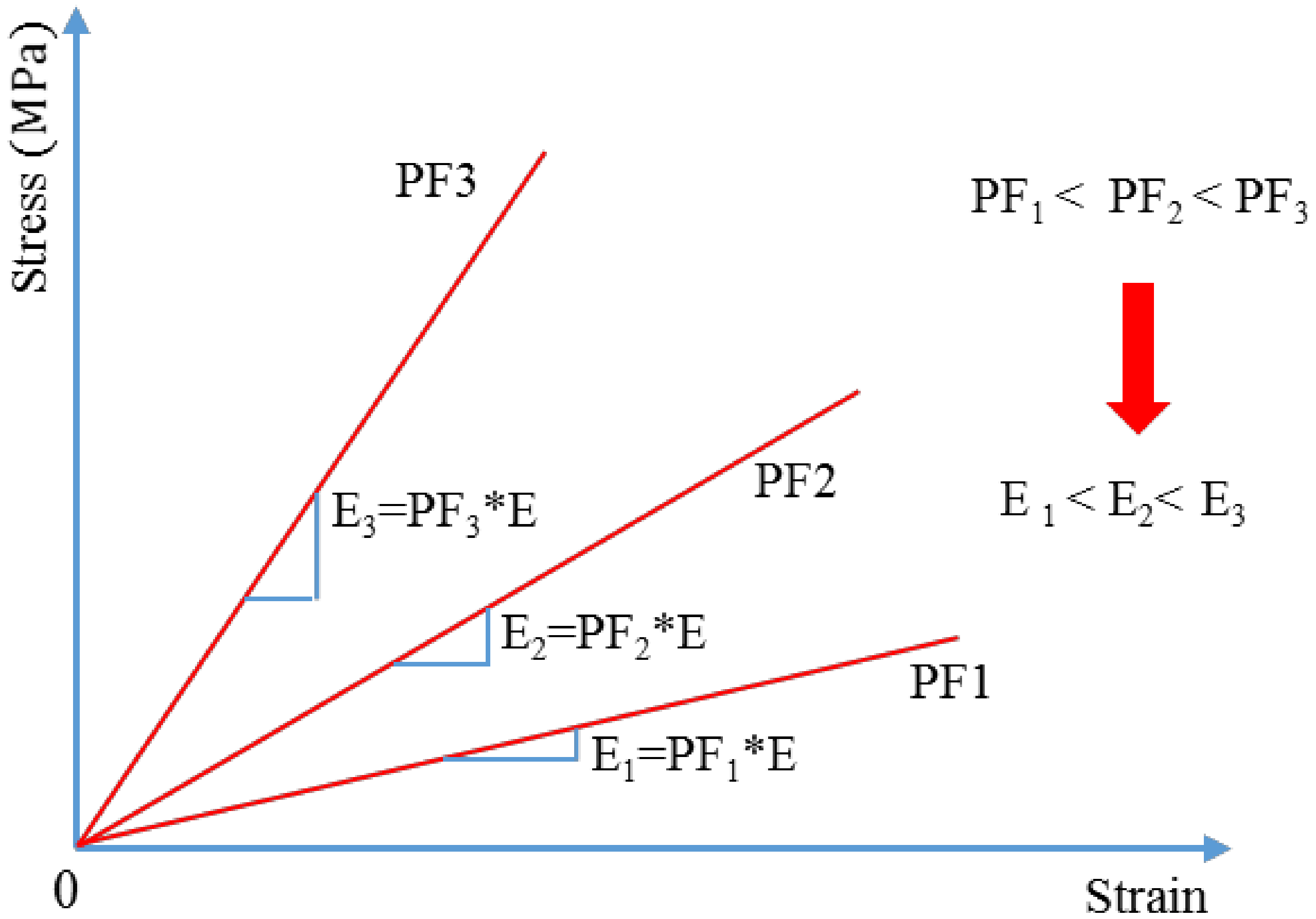

This paper uses classical laminate theory (CLT) and experimental methods to predict the longitudinal specific modulus of braided high modulus polyethylene (HMPE) rope without a matrix. When applying conventional CLT, the modulus, braided angle of strand, and packing factor (PF), i.e., the cross-sectional area ratio of the strand to the rope, are required. Because the void (space between strands) and PF of braided rope without a matrix readily change during the application of load, and given the difficulty measuring PF experimentally, it is difficult to predict the modulus by conventional CLT. This paper proposes the use of the unit of N/tex in place of conventional MPa for CLT. This study demonstrates that changes in PF due to void changes can be neglected when using the N/tex unit. The predicted longitudinal specific modulus of the rope using N/tex unit was found to be in qualitatively agreement with the longitudinal modulus measured experimentally. View Full-Text
Keywords: braided synthetic fiber rope; high modulus polyethylene (HMPE); longitudinal specific modulus; braided angle; packing factor (PF); classical laminate theory (CLT) braided synthetic fiber rope; high modulus polyethylene (HMPE); longitudinal specific modulus; braided angle; packing factor (PF); classical laminate theory (CLT)
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
