Appl. Sci. 2018, 8(5), 719; https://doi.org/10.3390/app8050719

Multiwavelength Absolute Phase Retrieval from Noisy Diffractive Patterns: Wavelength Multiplexing Algorithm

1
Laboratory of Signal Processing, Technology University of Tampere, 33720 Tampere, Finland
2
Department of Photonics and Optical Information Technology, ITMO University, 197101 St. Petersburg, Russia
*
Author to whom correspondence should be addressed.
Received: 26 March 2018 / Revised: 29 April 2018 / Accepted: 30 April 2018 / Published: 4 May 2018
(This article belongs to the Special Issue Applications of Digital Holographic Microscopy)
View Full-Text   |   Download PDF [3928 KB, uploaded 4 May 2018]   |

Abstract

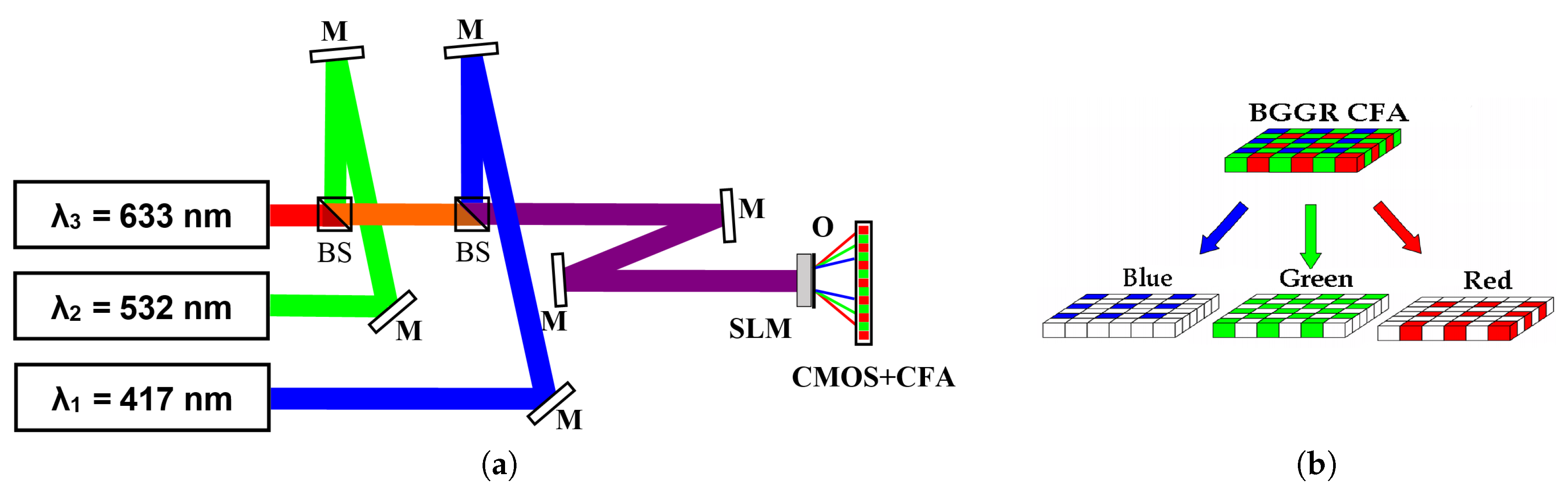

We study the problem of multiwavelength absolute phase retrieval from noisy diffraction patterns. The system is lensless with multiwavelength coherent input light beams and random phase masks applied for wavefront modulation. The light beams are formed by light sources radiating all wavelengths simultaneously. A sensor equipped by a Color Filter Array (CFA) is used for spectral measurement registration. The developed algorithm targeted on optimal phase retrieval from noisy observations is based on maximum likelihood technique. The algorithm is specified for Poissonian and Gaussian noise distributions. One of the key elements of the algorithm is an original sparse modeling of the multiwavelength complex-valued wavefronts based on the complex-domain block-matching 3D filtering. Presented numerical experiments are restricted to noisy Poissonian observations. They demonstrate that the developed algorithm leads to effective solutions explicitly using the sparsity for noise suppression and enabling accurate reconstruction of absolute phase of high-dynamic range. View Full-Text
Keywords: absolute phase retrieval; complex domain imaging; complex domain sparsity; demosaicing of diffractive pattern; phase imaging; photon-limited imaging; robustness of phase retrieval absolute phase retrieval; complex domain imaging; complex domain sparsity; demosaicing of diffractive pattern; phase imaging; photon-limited imaging; robustness of phase retrieval
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Katkovnik, V.; Shevkunov, I.; Petrov, N.V.; Eguiazarian, K. Multiwavelength Absolute Phase Retrieval from Noisy Diffractive Patterns: Wavelength Multiplexing Algorithm. Appl. Sci. 2018, 8, 719.
