Open AccessArticle
Appl. Sci. 2018, 8(2), 173; https://doi.org/10.3390/app8020173

Three-Dimensional Identification for Unbalanced Mass of Rotor Systems in Operation

School of Instrument Science and Opto-electronics Engineering, Hefei University of Technology, No. 193 Tunxi Road, Hefei 230009, China
*
Author to whom correspondence should be addressed.
Received: 1 December 2017 / Revised: 11 January 2018 / Accepted: 18 January 2018 / Published: 25 January 2018
View Full-Text   |   Download PDF [6368 KB, uploaded 25 January 2018]   |

Abstract

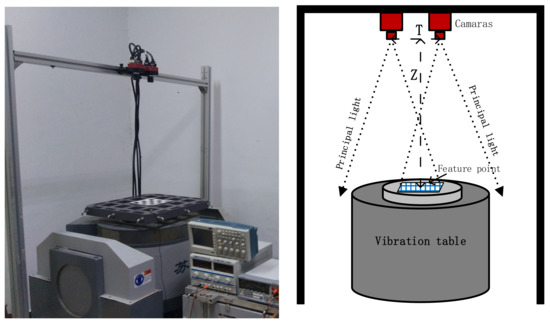

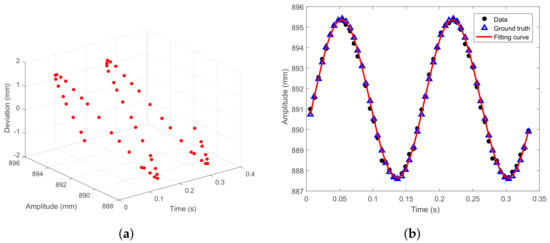

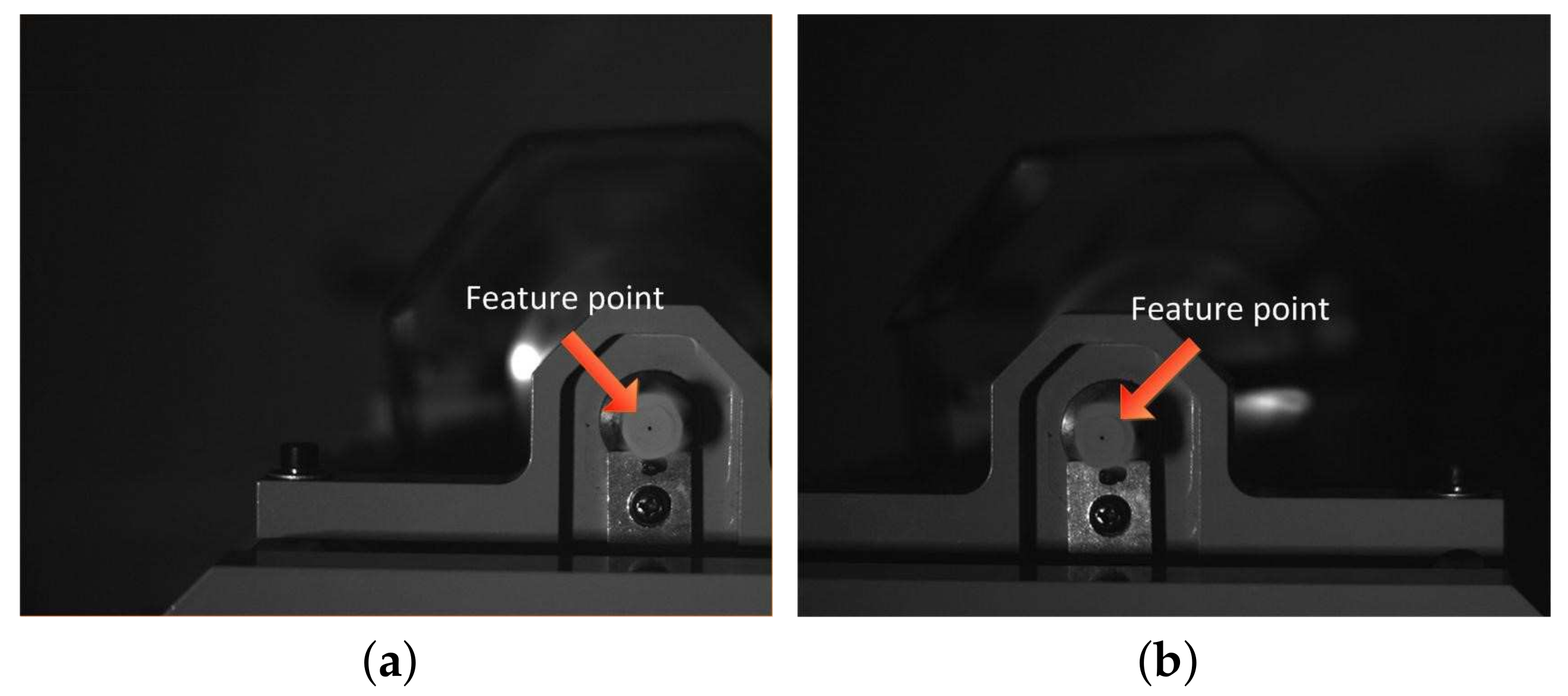

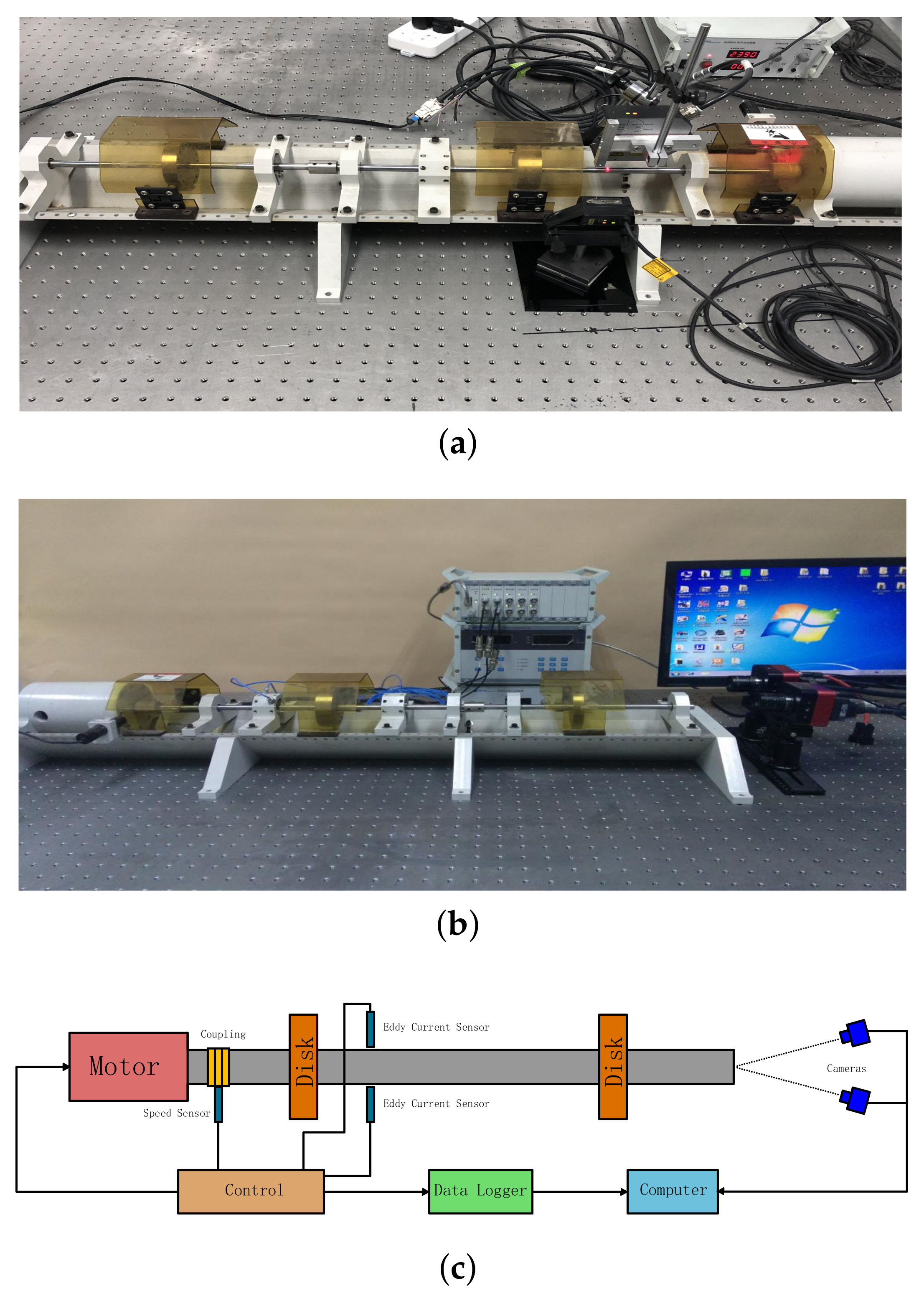

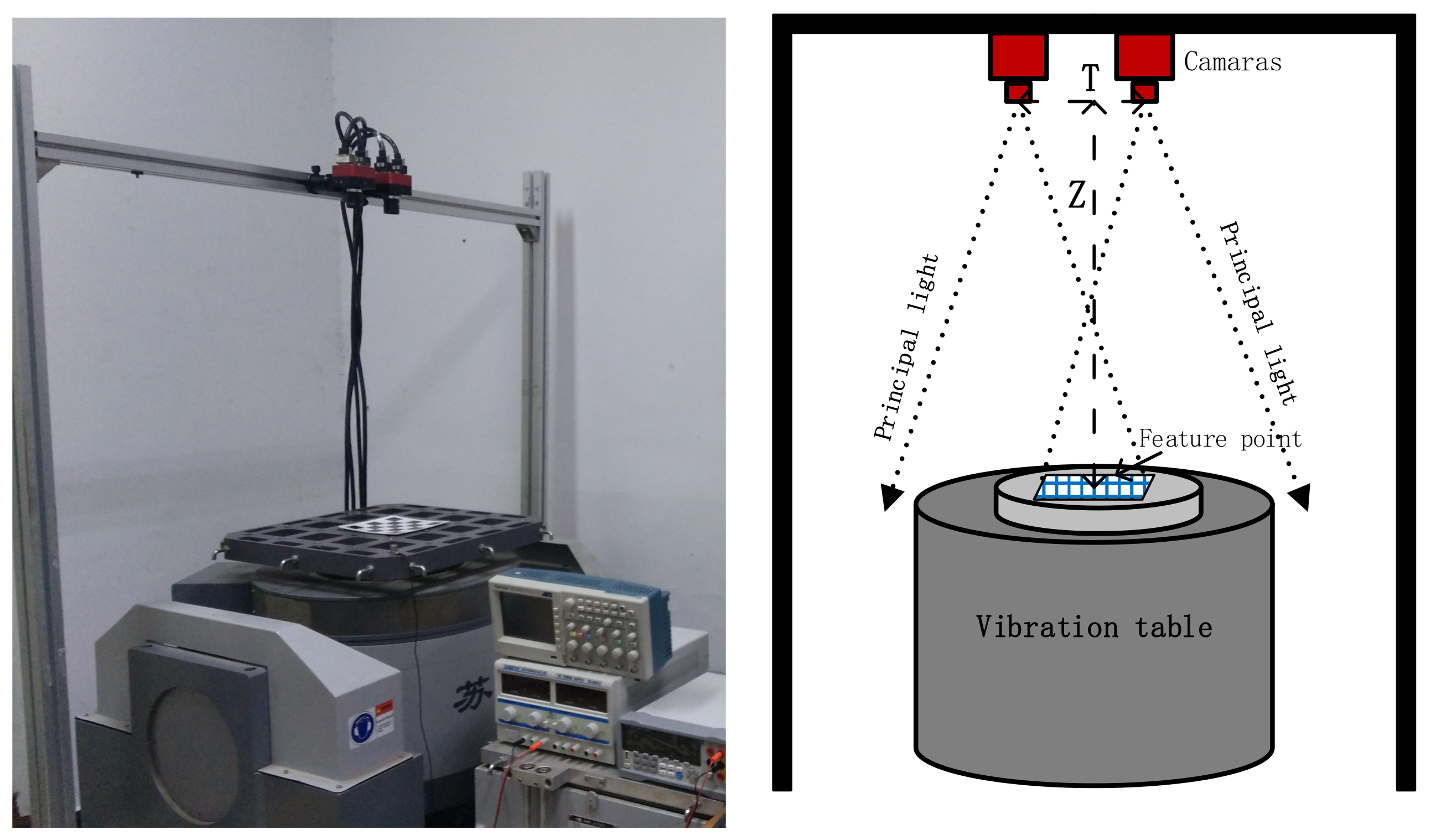

Unbalanced mass identification is important for rotor systems. Current methods normally use sensors, which only detect vibration in two-dimensional (2D) space. Actually, the rotor systems vibrate in three-dimensional directions. In this paper, a non-contact method is developed to identify unbalanced mass of rotor systems in 3D space. A stereo video system with a pair of synchronized high-speed cameras is established and a feature point is employed to replace traditional contact transducer for measurement. Checkerboard target on a vibration table is used to implement dynamic calibration. The proposed method is compared with eddy current method and laser displacement method. The comparison experiments verify the detection ability of the unbalanced mass for the proposed method. Overall, the proposed method can provide more information than 2D detection methods, which has the great potential for fault diagnosis of rotating machinery. View Full-Text
Keywords: vibration measurement; rotor system; unbalance; videometric vibration measurement; rotor system; unbalance; videometric
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
