Next Article in Journal
Effect of Meniscus Damping Ratio on Drop-on-Demand Electrohydrodynamic Jetting
Previous Article in Journal
Chaos-Based Underwater Communication With Arbitrary Transducers and Bandwidth
Article Menu

Export Article

Open AccessArticle
Appl. Sci. 2018, 8(2), 163; doi:10.3390/app8020163

Effect of the Addition of Rare Earth Element La on the Tribological Behaviour of AlSi5Cu1Mg Alloy

1,2
,
1,2,* and 1,2
1
School of Mechanical Electrical Engineering, Nanchang University, Nanchang 330031, China
2
Key Laboratory of Light Alloy Preparation & Processing, Nanchang University, Nanchang 330031, China
*
Author to whom correspondence should be addressed.
Received: 15 December 2017 / Revised: 12 January 2018 / Accepted: 22 January 2018 / Published: 24 January 2018
(This article belongs to the Section Materials)
View Full-Text   |   Download PDF [13158 KB, uploaded 24 January 2018]   |

Abstract

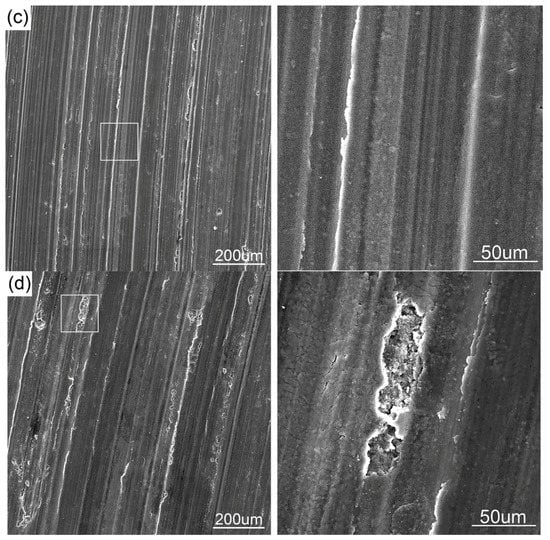

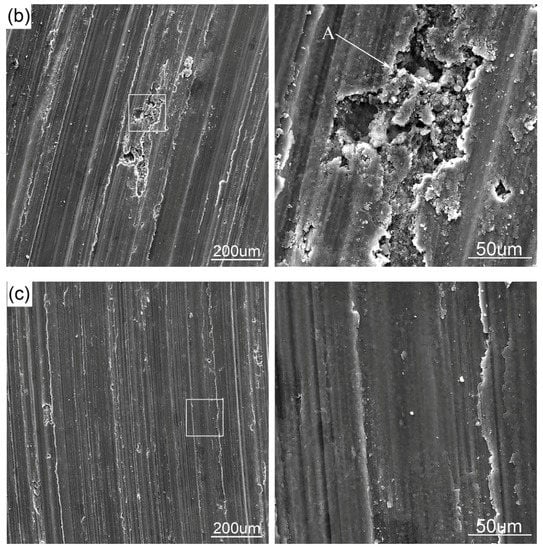

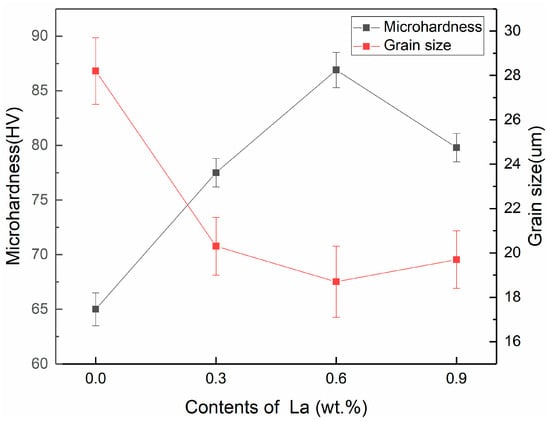

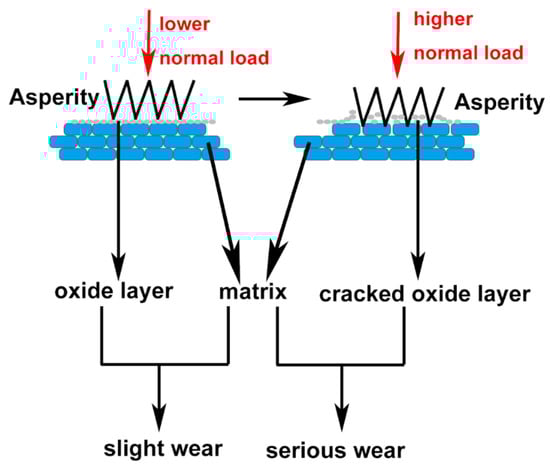

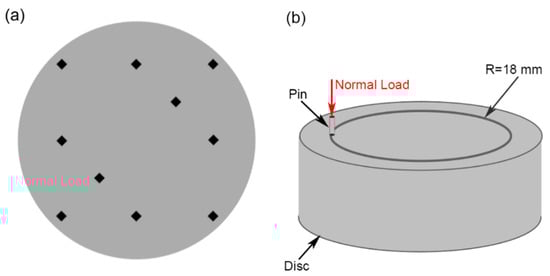

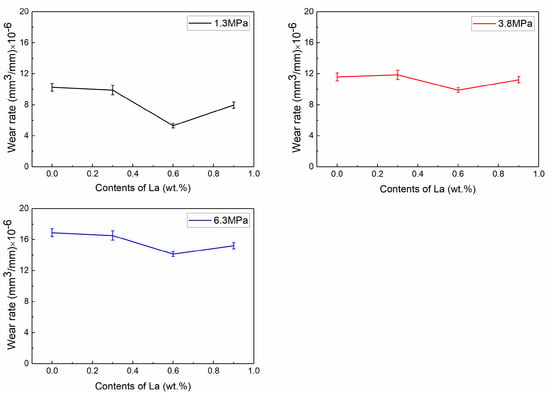

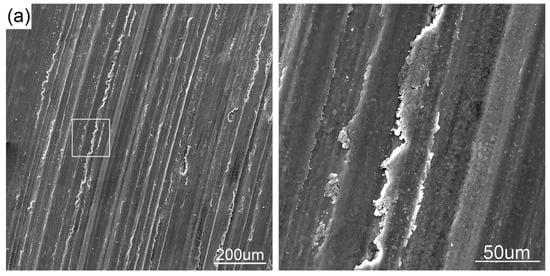

The effects of 0, 0.3, 0.6 and 0.9 wt % modifier La on the dry sliding wear behaviours of AlSi5Cu1Mg alloy were investigated under different friction conditions (normal loads, sliding velocities) by using pin-on-disc configuration. The microhardness of the alloys was tested, and it was found that the microhardness of the alloys was improved by the La addition. The AlSi5Cu1Mg + 0.6 wt % La alloy exhibited the smallest grain size and maximum microhardness. The wear mechanism analysis of the worn surface was done, which drew support from a scanning electron microscope (SEM) that was equipped with an energy dispersive spectrometer. The results showed that AlSi5Cu1Mg + 0.6 wt % La alloy exhibited the best wear resistance, which was mainly due to the modified grain and microhardness. At the sliding velocity of 0.19 m/s, the adhesive wear became the main wear mechanism with the increase of the load because of the rupture of the oxide layer on the friction surface. Under the load of 3.8 MPa, the abrasive wear became slight as the sliding velocity increasing, due to the recrystallization phenomenon that happened in the frictional surface. View Full-Text
Keywords: AlSi5Cu1Mg; La; microhardness; wear resistance AlSi5Cu1Mg; La; microhardness; wear resistance
Figures

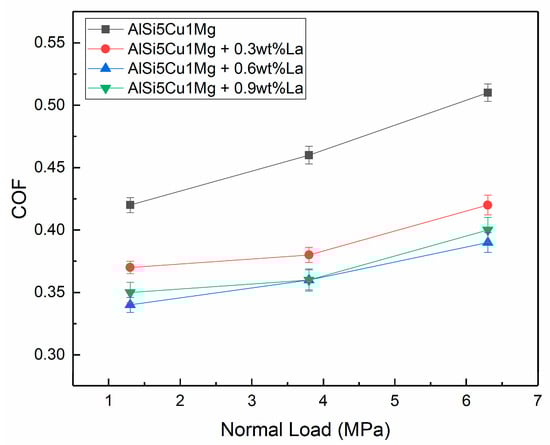

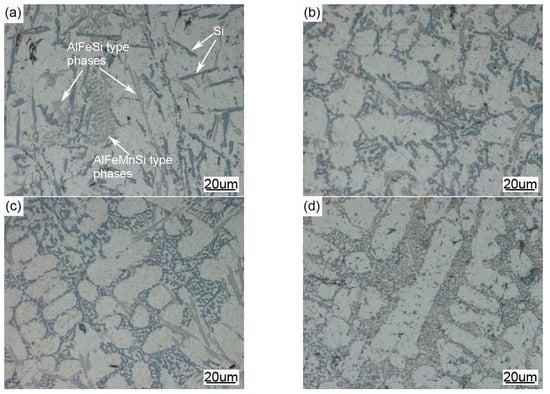

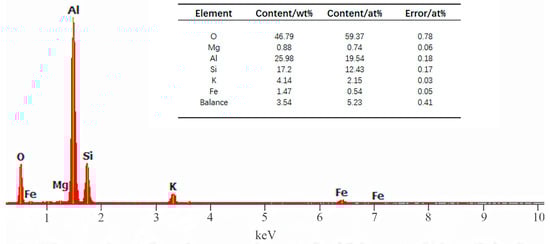

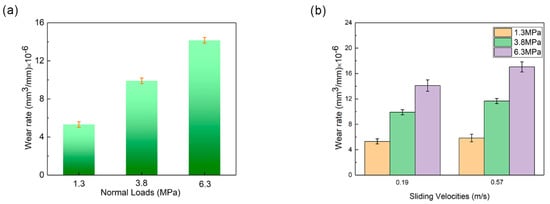

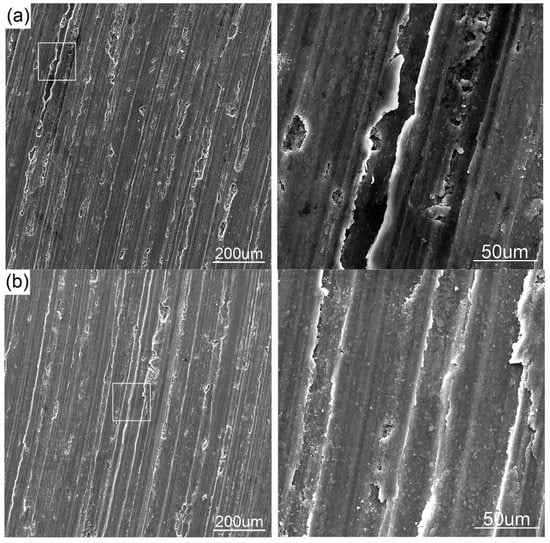

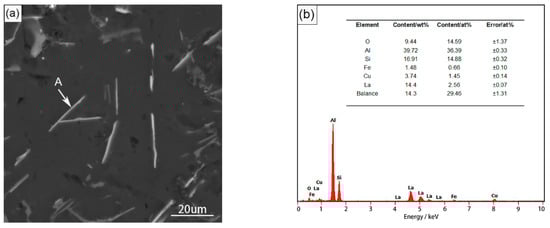

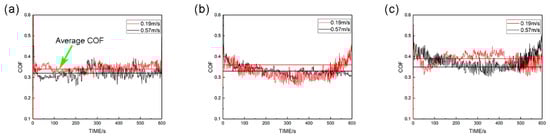

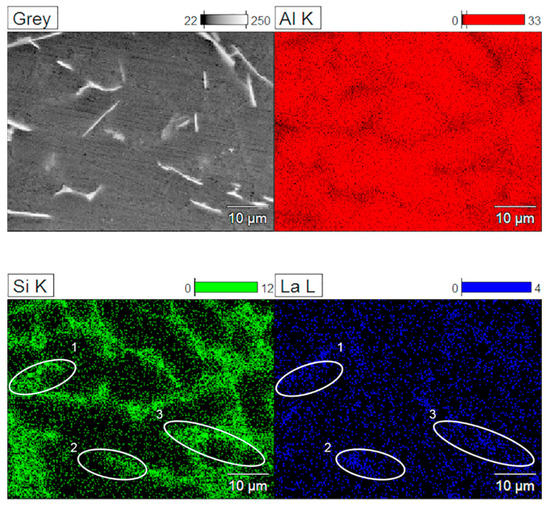

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Liu, W.; Yan, H.; Zhu, J.-B. Effect of the Addition of Rare Earth Element La on the Tribological Behaviour of AlSi5Cu1Mg Alloy. Appl. Sci. 2018, 8, 163.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Appl. Sci. EISSN 2076-3417 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
