Appl. Sci. 2018, 8(1), 137; https://doi.org/10.3390/app8010137

A 25.78-Gbit/s × 4-ch Active Optical Cable with Ultra-Compact Form Factor for High-Density Optical Interconnects

Hitachi, Ltd. Research & Development Group; Tokyo 185-8601, Japan
*
Author to whom correspondence should be addressed.
Received: 30 October 2017 / Revised: 15 January 2018 / Accepted: 17 January 2018 / Published: 18 January 2018
(This article belongs to the Special Issue Optical Interconnects)
View Full-Text   |   Download PDF [4262 KB, uploaded 18 January 2018]   |

Abstract

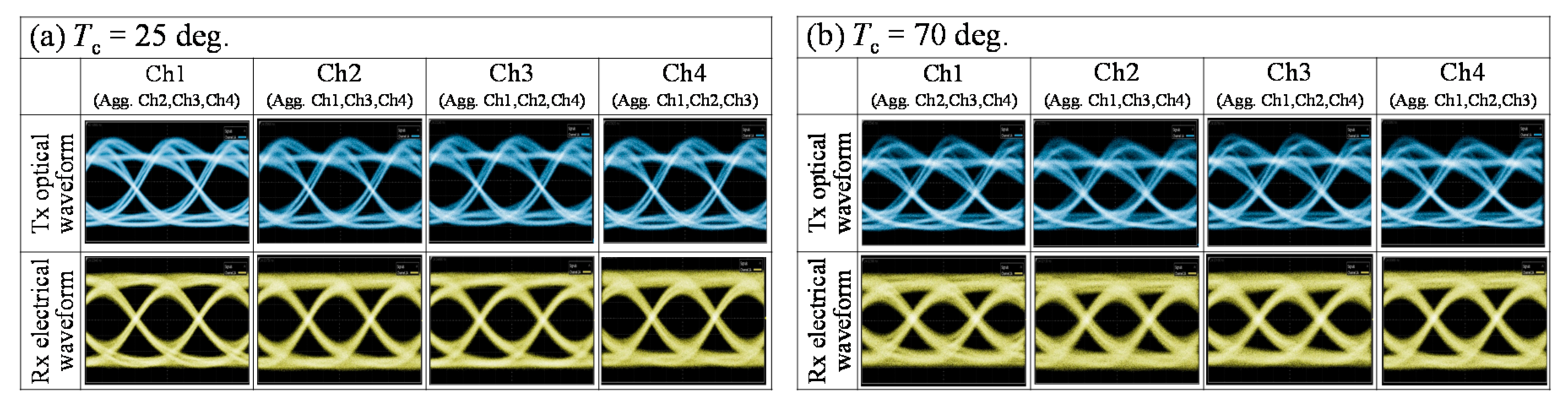

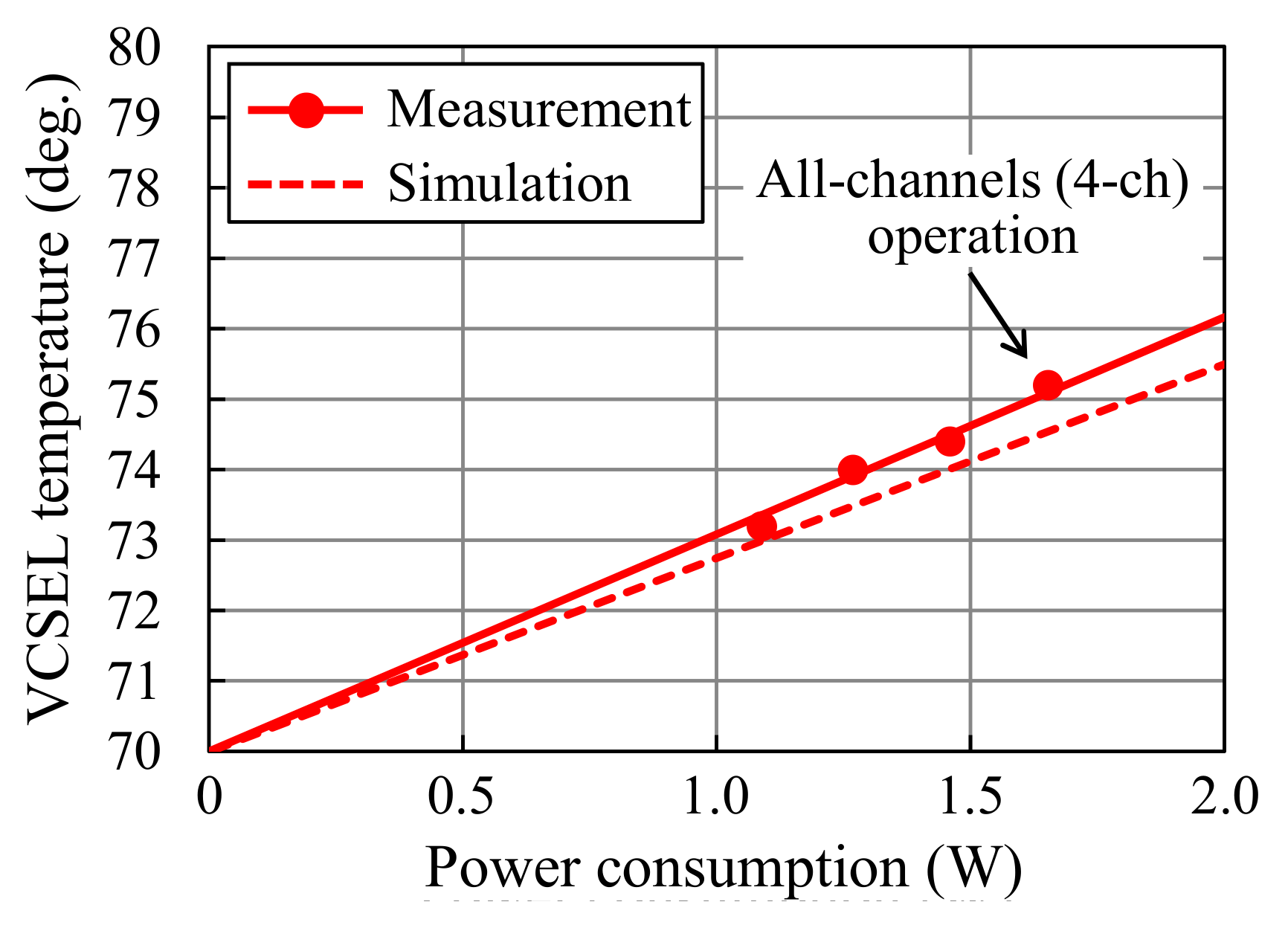

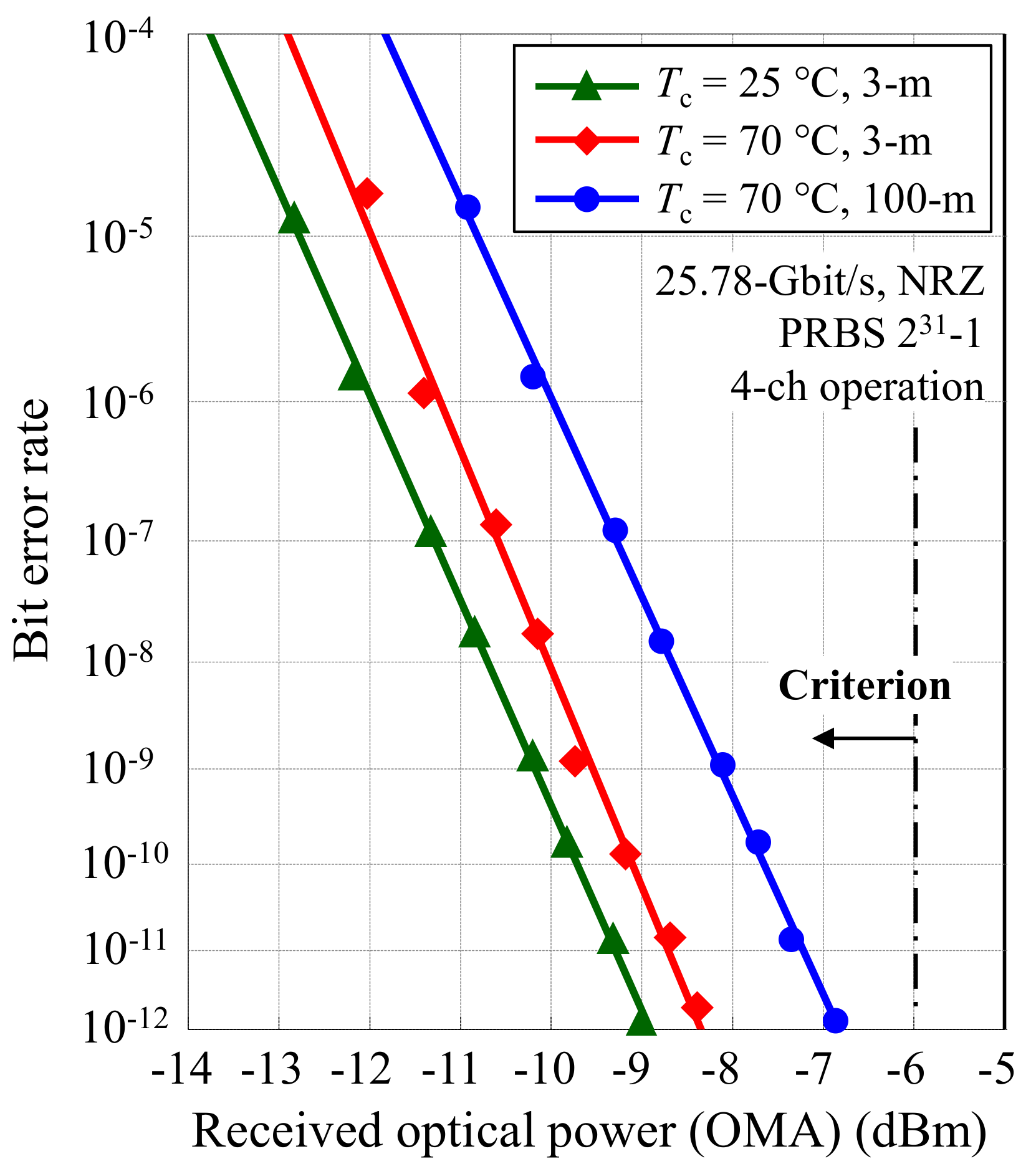

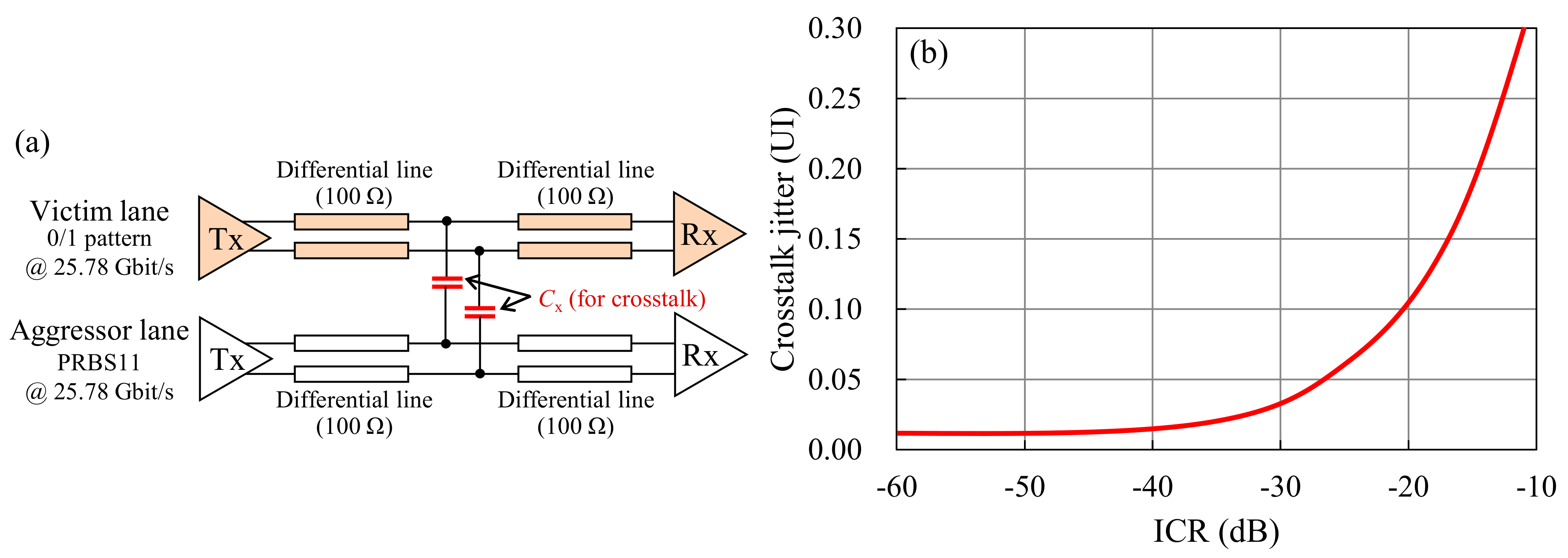

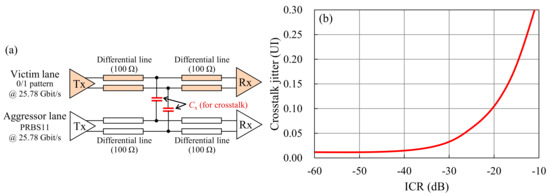

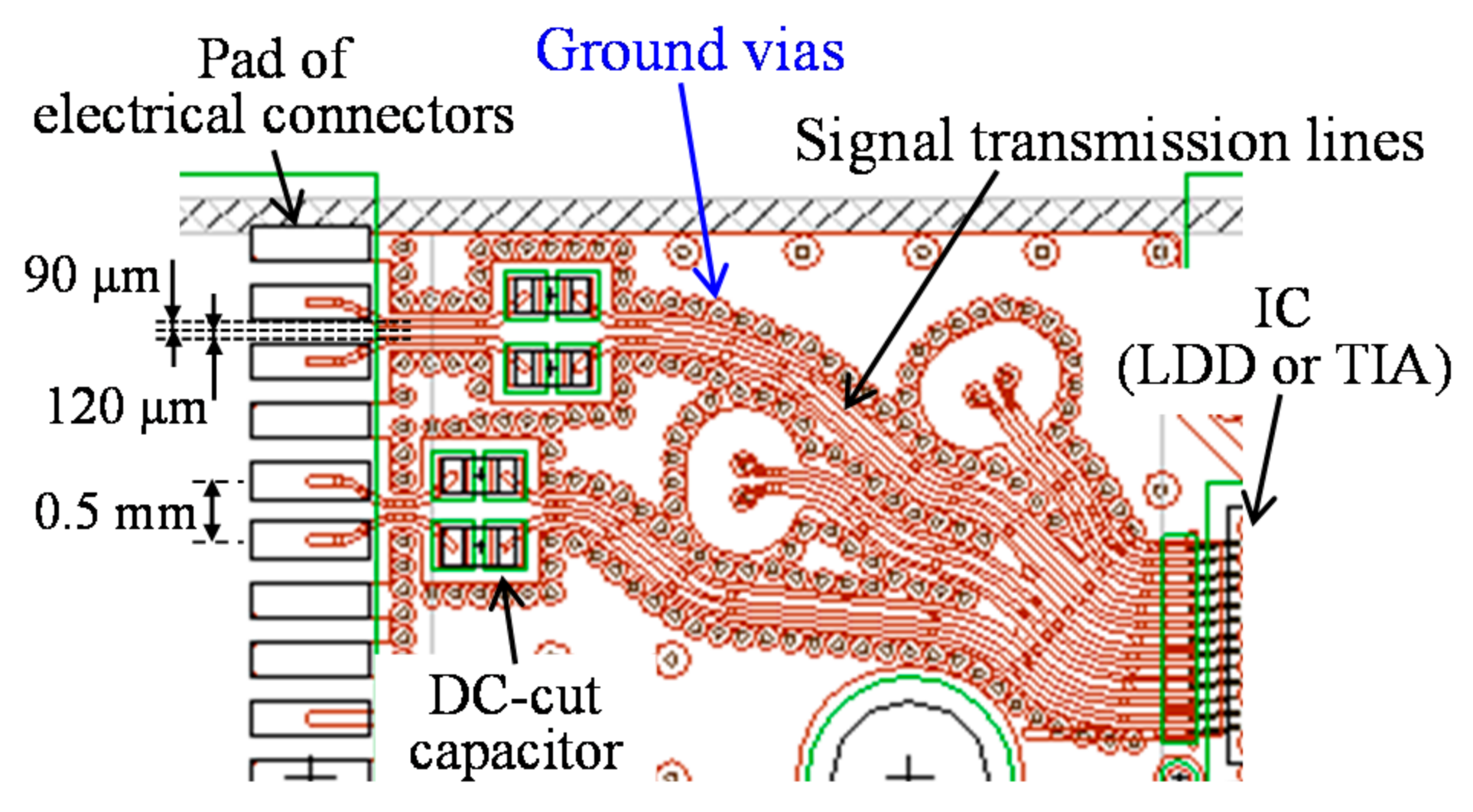

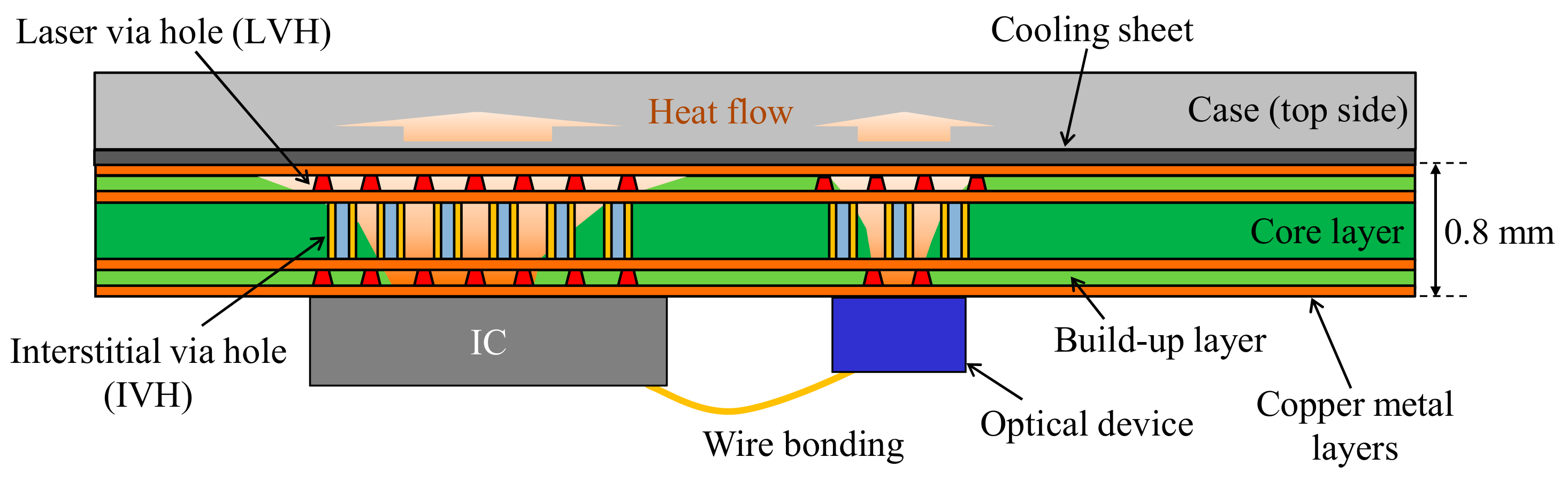

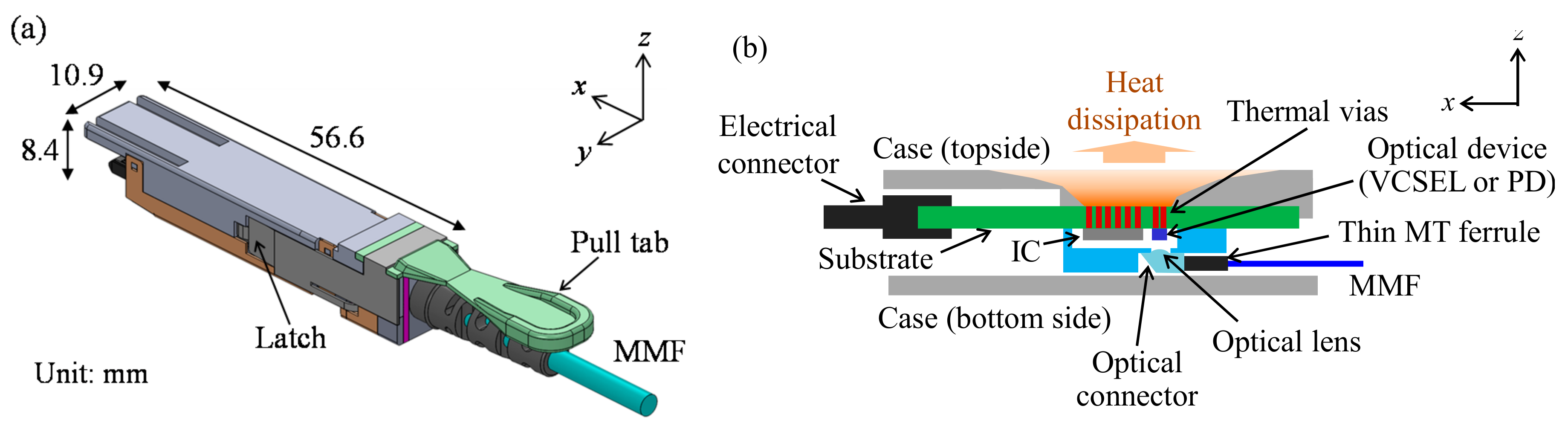

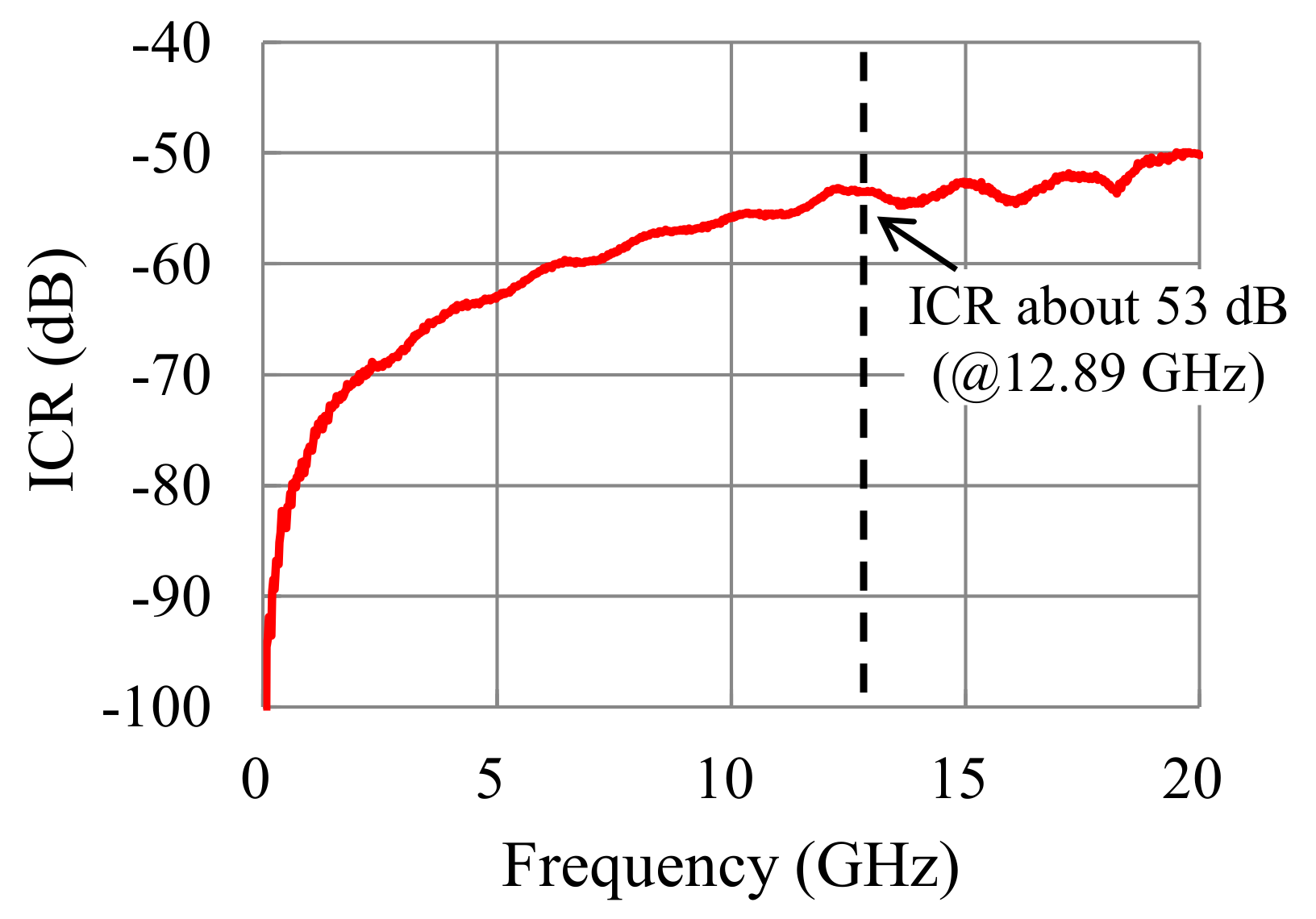

A 25.78-Gbit/s × 4-ch active optical cable (AOC) with an ultra-compact form factor is proposed. The size of the proposed AOC is 5.2 cm3, which is 55% smaller than the standard form factor of Quad Small Form-factor Pluggable (QSFP28), and 45% smaller than that of Micro Quad Small Form-factor Pluggable (μQSFP). As a result of utilizing a high-efficiency heat-dissipation structure and optimizing signal transmission lines and ground vias, the proposed AOC achieves high-heat dissipation and low-crosstalk characteristics. Furthermore, the proposed AOC demonstrated 25.78-Gbit/s error-free optical transmission over a 100-m Optical Multimode 3 (OM3) multimode fiber under all-channels (4-ch) operation and case temperature (Tc) of 70 °C. View Full-Text
Keywords: optical interconnect; active optical cable; compact form factor; high-heat dissipation structure; low crosstalk characteristics optical interconnect; active optical cable; compact form factor; high-heat dissipation structure; low crosstalk characteristics
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Kohmu, N.; Takai, T.; Chujo, N.; Arimoto, H. A 25.78-Gbit/s × 4-ch Active Optical Cable with Ultra-Compact Form Factor for High-Density Optical Interconnects. Appl. Sci. 2018, 8, 137.
