Next Article in Journal
Practical Challenge of Shredded Documents: Clustering of Chinese Homologous Pieces
Next Article in Special Issue
Material Optimization for a High Power Thermoelectric Generator in Wearable Applications
Previous Article in Journal
Pt-Based Nanostructures for Observing Genuine SERS Spectra of p-Aminothiophenol (PATP) Molecules
Previous Article in Special Issue
Optimized Design of Thermoelectric Energy Harvesting Systems for Waste Heat Recovery from Exhaust Pipes
Article Menu
Issue 9 (September) cover image

Export Article

Open AccessArticle
Appl. Sci. 2017, 7(9), 952; doi:10.3390/app7090952

Study on the High Temperature Interfacial Stability of Ti/Mo/Yb0.3Co4Sb12 Thermoelectric Joints

State Key Laboratory of High Performance Ceramics and Superfine Microstructure, Shanghai Institute of Ceramics, Chinese Academy of Sciences, 1295 Dingxi Road, Shanghai 200050, China
Author to whom correspondence should be addressed.
Received: 31 August 2017 / Revised: 12 September 2017 / Accepted: 13 September 2017 / Published: 15 September 2017
View Full-Text   |   Download PDF [3840 KB, uploaded 20 September 2017]   |

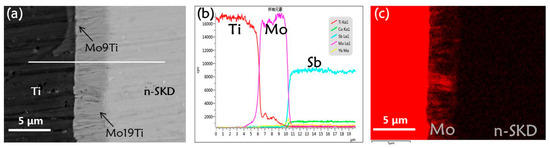

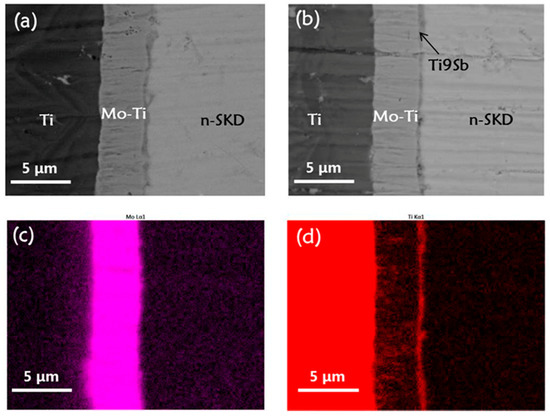

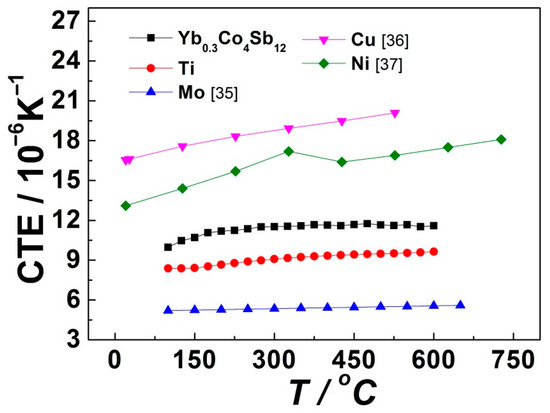

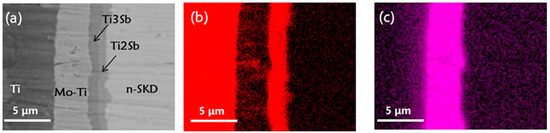

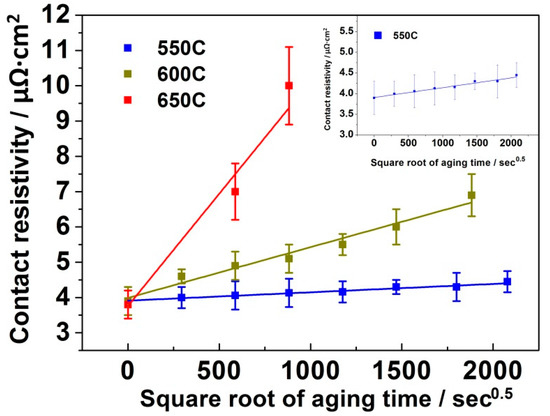

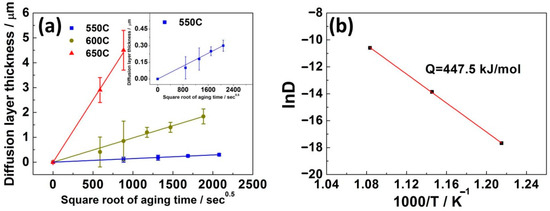

To improve the interfacial stability at high temperatures, n-type skutterudite (SKD) thermoelectric joints with sandwich structures of Ti/Mo/Yb0.3Co4Sb12 were successfully designed and fabricated. In this structure, Mo and Ti were introduced as the barrier layer with the goal of suppressing the interfacial diffusion and the buffer layer with the goal of enhancing the bonding strength, respectively. To evaluate the high temperature interfacial behavior of the Ti/Mo/Yb0.3Co4Sb12 joints, thermal shocking between 0 °C and 600 °C and isothermal aging at a temperature range of 550 °C to 650 °C were carried out in vacuum. During the isothermal aging process, Ti penetrates across the Mo layer, and finally diffuses into the Yb0.3Co4Sb12 matrix. By increasing the isothermal aging time, Ti continuously diffuses and reacts with the elements of Sb and Co in the matrix, consequently forming the multilayer-structured intermetallic compounds of Ti3Sb/Ti2Sb/TiCoSb. Diffusion kinetics was investigated and it was found that the interfacial evolution of the Ti/Mo/Yb0.3Co4Sb12 joints was a diffusion-controlling process. During the diffusion process, the formed Mo-Ti buffer layer acts as a damper, which greatly decelerates the diffusion of Ti towards the Yb0.3Co4Sb12 matrix at high temperatures. Meanwhile, it was found that the increase in the contact resistivity of the joints mainly derives from the inter-diffusion between Ti and Yb0.3Co4Sb12. As a result, the Ti/Mo/Yb0.3Co4Sb12 joint demonstrates the excellent stability of the interfacial contact resistivity. Service life prediction was made based on the stability of the contact resistivity, and it was found that the Ti/Mo/Yb0.3Co4Sb12 joint is qualified for practical applications at 550 °C. View Full-Text
Keywords: thermoelectric joint; skutterudite; diffusion kinetics; contact resistivity; service life prediction thermoelectric joint; skutterudite; diffusion kinetics; contact resistivity; service life prediction

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Gu, M.; Bai, S.; Xia, X.; Huang, X.; Li, X.; Shi, X.; Chen, L. Study on the High Temperature Interfacial Stability of Ti/Mo/Yb0.3Co4Sb12 Thermoelectric Joints. Appl. Sci. 2017, 7, 952.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Appl. Sci. EISSN 2076-3417 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
