Appl. Sci. 2017, 7(9), 890; doi:10.3390/app7090890

Characterization of Piezoelectric Microgenerator with Nanobranched ZnO Grown on a Polymer Coated Flexible Substrate

1
Department of Microelectronics, Technical University of Sofia, 1000 Sofia, Bulgaria
2
Department of Physics, Savitribai Phule Pune University, Pune 411007, India
*
Author to whom correspondence should be addressed.
Received: 31 July 2017 / Revised: 29 August 2017 / Accepted: 29 August 2017 / Published: 1 September 2017
(This article belongs to the Section Materials)
View Full-Text   |   Download PDF [2042 KB, uploaded 1 September 2017]   |

Abstract

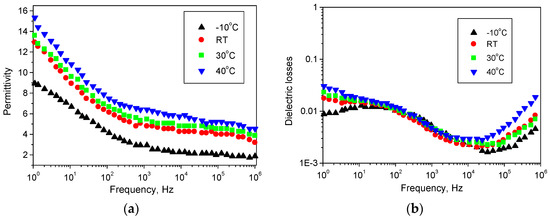

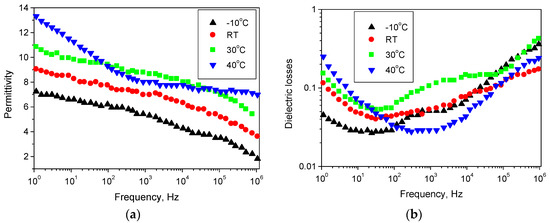

In this paper, results from the fabrication and study of a piezoelectric microgenerator using nanobranched zinc oxide (ZnO) film grown on poly(3,4-ethylenedioxythiphene) doped with a sulfonate (PEDOT:PSS)-coated flexible substrate are presented. The aim of the study is to extract information about the electrical behavior of the harvester at different frequencies, temperatures, and positions, as related to the ZnO nanostructure, as well as to examine its piezoelectric response. Radiofrequency (RF) sputtering with oxygen deficit during growth on an amorphous sublayer was used to obtain the nanobranched structure. The microdevice was studied at frequencies ranging from 1 Hz to 1 MHz for temperatures in the range of −10 °C to 40 °C, in both a non-bended position, and a radius of curvature position bended to 12 mm. It was found that non-ordered ZnO nanoformations facilitate the dipoles’ motion, thus leading to low dielectric losses of 10−3, and a higher relative permittivity of εr ~15, compared with typically known values. The losses increase with one order of magnitude at bending, but still remain low. Dielectric characteristics indicate that the favorable working range of the microgenerator is within the lower frequency region, from 10 Hz to 10 kHz. The results were confirmed by the measured open circuit voltage, which reaches approximately 1 V within this range, versus 300 mV out of the range. View Full-Text
Keywords: ZnO nanostructures; nanobranches; piezoelectric energy harvesting; polymer coatings; flexible devices; thin films growth; PEDOT:PSS; dielectric losses; microgenerator ZnO nanostructures; nanobranches; piezoelectric energy harvesting; polymer coatings; flexible devices; thin films growth; PEDOT:PSS; dielectric losses; microgenerator
Figures

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
