Appl. Sci. 2017, 7(8), 860; doi:10.3390/app7080860

Design, Analysis and Fabrication of a Novel Transverse Flux Permanent Magnet Machine with Disk Rotor

Faculty of Electrical & Computer Engineering, University of Birjand, Birjand 97175, Iran
*
Author to whom correspondence should be addressed.
Received: 20 July 2017 / Revised: 11 August 2017 / Accepted: 18 August 2017 / Published: 21 August 2017
(This article belongs to the Section Computer Science and Electrical Engineering)
View Full-Text   |   Download PDF [4969 KB, uploaded 21 August 2017]   |

Abstract

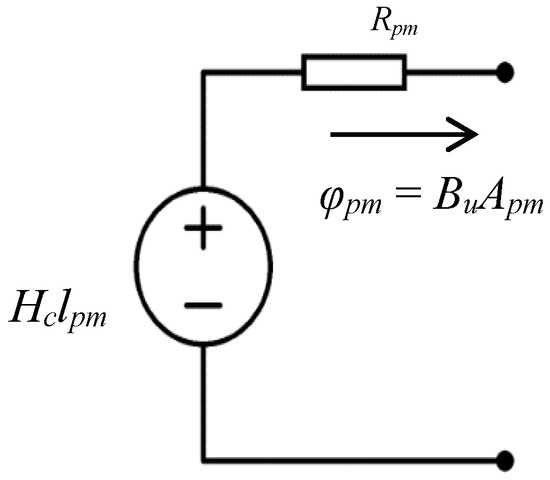

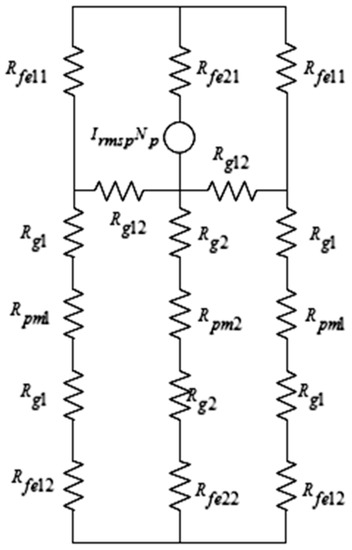

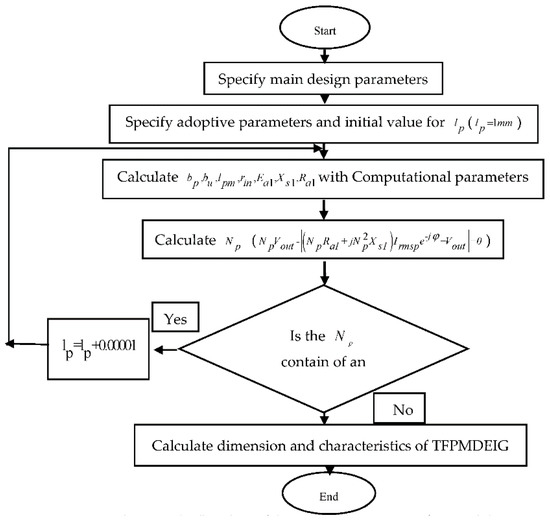

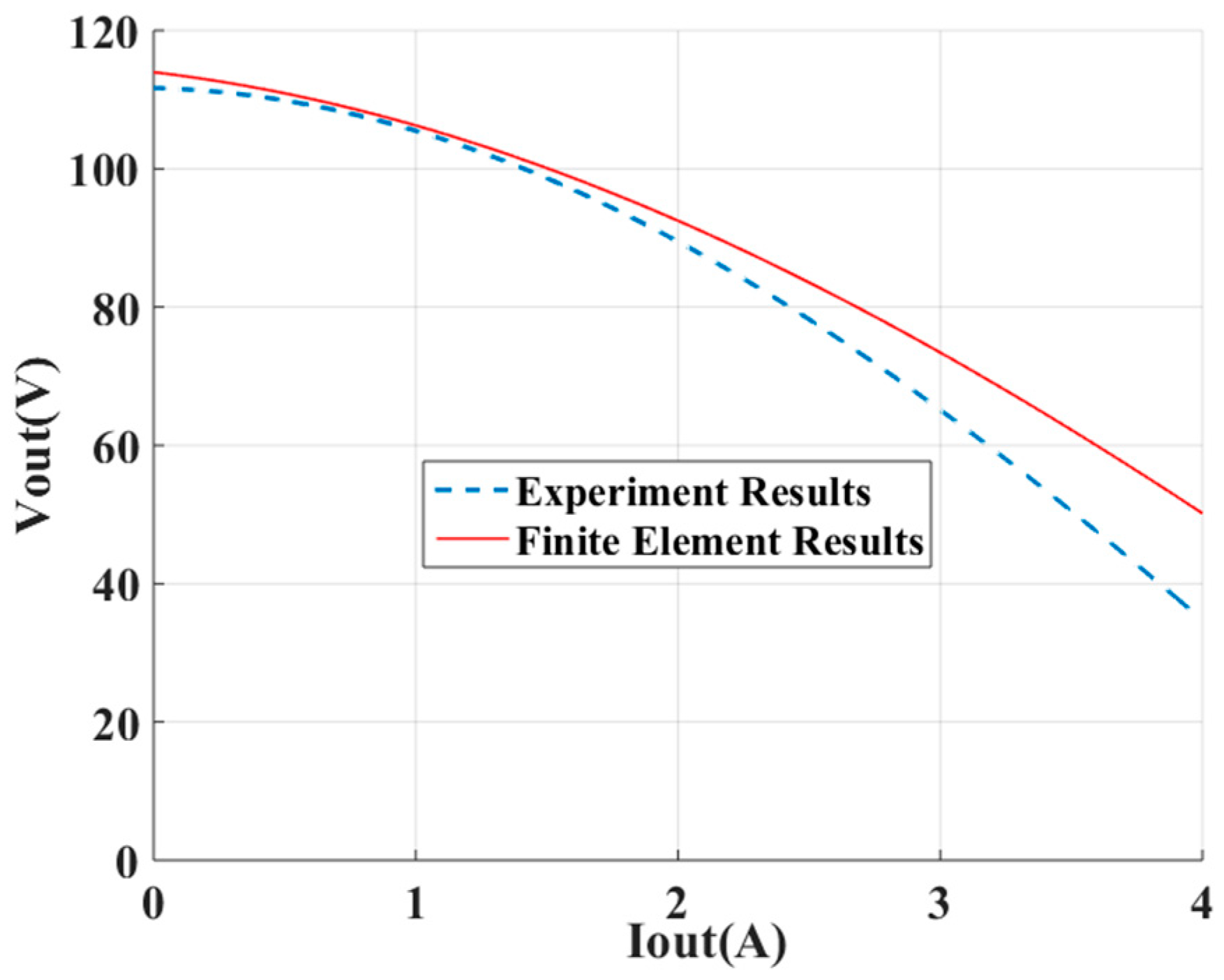

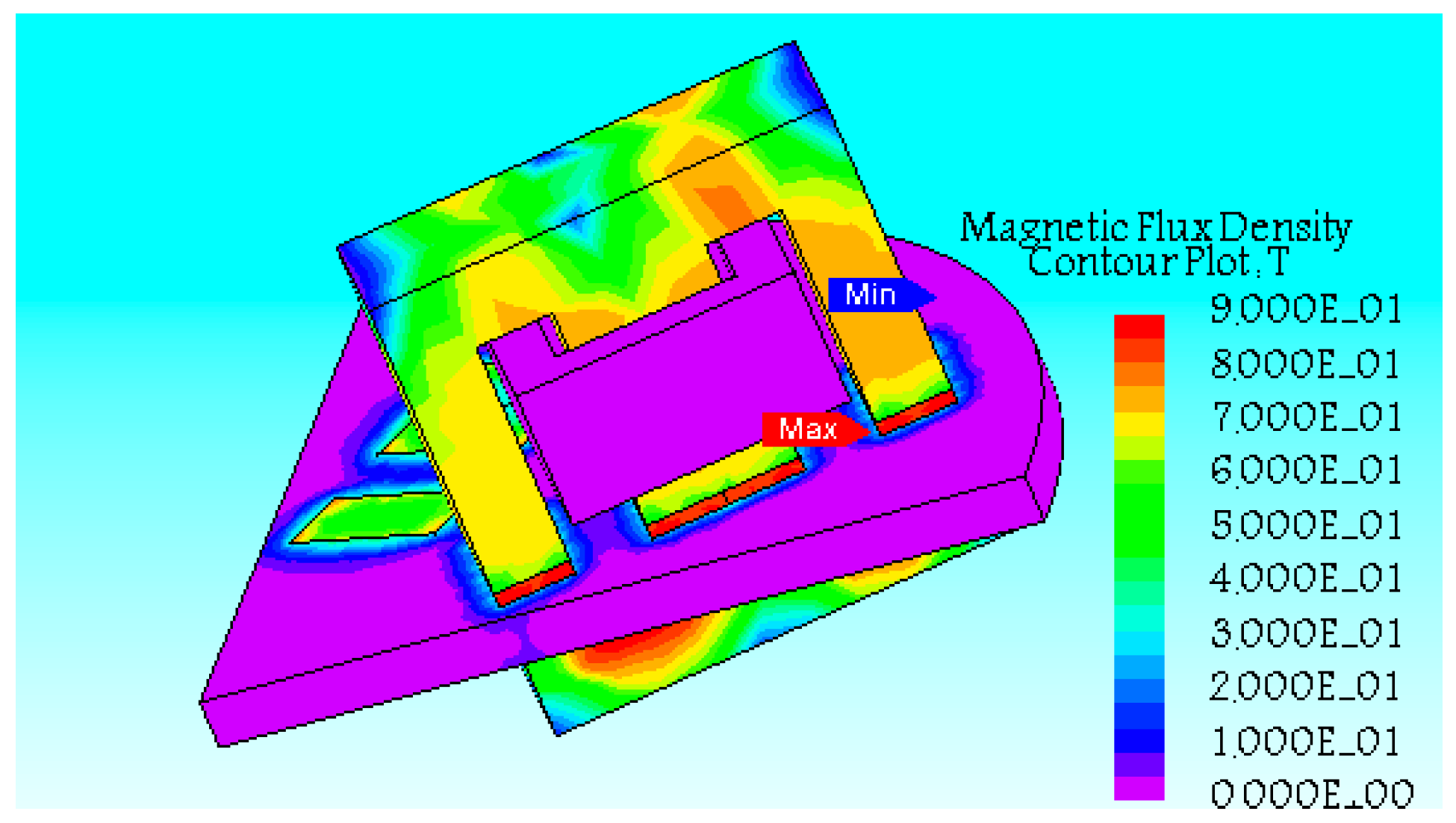

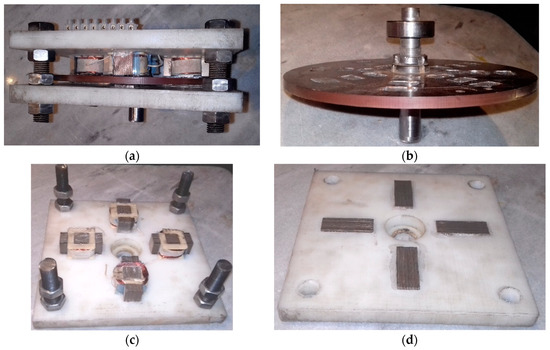

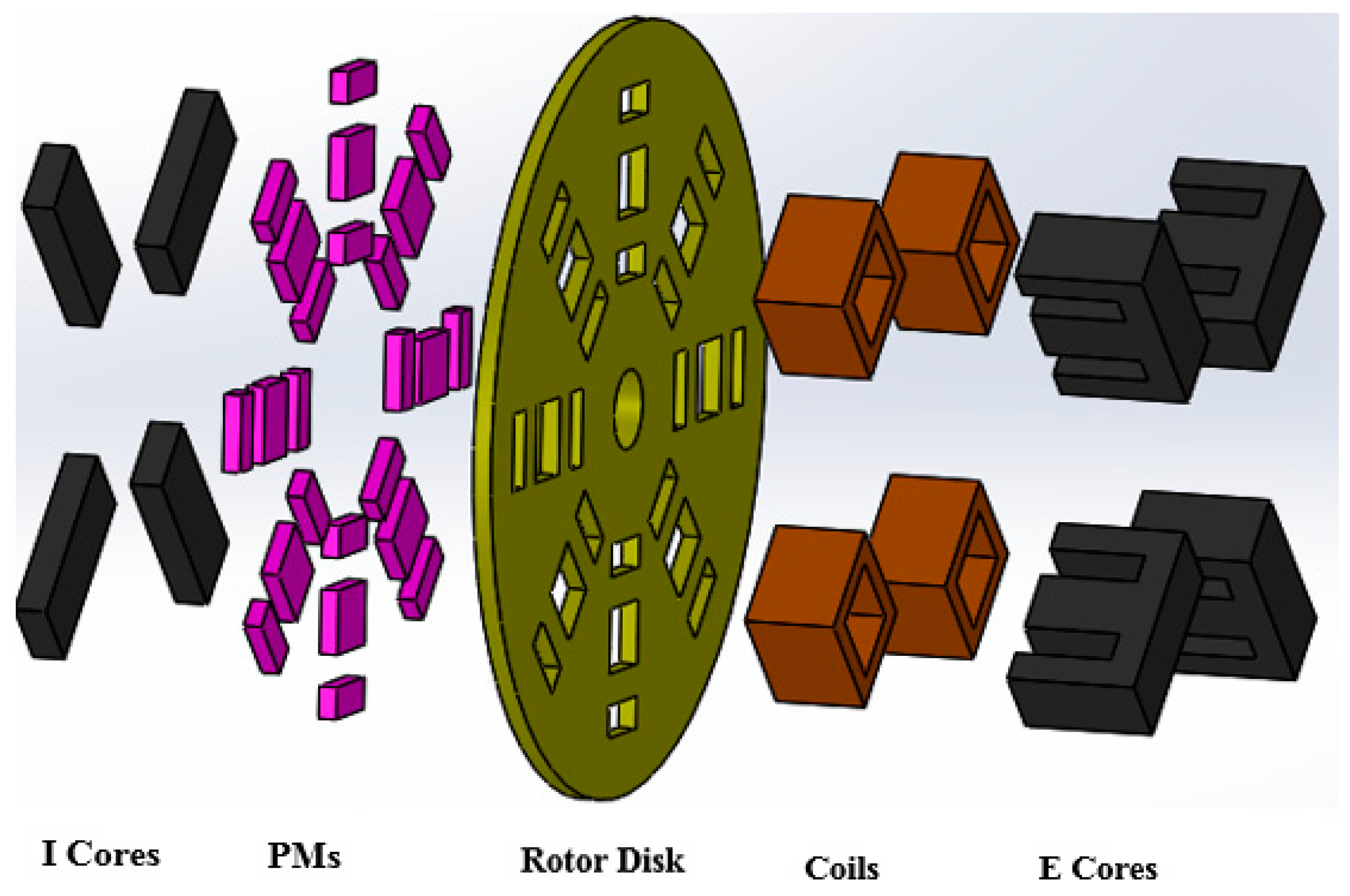

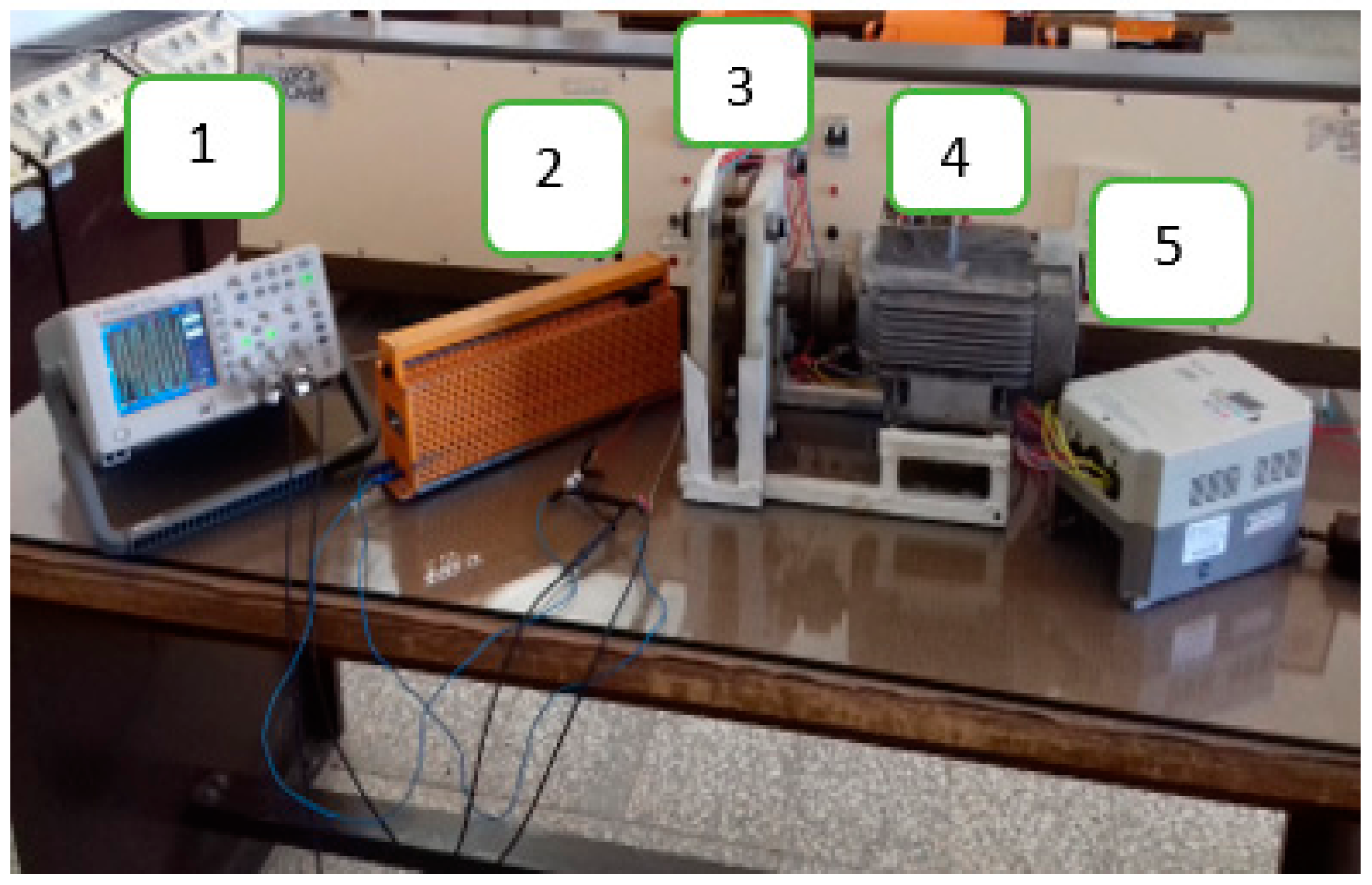

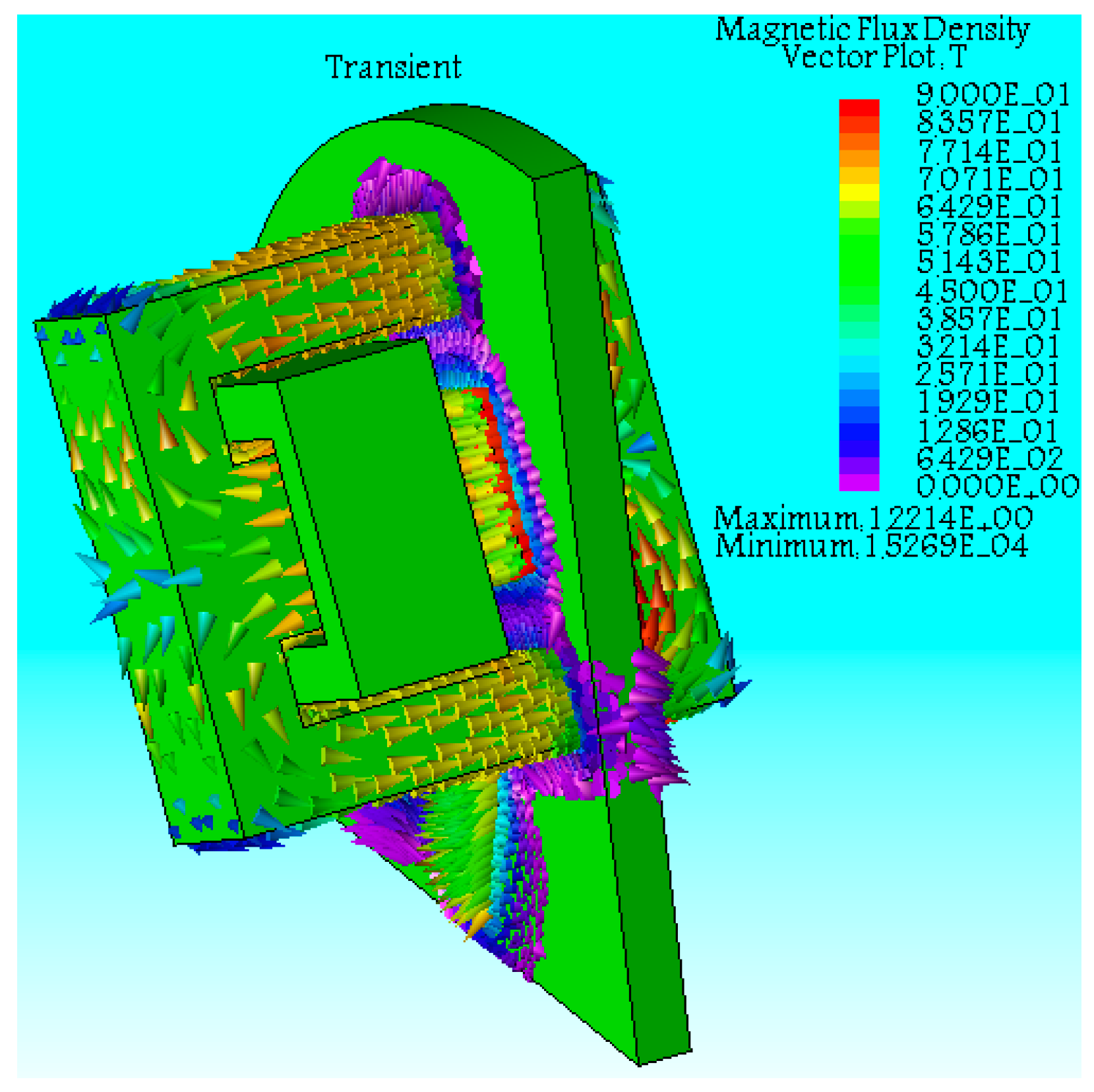

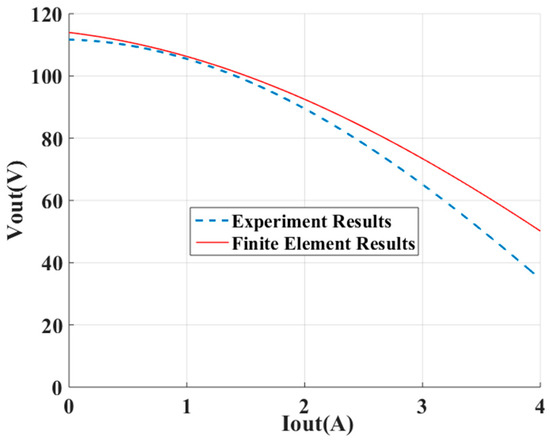

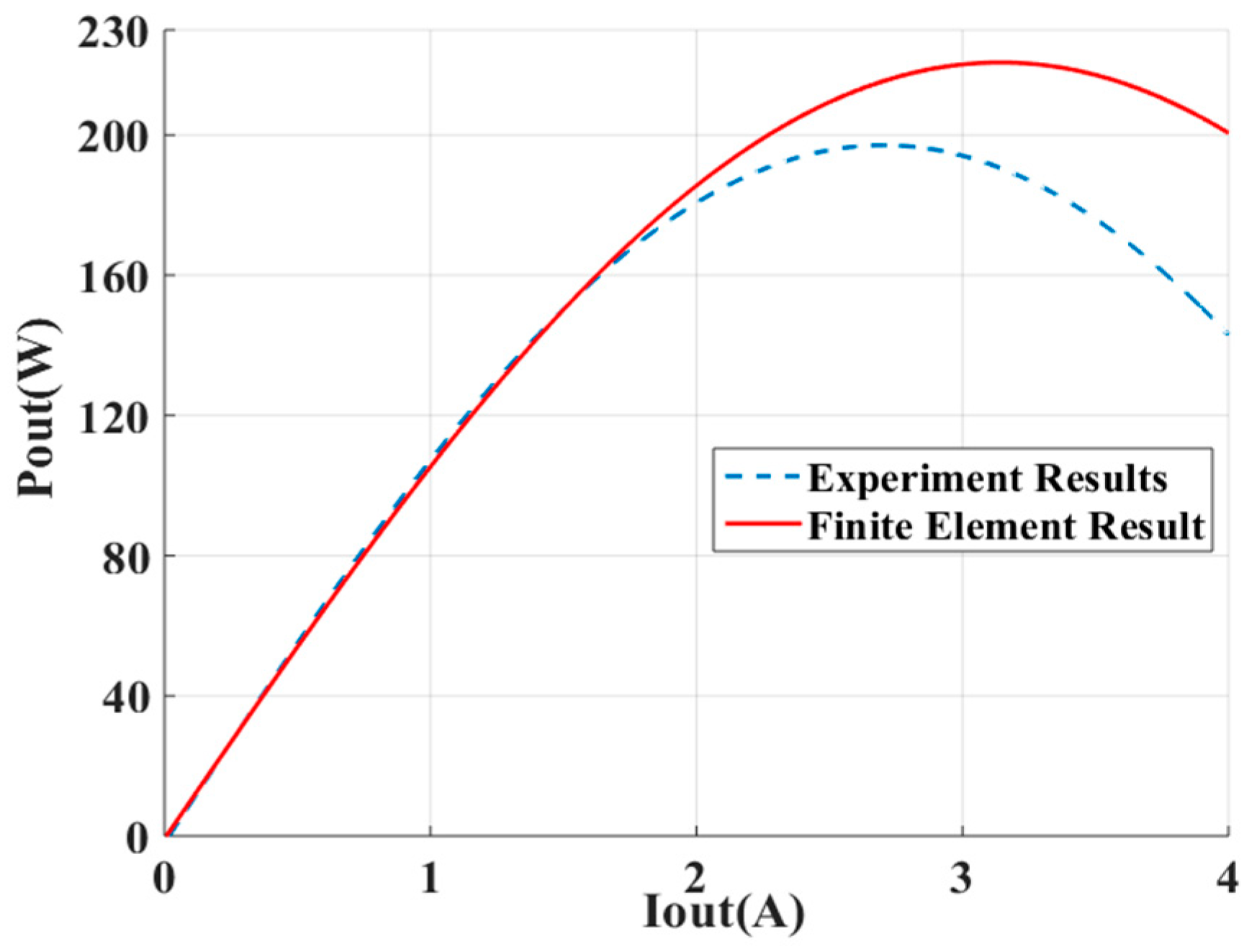

The purpose of this paper is to propose a novel design for the transverse flux permanent magnet (TFPM) disk-rotor generator with E and I-shaped cores (TFPMDEIG). Disk-shape structure increases the machine’s power factor, allows for high rotational speeds, decreases centrifugal force over permanent magnets, and is employed in wind turbines, due to its compact structures. As for other advantages for this structure, one can point to the fact that there are as many windings as machine’s pole pairs; these windings become parallel by observing the polarity. In other words, the total power of this machine is distributed between pole pairs, increasing the overall reliability of the machine. In this paper, first, the initial design algorithm and the basic formulas governing the behavior of the proposed structure using the equivalent magnetic circuit for each pole are provided, and the three-dimensional finite element method (3D-FEM) is used for verification of the algorithm. To validate the simulation results (3D-FEM), then, a prototype has been fabricated and experienced. The experimental results are in good agreement with simulation results. View Full-Text
Keywords: transverse flux permanent magnet machine; disk-rotor; initial design algorithm; three-dimensional finite element method transverse flux permanent magnet machine; disk-rotor; initial design algorithm; three-dimensional finite element method
