Article

Preparation, Physicochemical Properties, and Long-Term Performance of Photocatalytic Ceramsite Sand in Cementitious Materials

1
State Key Laboratory of Silicate Materials for Architecture, Wuhan University of Technology, Wuhan 430070, China
2
School of Chemistry, Chemical Engineering and Life Science, Wuhan University of Technology, Wuhan 430070, China
*
Author to whom correspondence should be addressed.
Appl. Sci. 2017, 7(8), 828; https://doi.org/10.3390/app7080828
Submission received: 26 July 2017 / Revised: 7 August 2017 / Accepted: 7 August 2017 / Published: 11 August 2017
(This article belongs to the Section Materials Science and Engineering)

Abstract

:

Featured Application

Photocatalytic construction.

Abstract

Incorporation of TiO2 into cementitious materials is an important technology in the field of photocatalytic pollution mitigation; however, the photocatalytic activity of TiO2 is limited by specific surface area, poor gas diffusion and light transmission performance of cementitious materials. In this study, a novel photocatalytic lightweight aggregate—photocatalytic ceramsite sand (PCS) was synthesized by loading TiO2 on activated porous ceramsite sand (CS) with negative pressure method to solve problems in application of photocatalysts in cementitious materials. Photocatalytic cement material (PCM) was prepared by loading PCS on the surface of cementitious materials, which improved the photocatalytic activity and efficiency of TiO2 in cementitious materials. It was found that the pore structure (pore volume, size distribution and interconnectivity) of ceramsite sand (CS) varies with particle size. The photocatalytic removal rate of benzene on PCS increased significantly through adjusting ceramsite sands in appropriate pore structure and TiO2 at best coating ratio. The photocatalytic activity of PCS slightly decreased but still remained active after incorporated into concrete. 2 μL benzene was degraded completely in 200 min by 5 g 4PCS-1.25~2.35 and 300 min by PCM-5, and was still degraded over 80% in 400 min by PCM-5 after exposure to natural environment for 6 months. The results suggested that the photocatalytic activity of TiO2 in cementitious materials was enhanced by the preparation of PCS and PCM, which could provide more gas diffusion, higher specific surface area, more TiO2 active sites, and prevent TiO2 particles from being influenced by the envelope of cement hydration products and the carbonation of cement.

Graphical Abstract

1. Introduction

In recent years, there is an increasing interest in applying photocatalysts in cementitious materials to eliminate urban air pollutants [1,2,3,4,5]. However, cementitious materials have many disadvantages, such as complex constituent, low specific surface area, surface carbonation and poor light transmittance, etc. Previous studies [6,7,8] showed that the photocatalytic activity of photocatalysts, especially the long-term photocatalytic performance, decreased obviously after being applied in cementitious materials, whether TiO2 was coated on the surface or mixed with the substrates. This phenomenon was attributed to the surface carbonation of gas–solid interface, the peeling of photocatalyst layer and the influence of ion species (Ca2+, Na+, OH, etc.) [9]. Many studies have attempted to improve the photocatalytic activity of photocatalysts in cementitious materials. Janus et al. [10] prepared cement pastes containing nitrogen and carbon co-modified TiO2 (TiO2-N,C) to enhance photocatalytic activity of photocatalysts in cementitious materials. Vaish et al. [11] presented visible light active photocatalytic filler based on BaTiO3 and reduced graphene oxide immobilized in Portland cement could be readily reinforced the photocatalytic performance for xanthene dye degradation. Moreover, Lee et al. [12] evaluated the influence of water-to-cement ratio (w/c) on photocatalytic efficiency in the presence of NO and NO2. It was found that w/c of the material altered the pore structure of cementitious materials [13], the amount of effective surface area available for photocatalytic oxidation and the binding of oxidation products [14,15]. Generally, there are two ways to improve the photocatalytic activity of photocatalytic cementitious materials effectively: increasing the absorption of air pollutant and reducing the coverage of photocatalysts by cementitious materials or hydration products [16]. Therefore, some methods such as introducing the high porosity expanded shale into concrete [17], controlling the pore structure of cement pastes [18] and regulating the microstructure of mortar cement [19] have been developed to enhance the photocatalytic activity of photocatalytic cementitious materials.
Aggregates are important components of cement concrete materials, which have potential to act as the substrate of photocatalysts due to the stable composition and structure. Among many aggregates, ceramsite is a promising aggregate to load photocatalysts such as TiO2 because of physicochemical stability and porous structure. It has been applied in exposed aggregate concrete to build concrete pavement and sidewalk for sound absorption and noise reduction in replace of traditional aggregate. In addition, the exposed aggregate concrete exhibited better surface strength and abrasion performance compared with ordinary concrete [20,21]. However, the functional ceramsites with large particle size brought some difficulties in construction when being loaded on the surface of cement concrete. Therefore, ceramsites were crushed into ceramsite sands (CS), which could facilely being used in photocatalytic cement material (PCM) to increase the reaction areas of photocatalysis and improve the stability of TiO2 as the intermediate.
In this paper, photocatalytic ceramsite sand (PCS) was prepared by negative pressure method and then loaded on the surface of cement pastes at the initial set. The photocatalytic activity was improved significantly by using CS as intermediate of TiO2 and cementitious materials. Comparing with cementitious materials, PCS could not only prevent the aggregation of TiO2 particles but also provide more active sites, high specific surface areas and more gas diffusion. The preparation of PCS increased the reacting areas and utilization rate of TiO2 in cement concrete constructions compared with coating on the surface or mixing with substrates. Therefore benzene was chosen as target contaminant in experiments which was rarely selected in other studies because of its difficulty in degradation. As we all know, benzene is an organic solvent which is very stable compared with other organic or air contaminants. It is rather hard to degrade especially for photocatalysts applied in cementitious materials. In this study, 2 μL benzene was degraded completely in 300 min by PCM in a closed cylindrical stainless steel gas-phase reactor (5.56 L), which proved extraordinary photocatalytic property of PCM. The photocatalytic activity of specimens in simulation conditions were studied in detail.
In addition, X-ray diffraction (XRD), scanning electron microscope (SEM), energy dispersive spectrometer (EDS), X-ray photoelectron spectroscopy (XPS) and gas chromatography (GC) were conducted to comprehensively characterize the photocatalytic materials and mechanisms governing the catalytic process.

2. Materials and Methods

2.1. Materials

CS was obtained from Yi Chang and sieved to three levels of particle sizes (0.1~0.6 mm, 0.6~1.25 mm and 1.25~2.35 mm). The physical characteristics and the chemical composition are listed in Table 1 and Table 2, respectively. ASTM type I was purchased from Huaxin Cement Co., Ltd (Wuhan, China). Photocatalysts applied in this study, TiO2 (25% rutile and 75% anatase) is Degussa P25, which has a crystal particle size of 25 and 40 nm, respectively. Sodium hydroxide (NaOH) and absolute alcohol (C2H5OH) were purchased from Shenshi Chem (Shanghai, China). All chemicals applied in this study were analytical grade.

2.2. Methods

2.2.1. Preparation of Photocatalytic Ceramsite Sand

Ceramsite sand (CS) was activated by being immersed into 0.1 mol/L NaOH aqueous solution with sonication for 30 min to get more active sites. The other method for activating CS was to immerse CS into 5 mol/L NaOH at 85 °C in a reflux device for 4 h. Then, the activated CSs were put into vacuum saturation container at 0.1 MPa vacuum for 30 min to discharge the air in pores of CS. TiO2 (P25) was firstly dispersed in 100 mL absolute alcohol with magnetic stirring in various concentrations. After 30 min of vacuum pumping and magnetic stirring, TiO2 absolute alcohol dispersion solution was inhaled into the vacuum container with ultrasonic treatment for 1 h. Then, photocatalytic ceramsite sand (PCS) precursor was taken out, washed by distilled water, and dried at 105 °C for 3 h. PCS was thus successfully prepared. The concentrations of TiO2 absolute alcohol dispersion solution were designed as 1, 2, 3, 4 and 5 g/L, respectively. The samples were denoted as mPCS-n, where m was the coating concentration of TiO2 absolute alcohol dispersion (m = 1, 2, 3, 4, 5 g/L), and n was the particle size of CS (n = 0.1~0.6, 0.6~1.25, 1.25~2.35 mm). To compare PCM in this study with traditional photocatalytic cementitious materials, control groups were prepared in traditional ways by spraying TiO2 on the surface or incorporating into cement pastes with same amount of photocatalysts (0.1 g) and same dimension compared with other samples. The photocatalytic activity of pure TiO2 (P25) was also tested. The experimental devices and procedure are shown in Figure 1.

2.2.2. Preparation of Photocatalytic Cement Materials

The photocatalytic cement materials (PCM) were prepared with 4PCS-1.25~2.35, cement and water. First, cement and water (w/c is 0.35) was mixed for 3 min in cement mixer. After the cement pastes were cast into a petri dish (diameter 90 mm) for 3 h, 1, 3, 5 g 4PCS-1.25~2.35 was sprayed on the top surface of the cement pastes, respectively. PCS was thus exposed to air. After 3 days of hydration, PCM was successfully prepared. The samples were denoted as PCM-x, where x is the weight of 4PCS-1.25~2.35 (x = 1, 3, 5 g).

2.3. Characterization

The crystalline compositions of PCS were identified by XRD (MAX-RB RU-200B) (Rigaku, Tokyo, Japan) at the scanning speed of 8° min−1 and scanning range from 10° to 80° [17]. The scanning electron microscopy (SEM) images were obtained through SEM (Quanta FEG 450, FEI) analyzer (FEI, Hillsboro, OR, USA), together with Genesis EDS for compositional analysis. Chemical valence states of PCS were investigated by X-ray photoelectron spectroscopy (XPS), which was performed on a Thermo Fisher ESCALAB 250Xi instrument (Thermo Fisher Scientific, Waltham, MA, USA) with an monochromatic Al K Alpha (1486.68 eV) X-ray source. The apparent morphology of CS, PCS and PCM were observed by digital camera. The specific surface area was measured from N2 adsorption isotherms by Brunauer-Emmett-Teller surface area measurement (BET, ASAP 2020M, Atlanta, GA, USA). The pore size distribution, available pore volume and total porosity of CS and PCS were determined by Mercury intrusion porosimetry (Pore Master 60, Quantachrome, Boynton Beach, FL, USA). The working pressure was 3.45 kPa~413 MPa, allowing mercury intrusion in pores with diameters 1 nm~350 μm.

2.4. Evaluation of Photocatalytic Activity

The photocatalytic activity was characterized in mineralization of benzene. The source of UV light was a high pressure Hg lamp (125 W, λnm > 340 nm, light spectrum around 365, 400, 440, 550 and 580 nm), which was obtained from Shanghai Yaming, China. There was a 15 cm distance between the lamp and sample. In these tests, the UV light region on the surface of sample was 320~400 nm and the UV intensity was 0.96 mW/cm2.
Samples were put in a closed cylindrical stainless steel gas-phase reactor (5.6 L) with a quartz window. Gaseous environment was synthetic air and humidity was indoor humidity. For each test, liquid benzene (2 μL) was injected and evaporated in the reactor. After complete evaporation of benzene in the reactor (shown by concentration in gas chromatograph), a sample of PCM or 5 g PCS was started to be irradiated by the UV lamp. Then, the concentration of benzene in the photocatalytic progress was measured every 15 min by gas chromatograph (GC9560, Shanghai, Huaai, China).
The PCSs with coating concentrations of TiO2 1~5 g/L were used in recycled experiments. The approach is as follows: after the first photocatalytic activity test, the sample was irradiated under a UV lamp for 1 h with the quartz window open to ensure the pollutants absorbed on the surface of sample removed completely. Then, seal the reactor again and start the next test. PCM-5 was applied in long-term photocatalytic effect test. The sample was placed on the roof (State Key laboratory of Silicate Materials for Architecture, Wuhan University of Technology, Luoshi Road, Wuhan, Hubei, China) with the face up for 6 months (September 2015 to March 2016). The outdoor temperature was −6~38 °C and the relative humidity conditions range from 35 to 90%. The month average rainfall was 118.9 mm. After 6 months of atmospheric environment exposure, the photocatalytic activity of PCM-5–6 months was evaluated under same experimental conditions with other samples. The control group was also tested after 1 month of atmospheric environment exposure.

3. Results and Discussion

3.1. Physical and Chemical Properties

Figure 2 showed the surface morphology of CS and PCS with different particle sizes. The samples were denoted as CS-n and mPCS-n, where m was the coating concentration of TiO2 absolute alcohol dispersion (m = 1, 4 g/L), n was the particle size of CS (n = 0.1~0.6, 0.6~1.25, 1.25~2.35 mm). No apparent color differences were observed between CS-0.1~0.6 and 1PCS-0.1~0.6. In addition, 1PCS-0.6~1.25 was a little whiter than samples without coating. Nevertheless, all PCS of the particle size 1.25~2.35 mm were obviously whiter compared with the control samples without coating, which was consistent with Yang’s study [17]. The change of color was attributed to the light absorption and reflection of TiO2 particles [22]. As we can see, PCS with TiO2 dispersion solution concentrations 4 g/L were significantly whiter than that of 1 g/L, which was related to more TiO2 coating areas and thicker TiO2 coating layer. The surface topography of PCM with 1, 3, 5 g PCS loaded and interface between PCS and matrix are shown in Figure 2 as well.
XRD patterns were applied to explore the crystalline structure of samples. Figure 3 showed the XRD patterns of CS, TiO2 (P25) and 1PCS-1.25~2.35 with ultrasonic activation (1PCS-1.25~2.35-UA) and alkali activated (1PCS-1.25~2.35-AC). It can be seen that the main components of CS were SiO2 and Mg0.7Fe0.23Al1.97O4. Comparing with the XRD pattern of TiO2, the characteristic peaks of 1PCS-1.25~2.35-UA occurred at about 2θ = 27° and 44.3° can be assigned to the Rutile [23]. The characteristic peaks at 2θ = 25.3° can be assigned to the Anatase. The peak of TiO2 could also be found in 1PCS-1.25~2.35-AC, but weaker than 1PCS-1.25~2.35-UA. The XRD suggested that TiO2 particles were successfully coated on the surface of CS and ultrasonic activation could get more actives sites for combination of CS and TiO2.
SEM images in Figure 4 presented the morphological structure of CS, 4PCS-1.25~2.35, and 1PCS-1.25~2.35, respectively. From Figure 4a,b, it can be seen that the pore size of CS mainly ranged from 5 to 50 µm and there are some small pores under 1 µm. Some inter-connecting pores were also observed clearly, which could facilitate the coating of TiO2 and the absorption of gas pollutants. Figure 4c,d showed that TiO2 was coated on the surface of CS successfully. It can be found TiO2 was layered homogeneously on the surface of CS and there were abundant small holes among TiO2 layers, which could contribute to the absorption of gas pollutants. There are three factors to form those structures, including silica-based CS, ultrasonic activation and negative pressure preparation method. These factors were helpful to produce hydroxyl groups on the surface of CS and therefore lead to the formation of Ti-O-Si bonds and the accumulation of TiO2 particles [24,25].
TiO2 particles on the surface of 1PCS-1.25~2.35 were observed In Figure 4e, which were seen as bright spots. It was confirmed that TiO2 particles loaded on the surface of CS agglomerated rarely. The observation in Figure 4e was in agreement with the results of EDS in Figure 4f,g. Element Ti could be identified at Area 1 where many bright spots could be observed. Meanwhile, Area 2 contained no Ti had no bright spot. The result of EDS showed that TiO2 had deposited on the surface of PCS successfully.
BET was applied to explore the specific surface area of samples. As shown in Table 3, the specific surface area of CS and mortars are 0.0770 m2/g and 0.0013 m2/g, respectively. The specific surface area of CS is much higher than that of mortars.
Figure 5 and Table 4 showed the pore size distribution, total porosity and available pore volume for all PCS samples. Figure 5a revealed that PCS exhibited a pore size distribution mostly in the range of 1~100 μm, with a small amount of pores from 10 to 1000 nm. The pores distributed in the range of 10~1000 nm increased with the increase of the PCS particle size while the pores distributed in the range of 1~100 μm decreased with the increase of the PCS particle size. In other words, when CS was crushed into smaller pieces, many small pores of CS were lost but the amount of larger pores increased. This might be because some small pores at section were destroyed through the crushing, while some larger closed pores turned to open. Therefore the CS with small particle size had higher total porosity and pore volume than larger ones (as shown in Table 4). More big pores, higher porosity and pore volume might cause the waste of TiO2 particles, because the TiO2 particles at the bottom of the pores could not accept the light. In addition, big pores were nearly useless to gas diffusion compared with small ones. Figure 5b showed the similar pore distribution curves for the samples prepared with different TiO2 coating concentrations. The pore volumes of PCS with different TiO2 coating concentrations had few changes, corresponding to the results of Figure 5b. With the increasing of TiO2 coating concentrations, the pores between 90 μm and 100 μm reduced slightly while the pores in the range of 1~1000 nm increased. This phenomenon can be attributed to the formation of TiO2 layer provided many small pores and reduced the pore size of some big pores. According to the above results, it can be inferred that PCS-1.25~2.35 might possess more excellent photocatalytic performance due to appropriate pore structure (more pores in the range of 10~1000 nm, relatively lower total porosity and pore volume), which could provide an excessive exposure of TiO2 and more gas diffusion channels.
In order to further identify the chemical composition of PCS before and after TiO2 loading, XPS analysis was carried out. The XPS spectra survey patterns of Mg, Fe, O, Ti, C, Si, and Al peaks are showed in Figure 6a, indicating the elemental components and their chemical states of PCS, which are consistent with the XRD results. The C1s peak correspond to organic and inorganic carbon, which represent the pollution peak. The O1s characteristic peaks can be deconvoluted into four peaks at 529.6, 530.8, 531.9 and 532.5 eV, which can be assigned to Ti–O–Ti, Al–O–Al, Ti–O–Si and Si–O–Si, respectively [26]. The Al–O–Al bonds might be caused by the calcination of CS [27]. The bonding of titanium and silicon (Ti–O–Si) is supported by peaks centered at 531.6 eV, formed by the combination of Ti–O–H bond and Si–O–H bond. The binding energy of Ti–O–Si is 531.6 eV because the O1s binding energy of Si–O bond was weakened by the formation of Ti–O–Si and the electron density of Si is higher than Ti [28]. The formation of Ti-O-Si bond confirmed that TiO2 was loaded on the surface of CS by chemical bond, which is tighter than physical connection and could improve the catalysis durability of PCM effectively [29].

3.2. Photocatalytic Performance

The photodecomposition process by PCSs is summarized in Figure 7. Comparing with cementitious materials, the porous structure of PCS could provide more gas diffusion and light transmittance channels which improved the reaction areas and utilization rate of photocatalysts. The photogenerated charges can generate “•OH” radicals and “O2” intermediate species by reacting with absorbed H2O and O2 molecules for the photodecomposition of benzene. The mechanism of photocatalytic reaction is shown as follows [4]:
TiO 2 + h υ h vb + + e cb
e cb + O 2   O 2
h vb + + H 2 O   OH + H +
C 6 H 6 +   O 2 +   OH CO 2 + H 2 O
Figure 8a showed the photocatalytic degradation of benzene on the surface of PCS and control groups. 1PCS-1.25~2.35-UA presented more superior photocatalysis performance (degraded 2 μL benzene completely in 350 min) compared with other PCSs, proved to be the most efficient one. It was because CS-1.25~2.35 provided more superior pore structure to absorption of gas pollutants, which led to a larger gas-solid contact area between TiO2 and benzene under the same condition. After 1 month of atmospheric environment exposure, 1PCS-1.25~2.35-UA-1 month could still degrade 96% of 2 μL benzene in 400 min. The control group (Surface coating) showed even better photocatalytic activity (degraded 2 μL benzene completely in 250 min) than 1PCS-1.25~2.35-UA with same amount of photocatalysts because of full exposure of TiO2 particles. However, only after 1 month of atmospheric environment exposure, the photocatalytic activity of “Surface coating” decreased significantly by degrading 67% of 2 μL benzene in 400 min. The reason is that TiO2 is not bound tightly with the surface of cement, which is easily washed off, abraded or enveloped by the cement hydration products. Another control group (Incorporation) showed very little photocatalytic effects because the TiO2 incorporated into cement materials could barely touch the lights. The photocatalytic activity of TiO2 (P25) is also shown in Figure 8a, which is lower than “Surface coating”. Despite its higher photocatalytic activity, the agglomeration of TiO2 nanoparticles and the lower adsorption abilities are prevailing in our photocatalytic tests. Besides, the degradation of benzene by 1PCS-1.25~2.35-AC was much slower than 1PCS-1.25~2.35-UA, which indicated more active sites were provided by ultrasonic activation than alkali activation. Thus, ultrasonic activation was selected in subsequent experiments. As indicated in Figure 8b, the photocatalytic activity of PCS increased gradually when TiO2 concentrations rose from 1 g/L to 4 g/L. However, when TiO2 concentration increased to 5 g/L, the photocatalytic activity decreased compared with 4PCS-1.25~2.35. Higher concentration of TiO2 solution led to more TiO2 deposition on the surface of CS and higher photocatalytic activity. Nevertheless, when TiO2 concentration came to 5 g/L, agglomeration problem of TiO2 was serious, which led to more recombination of electron-hole and difficulties for TiO2 particles to be exposed to the photocatalytic reaction. Hence, 4PCS-1.25~2.35 was chosen as the best material to prepare PCM.
Figure 9 revealed that 4PCS-1.25~2.35 still presented excellent photocatalytic effect after being loaded on the surface of cement materials. As we can see, the adsorption of benzene on surface of mortars without photocatalysts hardly had influence on experiment compared to the photocatalytic effect of samples. It was demonstrated that the surface pores of PCS played an important role in photocatalytic reaction. The presence of PCS increased the reaction area and the loading contents of TiO2 particles, which were beneficial to improve the photocatalytic efficiency. The photocatalytic activity of PCM increased with the increase of PCS on the surface of PCM from 1 g to 5 g because the photocatalysts on the surface of PCSs were not covered by cement materials and hydration products and had no agglomeration problem. The PCM still remained high photocatalytic activities after exposure to the natural environment for 6 months (which is marked by PCM-5–6 months) which is more stable than Surface coating. It is because that the chemical bond (Si-O-Ti) between TiO2 and CS could prevent TiO2 particles from peeling from PCS. On the other hand, TiO2 coated on the surface of CS was influenced slightly by the envelope of cement hydration products and the carbonation of cement. However, the prepared PCM was washed and brushed repeatedly for 6 months, and the slight coverage of macro-particles was unavoidable in atmospheric environment exposure, which could slightly decrease the photocatalytic activity of specimen [30].
The resusability performance of catalyst is also an important parameter to evaluate the long-term catalytic performance of photocatalytic material in practical application. Figure 10 showed that time of fully degradation of 2 μL benzene by PCS with different TiO2 concentrations and control group. All PCSs still presented excellent photocatalytic activity after being reused for 10 cycles. This might be due to the good stability of substrate and the large bonding force between TiO2 and CS. The control group (Surface coating) showed decreased photocatalytic effects during the cycle experiment. This might be because that high surface energy of TiO2 and low specific surface area of mortar caused the agglomeration of TiO2 particles, which could lead to more recombination of electron-hole and difficulties for TiO2 particles to be exposed to the photocatalytic reaction. Comparing with the previous studies [22,31], our material had an excellent long-term photocatalytic performance with higher retention rate for photocatalytic activity. The reason was that the structures of porous PCS provided higher specific surface area and more gas diffusion channels than cementitious materials and prevented TiO2 particles from being affected seriously by the envelope of cement hydration products and the carbonation of cement [32], which improved the reacting areas, utilization rate of catalysts, and enhanced the photocatalytic activity effectively.

4. Conclusions

In this paper, PCS and PCM were prepared successfully. The physicochemical properties, photocatalytic activity and long-term catalytic performance were studied comprehensively. 2 μL benzene was degraded completely in 200 min by 5 g 4PCS-1.25~2.35 and 300 min by PCM-5, and was still degraded over 80% in 400 min by PCM-5 after exposure to the natural environment for 6 months. The results showed that PCS presented an excellent photocatalytic activity due to abundant pores, stable structure and large reaction area of CS. The detailed results showed that the photocatalytic activity of PCS increased through adjusting CS in appropriate pore structure (more pores in the range of 10~1000 nm, appropriate total porosity and pore volume) and TiO2 in appropriate ratio, which could provide an excessive exposure of TiO2 on the surface and more gas diffusion channels. PCS exhibited an optimal degradation activity to benzene when TiO2 concentration rose to 4 g/L. However, a fraction of the loaded TiO2 was inaccessible to the reactants or light as the concentration of TiO2 kept increasing (up to 5 g/L). Excessive TiO2 might have serious agglomeration problems, leading to the decreased adsorption rate of air pollutants.
After PCS was loaded on the cement materials, PCM could still present a high catalytic activity. Even after exposure to the natural environment for 6 months, PCM still remained good photocatalytic activity comparing with the cement material with TiO2 on the surface or incorporated. The excellent photocatalytic activity and long-term catalytic performance were attributed to the activation for surface groups and distinctive structure of PCS. The porous structure of PCS increased specific surface areas, gas diffusion and light transmittance channels of PCM, improving the reacting areas and utilization rate of TiO2 effectively. Through this preparation route, more TiO2 particles on PCS were exposed to environment without being influenced by the envelope of cement hydration products and the carbonation of cement.

Supplementary Materials

Supplementary File 1

Acknowledgments

We gratefully acknowledge the financial support of the National Natural Science Foundation of China (Nos. 51502222 and 51461135005).

Author Contributions

Du Zhao, Peng Liu, Fazhou Wang and Shuguang Hu designed experiments; Du Zhao and Lu Yang carried out experiments; Du Zhao, Peng Liu and Wenqin Zhang analyzed experimental results. Du Zhao wrote the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mendoza, C.; Valle, A.; Castellote, M.; Bahamonde, A.; Faraldos, M. TiO2 and TiO2–SiO2 coated cement: Comparison of mechanic and photocatalytic properties. Appl. Catal. B 2015, 178, 155–164. [Google Scholar] [CrossRef]
  2. Yang, L.; Wang, F.; Hakki, A.; Macphee, D.E.; Liu, P.; Hu, S. The influence of zeolites fly ash bead/TiO2 composite material surface morphologies on their adsorption and photocatalytic performance. Appl. Surf. Sci. 2017, 392, 687–696. [Google Scholar] [CrossRef]
  3. Aïssa, A.H.; Puzenat, E.; Plassais, A.; Herrmann, J.-M.; Haehnel, C.; Guillard, C. Characterization and photocatalytic performance in air of cementitious materials containing TiO2. Case study of formaldehyde removal. Appl. Catal. B 2011, 107, 1–8. [Google Scholar] [CrossRef]
  4. Pérez-Nicolás, M.; Balbuena, J.; Cruz-Yusta, M.; Sánchez, L.; Navarro-Blasco, I.; Fernández, J.M.; Alvarez, J.I. Photocatalytic Nox abatement by calcium aluminate cements modified with TiO2: Improved No2 conversion. Cem. Concr. Res. 2015, 70, 67–76. [Google Scholar] [CrossRef]
  5. Yang, L.; Wang, F.; Shu, C.; Liu, P.; Zhang, W.; Hu, S. An in situ synthesis of Ag/AgCl/TiO2/hierarchical porous magnesian material and its photocatalytic performance. Sci. Rep. 2016, 6, 21617. [Google Scholar] [CrossRef] [PubMed]
  6. Boonen, E.; Beeldens, A. Photocatalytic roads: From lab tests to real scale applications. Eur. Transp. Res. Rev. 2012, 5, 79–89. [Google Scholar] [CrossRef]
  7. Folli, A.; Pade, C.; Hansen, T.B.; De Marco, T.; Macphee, D.E. TiO2 photocatalysis in cementitious systems: Insights into self-cleaning and depollution chemistry. Cem. Concr. Res. 2012, 42, 539–548. [Google Scholar] [CrossRef]
  8. Todorova, N.; Giannakopoulou, T.; Karapati, S.; Petridis, D.; Vaimakis, T.; Trapalis, C. Composite TiO2/clays materials for photocatalytic nox oxidation. Appl. Surf. Sci. 2014, 319, 113–120. [Google Scholar] [CrossRef]
  9. Folli, A.; Pochard, I.; Nonat, A.; Jakobsen, U.H.; Shepherd, A.M.; Macphee, D.E. Engineering photocatalytic cements: Understanding TiO2 surface chemistry to control and modulate photocatalytic performances. J. Am. Ceram. Soc. 2010, 93, 3360–3369. [Google Scholar] [CrossRef]
  10. Janus, M.; Zatorska, J.; Czyżewski, A.; Bubacz, K.; Kusiak-Nejman, E.; Morawski, A.W. Self-cleaning properties of cement plates loaded with N,C-modified TiO2 photocatalysts. Appl. Surf. Sci. 2015, 330, 200–206. [Google Scholar] [CrossRef]
  11. Rastogi, M.; Vaish, R. Visible light induced water detoxification through portland cement composites reinforced with photocatalytic filler: A leap away from TiO2. Constr. Build. Mater. 2016, 120, 364–372. [Google Scholar] [CrossRef]
  12. Lee, B.Y.; Jayapalan, A.R.; Bergin, M.H.; Kurtis, K.E. Photocatalytic cement exposed to nitrogen oxides: Effect of oxidation and binding. Cem. Concr. Res. 2014, 60, 30–36. [Google Scholar] [CrossRef]
  13. Powers, T.C. Structure and physical properties of hardened portland cement paste. J. Am. Ceram. Soc. 1958, 41, 1–6. [Google Scholar] [CrossRef]
  14. Ramirez, A.M.; Demeestere, K.; De Belie, N.; Mäntylä, T.; Levänen, E. Titanium dioxide coated cementitious materials for air purifying purposes: Preparation, characterization and toluene removal potential. Build. Environ. 2010, 45, 832–838. [Google Scholar] [CrossRef]
  15. Chen, J.; Poon, C.-S. Photocatalytic activity of titanium dioxide modified concrete materials—Influence of utilizing recycled glass cullets as aggregates. J. Environ. Manag. 2009, 90, 3436–3442. [Google Scholar] [CrossRef] [PubMed]
  16. Maury-Ramirez, A.; De Muynck, W.; Stevens, R.; Demeestere, K.; De Belie, N. Titanium dioxide based strategies to prevent algal fouling on cementitious materials. Cem. Concr. Compos. 2013, 36, 93–100. [Google Scholar] [CrossRef]
  17. Wang, F.; Yang, L.; Wang, H.; Yu, H. Facile preparation of photocatalytic exposed aggregate concrete with highly efficient and stable catalytic performance. Chem. Eng. J. 2015, 264, 577–586. [Google Scholar] [CrossRef]
  18. Wang, F.; Yang, L.; Guan, L.; Hu, S. Microstructure and properties of cement foams prepared by magnesium oxychloride cement. J. Wuhan Univ. Technol. Mater. Sci. Ed. 2015, 30, 331–337. [Google Scholar] [CrossRef]
  19. Sugrañez, R.; Álvarez, J.I.; Cruz-Yusta, M.; Mármol, I.; Morales, J.; Vila, J.; Sánchez, L. Enhanced photocatalytic degradation of nox gases by regulating the microstructure of mortar cement modified with titanium dioxide. Build. Environ. 2013, 69, 55–63. [Google Scholar] [CrossRef]
  20. Hu, S.; Yang, T.; Wang, F. Influence of mineralogical composition on the properties of lightweight aggregate. Cem. Concr. Compos. 2010, 32, 15–18. [Google Scholar]
  21. Olorunsogo, F.T.; Padayachee, N. Performance of recycled aggregate concrete monitored by durability indexes. Cem. Concr. Res. 2002, 32, 179–185. [Google Scholar] [CrossRef]
  22. Yang, L.; Liu, P.; Li, X.; Li, S. The photo-catalytic activities of neodymium and fluorine doped TiO2 nanoparticles. Ceram. Int. 2012, 38, 4791–4796. [Google Scholar] [CrossRef]
  23. Cravanzola, S.; Cesano, F.; Gaziano, F.; Scarano, D. Sulfur-doped TiO2: Structure and surface properties. Catalysts 2017, 7, 214. [Google Scholar] [CrossRef]
  24. Habibi, M.H.; Mikhak, M. Titania/zinc oxide nanocomposite coatings on glass or quartz substrate for photocatalytic degradation of direct blue 71. Appl. Surf. Sci. 2012, 258, 6745–6752. [Google Scholar] [CrossRef]
  25. Nischk, M.; Mazierski, P.; Gazda, M.; Zaleska, A. Ordered TiO2 nanotubes: The effect of preparation parameters on the photocatalytic activity in air purification process. Appl. Catal. B 2014, 144, 674–685. [Google Scholar] [CrossRef]
  26. Kim, W.B.; Choi, S.H.; Lee, J.S. Quantitative analysis of Ti-O-Si and Ti-O-Ti bonds in Ti-Si binary oxides by the linear combination of xanes. J. Phys. Chem. B 2000, 104, 8670–8678. [Google Scholar] [CrossRef]
  27. Lippmaa, E.; Mägi, M.; Samoson, A.; Engelhardt, G.; Grimmer, A.R. Structural studies of silicates by solid-state high-resolution 29Si nmr. J. Am. Chem. Soc. 1980, 102, 4889–4893. [Google Scholar] [CrossRef]
  28. Tokarský, J.; Čapková, P. Structure compatibility of TiO2 and SiO2 surfaces. Appl. Surf. Sci. 2013, 284, 155–164. [Google Scholar] [CrossRef] [Green Version]
  29. Atuchin, V.V.; Kesler, V.G.; Pervukhina, N.V.; Zhang, Z. Ti2p and O1s core levels and chemical bonding in titanium-bearing oxides. J. Electron. Spectrosc. Relat. Phenom. 2006, 152, 18–24. [Google Scholar] [CrossRef]
  30. Maury-Ramirez, A.; Demeestere, K.; De Belie, N. Photocatalytic activity of titanium dioxide nanoparticle coatings applied on autoclaved aerated concrete: Effect of weathering on coating physical characteristics and gaseous toluene removal. J. Hazard. Mater. 2012, 211–212, 218–225. [Google Scholar] [CrossRef] [PubMed]
  31. Yu, C. Deactivation and Regeneration of Environmentally Exposed Titanium Dioxide (TiO2) Based Products; Department of Chemistry, Chinese University of Hong Kong: Hong Kong, China, 2003. [Google Scholar]
  32. Wang, F.; Yang, L.; Sun, G.; Guan, L.; Hu, S. The hierarchical porous structure of substrate enhanced photocatalytic activity of TiO2/cementitious materials. Constr. Build. Mater. 2014, 64, 488–495. [Google Scholar] [CrossRef]
Figure 1. Diagram of the vacuum-ultrasonic-negative pressure devices.
Figure 1. Diagram of the vacuum-ultrasonic-negative pressure devices.
Applsci 07 00828 g001

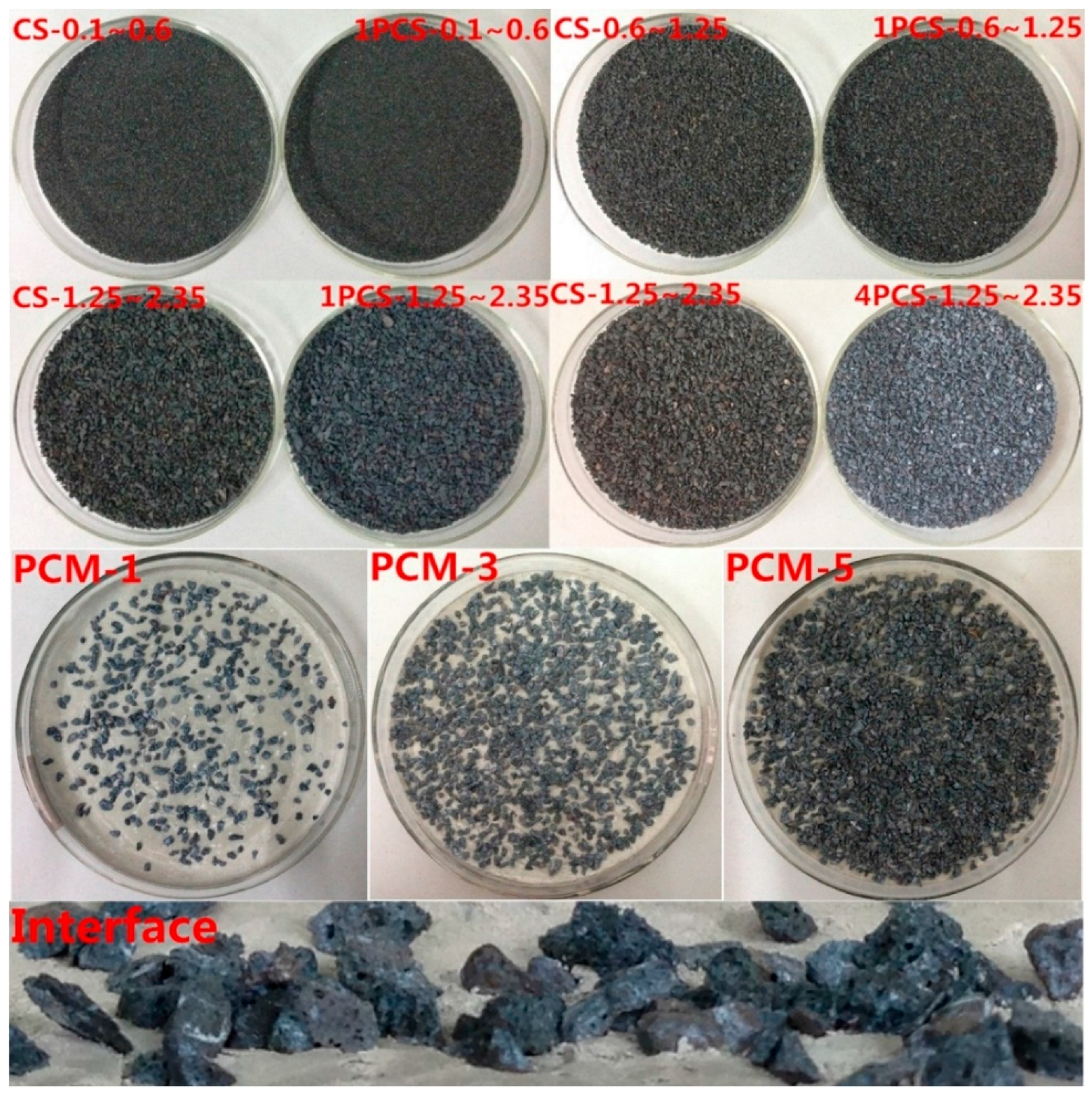

Figure 2. Surface morphology of photocatalytic ceramsite sand and photocatalytic cement materials and the interface of PCS and cement; CS-n and mPCS-n (m was the coating concentration of TiO2 absolute alcohol dispersion, m = 1~4 g/L, n was the particle size of CS, n = 0.1~0.6, 0.6~1.25, 1.25~2.35 mm); PCM-1, 3, 5 (photocatalytic cement materials with 1, 3, 5 g PCS); PCS: photocatalytic ceramsite sand; CS: ceramsite sand; PCM: Photocatalytic cement material.
Figure 2. Surface morphology of photocatalytic ceramsite sand and photocatalytic cement materials and the interface of PCS and cement; CS-n and mPCS-n (m was the coating concentration of TiO2 absolute alcohol dispersion, m = 1~4 g/L, n was the particle size of CS, n = 0.1~0.6, 0.6~1.25, 1.25~2.35 mm); PCM-1, 3, 5 (photocatalytic cement materials with 1, 3, 5 g PCS); PCS: photocatalytic ceramsite sand; CS: ceramsite sand; PCM: Photocatalytic cement material.
Applsci 07 00828 g002

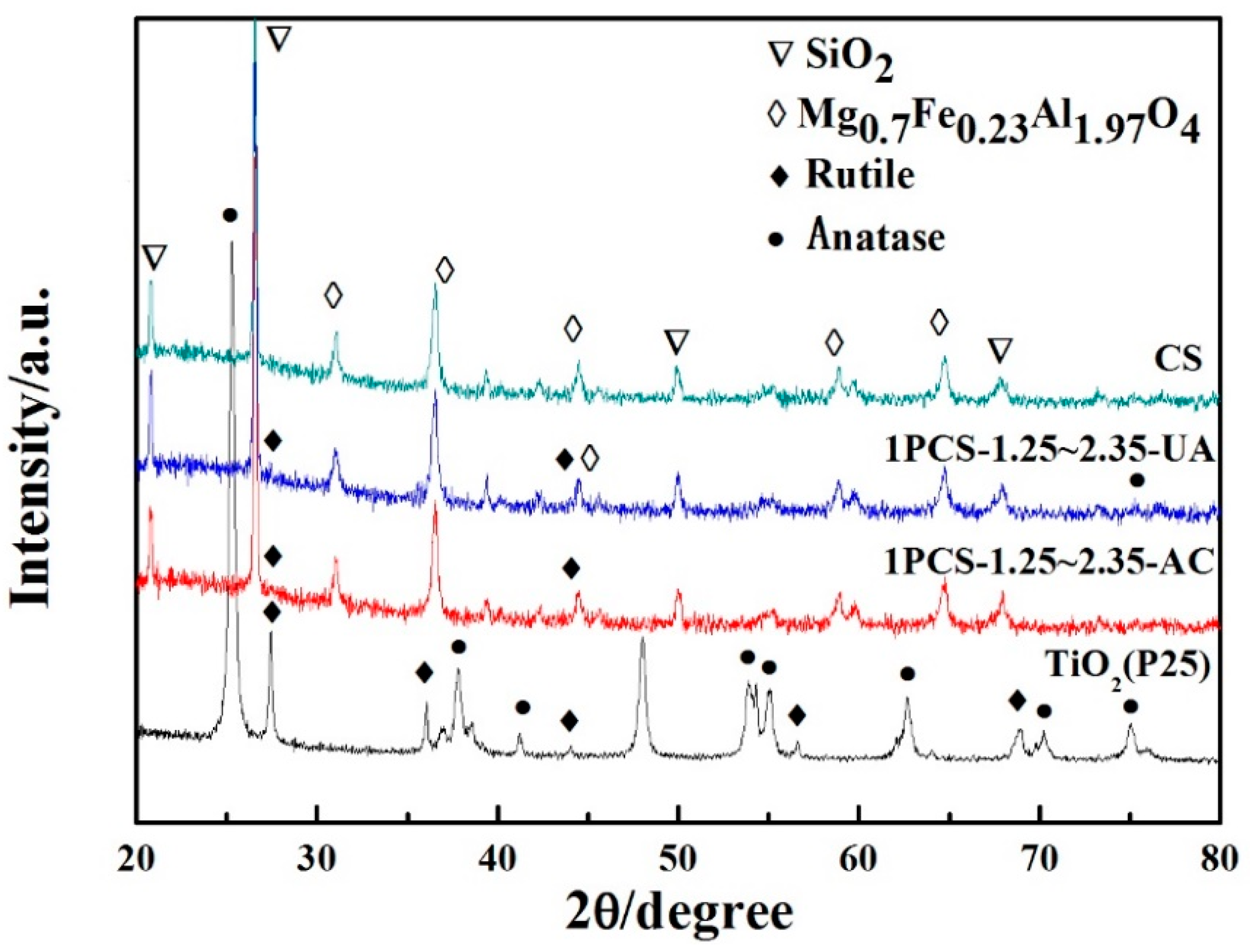

Figure 3. X-ray diffraction patterns of CS, TiO2 (P25), 1PCS-1.25~2.35 with ultrasonic activation (1PCS-1.25~2.35-UA) and alkali activated (1PCS-1.25~2.35-AC).
Figure 3. X-ray diffraction patterns of CS, TiO2 (P25), 1PCS-1.25~2.35 with ultrasonic activation (1PCS-1.25~2.35-UA) and alkali activated (1PCS-1.25~2.35-AC).
Applsci 07 00828 g003
Figure 4. Surface morphology and EDS of CS and PCS; (a,b) surface morphology of CS-1.25~2.35; (c,d) surface morphology of PCS (4PCS-1.25~2.35); (eg) surface morphology and EDS patterns of PCS (1PCS-1.25~2.35); EDS: energy dispersive spectrometer.
Figure 4. Surface morphology and EDS of CS and PCS; (a,b) surface morphology of CS-1.25~2.35; (c,d) surface morphology of PCS (4PCS-1.25~2.35); (eg) surface morphology and EDS patterns of PCS (1PCS-1.25~2.35); EDS: energy dispersive spectrometer.
Applsci 07 00828 g004

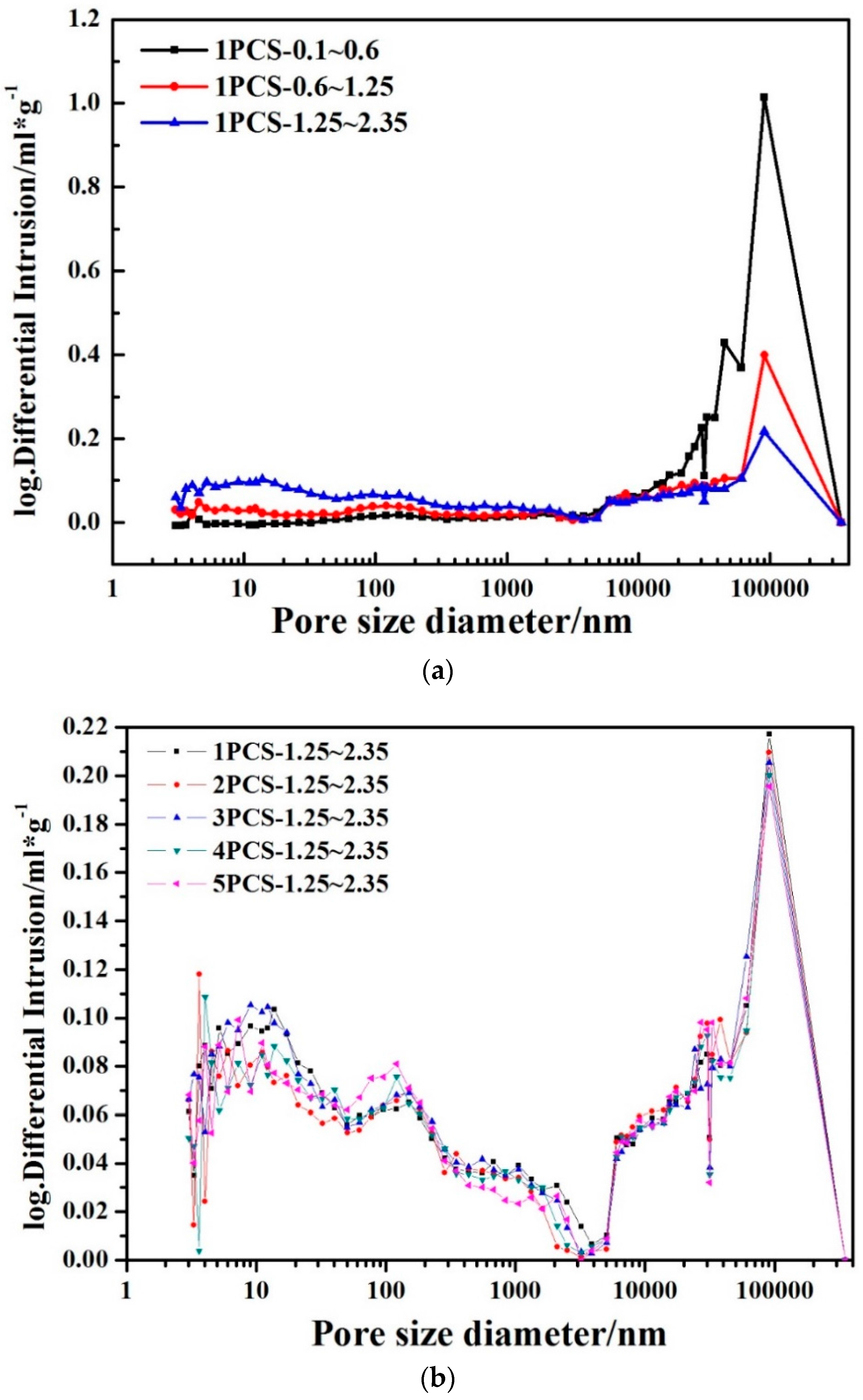

Figure 5. The pore distribution of all PCS samples; (a) 1PCS-n, (n = 0.1~0.6, 0.6~1.25, 1.25~2.35 mm); (b) mPCS-1.25~2.35, (m = 1, 2, 3, 4, 5 g/L).
Figure 5. The pore distribution of all PCS samples; (a) 1PCS-n, (n = 0.1~0.6, 0.6~1.25, 1.25~2.35 mm); (b) mPCS-1.25~2.35, (m = 1, 2, 3, 4, 5 g/L).
Applsci 07 00828 g005

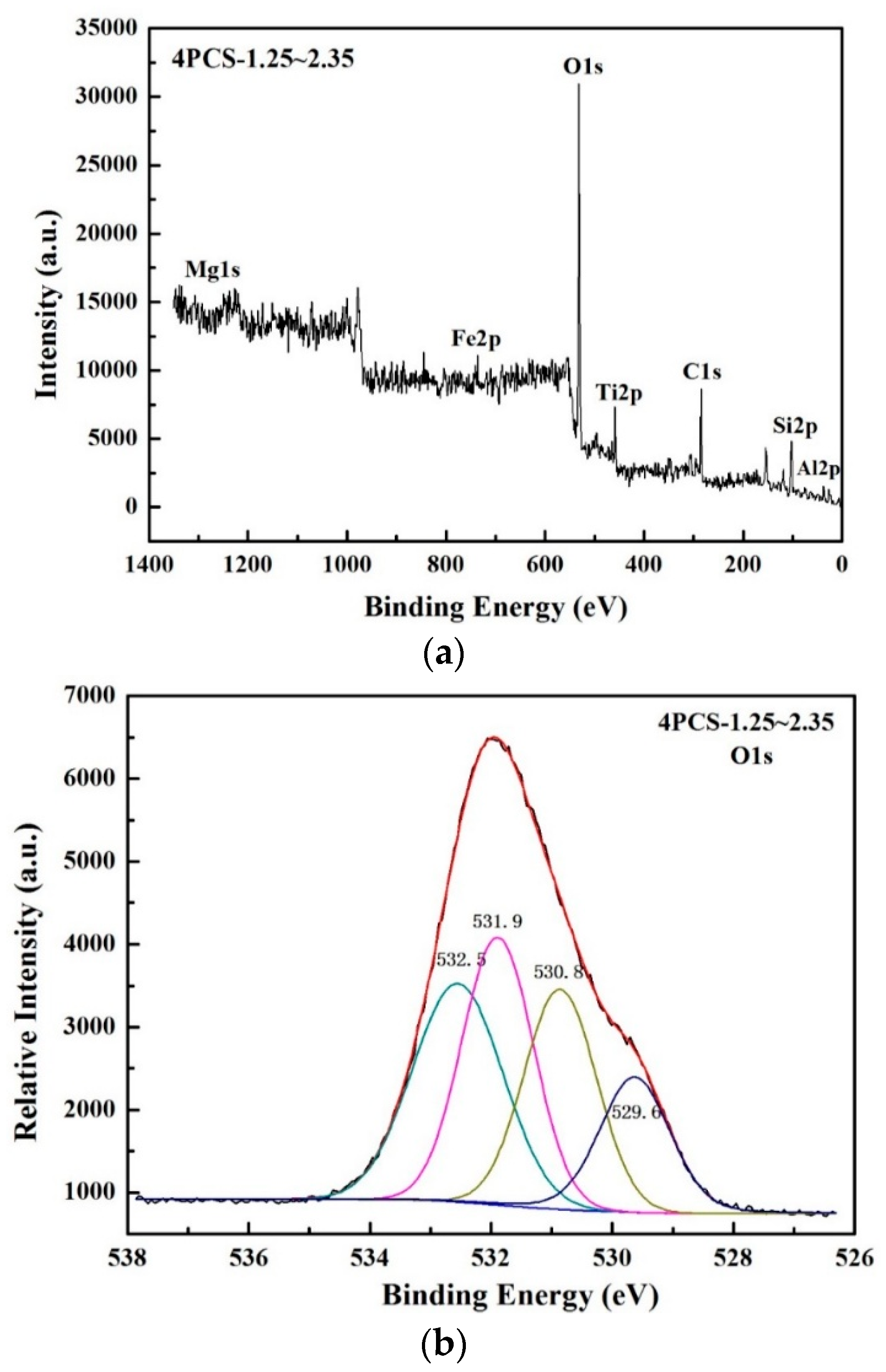

Figure 6. XPS photographs of PCS (4PCS-1.25~2.35); (a) survey pattern; (b) O1s XPS spectra; XPS: X-ray photoelectron spectroscopy.
Figure 6. XPS photographs of PCS (4PCS-1.25~2.35); (a) survey pattern; (b) O1s XPS spectra; XPS: X-ray photoelectron spectroscopy.
Applsci 07 00828 g006

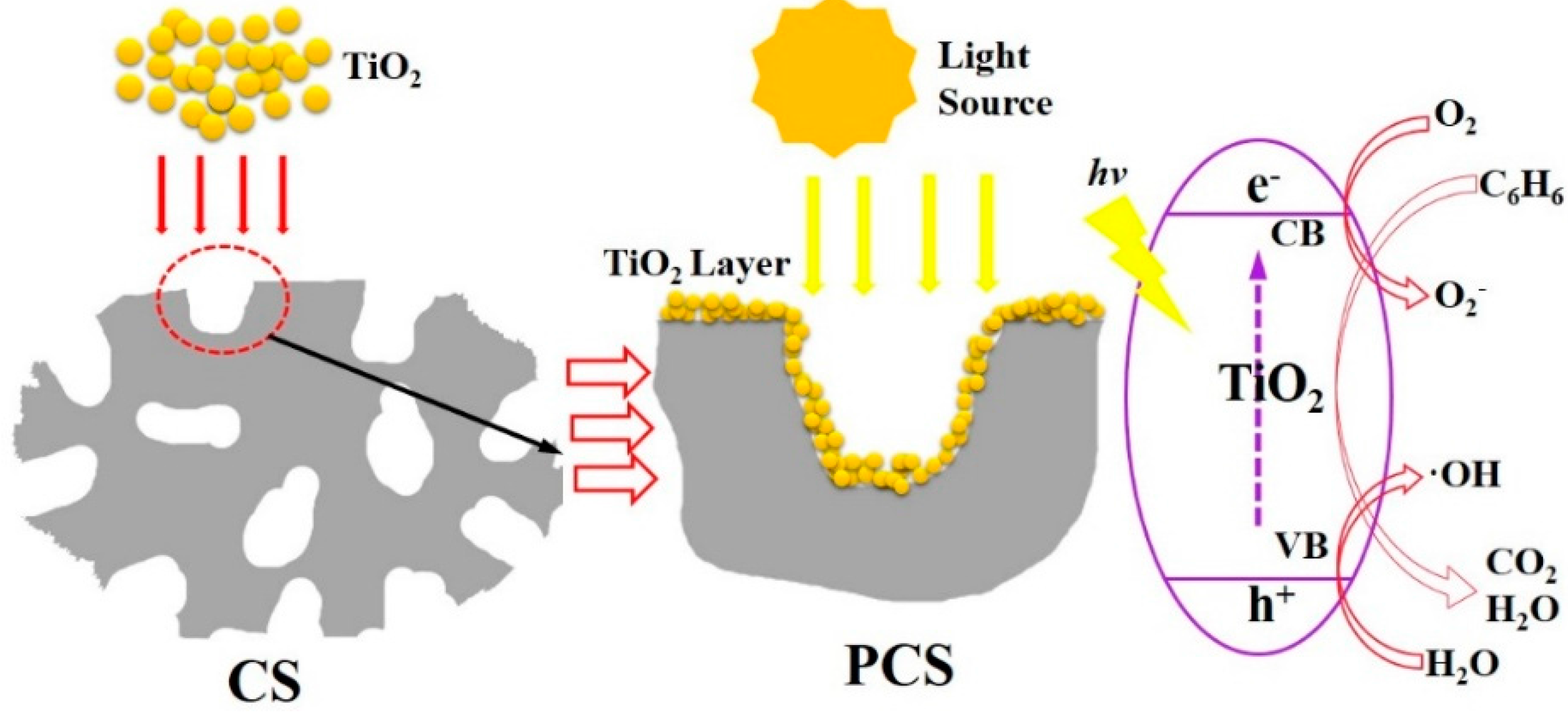

Figure 7. Preparation and catalytic mechanism of PCS.
Figure 7. Preparation and catalytic mechanism of PCS.
Applsci 07 00828 g007

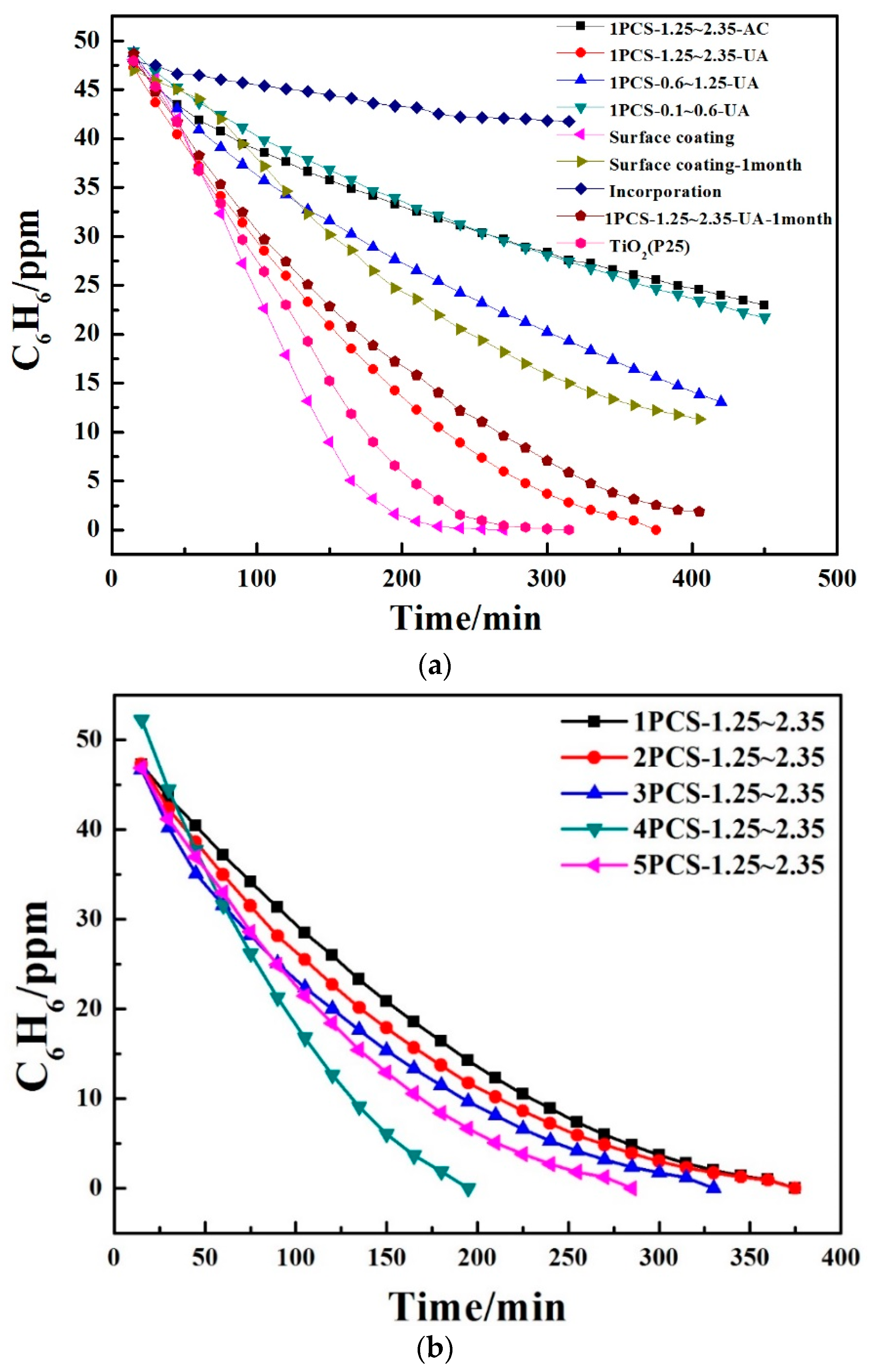

Figure 8. Photocatalytic activity of PCS to benzene; (a) 1PCS-n-UA (PCS with ultrasonic activation, n = 0.1~0.6, 0.6~1.25, 1.25~2.35 mm), 1PCS-1.25~2.35-AC (PCS alkali activated), surface coating (the mortars with TiO2 on the surface), surface coating-1month (the mortars with TiO2 on the surface after 1 month of atmospheric environment exposure), Incorporation (the mortars with TiO2 incorporated) and TiO2 (P25); (b) different TiO2 coating concentrations.
Figure 8. Photocatalytic activity of PCS to benzene; (a) 1PCS-n-UA (PCS with ultrasonic activation, n = 0.1~0.6, 0.6~1.25, 1.25~2.35 mm), 1PCS-1.25~2.35-AC (PCS alkali activated), surface coating (the mortars with TiO2 on the surface), surface coating-1month (the mortars with TiO2 on the surface after 1 month of atmospheric environment exposure), Incorporation (the mortars with TiO2 incorporated) and TiO2 (P25); (b) different TiO2 coating concentrations.
Applsci 07 00828 g008
Figure 9. Photocatalytic activity of PCM and mortars without photocatalysts to benzene; PCM-1, 3, 5 (photocatalytic cement materials with 1, 3, 5 g 4PCS-1.25~2.35).
Figure 9. Photocatalytic activity of PCM and mortars without photocatalysts to benzene; PCM-1, 3, 5 (photocatalytic cement materials with 1, 3, 5 g 4PCS-1.25~2.35).
Applsci 07 00828 g009

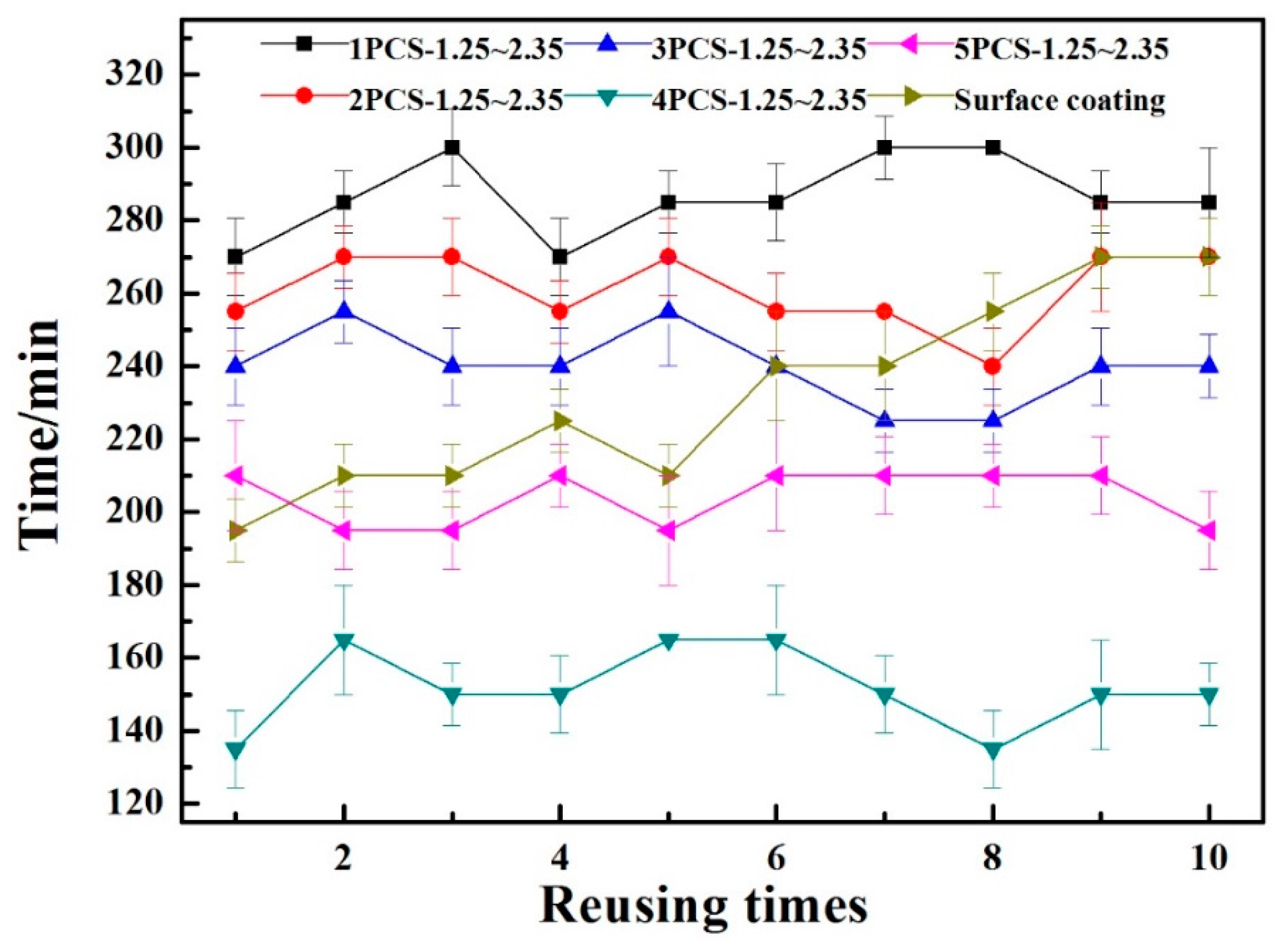

Figure 10. Time of fully degradation of 2 μL benzene by mPCS-1.25~2.35 (m = 1~5 g/L) for 10 cycles.
Figure 10. Time of fully degradation of 2 μL benzene by mPCS-1.25~2.35 (m = 1~5 g/L) for 10 cycles.
Applsci 07 00828 g010
Table 1. The physical characteristics of CS.
Table 1. The physical characteristics of CS.
SampleDensity GradeBulk Density (kg·m−3)1 h Water Absorption (%)Total Porosity (%)
Ceramsite sand90011005.643.57
Table 2. The chemical composition of CS.
Table 2. The chemical composition of CS.
SiO2/%Al2O3/%Fe2O3/%CaO/%MgO/%K2O/%N2O/%TiO2/%
64.90318.3467.2310.6182.3973.7811.10.946
Table 3. BET results of CS and mortars.
Table 3. BET results of CS and mortars.
CS (m2/g)Mortars (m2/g)
0.07700.0013
Table 4. The total porosity and pore volume of all PCS samples.
Table 4. The total porosity and pore volume of all PCS samples.
SampleTotal Porosity (%)Pore Volume (mL/g)
1PCS-0.1~0.661.190.8438
1PCS-0.6~1.2543.000.4053
1PCS-1.25~2.3543.380.3973
2PCS-1.25~2.3541.830.3655
3PCS-1.25~2.3542.720.4070
4PCS-1.25~2.3541.970.3706
5PCS-1.25~2.3542.840.3806
