Open AccessArticle
Appl. Sci. 2017, 7(5), 485; doi:10.3390/app7050485

Optimization of Hybrid Ultrasonic Frequency Pulsed VP-GTAW Process Parameters on Tensile Properties of AA 5456 Alloy

1
Department of Materials Processing, Beijing University of Aeronautics and Astronautics, Beijing 100191, China
2
MIIT Key Laboratory of Aeronautics Intelligent Manufacturing, Beijing 100191, China
*
Author to whom correspondence should be addressed.
Academic Editors: Hai-Lung Tsai and Junling Hu
Received: 17 March 2017 / Revised: 18 April 2017 / Accepted: 5 May 2017 / Published: 8 May 2017
(This article belongs to the Special Issue Gas Tungsten Arc Welding)
View Full-Text   |   Download PDF [8054 KB, uploaded 8 May 2017]   |

Abstract

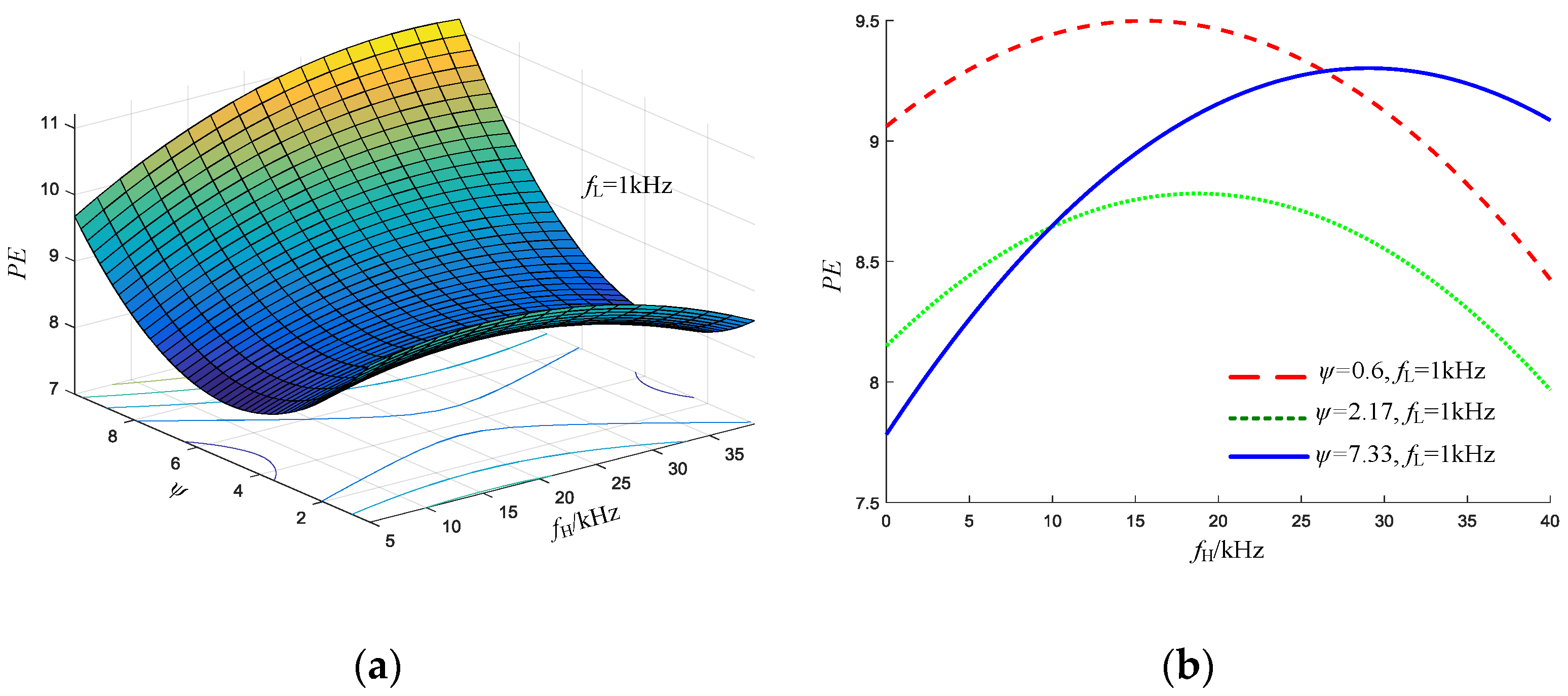

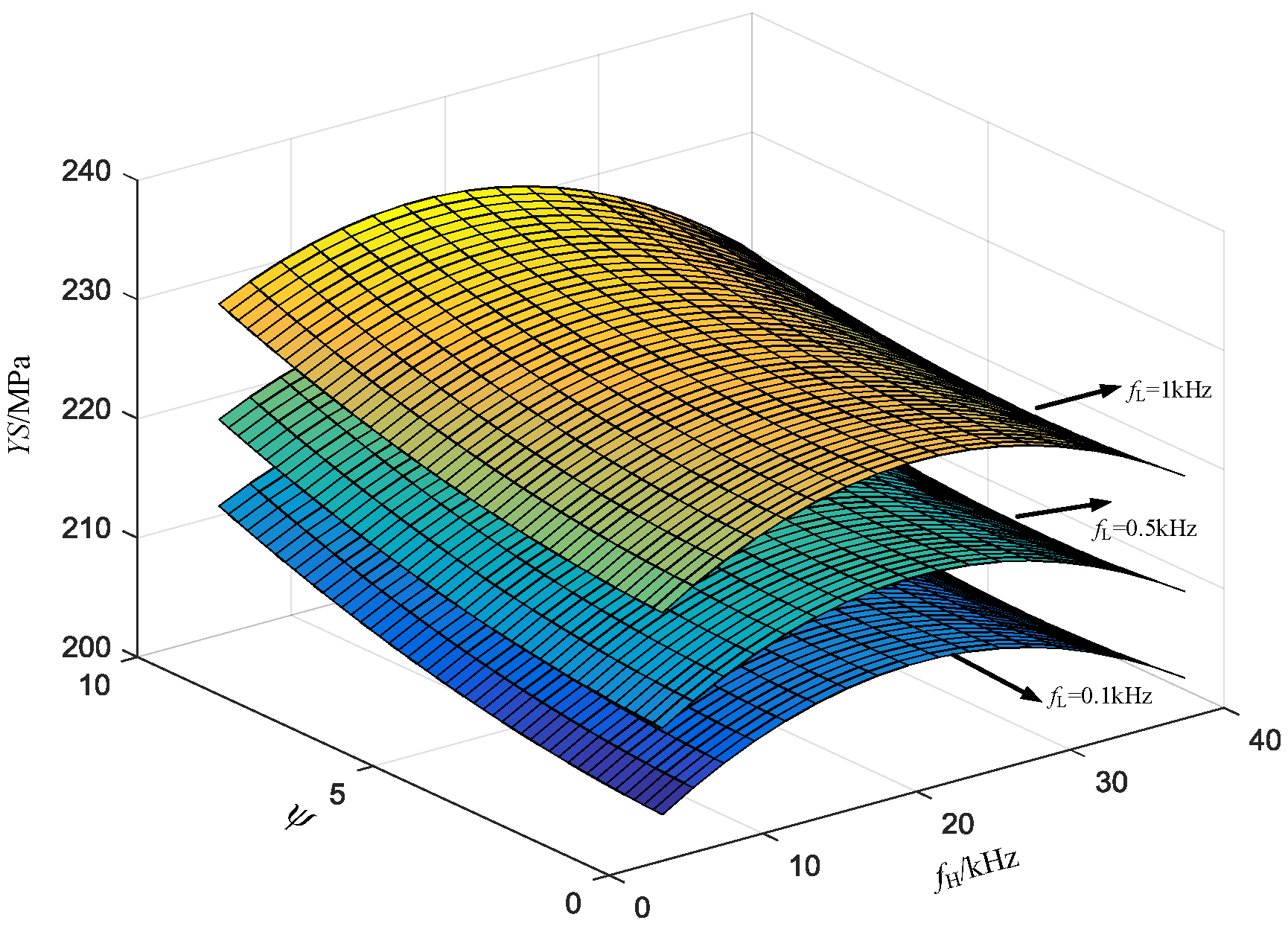

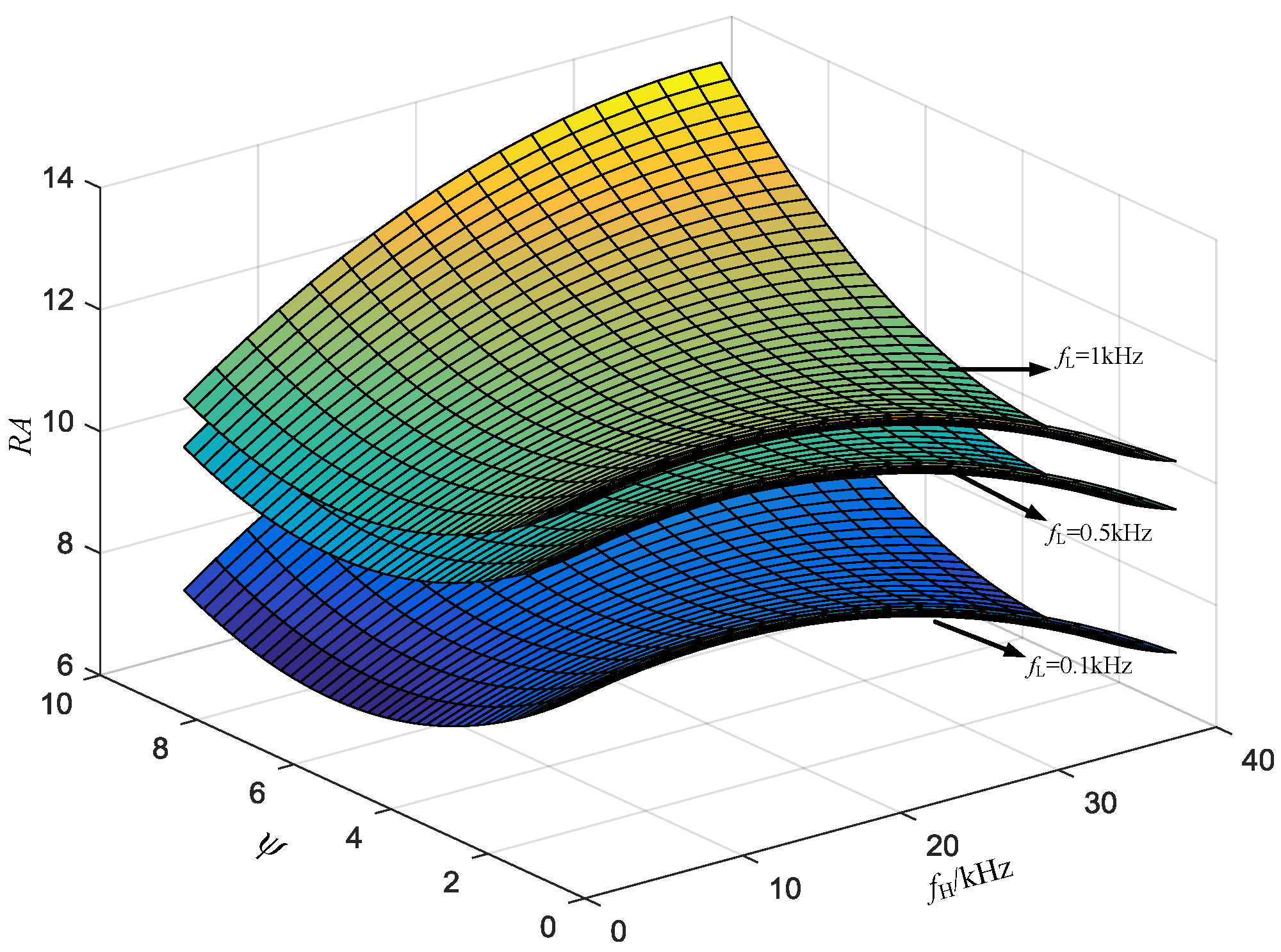

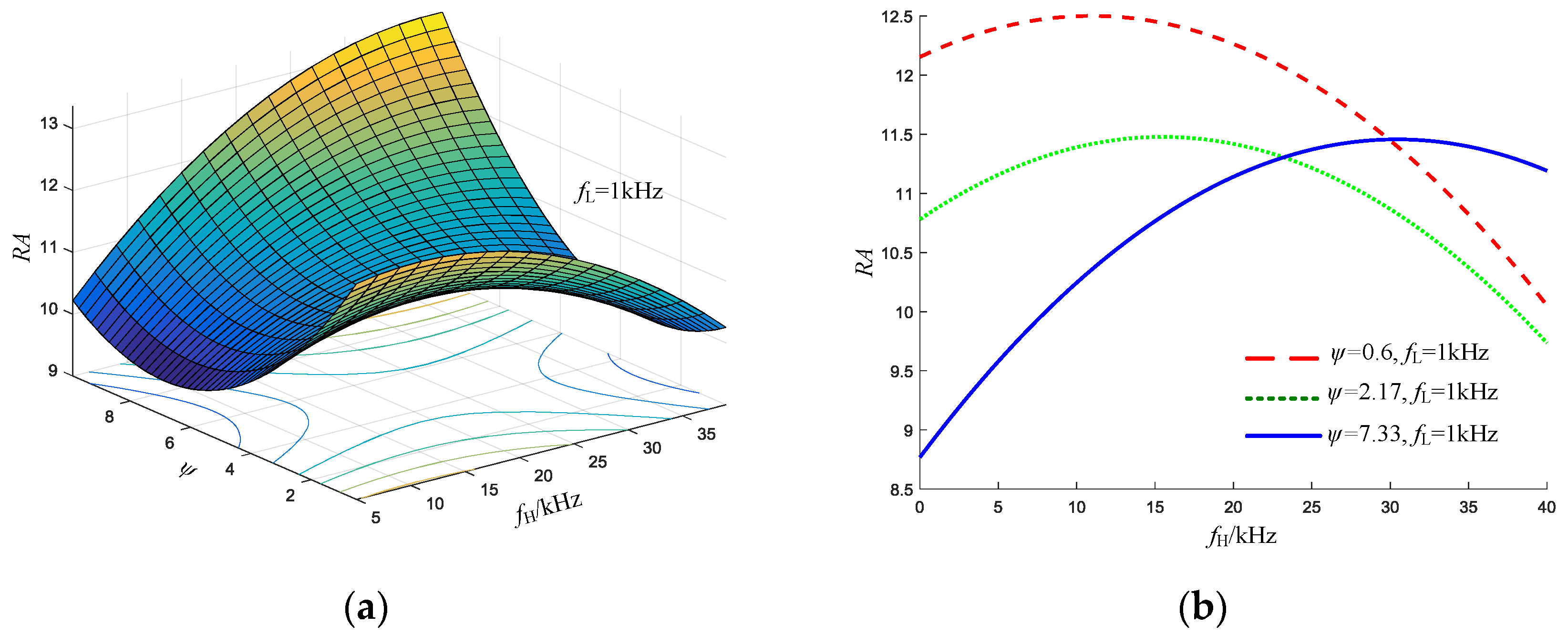

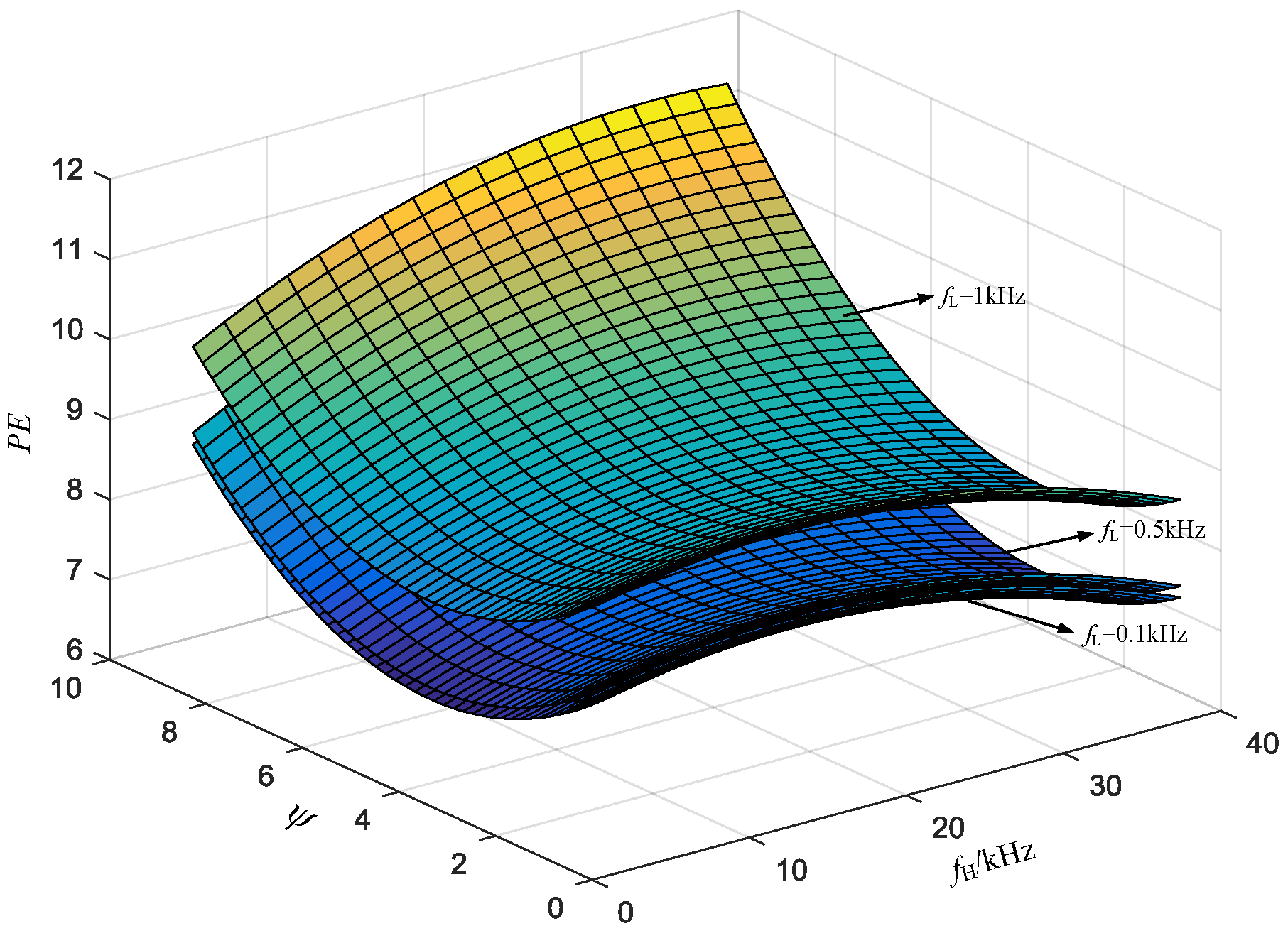

Tensile properties optimization of AA 5456 aluminum alloy was carried out with hybrid ultrasonic frequency pulsed variable polarity gas tungsten arc wending (HPVP-GTAW). An orthogonal method was employed to conduct the experiments, and the tensile properties of AA 5456 aluminum alloy welded joints were measured and analyzed. Regression models were developed based on the least square estimation by taking tensile strength, yield strength, percent elongation, and ratio of reduction in area as response functions of variable polarity frequency fL, pulse frequency fH and a dimensionless parameter ψ, which were calculated by background current Ib, peak current Ip, and pulse duration δ, respectively. The developed regression equations were checked for validity by coefficient of correlation r2 and confirmatory experiments. Optimum parameters of HPVP-GTAW were achieved through the discussion on response surfaces and contour plots drawn using the regression equations. View Full-Text
Keywords: ultrasonic frequency pulsed current; VP-GTAW; aluminum alloy; tensile properties ultrasonic frequency pulsed current; VP-GTAW; aluminum alloy; tensile properties
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Wang, Y.; Qi, B.; Cong, B.; Yang, M. Optimization of Hybrid Ultrasonic Frequency Pulsed VP-GTAW Process Parameters on Tensile Properties of AA 5456 Alloy. Appl. Sci. 2017, 7, 485.
