Open AccessArticle
Appl. Sci. 2017, 7(3), 270; doi:10.3390/app7030270

Theory of Regions for Control Synthesis without Computing Reachability Graph

1
Laboratoire de Génie Industriel, de Production et de Maintenance (LGIPM), Université de Lorraine, UFR MIM, île du Saulcy–BP 50128, 57045 Metz, France
2
ICN Business School, 54003 Metz-Nancy, France
*
Author to whom correspondence should be addressed.
Academic Editor: Christos Bouras
Received: 11 January 2017 / Accepted: 3 March 2017 / Published: 9 March 2017
View Full-Text   |   Download PDF [2909 KB, uploaded 10 March 2017]   |

Abstract

This paper addresses the design of Petri net (PN) supervisor using the theory of regions for forbidden state problem with a set of general mutual exclusion constraints. In fact, as any method of supervisory control based on reachability graph, the theory of regions suffers from a technical obstacle in control synthesis, which is the necessity of computing the graph at each iteration step. Moreover, based on the reachability graph, which may contain a large number of states, with respect to the structural size of the system, the computation of PN controllers becomes harder and even impossible. The main contribution of this paper, compared to previous works, is the development of a control synthesis method in order to decrease significantly the computation cost of the PN supervisor. Thus, based on PN properties and mathematical concepts, the proposed methodology provides an optimal PN supervisor for bounded Petri nets following the interpretation of the theory of regions. Finally, case studies are solved by CPLEX software to compare our new control policy with previous works which use the theory of regions for control synthesis. View Full-Text
Keywords: Petri nets; theory of regions; supervisory control; discrete event systems; usable sequences; unusable sequences Petri nets; theory of regions; supervisory control; discrete event systems; usable sequences; unusable sequences
Figures

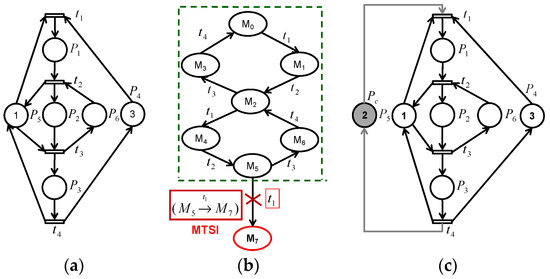

Figure 1
