Appl. Sci. 2017, 7(2), 115; doi:10.3390/app7020115

A Single-Stage LED Tube Lamp Driver with Power-Factor Corrections and Soft Switching for Energy-Saving Indoor Lighting Applications

Department of Electrical Engineering, I-Shou University, Dashu District, Kaohsiung City 84001, Taiwan
*
Author to whom correspondence should be addressed.
Academic Editor: Eric Ka-wai Cheng
Received: 4 November 2016 / Revised: 15 January 2017 / Accepted: 17 January 2017 / Published: 24 January 2017
(This article belongs to the Special Issue Energy Saving)
View Full-Text   |   Download PDF [4913 KB, uploaded 26 January 2017]   |

Abstract

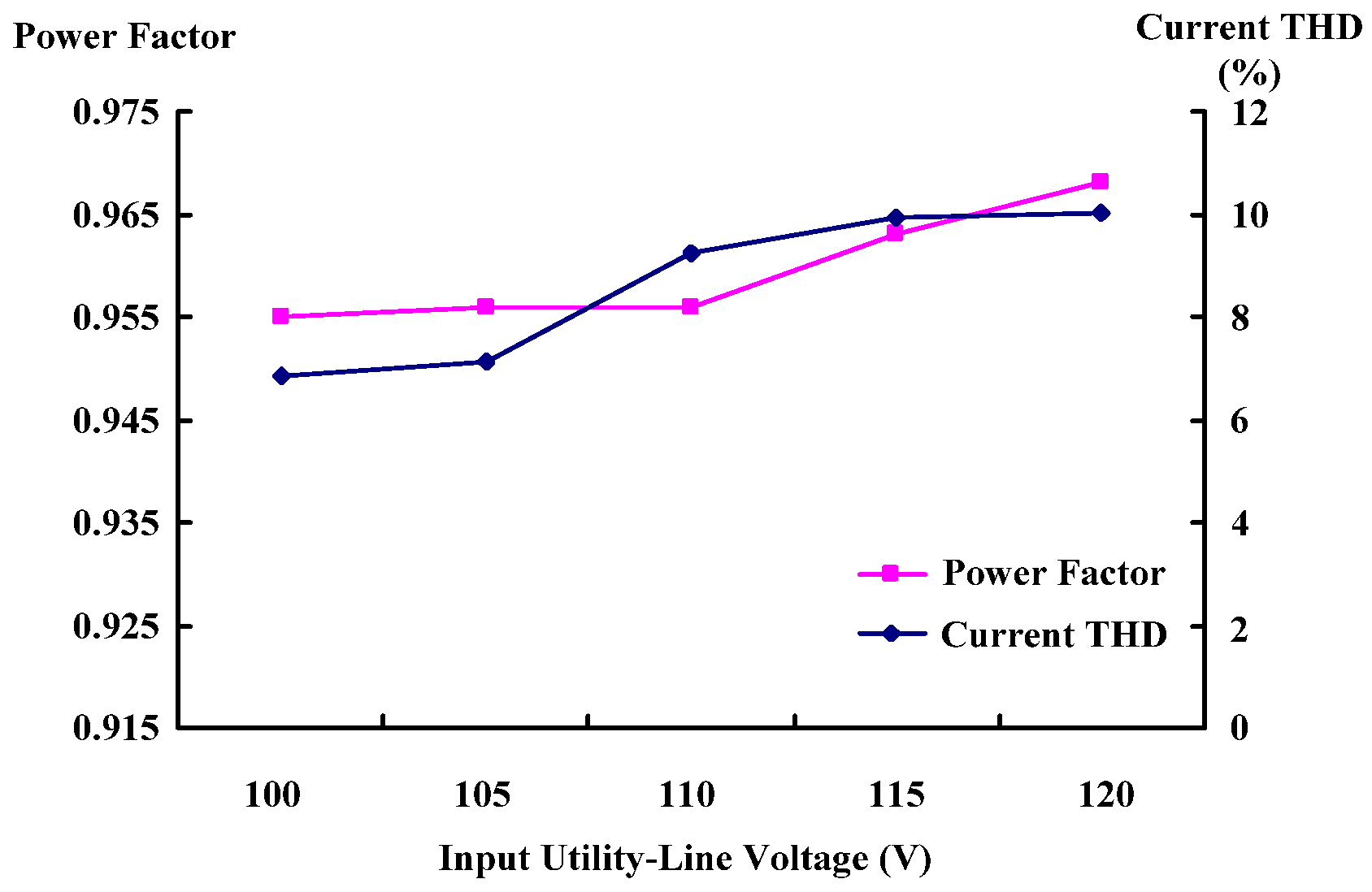

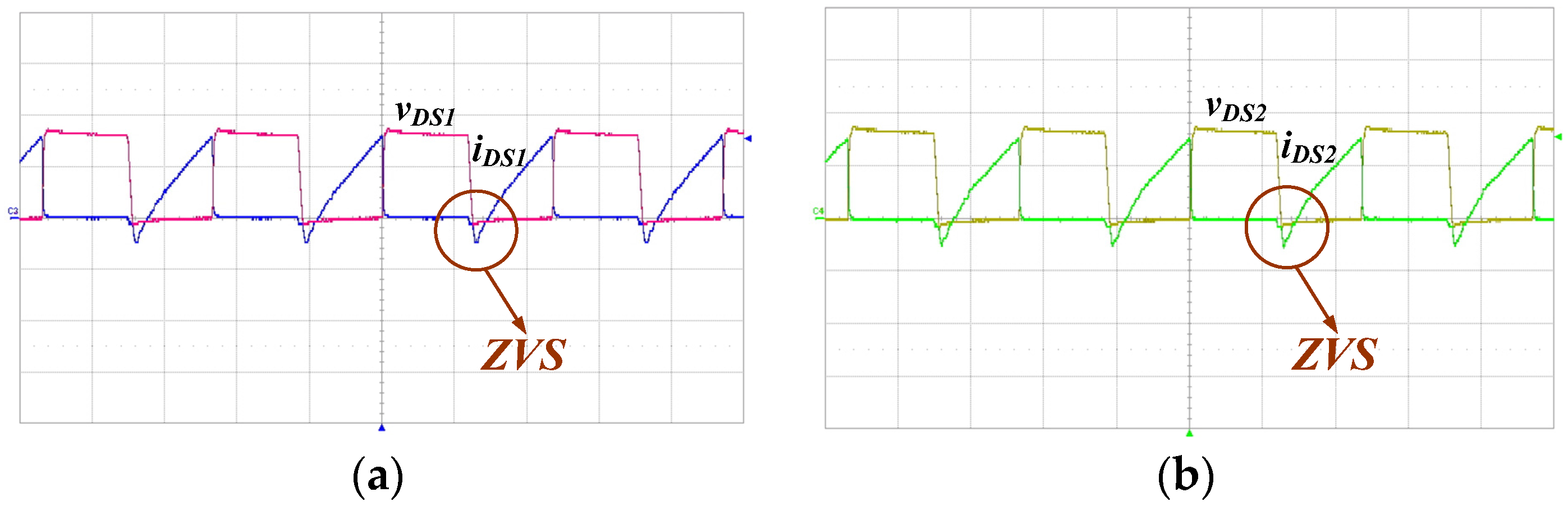

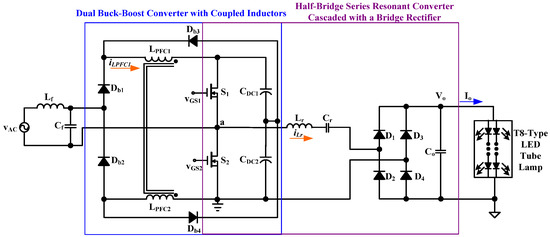

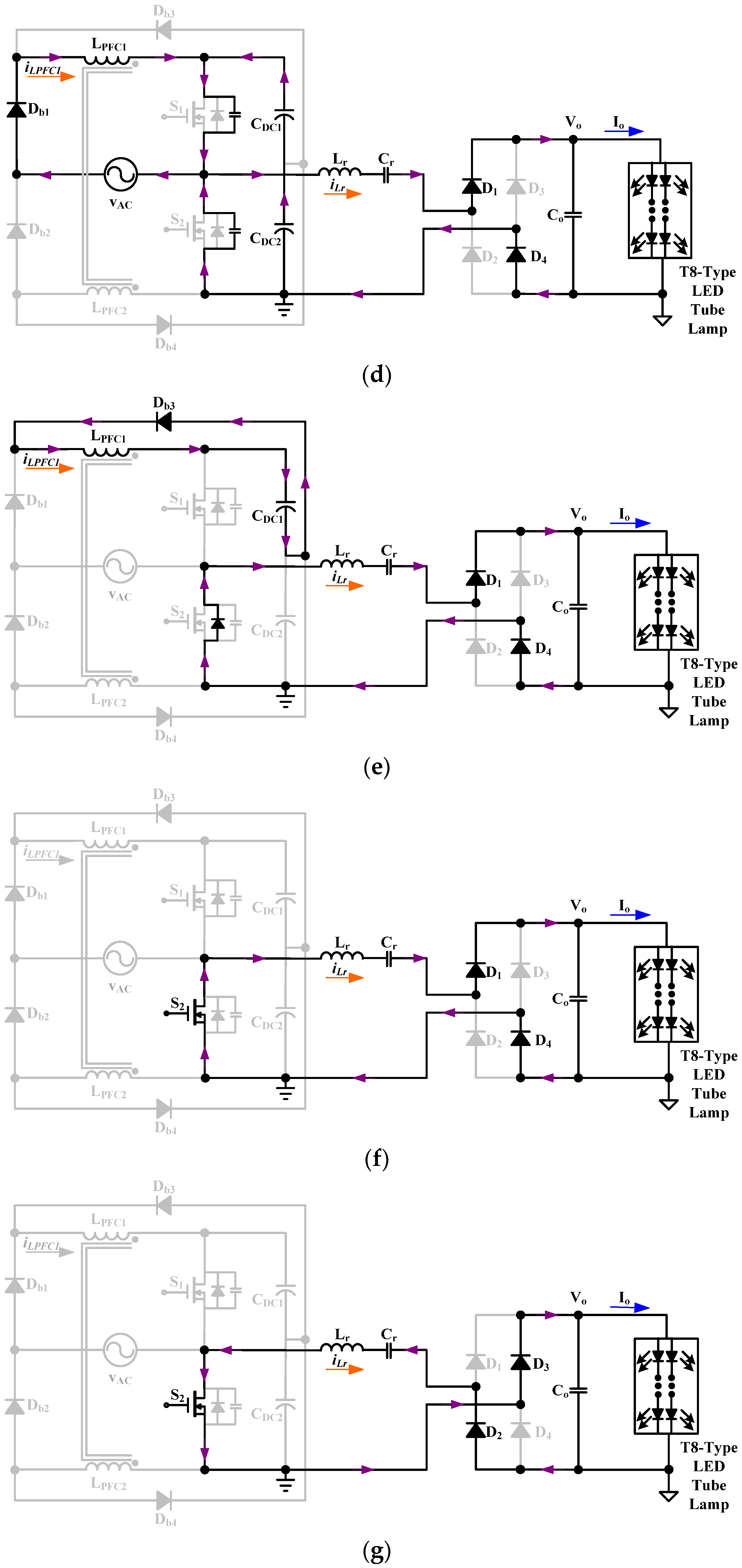

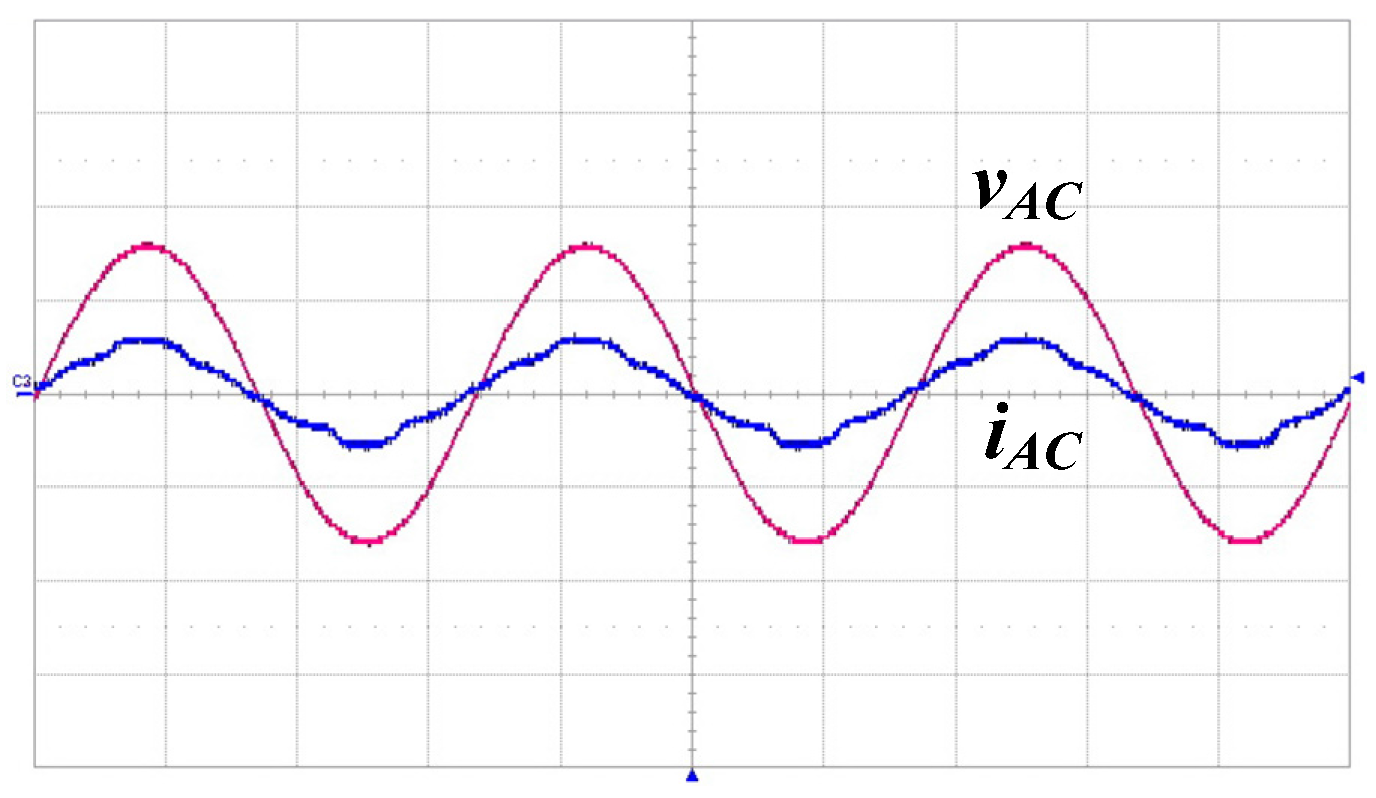

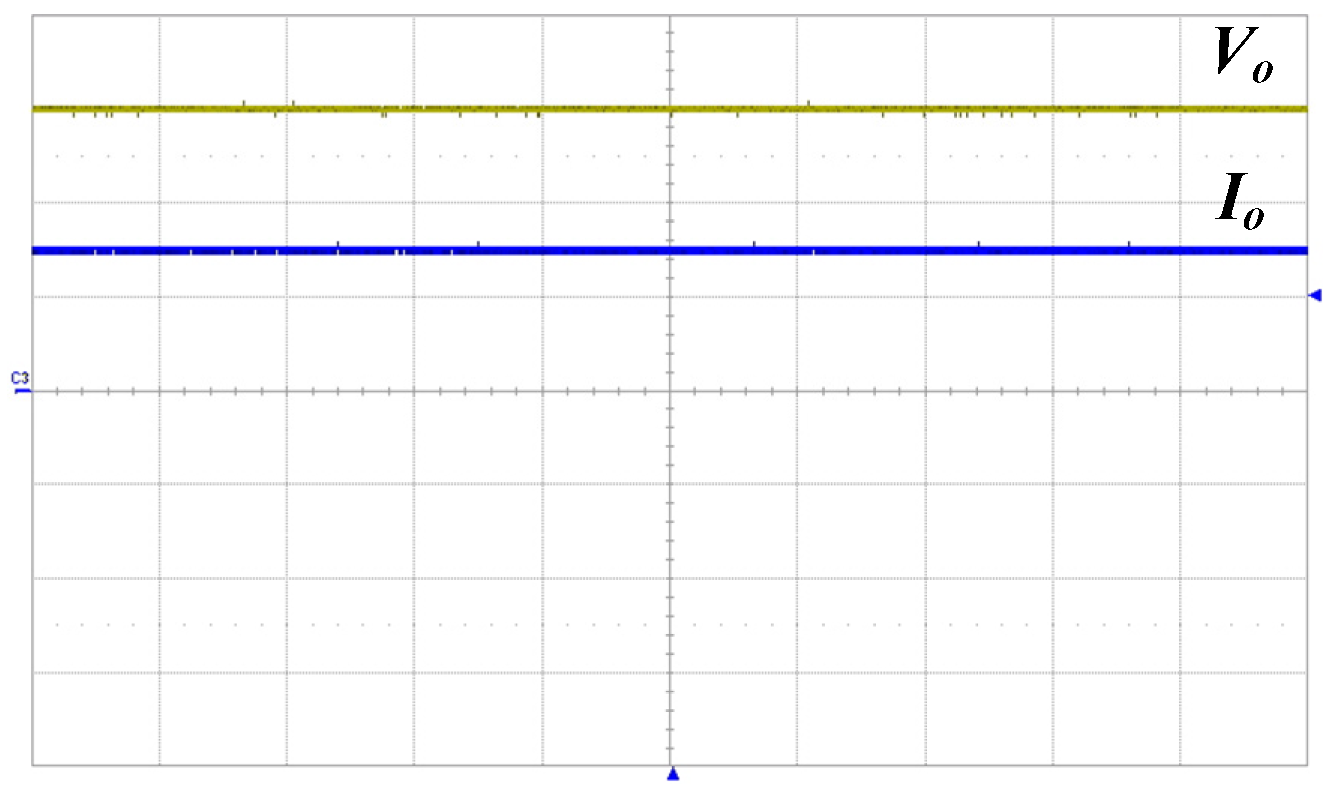

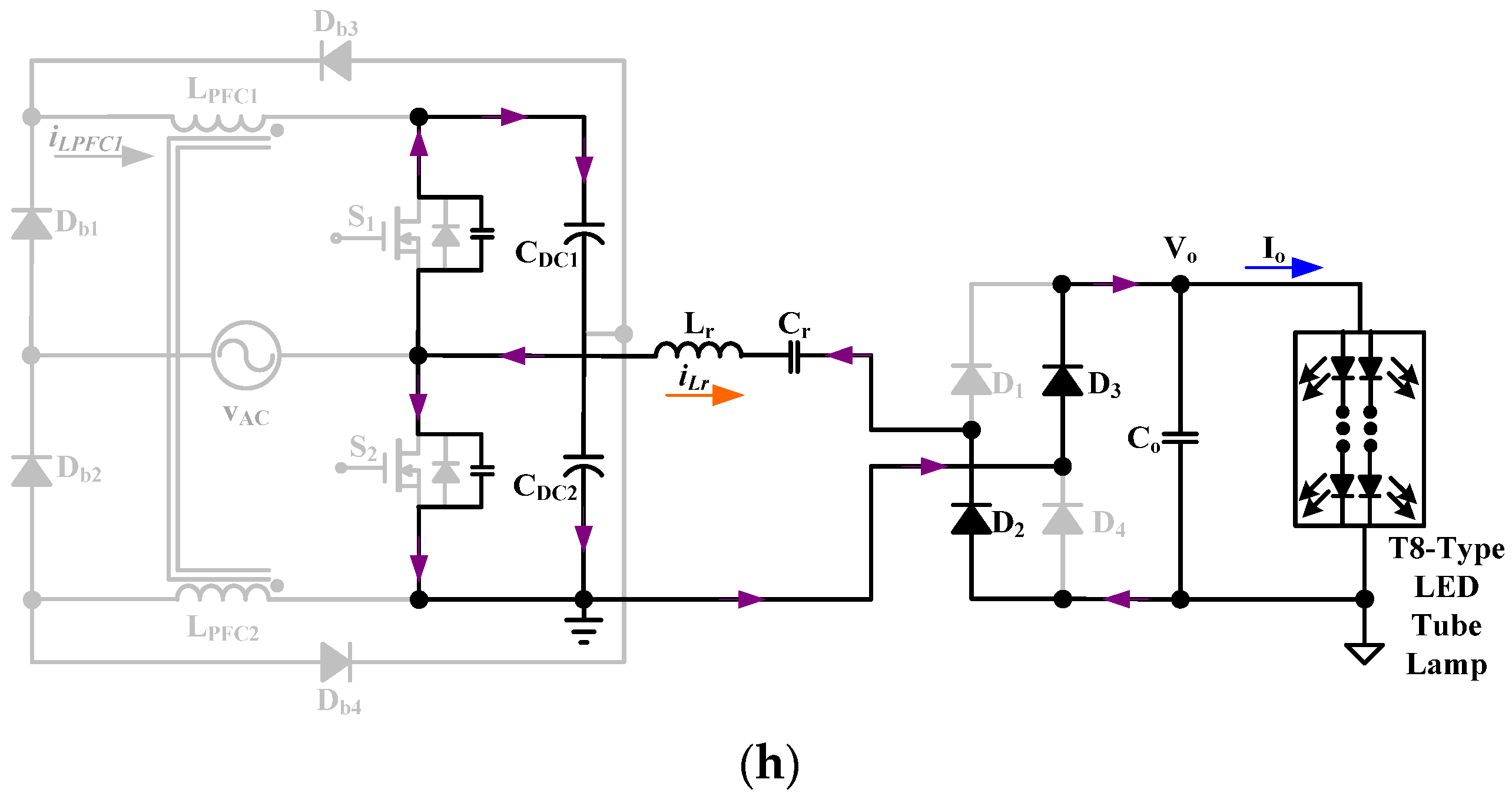

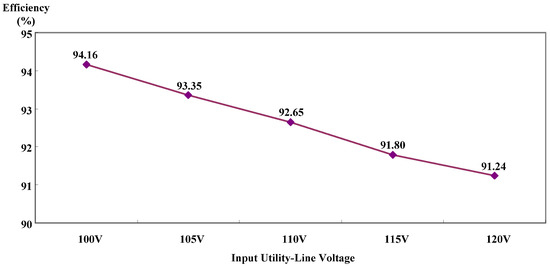

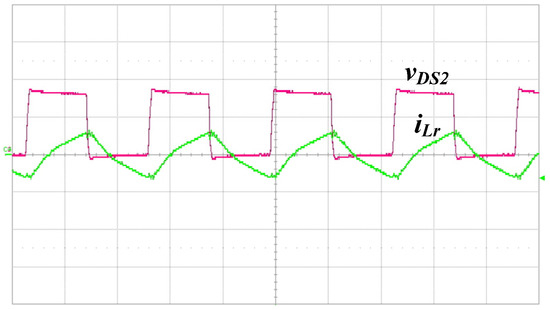

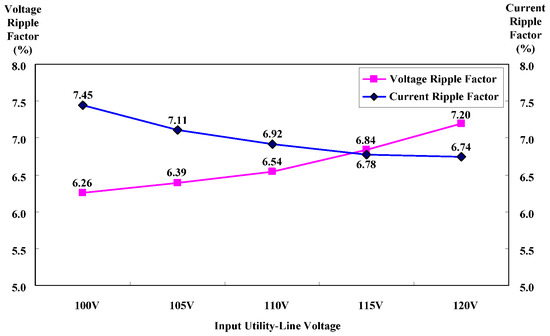

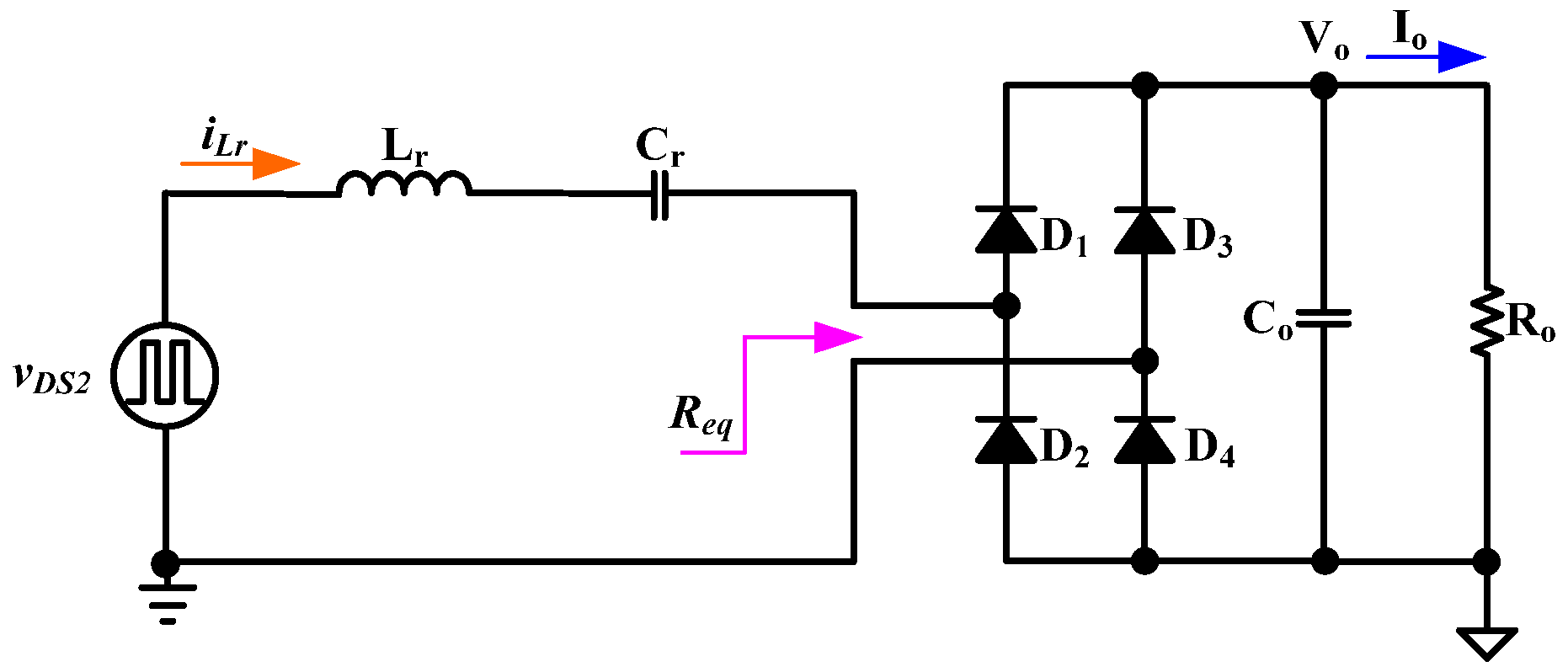

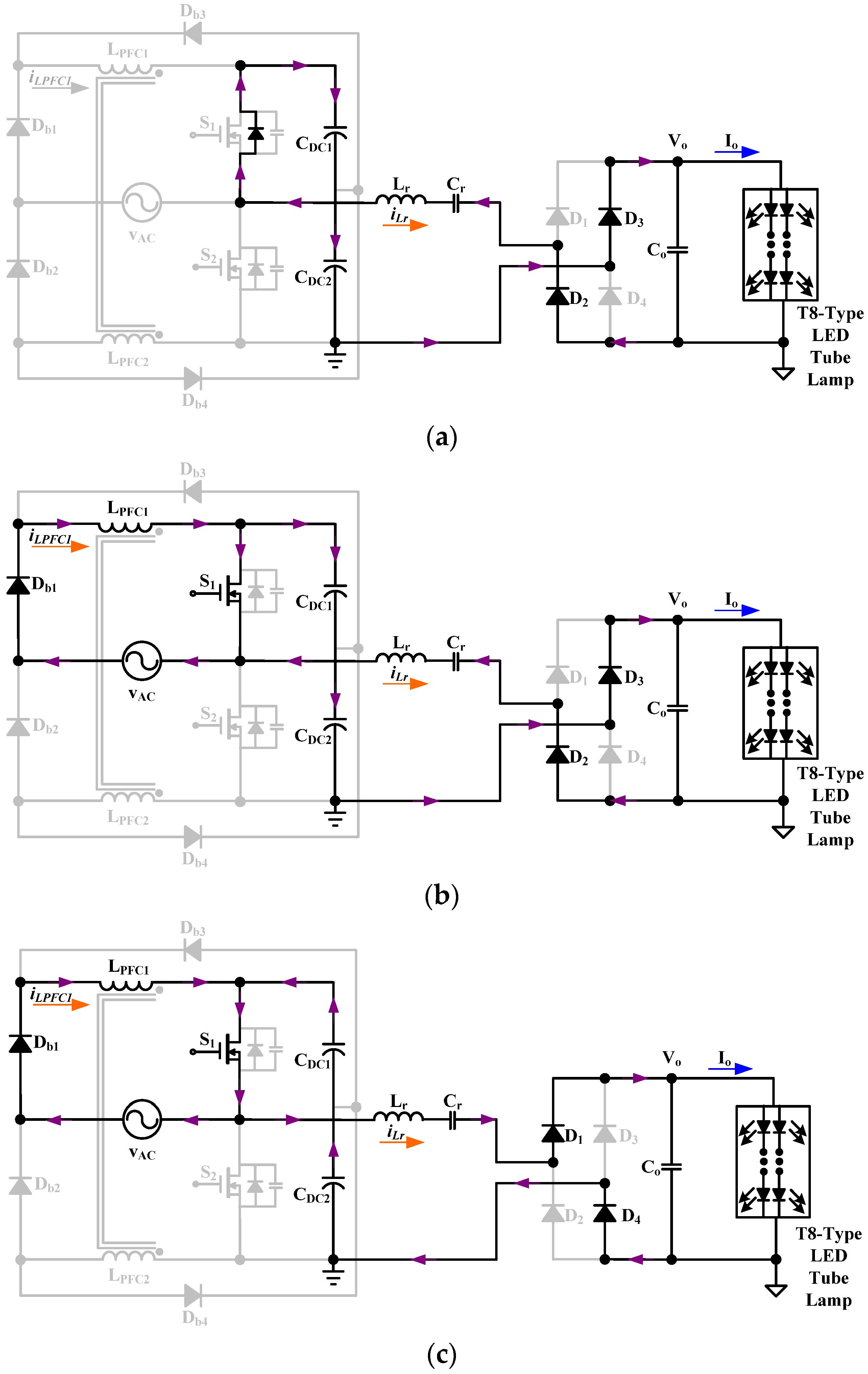

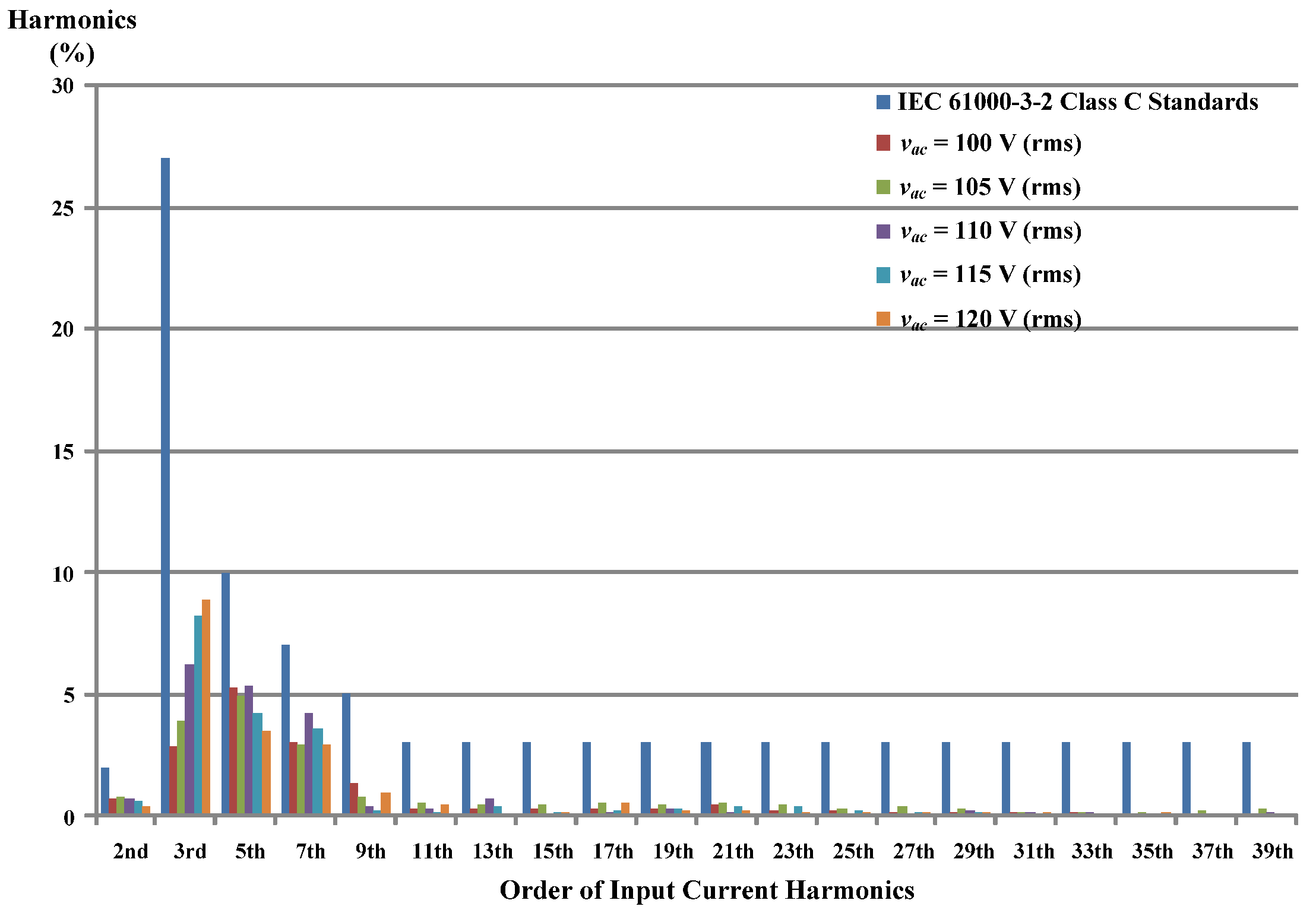

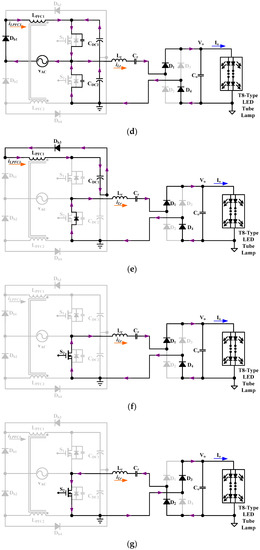

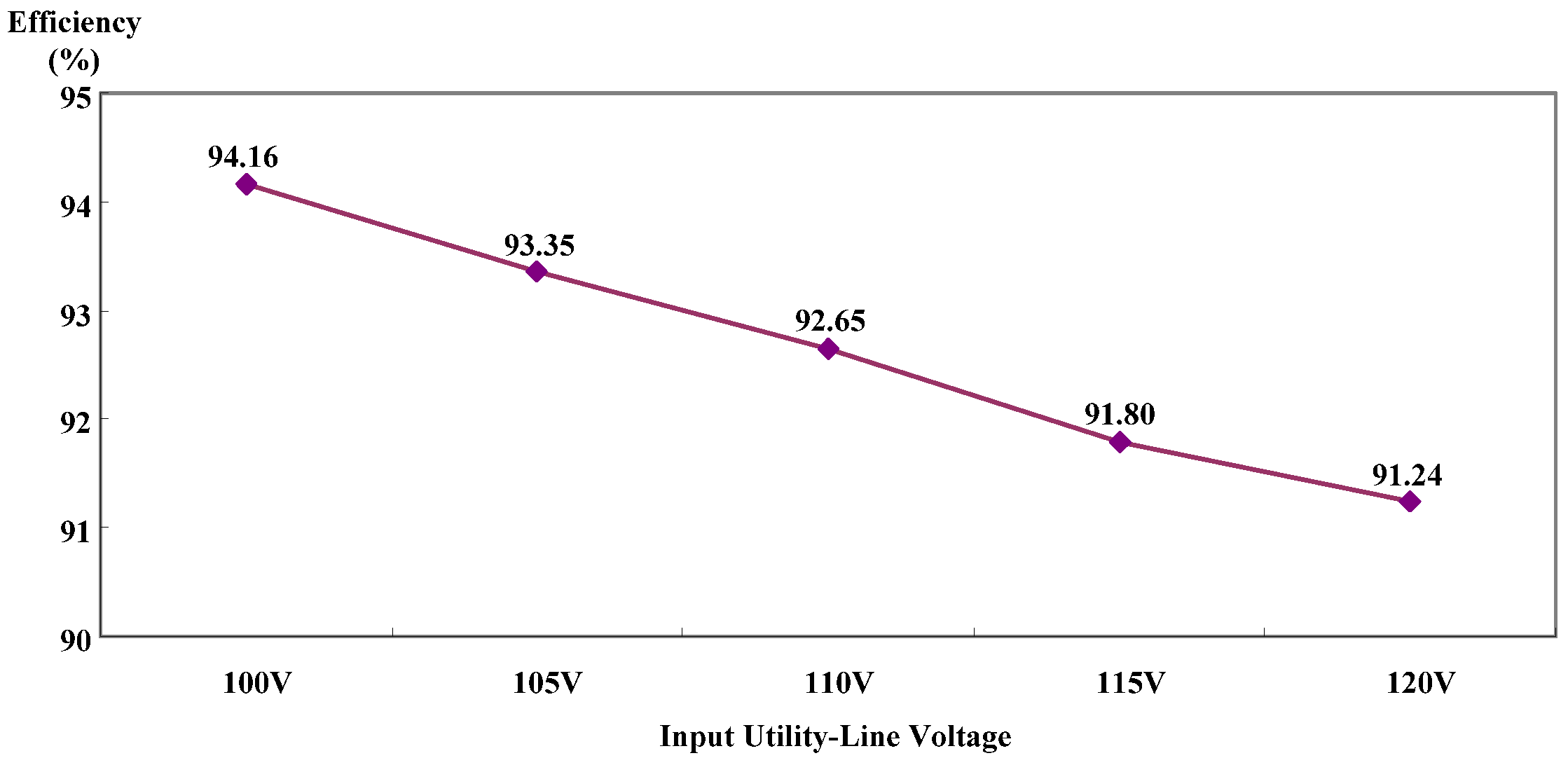

This paper presents a single-stage alternating current (AC)/direct current (DC) light-emitting diode (LED) tube lamp driver for energy-saving indoor lighting applications; this driver features power-factor corrections and soft switching, and also integrates a dual buck-boost converter with coupled inductors and a half-bridge series resonant converter cascaded with a bridge rectifier into a single-stage power-conversion topology. The features of the presented driver are high efficiency (>91%), satisfying power factor (PF > 0.96), low input-current total-harmonic distortion (THD < 10%), low output voltage ripple factor (<7.5%), low output current ripple factor (<8%), and zero-voltage switching (ZVS) obtained on both power switches. Operational principles are described in detail, and experimental results obtained from an 18 W-rated LED tube lamp for T8/T10 fluorescent lamp replacements with input utility-line voltages ranging from 100 V to 120 V have demonstrated the functionality of the presented driver suitable for indoor lighting applications. View Full-Text
Keywords: converter; driver; light-emitting diode (LED) converter; driver; light-emitting diode (LED)
Figures

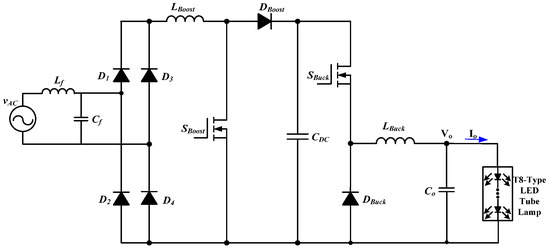

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
