Open AccessArticle
Appl. Sci. 2017, 7(11), 1124; https://doi.org/10.3390/app7111124

Qualitative and Quantitative Changes of Carbonate Rocks Exposed to SC CO2 (Basque-Cantabrian Basin, Northern Spain)

1
Instituto Geológico y Minero de España (IGME), C/Matemático Pedrayes 25, 33005 Oviedo, Spain
2
Freelance Consultant, C/La Estrecha, 46, 16Q 4º Izq, 33011 Oviedo, Spain
3
Hydrosciences Montpellier, CNRS, 300 Avenue du Pr. Emile Jeanbrau CC57, 34090 Montpellier, France
*
Authors to whom correspondence should be addressed.
Received: 30 September 2017 / Accepted: 27 October 2017 / Published: 1 November 2017
(This article belongs to the Special Issue The Applications of Supercritical Carbon Dioxide)
View Full-Text   |   Download PDF [7661 KB, uploaded 1 November 2017]   |

Abstract

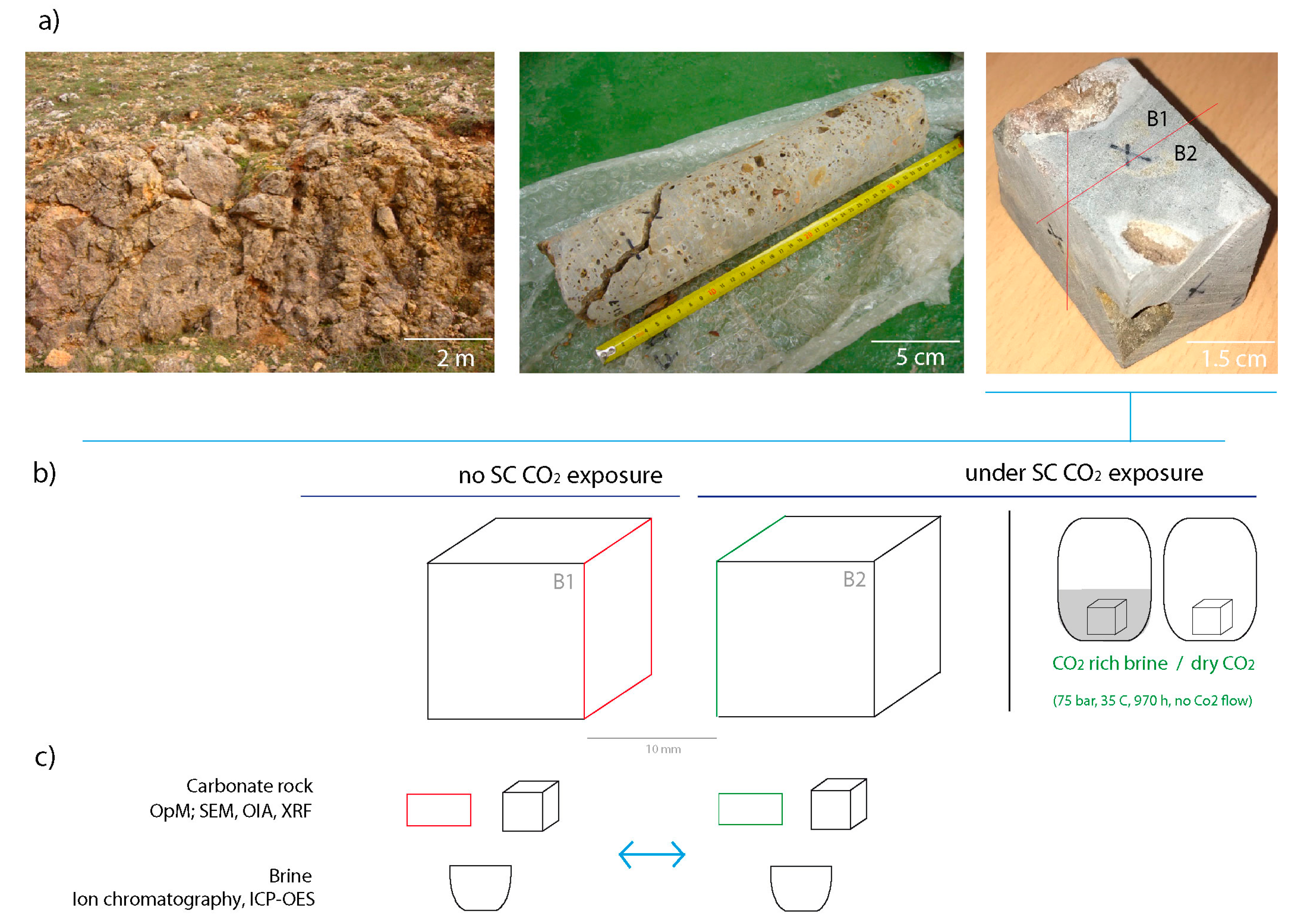

This study aims at the qualitative and quantitative determination of porosity, mineralogical and textural changes in carbonate rock samples after injection of (i) supercritical CO2-rich brine and (ii) dry supercritical CO2, under similar experimental conditions (P ≈ 75 bar, T ≈ 35 °C, 970 h exposure time and no CO2 flow). The studied rocks were sampled in the western Basque-Cantabrian Basin, North Spain, and consist of vuggy carbonates (“Carniolas”) of the Puerto de la Palombera formation (Hettangian). Mineralogical and pore space characterization is completed using optical microscopy, scanning electron microscopy and optical image analysis. In addition, X-ray fluorescence analyses are performed to refine the mineralogical information and to obtain whole rock geochemical data and the brine composition is analysed before and after the experiment. Mineralogical and chemical results indicate that the carbonate rocks exposed to supercritical CO2 in dry conditions do not suffer significant changes. However, the injection of supercritical CO2-rich brine induces chemical and physical changes in the rock due to the high reactivity of calcite at the low pH conditions produced by the acidified brine. Numerical modelling validates the experimental observations. These results can be used to characterize the behaviour of carbonate rocks under conditions similar to the vicinity of a CO2 injection well. The results should be considered only at the scale of the studied samples and not at reservoir scale. View Full-Text
Keywords: carbonate rocks; SC CO2; SC CO2-rich brine; Quantitative petrography; numerical modelling carbonate rocks; SC CO2; SC CO2-rich brine; Quantitative petrography; numerical modelling
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Berrezueta, E.; Kovacs, T.; Luquot, L. Qualitative and Quantitative Changes of Carbonate Rocks Exposed to SC CO2 (Basque-Cantabrian Basin, Northern Spain). Appl. Sci. 2017, 7, 1124.
