Next Article in Journal
Automatic Matching of Multi-Source Satellite Images: A Case Study on ZY-1-02C and ETM+
Next Article in Special Issue
Short-Pulse-Width Repetitively Q-Switched ~2.7-μm Er:Y2O3 Ceramic Laser
Previous Article in Journal
Estimating Co-Contraction Activation of Trunk Muscles Using a Novel Musculoskeletal Model for Pregnant Women
Previous Article in Special Issue
Fast Frequency Acquisition and Phase Locking of Nonplanar Ring Oscillators
Article Menu
Issue 10 (October) cover image

Export Article

Open AccessArticle
Appl. Sci. 2017, 7(10), 1065; https://doi.org/10.3390/app7101065

Effect of Molybdenum on the Microstructures and Properties of Stainless Steel Coatings by Laser Cladding

1
State Key Laboratory of Tribology, Department of Mechanical Engineering, Tsinghua University, Haidian District, Beijing 100084, China
2
School of Materials Science and Engineering, Beijing University of Technology, Number 100, Pingle Garden, Chaoyang District, Beijing 100124, China
3
Institute of Laser Advanced Manufacturing, Zhejiang University of Technology, Hangzhou 310014, Zhejiang, China
*
Authors to whom correspondence should be addressed.
Received: 11 September 2017 / Revised: 11 September 2017 / Accepted: 11 October 2017 / Published: 15 October 2017
(This article belongs to the Special Issue Solid State Lasers Materials, Technologies and Applications)
View Full-Text   |   Download PDF [7063 KB, uploaded 26 October 2017]   |

Abstract

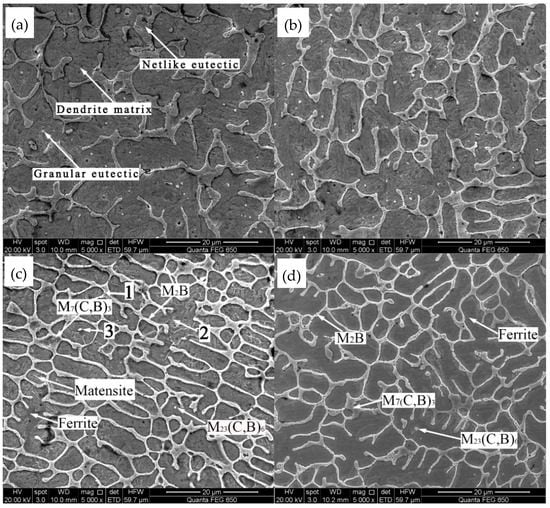

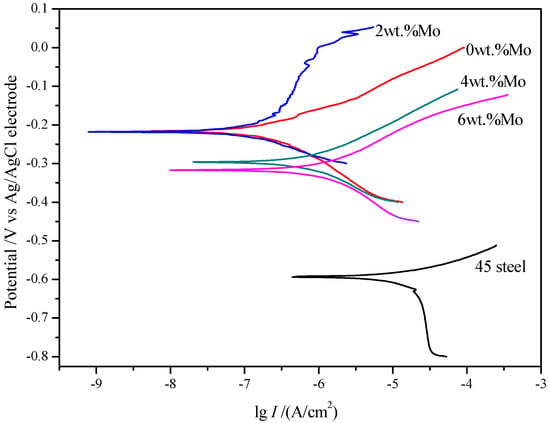

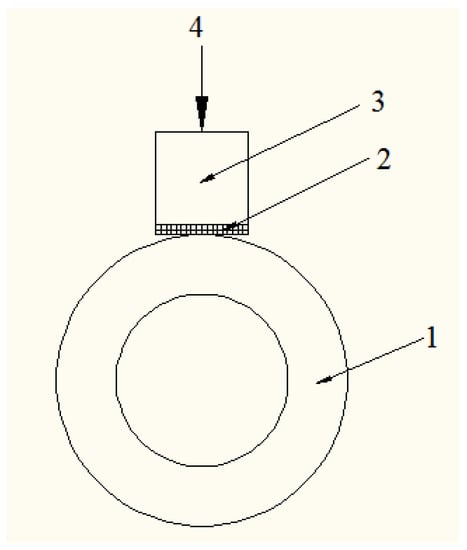

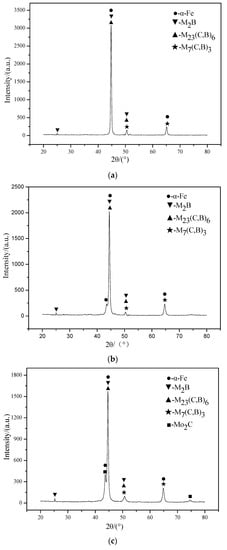

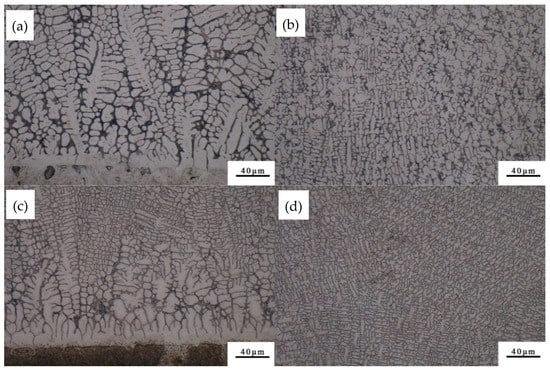

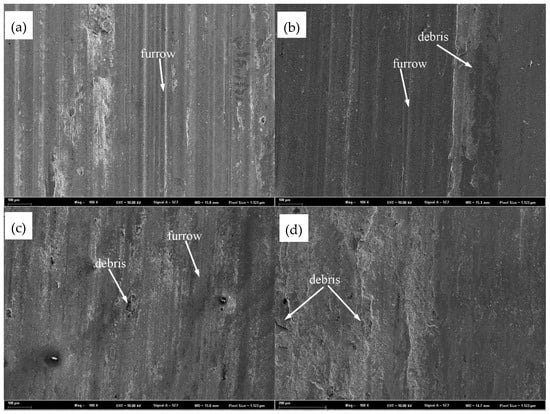

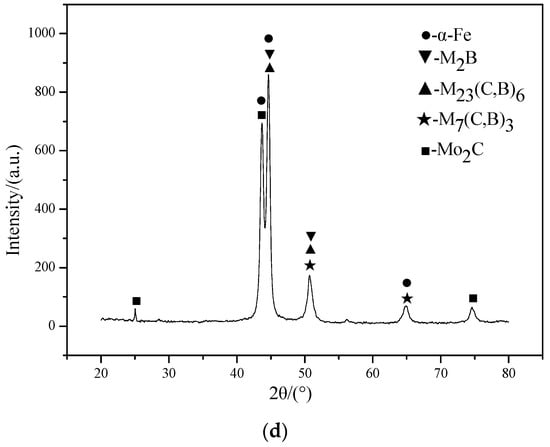

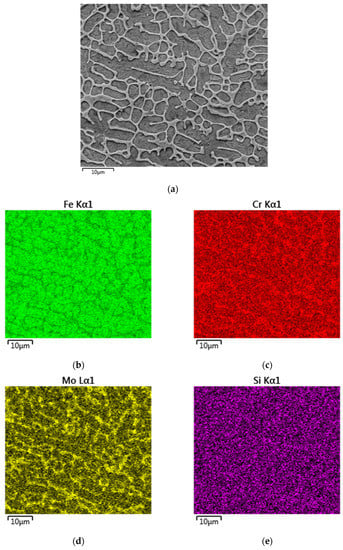

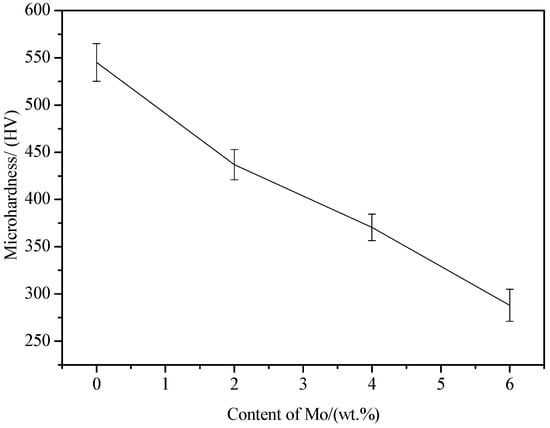

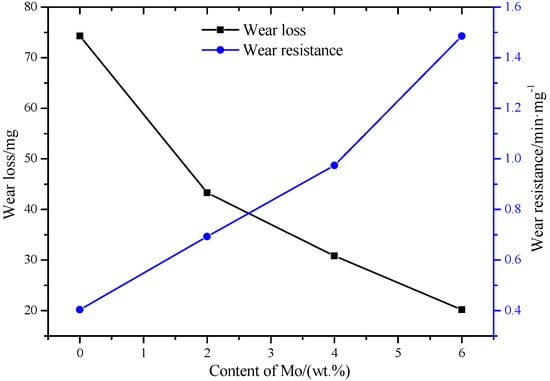

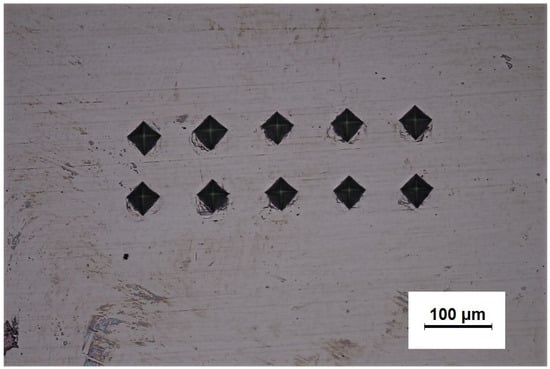

Stainless steel powders with different molybdenum (Mo) contents were deposited on the substrate surface of 45 steel using a 6 kW fiber laser. The microstructure, phase, microhardness, wear properties, and corrosion resistance of coatings with different Mo contents were studied by scanning electron microscopy (SEM), electron probe microanalyzer (EPMA), X-ray diffraction (XRD), microhardness tester, wear tester, and electrochemical techniques. The results show that good metallurgical bonding was achieved between the stainless steel coating and the substrate. The amount of M7(C, B)3 type borocarbide decreases and that of M2B and M23(C, B)6 type borocarbides increases with the increase of Mo content in the coatings. The amount of martensite decreases, while the amount of ferrite gradually increases with the increase of Mo content. When the Mo content is 4.0 wt. %, Mo2C phase appears in the coating. The microstructure of the coating containing Mo is finer than that of the Mo-free coating. The microhardness decreases and the wear resistance of the coating gradually improves with the increase of Mo content. The wear resistance of the 6.0 wt. % Mo coating is about 3.7 times that of the Mo-free coating. With the increase of Mo content, the corrosion resistance of the coating firstly increases and then decreases. When the Mo content is 2.0 wt. %, the coating has the best corrosion resistance. View Full-Text
Keywords: laser cladding; stainless steel powder; Mo content; microstructure; wear resistance; corrosion resistance laser cladding; stainless steel powder; Mo content; microstructure; wear resistance; corrosion resistance

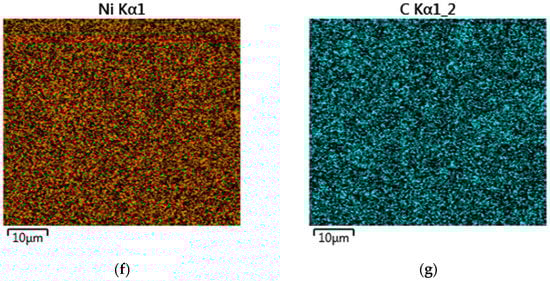

Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Wang, K.; Chang, B.; Chen, J.; Fu, H.; Lin, Y.; Lei, Y. Effect of Molybdenum on the Microstructures and Properties of Stainless Steel Coatings by Laser Cladding. Appl. Sci. 2017, 7, 1065.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Appl. Sci. EISSN 2076-3417 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
