Experimental Evaluation of Lubrication Characteristics of a New Type Oil-Film Bearing Oil Using Multi-Sensor System

1
School of Mechanical Engineering, Taiyuan University of Science and Technology, Taiyuan 030024, China
2
Department of Electrical, Electronic & Computer Engineering, University of Pretoria, Pretoria 0002, South Africa
3
School of Mechatronic Engineering, China University of Mining Technology, Xuzhou 221116, China
4
School of Manufacturing & Mechanical Engineering, University of New South Wales (UNSW), Sydney 2200, Australia
*
Authors to whom correspondence should be addressed.
Academic Editor: César M. A. Vasques
Received: 4 November 2016 / Revised: 12 December 2016 / Accepted: 13 December 2016 / Published: 26 December 2016
View Full-Text   |   Download PDF [3019 KB, uploaded 26 December 2016]   |

Abstract

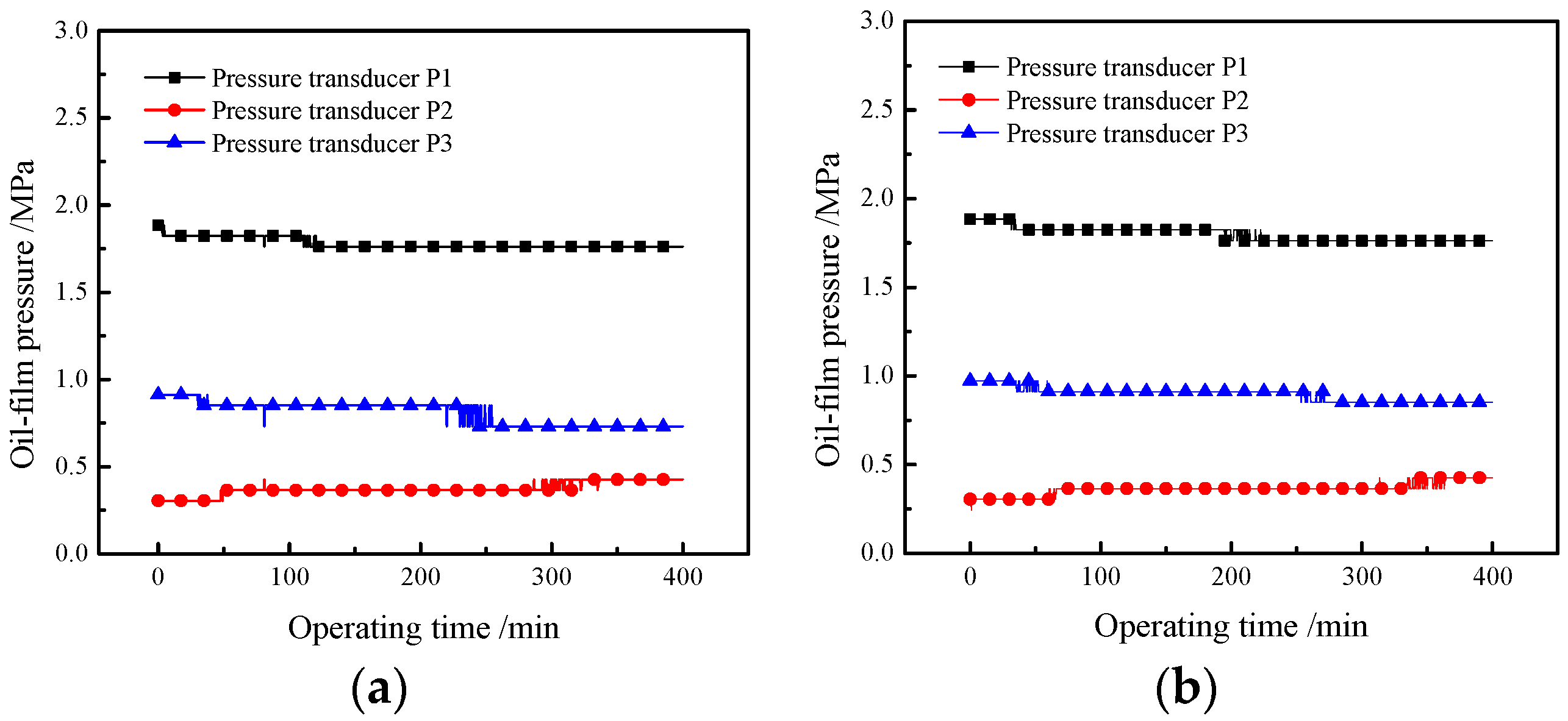

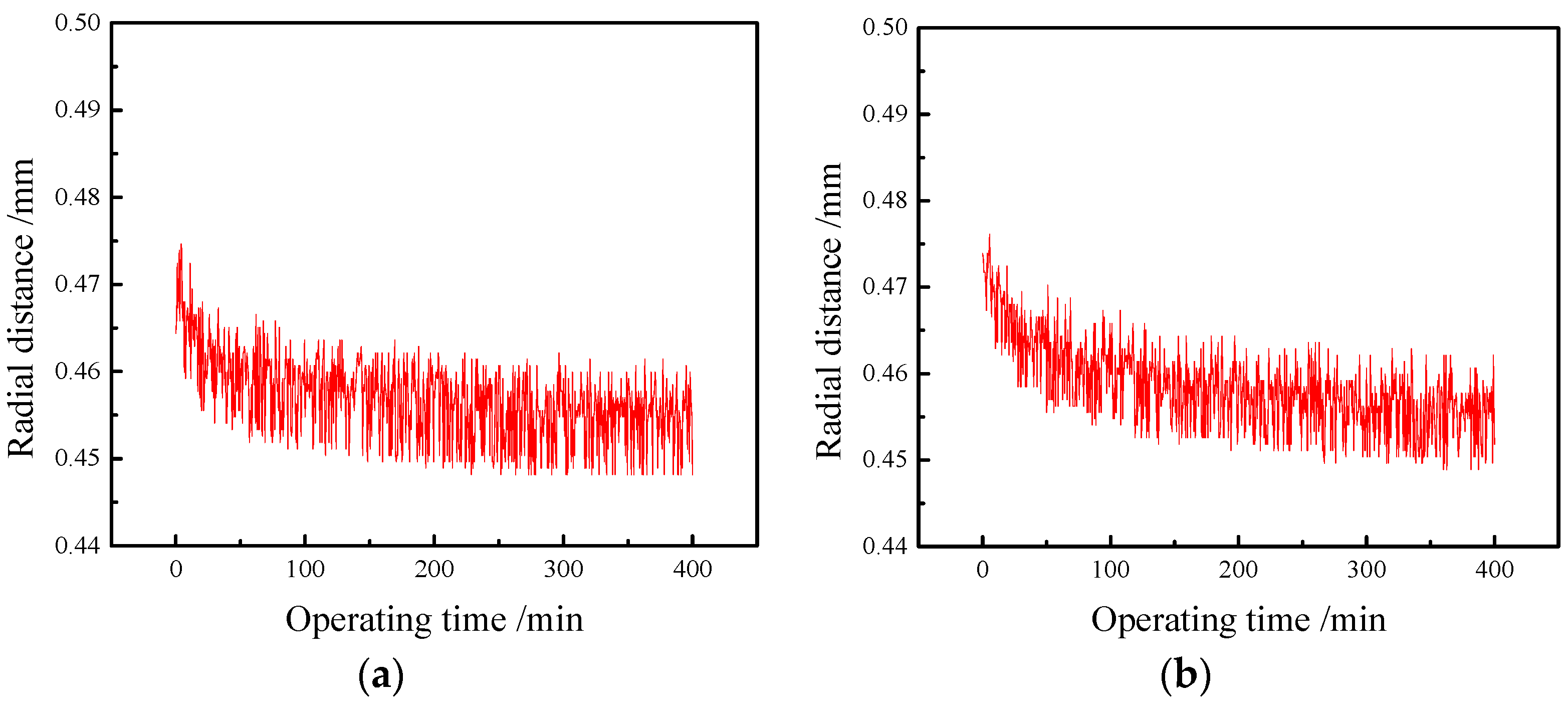

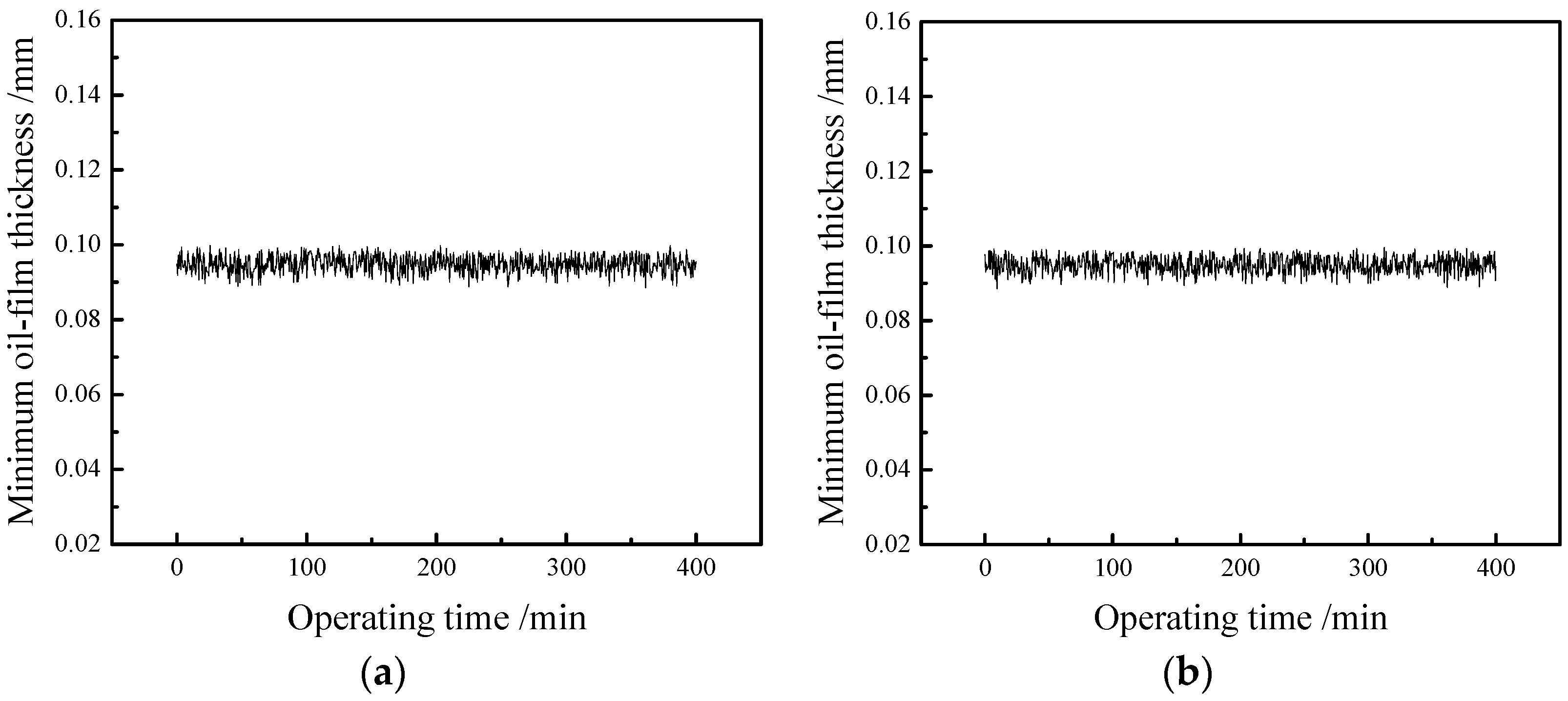

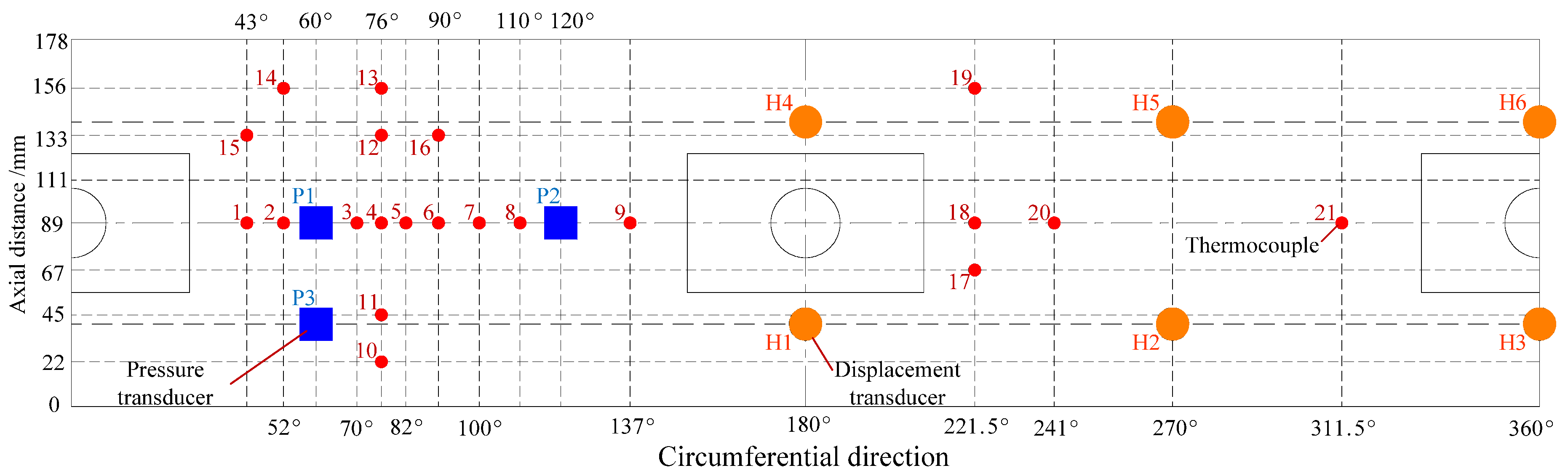

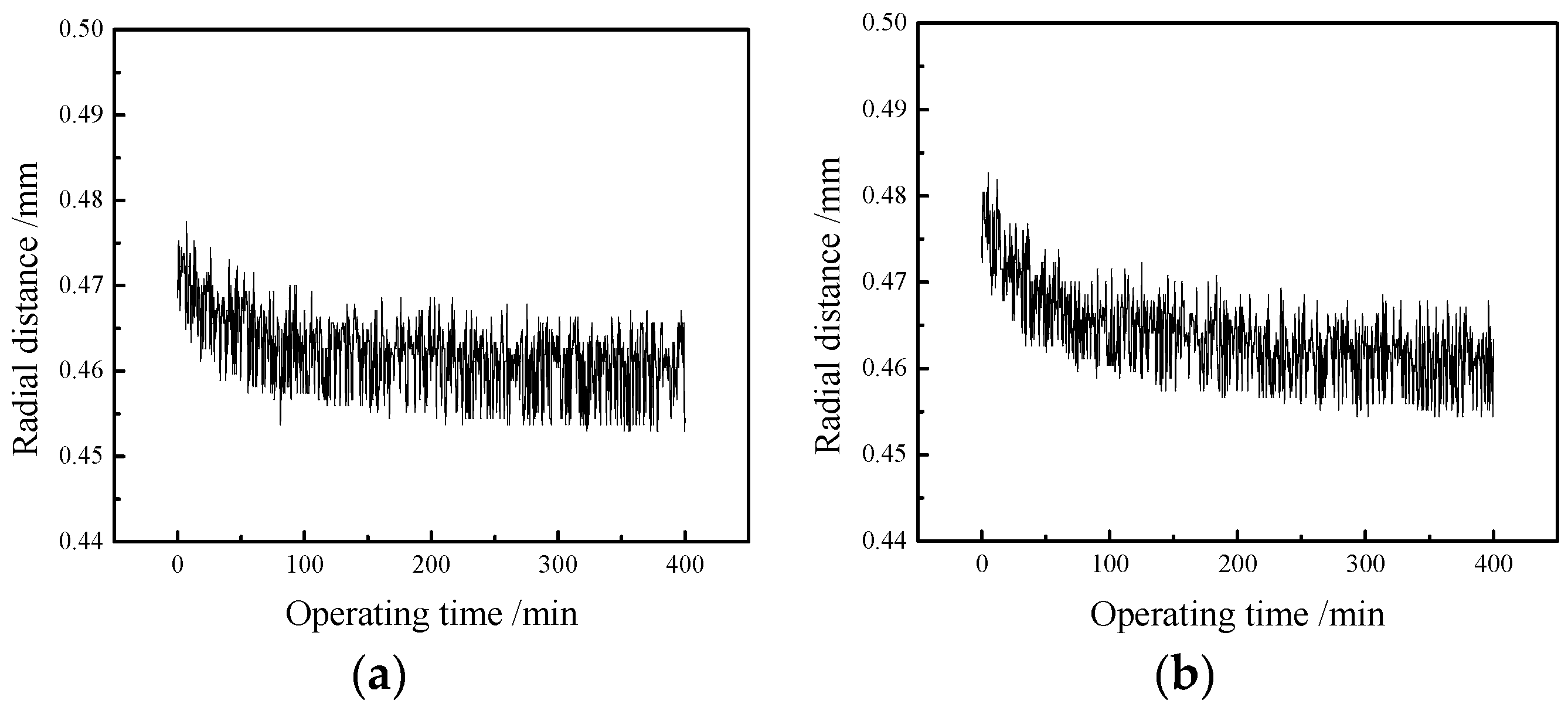

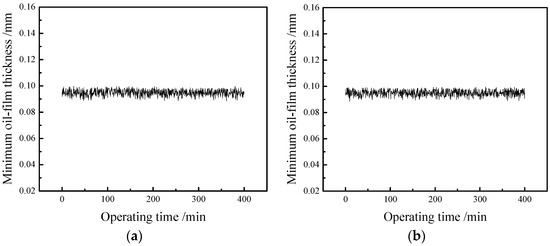

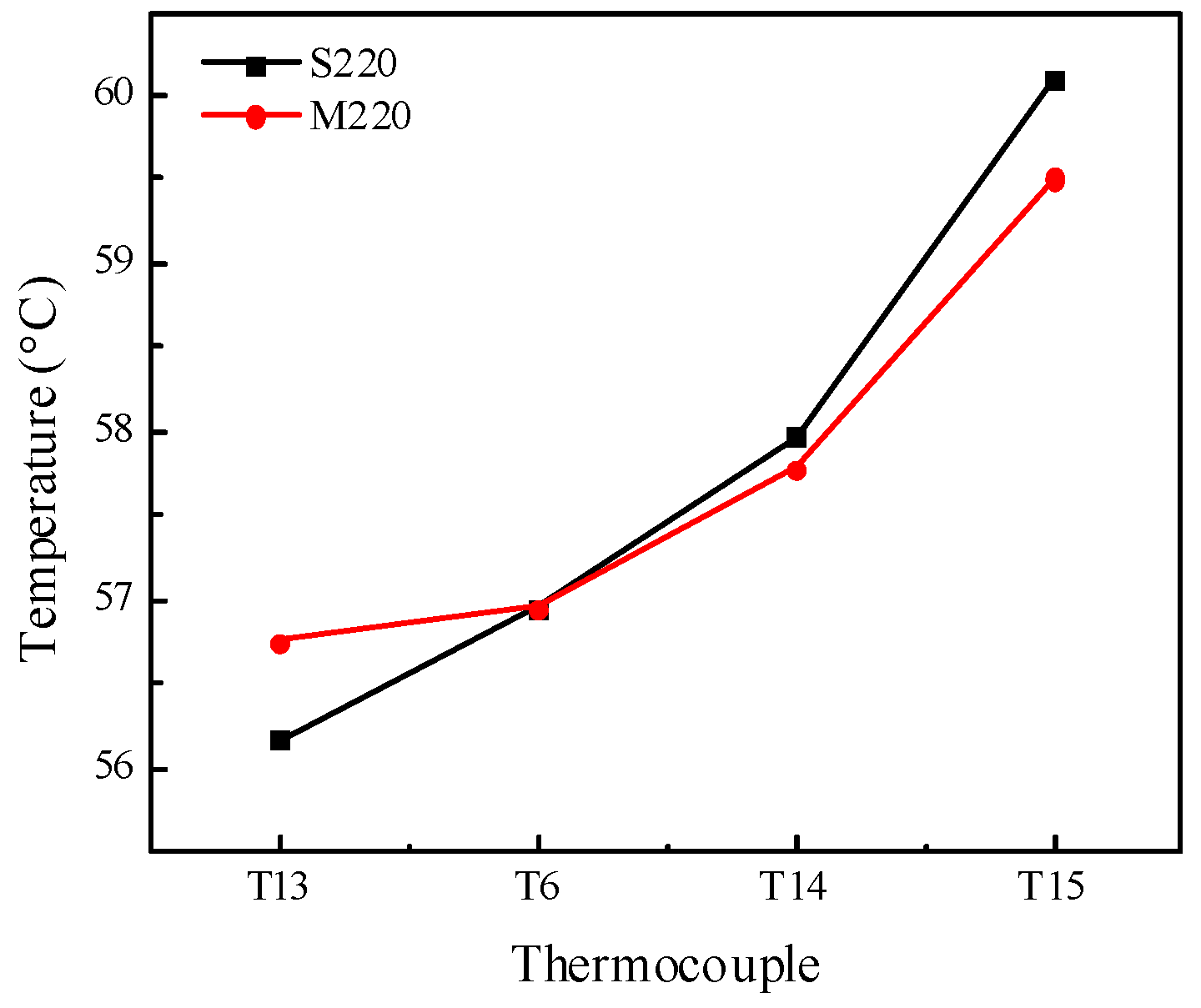

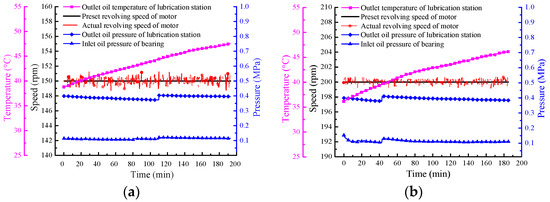

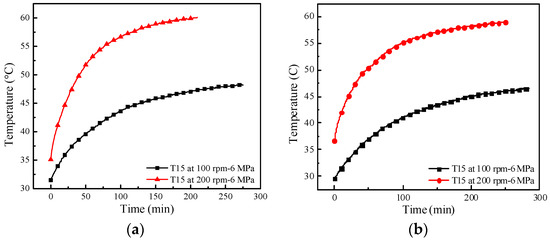

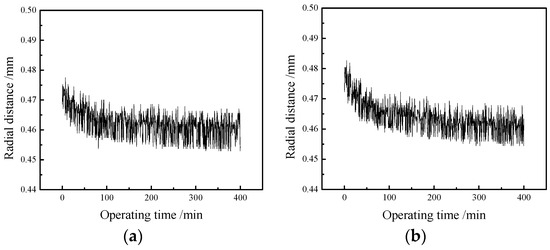

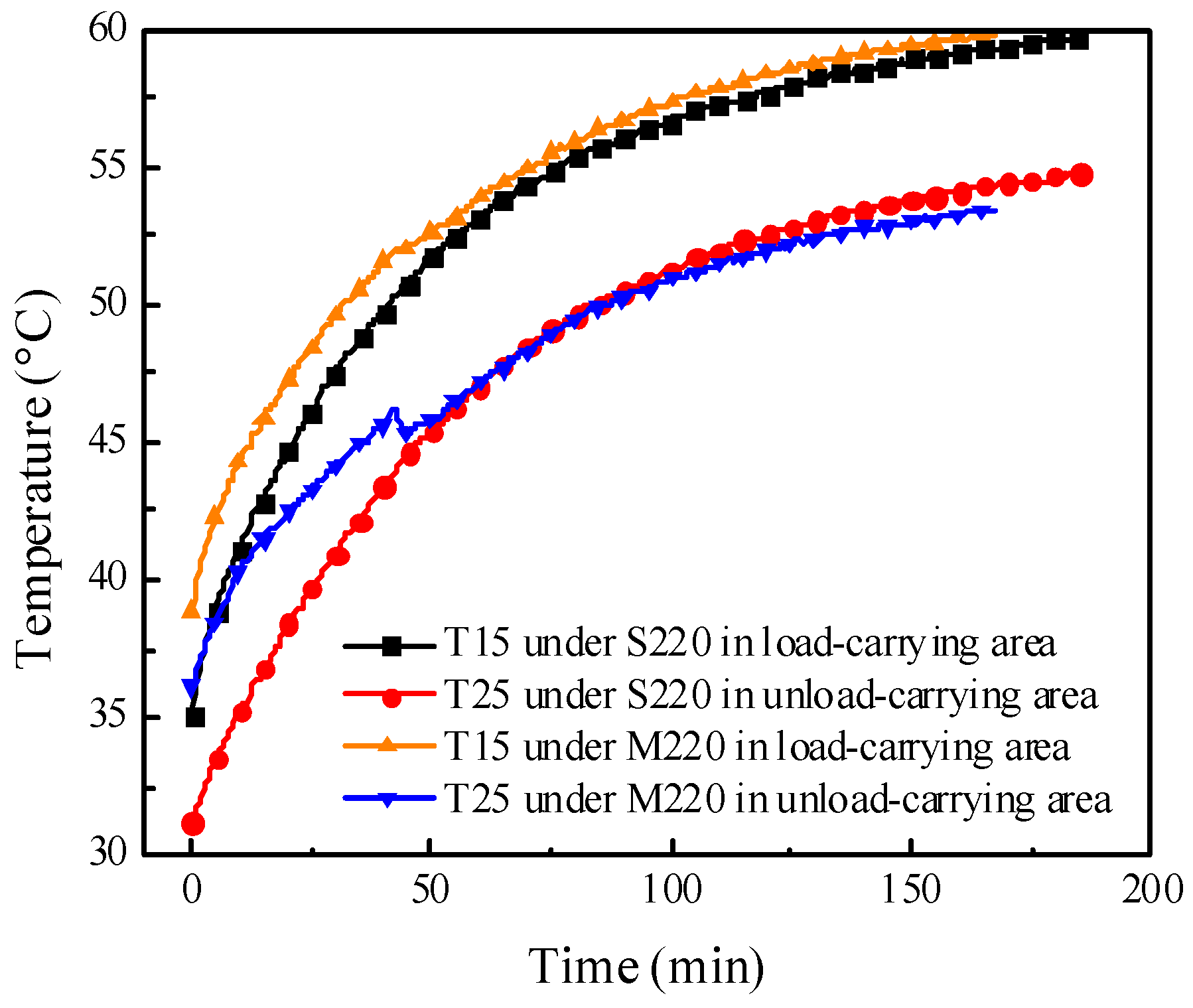

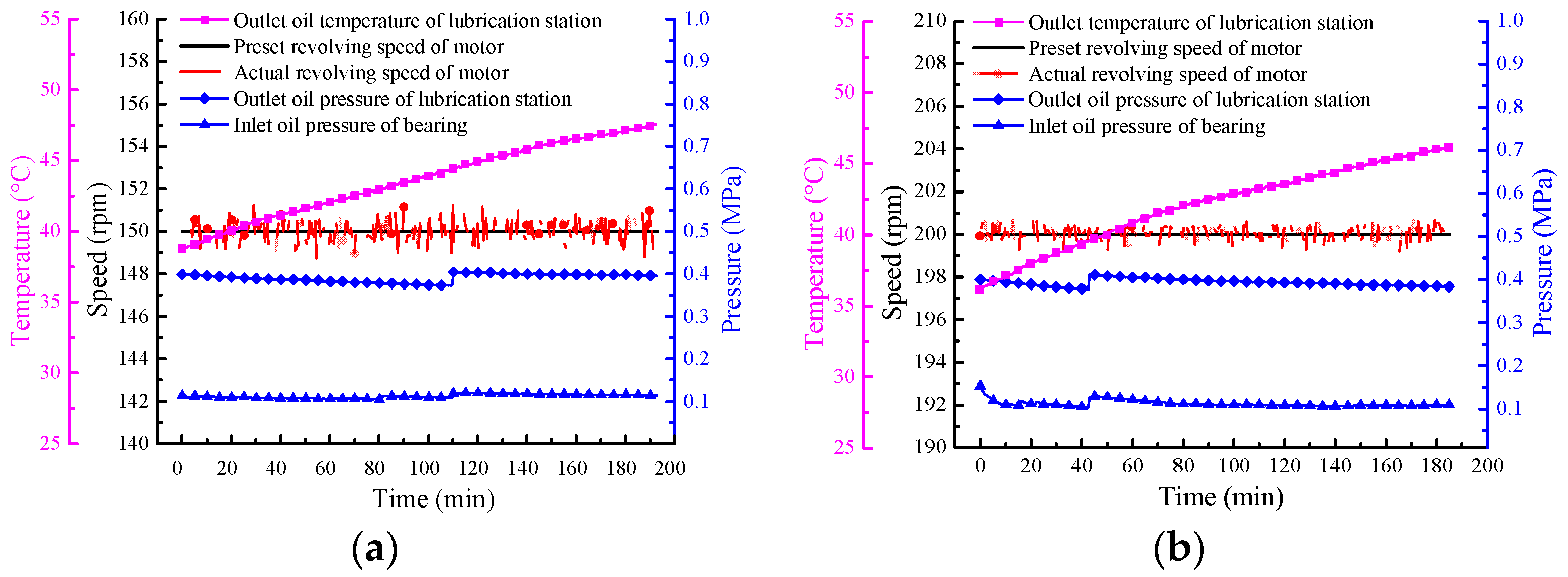

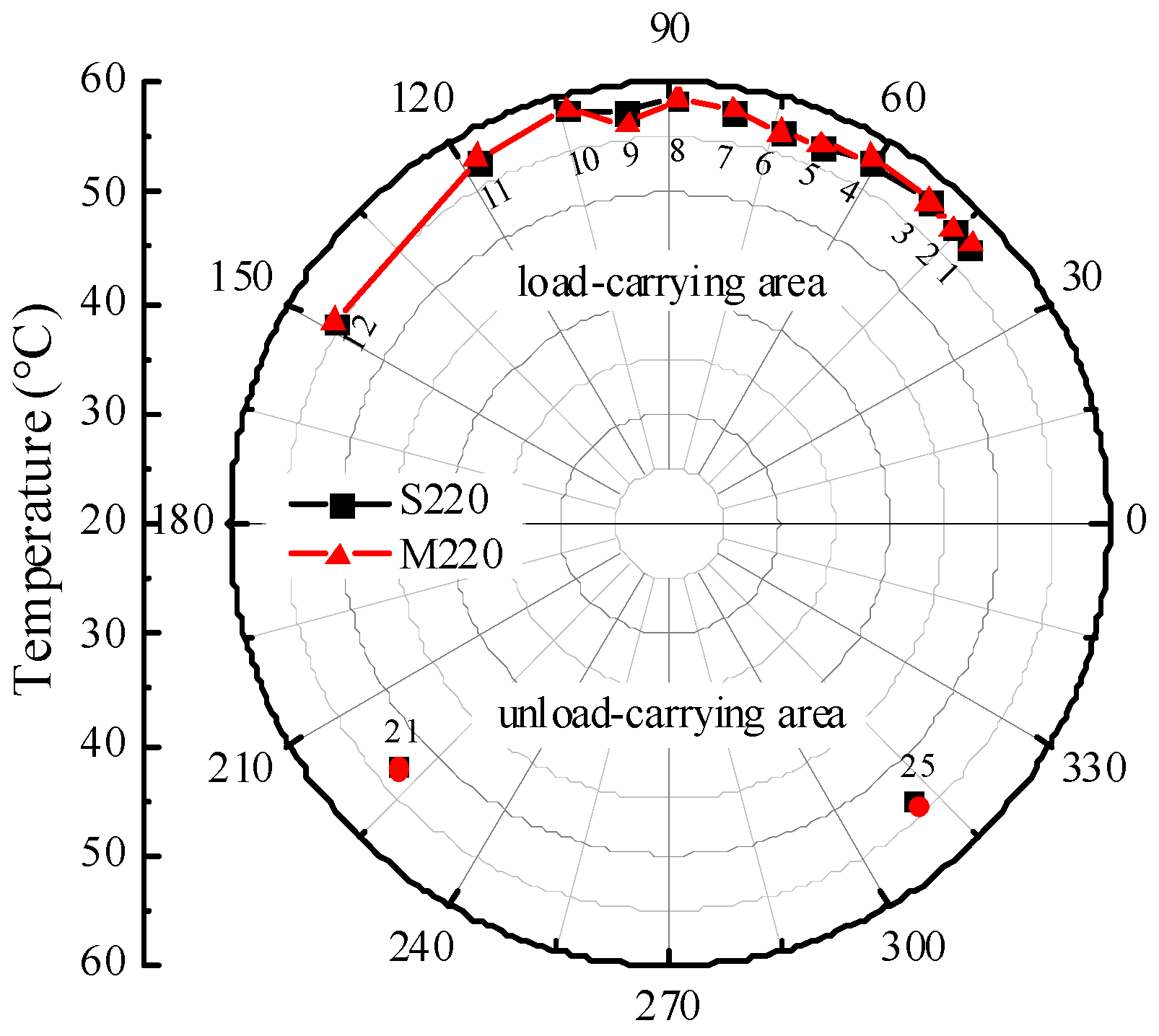

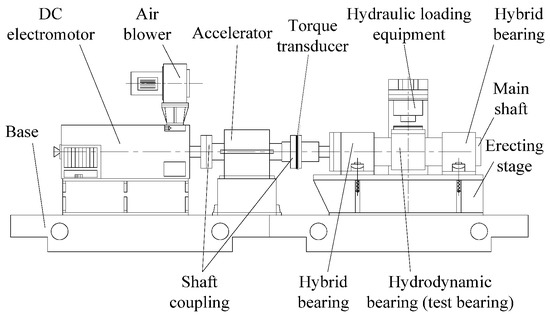

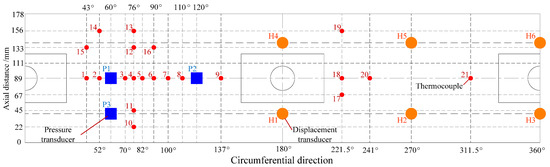

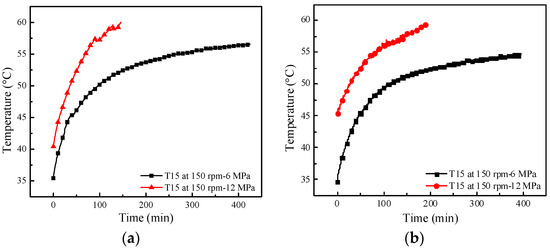

In order to evaluate the operating performance of a new type oil-film bearing oil S220, a new test bearing was designed based on oil-film bearing test rig. The operating temperature of S220 was tested through the thermocouples installed on a test bearing; the operating oil-film pressure was tested through pressure transducers; and the operating oil-film thickness was tested through displacement transducers. Meanwhile, M220 was also tested as a comparison, and both oils are based on mineral oil. The results showed that all property indexes of the test rig can meet the specified requirements and can guarantee the performance test of oil-film bearing oil; the operating temperature of S220 is generally equal to that of M220, and both have the same operating stability. The temperature property conforms to Formula (1) and the operating temperature under different load cases can be predicted. Although oil-film pressure of M220 is a little more stable, the oil-film pressure of S220 is similar to that of M220. Moreover, both have the similar oil-film thickness, and the oil-film thickness of S220 is slightly smaller than that of M220, especially at the beginning of operation. Ultimately, oil S220 is evaluated to be suitable for actual engineering application. View Full-Text
Keywords: oil-film bearing oil; oil-film bearing test rig; operating temperature; operating performances oil-film bearing oil; oil-film bearing test rig; operating temperature; operating performances
