Appl. Sci. 2016, 6(11), 362; doi:10.3390/app6110362

A Calibration Method for Nonlinear Mismatches in M-Channel Time-Interleaved Analog-to-Digital Converters Based on Hadamard Sequences

College of Electronic Science and Engineering, National University of Defense Technology, Changsha 410073, China
*
Author to whom correspondence should be addressed.
Academic Editor: Hung-Yu Wang
Received: 2 August 2016 / Revised: 11 November 2016 / Accepted: 14 November 2016 / Published: 18 November 2016
View Full-Text   |   Download PDF [804 KB, uploaded 18 November 2016]   |

Abstract

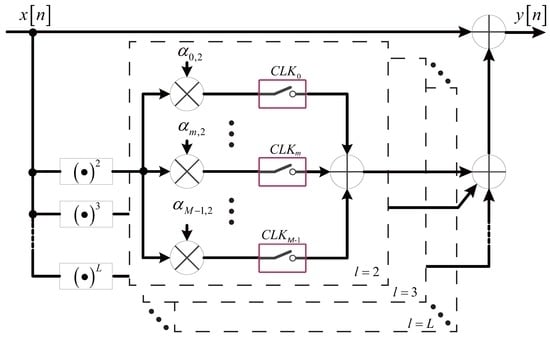

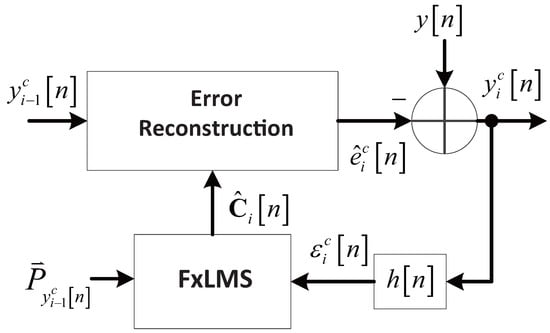

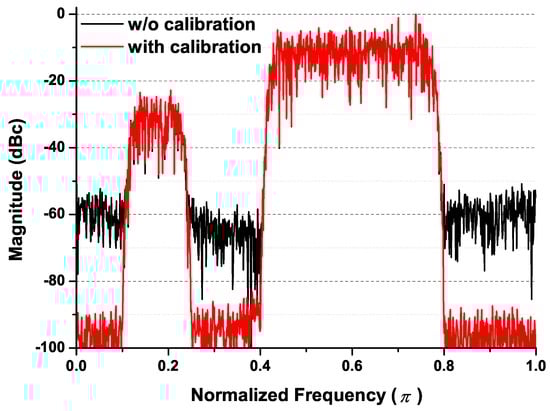

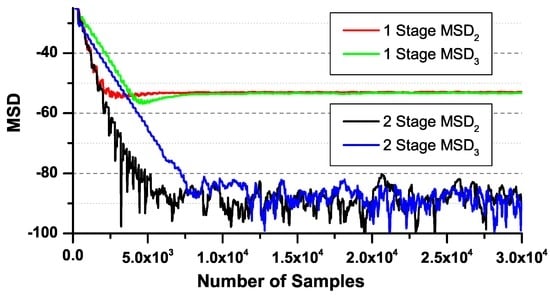

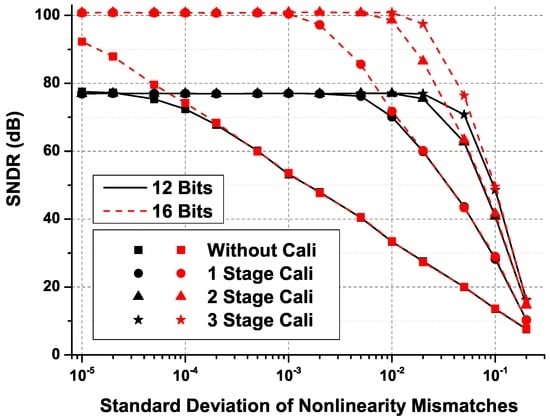

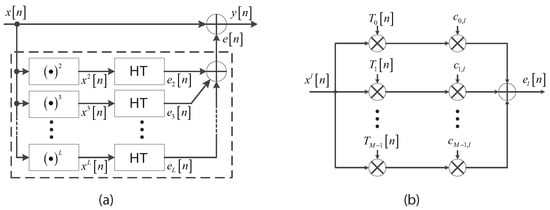

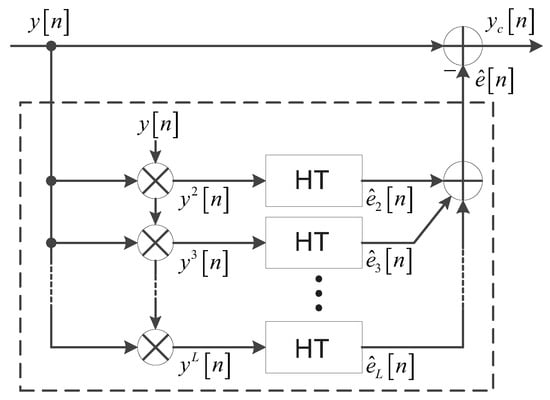

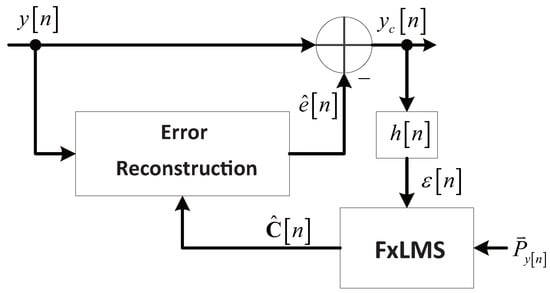

The time-interleaved analog-to-digital converter (TIADC) is an architecture used to achieve a high sampling rate and high dynamic performance. However, estimation and compensation methods are required to maintain the dynamic performance of the constituent analog-to-digital converters (ADCs) due to channel mismatches. This paper proposes a blind adaptive method to calibrate the nonlinear mismatches in M-channel TIADCs (M-TIADCs). The nonlinearity-induced error signal is reconstructed by the proposed multiplier Hadamard transform (MHT) structure, and the nonlinear parameters are estimated by the filtered-X least-mean square (FxLMS) algorithm. The performance of cascade calibration is also analyzed. The numerical simulation results show that the proposed method consumes much less hardware resources while maintaining the calibration performance. View Full-Text
Keywords: time-interleaved; analog-to-digital converter; nonlinear mismatch; binary Hadamard sequence; filtered-X least-mean square time-interleaved; analog-to-digital converter; nonlinear mismatch; binary Hadamard sequence; filtered-X least-mean square
Figures

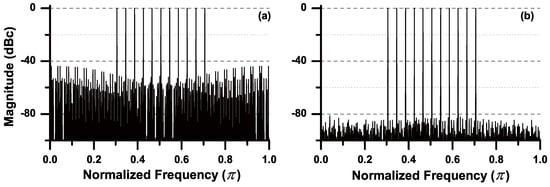

Figure 1
