Appl. Sci. 2012, 2(4), 709-725; doi:10.3390/app2040709

Article
Performance Evaluation of a Lithium-Chloride Absorption Refrigeration and an Assessment of Its Suitability for Biomass Waste Heat
Sacha Oberweis * and Tariq Al-Shemmeri
School of Engineering, Staffordshire University, Stafford, ST18 0AD, UK; Email: t.t.al-shemmeri@staffs.ac.uk
*
Author to whom correspondence should be addressed; Email: sacha.oberweis@staffs.ac.uk; Tel.: +44-(0)-1785-353-565.
Received: 1 August 2012; in revised form: 19 September 2012 / Accepted: 3 October 2012 /
Published: 10 October 2012

Abstract

: This paper presents a computer model that will evaluate the performance of a thermo-chemical accumulator. The model is based on operational data such as temperatures and flow rates. The ultimate goal for this model is to estimate the coefficient of performance (COP) of this unit when run on hot water from biomass combustion as the heat source. The outputs of the model are verified by comparing the simulation of the actual machine with published experimental data. The computed results for cooling COP are within 10% of the measured data. The simulations are all run for heat load temperatures varying between 80 °C and 110 °C. As expected, simulation results showed an increase in COP with increased heat source temperatures. The results demonstrate that the potential of combined solar and biomass combustion as a heat source for absorption cooling/heating in climates with low solar radiation can be coupled with biomass waste.
Keywords:
Lithium-Chloride; absorption; computer model; biomass; waste heat recovery

Nomenclature

COPcoefficient of performance
cpspecific heat at constant pressure (kJ·kg−1·K−1)
Hdildifferential enthalpy of solution (kJ·kg−1)
Hsolheat of dissolution (kJ·kg−1)
Hvapspecific heat capacity of vaporisation (kJ·kg−1)
LMTDlogarithmic mean temperature difference
mmass (kg)
Applsci 02 00709 i042mass flow rate (kg·s−1)
Qheat (W)
Ttemperature (°C)
TCAthermo-chemical accumulator
UAheat loss factor (kJ·h−1·K−1)
Vvolume (m3)
xconcentrations

Subscripts

0reference
acair-conditioning
cbcondenser bottom tank
cfcondenser fluid
chcharging
ctcondenser top tank
cxcondenser
disdischarging
hsheat sink
iinlet
mcmonohydrate crystals
ooutlet
rbreactor bottom tank
rtreactor top tank
rxreactor
sheat source
sssalt solution
vapvapour
wswater solution

Greek symbols

Δdifference
ρdensity (kg·m−3)
δttime increment in iteration (s)

1. Introduction

The principle of absorption cooling was first described by the French scientist Ferdinand Carré in 1858. The original design used water and sulfuric acid, and in 1926 Albert Einstein proposed an alternative design, the Einstein refrigerator. Commercial production of absorption refrigeration units began in 1923 by AB Arctic, which was bought by Electrolux in 1925 [1]. Small capacity powered diffusion absorption refrigerators have been commercially produced by Electrolux since 1928 [2]. Designed as domestic refrigerators for small portable applications and for hotel rooms, they had cooling capacities of a few tens of watts and COP's generally fell between 0.1 and 0.3. The performance of the devices has been assessed during the last half century by various researchers such as Watts and Gulland [3], Stierlin et al. [4], Backstrom and Emblik [5] and Chen et al. [6]. Jacob and Eicker demonstrated that large scale absorption coolers and chillers in excess of 20 kW could be economically viable if powered by waste heat from industrial processes [7]. This endeared two lines of research: small scale CHP/tri-generation and solar power absorption cooling. In the beginning of the 21st century, the University of Stuttgart obtained grants from the Joule Craft program to develop a single stage ammonia-water diffusion absorption cooling machine with a capacity of 2.5 kW [8,9,10]. The first two machines failed to reach their design capacity and lost performance in operation. The third prototype developed and subsequently modified in 2006 eventually gave a cooling capacity of 2.0–2.4 kW at 18–15 °C respectively with an average COP of 0.3 corresponding to a source of 125 °C.

Around the same time, Bales and Nordlander investigated the characteristics of the thermo chemical accumulator (TCA) of a commercially available unit [11]. The TCA is a three-phase absorption heat pump that stores energy in the form of crystallized salt (Li/Cl) with water being the other substance. They estimated the thermal COP to be 0.7 but could not verify this in the laboratory testing. Bales et al. showed that the thermal storage of a TCA is sufficient for small scale solar cooling applications that do not have large night cooling loads [12]. Sanjuan et al. investigated the advantages of salt desiccants, like Lithium-Chloride (LiCl) versus liquid absorption systems [13]. Their major finding is that the absorption process and the energy storage is combined in one so that the production of cooling energy can be decoupled from the solar gains without external storage tank. They show that these units are able to substitute big absorption systems due to the small size. They also show good adaptability and many possibilities of operation for medium and small scale systems. The Lithium-Chloride-water pair has been tested by ClimateWell and is currently used in their solar absorption cooling technology [14]. They have shown that this pair is not suitable for seasonal storage due to its high cost of the salt. However the system can deliver either cooling or heating and the problem of crystallization has been overcome and that enables the enhancement of the storage density and COP with a so-called “closed three phase absorption”. They indicate a cooling COP of 0.68; however installed systems usually manage a COP in the range of 0.52–0.57.

This paper presents in a first instance, a computer model for the prediction of the COP of a thermo-chemical accumulator unit based on the design parameters. The input data consists of temperatures for the heating load, heat sink and cooling circuit as well as their respective flow rates. In a second instance the model is used to estimate the COP of a TCA unit when run on hot water from biomass combustion as the heat source. Although the system is developed to run on solar heating (heat source temperatures around 110 °C) compared to the lower heart source temperature available from domestic hot water boilers run on biomass, the authors expect feasible operating conditions.

2. Thermodynamic Analysis of LiCl Absorption Cooling

The thermo-chemical accumulator (TCA) is an absorption process that uses a working pair in the liquid, vapor and solution phases as well as a solid sorbent. This process is significantly different from the traditional absorption processes in that it is a three phase process (solid, solution and vapor). All other absorption processes are two phase processes with either solution + vapor or solid + vapor. A typical thermo-chemical accumulator unit consists of a reactor and condenser/evaporator with a vapor channel between them, as well as tanks for both water and the active salt solution. Vacuum conditions are assumed and each of the main sections has its own mass and associated heat loss coefficient. Heat of vaporization, condensation and dilution are taken into account and a single UA-value (overall heat transfer coefficient for the whole heat exchanger area) is used as a parameter for charge and discharge conditions. These UA-values are used to calculate the UA-values for the reactor and the condenser. The parameters for the LiCl solution and crystals were obtained from the manufacturer and/or taken from reference textbooks [15].

Applsci 02 00709 g001

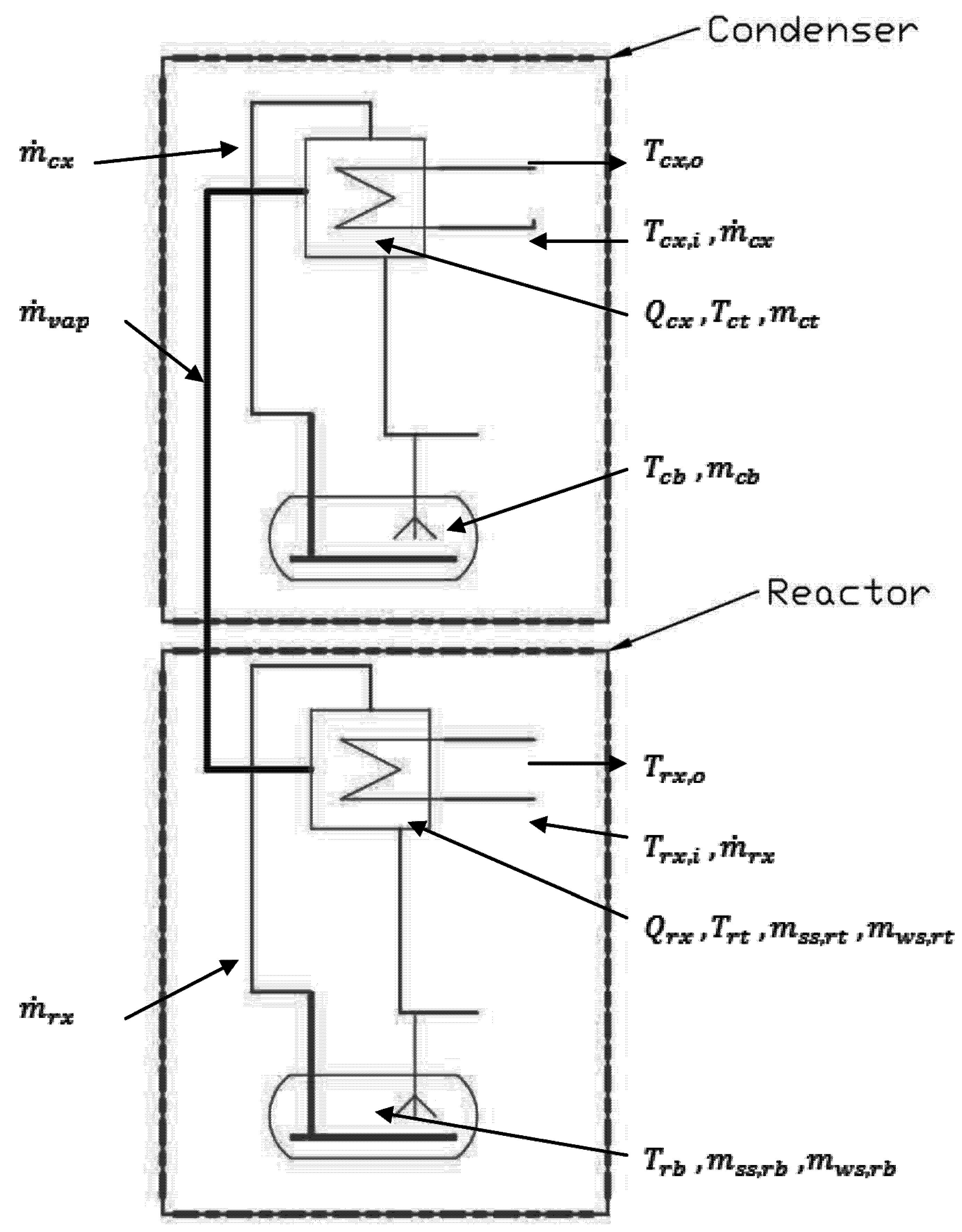

Figure 1. Schematic drawing of the thermo-chemical accumulator (TCA) unit.

Click here to enlarge figure

Figure 1. Schematic drawing of the thermo-chemical accumulator (TCA) unit.
Applsci 02 00709 g001

For simplicity, the condenser and the reactor are treated as though they each consist of two separate tanks. A schematic representation of these tanks can be seen in Figure 1. This allows considering the top tank as the exchange of energy between the tank and the outside, and the bottom tank as a store for the water or salt solution. Internal pumps assure the exchange of water/solution between the bottom tank and the top tank. Thus the condenser top is the condenser itself and the condenser bottom is the water store. Likewise, the reactor top is the reactor itself and the reactor bottom is the solution store. It is assumed that in initial conditions, all salt is dissolved in the reactor. In the real system, the temperatures depend on the heat transfer across the heat exchangers. Similarly, the masses and the salt concentrations are dependent on the temperatures. In order to express this mathematically, it is assumed that the system determines its initial conditions then evaluates its corresponding temperature and mass values. They are constantly being adjusted to adhere to the principles of mass and energy balance. Thus, symbols on the left hand side of the subsequent equations refer to the adjusted values whereas the ones on the right hand side refer to the outdated values. Initially all the temperatures for the reactor and condenser are set to the ambient temperature. The concentration of the solution can then be calculated as follows, depending on the quantities of water and salt in the respective tanks:

Applsci 02 00709 i001

Based on this calculated solution concentration, the mass of water and solution in every part of the unit can be calculated, based on the volume of the reactor and the density of the salt, as follows:

mass of salt solution in the reactor top

Applsci 02 00709 i002

mass of water solution in the reactor bottom

Applsci 02 00709 i003

mass of salt solution in the reactor bottom

Applsci 02 00709 i004

mass of water solution in the reactor bottom

Applsci 02 00709 i005

Applying the principles of mass and energy transfer to any heat exchanger can be expressed mathematically as (adopted from Kays and London [16]):

Applsci 02 00709 i006
Applsci 02 00709 i007

Here cp is adjusted based on mean temperature between out and return flow of the corresponding circuit (i.e., heat source, heat sink or cooling). The absolute value for the temperature difference is used to avoid a negative value for Q in the subsequent equations for evaluating the COP.

Thus, for the condenser heat exchanger power,

Applsci 02 00709 i008

for the reactor heat exchanger power,

Applsci 02 00709 i009

for the energy rate due to vapor for the condenser,

Applsci 02 00709 i010

and for the energy rate due to vapor for the reactor,

Applsci 02 00709 i011

The mass fraction of LiCl salt in the reactor is given as follows:

Applsci 02 00709 i012

The temperature difference between the reactor and the condenser during equilibrium is based on this salt concentration. Equilibrium is assumed when both mass and energy balances are satisfied. Equation (13) gives the expression of this temperature for Lithium Chloride, which is fitted to data extrapolated from Conde [17].

Applsci 02 00709 i013

The energy rate due to vapor in the condenser depends on the UA value of the heat exchanger in the condenser, the temperature of the water film on the heat exchanger surface as well as the temperature of the condenser top. The film temperature of the condenser can be determined from the above heat transfer equations as follows:

Applsci 02 00709 i014

The energy rate due to vapor in the reactor can be calculated via the vaporization and differential enthalpy of dilution. When the system is charging, part of the heat is used to vaporize the water and the rest to break the bond to the salt. If the system is discharging, then the energy stored by the salt is released because of the dilution of the salt solution and the condensation of the water vapor. The film temperature at the reactor heat exchanger can be determined as follows:

Applsci 02 00709 i015

The mass of vapor is dependent on the energy rate due to vapor and the film temperatures of the surfaces of the heat exchangers.

Applsci 02 00709 i016

The mass migrations between the reactor and the condenser due to vapor transport could go in either direction depending on whether the unit is charging or discharging. During the charging process, the vapor travels from the reactor to the condenser and vice versa for discharging. Therefore (for charging), some part of the water in the top tank of the reactor will go to the condenser and some solution will be pumped up to the top tank from the bottom one, so that the mass of solution in the top tank will be kept constant. This can be expressed mathematically as follows:

Applsci 02 00709 i017

From Equations (18) and (19) the volume of the reactor top tank and the required mass to fill it up can be evaluated as follows:

Applsci 02 00709 i018
Applsci 02 00709 i019

There are three possibilities for Equation (19): the bottom tank is empty (mfill = 0), the solution is pumped from the bottom tank to the top (mfill > 0), or the solution is pumped from the top tank to the bottom (mfill < 0). Depending on what direction the solution is being pumped, the masses of LiCl salt and water in the reactor can be determined according to the mass conservation equation and for adjusted values for the masses of solution and water.

Applsci 02 00709 i020
Applsci 02 00709 i021
Applsci 02 00709 i022
Applsci 02 00709 i023

The LiCl concentration and temperature of the top and the bottom tank can be determined using the mass and energy conservation principles as follows, based on the masses in the reactor:

Applsci 02 00709 i024
Applsci 02 00709 i025
Applsci 02 00709 i026
Applsci 02 00709 i027

The required amount of monohydrate crystals can be evaluated depending on Conde's published data for the concentration of crystals and based on the molecular masses for Lithium-chloride (42.4 g·mol−1) and water (18 g·mol−1):

Applsci 02 00709 i028
Applsci 02 00709 i029

The transport of the vapor can cause the solution in the top of the reactor to be concentrated or diluted. Therefore, extra water or salt is required to keep the salt solution at its equilibrium state. The temperature changes, due to the dissolution at the reactor top, can be expressed as follows:

Applsci 02 00709 i030

If there is not enough solution of water available, then the required mass of monohydrate crystals is set to zero and the masses of the salt and water solution are adjusted:

Applsci 02 00709 i031
Applsci 02 00709 i032

The calculations for the condenser are less extensive as they are largely dependent on the calculations carried out for the reactor. The mass of the condenser bottom tank is dependent on the flow of vapor:

Applsci 02 00709 i033
Applsci 02 00709 i034

The temperatures of the condenser top and bottom tank are dependent on whether the unit is charging or discharging. For charging (mvap > 0):

Applsci 02 00709 i035

For discharging (mvap < 0):

Applsci 02 00709 i036

Additionally the condenser temperatures need to be adjusted to account for the internal mixing of the pumps as follows:

Applsci 02 00709 i037
Applsci 02 00709 i038

The coefficient of performance (COP) is the ratio of output to input energies. COPcool is the thermal COP for producing cooling from the thermal source, and COPheat is for the heat extracted during discharge for the given operating conditions. COPpump is the thermal COP if the machine is used as a heat pump, with the energy that in cooling operation is dumped to ambient, being used for heating. The heat input (Qs) as well as the heat outputs (Qac, Qhs) is determined trough Equation (6). The actual values are based on whether the system is charging or discharging as indicated in Table 1.

Applsci 02 00709 i039
Applsci 02 00709 i040
Applsci 02 00709 i041
Table Table 1. System connections to the surroundings depending on status.

Click here to display table

Table 1. System connections to the surroundings depending on status.
StatusHeat source (Qs)Heat sink (Qhs)Cooling (Qac)
ChargingReactorCondenser
Discharging ReactorCondenser

3. The Computer Model

The TCA system used in this project is comprised of two barrels and a control unit. The control unit regulates the pumps in the system and determines which barrel is being charged and discharged. There are no calculations involved and the whole process is based on decision (If...else) statements depending on the information supplied to the control unit from the temperature sensors built into the system. The model uses a fixed number of internal time steps for every output time step in order to iterate to a solution. The condenser and the reactor are treated as though they each consist of two separated vessels. The top vessel is used to exchange energy between vessel and outside, and the bottom vessel is used to store the water or salt solution. The control unit is used to regulate the internal pumps as well as the overall charge level of the reactor. Similar to the actual machine, the barrel is charged to a certain limit, before a swapping procedure is initiated. This swap period allows the systems to redirect flow and regulate the speed for the internal pumps. Since the system will always charge one unit while the other one discharges, the heat source and the distribution system are only ever connected to one internal circuit whereas the heat sink is always connected to two circuits. To account for this, the flow rate for the heat sink is divided by two in the model. The system constantly monitors the level of charge/discharge of the unit. A unit is considered fully charged when the salt concentration in the reactor reaches 95% and cannot be “dried” any further. Similarly, a unit is considered being fully discharged when the water level in the water store goes below 12 kg. In this model a swap will occur only when a unit is fully discharged.

For simplicity, the inlet temperatures to the system are kept constant for all three circuits. Obviously, in reality this is not the case and they fluctuate depending on the use of the circuits. For example, the heat sink return temperature largely depends on the capacity of the circuit to dissipate the heat from the incoming water and its temperature. The time length of the simulation is set to 24 h. This timeframe is used to assure at least one complete instance of charge and discharge of the barrel is carried out with at least one instance of swapping. The model iterates for a set number of times between each time increment. The following steps (Figure 2) are carried out in each iteration of the model.

  • The temperature difference between the reactor and condenser based on LiCL concentrations

  • The energy transferred by the water vapor

  • The vapor flow rate and heat exchanger outlet temperatures

  • Mass of solid monohydrates LiCl crystals and resulting temperature changes

  • Temperatures and mass changes due to mass transfer of water vapor

  • Temperatures and mass changes due to internal solution flow

Applsci 02 00709 g002

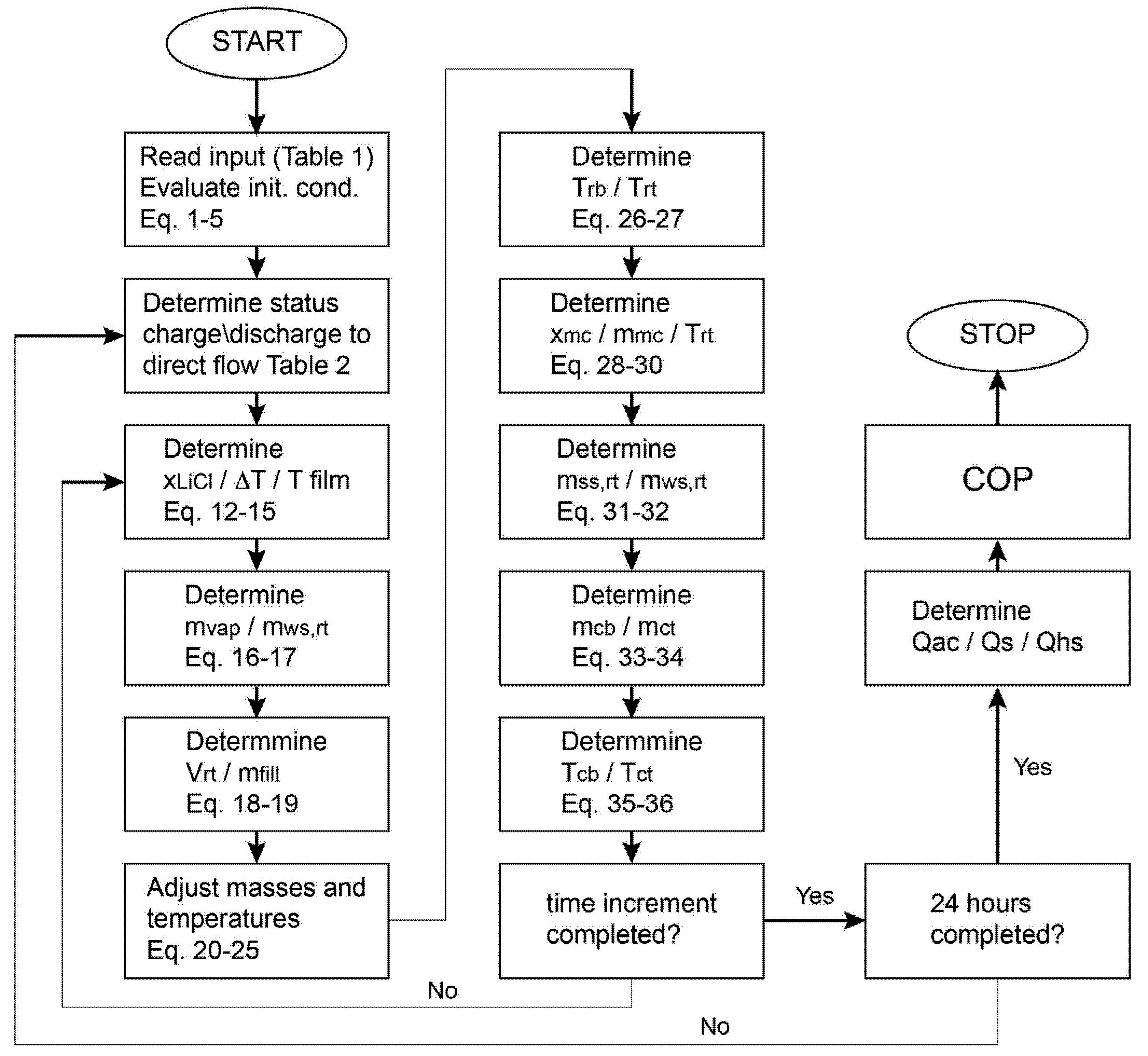

Figure 2. Program flowchart of the coefficient of performance (COP) evaluation model.

Click here to enlarge figure

Figure 2. Program flowchart of the coefficient of performance (COP) evaluation model.
Applsci 02 00709 g002

At the beginning of each simulation, the model loads the design parameters and reads the user input. Then, Equations (1)–(5) are run to determine the initial conditions of the system. Subsequently, the model runs a number of iterative steps to reach the first time increment. At the end of each time increment, the values are updated and the model verifies the charge/discharge status of the unit and if necessary if the swap period is over. At the end of a swap, the model determines a charge or discharge status based on the previous status of the unit.

4. Results

The first run was based on the data presented in Table 2 (optimal design values for a solar thermal heat source) in order to compare the model output with published data. Table 3 shows the COP’s for this unit determined by the model, as well as the COPs determined by the manufacturers design calculations. Although, the cooling COP is stated as 0.68, installed systems all show a COP varying between 0.52 and 0.57. The present study estimates a COP closer to the realistic system as the published data.

Table Table 2. Input data for the analytical model of the TCA unit.

Click here to display table

Table 2. Input data for the analytical model of the TCA unit.
SymbolDescriptionUnitValue
Applsci 02 00709 i042hsmass flow of heat sinkkg·s−125
Thsheat sink return temperature°C31
Applsci 02 00709 i042smass flow of heat sourcekg·s−117
Tsheat source inlet temperature°C115
Applsci 02 00709 i042acmass of flow of cooling fluidkg·s−123
Taccooling fluid return temperature°C18
Table Table 3. Comparison of COP results.

Click here to display table

Table 3. Comparison of COP results.
ParameterPublished data [11]Present studyRelative error %
COPcool0.680.6110.29
COPheat0.790.6914.78
COPpump1.411.42−0.71

When combining Table 2 with the information from Table 1, it can be seen that during a charging instance, the inlet temperature for the reactor is equal the temperature of the heat source (115 °C) and the inlet temperature for the condenser is equal to the temperature of the heat sink (25 °C).

Figure 3 shows the outlet temperatures for the condenser and reactor. The drop in temperature in the discharge phase is corresponding to providing cooling. However, the temperatures will differ in the real system as inlet temperatures are not constant but vary according to their load.

Applsci 02 00709 g003

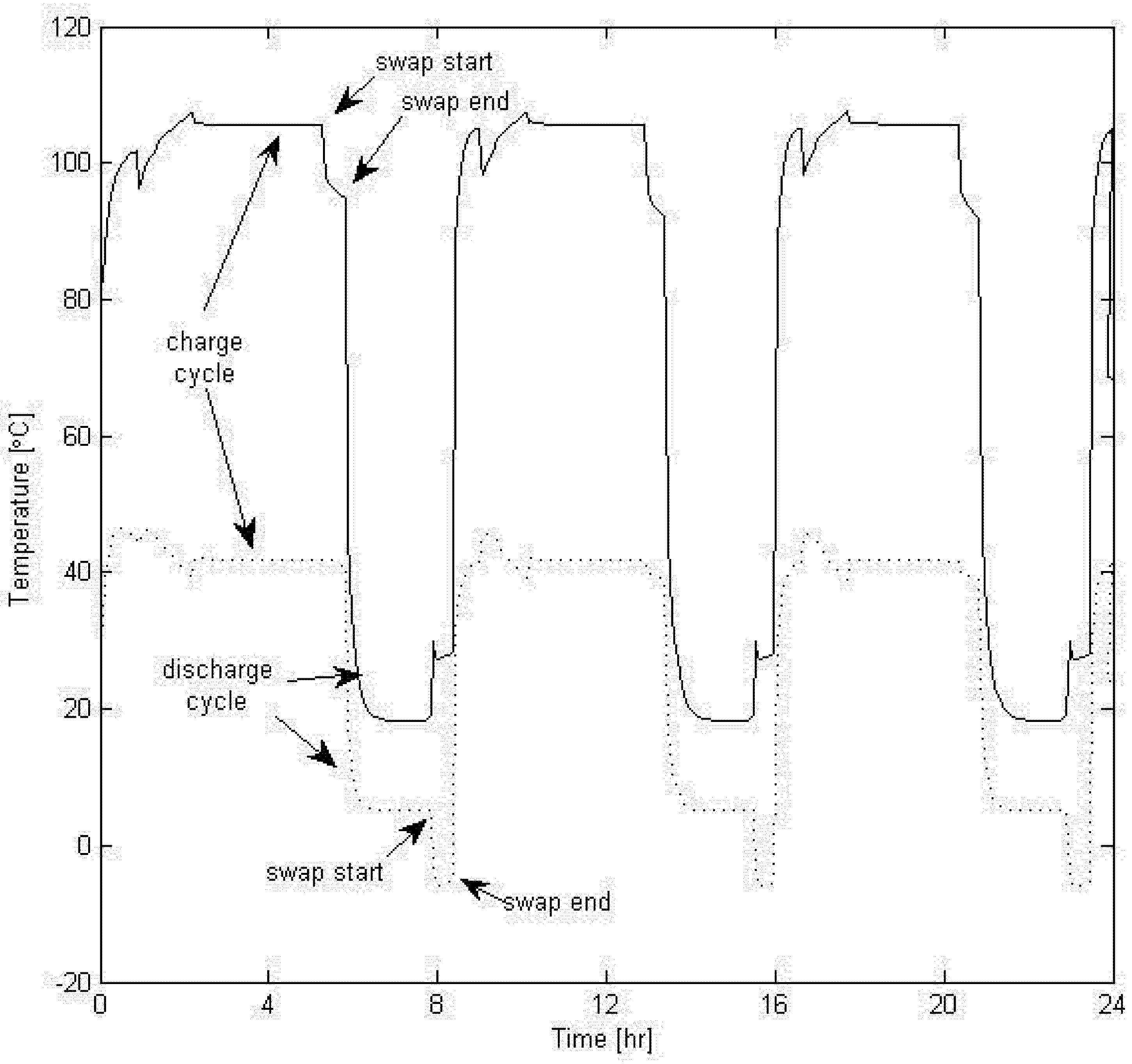

Figure 3. Outlet temperatures for condenser and reactor.

Click here to enlarge figure

Figure 3. Outlet temperatures for condenser and reactor.
Applsci 02 00709 g003

It is assumed that all mass flow rates and specific heat capacities are kept constant, and thus the heat is only dependent on the temperature changes. From Equation (39), it can be deduced that an increased COP is due to either an increased cooling output with constant heat input or that the rate of heat input is smaller than the rate of cooling output. Similar it can be said that a decrease in heat input will result in an increase in cooling output if the COP is increasing; and a decrease in cooling output if the COP is decreasing.

Figure 4, Figure 5, Figure 6 show a comparison of cooling COP against heat source temperature for various cooling temperature based on different heat sink temperatures. It can be seen that an increase in heat source temperature results in a higher COP while keeping the cooling temperature constant. The simulations are all run for heat load temperatures varying between 80 °C and 110 °C. For the lower cooling temperatures (18 °C and 22 °C) a high heat sink will not compute results for heat source temperatures below 95 °C. An additional data point for 102.5 °C was added for the 30 °C heat sink results. It has to be said that any other values are all outside the minimum working conditions of the unit and thus would not contribute to any useful discussion. As expected, it can be observed that the COP is improved by reducing the heat sink inlet temperature. The performance of any installed heat sink circuit is not considered in the present work.

Applsci 02 00709 g004

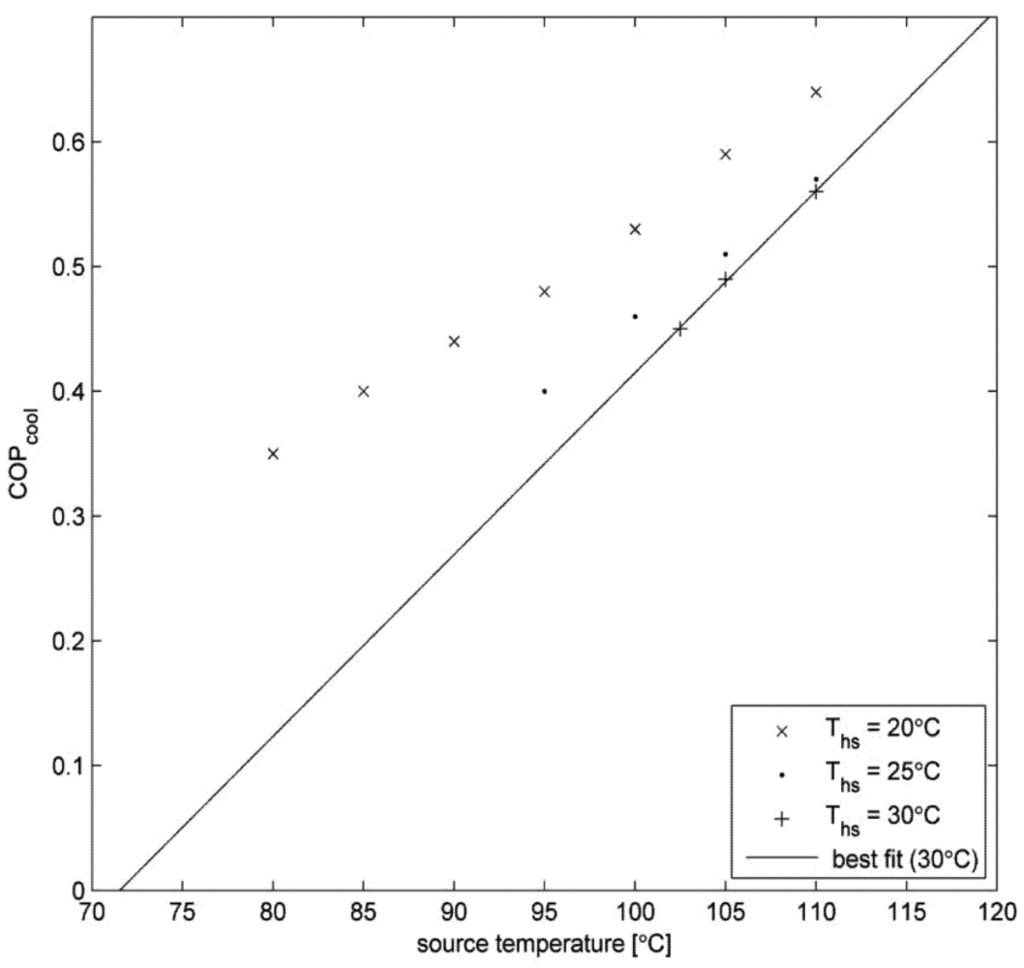

Figure 4. COP against heat source temperature for 18 °C cooling temperature.

Click here to enlarge figure

Figure 4. COP against heat source temperature for 18 °C cooling temperature.
Applsci 02 00709 g004
Applsci 02 00709 g005

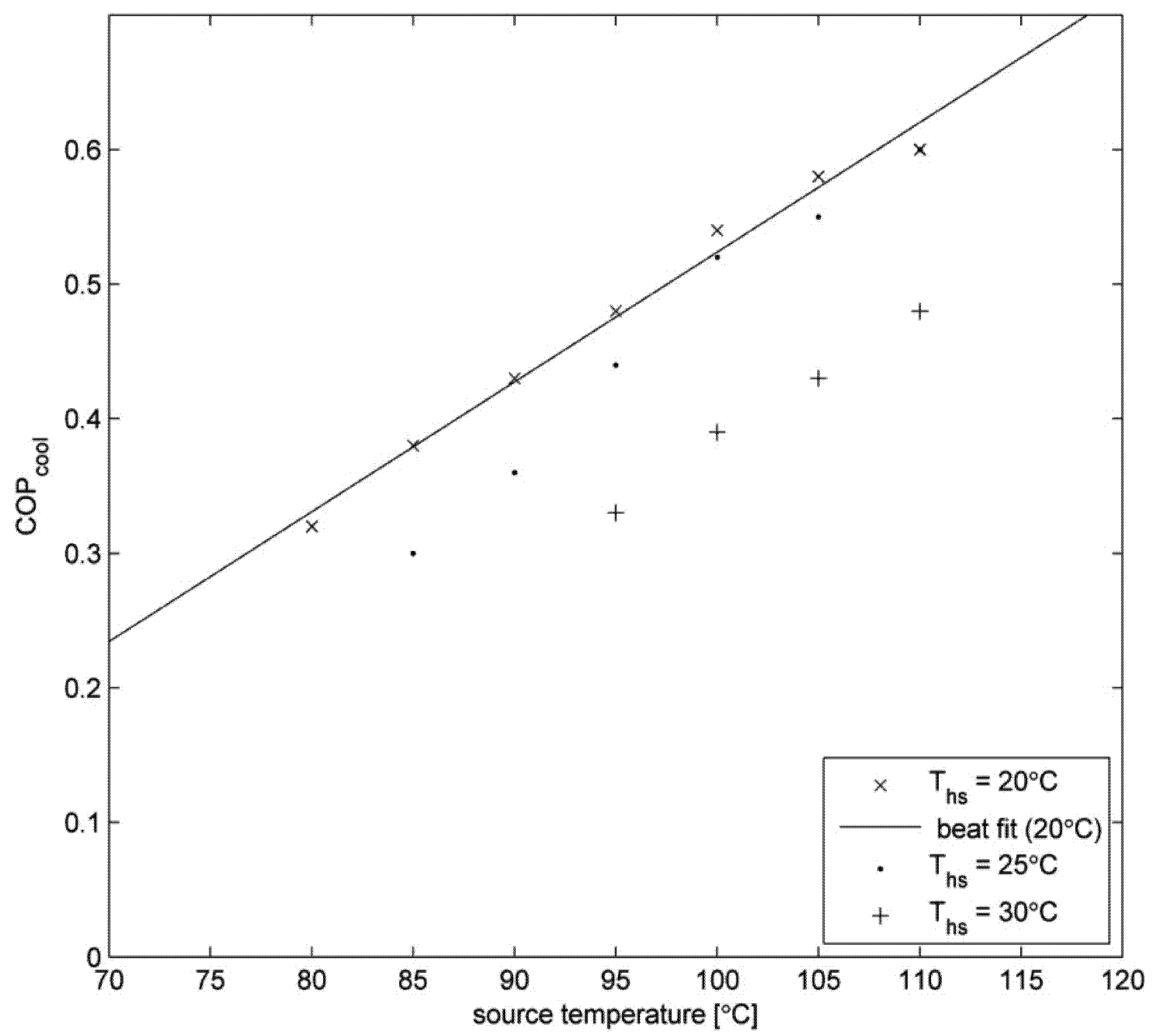

Figure 5. COP against heat source temperature for 22 °C cooling temperature.

Click here to enlarge figure

Figure 5. COP against heat source temperature for 22 °C cooling temperature.
Applsci 02 00709 g005
Applsci 02 00709 g006

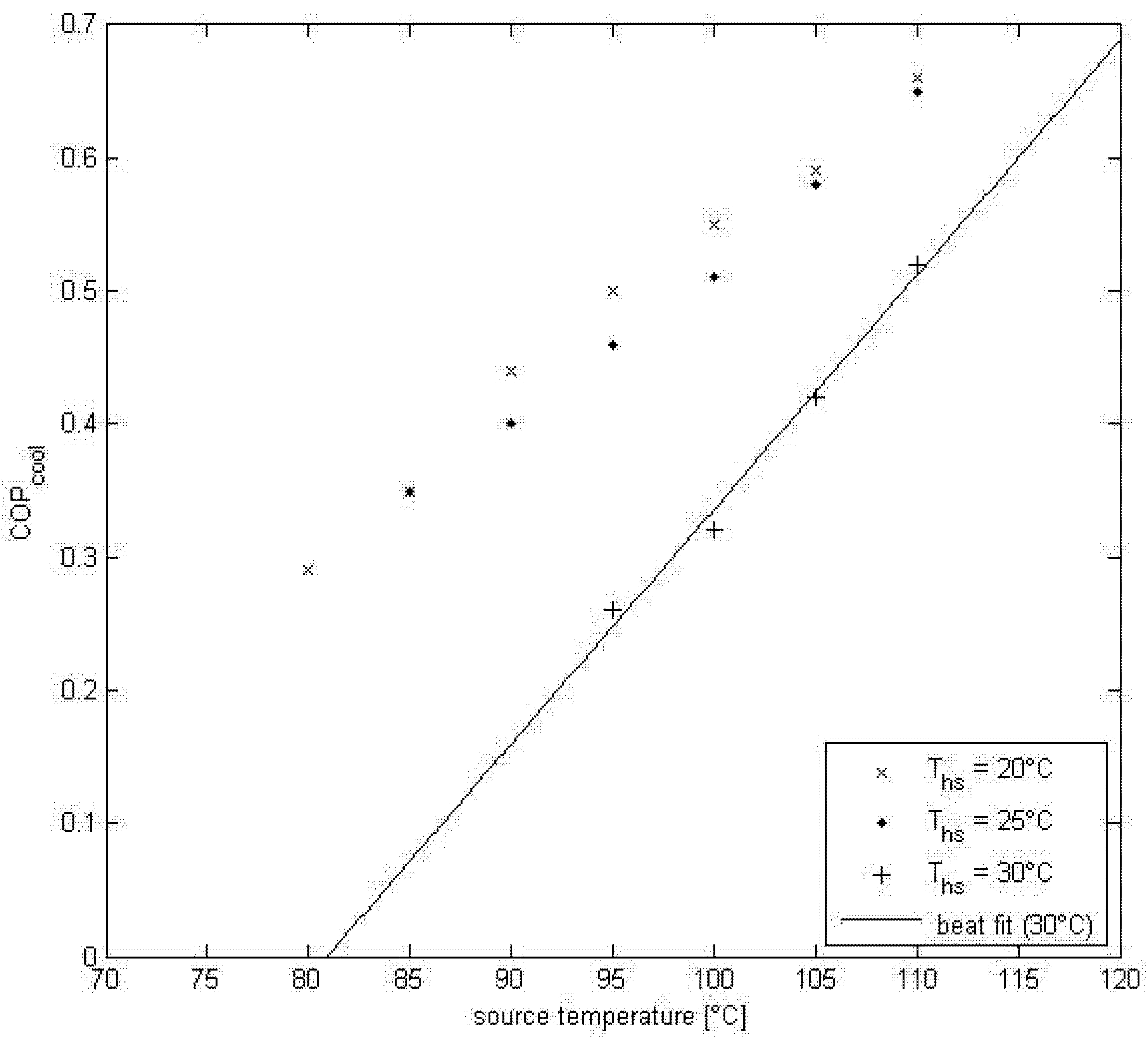

Figure 6. COP against heat source temperature for 26°C cooling temperature.

Click here to enlarge figure

Figure 6. COP against heat source temperature for 26°C cooling temperature.
Applsci 02 00709 g006

Figure 4, cooling temperature set to 18 °C, shows that lowering the heat sink inlet temperature from 30 °C to 20 °C can improve COP from 0.35 to 0.65. An important aspect for this study is that lowering the heat source from 95 °C to 85 °C, the same COP can be achieved whilst applying this heat sink temperature drop. In the practical range for biomass hot water applications this gives a COP between 0.35 and 0.43. Figure 5, cooling temperature set to 22 °C, shows that increasing the cooling temperature from 18 °C to 22 °C, decreases the COP between 0.2 and 0.5, as expected by Equation (39). However it can be observed that lowering the heat source can be compensated for by lowering the heat sink temperature as well. For heat source temperatures from 80 °C to 90 °C the COP varies between 0.3 and 0.43. Figure 5, cooling temperature set to 22 °C, shows similar behaviour as the previous figure. The COP for the targeted heat source range varies between 0.3 and 0.44.

Figure 6, cooling temperature set to 26 °C, shows almost identical COP values as for a cooling temperature of 24 °C. This means that the rate of change for the cooling output is similar to the rate of change in heating input. Thus, there is no gained improvement by increasing the cooling temperature, nor decrease in improvement by an elevated cooling temperature depending on the climate region the system is installed in.

Figure 7 shows the variation of cooling COP against cooling temperature for different heat source temperature while keeping the heat sink constant at 20 °C. It can be seen that for the lower region of heat source temperature there is a decrease in COP when increasing the cooling temperature above 22 °C. In the targeted heat source range (80 °C to 90 °C) the best COP should be achieved at cooling temperatures in the range of 18 °C to 20 °C. The manufacturers actually recommend that the inlet cooling temperature should not exceed 21 °C for reasons of performance.

Applsci 02 00709 g007
Figure 7. COP against cooling temperature for 20 °C heat sink temperature.

Click here to enlarge figure

Figure 7. COP against cooling temperature for 20 °C heat sink temperature.
Applsci 02 00709 g007

Figure 8 and Figure 9 show the variation of COP against heat source temperature for a range of cooling load temperatures and for heat sink temperatures of 25 °C and 30 °C, respectively. As mentioned before, a lower heat sink temperature gives better results for COP and in return a higher heat source temperature will result in a higher COP. Again, this shows that the target range of heat source temperatures can be used however there will be a slight drop of the COP.

Applsci 02 00709 g008
Figure 8. COP against heat source for 25 °C heat sink temperature.

Click here to enlarge figure

Figure 8. COP against heat source for 25 °C heat sink temperature.
Applsci 02 00709 g008
Applsci 02 00709 g009

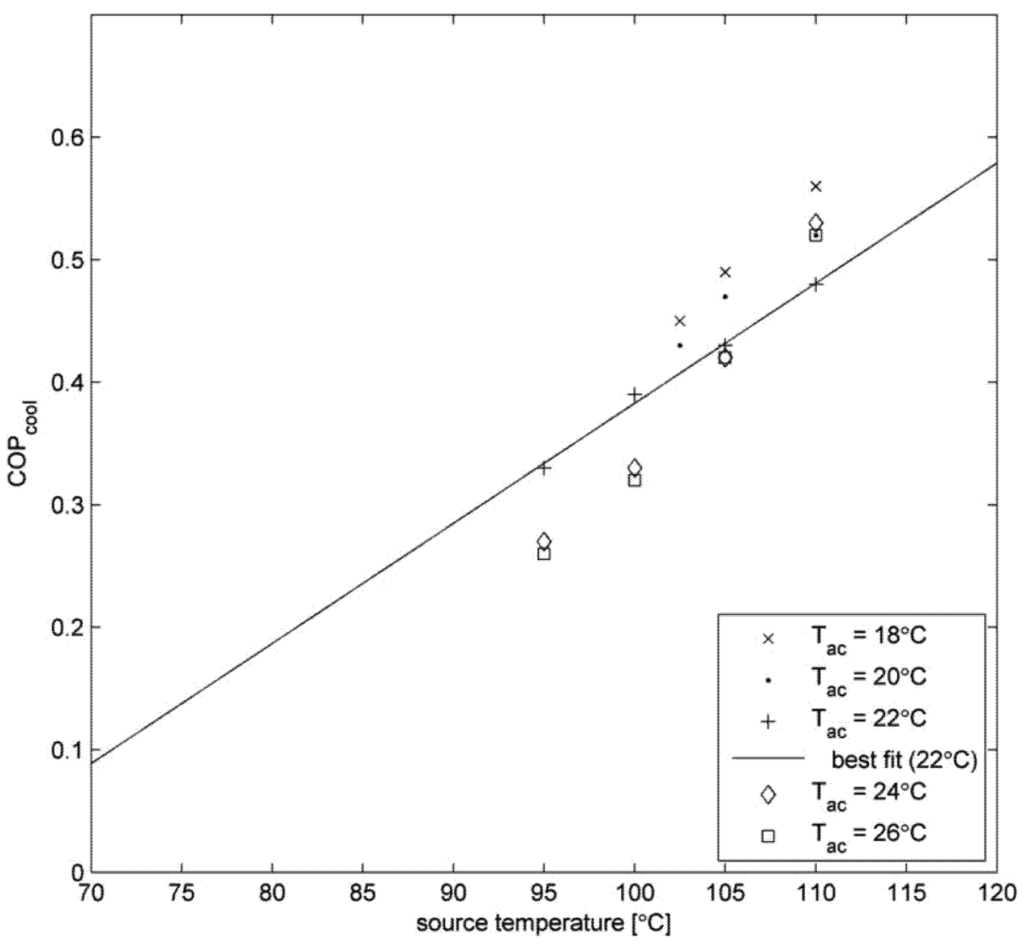

Figure 9. COP against heat source for 30 °C heat sink temperature.

Click here to enlarge figure

Figure 9. COP against heat source for 30 °C heat sink temperature.
Applsci 02 00709 g009

5. Conclusions

This paper presents a computer model to predict the COP for a thermo-chemical absorption unit in order to study the feasibility of using a lower heat source temperature than solar thermal. The outputs of the model are verified by comparing the simulation of the actual machine with published experimental data. The computed results for cooling COP are found to be within 10% of measured data. Additionally, the simulation was run for a variety of temperature ranges for the cooling, heat sink and heat source. As expected, the results show an increase in COP for increased heat source temperature as well as for decreased heat sink temperature while keeping all other variables unchanged. The major conclusion from all the results shows that hot water from (e.g., biomass waste heat) shows a valid heat source for the absorption system. The authors recommend that a combination of solar and biomass heat shows potential in less sunny climates, e.g., the United Kingdom. In this case the downtimes of the system could be compensated for by using heat from a biomass combustion unit. Although this should be carefully analyzed before implementing a life cycle assessment and the added financial burden on the customer in regards to installation costs. Overall it can be said that this should be analyzed further in order to make small scale absorption cooling/heating viable for climates with less solar radiation.
