Appl. Sci. 2012, 2(1), 46-60; doi:10.3390/app2010046

Review
Enhancement of Brillouin Scattering Signal in Perfluorinated Graded-Index Polymer Optical Fibers
Yosuke Mizuno * and Kentaro Nakamura
Precision and Intelligence Laboratory, Tokyo Institute of Technology, 4259 Nagatsuta, Midori-ku, Yokohama 226-8503, Japan; Email: knakamur@sonic.pi.titech.ac.jp
*
Author to whom correspondence should be addressed; Email: ymizuno@sonic.pi.titech.ac.jp; Tel.: +81-45-924-5052; Fax: +81-45-924-5091.
Received: 26 December 2011; in revised form: 18 January 2012 / Accepted: 20 January 2012 /
Published: 31 January 2012

Abstract

: Perfluorinated graded-index polymer optical fibers (PFGI-POFs), fabricated by replacing the hydrogen atoms of standard polymethyl methacrylate-based POFs with fluorine atoms, have been extensively studied due to their relatively low propagation loss even at telecommunication wavelength. Recently, Brillouin scattering, which is one of the most significant nonlinear effects in optical fibers, has been successfully observed in PFGI-POFs at 1.55-μm wavelength. The Brillouin Stokes signal was, however, not large enough for practical applications or for detailed investigations of the Brillouin properties. In this paper, we review our recent work on Stokes signal enhancement. First, we induce stimulated Brillouin scattering based on the so-called pump-probe technique, and discuss its applicability to temperature sensors. Then, we investigate the influence of the core diameter and length of PFGI-POFs on Stokes signal, and observe the Brillouin linewidth narrowing effect. We believe our work is an important technological step toward the implementation of practical Brillouin-based devices and systems including distributed strain and temperature sensors.
Keywords:
Brillouin scattering; Brillouin gain spectrum; perfluorinated graded-index polymer optical fiber; pump-probe technique; fiber-optic sensing; distributed temperature sensing; nonlinear optics

1. Introduction

Polymer optical fibers (POFs) [1,2] have attracted considerable attention for the past several decades due to their extremely easy and cost-effective connection, high safety, and high flexibility [3] compared to conventional glass fibers. Therefore, in spite of their propagation loss being higher than that of silica glass fibers, POFs have been made use of in medium-range communication applications such as home networks and automobiles [4] as well as in high-strain monitoring applications [3,5].

On the other hand, Brillouin scattering in optical fibers [6,7], one of the most significant nonlinear processes, has been extensively studied, and a great number of useful applications have been reported so far, such as optical amplification [7], lasing [7,8], optical comb generation [8], microwave signal processing [9], slow light generation [10], phase conjugation [11], tunable delay [12], optical storage [13], core alignment of butt-coupling [14], and strain/temperature sensing [15,16,17,18]. For the purpose of improving the performance of these applications, Brillouin scattering has been investigated not only in silica single-mode fibers (SMFs) but also in some specialty fibers. They include, for example, silica multimode fibers (MMFs) [14], tellurite glass fibers [19,20], chalcogenide glass fibers [21,22], bismuth-oxide glass fibers [23,24], and photonic crystal fibers (PCFs) [25,26].

Recently, we have succeeded in observing spontaneous Brillouin scattering (SpBS) in POFs, for the first time to the best of our knowledge, at the telecommunication wavelength of 1.55 μm [27,28], which will offer many advantages of POFs to the conventional Brillouin application fields. The POFs used in the experiment were cyclic transparent optical polymer (CYTOP)-based perfluorinated graded-index (PFGI-) POFs, which are fabricated by replacing the hydrogen atoms of standard polymethyl methacrylate (PMMA)-based POFs with fluorine atoms. Their detailed structure and fabrication method are well summarized in [29]. Their Brillouin gain coefficient was estimated to be approximately 3.09 × 10−11 m/W, which was almost the same as that of silica SMFs, indicating that Brillouin scattering in PFGI-POFs can be applied to a variety of practical devices and systems in the same way as Brillouin scattering in silica SMFs. We have also investigated the dependences of the Brillouin frequency shift (BFS) on strain and temperature in a PFGI-POF at 1.55 μm, and found that SpBS in PFGI-POFs can be potentially utilized to develop high-accuracy temperature sensors with reduced strain sensitivity [30]. Small Brillouin Stokes signal was, however, a major problem to be solved for practical future applications as well as for detailed investigations of the Brillouin gain spectrum (BGS).

In this review, we summarize two methods to enhance the Brillouin Stokes signal. First, stimulated Brillouin scattering (SBS) is induced using the so-called pump-probe technique [31], and its applicability to temperature sensors is discussed. Second, the influence of the core diameter and length of the PFGI-POFs is investigated [32], which will be a good guideline for designing PFGI-POF structures suitable for future applications.

2. Brillouin Scattering in Optical Fibers

When a light beam is injected into a fiber under test (FUT), it interacts with acoustic phonons, generating backscattered light called Stokes light. This phenomenon is called SpBS. Since the phonons decay exponentially, the backscattered Brillouin light spectrum, known as BGS, takes the shape of Lorentzian function with the bandwidth of several tens of MHz. If the power of the pump light is higher than the Brillouin threshold power Pth, the Stokes light caused by SpBS acts as a seed of stimulated scattering, and there occurs a transition from SpBS to SBS. As a result, the power of the Stokes light is drastically enhanced. Pth is given as [7]

Applsci 02 00046 i001

where b is the correction factor for multimode fibers [33], which can be treated as 2 when the numerical aperture (NA) is ~0.2; Aeff is the effective cross-sectional area, which is approximately in proportion to the core diameter for multimode fibers [34,35]; K is the polarization coefficient, which is 1, if polarization is maintained and 0.667 otherwise; gB is the Brillouin gain coefficient; and Leff is the effective fiber length defined as

Applsci 02 00046 i002

where α is the propagation loss and L is the fiber length.

Both in SpBS and in SBS, the frequency where the peak power is obtained in the BGS is downshifted by several GHz from the incident light frequency, and the amount of this frequency shift is called BFS. In optical fibers, the BFS νB is given by [7]

Applsci 02 00046 i003

where n is the refractive index, νA is the acoustic velocity in the fiber, λp is the wavelength of the incident pump light. If tensile strain is applied or temperature is changed in a standard silica SMF, the BFS moves to higher frequency in proportion to the applied strain (+580 MHz/%) [36] and the temperature change (+1.18 MHz/K) [37]. In some specialty fibers, such as tellurite glass fibers, it is known that the BFS moves to lower frequency with increasing applied strain (−230 MHz/%) [20] and temperature (−1.14 MHz/K) [24]. In both cases, we can derive the strain amplitude and temperature change by measuring the BFS in the fiber.

3. Spontaneous Brillouin Scattering in PFGI-POFs

A standard POF composed of PMMA [1,2] is optimally designed for light transmission at 650 nm, with propagation loss of ~200 dB/km. Its loss at telecommunication wavelength is, however, so high (>> 1 × 105 dB/km) that the Brillouin signal cannot be detected. In the meantime, in order to observe Brillouin scattering in a PMMA-based POF at 650 nm, we are required to prepare all the necessary optical devices at this wavelength, which are not easy from the viewpoint of availability and cost. Therefore, instead of PMMA-based POFs, we used PFGI-POFs with lower loss (~250 dB/km) even at 1.55 μm, which is the optimal wavelength for long distance data transmission in silica optical fibers.

Up to now, the spontaneous Brillouin scattering properties in a PFGI-POF with 120-μm core diameter have been investigated at 1.55 μm [27]. The BFS and the Brillouin linewidth were 2.83 GHz and 105 MHz, respectively. Using these values, the Brillouin gain coefficient was calculated to be 3.09 × 10−11 m/W, which is almost the same as that of standard silica SMFs and higher than that of silica GI-MMFs. Here, we should bear in mind that the actual Brillouin gain coefficient may be higher than this value due to the multimode nature of the PFGI-POF. The Brillouin threshold power of a 100-m PFGI-POF was estimated to be as high as 24 W, and the Stokes signal was not sufficiently large to be applied to practical devices and systems.

The BFS dependences on strain and temperature in a 5-m PFGI-POF have also been investigated at 1.55 μm [30]. They showed negative dependences with coefficients of −121.8 MHz/% and −4.09 MHz/K, respectively, which are −0.2 and −3.5 times as large as those in silica fibers. These BFS dependences were found to originate from the dependences of the Young’s modulus on strain and temperature. Thus, Brillouin scattering in PFGI-POFs has a big potential for high-accuracy temperature sensing with reduced strain sensitivity.

4. Enhancement of Brillouin Stokes Signal (I): Induction of Stimulated Scattering

In this Section, we describe the observation of SBS in a PFGI-POF with 120-μm core diameter at 1.55 μm with pump-probe technique [31]. The BGS is detected with extremely high S/N ratio, even with a 1-m PFGI-POF, scrambled polarization state, and no averaging. We also investigate the BGS dependences on probe power and temperature, and confirm that SBS in a PFGI-POF measured with this technique can be utilized to develop high-accuracy temperature sensors as well.

4.1. Motivation and Principle

The Brillouin scattering in PFGI-POFs observed in the previous experimental setup [27,28] was not stimulated but spontaneous, because the Brillouin threshold of PFGI-POFs was estimated to be as high as 24 W, as already described in Section 3. Consequently, the power of the reflected Stokes light was so low that we had to face the following four problems: (1) a PFGI-POF longer than several meters was required, (2) the polarization state had to be optimized, (3) averaging of the spectral data had to be conducted several tens of times, and (4) signal-to-noise (S/N) ratio of the BGS was quite low, even when (1), (2), and (3) were cleared. In order to implement practical Brillouin sensors and other systems using PFGI-POFs, these problems need to be resolved.

One solution is to employ so-called pump-probe technique. As described in Section 2, when the pump power is higher than the Brillouin threshold, a transition from SpBS to SBS occurs, leading to drastic enhancement of the Stokes light. On the other hand, when probe light at the same frequency as the Stokes light is also injected into the other end of the FUT, SBS is induced even when the power of the pump light is much lower than the Brillouin threshold, because the probe light itself acts as a seed of stimulated scattering [38]. This technique, called pump-probe technique, has been used to develop Brillouin systems with high S/N ratio [17].

4.2. Experimental Setup

The FUT used in the experiment was a 1-m PFGI-POF (Asahi Glass Co., Ltd., 2009) with a core diameter of 120 μm, NA of 0.185, a core refractive index of ~1.35, and propagation loss of ~250 dB/km at 1.55 μm (manufacturer’s specifications). The experimental setup is schematically shown in Figure 1, which is similar to that of Brillouin optical correlation-domain analysis (BOCDA) [16,17]. The light beam from a 1550-nm three-electrode laser diode (LD) was divided into two. One was used as the pump light, after being chopped with an intensity modulator (IM) for lock-in detection and being amplified with an erbium-doped fiber amplifier (EDFA). The other was used as the probe light, after passing two EDFAs, a single-sideband modulator (SSBM), and a polarization scrambler (PSCR). The SSBM was employed with a microwave generator (MG) and a proper DC bias control to suppress the carrier (pump) and the anti-Stokes component of the two first-order sidebands and to maintain a stable frequency downshift from the pump light. This frequency downshift was swept from 2.5 GHz to 3.5 GHz with a period of 300 ms to obtain the BGS of the PFGI-POF, which is observed approximately at 2.8 GHz. The suppression ratio of the other frequency components was kept higher than 25 dB, as shown in Figure 2.

Applsci 02 00046 g001 200

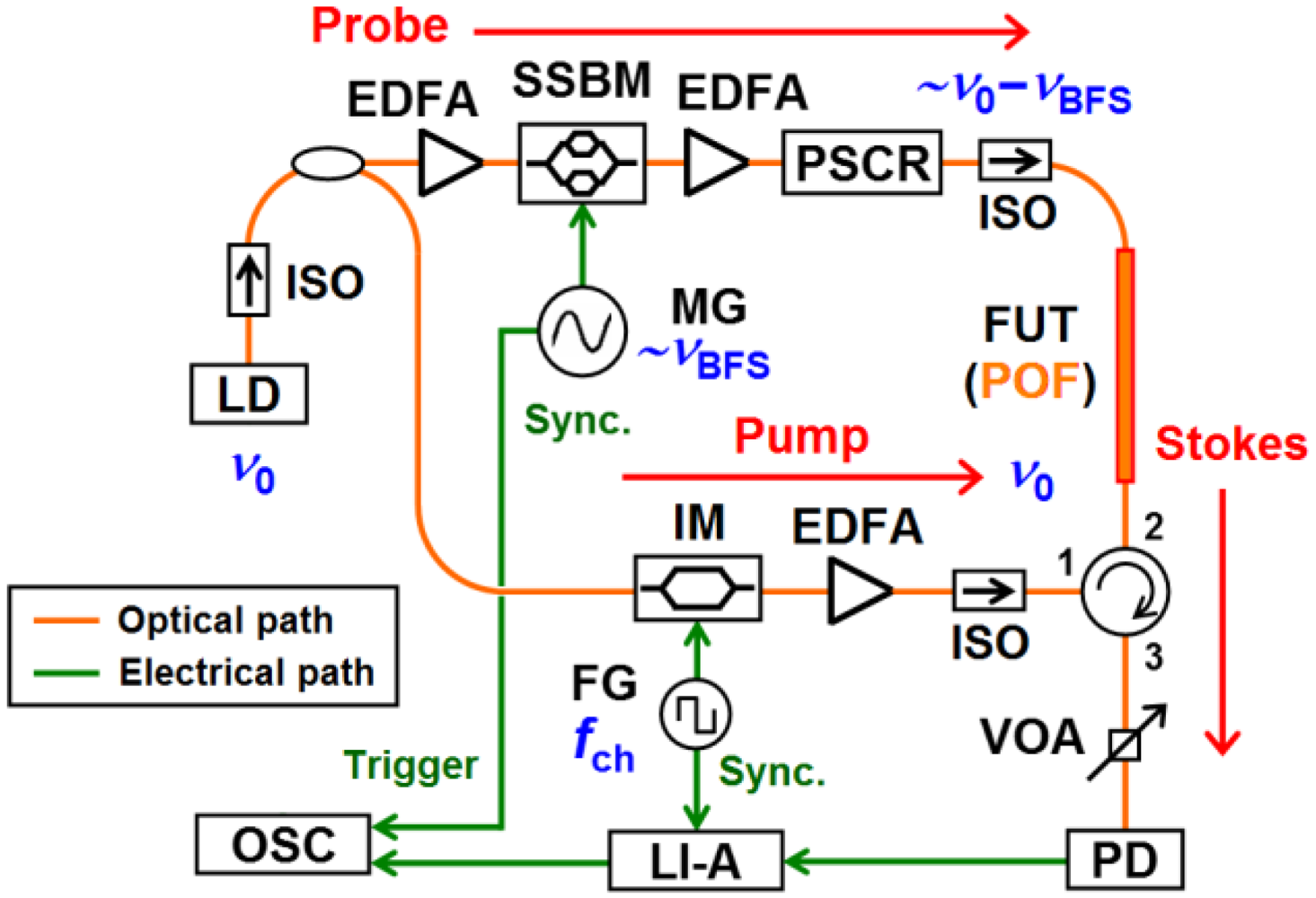

Figure 1. Experimental setup for observing stimulated Brillouin scattering (SBS) in perfluorinated graded-index polymer optical fibers (PFGI-POFs) with pump-probe technique: LD, laser diode; EDFA, erbium-doped fiber amplifier; FG, function generator; FUT, fiber under test; IM, intensity modulator; ISO, isolator; LI-A, lock-in amplifier; MG, microwave generator; OSC, oscilloscope; PD, photo-detector; POF, polymer optical fiber; PSCR: polarization scrambler; SSBM, single-sideband modulator; VOA, variable optical attenuator.

Click here to enlarge figure

Figure 1. Experimental setup for observing stimulated Brillouin scattering (SBS) in perfluorinated graded-index polymer optical fibers (PFGI-POFs) with pump-probe technique: LD, laser diode; EDFA, erbium-doped fiber amplifier; FG, function generator; FUT, fiber under test; IM, intensity modulator; ISO, isolator; LI-A, lock-in amplifier; MG, microwave generator; OSC, oscilloscope; PD, photo-detector; POF, polymer optical fiber; PSCR: polarization scrambler; SSBM, single-sideband modulator; VOA, variable optical attenuator.
Applsci 02 00046 g001 1024
Applsci 02 00046 g002 200

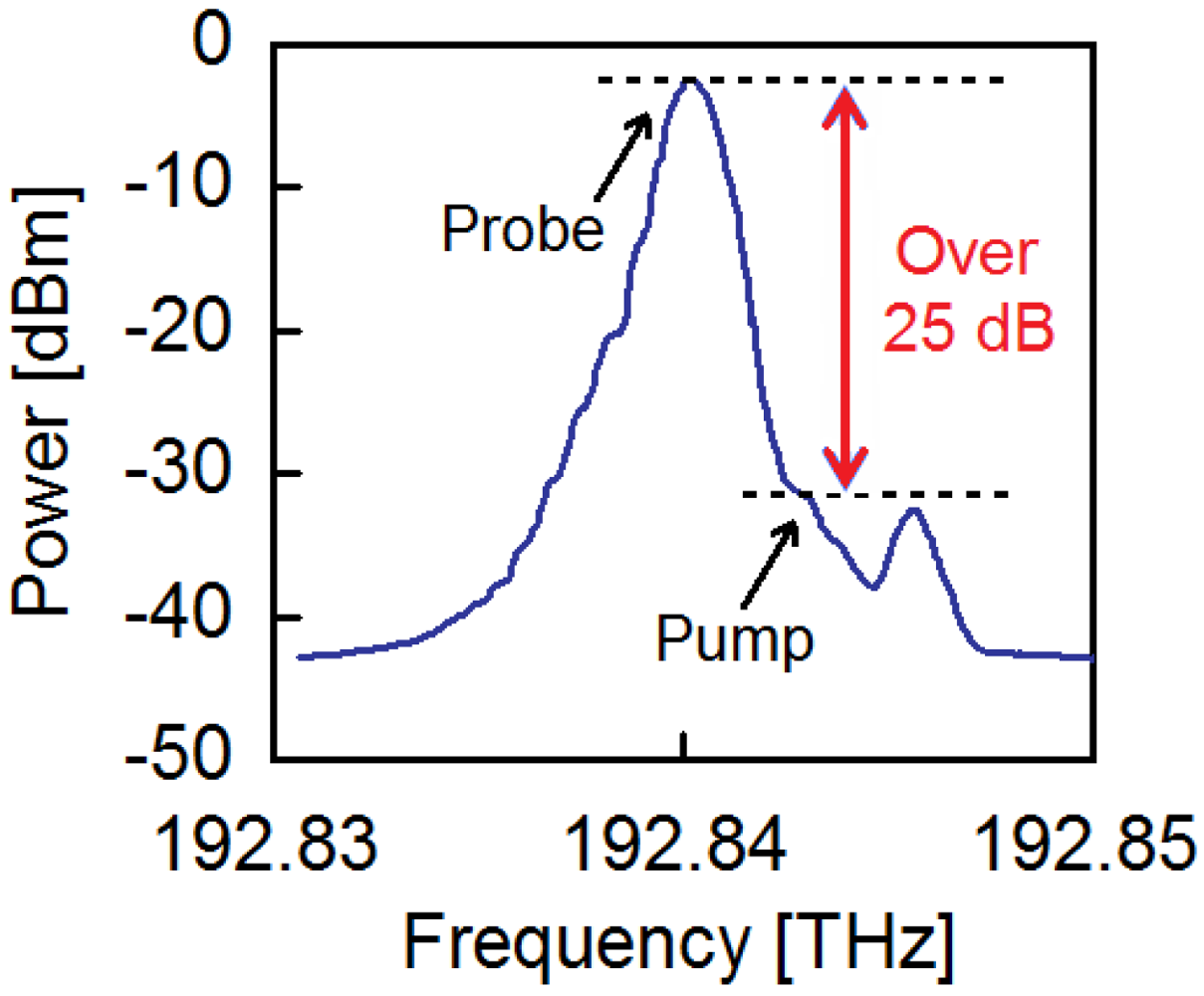

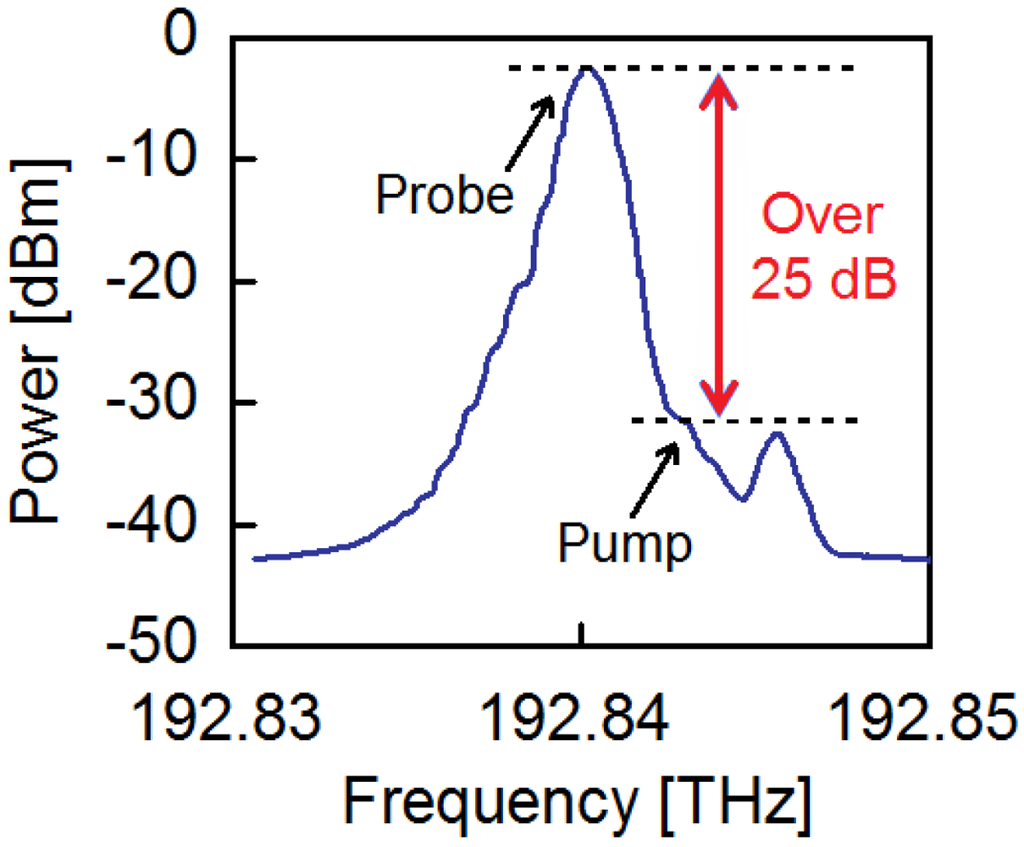

Figure 2. Measured optical spectrum of the SSBM output when the frequency of the MG was set to 2.83 GHz.

Click here to enlarge figure

Figure 2. Measured optical spectrum of the SSBM output when the frequency of the MG was set to 2.83 GHz.
Applsci 02 00046 g002 1024

The PSCR, which can modulate the polarization state at 1 MHz, was inserted to suppress the polarization-dependent fluctuations of the signal. The PFGI-POF and the silica SMFs were butt-coupled [27] with the gaps filled with index matching oil (n = 1.46) to minimize the Fresnel reflection. The Stokes light was adjusted in power with a variable optical attenuator (VOA), and converted to an electrical signal with a 125-MHz photo-detector (PD). After passing a lock-in amplifier (LI-A) with a chopping frequency of 5.018 MHz and a time constant of 10 ms, the electrical signal was observed as a BGS with an oscilloscope (OSC) synchronized with the frequency sweep of the SSBM.

4.3. Experimental Results

Figure 3 shows the measured BGS without averaging when the pump power and the probe power were 23 dBm and 22 dBm, respectively. The power was normalized so that the peak power was 1.0. Although the PFGI-POF length was only 1 m and the polarization state was scrambled, the BGS was observed with much higher S/N ratio than that previously reported [30]. The BFS was 2.86 GHz, which is slightly higher than the previously reported value of 2.83 GHz [27]. This discrepancy seems to originate from the difference in temperature and the time constant of the LI-A which is not short enough. The 3-dB bandwidth of the BGS measured in this experiment was about 160 MHz, but further research is needed on the bandwidth because it is also dependent on the time constant of the LI-A (Note that, when the time constant was shorter than 10 ms, the BGS was distorted).

Applsci 02 00046 g003 200

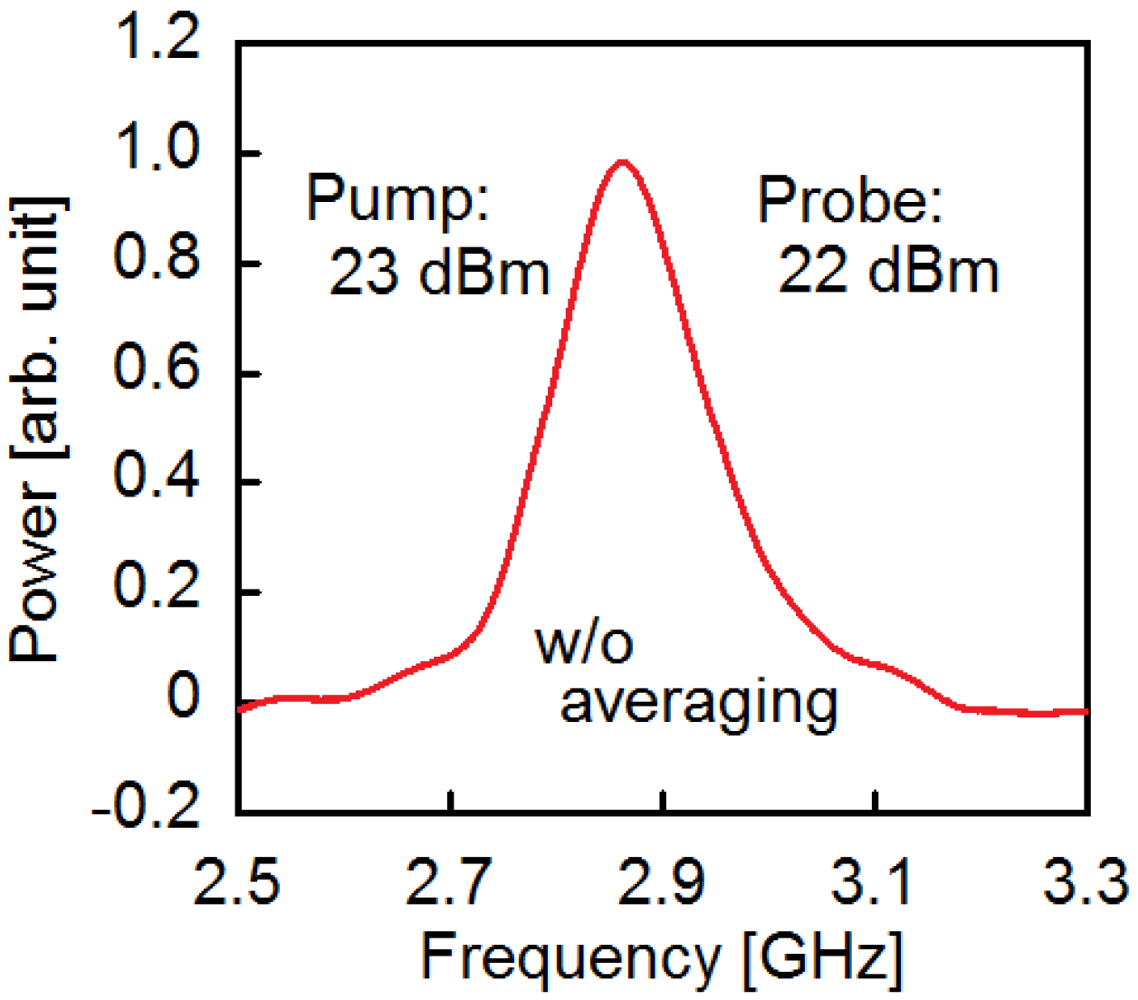

Figure 3. BGS in PFGI-POF observed without averaging.

Click here to enlarge figure

Figure 3. BGS in PFGI-POF observed without averaging.
Applsci 02 00046 g003 1024

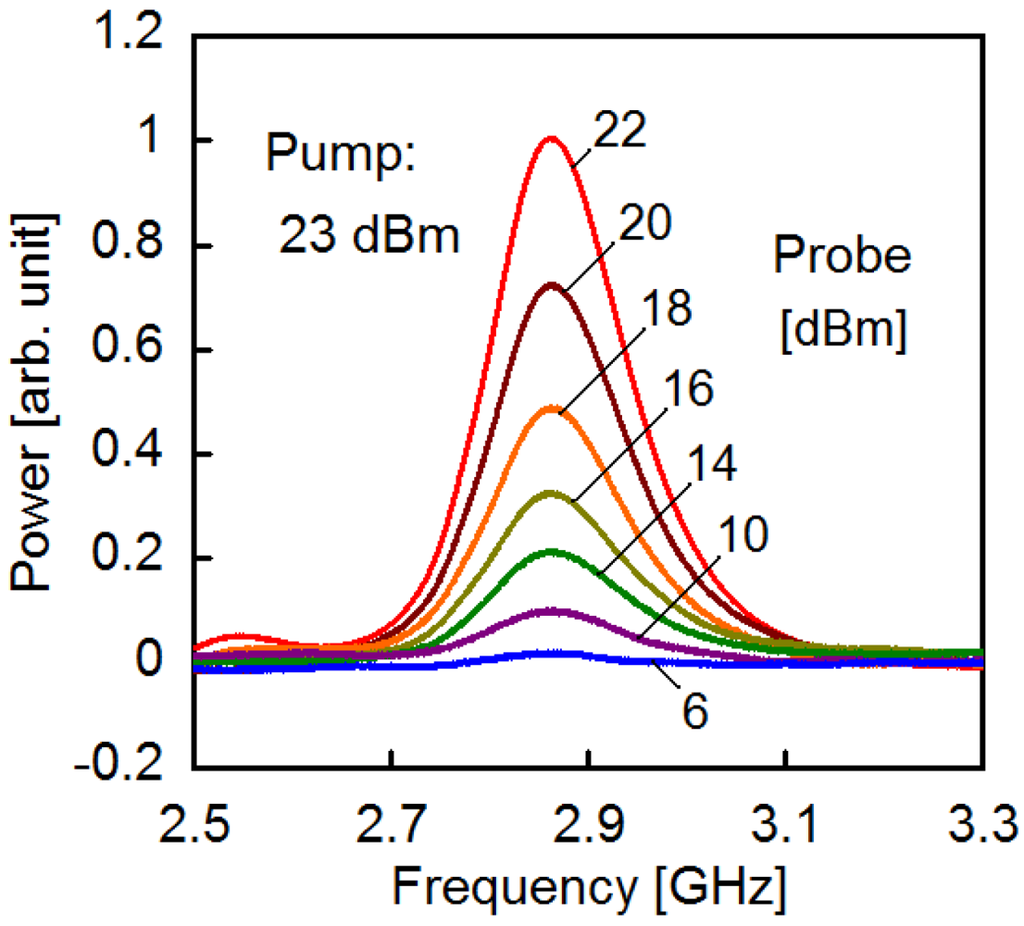

Figure 4 shows the dependence of the BGS on probe power when the pump power was fixed at 23 dBm. The probe power was reduced from 22 dBm down to 6 dBm, and averaging was conducted 30 times for the observable readout when the Stokes power was very low. As the probe power decreased, the Stokes power also decreased, which proves that this BGS is caused by the interaction between the pump light and the probe light, i.e., SBS.

Applsci 02 00046 g004 200
Figure 4. Dependence of BGS on probe power in PFGI-POF.

Click here to enlarge figure

Figure 4. Dependence of BGS on probe power in PFGI-POF.
Applsci 02 00046 g004 1024

The dependence of the BGS on temperature was also measured as shown in Figure 5(a). The pump power and the probe power were 23 dBm and 22 dBm, respectively, and averaging was conducted 30 times. The temperature was set to 20, 40, and 60 °C. With the increasing temperature, the BGS shifted toward lower frequency. The temperature dependence of the BFS is shown in Figure 5(b). The slope of −4.05 MHz/K is in good agreement with the previous report [30], which confirms that the BGS in a PFGI-POF observed with the pump-probe technique can be applied to high-accuracy temperature sensing.

Applsci 02 00046 g005 200

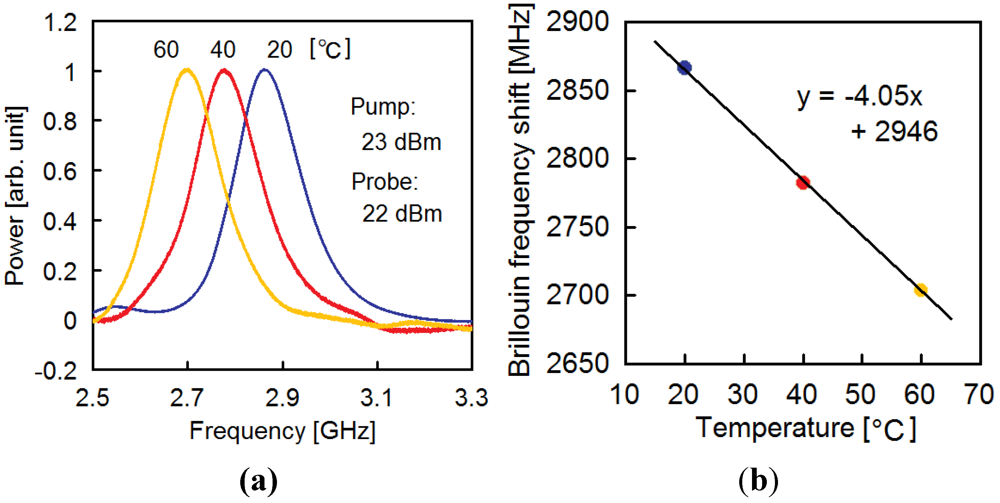

Figure 5. Dependence of (a) BGS and (b) BFS on temperature in PFGI-POF.

Click here to enlarge figure

Figure 5. Dependence of (a) BGS and (b) BFS on temperature in PFGI-POF.
Applsci 02 00046 g005 1024

4.4. Summary

The SBS in a PFGI-POF was successfully observed at 1.55 μm with pump-probe technique. We detected the BGS with extremely high S/N ratio, even with a 1-m PFGI-POF, scrambled polarization state, and no averaging. We also investigated the BGS dependence on probe power, which proved that the measured BGS was caused not by SpBS but by SBS. Besides, we measured the BGS dependence on temperature, showing that BGS in a PFGI-POF observed with this technique can be applied to temperature sensing with high accuracy. We are sure that use of SBS with large Stokes signal will be indispensable in developing Brillouin-based distributed temperature/strain sensing systems using PFGI-POFs.

5. Enhancement of Brillouin Stokes Signal (II): Influence of Core Diameter and Fiber Length

In this Section, we describe the characterization on the BGS in PFGI-POFs with 62.5-μm core diameter [32]. First, using 5-m PFGI-POFs, we show that extremely high Stokes power can be obtained compared to that of a PFGI-POF with 120-μm core, and estimate the Brillouin threshold power to be 53.3 W. Then, we experimentally show that using a PFGI-POF longer than ~50 m is not an effective way to enhance the Stokes signal. We also theoretically predict that it is difficult to decrease the Brillouin threshold power of PFGI-POFs at 1.55-μm wavelength down to that of km-order-long silica SMFs even when their core diameter is sufficiently reduced to satisfy the single-mode condition. Finally, we investigate the Brillouin linewidth as a function of pump power, and confirm the linewidth narrowing effect.

5.1. Motivation

As described in Section 3, the power of the SpBS Stokes light generated in the PFGI-POFs with 120-μm core diameter was quite low, and it needs to be enhanced for detailed investigations of the BGS [39] including the linewidth narrowing effect. Since the BGS observed with the pump-probe technique described in Section 4 is easily influenced by the time constant of lock-in detection, detailed evaluation of its linewidth was not feasible. Another approach to enhance the Stokes signal is to make use of PFGI-POFs with core diameters smaller than 120 μm. Although PFGI-POFs with 62.5-μm core diameter have become commercially available very recently (Sekisui Chemical Co., Ltd., 2011), no study has been reported on their Brillouin scattering properties. Therefore, in this Section, we characterize the BGS in PFGI-POFs with 62.5-μm core diameter.

5.2. Experimental Setup

Irrespective of the length and the core diameter, PFGI-POFs used in the experiment had NA of 0.185, a core refractive index of ~1.35, and propagation loss of ~250 dB/km at 1.55 μm. The experimental setup was basically the same as that previously reported in [27], where the BGS can be observed with high resolution by heterodyne detection. A distributed-feedback laser diode (DFB-LD) at 1,547 nm was used as a light source. One end of the PFGI-POF to be measured was optically butt-coupled to the silica SMF, and the other end was kept open.

5.3. Effects of Small Core Diameters

Figure 6 shows the measured BGS of a 5-m PFGI-POF with 62.5-μm core at pump power Pin of 5, 10, 15, and 20 dBm. The polarization state optimized for Pin of 20 dBm was employed for all the measurements. The center frequency of the BGS, i.e., the BFS, was approximately 2.81 GHz, which is slightly lower than previously-reported value of 2.83 GHz [27] due to the difference in room temperature [30]. Even when Pin was as low as 5 dBm, small but clear BGS was observed.

Applsci 02 00046 g006 200

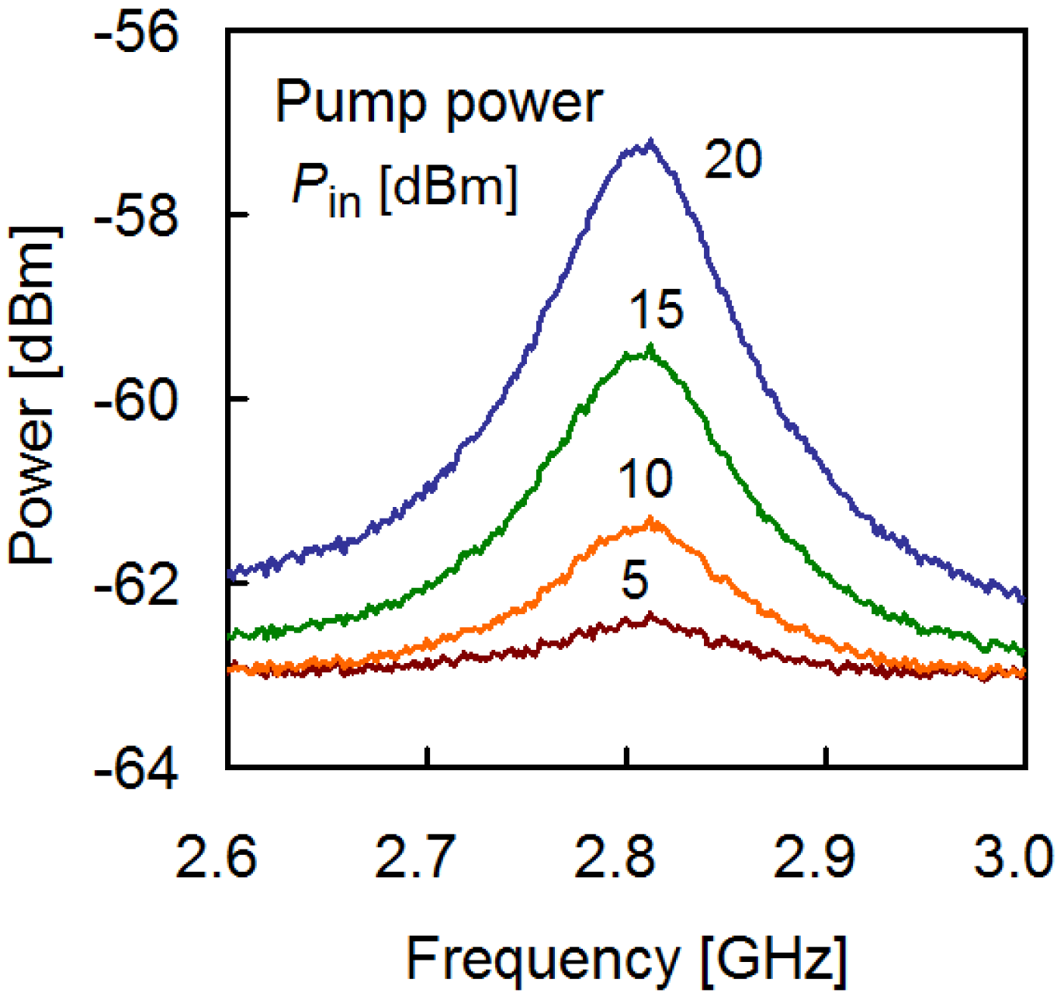

Figure 6. BGS dependence on pump power Pin.

Click here to enlarge figure

Figure 6. BGS dependence on pump power Pin.
Applsci 02 00046 g006 1024

Figure 7 shows the Pin dependences of the relative Stokes power, when 5-m PFGI-POFs with core diameters of 62.5 μm and 120 μm (Asahi Glass Co., Ltd., 2009) were employed. The reference power was set to about −63 dBm, which is the Stokes power when Pin is sufficiently low. The dependence curve of the PFGI-POF with 62.5-μm core was about 10 dB lower in pump power than that with 120-μm core, which indicates that, even at the same pump power, we can largely enhance the Stokes signal by using a PFGI-POF with a smaller core diameter.

Applsci 02 00046 g007 200

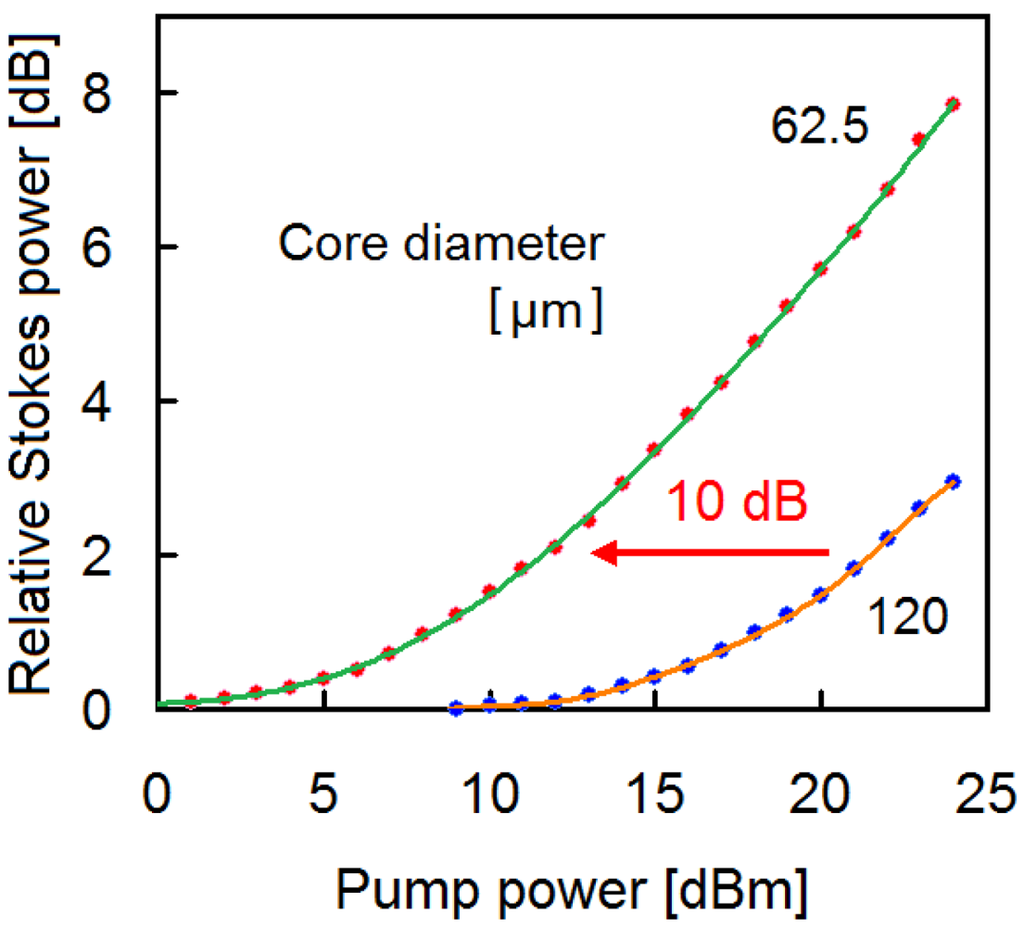

Figure 7. Relative Stokes power as a function of pump power; comparison between PFGI-POFs with 62.5-μm and 120-μm core diameters.

Click here to enlarge figure

Figure 7. Relative Stokes power as a function of pump power; comparison between PFGI-POFs with 62.5-μm and 120-μm core diameters.
Applsci 02 00046 g007 1024

One of the reasons for the 10-dB curve shift is the difference in Brillouin threshold power Pth. By substituting into Equations (1) and (2) the values of b = 2 [33], K = 0.667 [7], gB = 3.09 × 1011 m/W [27], α = 0.056 /m (= 250 dB/km), and L = 5 m, Pth of the PFGI-POF with 120-μm core (Aeff = 209 μm2 [40]) was calculated to be 97.7 W. On the other hand, Pth of the PFGI-POF with 62.5-μm core (Aeff = 108.9 μm2) was calculated to be 53.3 W, which is lower than 97.7 W by 2.63 dB. Thus, the curve shift observed in Figure 7 can be partially explained by the difference in Pth, but its amount of 10 dB is much larger than the calculated value.

Another reason for the curve shift is the improvement of optical coupling efficiency at the butt coupling when the Stokes light generated in the PFGI-POF propagates back and is injected into the SMF. Although, due to the unstable core alignment and the rough surface of the PFGI-POF, it is difficult to measure the coupling loss accurately, we confirmed that the loss with the PFGI-POF with 62.5-μm core was several dB lower than that with 120-μm core. This fact, along with the difference in internal structure designed by different manufacturers, moderately explains the 10-dB curve shift.

5.4. Effects of Long Fiber Length

According to Equations (1) and (2), to employ long PFGI-POFs is another way to reduce Pth and to enhance the Stokes signal. Figure 8 shows the measured BGS of 80-m and 200-m PFGI-POFs with 62.5-μm core at Pin of 5, 10, 15, and 20 dBm. Much larger Stokes signals (~7 dB higher at Pin of 20 dBm) than those of the 5-m PFGI-POF shown in Figure 6 were observed.

There was, however, almost no difference between the BGS of the 80-m PFGI-POF and that of the 200-m PFGI-POF, only with a slight discrepancy of the BFS caused by the room-temperature difference. This means that the incident light is considerably attenuated after propagation for 80 m in the PFGI-POF. In order to estimate this effect quantitatively, the effective PFGI-POF length Leff was plotted as a function of actual length L as shown in Figure 9, where Leff gradually approaches 18 m (Pth ~ 13 W) with the increasing L. Thus, we proved that employing a PFGI-POF longer than ~50 m is not an effective way to enhance the Stokes signal at 1.55 μm.

Applsci 02 00046 g008 200

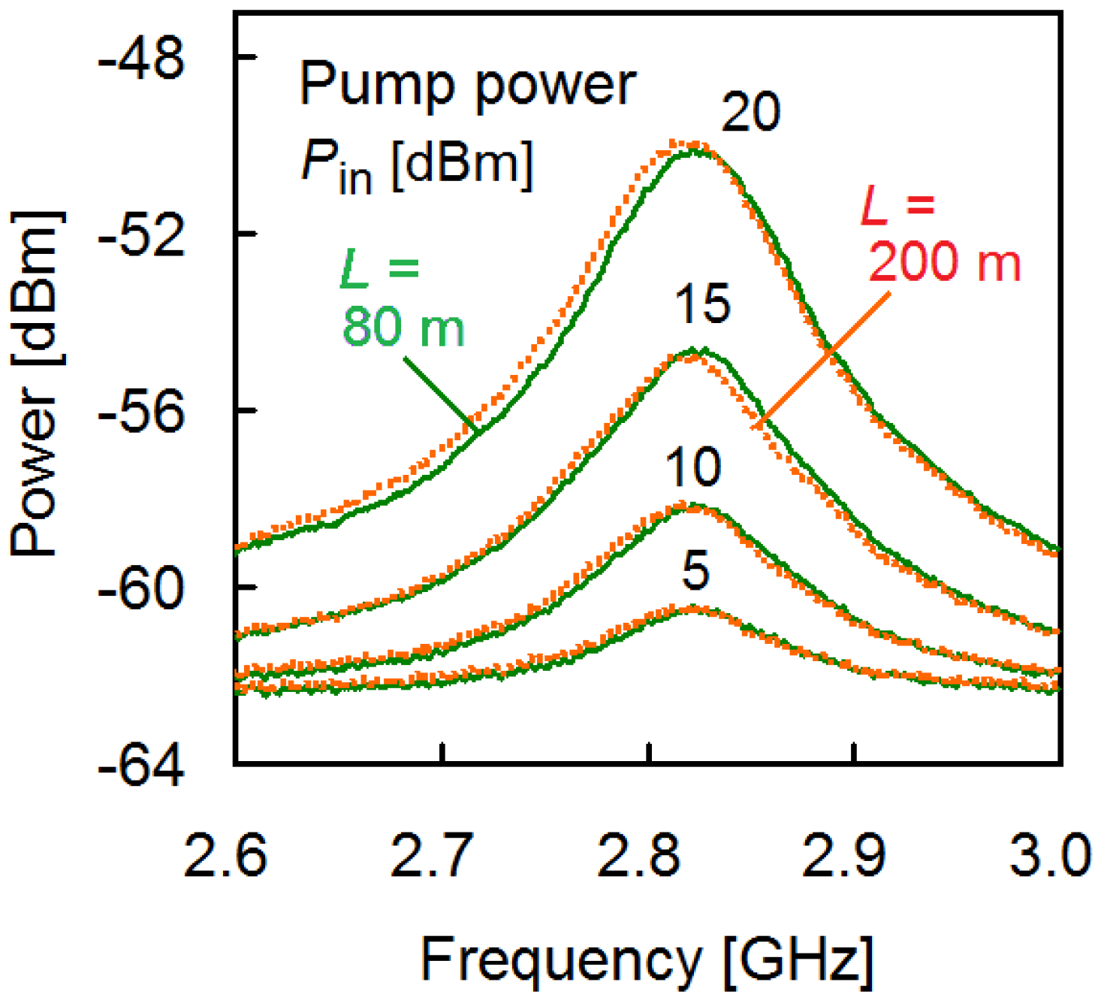

Figure 8. BGS dependence on pump power Pin; comparison between 80-m PFGI-POF (solid line) and 200-m PFGI-POF (dotted line).

Click here to enlarge figure

Figure 8. BGS dependence on pump power Pin; comparison between 80-m PFGI-POF (solid line) and 200-m PFGI-POF (dotted line).
Applsci 02 00046 g008 1024
Applsci 02 00046 g009 200

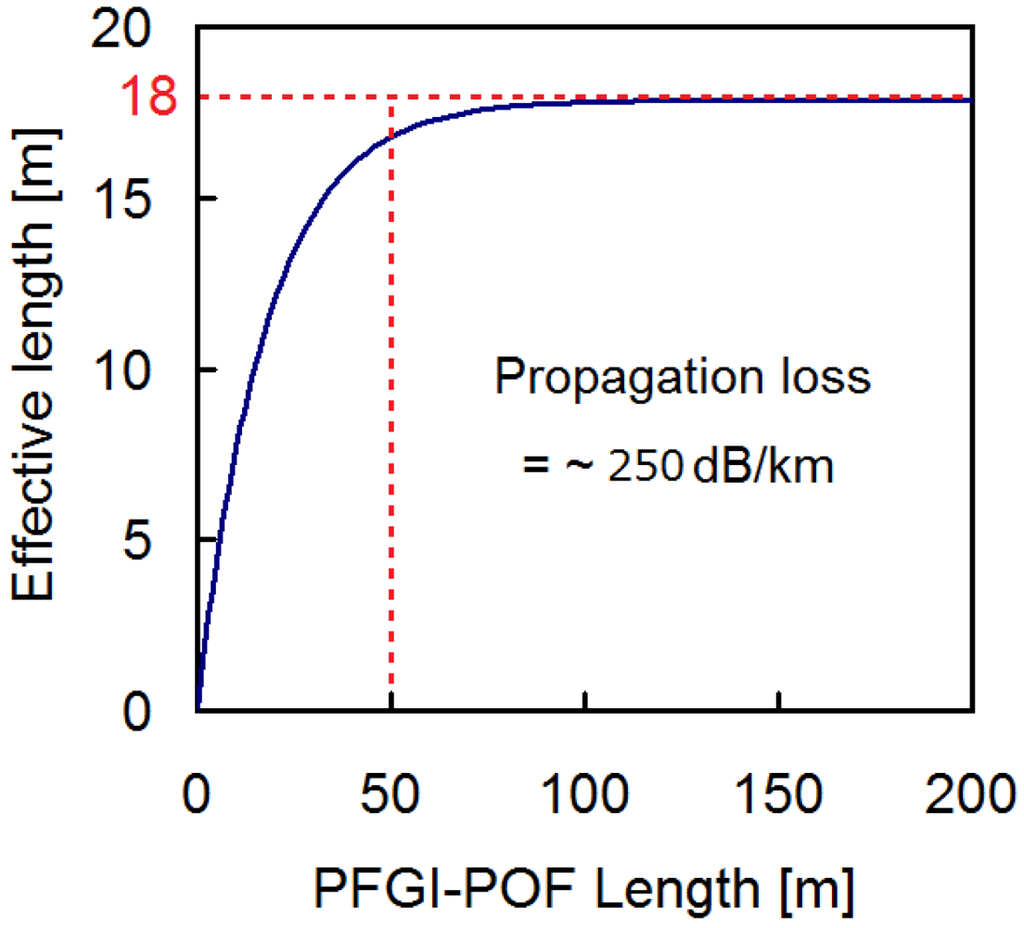

Figure 9. Calculated effective fiber length vs. fiber length.

Click here to enlarge figure

Figure 9. Calculated effective fiber length vs. fiber length.
Applsci 02 00046 g009 1024

According to Equations (1) and (2), as the core diameter decreases, the Brillouin threshold Pth also becomes lower. When Pin is higher than Pth, SBS is induced and consequently the Stokes signal is exponentially enhanced [7]. Here, under the rough assumption that the multimode nature, NA, refractive index, and loss do not change with core diameters, we calculated Pth of a 50-m PFGI-POF with 10-μm core diameter (hypothetical; Aeff = 17.4 μm2) to be 2.22 W (= 33.5 dBm). This value is more than one order magnitude higher than the pump power of several tens to hundreds of mW commonly used in BGS characterization in silica SMFs [39]. Even when the PFGI-POF is treated as an SMF (i.e., b = 1 [7] but Aeff becomes larger [35] in Equation (1)), this difference cannot be compensated. Thus, it seems to be difficult to reduce Pth of PFGI-POFs down to the same level of that of long silica SMFs by decreasing the core diameter, which is due to the limited effective length of 18 m associated with the high propagation loss at 1.55 μm.

5.5. Brillouin Linewidth Narrowing Effect

Although the Brillouin linewidth of a PFGI-POF has been reported to be 105 MHz at Pin of 20 dBm in [27], detailed investigations were difficult because the Stokes power was extremely low. Here, by making use of the enhanced Stokes power, we investigated the Brillouin linewidth dependence on Pin.

Figure 10(a) shows the measured BGS of the 200-m PFGI-POF with 62.5-μm core at Pin of 14.5, 17.5, and 23.5 dBm, where the Stokes power is normalized so that the maximum power is 0 dB. Figure 10(b) shows the Brillouin linewidth dependence on Pin. From these figures, we can see that, with the increasing Pin, the 3-dB linewidth of the BGS decreases, but that its slope gradually becomes small. This behavior agrees well with the experiment and theory of the linewidth narrowing effect in silica-based SMFs [39].

Applsci 02 00046 g010 200

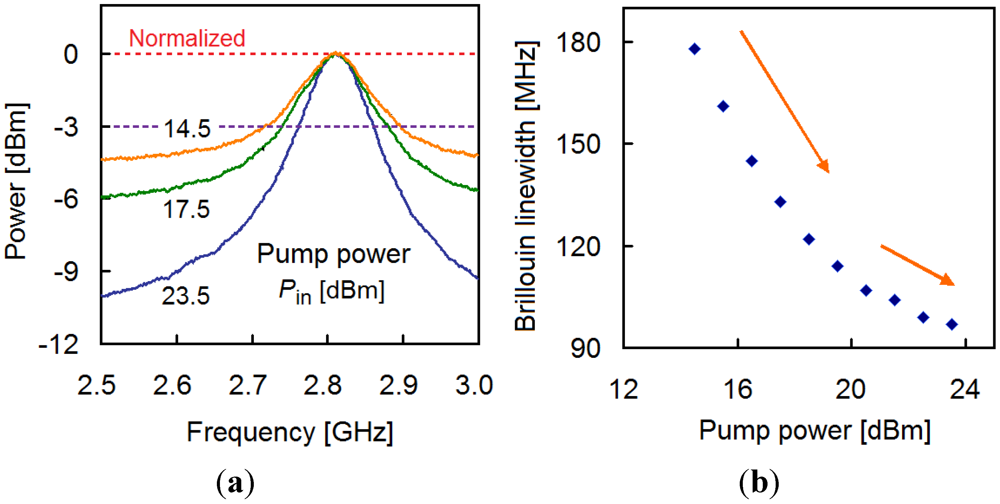

Figure 10. (a) Normalized BGS at pump power of 14.5, 17.5, and 23.5 dBm. (b) Brillouin linewidth vs. pump power.

Click here to enlarge figure

Figure 10. (a) Normalized BGS at pump power of 14.5, 17.5, and 23.5 dBm. (b) Brillouin linewidth vs. pump power.
Applsci 02 00046 g010 1024

5.6. Summary

The BGS properties of PFGI-POFs with 62.5-μm core diameter were investigated. The Stokes power was extremely high compared to that of a PFGI-POF with 120-μm core, and the Brillouin threshold power for 5-m PFGI-POF was estimated to be 53.3 W. It was also shown that employing a PFGI-POF longer than ~50 m is not an effective way to enhance the Stokes signal. In addition, it was theoretically found that it is difficult to reduce the Brillouin threshold power of PFGI-POFs at 1.55-μm wavelength below that of long silica SMFs even if their core diameter is sufficiently decreased to satisfy the single-mode condition. Finally, the Brillouin linewidth narrowing effect was confirmed. These results will be a good guideline for developing practical Brillouin systems using PFGI-POFs as well as for designing new PFGI-POF structures for Brillouin applications in future.

6. Conclusions

We reviewed two methods of enhancing the Brillouin Stokes signal in PFGI-POFs for future practical applications as well as for detailed investigations of the BGS.

In the first half of this paper, using an experimental setup similar to BOCDA system [16,17] based on the pump-probe technique, SBS in a PFGI-POF with 120-μm core diameter was, for the first time, observed at 1.55 μm. The BGS was detected with extremely high S/N ratio, even with a 1-m PFGI-POF, scrambled polarization state, and no averaging. We also investigated the BGS dependences on probe power and temperature, and confirmed that SBS in a PFGI-POF measured with this technique can also be utilized to develop high-accuracy temperature sensors.

In the latter half, the influence of the core diameter and fiber length on the Stokes signal was investigated by use of PFGI-POFs with 62.5-μm core diameter. First, using 5-m PFGI-POFs, we showed that extremely high Stokes power can be obtained compared to that of a PFGI-POF with 120-μm core, and estimated the Brillouin threshold power to be 53.3 W. Then, we experimentally showed that using a PFGI-POF longer than ~50 m is not an effective way to enhance the Stokes signal. We also theoretically predicted that it is difficult to decrease the Brillouin threshold power of PFGI-POFs at 1.55-μm wavelength down to that of km-order-long silica SMFs even when their core diameter is sufficiently reduced to satisfy the single-mode condition. Finally, we investigated the Brillouin linewidth as a function of pump power, and confirmed the linewidth narrowing effect.

Thus, the Brillouin Stokes signal has been drastically enhanced. It is also natural to predict that the Stokes signal will be further enhanced if we induce SBS by pump-probe technique using PFGI-POFs with 62.5-μm core diameter or less. Therefore, we are sure that the first demonstration of distributed temperature sensing based on Brillouin scattering in PFGI-POFs will be possibly carried out in the near future, based on optical correlation-, time-, or frequency-domain technology. We believe our work to be a significant technological step toward the implementation of such sensing systems and other POF-Brillouin devices.
