Appl. Sci. 2012, 2(1), 129-138; doi:10.3390/app2010129

Article
Computational Study on the Acid Catalyzed Reactions of Fluorine-Containing 2,4-Dialkoxy-3,4-dihydro-2H-pyrans with Aromatic Compounds
Norio Ota 1, Yasuhiro Kamitori 2,*, Ryusuke Shirai 3, Mizuki Hatakenaka 2 and Etsuji Okada 2,*
1
Graduate School of Science and Technology, Kobe University, Rokkodai-cho, Nada-ku, Kobe 657-8501, Japan; Email: norio.ota@shionogi.co.jp
2
Department of Chemical Science and Engineering, Graduate School of Engineering, Kobe University, Rokkodai-cho, Nada-ku, Kobe 657-8501, Japan; Email: 119t453t@stu.kobe-u.ac.jp
3
Department of Chemical Science and Engineering, Faculty of Engineering, Kobe University, Rokkodai-cho, Nada-ku, Kobe 657-8501, Japan; shirai@s-micro.com
*
Authors to whom correspondence should be addressed; Email: kamitori@kobe-u.ac.jp (Y.K.); okaetsu@kobe-u.ac.jp (E.O.); Tel.: +81-78-803-6163; Fax: +81-78-803-6163.
Received: 14 January 2012; in revised form: 7 February 2012 / Accepted: 13 February 2012 /
Published: 24 February 2012

Abstract

: The reaction of 2,4-diethoxy-6-trifluoromethyl-3,4-dihydro-2H-pyran (1) with aromatic compounds in refluxing acetonitrile in the presence of p-toluenesulfonic acid gave the mixture of 4-aryl-2-trifluoromethyl-4H-pyrans (3) and 6-aryl-1,1,1-trifluorohexa-3,5-dien-2-ones (4). In contrast, the same reaction carried out in trifluoroacetic acid at ambient temperature afforded 4-aryl-2-ethoxy-6-trifluoromethyl-3,4-dihydro-2H-pyrans (2) selectively. These two types of reactions giving quite different products under each condition were studied on the basis of DFT calculations. Moreover, the proposed mechanism for the reaction of 5-trifluoroacetyl-6-trifluoromethyl-3,4-dihydro-2H-pyran (5) with aromatic compounds affording butadiene derivatives (6) exclusively was also discussed based on the calculations and comparison with the reactivity of pyrylium intermediate (7).
Keywords:
fluorine-containing dihydropyrans; fluorine-containing 1,3-butadienes; acid catalyzed reaction; DFT calculation

1. Introduction

In recent years, a number of researches have been reported about the development of new methodologies for syntheses of various kinds of fluorine-containing heterocycles. These compounds have put emphasis on the interest of high biological activities especially in life-science fields due to the unique character that could contribute to the exploration of new active ingredients [1,2,3,4]. In the course of our researches concerning syntheses and reactions of novel fluorine-containing heterocycles, we found that 2,4-diethoxy-6-trifluoromethyl-3,4-dihydro-2H-pyran (1) prepared in a simple step of hetero-Diels–Alder reaction of 4-ethoxy-1,1,1-trifluorobut-3-en-2-one with ethyl vinyl ether [5] reacted with aromatic compounds in trifluoroacetic acid at ambient temperature to give 4-aryl-2-ethoxy-6-trifluoromethyl-3,4-dihydro-2H-pyrans (2) as a sole product (Scheme 1) [6]. In contrast to this, it was found that the reaction of 1 with 1,3-dimethoxybenzene in refluxing acetonitrile in the presence of catalytic amounts (0.3 equiv.) of p-toluenesulfonic acid afforded ca. 1:1 mixture of the corresponding 4-aryl-2-trifluoromethyl-4H-pyrans (3) and the ring-opening product, 6-aryl-1,1,1-trifluorohexa-3,5-dien-2-ones (4) [6]. Similar ring-opening reaction of fluorine-containing dihydro-2H-pyrans giving 6-aryl-1,1,1,5,5,5-hexafluoro-3-[(E)-3-propylidene]pentane-2,4-diones (6) was also found in the reaction of 2-ethoxy-4-isobutoxy-5-trifluoroacetyl-6-trifluoromethyl-3,4-dihydro-2H-pyran (5) [7] with aromatic compounds in refluxing trifluoroacetic acid [8].

Applsci 02 00129 g005 1024

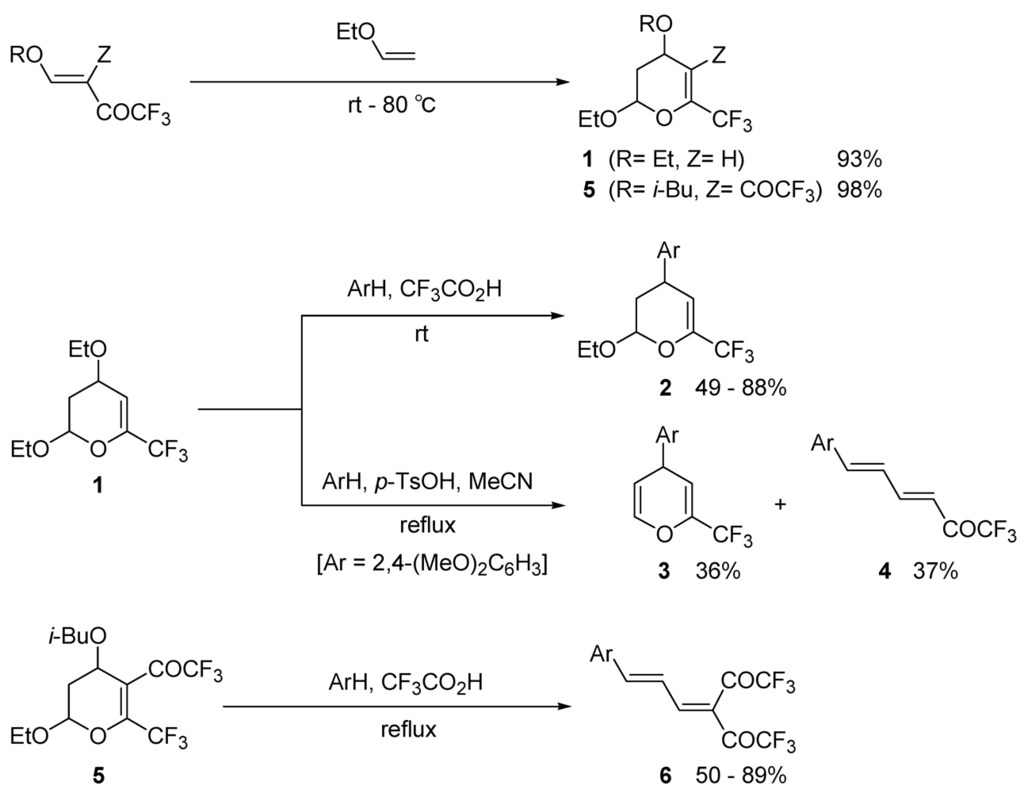

Scheme 1. Acid catalyzed reactions of 2,4-dialkoxy-3,4-dihydro-2H-pyrans with aromatic compounds.

Click here to enlarge figure

Scheme 1. Acid catalyzed reactions of 2,4-dialkoxy-3,4-dihydro-2H-pyrans with aromatic compounds.
Applsci 02 00129 g005 1024

Derivatives having the skeletons of dihydropyrans (2), 4H-pyrans (3), and 1,3-butadienes (4 and 6) have a high potential use as synthetic intermediates to access a variety of heterocycles [9,10,11,12,13,14,15]. Hence, highly important practices for the constructions of various kinds of novel fluorine-containing heterocyclic systems would be provided by the above reactions of dihydropyrans, 1 and 5.

As we proposed in our previous report [16], the selective formation of dihydropyrans (2) from 1 and of butadiene derivatives (6) from 5 could be explained by the kinetically controlled reactions of pyrylium (7a) at C-4 and the thermodynamically controlled reaction of 7b at C-6, respectively (Figure 1). Such pyryliums (7a,b) are assumed to form easily from 1 and 5 in the strong acid, trifluoroacetic acid. Moreover, the unexpected formation of 7a in the course of the reaction of dihydropyran (1) giving 4H-pyrans (3) and butadiene derivatives (4) is also figured out under weaker acidic conditions such as the presence of catalytic p-toluenesulfonic acid in refluxing acetonitrile. In this case, it is probable that 3 and 4 are directly derived from 4-cation (8a) and 6-cation (9a), respectively, which are the precursors of pyrylium (7a).

Applsci 02 00129 g001 1024

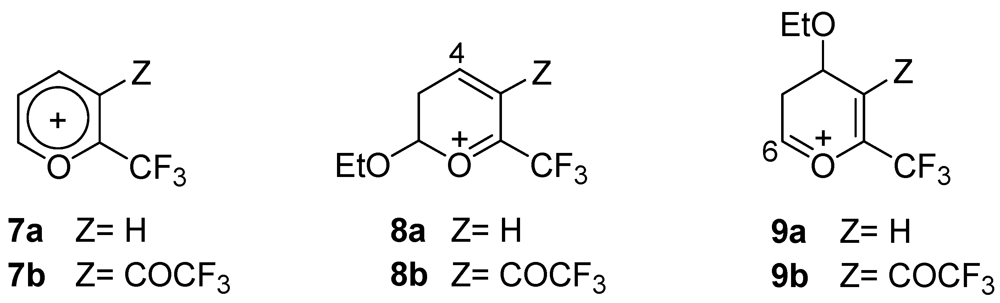

Figure 1. Cations 7a,b, 8a,b, and 9a,b.

Click here to enlarge figure

Figure 1. Cations 7a,b, 8a,b, and 9a,b.
Applsci 02 00129 g001 1024

Here we wish to report our DFT calculation study for these acid catalyzed reactions of dihydropyrans, 1 and 5, with aromatic compounds. The mechanisms giving 4H-pyrans (3) and 1,3-butadienes (4) from 1 in the presence of p-toluenesulfonic acid catalyst were elucidated by making use of benzene as a model of aromatic compounds. Additionally, the pathways via cations, 8a and 9b, for the reactions of 1 and 5 in trifluoroacetic acid giving dihydropyrans (2) and 1,3-butadienes (6), respectively, were also examined to support the proposed mechanisms via pyryliums [16] further.

2. Computational Method

All calculations employed in this paper were accomplished by making use of the computer programs packages PC SPARTAN 02 and PC SPARTAN 04 [17]. All calculations for geometrical optimizations were performed with the 6-31G* basis set at B3LYP level [18]. The starting geometries employed for all optimizations were resulted from molecular mechanics using SYBYL [19] force field and subsequent semi-empirical PM3 [20] optimizations. The calculations for transition state geometries and their energies were also taken with the 6-31G* basis set at B3LYP level.

3. Results and Discussion

In trifluoroacetic acid, pyryliums (7a,b) are assumed to form from 1 and 5 via 4-cations (8a,b) or 6-cations (9a,b) as illustrated in Scheme 2. As we proposed in previous report [16], the selective formation of dihydropyrans (2) from 1 and of butadiene derivatives (6) from 5 could be reasonably explained by the kinetically controlled reaction of pyrylium (7a) with aromatic compounds giving the precursor, 4H-pyrans (3) and the thermodynamically controlled reaction of 7b with aromatic compounds affording the intermediate, 2H-pyrans (10), respectively (Scheme 2).

Applsci 02 00129 g006 1024

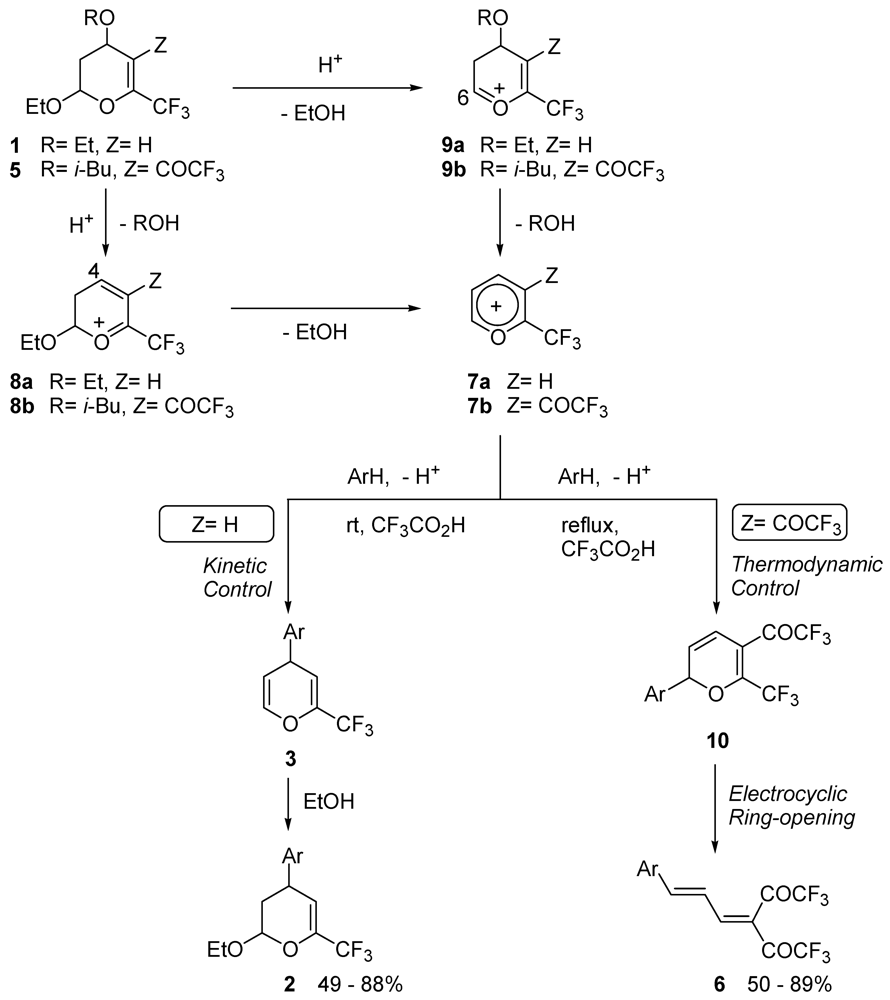

Scheme 2. Proposed reaction paths for the acid catalyzed reactions of dihydropyrans (1 and 5) with aromatic compounds.

Click here to enlarge figure

Scheme 2. Proposed reaction paths for the acid catalyzed reactions of dihydropyrans (1 and 5) with aromatic compounds.
Applsci 02 00129 g006 1024

Meanwhile, the formation of pyrylium (7a) was hardly considered to occur in the reaction of dihydropyran (1) with aromatic compounds giving 4H-pyrans (3) and butadiene derivatives (4) under weaker acidic conditions such as the presence of catalytic p-toluenesulfonic acid in acetonitrile. In this case, the alternative pathways in which 3 and 4 are directly derived from 4-cation (8a) and 6-cation (9a), respectively, are possible. We figured out the optimized structures of 8a and 9a using RB3LYP/6-31G* as depicted in Figure 2 together with the result for dihydropyran (2) to confirm these reaction pathways.

The results exhibit that 4-cation (8a) is ca. 21 kcal/mol more stable than 6-cation (9a). This value accounts for the exclusive formation of 8a in the presence of acid catalyst, which suggest that 1,3-butadienes (4) are not derived from 9a. On the other hand, the reaction of 8a with aromatic compounds giving 2 followed by the elimination of ethanol from 2 can afford 4H-pyrans (3). According to the energy value for 2 (Ar = Ph) and our previous calculation results for 3 (Ar = Ph) [16,21], the latter elimination process from 2 to 3 is estimated to be an endothermic step with ca. 27 kcal/mol, which would negatively affect the conversion of 2 to 3 even if the reaction is carried out in refluxing acetonitrile. Though the de-ethanolization on 4-cation (8a) giving pyrylium (7a) [22] is also computed to be an endothermic process, the required external energy is no more than 11.3 kcal/mol. It means this elimination reaction is presumed to proceed readily in refluxing acetonitrile. Therefore, the above results strongly suggest the formation of 1,3-butadienes (4) and 4H-pyrans (3) via pyrylium (7a). The conversion from 1 to pyrylium (7a) is noteworthy in spite of the conditions using only a catalytic amount of p-toluenesulfonic acid.

Applsci 02 00129 g002 1024
Figure 2. Optimized structures and energy values of intermediates (8a,b, 2, and 11).

Click here to enlarge figure

Figure 2. Optimized structures and energy values of intermediates (8a,b, 2, and 11).
Applsci 02 00129 g002 1024

As is described in previous report [16], the kinetically controlled reaction of 7a with aromatic compounds is predicted to proceed selectively at C-4 to give 4H-pyrans (3) because the frontier electron density (LUMO of 7a) at C-4 is considerably larger than that at C-6 [23]. In contrast, the energy of 4H-pyrans (3) is very close to 2H-pyrans (11) [24] which are the precursors of 1,3-butadienes (4) shown in Figure 2 to attribute the preparation of both 3 and 11 to the thermodynamically controlled reaction of 7a with aromatic compounds. Relatively high temperature (the temperature of refluxing acetonitrile) required for the reaction of 1 giving 3 and 4 is consistent with the thermodynamically controlled reaction of pyrylium (7a) with aromatic compounds.

Next, we estimated the activation energy for the ring-opening process from 2H-pyrans (11) resulted by the reaction of pyrylium (7a) with aromatic compounds at 6-position (Figure 3). The optimized transition state structure (TS11; Ar = Ph) [25] and the most stable structure of 4 (Ar = Ph) are illustrated together with their energies. The energy difference between 11 (Ar = Ph) [16] and TS11 (Ar = Ph) is estimated to be ca. 15 kcal/mol, which corresponds to the activation energy of this process. The (E,Z)-dienes (4’) given by ring-opening of 11 readily isomerize to thermodynamically more stable (E,E)-dienes (4) via protonation and deprotonation processes (Figure 3). The dienes 4’ (Ar = Ph) and 4 (Ar = Ph) are calculated to be ca. 8 kcal/mol and ca. 9 kcal/mol more stable than 11 (Ar = Ph), respectively. The above results suggest that the irreversible ring-opening of the intermediates (11) will easily occur at acetonitrile reflux temperature to afford 4.

Applsci 02 00129 g003 1024

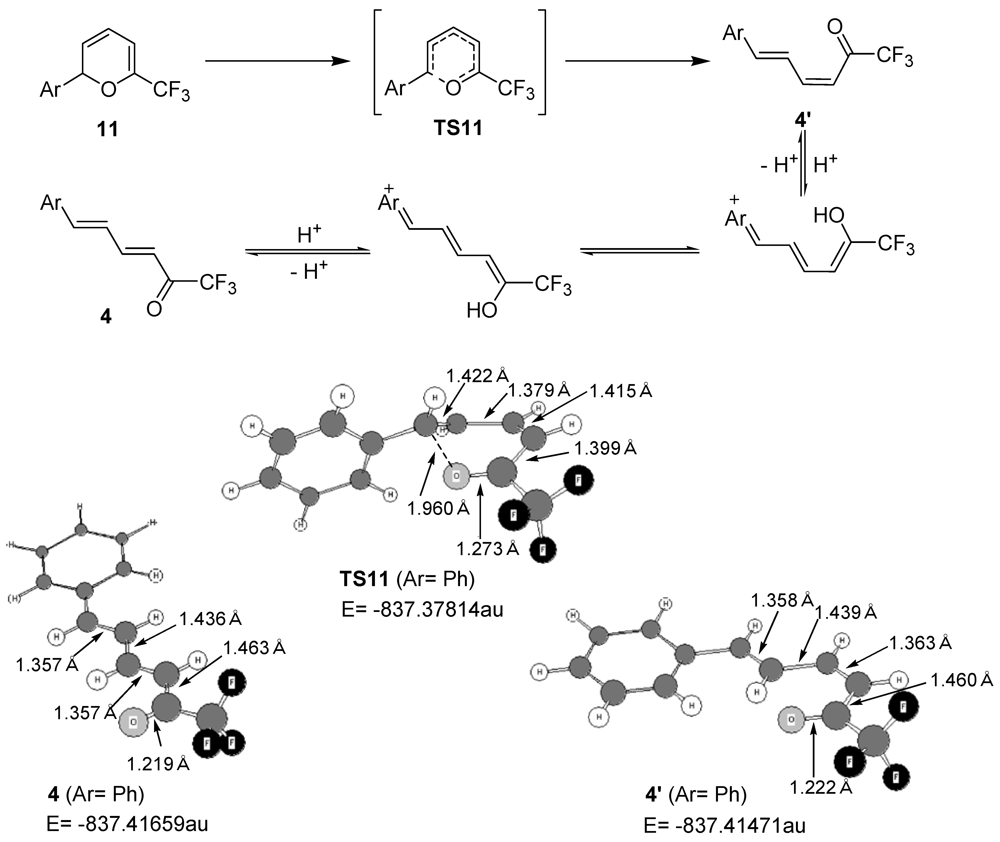

Figure 3. Ring-opening process from 2H-pyrans (11) to (E,E)-dienes (4).

Click here to enlarge figure

Figure 3. Ring-opening process from 2H-pyrans (11) to (E,E)-dienes (4).
Applsci 02 00129 g003 1024

In addition, we examined the process from 4-cation (8a) to pyrylium (7a) to support the mechanism presented in our previous report [16] for the reaction of dihydropyran (1) with aromatic compounds in trifluoroacetic acid at ambient temperature giving dihydro-4H-pyrans (2) solely (Scheme 1). As is mentioned before, this elimination is an endothermic reaction requiring the external energy of 11.3 kcal/mol [22]. Therefore, this result predicts that the reaction of the first intermediate, 4-cation (8a), with aromatic compounds directly affording dihydro-4H-pyrans (2) have precedence over the course via 4H-pyrans (3) comprised of the reaction of pyrylium (7a) with aromatic compounds given that the dihydropyran (1) would undergo the reaction at ambient temperature. Even though 4H-pyrans (3) was given by the p-toluenesulfonic acid catalyzed reaction, the reaction of 1 carried out in trifluoroacetic acid with aromatic compounds [6] resulted in the failure of the formation of 3. These experimental evidences provide us with compatible conclusion as to the above calculated prediction.

Finally, we examined the reaction of dihydropyran (5) with aromatic compounds giving butadiene derivatives (6) shown in Scheme 1. As for this reaction, an alternative pathway including the reaction of 6-cation (9b) with aromatic compounds directly affording 2H-pyrans (10) is possible in addition to the pathway via pyrylium (7b) illustrated in Scheme 2. To elucidate such alternative pathway, we considered as to figuring out dihydropyran (5), 4-cation (8b), and 6-cation (9b). The results are summarized in Figure 4.

Applsci 02 00129 g004 1024

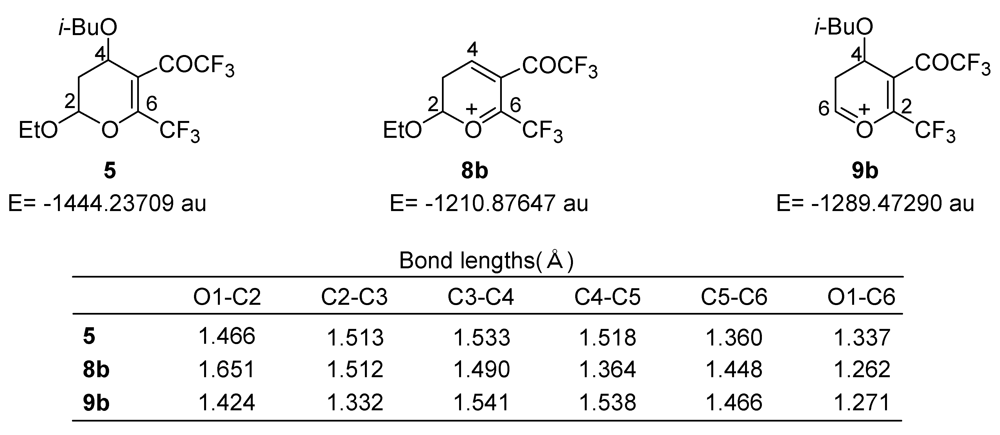

Figure 4. Optimized structures and energy values of dihydropyran (5), and cations (8b and 9b).

Click here to enlarge figure

Figure 4. Optimized structures and energy values of dihydropyran (5), and cations (8b and 9b).
Applsci 02 00129 g004 1024

Based on the energy values for 5, 8b, and 9b, the ionization process from 5 to 6-cation (9b) is estimated to require ca. 20 kcal/mol more energy [26] compared with such ionization to 4-cation (8b). The exclusive formation of 8b from 5 in trifluoroacetic acid is attributed to this value. Hence, the reaction of 5 with aromatic compounds giving 6 does not proceed along the pathway via 9b. In other words, butadiene derivatives (6) are assumed to be derived from pyrylium (7b) which formed via 4-cation (8b) along the pathway shown in Scheme 2 as we reported previously [16,27]. This de-alcoholization step from 8b to 7b is an endothermic process, however the required external energy no more than 13 kcal/mol suggests that 8b is easily converted to 7b in refluxing trifluoroacetic acid.

The proposed most reasonable and interesting mechanisms based on our DFT calculations for the acid catalyzed reactions of dihydropyrans (1 and 5) with aromatic compounds are summarized in Scheme 3.

Applsci 02 00129 g007 1024
Scheme 3. Proposed most reasonable mechanisms for the acid catalyzed reactions of dihydropyrans (1 and 5) with aromatic compounds.

Click here to enlarge figure

Scheme 3. Proposed most reasonable mechanisms for the acid catalyzed reactions of dihydropyrans (1 and 5) with aromatic compounds.
Applsci 02 00129 g007 1024

4. Conclusions

On the basis of DFT calculation results, we have achieved a comprehensive explanation regarding the mechanisms for the reactions of dihydropyran (1) with aromatic compounds under different acidic reaction conditions. The reaction in the presence of p-toluenesulfonic acid giving 4H-pyrans (3) and butadiene derivatives (4) proceeding in refluxing acetonitrile is reasonably explained by the thermodynamically controlled reaction of pyrylium (7a) with aromatic compounds. Meanwhile, the reaction in trifluoroacetic acid affording dihydropyrans (2) at ambient temperature can be interpreted as a result of the reaction of 4-cation (8a) with aromatic compounds. Our study also illustrated the selective formation of butadiene derivatives (6) from dihydropyran (5) by the reaction in refluxing trifluoroacetic acid in which the thermodynamically controlled attack of aromatic compounds to pyrylium (7b) was comprised.

References and Notes

  1. Filler, R.; Kobayashi, Y. Biomedicinal Aspects of Fluorine Chemistry; Kodansha & Elsevier Biomedical: Tokyo, Japan, 1982. [Google Scholar]
  2. Filler, R. Organofluorine Chemicals and Their Industrial Applications; Ellis Horwood: London, UK, 1979. [Google Scholar]
  3. Welch, J.T. Advances in the preparation of biologically active organofluorine compounds. Tetrahedron 1987, 43, 3123–3197. [Google Scholar] [CrossRef]
  4. Filler, R.; Kobayashi, Y.; Yagupolskii, L.M. Organofluorine Compounds in Medicinal Chemistry and Biomedical Applications; Elsevier: Amsterdam, The Netherlands, 1993. [Google Scholar]
  5. Hojo, M.; Masuda, R.; Okada, E. A facile synthesis of 2,4-dialkoxy-, 2-alkoxy-4-phenoxy-, and 2,4-diphenoxy-6-(trifluoromethyl)-3,4-dihydro-2H-pyrans. Hetero Diels-Alder reactions of trans-β-(trifluoroacetyl)vinyl ethers with various vinyl ethers. Synthesis 1989, 215–217. [Google Scholar]
  6. Ota, N.; Okada, E.; Shibata, D.; Adachi, S.; Saikawa, S. A facile synthesis of 4-aryl-1,1,1-trifluorobut-3-en-2-ones via 4-aryl substituted CF3-containing dihydropyran derivatives: A versatile method for the introduction of fluorine-containing C4- and C6- unit to aromatic compounds. Heterocycles 2010, 80, 515–525. [Google Scholar] [CrossRef]
  7. Hojo, M.; Masuda, R.; Okada, E. A convenient synthetic route to functionalized 5-(trifluoroacetyl)-3,4-dihydro-2H-pyrans: hetero-Diels-Alder reaction of β,β-bis(trifluoroacetyl)vinyl ethers with electron-rich alkenes. Synthesis 1990, 347–350. [Google Scholar]
  8. Ota, N.; Okada, E.; Sonoda, A.; Muro, N.; Shibata, D.; Médebielle, M. One step introduction of 4,4-bis(trifluoroacetyl)-1,3-butadiene system to aromatic rings using fluorine-containing 3,4-dihydro-2H-pyrans. A facile synthetic method for 1,1,1,5,5,5-hexafluoro-3-[(E)-3-arylallylidene]pentane-2,4-diones. Heterocycles 2008, 76, 215–219. [Google Scholar] [CrossRef]
  9. Zanatta, N.; Fernandes, L.S.; Nachtigall, F.M.; Coelho, H.S.; Amaral, S.S.; Flores, A.F.C.; Bonacorso, H.G.; Martins, M.A.P. Highly chemoselective synthesis of 6-alkoxy-1-alkyl(aryl)-3-trifluoroacetyl-1,4,5,6-tetrahydropyridines and 1-alkyl(aryl)-6-amino-3-trifluoroacetyl-1,4,5,6-tetrahydropyridines. Eur. J. Org. Chem. 2009, 1435–1444. [Google Scholar]
  10. Shimizu, M.; Oishi, A.; Taguchi, Y.; Sano, T.; Gama, Y.; Shibuya, I. Quinoline ring formation by cycloaddition of N-arylketenimines with enol ethers under high pressure. Heterocycles 2001, 55, 1971–1980. [Google Scholar] [CrossRef]
  11. Caramella, P.; Invernizzi, A.G.; Pastormelo, E.; Quadrelli, P.; Corsaro, A. A pericyclic cascade in the addition of diphenyl nitrile imine to pyridine. Heterocycles 1995, 40, 515–520. [Google Scholar] [CrossRef]
  12. Oinuma, H.; Dan, S.; Kakisawa, H. Stereoselective syntheses of α-isosparteine. J. Chem. Soc. Perkin Trans. 1990, 2593–2597. [Google Scholar]
  13. Wendelin, W.; Schramm, H.-W.; Blasi-Rabassa, A. Reactions of guanidine and thiourea with α,β,γ,δ-unsaturated ketones. Monatsh. Chem. 1985, 116, 385–400. [Google Scholar] [CrossRef]
  14. Mohammed, F.K. Synthesis of some new benzo[b]carbazole-6,11-diones. Egypt. J. Chem. 2006, 49, 139–147. [Google Scholar]
  15. Rubinov, D.B.; Rubinova, I.L.; Lakhvich, F.A. Synthesis of exo- and endocyclic enamino derivatives of 2-(3-arylprop-2-enoyl)cyclohexane-1,3-diones. Russ. J. Org. Chem. 2011, 47, 319–330. [Google Scholar] [CrossRef]
  16. Ota, N.; Kamitori, Y.; Nishiguchi, E.; Ishii, M.; Okada, E. A molecular orbital calculation study on the interesting reactivity of fluorine-containing 3,4-dihydro-2H-pyrans with aromatic compounds in the presence of trifluoroacetic acid. Heterocycles 2011, 82, 1337–1343. [Google Scholar]
  17. Wavefunction, Inc. Irvine, CA, USA. Available online: http://www.wavefun.com (accessed on 20 February 2012).
  18. Becke, A.D. Density-functional thermochemistry. III. The role of exact exchange. J. Chem. Phys. 1993, 98, 5648–5652. [Google Scholar] [CrossRef]
  19. Clark, M.; Cramer, R.D., III.; van Opdensch, N. Validation of the general purpose Tripos 5.2 force field. J. Comput. Chem. 1989, 10, 982–1012. [Google Scholar] [CrossRef]
  20. Stewart, J.J.P. Optimization of parameters for semiempirical methods. I. Method. J. Comput. Chem. 1989, 10, 209–220. [Google Scholar] [CrossRef]
  21. The previously calculated energy value (−837.40329 au: see ref. 16) was used for 3 (Ar= Ph). The energy of ethanol was calculated as −155.06425 au (this work).
  22. The previously calculated energy value (−605.49511 au: see ref. 16) was used for 7a.
  23. The frontier electron densities (LUMO) at C-4 and C-6 of 7a were calculated as 0.582 and 0.341, respectively: see ref. 16.
  24. The energy deference between 3 and 11 was estimated to be less than 1 kcal/mol: see ref. 16.
  25. Our calculations for vibrational frequencies of TS11 showed only one imaginary frequency at −416.3 cm−1 having the vibrational mode corresponding to the bond formation and cleavage between C6 and O1.
  26. The previously calculated energy value (−1055.82147 au: see ref. 16) was used for 7b. The energy of isobutanol was calculated as −233.66241 au (this work).
  27. It was predicted that the reaction of pyrylium (7b) with aromatic compounds occurs at C-4 under kinetically controlled conditions and that proceeds at C-6 under thermodynamically controlled conditions: see ref. 16. In addition, the steric hindrance due to trifluoroacetyl group at C-5 would prevent the attack to C-4 on 7b.
