Production of Geopolymeric Mortars Containing Forest Biomass Ash as Partial Replacement of Metakaolin

Abstract

Geopolymers are a new class of binders based on alkali activation of natural and by-products raw materials. Their properties and eco-compatibility highly depends on the reaction system. The (Na,K)₂O-Al₂O₃-SiO₂-H₂O system shows a distinguishing pseudo-zeolitic network structure, but reaction requires a high amount of activators. The aim of this work is to investigate how the use of forest biomass ash (FBA), as partial replacement material in the production of metakaolin (MK) based geopolymeric mortar, and affect its properties. FBA is a by-product of the combustion process of forest biomass in thermal power plants. Mortars with a FBA content of 0%, 10%, 20%, and 30% wt have been tested for workability, flexural, and compressive strength. Capillary absorption, micro-morphological features, thermal, and shrinkage behavior have been investigated. The addition of FBA allowed for a decrease in the use of alkaline activator up to 20%, while preserving the characteristic broad hump centered at approximately 28° 2θ Mechanical properties of the geopolymeric mortars decrease proportionally with metakaolin replacement, even if a compression strength of more than 35 MPa is still obtained with a FBA content of 30% wt. After thermal cycles of up to 700 °C, all of the mortars still retain their cohesiveness, with an overall loss of mechanical strength of about 80% of the initial value that can be attributed to the formation of microcracks as a consequence of the network strain and distortion due to dehydration and shrinkage.

1. Introduction

The use of forest biomass as fuel in thermal power plants is becoming a common practice due to its availability, low cost, sustainability, and renewability. The process of combustion, which significantly reduces the mass of the forest biomass, leads to the production of fine FBA as by-product in the range of 6–10% [1]. In order to further increase the environmental sustainability of the process, it is necessary to reduce the fraction of forest biomass ash (FBA) that is currently land-filled. To achieve this target, new application fields, different from soil amendment, have to be found [2,3,4]. Furthermore, the development of more environmentally friendly materials based on the utilization of industrial waste materials or recycled materials in their manufacture is a nowadays focus. It allows for reducing natural raw materials, water, and energy consumption, and it is driven by the increasingly more stringent environmental regulations [5,6].

Recently the properties of a new class of binders, the geopolymers [7], have been investigated by several studies [8,9]. Their eco-compatibility strongly depends on both the raw materials and the amount and concentration and type of alkaline activator solution used. Mix designs that contains high amount of industrial by-product (such as activated slag and fly ash) or natural raw materials (volcanic tuff) are commonly labeled as “blended or hybrid alkaline” cements, that are eco-friendly, cure at ambient temperature, and use a low amount alkaline activator [10]. Nevertheless, many problems remain, such as relevant shrinkage, efflorescence, and a lack of specific additives to regulate properties. When exclusively aluminosilicate sources, such as metakaolin, are used as reactive powder, hardening requires heat and high amount of sodium silicate activators. (Na,K)₂O-Al₂O₃-SiO₂-H₂O system (low calcium system), is expensive and not strictly appropriate to mitigate greenhouse gas emissions, but it still can be marketed, because of its peculiar pseudo-zeolitic network structure, for special niche applications, such as in ion exchange processes [11,12], catalysis [13,14,15], as adsorbent [16], and others [17,18]. The aim of this work is to study the feasibility to use forest biomass ash as partial replacement material in the production of metakaolin (MK) based geopolymeric mortars in order to decrease the consumption of metakaolin (obtained by calcination), while simultaneously allowing to:

• Decrease the amount of sodium silicate solution used;
• Preserve the three-dimensional amorphous network built from TO₄ (T = Si, Al) tetrahedral, joined at the corners with oxygen;
• Guarantee adequate mechanical properties.

Specific goals of the research were: (1) to characterize FBA in terms of chemical composition, mineralogic phases, morphology by Energy Dispersive Spectroscopy (EDS), X-ray Diffraction (XRD) and Scanning Electron Microscope (SEM) analysis; (2) to evaluate the fresh state and mechanical properties, capillary absorption, shrinkage, and thermal behavior of mortars containing 0%, 10%, 20%, 30% wt of FBA as partial replacement of metakaolin.

2. Materials and Methods

2.1. Materials

2.1.1. Metakaolin, Sodium Silicate Solition and Sodium Hydroxide

Metakaolin with an average particles size of 1.59 μm has been supplied by Personal Factory S.p.a. (Simbario, Italy). The mass compositions of metakaolin, obtained by X-ray fluorescence, and of sodium silicate solution (supplied by Sasol Italy S.P.A (Milan, Italy)) are listed in

Table 1. Chemical composition of raw materials.

Component (%wt)	Metakaolin	Sodium Silicate Solution
Al2O3	42.02	-
SiO2	53.9	29.6
K2O	0.30	-
Na2O	0.09	13.76
Fe2O3	1.52	-
TiO2	1.90	-
MgO	-	-
P2O5	-	-
CaO	-	-
SO3	-	-
MnO	-	-
LOI	1.00	-
H2O	-	56.78

. Sodium Hydroxide (analytical reagents grade) has been purchased by Sigma Aldrich (Milano, Italy).

2.1.2. Forest Biomass Ash

FBA, having a D10 of 11.72 μm, a D50 of 30.16 μm, and a D90 of 61.47 μm have been provided by a local plant. Its chemical composition has been obtained by Energy Dispersive X-ray analysis (EDX) and reported in Figure 1. Morphology of FBA has been examined on a scanning electron microscope (FEI Company model Inspect).

2.1.3. Aggregates

The fine, quarzitic aggregates, having a D10 of 0.25 mm, a D50 of 0.5 mm, and a D90 of 2.25 mm with a maximum diameter of 2.75 mm, are locally sourced. Before being used, they were dried to saturated surface dry condition.

2.2. Methods

2.2.1. Mixture Proportioning and Mixing

All of the mortar mixes have been prepared by maintaining constant the water/binder and sand/binder ratios at 0.53 and 2.8, respectively. The water/binder ratio has been chosen to ensure an adequate workability. The metakaolin binder was partially replaced by FBA at levels of 10%, 20%, and 30% wt. The maximum replacement has been selected so that the weight of SiO₂ and Al₂O₃ in the binder is at least about 80%. This value and a Si/Al molar ratio about 2 in the geopolymeric mixture are considered benchmark values to obtain a structural geopolymeric mortar [18,19]. The compositions of mortar mixtures are summarized in

Table 2. Mix proportions.

Mix No.	W/B (wt)	SiO2/Al2O3 (molar)	Na2O/Al2O3 (molar)	FBA/ Binder (wt)	Sand/Binder (wt)	B: Alkali Silicate Solution (dry basis) (wt)
0S	0.53	3.8	1	0	2.8	1.35:1
10S	0.53	3.8	1	0.1	2.8	1.45:1
20S	0.53	3.8	1	0.2	2.8	1.55:1
30S	0.53	3.8	1	0.3	2.8	1.7:1

.

All of the geopolymeric batches followed the same mixing sequence, speed, and time. Metakaolin, FBA were first mechanically mixed for 2 min, and then the alkali activator solution, containing sodium silicate solution, sodium hydroxide, and distilled water has been added. The so obtained slurry was mixed for 10 min and finally fine sand was added. After a further 5 min of mixing batch was transferred to prismatic moulds with dimensions of 40 × 40 × 160 mm and cured for 1 h at 50 °C and then at an ambient temperature and pressure.

2.2.2. Workability

Flow tests were performed on fresh mortars mixes using the flow table and according to UNI EN 1015-3 [20].

2.2.3. Mechanical Strength

Compressive and flexural strengths have been determined on prismatic specimens with dimensions of 4 × 4 × 16 mm after 2, 7, 28 days of curing according to UNI-EN 196-1:2005 [21]. All of the values have been obtained as the average of three numbers of specimens tested.

2.2.4. Capillary Water Absorption

Transport properties of mortar surface determine its durability. In the present study, capillary water absorption tests have been carried out according to UNI EN 1015-1 [22]. The specimens have been dried in a ventilated oven at 50 °C until a constant mass has been achieved. After cooling at 20 °C, all of the specimens were put on rods in a shallow bath of water a 20 °C, at a depth of about 3 mm.

The uptake of water by capillary absorption was measured through the weight gain of each specimen at regular intervals of immersion. The equation used to model the absorption of water due to capillary action is the following [22,23]:

A = a₀ + St^0.5

(1)

where A (mg/mm²) is the water absorption by unit area since the dipping in water; S (mg/(mm² × min^0.5)) is the sorptivity of the material; and, t is the elapsed time in minutes and a₀ (mg/mm²) is the water initially absorbed by pores in contact with water.

2.2.5. Shrinkage Test

Drying shrinkage measurements of selected alkali-activated geopolymeric mortar mixes have been carried out at 6-months, according to relevant standard EN 12617-4:03 [21].

2.2.6. Thermal Cycles

Thermal tests have been performed on geopolymeric mortars with the replacement of metakaolin with FBA by exposing them for various thermal cycles at different temperatures, after a curing period of 28 days. The degradation of mechanical properties has been evaluated by the non-destructive ultrasonic reflection technique. The compressive strength before and after thermal cycles have been also measured and compared. XRD diffractrograms have been collected on a Rigaku MiniFlex 600 X-ray diffractometer (Rigaku Corporation, Tokyo, Japan) diffractometer with CuKα, radiation generated at 20 mA and 40 KV. Typical specimens have been scanned from 5–50° at 0.02 2θ steps integrated at a rate of 0.5 s.

3. Results and Discussion

XRD analysis of FBA, (not shown), reveals the presence of both amorphous and crystalline phases, the predominant crystalline phase being quartz. Micrographs of FBA at different magnifications, reported in Figure 2, show that FBA is a heterogeneous mixture of particles of varying sizes and morphologies, both irregular and spherical. FBA are highly alkaline so they may lead to a favorable acceleration of geopolymerization process (

Table 3. Solution proportions.

Time (min)	H2O Dis (g)	FBA (g)	Metakaolin (g)
Solution 1	50	5	0
Solution 2	50	0	5

and

Table 4. Solution pH at different times.

Time (min)	pH Solution 1	pH Solution 2
1	12.54	6.315
5	12.82	6.375
10	12.85	6.387

).

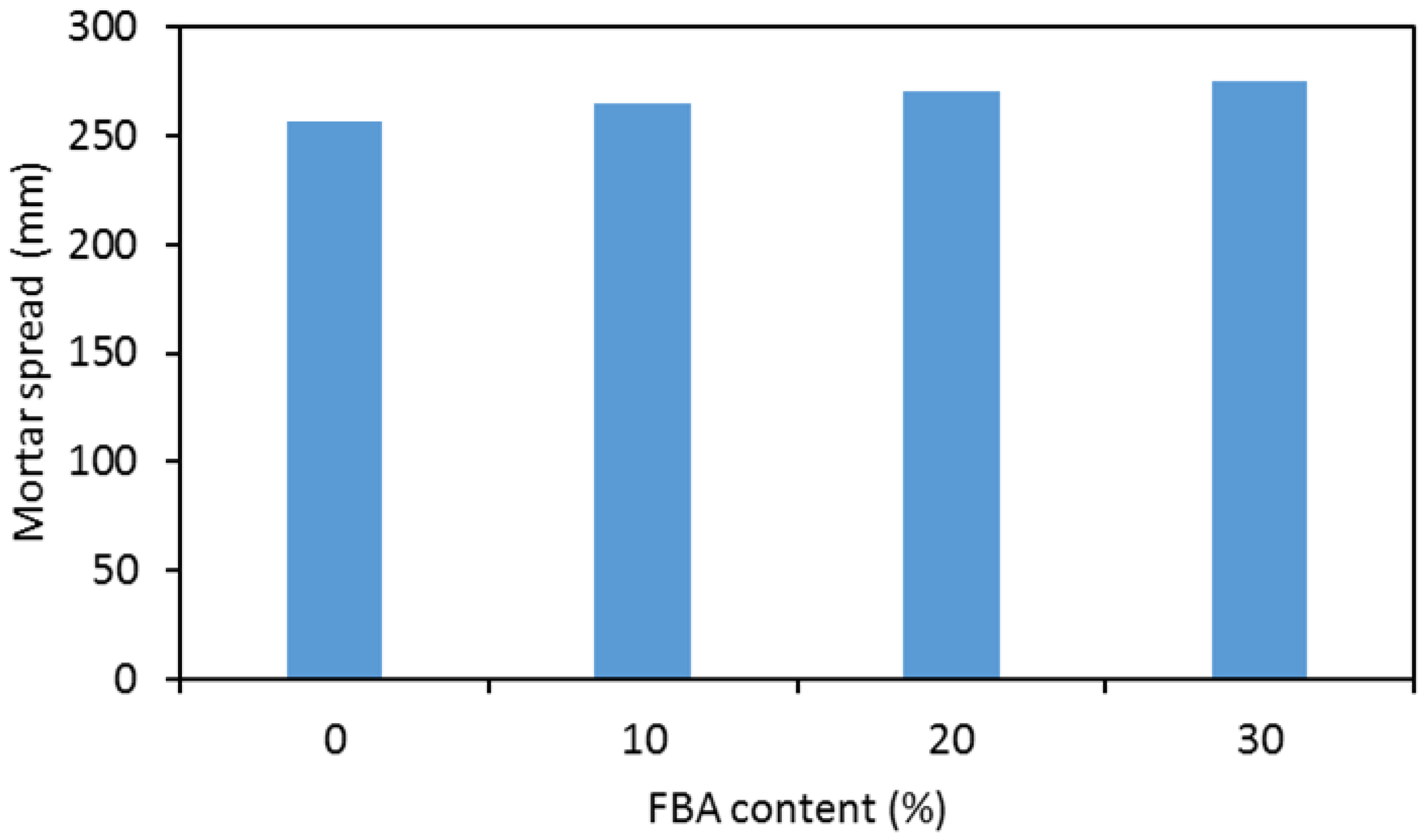

The workability was evaluated quantitatively by the consistency measured through the flow table test. The inclusion of FBA as a partial replacement material in geopolymeric mortar resulted in an increasing of workability, as shown in Figure 3. This behavior can be ascribed to both an increased rate in the dissolution of metakaolin due to the higher alkalinity of the reaction mixes containing FBA, and the greater FBA average particles size than metakaolin. In fact, alkalinity has the great influence in the reaction medium on the dissolution rate of metakaolin.

Figure 4 shows the XRD patterns of metakaolin raw source (a) as well as of the synthesized geopolymeric mortars with different FBA contents.

Metakaolin exhibits a pronounced broad hump centered at approximately 22° 2θ with few peaks, indicating that it contains essentially amorphous silica and alumina with crystalline phases such as quartz [19]. For the manufactured geopolymeric mortars, the characteristic broad hump centered at approximately 28° 2θ is observed, regardless of FBA content. It can be considered as the distinguishing feature of the diffractogram of any geopolymer [15].

Furthermore, when comparing the XRD patterns of the raw materials and cured geopolymers, the overlapping of the peaks of the crystalline phases clearly results. Thus, it can be stated that they do not participate to the geopolymerization process. As a consequence, the use of parent materials mainly containing reactive amorphous phases is of primary importance to obtain geopolymers with acceptable mechanical properties.

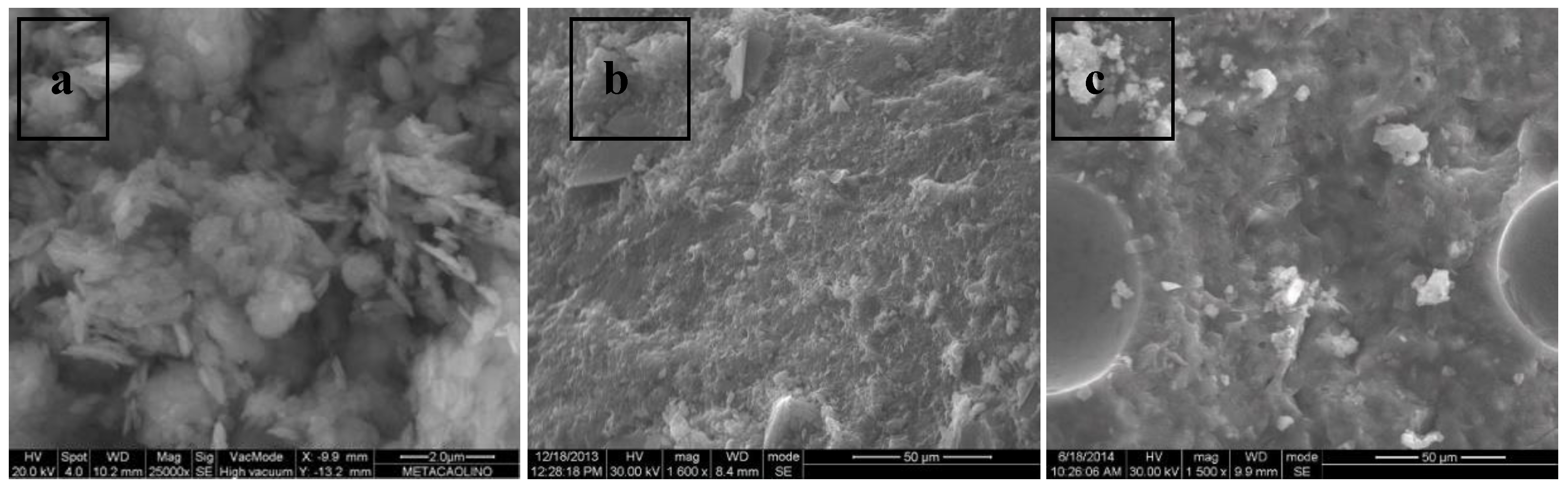

The micro-morphological features of the parent material and geopolymers with different FBA contents are compared in Figure 5a–c.

Metakaolin particles are dominantly plate in shape, instead the obtained geopolymers mortars show a continuous gel-like matrix with few clear particles or particle boundaries. Furthermore, geopolymeric mortars with FBA show a more porous and patchy matrix with some unreacted spherical ash particles.

Figure 6 compares the values of the compressive and flexural strength of geopolymeric mortars with different content of FBA, after 2, 7, 28 days of curing at ambient temperature.

The use of FBA at a level of replacement of 10% wt does not affect the mechanical properties of the geopolymeric mortars, while higher replacements proportionally reduce the compressive and flexural strength of the mortars, for all of the curing times. Furthermore, when the highest amount of FBA is used, ultimate mechanical properties are reached after seven days of curing. The observed decline in strength can be attributed to the decrease of the amount of soluble Si and Al in mixtures that is around 96%wt of binder composition when only metakaolin is used and around 80% when the maximum amount of ashes is used. Nevertheless, at the lowest level of replacement the increased alkalinity of the reaction medium due to FBA, positively affects the dissolution extend of metakaolin, thus allowing to compensate the lower amount of soluble Si and Al in the mixture. At the highest level of replacement, even if compensation is no more possible, thus measuring a compression strength of 35 MPa, the increased alkalinity and the lower amount of metakaolin allow an acceleration of the dissolution rate and condensation reactions between aluminate and silicate species [24,25,26], with final compressive and flexural strengths already being reached after 7 days of curing. Other aspects to be pointed out are that the prepared mortars have shown a compressive strength ranging between 27 and 42 MPa after two day of curing.

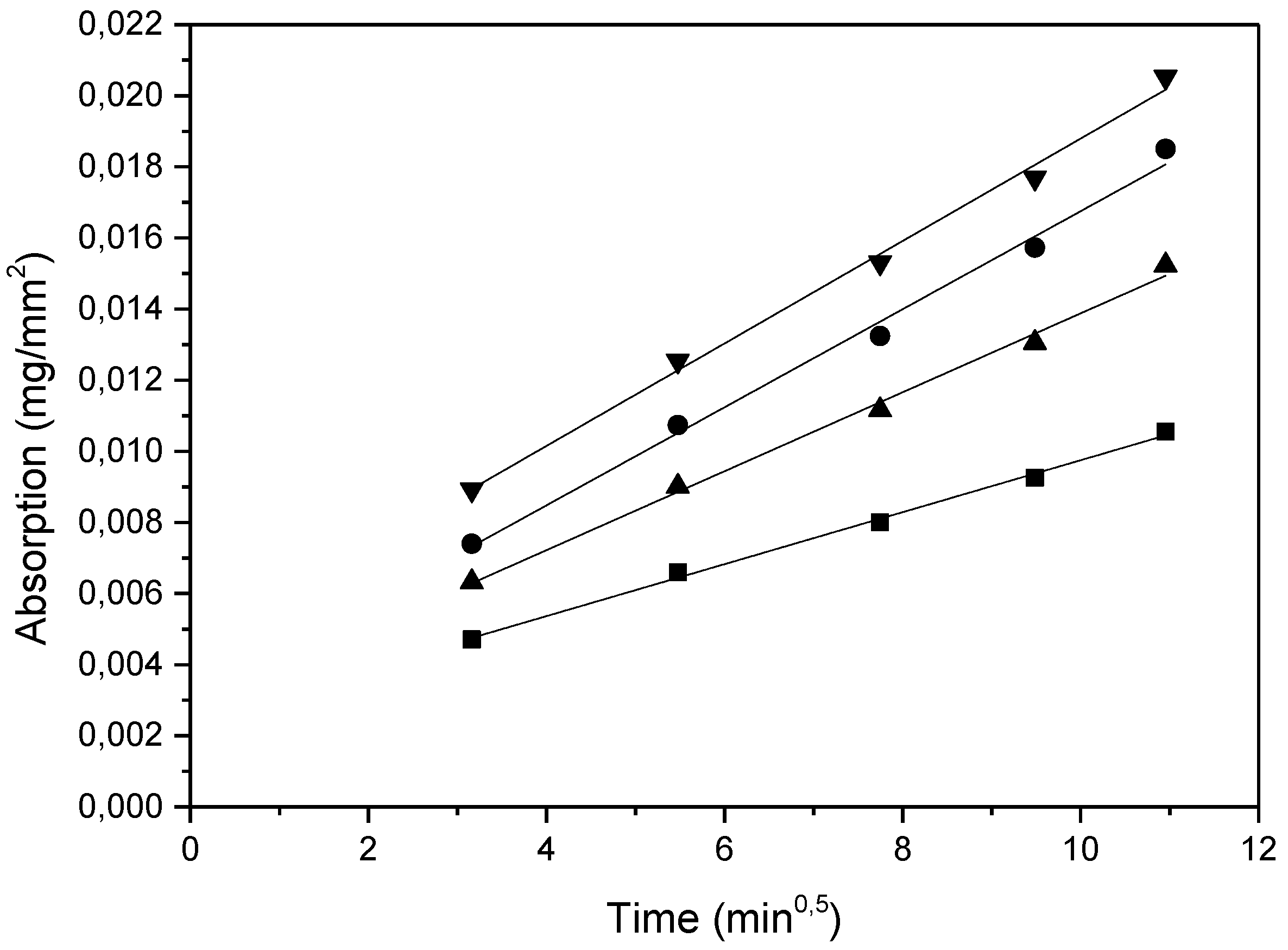

Figure 7 shows that mortars with no replacement of metakaolin exhibit a greater resistance to water absorption by capillary suction than the mortars containing FBA. Sorptivity (S) is a material property, which characterizes the tendency of a porous material to absorb and transmit water by capillarity. Its value can be influenced by several factors, such as W/B ratio, curing method and time, drying conditions, admixture type, and replacement quantity. Since all of these factors have been kept constant except the replacement quantity, variation of the sorptivity values can be ascribed to FBA content.

As it can be seen from

Table 5. Sorptivity values as obtained by experimental data fitted using equation 1.

Mix No.	Eq. y = Sx + a	S	a	R2
0S		7.307E-4	0.00244	0.996
10S		0.00111	0.00278	0.994
20S		0.00138	0.00297	0.991
30S		0.00144	0.00439	0.994

, sorptivities values increase with increasing the FBA content.

This suggests that FBA alters the structure of the pores and the interconnected capillary pores. This also offers another element for the interpretation of the obtained mechanical data. This occurrence could also affect durability [27].

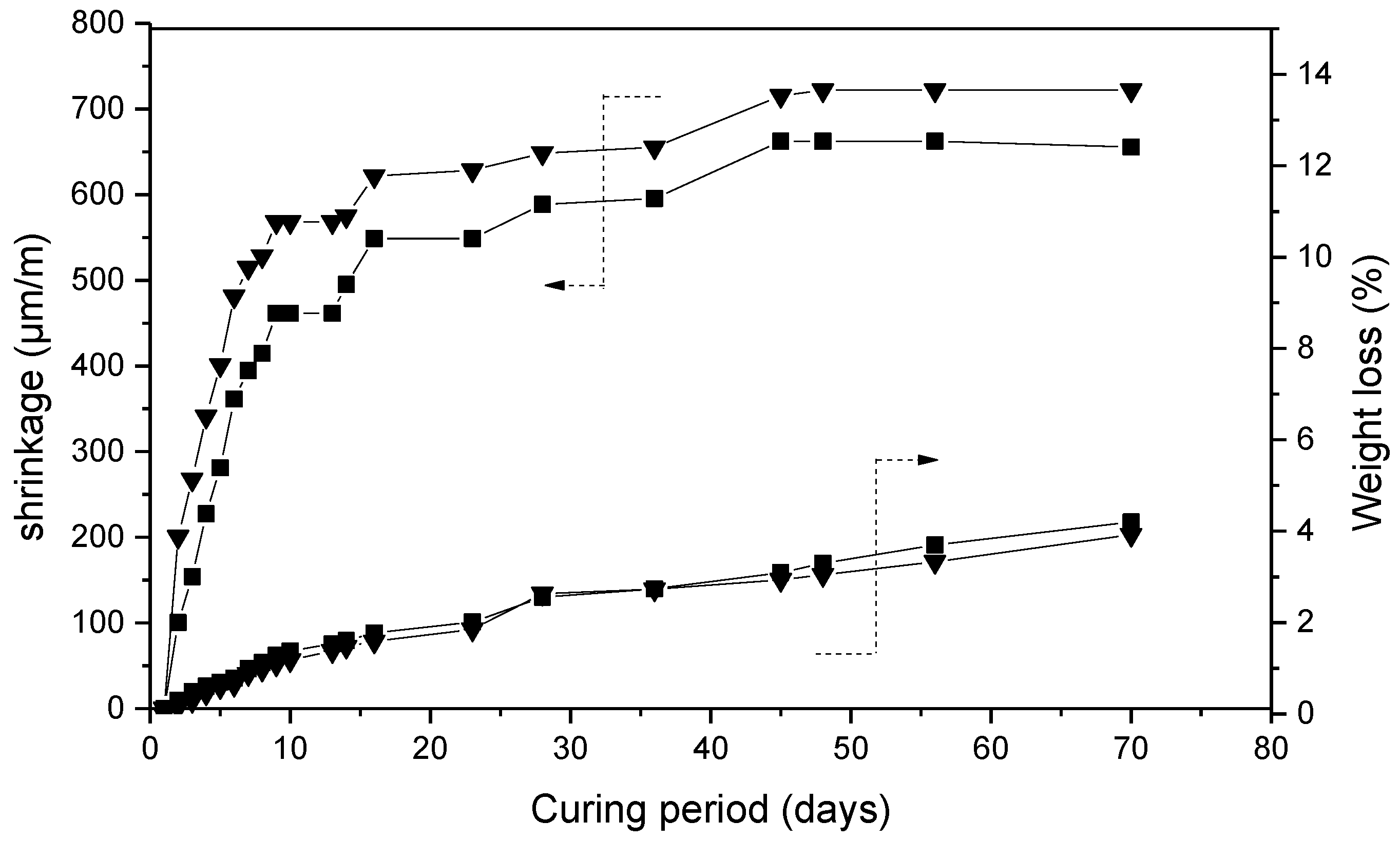

In Figure 8, the drying shrinkage properties of selected mortars and their weight loss are reported.

From the results, it can be observed that the samples exhibited similar behavior and that the inclusion of FBA slightly increases both the drying shrinkage and weight loss, as a consequence of the increased porosity.

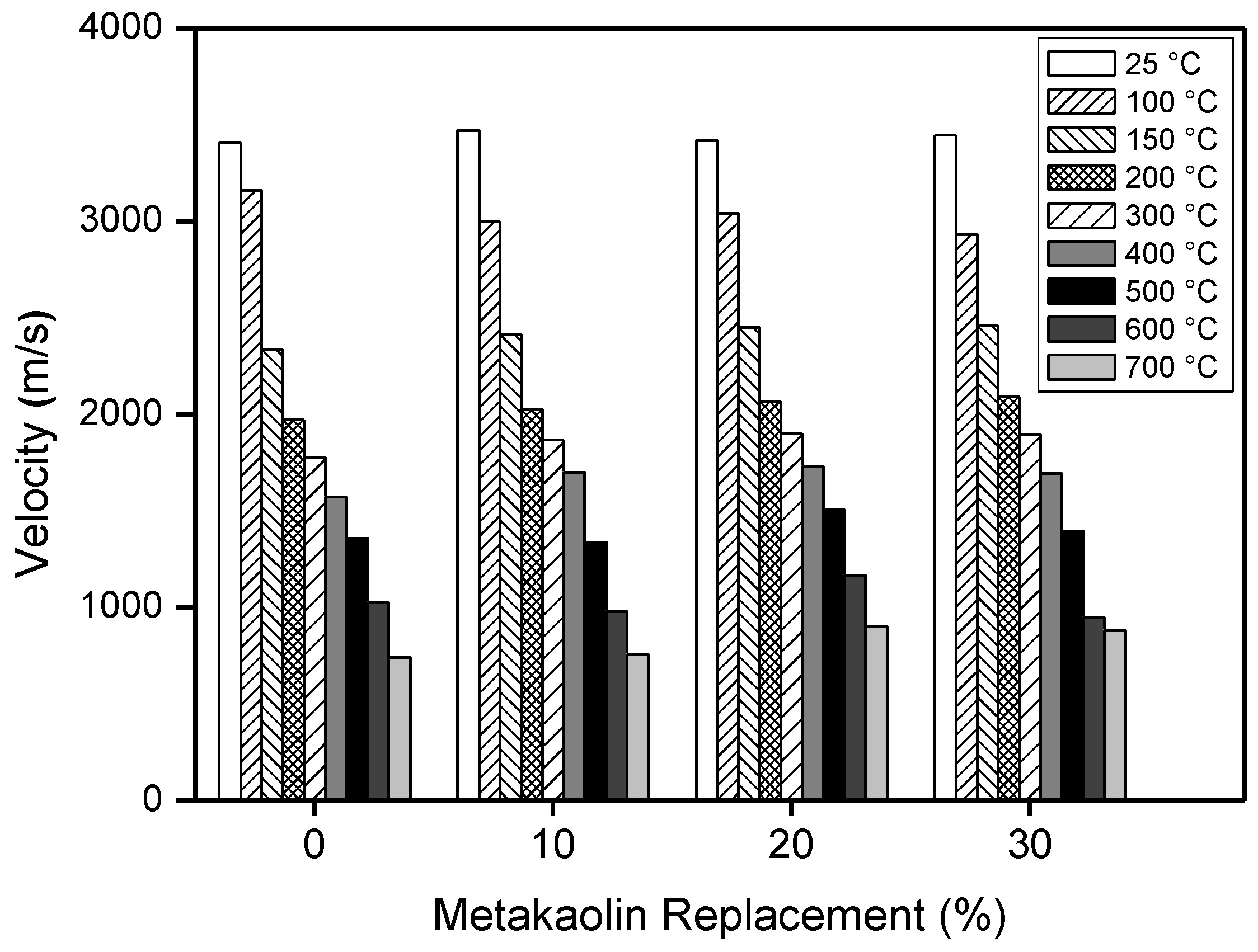

Thermal stability of the prepared mortars has been also investigated. In Figure 9 and Figure 10 the residual weight and the propagation velocities of ultrasonic pulse transmitted through the hardened mortars after thermal treatments at different temperatures are reported.

All of the mortars showed similar behaviour. They dehydrate at a high rate up to 150 °C, then slowing down and reaching a final asymptotic value that ranges from 82–84% of the initial specimens’ weight.

Also, ultrasonic pulse velocities decreased after each thermal treatment and two regions can be clearly defined, the first up to 200 °C, with a higher slope.

The observed regions are in accordance with both the mass loss due dehydration, as already observed [28], and the formation of micro-cracks, as also confirmed by microstructural features of geopolymers with a FBA content of 0% and a 30% wt (Figure 11). At microscale, cracks are visible on both the samples, with particles forming a layer-like structure, which results less dense in geopolymer mortar prepared with FBA.

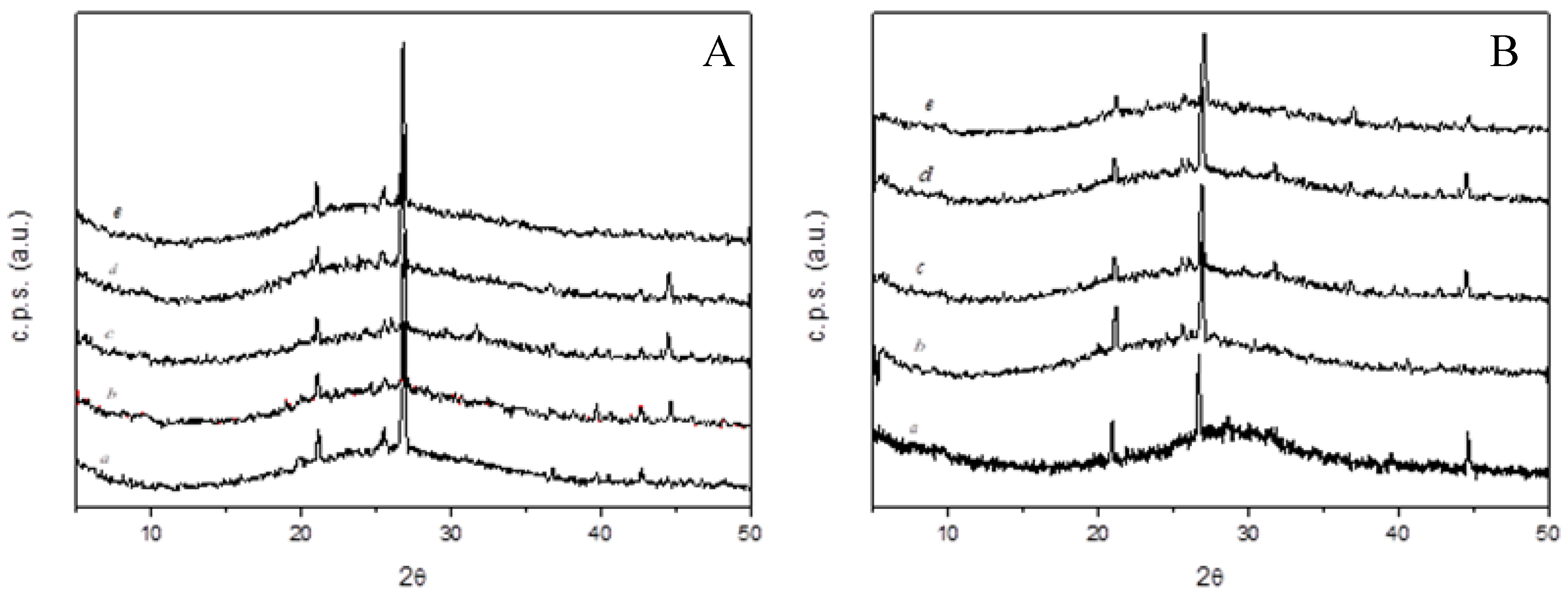

The results of heating cycles, in terms of XRD patterns, are reported in Figure 12A,B for a FBA content of 0% and 30%, respectively. The broadening of the main feature in geopolymers diffractograms with the increasing of temperature can be attributed to network strain and distortion due to dehydration and shrinkage of the geopolymer network as elsewhere reported [29].

All of the specimens appear essentially amorphous to XRD, with peaks from crystalline phases in parent materials and with no evidence of new crystalline phases being formed during thermal cycles, regardless of the amount of metakaolin replacement. Furthermore, with the increasing of temperature, quartz peaks become less pronounced, possibly reflecting a degree of dissolution under the temperature and alkaline conditions [30].

All of the above findings contribute to the loss of mechanical properties of the produced mortars after the thermal cycles. Compression strength measurements, reported in Figure 13, show an overall loss of about 80% of the initial value, regardless of the amount of metakaolin replacement. However, it must be pointed out that all of the specimens retained their cohesiveness during thermal treatments.

4. Conclusions

The results acquired throughout the present investigation allow deriving the following conclusions:

• The inclusion of FBA as a partial replacement of metakaolin in geopolymer mortars results in a proportional increasing of workability. This behavior can be ascribed to both an increased rate in the dissolution of metakaolin due to both the higher alkalinity of the reaction mixes containing FBA their greater average particles size than metakaolin.
• Weight ratio (metakaolin + FBA)/ alkali silicate solution (dry basis) increases from 1.35/1 when only metakaolin is used to 1.7:1 when 30% wt of FBA is used.
• All of the manufactured geopolymeric mortars show at XRD analysis the characteristic broad hump centered at approximately 28° 2θ, regardless of FBA content. SEM analysis reveals that geopolymers mortars with only metakaolin show a dense and continuous gel-like matrix with few clear particles or particle boundaries, while geopolymers mortars with FBA show a more porous and patchy matrix.
• The use of FBA at a level of replacement of higher than 10% wt affects the mechanical properties of the geopolymeric mortar, reducing proportionally the compressive and flexural strength of the mortars, for all curing times. Nevertheless, a compression strength of more than 35 MPa is still obtained with a replacement of 30% wt of metakaolin.
• Mortars containing FBA show higher sorptivities values. This suggests that FBA alters the structure of the pores.
• The inclusion of FBA slightly increases both the drying shrinkage, due to a higher porosity.
• All of the hardened mortars, after thermal treatments, show an overall loss of mechanical strength of about 80% of the initial value that can be attributed to the network strain and distortion due to dehydration and shrinkage, and to a degree of dissolution of quartz under the used temperatures and alkaline conditions.

Therefore, it can be concluded that FBA can be potentially used as partial replacement material in the production of metakaolin (MK) based geopolymeric mortars. Further investigations based on durability tests are ongoing.
