Case Report

An Asymptomatic Patient with Fatal Infertility Carried a Swedish Strain of Chlamydia trachomatis with Additional Deletion in The Plasmid orf1 that Belonged to A Different MLST Sequence Type

by
Valentina A. Feodorova
1,*,
Sergey S. Zaitsev
1,
Yury V. Saltykov
1,
Edgar S. Sultanakhmedov
2,
Andrew L. Bakulev
2,
Sergey S. Ulyanov
3 and
Vladimir L. Motin
4,*
1
Laboratory for Molecular Biology and NanoBiotechnology, Federal Research Center for Virology and Microbiology, Branch in Saratov, 410028 Saratov, Russia
2
Department for Skin Diseases, Saratov State Medical University named after Razumovsky, 410028 Saratov, Russia
3
Department for Medical Optics, Saratov State University, 410012 Saratov, Russia
4
Departments of Pathology and Microbiology & Immunology, University of Texas Medical Branch, Galveston, TX 77555-1019, USA
*
Authors to whom correspondence should be addressed.
Microorganisms 2019, 7(7), 187; https://doi.org/10.3390/microorganisms7070187
Submission received: 29 April 2019 / Revised: 20 June 2019 / Accepted: 25 June 2019 / Published: 28 June 2019
(This article belongs to the Special Issue Chlamydiae and Chlamydia like Bacteria)
Browse Figures
Review Reports Versions Notes

Abstract

:
Here, we present the first case of asymptomatic genital Chlamydial infection caused by the new emerging Chlamydia trachomatis (C.t.) ST13 strain genovar E, which has a double deletion of 377 bp and 17 bp in orf1 gene of the cryptic plasmid (ddCT). This case occurred in an infertile patient (case-patient) with a detectable level of Chlamydial antibodies and a spermatozoa deficiency known as azoospermia. Additionally, the ddCT strain showed the presence of a duplication of 44 bp in the plasmid orf3 and SNP in orf4, which were known as the typical characteristics of the Swedish variant of C.t. (nvCT) genovar E. Multilocus sequence typing (MLST) determined a significant difference between ddCT and nvCT in four alleles (oppA, hfiX, gitA and enoA). Both ddCT and nvCT were assigned to different genetic lineages and could be allocated to two different non-overlapping clonal complexes. Furthermore, ddCT demonstrated a considerable difference among 4–5 alleles in comparison with other C.t. strains of genovar E of ST4, ST8, ST12, and ST94, including the founder of a single relevant cluster, wtCT E/SW3 (Swedish genetic lineage). In contrast to other genovar E strains, ddCT had identical alleles with seven out of seven loci found in ST13 strains of genovars D and G, including the founder for this clonal group, D/UW-3/CX, and six out of seven loci found in its derivatives, such as ST6, ST10, and ST95 of genovars G and H. Nevertheless, MSTree V2 showed that ddCT and nvCT could have a common early ancestor, which is a parental C.t. G/9301 strain of ST9. A significant difference between ddCT and nvCT of genovar D (nvCT-D) that was recently found in Mexico was also determined as: (i) ddCT belonged to genovar E but not to genovar D; (ii) ddCT had a 44 bp duplication within the orf3 of the plasmid typical for nvCT; (iii) ddCT possessed an additional 17 bp deletion in the orf1. In conclusion, improved case management should include the clinical physician’s awareness of the need to enhance molecular screening of asymptomatic Chlamydia patients. Such molecular diagnostics might be essential to significantly reducing the global burden of Chlamydial infection on international public health.

1. Subject

Here, we report a case of asymptomatic genital Chlamydial infection caused by the Chlamydia trachomatis (C.t.) strain with double deletion in the orf1 gene of the cryptic plasmid (ddCT) identified in the infertile patient (case-patient) with a detectable level of Chlamydial antibodies (the ddCT sequence reported in this research was deposited in GenBank, the accession number is MH595818.1). The ddCT strain had an exact 377 bp deletion in the orf1 as the Swedish C.t. isolates known as the novel variant of C. trachomatis (nvCT). Similarly to nvCT, the ddCT belonged to the genovar E as determined by sequencing of the ompA gene. Nevertheless, in contrast to nvCT bearing only a single deletion of 377-bp in the orf1 gene, ddCT additionally had a second upstream deletion of 17-bp in size within the same gene.
The main goal of the current study was to characterize the exact differences between the ddCT and nvCT variants. We applied multilocus sequence typing (MLST) to determine the sequence type (ST) for both ddCT and nvCT. We found an evident difference in polymorphism of their housekeeping genes, indicating that they belong to different sequence types.
The patient has given written informed consent to participate in the study and to publish the case details.

2. Case

The case-patient, a man between 20–25 years old, sought care from the Clinic for Skin and Venereal Diseases, Saratov State Medical University, Saratov, Russia. The reason for this was the presence of a detectable level of Chlamydial antibodies observed in his serum (Table 1). He began engaging in sexual intercourse at the age of 16. Since that time, he had a single regular heterosexual partner from Saratov city. He indicated that he smokes. He denied any other pernicious habits or addiction to alcohol or any other previous Sexually Transmitted Diseases (STDs). He had no complaints, as well as clinical manifestations of any infections including bladder- or kidney-related infections. Physical examination showed no signs of an inflammation of the urethra. Palpation of the urethra and scrotum was painless and revealed no changes, including any swelling of the testicles. After the massage, there were urethral secretions and discharge from the penis. Per rectum examination demonstrated that the prostate gland was not enlarged, and that it possessed densely-elastic consistency, was painless, and the median furrow was clearly contoured. The seminal vesicles were not palpable. Ultrasound investigation on the pelvic region registered no pathology. However, specific Chlamydial immunoglobulin G (IgG) was confidently registered in ELISA in diagnostic titers in the case-patient serum (Table 1). The main sperm characteristics of the case-patient were the following: motility (immotile spermatozoa was 53% versus 50% of the lower WHO reference limit [1]) and vitality (35% versus 58% [1]) was changed progressively (Table S1). Also, a mild spermatozoa deficiency such as azoospermia (sperm concentration was less 15 × 106 spermatozoa per ml [1]) was registered. In order to examine the case-patient more closely, he was sent to the Federal Research Center for Virology and Microbiology, Branch in Saratov. Here, his individual clinical specimens were carefully tested by nucleic acid amplification tests (NAATs) for the detection of both plasmid and chromosomal targets of the C. trachomatis strains and the presence of both wild (wtCT) and nvCT variants.
Initially, two commercial NAATs were compared with respect to their sensitivities and specificities with the reference to international commercially available PCR kits [2]. The end-point PCR (PCR-Ep) (Research Institute of Epidemiology, Moscow, Russia, AmpliSens Chlamydia trachomatis-Eph), which aimed to detect the plasmid DNA of the wtCT, found no Chlamydial DNA in the genital specimen (urethra) of the case-patient (Table 1). In contrast, a dual-target real-time PCR (PCR-RT) assay (Real-Best DNA Chlamydia trachomatis, Vector-Best, Novosibirsk, Russia) targeting both the cryptic plasmid and the gyrA gene with the same specimen revealed a positive response indicating the presence of C.t. DNA (Table 1).
Furthermore, the presence of genetic material of nvCT in the specimen of the case-patient was confidently confirmed in PCR with a panel of primers targeting different parts of the C.t. cryptic plasmid. PCRs analysis detected the 377 bp deletion in orf1, a 44 bp duplication in orf3, and a Single Nucleotide Polymorphism (SNP) in orf4, all known to be characteristic of nvCT [3] and, with the exception of the duplication in orf3, were all found in the new variant of the nvCT (nvCT-D) that was identified recently in Mexico [4]. Therefore, the obtained data suggested the presence in our specimen of the nvCT variant that went undetected by using the PCR-Ep kit targeting the plasmid gene pgp3 (orf3).
The presence in ddCT of a 377 bp deletion typical of the orf1 in the cryptic plasmid of both nvCT and nvCT-D strains was confirmed by sequencing the PCR fragment obtained with the primers flanking this deletion [5]. Moreover, sequencing the upstream region to the 377 bp deletion of the orf1 revealed an additional 17-bp deletion (Table 1, Figure 1).
The primers amplifying this broader area of the orf1 were described previously [6,7]. To distinguish between the double deletion strain of C.t. detected in the current study in the case-patient and nvCT and nvCT-D, we designated our C.t. variant as ddCT. The presence of a cryptic plasmid in this ddCT was also confirmed by a positive PCR result with primers detecting the orf8 gene (Table 1). The ompA-based genotyping was performed by both amplification and sequencing of the relevant Variable Domain (VDII) of the ompA gene [8] and the 1156 bp-fragment of VDI–VDIV of the ompA gene as we described recently [9]. Both strains, ddCT and nvCT, had identical ompA regions with no SNP identified. Phylogenetic reconstruction of the ompA sequences of ddCT and nvCT compared with the C.t. reference strains [9,10] using the UMPGA hierarchical clustering method in MEGA 7 [11] showed that both strains could be seen in a single cluster of the C.t. genovar E variants on the dendrogram (Figure 2a). In contrast, nvCT-D belonging to genovar D [4] was assigned to another cluster corresponding to the genovar D strains (Figure 2a).
Surprisingly, multilocus sequence typing (MLST) based on seven housekeeping genes (gatA, oppA, hfiX, gitA, enoA, hemN and fumC) [9,12,13,14] determined that ddCT and nvCT had a difference in four alleles, such as oppA, hfiX, gitA and enoA, and belonged to ST13 and ST4, respectively (Table 2). Recently, when the relevant concatenated sequences of ST13 and ST4 were aligned and analyzed in MEGA 7 [11], they have been assigned to different genetic lineages of Group I and Group III as founders for each of the Groups [9,13,14]. Reconstruction of the genetic relationships of the allelic profiles of ddCT queried against MLST sequences of nvCT and the C.t. reference strains from the PubMLST database (Available online: https://pubmlst.org) in MSTree V2 [15] demonstrated that ddCT and nvCT could be allocated to two different non-overlapping clonal complexes (Figure 2b).
Overall, ddCT demonstrated a strong difference with no less than 4–5 alleles compared with other C.t. strains of genovar E, belonging to ST4, ST8, ST12 and ST94 that form a single cluster with the founder wtCT E/SW3 strain (Swedish genetic lineage) (Figure 2b). In contrast, ddCT had identical alleles with seven out of seven loci (100%) found in ST13 strains of genovars D and G, including the founder of this clonal group, wtCT, D/UW-3/CX strain, and six out of the seven loci (85.7%) found in its derivatives, such as ST6, ST10, and ST95 of genovars G and H (Table 2), and the early ancestor or parental C.t. G/9301 strain of ST9 (Figure 2b).
In summary, based on the MLST typing results, ddCT might be a new variant of C.t. genovar E of the ST13 cluster, bearing a 377 bp deletion in the C.t. cryptic plasmid that is typical for both nvCT and nvCT-D.

3. Background

C. trachomatis is recognized as one of the most successful pathogens and has significantly over performed all other infectious agents in the number of cases of human genital infection among sexually active adolescents and young adults [16,17]. Chlamydial infection remains among the top sexually transmitted diseases (STDs) as the most commonly reported nationally notifiable disease for many countries [16,17]. In fact, despite the presence and availability of a number of commercial highly sensitive diagnostic NAATs, many cases of Chlamydial genital infection are still not detected [16]. The underlying reason of such inefficient diagnostics is related to the absence of specific clinical manifestations or an asymptomatic course for human genital Chlamydial infection. Such latent Chlamydia patients have no reasons to be seeking care and can be diagnosed accidentally during examination for the complications of Chlamydial infection [18]. The progression of undiagnosed infection can lead to severe reproductive complications in Chlamydia patients, such as pelvic inflammatory disease and tubal infertility [19,20]. PCR-based diagnostics has been developed and successfully applied widely for the detection of typical wild strains of C. trachomatis (wtCT) in human clinical specimens. The recent emergence of C. trachomatis strains known as a new Swedish variant (nvCT), resulted in a new wave of Chlamydial outbreaks at the beginning of 21st century [20]. These nvCT strains were defective in the orf1 gene of the cryptic plasmid and were not detected by the PCR kits targeted to the relevant gene [6,7,21]. This diagnostic escape provided such strains with a great advantage over wtCT and led to their rapid spread in a number of European countries [6,7] and even in some regions of the Russian Federation [2,22,23]. In fact, after the first case of nvCT documented in Sweden in 2006, the proportion of these CT strains was dramatically increased, reaching up to 20–65% in some Scandinavian countries [21,24]. Retrospective analysis revealed the presence of nvCT in these regions since 2003. While being undetectable, nvCT could have produced at least 15,000 false-negative tests in Chlamydia patients during 2003–2006 [25]. Efficacy of laboratory diagnostics of C.t. was significantly improved when dual-target NAATs for the simultaneous detection of both wtCT and nvCT were included in a standard laboratory protocol of C.t. screening in patients suspicious for Chlamydia infection. As a result, the nvCT proportion markedly decreased in the counties implementing these diagnostic systems, falling from 56% in 2007 to 6.5% in 2015 [21]. In fact, only isolated cases of Chlamydia genital infection caused by nvCT have been reported worldwide recently [2,4,22,23,26,27]. However, it is clear that the reports of such nvCT-caused cases in Chlamydia patients could be relatively rare because the majority of countries only use NAATs for the detection of wtCT [1,9,17,20,27,28]. This illustrates the importance of including the dual-target NAATs detection methods for nvCT strains in the investigation of Chlamydia cases with false-negative results in PCR targeted exclusively at the wtCT strains [23,27]. Importantly, Chlamydia infection with nvCT was more frequently asymptomatic, suggesting a possible difference in virulence between the nvCT strain and the wtCT strain [18,23,27]. Nevertheless, generally no major genetic diversity was found between genomes of the nvCT and the wtCT strains detected in Sweden. Therefore, it is still unclear whether there is a difference in biological fitness between the two variants, which demonstrated high similarity with respect to epidemiological distribution and minimal differences in clinical signs in the vast majority of Chlamydia patients [29]. All Swedish nvCT strains tested thus far had identical MLST profiles. Thus, the transmission studies of nvCT in Sweden conducted for the past ten years suggested that Swedish nvCT variant is clonal and genetically stable [21]. However, a recent report described a new C.t. variant in Chlamydia patients, which also contained an identical deletion of 377 bp in the plasmid orf1 [4]. This novel strain was detected in Mexico and showed a distinct polymorphism of the ompA and pmpH genes. In contrast to the Swedish nvCT strains belonging to genovar E [2,18,21,23,24,26,27,29], the Mexican C.t. strain was identified as genovar D (nvCT-D), and showed the absence of a 44 bp perfect tandem duplication within the plasmid orf3 characteristic of nvCT [4].
Here, this is the first report on the existence of another nvCT-type variant, ddCT, containing additional upstream deletion in the plasmid orf1 and belonging to different serovar E ST cluster.

4. Discussion

C. trachomatis infections, which most frequently are asymptomatic, still are a major public health concern globally [30]. Therefore, the updated European standards have aimed to improve the tools for testing and develop of clear recommendations to identify, verify, and report C.t. variants to better control their spread. Based on molecular epidemiology typing techniques, such as MLST, tools for cluster, network and phylogenetic analyses [31] were developed. These approaches are currently widely used to reveal transmission networks, risk groups, and evolutionary pathways resulting in the discovery of new variants of C.t., nvCT and nvCT-D [4,6,7,31]. In the reported case, the C.t. strain detected by us and designated as ddCT was significantly different from the earlier identified Swedish nvCT due to two main characteristics: (i) ddCT had ST13 rather than ST4 characteristic as in all previously described genovar E nvCT strains (Table 2, Figure 2b); (ii) ddCT contained an additional 17 bp deletion within the orf1 of the plasmid (Table 1, Figure 1). Our data revealed a notable difference of ddCT from other C.t. variants of ST4 of the genovar E strains, including nvCT (Sweden2), as well as with the founder for this clonal group, E/SW3 (wtCT) typical for Sweden and other European countries including Russia [13,14,27,32,33]. The ddCT reported here was strongly grouped in a ST13 cluster that originated from C.t. strains belonging to genovars that are different from E, such as G/9301 and D/UW-3/CX, which were identified early in genital sites of Chlamydia patients in Seattle, USA [32,34]. Thus, based on the MLST data analysis, ddCT and nvCT were assigned to different genetic lineages of C.t.. Nevertheless, both C.t. variants diverged from a common C.t. progenitor (Figure 2a,b). Moreover, a strong difference exists between ddCT and recently described Mexican nvCT-D in several characteristics: (i) similarly to nvCT, ddCT belonged to genovar E [2,18,21,23,24,26,27,29], while nvCT-D was identified as genovar D [4]; (ii) ddCT showed the presence of a 44 bp perfect tandem duplication within the orf3 of the cryptic plasmid, which is typical of genovar E nvCT, whereas nvCT-D lacked this duplication; (iii) a unique additional 17 bp deletion was identified for the first time in the orf1 of the ddCT plasmid (Table 1, Figure 1). Unfortunately, the data on the sequence type of the Mexican isolate nvCT-D were not presented for further comparison [4].
The appearance of additional deletion within the orf1 already damaged by the lack of 377 bp fragment in this gene characteristic to Swedish strains was not very surprising, as the pseudogenes have a tendency to further accumulate the mutations. Nevertheless, this novel 17 bp deletion in ddCT can serve as a prominent marker for this lineage of the nvCT-type strains. Similarly, we predict further identification of C.t. variants with additional deletion(s) in the orf3 of nvCT and ddCT due to the impairment of this gene by the 44 bp duplication, resulting in the appearance of another pseudogene on the plasmid. Overall, the most likely scenario for the formation of nvCT, ddCT, and nvCT-D was their divergence from a common ancestor strain by first obtaining a 377 bp deletion in the orf1, then dividing into genovars E and D, followed by gaining a 44 bp duplication in the orf3 of the genovar E variant, and its further separation into ST4 (nvCT) and ST13 (ddCT). Another possible scenario is an independent formation of identical 377 bp deletion and 44 bp duplication in C.t.s with different genovars and sequence types. This scenario is less likely as there are no direct or inverted repeats present in the orf1 and orf3, which could serve as points for recombination.
The most important question which still remains is the role of plasmid or its orf1 in C.t. pathogenesis [6,7,35]. The orf1 encodes a putative integrase of 305 amino acid (a.a.) residues in size, and a 377 bp deletion in nvCT strains, while removing a primer binding site for the diagnostic NAATs can theoretically lead to the formation of a shortened but still active 178 bp peptide [35]. In this respect, the presence of an additional 17 bp impairment upstream of 377 bp deletion in ddCT will ensure the integrase inactivation. Then, the apparent toxic effect on the case-patient spermatozoa can indirectly indicate a certain relationship between the main sperm characteristics, especially motility and vitality (Table S1) and the integrase activity. This hypothesis requires additional studies.

5. Conclusions

The number of genital tract C.t. infections is steadily increasing worldwide with approximately 50–70% of infections being asymptomatic and causing a significant burden on health care systems [38]. Despite the significant progress in molecular diagnostics of wtCT, as well as our knowledge of Chlamydia evolution, this study demonstrates the presence in Chlamydia patients of a novel nvCT variant with diverse modifications in the loci that could be used as diagnostic and genotyping targets. This type of strains could compromise certain NAATs, resulting in a hidden emerging epidemic. Therefore, improved case management should include clinical physician’s awareness of the need to enhance molecular screening of asymptomatic Chlamydia patients. Such molecular diagnostics might be essential to significantly reducing the global burden of Chlamydial infection on international public health.

Supplementary Materials

The following are available online at https://www.mdpi.com/2076-2607/7/7/187/s1, Table S1: The main sperm characteristics of the case-patient, Saratov city, 2012.

Author Contributions

For research articles with several authors, a short paragraph specifying their individual contributions must be provided. The following statements should be used “conceptualization, V.F., S.U. and V.M.; methodology, V.F.; software, S.Z. and S.U.; validation, V.F. and S.Z.; formal analysis, V.A.; investigation, V.F., Y.S., E.S., S.Z. and V.M.; resources, V.F., E.S., A.B. and V.M.; data curation, V.F., E.S., A.B., S.U. and V.M.; writing—original draft preparation, V.F. and V.M.; writing—review and editing, V.F. and V.M.

Funding

This research was funded by the RUSSIAN SCIENCE FOUNDATION, grant number 17-16-01099.

Acknowledgments

We are grateful to the volunteers who kindly contributed to our study.

Conflicts of Interest

The authors have no conflict of interests to disclose.

References

  1. WHO Laboratory Manual for the Examination and Processing of Human Semen, 5th ed.; World Health Organization: Geneva, Switzerland, 2010; Available online: https://apps.who.int/iris/bitstream/handle/10665/44261/9789241547789_eng.pdf?sequence=1&isAllowed=y (accessed on 31 December 2010).
  2. Shipitsyna, E.; Hadad, R.; Ryzhkova, O.; Savicheva, A.; Domeika, M.; Unemo, M. First reported case of the Swedish new variant of Chlamydia trachomatis (nvCT) in Eastern Europe (Russia), and evaluation of Russian nucleic acid amplification tests regarding their ability to detect nvCT. Acta. Derm. Venereol. 2012, 92, 330–331. [Google Scholar] [CrossRef] [PubMed]
  3. Unemo, M.; Clarke, I.N. The Swedish new variant of Chlamydia trachomatis. Curr. Opin. Infect. Dis. 2011, 24, 62–69. [Google Scholar] [CrossRef] [PubMed]
  4. Escobedo-Guerra, M.R.; Katoku-Herrera, M.; Lopez-Hurtado, M.; Villagrana-Zesati, J.R.; de Haro-Cruz, M.J.; Guerra-Infante, F.M. Identification of a new variant of Chlamydia trachomatis in Mexico. Enferm. Infecc. Microbiol. Clin. 2018. [Google Scholar] [CrossRef]
  5. Catsburg, A.; van Dommelen, L.; Smelov, V.; de Vries, H.J.C.; Savitcheva, A.; Domeika, M.; Herrmann, B.; Ouburg, S.; Hoebe, C.J.P.A.; Nilsson, A.; et al. TaqMan Assay for Swedish Chlamydia trachomatis Variant. Emerg. Infect. Dis. 2007, 13, 1432–1434. [Google Scholar] [CrossRef] [PubMed]
  6. Ripa, T.; Nilsson, P. A variant of Chlamydia trachomatis with deletion in cryptic plasmid: Implications for use of PCR diagnostic tests. Euro. Surveill. 2006, 11, E061109.2. [Google Scholar] [CrossRef] [PubMed]
  7. Ripa, T.; Nilsson, P. A Chlamydia trachomatis strain with a 377-bp deletion in the cryptic plasmid causing false-negative nucleic acid amplification tests. Sex. Transm. Dis. 2007, 34, 255–256. [Google Scholar] [CrossRef] [PubMed]
  8. Quint, K.D.; van Doorn, L.J.; Kleter, B.; de Koning, M.N.; van den Munckhof, H.A.; Morre, S.A.; ter Harmsel, B.; Weiderpass, E.; Harbers, G.; Melchers, W.J.G.; et al. A highly sensitive, multiplex broad-spectrum PCR- DNA-enzyme immunoassay and reverse hybridization assay for rapid detection and identification of Chlamydia trachomatis serovars. J. Mol. Diagn. 2007, 9, 631–638. [Google Scholar] [CrossRef]
  9. Feodorova, V.A.; Konnova, S.S.; Saltykov, Y.V.; Zaitsev, S.S.; Subbotina, I.A.; Polyanina, T.I.; Ulyanov, S.S.; Lamers, S.L.; Gaydos, C.A.; Quinn, T.C.; et al. Urogenital Chlamydia trachomatis multilocus sequence types and genovar distribution in Chlamydia infected patients in a multi-ethnic region of Saratov, Russia. PLoS ONE 2018, 13, e0195386. [Google Scholar] [CrossRef]
  10. Lysén, M.; Osterlund, A.; Rubin, C.J.; Persson, T.; Persson, I.; Herrmann, B. Characterization of ompA genotypes by sequence analysis of DNA from all detected cases of Chlamydia trachomatis infections during 1 year of contact tracing in a Swedish County. J. Clin. Microbiol. 2004, 42, 1641–1647. [Google Scholar] [CrossRef]
  11. Kumar, S.; Stecher, G.; Tamura, K. MEGA7: Molecular Evolutionary Genetics Analysis version 7.0 for bigger datasets. Mol. Biol. Evol. 2016. [Google Scholar] [CrossRef]
  12. Klint, M.; Fuxelius, H.H.; Goldkuhl, R.R.; Skarin, H.; Rutemark, C.; Andersson, S.G.E.; Persson, K.; Herrmann, B. High-resolution genotyping of Chlamydia trachomatis strains by multilocus sequence analysis. J. Clin. Microbiol. 2007, 45, 1410–1414. [Google Scholar] [CrossRef] [PubMed]
  13. Pannekoek, Y.; Morelli, G.; Kusecek, B.; Morré, S.A.; Ossewaarde, J.M.; Langerak, A.A.; van der Ende, A. Multi locus sequence typing of Chlamydiales: Clonal groupings within the obligate intracellular bacteria Chlamydia trachomatis. BMC Microbiol. 2008, 8, 42. [Google Scholar] [CrossRef] [PubMed]
  14. Ikryannikova, L.N.; Shkarupeta, M.M.; Shitikov, E.A.; Il’ina, E.N.; Govorun, V.M. Comparative evaluation of new typing schemes for urogenital Chlamydia trachomatis isolates. FEMS Immunol. Med. Microbiol. 2010, 59, 188–196. [Google Scholar] [CrossRef]
  15. Zhou, Z.; Alikhan, N.F.; Sergeant, M.J.; Luhmann, N.; Vaz, C.; Francisco, A.P.; Carriço, J.A.; Achtman, M. GrapeTree: Visualization of core genomic relationships among 100,000 bacterial pathogens. Genome Res. 2018. [Google Scholar] [CrossRef] [PubMed]
  16. Centers for Disease Control and Prevention (CDC). CDC Grand Rounds: Chlamydia prevention: Challenges and strategies for reducing disease burden and sequelae. MMWR. Morb. Mortal. Wkly. Rep. 2011, 60, 370–373. [Google Scholar]
  17. Torrone, E.; Papp, J.; Weinstock, H. Prevalence of Chlamydia trachomatis genital infection among persons aged 14-39 years--United States, 2007-2012. Centers for Disease Control and Prevention (CDC). MMWR. Morb. Mortal. Wkly. Rep. 2014, 63, 834–838. [Google Scholar] [PubMed]
  18. Bjartling, C.; Osser, S.; Johnsson, A.; Persson, K. Clinical Manifestations and Epidemiology of the New Genetic Variant of Chlamydia trachomatis. Sex. Transmit. Dis. 2009, 36, 529–535. [Google Scholar] [CrossRef] [PubMed]
  19. Carey, A.J.; Beagley, K.W. Chlamydia trachomatis, a hidden epidemic: Effects on female reproduction and options for treatment. Am. J. Reprod. Immunol. 2010, 63, 576–586. [Google Scholar] [CrossRef]
  20. Eley, A. How to detect Chlamydia trachomatis in males? J. Androl. 2011, 32, 15–22. [Google Scholar] [CrossRef]
  21. Dahlberg, J.; Hadad, R.; Elfving, K.; Larsson, I.; Isaksson, J.; Magnuson, A.; Fredlund, H.; Unemo, M.; Herrmann, B. Ten years transmission of the new variant of Chlamydia trachomatis in Sweden: Prevalence of infections and associated complications. Sex. Transm. Infect. 2018, 94, 100–104. [Google Scholar] [CrossRef]
  22. Feodorova, V.A.; Sultanakhmedov, E.S.; Polyanina, T.I.; Saltykov, Y.V.; Utz, S.R.; Corbel, M.J.; Motin, V.L. Infection with the novel ‘Swedish’ variant of Chlamydia trachomatis as a probable cause of human infertility: A clinical case study. In Proceedings of the IUSTI Europe Scientific Meeting, St Julian, Malta, 18–20 September 2014; p. 106. [Google Scholar]
  23. Fedorova, V.A.; Sultanakhmedov, E.S.; Saltykov, Y.V.; Utz, S.R.; Motin, V.L. Improvement of laboratory diagnostics of urogenital Chlamydial infection in patients with impaired reproductive functions found to be infected with Chlamydia trachomatis. Vestnik. Dermatologii. i Venerologii. 2014, 2, 34–44. [Google Scholar] [CrossRef]
  24. Herrmann, B.; Turner, A.; Low, N.; Klint, M.; Nilsson, A.; Velicko, I.; Söderblom, T.; Blaxhult, A. Emergence and spread of Chlamydia trachomatis variant, Sweden. Emerg. Infect. Dis. 2008, 14, 1462–1465. [Google Scholar] [CrossRef] [PubMed]
  25. Jurstrand, M.; Fredlund, H.; Unemo, M. The new variant of Chlamydia trachomatis was present as early as 2003 in Orebro County, Sweden, but remained undetected until 2006. Sex. Transm. Infect. 2013, 89, 607–608. [Google Scholar] [CrossRef] [PubMed]
  26. Piñeiro, L.; Bernal, S.; Bordes, A.; Palomares, J.C.; Gilarranz, R.; von Wichmann, M.A.; Cilla, G. Minimum spread of the new Swedish variant of Chlamydia trachomatis and distribution of C. trachomatis ompA genotypes in three geographically distant areas of Spain, 2011-2012. Infection 2014, 42, 905–912. [Google Scholar] [CrossRef] [PubMed]
  27. Feodorova, V.; Sultanakhmedov, E.; Saltykov, Y.; Zaitsev, S.; Utz, S.; Corbel, M.; Gaydos, C.; Quinn, T.; Motin, V. First detection of Chlamydia trachomatis ‘Swedish’ variant (nvCT) in a Russian couple with infertility. Open. Microbiol. 2018, 12, 343–352. [Google Scholar] [CrossRef]
  28. Dean, D.; Bruno, W.J.; Wan, R.; Gomes, J.P.; Devignot, S.; Mehari, T.; de Vries, H.J.C.; Morré, S.A.; Myers, G.; Read, T.D.; et al. Predicting phenotype and emerging strains among Chlamydia trachomatis infections. Emerg. Infect. Dis. 2009, 15, 1385–1394. [Google Scholar] [CrossRef] [PubMed]
  29. Unemo, M.; Seth-Smith, H.M.; Cutcliffe, L.T.; Skilton, R.J.; Barlow, D.; Goulding, D.; Persson, K.; Harris, S.R.; Kelly, A.; Bjartling, C.; et al. The Swedish new variant of Chlamydia trachomatis: Genome sequence, morphology, cell tropism and phenotypic characterization. Microbiology 2010, 156, 1394–1404. [Google Scholar] [CrossRef] [PubMed]
  30. Lanjouw, E.; Ouburg, S.; de Vries, H.J.; Stary, A.; Radcliffe, K.; Unemo, M. 2015 European guideline on the management of Chlamydia trachomatis infections. Int. J. STD. AIDS. 2016, 27, 333–348. [Google Scholar] [CrossRef]
  31. Nunes, A.; Gomes, J.P. Evolution, phylogeny, and molecular epidemiology of Chlamydia. Infect. Genet. Evol. 2014, 23, 49–64. [Google Scholar] [CrossRef]
  32. Harris, S.R.; Clarke, I.N.; Seth-Smith, H.M.; Solomon, A.W.; Cutcliffe, L.T.; Marsh, P.; Skilton, R.J.; Holland, M.J.; Mabey, D.; Peeling, R.W.; et al. Whole-genome analysis of diverse Chlamydia trachomatis strains identifies phylogenetic relationships masked by current clinical typing. Nat. Genet. 2012, 44, 413–419. [Google Scholar] [CrossRef]
  33. Smelov, V.; Vrbanac, A.; van Ess, E.F.; Noz, M.P.; Wan, R.; Eklund, C.; Morgan, T.; Shrier, L.A.; Sanders, B.; Dillner, J.; et al. Chlamydia trachomatis strain types have diversified regionally and globally with evidence for recombination across geographic divides. Front. Microbiol. 2017, 13, 2195. [Google Scholar] [CrossRef] [PubMed]
  34. Jeffrey, B.M.; Suchland, R.J.; Quinn, K.L.; Davidson, J.R.; Stamm, W.E.; Rockey, D.D. Genome Sequencing of Recent Clinical Chlamydia trachomatis Strains Identifies Loci Associated with Tissue Tropism and Regions of Apparent Recombination. Infect. Immun. 2010, 78, 2544–2553. [Google Scholar] [CrossRef] [PubMed]
  35. Seth-Smith, H.M.; Harris, S.R.; Pearsson, K.; Marsh, P.; Barron, A.; Bignell, A.; Bjartling, C.; Clark, L.; Cutcliffe, L.T.; Lambden, P.R.; et al. Co-evolution of genomes and plasmids within Chlamydia trachomatis and the emergence in Sweden of a new variant strain. BMC Genom. 2009, 10, 239. [Google Scholar] [CrossRef] [PubMed]
  36. Pannekoek, Y.; Dickx, V.; Beeckman, D.S.; Jolley, K.A.; Keijzers, W.C.; Vretou, E.; Maiden, M.C.J.; Vanrompay, D.; van der Ende, A. Multi locus sequence typing of Chlamydia reveals an association between Chlamydia psittaci genotypes and host species. PLoS ONE. 2010, 5, e14179. [Google Scholar] [CrossRef] [PubMed]
  37. Read, T.D.; Brunham, R.C.; Shen, C.; Gill, S.R.; Heidelberg, J.F.; White, O. Genome sequences of Chlamydia trachomatis MoPn and Chlamydia pneumonia AR39. Nucleic. Acids. Res. 2000, 28, 1397–1406. [Google Scholar] [CrossRef] [PubMed]
  38. Carey, A.J.; Timms, P.; Rawlinson, G.; Brumm, J.; Nilsson, K.; Harris, J.M.; Beagley, K.W. A Multi-subunit Chlamydial vaccine induces antibody and cell-mediated immunity in immunized koalas (Phascolarctos cinereus): Comparison of three different adjuvants. Am. J. Reprod. Immunol. 2010, 63, 161–172. [Google Scholar] [CrossRef] [PubMed]
Microorganisms 07 00187 g001 550

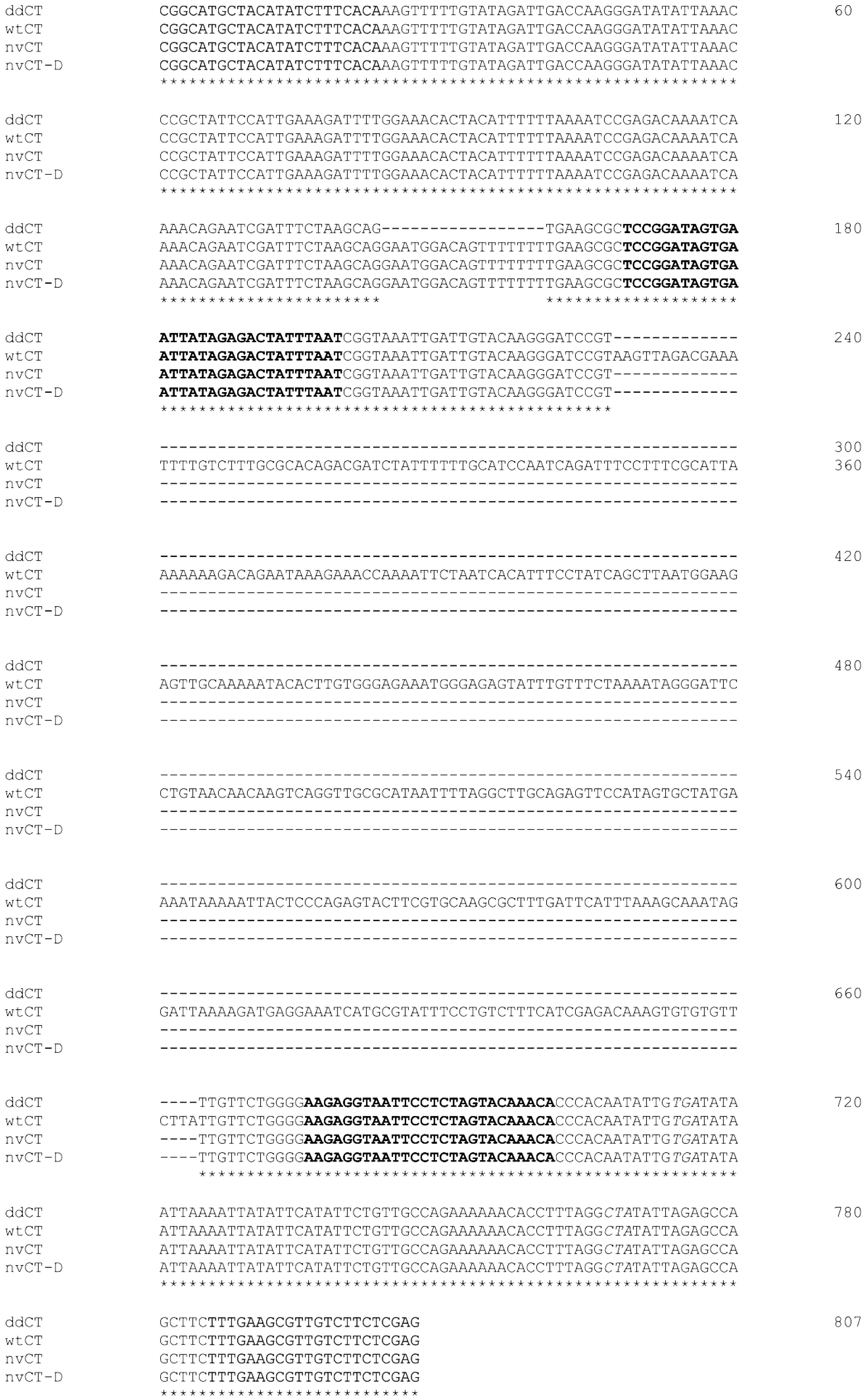

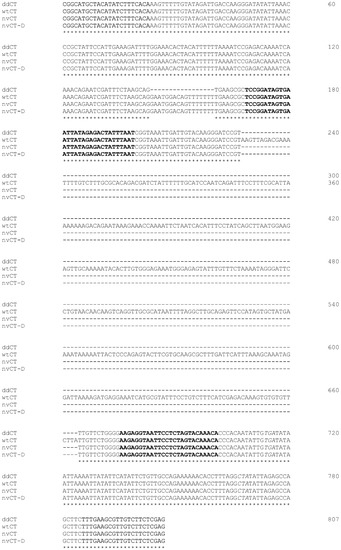

Figure 1. Alignment of the orf1 of the cryptic plasmid of C. trachomatis for wtCT, nvCT and nvCT-D with the partial corresponding sequence of the case-patient sample from urethra (ddCT) amplified with primers gB_swCT-F/R (highlighted). Stop codons for the orf1 (TGA) and orf2 genes (TAG, in complementary chain) are in italic. The primers swCT_serE-F/R flanking the 377 bp deletion in the nvCT strain are in bold. The sequence of the case-patient contains both 17-bp and 377-bp deletions.
Figure 1. Alignment of the orf1 of the cryptic plasmid of C. trachomatis for wtCT, nvCT and nvCT-D with the partial corresponding sequence of the case-patient sample from urethra (ddCT) amplified with primers gB_swCT-F/R (highlighted). Stop codons for the orf1 (TGA) and orf2 genes (TAG, in complementary chain) are in italic. The primers swCT_serE-F/R flanking the 377 bp deletion in the nvCT strain are in bold. The sequence of the case-patient contains both 17-bp and 377-bp deletions.
Microorganisms 07 00187 g001
Microorganisms 07 00187 g002 550

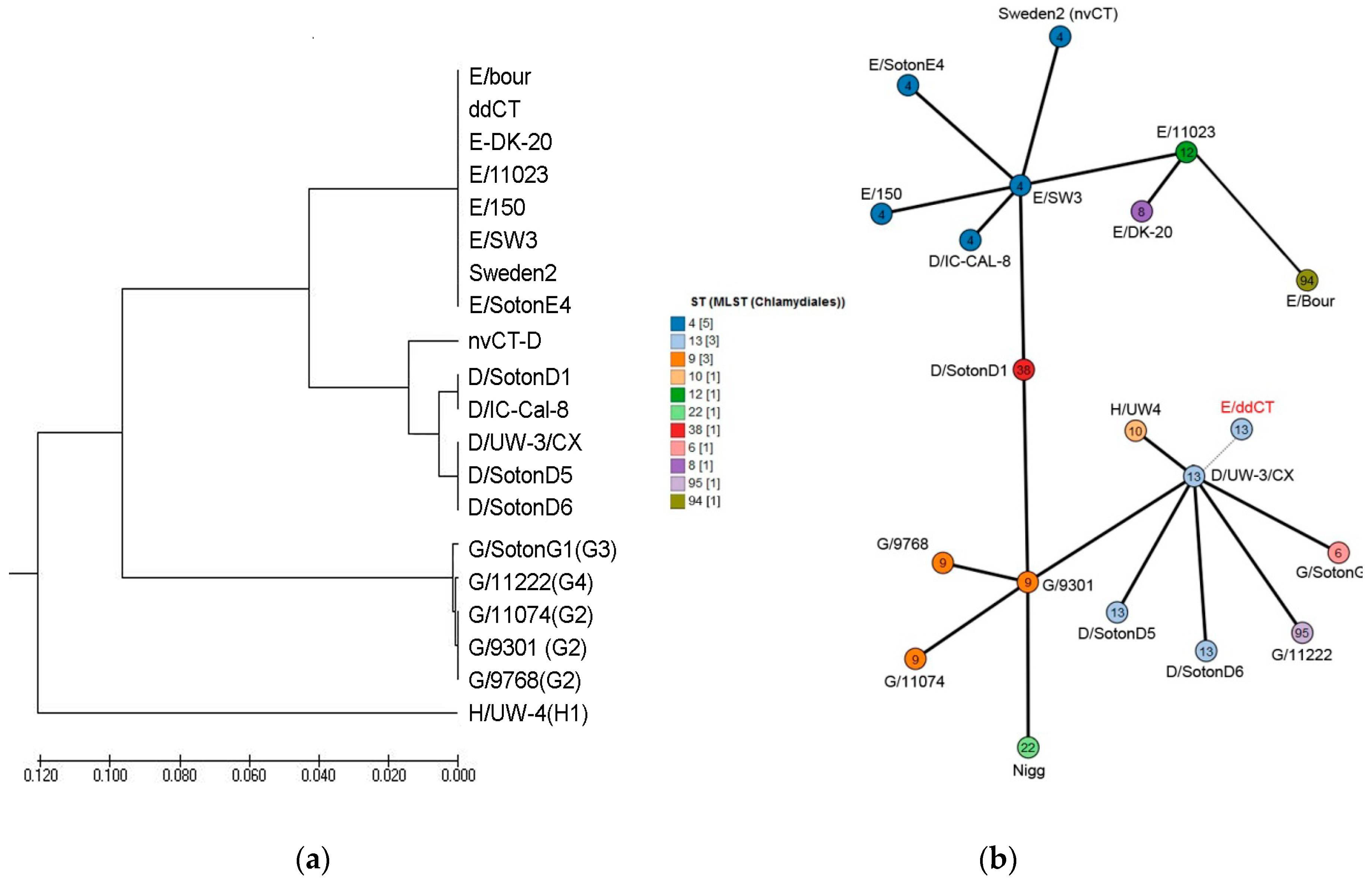

Figure 2. (a) Phylogenetic tree demonstrating the relationship of the ompA sequences of ddCT (GenBank accession No. MH782166), nvCT, nvCT-D (GenBank accession No. KY474386) to reference strains of C.t. genovar E from Table 2. Thick branches, subtending all large clades, represent 100% bootstrap support. The scale at the bottom represents one substitution per site. (b) GrapeTree clustering of 10 STs available in Chlamydiales PubMLST database (Available online: https://pubmlst.org/chlamydiales/). Each node corresponds to a single ST with an individual color (see on the left) represented by the relevant C.t. genovar(s)/clinical isolate (indicated around each node). Two C.t. deletion variants, ddCT and nvCT (Sweden2) belong to different clusters, ST13 and ST4, respectively.
Figure 2. (a) Phylogenetic tree demonstrating the relationship of the ompA sequences of ddCT (GenBank accession No. MH782166), nvCT, nvCT-D (GenBank accession No. KY474386) to reference strains of C.t. genovar E from Table 2. Thick branches, subtending all large clades, represent 100% bootstrap support. The scale at the bottom represents one substitution per site. (b) GrapeTree clustering of 10 STs available in Chlamydiales PubMLST database (Available online: https://pubmlst.org/chlamydiales/). Each node corresponds to a single ST with an individual color (see on the left) represented by the relevant C.t. genovar(s)/clinical isolate (indicated around each node). Two C.t. deletion variants, ddCT and nvCT (Sweden2) belong to different clusters, ST13 and ST4, respectively.
Microorganisms 07 00187 g002
Table
Table 1. Detection of Chlamydia from the case-patient.
Table 1. Detection of Chlamydia from the case-patient.
The case-Patient GenderAgeClinical Sample from the SitePCR-nvCTPCR-orf2 wtCT/nvCTDuplication 44 bp in orf3 of nvCTSNP in orf4 of nvCT 1PCR-orf8Genovar 2PCR-Ep 3PCR-RT 4DIFTChlamydial IgG TitersPresence of the Deletion(s) in orf1 of the Cryptic Plasmid
Typical for nvCT of 377-kbAdditional of 17-kb
Male23Urethra+−/++++E−++1:8++
1 Single nucleotide polymorphism detected in the ompA gene: the SNP position compared to the genovar E, strain E/Bour (GeneBank accession no. HE603212); 2 C. trachomatis genovar was determined based on sequence of the VDII-VDIV regions of the ompA gene; 3 End-point PCR (AmpliSens Chlamydia trachomatis-Eph) targeting plasmid DNA of the wtCT; 4 A dual-target real-time PCR (PCR-RT) assay (Real-Best DNA Chlamydia trachomatis) detecting both the cryptic plasmid and the gyrA gene.
Table
Table 2. The ompA and seven housekeeping genes MLST sequence types of ddCT, nvCT and reference strains of C. trachomatis obtained from the PubMLST database (Available online: https://pubmlst.org).
Table 2. The ompA and seven housekeeping genes MLST sequence types of ddCT, nvCT and reference strains of C. trachomatis obtained from the PubMLST database (Available online: https://pubmlst.org).
ST (MLST)AlleleompA genovar(s)Reference Strain(s) Information
oppAhfiXgitAenoAhemNfumCgatA Name (Accession Number of Identical Sequences in PubMLST Database if Available)ompA genovarReference
43112423EE/Sweden2 (269)E[29,36]
3112423E/SW3 (236)[32]
3112423E/SotonE4 (237)[32]
3112423E/150 (234)[32,34]
3112423DD/IC-Cal-8 (7)D[13]
63325313GG/SotonG1 (246)G[32]
82112423EE/DK-20 (5)E[13]
93324323GG/11074 (242)G[32,34]
3324323G/9301 (244)
3324323G/9768 (245)
103321323HH/UW-4 (18)H[13,28]
123412423EE/11023 (220)E[32,34]
133325323EE/Saratov-2u, ddCTEThis study
3325323DD/UW-3/CX (215)D[32,34]
3325323DD/SotonD5 (232)D[32]
3325323DD/SotonD6 (233)D[32]
3325323G1/G2N/AG[14]
228119111178N/ANigg (45)N/A[37]
383122423DD/SotonD1 (231)D[32]
9434132423EE/Bour (235)E[28,32]
9533285323GG/11222 (243)G[32,34]
1 N/A, Not applicable.
