Actuators 2013, 2(1), 1-18; doi:10.3390/act2010001

Article
State Space System Identification of 3-Degree-of-Freedom (DOF) Piezo-Actuator-Driven Stages with Unknown Configuration
Yu Cao * and Xiongbiao Chen
Department of Mechanical Engineering, University of Saskatchewan/57 Campus Drive, Saskatoon, SK, S7N 5A9, Canada; E-Mail: xbc719@mail.usask.ca
*
Author to whom correspondence should be addressed; E-Mail: yuc150@mail.usask.ca; Tel.: +1-306-230-7955.
Received: 31 January 2013; in revised form: 28 February 2013 / Accepted: 4 March 2013 /
Published: 8 March 2013

Abstract

: Due to their fast response, high accuracy and non-friction force, piezo-actuators have been widely employed in multiple degree-of-freedom (DOF) stages for various nano-positioning applications. The use of flexible hinges in these piezo-actuator-driven stages allows the elimination of the influence of friction and backlash clearance, as observed in other configurations; meanwhile it also causes more complicated stage performance in terms of dynamics and the cross-coupling effect between different axes. Based on the system identification technique, this paper presents the development of a model for the 3-DOF piezo-actuator-driven stages with unknown configuration, with its parameters estimated from the Hankel matrix by means of the maximum a posteriori (MAP) online estimation. Experiments were carried out on a commercially-available piezo-actuator-driven stage to verify the effectiveness of the developed model, as compared to other methods. The results show that the developed model is able to predict the stage performance with improved accuracy, while the model parameters can be well updated online by using the MAP estimation. These capabilities allow investigation of the complicated stage performance and also provide a starting point from which the mode-based control scheme can be established for improved performance.
Keywords:
cross-coupling; dynamics; Hankel matrix; state space model; system identification

1. Introduction

Piezo-actuator-driven stages have the advantages of fast response, high precision and generation of large forces. As such, they have been widely applied in semiconductors, biomedical science, production manufacturing and other devices that require nano-positioning and manipulation [1,2,3,4,5]. With the ingenious design of flexible hinges, friction and backlash clearance can be eliminated, leading to improved performance. Meanwhile, the use of flexible hinges also caused a more complicated stage. Modeling and control for one degree-of-freedom (DOF) piezo-actuator-driven stages have drawn considerable attention in the literature [6,7,8,9,10]. Due to the cross-coupling effect between different axes, the methods developed for 1-DOF piezo-actuator-driven stages may not be readily extended to multiple-axis ones [11], the research of which is still in its early stage. In [12], a three-input-three-output state space model was developed for a 3-DOF micro-stage, along with the method for parameter identification; and by experiments, it was shown that the developed model was able to predict the performance of the micro-stage with acceptable accuracy. An auto-regressive exogenous (ARX) model was developed in [13] to describe the dynamic performance of a biaxial piezo-stage, and the model was then integrated in a feedforward compensator for precision tracking control with experimental verification. However, the cross-coupling between the two axes, which might have a negative effect on the performance of the controller, was not considered in the ARX model. In [14], a fourth order linear transfer function was identified for a piezoelectric stage, where the cross-coupling effect was neglected. On this basis, a chirp signal was applied to each of the axes independently, and with the measurement outputs, the parameters in each transfer function were estimated by using the system identification technique. In [15], the dynamic equations were combined with the Bouc-Wen model for each piezoelectric actuator to describe the performance of a plane-type 3-DOF precision positioning table or stage. The parameters of the model were optimized based on the real-coded genetic algorithm (RGA) method. From the numerical simulations and experimental results, the 3-DOF cross-coupling effect was reduced by the proposed control method, and good contour tracking performance was obtained, due to successful identification of the dynamic models.

A straightforward modeling method for multi-DOF piezo-actuator-driven stages can be based on the internal configuration by means of physics laws, as mentioned above. However, such details with regard to the internal structure are often not provided by the manufactures. Therefore, system identification for multi-DOF piezo-actuator-driven stages with unknown configuration is always required for the model development. In [16] and [17], modeling of a commercially available 3-DOF piezo-actuator-driven stage was formulated as a single-input-single-output nonlinear regression problem, with the cross-coupling effect ignored. By employing the online least squares support vector machine and relevance vector machine, the model parameters were updated, once the subsequent measurement became available. The developed model was applied to the inverse-model-based feedforward control scheme combined with proportional-integral-derivative (PID) regulator, and the performance of the piezo-actuator-driven stage being controlled was improved. An alternative method to improve the performance of multi-DOF piezo-actuator-driven stage is the use of a robust linear controller, such as the sliding mode controller [18], in which the nonlinear effects are regarded as disturbance and then rejected by the robust controller. As such, a linear state space model for the multi-DOF piezo-actuator-driven stage is always desired. To meet this need, in this paper, we report the model development based on the black box system identification of for 3-DOF piezo-actuator-driven stages with unknown configuration. Specifically, a linear discrete state space model, x(k+1) = Ax(k) + Bu(k) and y(k) = Cx(k) + Du(k) (A, B, C and D are system matrices), is adopted and applied to describe the dynamics of the piezo-actuator-driven stage.

To identify the parameters of the state space model, methods have been reported in the literature [19,20,21,22,23,24,25]. In [22], a modified frequency domain subspace identification algorithm was developed based on the previous work. The power spectrum estimates was strongly consistent when the measurements were corrupted by bounded random noise. In [23], the numerical algorithms for the subspace state space system identification (N4SID) method was combined with the multivariable output-error state space (MOESP) method for improved performance. The state space model was obtained in [24] by identifying the Markov parameters (a kind of matrix impulse response) that were indirectly calculated from an identified auto-regressive model or transfer function. In [25], the system matrices in the state space model were derived through singular value decomposition (SVD) of the Hankel matrix, which was directly identified from a Hankel-Toeplitz model using the least squares method. The parameters are time-invariant, and thus, the model cannot be applied if the performance of piezo-actuator-driven stage changes with the environmental condition, such as the temperature.

To develop a state space model with updating parameters, the SVD of the Hankel matrix is strategically combined with maximum a posteriori (MAP) online estimation in this study. The parameters can be updated as new observations become available. Furthermore, MAP estimation utilizes prior information regarding the parameters and the measurement errors. Inclusion of posteriori parameter information can have the beneficial effect of reducing the variances of parameter estimators. To verify the effectiveness of the state space model identified by using the MAP online estimation, experiments were carried out on a commercially available piezo-actuator-driven stage. The estimation errors obtained from the Hankel matrix using online estimation were compared to those reported in [25], for the illustration of the proposed method effectiveness.

2. System Identification for a 3-DOF Piezo-Actuator-Driven Stage with Unknown Configuration

In this section, it is assumed that the configuration or the internal structure of 3-DOF piezo-actuator-driven stages is unknown. Also, it is assumed that the stage is regarded as a linear multiple-input and multiple-output (MIMO) system by ignoring the nonlinearity, which is reasonable, as illustrated in the experiments presented later in this paper. To represent the linear dynamics and cross-coupling effect of the stage, the simplified Hankel-Toeplitz model is adopted and employed in the present study, in which the Hankel matrix is to be identified by implementing the MAP online estimation method.

2.1. Simplified Hankel-Toeplitz Model

For a linear MIMO system, the discrete state space representation is given by:

Actuators 02 00001 i001
where Actuators 02 00001 i002, Actuators 02 00001 i003, Actuators 02 00001 i004 and Actuators 02 00001 i005 are system matrices, Actuators 02 00001 i006 is the state, Actuators 02 00001 i007 is the input, Actuators 02 00001 i008 is the output, Actuators 02 00001 i009 and Actuators 02 00001 i010 represent the ignored nonlinearity and uncertainties of the piezo-actuator-driven stage and m and q are the number of inputs and outputs, respectively. By iteration, one has:
Actuators 02 00001 i011
for any Actuators 02 00001 i012, where up and yp are defined as column vectors of the input and output data going p steps towards the future,
Actuators 02 00001 i015
vp and wp are defined as column vectors of the noises and disturbance going p steps towards the future, Bp is the controllability matrix, Cp is the observability matrix, Dp is the Toeplitz matrix for the system Markov parameters and
Actuators 02 00001 i021
If Actuators 02 00001 i022, there exists an interaction matrix M such that:
Actuators 02 00001 i023
Substituting Equation (5) into Equation (2) yields:
Actuators 02 00001 i024

Combining Equations (2) and (6) leads to the following equation, which is the so-called simplified Hankel-Toeplitz model:

Actuators 02 00001 i025
where
Actuators 02 00001 i026
Using the following denotations:
Actuators 02 00001 i027
one has Equation (7) rewritten as:
Actuators 02 00001 i028
where Actuators 02 00001 i029 represents the combined model noises and can be regarded as the model estimation error.

Define:

Actuators 02 00001 i030
the square matrix, H0, can be estimated without knowing M.

Once H0 is identified, an adjacent Actuators 02 00001 i032 can be calculated by using Equation (5) such that:

Actuators 02 00001 i033
Similarly,
Actuators 02 00001 i034
Using Actuators 02 00001 i035 as building blocks, a Hankel matrix of any size can be constructed. For example:
Actuators 02 00001 i036

2.2. Reconstruction of the System Matrices

The Hankel matrix is arranged with Markov parameters of increasing order going from left to right. Let the Hankel matrices be:

Actuators 02 00001 i037
where Actuators 02 00001 i038. Comparing Equation (14) with Equations (4), (12) and (13); Actuators 02 00001 i039 and Actuators 02 00001 i040 can then be extracted from H by rearrangement of its elements. The state space matrices are reconstructed from the Hankel matrix by employing the following Lemma 1.

Lemma 1: An s-th order state space model can be reconstructed as:

Actuators 02 00001 i041
where B is the first m columns of Actuators 02 00001 i042, C is the first q rows of Actuators 02 00001 i043 and Actuators 02 00001 i044. The matrix Us and Vs are made up of s left and right singular vectors of Actuators 02 00001 i039, and the diagonal matrix, Actuators 02 00001 i047, is made up of s corresponding singular values of Actuators 02 00001 i039 [24].

2.3. MAP Online Estimation

Equation (9) can be rewritten as, by ignoring Actuators 02 00001 i029:

Actuators 02 00001 i048
where
Actuators 02 00001 i049

By using the least squares method, θ is identified to be a time-invariant matrix, which might not be able to accurately describe the environment-dependent performance of the piezo-actuator drive stage. In order to apply the state space model in the control of piezo-actuator-driven stage, the model parameters should be updated as new observation data is available. Therefore, MAP online estimation was employed to identify the parameter matrix in Equation (16) instead.

The MAP online estimation method is used to update the parameters as the new observation data points becomes available, which is given by:

Actuators 02 00001 i050
where X has the same definition as the one given in Equation (16), Actuators 02 00001 i051 is the value of identified parameters based on the first i groups of data, Pi is the covariance of identified parameters from the first i groups of data, Actuators 02 00001 i053 is the variance matrix of measurement errors and Ei is the estimation error of the i-th group of data. Integration of the prior information regarding the parameters and the information regarding the measurement errors can have the beneficial effect of reducing variances of parameter estimators. As a result, the parameter identification could be improved.

Since the Hankel-Toeplitz model is a regression model given the zero initial condition, Ei was also calculated by using the regression method as:

Actuators 02 00001 i055
where ypi is the measurement output of the piezo-actuator-driven stage and Actuators 02 00001 i057 is the estimation output of the piezo-actuator-driven stage calculated through i-1 iterations.

2.4. Model of the 3-DOF Piezo-Actuator-Driven Stage

A three-input-three-output state space model (1) is employed for the 3-DOF piezo-actuator drive stage. By implementing the singular value decomposition on the Hankel matrix, which is estimated based on the Hankel-Toeplitz model, as shown in Lemma 1, the system matrices of the state space model can be derived.

Since the 3-DOF piezo-actuator-driven stage is previously assumed to be linear, the model identification can be implemented on each input channel individually. For example, when an input signal is only provided in one channel Actuators 02 00001 i058, the three-dimensional output Actuators 02 00001 i059, can be obtained from the identified one-input-three-output model by applying the method mentioned above:

Actuators 02 00001 i060
where Actuators 02 00001 i061, Actuators 02 00001 i062, Actuators 02 00001 i063 and Actuators 02 00001 i064 are system matrices of the one-input-three-output system.

The states for all three channels in Equation (19) may be stacked as:

Actuators 02 00001 i065
According to the definition of the linear system, the output can be expressed as the sum of Actuators 02 00001 i066, such that:
Actuators 02 00001 i067
As such, the state space model for the three-input-three-output system can be expressed as:
Actuators 02 00001 i085
where:
Actuators 02 00001 i068

3. Results and Discussion

To verify the effectiveness of the state space model and the proposed identification method, experiments were implemented on a commercially-available 3-DOF piezo-actuator-driven stage (P-558.TCD, Physik Instrumente), as shown in Figure 1a. Driven by four piezoelectric actuators, the P558.TCD can generate linear displacements in the vertical direction Z and rotation around two orthogonal horizontal axes Rx and Ry. Table 1 shows the motion range and resolution in each DOF.

Table 1. Motion range and resolution in each degree-of-freedom (DOF)

Click here to display table

Table 1. Motion range and resolution in each degree-of-freedom (DOF)
DOFZRxRy
Motion range50 μm±250 μrad±250 μrad
Resolution0.5 nm50 nrad50 nrad
Actuators 02 00001 g001 200

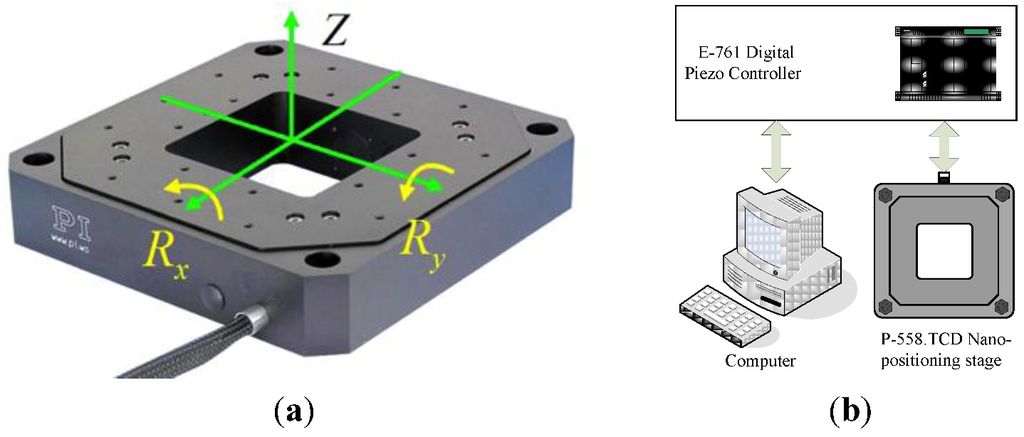

Figure 1. Experimental settings on the piezo-actuator-driven stage: (a) picture and (b) schematic.

Click here to enlarge figure

Figure 1. Experimental settings on the piezo-actuator-driven stage: (a) picture and (b) schematic.
Actuators 02 00001 g001 1024

For displacement measurements, three capacitive sensors built in the stage are employed. All displacements were measured with a sampling interval of 2 ms in the present study. Both the actuators and the sensors in the stage were connected to a host computer via a digital controller (E-761, Physik Instrumente) and controlled through Labview, as shown in Figure 1b. As instructed by its manual, the piezo controller can drive the actuator with a maximum operating frequency of 10-20 Hz if an input voltage in the range of 30–50 V is applied. During operation, the motion of the four piezoelectric elements must be coordinated to reduce the internal forces generated due to the over actuation, which may cause reduced stiffness and even break or damage the piezo-actuator-driven stage. This is realized by a user program interface provided by the manufacturer, which is used to generate the voltage input of each piezoelectric actuator from the user defined reference signal.

3.1. Linearity of the 3-DOF Piezo-Actuator-Driven Stage

To examine the linearity of the 3-DOF piezo-actuator-driven stage, a case study was conducted prior to the system identification. In particular, a 1 Hz 1 μm sinusoidal reference signal with 1 μm offset, a 2 Hz 200 μm sinusoidal reference signal with 2 s time delay and a 100 μm step reference signal with 3 s time delay were provided to the Z, Rx and Ry channel, respectively, and the corresponding outputs were measured. Then, the stage displacement output, as these three signals were applied simultaneously, was measured. The criterion used for the linearity examination is that if the output with three input signals equals or approximately equals the sum of the outputs when the signals is applied individually, the 3-DOF piezo-actuator-driven stage is linear or can be approximately considered to be linear. Figure 2 shows the comparison between the two outputs mentioned above. It can be seen that they overlapped with each other, indicating that the stage can be approximately considered to be a linear system. Differences between the measured output when the three inputs were provided to the different channels simultaneously and the sum of the outputs when the three inputs were provided separately exist. For example, in the Rx direction, the maximum difference is approximately 3 μm, which is only 1.5% of the amplitude of the reference signal. This difference might be due to the nonlinearities of the 3-DOF piezo-actuator-driven stage, which is ignored in the model development presented in this paper.

Actuators 02 00001 g002 200

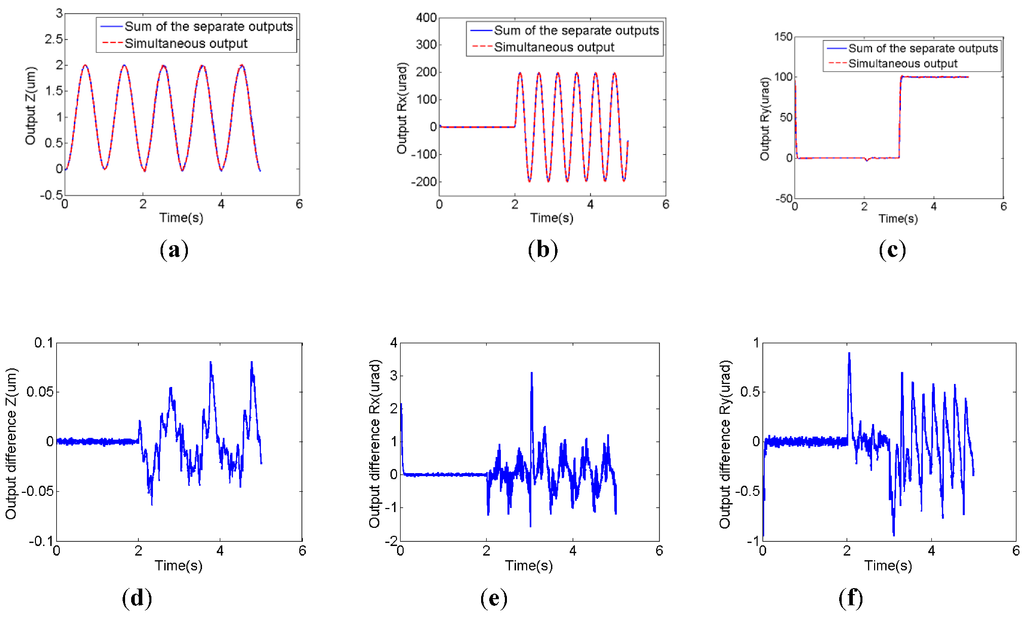

Figure 2. Linearity of the 3-DOF piezo-actuator-driven stage: (ac) comparison between the measured output when the three inputs were provided to the different channels simultaneously and the sum of the outputs when the three inputs were provided separately; (df) difference between these two outputs.

Click here to enlarge figure

Figure 2. Linearity of the 3-DOF piezo-actuator-driven stage: (ac) comparison between the measured output when the three inputs were provided to the different channels simultaneously and the sum of the outputs when the three inputs were provided separately; (df) difference between these two outputs.
Actuators 02 00001 g002 1024

3.2. System Identification of the 3-DOF Piezo-Actuator-Driven Stage

Figure 3 shows the flow chart of system identification. Since different signals applied in system identification may lead to the difference in the model identified, the effects of applying the random signal and the chirp signal in the parameter estimation were investigated in the signal selection in this study. The two signals were compared, and the one with less model prediction error was employed as the input for order selection, in which state space models with different orders were identified and compared. The one with less model prediction error was employed as the model for the piezo-actuator-driven stage.

Actuators 02 00001 g003 200
Figure 3. Flow chart of black box system identification.

Click here to enlarge figure

Figure 3. Flow chart of black box system identification.
Actuators 02 00001 g003 1024

For signal selection, a 20 μm reference chirp signal with 20 μm offset and frequency ranging from 1 to 100 Hz was provided to channel 1 (reference Z channel), and the corresponding output in each channel was measured. Based on the empirical knowledge of our previous study on piezoelectric actuators, the order of the state space model was originally set to be three, and Actuators 02 00001 i078 in Equation (17) was set to be a zero matrix. Since the covariance of the parameters is unknown, P0 is set to be a diagonal matrix with big covariance designated in the diagonal elements. By applying online estimation with the identified Hankel matrix, the system matrices of the state space model (Equation (19), I = 1) were obtained.

The estimation error varied, depending on the values of parameter p in Equation (2). Figure 4 (a–c) shows the estimated error versus the p-value. It can be seen that if p = 8, the estimation errors in all three output directions approached or reached their individual minimum values. Therefore, it is reasonable to set p = 8, as the chirp signal is provided to channel 1.

Actuators 02 00001 g004 200

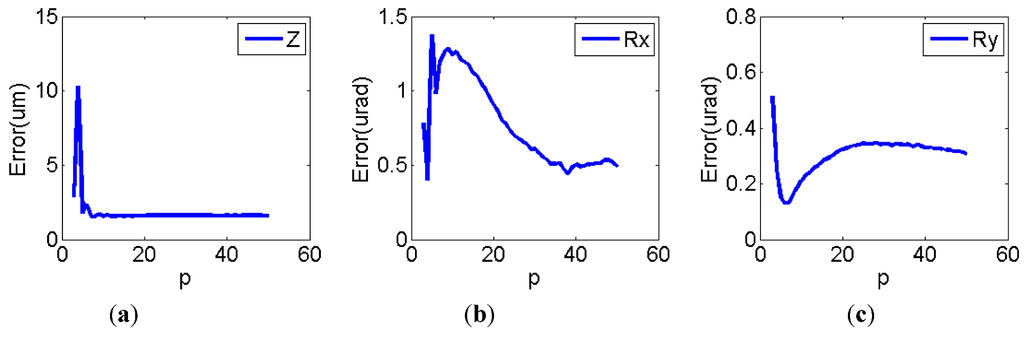

Figure 4. Estimation error changes with p-value when reference input was applied in channel (a) Z direction; (b) Rx direction; (c) Ry direction.

Click here to enlarge figure

Figure 4. Estimation error changes with p-value when reference input was applied in channel (a) Z direction; (b) Rx direction; (c) Ry direction.
Actuators 02 00001 g004 1024

For other two channels, a 200 μrad reference chirp signal with frequency ranging from 1 to 100 Hz was applied. By employing the aforementioned procedure, p was set to 25 and 27 for channel 2 and 3 respectively. Table 2 shows the prediction error in each direction, as a 1 Hz sinusoidal reference input was applied to the three channels, respectively. The prediction errors are calculated in terms of the 2-norm of the error vector (defined as the difference between the measurement and the model prediction). It is seen that the diagonal prediction error is 0.1944 μm, 4.864 μrad and 4.3387 μrad in the Z, Rx and Ry direction, respectively, which is 0.49%, 2.43% and 2.16% of the desired movement in the individual direction.

Table 2. Model prediction error if chirp inputs were applied.

Click here to display table

Table 2. Model prediction error if chirp inputs were applied.
DirectionZ (μm)Rx (μrad)Ry (ΜRAD)
1 Hz 20 μm sinusoidal inputs with 20 μm offset in channel 10.19440.40300.2008
1 Hz 200 μrad sinusoidal inputs in channel 20.01924.86400.0760
1 Hz 200 μrad sinusoidal inputs in channel 30.02630.20604.3387

Similar to the use of the chirp signal, 40 μm and 200 μrad reference random signals were also applied to each channel, respectively. The order of each sub-model was chosen to be three, and p was set to nine, 14 and 13 for the three channels, respectively. The same 1 Hz sinusoidal inputs were provided to difference channels, and the output was measured and compared with the model prediction. Table 3 illustrates the model prediction error. In contrast to the chirp signal, it can be concluded that the model prediction errors is much bigger when random signals are used in the model identification. For example, when a 1 Hz 200 μrad sinusoidal reference input was provided to channel 2, the model prediction error in the Rx direction reached 57.362 μrad by using the random inputs, which is over 10-times larger than that derived by using the chirp signal. As a result, a chirp signal was employed as the reference input for model identification below.

Table 3. Model prediction error if random inputs were applied.

Click here to display table

Table 3. Model prediction error if random inputs were applied.
DirectionZ (μm)Rx (μrad)Ry (ΜRAD)
1 Hz 20 μm sinusoidal inputs with 20 μm offset in channel 10.86700.89460.2061
1 Hz 200 μrad sinusoidal inputs in channel 20.054257.3620.1020
1 Hz 200 μrad sinusoidal inputs in channel 30.06241.014345.9597

To determine the order of the state space model, the parameter identification, as described previously, was repeated with varying values of n (Equation (1)) in each channel. Table 4, Table 5, Table 6 show the estimation errors in each channel.

Parameter p was chosen to have different values for varying orders based on the method mentioned above. It can be concluded that if the chirp signal was used in channel 1, the estimation error in the Z direction reached its minimum value of 1.4906 μm with the order of the sub-model being six or seven. For the Ry direction, the optimal choice was to set n = 7. Therefore, the sub-model for channel 1 was considered to be a seventh order state space system. The system matrices were determined as given in Equation (23). Using a similar procedure, the orders of the sub-model for the other two channels were both chosen to be four, and the system matrices were determined, as shown in Equations (24) and (25).

Actuators 02 00001 i080
Actuators 02 00001 i081
Actuators 02 00001 i082
Table 4. Estimation error from the chirp inputs in channel 1.

Click here to display table

Table 4. Estimation error from the chirp inputs in channel 1.
OrderpEstimation error
Z (μm)Rx (ΜRAD)Ry (ΜRAD)
2111.56351.11740.1614
381.53681.25970.1631
4111.49360.81000.3496
5141.49140.18760.1607
6311.49060.11840.1238
7381.49060.11920.0908
8381.49070.11800.1099
9381.49070.12020.1031
10301.49120.11950.1251
11301.49130.11860.1236
12281.49120.12660.1180
Table 5. Estimation error from the chirp inputs in channel 2.

Click here to display table

Table 5. Estimation error from the chirp inputs in channel 2.
OrderpEstimation error
Z (μm)Rx (μrad)Ry (μrad)
2470.011818.04400.0565
3250.010617.87520.0474
4420.010717.78770.0476
5470.012817.77510.0483
6420.012917.80710.0477
7420.012517.80730.0480
8470.013317.80730.0477
9420.011817.81790.0484
10390.010317.83630.0479
11420.012017.81540.0475
12420.011917.81660.0481
Table 6. Estimation error from the chirp inputs in channel 3.

Click here to display table

Table 6. Estimation error from the chirp inputs in channel 3.
OrderpEstimation error
Z (μm)Rx (μrad)Ry (μrad)
2410.01241.099616.9180
3270.01081.099516.7524
4390.01111.099416.5991
5410.01441.100616.5917
6390.01091.099316.6212
7390.01111.099616.6183
8390.01121.099616.6183
9390.01121.099616.6177
10390.01111.099616.6188
11390.01111.099316.6184
12390.01111.099416.1686

3.3. Model Verification

To illustrate the effectiveness of the MAP online estimation method, 1, 5 and 10 Hz sinusoidal reference inputs were provided to different channels, respectively. For comparison, the estimation method introduced in [25] was implemented as well. The parameter p was defined as 21, four and seven, respectively, for the three input channels. Table 7, Table 8 show the prediction error in each direction based on the different identification methods. The prediction errors were calculated in terms of the 2-norm of the error vector, illustrating that the prediction error increases with the frequency.

Table 7. Estimation error by applying the online estimation method.

Click here to display table

Table 7. Estimation error by applying the online estimation method.
InputChannelZ (μm)Rx (μrad)Ry (ΜRAD)
1 Hz 10 μm10.14680.15840.0642
1 Hz 200 μrad20.01761.03050.0742
1 Hz 200 μrad30.01960.25749.9402
5 Hz 10 μm10.36660.37430.0956
5 Hz 200 μrad20.05382.38010.2044
5 Hz 200 μrad30.05100.21283.1906
10 Hz 10 μm10.52960.26990.0576
10 Hz 200 μrad20.05306.32440.3327
10 Hz 200 μrad30.05171.11015.6707

In contrast to the identification method introduced in [25], the use of posteriori parameter information in MAP online estimation leads to better estimations on the Hankel matrix. For example, the estimation errors for the 5 Hz, 10 μm sinusoidal inputs to channel 1 were 0.3666 μm, 0.3843 μrad and 0.0956 in the Z, Rx and Ry directions, respectively. These results are 7.3%, 40.6% and 24%, respectively, of those derived using the identification method introduced in [25].

Table 8. Estimation error by applying the identification method introduced in [25].

Click here to display table

Table 8. Estimation error by applying the identification method introduced in [25].
InputChannelZ (μm)Rx (μrad)Ry (ΜRAD)
1 Hz 10 μm11.11240.94330.3675
1 Hz 200 μrad20.01802.26390.3403
1 Hz 200 μrad30.03740.30655.3670
5 Hz 10 μm15.06390.92240.3974
5 Hz 200 μrad20.05414.59280.3567
5 Hz 200 μrad30.06080.644911.349
10 Hz 10 μm16.28600.94190.4139
10 Hz 200 μrad20.052517.7850.2683
10 Hz 200 μrad30.05431.006413.497

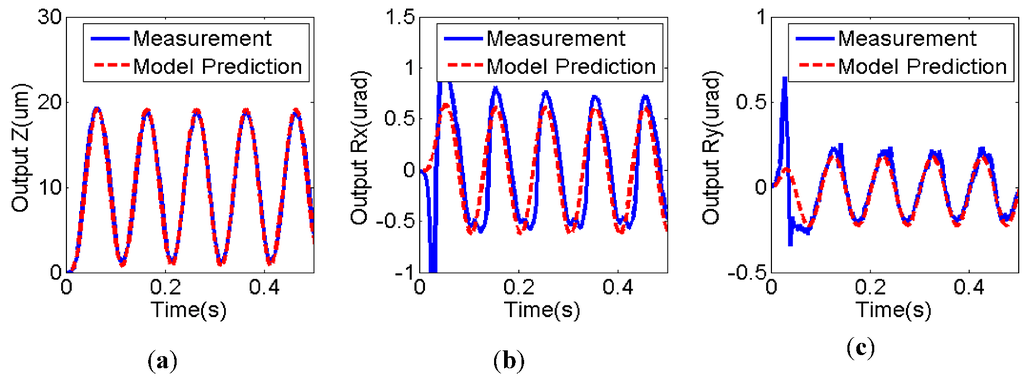

Figure 5 shows the output in each direction as a result of a 10 μm 10 Hz sinusoidal reference input with 10 μm offset in the Z direction compared with the model prediction. It can be clearly seen that the identified state space model is able to describe the coupling effect between each axle.

Actuators 02 00001 g005 200
Figure 5. Comparison of experimental results and model prediction under 10 μm 10 Hz sinusoidal input in channel 1: (a) Z direction; (b) Rx direction; (c) Ry direction.

Click here to enlarge figure

Figure 5. Comparison of experimental results and model prediction under 10 μm 10 Hz sinusoidal input in channel 1: (a) Z direction; (b) Rx direction; (c) Ry direction.
Actuators 02 00001 g005 1024

3.4. Case Study with Combined Inputs

To verify the identified linear state space model with combined inputs, three experiments were implemented. In the first experiment, the reference inputs simultaneously applied to the three channels are a 1 Hz and 20 μm sinusoidal reference with a 20 μm offset, a 2 Hz and 200 μrad sinusoidal reference with a time delay of two seconds and a 100 μrad step input with a time delay of three seconds. The outputs in the three directions were measured, and the predicted outputs were obtained according to the identified state space model of Equations (2325), respectively. In the second experiment, a 1 Hz and 1 μm sinusoidal input with 1 μm offset and a 2 Hz, 0.5 μrad sinusoidal reference input with a 2 s time delay were provided to the piezo-actuator-driven stage with the third channel kept zero. The outputs were measured and compared to the predicted outputs. To validate the model in high frequency, the input of 1 Hz and 2 μm sinusoid in channel 1 was replaced with a 10 Hz 40 μm one in the third experiment. Also, the corresponding outputs in the three directions were measured and compared to the outputs predicted by the identified state space model. The comparison is shown in Figure 6, from which it can be concluded that the model is able to describe the performance (both dynamics and cross-coupling effect) of the 3-DOF piezo-actuator-driven stage.

Actuators 02 00001 g006 200
Figure 6. Comparison of experimental results and model prediction from combined inputs to all three channels in the first experiment (ac); in the second experiments (df) and in the third experiments (gi).

Click here to enlarge figure

Figure 6. Comparison of experimental results and model prediction from combined inputs to all three channels in the first experiment (ac); in the second experiments (df) and in the third experiments (gi).
Actuators 02 00001 g006 1024

4. Conclusions

A straightforward modeling method for multi-DOF piezo-actuator-driven stages is based on the internal configuration by means of physics laws, as reported in the literature [12,13,14,15]. However, such details with regard to the internal structure are often not provided by the manufactures. Therefore, system identification for multi-DOF piezo-actuator-driven stages with unknown configuration is always required for the model development.

The contribution of this paper is the development of a black box model used to describe the dynamics of 3-DOF piezo-actuator-driven stages with unknown physical configuration, which allows the investigation of the complex system performance with unknown physical configuration by means of the linear state space model. By combining the MAP online estimation methods, the Hankel matrix of the state space model was identified and the model parameters were updated as new observations were available. To show the effectiveness of the proposed estimation method, model verification experiments were carried out on the piezo-actuator-driven stage, and the outputs obtained were compared to the predictions of the state space model identified using the method introduced in [25]. From the model verification results, it was shown that the linear state space model can predict the dynamic performance of a piezo-actuator-driven stage with improved accuracy. By making use of the posteriori parameter information, the MAP online estimation method performs better in the model identification than the least squares method. Moreover, the identified parameters are updated online as new and more data becomes available. The developed model and parameter identification methods provide a starting point from which to adaptively compensate for the dynamics and cross-coupling effects of the piezo-actuator-driven stage by means of the mode-based control scheme.

Acknowledgments

Support for the present study from the China Scholarship Council (CSC) and the Natural Sciences and Engineering Research Council (NSERC) of Canada is acknowledged.

References

  1. Ouyang, P.R.; Tjiptoprodjo, R.C. Micro-motion devices technology: The state of arts review. Int. J. Adv. Manuf. Tech. 2008, 38, 463–478, doi:10.1007/s00170-007-1109-6.
  2. Devasia, S.; Eleftheriou, E. A survey of control issue in nano-positioning. IEEE Trans. Contr. Syst. Technol. 2007, 15, 802–823, doi:10.1109/TCST.2007.903345.
  3. Ge, P.; Jouaneh, M. Tracking control of a piezoelectric actuator. IEEE Trans. Contr. Syst. Technol. 1996, 14, 209–216.
  4. Leang, K.K.; Devasia, S. Design of hysteresis compensating iterative control for piezo-positioners: application on atomic force microscopes. Mechatronics 2006, 16, 141–158, doi:10.1016/j.mechatronics.2005.11.006.
  5. Lin, C.J.; Yang, S.R. Precise positioning of piezo-actuated stages using hysteresis observer based control. Mechatronics 2006, 16, 417–426, doi:10.1016/j.mechatronics.2006.03.005.
  6. Chen, X.B.; Zhang, Q.S.; Kang, D.; Zhang, W.J. On the dynamics of piezoelectric positioning systems. Rev. Sci. Instrum. 2008, 79, 116101, doi:10.1063/1.2982238.
  7. Cao, Y.; Chen, X.B. A novel discrete ARMA-based model for piezoelectric actuator hysteresis. IEEE-ASME. Trans. Mech. 2012, 17, 737–744, doi:10.1109/TMECH.2011.2128339.
  8. Peng, J.Y.; Chen, X.B. Modeling piezoelectric driven stick-slip actuators. IEEE-ASME. Trans. Mech. 2011, 16, 394–399, doi:10.1109/TMECH.2010.2043849.
  9. Cao, Y.; Chen, L.; Peng, J.Y.; Chen, X.B. An inversion-based model predictive control with an integral-of-error state variable for piezoelectric-actuators. IEEE-ASME. Trans. Mech. 2013, 18, 895–904, doi:10.1109/TMECH.2012.2194792.
  10. Dong, R.L.; Tan, Y.H.; Chen, H.; Xie, Y.Q. A neural networks based model for rate-dependent hysteresis for piezoceramic actuators. Sens. Actuators A 2008, 143, 370–376, doi:10.1016/j.sna.2007.11.023.
  11. Wang, Q.G. Decoupling Control; Springer: Berlin, Germany, 2003; pp. 1–9.
  12. Kim, H.S.; Cho, Y.M. Design and modeling of a novel 3-DOF precision micro-stage. Mechatronics 2009, 19, 598–608, doi:10.1016/j.mechatronics.2009.01.004.
  13. Lin, C.Y.; Chen, P.Y. Precision tracking control of a biaxial piezo stage using repetitive control and double-feedforward compensation. Mechatronics 2011, 21, 239–249, doi:10.1016/j.mechatronics.2010.11.002.
  14. Wang, F.C.; Tsai, Y.C.; Hsieh, C.H.; Chen, L.S.; Yu, C.H. Robust control of a two-axis piezoelectric driven stage. In Proceedings of the 18th IFAC World Congress; Milano, Italy: 28 August–2 September 2011.
  15. Fung, R.F.; Lin, W.C. System identification and contour tracking of a plane-type 3-DOF precision positioning table. IEEETrans. Contr. Syst. Technol. 2010, 18, 22–34, doi:10.1109/TCST.2008.2009528.
  16. Xu, Q.S.; Wong, P.K. Hysteresis modeling and compensation of a piezostage using least squares support vector machines. Mechatronics 2001, 21, 1239–1251.
  17. Wong, P.K.; Xu, Q.S. Rate-dependent hysteresis modeling and control of a piezostage using online support vector machine and relevance vector machine. IEEE Trans. Ind. Electron. 2012, 59, 1988–2001, doi:10.1109/TIE.2011.2166235.
  18. Peng, J.Y.; Chen, X.B. Integrated PID-based sliding mode state estimate and control for piezoelectric actuators. IEEEASME Trans. Mechatron. 2012, doi:10.1109/TMECH.2012.2222428.
  19. Banning, R.; Koning, W.L.; Adriaens, H.J.; Koops, R.K. State-space analysis and identification for a class of hysteresis systems. Automatica 2001, 37, 1883–1892, doi:10.1016/S0005-1098(01)00157-1.
  20. Johansson, R.; Robertsson, A.; Nilsson, K.; Verhasgen, M. State-space system identification of robot manipulator dynamics. Mechatronics 2001, 10, 403–418.
  21. Viberg, M. Subspace-based state space system identification. Circ. Syst. Signal. Process. 2002, 21, 23–37, doi:10.1007/BF01211649.
  22. Akcay, H. Frequency domain subspace-based identification of discrete-time power spectra from uniformly spaced measurement. Automatica 2011, 47, 363–367, doi:10.1016/j.automatica.2010.10.051.
  23. Borjas, S.D.M.; Garcia, C. Subspace identification for industrial process. Tema. Tend. Mat. Appl. Comput. 2011, 12, 183–194.
  24. Juang, J.N.; Phan, M.; Horta, L.G.; Longman, R.W. Identification of observer/Kalman filter Markov parameters: theory and experiments. NASA Tech. Memo. 2010, 18, 22–34.
  25. Lim, R.K.; Phan, M.Q.; Longman, R.W. State-Space System Identification with Identified Hankel Matrix; Technical Report No. 3045; Princeton University: Princeton, NJ, USA, 1998.
Actuators EISSN 2076-0825 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
