Pathogens 2014, 3(2), 356-376; doi:10.3390/pathogens3020356

Article
Characterization of Antimicrobial Resistance Dissemination across Plasmid Communities Classified by Network Analysis
Akifumi Yamashita , Tsuyoshi Sekizuka and Makoto Kuroda *
Pathogen Genomics Center, National institute of infectious diseases, 1-23-1 Toyama, Shinjuku-ku, Tokyo 162-8640, Japan; E-Mails: uhmin@niid.go.jp (A.Y.); sekizuka@niid.go.jp (T.S.)
*
Author to whom correspondence should be addressed; E-Mail: makokuro@niid.go.jp; Tel.: +81-3-5285-1111; Fax: +81-3-5285-1166.
Received: 27 November 2013; in revised form: 4 April 2014 / Accepted: 9 April 2014 /
Published: 15 April 2014

Abstract

: The global clustering of gene families through network analysis has been demonstrated in whole genome, plasmid, and microbiome analyses. In this study, we carried out a plasmidome network analysis of all available complete bacterial plasmids to determine plasmid associations. A blastp clustering search at 100% aa identity cut-off and sharing at least one gene between plasmids, followed by a multilevel community network analysis revealed that a surprisingly large number of the plasmids were connected by one largest connected component (LCC), with dozens of community sub-groupings. The LCC consisted mainly of Bacilli and Gammaproteobacteria plasmids. Intriguingly, horizontal gene transfer (HGT) was noted between different phyla (i.e., Staphylococcus and Pasteurellaceae), suggesting that Pasteurellaceae can acquire antimicrobial resistance (AMR) genes from closely contacting Staphylococcus spp., which produce the external supplement of V-factor (NAD). Such community network analysis facilitate displaying possible recent HGTs like a class 1 integron, str and tet resistance markers between communities. Furthermore, the distribution of the Inc replicon type and AMR genes, such as the extended-spectrum ß-lactamase (ESBL) CTX-M or the carbapenemases KPC NDM-1, implies that such genes generally circulate within limited communities belonging to typical bacterial genera. Thus, plasmidome network analysis provides a remarkable discriminatory power for plasmid-related HGT and evolution.
Keywords:
plasmidome; network analysis; horizontal gene transfer; Inc replicon; antimicrobial resistance; ESBL; carbapenemase

1. Introduction

Bacterial plasmids are self-replicating, extrachromosomal replicons that are key agents of change in microbial populations [1]. It is well known that plasmid vectors are frequently transmitted from one bacterium to another [2,3,4,5]. Plasmids, as well as conjugative transposons, are crucial mediators of horizontal gene transfer (HGT), a process that significantly influences bacterial activity and evolution. Most antimicrobial resistance (AMR) genes can be acquired through plasmid-mediated HGT [2]. The increased number of AMR genes acquired by pathogenic bacteria threatens to return us to the pre-antibiotics era. The misuse of antimicrobial medications accelerates this natural phenomenon. Moreover, poor infection control practices have encouraged the spread of AMR. Thus far, it has been challenging to reveal the global dissemination of AMR plasmids by molecular genotyping. Molecular genotyping techniques, such as MLST, MLVA, and IS-typing, are available to hospitals, communities, and global organisations for tracing clonal bacteria dissemination. Furthermore, next-generation sequencing (NGS) can identify bacterial strain-specific genetic markers including single nucleotide polymorphisms, facilitating the identification of disseminated pathogenic bacteria clones, such as Staphylococcus aureus [6], Clostridium difficile [7], Acinetobacter baumannii [8], and Mycobacterium tuberculosis [9].

AMR can be widely transferred among different strains and species from closely related taxonomic classes [2,3,10]. Indeed, the extended-spectrum ß-lactamase (ESBL) CTX-M and several carbapenemases have been widely identified in many species of Enterobacteriaceae [11], indicating that a molecular characterisation of plasmid sequences would be more beneficial for tracing the transmission of AMR than would characterising whole genome sequences, because most AMR genes can be acquired through plasmid-mediated HGT [2]. As whole genome sequencing of a strain harbouring multiple plasmids is not able to characterize single source of plasmid genetic feature, sequencing only plasmid is rather simple and cost effective.

Previous research has investigated global clustering of gene families using network analysis, as well as global network analysis of DNA families shared among cellular, plasmid, and phage genomes [12]. Similar studies focusing on plasmids showed frequent HGT over geographical habitat or taxonomical barrier [13,14]. The evolutionary dynamics of plasmids in Acinetobacter spp. (pan-plasmidome analysis) have also been examined [14]. Furthermore, both microbiome and plasmidome analyses have been performed for the bovine rumen [15]. Plasmidome analysis in particular has been carried out for ESBL in Escherichia coli [16] and various plasmids in Enterococcus faecalis [17]. Module-based phage network analysis has been demonstrated to suggest a reticulate representation of evolutionary and functional relationships between phage genomes [18].

These intensive studies focused on comprehensive network analysis using relatively lower gene similarity (~95%), thus, we performed a network analysis at 100% aa identity cut-off and sharing at least one gene between plasmids, leading to characterize the most recently occurred HGT or plasmid transfer. Such strict parameters will facilitate a better understanding of the current and future prospects of AMR dissemination based on the plasmid transfer.

2. Results and Discussion

In total, 3793 complete plasmid sequences were selected from the NCBI database. Accordingly, 275,954 protein sequences were extracted (downloaded on 10 June, 2013).

2.1. Number of Edges and Nodes between Each Plasmid

Plasmids that share at least one homologous sequence were extracted as connected nodes based on either a blastp or uclust homology search of coding sequences in each plasmid. As shown in Table 1, the number of connected-nodes decreases as the identity cut-off value increases, indicating that lower thresholds generate more connected nodes. The single connected components (CCs) are composed of all of the plasmids (nodes) with at least a single connection to others. The number of CCs is always slightly larger for uclust than it is for blastp, suggesting that blastp is a more rigorous clustering search method for finding the homologous lineages of ORFs following CC assignment. Thus, we performed blastp searches for the subsequent plasmidome network analysis. We obtained an image of the plasmidome network using a 100% identity cut-off value (Figure 1A).

Table Table 1. Number of connected component and community according to identity cutoff values.

Click here to display table

Table 1. Number of connected component and community according to identity cutoff values.
Clustering programIdentity cutoff (%)EdgesConnected nodesConnected componentsNodes in LCCLCC % in totalNumber of communities in the LCC using multilevel method
BLASTP50251,961352957326586.1%19
BLASTP60177,932344470279373.6%25
BLASTP70129,545335890261368.9%31
BLASTP80104,8153229127226559.7%26
BLASTP9081,7523060162199552.6%34
BLASTP9952,0292633236138936.6%36
BLASTP10041,9562496259124132.7%26
UCLUST50188,844352471323385.2%ND
UCLUST60147,899343575276272.8%ND
UCLUST70121,841334998255867.4%ND
UCLUST80101,9023213133224159.1%ND
UCLUST9082,0463057174194951.4%ND
UCLUST9952,5782626240136936.1%ND
UCLUST10043,2752501263123232.5%ND

CC: connected component; LCC: largest connected component; ND: not determined.

2.2. Connected Components (CCs)

The largest CC (LCC) contains 32.7% of all the investigated plasmids, even after increasing the identity cut-off value to 100% (Figure 1A, Table 1). Although this network may contain identical plasmid pairs by means of vertical inheritance or plasmid transfer, the existence of such a large LCC from vast variety of hosts (will be discussed in the next section) clearly indicates that most of the plasmids share genes by HGT or plasmid transfer, suggesting that a frequent and ongoing dissemination of genes occurs between plasmids. To detect most recently occurred HGTs (not just phylogenetic relationships) we selected a threshold with identity cut-off value of 100% for further analysis. Under this condition 1297 plasmids from many kinds of bacterial species remain unconnected. As well as the previous study, the LCC showed power law distribution of the degree measures of nodes, which comes from the “scale-free” network feature [19,20]. Accordingly, the LCC mostly is composed of Enterobacteriaceae, such as Escherichia, Klebsiella, and Salmonella, corresponding to the result in Tamminen et al. [13].

Pathogens 03 00356 g001 1024
Figure 1. Plasmidome network analysis. (A) The filled circles (nodes) represent the respective plasmids. The grey lines (edges) represent the connections among the plasmids. The thickness of the edges represents the number of genes shared among the plasmids. The edges denoting large numbers of shared genes appear as grey ellipses. The colours of the nodes are automatically set according to the plasmid communities inferred from the multilevel method using the R igraph package. The nodes within the dotted circle represent the largest connected component (LCC). (B) Close-up of the connecting points between Gammaproteobacteria and Bacilli.

Click here to enlarge figure

Figure 1. Plasmidome network analysis. (A) The filled circles (nodes) represent the respective plasmids. The grey lines (edges) represent the connections among the plasmids. The thickness of the edges represents the number of genes shared among the plasmids. The edges denoting large numbers of shared genes appear as grey ellipses. The colours of the nodes are automatically set according to the plasmid communities inferred from the multilevel method using the R igraph package. The nodes within the dotted circle represent the largest connected component (LCC). (B) Close-up of the connecting points between Gammaproteobacteria and Bacilli.
Pathogens 03 00356 g001 1024

2.3. Community Network Analysis

The obtained LCC contains large number of nodes for further representing the characteristic network structure, thus, we subdivided the LCC into several “communities”, using available clustering methods in the R igraph package [21] including the fastgreedy, multilevel, edge betweenness, walktrap, label propagation, and infomap methods. To estimate the best method for community analysis, we employed the Shannon index [22], which estimates the diversity index of the host bacterial lineage. We selected the method that provided the set of communities with the lowest Shannon index.

As shown in Figure 2, the fastgreedy, multilevel and betweenness methods generated relatively better results, with lower diversity index values at every identity cut-off level for distinct taxonomic levels (Figure 2A: phylum, 2B: class, 2C: order). Accordingly, the fastgreedy and multilevel methods generated significantly fewer communities in the LCC (Figure 2D). The multilevel method, however, was considered a better choice at every identity cut-off. Thus, we decided to employ the multilevel method in the subsequent analysis because it obtained the fewest communities. Based on the multilevel method, a total of 291 communities (e.g., co68 …) were extracted from all CCs at an identity cut-off of 100%, while the LCC can be well subdivided into 26 communities (Table 1 and Figure 3).

Pathogens 03 00356 g002 1024

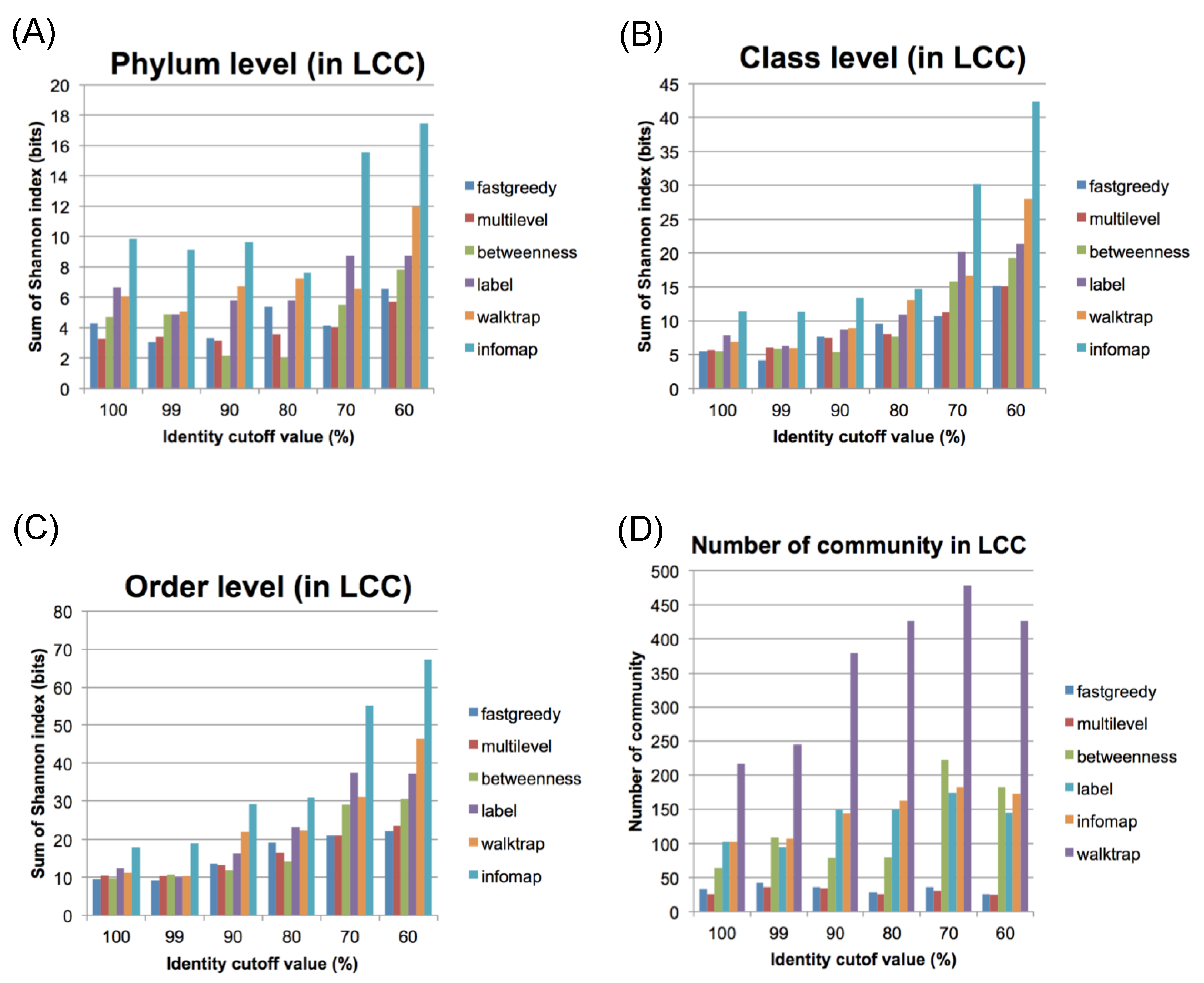

Figure 2. Evaluation of community connections using several methods. The Shannon index values for the LCC using different identity cut-off values and community estimation methods at the phylum (A), class (B), and order (C) levels. (D) The numbers of communities in the LCC using different identity cut-off values.

Click here to enlarge figure

Figure 2. Evaluation of community connections using several methods. The Shannon index values for the LCC using different identity cut-off values and community estimation methods at the phylum (A), class (B), and order (C) levels. (D) The numbers of communities in the LCC using different identity cut-off values.
Pathogens 03 00356 g002 1024
Pathogens 03 00356 g003 1024

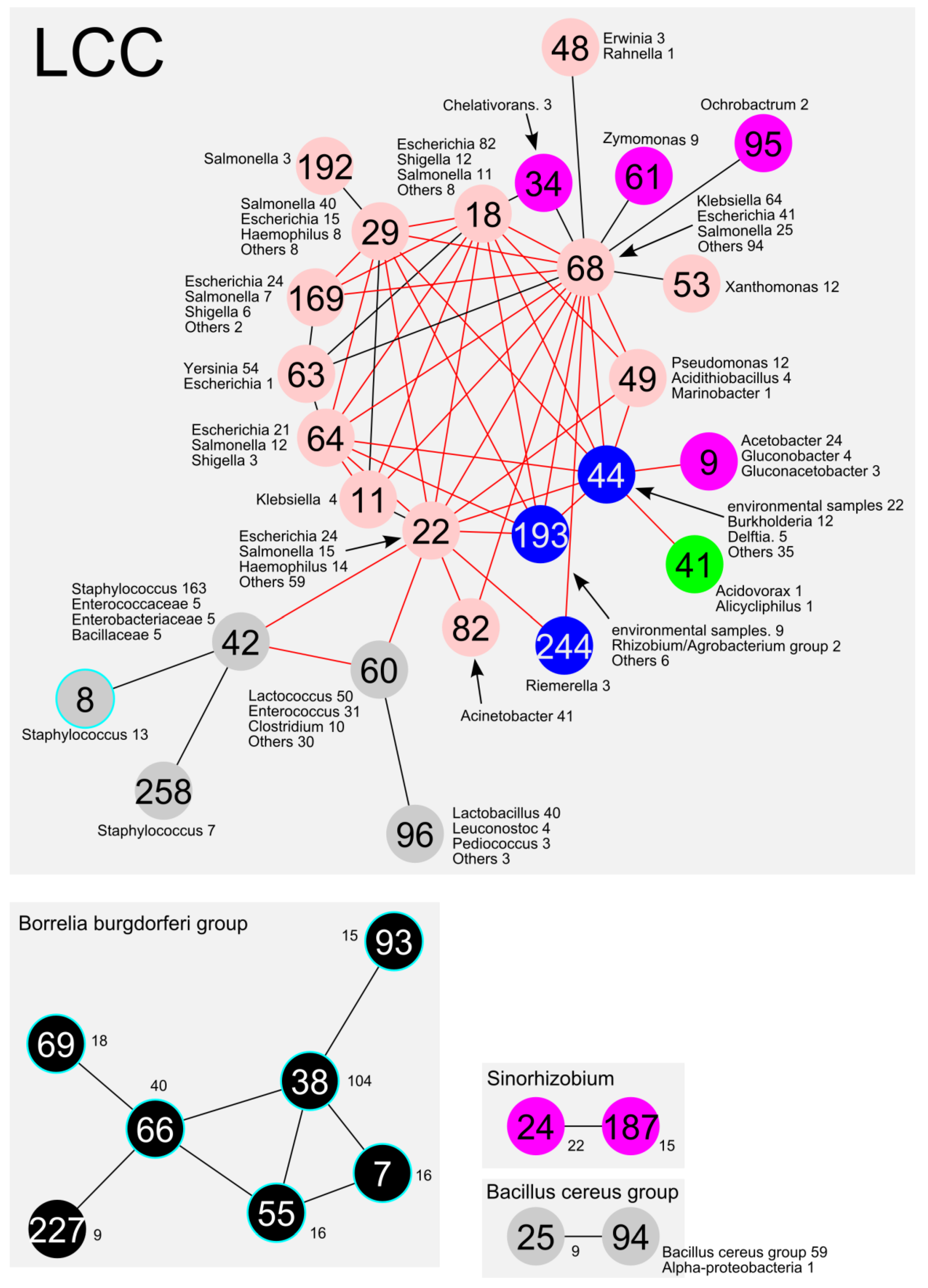

Figure 3. A schematic representation of the communities from the whole image shown in Figure 1. The communities mainly included Alphaproteobacteria, Betaproteobacteria, Gammaproteobacteria, Bacilli, and Borrelia, which are indicated by purple, green, pink, grey, and black circles, respectively. The other communities are indicated by blue circles. The number of the top three species in the community is shown beside the circle. The circle with the light-blue rim represents the communities without AMR genes. The red lines represent the AMR gene related connections among the communities.

Click here to enlarge figure

Figure 3. A schematic representation of the communities from the whole image shown in Figure 1. The communities mainly included Alphaproteobacteria, Betaproteobacteria, Gammaproteobacteria, Bacilli, and Borrelia, which are indicated by purple, green, pink, grey, and black circles, respectively. The other communities are indicated by blue circles. The number of the top three species in the community is shown beside the circle. The circle with the light-blue rim represents the communities without AMR genes. The red lines represent the AMR gene related connections among the communities.
Pathogens 03 00356 g003 1024

Most of the communities in the LCC consisted of plasmids from the Gammaproteobacteria, Alphaproteobacteria, Betaproteobacteria and Bacilli classes (Figure 4A) or Enterobacteriales and Bacillales orders (Figure 4B). For instance, co68 was mostly composed of Enterobacteriales, such as Klebsiella, Escherichia, and Salmonella spp. (Figure 3 and Figure 4B). In addition, co22 and co29 were composed of Enterobacteriales such as Escherichia, Salmonella and Haemophilus spp. (Figure 3 and Figure 4B). Some specific bacterial plasmids were predominant in smaller communities (e.g., Yersinia in co63, Acinetobacter in co82, Staphylococcus in co8 and co258, and Xanthomonas in co53).

Pathogens 03 00356 g004 1024

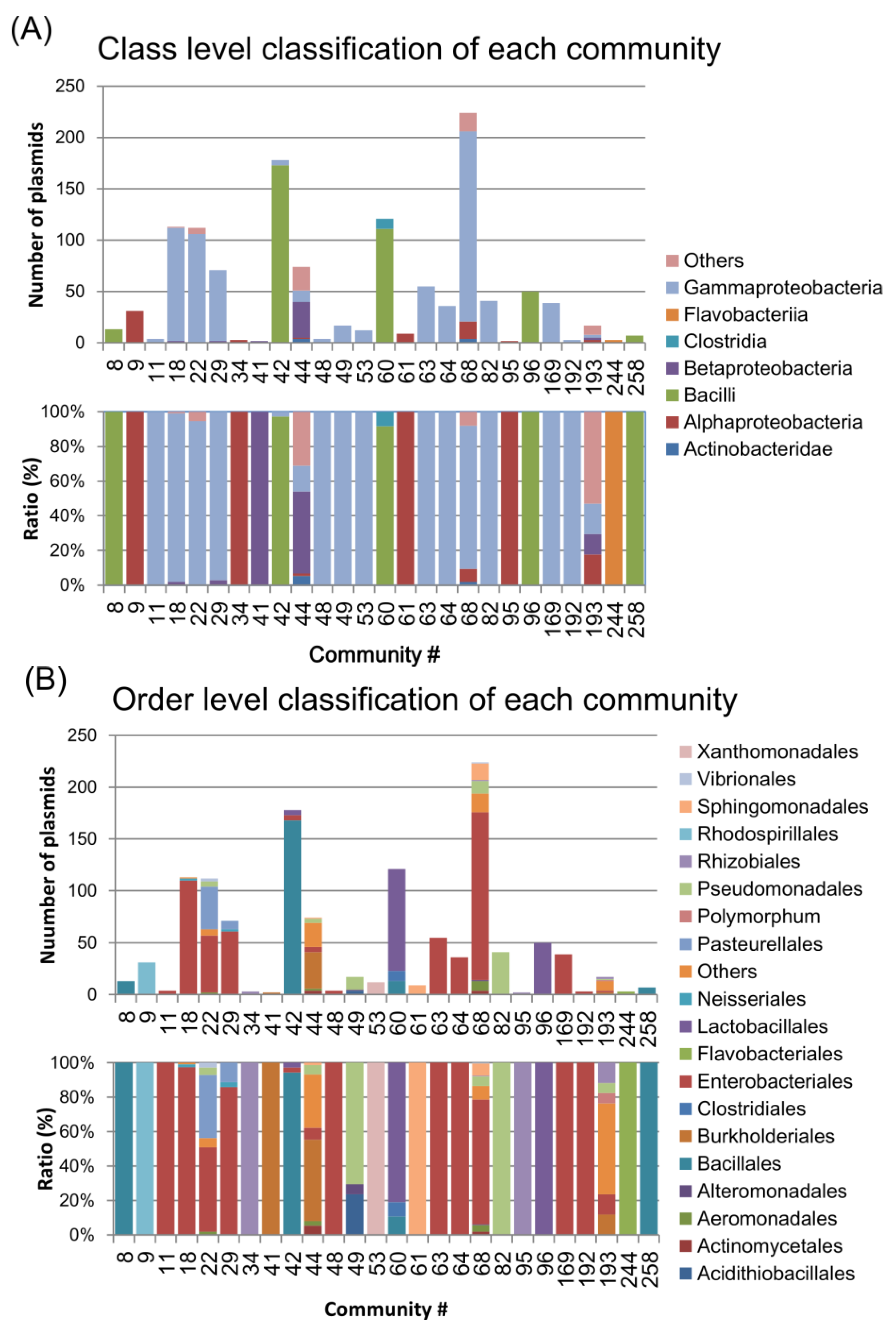

Figure 4. The host bacterial components of the communities. The upper and lower graphs show the numbers and ratios of the host bacterial components, respectively, for the class (A) and order (B) levels.

Click here to enlarge figure

Figure 4. The host bacterial components of the communities. The upper and lower graphs show the numbers and ratios of the host bacterial components, respectively, for the class (A) and order (B) levels.
Pathogens 03 00356 g004 1024

Clustering coefficient values in any communities in LCC was estimated as median 0.681 (SD: 0.125), indicating that no community consisted of homogenous plasmids. The community network analysis suggests that bacterial plasmids can be grouped into communities according to biologically relevant features.

2.4. Connections between Communities

2.4.1. Genes Involved in the Connections between Communities

The abovementioned multilevel community analysis suggests a crucial linkage among the 26 communities in LCC. Thus, we searched for genes involved in the unique connections between communities. Blast search against the COG database revealed that the “[L] Replication, recombination and repair” subgroup was the predominantly detected at 60.0% (2283 of 3806) as transposases on the edges (Figure 5), indicating that multiple IS-related transposases could be involved in HGT between communities. We found that most of the edges were related to antimicrobial resistance genes (see the red line edges between the communities in Figure 3), suggesting that the “[V] defence mechanism” category could play a crucial role in the connection for HGT due to antimicrobial selective pressure (Figure 5). This result suggests that genetic exchange events between communities could be driven by genes related to replication/recombination/repair functions (COG [L]), as well as genes related to AMR.

Pathogens 03 00356 g005 1024

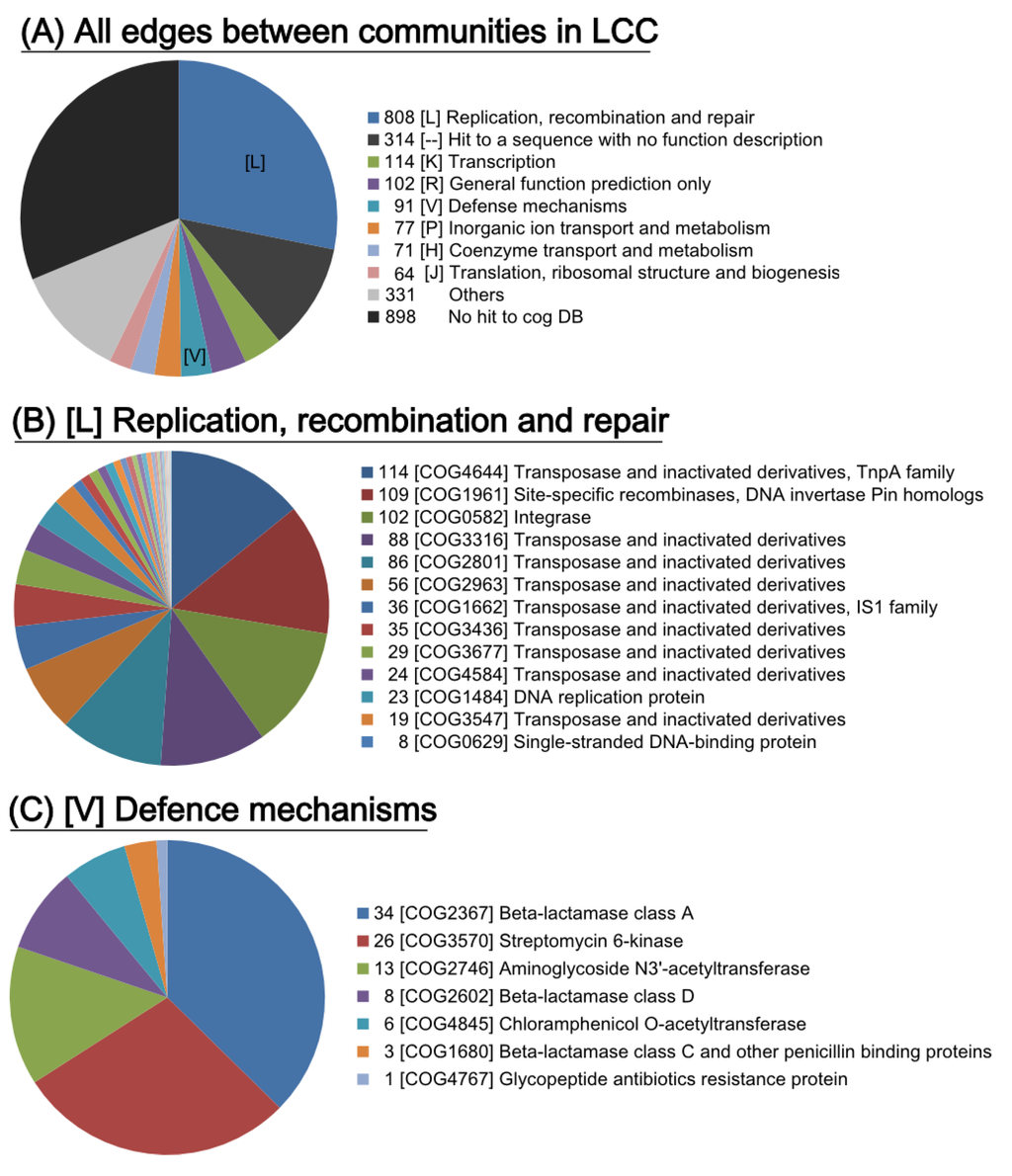

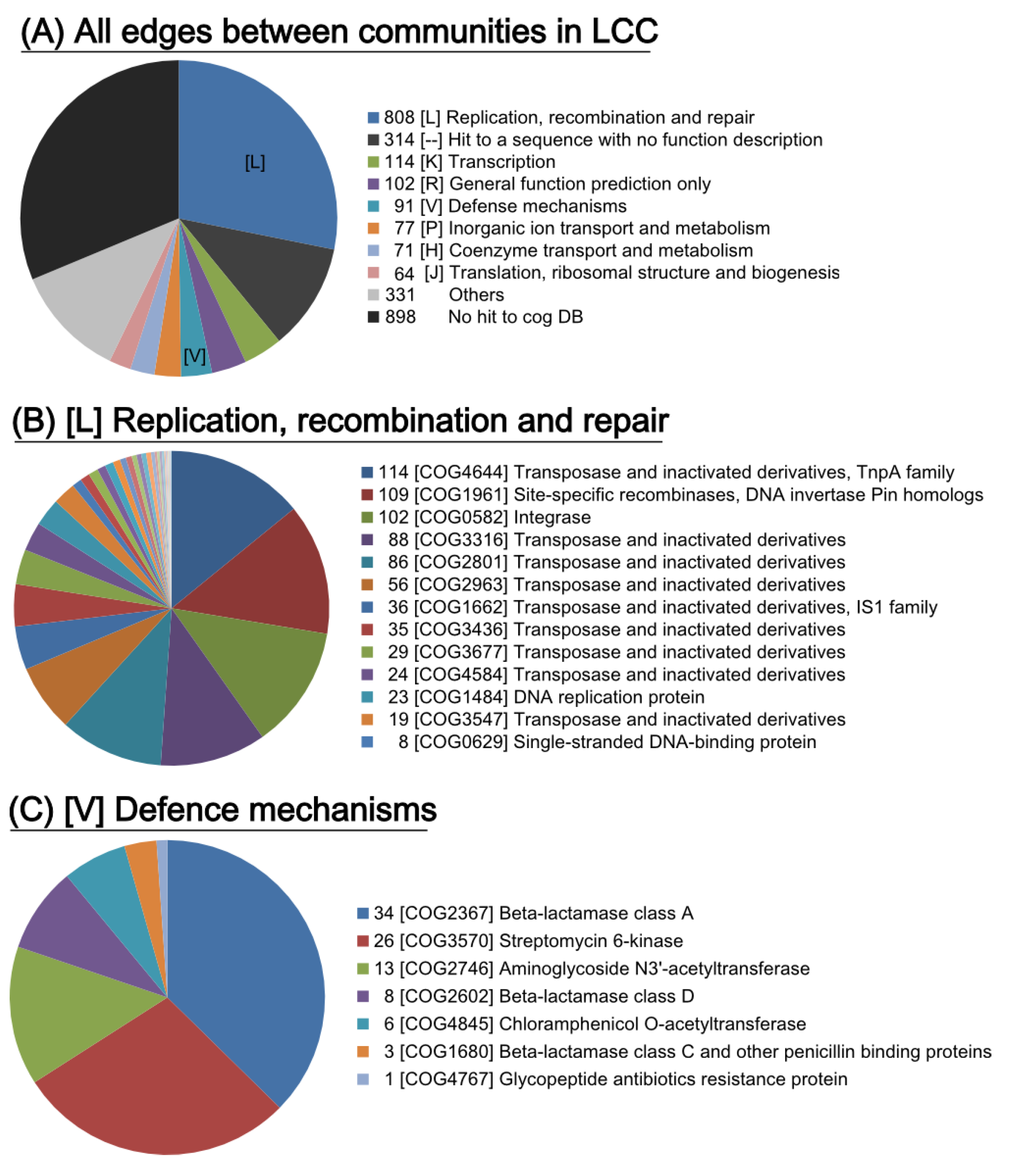

Figure 5. COG annotation for genes on the edges between communities. (A) COG categories on all of the edges in the LCC. (B) The COG ID for the category [L] of replication, recombination and repair. (C) The COG ID for the category [V] of defence mechanisms.

Click here to enlarge figure

Figure 5. COG annotation for genes on the edges between communities. (A) COG categories on all of the edges in the LCC. (B) The COG ID for the category [L] of replication, recombination and repair. (C) The COG ID for the category [V] of defence mechanisms.
Pathogens 03 00356 g005 1024

2.4.2. Frequently Identified Gene Combination among the Edges between Communities

Since shared genes on the edge between communities could be a possible candidate for recent HGT genes, frequently shared gene was extracted from the total non-redundant 1506 genes on the 66 edges in LCC. The combination of ybaA, sul1, intI1 and qacEΔ1 were most frequently identified on 21 edges (Figure 6). This combination has been well characterized as class 1 integron, which is known as a major player of indiscriminate dissemination of AMR [23]. In addition, the combinations of “insB, strA, and strB” (streptomycin resistance marker) and “tetR and tetA” (tetracycline resistance marker) were also frequently found on 15 edges, respectively. The str and tet combinations were not found on the co193 and co 64-related edges, respectively.

Pathogens 03 00356 g006 1024

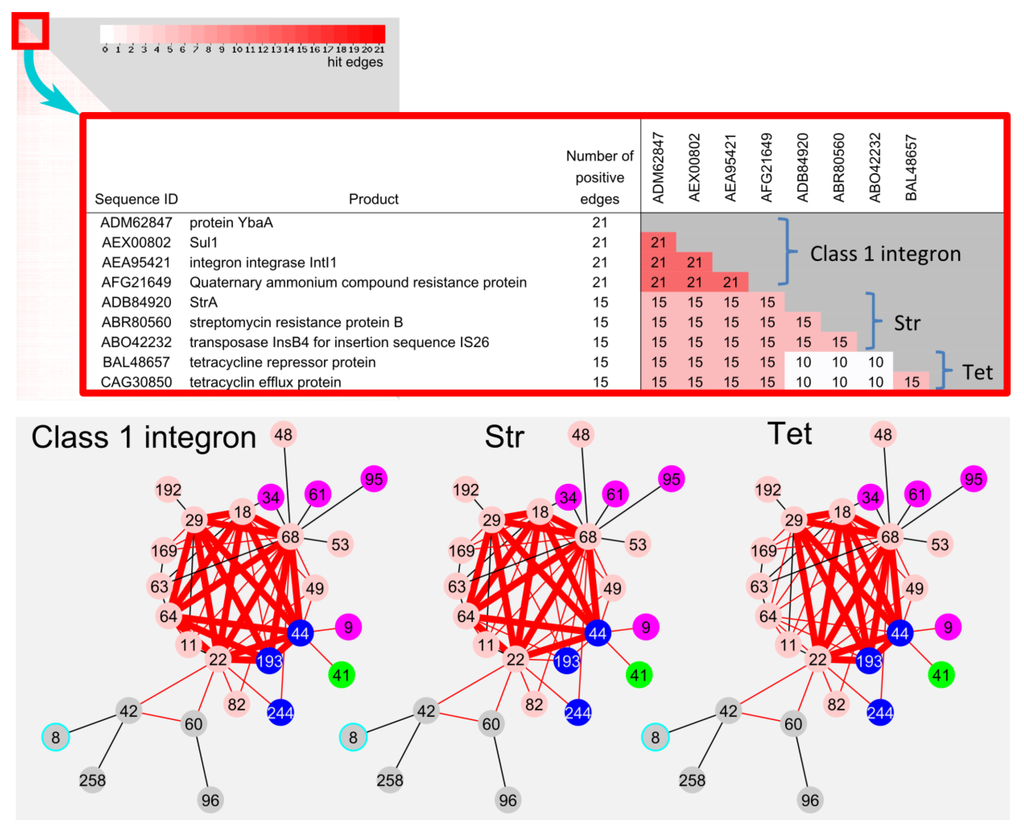

Figure 6. Frequently hit sequence on the 66 edges in LCC. Heatmap of sequence pairs of 1506 sequences on the 66 edges in LCC. Close-up of top 9 frequently hit sequences. Class 1 integron (21 edges), str (15 edges) and tet (15 edges) genes on the edges were shown in bold red line.

Click here to enlarge figure

Figure 6. Frequently hit sequence on the 66 edges in LCC. Heatmap of sequence pairs of 1506 sequences on the 66 edges in LCC. Close-up of top 9 frequently hit sequences. Class 1 integron (21 edges), str (15 edges) and tet (15 edges) genes on the edges were shown in bold red line.
Pathogens 03 00356 g006 1024

In addition, we confirmed whether class 1 integron could be transmitted en bloc. The basic components of class 1 integrons consist of IntI1, QacEdelta1, Sul1 and YbaA (Table 2: 01-02/03-04-05). Forty plasmids from the 3793 complete plasmid sequences in this study have been identified to carry the contiguous components of a class 1 integron. Further investigation suggested that additional AMR genes are integrated into the class 1 integron as cassette gene (Table 2). A class 1 integron group including additional aminoglycoside resistance (01-12-02-04-05) was found in communities co18 (plasmid: DQ364638 and AP000342), co29 (plasmid: AB605179), and co68 (plasmid: HQ201416). Furthermore, class 1 integrons with integrated trimethoprim-resistant dihydrofolate reductase (01-36-12-02-04-05) was found in communities co29 (FN432031) and co64 (JX566770). These results strongly suggest that complete class 1 integrons together with additional integrated AMR genes could be transmitted among communities. Such AMR markers could play a crucial role for recent HGT, leading to contribute to the vast linkages among variable plasmid communities as the global dissemination of AMR.

Table Table 2. The class 1 integron mediated en bloc transmission of AMR genes among communities.

Click here to display table

Table 2. The class 1 integron mediated en bloc transmission of AMR genes among communities.
Order of gene groupsCommunityTotal
co18co22co29co44co64co68co193
Pathogens 03 00356 i00111
Pathogens 03 00356 i00211
Pathogens 03 00356 i00311
Pathogens 03 00356 i0042114
Pathogens 03 00356 i00511
Pathogens 03 00356 i00611
Pathogens 03 00356 i00711
Pathogens 03 00356 i00822
Pathogens 03 00356 i009112
Pathogens 03 00356 i01011
Pathogens 03 00356 i01122
Pathogens 03 00356 i01211
Pathogens 03 00356 i01311
Pathogens 03 00356 i01411
Pathogens 03 00356 i01511
Pathogens 03 00356 i01611
Pathogens 03 00356 i01711
Pathogens 03 00356 i01811
Pathogens 03 00356 i01911
Pathogens 03 00356 i02011
Pathogens 03 00356 i02111
Pathogens 03 00356 i02211
Pathogens 03 00356 i02311
Pathogens 03 00356 i02411
Pathogens 03 00356 i02511
Pathogens 03 00356 i02611
Pathogens 03 00356 i02733
Pathogens 03 00356 i02811
Pathogens 03 00356 i02911
Pathogens 03 00356 i03011
Pathogens 03 00356 i03111
Pathogens 03 00356 i03211
Total3922122140
Gene groupProducts
01integron integrase IntI1.class 1 integron component
02, 03quaternary ammonium compound-resistance protein QacEdelta1.
04sulphonamide resistant dihydropteroate synthase Sul1.
05protein YbaA.
06aminoglycoside 3'- N-acetyltransferase protein aacC.aminoglycoside resistance
07aminoglycoside 3'- N-acetyltransferase.
08aminoglycoside acetyltransferase.
09aminoglycoside adenylyltransferase.
10aminoglycoside N(6')-acetyltransferase.
11–14aminoglycoside resistance protein aadA.
15aminoglycoside-2'-adenylyltransferase.
16acetyltransferases aac(3)-Ia.
17putative aminoglycoside 6'- N-acetyltransferase.
18putative aminoglycoside adenyltransferase.
19class D β-lactamase OXA-10.β-lactamase
20class D β-lactamase OXA-21.
21class D β-lactamase OXA-2.
22class D β-lactamase OXA.
23metallo-β-lactamase GIM-1.
24metallo-β-lactamase IMP-6.
25metallo-β-lactamase VIM-1.
26chloramphenicol acetyltransferase catB2.chloramphenicol resistance
27chloramphenicol acetyltransferase catB8.
28, 29chloramphenicol acetyltransferase.
30chloramphenicol aminotransferase.
31chloramphenicol resistance protein CmlA1.
32dihydrofolate reductase DfrA5.dihydrofolate reductase
33-35dihydrofolate reductase.
36trimethoprim-resistant dihydrofolate reductase type I DhfrA1.
37–40transposase.
41molecular chaperone GroEL.
42molecular chaperone GroES.
43fluoroquinolone resistance protein QnrB2.
44quinolone-resistance determinant Qnr.
45–52Others
53-60hypothetical protein.

2.4.3. Connections between Plasmid Communities from Different Divisions

The community network analysis revealed unique linkages between Bacilli (co42 and co60) and Gammaproteobacteria (co22) (Figure 1B and Figure 3). The plasmids from Staphylococcus and Pasteurellaceae were connected by two plasmids from Pasteurella multocida (pCCK411, GenBank_ID: FR798946) and Haemophilus parasuis (pQY431, GenBank_ID: KC405065) (Figure 1B).

The pQY431 in H. parasuis appeared to have acquired a bifunctional ACC/APH gene (aacA-aphD, AGK85216.1) from a plasmid in Staphylococcus spp., because GC-content of ACC/APH gene corresponds to the average of S. aureus plasmid, while it is lower than the average of H. parasusis plasmid. This plasmid also have a ß-lactamase (blaROB-1, AGK85217) from another plasmid in Pasteurellaceae species (Figure 7A).

In addition, the pCCK411 plasmid in P. multocida shares a kanamycin resistance gene (aphA3, CBZ06037) with Staphylococcus plasmids and the blaROB-1 gene from another Pasteurellaceae plasmids. Interestingly, higher GC content in this region in Staphylococcus suggests that this gene might be acquired from other plasmids such as Pasteurella multocida (Figure 7B). An additional blastp search with the NCBI nt database indicated that the identical sequences of the aacA-aphD and aphA3 genes were detected in plasmids from the bacteria from the Bacilli class, such as Staphylococcus, or Enterococcus plasmids.

Pathogens 03 00356 g007 1024

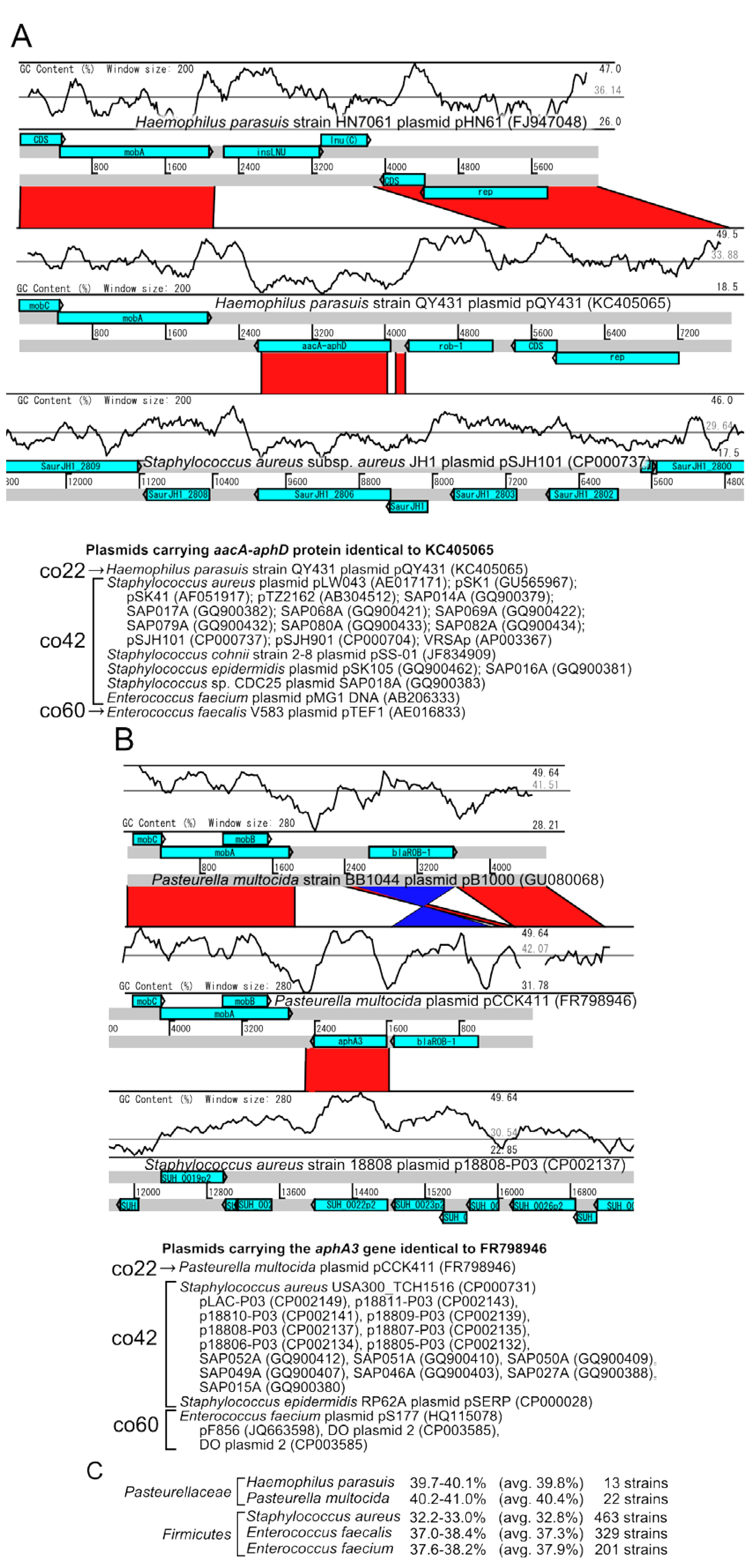

Figure 7. Pairwise comparisons of the (A) Haemophilus parasuis and (B) Pasteurella multocida plasmids carrying the aacA-aphD and aphA3 genes compared to Staphylococcus aureus plasmids. The light-blue boxes represent the genes on the plasmids. The red and blue bars represent the homologous regions in the forward and inverted directions, respectively. The plasmids carrying the homologous genes are shown below the pairwise comparison. (C ) Average GC-content of the host chromosomes.

Click here to enlarge figure

Figure 7. Pairwise comparisons of the (A) Haemophilus parasuis and (B) Pasteurella multocida plasmids carrying the aacA-aphD and aphA3 genes compared to Staphylococcus aureus plasmids. The light-blue boxes represent the genes on the plasmids. The red and blue bars represent the homologous regions in the forward and inverted directions, respectively. The plasmids carrying the homologous genes are shown below the pairwise comparison. (C ) Average GC-content of the host chromosomes.
Pathogens 03 00356 g007 1024

Of particular note, Haemophilus/Pasteurella spp. required an external supplement of V-factor (NAD) from staphylococci for growth support [24]. In addition, the Pasteurellaceae Hin subclade (H. influenzae, P. multocida) possessed the natural competence and transformation ability [25]. These observations support the hypothesis that the aacA-aphD gene in H. parasuis (pQY431) was introduced through close contact with Firmicutes such as staphylococci. Contrary, there has been no evidence how Staphylococcus could acquire the aphA3 gene, but the close relationship may have promoted gene exchange between plasmids originating from different phyla.

This study revealed high relationship between Pasteurellales and Staphylococcus (Figure 7), although previous report characterized the gene transfer between Actinobacteridae and Gammaproteobacteria [13]. Such difference generated from the difference of parameter threshold, i.e., Tamminen et al. (2012) required at least five shared homologous sequencess and 95% aa identity to connect plasmids, while this study picked up plasmid connections from at least one shared homologous sequences at 100% aa identity, indicating more stringent threshold could display a potential recent HGT in this study.

2.5. Distribution of Inc Types among Plasmid Communities

Plasmids can be categorised by the plasmid replicon incompatibility group (Inc-group), using PCR-based methods to identify the replicons of the major plasmid families found in Enterobacteriaceae [26]. We performed in silico replicon typing for all of the plasmids against 22 known Inc groups (Table 3). The Inc types could be assigned to some plasmids in the LCC, and showed strong correlations between the community and the Inc type (e.g., IncFII: co18, FIIS: co18 and co29, FIIk: co68, N: co68, A/C: co22, I1: co64, and P: co193, in Table 3). IncFII-co18 and IncFIIS-co18 were found predominantly in Escherichia, while IncFIIk-co68 was found predominantly in Klebsiella and IncFIIS-co29 was found predominantly in Salmonella (Figure 8). In contrast, IncA/C-co22 was composed of plasmids from various bacterial genera (Figure 8), suggesting that IncA/C has greater dissemination potential among Enterobacteriacea. IncN-co68 was closely related between Escherichia and Klebsiella. In addition, IncI1-co64 was closely related between Escherichia and Salmonella, suggesting that frequent potential transmissions can occur between these two bacterial genera. Interestingly, significantly larger amount of plasmids in both co22 and co68 could not be assigned for Inc type, implying the variety of Inc types remain to be elucidated.

Table Table 3. Distribution of Inc types and communities.

Click here to display table

Table 3. Distribution of Inc types and communities.
Inc typeCommunity
co11co18co22co29co64co68co192co193
A/C--25--2--
B/O-3--11--
FIA-5---3--
FIB-5------
FIB-M-----1--
FII-60--13--
FIIk-----17--
FIIS-23-27-31-
HI1-1---1--
HI2-----5--
HIB-M3-------
I1----28---
K-1--3---
L/M-----7--
N-----26--
P-------7
R--2--3--
T-1---1--
U-----3--
W--2--3--
X1-1-7----
X2-----1--
Not Assigned11383373144210
Total41131127136224317

Shaded communities showed significant over-representation with p-value < 0.001 by chi-square test.

Pathogens 03 00356 g008 1024

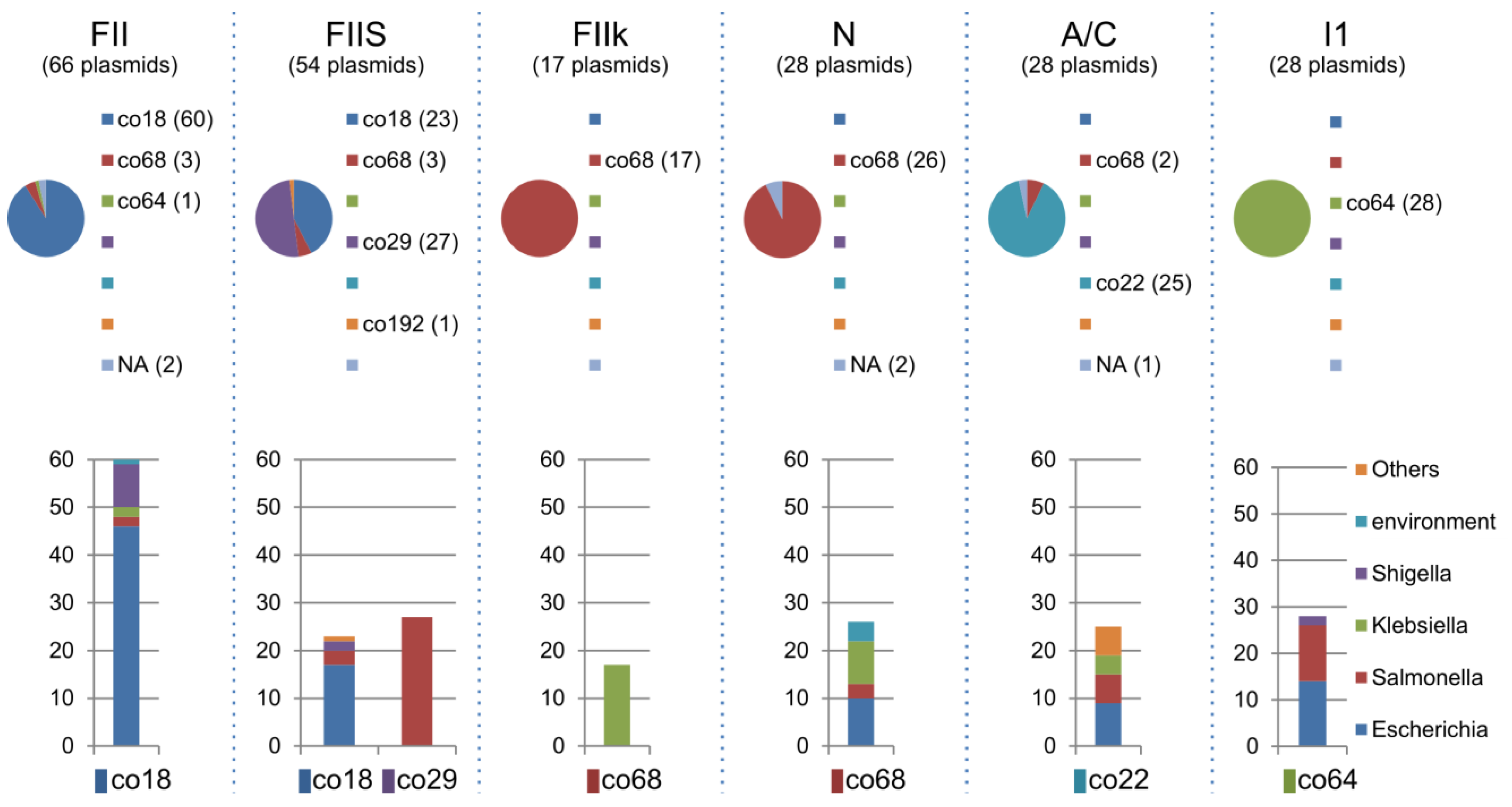

Figure 8. Components of the major Inc-type plasmids. The components of the communities of the major Inc-type plasmids and the bacterial components for each community are shown (Table 3).

Click here to enlarge figure

Figure 8. Components of the major Inc-type plasmids. The components of the communities of the major Inc-type plasmids and the bacterial components for each community are shown (Table 3).
Pathogens 03 00356 g008 1024

2.6. Distribution of AMR among Plasmid Communities

Apart from the Inc-type related communities, the associations of AMR genes within communities were also investigated. CTX-M ß-lactamase is a broadly disseminated ESBL in Enterobacteriacea [27]. The CTX-M-1 and CTX-M-9 subgroups were broadly classified into multiple communities (co18, co22, co29, co64, and co68) (Figure 9A), while the CTX-M-2 subgroup was classified only as co68. More than 80% (40/49) of plasmids carrying the CTX-M ß-lactamase were found in co18 or co68. In addition, CTX-M-1 and CTX-M-9 were the most frequently found in the IncFII replicon plasmid (Table 4), suggesting that the dissemination of the CTX-M genes is linked to Inc replicon-dependent plasmid communities between co18 and co68 (Figure 3). Intriguingly, the abovementioned communities (co18, co22, co29, co64, and co68) were tightly connected to each other according to the community network analysis (Figure 3). Most of the plasmids carrying CTX-M-1 and CTX-M-9 were derived from Escherichia or Klebsiella, while most of the plasmids carrying CTX-M-2 were from Salmonella and Klebsiella.

As well as the class 1 integron, CTX-M ß-lactamases have been acquired through insertion sequence mediated transposition into a certain Enterobacterial plasmid with a possible natural competence from Kluyvera species [23,27]. The CTX-M-1 and -9 can be identified in multiple communities in this study (Figure 9A). Therefore, further dissemination of CTX-M-1 and -9 could be generated by plasmid transfer itself. In addition, the CTX-M-1 and -9 positive mobile element could transpose into other broad-host range plasmids, leading to wide dissemination of ESBL in Enterobacteriacea. On the other hand, CTX-M-2 subgroup is identified in only co68, suggesting that CTX-M-2 positive plasmid disseminates between Salmonella and Klebsiella species (Figure 9A).

The carbapenemases K. pneumoniae carbapenemase (KPC) and New Delhi metallo-ß-lactamase (NDM-1) were unique to the co22 and co68 communities (Figure 9B). KPC was only found in co68, mainly in IncFIIk and IncN plasmids. NDM-1 was found in co22 and co68. Moreover, the NDM-1 in co22 was related only to the IncA/C plasmids. Meanwhile, the NDM-1 in co68 was not related to any Inc plasmids (Table 4 and Figure 9C). NDM-1 was closely related to co18/co22/co68 communities including plasmids carrying CTX-M and KPC. Thus, co22/co68 have the most potential for the dissemination of AMR genes in Enterobacteriacea.

Pathogens 03 00356 g009 1024

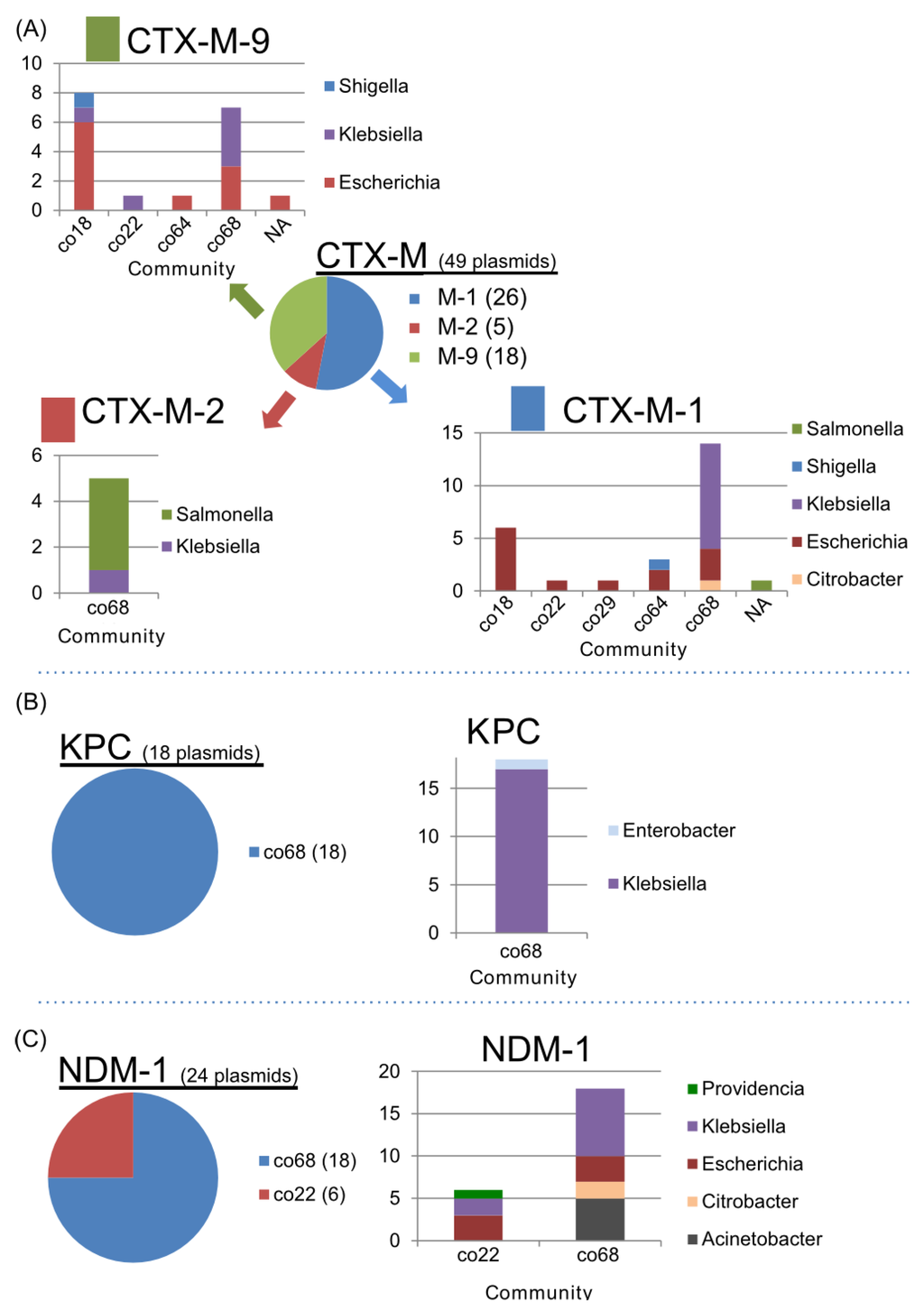

Figure 9. Components of the communities with AMR genes. (A) The CTX-M-1, -2 and -9 subgroups and the community and bacterial components. (B) KPC carbapenemase and the bacterial components. The plasmids carrying KPC are only found in co68. (C) The communities and bacterial components of the plasmids carrying the NDM-1 gene (Table 4).

Click here to enlarge figure

Figure 9. Components of the communities with AMR genes. (A) The CTX-M-1, -2 and -9 subgroups and the community and bacterial components. (B) KPC carbapenemase and the bacterial components. The plasmids carrying KPC are only found in co68. (C) The communities and bacterial components of the plasmids carrying the NDM-1 gene (Table 4).
Pathogens 03 00356 g009 1024
Table Table 4. Distribution of Inc types, antimicrobial resistance genes, and communities.

Click here to display table

Table 4. Distribution of Inc types, antimicrobial resistance genes, and communities.
Inc typeCTX-MKPCNDM-1
M-1M-2M-923410co22co68
FII781
FIIk4521
N213111
A/C16
L/M212
I13
FIB-M11
FIA1
FIIS1
HI11
HI21
K1
R1
Not Assigned54441112
Total2651811421618

3. Experimental Section

3.1. Download and Selection of Complete Plasmids Sequences

Complete plasmid candidates were downloaded in GenBank format from NCBI using the following key words: ((bacteria[Organism]) AND complete[Title]) AND plasmid[Title].

Among the downloaded sequences, complete, non-provisional sequences with more than 2000 bp sequences were used for the following analysis. For the remaining sequences, the protein sequences were extracted according to the “FEATURES” information.

3.2. Network Analysis

We performed the blastp searches [28] to identify orthologous genes between plasmids with parameter the -F F, -g T. The hits with e-values less than 1E-10, cover ratios more than 90% and length difference of 0.9 < query/subject < 1.1 with several identity cut-off values (100, 99, 90, 80, 70, 60, and 50%) were regarded as shared genes. We also searched for shared proteins using the uclust program v6.0.307 [29] with the following parameters after sorting by sequence length: -cluster_smallmem -minsl 0.9 -minqt 0.9 -maxqt 1.1 -query_cov 0.9 -target_cov 0.9. Subsequently, network analyses were performed using the R igraph library [21]. The plasmid communities were detected using the edge.betweenness.community, multilevel.community, label.propagation.community, infomap.community, walktrap.community, and fastgreedy.community methods in the igraph library by default parameter settings. For instance, if two plasmids share n genes, the edge weight parameter will be defined as n. Based on the intensity of the detected weight parameter on each edge, CCs were summarized into each community by the above method.

3.3. Inc Typing and Searching for Mobile Elements

Inc types were inferred from blastn searching with e-values less than 1E-10, cover ratios more than 90% against the PCR amplicons based on primer sequences for PBRT replicon typing [26].

3.4. Detection of CTX-M Genes

The CTX-M genes were prepared as follows. Candidate sequences for the CTX-M genes were retrieved from fasta formatted NCBI data using the key word “CTX-M”. The sequences with lengths of at least 291 aa that did not belong to synthetic constructs (i.e., lacking the “[synthetic construct]” search term) were extracted from the candidate sequences and were entered into the CTX-M database. We then performed a blastp search of the plasmid genes against the CTX-M database. The genes with greater than 90% identity for more than 280 aa in length were considered plasmid CTX-M genes. Finally, the plasmid CTX-M genes and CTX-M database sequences were aligned using the mafft program [30]. A phylogenetic tree was then constructed using the MEGA 5 program [31]. The groupings of the plasmid CTX-M genes were inferred according to the phylogenetic tree and the review from Bonet et al. [27].

3.5. Detection of Other Antibiotic Resistance Genes

We performed blastp searches for all of the plasmid genes against the ARDB + CARD database [32,33]. The plasmid proteins having the top hit to one of the following accessions with e-values less than 1E-10 were regarded as KPC genes: AAG13410, AAS01762, AAU06362, ABX11263, AF297554, AF395881, AY034847, EU555534, EU729727, FJ234412, GQ140348, HM066995, HQ641421, YP_002286834, YP_002286834, YP_002286834, YP_002286834, YP_002286834, YP_002286834, YP_002286834, YP_002286834, YP_002286834, YP_002286981, and YP_002286981. Accordingly, those plasmid proteins with a top hit being the following accessions with e-values less than 1E-10 were considered NDM-1 genes: HQ328085 and HQ451074. Plasmids with no significant hits within this database were regarded as having no AMR genes.

4. Conclusions

We conducted a plasmidome network analysis for all of the available complete bacterial plasmids. Most of the plasmids were connected to a single LCC, which mainly consisted of plasmids from Bacilli and Gammaproteobacteria. The LCC was subdivided into dozens of communities, which consisted of plasmids from a mostly single class of bacteria. Such community network analysis facilitate displaying possible recent HGTs like a class 1 integron, str and tet resistance markers between communities. As well as the class 1 integron, the CTX-M ß-lactamase can be identified in multiple communities. Therefore further dissemination could be generated either by plasmid transfer itself or transposition of the CTX-M ß-lactamase into other broad-host range plasmids “en bloc”, suggesting that this community network analysis could propose crucial information for the manner of dissemination in AMR. Intriguingly, HGT was noted between different phyla (i.e., Staphylococcus and Pasteurellaceae (P. multocida and H. parasuis)), suggesting that both organisms can acquire AMR genes from closely contacting each other. The distributions of the Inc-type and AMR genes implied that such genes generally circulate within communities composed of typical bacterial taxa. This plasmidome network analysis under very strict parameter settings provides remarkable discrimination power for plasmid-related recent HGT. It also provides a large-scale analysis of plasmid associations, improving our understanding of current plasmid dissemination and evolution among bacterial communities.

Acknowledgments

This work was supported by a Grant-in-Aid from the Ministry of Health, Labor, and Welfare, Japan (H24 Shokuhin-Ippan-008).

Author Contributions

Conceived and designed the analysis: Akifumi Yamashita, Makoto Kuroda. Performed the analysis: Akifumi Yamashita. Contributed reagents/materials/analysis tools: Akifumi Yamashita, Tsuyoshi Sekizuka. Wrote the paper: Akifumi Yamashita, Makoto Kuroda.

Conflicts of Interest

The authors declare no conflict of interest.

References and Notes

  1. Johnson, T.J.; Nolan, L.K. Pathogenomics of the virulence plasmids of Escherichia coli. Microbiol. Mol. Biol. Rev. 2009, 73, 750–774. [Google Scholar] [CrossRef]
  2. Norman, A.; Hansen, L.H.; Sorensen, S.J. Conjugative plasmids: Vessels of the communal gene pool. Philos. Trans. R Soc. Lond. B Biol. Sci. 2009, 364, 2275–2289. [Google Scholar] [CrossRef]
  3. Andam, C.P.; Fournier, G.P.; Gogarten, J.P. Multilevel populations and the evolution of antibiotic resistance through horizontal gene transfer. FEMS Microbiol. Rev. 2011, 35, 756–767. [Google Scholar] [CrossRef]
  4. Wiedenbeck, J.; Cohan, F.M. Origins of bacterial diversity through horizontal genetic transfer and adaptation to new ecological niches. FEMS Microbiol. Rev. 2011, 35, 957–976. [Google Scholar] [CrossRef]
  5. Skippington, E.; Ragan, M.A. Lateral genetic transfer and the construction of genetic exchange communities. FEMS Microbiol. Rev. 2011, 35, 707–735. [Google Scholar] [CrossRef]
  6. Harris, S.R.; Cartwright, E.J.; Torok, M.E.; Holden, M.T.; Brown, N.M.; Ogilvy-Stuart, A.L.; Ellington, M.J.; Quail, M.A.; Bentley, S.D.; Parkhill, J.; et al. Whole-genome sequencing for analysis of an outbreak of meticillin-resistant staphylococcus aureus: A descriptive study. Lancet Infect. Dis. 2013, 13, 130–136. [Google Scholar] [CrossRef]
  7. He, M.; Miyajima, F.; Roberts, P.; Ellison, L.; Pickard, D.J.; Martin, M.J.; Connor, T.R.; Harris, S.R.; Fairley, D.; Bamford, K.B.; et al. Emergence and global spread of epidemic healthcare-associated clostridium difficile. Nat. Genet. 2013, 45, 109–113. [Google Scholar]
  8. Imperi, F.; Antunes, L.C.; Blom, J.; Villa, L.; Iacono, M.; Visca, P.; Carattoli, A. The genomics of acinetobacter baumannii: Insights into genome plasticity, antimicrobial resistance and pathogenicity. IUBMB Life 2011, 63, 1068–1074. [Google Scholar] [CrossRef]
  9. Walker, T.M.; Ip, C.L.; Harrell, R.H.; Evans, J.T.; Kapatai, G.; Dedicoat, M.J.; Eyre, D.W.; Wilson, D.J.; Hawkey, P.M.; Crook, D.W.; et al. Whole-genome sequencing to delineate mycobacterium tuberculosis outbreaks: A retrospective observational study. Lancet Infect. Dis. 2013, 13, 137–146. [Google Scholar] [CrossRef]
  10. Davies, J.; Davies, D. Origins and evolution of antibiotic resistance. Microbiol. Mol. Biol. Rev. 2010, 74, 417–433. [Google Scholar] [CrossRef]
  11. Canton, R.; Akova, M.; Carmeli, Y.; Giske, C.G.; Glupczynski, Y.; Gniadkowski, M.; Livermore, D.M.; Miriagou, V.; Naas, T.; Rossolini, G.M.; et al. Rapid evolution and spread of carbapenemases among enterobacteriaceae in europe. Clin. Microbiol. Infect. 2012, 18, 413–431. [Google Scholar] [CrossRef]
  12. Halary, S.; Leigh, J.W.; Cheaib, B.; Lopez, P.; Bapteste, E. Network analyses structure genetic diversity in independent genetic worlds. Proc. Natl. Acad. Sci. USA 2010, 107, 127–132. [Google Scholar]
  13. Tamminen, M.; Virta, M.; Fani, R.; Fondi, M. Large-scale analysis of plasmid relationships through gene-sharing networks. Mol. Biol. Evol. 2012, 29, 1225–1240. [Google Scholar] [CrossRef]
  14. Fondi, M.; Bacci, G.; Brilli, M.; Papaleo, M.C.; Mengoni, A.; Vaneechoutte, M.; Dijkshoorn, L.; Fani, R. Exploring the evolutionary dynamics of plasmids: The acinetobacter pan-plasmidome. BMC Evol. Biol. 2010, 10, 59. [Google Scholar] [CrossRef]
  15. Brown Kav, A.; Sasson, G.; Jami, E.; Doron-Faigenboim, A.; Benhar, I.; Mizrahi, I. Insights into the bovine rumen plasmidome. Proc. Natl. Acad. Sci. USA 2012, 109, 5452–5457. [Google Scholar]
  16. Brolund, A.; Franzen, O.; Melefors, O.; Tegmark-Wisell, K.; Sandegren, L. Plasmidome-analysis of esbl-producing escherichia coli using conventional typing and high-throughput sequencing. PLoS One 2013, 8, e65793. [Google Scholar]
  17. Song, X.; Sun, J.; Mikalsen, T.; Roberts, A.P.; Sundsfjord, A. Characterisation of the plasmidome within enterococcus faecalis isolated from marginal periodontitis patients in norway. PLoS One 2013, 8, e62248. [Google Scholar]
  18. Lima-Mendez, G.; van Helden, J.; Toussaint, A.; Leplae, R. Reticulate representation of evolutionary and functional relationships between phage genomes. Mol. Biol. Evol. 2008, 25, 762–777. [Google Scholar] [CrossRef]
  19. Dwight Kuo, P.; Banzhaf, W.; Leier, A. Network topology and the evolution of dynamics in an artificial genetic regulatory network model created by whole genome duplication and divergence. Biosystems. 2006, 85, 177–200. [Google Scholar] [CrossRef]
  20. Fondi, M.; Fani, R. The horizontal flow of the plasmid resistome: Clues from inter-generic similarity networks. Environ. Microbiol. 2010, 12, 3228–3242. [Google Scholar] [CrossRef]
  21. The Igraph Library. Available online: http://igraph.sourceforge.net (accessed on 20 June 2013).
  22. Shannon, C.E. A mathematical theory of communication. Bell Syst. Tech. J. 1948, 27, 379–423. [Google Scholar] [CrossRef]
  23. Gillings, M.; Boucher, Y.; Labbate, M.; Holmes, A.; Krishnan, S.; Holley, M.; Stokes, H.W. The evolution of class 1 integrons and the rise of antibiotic resistance. J. Bacteriol. 2008, 190, 5095–5100. [Google Scholar] [CrossRef]
  24. Niven, D.F.; O’Reilly, T. Significance of v-factor dependency in the taxonomy of haemophilus species and related organisms. Int. J. Syst. Bacteriol. 1990, 40, 1–4. [Google Scholar] [CrossRef]
  25. Redfield, R.J.; Findlay, W.A.; Bosse, J.; Kroll, J.S.; Cameron, A.D.; Nash, J.H. Evolution of competence and DNA uptake specificity in the pasteurellaceae. BMC Evol. Biol. 2006, 6, 82. [Google Scholar] [CrossRef]
  26. Carattoli, A.; Miriagou, V.; Bertini, A.; Loli, A.; Colinon, C.; Villa, L.; Whichard, J.M.; Rossolini, G.M. Replicon typing of plasmids encoding resistance to newer beta-lactams. Emerg. Infect. Dis. 2006, 12, 1145–1148. [Google Scholar] [CrossRef]
  27. Bonnet, R. Growing group of extended-spectrum beta-lactamases: The ctx-m enzymes. Antimicrob. Agents Chemother. 2004, 48, 1–14. [Google Scholar] [CrossRef]
  28. Altschul, S.F.; Gish, W.; Miller, W.; Myers, E.W.; Lipman, D.J. Basic local alignment search tool. J. Mol. Biol. 1990, 215, 403–410. [Google Scholar]
  29. Edgar, R.C. Search and clustering orders of magnitude faster than blast. Bioinformatics 2010, 26, 2460–2461. [Google Scholar] [CrossRef]
  30. Katoh, K.; Standley, D.M. Mafft multiple sequence alignment software version 7: Improvements in performance and usability. Mol. Biol. Evol. 2013, 30, 772–780. [Google Scholar] [CrossRef]
  31. Tamura, K.; Peterson, D.; Peterson, N.; Stecher, G.; Nei, M.; Kumar, S. Mega5: Molecular evolutionary genetics analysis using maximum likelihood, evolutionary distance, and maximum parsimony methods. Mol. Biol. Evol. 2011, 28, 2731–2739. [Google Scholar] [CrossRef]
  32. Liu, B.; Pop, M. Ardb—antibiotic resistance genes database. Nucleic Acids Res. 2009, 37, D443–D447. [Google Scholar] [CrossRef]
  33. McArthur, A.G.; Waglechner, N.; Nizam, F.; Yan, A.; Azad, M.A.; Baylay, A.J.; Bhullar, K.; Canova, M.J.; de Pascale, G.; Ejim, L.; et al. The comprehensive antibiotic resistance database. Antimicrob. Agents Chemother. 2013, 57, 3348–3357. [Google Scholar] [CrossRef]
Pathogens EISSN 2076-0817 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
