Pathogens 2014, 3(1), 25-35; doi:10.3390/pathogens3010025
Published: 9 January 2014
Abstract: We have previously described a comparative genome analysis of nine strains of Anaplasma phagocytophilum that showed similarity between strains infecting humans and U.S. dogs and a more distant relationship with horse and ruminant strains. This suggested that it may be possible to distinguish human-infective strains using simple DNA sequence-based diagnostic tests. This would be of epidemiologic significance in identifying and tracking the presence of virulent strains in tick vector populations. Further analysis identified a gene that was present in several strains, including U.S. Ap-variant 1 (ruminant), MRK (horse), and European sheep, but was deleted in strains infecting U.S. humans and dogs, suggesting that it could be a useful marker of human virulence. A simple PCR test was developed to identify the presence/absence of this gene. The PCR test discriminated A. phagocytophilum strains from clinically affected humans and U.S. dogs from the strains more distantly related in genome sequence. This warrants further testing of globally diverse A. phagocytophilum strains to examine world-wide conservation of this gene.
Anaplasma phagocytophilum, a member of the order Rickettsiales, causes human fatalities in the U.S., Europe and Asia, and also infects multiple animal species. In the U.S., case reports increased from 348 in 2000 to 1,761 in 2010 , and the reported hospitalization rate is 36% . Human anaplasmosis (HA) can be treated with antibiotics, but the symptoms, such as headache, fever, and muscle aches are non-specific and can be confused with other common diseases such as the flu, often leading to inappropriate therapy. Increasingly, there are reports of infections transmitted by blood transfusions in the U.S. and Europe [3,4]. The animal species that have been found infected include cattle, sheep, goats, horses, dogs, foxes, cats and rodents. Also, the tick vectors, such as Ixodes scapularis and Ixodes pacificus in the U.S., are known for the broad range of hosts on which they feed . Different strains of A. phagocytophilum have different animal host predilections and not all strains infect all hosts . This complex ecology has made it difficult to assess the risk of transmission to humans and institute control measures.
There is extensive genomic diversity within the A. phagocytophilum species. Numerous attempts have been made to link particular genotypes to host-tropism phenotypes with some, although limited, success. For example, in the U.S. a two-base difference in 16S ribosomal RNA has identified some strains infective to either ruminants (known as Ap-variant 1) or to mice (and it is thought to humans, which are known as Ap-ha strains) [7,8,9]. This method has insufficient discriminatory power, however. Further study of multiple strains worldwide has identified at least fifteen 16S variants, of which Ap-ha is one of the most common . However, other variants have also been found in human infections and Ap-ha is not limited to humans. Moreover, there are many phenotypically untyped 16S variants in both the U.S. and Europe and multiple variants may co-exist in a single infection [11,12]. Similarly, methods based on polymorphisms in single genes such as ankA and groEL produce different strain clustering to one another and have failed to definitively categorize human-infective strains.
We recently completed a study analyzing high-throughput gene sequences of A. phagocytophilum strains from the U.S. and Europe . The rodent, dog and human strains were similar to one another and to the previously sequenced human-infective strain HZ (98.79%–100% average genome nucleotide identity). The Ap-variant 1 strains were different in numerous regions (96.21%–96.28% average nucleotide identity to HZ). Here, we used comparative genomics to identify a gene deletion that has occurred in strains infecting humans and dogs in the U.S. but not in the more distantly related ruminant and horse strains. A simple PCR test was developed to identify the presence/absence of this gene. This marker may aid investigations of the spread by ticks of A. phagocytophilum strains which cause disease in humans.
2. Results and Discussion
Comparison of genomes by alignment (Figure 1A) showed lower nucleotide identities in ApMRK (horse) and ApNorV2 (sheep) compared to ApHZ, ApJM and ApDog, agreeing with our previous data . The differences were found throughout the genomes, but were localized particularly to msp2/p44 pseudogenes close to the origin of replication (base #1 in a linear representation of the circular genome ). Additionally, we identified genome segments present only in some strains. Figure 1B shows a region that was present in ApMRK and ApNorV2 but was apparently deleted in the other three strains (demarcated with red arrows). This region is sandwiched between two pairs of inversely duplicated open reading frames (ORFs) annotated as APH_0919/APH_0920 and APH_0921/APH_0922 (encoding hypothetical proteins) in the CP000235 reference ApHZ genome (Figure 2 and Figure 3A). We initially identified two novel, relatively large, ORFs in this genome segment, one encoding a degenerate copy of the ABC transporter gene found elsewhere in all the genomes (annotated as APH_0986 in the CP000235 reference ApHZ genome) and a second encoding a gene with no known orthologs in other A. phagocytophilum strains, or in the most recent GenBank database. To verify that this was a gene deletion and not caused by misassembly, we compared Roche/454 reads from seven strains directly with this assembled region of ApMRK and ApNorV2 (Figure 2). Clearly, there were reads encompassing this previously unidentified gene in both the A. phagocytophilum strains infecting Norwegian sheep, the U.S. ruminant ApCRT35, and the Californian horse (ApMRK) strain. There were no alignable reads from ApHZ (human), ApJM (rodent), or ApDog, indicating that this was indeed a gene deletion in those strains most closely related to the human-infective ApHZ strain.

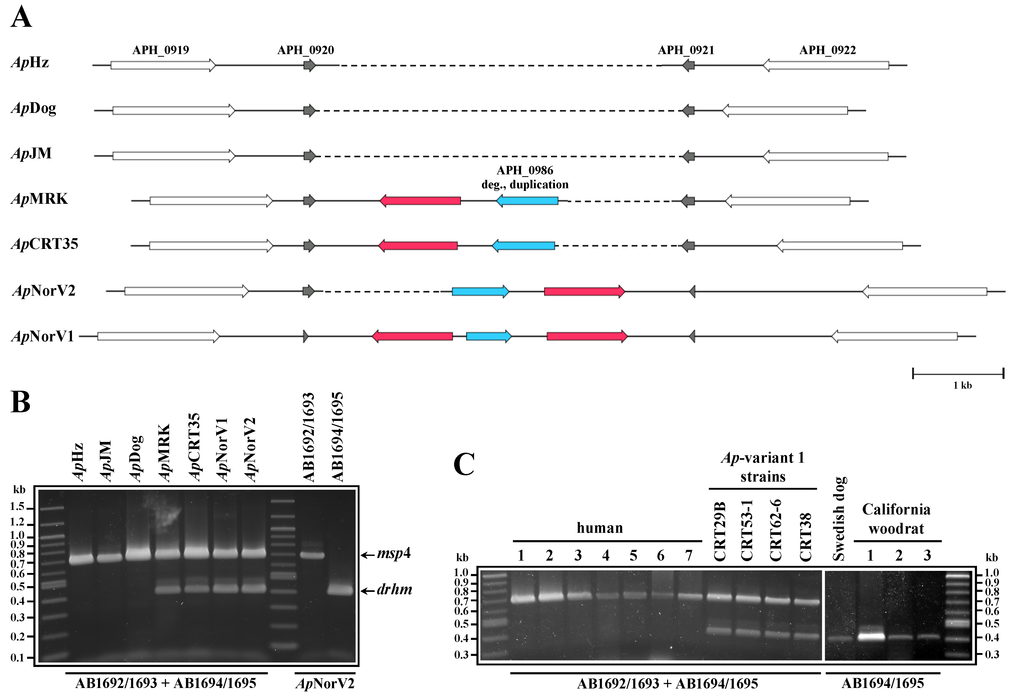

We developed a PCR assay to investigate the presence or absence of this gene, termed drhm (for distantly related to human marker), in other A. phagocytophilum strains. The drhm gene was present in all U.S. strains tested that were previously identified as the ruminant-tropic Ap-variant 1, as well as present in U.S. Californian woodrat strains tested. It was absent in all cultured strains originally derived from human infections in Minnesota or Wisconsin and from blood taken from clinically infected humans in New York state (Figure 3B and 3C). The conserved msp4 gene was used as an internal positive control to verify the presence of amplifiable A. phagocytophilum DNA in all samples.
This genome region appears to be prone to rearrangement, although not as frequent as in msp2/p44 pseudogenes, as the drhm gene is maintained in A. phagocytophilum strains derived from Europe as well as from the U.S. Midwest and California. This is most evident from the finding that the deleted segment can occur in either orientation relative to its placement in ApMRK, as well as the existence of two opposing drhm genes flanking the degenerate ABC transporter gene copy in the ApNorV1 genome (Figure 3A). It should be noted that no sequences related to the drhm gene could be detected in the vicinity of the full-length ABC transporter gene in these strains, nor at any other loci in the assembled ApMRK and ApNorV2 contigs. The putative polypeptides encoded by drhm range in identity from 87 to 99% (94 to 99% identity at the nucleic acid level; data not shown) and were strongly predicted by different algorithms to be integral membrane proteins with 5-6 transmembrane (TM) segments (Figure 4).

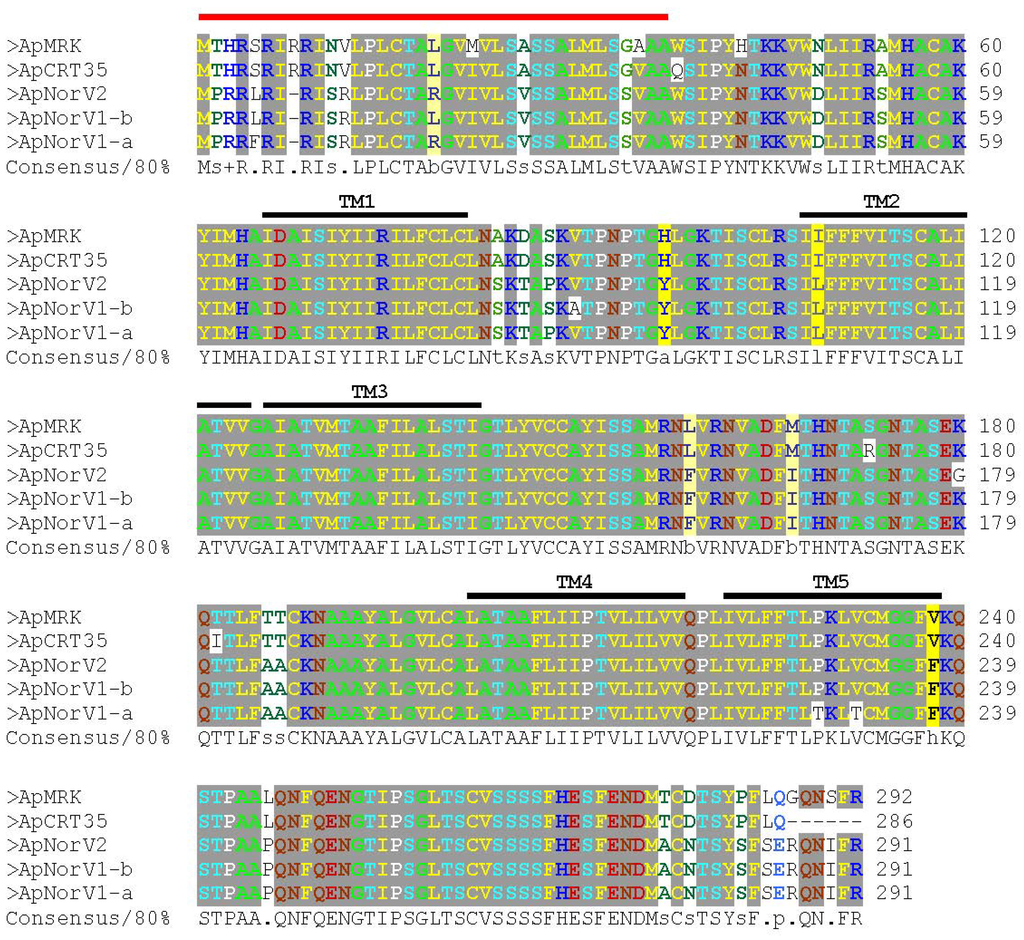

Further analysis of the amino acid sequence by PSORT suggested a location as inner membrane proteins; some algorithms (e.g., SIGNALP V.2.0) predicted an N-terminal signal peptide from 1–37, but others (e.g., SIGNALP V.4.1) did not. Scanning for motifs at the PRINTS-S Protein Fingerprint Database and other protein profile databases did not yield any significant hits suggestive of a potential function for the DRHM polypeptides.
The high worldwide prevalence of A. phagocytophilum, the continuing spread of its vector Ixodes ticks into new geographic areas , the potential for severe human disease and contamination of blood supplies make this emerging infection a cause for concern. We have shown data suggesting that, at least in the U.S., the presence of the drhm gene is indicative of strains that are not infecting humans but are more closely related to the long-known ruminant-infective strains. However, currently the number of strains analyzed at the whole genome level is small and should be expanded to verify this interpretation. One must also consider alternative possibilities. For example, that the gene deletion represents an artifact from adaptation of strains to in vitro culture conditions. We believe this to be less likely as the deletion was present in A. phagocytophilum DNA derived directly from clinical samples. It is possible that milder human infections may be caused by other strains but have not yet been recognized. Interestingly, in the U.S. the strains identified that cause disease in humans and dogs are similar at the whole genome level. Some data suggest this may not be true globally; A. phagocytophilum strains infecting Swedish dogs have not grouped phylogenetically with U.S. dog strains . Similarly, our preliminary data shows that a strain from an infected Swedish dog possesses the drhm gene (Figure 3C), unlike the U.S. dog strains analyzed (Figure 3B, and data not shown). There is a significantly lower number of human infections described in Europe compared to the U.S. for reasons that are not totally clear and are likely due to various factors such as levels of tick exposure, infection prevalence and disease surveillance. It is also possible that those strains that are most virulent for humans are not widely distributed in the tick vector and result from recent evolutionary divergence. This could produce localized foci of human infections, similar to those observed. Comparative genomics and the drhm PCR test will provide an initial rapid classification of A. phagocytophilum strains derived from animal reservoirs and ticks that can be investigated further for human virulence.
3. Experimental Section
3.1. A. phagocytophilum Strain Origins and Genomic DNA Isolation
The origins of the A. phagocytophilum strains used in this study are as follows: ApHZ, human, Westchester, New York, USA ; ApNY18, human, New York, USA ; ApWebster, human, Wisconsin ; ApMN1 and ApMN2, human, Minnesota; ApDog, dog, Minnesota; ApJM, meadow jumping mouse (Zapus hudsonius), Camp Ripley, Minnesota; ApMRK, horse, California [19,20]; Ap-CRT35, -CRT29B, -CRT38, -CRT53-1 and -CRT62-6 (Ap-variant 1 strains, Camp Ripley tick (I. scapularis), Minnesota ; ApNorV1 and ApNorV2, sheep, Norway [13,22]. ApDog, ApCRT35, ApNorV1 and ApNorV2 were previously defined as ApDog2, ApVar-1, ApNorLamb-V1 and ApNorLamb-V2, respectively .
Strains from in vitro culture included: ApHZ, ApNY18, ApMN1, ApMN2, ApWebster, ApJM and ApMRK, propagated in HL-60 cells, and ApDog and ApCRT35, maintained in the I. scapularis ISE6 tick cell line. Starter cultures of ApHZ, ApJM, and ApMRK were generously provided by Dr. Ulrike G. Munderloh, as was genomic DNA (gDNA) from ApDog, ApCRT35, ApMN1 and ApMN2. The three New York patient samples were generously provided by Dr. Susan Wong, NY State Dept. of Health , ApNorV1 and ApNorV2 by Drs. Snorre Stuen and Erik G. Granquist, and the Ap-variant 1 strains by Dr. Robert F. Massung. A. phagocytophilum gDNA was prepared as described previously . Genomic DNA from California dusky-footed woodrats (Neotoma fuscipes) was kindly provided by Dr. Janet E. Foley, and from the Swedish dog by Dr. Anneli Bjöersdorff.
3.2. Ethics Statement
The experimental study in sheep was approved by the Norwegian Animal Research Authority.
3.3. 454 Genome Sequencing and Bioinformatics
Genomic DNA was sequenced on the Roche/454 Genome Sequencer as previously described [13,22], with genome coverage ranging from 31.3X to 72.1X. Briefly, regular read libraries were generated for ApHZ, ApDog, ApJM, ApMRK, Ap-CRT35, ApNorV1 and ApNorV2. Additionally, 3 kb paired end libraries were made for ApHZ and ApMRK. Genome drafts were assembled using the CLC Genomics Workbench software suite (version 4.0–4.9) with default parameters: length fraction, 0.5; similarity, 0.8; and for paired end reads, minimum distance, 1,500/maximum distance, 4,500. Gapped drafts for the ApMRK and ApNorV2 genomes were generated by a combination of mapping and de novo assembly. Briefly, initial consensus sequences for each strain were obtained by mapping the respective reads against the fully annotated Sanger sequenced ApHZ genome (GenBank CP000235). Regions with corresponding de novo contigs were manually identified and replaced with de novo contig sequences. Reads were again mapped to the resulting consensus sequences and underlying aligned reads were inspected for conflicts and gaps, which were manually corrected as described [13,22]. In this fashion, 9 finalized contigs were obtained for ApMRK, and 23 contigs for ApNorV2. Residual gaps correspond mainly to some msp2/p44 gene clusters, the large R3/R4 repeat regions of the virB6-4 gene , and large genome duplications/insertions. To perform the analysis presented in Figure 1, for each of these two strains, a contiguous consensus genome sequence was generated consisting of the finalized contigs joined by Ns and ordered according to the CP000235 reference genome. To obtain the loci depicted in Figure 3A for ApCRT35 and ApNorV1, consensus sequences were generated by mapping the respective reads against the corresponding regions in the ApMRK and ApNorV2 genome drafts, and conflicts and gaps were manually resolved as above.

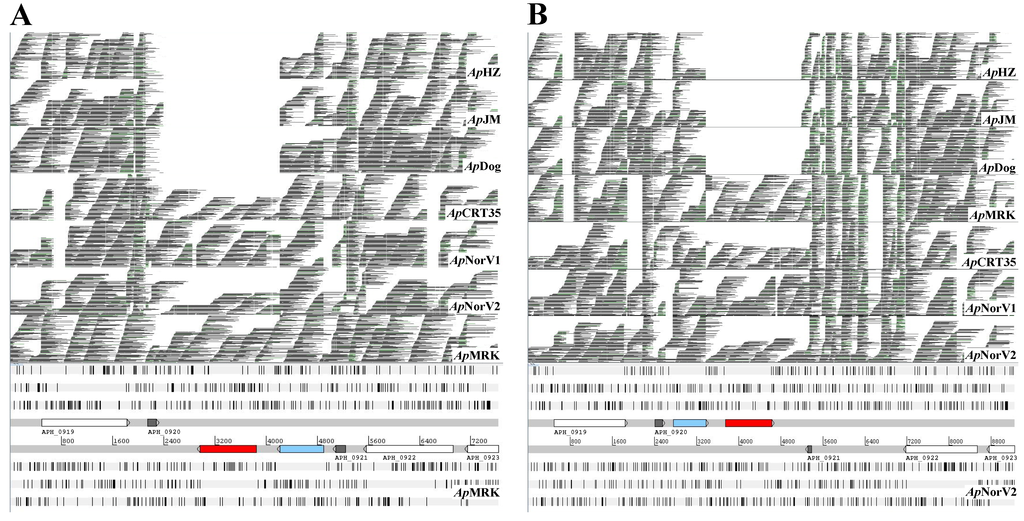

Genome alignments (Figure 1) were conducted using MUGSY and displayed with GMAJ . To align Roche/454 reads with assembled contigs (Figure 2) LASTZ running on a local instance of GALAXY [25,26,27] on the University of Florida high performance computer cluster was used (75% identity cutoff). The SAM-format output files were converted to BAM, sorted and indexed with SAMTOOLS  and displayed with ARTEMIS [29,30]. Amino acid sequences were aligned with MAFFT  and displayed with CHROMA . The putative signal peptide region and TM segments highlighted in Figure 4 were predicted with SIGNALP and PSORT [33,34,35,36].
3.4. PCR Amplification
PCR products spanning msp4 and the drhm gene (~680 bp and 390 bp, respectively; Fig 3B and 3C) were derived in a single reaction or separately using Takara’s PrimeSTAR GXL DNA Polymerase system (Clonetech Laboratories, Mountain View, CA, USA). Reactions contained 5 ng gDNA or 5–12 µL from very low concentration samples, and: 1.25 U polymerase, 1.0 mM MgCl2, 200 μM each dNTP, and 200 nM each primer, in total 50 μL. Universal primers for msp4 were: AB1692, 5′-TAATGATGCGTCTGATGTTAGCG-3′, forward; AB1693, 5′-CACCACCTGCTATGTTTACACG-3′, reverse, and for drhm: AB1694, 5′-TATCTTAGCTCTCTCCACCATAG-3′, forward; AB1695, 5′-AACTAGACGATGATACACAAGATG-3′, reverse. Following the manufacturer’s recommendations, 3-step PCR was performed with 30 cycles of 10 s denaturing at 98 °C, 15 s annealing at 60 °C and 90 s extension at 68 °C. Final extension was for 5 min at 72 °C. PCR products were analyzed on 1.5% agarose gels alongside a 100 bp DNA ladder (New England Biolabs, Beverly, MA, USA).
3.5. GenBank Accession Numbers
GenBank accession numbers for the drhm gene in ApMRK, ApCRT35, ApNorV1 (drhm-a), ApNorV1 (drhm-b) and ApNorV2 are KF905325, KF905326, KF905327, KF905328 and KF905329, respectively.
These data showed significant differences between A. phagocytophilum genomes derived from different host animals and geographic locations. Comparative genomics revealed a consistent gene deletion in the strains infecting humans in the U.S. compared to many other global A. phagocytophilum strains. A PCR assay was developed to detect the presence of this gene, drhm. This could be applied rapidly for strain identification in epidemiological studies to track A. phagocytophilum strains with varying degrees of potential infectivity to humans.
We thank Anna M. Lundgren for expert technical assistance with PCR analysis, and Savita Shanker for high-throughput DNA sequencing. This investigation received support from grants RO1 GM081714 and GM081714-03S1.
Conflicts of Interest
The authors declare no conflict of interest.
