Next Article in Journal
Dissolution of M23C6 and New Phase Re-Precipitation in Fe Ion-Irradiated RAFM Steel
Next Article in Special Issue
Springback Estimation in the Hydroforming Process of UNS A92024-T3 Aluminum Alloy by FEM Simulations
Previous Article in Journal
Evaluation of Failure Pressure for Gas Pipelines with Combined Defects
Previous Article in Special Issue
Influence of Sludge Particles on the Fatigue Behavior of Al-Si-Cu Secondary Aluminium Casting Alloys
Article Menu
Issue 5 (May) cover image

Export Article

Open AccessFeature PaperArticle
Metals 2018, 8(5), 348; https://doi.org/10.3390/met8050348

High-Temperature Behavior of High-Pressure Diecast Alloys Based on the Al-Si-Cu System: The Role Played by Chemical Composition

1
Dipartimento di Meccanica, Politecnico di Milano Via La Masa 1, 20156 Milano, Italy
2
Laboratory for Machine Tools and Production Engineering (WZL), RWTH Aachen University, 52074 Aachen, Germany
3
Dipartimento di Tecnica di Gestione di Sistemi Industriali, Università di Padova, Stradella S. Nicola, 3-36100 Vicenza, Italy
*
Author to whom correspondence should be addressed.
Received: 1 April 2018 / Revised: 2 May 2018 / Accepted: 9 May 2018 / Published: 11 May 2018
(This article belongs to the Special Issue Light Weight Alloys: Processing, Properties and Their Applications)
View Full-Text   |   Download PDF [43987 KB, uploaded 11 May 2018]   |

Abstract

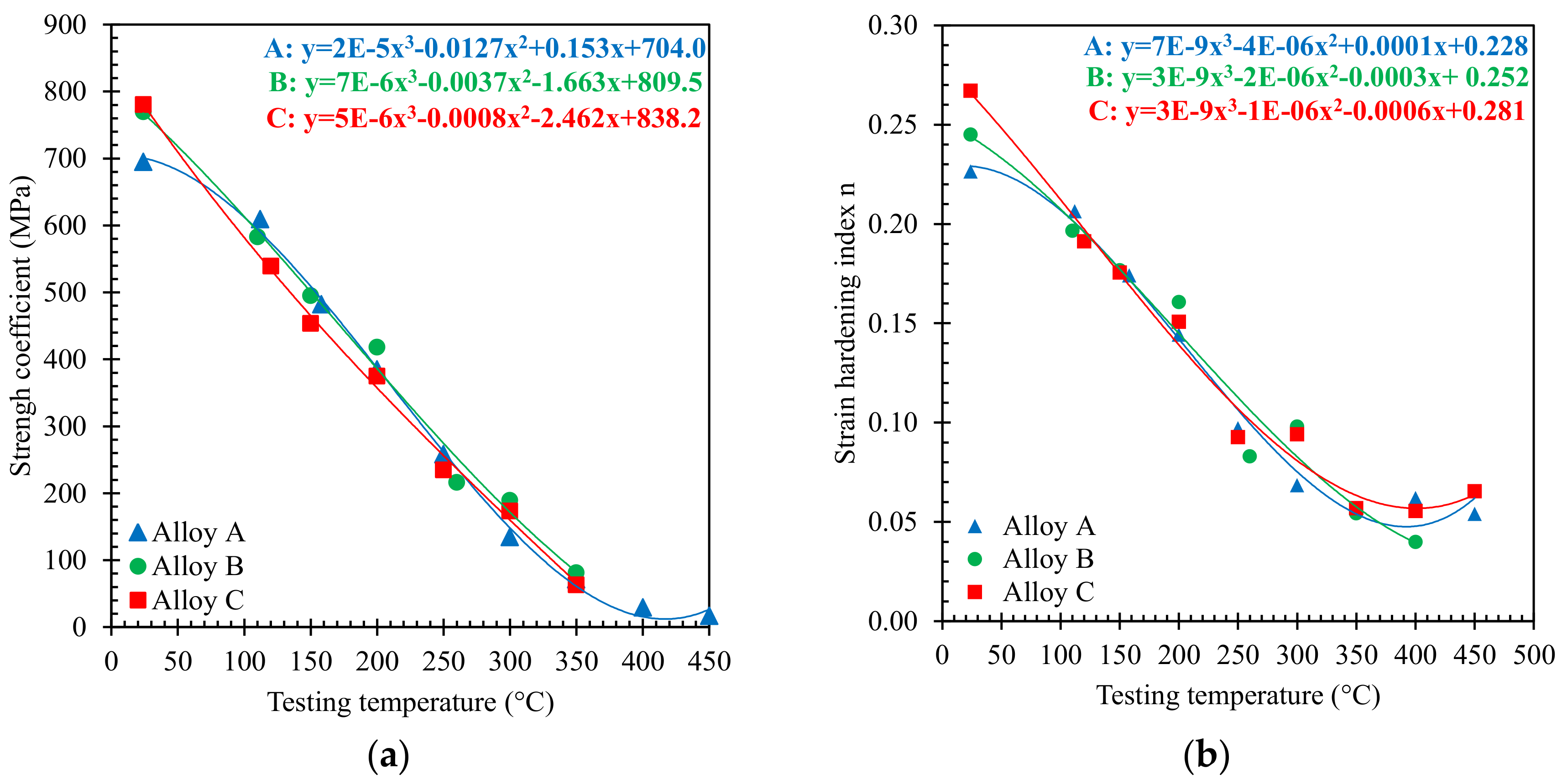

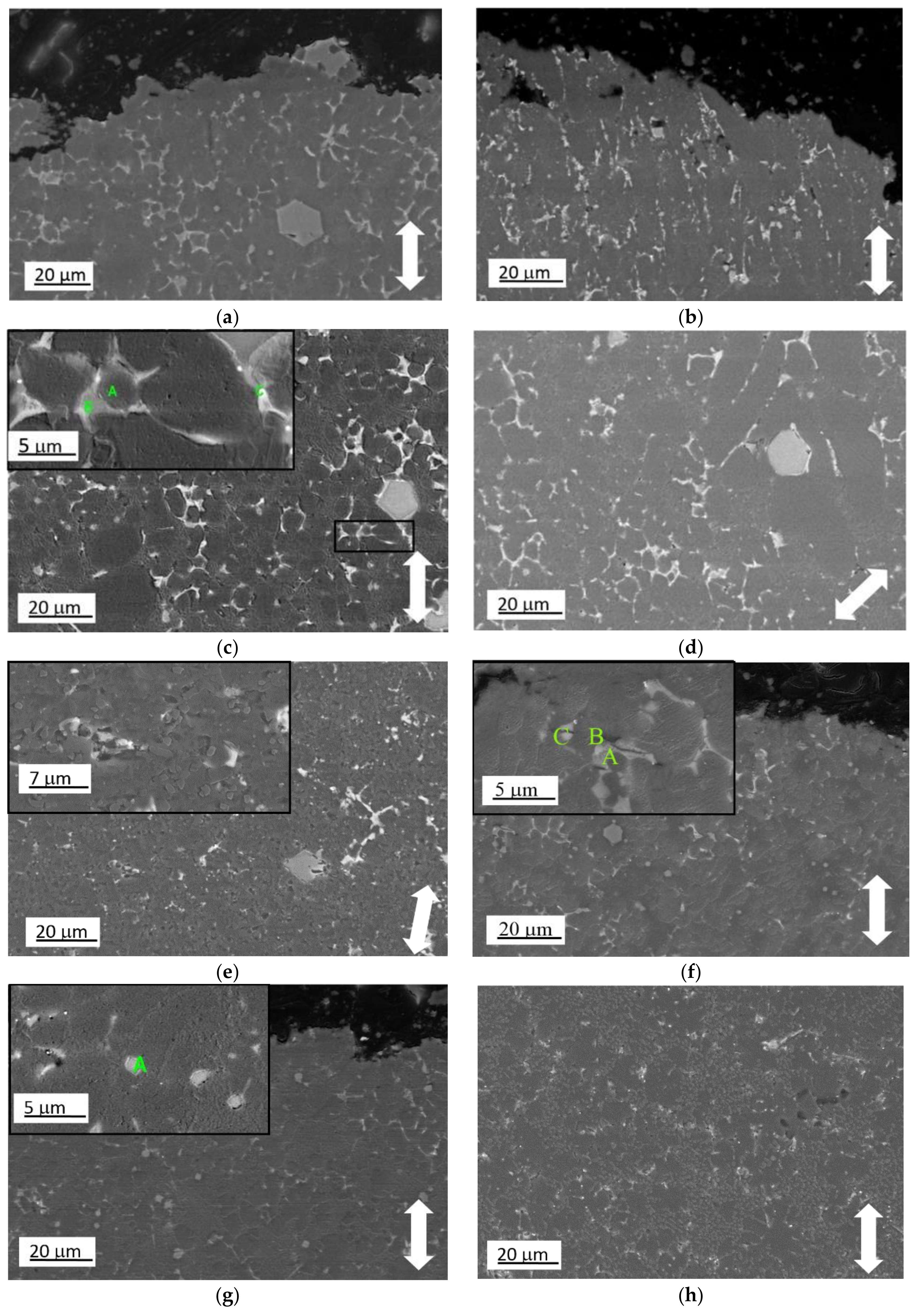

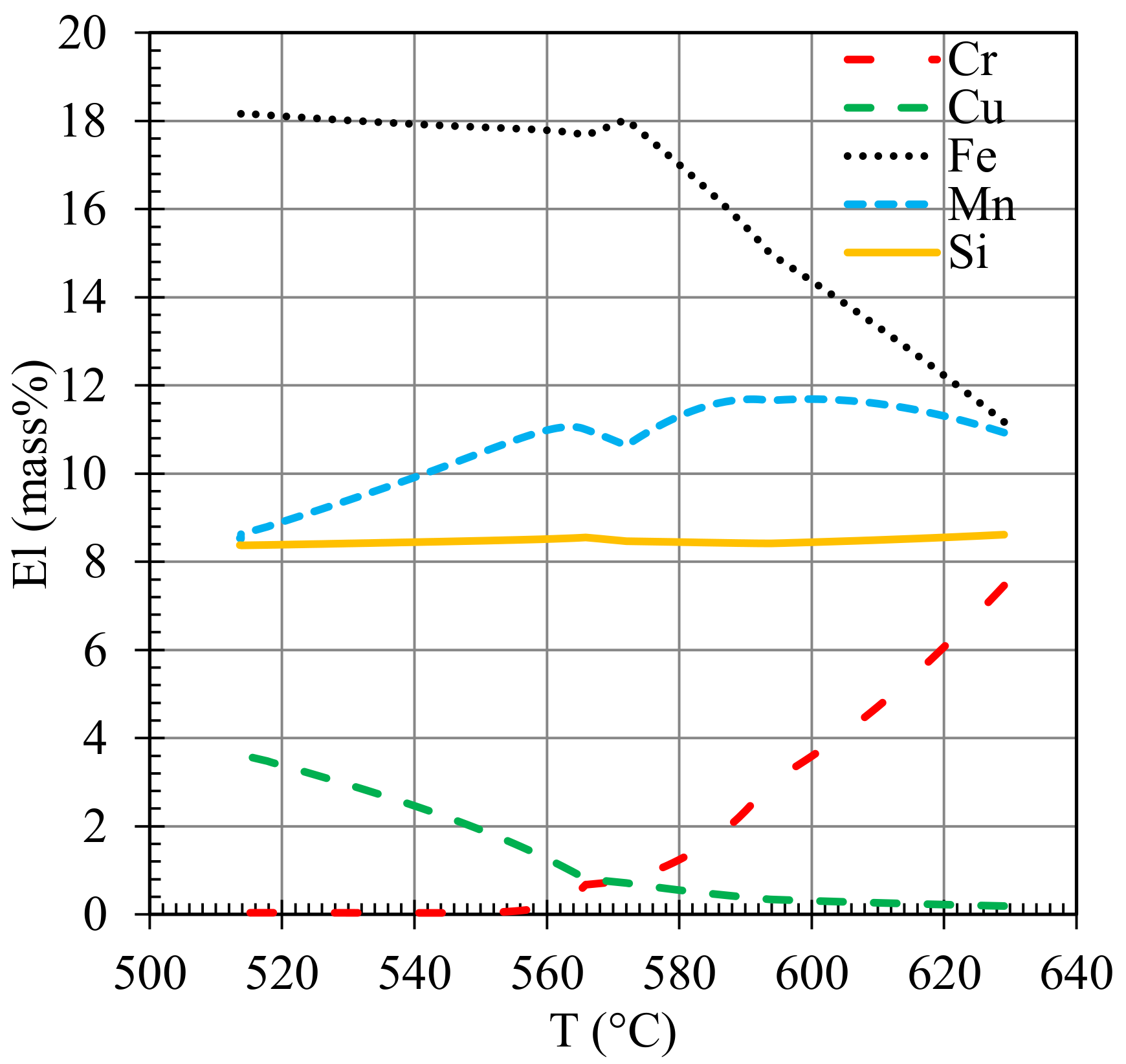

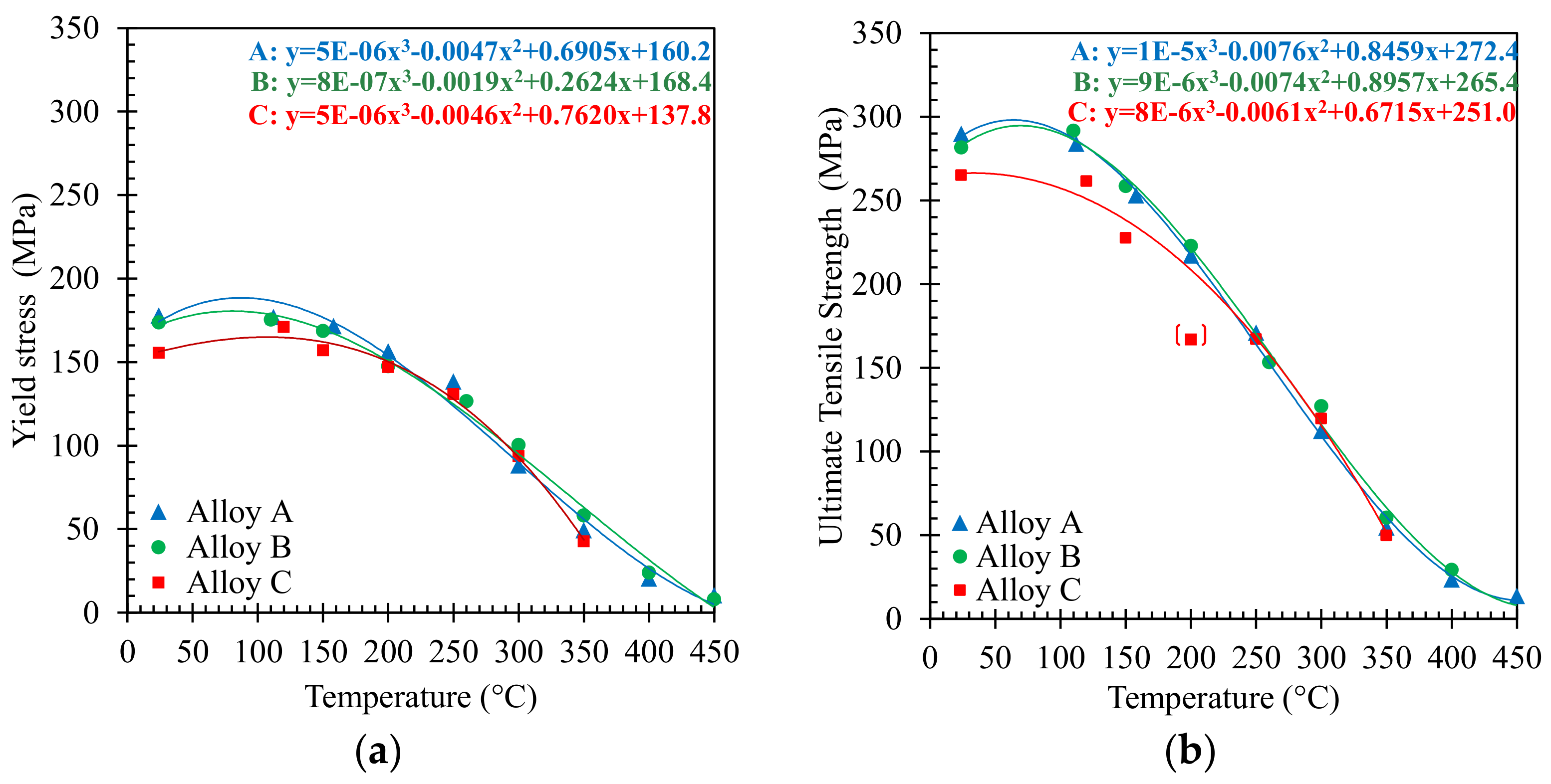

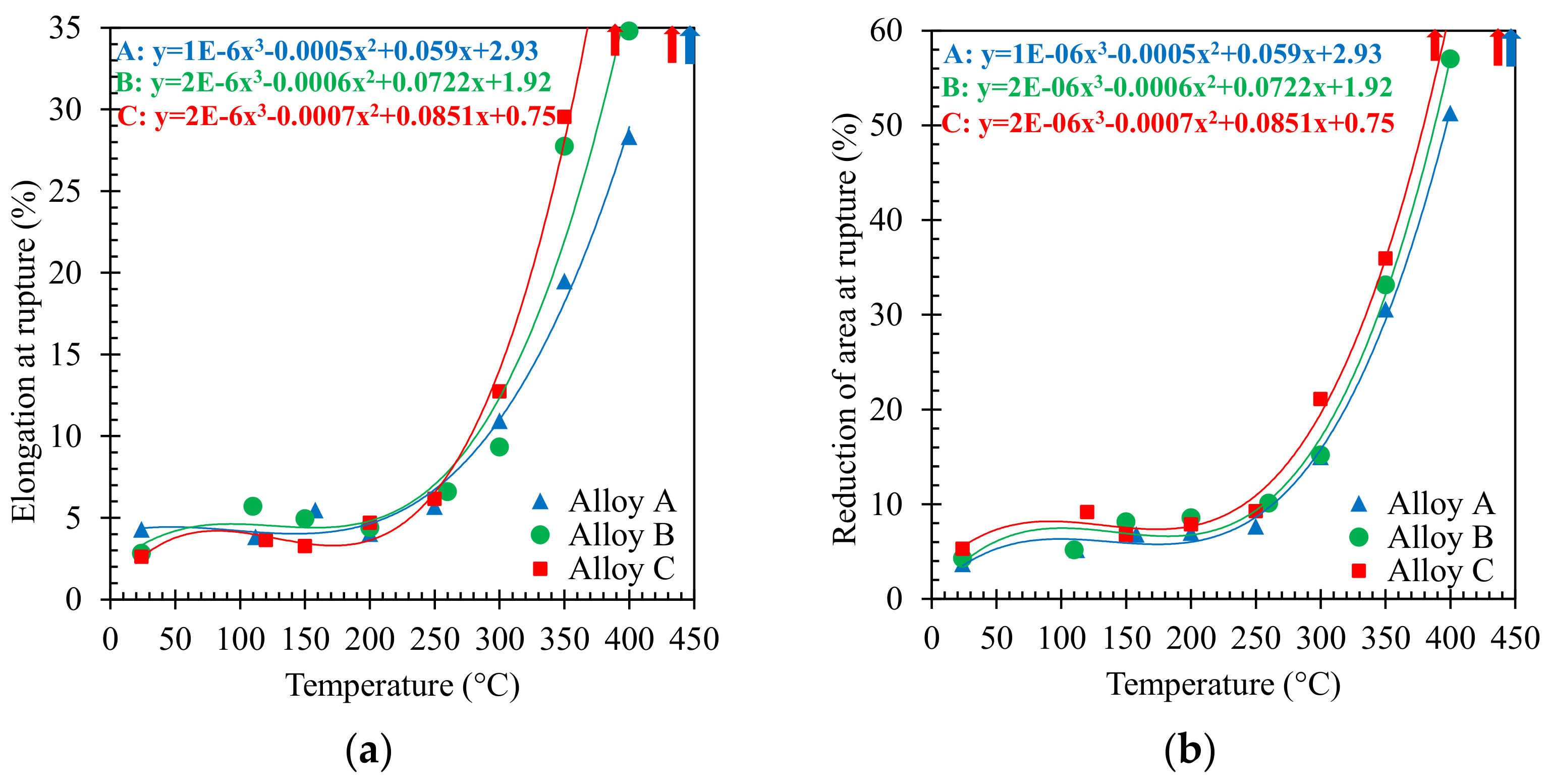

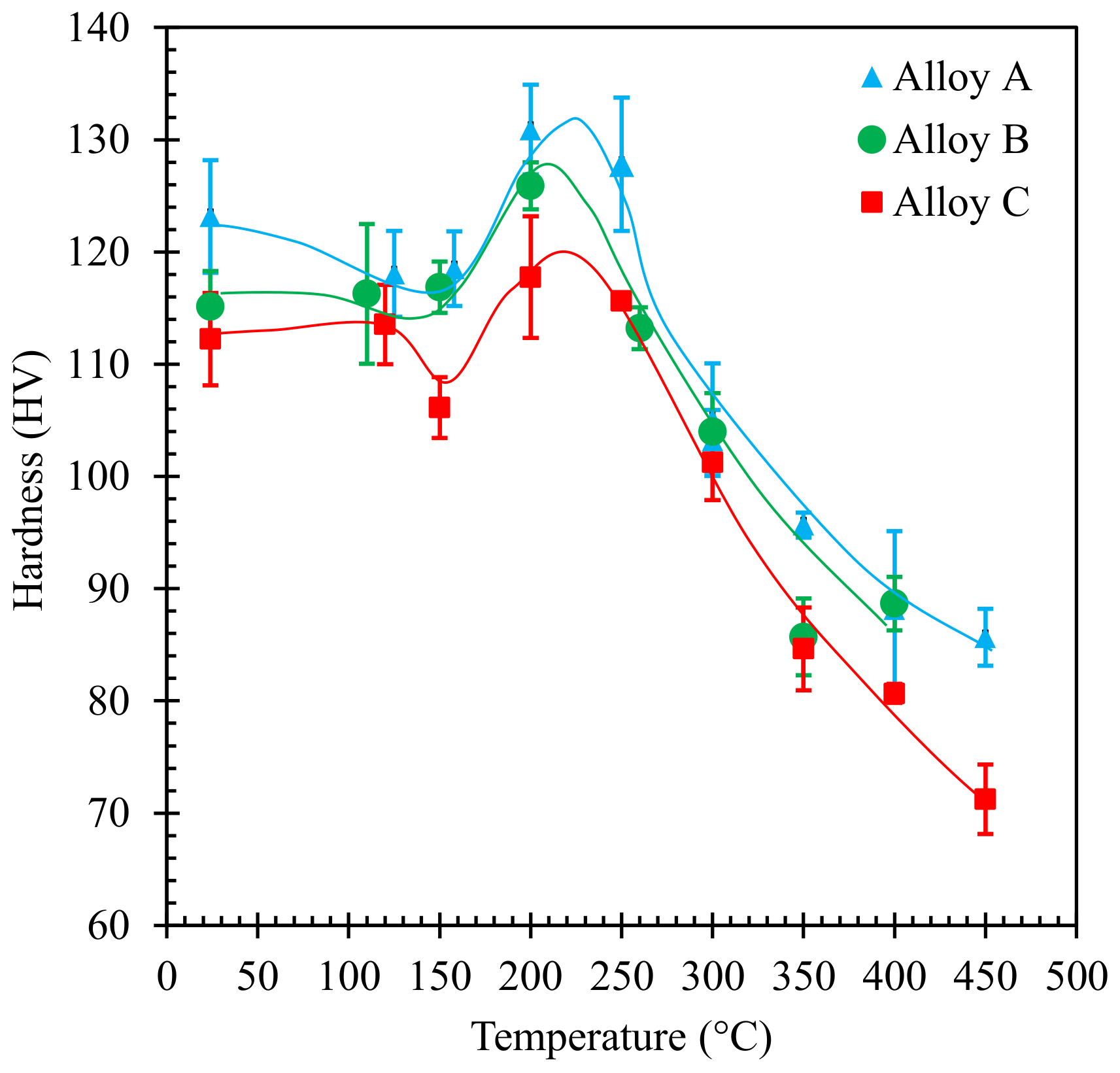

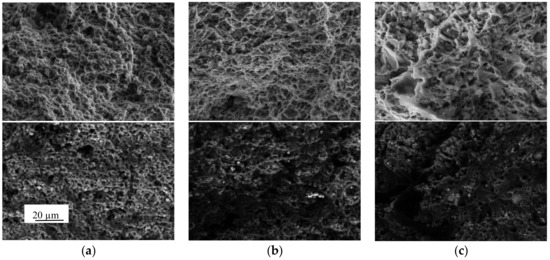

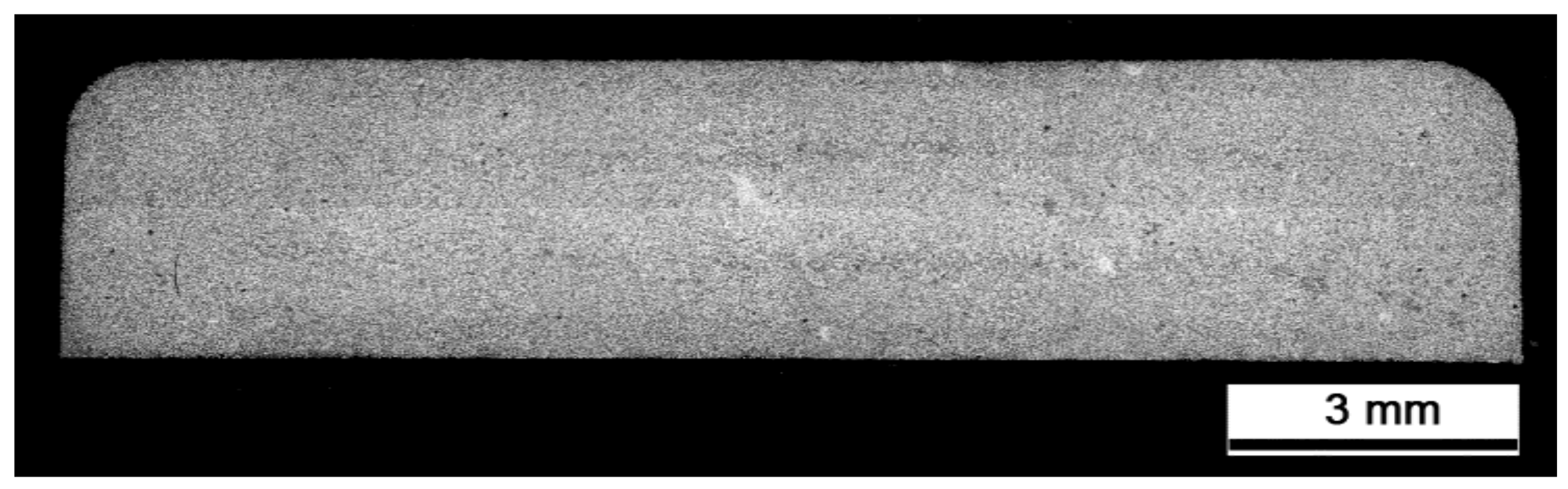

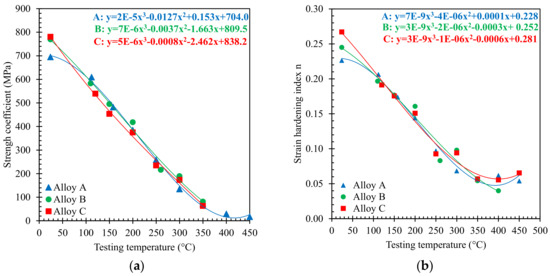

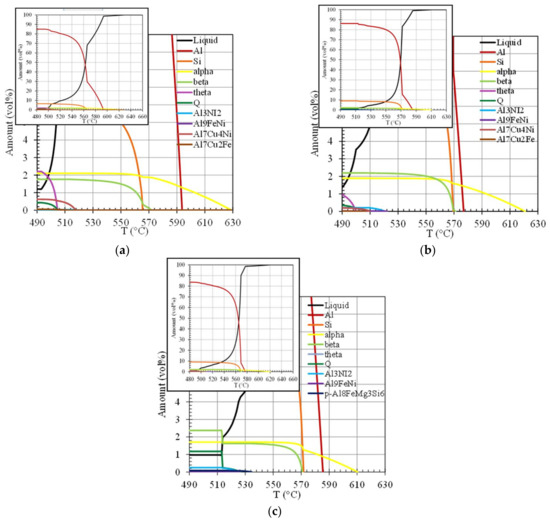

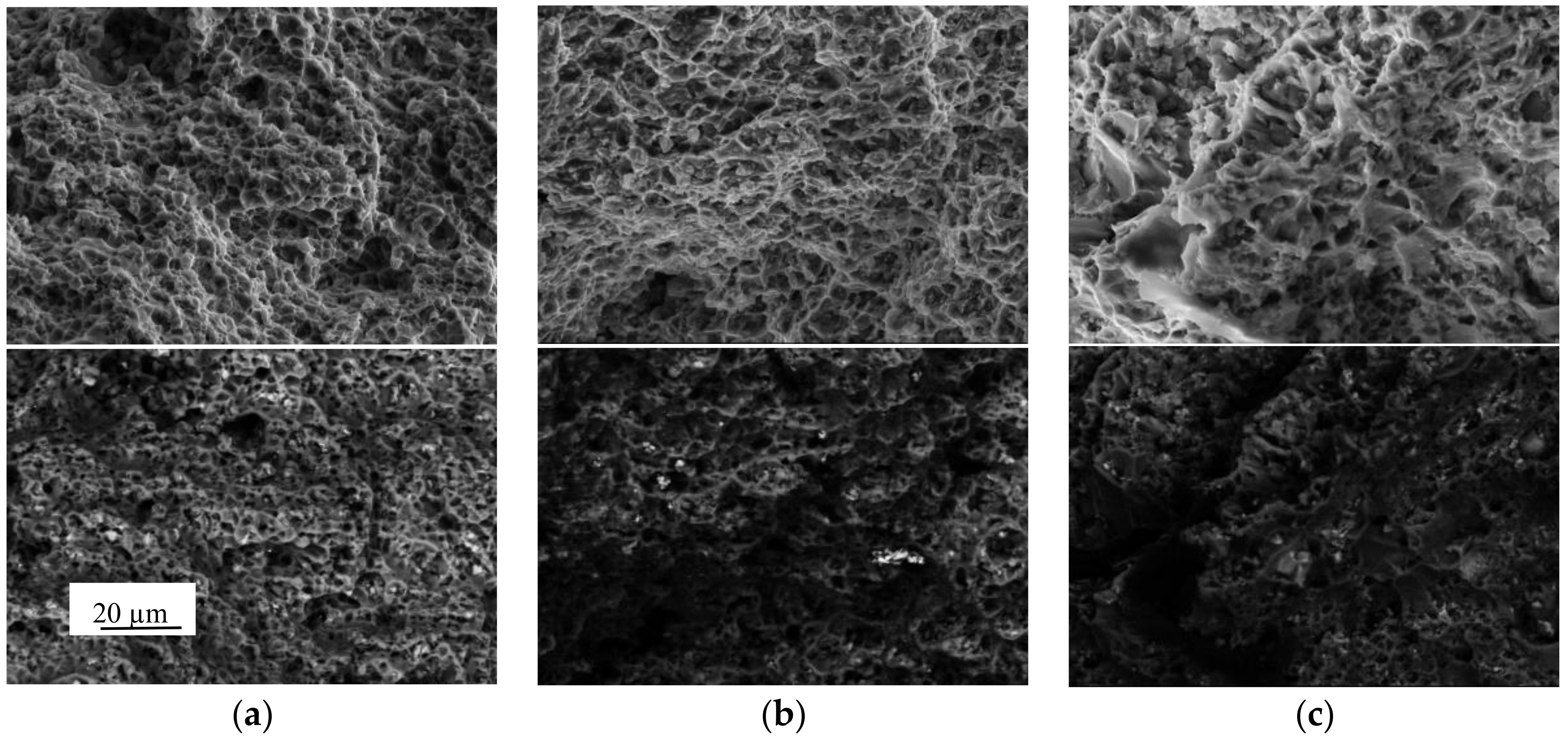

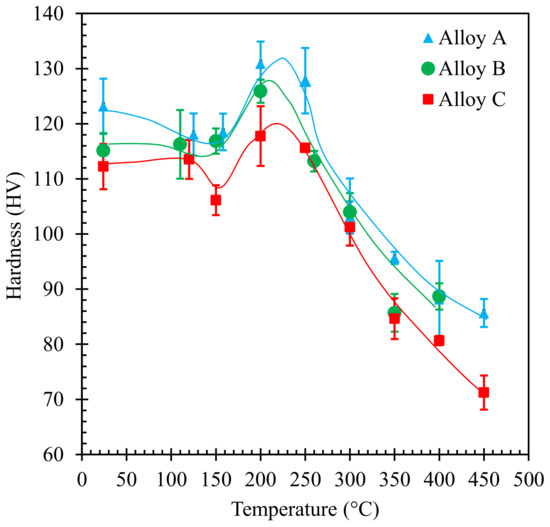

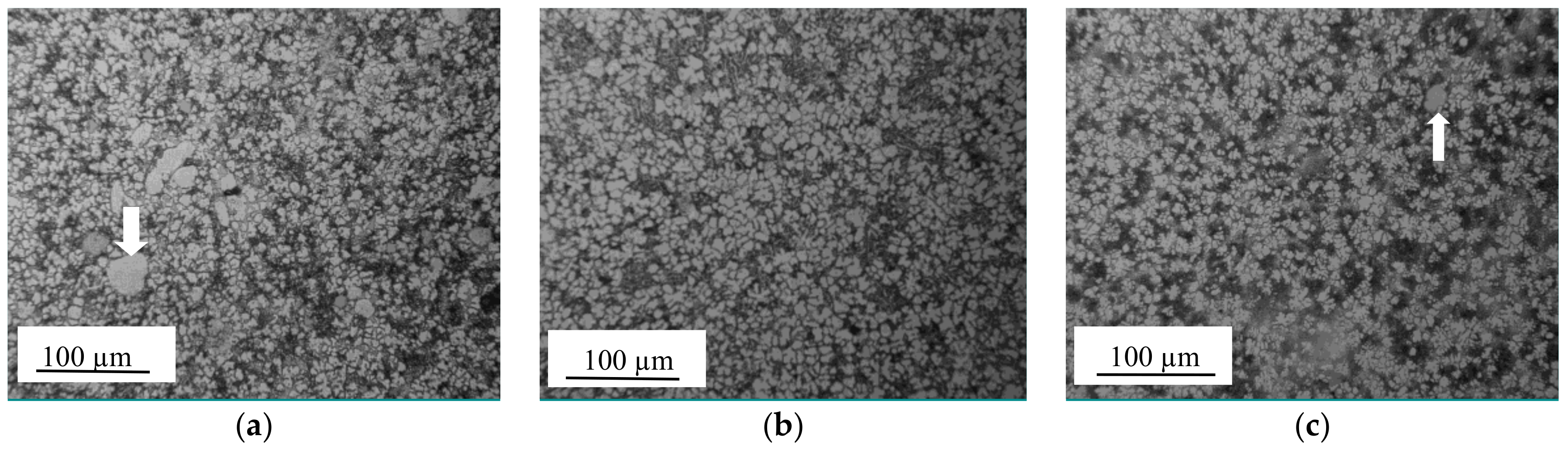

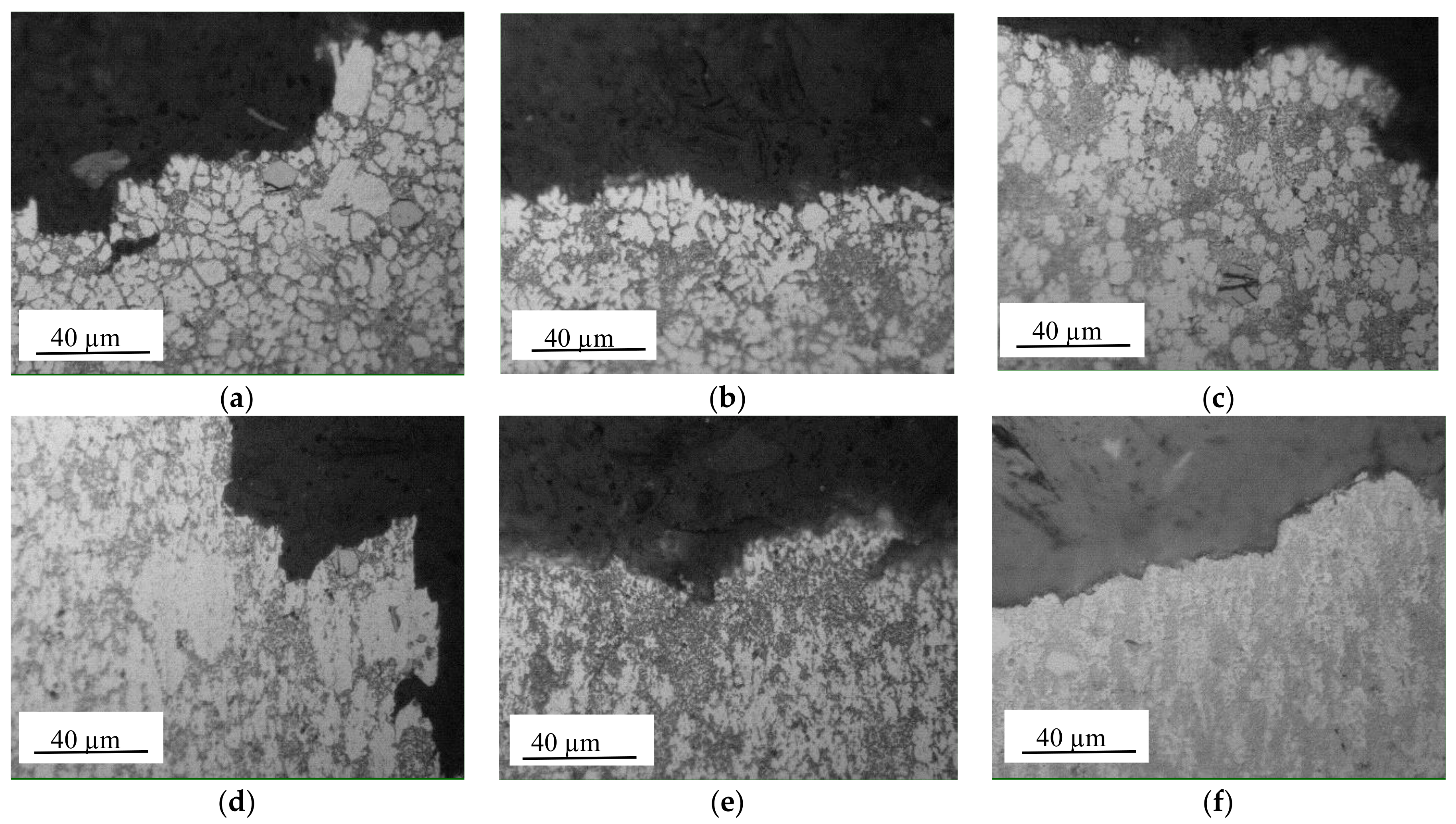

Al-Si-Cu foundry alloys are widely applied in the form of high-pressure diecast components. They feature hypo- or nearly eutectic compositions, such as AlSi9Cu3(Fe), AlSi11Cu2(Fe), and AlSi12Cu1(Fe) alloys, which are used in the present study. Diecast specimens, with a thickness of 3 mm, were used for tension tests. The short-term mechanical behavior was characterized at temperatures from 25 up to 450 °C. At temperatures above 200 °C, the tensile strength properties (YS and UTS) of the investigated alloys were severely affected by temperature, and less by chemical differences. Material hardness and ductility indexes better highlighted the differences in the mechanical behavior of these age-hardenable alloys and allowed us to relate them to the microstructure and its changes that took place at test temperatures. Thermodynamic calculations were found to be useful tools to predict phases formed during solidification, as well as those related to precipitation strengthening. By means of the performed comprehensive material characterization, deeper knowledge of the microstructural changes of Al-Si-Cu foundry alloys during short-term mechanical behavior was obtained. The gained knowledge can be used as input data for constitutive modeling of the investigated alloys. View Full-Text
Keywords: high temperature; tensile properties; microstructural changes; AlSi9Cu3(Fe); AlSi11Cu2(Fe); AlSi12Cu1(Fe) high temperature; tensile properties; microstructural changes; AlSi9Cu3(Fe); AlSi11Cu2(Fe); AlSi12Cu1(Fe)
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Gariboldi, E.; Lemke, J.N.; Rovatti, L.; Baer, O.; Timelli, G.; Bonollo, F. High-Temperature Behavior of High-Pressure Diecast Alloys Based on the Al-Si-Cu System: The Role Played by Chemical Composition. Metals 2018, 8, 348.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
