Next Article in Journal
Optimization of Graphite Morphology in Mottled Nihard Cast Irons Inoculated with Feb and Manufactured by Centrifugal Casting
Next Article in Special Issue
Influence of Intercritical Annealing Temperature on Microstructure and Mechanical Properties of a Cold-Rolled Medium-Mn Steel
Previous Article in Journal
Fracture Behavior of Innovative Materials under Different Environmental Conditions
Previous Article in Special Issue
Correlation between Fatigue Crack Growth Behavior and Fracture Surface Roughness on Cold-Rolled Austenitic Stainless Steels in Gaseous Hydrogen
Article Menu
Issue 5 (May) cover image

Export Article

Open AccessArticle
Metals 2018, 8(5), 292; https://doi.org/10.3390/met8050292

Local Deformation and Mn-C Short-Range Ordering in a High-Mn Fe-18Mn-0.6C Steel

1
Steel Institute, RWTH Aachen University, Intzestraße 1, 52072 Aachen, Germany
2
Jülich Centre for Neutron Science (JCNS) at Heinz Maier Leibnitz Zentrum (MLZ), Forschungszentrum Jülich GmbH, Lichtenbergstraße 1, 85748 Garching, Germany
*
Author to whom correspondence should be addressed.
Received: 26 March 2018 / Revised: 13 April 2018 / Accepted: 16 April 2018 / Published: 24 April 2018
Full-Text   |   PDF [6470 KB, uploaded 3 May 2018]   |

Abstract

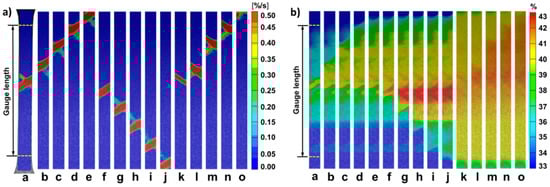

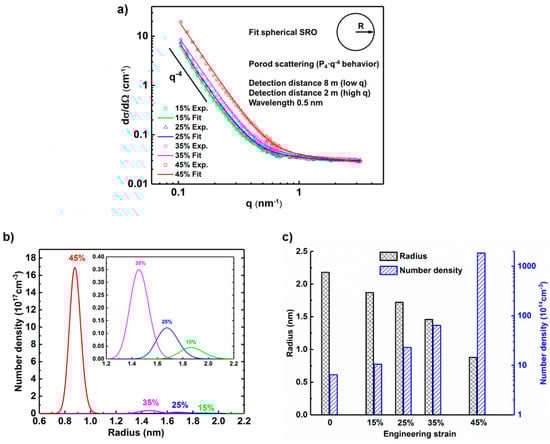

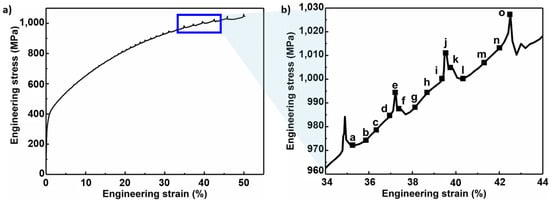

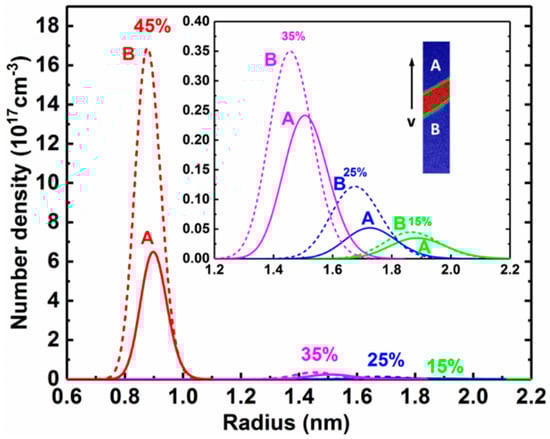

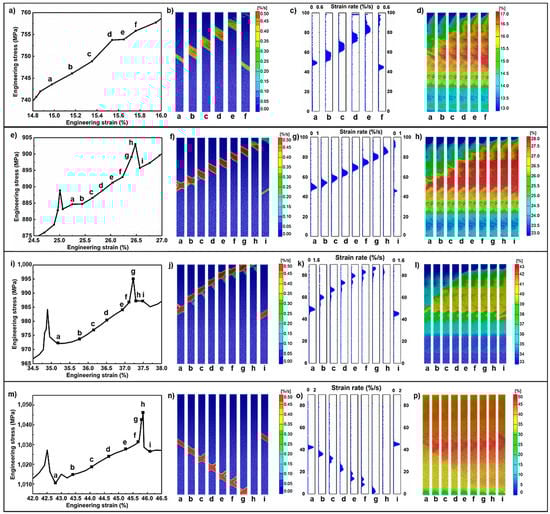

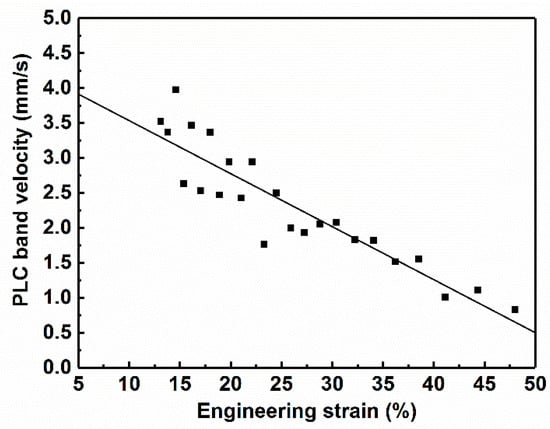

The localized deformation in the high-Mn austenitic Fe-18Mn-0.6C (wt %) steel manifests itself as serrations in the stress–strain curves and Portevin–Le Chatelier (PLC) bands characterized by digital image correlation (DIC) analysis in uniaxial tensile tests. The serrated flow is correlated with the nucleation, propagation and dying away of PLC bands. The PLC band velocity decreases with increasing strain. In this present study, the Mn-C short-range ordering (SRO) was analyzed quantitatively using small angle neutron scattering (SANS) in Fe-18Mn-0.6C steel. The size and number density of the Mn-C SRO were determined as a function of engineering strain at room temperature. The mean radius of the Mn-C SRO decreases, while the number density increases when there is an increase in the engineering strain. The influence of PLC bands on Mn-C SRO in tensile tests was further discussed. View Full-Text
Keywords: high-Mn steel; short-range ordering; Portevin-Le Chatelier band; serrated flow; small angle neutron scattering high-Mn steel; short-range ordering; Portevin-Le Chatelier band; serrated flow; small angle neutron scattering
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Song, W.; Houston, J.E. Local Deformation and Mn-C Short-Range Ordering in a High-Mn Fe-18Mn-0.6C Steel. Metals 2018, 8, 292.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
