Article

Crystallization Behaviors of Anosovite and Silicate Crystals in High CaO and MgO Titanium Slag

1
College of Materials Science and Engineering, Chongqing University, Chongqing 400044, China
2
Chongqing Key Laboratory of Vanadium-Titanium Metallurgy and Advanced Materials, Chongqing University, Chongqing 400044, China
*
Authors to whom correspondence should be addressed.
Metals 2018, 8(10), 754; https://doi.org/10.3390/met8100754
Submission received: 31 August 2018 / Revised: 12 September 2018 / Accepted: 21 September 2018 / Published: 24 September 2018
(This article belongs to the Special Issue Ironmaking and Steelmaking)

Abstract

:
Electric-furnace smelting has become the dominant process for the production of the titanium slag from ilmenite in China. The crystallization behaviors of anosovite and silicate crystals in the high CaO and MgO titanium slag were studied to insure smooth operation of the smelting process and the efficient separation of titanium slag and metallic iron. The crystallization behaviors were studied by a mathematical model established in this work. Results show that the crystallization order of anosovite and silicate crystals in high CaO and MgO titanium slag during cooling is: Al2TiO5 > Ti3O5 > MgTi2O5 > MgSiO3 > CaSiO3 > FeTi2O5 > Mn2SiO4 > Fe2SiO4. Al2TiO5 and Ti3O5 have higher crystallization priority and should be responsible for the sharp increase in viscosity of titanium slag during cooling. The total crystallization rates of anosovite and silicate crystals are mainly controlled by Al2TiO5 and MgSiO3, respectively. The mass ratio of Ti2O3/ΣTiO2 has a prominent influence on the total crystallization rate of anosovite crystals while the mass ratio of MgO/FeO has a slight influence on the total crystallization rate of anosovite crystals.

1. Introduction

Titanium dioxide and metallic titanium are the main products of titanium metallurgy. Titanium dioxide is widely employed in the fields of coating, painting, paper, plastics, rubber, and ceramic because of its non-toxicity, opacity, whiteness and brightness [1,2,3]. Metallic titanium has various applications such as aviation, aerospace, biomedical, marine, and nuclear waste storage due to its high corrosion resistance, high specific strength, light weight, high melting point, and high chemical/heat stability [3,4,5]. A large amount of high-quality titanium-rich materials are increasing required due to the wider and wider application of titanium dioxide and metallic titanium. Titanium-rich materials mainly include two types: Rutile and titanium slag. With the depletion of rutile resource, titanium slag has become the main titanium-rich material to produce the metallic titanium and titanium white in China. The electric-furnace smelting has become the dominant process to produce titanium slag from ilmenite in China. During the process of the electric-furnace smelting, iron oxide in ilmenite concentrate is reduced to metallic iron and titanium oxide in ilmenite is left in the slag (called titanium slag). The flow behavior of titanium slag at high temperature is a crucially significant factor, influencing, for example, the ability to tap the titanium slag from the electric furnace, the efficiency of separation of titanium slag from metal iron, the foaming extent of titanium slag, and the kinetics of titanium smelting reactions [6]. There is some research about the flow behavior of titanium slag at high temperature in recent decades [7,8,9,10]. It has been concluded from the aforementioned research that the titanium slag crystallizes much more easily during tapping from the electric furnace and separation is more difficult from liquid iron than other metallurgical slags. Therefore, the investigation on crystallization behavior of titanium slag at a high temperature will contribute to insuring the smooth operation of the smelting and the efficient separation of titanium slag and metallic iron.
The crystallization of melts consists of two steps: Nucleation and growth [11,12]. The crystallization behavior of melts can be studied by three kinds of methods: Experimental techniques, molecular dynamic simulation, and classical crystallization theory. For example, the crystallization behaviors of mold flux and Ti-bearing blast furnace slag were intensively investigated by the differential scanning calorimeter [13,14], the single hot thermocouple technique/double hot thermocouple technique [15,16,17], the confocal laser scanning microscope [18,19,20], and the viscosity-temperature curve method. Watson et al. [21] studied the crystal nucleation and growth in Pd-Ni alloys by the molecular dynamic simulation, which was only suitable for a relatively simple system. Turnbull [22] interpreted convincingly the nucleation phenomena on the basis of the classical crystallization theory. In contrast, there is almost no effective experimental technique to investigate the crystallization behaviors of many different crystals in the relatively complex system of titanium slag. Furthermore, based on the fact that the titanium slag can corrode all refractory oxide containers [9], studies of the crystallization behavior of titanium slag using experiment techniques are extremely difficult and dangerous to carry out. Therefore, few research is focused on the crystallization behavior of titanium slag at a high temperature.
Panzhihua, located in southwestern China, holds ilmenite reserves of 870 million tons, accounting for 35% of total ilmenite reserves in the world [23]. The composition of mineral phases in titanium slag produced from Panzhihua ilmenite is complex due to its high content of CaO and MgO. According to the previous study by Dong et al. [24], the mineral phases in the high CaO and MgO titanium slag consisted of anosovite (FeTi2O5, MgTi2O5, Ti3O5, and Al2TiO5), olivine (Fe2SiO4 and Mn2SiO4), and augite (CaSiO3 and MgSiO3) as determined by X-ray diffraction and Energy Dispersive Spectrometer. Fan et al. [25] also confirmed the complex composition of mineral phases in the high CaO and MgO titanium slag. Therefore, the crystallization behaviors of crystals in the high CaO and MgO titanium slag would become more complex.
In this work, a mathematical model was established to describe the crystallization behaviors of anosovite and silicate crystals in the high CaO and MgO titanium slag. Specifically, two main issues will be addressed. First, the crystallization behaviors of anosovite and silicate crystals in the high CaO and MgO titanium slag will be determined. The crystallization ability, crystallization order, and optimum temperature ranges of different crystals in the high CaO and MgO titanium slag will be analyzed and discussed in detail. Second, the effect of the composition of titanium slag on the crystallization behaviors of anosovite crystals will be investigated. Based on the results, the smelting parameters of titanium slag will be adjusted in industrial production in further works to enhance the smooth operation of the electric furnace and to improve the separation of titanium slag and metallic iron.

2. Mathematical Model

According to the classical crystallization kinetics from D. Turnbull et al. [26], the nucleation rate I of a crystal and the formation energy of a crystal nucleus could be expressed as Equations (1) and (2) respectively.
I = n D a 0 2 exp ( Δ G k T )
Δ G = 16 π σ 3 3 ( Δ g V ) 2
n = 1 a 0 3
where I is the nucleation rate of a crystal in m−3·s−1, n is the atom number per unit volume, D is the self-diffusion coefficient of atoms in the melt in m2·s−1, a0 is the lattice parameter in m, ΔG* is the formation energy of crystal nucleus in J·mol−1, k is the Boltzmann constant, T is the temperature of the melt in K, π is the pi constant, σ is the interfacial energy between the melt and crystal in J·m−2, and ΔgV is the change of Gibbs free energy per unit volume in J·mol−1·m−3.
The relationship between the self-diffusion coefficient D and the viscosity η could be expressed as Equation (4) [27,28].
D = k T 3 π a 0 η
Δ g V = Δ H m g V Δ T r
where η is the viscosity of the melt in Pa·s, Δ H m g is the fusion heat per mole melt in J·mol−1, V is the mole volume of the crystal in m3·mole−1, and ΔTr = 1 − Tr (Tr = T/Tm, Tm is the melting temperature of a crystal in K).
The viscosity involves the physicochemical property of the melt and can be estimated by the National Physical Laboratory model [29]. The optical basicity of the slag component for the calculation of titanium slag is from references [29,30,31]. The relationship between the viscosity and temperature was expressed as Equation (6).
ln η = ln A + B / T
The relationship between optical basicity and constants A and B could be expressed as Equations (7) and (8) [29].
ln B 1000 = 1.77 + 2.88 Λ
ln A = 232.69 ( Λ ) 2 + 357.32 Λ 144.17
The optical basicity of the titanium slag could be calculated by the following Equation (9).
Λ = χ i n i Λ i χ i n i
where χi and ni is the mole fraction and the number of oxygen atoms of an independent component respectively and Λi is the optical basicity of the corresponding independent component.
Taking Equations (2)–(5) into Equation (1), the nucleation rate I of a crystal can be deduced as Equation (10).
I = k T 3 π a 0 6 η exp { 16 π 3 T r ( Δ T r ) 2 [ ( N 0 V 2 ) 1 / 3 σ Δ H m g ] 3 ( Δ H m g R T m ) }
where α and β are the two dimensionless parameters which have the important influence on the crystal melting process. α and β could be expressed as following Equations (11) and (12) [32].
α = ( N 0 V 2 ) 1 / 3 σ Δ H m g
β = Δ H m g R T m
where N0 is the Avogadro constant.
Combined with Equations (11) and (12), the nucleation rate I of a crystal could be expressed as Equation (13).
I = k T 3 π a 0 6 η exp [ 16 π α 3 β 3 T r ( Δ T r ) 2 ]
According to the classical kinetics of crystallization, the growth rate IL of a crystal could be expressed as Equation (14).
I L = f s D a 0 [ 1 exp ( Δ G g R T ) ]
where fs is the proportionality coefficient of the position benefiting the atomic adsorption on the crystal at interface between melt and crystal and ΔGg is the change of Gibbs free energy per mole between the melt and crystal. fs and ΔGg could be expressed as Equations (15) and (16) [33].
f s = { 1 Δ H m 2 R T m 0.2 T m T T m Δ H m 4 R T m
Δ G g = Δ H m g T m T T m
Combined with Equations (14)–(16), the growth rate of a crystal could be expressed as Equation (17).
I L = f s k T 3 π a 0 2 η { 1 exp [ ( Δ H m g R T m ) ( Δ T r T r ) ] }
Combined with Equations (11), (12) and (17), the growth rate of a crystal could be expressed as Equation (18) [34].
I L = f s k T 3 π a 0 2 η [ 1 exp ( β Δ T T r ) ]
According to a previous research by Uhlmann et al. [33], the volume fraction (x) of a crystal could be expressed as a function with the nucleation rate (I), growth rate (IL) and time t.
x = 1 3 π I I L 3 t 4
r i = 1 3 π I I L 3
The total crystallization rate of a crystal rtotal could be expressed as a function with mole fraction (ωi) and crystallization rate (ri) of a given crystal as Equation (21).
r t o t a l = i ω i r i
The chemical composition of titanium slag is as follows (wt. %): TiO2 = 55.20, FeO = 12.21, SiO2 = 5.89, MnO = 1.53, MgO = 2.51, Al2O3 = 2.83, CaO = 1.00, and Ti2O3 = 18.92. The structural parameters and melting temperatures of these crystals in titanium slag are listed in Table 1 [35,36,37]. a0 = (a × b × c)1/3, in which a, b and c are lattice parameters of crystals in the titanium slag. Because the content of Mn-anosovite is small, Mn-anosovite is neglected in this work.

3. Results and Discussion

3.1. Nucleation and Growth of Crystals in Titanium Slag

3.1.1. Nucleation and Growth of Anosovite Crystals

From the viewpoint of the classical crystallization theory, the crystallization process includes two stages: Nucleation and growth. The nucleation refers to the generation of a crystal nucleus from a mother phase. The growth of the crystal is realized by the growth of the crystal nucleus. Although the nucleation process is transitory compared with the subsequent growth process, the nucleation is completely different from the growth process.
Figure 1 displays the nucleation and growth rates of different anosovite crystals in the titanium slag. It can be observed from Figure 1 that the nucleation rates first increase from zero to the maximum value and then decrease to zero with the degree of undercooling increasing from zero. The profiles of nucleation rates should be attributed to the interaction of two contradictory factors related to the crystallization process: The degree of undercooling and diffusion ability of atoms. With a too high or too low degree of undercooling, the small nucleation rates of crystals are formed. With a reasonable degree of undercooling, the maximum nucleation rates of crystals are formed. The profiles of growth rates have the similar characteristics to the profiles of nucleation rates. The maximum nucleation rates and maximum growth rates of anosovite crystals follow the same order: Al2TiO5 > Ti3O5 > MgTi2O5 > FeTi2O5. The maximum nucleation rates (maximum growth rates) of different anosovite crystals are very different, indicating that the crystallization abilities of different anosovite crystals may differ remarkably.

3.1.2. Nucleation and Growth of Silicate Crystals

Figure 2 displays the nucleation and growth rates of different silicate crystals in titanium slag. It can be observed from Figure 2 that the profiles of nucleation rates of silicate crystals have the similar characteristics to the profiles of nucleation rates of anosovite crystals. The profiles of growth rates of silicate crystals have the similar characteristics to the profiles of growth rates of anosovite crystals. Both the maximum nucleation rates and the maximum growth rates of silicate crystals follow the same order: MgSiO3 > CaSiO3 > Mn2SiO4 > Fe2SiO4. The maximum nucleation rates (maximum growth rates) of different silicate crystals are similar in value, indicating that silicate crystals have the similar crystallization ability. The maximum nucleation rates (maximum growth rates) of silicate crystals are much smaller than those of anosovite crystals, demonstrating that silicate crystals may have much a weaker crystallization ability than the anosovite crystals.
The driving force of the crystallization and diffusion ability of atoms is large enough when the temperature is between that of the maximum nucleation rate and the maximum growth rate. Therefore, the range from the temperature of maximum nucleation rate to the temperature of maximum growth rate is specified as the characteristic temperature range of crystallization in this work. It is easy to nucleate, grow and obtain coarse grain within the characteristic temperature range. Figure 3 displays the characteristic temperature ranges of crystallization of anosovite and silicate crystals in titanium slag. It can be observed from Figure 3 that the characteristic temperature ranges of crystallization of crystals in titanium slag follow the sequence of Al2TiO5 > Ti3O5 > MgTi2O5 > MgSiO3 > CaSiO3 > FeTi2O5 > Mn2SiO4 > Fe2SiO4. The characteristic temperature ranges of crystallization of these crystals are in sequence as follows: 1728–1819 K, 1620–1712 K, 1573–1666 K, 1497–1589 K, 1487–1579 K, 1448–1540 K, 1333–1424 K, 1225–1312 K. The characteristic temperature ranges are consistent with the tapping temperature of smelting ilmenite to titanium slag in an electric furnace.

3.2. Crystallization Behavior of Anosovite and Silicate Crystals

The crystallization rate of crystals is the main and direct indicator for evaluating the crystallization behavior. Therefore, the optimum temperature range of crystallization can be determined by the crystallization rate of crystals. Figure 4 shows the crystallization rates of different anosovite and silicate crystals in titanium slag. It can be seen from Figure 4a that the maximum crystallization rate of Al2TiO5 has two higher orders of magnitude than Ti3O5. The maximum crystallization rate of MgTi2O5 has five higher orders of magnitude than FeTi2O5. It is notable that the total crystallization rate of anosovite crystals is mainly controlled by Al2TiO5. The optimum temperature ranges of anosovite crystals are as the following: Al2TiO5 (1744–1804 K) > Ti3O5 (1636–1696 K) > MgTi2O5 (1589–1649 K) > FeTi2O5 (1346–1406 K). It can be seen from Figure 4b that the maximum crystallization rates of MgSiO3 and CaSiO3 have three higher orders of magnitude than Mn2SiO4 and five higher orders of magnitude Fe2SiO4. The total crystallization rate of silicate crystals is mainly controlled by MgSiO3. The optimum temperature ranges of silicate crystals are as the following: MgSiO3 (1512–1572K) > CaSiO3 (1502–1562 K) > Mn2SiO4 (1346–1406 K) > Fe2SiO4 (1236–1296 K).
Notably, both the maximum crystallization rate and the optimum temperature ranges of Al2TiO5 and Ti3O5 are much higher than other crystals in high CaO and MgO titanium slag. The crystallization priority of Al2TiO5 and Ti3O5 is consistent with the report from Zhao et al. [7] that the sharp increase in viscosity of titanium slag may be caused by the high Al2O3 and Ti2O3 content in titanium slag. The accuracy of the mathematical model can be preliminarily demonstrated by the consistency between the crystallization priority of Al2TiO5 and Ti3O5 in titanium slag and the remarkable effect of Al2O3 and Ti3O5 on viscosity of titanium slag. This result implies that the variation of Al2O3 and Ti3O5 content in titanium slag should be paid close attention to during the electric-furnace smelting process. Furthermore, Song et al. [38] and Handfield et al. [9] reported that the melting temperature of the titanium slag, whose composition was similar with the titanium slag in this work, was approximately 1873 K. Al2TiO5 in this work has the crystallization rate of 1.03 × 1023 (s−4) at the temperature of 1873 K. The accuracy of the mathematical model can be further demonstrated by the crystallization rate of Al2TiO5 at the melting temperature of 1873 K.
Tc is the peak temperature of maximum crystallization rate of crystals. Tm is the melting point of the crystal. (TmTc)/Tm represents the crystallization process during cooling. Figure 5a shows the relationship between melting temperature and the crystallization process. It can be seen from Figure 5a that the crystal with higher melting temperature crystallizes earlier during cooling. This crystallization order agrees with the work from Diao et al. [39] that the mineral phases of vanadium-chromium slag crystallized in the order of their melt points during cooling. Figure 5b shows the relationship between the maximum crystallization rate and the peak temperature. It can be seen from Figure 5b that the crystallization order of crystals in titanium slag is obtained during cooling as follows: Al2TiO5 > Ti3O5 > MgTi2O5 > MgSiO3 > CaSiO3 > FeTi2O5 > Mn2SiO4 > Fe2SiO4. The crystal with a higher maximum crystallization rate has a higher peak temperature. This relationship may be ascribed to the strong diffusion ability of atoms with the higher temperature. Obviously, anosovite crystals crystallize overall earlier than silicate crystals during cooling. The crystallization order in this work is consistent with the reports from Pistorius et al. [40] and Wang et al. [41] that anosovite and silicate crystals occupied the center and outer layer of titanium slag particle, respectively. The accuracy of the mathematical model can be demonstrated once again by the consistency between the overall crystallization order and spatial distribution of anosovite and silicate crystals in high CaO and MgO titanium slag.

3.3. Effects of Slag Composition on Crystallization Behaviors of Anosovite Crystals

To investigate effects of the slag composition on crystallization behaviors of anosovite crystals, the mass ratio of Ti2O3/ΣTiO2 and the mass ratio of MgO/FeO are selected as two variables. The chemical compositions of slag are shown in Table 2. The mass ratio of Ti2O3/ΣTiO2 is from 0.05 (CS1) to 0.45 (CS5) and the mass ratio of MgO/FeO is from 0.10 (CS6) to 0.90 (CS10).
Figure 6 shows the effects of mass ratio of Ti2O3/ΣTiO2 and the mass ratio of MgO/FeO on the total crystallization rates of anosovite crystals. It can be observed that the total crystallization rates of anosovite crystals increases one order of magnitude with the mass ratio of Ti2O3/ΣTiO2 increasing from 0.05 to 0.45 and increases only three times with the mass ratio of MgO/FeO increasing from 0.10 to 0.90. It can be deduced that the mass ratio of Ti2O3/ΣTiO2 has a remarkable influence on the total crystallization rate of anosovite crystals while the mass ratio of MgO/FeO has a slight influence on the total crystallization rate of anosovite crystals.
Figure 7 shows the effects of the mass ratio of Ti2O3/ΣTiO2 and the mass ratio of MgO/FeO on the maximum total crystallization rate and peak temperature of anosovite crystals. It can be seen from Figure 7 that the maximum crystallization rate of anosovite crystals decreases with the mass ratio of Ti2O3/ΣTiO2 increasing, while the maximum crystallization rate of anosovite crystals increases with the mass ratio of MgO/FeO increasing. This phenomenon can be attributed to the variation of the viscosity of titanium slag resulting from the composition change. The peak temperatures of total crystallization rates of anosovite crystals increase with the mass ratio of Ti2O3/ΣTiO2 increasing, while the peak temperatures of total crystallization rates of anosovite crystals decrease with the mass ratio of MgO/FeO increasing. This phenomenon demonstrates that the increase in the viscosity of titanium slag leads to the diffusion difficulty of atoms and the larger degree of undercooling is needed to crystallize.

4. Conclusions

A mathematical model was established to describe the crystallization behaviors of anosovite and silicate crystals in high CaO and MgO titanium slag. The main results are shown as follows:
(1)
The crystallization order of anosovite and silicate crystals in high CaO and MgO titanium slag is obtained during cooling as follows: Al2TiO5 > Ti3O5 > MgTi2O5 > MgSiO3 > CaSiO3 > FeTi2O5 > Mn2SiO4 > Fe2SiO4.
(2)
The optimum temperature ranges of crystallization of these crystals in titanium slag are in their crystallization order as follows: 1744–1804 K, 1636–1696 K, 1589–1649 K, 1512–1572 K, 1502–1562 K, 1463–1523 K, 1346–1406 K, 1236–1296 K.
(3)
The total crystallization rates of anosovite and silicate crystals are mainly controlled by Al2TiO5 and MgSiO3, respectively. Al2TiO5 and Ti3O5 have a higher crystallization priority and should be responsible for the sharp increase in viscosity of titanium slag during cooling.
(4)
The mass ratio of Ti2O3/ΣTiO2 has a remarkable influence on the total crystallization rate of anosovite crystals while the mass ratio of MgO/FeO has a slight influence on the total crystallization rate of anosovite crystals.

Author Contributions

H.F., D.C., T.L., and H.D. deduce and validate the model. H.F., T.L., Y.H., M.L. and W.H. performed the calculation. All of the authors analyzed and discussed the data; H.F. wrote the paper.

Funding

This research received no external funding.

Acknowledgments

Special appreciation is extended to PhD candidates Huabiao Chen and Sheng Yu at Chongqing University for the help on the graphic design.

Conflicts of Interest

The authors declare no conflict interest.

References

  1. Liu, Y.; Meng, F.; Fang, F.; Wang, W.; Chu, J.; Qi, T. Preparation of rutile titanium dioxide pigment from low-grade titanium slag pretreated by the naoh molten salt method. Dyes Pigment. 2016, 125, 384–391. [Google Scholar]
  2. Liu, W.; Lü, L.; Yue, H.; Liang, B.; Li, C. Combined production of synthetic rutile in the sulfate TiO2 process. J. Alloys Compd. 2017, 705, 572–580. [Google Scholar] [CrossRef]
  3. Fan, H.; Chen, D.; Liu, P.; Duan, H.; Huang, Y.; Long, M.; Liu, T. Structural and transport properties of feo- TiO2 system through molecular dynamics simulations. J. Non-Cryst. Solids 2018, 493, 57–64. [Google Scholar] [CrossRef]
  4. Cho, J.; Roy, S.; Sathyapalan, A.; Free, M.L.; Fang, Z.Z.; Zeng, W. Purification of reduced upgraded titania slag by iron removal using mild acids. Hydrometallurgy 2016, 161, 7–13. [Google Scholar] [CrossRef] [Green Version]
  5. Chen, G.; Song, Z.; Chen, J.; Srinivasakannan, C.; Peng, J. Investigation on phase transformation of titania slag using microwave irradiation. J. Alloys Compd. 2013, 579, 612–616. [Google Scholar] [CrossRef]
  6. Kondratiev, A.; Jak, E.; Hayes, P. Predicting slag viscosities in metallurgical systems. JOM 2002, 54, 41–45. [Google Scholar] [CrossRef]
  7. Zhao, Z.; Ma, E.; Lian, Y. Behavior of Al2O3 in titianium slag. Iron Steel Vanadium Titan. 2002, 23, 36–38. [Google Scholar]
  8. Li, S.; Lv, X.; Song, B.; Miu, H.; Han, K. Rheological property of TiO2-FeO-(SiO2, CaO, MgO) ternary slag. Chin. J. Nonferrous Metals 2016, 26, 2015–2022. [Google Scholar]
  9. Handfield, G.; Charette, G. Viscosity and structure of industrial high TiO2 slags. Can. Metall. Q. 1971, 10, 235–243. [Google Scholar] [CrossRef]
  10. Gao, G.; Yang, Y.; Yang, D. Viscosity and melting point determination of titanium slag. Iron Steel Vanadium Titan. 1987, 9, 51–55. [Google Scholar]
  11. Komatsu, T. Design and control of crystallization in oxide glasses. J. Non-Cryst. Solids 2015, 428, 156–175. [Google Scholar] [CrossRef]
  12. Iqbal, N.; Van Dijk, N.; Offerman, S.; Moret, M.; Katgerman, L.; Kearley, G. Real-time observation of grain nucleation and growth during solidification of aluminium alloys. Acta Mater. 2005, 53, 2875–2880. [Google Scholar] [CrossRef]
  13. Gan, L.; Zhang, C.; Shangguan, F.; Li, X. A differential scanning calorimetry method for construction of continuous cooling transformation diagram of blast furnace slag. Metall. Mater. Trans. B 2012, 43, 460–467. [Google Scholar] [CrossRef]
  14. Gan, L.; Zhang, C.; Zhou, J.; Shangguan, F. Continuous cooling crystallization kinetics of a molten blast furnace slag. J. Non-Cryst. Solids 2012, 358, 20–24. [Google Scholar] [CrossRef]
  15. Li, J.; Wang, X.; Zhang, Z. Crystallization behavior of rutile in the synthesized Ti-bearing blast furnace slag using single hot thermocouple technique. ISIJ Int. 2011, 51, 1396–1402. [Google Scholar] [CrossRef]
  16. Klug, J.L.; Hagemann, R.; Heck, N.C.; Vilela, A.C.; Heller, H.P.; Scheller, P.R. Crystallization control in metallurgical slags using the single hot thermocouple technique. Steel Res. Int. 2013, 84, 344–351. [Google Scholar] [CrossRef]
  17. Zhou, L.; Wang, W.; Huang, D.; Wei, J.; Li, J. In situ observation and investigation of mold flux crystallization by using double hot thermocouple technology. Metall. Mater. Trans. B 2012, 43, 925–936. [Google Scholar] [CrossRef]
  18. Hu, M.; Liu, L.; Lv, X.; Bai, C.; Zhang, S. Crystallization behavior of perovskite in the synthesized high-titanium-bearing blast furnace slag using confocal scanning laser microscope. Metall. Mater. Trans. B 2014, 45, 76–85. [Google Scholar] [CrossRef]
  19. Liu, J.; Verhaeghe, F.; Guo, M.; Blanpain, B.; Wollants, P. In situ observation of the dissolution of spherical alumina particles in CaO–Al2O3–SiO2 melts. J. Am. Ceram. Soc. 2007, 90, 3818–3824. [Google Scholar]
  20. Ruvalcaba, D.; Mathiesen, R.; Eskin, D.; Arnberg, L.; Katgerman, L. In situ observations of dendritic fragmentation due to local solute-enrichment during directional solidification of an aluminum alloy. Acta Mater. 2007, 55, 4287–4292. [Google Scholar] [CrossRef]
  21. Watson, K.D.; Nguelo, S.T.; Desgranges, C.; Delhommelle, J. Crystal nucleation and growth in Pd–Ni alloys: A molecular simulation study. CrystEngComm 2011, 13, 1132–1140. [Google Scholar] [CrossRef]
  22. Turnbull, D. Formation of crystal nuclei in liquid metals. J. Appl. Phys. 1950, 21, 1022–1028. [Google Scholar] [CrossRef]
  23. Wu, F.; Li, X.; Wang, Z.; Wu, L.; Guo, H.; Xiong, X.; Zhang, X.; Wang, X. Hydrogen peroxide leaching of hydrolyzed titania residue prepared from mechanically activated panzhihua ilmenite leached by hydrochloric acid. Int. J. Miner. Process. 2011, 98, 106–112. [Google Scholar] [CrossRef]
  24. Dong, H. Study on Production of High-Quality Synthetic Rutile from Electric Furnace Titanium Slag with High Content of Calcium and Magnesium. Ph.D., Thesis, Central South University, Changsha, China, 2010. [Google Scholar]
  25. Fan, H.; Duan, H.; Tan, K.; Li, Y.; Chen, D.; Long, M.; Liu, T. Production of synthetic rutile from molten titanium slag with the addition of B2O3. JOM 2017, 69, 1914–1919. [Google Scholar] [CrossRef]
  26. Seitz, F.; Turnbull, D. Solid State Physics; Academic Press: New York, NY, USA, 1958; Volume 7. [Google Scholar]
  27. Meyer, R.E. Self-diffusion of liquid mercury. J. Phys. Chem. 1961, 65, 567–568. [Google Scholar] [CrossRef]
  28. Hoffman, R.E. The self-diffusion of liquid mercury. J. Chem. Phys. 1952, 20, 1567–1570. [Google Scholar] [CrossRef]
  29. Mills, K.C.; Sridhar, S. Viscosities of ironmaking and steelmaking slags. Ironmak. Steelmak. 1999, 26, 262–268. [Google Scholar] [CrossRef]
  30. Zhang, Y. Electronegativities of elements in valence states and their applications. 1. Electronegativities of elements in valence states. Inorg. Chem. 1982, 21, 3886–3889. [Google Scholar]
  31. Dimitrov, V.; Komatsu, T. Correlation among electronegativity, cation polarizability, optical basicity and single bond strength of simple oxides. J. Solid State Chem. 2012, 196, 574–578. [Google Scholar] [CrossRef]
  32. Turnbull, D. Under what conditions can a glass be formed? Contemp. Phys. 2006, 10, 473–488. [Google Scholar] [CrossRef]
  33. Uhlmann, D.R. A kinetic treatment of glass formation. J. Non-Crystall. Solids 1972, 7, 337–348. [Google Scholar] [CrossRef]
  34. Dai, D. Amorphous Physics; Electronic Industry Press: Beijing, China, 1989. [Google Scholar]
  35. Powder Diffraction File. International Centre for Diffraction Data; Swarthmore: Newtown Square, PA, USA, 2000. [Google Scholar]
  36. Atlas, S. (Ed.) By Vdeh; Verlag Stahleisen GmbH: Düsseldorf, Germany, 1995; pp. 48–90. [Google Scholar]
  37. Eriksson, G.; Pelton, A.D. Critical evaluation and optimization of the thermodynamic properties and phase diagrams of the MnO-TiO2, MgO-TiO2, FeO-TiO2, Ti2O3-TiO2, Na2O-TiO2, and K2O-TiO2 systems. Metall. Mater. Trans. B 1993, 24, 795–805. [Google Scholar] [CrossRef]
  38. Song, B. Rheological Property and Melt Structure of High Titania Slag; Chongqing University: Chongqing, China, 2015. [Google Scholar]
  39. Diao, J.; Zhou, W.; Gu, P.; Ke, Z.; Qiao, Y.; Xie, B. Competitive growth of crystals in vanadium–chromium slag. CrystEngComm 2016, 18, 6272–6281. [Google Scholar] [CrossRef]
  40. Pistorius, P.C.; Kotzé, H. Role of silicate phases during comminution of titania slag. Miner. Eng. 2009, 22, 182–189. [Google Scholar] [CrossRef]
  41. Wang, D.; Wang, Z.; Qi, T.; Wang, L.; Xue, T. Decomposition kinetics of titania slag in eutectic naoh-nano 3 system. Metall. Mater. Trans. B 2016, 47, 1–9. [Google Scholar]

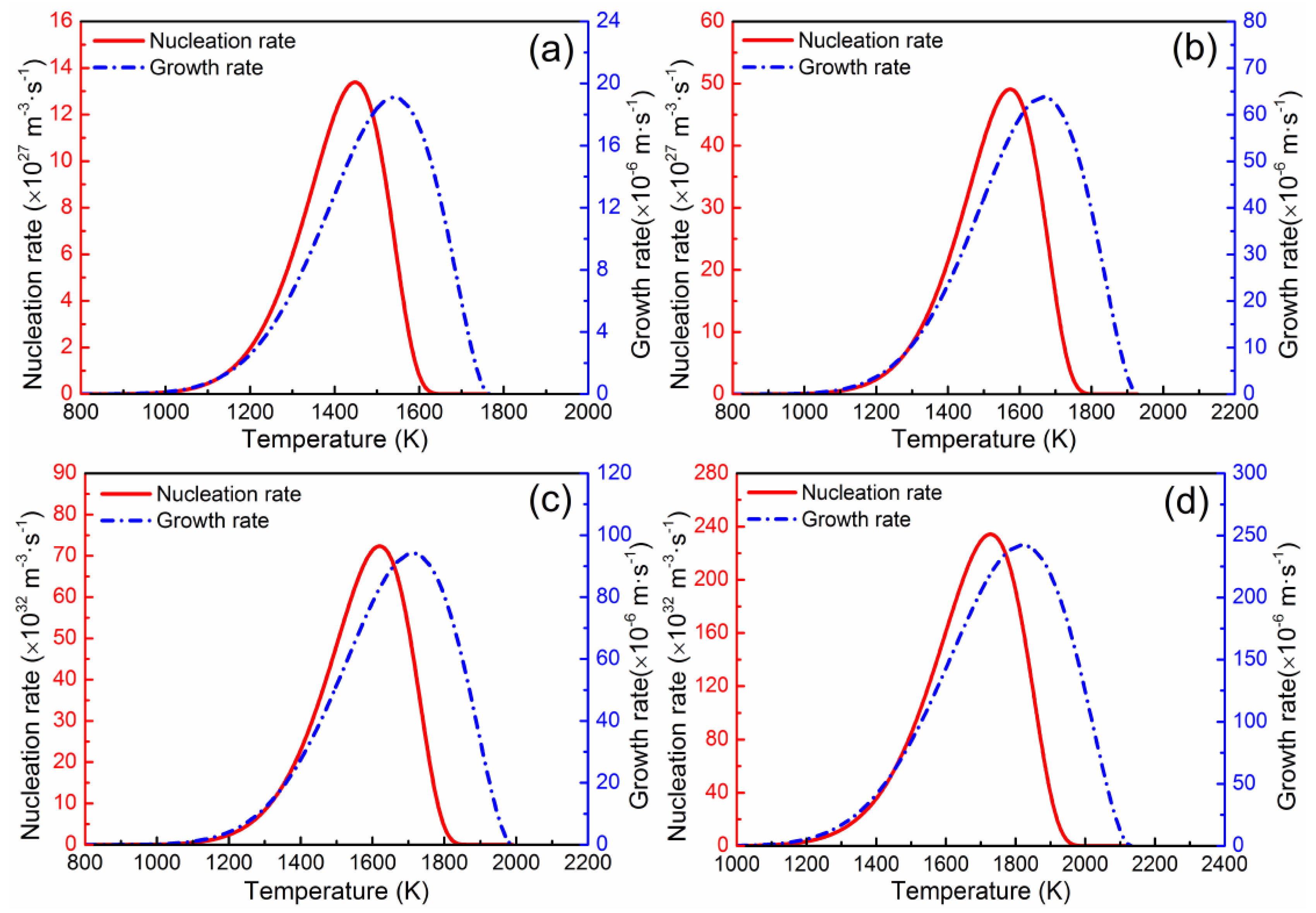

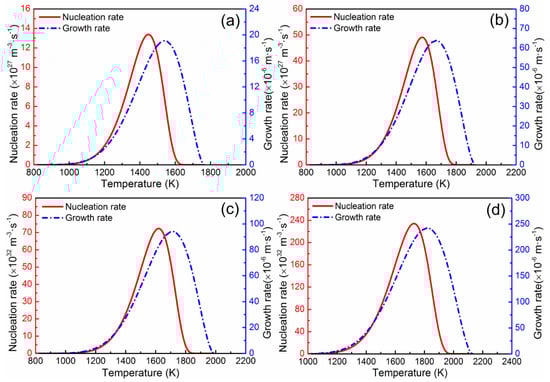

Figure 1. Nucleation and growth rates of different anosovite crystals: (a) FeTi2O5, (b) MgTi2O5, (c) Ti3O5, and (d) Al2TiO5.
Figure 1. Nucleation and growth rates of different anosovite crystals: (a) FeTi2O5, (b) MgTi2O5, (c) Ti3O5, and (d) Al2TiO5.
Metals 08 00754 g001

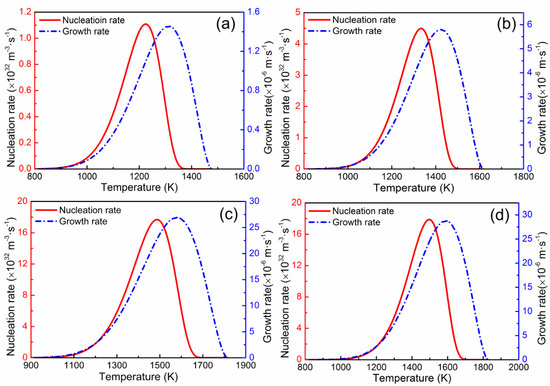

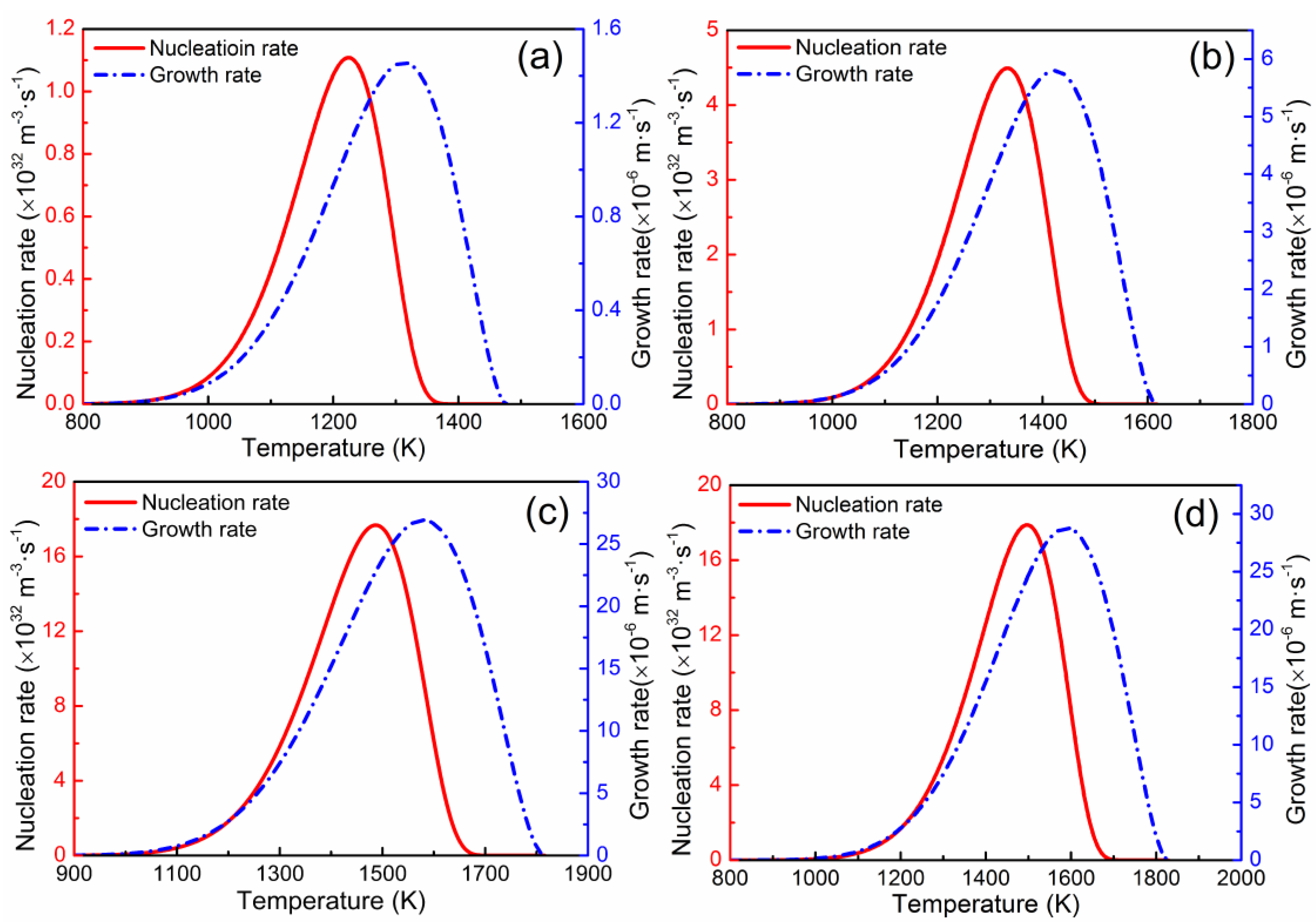

Figure 2. Nucleation and growth rates of different silicate crystals: (a) Fe2SiO4, (b) Mn2SiO4, (c) CaSiO3 and (d) MgSiO3.
Figure 2. Nucleation and growth rates of different silicate crystals: (a) Fe2SiO4, (b) Mn2SiO4, (c) CaSiO3 and (d) MgSiO3.
Metals 08 00754 g002

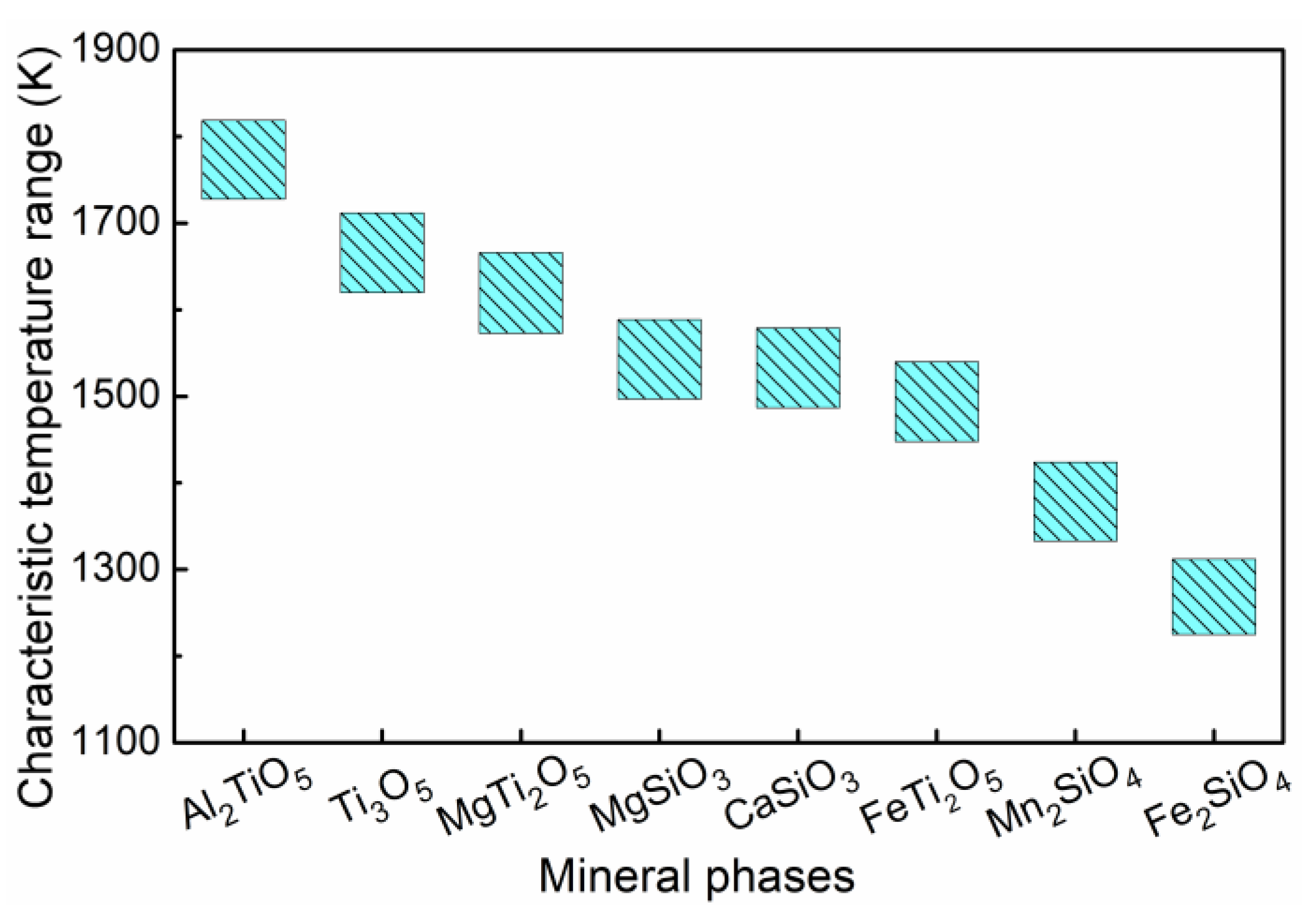

Figure 3. Characteristic temperature ranges for crystallization of anosovite and silicate crystals in titanium slag.
Figure 3. Characteristic temperature ranges for crystallization of anosovite and silicate crystals in titanium slag.
Metals 08 00754 g003

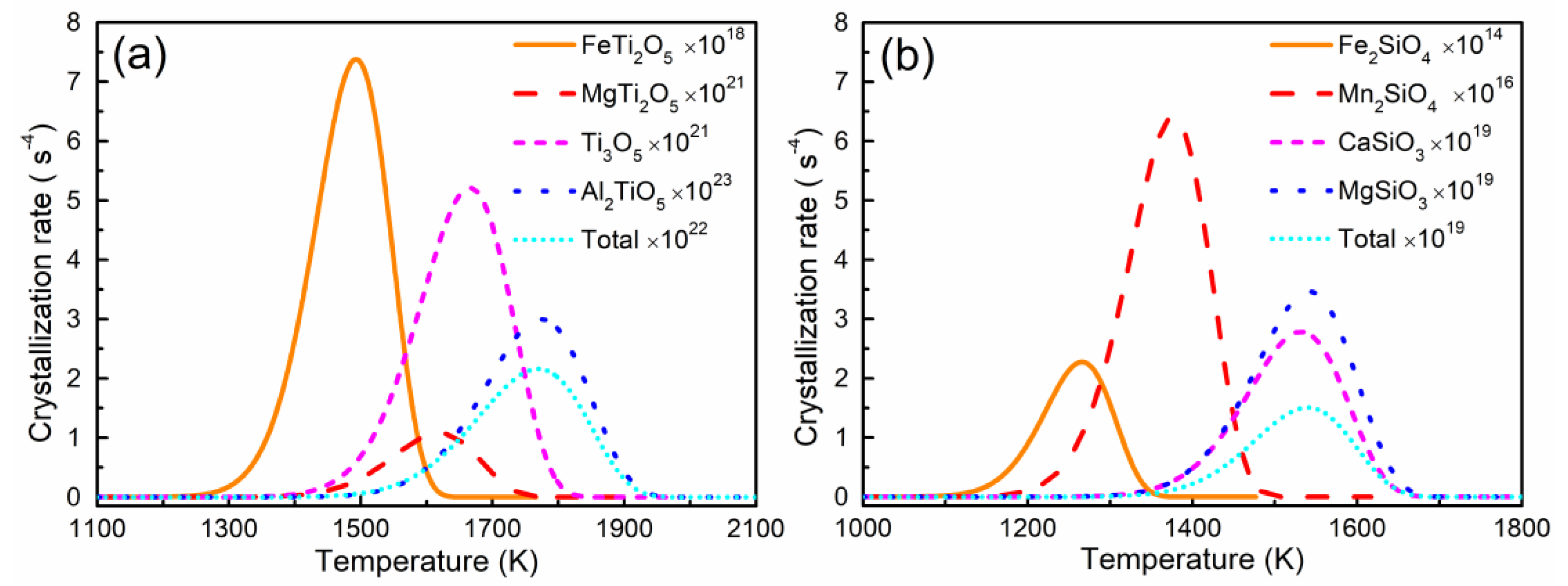

Figure 4. Crystallization rate of different crystals in titanium slag: (a) anosovite and (b) silicate.
Figure 4. Crystallization rate of different crystals in titanium slag: (a) anosovite and (b) silicate.
Metals 08 00754 g004

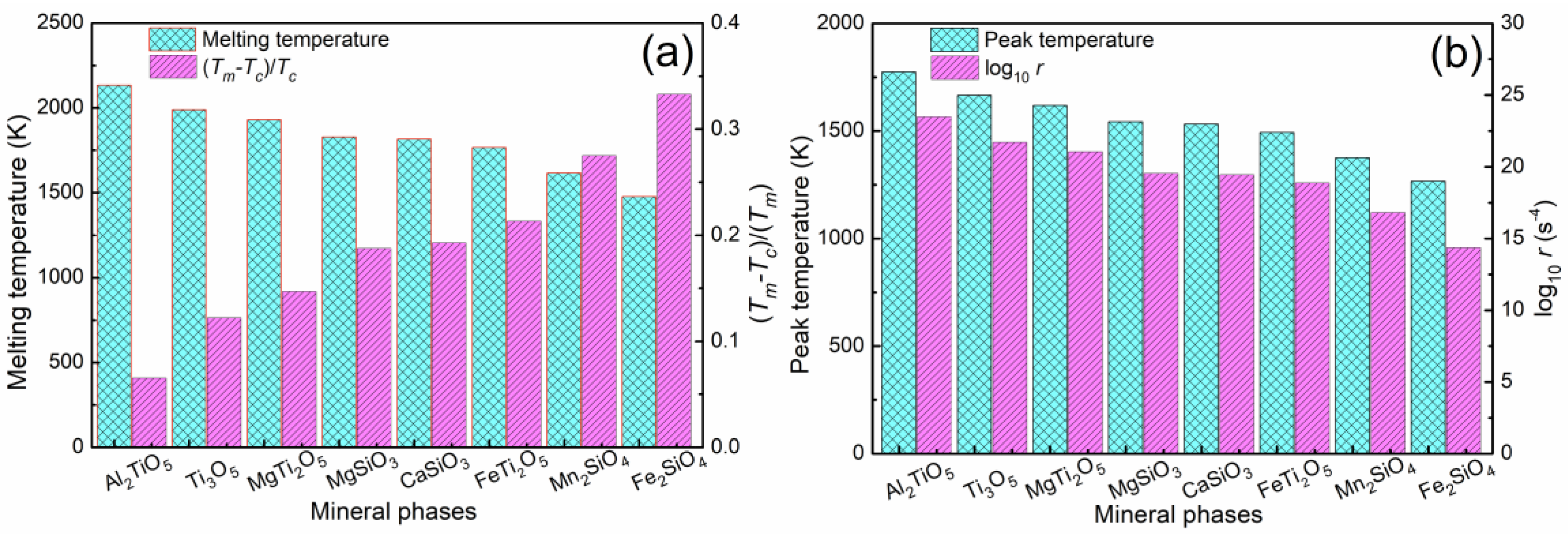

Figure 5. (a) Relationship between melting temperature and (TmTc)/Tc and (b) Relationship between maximum crystallization rate and peak temperature.
Figure 5. (a) Relationship between melting temperature and (TmTc)/Tc and (b) Relationship between maximum crystallization rate and peak temperature.
Metals 08 00754 g005

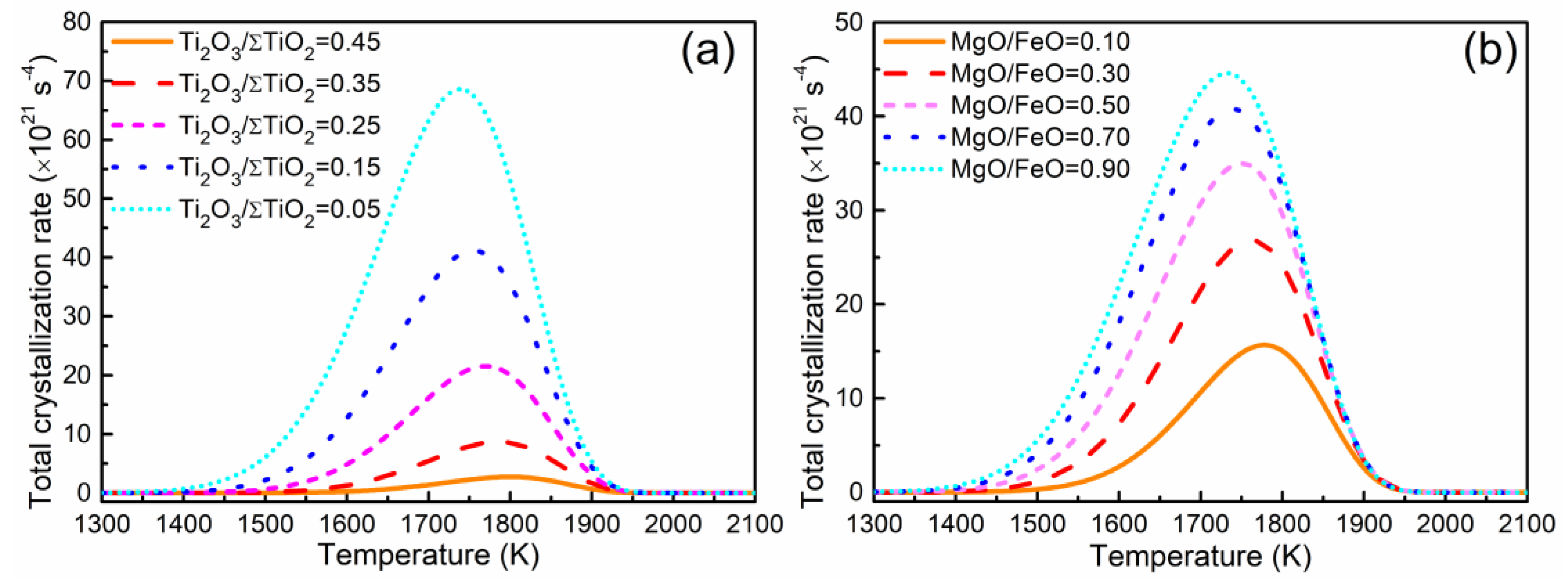

Figure 6. Effects of slag composition on total crystallization rates of anosovite crystals: (a) Ti2O3/Σ TiO2 and (b) MgO/FeO.
Figure 6. Effects of slag composition on total crystallization rates of anosovite crystals: (a) Ti2O3/Σ TiO2 and (b) MgO/FeO.
Metals 08 00754 g006

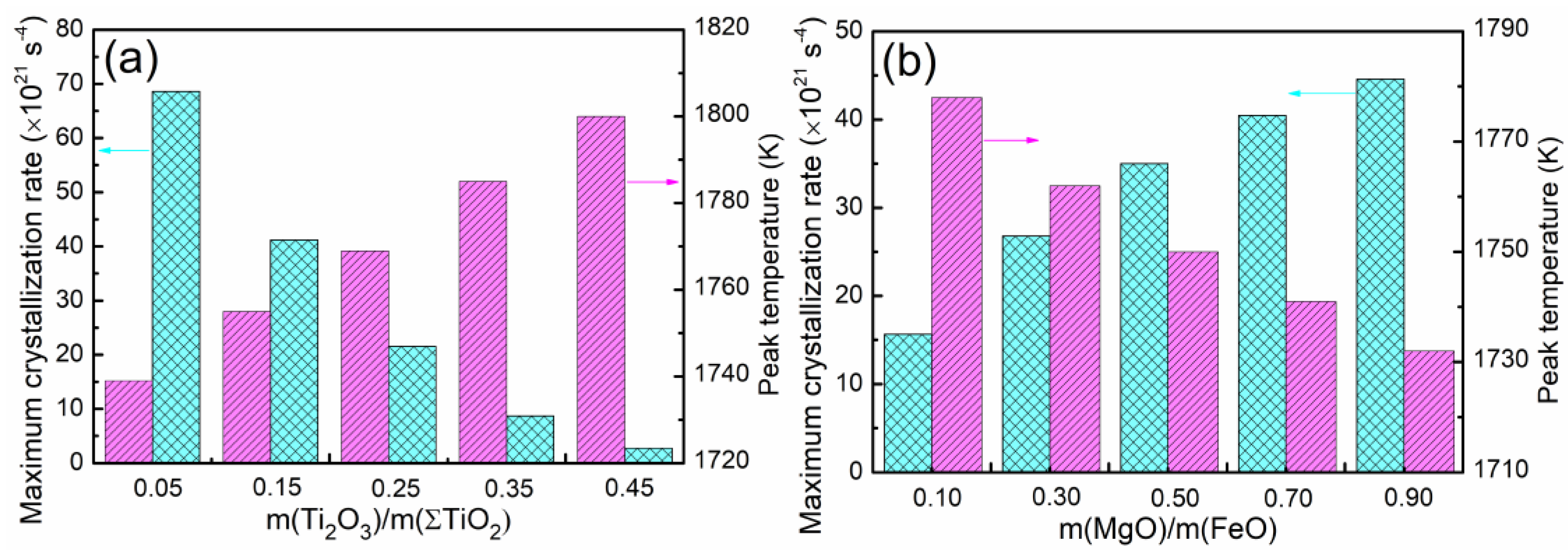

Figure 7. Effects of slag composition on maximum crystallization rates and peak temperatures of anosovite crystals: (a) Ti2O3/Σ TiO2 and (b) MgO/FeO.
Figure 7. Effects of slag composition on maximum crystallization rates and peak temperatures of anosovite crystals: (a) Ti2O3/Σ TiO2 and (b) MgO/FeO.
Metals 08 00754 g007
Table 1. Structural parameters and melting temperature of crystals in titanium slag.
Table 1. Structural parameters and melting temperature of crystals in titanium slag.
Mineral PhaseChemical Formulaa0 (Å)Tm (K)
AnosoviteFeTi2O57.192 [35]1767 [36]
MgTi2O57.145 [35]1930 [37]
Ti3O57.186 [35]1991 [37]
Al2TiO56.858 [35]2133 [36]
OlivineFe2SiO46.752 [35]1478 [36]
Mn2SiO46.878 [35]1618 [36]
AugiteCaSiO37.351 [35]1817 [36]
MgSiO37.464 [35]1830 [36]
Table 2. Compositions of titanium slag (wt. %).
Table 2. Compositions of titanium slag (wt. %).
SamplesTiO2FeOSiO2MnOMgOAl2O3CaOTi2O3Mass Ratio
CS172.4612.215.891.532.512.831.003.780.05
CS263.6212.215.891.532.512.831.0011.350.15
CS355.2012.215.891.532.512.831.0018.920.25
CS446.7912.215.891.532.512.831.0026.490.35
CS538.3712.215.891.532.512.831.0034.060.45
CS655.2013.385.891.531.342.831.0018.920.10
CS755.2011.325.891.533.402.831.0018.920.30
CS855.209.815.891.534.912.831.0018.920.50
CS955.208.665.891.536.062.831.0018.920.70
CS1055.207.755.891.536.972.831.0018.920.90
