Corrosion Behavior of Keyhole-Free Friction Stir Spot Welded Joints of Dissimilar 6082 Aluminum Alloy and DP600 Galvanized Steel in 3.5% NaCl Solution

1
School of Materials Science and Engineering, Lanzhou University of Technology, Lanzhou 730050, China
2
State Key Laboratory of Advanced Processing and Recycling of Non-ferrous Metals, Lanzhou University of Technology, Lanzhou 730050, China
*
Author to whom correspondence should be addressed.
Metals 2017, 7(9), 338; https://doi.org/10.3390/met7090338
Submission received: 23 July 2017 / Revised: 23 August 2017 / Accepted: 27 August 2017 / Published: 1 September 2017

Abstract

:
The corrosion behavior of keyhole-free friction stir spot welded joints of dissimilar 6082 aluminum alloy and DP600 galvanized steel in 3.5% NaCl solution has been investigated by the immersion test and electrochemical analysis. The surface of the aluminum alloy produced exfoliation and pitting corrosion. The pitting occurred seriously on the interface of the 6082 aluminum alloy, but the steel had no corrosion. The corrosion galvanic couples were formed between elements of Si and Fe with a high electrode potential, and Mg and Al with a low electrode potential, around them. Mg and Al elements of Mg2Si and Si-containing solid-solution phase α (Al) preferentially became an anodic dissolution and formed exfoliation corrosion around the Si elements. Fe-rich phase θ (Al3Fe) as the cathode caused corrosion of Mg and formed pitting around Mg-rich phase β (Al3Mg2) as the anode. The sequence of the corrosion resistance of different areas of the joints (with decreasing corrosion resistance) was WNZ (Weld Nugget Zone) > TMAZ (Thermo-mechanically Affected Zone) > BM (Base Metal) > HAZ (Heat-affected Zone). The joints of keyhole-free FSSW (Fiction Stir Spot Welding) of dissimilar 6082 aluminum alloy and DP600 galvanized steel have better corrosion resistance than base metal in 3.5% NaCl solution.

1. Introduction

FSW (Friction stir welding) is a solid-state welding process invented by TWI (The Welding Institute) in 1991 that is mainly used with aluminum alloys. Compared with the traditional welding method, this technology produces a high joint quality, small welding distortion, small residual stress, green welding process and no pollution, and is widely used in aerospace, shipping, transportation and other fields [1,2,3,4,5].
For many years, the integrated structure of dissimilar aluminum/steel has seen it become the preferred technical development route of lightweight mechanical products, and the welding of dissimilar aluminum/steel has been an active but difficult part in the welding field. The welding methods used with dissimilar aluminum/steel are mostly solid-phase welding (such as friction welding, welding-brazing, etc.). However, the low efficiency and limits of size and shape of the workpiece mean these methods have difficulty in meeting the requirements of mass production, and this has restricted the application of the integrated structure of dissimilar aluminum/steel [6,7,8]. Meanwhile, there are some problems in the traditional welding of dissimilar aluminum/steel, including the different melting points of aluminum and steel, slag of joints formed by aluminum oxide film and so on.
However, FSW solves the issues discussed above in the welding process of dissimilar aluminum/steel. FSSW (Friction stir spot welding), as a new welding method of FSW, is used to realize the welding of dissimilar aluminum/steel in the automotive industry. The effect of friction between the shoulder of the welding tool and the workpiece can remove stubborn oxide film on the surface of the aluminum alloy. At the same time, dissimilar aluminum/steel is easy to connect when it reaches the thermoplastic state. Keyhole-free FSSW can eliminate the keyhole of the traditional FSSW by the backfill technology. Welded joints with good performance have been obtained by this method [9,10,11,12,13,14].
The corrosion problem of welded joints is very important, because the corrosion of the welded joint will directly affect its strength and fatigue life, etc. In the welded joints of dissimilar metals, the corrosion of the welded joints occurs more readily. At present, research reports on the corrosion of friction stir welded joints both domestic and abroad mainly focus on the joints of aluminum alloy. The corrosion of FSW joints of aluminum alloy is mainly pitting, exfoliation corrosion and intergranular corrosion [15,16,17,18]. Srinivasan et al. [19] studied the corrosion properties of FSW joints of AA2219-T87 in 3.5% NaCl and NaCl + H2O2 solutions. They found that the strengthening phase was dissolved and coarsened in the process of FSW, and the corrosion performance of the joint was better than that of the parent metal. This was consistent with the experimental results of Paglia et al. [20]. Emilie et al. [21] immersed the FSW joints of 2024-T3 aluminum alloy in the intergranular corrosion solution for 6 h, and found that intergranular corrosion was most severe on HAZ (Heat-affected Zone); pitting and intergranular corrosion occurred on the base metal and TMAZ (Thermo-mechanically Affected Zone); and WNZ (Weld Nugget Zone) produced mainly pitting. However, some reports have come to the opposite conclusion. Fonda et al. [22] found that the corrosion of FSW joints of 5456 aluminum alloy occurred on WNZ, especially on the advancing side.
The corrosion of FSW joints of aluminum alloy is mainly related to the structure-sensitive properties and the second phase of FSW joints. The weld zone produces severe plastic deformation and recrystallization under the action of the pin and shoulder of the welding tool. The reduction of the grain size and the increase of the grain number per unit area lead to an increase in the inhomogeneity of the grain and grain boundary in electrochemical performance, which leads to deterioration of corrosion resistance. On the contrary, the strengthening phase is broken, partly dissolved and dispersed evenly in the grain. The refinement, homogenization and densification of the strengthening phase reduce the electrochemical inhomogeneity of grain boundaries and grains, which improves the corrosion resistance of joints [23,24,25,26,27]. At the same time, the second phases containing active elements and inactive elements forma corrosion galvanic couple. The second phases containing the inactive elements become the cathode, and the second phases containing the active element, as an anode, form anodic dissolution [26,28,29,30,31].
However, articles on the corrosion behavior of the welded joints of dissimilar aluminum/steel have been rarely reported, especially with keyhole-free FSSW joints. This paper studied the corrosion behavior of keyhole-free FSSW joints of dissimilar aluminum/steel in 3.5% NaCl solution by the immersion test and electrochemical analysis. To this end, keyhole-free FSSW joints of dissimilar aluminum/steel were obtained by the rotary retractile keyhole-free FSSW machine. The influence factors and rules of corrosion behavior of dissimilar aluminum/steel keyhole-free FSSW joints were studied by the immersion test and electrochemical analysis in simulated seawater. The corrosion morphologies and corrosion products were observed by SEM (Scanning Electron Microscope) and XRD (X-ray Diffraction). The corrosion resistance and electrochemical corrosion mechanism were studied in this work.

2. Materials and Methods

6082 aluminum alloy plates and DP600galvanized steel plates were used in the experiment. Their dimensions were 150 × 50 × 2 mm3 and 150 × 50 × 1 mm3, respectively. Table 1 shows the chemical composition of 6082 aluminum alloy and DP600 galvanized steel.
The joints of dissimilar 6082 aluminum alloy and DP600 galvanized steel were welded by the rotary retractile keyhole-free FSSW machine. The welding tool was made of a nickel-based superalloy with a tool shoulder of 20 mm in diameter and a tool pin of 5 mm in diameter and 2.1 mm in length. The welding process is shown in Figure 1. In the welding process, the rotational speed and plunge speed of the welding tool were respectively 1000 rpm and 5 mm/min (as shown in Figure 1a). The tool plunge depth was 0.3 mm after the tool shoulder reached the surface of the workpiece (as shown in Figure 1b) [32,33]. Then, the welding tool was moved forward and the tool pin moved upward at a speed of 3 mm/min and 5 mm/min, respectively (as shown in Figure 1c). This is equivalent to the tool pin moving forward about 1.5 mm, in order to make the front of the plastic metal fill up the rear keyhole. At the same time, the workpiece table rotated slowly at a speed of 3 rpm in the opposite direction of the welding tool until the tool pin was fully retracted, in order to obtain a large connection area and a better keyhole-free joint. Then, the workpiece table stopped rotating, and the welding tool moved upward (as shown in Figure 1d). When the welding tool was moved to a safe distance, the tool shoulder and tool pin simultaneously reset (as shown in Figure 1e). At this point, the keyhole-free FSSW joint was obtained (as shown in Figure 1f).
Figure 2 shows the sample and sketch map of the wire cutting of the keyhole-free friction stir spot welding joint of dissimilar 6082 aluminum alloy and DP600 galvanized steel. Specimens of the transverse section of the welded joints, with 40 × 3 × 15 mm3 dimensions, were cut off by wire cutting as shown in Figure 2b. The working surface of the transverse section included the WNZ (weld nugget zone), TMAZ (thermo-mechanically affected zone), HAZ (heat-affected zone) and BM (base metal) as shown in Figure 2b in the four zones marked A, B, C and D. The transverse-section specimens were used for the immersion test and metallographic analysis. The specimens in the zones marked A, B, C and D were cut off for electrochemical experiments. Two B zones were glued together. One end of each specimen was connected with copper wires, the non-working surfaces were sealed with epoxy resin glue and the other ends were used as working surfaces whose areas of transverse section were 15 mm2. There were three specimens in each group of experiments. Transverse sections of all specimens were ground with sandpapers of 400#, 600#, 800#, 1000#, 1500#, 2000#, 3000# and 5000#, polished with polishing cloth, then cleaned with anhydrous alcohol.
The transverse-section specimens for the immersion test were suspended in 3.5% NaCl solution for 48 h or 96 h, then taken out for analysis of corrosion products by X-ray diffractometry (BRUKER-AXS Corporation, Billerica, MA, USA). Then, corrosion products were removed with rust liquid (50 mL H3PO4 + 20 g CrO3 + 1 L distilled water). The microscopic corrosion morphology of the WNZ, TMAZ, HAZ and BM was observed in order to draw a comparison of corrosion resistance of their welded joints by a JSM-5600LV low-vacuum scanning electron microscope of Japan Electron Optics Company (Tokyo, Japan), and the chemical composition of the pitting was measured to analyze corrosion factors by an X-ray energy-dispersive spectrometer (Oxford Instruments, Oxford, UK). The aluminum layer of the transverse section was corroded with Keller’s etchant (2.5 mL HNO3, 1.5 mL HCl, 1.0 mL HF and 95 mL distilled water) for 20 s and the steel layer was corroded with 4% nitric acid alcohol etchant for 4 s. The metallographic structures of the welding joint were observed by an MeF3 Large Metallographic Microscope (Leica Corporation, Wetzlar, Germany).
Four specimens (WNZ, TMAZ, HAZ and BM) were subjected to the electrochemical test by the Electrochemical Workstation of Shanghai Chen Hua Instrument Co., Ltd. (Shanghai, China). The Pt electrode as the auxiliary electrode, and the saturated calomel electrode as the reference electrode, were used to measure the open circuit potential, impedance spectrum and polarization curve in 3.5% NaCl solution. The specimens were firstly immersed in the test solution for more than 30 min to ensure that the open circuit potential achieved stability for comparing the corrosion resistance of the welded joints. The frequency range of the AC impedance test was 10–100 kHz, and the amplitude of the AC excitation signal was 10 mV. The polarization curve was measured at a scanning speed of 1 mV/s and a scanning potential range of −1.5 V to 1.5 V.

3. Results and Discussion

3.1. Corrosion Morphology and Mechanism

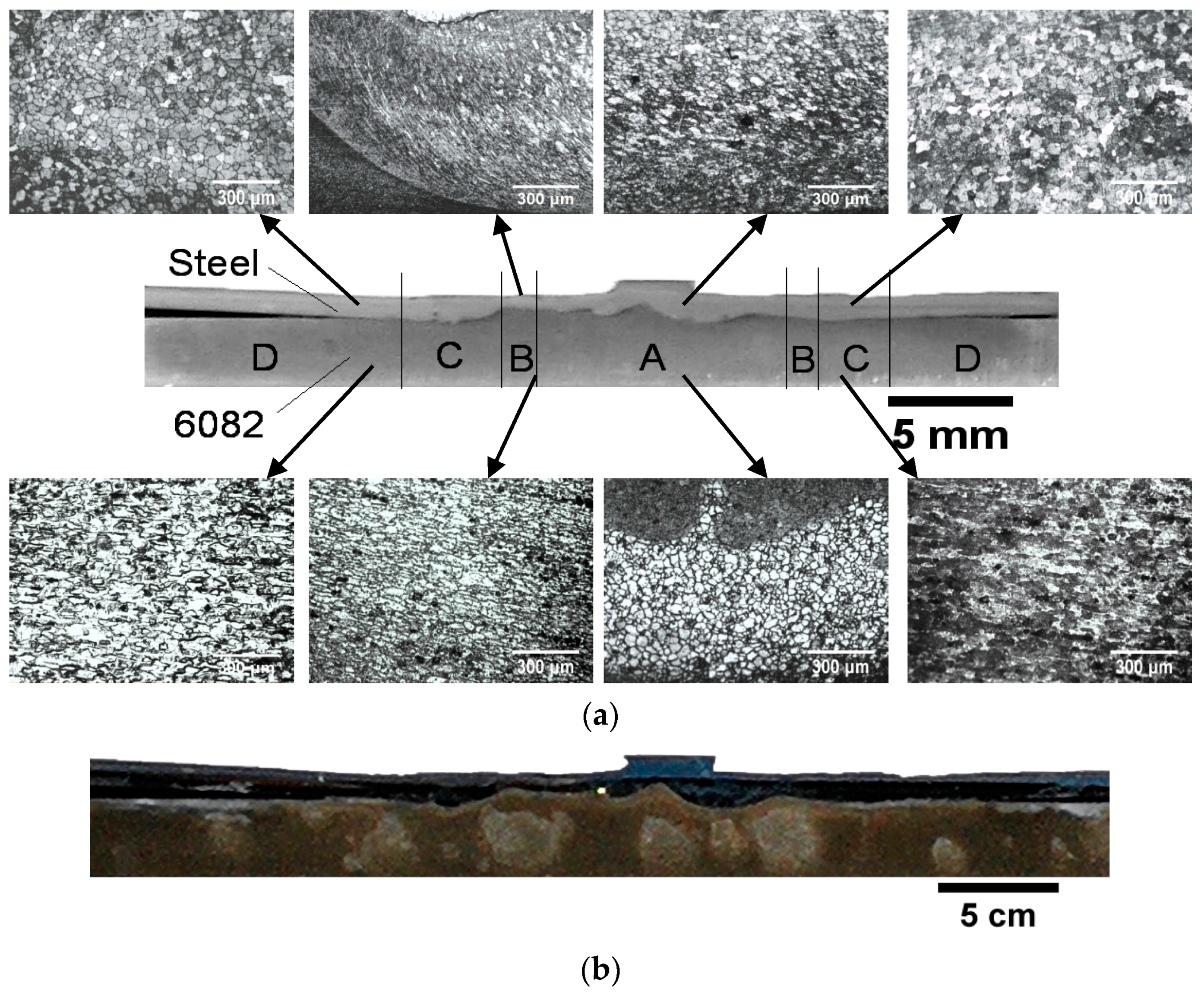

Figure 3 shows the optical micrographs and the macroscopic corrosion morphology of the transverse section of keyhole-free FSSW joints before and after immersion in 3.5% NaCl solution for 48 h. The four A, B, C and D regions represent WNZ, TMAZ, HAZ and BM, respectively, in Figure 3a. The BM had a very weak rolling texture, as shown in Figure 3a, especially the aluminum alloy. The grains of HAZ significantly grew due to a large amount of heat input in FSSW, but the crystallographic orientation of the parent grains did not change significantly. The grains of TMAZ were elongated along the direction of rotation of the tool pin to form a texture. This was attributed to the continuous dynamic recrystallization induced by the substantial plastic deformation, and the significant amount of heat generated during FSW. Meanwhile, the initially large grains of WNZ were fragmented and refined and the fine-grained microstructures of dynamic recrystallization were formed on WNZ. This has been reported by Cho et al. [34] in the friction stir welded joint of high-strength pipe line steels. By contrasting Figure 3a,b, it can be seen that the surface of steel did not change after the immersion test, but corrosion holes and corrosion products appeared on the surface of 6082 aluminum alloy, which also lost its metallic luster. This illustrated that 6082 aluminum alloy of keyhole-free FSSW joints of dissimilar 6082 aluminum alloy and DP600 galvanized steel was prone to severe corrosion, while steel had almost no corrosion in 3.5% NaCl solution.
Figure 4 shows the microscopic corrosion morphology of the transverse section of keyhole-free FSSW joints after immersion for 48 h. It can be seen in Figure 4 that the exfoliation corrosion firstly took place on the surface of 6082 aluminum alloy. The complete continuous fragments of aluminum alloy that were parallel to the metal surface were separated from the metal body near the surface of the interface. The surface away from the interface was producing transverse intergranular corrosion to form cracked fragments. Exfoliation corrosion follows the mechanism of stress corrosion cracking (SCC). That is, the wedge force of the corrosion product produces a tensile stress concentration at the crack tip, and the corrosion is extended by the SCC mechanism [35].Meanwhile, the surface of 6082 aluminum alloy formed the pitting corrosion on the exfoliation zone. This local corrosion was due to the local defects of the passive film on the surface of the metal and the passivation which was prevented. There was a difference in the potential between the defective area and the zone without defects. The defective area became the activated anode, and the surrounding area became the cathode region, which formed the occluded cell. As the anode area was very small and the current density was very large, the pitting nucleus was formed on the metal surface. Subsequently, the dissolved metal ions were hydrolyzed to form H+, and the pH of the local solution was lowered, which exacerbated the dissolution of the metal. The pitting was enlarged and deepened until the perforation [36]. There were many intermetallic compounds at the interface, but no signs of corrosion on the steel surface and interfacial layer. However, the surface of the aluminum alloy had a serious continuous corrosion hole at the junction of the aluminum alloy and interface.

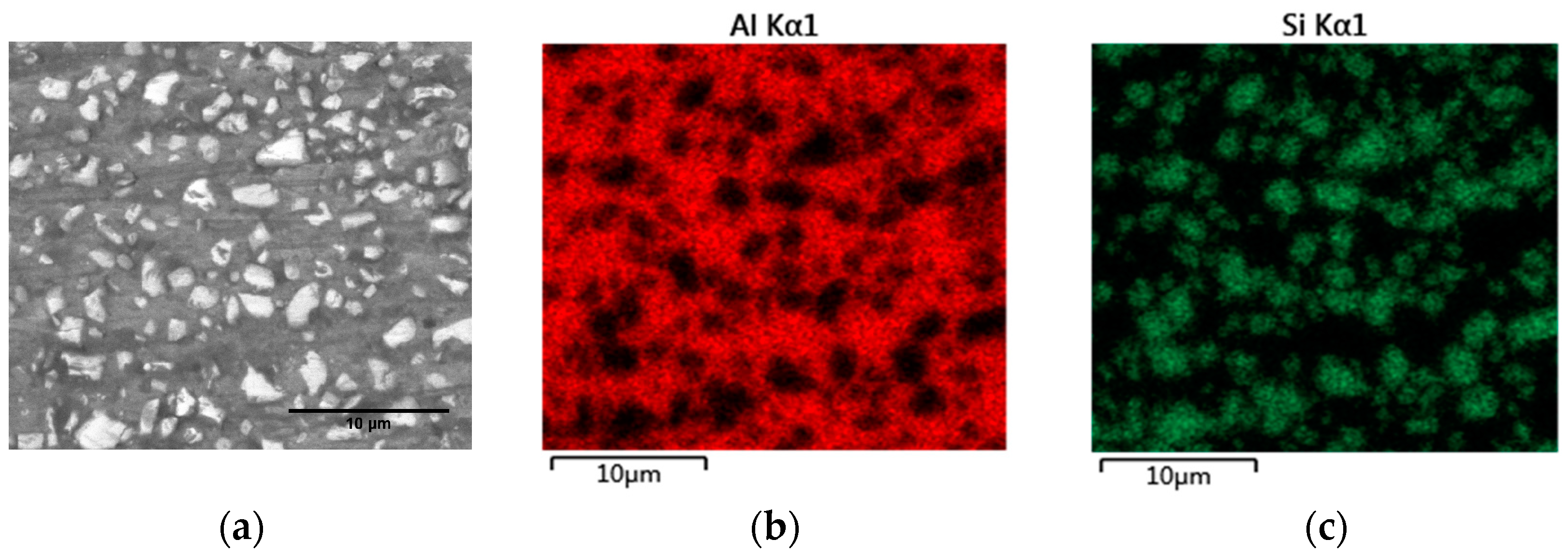

Figure 5 shows the microscopic corrosion morphology and the EDS (Energy Dispersion Spectrum) surface scan spectrum of the exfoliation corrosion zone. Figure 6 shows the microscopic corrosion morphology and the EDS line scan spectrum of the pitting zone. As shown in Figure 5, the white particles on the exfoliation corrosion zone were mainly comprised of elemental silicon and surrounded by elemental aluminum and magnesium. Figure 6 shows that the content of elemental aluminum and magnesium decreased in the pitting. However, the content of elemental Fe increased obviously at the edge of the pitting, as indicated by the elements in Figure 4.
Figure 7 shows the phase diagram of the Al-Fe binary alloy, drawn by Binary Alloy Phase Diagrams Software. It indicates that the keyhole-free FSSW joints of dissimilar 6082 aluminum alloy and DP600 galvanized steel may contain the intermetallic compounds FeAl, FeAl2 and FeAl3.

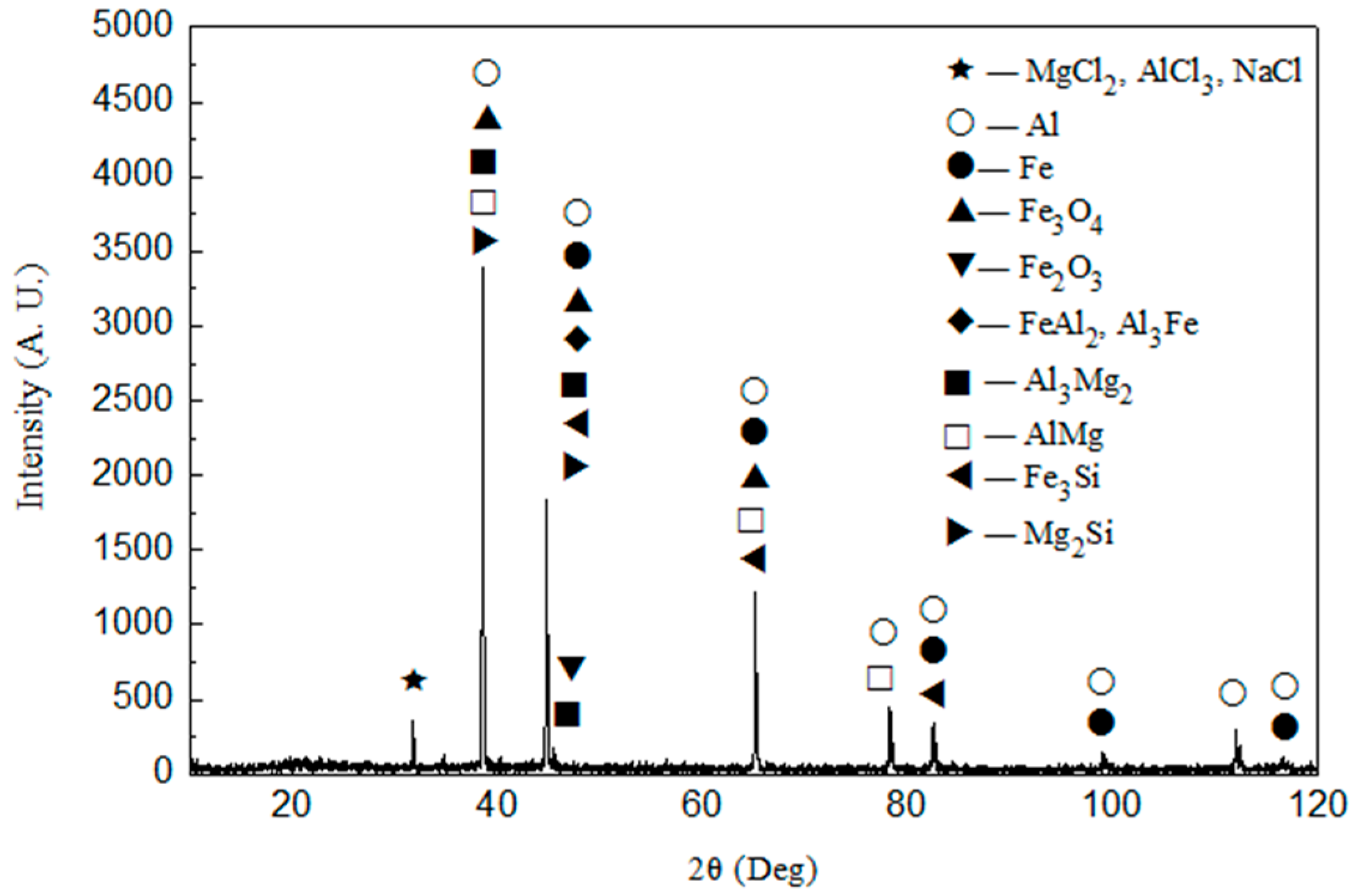

Figure 8 shows the XRD spectrum of the transverse section of keyhole-free FSSW joints. It indicates that the keyhole-free FSSW joints of dissimilar 6082 aluminum alloy and DP600 galvanized steel contained Si-containing solid-solution phase α (Al), Mg-rich phase β (Al3Mg2), Fe-rich phase θ (Al3Fe) and the intermetallic compounds Mg2Si, AlMg and FeAl2. Meanwhile, the uncleaned joints after immersion also contained corrosion products Fe2O3, Fe3O4, MgCl2 and AlCl3.
As shown in Figure 4, the corrosion joint contained two large electrodes, namely, the aluminum matrix anode and the ferrum matrix cathode. The corrosion galvanic couples were formed in 3.5% NaCl solution, in which the galvanic current flowed through two electrodes. Meanwhile, the small corrosion galvanic couples were also formed inside the aluminum matrix due to the corrosion potential of different elements not being equal. The electrode potential of the silicon and ferrum elements was higher than that of the surrounding magnesium and aluminum elements. The magnesium and aluminum elements of Mg2Si and Si-containing solid-solution phase α (Al) preferentially formed anodic dissolution and formed exfoliation corrosion around silicon elements. Fe-rich phase θ (Al3Fe), as the cathode, caused corrosion of magnesium and formed pitting around Mg-rich phase β (Al3Mg2), as the anode. The anodic dissolution reaction is
M → Mn+ + ne.
The catholic process is
O2 + 2H2O + 4e → 4OH.
Figure 9 shows the microscopic corrosion morphology of the transverse section of different zones of 6082 aluminum alloy in keyhole-free FSSW joints before and after immersion for 96 h. Figure 9b indicates that the discontinuities of the Fe matrix were mixed in the Al matrix on the WNZ. By comparing Figure 9b–e, it can be seen that the amount of pitting was lowest on WNZ. However, HAZ had the most pitting. Furthermore, the extent of pitting on TMAZ was less than that on BM. This indicated that the corrosion resistance of WNZ was significantly better than that of BM and HAZ. The sequence of the corrosion resistance (by decreasing corrosion resistance) was WNZ > TMAZ > BM > HAZ. Figure 9f shows that serious pitting occurred in the interface of 6082 aluminum alloy, while the surface of steel had no corrosion.

3.2. Electrochemical Analysis

The corrosion behavior of keyhole-free friction stir spot welding joints of dissimilar 6082 aluminum alloy and DP600 galvanized steel can be characterized by an electrochemical impedance method. Chi660d-c software of Shanghai Chen Hua Instrument Co., Ltd. was used to collect and transform data, and ZSimpWin software was used to analyze electrochemical parameters.

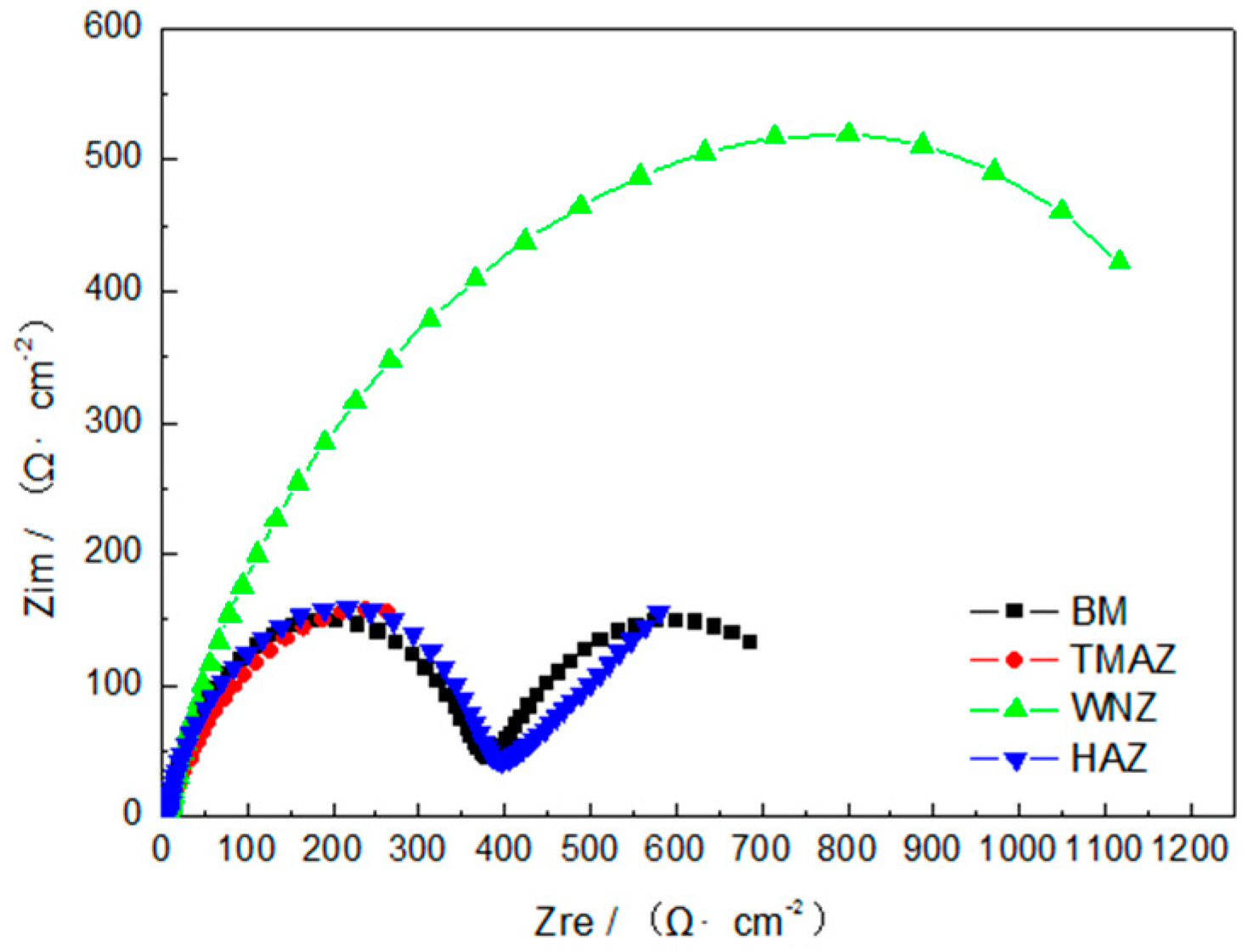

Figure 10 shows the AC impedance spectra of different areas of the transverse section of keyhole-free FSSW joints in 3.5% NaCl solution. It was found that the AC impedance spectra of different areas of the welded joints in 3.5% NaCl solution has two capacitive arcs besides WNZ in Figure 10. This was because, in the 3.5% NaCl solution, fluctuations of oxide film on the surface of 6082 aluminum alloy took place over three main steps. The first step was that metal ions (Al3+, Mg2+) left the crystal lattice in the passive film and the interface of the metal. This step, however, did not control the entire corrosion process. The second step was a mass-transfer process whereby metal ions migrated from the inside to the outside of the passive film. Finally, the third step occurred at the interface between the corrosive medium and the passive film. In the process, the new compound or passive film were formed by the combination of metal ions and anions adsorbed on the surface of the passive film. At the same time, the new compound and passive film dissolved into the corrosive medium. The passive film became thin and perforated if it is immersed for long enough. Then, the corrosion entered the stable growth stage of the pitting when the third step described above occurred. Meanwhile, the inductive components of the impedance spectrum disappeared, and the impedance was caused by a diffusion process, whereby the reaction products diffused from the solution layer close to the electrode surface to the solution. This time, there was a second capacitance arc. When corrosion time was further increased, the passive film disappeared, which resulted in only one capacitive arc in the impedance spectrum.

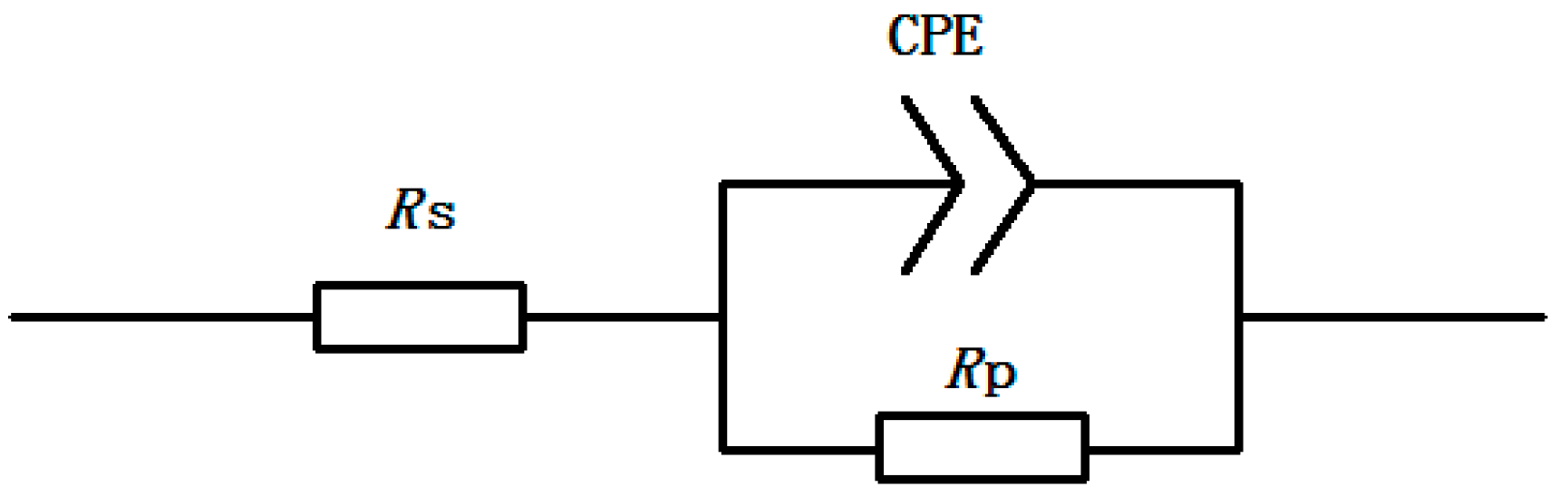

Figure 11 shows the equivalent circuit of Rs(QRp). The impedance spectra were fitted using the equivalent circuit of Rs(QRp), where Rs is solution resistance, CPE is constant-phase angle element, Q is capacitance of CPE and Rp is double-layer charge-transfer resistance. Figure 12 shows the curves of the Rp value and the self-corrosion current density, as well as the histogram of the relative corrosion rates of different areas of the transverse section of keyhole-free FSSW joints in 3.5% NaCl solution. The red line represents the Rp value and the black line represents the self-corrosion current density in Figure 12. The corrosion resistance of different areas of keyhole-free FSSW joints was determined by the Rp value. The larger the Rp value of the material, the greater its polarization resistance, and the stronger its corrosion resistance. Equally, the smaller its polarization resistance, the higher the corrosion rate in the Nyquist impedance spectrum. WNZ had the largest capacitive arc and the largest Rp value as shown in Figure 10 and Figure 12, which indicated that the corrosion resistance of WNZ was the largest and the corrosion rate was the smallest. However, the capacitive arcs of TMAZ, HAZ and BM were much smaller than that of WNZ, and the Rp value of HAZ was the smallest, followed by BM and TMAZ. Therefore, the sequence of the corrosion resistance (by decreasing corrosion resistance) was WNZ > TMAZ > BM > HAZ.
Figure 13 shows the polarization curves of different areas of the transverse section of keyhole-free FSSW joints in 3.5% NaCl solution. According to the corrosion law of electrode polarization, the self-corrosion potentials were fitted by electrochemical analysis software. Table 2 lists the self-corrosion potentials of different areas of the transverse section of keyhole-free FSSW joints of dissimilar 6082 aluminum alloy and DP600 galvanized steel. The more positive the corrosion potential was, the more stable the corrosion thermodynamics were. The self-corrosion potential of the polarization curve of welded joints had a positive and negative shift of different degrees, as shown in Figure 13 and Table 2. With a gradual positive shift of the corrosion potential, the corrosion tendency gradually slowed down. The corrosion potential of WNZ and HAZ, respectively, reached the maximum and minimum values. Therefore, the corrosion resistance of WNZ was better than that of HAZ.
The greater the corrosion current density, the greater the corrosion rate in kinetics. As shown by the black line in Figure 12, the corrosion current density increased from WNZ to HAZ, which indicated that the corrosion rate increased rapidly near HAZ. Furthermore, the corrosion rate of BM was lower than that of HAZ. The corrosion laws of the keyhole-free FSSW joints of dissimilar 6082 aluminum alloy and DP600 galvanized steel, and similar 6082 aluminum alloy, are the same in Figure 12. By comparing the two curves, it was found that the corrosion rate of similar 6082 aluminum alloy was much lower than that of dissimilar 6082 aluminum alloy and DP600 galvanized steel, especially in vicinity of BM.
The histogram of the relative corrosion rate of different areas in Figure 12 was obtained by counting the amount of pitting in each region represented in Figure 9. As shown from the histogram in Figure 12, the sequence of the corrosion resistance (by decreasing corrosion resistance) was WNZ > TMAZ > BM > HAZ. This conclusion was consistent with the results of the electrochemical analysis.

4. Conclusions

The corrosion behavior of keyhole-free friction stir spot welded joints of dissimilar 6082 aluminum alloy and DP600 galvanized steel in 3.5% NaCl solution has been investigated by the immersion test and electrochemical analysis. The joints of keyhole-free FSSW of dissimilar 6082 aluminum alloy and DP600 galvanized steel have good corrosion resistance in 3.5% NaCl solution. Important conclusions are as follows:
  • The corrosion characteristics of dissimilar aluminum/steel keyhole-free FSSW joints are mainly the exfoliation corrosion and pitting on the surface of the aluminum alloy. The fragments of aluminum alloy that were parallel to the metal surface have been separated from the metal body. The pitting seriously occurred on the exfoliation zone. The interfacial layer of the aluminum alloy had a continuous corrosion hole at the junction of aluminum alloy and the interface, but the surface of steel had no corrosion.
  • The impedance of WNZ was the largest, followed by BM and TMAZ. The self-corrosion current density of HAZ was the largest. The sequence of the corrosion resistance of different areas of the transverse section of keyhole-free FSSW joints in 3.5% NaCl solution (by decreasing corrosion resistance) was WNZ > TMAZ > BM > HAZ. Therefore, the joints of keyhole-free FSSW of dissimilar 6082 aluminum alloy and DP600 galvanized steel had better corrosion resistance than base metal in 3.5% NaCl solution.
  • The corrosion galvanic couples were formed between elements of silicon and ferrum with a high electrode potential, and magnesium and aluminum with a low electrode potential, around them. Magnesium and aluminum elements of Mg2Si and Si-containing solid-solution phase α (Al) preferentially formed anodic dissolution and formed exfoliation corrosion around silicon elements. Fe-rich phase θ (Al3Fe), as the cathode, caused corrosion of magnesium and formed pitting around the Mg-rich phase β (Al3Mg2), as the anode.

Acknowledgments

This work was supported by the national natural science foundation project (No. 10902047) of China and the natural science foundation project (No. 2014GS03264) of Gansu province.

Author Contributions

Zhong-Ke Zhang, Yang Yu and Xi-Jing Wang designed and planned the experiment. Yang Yu and Jian-Fei Zhang made the test.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Watanabe, T.; Takayama, H.; Yanagisawa, A. Joining of aluminum alloy to steel by friction stir welding. J. Mater. Proc. Technol. 2006, 178, 342–349. [Google Scholar] [CrossRef]
  2. Chen, Y.C.; Nakata, K. Effect of the surface state of steel on the microstructure and mechanical properties of dissimilar metal lap joints of aluminum and steel by friction stir welding. Metall. Mater. Trans. A 2008, 39, 1985–1992. [Google Scholar] [CrossRef]
  3. Seifert, H.-P.; Ritter, S.; Leber, H.J.; Roychowdhury, S. Stress corrosion cracking behavior in the transition region of alloy 182/low-alloy reactor pressure vessel steel dissimilar metal weld joints in light water reactor environments. Corrosion 2015, 71, 433–454. [Google Scholar] [CrossRef]
  4. Aval, H.J. Microstructure and residual stress distributions in friction stir welding of dissimilar aluminium alloys. Mater. Des. 2015, 87, 405–413. [Google Scholar] [CrossRef]
  5. Mohammadi, J.; Behnamian, Y.; Mostafaei, A. Friction stir welding joint of dissimilar materials between AZ31B magnesium and 6061 aluminum alloys: Microstructure studies and mechanical characterizations. Mater. Charact. 2015, 101, 189–207. [Google Scholar] [CrossRef]
  6. Gharavi, F.; Matoria, K.A.; Yunusa, R. Corrosion behavior of Al6061 alloy weldment produced by friction stir welding process. J. Mater. Res. Technol. 2015, 4, 314–322. [Google Scholar] [CrossRef]
  7. Wang, Q.; Zhao, Y.; Yan, K. Corrosion behavior of spray formed 7055 aluminum alloy joint welded by underwater friction stir welding. Mater. Des. 2015, 68, 97–103. [Google Scholar] [CrossRef]
  8. Kartsonakis, A.; Dragatogiannis, D.A.; Koumoulos, E.P. Corrosion behavior of dissimilar friction stir welded aluminium alloys reinforced with nanoadditives. Mater. Des. 2016, 102, 56–67. [Google Scholar] [CrossRef]
  9. Sanusi, K.O.; Akinlabi, E.T.; Muzenda, E. Enhancement of corrosion resistance behaviour of frictional stir spot welding of copper. Mater. Today Proc. 2015, 2, 1157–1165. [Google Scholar] [CrossRef]
  10. Akinlabi, E.T.; Andrews, A.; Akinlabi, S.A. Effects of processing parameters on corrosion properties of dissimilar friction stir welds of aluminium and copper. Trans. Nonferrous Met. Soc. China 2014, 24, 1323–1330. [Google Scholar] [CrossRef]
  11. Guo, J.F.; Chen, H.C.; Sun, C.N. Friction stir welding of dissimilar materials between AA6061 and AA7075 Al alloys effects of process parameters. Mater. Des. 2014, 56, 185–192. [Google Scholar] [CrossRef]
  12. Donatus, U.; Thompson, G.E.; Zhou, X. Corrosion susceptibility of dissimilar friction stir welds of AA5083 and AA6082 alloys. Mater. Charact. 2015, 107, 85–97. [Google Scholar] [CrossRef]
  13. Yazdipour, A.; Heidarzadeh, A. Effect of friction stir welding on microstructure and mechanical properties of dissimilar Al 5083-H321 and 316L stainless steel alloy joints. J. Alloys Compd. 2016, 680, 595–603. [Google Scholar] [CrossRef]
  14. Rao, C.V.; Reddy, G.M.; Rao, K.S. Influence of tool pin profile on microstructure and corrosion behavior of AA2219 Al-Cu alloy friction stir weld nuggets. Def. Technol. 2015, 11, 197–208. [Google Scholar]
  15. Yang, Y.; Zhou, L. Improving corrosion resistance of friction stir welding joint of 7075 aluminum alloy by micro-arc oxidation. J. Mater. Sci. Technol. 2014, 30, 1251–1254. [Google Scholar] [CrossRef]
  16. Aval, H.J. Influences of pin profile on the mechanical and microstructural behaviors in dissimilar friction stir welded AA6082-AA7075 butt Joint. Mater. Des. 2015, 67, 413–421. [Google Scholar] [CrossRef]
  17. Khodabakhshi, F.; Simchi, A.; Kokabi, A.H. Similar and dissimilar friction-stir welding of an PM aluminum-matrix hybrid nanocomposite and commercial pure aluminum: Microstructure and mechanical properties. Mater. Sci. Eng. A 2016, 666, 225–237. [Google Scholar] [CrossRef]
  18. Hariri, M.B.; Shiri, S.G.; Yaghoubinezhad, Y.; Rahvard, M.M. The optimum combination of tool rotation rate and traveling speed for obtaining the preferable corrosion behavior and mechanical properties of friction stir welded AA5052 aluminum alloy. Mater. Des. 2013, 50, 620–634. [Google Scholar] [CrossRef]
  19. Srinivasan, P.B.; Arora, K.S.; Dietzel, W. Characterisation of microstructure, mechanical properties and corrosion behaviour of an AA2219 friction stir weldment. J. Alloys Compd. 2010, 492, 631–637. [Google Scholar] [CrossRef]
  20. Paglia, C.S.; Buchheit, R.G. Microstructure, microchemistry and environmental cracking susceptibility of friction stir welded 2219-T87. Mater. Sci. Eng. A 2006, 429, 107–114. [Google Scholar] [CrossRef]
  21. Emilie, B.; Angeline, P.Q.; Monique, P. Relationship between microstructure, microhardness and corrosion sensitivity of an AA2024-T3 friction stir welded joint. Corros. Sci. 2011, 53, 3026–3034. [Google Scholar]
  22. Fonda, R.W.; Pao, P.S.; Jones, H.N. Microstructure, mechanical properties, and corrosion of friction stir welded Al 5456. Mater. Sci. Eng. 2009, 519, 1–8. [Google Scholar] [CrossRef]
  23. Shen, C.B.; Zhang, J.Y.; Ge, J.P. Microstructures and electrochemical behaviors of the friction stir welding dissimilar weld. J. Environ. Sci. 2011, 23, S32–S35. [Google Scholar] [CrossRef]
  24. Shen, C.B.; Wang, Z.Z.; Quan, G.F. Microstructures and electrochemical performance of welds of 6082 aluminum alloy prepared by friction stir welding. Corros. Sci. Prot. Technol. 2010, 22, 400–402. [Google Scholar]
  25. Shen, C.B.; Zhao, Y.D.; Liu, S.H. Electrochemical corrosion behavior of friction stir welding dissimilar weld of 5083 and 6082 aluminum alloy. J. Aeronaut. Mater. 2009, 29, 24–28. [Google Scholar]
  26. Kang, J.; Liang, S.Y.; Li, G. Effect of processing parameters on microstructure and corrosion behavior of friction stir welded 2024 aluminum alloy. Corros. Sci. Prot. Technol. 2012, 24, 51–56. [Google Scholar]
  27. Wadeson, D.A.; Zhou, X.; Thompson, G.E.; Skeldon, P.; Djapic Oosterkamp, L.; Scamans, G. Corrosion behavior of friction stir welded AA7108 T79 aluminum alloy. Corros. Sci. 2006, 48, 887–897. [Google Scholar] [CrossRef]
  28. Xu, W.F.; Liu, J.H.; Zhu, H.Q. Pitting corrosion of friction stir welded aluminum alloy thick plate in alkaline chloride solution. Electrochim. Acta 2010, 55, 2918–2923. [Google Scholar] [CrossRef]
  29. Surekha, K.; Murty, B.S.; Prasad, R.K. Microstructural characterization and corrosion behavior of multipass friction stir processed AA2219 aluminium alloy. Surf. Coat. Technol. 2008, 202, 4057–4068. [Google Scholar] [CrossRef]
  30. Surekha, K.; Murty, B.S.; Prasad, R.K. Effect of processing parameters on the corrosion behaviour of friction stir processed AA 2219 aluminum alloy. Solid State Sci. 2009, 11, 907–917. [Google Scholar] [CrossRef]
  31. Surekha, K.; Murty, B.S.; Prasad, R.K. Comparison of corrosion behavior of friction stir processed and laser melted AA 2219 aluminium alloy. Mater. Des. 2011, 32, 4502–4508. [Google Scholar] [CrossRef]
  32. Hsieh, M.-J.; Lee, R.-T.; Chiou, Y.-C. Friction stir spot fusion welding of low-carbon steel to aluminum alloy. J. Mater. Proc. Technol. 2017, 240, 118–125. [Google Scholar] [CrossRef]
  33. Dong, H.; Chena, S.; Song, Y.; Guo, X.; Zhang, X.; Sun, Z. Refilled friction stir spot welding of aluminum alloy to galvanized steel sheets. Mater. Des. 2016, 94, 457–466. [Google Scholar] [CrossRef]
  34. Cho, H.H.; Kang, S.H.; Kim, S.H.; Oh, K.H.; Kim, H.J.; Chang, W.-S.; Han, H.N. Microstructural evolution in friction stir welding of high-strength linepipe steel. Mater. Des. 2012, 34, 258–267. [Google Scholar] [CrossRef]
  35. Wang, X.; Wang, J.; Yue, X.; Gao, Y. Effect of aging treatment on the exfoliation corrosion and stress corrosion cracking behaviors of 2195 Al-Li alloy. Mater. Des. 2015, 67, 596–605. [Google Scholar] [CrossRef]
  36. Navaser, M.; Atapour, M. Effect of friction stir processing on pitting corrosion and intergranular attack of 7075 aluminum alloy. J. Mater. Sci. Technol. 2017, 33, 155–165. [Google Scholar] [CrossRef]

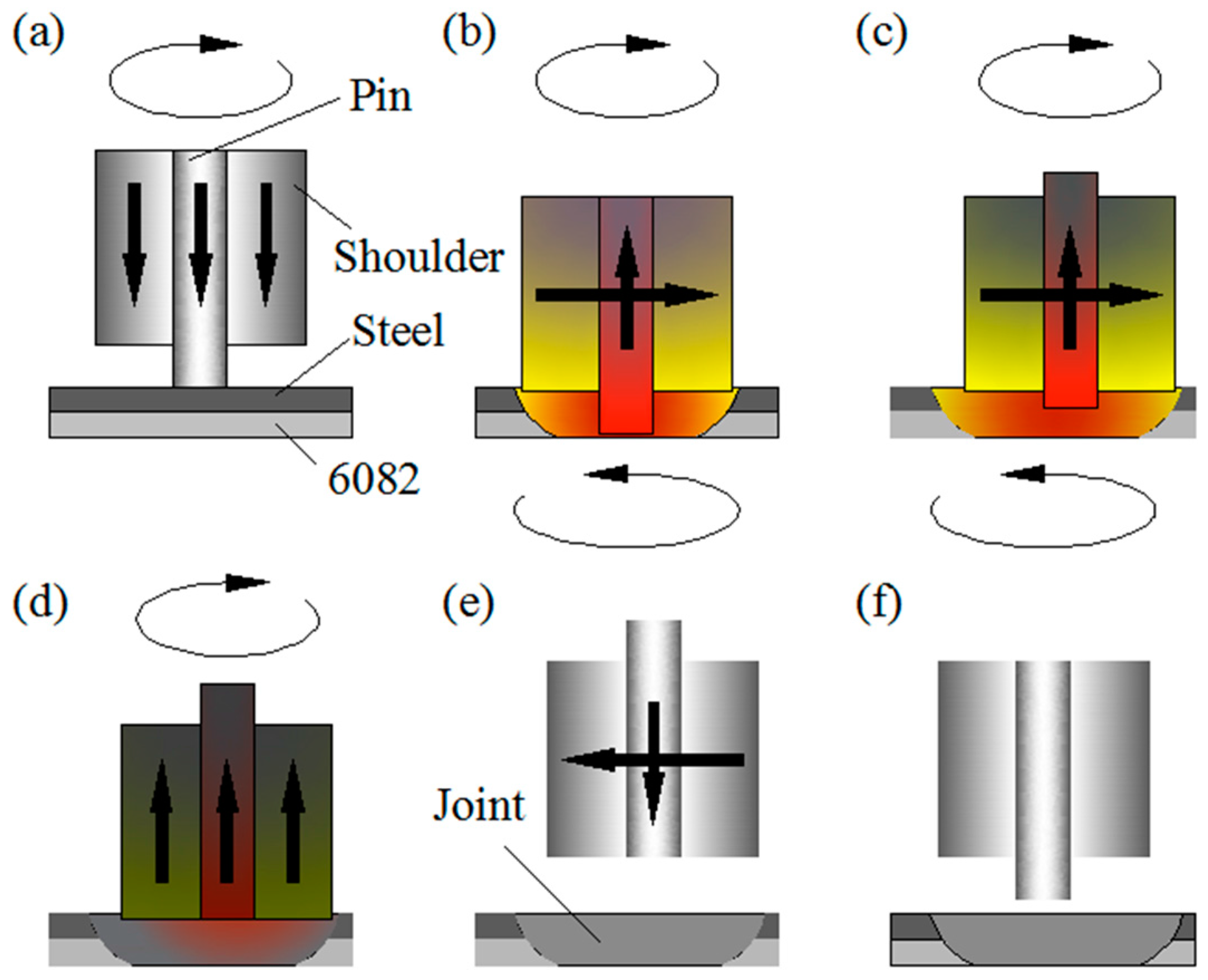

Figure 1. Welding process of the rotary retractile keyhole-free FSSW (Fiction Stir Spot Welding).
Figure 1. Welding process of the rotary retractile keyhole-free FSSW (Fiction Stir Spot Welding).
Metals 07 00338 g001
Figure 2. Keyhole-free FSSW joint of dissimilar 6082 aluminum alloy and DP600 galvanized steel: (a) the sample; (b) the sketch map of wire cutting.
Figure 2. Keyhole-free FSSW joint of dissimilar 6082 aluminum alloy and DP600 galvanized steel: (a) the sample; (b) the sketch map of wire cutting.
Metals 07 00338 g002
Figure 3. The optical micrographs and macroscopic corrosion morphology of the transverse section of keyhole-free FSSW joints. (a) The optical micrographs before immersion; (b) the macroscopic corrosion morphology after immersion in 3.5% NaCl solution for 48 h.
Figure 3. The optical micrographs and macroscopic corrosion morphology of the transverse section of keyhole-free FSSW joints. (a) The optical micrographs before immersion; (b) the macroscopic corrosion morphology after immersion in 3.5% NaCl solution for 48 h.
Metals 07 00338 g003

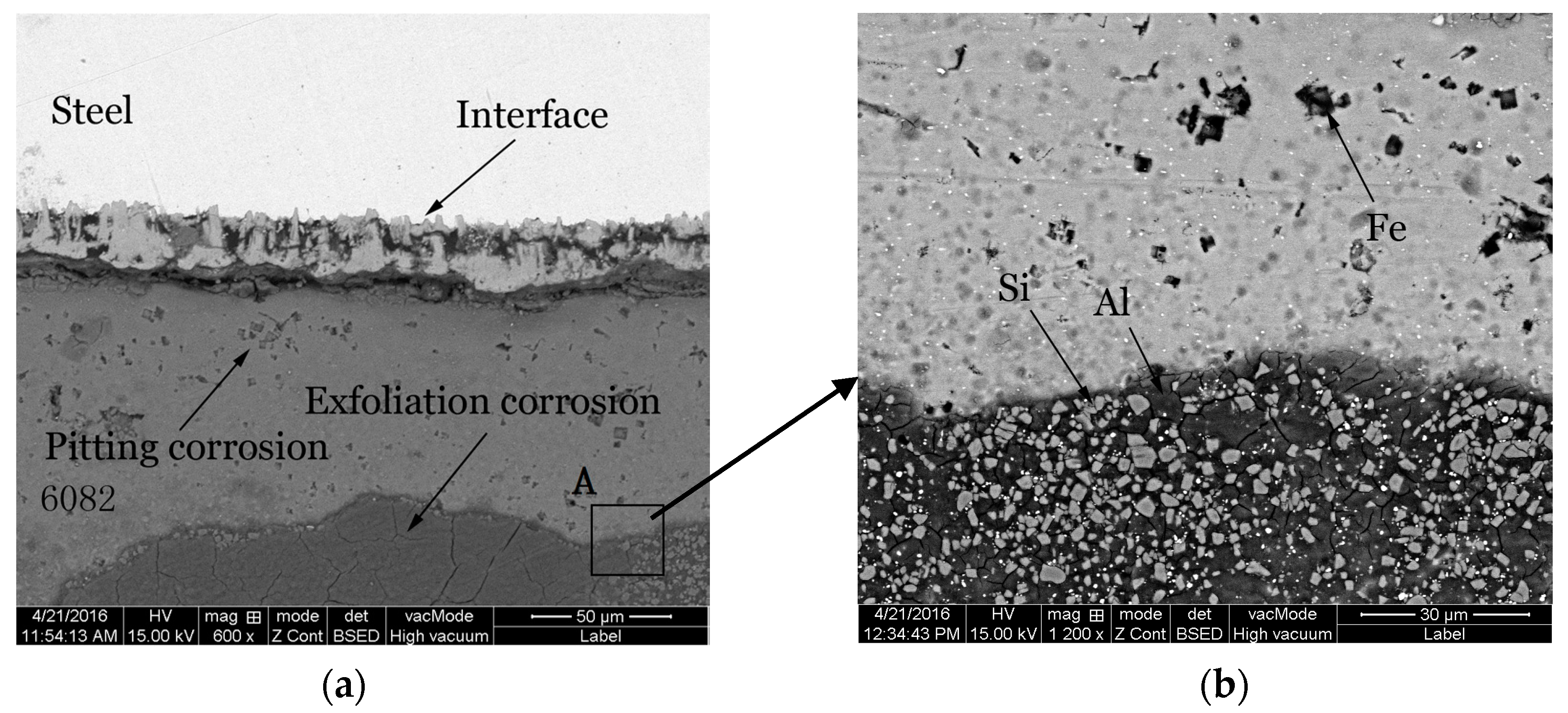

Figure 4. (a) The microscopic corrosion morphology of the transverse section of keyhole-free FSSW joints after immersion for 48 h. (b) The elements at the interface and interfacial layer.
Figure 4. (a) The microscopic corrosion morphology of the transverse section of keyhole-free FSSW joints after immersion for 48 h. (b) The elements at the interface and interfacial layer.
Metals 07 00338 g004
Figure 5. (a) The microscopic corrosion morphology and (b,c) EDS (Energy Dispersion Spectrum) surface scan spectrum of the exfoliation corrosion zone.
Figure 5. (a) The microscopic corrosion morphology and (b,c) EDS (Energy Dispersion Spectrum) surface scan spectrum of the exfoliation corrosion zone.
Metals 07 00338 g005

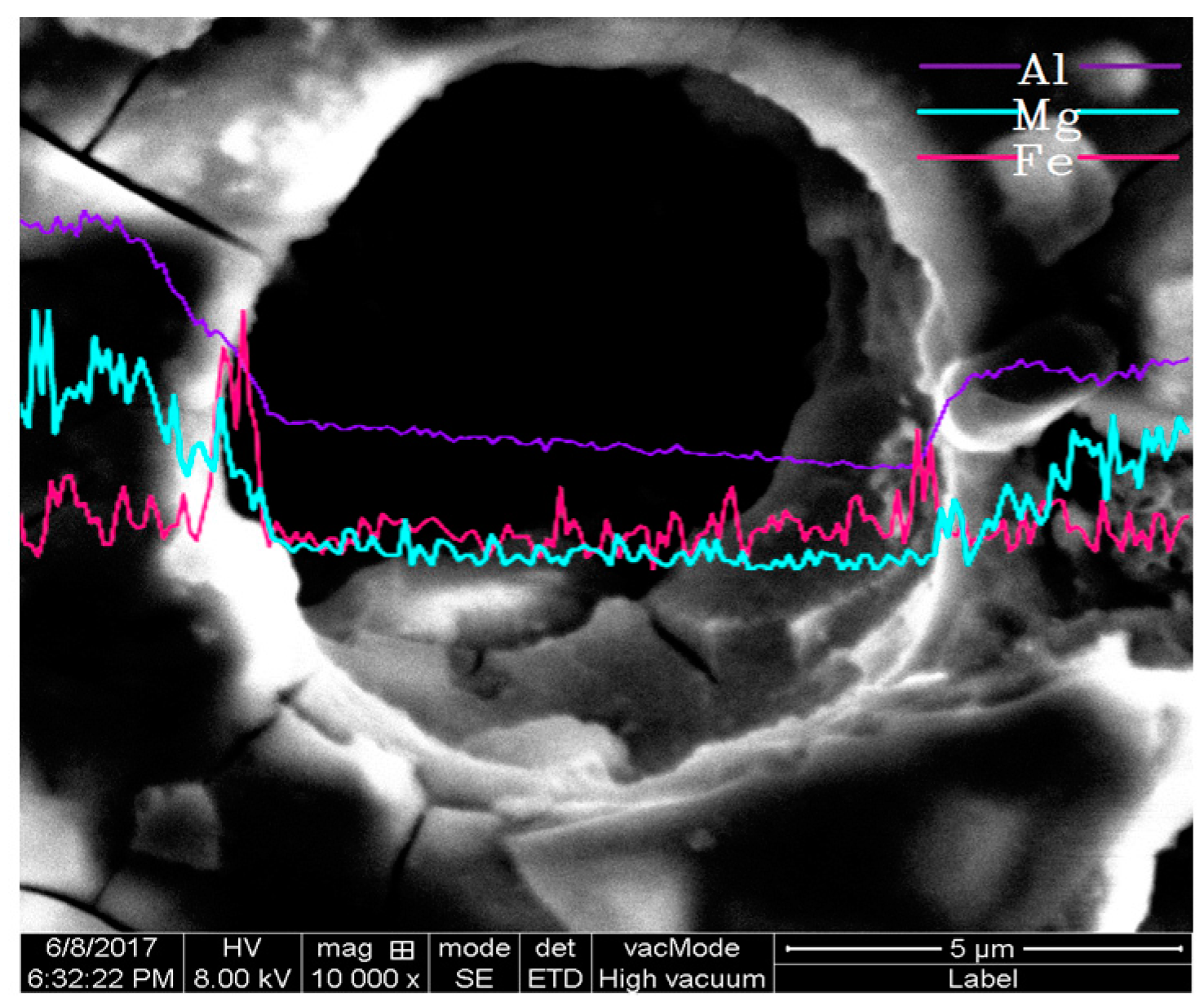

Figure 6. The microscopic corrosion morphology and EDS line scan spectrum of the pitting zone.
Figure 6. The microscopic corrosion morphology and EDS line scan spectrum of the pitting zone.
Metals 07 00338 g006
Figure 7. The phase diagram of the Al-Fe binary alloy.
Figure 7. The phase diagram of the Al-Fe binary alloy.
Metals 07 00338 g007
Figure 8. XRD (X-ray Diffraction) spectrum of the transverse section of keyhole-free FSSW joints of dissimilar 6082 aluminum alloy and DP600 galvanized steel.
Figure 8. XRD (X-ray Diffraction) spectrum of the transverse section of keyhole-free FSSW joints of dissimilar 6082 aluminum alloy and DP600 galvanized steel.
Metals 07 00338 g008

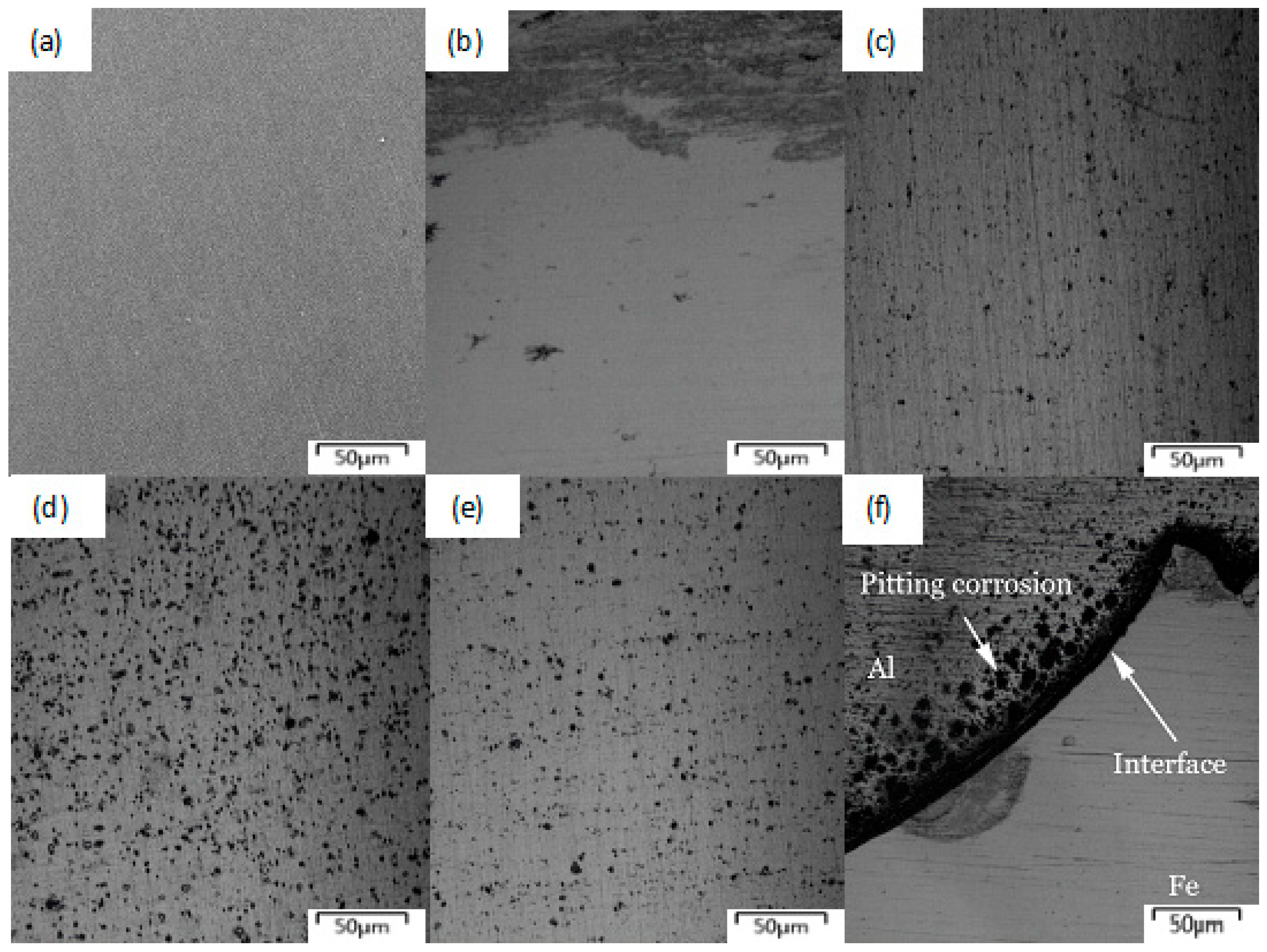

Figure 9. The microscopic corrosion morphology of the transverse section of 6082 aluminum alloy on different zones in keyhole-free FSSW joints before and after immersion for 96 h: (a) before immersion; (b) WNZ (Weld Nugget Zone); (c) TMAZ (Thermo-mechanically Affected Zone); (d) HAZ (Heat-affected Zone); (e) BM (Base Metal); (f) the interface of aluminum and steel.
Figure 9. The microscopic corrosion morphology of the transverse section of 6082 aluminum alloy on different zones in keyhole-free FSSW joints before and after immersion for 96 h: (a) before immersion; (b) WNZ (Weld Nugget Zone); (c) TMAZ (Thermo-mechanically Affected Zone); (d) HAZ (Heat-affected Zone); (e) BM (Base Metal); (f) the interface of aluminum and steel.
Metals 07 00338 g009
Figure 10. AC impedance spectra of different areas of the transverse section of keyhole-free FSSW joints in 3.5% NaCl solution.
Figure 10. AC impedance spectra of different areas of the transverse section of keyhole-free FSSW joints in 3.5% NaCl solution.
Metals 07 00338 g010
Figure 11. The equivalent circuit of Rs(QRp), where Rs is solution resistance; Rp is polarization resistance; Q is capacitance of CPE (Constant Phase-angle Element).
Figure 11. The equivalent circuit of Rs(QRp), where Rs is solution resistance; Rp is polarization resistance; Q is capacitance of CPE (Constant Phase-angle Element).
Metals 07 00338 g011

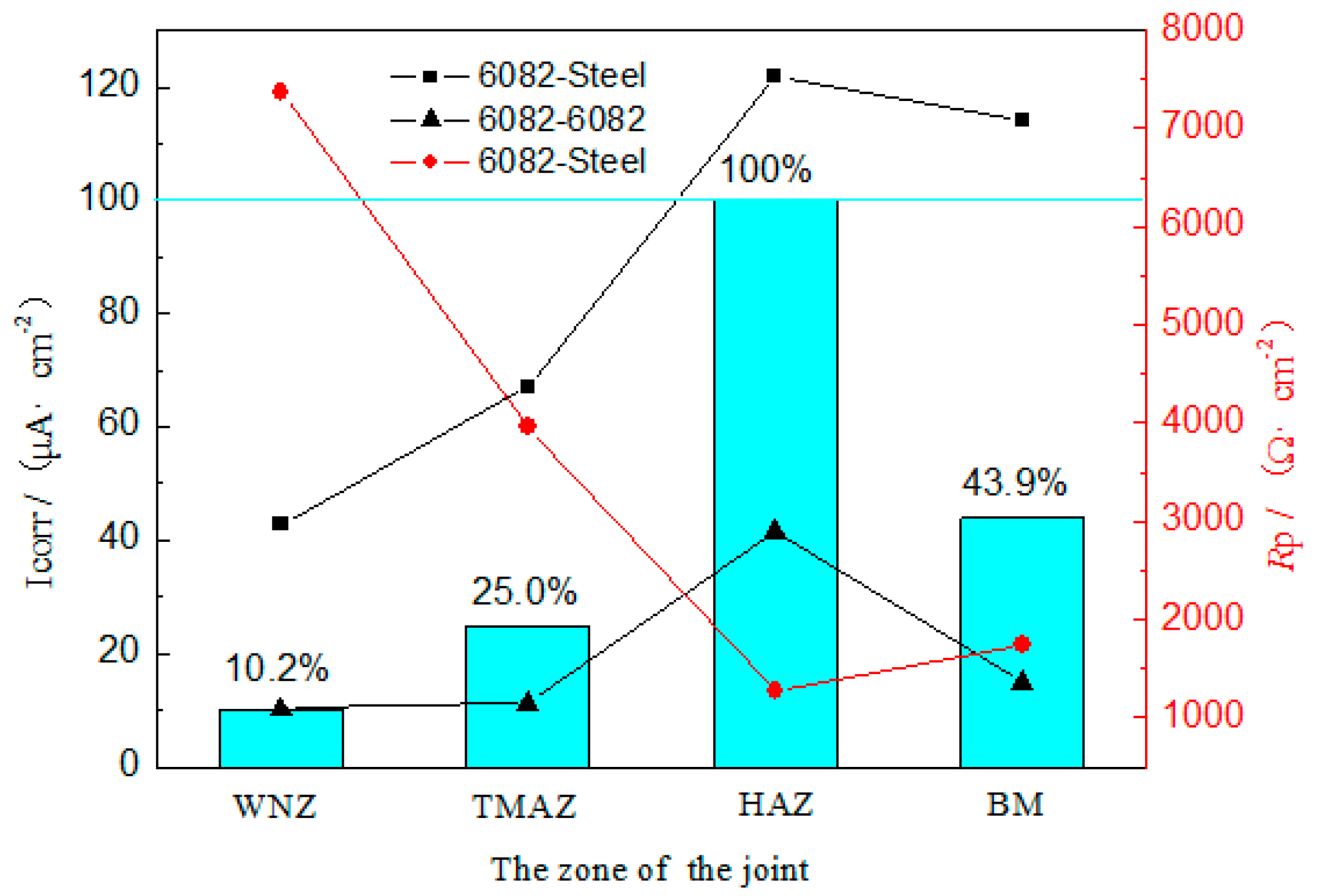

Figure 12. The curves of Rp value and self-corrosion current density, and the histogram of the relative corrosion rates of different areas of the transverse section of keyhole-free FSSW joints in 3.5% NaCl solution.
Figure 12. The curves of Rp value and self-corrosion current density, and the histogram of the relative corrosion rates of different areas of the transverse section of keyhole-free FSSW joints in 3.5% NaCl solution.
Metals 07 00338 g012
Figure 13. The polarization curves of different areas of the transverse section of keyhole-free FSSW joints in 3.5% NaCl solution.
Figure 13. The polarization curves of different areas of the transverse section of keyhole-free FSSW joints in 3.5% NaCl solution.
Metals 07 00338 g013
Table 1. The chemical composition of 6082 aluminum alloy and DP600 galvanized steel (in wt %).
Table 1. The chemical composition of 6082 aluminum alloy and DP600 galvanized steel (in wt %).
6082SiFeCuMnMgCrZnTiOther
Content0.7–1.30.500.100.4–1.00.6–1.20.250.200.100.15
DP600CMnSiAlMoCrCuSP
Content0.091.840.360.050.010.020.030.0050.005
Table 2. The self-corrosion potentials of different areas of the transverse section of keyhole-free FSSW joints.
Table 2. The self-corrosion potentials of different areas of the transverse section of keyhole-free FSSW joints.
ZoneWNZTMAZHAZBM
Potential/V−0.895−1.041−1.117−1.090
