Next Article in Journal
Study on Microstructure and Properties of Bimodal Structured Ultrafine-Grained Ferrite Steel
Previous Article in Journal
Erratum: Structure, Texture and Phases in 3D Printed IN718 Alloy Subjected to Homogenization and HIP Treatments. Metals 2017, 7, 196
Article Menu
Issue 8 (August) cover image

Export Article

Open AccessArticle
Metals 2017, 7(8), 312; doi:10.3390/met7080312

Statistical Analysis and Fatigue Life Estimations for Quenched and Tempered Steel at Different Tempering Temperatures

1
School of Mechanical Engineering and Automation, Northeastern University, Shenyang 110004, China
2
North Automatic Control Technology Institute, Taiyuan 030006, China
3
Shenyang Machine Tool Co., Ltd., Shenyang 110142, China
*
Author to whom correspondence should be addressed.
Received: 6 July 2017 / Revised: 8 August 2017 / Accepted: 9 August 2017 / Published: 16 August 2017
View Full-Text   |   Download PDF [2790 KB, uploaded 16 August 2017]   |

Abstract

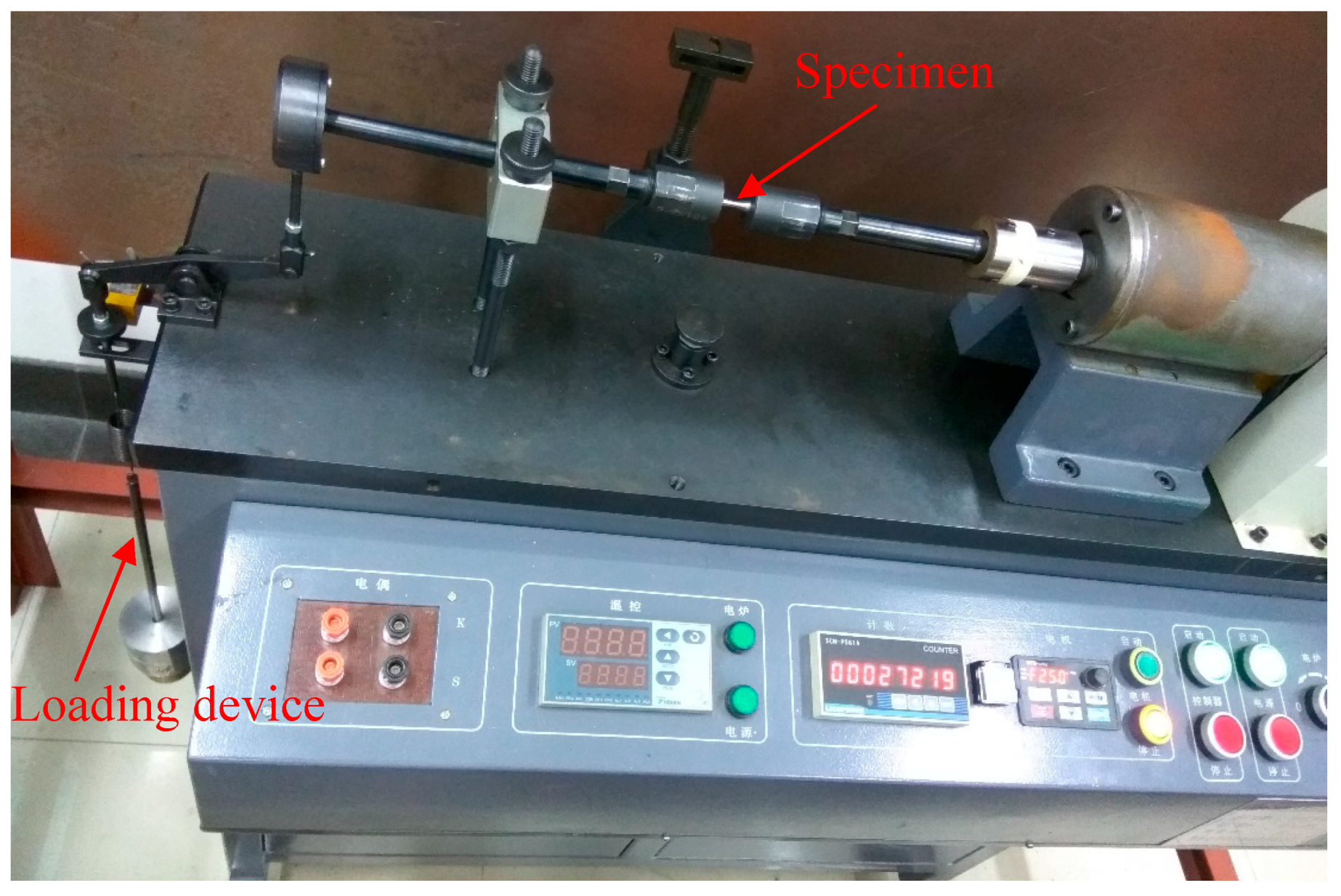

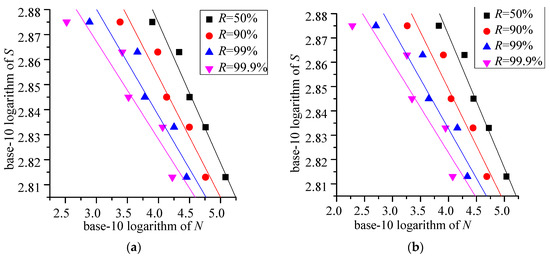

In this paper, the statistical properties and fatigue life estimations of 0.44% carbon steel at different tempering temperatures are presented. The specimens were austenized at 900 °C for 10 min, quenched in water, tempered at different temperatures, and then machined to the design geometry and average surface roughness of Ra = 0.4 μm. The effect of tempering temperature on the fatigue life of 0.44% carbon steel was investigated using 75 fatigue tests, divided into three groups at temperatures 500 °C, 600 °C, and 700 °C. S–N and P–S–N curves were established. Two methods of estimating the mean fatigue life are presented. One is based on dislocation dipole accumulation and Paris’ law; another is based on the kriging model. Six more fatigue tests were carried out to validate the presented methods. Test results showed that the first method is superior to the second in terms of estimating accuracy from the validation datum. However, the second method could estimate the mean fatigue life of quenched and tempered 0.44% carbon steel with an average surface roughness of Ra = 0.4 μm when the tempering temperature was set to a value other than 500 °C, 600 °C, or 700 °C, with no additional fatigue test needed. View Full-Text
Keywords: 0.44% carbon steel; quenching and tempering treatment; tempering temperature; surface roughness; fatigue life 0.44% carbon steel; quenching and tempering treatment; tempering temperature; surface roughness; fatigue life
Figures

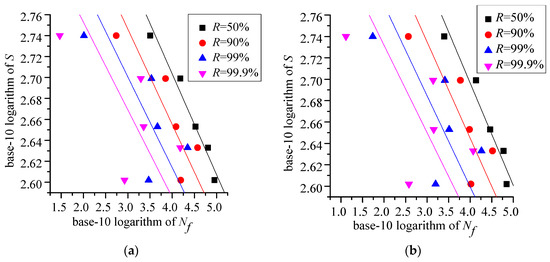

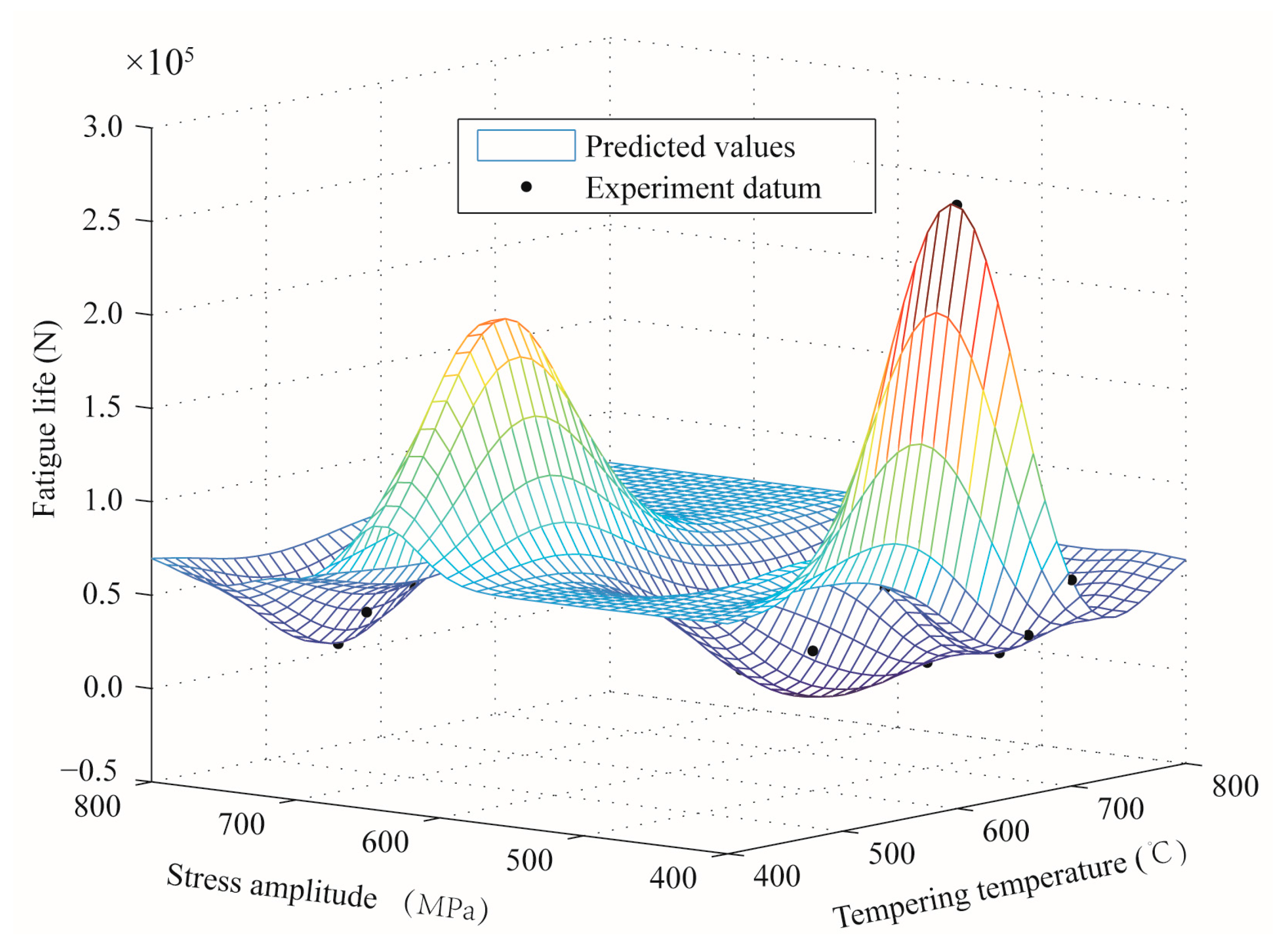

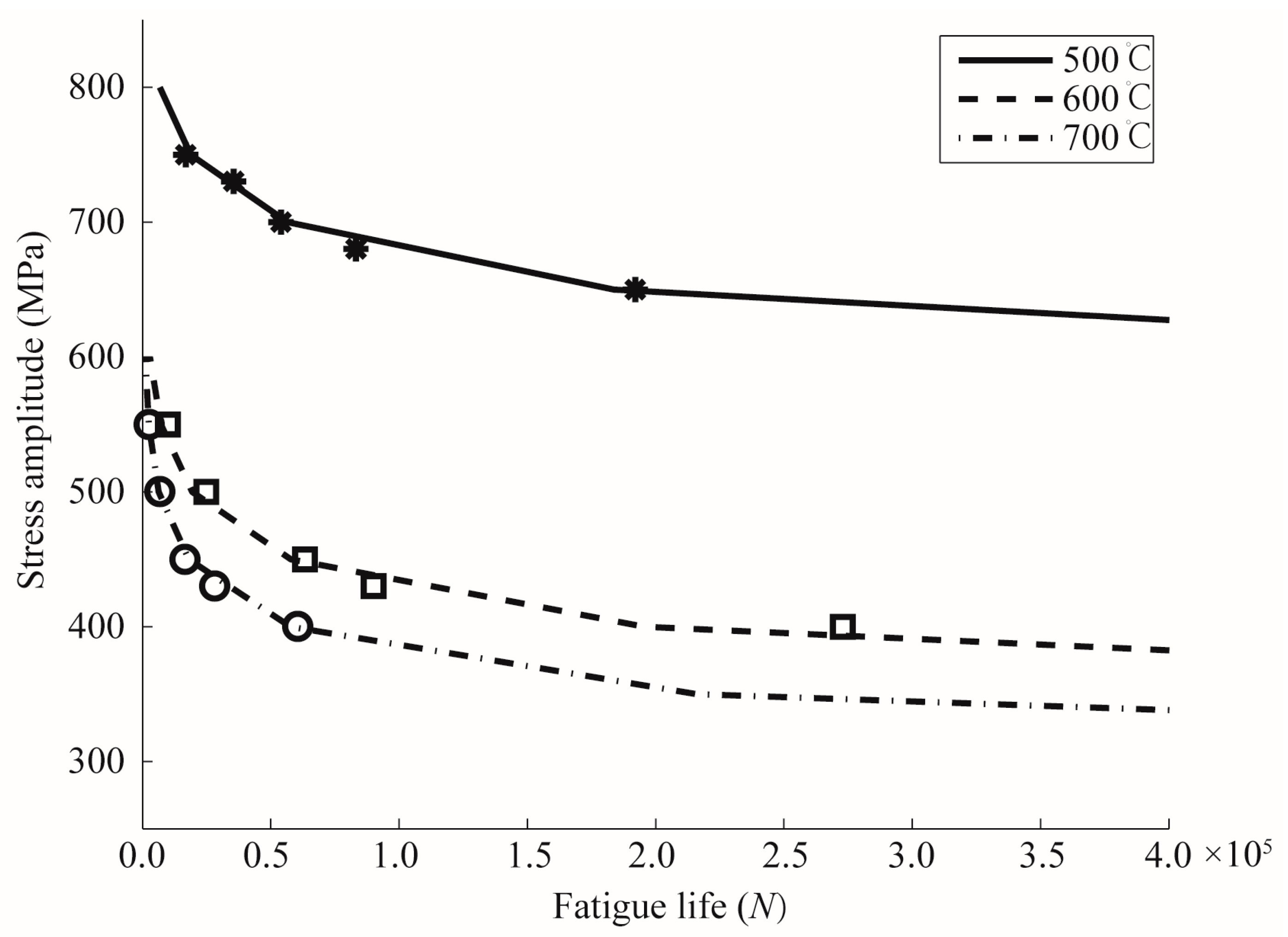

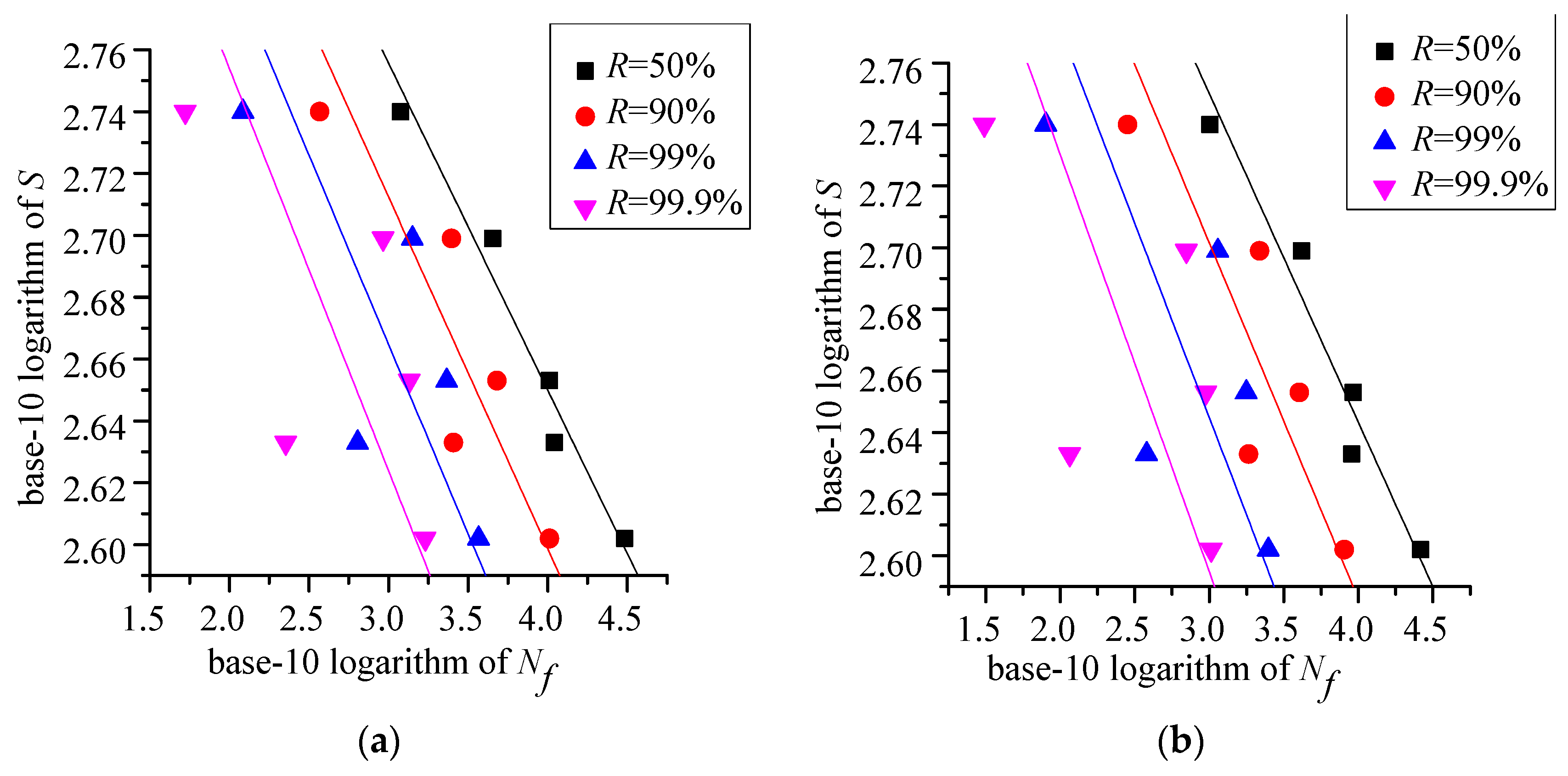

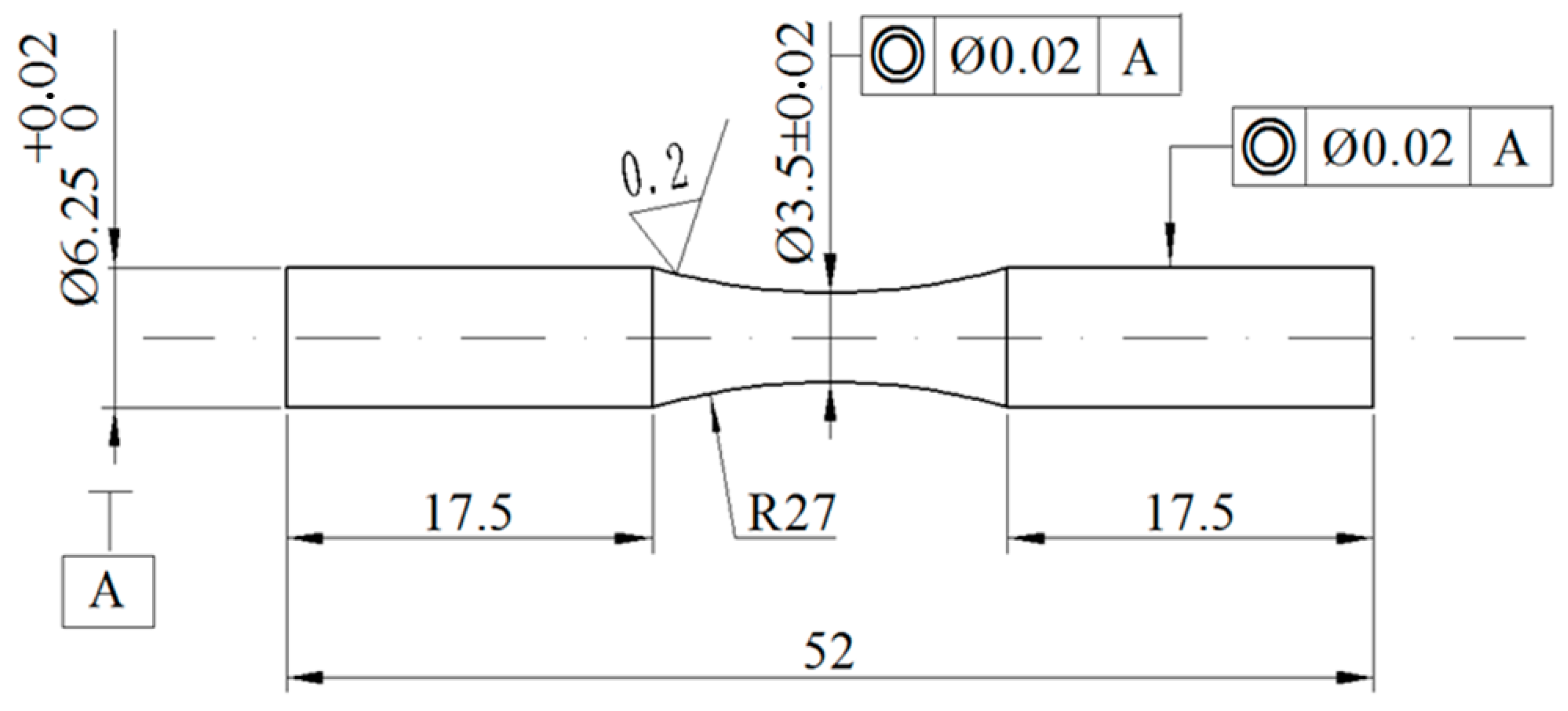

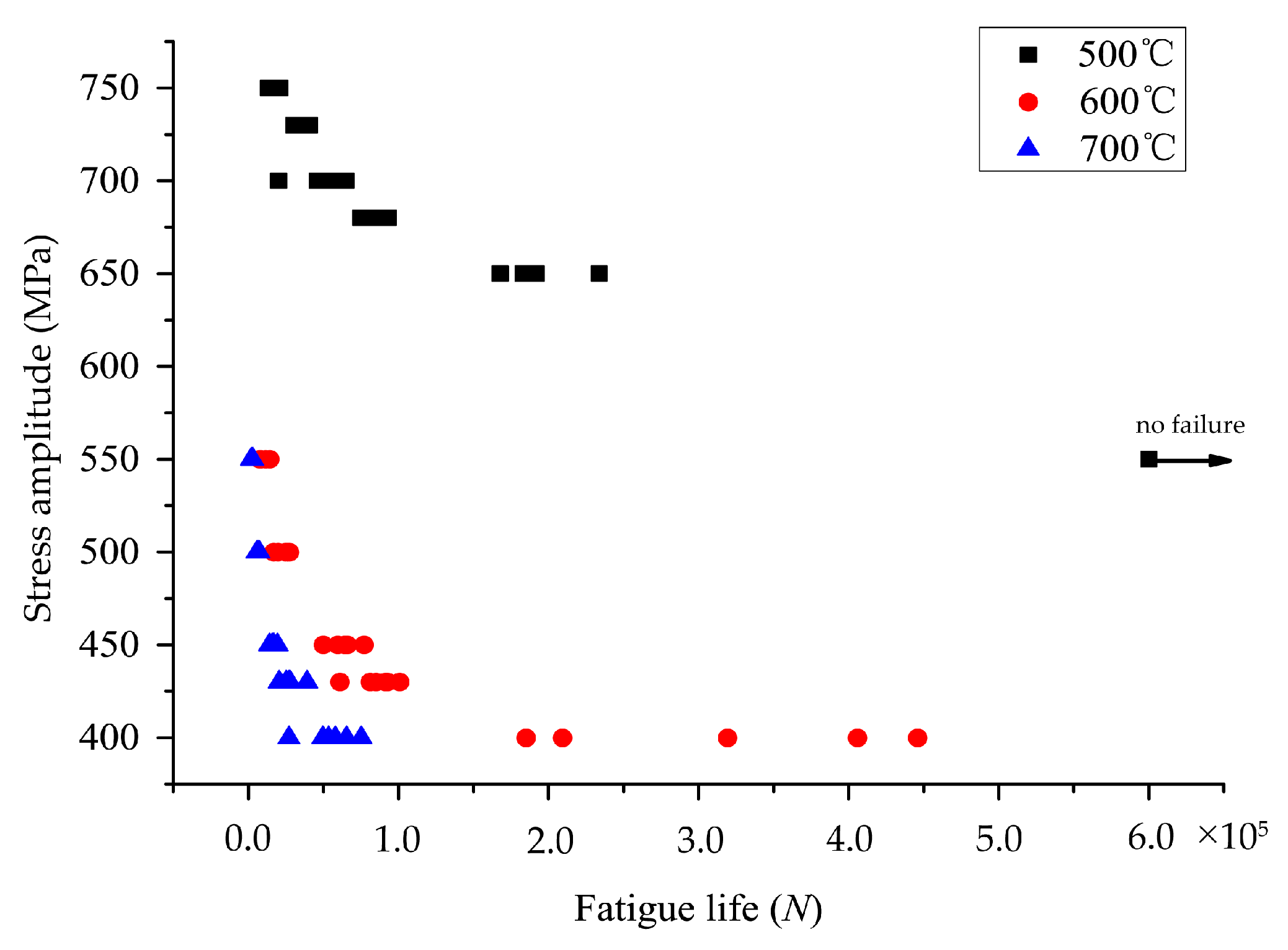

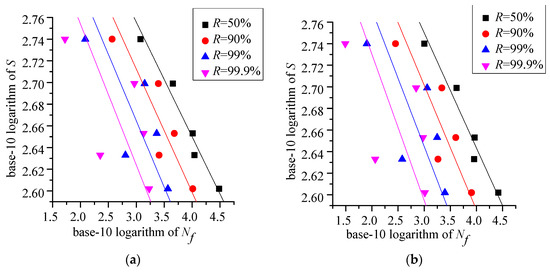

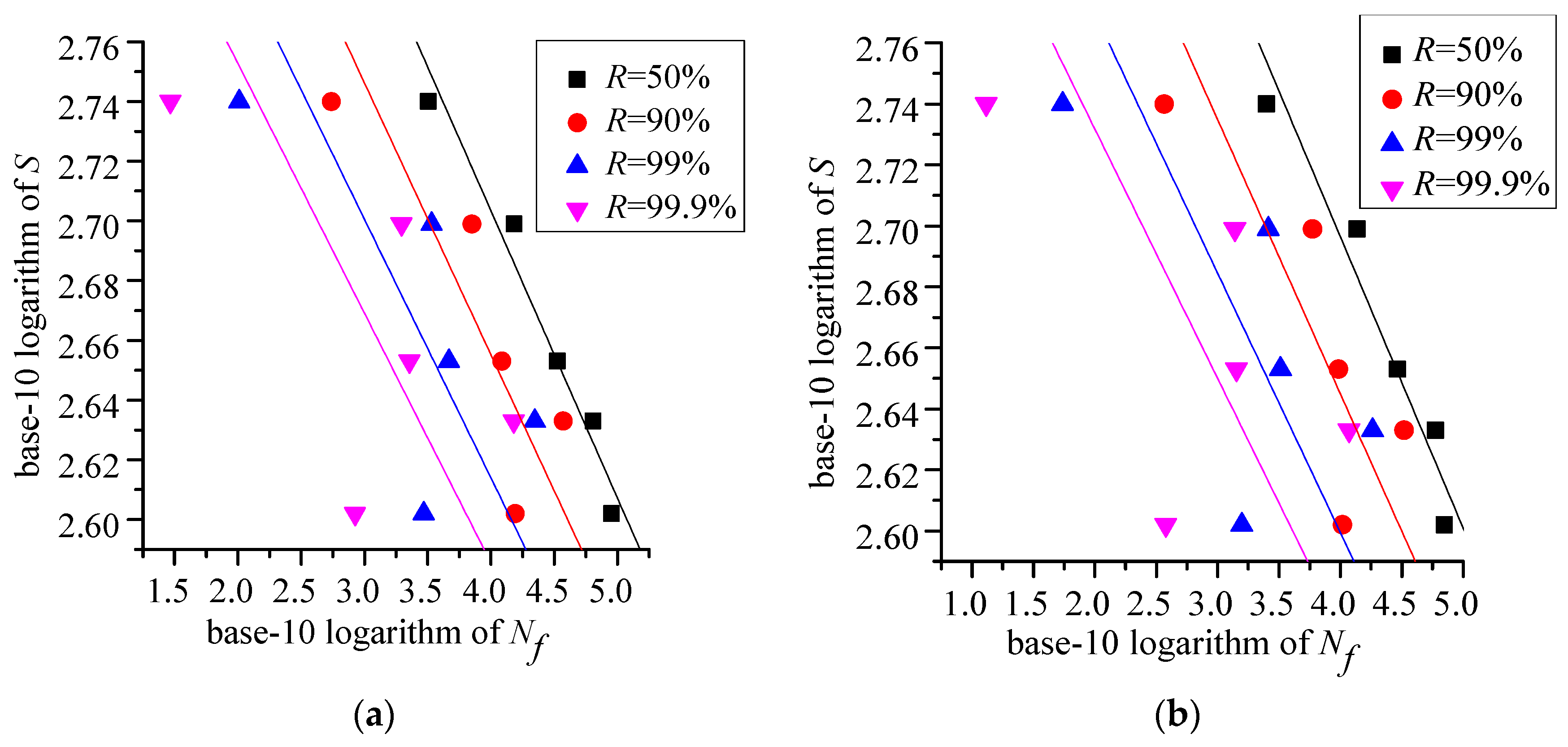

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Li, C.; Li, S.; Duan, F.; Wang, Y.; Zhang, Y.; He, D.; Li, Z.; Wang, W. Statistical Analysis and Fatigue Life Estimations for Quenched and Tempered Steel at Different Tempering Temperatures. Metals 2017, 7, 312.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
